Open AccessArticle

Extraction and Determination of Vitamin K1 in Foods by Ultrasound-Assisted Extraction, SPE, and LC-MS/MS

by Yueqing Xu 1,2, Liangxiao Zhang 1,3,4,*, Ruinan Yang 1,2, Xu Yu 1,2, Li Yu 1,4, Fei Ma 1,3, Hui Li 1,5, Xiupin Wang 1,4 and Peiwu Li 1,3,4,5
1
Oil Crops Research Institute, Chinese Academy of Agricultural Sciences, Wuhan 430062, China
2
Key Laboratory of Biology and Genetic Improvement of Oil Crops, Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
3
Laboratory of Quality and Safety Risk Assessment for Oilseed Products (Wuhan), Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
4
Quality Inspection and Test Center for Oilseed Products, Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
5
Key Laboratory of Detection for Mycotoxins, Ministry of Agriculture and Rural Affairs, Wuhan 430062, China
*
Author to whom correspondence should be addressed.
Academic Editors: Monika Waksmundzka-Hajnos and Miroslaw Hawryl
Molecules 2020, 25(4), 839; https://doi.org/10.3390/molecules25040839 (registering DOI)
Received: 29 December 2019 / Revised: 11 February 2020 / Accepted: 11 February 2020 / Published: 14 February 2020
(This article belongs to the Special Issue Chromatographic Science of Natural Products)

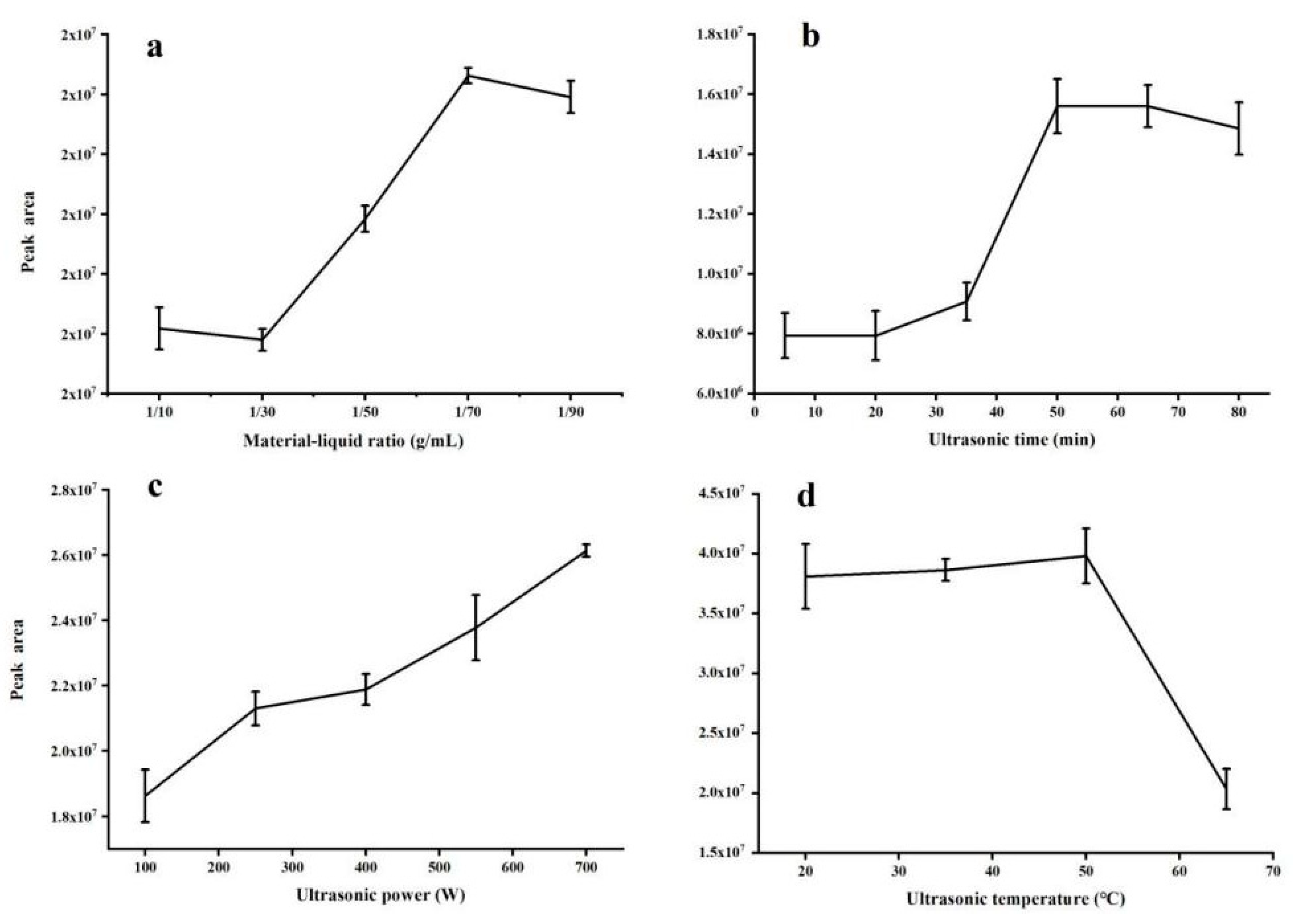

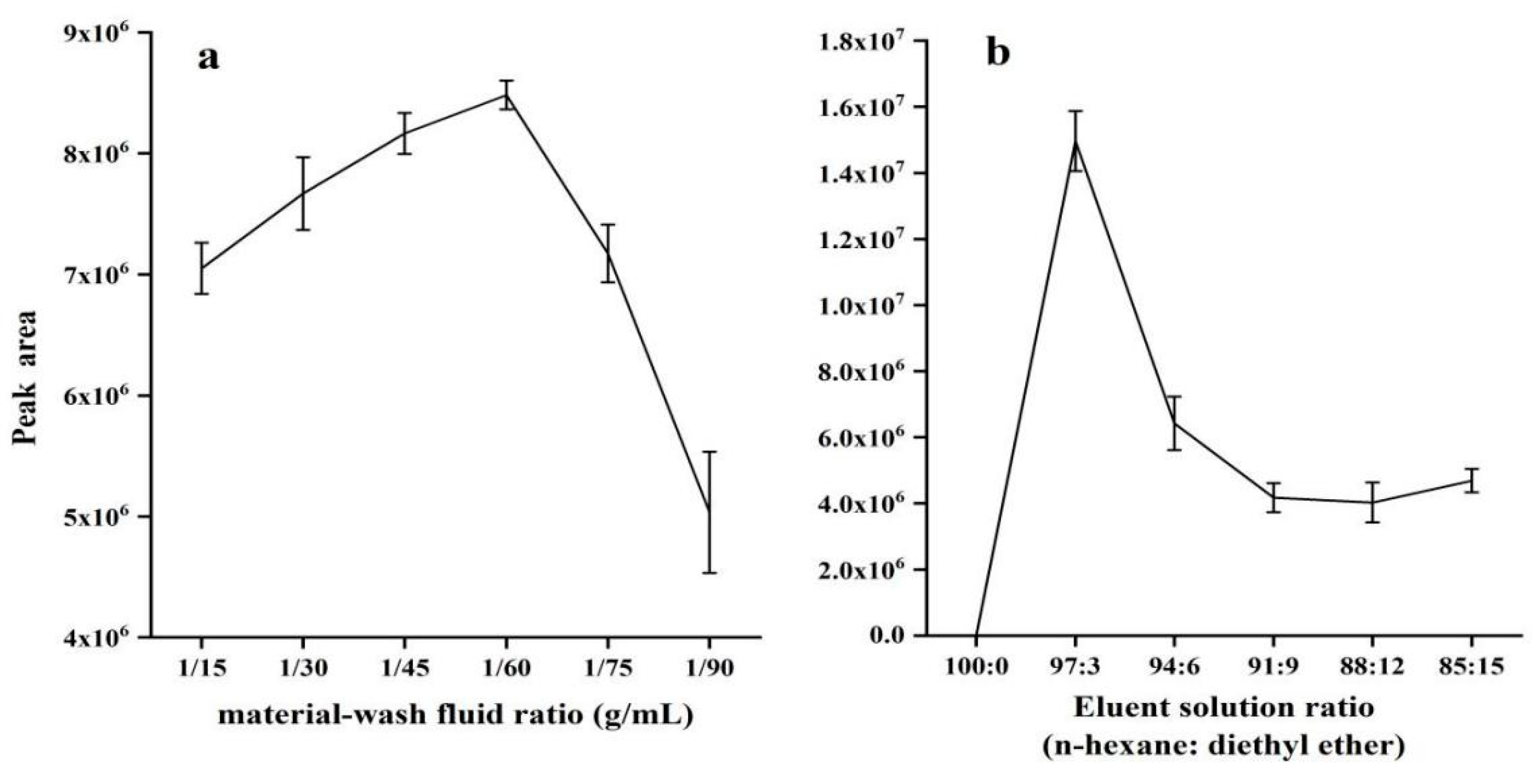

Vitamin K1 is one of the important hydrophobic vitamins in fat-containing foods. Traditionally, lipase is employed in the determination of vitamin K1 to remove the lipids, which makes the detection complex, time-consuming, and insensitive. In this study, the determination of vitamin K1 in fat-containing foods was developed based on ultrasound-assisted extraction (UAE), solid-phase extraction (SPE) combined with liquid chromatography–tandem mass spectrometry (LC-MS/MS). The optimal conditions for extraction of vitamin K1 were material–liquid ratio of 1:70 (g/mL), extraction temperature of 50 °C, extraction power of 700 W, extraction time of 50 min, material-wash fluid ratio of 1:60 (g/mL), and 8 mL of hexane/anhydrous ether (97:3, v/v) as the elution solvent. Then, vitamin K1 was analyzed on a ZORBAX SB-C18 column (50 mm × 2.1 mm, 1.8 μm) by gradient elution with water (0.01% formic acid) and methanol (0.01 formic acid + 2.5 mmol/L ammonium formate) as the mobile phase. The limit of detection (LOD) and limit of quantification (LOQ) were 0.05 and 0.16 μg/kg, respectively. Calibration curve was linear over the range of 10–500 ng/mL (R2 > 0.9988). The recoveries at three spiked levels were between 80.9% and 119.1%. The validation and application indicated that the proposed method was simple and sensitive in determination of vitamin K1 in fat-containing foods. View Full-Text
Keywords: ultrasound-assisted extraction; solid-phase extraction; LC-MS/MS; vitamin K1; foods ultrasound-assisted extraction; solid-phase extraction; LC-MS/MS; vitamin K1; foods
Show Figures

Figure 1

MDPI and ACS Style

Xu, Y.; Zhang, L.; Yang, R.; Yu, X.; Yu, L.; Ma, F.; Li, H.; Wang, X.; Li, P. Extraction and Determination of Vitamin K1 in Foods by Ultrasound-Assisted Extraction, SPE, and LC-MS/MS. Molecules 2020, 25, 839.
