Review

Diels-Alder Additions as Mechanistic Probes–Interception of Silyl-Isoindenes: Organometallic Derivatives of Polyphenylated Cycloheptatrienes and Related Seven-Membered Rings

by
Michael J. McGlinchey
School of Chemistry, University College Dublin, D04 V1W8 Belfield, Dublin 4, Ireland
Molecules 2020, 25(20), 4730; https://doi.org/10.3390/molecules25204730
Submission received: 23 September 2020 / Revised: 13 October 2020 / Accepted: 14 October 2020 / Published: 15 October 2020
(This article belongs to the Special Issue Diels-Alder Reaction in Organic Synthesis)
Browse Figures
Versions Notes

Abstract

:
The intermediacy of short-lived isoindenes, generated in the course of metallotropic or silatropic shifts over the indene skeleton, can be shown by Diels-Alder trapping with tetracyanoethylene, leading to the complete elucidation of the dynamic behaviour of a series of polyindenylsilanes. Cyclopentadienones, bearing ferrocenyl and multiple phenyl or naphthyl substituents undergo [4 + 2] cycloadditions with diaryl acetylenes or triphenylcyclopropene to form the corresponding polyarylbenzenes or cycloheptatrienes. The heptaphenyltropylium cation, [C7Ph7+], was shown to adopt a nonplanar shallow boat conformation. In contrast, the attempted Diels-Alder reaction of tetracyclone and phenethynylfluorene yielded electroluminescent tetracenes. Finally, benzyne addition to 9-(2-indenyl)anthracene, and subsequent incorporation of a range of organometallic fragments, led to development of an organometallic molecular brake.

Graphical Abstract

1. Introduction

While Diels-Alder cycloadditions have been the cornerstone of much elegant natural product chemistry, as in the first total synthesis of a steroid (cortisone by Woodward [1]) or in the preparation of molecules having unprecedented symmetry such as cubane by Eaton [2], triquinacene by Paquette [3], and cubic graphite by Pascal [4], or exhibiting novel materials properties as in Mullen’s superacenes [5], they can also play a role in the elucidation of reaction mechanisms. Herein, we discuss the use of Diels-Alder reactions to trap proposed short-lived intermediates, to provide convenient high yield routes to sterically crowded organic and organometallic molecules and, even when they do not proceed as anticipated, to lead to unexpected novel products.

2. Diels-Alder Trapping of Isoindenes

2.1. Metallotropic Shifts

In the first example, we consider one of the now classic studies of fluxional behaviour in organometallic chemistry. The preparation of bis(cyclopentadienyl)dicarbonyliron, (C5H5)2Fe(CO)2, raised a fascinating mechanistic observation: X-ray crystallography revealed that while one of the cyclopentadienyl rings was η5-bonded, in the other ring only a single carbon was attached to the iron atom. Moreover, although this latter fragment exhibited 1H NMR signals in the ratio 1:2:2 at low temperature, these peaks coalesced as the temperature was raised [6]. It was eventually established that the (η5-C5H5)FeCO)2 (Fp) moiety was undergoing a series of [1,2] migrations (subsequently reformulated in Woodward-Hoffmann terms as [1,5]-suprafacial sigmatropic shifts), as shown in Scheme 1.
However, when one ligand was replaced by an indenyl substituent, as in Scheme 2, a potential problem arose. If such a [1,5] shift were to occur, this would involve the intermediacy of an isoindene with partial disruption of aromaticity and, presumably, a substantially increased barrier to migration. This question is not resolvable by simply raising the temperature to monitor peak coalescence between the H(1) and H(3) sites because, already at 70 °C, there is evident decomposition with loss of the carbonyl ligands and formation of benzoferrocene [7,8].

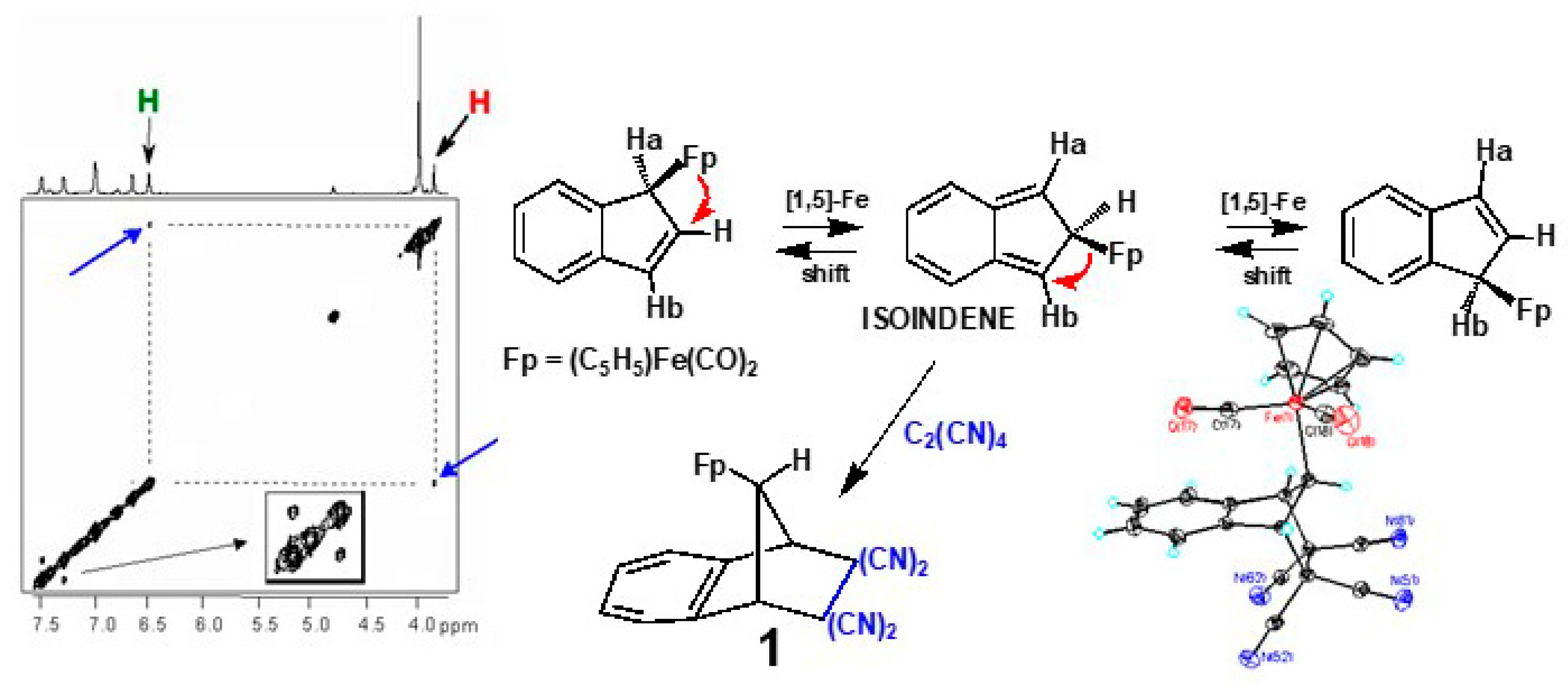

We chose to reinvestigate this system taking advantage of the development of the 2D EXSY NMR technique that facilitates the observation of chemical exchange processes without the need to raise the temperature such that line broadening is evident. This approach is ideal for temperature-sensitive molecules in which the barrier to exchange is high. The spectrum shown in Figure 1 clearly reveals exchange of the sp3-bonded and sp2-bonded protons–H(1) and H(3), respectively, and the barrier was evaluated as ~85 kJ mol−1 [9], markedly higher than the 45 kJ mol−1 value previously found for migration round the cyclopentadienyl ring in (η5-C5H5)Fe(CO)2(η1-C5H5).

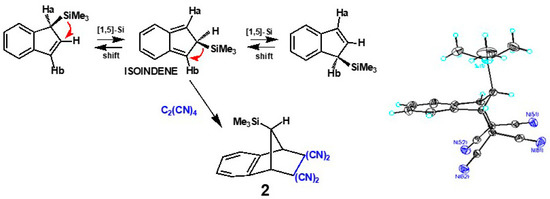

Conclusive evidence for the intermediacy of the isoindene was provided by its reaction with tetracyanoethylene (TCNE) at room temperature to form the Diels-Alder adduct, 1, that was unambiguously characterised by X-ray crystallography (Figure 1) [9], even though it had been suggested that the absence of an available diene unit would render the system incapable of participating in a [4 + 2] cycloaddition [10].

2.2. Silatropic Shifts

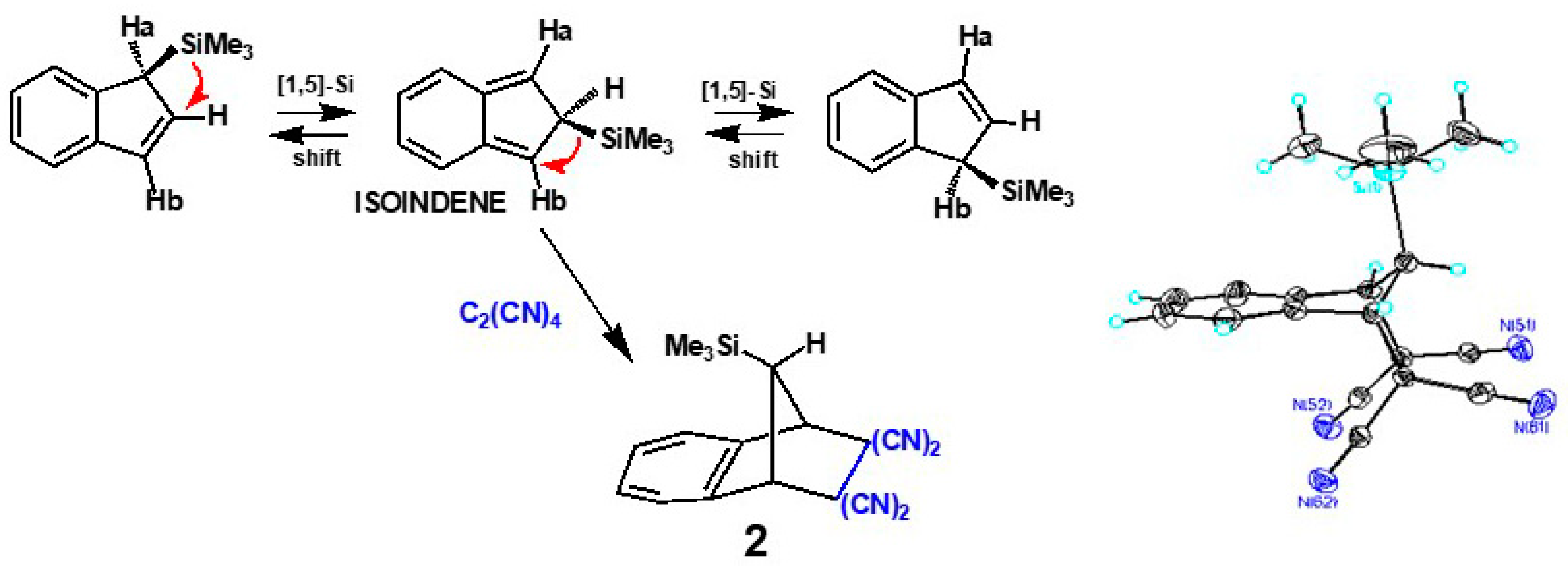

In closely related systems, the [1,5]-migration of a trimethylsilyl (germyl or stannyl) substituent around the indenyl ring was investigated, and the intermediate isoindenes were trapped by Diels-Alder reaction with maleic anhydride or TCNE [11,12,13,14], as depicted in Figure 2.

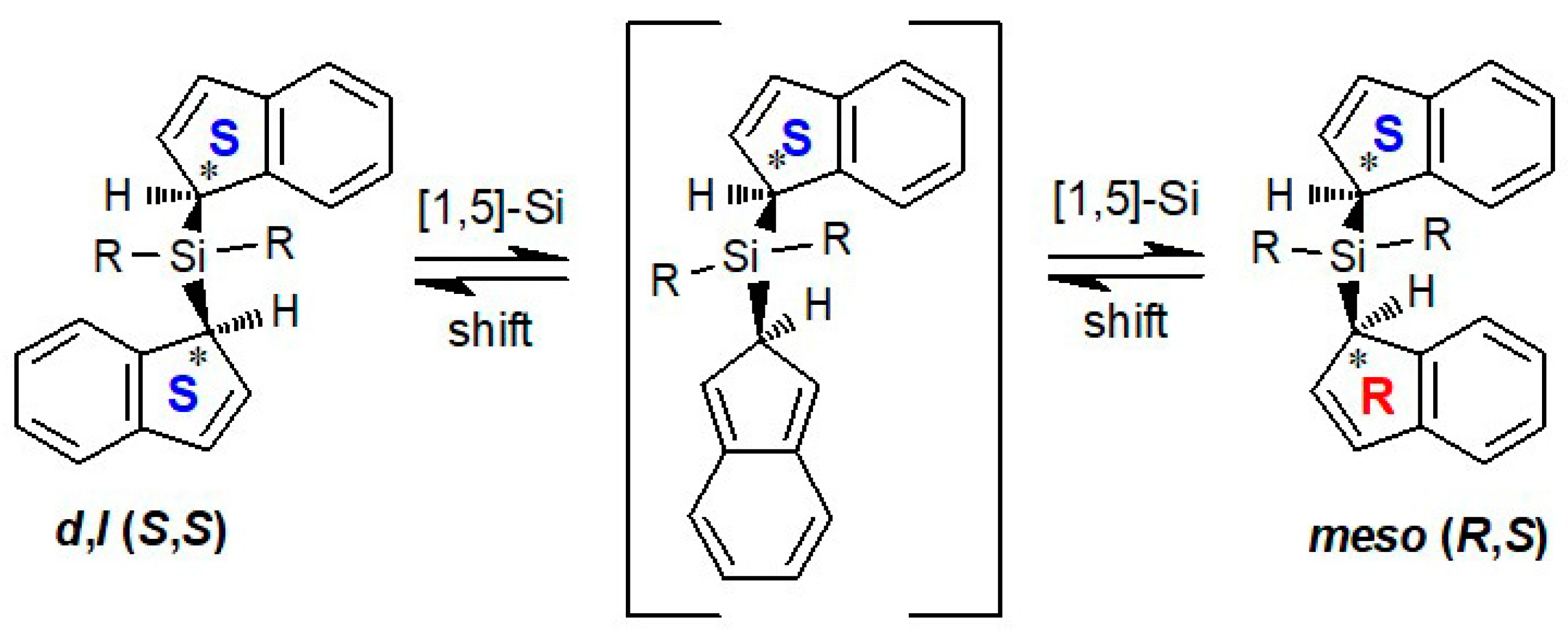

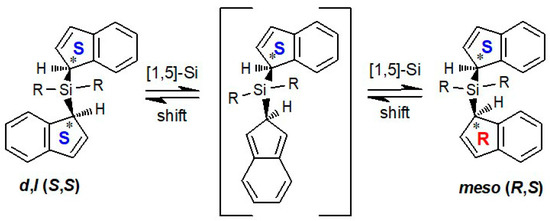

In bis(indenyl)dimethylsilane, interconversion of the meso and dl isomers was monitored by following the NMR behaviour of the methyl groups (Scheme 3). In the mirror-symmetric meso isomer they are nonequivalent, whereas in the dl case the C2 symmetry renders the methyls equivalent. Again, the intermediate isoindene was trapped as its Diels-Alder TCNE adduct [15].

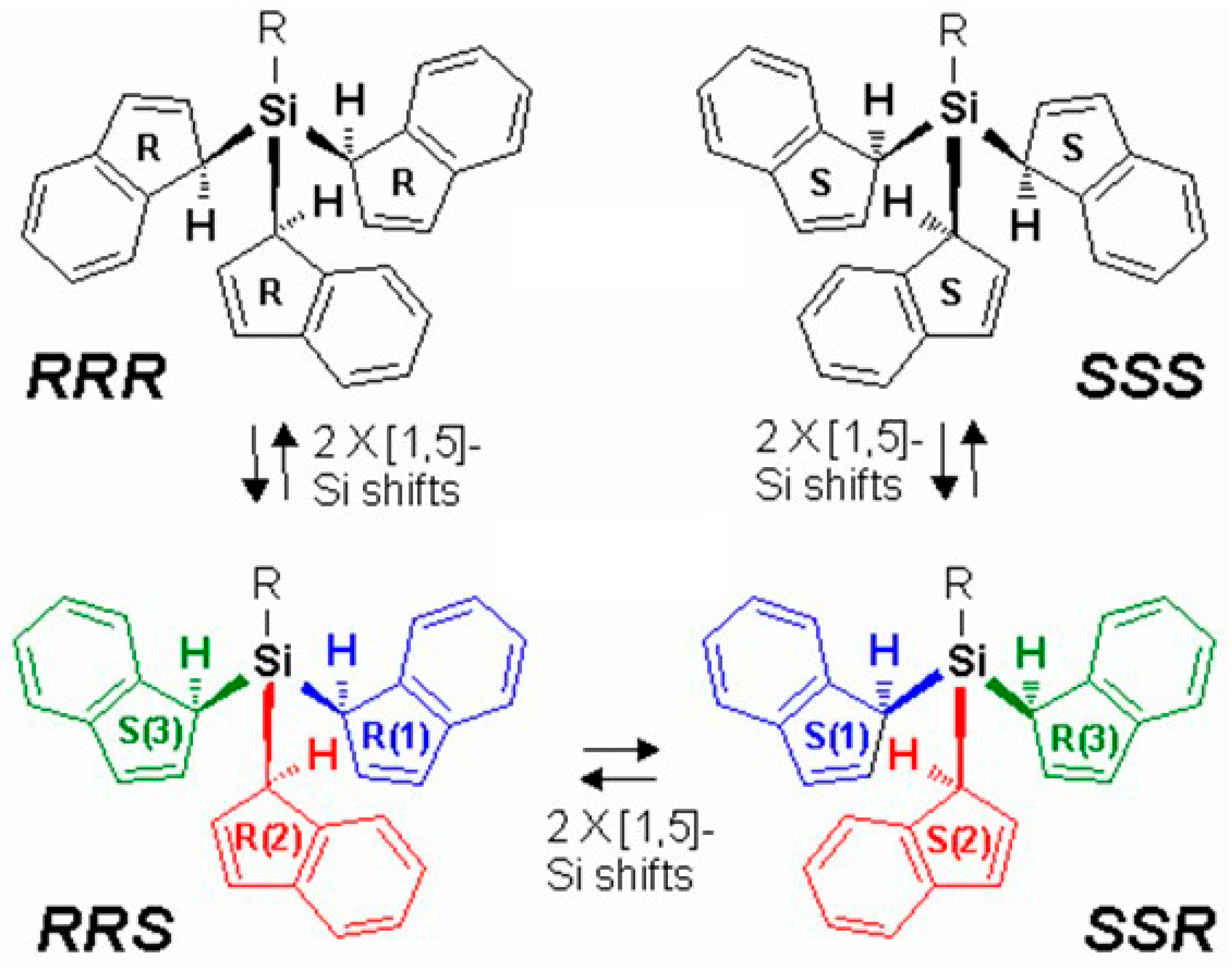

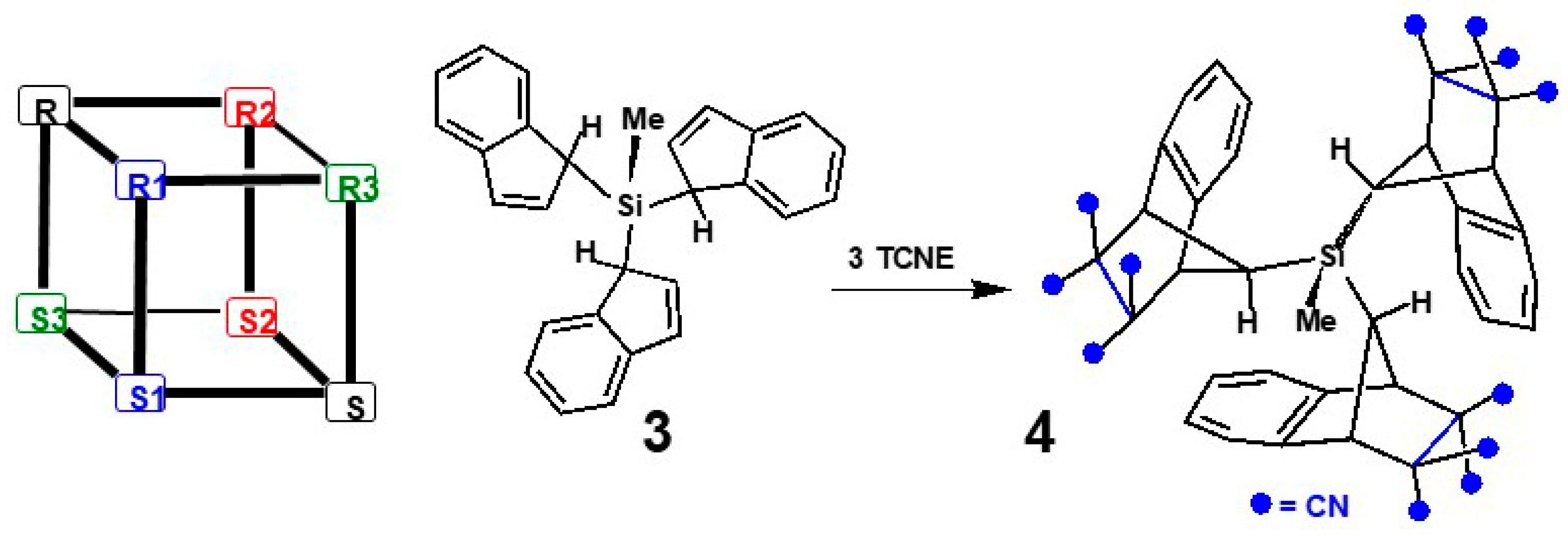

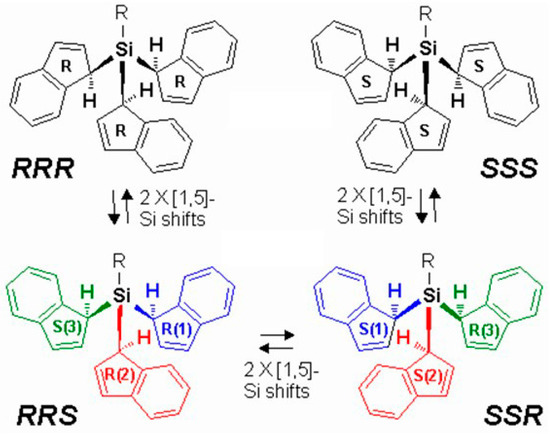

This work has been extended to bis-, tris- and tetrakis-indenyl systems [16,17]. A particularly dramatic case is tris(indenyl)methylsilane, 3, which gives rise to RRR, RRS, RSS and SSS isomers in a 1:3:3:1 ratio, where the R and S labels refer to the absolute configuration of C(1) in each indenyl ring, as shown in Scheme 4.
A combination of 1H-1H COSY, 1H-13C and 1H-29Si shift-correlated NMR data revealed the unequivocal assignment of the proton and carbon-13 nuclei in all the different indenyl ring environments, and 1D-selective inversion and 2D-EXSY spectra allowed the elucidation of their molecular dynamics [17]. As depicted in Figure 3, the exchange pathways between indenyl sites in 3 can be mapped onto a cube (for the eight different indenyl ring environments), and a hypercube (for the exchange of 1H in sp2 and sp3 environments) and again involve successive [1,5]-suprafacial sigmatropic shifts via isoindene intermediates. Gratifyingly, several triple Diels-Alder TCNE adducts, 4, have been isolated and fully characterized by X-ray crystallography [18,19].

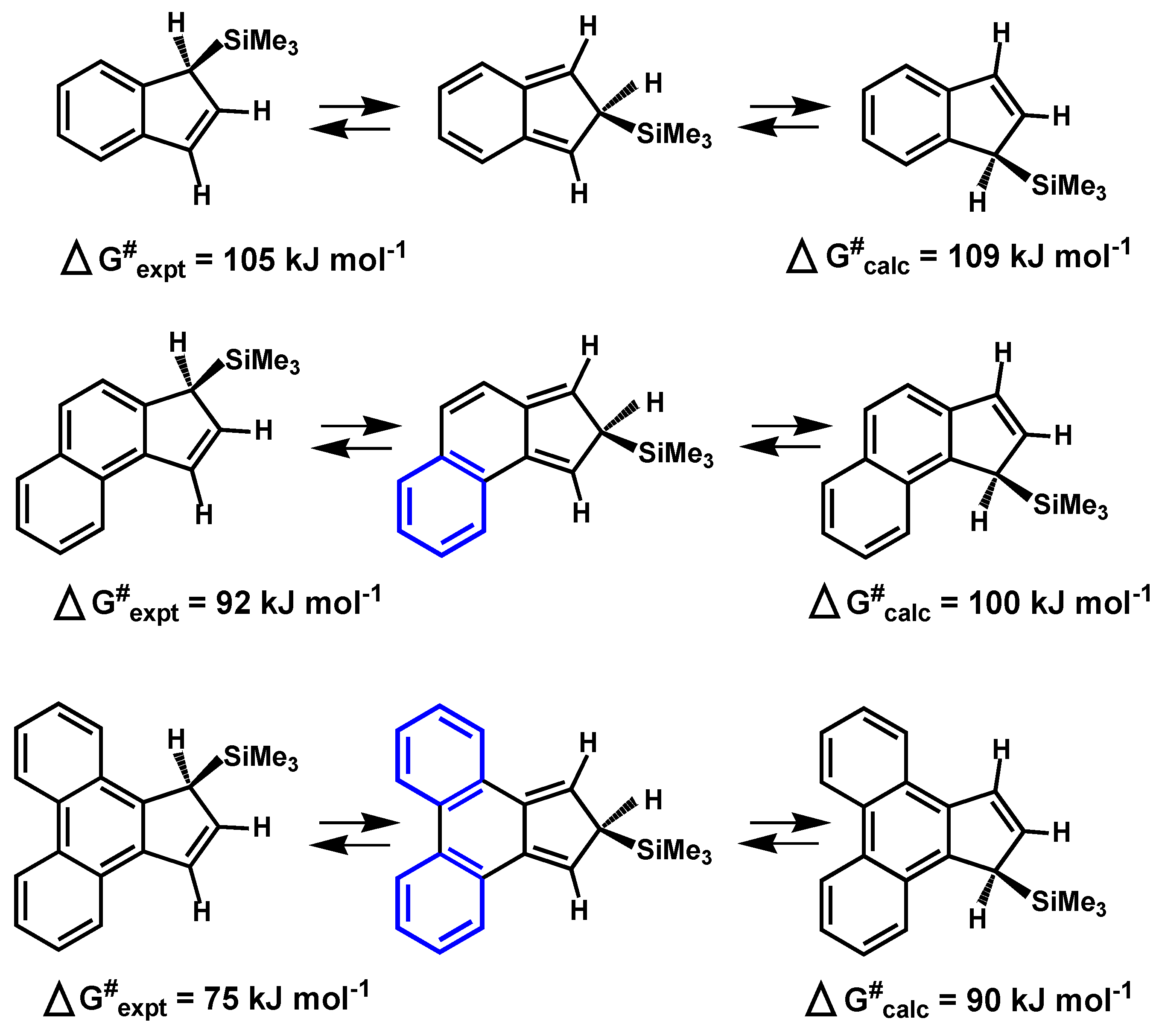

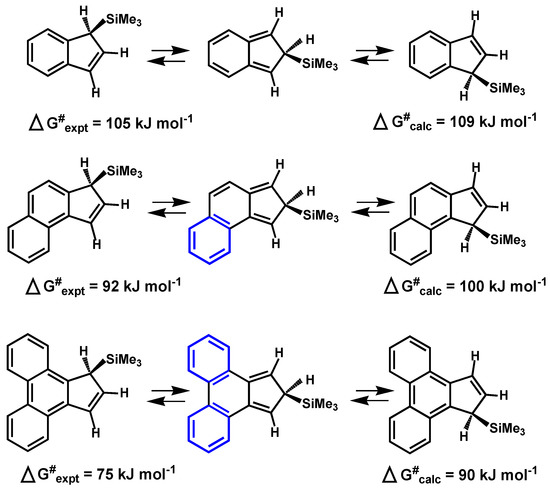

Comparison of silyl migrations across a series of benzo- and dibenzo-indenes revealed a diminution of the barrier whereby the additional benzo rings enhanced the aromatic character of the intermediate isoindenes. Typically, calculations at the unrestricted Hartree-Fock level yielded a barrier of 109 kJ mol−1 for trimethylsilylindene, 100 kJ mol−1 for the angular benzindene and 90 kJ mol−1 for the dibenzindene (trimethylsilylcyclopenta[l]phenanthrene). As before, all the isoindenes underwent ready Diels-Alder addition with TCNE. Evidently, additional benzo rings stabilise the isoindene. Indeed, in the dibenzindene the intermediate lies only 9 kJ mol−1 above the ground state. Gratifyingly, the experimentally determined migration barriers correlate well with the theoretical predictions [20,21,22], as listed in Figure 4.
This latter result provides an ideal rationale for the observation that, when cyclopenta[l]phenanthrene was heated at reflux in dibutyl ether, the product (85% yield) was the dimer, 5, shown in Figure 5 [23]. Its structure was established initially via a beautifully resolved 1H-1H-COSY NMR spectrum, together with other 2D NMR data, and subsequently by X-ray crystallography as the Diels-Alder adduct of the starting material with its own isoindene—a striking demonstration of the stabilising effect of the additional benzo rings!

3. Diels-Alder Cycloadditions of Alkynes or Triphenylcyclopropene to Cyclopentadienones

3.1. Geometric Factors in CnPhn Ring Systems

In the solid state, ligands or complexes possessing a cyclic array of CnPhn moieties adopt propeller-type arrangements such that the external rings make a dihedral angle, θ, with the plane of the central ring. Such a geometry provides a compromise between the coplanar arrangement, θ = 0°, which maximises orbital overlap but may introduce steric strain, and the orthogonal rotamer, θ = 90°, that minimises steric interactions but disrupts π conjugation. Furthermore, in the series CnPhn, where n = 3–7, the angle subtended at the centre of the internal ring by the adjacent phenyls (ω = 360°/n) decreases from 120°, 90°, 72°, 60° to 51.4°, respectively. However, although increasing the ring size lengthens the radial distance of the external phenyls from the centre of the molecule, this is more than compensated for by the diminishing value of ω. Overall, the net result of increasing the ring size is to place the phenyls in a more restricted locale [24].

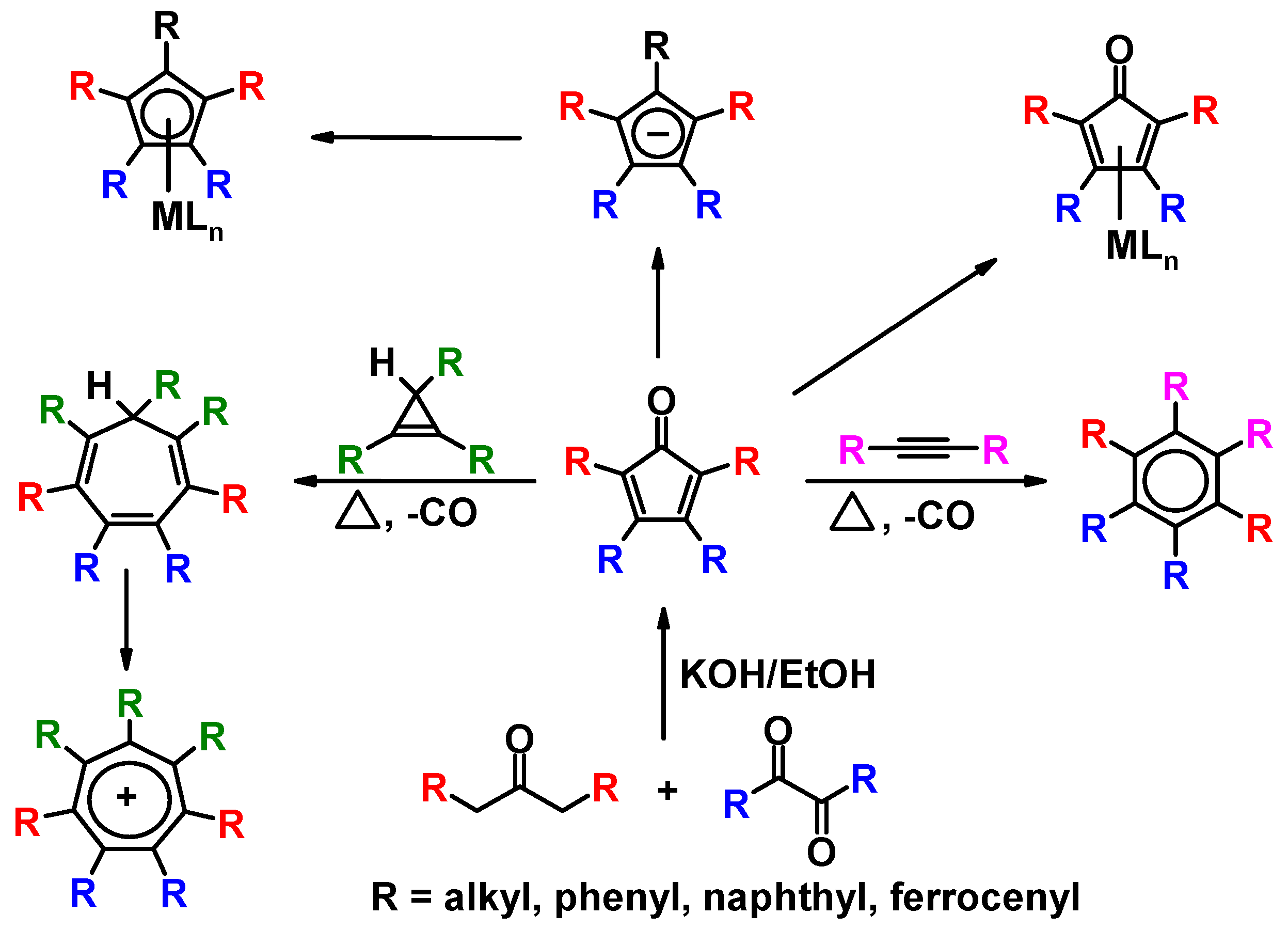

Cyclopentadienones are versatile precursors to organic and organometallic derivatives of five, six and seven-membered rings, as exemplified in Scheme 5. Typically, reactions of tetraarylcyclopentadienones and alkynes provide convenient routes to multifunctionalised arenes and their organometallic derivatives, in particular those bearing several sterically demanding substituents. The syntheses and molecular dynamics of such systems have been reviewed [24].
Ions or molecules of the type [CnArn]x± continue to attract attention, not only for their relevance to the Hückel 4n + 2 rule, but also as ligands bonded to organometallic fragments. Thus, [C3Ph3+], [C4Ph42−], [C5Ph5−], C6Ph6 and [C7Ph7+] would be expected to exist as stable species. Indeed, those where n ranges from 2 to 6, have all been characterised crystallographically as free ligands or as metal complexes. However, the structure of the [C7Ph7+] motif remained a challenge for almost four decades after its initial preparation.

3.2. Syntheses and Structures of Heptaarylcycloheptatrienes

The first synthesis of heptaphenylcycloheptatriene, 6, was reported by Battiste in 1961 from the Diels-Alder cycloaddition of 1,2,3-triphenylcyclopropene to tetracyclone (tetraphenyl-cyclopentadienone) in refluxing xylene [25,26]. Reaction with bromine in CCl4 furnished the bright red salt [C7Ph7+]Br−. The yellow-orange tribromide, [Br3−] and tetrafluoroborate salts were also prepared. Subsequently, the corresponding heptaphenylcycloheptatrienyl anion, [C7Ph7−] and the radical [C7Ph7•] were characterised spectroscopically [27,28]. In the former case, the 8π electron count might have suggested a triplet ground state (analogous to 4π cyclobutadiene), but the observation of a well-defined 1H NMR spectrum and failure to detect an EPR signal indicated a singlet structure, implying a lowering of the seven-fold symmetry.
Heptaphenylcycloheptatriene prepared by the Battiste method, was formed directly with elimination of carbon monoxide when triphenylcyclopropene and tetracyclone were heated in refluxing xylene. However, when these reagents were stirred at room temperature for six days, the intermediate ketone, 7, was obtained in 80% yield [29]. As shown in Figure 6, all three cyclopropyl phenyls in 7 are exo and, most importantly, the single hydrogen is positioned endo [29]. This is in accord with Battiste’s report that, in the Diels-Alder adduct of triphenylcyclopropene and cyclopentadiene, the single hydrogen is also endo, but that assignment was based only on NMR data [30].

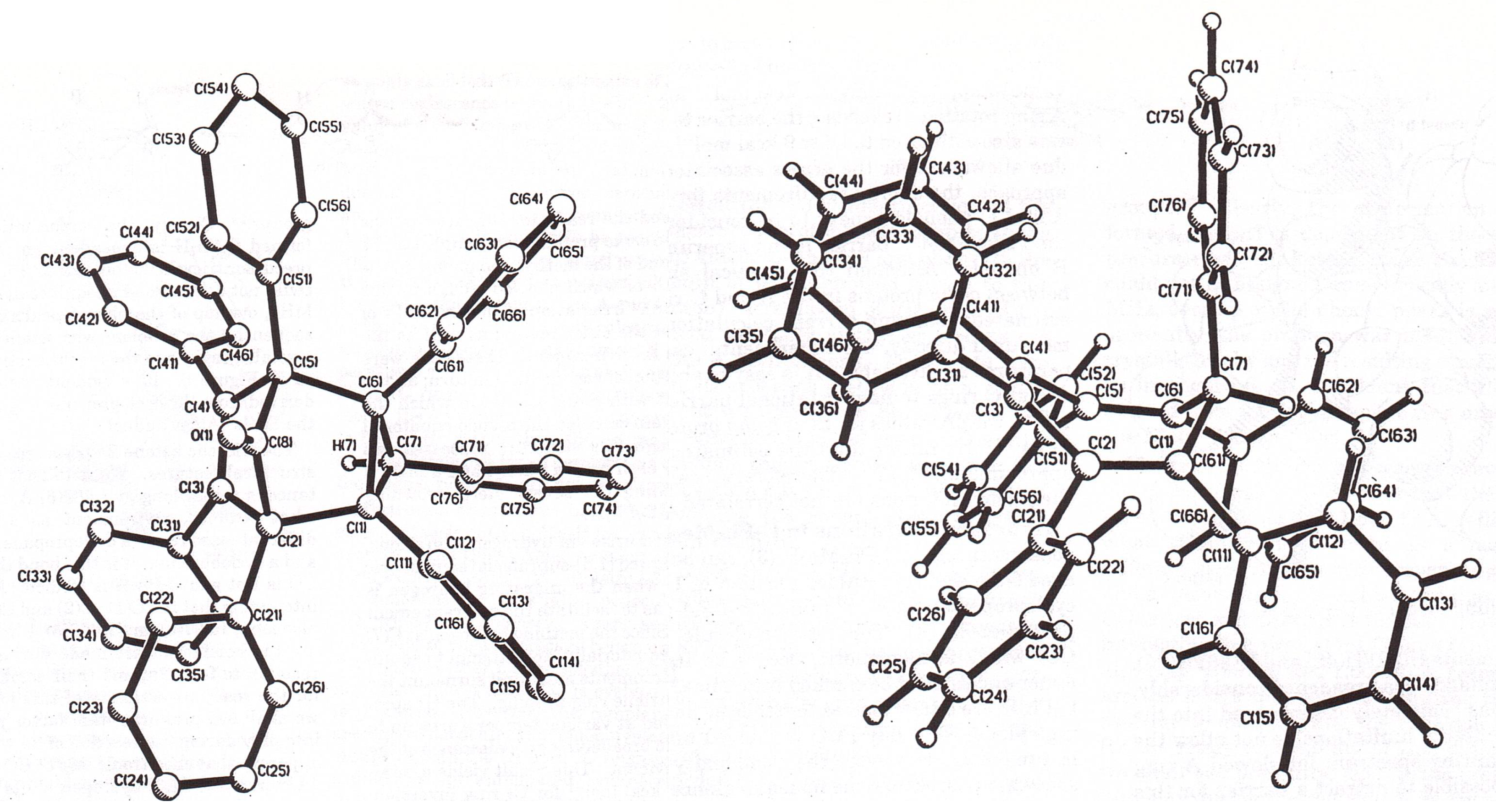

The structure of heptaphenylcycloheptatriene also appears in Figure 6 and reveals that the unique phenyl substituent is axial and straddles the molecular mirror plane. The molecule adopts a boat conformation such that the fold angles between planes containing C(6)-C(7)-C(1) [plane 1], C(1)-C(2)-C(5)-C(6) [plane 2] and C(2)-C(3)-C(4)-C(5) [plane 3] are 55° for [plane 1/plane 2] and 35° for [plane 2/plane 3]. These may be compared with the corresponding interplanar angles in C7H8, which are 36° for [plane 1/plane 2] and 40° for [plane 2/plane 3]. Thus, the conformation of the seven-membered boat in C7Ph7H is markedly different from that found in cycloheptatriene itself [31], especially with respect to the greater bending of the sp3 carbon out of the C(1)-C(2)-C(5)-C(6) plane (55° v 36°).

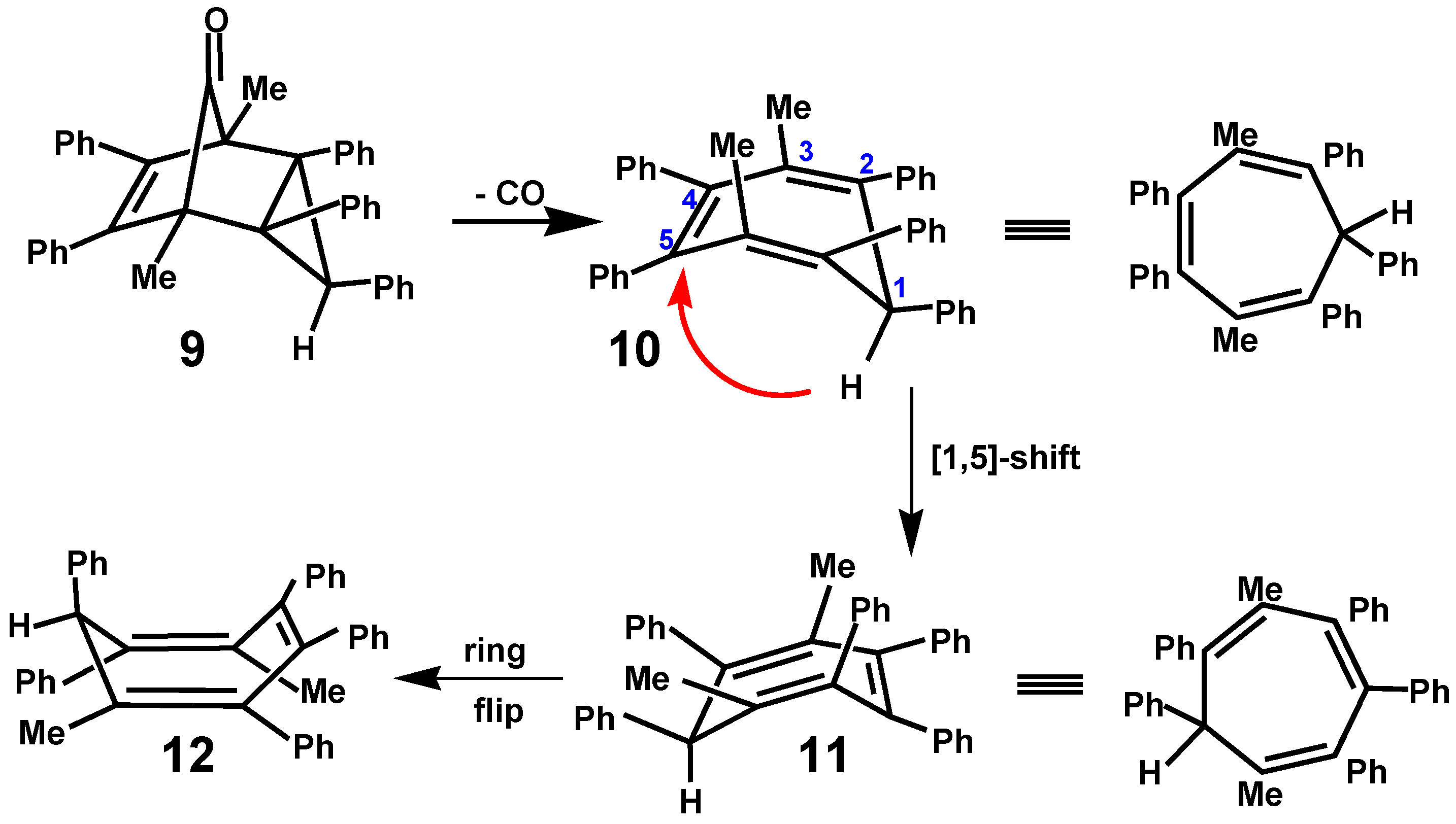

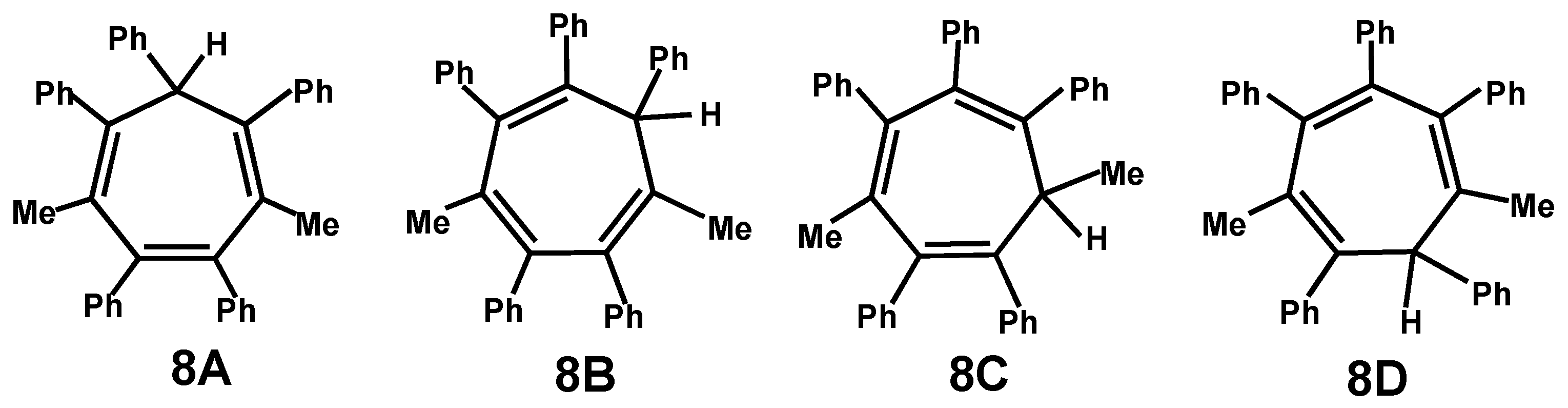

The corresponding cycloaddition reaction of triphenylcyclopropene and 2,5-dimethyl-3,4-diphenylcyclopentadienone (which occurs as its Diels-Alder dimer, and must therefore be cracked before use) yielded the expected cycloheptatriene C7Ph5Me2H, 8. However, the complexity of the 1H and 13C NMR spectra, in particular the nonequivalence of the methyl groups in both regimes, revealed that the product cannot be the anticipated symmetrical isomer 8A, shown in Figure 7. Moreover, the singlet character of both methyl signals in the 1H spectrum eliminates 8C and leaves 8B and 8D as the only viable candidates. The identification of the product as 8B was determined by a combination of 2D and nOe experiments [29].

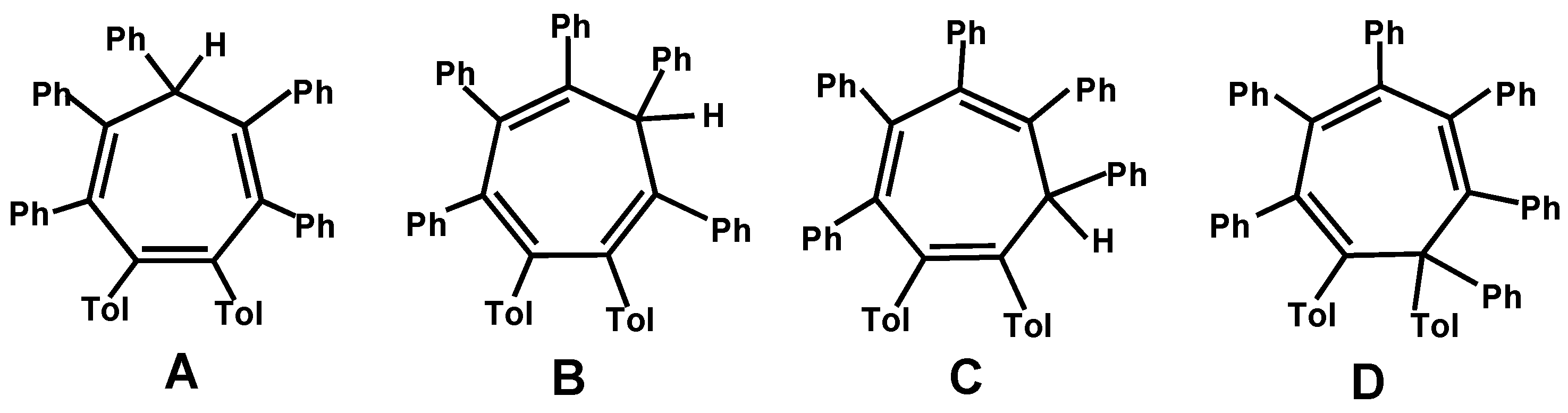

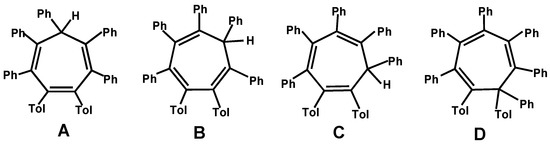

Similarly, the reaction of triphenylcyclopropene and 2,5-diphenyl-3,4-di-(p-tolyl)-cyclopentadienone proceeded with elimination of CO and furnished a mixture giving rise to seven equally intense 1H NMR methyl resonances, attributable to the four isomers A through D in the ratio 1:2:2:2, as shown in Figure 8.
Evidently, such molecules must arise via hydrogen migrations, but the symmetry-allowed [1,5]-suprafacial sigmatropic shift can only occur when the migrating hydrogen is positioned axially to facilitate the rearrangement shown in Scheme 6. Apparently, after cheletropic elimination of CO and opening of the three-membered ring in 9, the conformation of the newly generated heptaphenylcycloheptatriene, 10, must be sufficiently long-lived to allow rapid [1,5] suprafacial sigmatropic shifts, as in 11, before ring flipping to the other boat conformation, 12, prevents any further hydrogen migrations [29].

3.3. The Heptaphenyltropylium Cation

As noted above, in 1961 Battiste prepared salts of the heptaphenyltropylium cation with bromide, tribromide and tetrafluoroborate counterions [26]. With the aim of extending the CnPhn series to include [C7Ph7+], we acquired numerous X-ray data sets on crystals of the bromide and tetrafluoroborate salts but, despite the determined efforts of a number of crystallographers in Europe and North America, no structural data were forthcoming because of an unresolvable disorder problem. Serendipitously, however, in an NMR tube containing C7Ph7Br in trifluoroacetic acid, formation of crystalline red plates was observed, and the resulting data set was resolvable. In fact, the crystals were found to be [C7Ph7+][CF3CO2−](CF3CO2H)2 in which the cations were arranged in hexagonally packed layers that sandwiched a network of hydrogen-bonded trifluoracetates and trifluoroacetic acid molecules [32]. Evidently, this acid-anion network stabilises the crystalline edifice, whereas in the earlier cases the bromides or tetrafluoroborates apparently behaved merely as layers of molecular ball-bearings that lacked directionality and failed to impose order on the system.

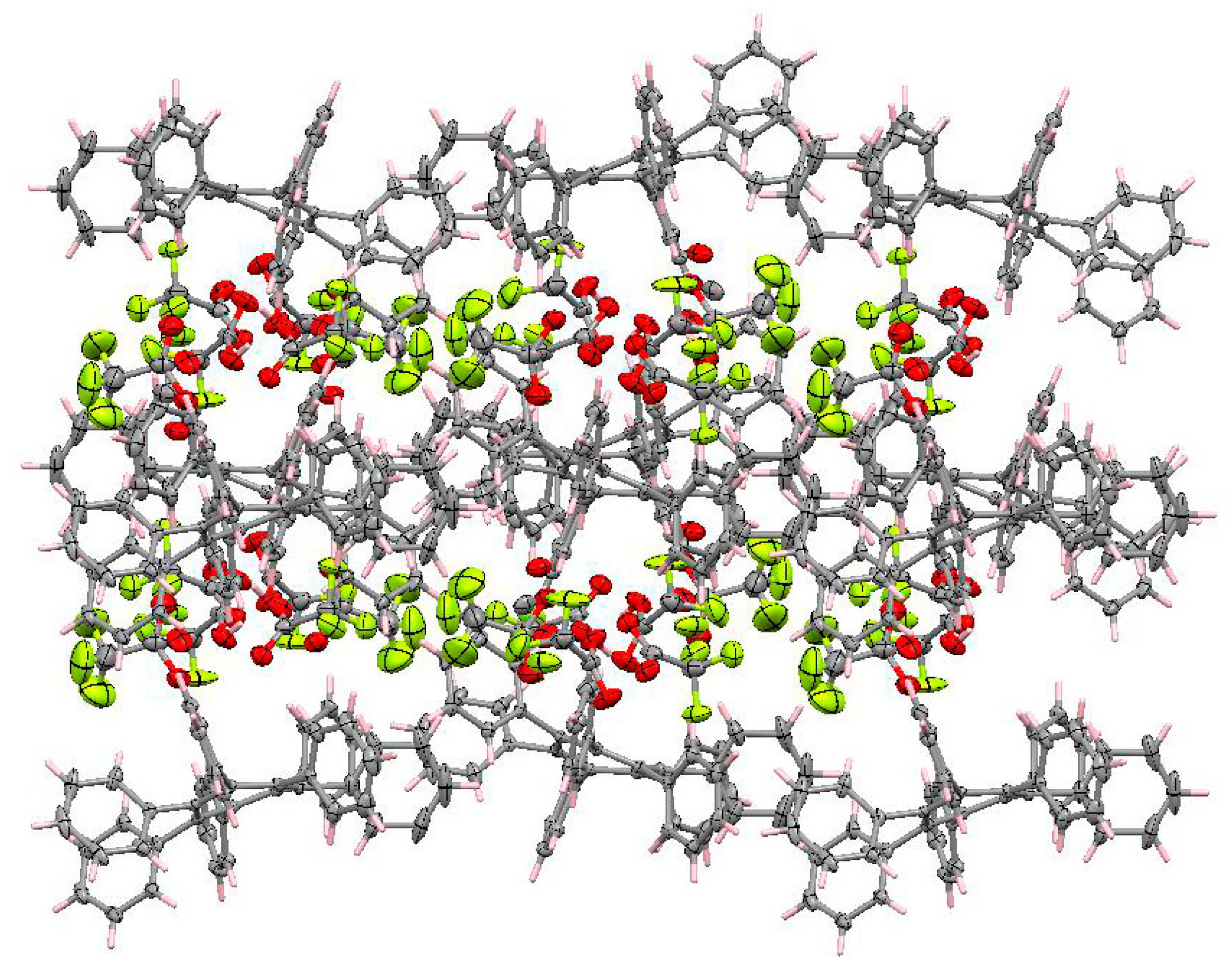

The molecular structure of the cation, 13, and of the crystal packing, are shown as Figure 9 and Figure 10 and reveal that the seven-membered ring is not planar but adopts a shallow boat conformation such that the interplanar angles between C(6)-C(7)-C(1) [plane 1], C(1)-C(2)-C(5)-C(6) [plane 2], and C(2)-C(3)-C(4)-C(5) [plane 3] are 13° for [plane 1/plane 2] and 18° for [plane 2/plane 3], noticeably less bent than those found for the precursor C7Ph7H. The peripheral phenyls are each twisted very markedly out of the plane containing their attached central ring carbon and neighbouring ring atoms by 76°–82° (average 80°), and may be compared to the values for dihedral angles found in C6Ph6 (67°–75°) [33,34], (η5-C5Ph5)MLn complexes (~50°) [35,36,37], (η4-C4Ph4)MLn complexes (average ~36°) [38,39] and for the [C3Ph3+] cation (~5°) [40,41].

3.4. Boron and Nitrogen Analogues of Heptaphenylcycloheptatrienes

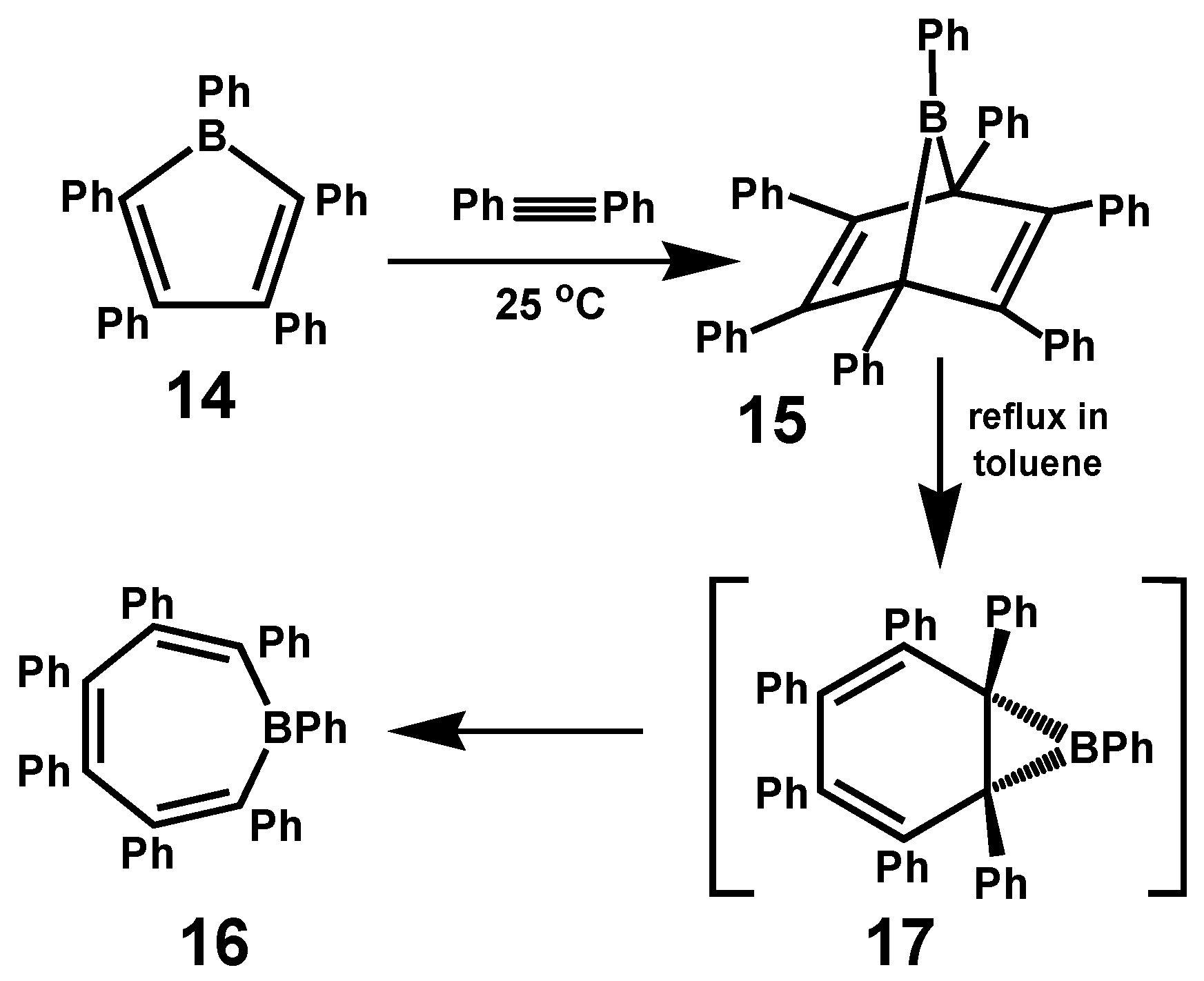

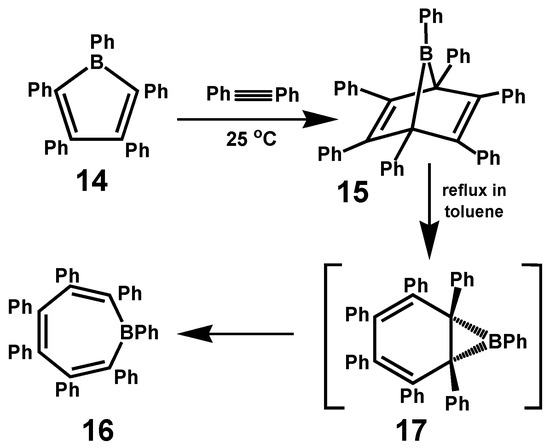

In a closely analogous system, addition of diphenylacetylene to pentaphenylborole, 14, yielded heptaphenyl-7-borabicyclo[2.2.1]heptadiene, 15, which, upon heating at reflux in toluene for 24 h, formed heptaphenylborepin, 16 [42]. One can envisage this proceeding via a migration of the boron to form the [4.1.0]bicyclo isomer, 17, that undergoes disrotatory ring opening to furnish the target molecule (Scheme 7). The relationship with the isoelectronic heptaphenyltropylium ion is reflected in its electronic spectrum which exhibits peaks at 412, 276 and 245 nm (405, 283 and 258 nm in C7Ph7+). It would be interesting to know whether heptaphenylborepin is planar or nonplanar. However, we are unaware of any relevant X-ray structural data.

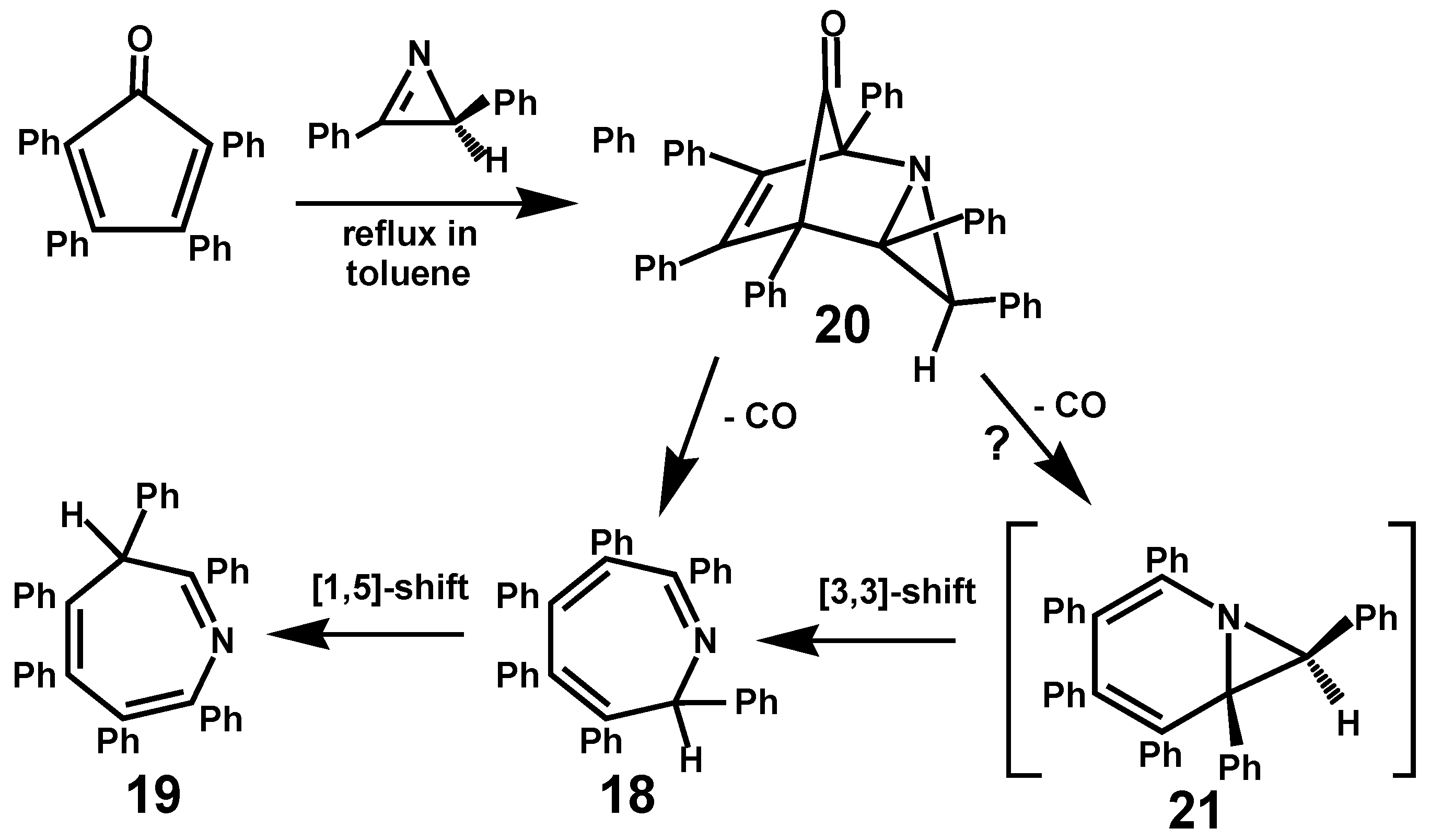

By way of contrast, the reaction of tetracyclone with diphenylazirine yields initially the 2H-hexaphenylazepine, 18, that subsequently undergoes a [1,5]-hydrogen shift to form the thermodynamically favoured 3H-hexaphenylazepine, 19. The proposed mechanism (Scheme 8) invokes Diels-Alder addition to form the intermediate 20, in which the hydrogen is positioned endo. Loss of CO could then either bring about ring opening directly to form 2H-hexaphenylazepine, or proceed via the azanorcaradiene, 21, that undergoes disrotatory electrocyclic rearrangement. Formation of another possible isomer, the 1H-azepine was not observed. In some related cases, the 1-azirine was prepared in situ by thermolysis of the appropriate vinyl azide [43].

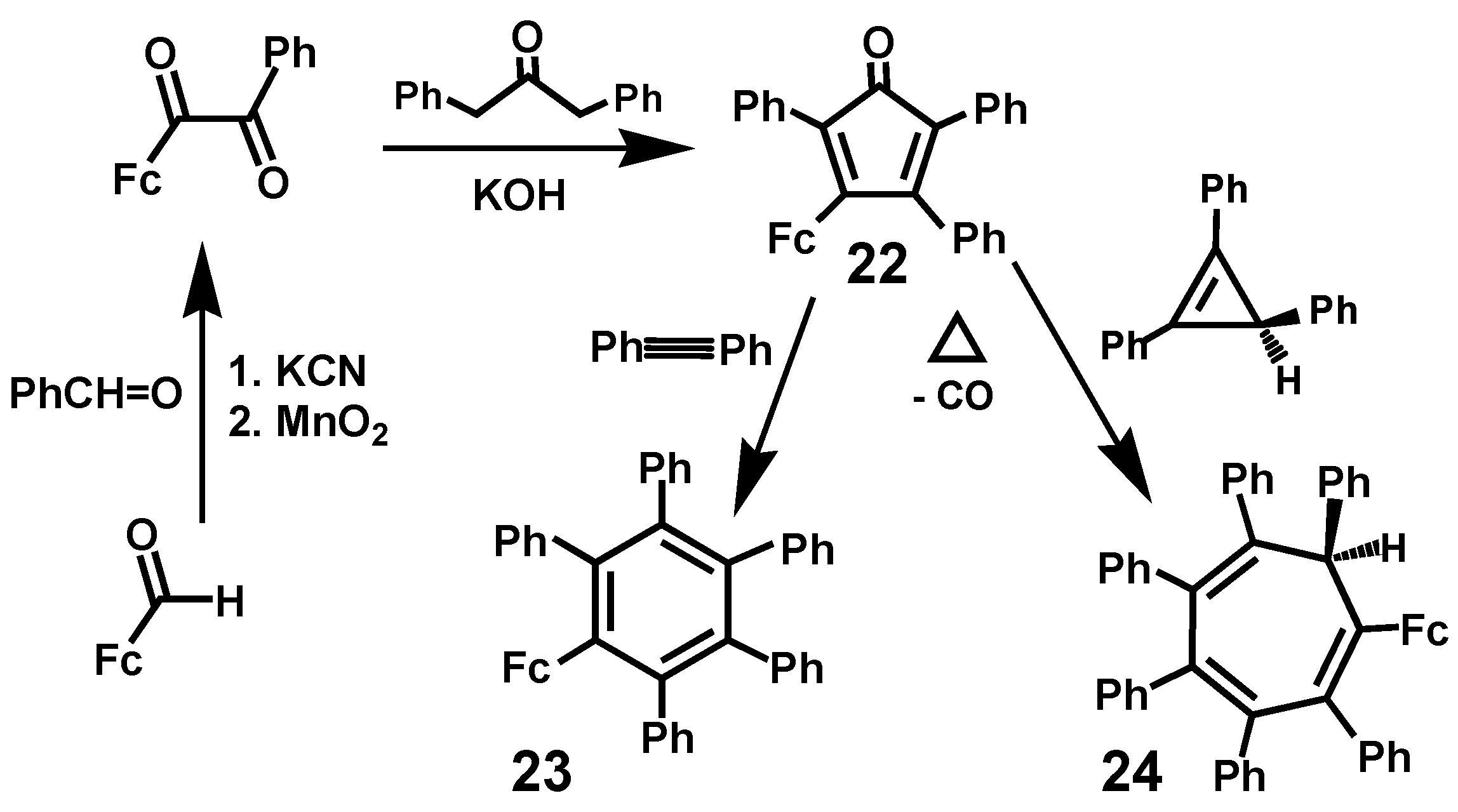

3.5. Ferrocenyl-Substituted Polyaryl-Benzenes and -Cycloheptatrienes

The successful elucidation of the structure of the heptaphenyltropylium ion prompted us to consider the introduction of a ferrocenyl substituent that might enhance the stability of the potential cation [C7Ph6Fc+], where Fc = (η5-C5H4)Fe(η5-C5H5). To this end, the KCN-catalysed reaction of benzaldehyde and formylferrocene yielded the benzoin PhC(=O)-CH(OH)Fc. It is noteworthy that only a single benzoin was formed; the other possible isomer, FcC(=O)-CH(OH)Ph, would require the intermediacy of a carbanion adjacent to the ferrocenyl fragment which, as is well known, preferentially stabilises cations [44]. Oxidation of the benzoin to form the corresponding benzil, and reaction with dibenzyl ketone, furnished the required 3-ferrocenyl-2,4,5-triphenyl-cyclopentadienone, 22. This versatile precursor reacts with diphenylacetylene to form ferrocenylpentaphenylbenzene, 23, and also with triphenylcyclopropene to generate ferrocenylhexaphenylcycloheptatriene, 24, (Scheme 9), both of which have been characterised by X-ray crystallography (Figure 11) [45].

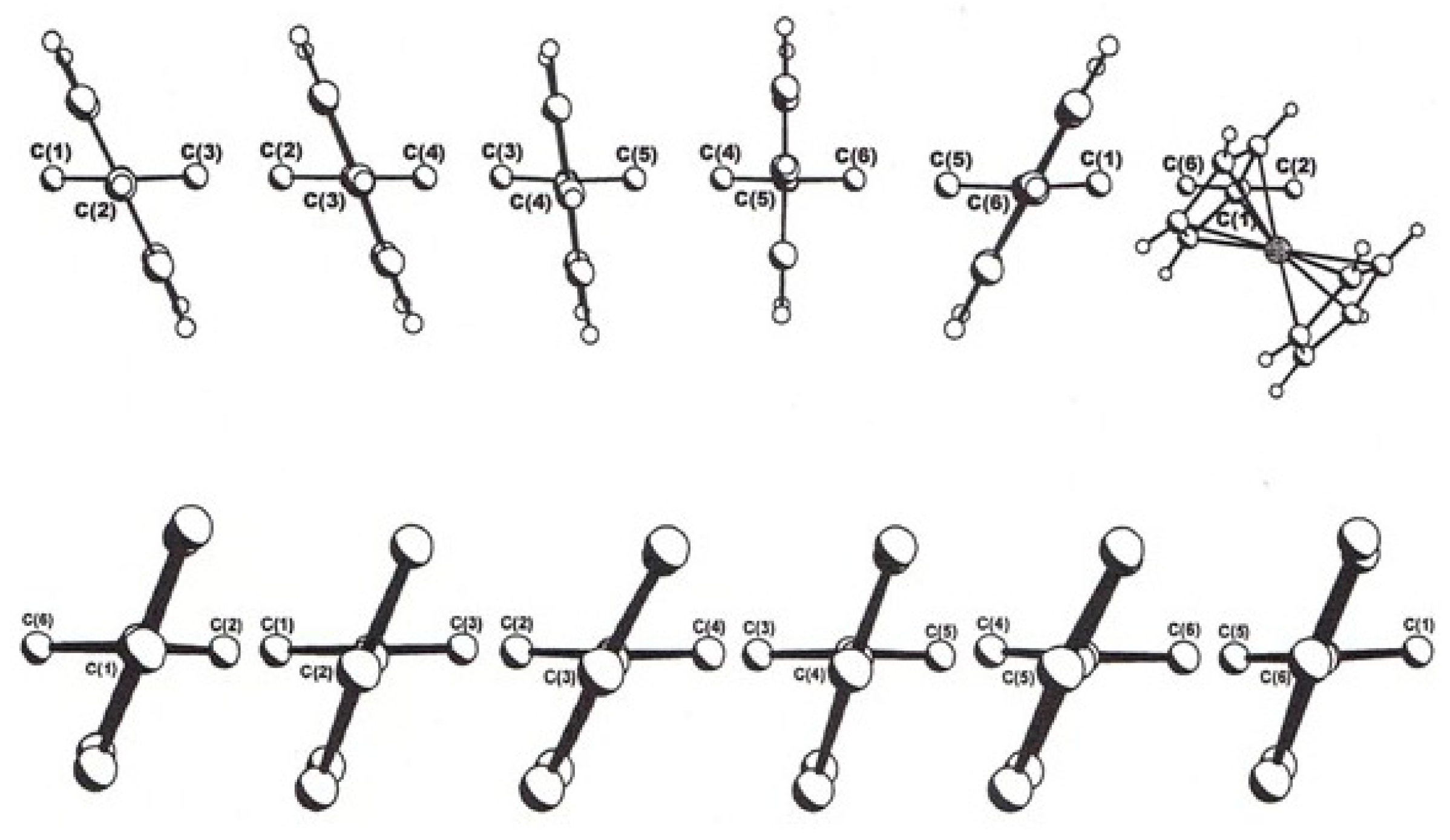

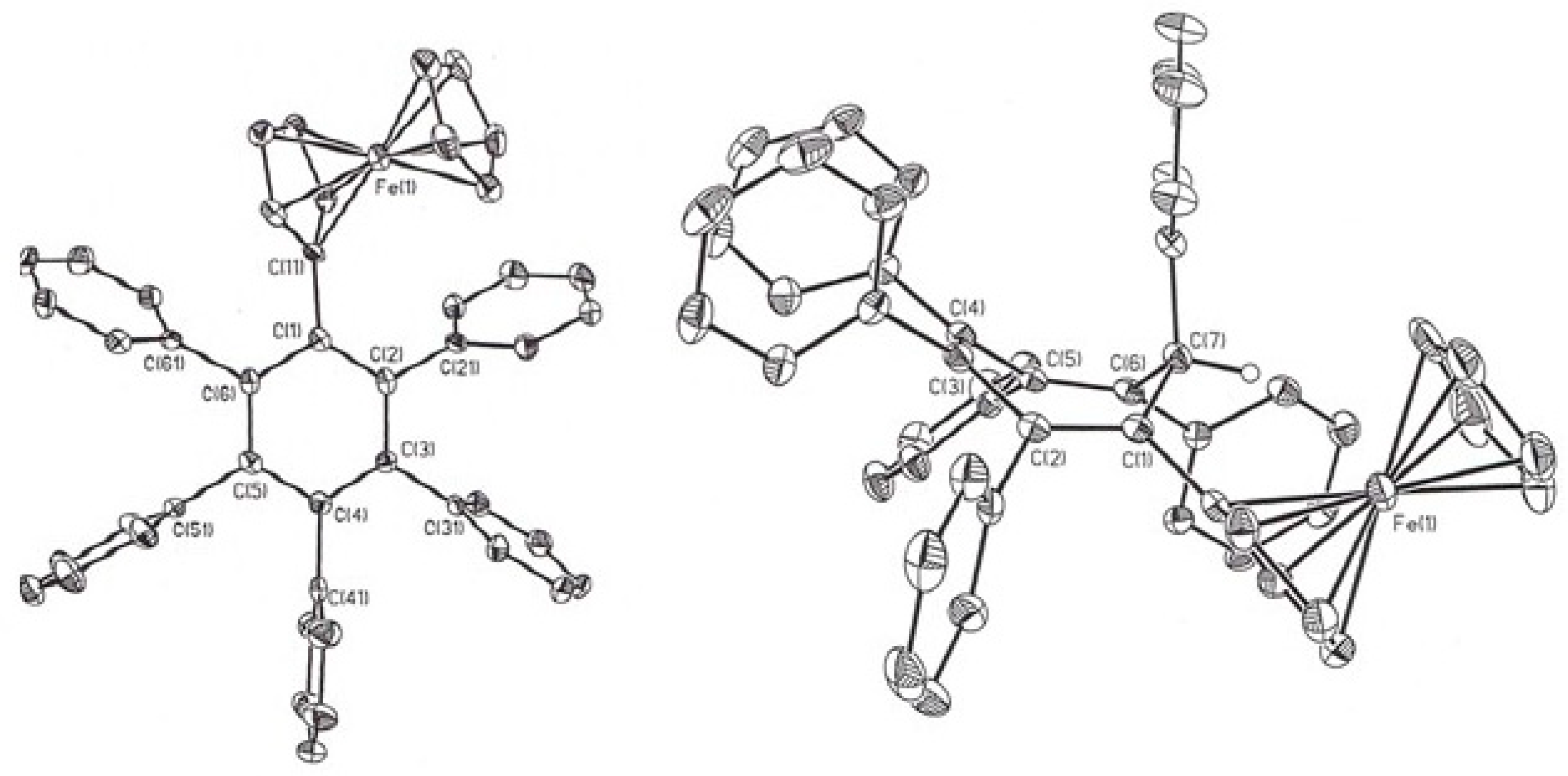

A curious feature of the structure of ferrocenylpentaphenylbenzene is the orientation of the peripheral phenyls relative to the central ring. In hexaphenylbenzene, the molecule adopts a propeller conformation in which the phenyl substituents are all canted in the same direction with a twist angle of ca. 67° [33]. However, in C6Ph5Fc the ferrocenyl ring bonded to C(1) is oriented at 51° to the central ring, and the phenyls attached to C(2) through C(6) adopt dihedral angles of 64°, 70°, 81°, 89° and 120° (Figure 12). The net effect is to provide a series of peripheral rings each displaced slightly more than their immediately preceding neighbours. One is tempted to suggest that rotation of the ferrocenyl moiety would induce a domino effect whereby all the phenyls would turn in a synchronous fashion, but verification of such a scenario would require extensive labelling studies.
Turning now to the structure of ferrocenylhexaphenylcycloheptatriene, 24, the seven-membered ring adopts a boat conformation such that the fold angles between planes containing C(6)-C(7)-C(1) [plane 1], C(1)-C(2)-C(5)-C(6) [plane 2], and C(2)-C(3)-C(4)-C(5) [plane 3] are 54° for [plane 1/plane 2] and 34° for [plane 2/plane 3], similar to those seen in C7Ph7H. Once again, the peripheral substituents in C7Ph6FcH are markedly twisted out of the plane defined by their attached central ring carbon and its neighbours. These dihedral angles were found to be 56°, 82°, 81°, 68°, 55°, 132° and 142° for positions C(1) through C(7) [45]. At this point, we recall that in suitably labelled polyphenylcycloheptatrienes a series of [1,5]-hydrogen shifts generated a mixture of isomers [29]. However, despite the complexity of the 1H and 13C NMR spectra of 24, it transpired that only a single isomer was formed from the Diels-Alder cycloaddition of triphenylcyclopropene and 3-ferrocenyl-2,4,5-triphenylcyclopentadienone. The X-ray crystal structure revealed that the ferrocenyl substituent is sited in the least hindered position, at C(1) adjacent to the sp3-hybrised carbon of the CHPh unit. Clearly, this isomer must have arisen by a [1,5]-hydrogen migration after decarbonylation, but prior to inversion of the cycloheptatriene ring, as illustrated for the C7Ph5Me2H system in Scheme 6.

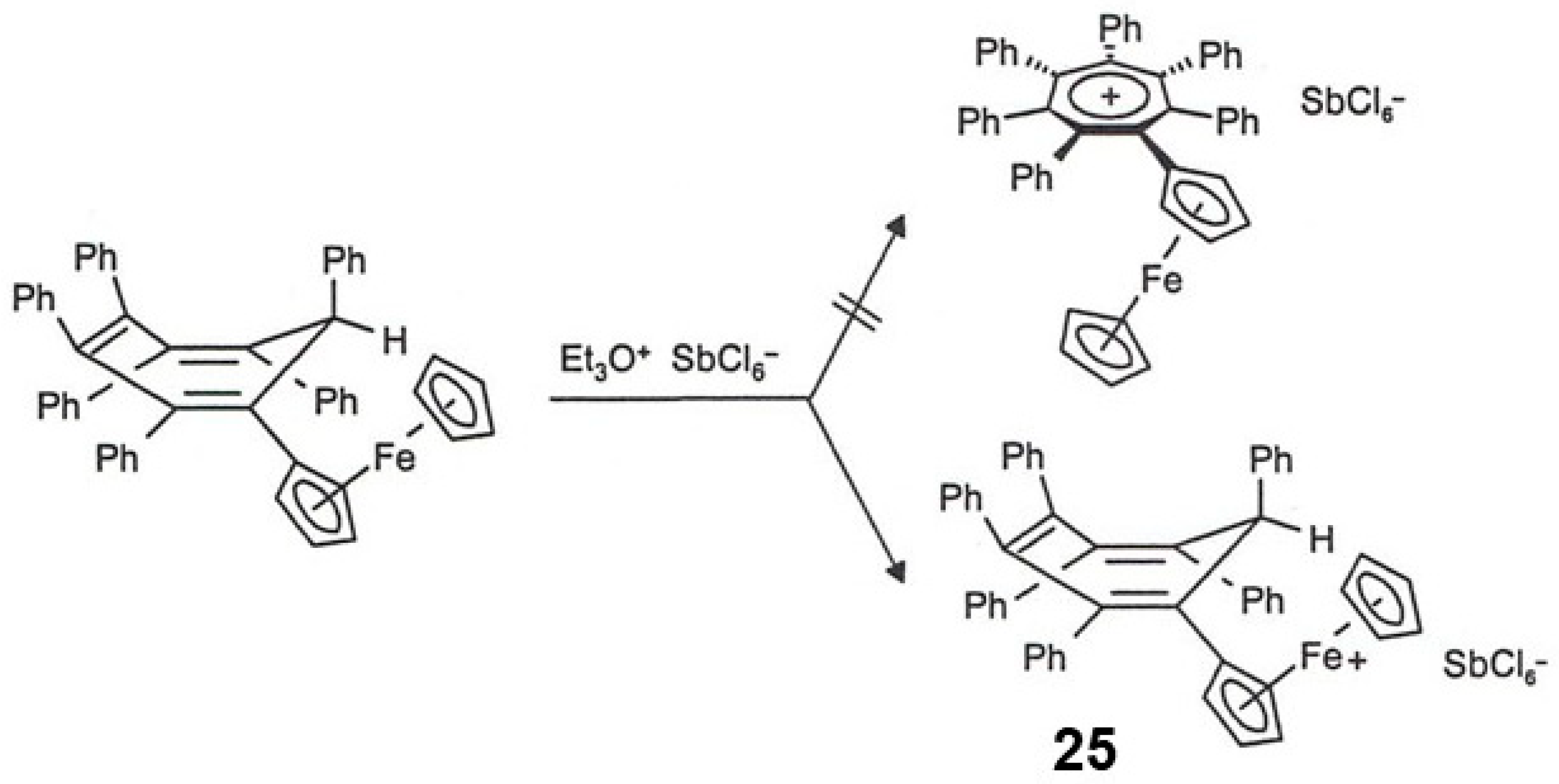

As noted above, one aim of the preparation of 23 was to attempt the isolation of the potential cation [C7Ph6Fc+]. To this end, we tried to isolate the molecules in which the single hydrogen in C7Ph6FcH had been replaced with bromide or methoxide, but to no avail. Finally, treatment of 23 with triethyloxonium hexachloroantimonate, a known hydride abstractor, yielded deep blue crystals that were submitted for X-ray crystallographic analysis. Disappointingly, this revealed the product to be [C7Ph6FcH+][SbCl6−], 25, the ferricenium salt of the starting material (Scheme 10). The structure of the cation closely resembles that of C7Ph6FcH, with only minor changes in the ferrocenyl unit, and of course the presence of the hexachloroantimonate counterion. It may be the case that the steric bulk of the ferrocenyl unit hinders the approach of the triethyloxonium reagent and, instead, an electron transfer process intervenes [45].

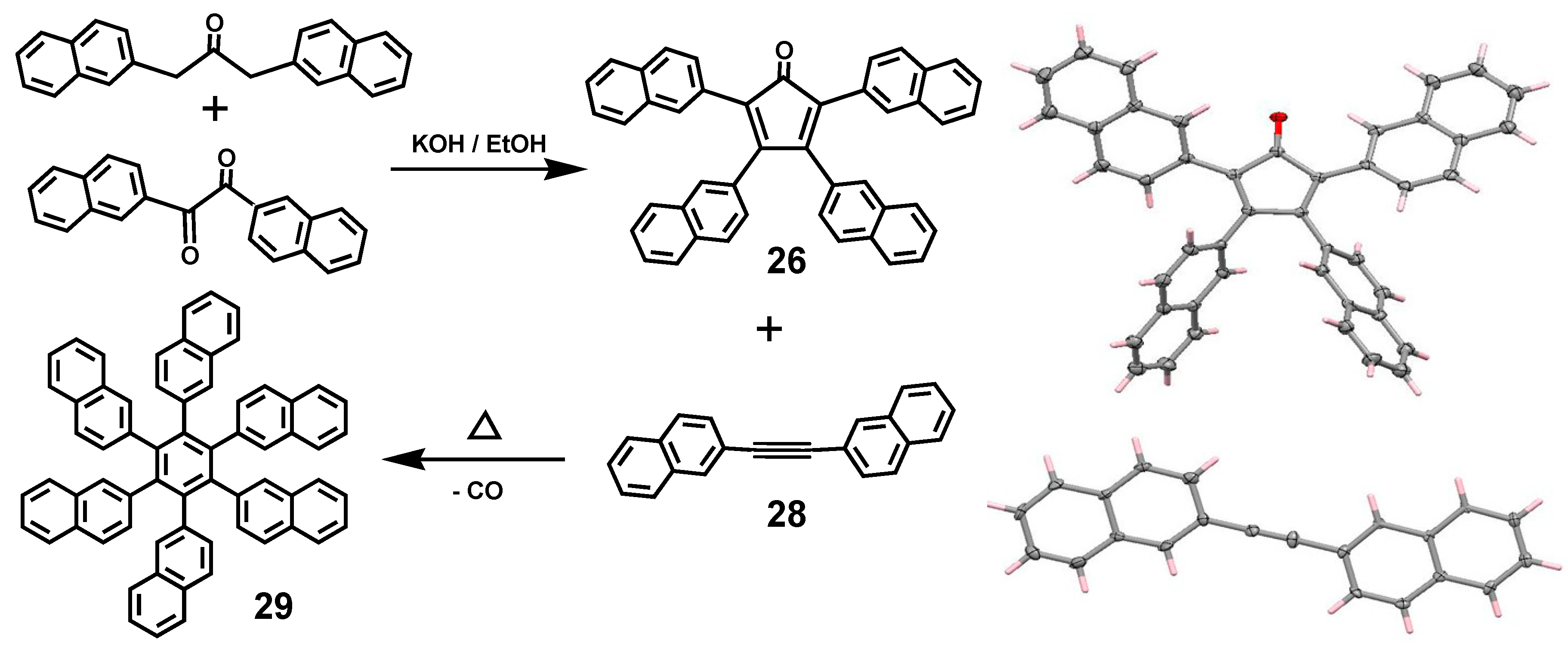

3.6. Hexa(β-naphthyl)benzene and Ferrocenyl-penta(β-naphthyl)benzene

The analogous naphthyl-substituted systems, tetra(β-naphthyl)cyclopentadienone, 26, and 3-ferrocenyl-2,4,5-tri(β-naphthyl)cyclopentadienone, 27, have also been prepared and their Diels-Alder reactivity exploited [46,47]. As shown in Figure 13, tetra(β-naphthyl)cyclopentadienone and di(β-naphthyl)acetylene, 28, undergo [4 + 2] cycloaddition and, after decarbonylation, yield hexa(β-naphthyl)benzene, 29.

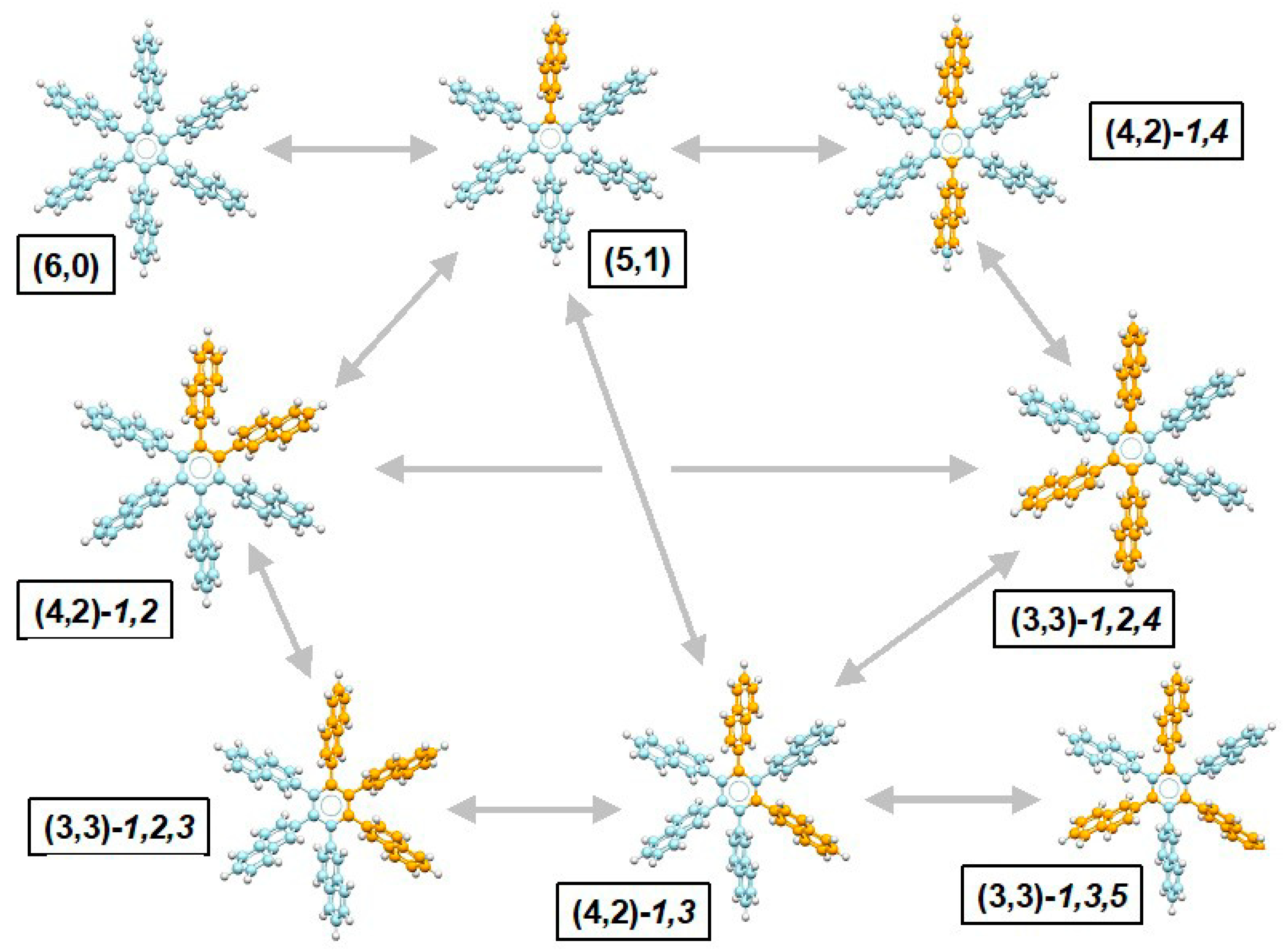

In hexa(β-naphthyl)benzene the six peripheral substituents are oriented in a propeller fashion with dihedral angles of 60° [46]. However, there is a disorder because the molecule exists as a mixture of eight conformers whereby the naphthyls can be aligned all syn, i.e., 6:0, or in a 5:1 arrangement, or 4:2 (1,2), (1,3) or (1,4), or 3:3 (1,2,3), (1,2,4) or (1,3,5). Assuming independent rotation of one peripheral ring at a time, these can interconvert according to Scheme 11 [46].

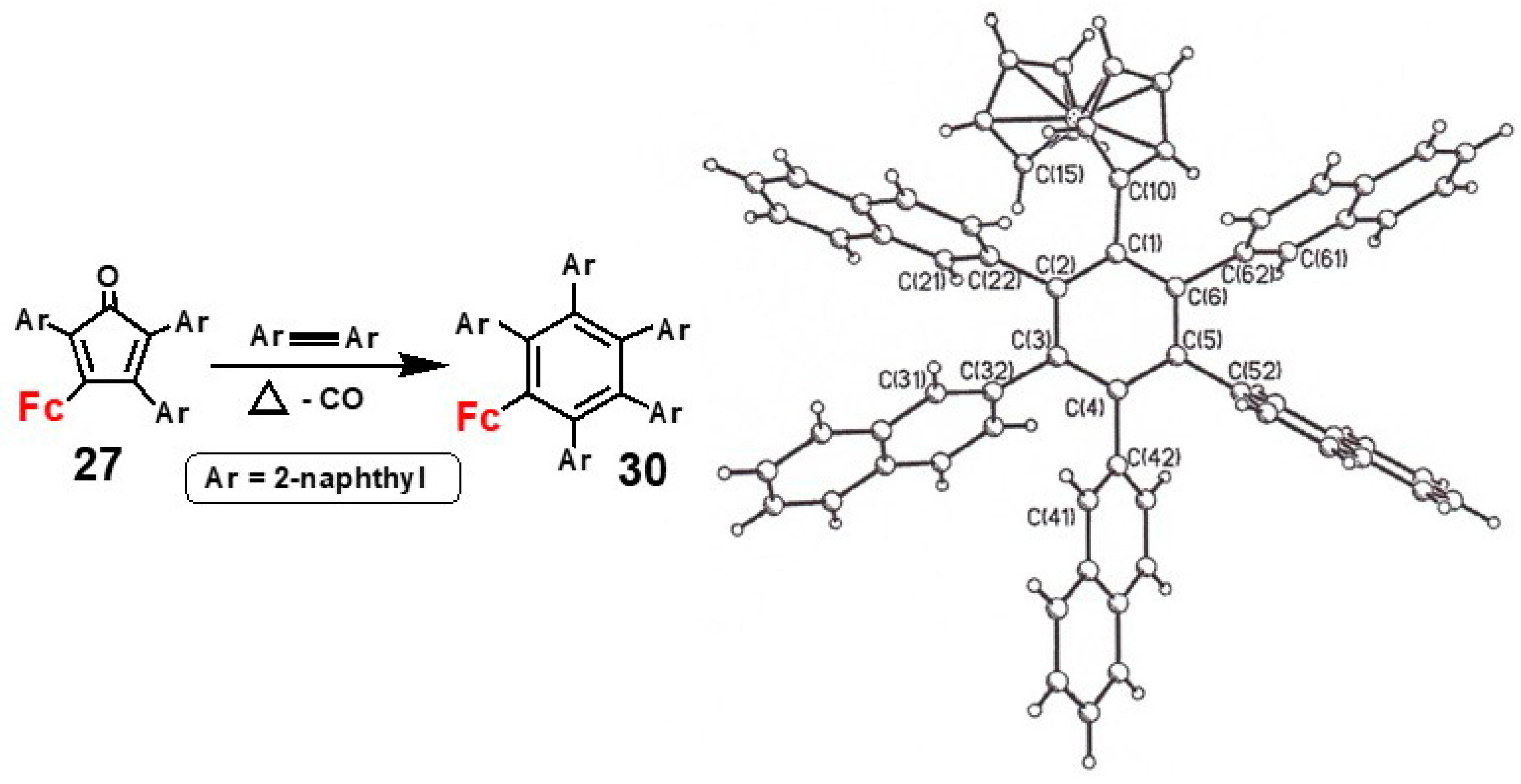

In contrast, in ferrocenyl-penta(β-naphthyl)benzene, 30, (Figure 14), the orientations of the peripheral β-naphthyl rings paralleled the behaviour of the phenyls in C6Ph5Fc whereby each ring was rotated more than its preceding neighbour. The dihedral angles of ferrocenyl at C(1) and naphthyls attached to C(6) through C(2) adopt dihedral angles of 134°, 106°, 81°, 62°, 65° and 73°, respectively [47].

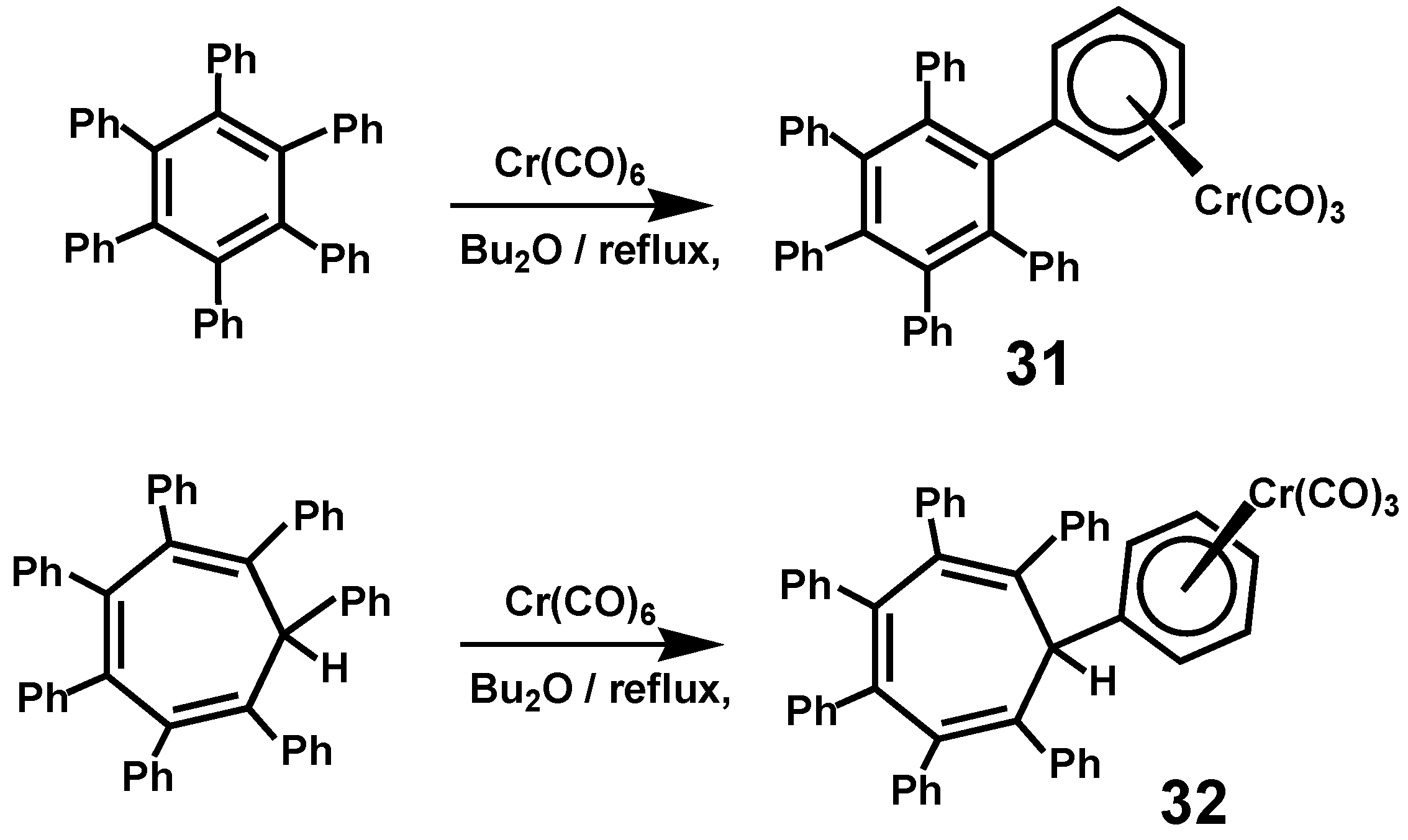

3.7. Other Organometallic Derivatives of C6Ph6 and C7Ph7H

Having successfully prepared the ferrocenyl derivatives 23, 24 and 30, routes to other organometallic complexes of these sterically hindered systems were investigated. The reaction of hexaphenylbenzene with chromium hexacarbonyl leads to formation of the complex (C6H5)5C6[C6H5(η6-Cr(CO)3)], 31, in which the metal is coordinated to a peripheral ring [48]. Likewise, as illustrated in Scheme 12, the analogous reaction with C7Ph7H yields (C6H5)6C7H[C6H5(η6-Cr(CO)3], 32, in which the chromium is attached to the unique phenyl in the axial position [29]. This contrasts with the situation in 7-phenylcycloheptatriene in which the metal tripod is η6-bonded to the 7-membered ring [49].

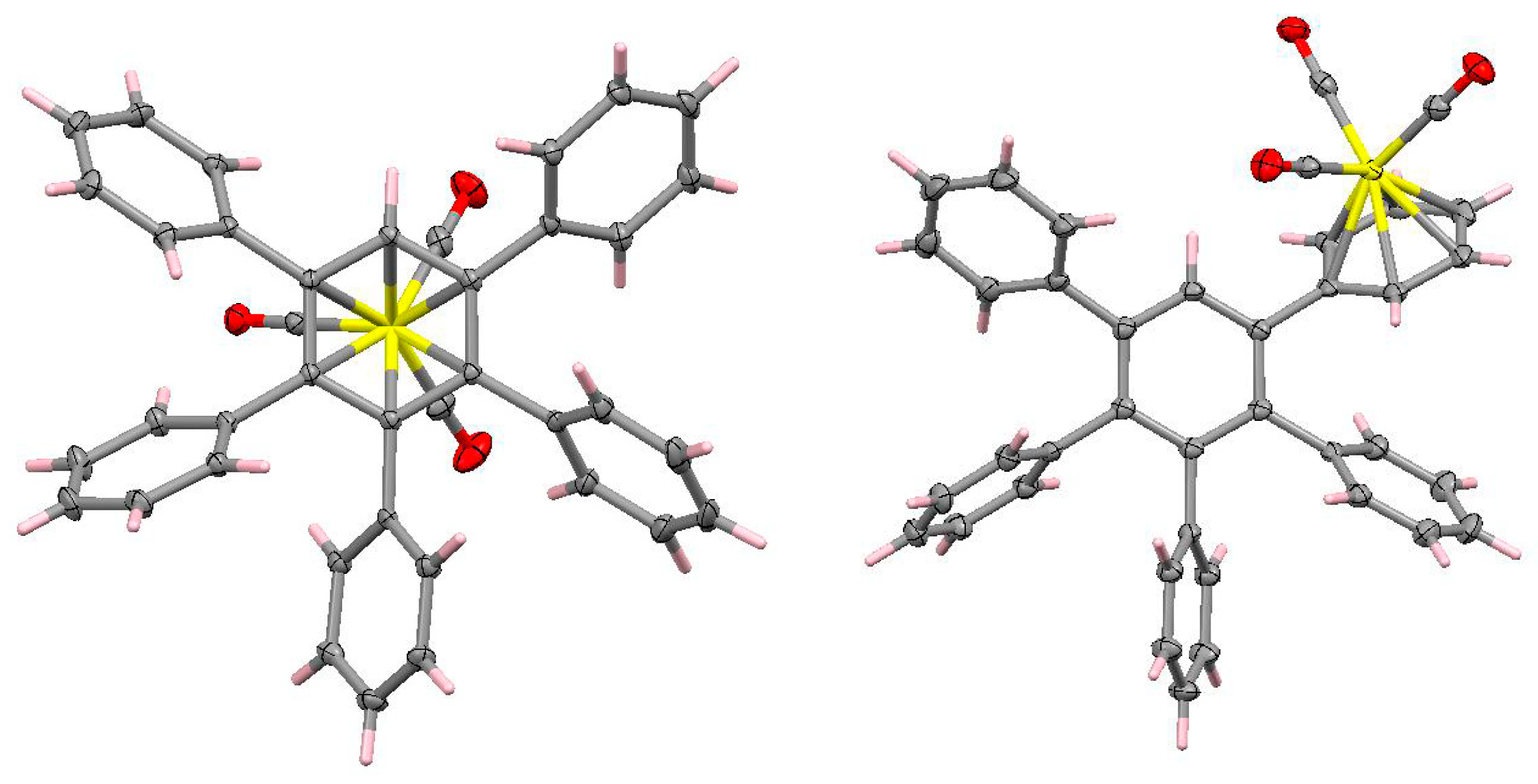

In the somewhat less sterically hindered system, pentaphenylbenzene (the Diels-Alder adduct of tetracyclone and phenylacetylene) the reaction with chromium hexacarbonyl yielded two π-bonded Cr(CO)3 derivatives (Figure 15): the centrally bonded isomer, 33, and the peripherally complexed molecule, 34, in which the metal tripod is bonded to the least hindered phenyl adjacent to the ring hydrogen [50].

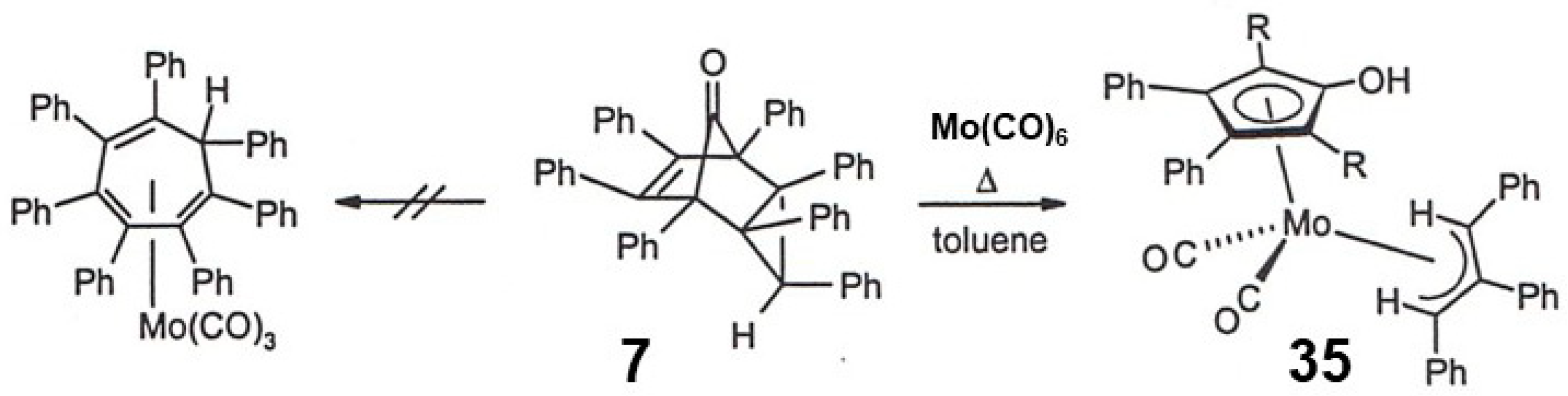

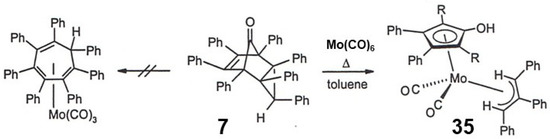

Attempts to coordinate molybdenum or tungsten tricarbonyls to the central ring of C7Ph7H were unsuccessful and so a different potential route, involving reaction with the primary Diels-Alder ketone adduct, 7, was considered. The intent was to try to coordinate a molybdenum carbonyl fragment onto its the open face in the expectation that subsequent metal-assisted cyclopropane ring opening and loss of CO would yield a complex in which the metal was bonded to the central ring. However, the isolated product was instead characterised by X-ray crystallography as the complex, 35, in which a Mo(CO)2 moiety was η5-bonded to a 1-hydroxy-2,3,4,5-tetraphenylcyclopentadienyl ligand and also η3-linked to a triphenyl allyl fragment (Scheme 13). Apparently, the ketone underwent a retro Diels-Alder process and suffered opening of the 3-membered ring [29]. Greater success was achieved by treatment of C7Ph7Br with potassium metal to form the deep blue anion [C7Ph7−], 36, that reacted with chlorotrimethylstannane or chlorodimethylsilane to form yellow σ-bonded complexes, as in 37 (Scheme 14).

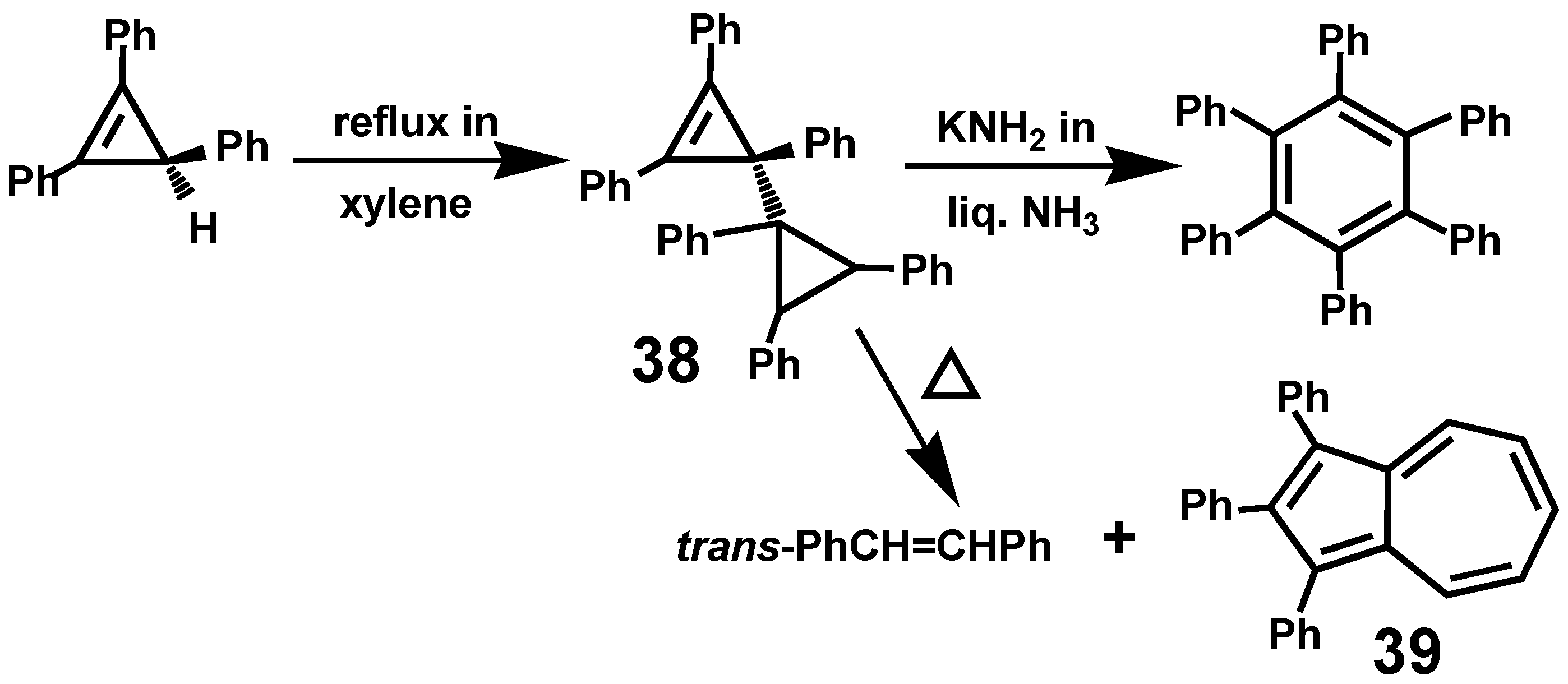

We note in passing that, although triphenylcyclopropene can be used in Diels-Alder reactions, one should recall that when heated at reflux in xylene it dimerises to yield 3-triphenylcyclopropyl-triphenylcyclopropene, 38. Subsequent treatment with KNH2 furnishes hexaphenylbenzene, whereas continued thermolysis leads to the ring expansion product triphenylazulene, 39, with elimination of trans-stilbene as shown in Scheme 15 [51].

3.8. Organometallic Derivatives of Persubstituted Cycloheptatrienes

Other per-substituted seven-membered ring systems include C7Cl8 [52], C7(CO2Me)7H [53], C7Me7H [54] and the aforementioned heptaphenylborepin BC6Ph7 [42]. Furthermore, a number of bis(heptaphenylcycloheptatrienes) have been prepared by double Diels-Alder addition of triphenylcyclopropene to a series of linked bis(tetracyclone) precursors [55].

3.8.1. Octachlorocycloheptatriene, C7Cl8

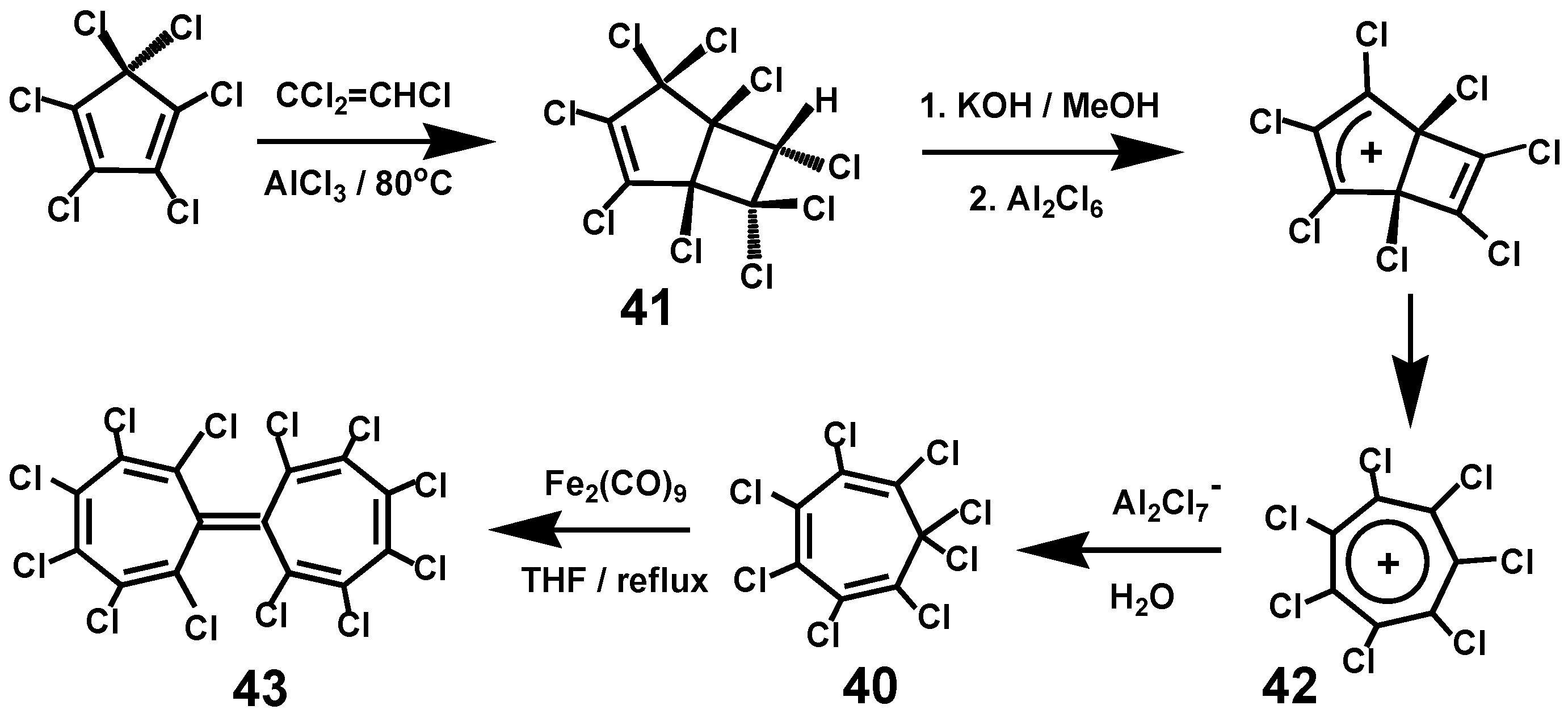

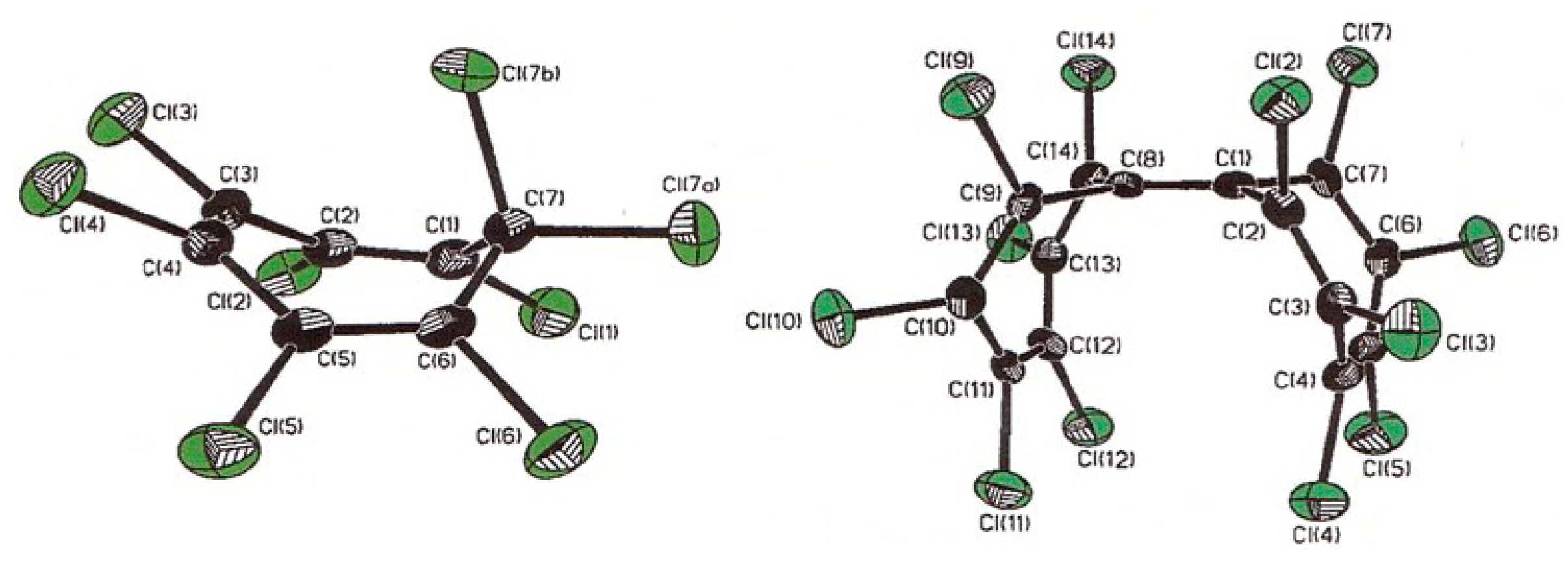

Perchlorocycloheptatriene, 40, was originally prepared by West and coworkers by cycloaddition of hexachlorocyclopentadiene with trichloroethylene [52]. However, this proceeds via a [2 + 2] rather than a [4 + 2] cycloaddition to form the bicyclo[3.2.0]heptane, 41, which, after elimination of HCl and reaction with AlCl3 at 150 °C, forms the perchlorotropylium ion, 42, that recaptures a chloride from the heptachlorodialuminate anion (Scheme 16). The boat conformation of C7Cl8 has been determined X-ray crystallographically (Figure 16) and revealed that the fold angles between planes containing C(6)-C(7)-C(1) [plane 1], C(1)-C(2)-C(5)-C(6) [plane 2], and C(2)-C(3)-C(4)-C(5) [plane 3] are 52° for [plane 1/plane 2] and 32° for [plane 2/plane 3], similar to those found in C7Ph7H. Reaction with a number of metal carbonyls led to formation of the dodecachlorofulvalene, 43, possibly via a metal carbene intermediate [56].

3.8.2. The heptamethyltropylium Cation, [C7Me7+]

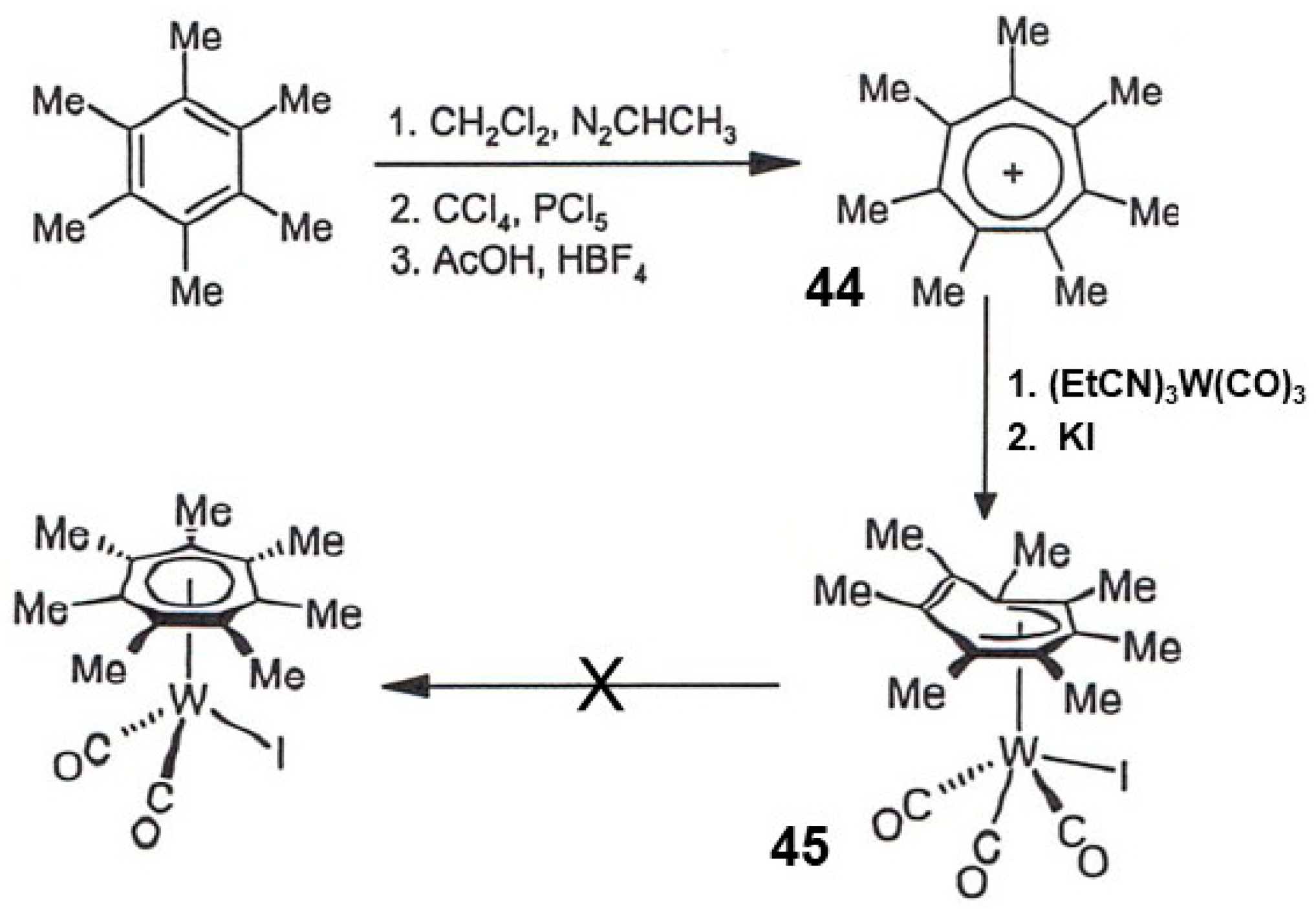

We note that in a comprehensive study by Tamm, heptamethylcycloheptatriene C7Me7H, formed via ring expansion of hexamethylbenzene by a carbene, rather than by a Diels-Alder reaction, and also its corresponding cation [C7Me7+], 44, have been prepared and fully characterised [54]. The cation was shown to adopt a nonplanar boat conformation such that the fold angles between planes containing C(6)-C(7)-C(1) [plane 1], C(1)-C(2)-C(5)-C(6) [plane 2], and C(2)-C(3)-C(4)-C(5) [plane 3] were 21° for [plane 1/plane 2] and 30° for [plane 2/plane 3], noticeably larger than those seen in the heptaphenyltropylium cation. This may be rationalised in terms of the greater steric demand of the three-dimensional methyl groups relative to the flat phenyl substituents that can rotate markedly out of the central plane. Reaction of the cation with (EtCN)3W(CO)3 and sodium iodide was expected to yield (η7-C7Me7)W(CO)3I, but in fact the product isolated was (η5-C7Me7)W(CO)3I, 45, in which the uncoordinated double bond is folded away from the complexed 5-atom plane through 60°, as shown in Scheme 17, once again emphasising the severe steric hindrance engendered by the seven methyl substituents [57].

3.8.3. Heptacarbomethoxycycloheptatriene, C7(CO2Me)7H

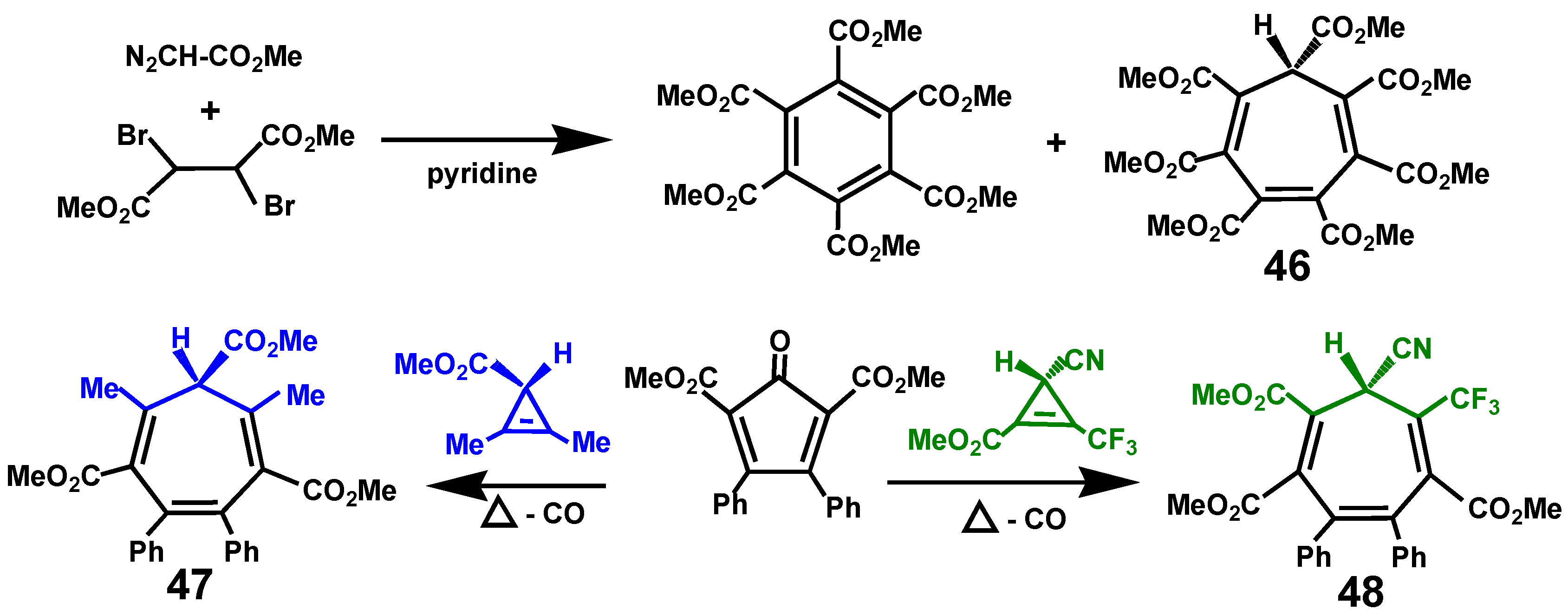

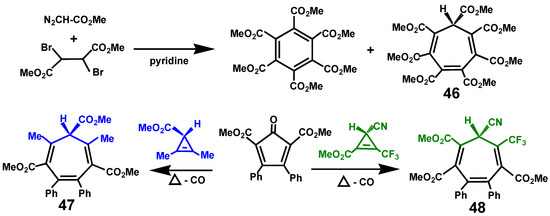

In more recent work, Tomilov and coworkers reported that the cascade reaction of methyl diazoacetate and dimethyl dibromosuccinnate in the presence of pyridine furnished the hexa- and hepta-esters, C6(CO2Me)6 and C7(CO2Me)7H (Scheme 18). The cycloheptatriene and its potassium salt were both characterised by X-ray diffraction. The boat conformation in C7(CO2Me)7H, 46, parallels that seen previously seen with fold angles of 54° for [plane 1/plane 2] and 33° for [plane 2/plane 3], compared to 55° and 35° in C7Ph7H, 52° and 32° in C7Cl8. However, in the potassium salt, the seven-membered anionic ring flattens such that these angles change dramatically to become 29° and 43°. This is indicative of partial conjugation involving five ring carbons with delocalisation of the negative charge onto the ester oxygens [53].
Although the hepta-ester was not preparable directly via a Diels-Alder route, reaction of 2,5-dicarbomethoxy-3,4-diphenylcyclopentadienone with 1,2-dimethyl-3-carbomethoxycyclopropene did yield the corresponding cycloheptatriene, 47, containing two methyls, two phenyls and three ester groups. Analogously, a number of cycloheptatrienes bearing multiple electron-withdrawing substituents–esters, nitriles and trifluoromethyl groups, as in 48, were readily obtainable [58].

4. Diels-Alder Cycloadditions en Route to Organometallic Molecular Brakes

4.1. Attempted Preparation of Fluorenyl-Pentaphenylbenzene

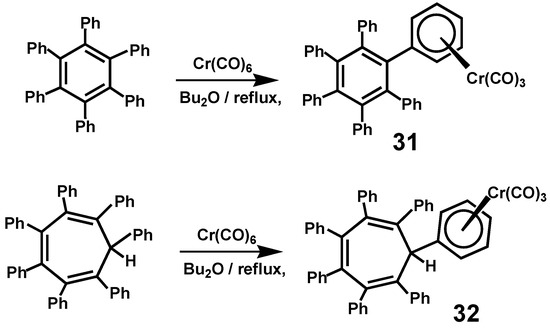

In earlier work, we reported that in [C6Ph6]Cr(CO)3, 31, in which the metal carbonyl tripod is attached to a peripheral ring (Scheme 12), there is a substantial barrier (50 kJ mol−1) to rotation of the complexed phenyl substituent relative to the central ring [48]. In light of this observation, we speculated that incorporation of an organometallic moiety onto an external benzo ring of fluorenyl-pentaphenylbenzene could then undergo a base-promoted η6 to η5 haptotropic shift, as in 49 to 50, such that the bulky metal carbonyl group would then be sited proximate to the C6Ph5 core, thereby restricting its rotation and functioning as an organometallic molecular brake (Scheme 19).

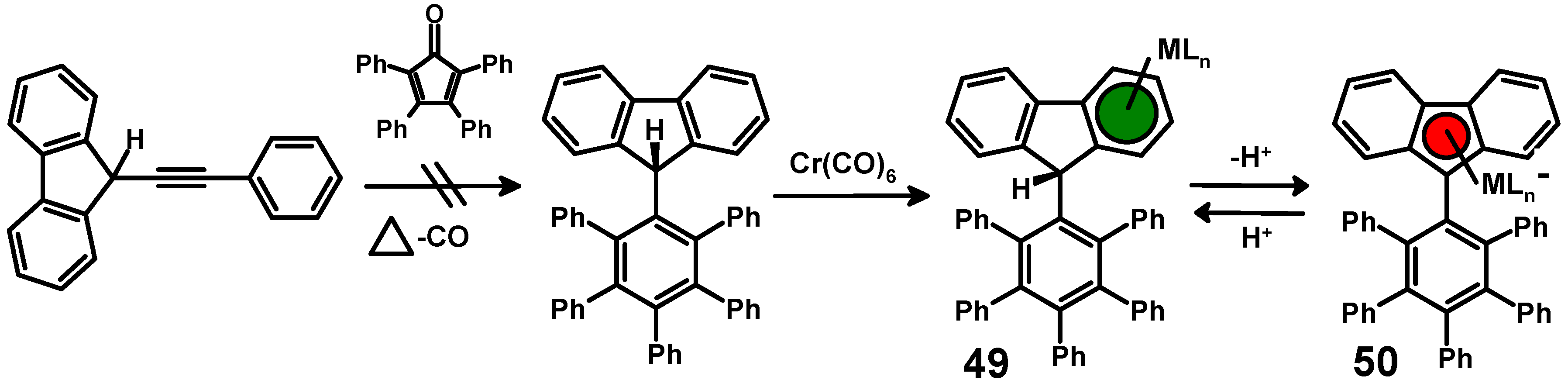

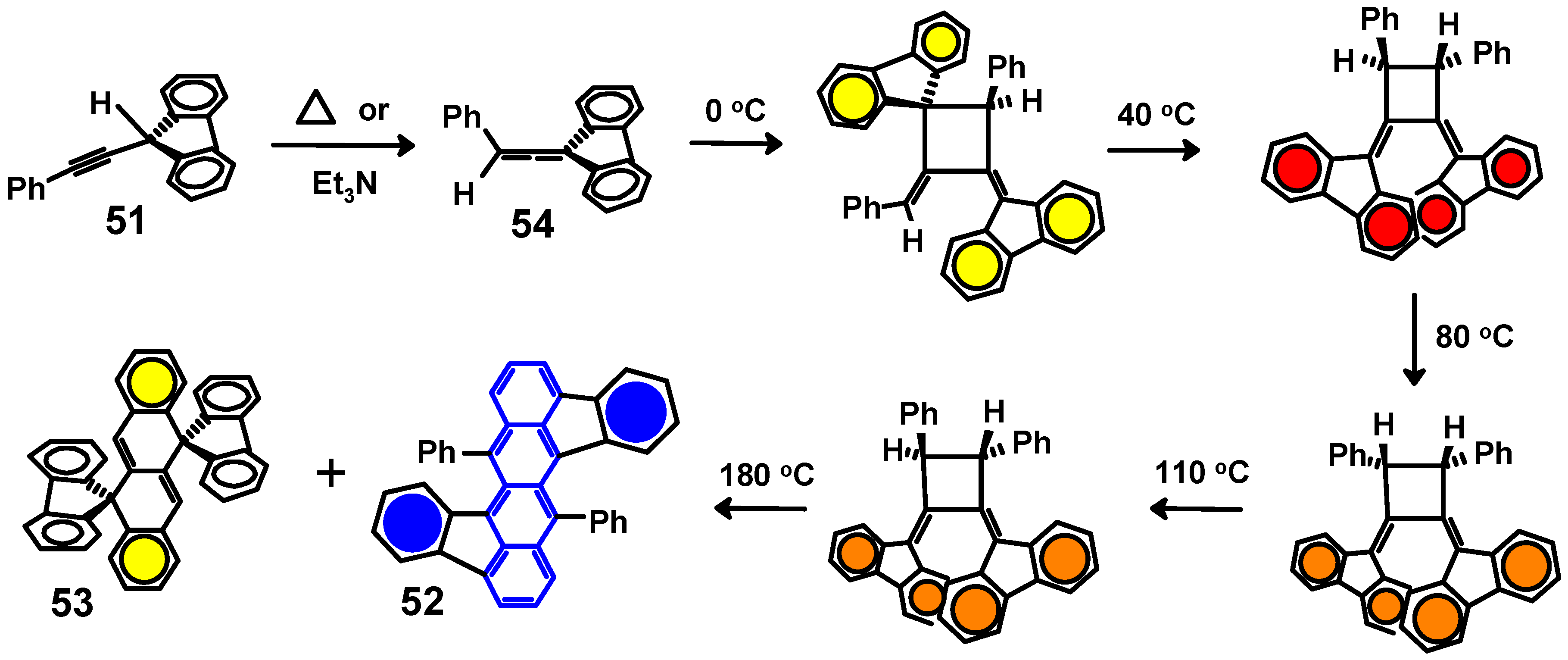

To this end, we attempted to carry out the Diels-Alder addition of phenethynylfluorene, 51, to tetracyclone. However, analysis of the products showed complete recovery of the unreacted tetracyclone and formation of two tetracenes, 52 and 53 [59]. Further study revealed that the alkyne had isomerised to the allene, 54, which dimerised and progressed via a series of highly coloured (yellow, red, orange) bis(fluorenyliden)cyclobutanes before finally forming the tetracenes. Each successive product was characterised spectroscopically and by X-ray crystallography, and the entire sequence depicted in Scheme 20 has been described in detail [60,61].

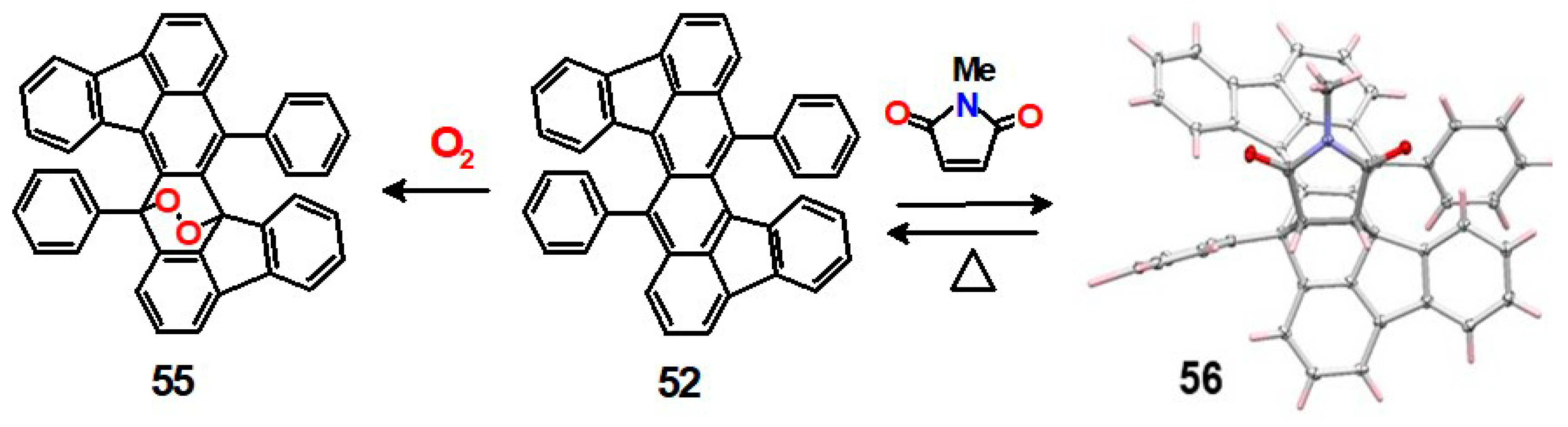

Nevertheless, we note that the blue tetracene, 52, which is electroluminescent with potential use in display screens, is susceptible to aerial oxidation and forms the peroxide, 55 [59,60]. Fortunately, the tetracene can be conveniently stored, in a thermally reversible process, as 56, its Diels-Alder adduct with N-methylmaleimide, whose X-ray crystal structure is shown in Figure 17 [62].

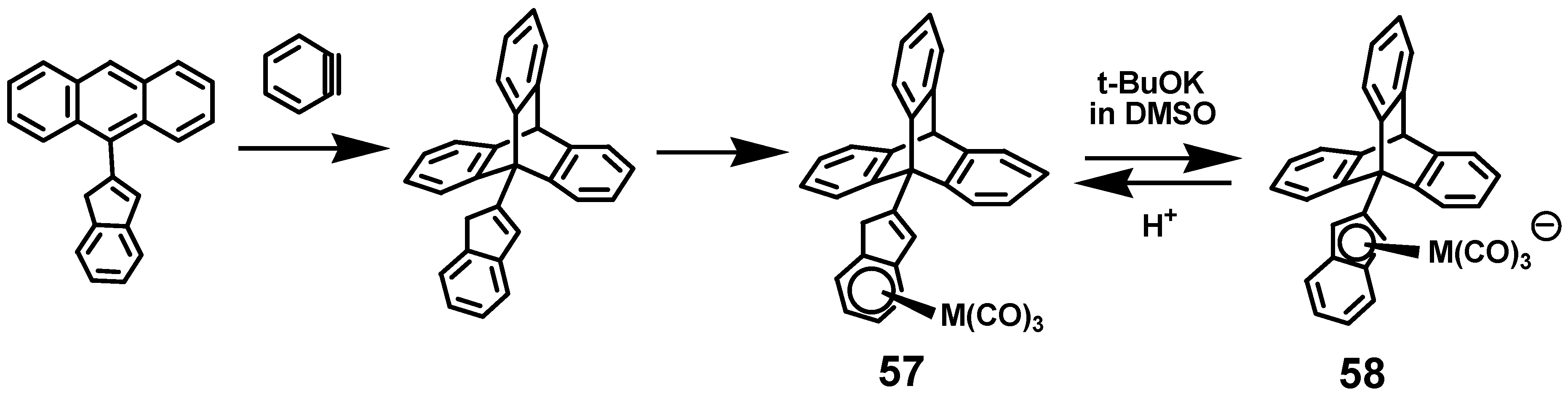

4.2. Successful Route to a Molecular Brake via Addition of Benzyne to 9-(2-Indenyl)anthracene

More recently, the Diels-Alder cycloaddition of benzyne to 9-(2-indenyl)anthracene to form 9-(2-indenyl)triptycene was crucial in the successful generation of an organometallic molecular brake (Scheme 21). In this case, the η6 to η5 haptotropic shift (57→58) of an M(CO)3 fragment (M = Cr, Mn or Re) positioned the metal carbonyl tripod so as to block rotation of the triptycene paddlewheel [63]. X-ray data were obtained for 57 and for a neutral version of 58. This project, including many related Diels-Alder reactions, has been fully discussed elsewhere in this journal [64].

5. Diels-Alder Cycloadditions with Subsequent Molecular Rearrangement

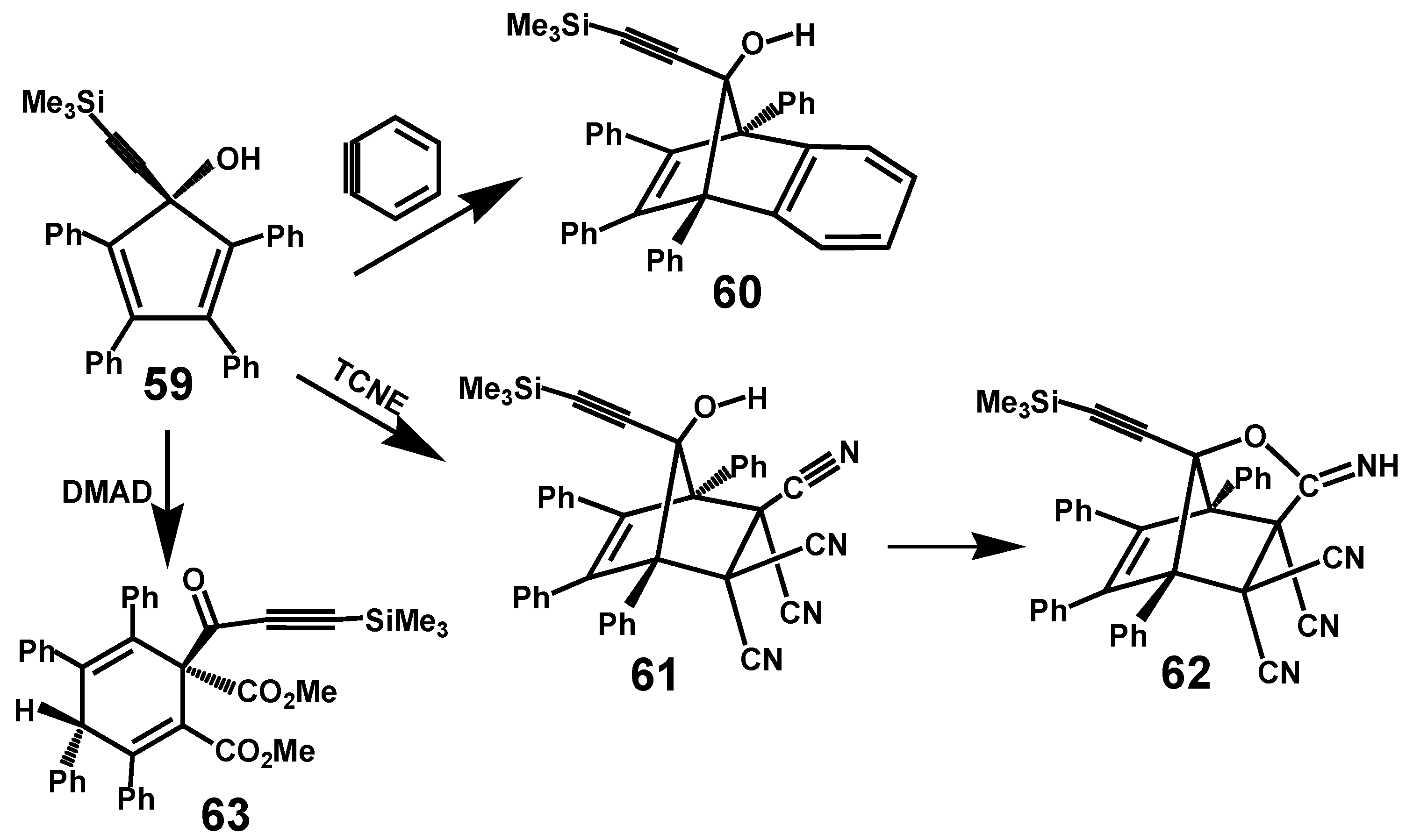

As part of a study of [4 + 2] cycloadditions to 5-trimethylsilylethynyl-1,2,3,4-tetraphenyl-cyclopentadien-5-ol, 59, this molecule was allowed to react with benzyne, tetracyanoethylene (TCNE) and dimethyl acetylenedicarboxylate (DMAD) [65]. While benzyne yielded the anticipated alkynyl-benzonorbornadienol, 60, the 13C NMR spectrum of the TCNE adduct exhibited resonances at 113.0, 112.1 and 110.5 ppm, indicating the presence of more than the two nitrile environments expected for the mirror symmetric structure, 61. Moreover, the identity of a peak at 159.4 ppm was not immediately apparent. Fortunately, X-ray crystallography resolved these issues when the product was revealed as the imino lactone, 62, whereby the hydroxyl moiety was added across an exo-nitrile linkage, thus breaking the mirror symmetry and rendering the other three nitriles nonequivalent (Scheme 22). Evidently, the reaction of TCNE with 59 proceeded via cycloaddition syn to the hydroxyl substituent, in accord with theoretical calculations [66].

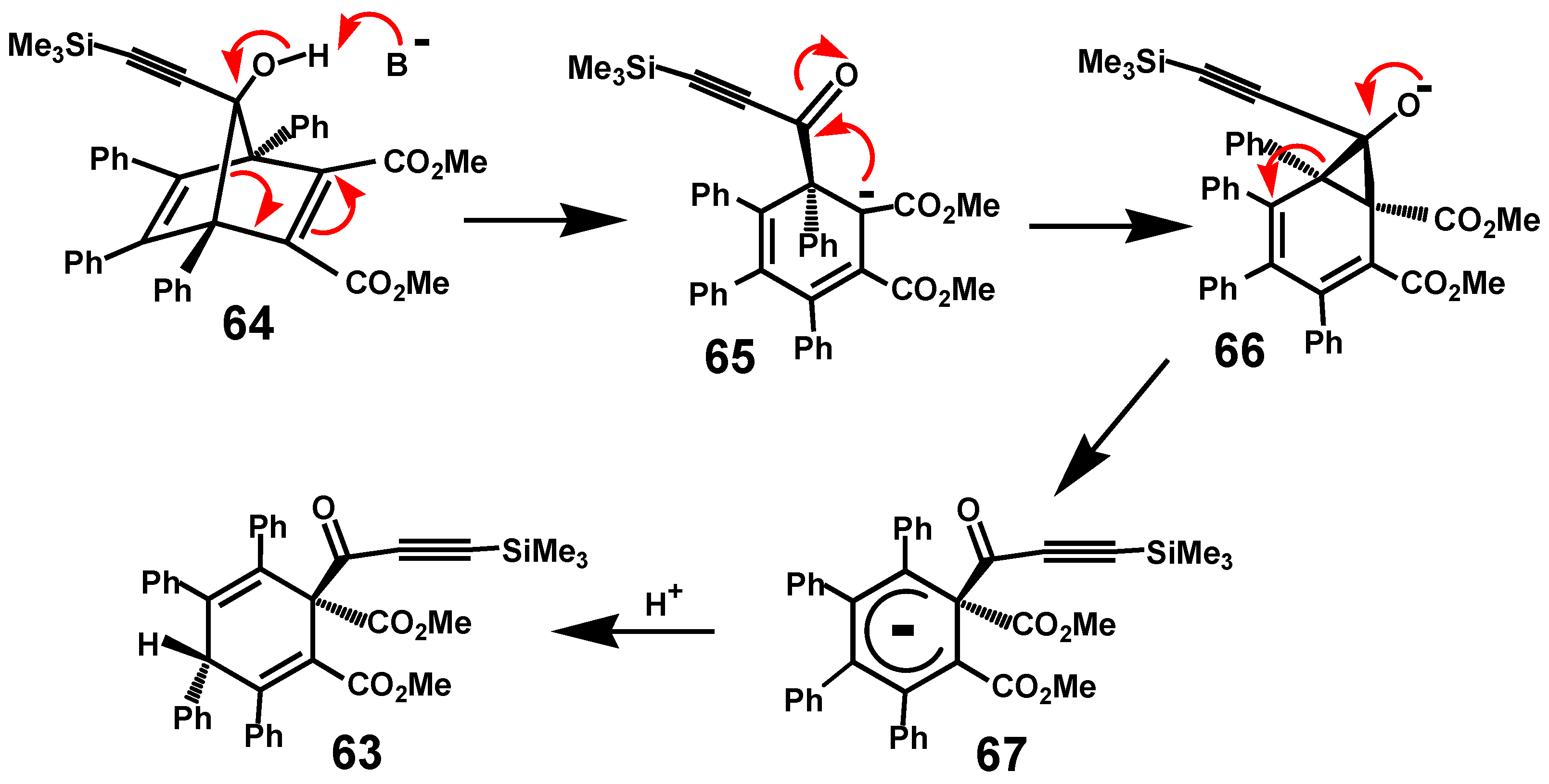

In contrast, the analogous reaction of 59 with DMAD was considerably more complicated, and it is not clear that the identity of the resulting product, 63, would have been unequivocally determined without recourse to X-ray crystallography. As shown in Scheme 23, one can envisage that base-promoted bridge cleavage in the initial cycloadduct, 64, followed by intramolecular anionic attack on the newly-formed ketonic functionality in 65, leads to the cyclopropyl intermediate, 66. Subsequent regeneration of the ketone with concomitant ring opening completes the migration of the alkynyl ketone moiety to give 67 which, upon protonation, yields the observed product 63 [65].

6. Concluding Remarks

In this review, we have attempted to illustrate how the Diels-Alder reaction underpins several projects carried out over a number of years, but not previously gathered together. These include the complete elucidation of the mechanisms of molecular rearrangements whereby the existence of proposed short-lived intermediates, such as isoindenes, can be verified by their interception as [4 + 2] cycloadducts. While the reaction of alkynes with cyclopentadienones has been widely invoked for preparation of arenes, the use of cyclopropenes for the synthesis of sterically crowded seven-membered rings had been far less studied, and the characterisation of such molecules bearing ferrocenyl and/or multiple naphthyl substituents is described herein.
It is also instructive to note cases where attempted Diels-Alder cycloadditions yielded unexpected products, either through subsequent rearrangement of the initial adducts or, instead, revealed novel chemistry involving a coreactant. This latter situation is exemplified by the serendipitous formation of electroluminescent tetracenes when seeking a route to a molecular machine. Gratifyingly, however, in the first demonstration of an organometallic molecular brake, a benzyne cycloaddition was crucial to its success. Over the past 90 years, the remarkable versatility and applicability of this reaction has attracted the attention of generations of chemists, and we all owe a considerable debt to Otto Diels and Kurt Alder [67].

Funding

This research was funded for many years by the Natural Sciences and Engineering Research Council of Canada (NSERC), the Petroleum Research Fund (PRF), administered by the American Chemical Society, and by Science Foundation Ireland (SFI).

Acknowledgments

The author thanks University College Dublin and the UCD School of Chemistry for additional financial support, and the Centre for Synthesis and Chemical Biology (CSCB) for the use of analytical facilities. Figure 5, Figure 6 and Figure 11 are reprinted with permission of the American Chemical Society. Figure 14 and Figure 16 are reprinted from the Canadian Journal of Chemistry; © Canadian Science Publishing or its licensors.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Woodward, R.B.; Sondheimer, F.; Taub, D. The total synthesis of cortisone. J. Am. Chem. Soc. 1951, 73, 4057. [Google Scholar] [CrossRef]
  2. Eaton, P.E.; Cole, T.W. The cubane system. J. Am. Chem. Soc. 1964, 86, 962–964. [Google Scholar] [CrossRef]
  3. Wyvratt, M.J.; Paquette, L.A. Domino Diels-Alder reactions. II A four-step conversion of cyclopentadienide to triquinacene. Tetrahedron Lett. 1974, 15, 2433–2436. [Google Scholar] [CrossRef]
  4. Shen, X.F.; Ho, D.M.; Pascal, R.A. Synthesis of polyphenylene dendrimers related to cubic graphite. J. Am. Chem. Soc. 2004, 126, 5798–5805. [Google Scholar] [CrossRef] [PubMed]
  5. Iyer, V.; Wehmeier, M.; Brand, J.D.; Keegstra, M.A.; Müllen, K. From Hexa-peri-hexabenzocoronene to “Superacenes”. Angew. Chem. Int. Ed. 1997, 36, 1604–1607. [Google Scholar] [CrossRef]
  6. Bennett, M.J.; Cotton, F.A.; Davison, A.; Faller, J.W.; Lippard, S.J.; Morehouse, S.M. Stereochemically nonrigid organometallic compounds. I. π-Cyclopentadienyliron dicarbonyl σ-cyclopentadiene. J. Am. Chem. Soc. 1966, 88, 4371–4376. [Google Scholar] [CrossRef]
  7. Cotton, F.A.; Musco, A.; Yagupsky, G. Stereochemically nonrigid organometallic compounds. VIII. Further Studies of σ-cyclopentadienylmetal compounds. J. Am. Chem. Soc. 1967, 89, 6136–6139. [Google Scholar] [CrossRef]
  8. Cotton, F.A.; Marks, T.J. Stereochemically nonrigid organometallic compounds. XXII. A fluxional indenylmercury compound. J. Am. Chem. Soc. 1969, 91, 3178–3182. [Google Scholar] [CrossRef]
  9. Stradiotto, M.; Hughes, D.W.; Bain, A.D.; Brook, M.A.; McGlinchey, M.J. The fluxional character of (η5-C5H5)FeCO)2(η1-C9H7): Evidence for the [4+2] cycloaddition of a metal-substituted isoindene with tetracyanoethylene. Organometallics 1997, 16, 5563–5568. [Google Scholar] [CrossRef]
  10. Kerber, R.C.; Garcia, R.; Nobre, A.L. Cycloaddition reactions of dicarbonyl(η5-cyclopentadienyl)(η1-indenyl)iron. Organometallics 1996, 15, 5756–5758. [Google Scholar] [CrossRef]
  11. Larrabee, R.B.; Dowben, B.F. Organometallic rearrangements. 1-Trimethylsilyl-and 1-trimethylgermylindene. Tetrahedron Lett. 1970, 11, 915–918. [Google Scholar] [CrossRef]
  12. Ashe, A.J. III 1,5-Trimethylsilyl migrations in 1-trimethylsilylindene. Tetrahedron Lett. 1970, 11, 2105–2108. [Google Scholar] [CrossRef] [Green Version]
  13. Luzikov, Y.N.; Sergeyev, N.M.; Ustynyuk, Y.A. Relative migratory abilities of metals for cyclopentadienyl and indenyl ligands. J. Organometal. Chem. 1974, 65, 303–310. [Google Scholar] [CrossRef]
  14. McMaster, A.D.; Stobart, S.R. Stereochemically nonrigid silanes, germanes, and stannanes. 10. Diastereoisomerism and metallotropic behavior in polyindenyl derivatives of germanium and tin. Facile stereomutation. J. Am. Chem. Soc. 1982, 104, 2109–2112. [Google Scholar] [CrossRef]
  15. Rigby, S.S.; Girard, L.; Bain, A.D.; McGlinchey, M.J. Molecular dynamics of dl-bis(indenyl)dimethylsilane and meso-bis(indenyl)dimethylsilane—reexamination of the mechanism of interconversion by using single selective inversion NMR. Organometallics 1995, 14, 3798–3801. [Google Scholar] [CrossRef]
  16. Atwood, J.L.; McMaster, A.D.; Rogers, R.D.; Stobart, S.R. Stereochemically nonrigid silanes, germanes, and stannanes. 12. Crystal and molecular structures of tetrakis(η1-indenyl) derivatives of germanium and tin: Meso diastereomers with S4 symmetry. Organometallics 1984, 3, 1500–1504. [Google Scholar] [CrossRef]
  17. Stradiotto, M.; Rigby, S.S.; Hughes, D.W.; Brook, M.A.; Bain, A.D.; McGlinchey, M.J. Multidimensional NMR Study of tris(indenyl)methylsilane:  Molecular dynamics mapped onto a hypercube. Organometallics 1996, 15, 5645–5652. [Google Scholar] [CrossRef]
  18. Stradiotto, M.; Brook, M.A.; McGlinchey, M.J. The molecular dynamics and cycloaddition chemistry of tris(1-indenyl)allylsilane Part 1-Generation of the first crystallographically characterized tris(benzonorbornyl)silane. New J. Chem. 1999, 23, 317–321. [Google Scholar] [CrossRef]
  19. Stradiotto, M.; Brook, M.A.; McGlinchey, M.J. The molecular dynamics and reactivity of tris(inden-1-yl)silane: An NMR spectroscopic, and X-ray crystallographic study. J. Chem. Soc. Perkin Trans. 2 2000, 611–618. [Google Scholar] [CrossRef]
  20. Rigby, S.S.; Gupta, H.K.; Werstiuk, N.H.; Bain, A.D.; McGlinchey, M.J. The barriers to trimethylsilyl migrations in indenes and benzindenes: Silatropic shifts via aromatic transition states. Polyhedron 1995, 14, 2787–2796. [Google Scholar] [CrossRef]
  21. Rigby, S.S.; Gupta, H.K.; Werstiuk, N.H.; Bain, A.D.; McGlinchey, M.J. Do aromatic transition states lower barriers to silatropic shifts? A synthetic, NMR spectroscopic, and computational study. Inorg. Chim. Acta 1996, 251, 355–364. [Google Scholar] [CrossRef]
  22. Stradiotto, M.; McGlinchey, M.J. η1-Indenyl derivatives of transition metal and main group elements: Synthesis, characterization and molecular dynamics. Coord. Chem. Rev. 2001, 219, 311–378. [Google Scholar] [CrossRef]
  23. Rigby, S.S.; Stradiotto, M.; Brydges, S.; Pole, D.L.; Top, S.; Bain, A.D.; McGlinchey, M.J. Diels-Alder dimerization of cyclopenta[l]phenanthrene (dibenz[e,g]indene) with isodibenzindene: A computational, NMR spectroscopic, and X-ray crystallographic study. J. Org. Chem. 1998, 63, 3735–3740. [Google Scholar] [CrossRef]
  24. Brydges, S.; Harrington, L.E.; McGlinchey, M.J. Sterically hindered organometallics: Multi-n-rotor (n = 5, 6 and 7) molecular propellers and the search for correlated rotations. Coord. Chem. Res. 2002, 233, 75–105. [Google Scholar] [CrossRef]
  25. Battiste, M.A. Heptaphenyltropilidene–product of a Diels-Alder reaction of triphenylcyclopropene. Chem. Ind. 1961, 550–551. [Google Scholar]
  26. Battiste, M.A. Salts of the heptaphenyltropylium ion and their stability. J. Am. Chem. Soc. 1961, 83, 4101–4102. [Google Scholar] [CrossRef]
  27. Battiste, M.A. The heptaphenyltropylium (heptaphenylcycloheptatrienyl) radical in solution. J. Am. Chem. Soc. 1962, 84, 3780–3782. [Google Scholar] [CrossRef]
  28. Breslow, R.; Chang, H.W. Heptaphenylcycloheptatrienyl anion. J. Am. Chem. Soc. 1965, 87, 2200–2203. [Google Scholar] [CrossRef]
  29. Chao, L.C.F.; Gupta, H.K.; Hughes, D.W.; Britten, J.F.; Rigby, S.S.; Bain, A.D.; McGlinchey, M.J. Chromium and molybdenum carbonyl complexes of C7Ph7H and C7Ph5Me2H and of C7Ph7H(CO), the Diels-Alder adduct of tetracyclone and triphenylcyclopropene: Variable-temperature NMR and X-ray crystallography study. Organometallics 1995, 14, 1139–1151. [Google Scholar] [CrossRef]
  30. Battiste, M.A. Cyclopropenes as Dienophiles. The stereochemistry and nuclear magnetic resonance spectra of some diene adducts of triphenylcyclopropene and diphenylcyclopropene carboxylic acid. Tetrahedron Lett. 1964, 5, 3795–3802. [Google Scholar] [CrossRef]
  31. Traetteberg, M. The molecular structure of 1,3,5-cycloheptatriene in the vapor phase as determined by the sector electron diffraction method. J. Am. Chem. Soc. 1964, 86, 4265–4270. [Google Scholar] [CrossRef]
  32. Brydges, S.; Britten, J.F.; Chao, L.C.F.; Gupta, H.K.; McGlinchey, M.J.; Pole, D.L. The structure of a seven-bladed propeller: C7Ph7+ is not planar. Chem. Eur. J. 1998, 4, 1201–1205. [Google Scholar] [CrossRef]
  33. Larson, E.M.; Von Dreele, R.B.; Hanson, P.; Gust, J.D. The structure of hexaphenylbenzene anisole clathrate, 2 C6(C6Ph5)6.C6H5OCH3. Acta Crystallogr. 1990, C46, 784–788. [Google Scholar] [CrossRef]
  34. Bart, J.C.J. Crystal structure of a modification of hexaphenylbenzene. Acta Crystallogr. 1968, B24, 1277–1287. [Google Scholar] [CrossRef]
  35. Schumann, H.; Lentz, A.; Weimann, R.; Pickardt, J. Decaphenylferrocene and decaphenylferrocenium tetrafluoroborate. Angew. Chem. Int. Ed. 1994, 33, 1731–1733. [Google Scholar] [CrossRef]
  36. Li, L.; Decken, A.; Sayer, B.G.; McGlinchey, M.J.; Brégaint, P.; Thépot, J.Y.; Toupet, L.; Hamon, J.R.; Lapinte, C. Multiple fluxional processes in chiral (pentaphenylcyclopentadienyl)iron complexes: X-ray crystal structure of (C5Ph5)Fe(CO)(PMe3)(HC=O) and the barriers to aryl, phosphine, and tripodal rotation in (C5Ph5)Fe(CO)(PMe2Ph)C(O)Et. Organometallics 1994, 13, 682–689. [Google Scholar] [CrossRef]
  37. Adams, H.; Bailey, N.A.; Browning, A.F.; Ramsden, J.A.; White, C. The stereochemical and kinetic consequences of binding a pentaphenylcyclopentadienyl ligand–crystal structure of Ru(C5Ph5)(CO)(PPh3)Br. J. Organometal. Chem. 1990, 387, 305–314. [Google Scholar] [CrossRef]
  38. Iyoda, M.; Sultana, F.; Sasaki, S.; Butenschön, H. Synthesis of novel fullerene complex–the [4+2]-cycloadduct of (bicyclo[3.2.0]hepta-1,3-dienyl)cobalt(I) complex with C-60. Tetrahedron Lett. 1995, 36, 579–582. [Google Scholar] [CrossRef]
  39. Bailey, P.J.; Blake, A.J.; Dyson, P.J.; Ingham, S.L.; Johnson, B.F.G. The preparation and solid-state structure of Ru5C(CO)13(η4-C4Ph4)–the first cluster to carry a cyclobutadiene ring. J. Chem. Soc. Chem. Commun. 1994, 2233–2234. [Google Scholar] [CrossRef]
  40. Borgias, B.A.; Scarrow, R.C.; Seidler, M.D.; Weiner, W.P. Sym-triphenylcyclopropenium hexabromotellurate(IV), (C21H15)2[TeBr6]. Acta Crystallogr. 1985, C41, 476–479. [Google Scholar] [CrossRef]
  41. Sundarlingam, M.; Jensen, L.H. Structure of a carbonium ion. Refinement of crystal and molecular structure of sym-triphenylcyclopropenium perchlorate. J. Am. Chem. Soc. 1966, 88, 198–204. [Google Scholar] [CrossRef]
  42. Eisch, J.J.; Galle, J.E. The synthesis of heptaphenylborepin via the thermal rearrangement of heptaphenyl-7-borabicyclo[2.2.1]heptadiene. J. Am. Chem. Soc. 1975, 97, 4436–4437. [Google Scholar] [CrossRef]
  43. Hassner, A.; Anderson, D.J. Cycloaddition of 1-azirines with cyclopentadienones. Formation of 2H-and 3H-azepines, and mechanistic interpretation. J. Org. Chem. 1974, 39, 3070–3076. [Google Scholar] [CrossRef]
  44. Rybinskaya, M.I.; Kreindlin, A.Z.; Fadeeva, S.S. On the problem of stabilization of alpha-carbocationic centers in metallocene series-related interconversions of permethylated alpha-metallocenylcarbocations and metallicenium cation-radicals of the iron sub-group. J. Organometal. Chem. 1988, 358, 363–374. [Google Scholar] [CrossRef]
  45. Gupta, H.K.; Brydges, S.; McGlinchey, M.J. Diels-Alder reactions of 3-ferrocenyl-2,4,5-triphenylcyclopentadienone: Syntheses and structures of the sterically crowded systems C6Ph5Fc, C7Ph6FcH, and [C7Ph6FcH][SbCl6]. Organometallics 1999, 18, 115–122. [Google Scholar] [CrossRef]
  46. Harrington, L.E.; Britten, J.F.; Nikitin, K.; McGlinchey, M.J. A synthetic, X-ray, NMR spectroscopy and DFT study of di(β-naphthyl)acetylene, tetra(β-naphthyl)cyclopentadienone, and hexa(β-naphthyl)benzene: C6(C10H7)6 is a disordered molecular propeller. ChemPlusChem 2017, 82, 433–441. [Google Scholar] [CrossRef]
  47. Harrington, L.E.; Britten, J.F.; McGlinchey, M.J. Ferrocenyl-penta-(β-naphthyl)benzene–Synthesis, structure and dynamic behaviour. Can. J. Chem. 2003, 81, 1180–1186. [Google Scholar] [CrossRef]
  48. Mailvaganam, B.; Sayer, B.G.; McGlinchey, M.J. The fluxional behavior of hexaphenylbenzene chromium tricarbonyl–a variable-temperature C-13 NMR spectroscopic study. J. Organometal. Chem. 1990, 395, 177–185. [Google Scholar] [CrossRef]
  49. Pauson, P.L.; Smith, G.H.; Valentin, J.H. Cycloheptatriene and tropylium metal complexes. 4. Preparation of 7-exosubstituted tricarbonylcycloheptatrienechromiums. J. Chem. Soc. C 1967, 1057–1061. [Google Scholar] [CrossRef]
  50. Brydges, S.; Gildea, B.; Grealis, J.P.; Müller-Bunz, H.; Stradiotto, M.; Casey, M.; McGlinchey, M.J. Organic and organometallic derivatives of pentaphenylbenzene C6Ph5X: Correlation of peripheral phenyl ring orientations with the steric bilk of “X”. Can. J. Chem. 2013, 91, 1098–1111. [Google Scholar] [CrossRef]
  51. Breslow, R.; Dowd, P. The dimerization of triphenylcyclopropene. J. Am. Chem. Soc. 1963, 85, 2729–2735. [Google Scholar] [CrossRef]
  52. Kusada, K.; West, R.; Rao, V.N.M. Octachloroheptatriene and related compounds. J. Am. Chem. Soc. 1971, 93, 3627–3632. [Google Scholar] [CrossRef]
  53. Tomilov, Y.V.; Platonov, D.N.; Salikov, R.F.; Okonnishnikova, G.P. Synthesis and properties of stable 1,2,3,4,5,6,7-heptamethoxycarbonylcyclohepta-2,4,6-trienyl potassium and its reactions with electrophilic reagents. Tetrahedron 2008, 64, 10201–10206. [Google Scholar] [CrossRef]
  54. Tamm, M.; Dressel, B.; Fröhlich, R. Molecular structure of a heptadentate cogwheel: C7Me7+ is not planar. J. Org. Chem. 2000, 65, 6795–6797. [Google Scholar] [CrossRef]
  55. Harvey, J.A.; Ogliaruso, M.A. Synthesis, electronic spectra, and thermal behavior of bis(heptaphenylcycloheptatrienes). J. Org. Chem. 1976, 41, 3374–3377. [Google Scholar] [CrossRef]
  56. Dunn, J.A.; Gupta, H.K.; Bain, A.D.; McGlinchey, M.J. The metal-mediated conversion of octachlorocycloheptatriene into dodecachloroheptafulvalene: A synthetic, structural and EHMO study. Can. J. Chem. 1996, 74, 2258–2267. [Google Scholar] [CrossRef]
  57. Tamm, M.; Dressel, B.; Fröhlich, R.; Bergander, K. Complexes containing the heptadentate cogwheel C7Me7: Synthesis and structural characterisation of heptamethylcycloheptatrienyl (CHT*) tungsten complexes. Chem. Commun. 2000, 1731–1732. [Google Scholar] [CrossRef]
  58. Platonov, D.N.; Belyy, A.Y.; Ananyev, I.V.; Tomilov, Y.V. Syntheses of 1,2,3,4,5,6,7-heptasubstituted cycloheptatrienes through cycloaddition reactions of substituted cyclopentadienones. Eur. J. Org. Chem. 2016, 2016, 4105–4110. [Google Scholar] [CrossRef]
  59. Harrington, L.E.; Britten, J.F.; McGlinchey, M.J. Dimerization of 9-phenylethynylfluorene to di-indeno-naphthacene and dispiro[fluorene-dihydronaphthacene-fluorene]: An X-ray crystallographic and NMR study. Org. Lett. 2004, 6, 787–790. [Google Scholar] [CrossRef]
  60. Banide, E.V.; Ortin, Y.; Seward, C.M.; Harrington, L.E.; Müller-Bunz, H.; McGlinchey, M.J. Sequential formation of yellow, red and orange 1-phenyl-3,3-biphenylene-allene dimers prior to blue tetracene formation: Helicity reversal in trans-3,4-diphenyl-1,2-bis(fluorenylidene)cyclobutene. Chem. Eur. J. 2006, 12, 3275–3286. [Google Scholar] [CrossRef]
  61. Banide, E.V.; Oulié, P.; McGlinchey, M.J. From allenes to tetracenes: Syntheses, structures and reactivity of the intermediates. Pure Appl. Chem. 2009, 81, 1–17. [Google Scholar] [CrossRef]
  62. Banide, E.V.; O’Connor, C.; Fortune, N.; Ortin, Y.; Milosevic, S.; Müller-Bunz, H.; McGlinchey, M.J. Syntheses, X-ray structures and reactivity of fluorenylidene- and dibenzosuberylidene-allenes: Convenient precursors to dispirotetracenes, di-indenotetracenes and 2-phenyl-11bH-dibenz[cd,h]azulene. Org. Biomol. Chem. 2010, 8, 3997–4010. [Google Scholar] [CrossRef] [PubMed]
  63. Nikitin, K.; Müller-Bunz, H.; Ortin, Y.; McGlinchey, M.J. A molecular paddlewheel with a sliding organometallic latch: X-ray crystal structures and dynamic behaviour of [Cr(CO)3{η6-2-(9-triptycyl)indene}], and of [M(CO)3{η5-2-(9-triptycyl)indenyl}] (M = Mn, Re). Chem. Eur. J. 2009, 15, 1836–1843. [Google Scholar] [CrossRef]
  64. McGlinchey, M.J.; Nikitin, K. Palladium-catalysed coupling reactions en route to molecular machines: Sterically hindered indenyl and ferrocenyl anthracenes and triptycenes. Molecules 2020, 25, 1950. [Google Scholar] [CrossRef]
  65. Dunn, J.A.; Stradiotto, M.; McGlinchey, M.J. Diels-Alder adducts of 5-alkynylcyclopentadienols with tetracyanoethylene and dimethyl acetylenedicarboxylate: An X-ray crystallographic study of unexpected rearrangement products. J. Org. Chem. 2000, 65, 4861–4863. [Google Scholar] [CrossRef] [PubMed]
  66. Werstiuk, N.H.; Ma, J. An AM1 calculational study of the Diels-Alder addition of maleic anhydride to C5-substituted pentamethylcyclopentadienes and 2,5-dimethylthiophene oxide. An attempt to ascertain the factors controlling the π-facial selectivities and relative reactivities. Can. J. Chem. 1994, 72, 2493–2505. [Google Scholar] [CrossRef] [Green Version]
  67. Diels, O.; Alder, K. Synthesen in der hydroaromatischen Reihe VII. Justus Liebigs Ann. Chem. 1931, 486, 191–202. [Google Scholar] [CrossRef]
Molecules 25 04730 sch001 550

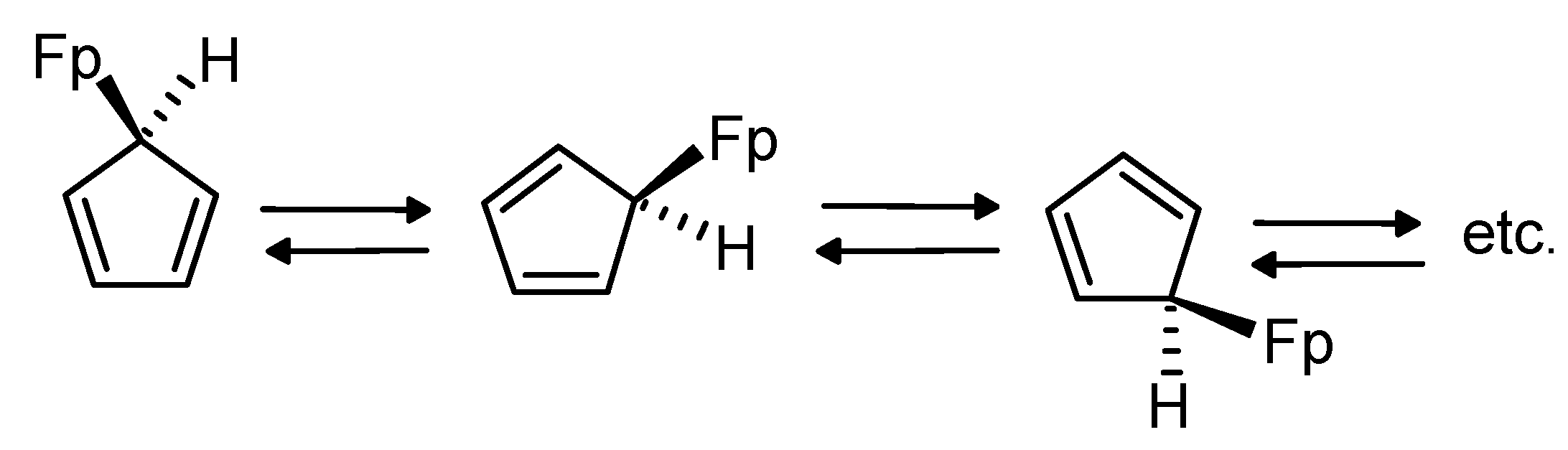

Scheme 1. Metallotropic shifts around a cyclopentadiene ring, where Fp = (C5H5)Fe(CO)2.
Scheme 1. Metallotropic shifts around a cyclopentadiene ring, where Fp = (C5H5)Fe(CO)2.
Molecules 25 04730 sch001
Molecules 25 04730 sch002 550

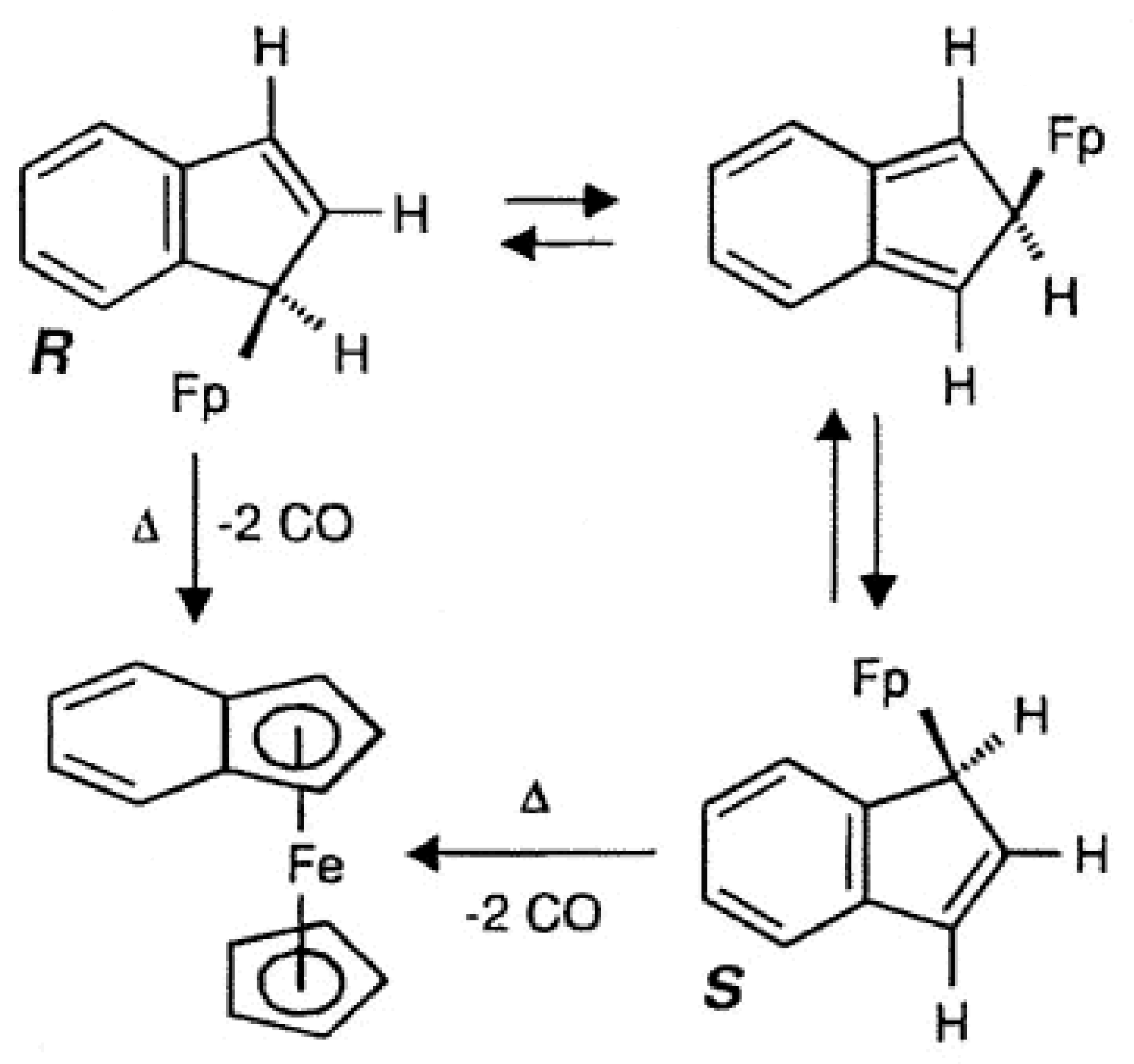

Scheme 2. Consecutive [1,5] metallotropic shifts leading to interconversion of enantiomers.
Scheme 2. Consecutive [1,5] metallotropic shifts leading to interconversion of enantiomers.
Molecules 25 04730 sch002
Molecules 25 04730 g001 550
Figure 1. (Left) 500 MHz 2D EXSY NMR spectrum showing exchange between Ha and Hb in (η5-C5H5)(CO)2Fe(η1-C9H7) at 45 °C, and (right) molecular structure of 1, the Diels-Alder adduct of tetracyanoethylene (TCNE) to the isoindene intermediate.
Figure 1. (Left) 500 MHz 2D EXSY NMR spectrum showing exchange between Ha and Hb in (η5-C5H5)(CO)2Fe(η1-C9H7) at 45 °C, and (right) molecular structure of 1, the Diels-Alder adduct of tetracyanoethylene (TCNE) to the isoindene intermediate.
Molecules 25 04730 g001
Molecules 25 04730 g002 550
Figure 2. Molecular structure of 2, the Diels-Alder adduct of TCNE to the isoindene intermediate derived from 1-trimethylsilylindene.
Figure 2. Molecular structure of 2, the Diels-Alder adduct of TCNE to the isoindene intermediate derived from 1-trimethylsilylindene.
Molecules 25 04730 g002
Molecules 25 04730 sch003 550
Scheme 3. Interconversion of diastereomers of bis(indenyl)dimethylsilane.
Scheme 3. Interconversion of diastereomers of bis(indenyl)dimethylsilane.
Molecules 25 04730 sch003
Molecules 25 04730 sch004 550
Scheme 4. Interconversions of the eight different indenyl ring environments of tris(indenyl)methylsilane, 3. The configurational inversion of a single indenyl ring requires two [1,5]-suprafacial sigmatropic shifts [17].
Scheme 4. Interconversions of the eight different indenyl ring environments of tris(indenyl)methylsilane, 3. The configurational inversion of a single indenyl ring requires two [1,5]-suprafacial sigmatropic shifts [17].
Molecules 25 04730 sch004
Molecules 25 04730 g003 550
Figure 3. (Left) The cube representing exchange between eight different indenyl environments in 3, and (right) the product of triple Diels-Alder addition of TCNE to tris(indenyl)methylsilane, 4.
Figure 3. (Left) The cube representing exchange between eight different indenyl environments in 3, and (right) the product of triple Diels-Alder addition of TCNE to tris(indenyl)methylsilane, 4.
Molecules 25 04730 g003
Molecules 25 04730 g004 550
Figure 4. Calculated and experimental barriers to silatropic shifts in a series of benzindenes.
Figure 4. Calculated and experimental barriers to silatropic shifts in a series of benzindenes.
Molecules 25 04730 g004
Molecules 25 04730 g005 550

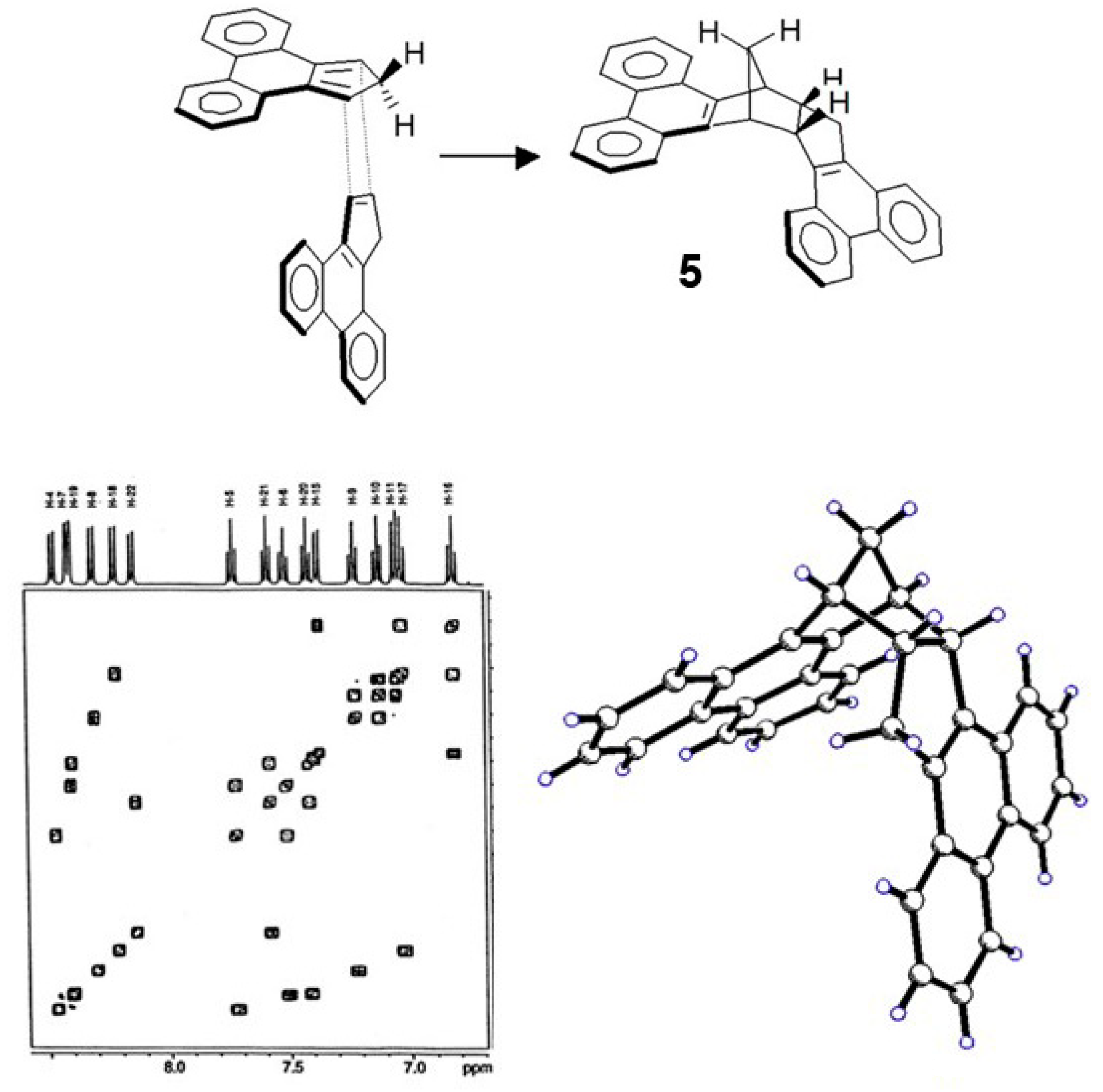

Figure 5. 500 MHz 1H-1H COSY NMR spectrum in the aromatic region, and molecular structure, of the Diels-Alder dimer formed by reaction of cyclopenta[l]phenanthrene with its own isoindene [23]. Figure 5 is reprinted with permission of the American Chemical Society.
Figure 5. 500 MHz 1H-1H COSY NMR spectrum in the aromatic region, and molecular structure, of the Diels-Alder dimer formed by reaction of cyclopenta[l]phenanthrene with its own isoindene [23]. Figure 5 is reprinted with permission of the American Chemical Society.
Molecules 25 04730 g005
Molecules 25 04730 sch005 550
Scheme 5. Cyclopentadienones as precursors to five, six and seven-membered ring systems.
Scheme 5. Cyclopentadienones as precursors to five, six and seven-membered ring systems.
Molecules 25 04730 sch005
Molecules 25 04730 g006 550
Figure 6. Molecular structures of (left) the Diels-Alder adduct of tetracyclone and triphenylcyclopropene, 7, and (right) heptaphenylcycloheptatriene, 6 [29]. Figure 6 is reprinted with permission of the American Chemical Society.
Figure 6. Molecular structures of (left) the Diels-Alder adduct of tetracyclone and triphenylcyclopropene, 7, and (right) heptaphenylcycloheptatriene, 6 [29]. Figure 6 is reprinted with permission of the American Chemical Society.
Molecules 25 04730 g006
Molecules 25 04730 g007 550
Figure 7. The four possible isomers of 8, arising from [1,5]-hydrogen shifts upon ring-opening of the Diels-Alder adduct of triphenylcyclopropene and 2,5-dimethyl-3,4-diphenylcyclopentadienone.
Figure 7. The four possible isomers of 8, arising from [1,5]-hydrogen shifts upon ring-opening of the Diels-Alder adduct of triphenylcyclopropene and 2,5-dimethyl-3,4-diphenylcyclopentadienone.
Molecules 25 04730 g007
Molecules 25 04730 g008 550
Figure 8. The four isomers (A–D) arising from [1,5]-hydrogen shifts upon ring-opening of the Diels-Alder adduct of triphenylcyclopropene and 2,5-diphenyl-3,4-di-(p-tolyl)cyclopentadienone.
Figure 8. The four isomers (A–D) arising from [1,5]-hydrogen shifts upon ring-opening of the Diels-Alder adduct of triphenylcyclopropene and 2,5-diphenyl-3,4-di-(p-tolyl)cyclopentadienone.
Molecules 25 04730 g008
Molecules 25 04730 sch006 550
Scheme 6. [1,5]-Hydrogen shifts in hepta-arylcycloheptatrienes.
Scheme 6. [1,5]-Hydrogen shifts in hepta-arylcycloheptatrienes.
Molecules 25 04730 sch006
Molecules 25 04730 g009 550

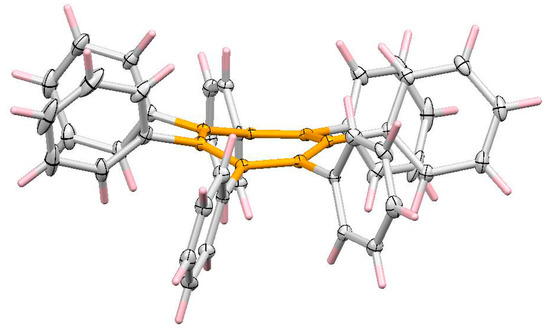

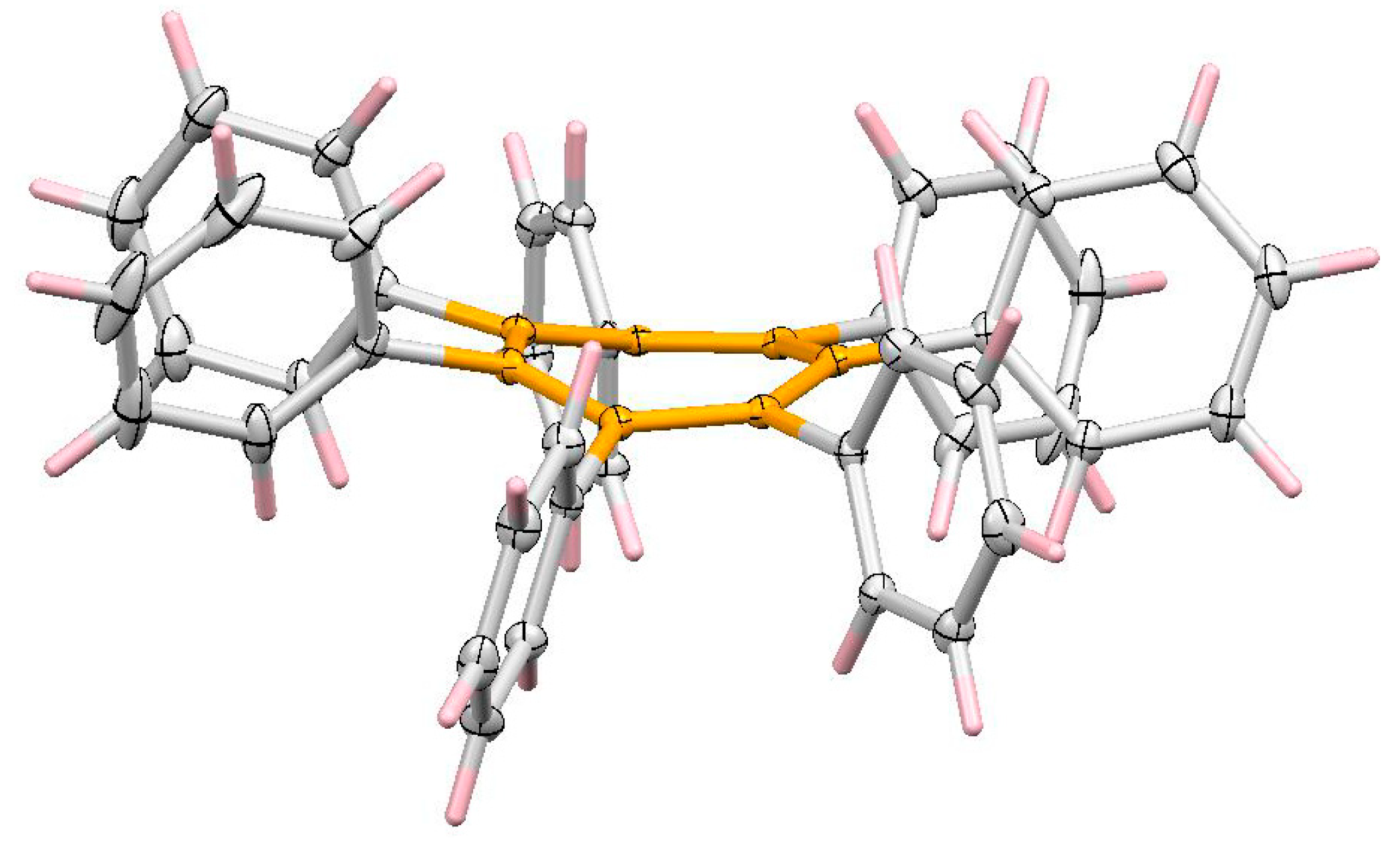

Figure 9. Molecular structure of the nonplanar heptaphenyltropylium cation, C7Ph7+, 13.
Figure 9. Molecular structure of the nonplanar heptaphenyltropylium cation, C7Ph7+, 13.
Molecules 25 04730 g009
Molecules 25 04730 g010 550
Figure 10. View of the crystal packing of [C7Ph7+][CF3CO2−](CF3CO2H)2 depicting the alternating layers of cations (grey) and anions/solvates (red/yellow).
Figure 10. View of the crystal packing of [C7Ph7+][CF3CO2−](CF3CO2H)2 depicting the alternating layers of cations (grey) and anions/solvates (red/yellow).
Molecules 25 04730 g010
Molecules 25 04730 sch007 550
Scheme 7. Synthetic route to heptaphenylborepin, C6BPh7.
Scheme 7. Synthetic route to heptaphenylborepin, C6BPh7.
Molecules 25 04730 sch007
Molecules 25 04730 sch008 550
Scheme 8. Synthetic route to hexaphenylazepin, C6NPh7H.
Scheme 8. Synthetic route to hexaphenylazepin, C6NPh7H.
Molecules 25 04730 sch008
Molecules 25 04730 sch009 550
Scheme 9. Synthetic routes to C6Ph5Fc, 23, and C7Ph6FcH, 24.
Scheme 9. Synthetic routes to C6Ph5Fc, 23, and C7Ph6FcH, 24.
Molecules 25 04730 sch009
Molecules 25 04730 g011 550
Figure 11. Molecular structures of (left) ferrocenylpentaphenylbenzene, 23, and (right) ferrocenylhexaphenylcycloheptatriene, 24. Figure 11 is reprinted with permission of the American Chemical Society.
Figure 11. Molecular structures of (left) ferrocenylpentaphenylbenzene, 23, and (right) ferrocenylhexaphenylcycloheptatriene, 24. Figure 11 is reprinted with permission of the American Chemical Society.
Molecules 25 04730 g011
Molecules 25 04730 g012 550
Figure 12. View along successive peripheral-ring–central-ring axes showing the sequence of peripheral phenyl torsion angles (top) in C6Ph5Fc and (bottom) in C6Ph6.
Figure 12. View along successive peripheral-ring–central-ring axes showing the sequence of peripheral phenyl torsion angles (top) in C6Ph5Fc and (bottom) in C6Ph6.
Molecules 25 04730 g012
Molecules 25 04730 sch010 550
Scheme 10. Attempted preparation of the [C7Ph6Fc+] cation leads instead to oxidation of the iron.
Scheme 10. Attempted preparation of the [C7Ph6Fc+] cation leads instead to oxidation of the iron.
Molecules 25 04730 sch010
Molecules 25 04730 g013 550
Figure 13. (left) synthetic route to hexa(β-naphthyl)benzene, and (right) molecular structures of tetra(β-naphthyl)cyclopentadienone, 26, and di(β-naphthyl)acetylene, 28.
Figure 13. (left) synthetic route to hexa(β-naphthyl)benzene, and (right) molecular structures of tetra(β-naphthyl)cyclopentadienone, 26, and di(β-naphthyl)acetylene, 28.
Molecules 25 04730 g013
Molecules 25 04730 sch011 550
Scheme 11. The eight energy-minimised rotamers of hexa(β-naphthyl)benzene, 29, showing which can be directly interconverted by rotation of a single peripheral ring.
Scheme 11. The eight energy-minimised rotamers of hexa(β-naphthyl)benzene, 29, showing which can be directly interconverted by rotation of a single peripheral ring.
Molecules 25 04730 sch011
Molecules 25 04730 g014 550
Figure 14. Synthesis and molecular structure of ferrocenyl-penta(β-naphthyl)benzene, 30. Figure 14 is reprinted from the Canadian Journal of Chemistry; © Canadian Science Publishing or its licensors.
Figure 14. Synthesis and molecular structure of ferrocenyl-penta(β-naphthyl)benzene, 30. Figure 14 is reprinted from the Canadian Journal of Chemistry; © Canadian Science Publishing or its licensors.
Molecules 25 04730 g014
Molecules 25 04730 sch012 550
Scheme 12. Reactions of C6Ph6 and C7Ph7H with chromium hexacarbonyl.
Scheme 12. Reactions of C6Ph6 and C7Ph7H with chromium hexacarbonyl.
Molecules 25 04730 sch012
Molecules 25 04730 g015 550
Figure 15. Molecular structures of (C6Ph5H)Cr(CO)3; (left) tripod bonded centrally, 33; (right) tripod bonded to a peripheral ring in 34.
Figure 15. Molecular structures of (C6Ph5H)Cr(CO)3; (left) tripod bonded centrally, 33; (right) tripod bonded to a peripheral ring in 34.
Molecules 25 04730 g015
Molecules 25 04730 sch013 550
Scheme 13. Reaction of the ketone 7 with molybdenum hexacarbonyl.
Scheme 13. Reaction of the ketone 7 with molybdenum hexacarbonyl.
Molecules 25 04730 sch013
Molecules 25 04730 sch014 550

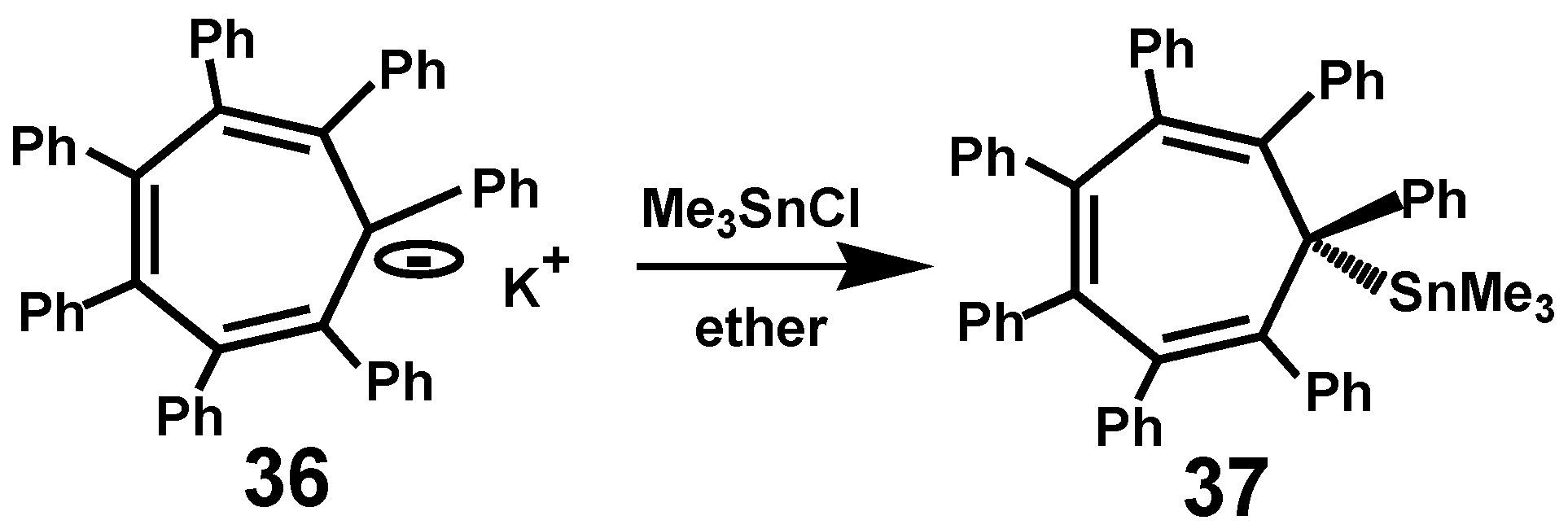

Scheme 14. Reaction of C7Ph7K with chlorotrimethylstannane.
Scheme 14. Reaction of C7Ph7K with chlorotrimethylstannane.
Molecules 25 04730 sch014
Molecules 25 04730 sch015 550
Scheme 15. Reactivity of triphenylcyclopropene.
Scheme 15. Reactivity of triphenylcyclopropene.
Molecules 25 04730 sch015
Molecules 25 04730 sch016 550
Scheme 16. Synthesis of octachlorocycloheptatriene.
Scheme 16. Synthesis of octachlorocycloheptatriene.
Molecules 25 04730 sch016
Molecules 25 04730 g016 550
Figure 16. Structures of (left) octachlorocycloheptatriene, 40, and (right) dodecachlorofulvalene, 43. Figure 16 is reprinted from the Canadian Journal of Chemistry; © Canadian Science Publishing or its licensors.
Figure 16. Structures of (left) octachlorocycloheptatriene, 40, and (right) dodecachlorofulvalene, 43. Figure 16 is reprinted from the Canadian Journal of Chemistry; © Canadian Science Publishing or its licensors.
Molecules 25 04730 g016
Molecules 25 04730 sch017 550
Scheme 17. [C7Me7+] reacts to form the complex (η5-C7Me7)W(CO)3I, but not (η7-C7Me7)W(CO)2I.
Scheme 17. [C7Me7+] reacts to form the complex (η5-C7Me7)W(CO)3I, but not (η7-C7Me7)W(CO)2I.
Molecules 25 04730 sch017
Molecules 25 04730 sch018 550
Scheme 18. Diels-Alder reactions of cyclopentadienones and cyclopropenes bearing multiple electron-withdrawing substituents.
Scheme 18. Diels-Alder reactions of cyclopentadienones and cyclopropenes bearing multiple electron-withdrawing substituents.
Molecules 25 04730 sch018
Molecules 25 04730 sch019 550
Scheme 19. Proposed Diels-Alder synthesis of fluorenyl-pentaphenylbenzene with subsequent incorporation of an organometallic moiety capable of undergoing a haptotropic shift.
Scheme 19. Proposed Diels-Alder synthesis of fluorenyl-pentaphenylbenzene with subsequent incorporation of an organometallic moiety capable of undergoing a haptotropic shift.
Molecules 25 04730 sch019
Molecules 25 04730 sch020 550
Scheme 20. Isomerisation of phenethynylfluorene, 51, to allene, 54, dimerisation to form a series of diphenyl-bis(fluorenyliden)cyclobutanes and, ultimately, the tetracenes 52 and 53.
Scheme 20. Isomerisation of phenethynylfluorene, 51, to allene, 54, dimerisation to form a series of diphenyl-bis(fluorenyliden)cyclobutanes and, ultimately, the tetracenes 52 and 53.
Molecules 25 04730 sch020
Molecules 25 04730 g017 550
Figure 17. Reactions of tetracene 52 with oxygen to form 55, and N-methylmaleimide to form 56.
Figure 17. Reactions of tetracene 52 with oxygen to form 55, and N-methylmaleimide to form 56.
Molecules 25 04730 g017
Molecules 25 04730 sch021 550
Scheme 21. Deprotonation of 57 brings about an η6→η5 haptotropic shift forming 58 in which paddlewheel rotation is dramatically slowed on the NMR time-scale.
Scheme 21. Deprotonation of 57 brings about an η6→η5 haptotropic shift forming 58 in which paddlewheel rotation is dramatically slowed on the NMR time-scale.
Molecules 25 04730 sch021
Molecules 25 04730 sch022 550
Scheme 22. Diels-Alder reactions of 5-trimethylsilylethynyl-1,2,3,4-tetraphenylcyclopentadien-5-ol with benzyne, TCNE and DMAD.
Scheme 22. Diels-Alder reactions of 5-trimethylsilylethynyl-1,2,3,4-tetraphenylcyclopentadien-5-ol with benzyne, TCNE and DMAD.
Molecules 25 04730 sch022
Molecules 25 04730 sch023 550
Scheme 23. Proposed mechanism for the rearrangement of norbornadiene 64 to cyclohexadiene 63.
Scheme 23. Proposed mechanism for the rearrangement of norbornadiene 64 to cyclohexadiene 63.
Molecules 25 04730 sch023
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

McGlinchey, M.J. Diels-Alder Additions as Mechanistic Probes–Interception of Silyl-Isoindenes: Organometallic Derivatives of Polyphenylated Cycloheptatrienes and Related Seven-Membered Rings. Molecules 2020, 25, 4730. https://doi.org/10.3390/molecules25204730

AMA Style

McGlinchey MJ. Diels-Alder Additions as Mechanistic Probes–Interception of Silyl-Isoindenes: Organometallic Derivatives of Polyphenylated Cycloheptatrienes and Related Seven-Membered Rings. Molecules. 2020; 25(20):4730. https://doi.org/10.3390/molecules25204730

Chicago/Turabian Style

McGlinchey, Michael J. 2020. "Diels-Alder Additions as Mechanistic Probes–Interception of Silyl-Isoindenes: Organometallic Derivatives of Polyphenylated Cycloheptatrienes and Related Seven-Membered Rings" Molecules 25, no. 20: 4730. https://doi.org/10.3390/molecules25204730

Article Metrics

Back to TopTop
