Article

Conversion of CO2 into Chloropropene Carbonate Catalyzed by Iron (II) Phthalocyanine Hypercrosslinked Porous Organic Polymer

by
Eva M. Maya
*,
Antonio Valverde-González
and
Marta Iglesias
Instituto de Ciencia de Materiales de Madrid (ICMM), Consejo Superior de Investigaciones Científicas (CSIC), c/Sor Juana Inés de la Cruz 3, Cantoblanco, 28049 Madrid, Spain
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(20), 4598; https://doi.org/10.3390/molecules25204598
Submission received: 27 August 2020 / Revised: 25 September 2020 / Accepted: 8 October 2020 / Published: 9 October 2020
(This article belongs to the Special Issue Catalysts for CO2 Conversion)
Browse Figures
Review Reports Versions Notes

Abstract

Commercial iron (II) phthalocyanine (FePc) was knitted with biphenyl using a Friedel–Crafts reaction to yield a micro-meso porous organic polymer (FePc-POP) with a specific surface area of 427 m2/g and 5.42% of iron loading. This strategy allowed for the direct synthesis of a heterogeneous catalyst from an iron containing monomer. The catalytic system, formed by the knitted polymer containing FePc and DMAP (4-dimethylamino pyridine) as base, results in an efficient heterogeneous catalyst in the cycloaddition of CO2 to epichlorohydrin to selectively obtain the corresponding cyclic carbonate. Thus, a TON (mmol substrate converted/mmol catalysts used) value of 2700 was reached in 3 h under mild reaction conditions (solvent free, 90 °C, 3 bar of CO2). The catalyst does not exhibit leaching during the reactions, which was attributed to the excellent stability of the metal in the macrocycle.

Graphical Abstract

1. Introduction

The cycloaddition of CO2 to epoxides is a well-known reaction that has aroused great interest, especially in recent years, because it is a safe and fully atom-economical way to produce cyclic carbonates or polycarbonate, taking advantage of a harmful gas such as CO2.
The selectivity between cyclic carbonate and polycarbonate can be adjusted through the reaction temperature and CO2 pressure. Thus, higher reaction temperatures will promote the formation of the cyclic carbonate which is the thermodynamically favored, whereas lower reaction temperatures use to yield polycarbonate. Furthermore, higher CO2 pressure improves the contact between the reagents enhancing the rate of the CO2-insertion step causing the formation of the polycarbonate product [1].
Thus, a great variety of homogeneous and heterogeneous catalysts have been explored to carried out this reaction to selectively obtain cyclic carbonates [2,3], which are extensively used as solvents to remove oils, as intermediates in organic synthesis or as monomers of plastics’ engineering [4].
However, to endorse a sustainable application, the use of heterogeneous metal based catalysts is preferred. Generally, these types of catalysts have good catalytic activity, require low catalysts loadings, and benefit from easy separation and recyclability due to their heterogeneous nature. Among the heterogeneous metal based catalysts that afford this transformation, those containing chromium, nickel, zinc, copper, cobalt and aluminum are the most studied [5,6,7]. However, iron could be considered as the optimum choice from a sustainable approach because it is cheap, earth abundant, and has relatively low toxicity [8]. Thus, in the last few years, some heterogeneous iron catalysts, that effectively promote this reaction, have been reported, e.g., iron doped mesoporous zeolites [9,10], a porous covalent triazine-based polymer containing iron oxide nanoparticles [11] and some iron-based poly(azomethine)s [12,13,14]. All reactions carried out with iron-containing heterogeneous catalysts produced cyclic carbonates in high yields, using CO2 pressures between 3 and 20 bar and reaction temperatures in the range of 50–120 °C [9,10,11,12,13,14]. The use of metal containing porous organic polymers (POPs) for this application offer some advantages over other materials because, in addition to their tailored porosity, they have an affinity for CO2 and a predominant covalent character which offers high thermal and chemical stability [15]. However, in most of the metal containing POPs reported, the metal is incorporated by post-functionalization of the previously formed network [16,17,18], which can favor the possibility of metal leaching, questioning the heterogeneity of the system. Some metal based POPs have been prepared from monomers that already contain metal with good results in this transformation and excellent recyclability, such as POPs containing metalated porphyrins [19,20,21,22,23].
However, no example has been reported to accomplish this conversion using a metal phthalocyanine based POP. This macrocycle offers unique optical and electronic properties besides of an excellent thermal and chemical stability [24]. Moreover, the metal loss in phthalocyanine rings only occur under certain conditions. For example, the demetalation of MgPc can be carried out in a quartz cuvette in a degassed dimethylformamide solution using an excess of 1,4-dihydroxyanthraquinone or 1,2,4-trihydroxyanthraquinone in the dark [25]. A partial elimination of nickel in a NiPc was achieved by halogenation using NaBr followed by addition of oxone solution [26], whereas ZnPc was also partially demetaled under a mixture of pyridine and HCl at 120 °C for several hours [27]. Recently, it was observed that iron was lost in a FePc during an oxygen reaction reduction process [28]. However, when iron containing POPs were used in ORR reactions by us [29], no iron loss was observed, which proves the high metal stability of these materials.
Thus, in this work, we report for the first time the catalytic activity of an iron (II)-phthalocyanine porous organic polymer in the cycloaddition of CO2 to epoxides, under mild conditions.

2. Results and Discussion

2.1. Synthesis and Characterization of Iron (II) Phthalocyanine Porous Organic Polymer (FePc-POP)

The heterogeneous catalyst based on iron (II) phthalocyanine (FePc-POP) was prepared following the knitting solvent strategy (Scheme 1) which involves a Friedel–Crafts reaction where either an external cross-linker or the solvent acts as a linker between the phenyl groups of the monomers (FePc and biphenyl in this case) [29]. This procedure known as the knitting solvent strategy consists of a reaction between aromatic monomers and a cross-linker that joins the molecules and it was first reported in 2011 by Bien Tan [30]. Since then, there is only one example of a phthalocyanine-containing porous organic polymer, an aluminum (III) phthalocyanine which, after its polymerization, was treated with an excess of K[Co(CO)4] to obtain the corresponding active catalyst in the carbonylation of epoxides with CO [31].
Thus, iron (II) phthalocyanine and biphenyl were reacted in dichloroethane using formaldehyde dimethyl acetal as cross-linker and FeCl3 as catalyst. The reaction was kept at 80 °C for 48 h to yield FePc-POP [29]. The catalyst was fully characterized using the following techniques: TXRF to determine the amount of iron, elemental analysis to obtain the C, H and N content; FT-IR (Supplementary Figure S1), Raman (D), and UV-Vis-NIR (Supplementary Figure S2) spectroscopies to confirm the presence of the FePc units in the network; solid state 13C-NMR (Supplementary Figure S3) to ratify the connection between the aromatic rings through -CH2- bonds; TGA to show the thermal stability (Supplementary Figure S4); N2 adsorption-desorption isotherms to obtain the porosity parameters (Supplementary Figure S5); SEM microscopy to observe the morphology (Supplementary Figure S6) and EDX to confirm the homogeneous dispersion of iron in the sample (Supplementary Figure S6). The relevant characterization data are recorded in Table 1.

2.2. Catalytic Activity

As mentioned in the introduction, the new catalyst was employed in the cycloaddition of CO2 to epoxides, an elegant strategy to convert this gas in useful compounds such as cyclic carbonates. The optimal reaction conditions were established using epichlorohydrin (ECH) as substrate and dimethylamino pyridine DMAP as base. Epiclorohydrin was selected as model substrate because is one of the most interesting epoxides that can be produced from glycerin obtained from vegetable oil [32] and DMAP as base due its proved efficiency compared with other bases [12,33,34,35]. The excellent catalytic activity in presence of this base was firstly reported by Paddok et al. [36] who attributed it to the coordination of DMAP to the metal generating more electron-rich centers in the metal-catalyst.
The first reaction (entry 1, Table 2) was done at 3 bar of CO2 and 70 °C in absence of solvent with an ECH/DMAP/metal ratio of 1000:10:1. Under these reaction conditions, a 59% of ECH conversion was achieved with the selective formation of the corresponding cyclic carbonate, chloropropene carbonate. Thus, in order to improve the conversion, the temperature was increased to 90 °C, and after 3 h, the ECH conversion reached 94% (entry 2). These results highlighted the need to heat up to 90 °C to obtain reasonable epoxy conversions. To increase the turn over frequency (TON) of the reaction (mmol substrate converted/mmol catalysts used), the amount of catalyst was reduced. Thus, using a relationship ECH: Fe of 2000 (entry 3) the TON raised to 1860 and using a ratio ECH: Fe of 3000 (entry 4) the TON reached a value of 2700 with ECH conversions of 93 and 90%, respectively. These results indicated that small amount of catalyst system is sufficient to carry out this reaction. The molar ratio substrate: DMAP: catalysts (based on iron) of 3000:10:1 was established as the most optimum for this reaction. It is important to point out that in all cases only chloropropene carbonate (Selectivity > 99%) was obtained, which highlighted the high selectivity of this catalytic system.
To evaluate the effect of the base and FePc-POP in the reaction, two control experiments were done. Firstly, the reaction was carried out in the absence of FePc-POP (entry 5) using the same epoxy: DMAP ratio and conditions of entry 4. As can be observed, a 30% of tAhe ECH conversion can be attributed to the DMAP, as was previously observed for the same reaction in similar conditions [12]. Using only FePc-POP as catalyst in the same conditions (entry 6), a small amount of ECH was converted into cyclic carbonate. These results indicated an important cooperative effect between the FePc-POP catalysts and the base, since together yielded the highest conversion. This cooperative effect was previously reported for other metal heterogeneous catalyst-DMAP systems [12,13,14,36]. Additionally, the reaction was carried out using FePc as homogeneous catalyst (entry 7). The ECH conversion was low, 33%, similar to the conversion attributed to the base, which indicated very low catalytic activity of the FePc monomer. This result could be attributed to the great aggregation tendency of the phthalocyanine rings which difficult the accessibility to the iron to promote the reaction. This result also confirms the advantage to polymerize this monomer, migrating from a very bad to an excellent catalyst.
When styrene oxide was used as substrate lower conversions were achieved (entry 8), even with longer reaction times (TON 870). The lower reactivity of this substrate was previously attributed to electronic factors rather than to steric ones [37]. The use of an internal epoxide, such as cyclohexene oxide (CHO) (entry 9), did not lead to good results due to the difficulty in opening the epoxide caused by the steric hindrance between the two rings.
The catalytic activity of FePc-POP was compared with those reported for some heterogeneous porphyrin- [19,20,21,22,23,38,39,40,41] or phthalocyanine-based [42,43] catalysts in the cycloaddition of CO2 to ECH (Table 3). The Mg porphyrin based catalysts (entries 1 and 2) work with very high substrate/metal ratios which result in very high TON values but higher CO2 pressures and temperatures are needed to achieve total conversion. The Al-porphyrin based material Al-iPOP (entry 4) requires a lower substrate/metal ratio than in our system, as well as lower temperature but higher CO2 pressure. Co-POP TPP/TBAB (entry 5) works under ambient conditions, and some others porphyrin-based catalysts operate at lower pressures (entries 7–9), needing a longer reaction time and higher catalyst amount than ours, yielding lower TON values. Comparing with the phthalocyanine- based catalysts (entries 10 and 11) it can be seen that our catalytic system is used in less amount and the reaction occurs at shorted reaction times.
In summary, compared to the current literature, our phthalocyanine-based/DMAP catalyst is highly competitive in terms of both reaction times and catalyst loading.

2.3. Recyclability

The recyclability of FePc-POP was also studied using epichlorohydrin (ECH) as a substrate at a ratio 1000:1, to handle a greater amount of catalyst and facilitate its recovery. After 2 h, the reaction was stopped, and the liquid was removed. The catalyst was centrifugated with ethanol three times and then it was dried overnight at 90 °C. The liquid was analyzed by gas chromatography observing an ECH conversion of 85.4% (Figure 1 left, run 1). The catalyst was weighed and a new reaction was done using the corresponding amount of fresh ECH and DMAP. After 2 h the ECH conversion was 80.5% (run 2). The procedure was applied three more times (runs 3–5), observing a slight decrease in the ECH conversion. The IR spectrum recorded after the fifth run (Figure 1 right) showed the characteristics FePc bands between 1330 and 730 cm−1 and those attributed to the biphenyl groups. However, the spectrum showed also a broad adsorption at 1795 cm−1 that could be ascribed to some C=O groups from the partial oxidation of methylene linkages during the reaction. The presence of these groups could be causing the decrease in the ECH conversion.
To confirm the heterogeneous nature of FePC-POP, a hot filtration experiment was done (Figure 2). Thus, in a new experiment using ECH as substrate, DMAP and the catalyst in the ratio 3000:10:1, the reaction was stopped after 1 h obtaining a 45% of ECH conversion. The catalyst was removed from the reaction which was running for 2 more hours in the absence of catalyst, reaching 57% of ECH conversion. This increase was attributed to the DMAP than can promote by itself the reaction, as it was previously observed in this work and also reported [12,14]. We have analyzed the iron content in the filtrate, after the catalyst removal, by ICP-MS and also in the filtrate of the runs of the recycling experiments. The very low iron content of less than 3 ppm suggests that the scarce leaching of the catalyst affords inactive iron derivatives for this reaction. In conclusion, we can guarantee that the heterogeneous nature of the catalyst is maintained even after the recycles. These results are in agreement with the difficulty of metal phthalocyanines to lose the metal.

3. Materials and Methods

3.1. Materials

Biphenyl was purchased by Fluka with a purity > 98%; Iron (II) phthalocyanine (FePc) was supplied from TCI with a purity > 98%; Anhydrous FeCl3 was obtained from Alfa Aesar with 98% of purity; and CH2Cl2 (extra dry) was supplied by Across Organics with purities > 99.8% respectively. The other reagents and solvents were supplied by Sigma-Aldrich San Luis, MO, USA) with analytical grade. FePc-POP was prepared following the procedure reported [29].

3.2. Characterization

Elemental Analysis (C, H, N) were made using a Carlo Erba EA1108 elemental analyzer (CE Instruments Ltd., Wigan, UK). The iron content was determined with a abenchtop S2 PicoFox TXRF spectrometer from Bruker Nano (Bruker Corporation, Billerica, MA, USA), equipped with a multilayer monochromator with 80% of reflectivity at 17.5 keV (Mo Kα), a Mo X-ray source working at 50 kV and 600 μA, and a XFlash SDD detector with an effective area of 30 mm2. 13C CP-MAS spectrum was recorded in a Bruker AV-400-WB (Bruker Corporation, Billerica, MA, USA) with a spectral width of 35 kHz and the chemical shift refers to 29.5 ppm (the CH2 signal of adamantine) as a secondary reference, and to TMS as the primary reference. Fourier Transform Infrared Spectra (FTIR) were recorded on Bruker iFS 66VS Spectrometer (Bruker Corporation, Billerica, MA, USA). UV-Vis Diffuse reflectance spectra were carried out on a Shimadzu UV-2401 PC UV-Visible Spectrometer (Shimadzu Corporation, Kioto, Japan). Nitrogen adsorption isotherms was measured using a Micromeritics ASAP 2020 M surface at 77 K (Micromeritics Instrument Corporation, Norcross, GA, USA). The samples were degassed for 12 h at 100 °C before taking the measurement. Specific surface area was determined by the BET technique and the pore size distribution by NLDFT methods. Scanning electron microscopy (SEM) image was acquired from a Hitachi SU-8000 microscope (Hitachi Ltd. Tokio, Japan) operating at 0.5 kV. EDX-analysis was complete using a metalized by gold sample in a FEI microscope NOVA NanoSEM 230 model provided with an EDAX-Ametek detector (FEI Company, Hillsboro, OR, USA).

3.3. Catalytic Activity

General procedure: 6.5 mmol of epoxide, 0.65 mmol of biphenyl (internal standard), dimethylaminopyridine (DMAP) and FePc-POP in the ratios (500–3000:10:1, depending on the procedure used) were placed in a Picoclave Buchi glass reactor of 10 mL. Then, the reactor was charged with CO2 at the pressure indicated in each experiment. The reaction mixture was stirred at the temperature and time indicated in Table 2.
All reactions were monitored by gas chromatography-mass spectrometry on a Konik HRGC 4000B GC-MS chromatograph (Konik Instrument Int, Miami, FL, USA) with a cross-linked (95%)-dimethyl-(5%)-diphenylpolysiloxane (Teknokroma TRB-5MS) column of 30 m of length; helium as carrier gas, 20 psi; injector temperature: 230 °C; detector temperature: 250 °C. Oven program for the reaction: 70 °C (5 min), 9 °C min−1 to 220 °C (10 min), retention times: Biphenyl 17.2 min; ECH: 3.09 min ECH-Cyclic Carbonate: 13.7 min; SO: 9.1 min, SO-Cyclic Carbonate: 20.5 min; CHO: 5.5 min, CHO-Cyclic Carbonate: 11.8 min.
Recycling experiments: 1.5 mL (0.019 mol) of ECH, 200 mg (0.00129 mol) of biphenyl, 15.84 mg of FePc-POP (0.019 × 10−3 mol of Fe) and 20.7 mg (0.019 × 10−2 mmol) of DMAP were added to the Picoclave Buchi glass reactor. Then the reactor was charged with 3 bar of CO2 and stirred at 90 °C for 2 h. Then the liquid was removed with a pipette and the catalyst was centrifuged with 5 mL of ethanol (three times). The ethanol was removed, and the catalyst was dried at 90 °C overnight. After weighing the amount of catalyst recovered, biphenyl, fresh ECH, and DMAP were added to the reactor, maintaining the starting ECH:DMAP:Fe ratio, and it was charged again with 3 bar of CO2. After using the same protocol to recover the catalyst, the procedure was repeated 3 more times. Each reaction was monitored by GC-MS using the above oven program.

4. Conclusions

A system formed by a knitted polymer containing FePc and biphenyl (FePc-POP) and DMAP is an excellent heterogeneous catalyst in the conversion of CO2 to selectively obtain chloropropene carbonate from epichlorohydrin. A TON value of 2700 was reached in 3 h, in a solvent free reaction under mild conditions, namely 90 °C and 3 bar of CO2. The FePc rings provide great stability to the metal in the catalyst avoiding its leaching to the medium. It is important to highlight that the new heterogeneous catalyst system (FePc-POP/DMAP) is the only one responsible for the catalytic activity since the control experiments carried out using the FePc molecule as catalyst with or without DMAP did not produce any cyclic carbonate.

Supplementary Materials

The following are available online, Figure S1: FT-IR and Raman spectra of FePc-POP; Figure S2: UV-vis-NIR spectrum of FePc-POP, Figure S3: 13C-NMR spectrum of FePc-POP, Figure S4: TGA of FePc-POP, Figure S5: N2, adsorption/desorption isotherms of FePc-POP, Figure S6: SEM and EDX images of FePc-POP.

Author Contributions

E.M.M. has carried out the design of the full paper, the experimental part, interpretation of results, paper writing and corrections; A.V.-G. has collaborated in the experimental part, interpretation of results and corrections; M.I. has collaborated in the interpretation of results and corrections. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by to MINECO of Spain MAT2017-82288-C2-2-P.

Acknowledgments

A. Valverde-González thanks Ministerio de Educación y Formación Profesional for FPU17/03463.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kamphuis, A.J.; Picchioni, F.; Pescarmona, P.P. CO2-fixation into cyclic and polymeric carbonates: Principles and applications. Green Chem. 2019, 21, 406–448. [Google Scholar] [CrossRef]
  2. Dalpozzo, R.; Della Ca, N.; Gabriele, B.; Mancuso, R. Recent advances in the chemical fixation of carbon dioxide: A green route to carbonylated heterocycle synthesis. Catalysts 2019, 9, 511. [Google Scholar] [CrossRef]
  3. Martín, C.; Fiorani, G.; Kleij, A.W. Recent advances in the catalytic preparation of cyclic organic carbonates. ACS Catal. 2015, 5, 1353–1370. [Google Scholar] [CrossRef]
  4. Shaikh, A.G.; Sivaram, S. Organic Carbonates. Chem. Rev. 1996, 96, 951–976. [Google Scholar] [CrossRef] [PubMed]
  5. Saptal, V.B.; Bhanage, B.M. Current advances in heterogeneous catalysts for the synthesis of cyclic carbonates from carbon dioxide. Curr. Opin. Green Sustain. Chem. 2017, 3, 1–10. [Google Scholar] [CrossRef]
  6. Kathalikkattil, A.C.; Babu, R.; Tharun, J.; Roshan, R.; Park, D.W. Advancements in the conversion of carbon dioxide to cyclic carbonates using metal organic frameworks as catalysts. Catal. Surv. Asia 2015, 19, 223–235. [Google Scholar] [CrossRef]
  7. Liang, J.; Huang, Y.B.; Cao, R. Metal-organic frameworks and porous organic polymers for sustainable fixation of carbon dioxide into cyclic carbonates. Coord. Chem. Rev. 2019, 378, 32–65. [Google Scholar] [CrossRef]
  8. Bae, J.S.; Hong, S.Y.; Park, J.C.; Rhim, G.B.; Youn, M.H.; Jeong, H.; Kang, S.W.; Yang, J.; Jung, H.; Chun, D.H. Eco-friendly prepared iron-ore-based catalysts for Fischer-Tropsch synthesis. Appl. Catal. B-Environ. 2019, 244, 576–582. [Google Scholar] [CrossRef]
  9. Verma, S.; Nazish, M.; Kureshy, R.I.; Khan, N.H. Bi-functional heterogeneous iron complexes for catalytic conversion of epoxides to cyclic carbonates and their application in the synthesis of polyurethane. Sustain. Energy Fuels 2018, 2, 1312–1322. [Google Scholar] [CrossRef]
  10. Liu, D.; Li, G.; Guo, H.; Liu, J. Facile preparation of bi-functional iron doped mesoporous materials and their application in the cycloaddition of CO2. J. Energy Chem. 2020, 41, 52–59. [Google Scholar] [CrossRef]
  11. Ravi, S.; Puthiaraj, P.; Park, D.W.; Ahn, W.S. Cycloaddition of CO2 and epoxides over a porous covalent triazine-based polymer incorporated with Fe3O4. New J. Chem. 2018, 42, 12429–12436. [Google Scholar] [CrossRef]
  12. Maya, E.M.; González-Lucas, M.; Iglesias, M. Efficient and reusable metal heterogeneous catalysts for conversion of CO2 prepared from a microwave synthetized porous polyiminopyridine. ChemistrySelect 2017, 2, 9516–9522. [Google Scholar] [CrossRef]
  13. Brivary, M.A.; Gómez, M.; Iglesias, M.; Maya, E.M. Accessible microwave synthetized conjugated poly(azomethine-pyridine) networks and its metal complexes for CO2 conversion. J. Polym. Sci. Part A Polym. Chem. 2018, 56, 1946–1952. [Google Scholar] [CrossRef]
  14. Sobarzo, P.A.; Terraza, C.A.; Maya, E.M. New efficient tetraphenyl silylated poly(azomethine)s based on “pincer-like” bis(imino)pyridine Iron(III) complexes as heterogeneous catalysts for CO2 conversion. Eur. Polym. J. 2020, 126, 109567. [Google Scholar] [CrossRef]
  15. Alkordi, M.H.; Weselinski, L.J.; D’Elia, V.; Barman, S.; Cadiau, A.; Hedhili, M.N.; Cairns, A.J.; AbdulHalim, R.G.; Basset, J.M.; Eddaoudi, M. CO2 conversion: The potential of porous-organic polymers (POPs) for catalytic CO2-epoxide insertion. J. Mater. Chem. A 2016, 4, 7453–7460. [Google Scholar] [CrossRef]
  16. Luo, R.; Chen, Y.; He, Q.; Lin, X.; Xu, Q.; He, X.; Zhang, W.; Zhou, X.; Ji, H. Metallosalen-based ionic porous polymers as bifunctional catalysts for the conversion of CO2 into valuable chemicals. ChemSusChem 2017, 10, 1526–1533. [Google Scholar] [CrossRef]
  17. Tang, F.; Hou, J.; Liang, K.; Huang, J.; Liu, Y.N. Melamine-based metal-chelating porous organic polymers for efficient CO2 capture and conversion. Eur. J. Inorg. Chem. 2018, 37, 4175–4180. [Google Scholar] [CrossRef]
  18. Chakraborty, J.; Nath, I.; Song, S.; Kao, C.M.; Verpoort, F. Synergistic performance of a sub-nanoscopic cobalt and imidazole grafted porous organic polymer for CO2 fixation to cyclic carbonates under ambient pressure without a co-catalyst. J. Mater. Chem. A 2020, 8, 13916–13920. [Google Scholar] [CrossRef]
  19. Wang, W.; Wang, Y.; Li, C.; Yan, L.; Jiang, M.; Ding, Y. State-of-the-art multifunctional heterogeneous POP catalyst for cooperative transformation of CO2 to cyclic carbonates. ACS Sustain. Chem. Eng. 2017, 5, 4523–4528. [Google Scholar] [CrossRef]
  20. Wang, W.; Li, C.; Jin, J.; Yan, L.; Ding, Y. Mg-porphyrin complex doped divinylbenzene based porous organic polymers (POPs) as highly efficient heterogeneous catalysts for the conversion of CO2 to cyclic carbonates. Dalton Trans. 2018, 47, 13135. [Google Scholar] [CrossRef]
  21. Chen, Y.; Luo, R.; Xu, Q.; Zhang, W.; Zhou, X.; Ji, H. State-of-the-art aluminum porphyrin-based heterogeneous catalysts for the chemical fixation of CO2 into cyclic carbonates at ambient conditions. ChemCatChem 2017, 9, 767–773. [Google Scholar] [CrossRef]
  22. Chen, Y.; Luo, R.; Xu, Q.; Jiang, J.; Zhou, X.; Ji, H. Charged metalloporphyrin polymers for cooperative synthesis of cyclic carbonates from CO2 under ambient conditions. ChemSusChem 2017, 10, 2534–2541. [Google Scholar] [CrossRef] [PubMed]
  23. Dai, Z.; Tang, Y.; Zhang, F.; Xiong, Y.; Wang, S.; Sun, Q.; Wang, L. Combination of binary active sites into heterogeneous porous polymer catalysts for efficient transformation of CO2 under mild conditions. Chin. J. Catal. 2021, 42, 618–626. [Google Scholar] [CrossRef]
  24. Tian, H.; Ali, H.; van Lier, J.E. Synthesis of water soluble trisulfonated phthalocyanines via palladium-catalysed cross coupling reactions. Tetrahedron Lett. 2000, 41, 8435–8438. [Google Scholar] [CrossRef]
  25. Kossanyi, J.; Chahraoui, D. Electron transfer reaction and demetalation of phthalocyanines. Int. J. Phtotoenergy 2000, 2, 9–15. [Google Scholar] [CrossRef]
  26. Prado, G.H.C.; Klerk, A. Demetalation of metallophthalocyanines by mild halogenation without disrupting the tetrapyrrole macrocycle. Fuel 2015, 161, 43–48. [Google Scholar] [CrossRef]
  27. Alzeer, J.; Roth, P.J.C.; Luedtke, N.W. An efficient two-step synthesis of metal-free phthalocyanines using a Zn(II) template. Chem. Commun. 2009, 15, 1970–1971. [Google Scholar] [CrossRef] [PubMed]
  28. Chen, Z.; Jiang, S.; Kang, G.; Nguyen, D.; Schatz, G.C.; Van Duyne, R.P. Operando Characterization of Iron Phthalocyanine Deactivation during Oxygen Reduction Reaction Using Electrochemical Tip-Enhanced Raman Spectroscopy. J. Am. Chem. Soc. 2019, 141, 15684–15692. [Google Scholar] [CrossRef]
  29. Valverde-González, A.; Guan, L.Z.; Iglesias, M.; Ferrer, M.L.; Maya, E.M. Iron phthalocyanine-knitted polymers as electrocatalysts for the oxygen reduction reaction. ACS App. Mater. Interfaces 2020, 12, 32681–32688. [Google Scholar] [CrossRef]
  30. Li, B.; Gong, R.; Wang, W.; Huang, X.; Zhang, W.; Li, H.; Hu, C.; Tan, B. A new strategy to microporous polymers: Knitting rigid aromatic building blocks by external cross-linker. Macromolecules 2011, 44, 2410–2414. [Google Scholar] [CrossRef]
  31. Jiang, J.; Yoon, S. An aluminum(III) picket fence phthalocyanine based heterogeneous catalyst for ring-expansion carbonylation of epoxides. J. Mater. Chem. A 2019, 7, 6120–6125. [Google Scholar] [CrossRef]
  32. Bell, B.M.; Briggs, J.R.; Campbell, R.M.; Chambers, S.M.; Gaarenstroom, P.D.; Hippler, J.G.; Hook, B.D.; Kearns, K.; Kenney, J.M.; Kruper, W.J.; et al. Glycerin as a renewable feedstock for epichlorohydrin production. Clean 2008, 36, 657–661. [Google Scholar]
  33. Kilic, A.; Ulusoy, M.; Aytar, E.; Durgun, M. Mono/multinuclear cobaloxime and organocobaloxime-catalyzed conversion of CO2 and epoxides to cyclic organic carbonates: Synthesis and characterization. J. Int. Eng. Chem. 2015, 24, 98–106. [Google Scholar] [CrossRef]
  34. Roshan, K.R.; Palissery, R.A.; Kathalikkattil, A.C.; Babu, R.; Mathai, G.; Lee, H.S.; Park, D.W. A computational study of the mechanistic insightsinto base catalysed synthesis of cyclic carbonates from CO2: Bicarbonate anion as an active species. Catal. Sci. Technol. 2016, 16, 3997–4004. [Google Scholar] [CrossRef]
  35. Kilic, A.; Yasar, E.; Aytar, E. Neutral boron [(L1–3)BPh2] and cationic charged boron [(L1a–3a)BPh2] complexes for chemical CO2 conversion to obtain cyclic carbonates under ambient conditions. Sustain. Energy Fuels 2019, 3, 1066–1077. [Google Scholar] [CrossRef]
  36. Paddock, R.L.; Nguyen, S.T. Chemical CO2 Fixation: Cr(III) salen complexes as highly efficient catalysts for the coupling of CO2 and epoxides. J. Am. Chem. Soc. 2001, 123, 11498–11499. [Google Scholar] [CrossRef] [PubMed]
  37. Castro-Gómez, F.; Salassa, G.; Kleij, A.W.; Bo, C. A DFT Study on the mechanism of the cycloaddition reaction of CO2 to epoxides catalyzed by Zn(salphen) complexes. Chem. Eur. J. 2013, 19, 6289–6298. [Google Scholar] [CrossRef]
  38. Dai, Z.; Sun, Q.; Liu, X.; Bian, C.; Wu, Q.; Pan, S.; Wang, L.; Meng, X.; Deng, F.; Xiao, F.S. Metalated porous porphyrin polymers as efficient heterogeneous catalysts for cycloaddition of epoxides with CO2 under ambient conditions. J. Catal. 2016, 338, 202–209. [Google Scholar] [CrossRef]
  39. Sharma, N.; Dhankhar, S.S.; Nagaraja, C.M. Environment-friendly, co-catalyst- and solvent-free fixation of CO2 using an ionic zinc(II)–porphyrin complex immobilized in porous metal-organic frameworks. Sustain. Energy Fuels 2019, 3, 2977–2982. [Google Scholar] [CrossRef]
  40. Liu, J.; Fan, Y.Z.; Li, X.; Xu, Y.W.; Zhang, L.; Su, C.Y. Catalytic space engineering of porphyrin metal-organic frameworks for combined CO2 capture and conversion at a low concentration. ChemSusChem 2018, 11, 2340–2347. [Google Scholar] [CrossRef]
  41. He, L.; Natha, J.K.; Lin, Q. Robust multivariate metal-porphyrin frameworks for efficient ambient fixation of CO2 to cyclic carbonates. Chem. Commun. 2019, 55, 412. [Google Scholar] [CrossRef] [PubMed]
  42. Boroujeni, M.B.; Laeini, M.S.; Nazeri, M.T.; Shaabani, A. A novel and green in situ strategy for the synthesis of metallophthalocyanines on chitosan and investigation their catalytic activity in the CO2 fixation. Catal. Lett. 2019, 149, 2089–2097. [Google Scholar] [CrossRef]
  43. Zhang, T.; Wang, X.; Huang, X.; Liao, Y.; Che, J. Bifunctional catalyst of a metallophthalocyanine carbon nitride hybrid for chemical fixation of CO2 to cyclic carbonate. RSC Adv. 2016, 6, 2810–2818. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available.
Molecules 25 04598 sch001

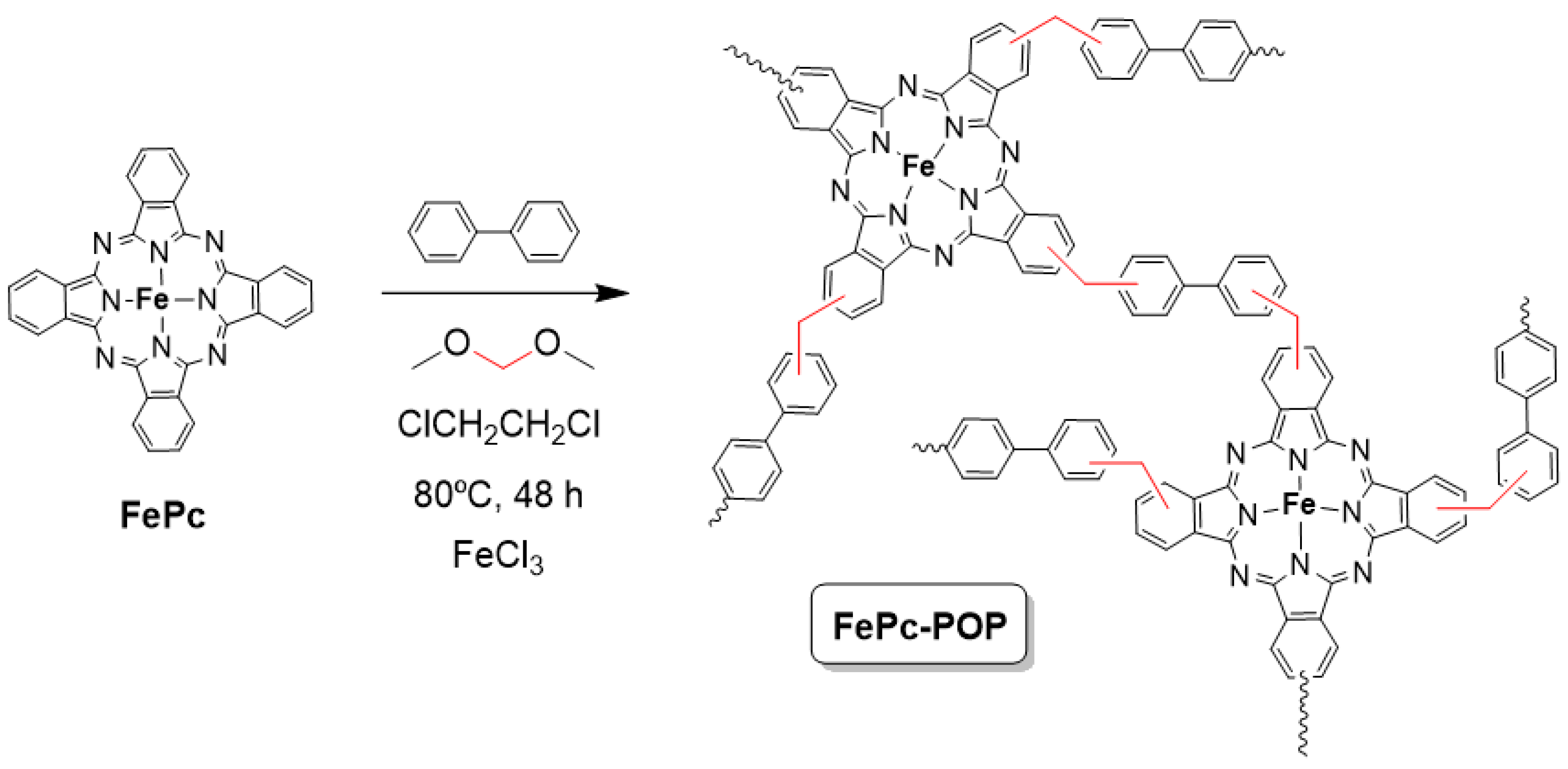

Scheme 1. Synthesis of iron (II) phthalocyanine based porous organic polymer FePc-POP.
Scheme 1. Synthesis of iron (II) phthalocyanine based porous organic polymer FePc-POP.
Molecules 25 04598 sch001
Molecules 25 04598 g001

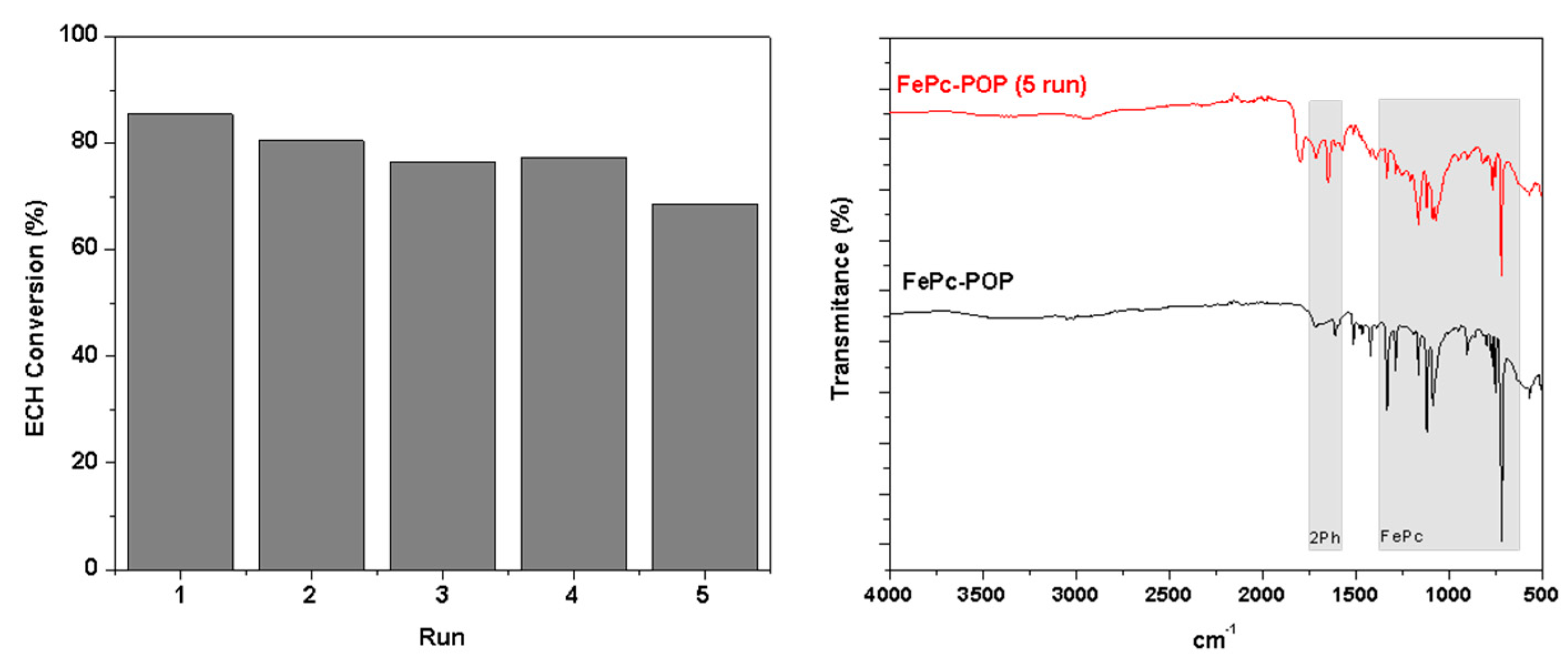

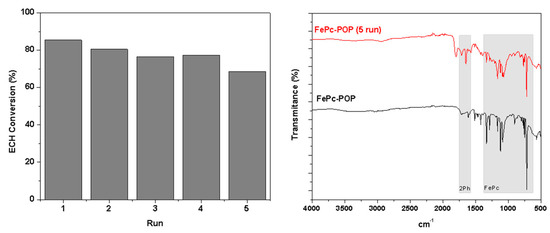

Figure 1. Recycling experiments using FePc-POP as catalyst in the cycloaddition of CO2 to epichlorohydrin (left) and FT-IR spectra of catalyst before and after recycling (right).
Figure 1. Recycling experiments using FePc-POP as catalyst in the cycloaddition of CO2 to epichlorohydrin (left) and FT-IR spectra of catalyst before and after recycling (right).
Molecules 25 04598 g001
Molecules 25 04598 g002

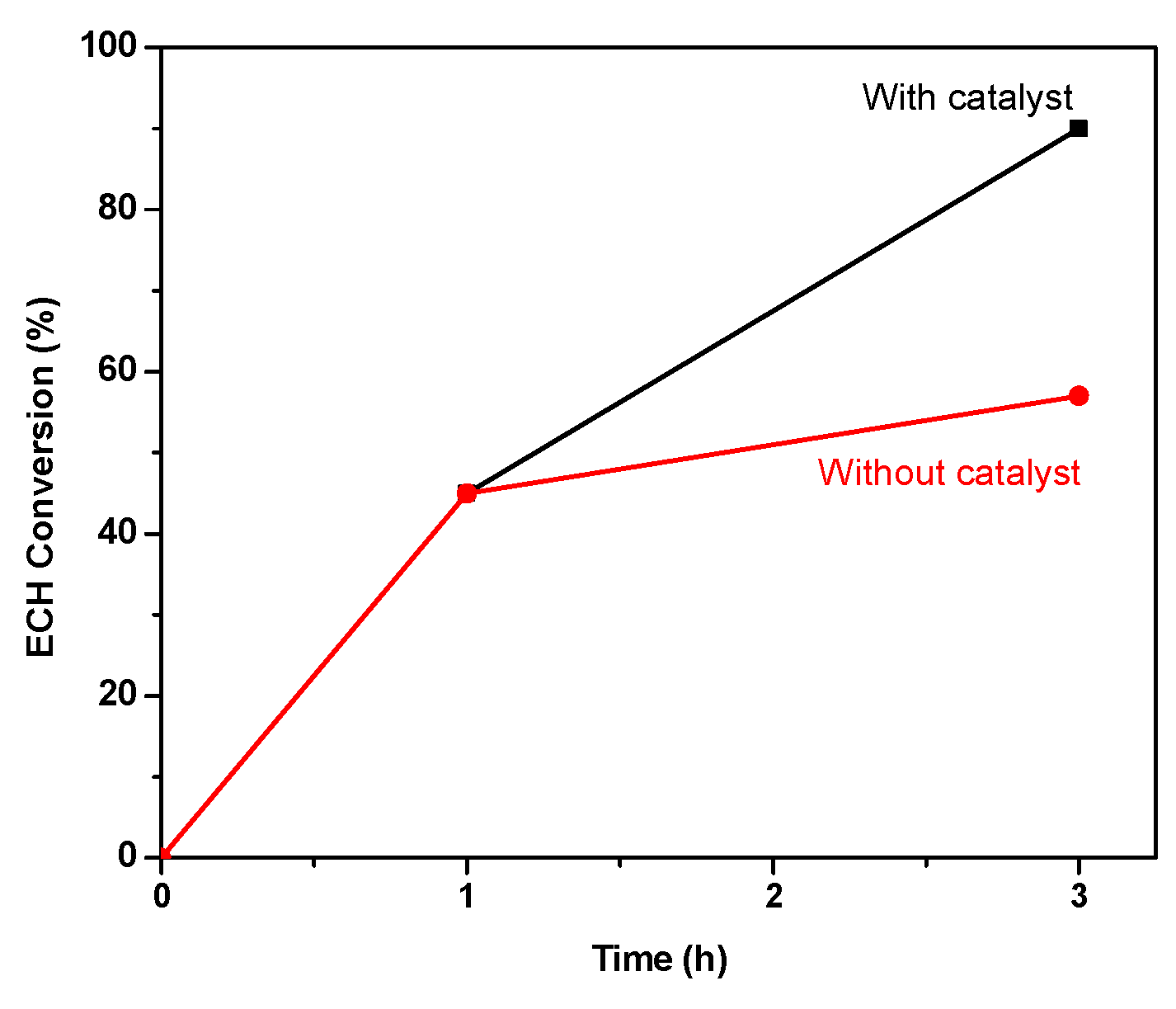

Figure 2. Hot filtration experiment.
Figure 2. Hot filtration experiment.
Molecules 25 04598 g002
Table 1. Characterization data of FePc-POP.
Table 1. Characterization data of FePc-POP.
TXRFElemental AnalysisPorosity ParametersTGAUV-Vis *13C-NMR *
Fe(%)C(%)H(%)N(%)SBET (m2 g−1)ΔPore Size (nm)TdonsetAbs (nm)110–140 ppm (C=X)
5.469.64.110.44271.18340 °C684, 87635 ppm (-CH2-)
FT-IR1331, 1288, 1117, 1078, 729 cm−1 (FePc units) 1610 and 1720 (biphenyl groups)
Raman487, 592, 682, 752, 782, 828, 952, 1013, 1114, 1149, 1192, 1215, 1314, 1346, 1458 and 1525 (FePc ring); 1407 (C=CH bending) and 1446 (C-H deformation)
* Solid state.
Table 2. Catalytic performance of FePc-POP in the thermal cycloaddition of CO2 to epoxides 1.
Table 2. Catalytic performance of FePc-POP in the thermal cycloaddition of CO2 to epoxides 1.
EntryEpoxideEpoxide:DMAP:FePCO2 (bar)T (°C)Time (h)Conv. (%) 2TON 3
1 1000:10:1370359590
2 1000:10:1390394940
3 2000:10:13903931860
4ECH3000:10:13903902700
5 3000:10:0390330900
6 3000:0:13903260
7 4 3000:10:1390333990
8SO3000:10:13902429870
9CHO3000:10:13902410300
1 Reaction conditions: 6.5 mmol of epoxide and 0.65 mmol of biphenyl as internal standard; 2 or cyclic carbonate yield, determined by GC-MS. 3 Turn-over number (mol substrate converted/mol catalysts based on Fe). 4 Homogeneous FePc as catalyst.
Table 3. Catalytic performance of heterogeneous porhyrin or phthalocyanine based catalysts in the thermal cycloaddition of CO2 to ECH.
Table 3. Catalytic performance of heterogeneous porhyrin or phthalocyanine based catalysts in the thermal cycloaddition of CO2 to ECH.
EntryCatalystsECH/M 1PCO2 (bar)T (°C)t (h)Conv. (%)TON 2Ref
1Mg-por/pho@POP20,0003014016713,40019
2Mg–Por\DVB@POPs20,0003012059719,40020
3Al-HCP/TBAB40010402.59738821
4Al-iPOP1000104069999022
5Co/POP-TPP/TBAB4631292495.644238
6[Zn(II)NMeTPyP]4+[I−]483389024>9982539
7Rh-PMOF-1/TBAB5001100249648040
8FTPFs-Cu-Nb-Ni/TBAB2001r.t.489318641
9POP-PBnCl-TPPMg-12200015048>99198023
10CuPc@CS/TBAB2851804.59527042
11CoPc/g-C3N4303301302497.629643
12FePc-POP/DMAP30003903902700This work
1 ECH/Metal ratios; 2 Turn-over number (mol substrate converted/mol catalysts based on metal) calculated from the data extracted from the corresponding references.
