Article

d-Mannose Treatment neither Affects Uropathogenic Escherichia coli Properties nor Induces Stable FimH Modifications

by
Daniela Scribano
1,2,†,
Meysam Sarshar
3,4,†,
Carla Prezioso
1,
Marco Lucarelli
5,6,
Antonio Angeloni
5,
Carlo Zagaglia
1,
Anna Teresa Palamara
3,7,† and
Cecilia Ambrosi
7,*,†
1
Department of Public Health and Infectious Diseases, Sapienza University of Rome, 00185 Rome, Italy
2
Dani Di Giò Foundation-Onlus, 00193 Rome, Italy
3
Department of Public Health and Infectious Diseases, Sapienza University of Rome, Laboratory Affiliated to Institute Pasteur Italia-Cenci Bolognetti Foundation, 00185 Rome, Italy
4
Microbiology Research Center (MRC), Pasteur Institute of Iran, Tehran 1316943551, Iran
5
Department of Experimental Medicine, Sapienza University of Rome, 00185 Rome, Italy
6
Pasteur Institute Cenci Bolognetti Foundation, 00161 Rome, Italy
7
IRCCS San Raffaele Pisana, Department of Human Sciences and Promotion of the Quality of Life, San Raffaele Roma Open University, 00166 Rome, Italy
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2020, 25(2), 316; https://doi.org/10.3390/molecules25020316
Submission received: 19 December 2019 / Revised: 9 January 2020 / Accepted: 10 January 2020 / Published: 13 January 2020
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Versions Notes

Abstract

:
Urinary tract infections (UTIs) are mainly caused by uropathogenic Escherichia coli (UPEC). Acute and recurrent UTIs are commonly treated with antibiotics, the efficacy of which is limited by the emergence of antibiotic resistant strains. The natural sugar d-mannose is considered as an alternative to antibiotics due to its ability to mask the bacterial adhesin FimH, thereby preventing its binding to urothelial cells. Despite its extensive use, the possibility that d-mannose exerts “antibiotic-like” activity by altering bacterial growth and metabolism or selecting FimH variants has not been investigated yet. To this aim, main bacterial features of the prototype UPEC strain CFT073 treated with d-mannose were analyzed by standard microbiological methods. FimH functionality was analyzed by yeast agglutination and human bladder cell adhesion assays. Our results indicate that high d-mannose concentrations have no effect on bacterial growth and do not interfere with the activity of different antibiotics. d-mannose ranked as the least preferred carbon source to support bacterial metabolism and growth, in comparison with d-glucose, d-fructose, and l-arabinose. Since small glucose amounts are physiologically detectable in urine, we can conclude that the presence of d-mannose is irrelevant for bacterial metabolism. Moreover, d-mannose removal after long-term exposure did not alter FimH’s capacity to bind to mannosylated proteins. Overall, our data indicate that d-mannose is a good alternative in the prevention and treatment of UPEC-related UTIs.

1. Introduction

Urinary tract infections (UTIs) are among the most common infectious diseases, affecting more than 150 million people worldwide each year [1,2]. Clinically, UTIs are distinguished into cystitis or lower UTI, affecting the bladder, and pyelonephritis or upper UTI, involving the kidneys [3,4,5]. Cystitis affects mainly women due to anatomic differences of their urogenital system; it has been estimated that more than 50% of women experience at least one UTI in their lifetimes [6,7,8]. Infecting pathogens might cause asymptomatic or symptomatic infections, characterized by irritative and painful symptoms [9]. In the majority of cases, uropathogenic Escherichia coli (UPEC) might originate from the intestinal microbiota through the bacterial migration to the perianal region and, therefore, to the urinary tract [10]. Among the wide range of bacterial pathogens associated to UTIs, UPEC are predominant in both symptomatic and/or asymptomatic infections, accounting for up to 75% to 95% of reported UTIs [4,10,11]. While UPEC possess a plethora of well-studied virulence factors, the ability to adhere to host epithelial cells is crucial for the establishment and progression of the infection [1,4,10,11]. This ability relies mostly on type 1 fimbriae which are characterized by the presence of an adhesin, FimH, located at the tip of these fimbriae [12]. FimH binds mainly to terminal epitopes of high mannosylated glycans conjugated to uroplakin 1a (UP1a), a receptor specifically expressed on the surface of urothelial cells, known as the catch–bond binding mechanism [5,8,13,14,15]. Therefore, being abundantly distributed on the majority of UPEC strains, type 1 fimbriae are the main appendages responsible for the bacterial adhesion to bladder epithelial cells [16,17].
Diagnosis of UTIs is based on clinical signs as well as urine tests to identify the infecting microorganism(s) and its antimicrobial susceptibility profile [9,10]. However, despite appropriate and often successful antibiotic treatments, around 20−40% of women experience at least one recurrence within six months of their initial diagnosis [2,18]. Recurrence is characterized by relapse in clinical symptoms and could be associated to persistence of bacteria that cause the primary infection or re-infection. Recurrent UTIs (rUTIs) have a profound impact on quality of life and cause a significant economic burden [1,4,10,18]. It has been recently demonstrated that UPEC isolates from elderly patients with rUTI were cell-wall deficient (l-form) bacteria. This feature makes bacteria resistant to cell wall-targeting antibiotics, likely contributing to the recurrence of the infection [19]. Moreover, the increase in antibiotic resistance found in clinical UPEC isolates has made UTI management progressively costlier and more challenging [5,10,18]. On this basis, several promising efforts have been made to study novel strategies aimed at specifically counteracting bacterial virulence factors without affecting bacterial lifestyle, metabolism, or multiplication. These kinds of approaches might be able to prevent bacterial pathogenic effects without inducing the selection of resistant strains, an unsought consequence of antibiotic treatments. For this reason, molecules able to interfere with bacterial virulence mechanisms have been proposed to combat UPEC infections [20]. Accordingly, FimH antagonists, such as d-mannose and its derivatives, have emerged as anti-virulence therapeutic strategies for the treatment of UTIs [21,22,23,24,25,26,27]. d-mannose, a C-2 epimer of d-glucose, as well as d-mannose-analogs, prevent FimH-mediated bacterial adhesion through a competitive inhibition mechanism [18,21,22,24,28]. This mechanism is based on the structural similarity between d-mannose and urothelial mannosylated receptors exposed by the epithelium of the urinary tract. When it is administered in sufficient amounts, d-mannose is rapidly absorbed and then excreted by the urinary tract where it saturates bacterial FimH, thereby preventing its binding to urothelia [29,30]. Thus, the d-mannose–UPEC interaction facilitates the clearance of bacteria that are dragged by the flow of urine [28]. The first evidence of d-mannose effectiveness in preventing UTIs was demonstrated in animals in 1979 but, thereafter, many others have been collected in humans [31,32,33,34,35]. While validated in only three clinical trials studies, d-mannose, administered at high dosage, revealed its efficacy both in reducing the symptoms and the recurrence rate of UTIs [31,34,36]. Despite these promising results, the possibility that d-mannose exerts only anti-adhesive activity on FimH without altering bacterial growth and/or metabolism not have been addressed yet. Therefore, our study aimed to investigate whether d-mannose might affect bacterial shape, viability, motility, or metabolic activity of the prototype UPEC strain CFT073. We also evaluated whether d-mannose removal after a prolonged exposure might induce mutations on FimH critical residues, thereby stably modifying FimH’s ability to bind to human mannosylated proteins.

2. Results and Discussion

2.1. d-mannose Does Not Affect Bacterial Phenotype or Sensitivity to Antimicrobials

To evaluate whether d-mannose might affect bacterial growth, strain CFT073 was streaked on Mueller Hinton agar (MHA) plates supplemented with diverse sugars at different concentrations (d-mannose, d-glucose, d-fructose, and l-arabinose). No differences in bacterial growth were observed for d-mannose concentrations up to 10% (Figure 1a; data not shown). Above this concentration, all the tested sugars reduced or inhibited bacterial growth due to the osmotic pressure. Considering that the range of d-mannose dosage for UTI prevention used in clinical trials was between 2 and 3 g per day and that the normal urine volume is 800 to 2000 mL/day, it is reasonable to speculate that d-mannose concentration ranges between 0.10 and 0.25% per day in urine, 40–100-fold less than the concentration strain CFT073 can tolerate. Moreover, no differences in bacterial morphology or motility were detected in d-mannose incubated bacteria in comparison to untreated bacterial cells (Figure 1b,c). A slight degree of d-mannose-mediated bacterial aggregation was visible, as previously reported for E. coli cells treated with d-mannose functionalized substrates [37,38,39].
Since sugars can influence the activity of conventional antibiotics [40,41], a Kirby–Bauer susceptibility test using strain CFT073 was performed. No difference in the size of halos was observed in MHA plates with or without d-mannose (Figure 1d), thereby ruling out any d-mannose influence on the antibacterial activity of several classes of antibiotics.

2.2. In the Hierarchy of Sugar Used by the UPEC Strain CFT073, d-mannose Is Ranked Lowest

To evaluate the extent of d-mannose utilization in supporting bacterial growth in comparison to other sugars, strain CFT073 was inoculated in minimal M9 medium supplemented with d-mannose, d-glucose, d-fructose, or l-arabinose at a final concentration of 0.5%. The bacterial growth was monitored by optical density (OD600) over the course of 4 h and measured by CFU/mL at endpoint. Bacterial growth curves showed that all sugars, when administered alone, were able to sustain the growth of strain CFT073. The highest E. coli growth rates were recorded using the M9 medium supplemented with d-glucose, followed by both l-arabinose and d-fructose (Figure 2a,b). The lowest growth rates were obtained when d-mannose was the only carbon source in the growth medium (Figure 2a,b). In addition, the net ATP production from the metabolism of d-glucose, d-mannose, d-fructose, and l-arabinose was assessed. As expected, d-glucose provided the maximal ATP yield compared with the other tested sugars (Figure 2c). d-fructose and d-mannose were shown to be the next in terms of energy storage, whereas l-arabinose was the least (Figure 2c). It is known that d-fructose (at concentrations above 2 mM) and d-mannose are translocated across the inner membrane via the membrane-associated uptake system for mannose, encoded by the manXYZ operon [42]. Therefore, the lower amount of ATP formation could be due to a lesser intake of these sugars or to the energy cost for their uptake. Moreover, the low ATP yield recorded in strain CFT073 grown in an l-arabinose supplemented medium could be explained by ATP consumption. E. coli possesses low and high affinity l-arabinose transport systems, encoded by the araE and araFGH gene products, respectively; in addition, four genes, araABCD, encode for proteins required for the conversion of l-arabinose to d-xylulose-5-phosphate, which enters the pentose phosphate route [43]. Since protein synthesis is the most energy-consuming process in the cell, with more than 50% of the ATP consumption for biosynthetic purposes [44], the metabolic burden of l-arabinose could account for the lowest ATP formation. To evaluate whether E. coli starts to utilize d-mannose when d-glucose is in low concentrations, but not totally depleted, strain CFT073 was cultivated in M9 medium supplemented with d-glucose for 4 h before adding d-mannose to the growth medium (Figure 2d,e). Addition of d-mannose to cells growing exponentially on d-glucose as carbon source resulted neither in a temporary growth arrest nor in a statistically significant difference in the growth curves or CFU/mL with respect to bacteria grown only in d-glucose (Figure 2d,e). Vice versa, when strain CFT073 was grown in M9 medium supplemented with d-mannose and d-glucose was added after 4 h, a significant switch to this latter preferential sugar was detectable in the growth curve (Figure 2d,e). These results are in line with the knowledge that d-glucose is the preferred carbon source for E. coli as well as for many bacteria [45]. Therefore, even in d-glucose shortage and d-mannose abundance, E. coli cells still grew on their preferred sugar until it ran out, before switching to another available carbon source. The net E. coli preference for d-glucose is sustained by the d-glucose regulatory mechanisms that significantly inhibit the uptake of other sugars, a well-documented phenomenon referred to as carbon catabolic repression (CCR) [45]. Taken together, our data indicate that, in d-glucose deficiency, a second hierarchy in bacterial growth rates was shown encompassing d-fructose/l-arabinose followed by d-mannose. The usage of d-fructose over d-mannose to sustain bacterial multiplication could be explained in terms of energy production. Instead, l-arabinose utilization over d-mannose was quite unexpected, since l-arabinose enters the pentose phosphate pathway, which is generally believed to generate primarily pentoses and NADPH rather than ATP [46].

2.3. In the Presence of d-glucose, Only Basal Expression of the ManX Permease Occurs

To evaluate the expression of the membrane-associated uptake system for mannose, the expression levels of the ManX permease were measured by semi-quantitative real time-PCR (RT-PCR) and Western blot in strain CFT073 grown in M9 medium supplemented with d-glucose, d-fructose, d-mannose, or l-arabinose (Figure 3). Data of the semi-quantitative analysis are reported as fold change relative to the expression of manX in bacteria grown in d-glucose. The expression of manX was twofold up-regulated in strain CFT073 cultivated in the presence of d-mannose and d-fructose, whereas no significant manX up-regulation was observed for those grown with l-arabinose as the unique carbon source (Figure 3a). The expression of the ManX protein was also evaluated under the same experimental conditions. Protein loading was normalized using an antibody raised against the E. coli outer membrane protein A (OmpA) (Figure 3b). Results confirmed that ManX expression was induced only in the presence of both d-mannose and d-fructose in the growth media since they share the same membrane transport components [47]. Conversely, only basal-level of ManX expression was detected when d-glucose was available. This result is in line with the knowledge that glucose has a plethora of constitutive uptake pathways. Indeed, glucose uptake occurs through several specific and alternate transport systems located in the cytoplasmic membrane, such as the phosphotransferase systems (PTS) for glucose, mannose, fructose, sucrose, the proton symport GalP, as well as the binding protein dependent transport (Mgl) system for galactose [48,49]. Overall, these results highlight that d-glucose is ranked at the top in a hierarchy of carbon source preference by E. coli, allowing for faster growth rates, whereas d-mannose is ranked lowest. We then wondered whether glucose concentration in urine from healthy individuals could be enough to prevent d-mannose utilization, which can be as high as 1–2.5 g/L in a clinical regimen of 2–3 g per day [31,34,36]. However, only a few data in the literature reported that the average amount of glucose in urine is about 0.1–120 mg/L in healthy people [50,51]. For this purpose, fifty-four urine samples from healthy subjects were tested for glucose amounts by enzyme-linked immunosorbent assay (ELISA) and showed an average concentration of 7 mg/L. Therefore, the conclusion may be drawn that E. coli during infection has enough availability of glucose in the bladder to sustain its metabolism and, thus, the high administered dosage of d-mannose for prevention and treatment of UTIs is irrelevant for bacterial metabolism and growth.

2.4. Prolonged d-mannose Treatment Does Not Induce Modifications on FimH Adhesive Properties

The FimH protein is composed of the mannose-binding domain (1–156 aa) and the fimbria-incorporating pilin domain (160–273 aa), which are connected by a 3-aa interdomain linker peptide chain [52]. Crystallographic studies on the FimH mannose-binding domain revealed that a pocket formed by three loops contains key amino acids that, together with two tyrosine residues (Tyr48 and Tyr137), are involved in d-mannose-binding via hydrogen bonds and van der Waals interactions [17]. Mutations in these amino acids can severely affect mannose binding [53,54,55]. To set up a method to reverse FimH–d-mannose bonds, strain CFT073 was incubated for 48 h in static conditions to induce maximal pilus formation in the presence of 1.5% d-mannose [56,57]; thereafter, one aliquot was vortexed and sonicated (referred to as V-S bacteria). We reasoned that the application of the swirling motion (vortex) and sonication could generate mechanical forces that lead to the breakage of the hydrogen and van der Waals bonds between d-mannose and FimH. Bacterial viability and FimH adhesion ability were assessed by CFU/mL counting and yeast agglutination assay, respectively [56,57]. Vitality assessment showed no reduction in the number of V-S bacteria compared to the untreated control. For the yeast agglutination assay, bacterial suspensions of untreated, d-mannose-treated, and d-mannose-treated V-S bacteria were individually incubated with Saccharomyces cerevisiae cells for 1 h, before being spotted on glass slides and streaked for Gram staining (Figure 4). As expected, untreated strain CFT073 agglutinated the majority of yeast cells while d-mannose-treated bacteria did this to a lesser extent, shown macroscopically and microscopically as agglutinated and dispersed yeast cells, respectively (Figure 4). Interestingly, d-mannose V-S treated bacteria agglutinated S. cerevisiae cells comparably to untreated bacteria, indicating that the mechanical treatment was effective in d-mannose removal, not affecting FimH interactions with yeast mannosylated proteins (Figure 4).
The FimH adhesin is widespread among E. coli and found in several natural sequence variants, characterized by different affinities for mannose residues [58]. Several point mutations were shown to favorably or detrimentally affect the affinity and specificity of FimH to mannosylated proteins, such as A62, G66, and Y137, as well as those involved in the interdomain interactions [53,54,55,59]. Therefore, to assess whether prolonged d-mannose treatment might induce mutations on FimH critical residues altering its binding capacity to human mannosylated proteins in vitro, strain CFT073 was sub-cultured for 10 days in Luria Bertani (LB) supplemented with and without d-mannose at a final concentration of 1.5%. This exposure time was chosen because it is similar to that adopted by Domenici et al. for the treatment of acute UTIs [31]. After a further 48 h of incubation in static conditions [56,57], untreated, d-mannose-treated, and d-mannose-treated V-S bacteria were used to infect human bladder epithelial HTB-9 cells at a multiplicity of infection (MOI) of 10. Two hours post-infection, the number of cell-associated bacteria was calculated by CFU/mL counting (Figure 5). The d-mannose-treated V-S bacteria adhered as well as the untreated controls, while d-mannose treated bacteria showed a significantly lower extent of adhesion (Figure 5). Taken together, these results show that removal of d-mannose from FimH by applying mechanical forces left this adhesin fully proficient to bind to human urothelial mannosylated receptors. Overall, our results support the conclusion that the clinical regimen of d-mannose applied to treat acute UTIs (3 g/day for three days, then 1.5 g/day for 10 days, [31]) does not lead to FimH mutations that modify bacterial adhesiveness.
The effect of a high dosage of d-mannose on human epithelial cells was also evaluated. Semi-confluent HTB-9 monolayers were treated for 24 h with d-mannose at a final concentration of 1.5% (Figure S1). No macroscopic differences in the shape, integrity, adhesiveness, cytoplasmic vacuolization, proliferation, or cytotoxic effects were observed in HTB-9 cell monolayers incubated with d-mannose (Figure S1; data not shown). These results are in line with previous data showing no adverse side effects resulting from nonselective binding of some d-mannosides to human receptors [60,61].

3. Materials and Methods

3.1. Bacterial Strains, Yeast, and Cell Line

The well characterized uropathogenic E. coli strain CFT073 was kindly provided by Prof. U. Dobrindt and was used as uropathotype in this study. Strain CFT073 was grown at 37 °C in LB or seeded onto MacConkey agar plates. The presence of the fimH gene was confirmed by PCR using the primer pairs fimHF 5′-TGCAGAACGGATAAGCCGTGG-3′ and fimHR 5′-GCAGTCACCTGCCCTCCGGTA-3′ and using E. coli fimH-proficient and -deficient strains as positive and negative controls, strains E1P and I2P, respectively [62]. The yeast S. cerevisiae strain AH109 (Takara Bio, Ancona, Italy) was plated onto YPDA, as previously described [63]. The human bladder epithelial cell line 5637, HTB-9 (ATCC-LGC, Milan, Italy), was routinely cultured in T25 flasks at 37 °C in a humidified atmosphere with 5% CO2 using Roswell Park Memorial Institute (RPMI) 1640 medium (Gibco, Milan, Italy) supplemented with 10% FBS.

3.2. Culture Conditions, Reagents, and Bacterial Growth Measurements

Unless otherwise indicated, LB or MHA plates were supplemented with the following d-mannose concentrations 1.25, 2.5, 5, 10, 15, and 20% (Utismile®, S.I.I.T, Milan, Italy). LB and MHA plates were used as control. Swimming motility was assessed on LB soft agar plates. For some experiments, strain CFT073 was grown in M9 minimal medium (M9) (ThermoFisher, Milan, Italy), supplemented with d-mannose (Utismile®), d-glucose, d-fructose, and l-arabinose (Sigma Aldrich, Rome, Italy). From the overnight culture, bacteria were split to test different conditions and grown at 37 °C. Antibiotic disks were provided from Biomerieux (Florence, Italy). The growth kinetics of strain CFT073 growing in the different conditions were determined by optical density (OD600) and by colony-forming units (CFU) by spot-plating serial dilutions.

3.3. Measurements of Adenosine Triphosphate (ATP) Production

Equal amounts of bacteria normalized by OD600 were aliquoted into black 96 multiwell (Corning Costar®, ThermoFisher, Milan, Italy). The ATP measurements were performed using the BacTiter-Glo™ Microbial Cell Viability Assay Kit, following the manufacturer’s instruction (Promega, Milan, Italy). The luminescence produced by the Ultra-Glo™ Recombinant Luciferase was recorded on a GloMax® 96 Microplate Luminometer (Promega, Milan, Italy).

3.4. Expression Levels of the ManX Permease

Total RNA was extracted from strain CFT073 grown in M9 minimal medium supplemented with either d-glucose, d-mannose, d-fructose, or l-arabinose grown to an OD600 value of 1.0 using the RiboPure™-Bacteria Kit (Ambion, ThermoFisher, Milan, Italy). The quantity and quality of the purified RNA were assessed by measuring the absorbance at OD260 and using formaldehyde agarose gel electrophoresis, respectively. cDNA was generated using PrimeScript™ RT Reagent Kit with a random primer hexamer mix and 1 µg of total RNA, following the manufacturer’s instructions (Takara Bio, Ancona, Italy). Semi-quantitative real-time PCR (RT-PCR) was performed in the Bio-Rad iQ5 real-time PCR detection system with iQ SYBR Green Supermix (Bio-Rad, Milan, Italy), using the following conditions: 5 min at 95 °C, 40 cycles at 95 °C for 15 s and 60 °C for 30 s. The sequences of the primer pairs used for manX were manXF 5′-GGGCCAAACGACTACATGGTTATT-3′ and manXR5′-ACCTGGGTGAGCAGTGTCTTACG-3′, and for the 16S rRNA gene (rrsG), used for data normalization, rrsGF 5′-GGTGTAGCGGTGAAATGCGTAG-3′ and rrsGR 5′-TCAAGGGCACAACCTCCAAGTC-3′. To determine the fold change expression of manX in different conditions the 2−ΔΔCt method was used, as described previously [64], considering the bacteria grown in d-glucose as the reference condition.
Expression of ManX was assessed in whole cell extract (WCE) collected from bacteria grown under the same experimental conditions by Western blot. Equal amounts of WCE were loaded onto 12.5% Tris–glycine SDS-PAGE [65], transferred onto PVDF membranes (GE-Healthcare Bio-Sciences, Rome, Italy) and hybridized using polyclonal anti-ManX antibody (Abmart, Shanghai, China). The outer membrane protein A (OmpA) was used as a protein loading control, as reported elsewhere [64]. Blots were visualized by the enhanced chemiluminescence system (GE-Healthcare Bio-Sciences, Rome, Italy). Relative band intensities were quantified by densitometric analysis using the ImageJ software [66] and the ratio of ManX/OmpA was expressed as arbitrary units.

3.5. CFT073 Adhesion Assays

Confluent cell monolayers of human HTB-9 cells were infected with strain CFT073 grown in the absence and presence of 1.5% d-mannose at a multiplicity of infection (MOI) of 10, centrifuged and incubated at 37 °C with 5% CO2 for 2 h [56,57]. Cell monolayers were extensively washed to remove unbound bacteria, then lysed with Triton X-100 0.1% in PBS. Cell lysates were serially diluted and spot-plated onto LB agar plates for CFU/mL counting.

3.6. Agglutination of Yeast Cells

The binding activity of FimH was evaluated by yeast agglutination assay [56,57,67]. Strain CFT073 was grown in the absence and presence of 1.5% d-mannose for 48 h in static conditions. An aliquot of the bacterial culture grown in the presence of d-mannose was withdrawn, washed twice with PBS, vortexed at maximum speed for 20 min at room temperature and sonicated using an ultrasonic water bath, applying 35 kHz per 5 min in cold water (Fisherbrand™ S-Series, ThermoFisher, Milan, Italy). The vitality of vortexed and sonicated bacteria (referred to as V-S bacteria) was assessed by CFU/mL counting. Untreated, d-mannose-treated, and d-mannose-treated V-S bacteria were resuspended to an OD600 ≈ 1 and incubated individually with S. cerevisiae cells suspended in PBS to an OD600 ≈ 4 for 1 h at room temperature. Each suspension was spotted on a microscope slide and streaked for Gram-staining. Images were acquired both macroscopically and microscopically (10× and 40× magnifications).

3.7. Urine Glucose Measurements

Fifty-four urine samples from the clinical pathology unit, Umberto I University Hospital in Rome, previously tested as negative in routine microbiological tests were analyzed for glucose quantification using Glucose Colorimetric/Fluorometric Assay Kit MAK263, following the manufacturer’s instruction (Sigma Aldrich, Rome, Italy). Clinical samples used in this study were obtained during institutional diagnostic service; investigation described in this study could be carried out on residual specimens following diagnostic analysis provided that all data were kept anonymous.

3.8. Cell Viability and Proliferation (MTT test)

The viability and growth of HTB-9 cells was assessed by the MTT [3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl-2H-tetrazolium bromide]-based assay, following manufacturer’s instructions (Abcam Ltd., Cambridge, UK). Images were acquired microscopically (40× magnification).

3.9. Statistical Analysis

Statistical differences were analyzed by one-way ANOVA test using the Bonferroni post-hoc test and unpaired t test. The values where p < 0.05 were taken as being statistically significant. Statistical data analysis was performed using GraphPad Prism software (version 5.01, La Jolla, CA, USA).

4. Conclusions

The first essential step for the establishment of the infection by UPEC is the steady adhesion to eukaryotic cells. UPEC adhesion relies mainly on the interaction between FimH and mannosylated uroplakin proteins on the luminal surfaces of urothelial cells as well as other cellular receptors such as integrins [1,5,8,13,14,15]. Therefore, FimH antagonists, such as d-mannose, have gained increasing consideration and proven to be effective for the treatment and/or prevention of acute and recurrent UPEC-mediated UTIs [21,22,24,25,26,27]. Furthermore, d-mannose represents a real alternative to antibiotic regimens, reducing the burden of antibiotic resistance and associated side effects [2,14,31,34,35,36]. Our results show that d-mannose affected neither bacterial viability, shape, or motility nor interfered with the activity of the tested antibiotics. Moreover, in the hierarchy of E. coli preferred sugars, d-mannose ranked as the least preferred in supporting the bacterial metabolism and growth and its usage was prevented even after 4 h of d-glucose consumption. Since our data showed that small amounts of glucose are normally present in urine from healthy subjects, we can conclude that the dosages of d-mannose used in clinical practice are irrelevant for E. coli metabolism and growth. Finally, d-mannose prolonged exposure did not select FimH variants that modify bacterial adhesiveness after d-mannose removal, further indicating that it does not exert “antibiotic-like” activity. Overall, the low metabolic/energetic advantages for bacterial growth, the lack of selection of altered FimH adhesins after long-term d-mannose exposure, and the bladder cell tolerance emphasize the safe use of d-mannose in the treatment and prevention of UTIs caused by UPEC.

Supplementary Materials

The following are available online, Figure S1: Giemsa staining of HTB-9 cell monolayers incubated with 1.5% d-mannose for 24 h. Representative images of two independent experiments are shown. Scale bar, 10 μm. Images were recorded with the 40X objective using a Leica DM5000B microscope and processed using the Leica Application Suite 2.7.0.R1 software (Leica). Scale bar: 10 μm.

Author Contributions

Conceptualization, D.S., M.S., C.A. and A.T.P.; data curation, D.S., M.S. and C.A.; formal analysis, D.S., M.S. and C.A.; investigation, D.S., M.S. and C.A.; methodology, D.S., M.S., C.A., C.P., C.Z., M.L., A.A. and A.T.P.; resources, D.S., M.S., C.A., C.P., C.Z., M.L., A.A. and A.T.P., writing-original draft, C.A.; writing-review & editing, D.S., M.S., C.A., M.L. and A.T.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by S.I.I.T. S.r.l. Innovative Healthcare Products. Additional support was provided by ARS01_00597 NAOCON to A.T.P. The salary of D.S. was supported by the Dani Di Giò Foundation-Onlus, Rome, Italy. The funders had no role in study design, analysis and interpretation of the data or in writing the manuscript.

Acknowledgments

We are grateful to U. Dobrindt for the kind gift of strain CFT073. The authors acknowledge G. L. Scoarughi for the valuable help in taking the photos herein presented.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Terlizzi, M.E.; Gribaudo, G.; Maffei, M.E. UroPathogenic Escherichia coli (UPEC) infections: Virulence factors, bladder responses, antibiotic, and non-antibiotic antimicrobial strategies. Front. Microbiol. 2017, 8, 1566. [Google Scholar] [CrossRef]
  2. Kalas, V.; Hibbing, M.E.; Maddirala, A.R.; Chugani, R.; Pinkner, J.S.; Mydock-McGrane, L.K.; Conover, M.S.; Janetka, J.W.; Hultgren, S.J. Structure-based discovery of glycomimetic FmlH ligands as inhibitors of bacterial adhesion during urinary tract infection. Proc. Natl. Acad. Sci. USA 2018, 115, E2819–E2828. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Momtaz, H.; Karimian, A.; Madani, M.; Dehkordi, F.S.; Ranjbar, R.; Sarshar, M.; Souod, N. Uropathogenic Escherichia coli in Iran: Serogroup distributions, virulence factors and antimicrobial resistance properties. Ann. Clin. Microbiol. Antimicrob. 2013, 12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Flores-Mireles, A.L.; Walker, J.N.; Caparon, M.; Hultgren, S.J. Urinary tract infections: Epidemiology, mechanisms of infection and treatment options. Nat. Rev. Microbiol. 2015, 13, 269–284. [Google Scholar] [CrossRef]
  5. Spaulding, C.N.; Hultgren, S.J. Adhesive Pili in UTI Pathogenesis and Drug Development. Pathogens 2016, 5, 30. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Foxman, B. Urinary tract infection syndromes: Occurrence, recurrence, bacteriology, risk factors, and disease burden. Infect. Dis. Clin. North Am. 2014, 28, 1–13. [Google Scholar] [CrossRef] [PubMed]
  7. Brumbaugh, A.R.; Smith, S.N.; Subashchandrabose, S.; Himpsl, S.D.; Hazen, T.H.; Rasko, D.A.; Mobley, H.L. Blocking yersiniabactin import attenuates extraintestinal pathogenic Escherichia coli in cystitis and pyelonephritis and represents a novel target to prevent urinary tract infection. Infect. Immun. 2015, 83, 1443–1450. [Google Scholar] [CrossRef] [Green Version]
  8. Subashchandrabose, S.; Mobley, H.L.T. Virulence and Fitness determinants of uropathogenic Escherichia coli. Microbiol. Spectr. 2015, 3. [Google Scholar] [CrossRef] [Green Version]
  9. Chu, C.M.; Lowder, J.L. Diagnosis and treatment of urinary tract infections across age groups. Am. J. Obstet. Gynecol. 2018, 219, 40–51. [Google Scholar] [CrossRef]
  10. McLellan, L.K.; Hunstad, D.A. Urinary Tract Infection: Pathogenesis and Outlook. Trends Mol. Med. 2016, 22, 946–957. [Google Scholar] [CrossRef] [Green Version]
  11. Forsyth, V.S.; Armbruster, C.E.; Smith, S.N.; Pirani, A.; Springman, A.C.; Walters, M.S.; Nielubowicz, G.R.; Himpsl, S.D.; Snitkin, E.S.; Mobley, H.L.T. Rapid Growth of Uropathogenic Escherichia coli during Human Urinary Tract Infection. MBio 2018, 9, e00186-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Schwan, W.R.; Beck, M.T.; Hung, C.S.; Hultgren, S.J. Differential regulation of Escherichia coli fim genes following binding to mannose receptors. J. Pathog. 2018, 2018, 2897581. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Zhou, G.; Mo, W.J.; Sebbel, P.; Min, G.; Neubert, T.A.; Glockshuber, R.; Wu, X.R.; Sun, T.T.; Kong, X.P. Uroplakin Ia is the urothelial receptor for uropathogenic Escherichia coli: Evidence from in vitro FimH binding. J. Cell. Sci. 2001, 114, 4095–4103. [Google Scholar] [PubMed]
  14. Hu, X.; Shi, Y.N.; Zhang, P.; Miao, M.; Zhang, T.; Jiang, B. D-Mannose: Properties, production, and applications: An overview. Comprehen. Rev. Food Sci. Food Saf. 2016, 15, 773–785. [Google Scholar] [CrossRef] [Green Version]
  15. Sauer, M.M.; Jakob, R.P.; Eras, J.; Baday, S.; Eriş, D.; Navarra, G.; Bernèche, S.; Ernst, B.; Maier, T.; Glockshuber, R. Catch-bond mechanism of the bacterial adhesin FimH. Nat. Commun. 2016, 7, 10738. [Google Scholar] [CrossRef] [Green Version]
  16. Sarshar, M.; Scribano, D.; Marazzato, M.; Ambrosi, C.; Aprea, M.R.; Aleandri, M.; Pronio, A.; Longhi, C.; Nicoletti, M.; Zagaglia, C.; et al. Genetic diversity, phylogroup distribution and virulence gene profile of pks positive Escherichia coli colonizing human intestinal polyps. Microb. Pathog. 2017, 112, 274–278. [Google Scholar] [CrossRef]
  17. Ribić, R.; Meštrović, T.; Neuberg, M.; Kozina, G. Effective anti-adhesives of uropathogenic Escherichia coli. Acta Pharm. 2018, 68, 1–18. [Google Scholar] [CrossRef] [Green Version]
  18. Mydock-McGrane, L.K.; Cusumano, Z.T.; Janetka, J.W. Mannose-derived FimH antagonists: A promising anti-virulence therapeutic strategy for urinary tract infections and Crohn’s disease. Expert Opin. Ther. Pat. 2016, 26, 75–97. [Google Scholar] [CrossRef]
  19. Mickiewicz, K.M.; Kawai, Y.; Drage, L.; Gomes, M.C.; Davison, F.; Pickard, R.; Hall, J.; Mostowy, S.; Aldridge, P.D.; Errington, J. Possible role of L-form switching in recurrent urinary tract infection. Nat. Commun. 2019, 10, 4379. [Google Scholar] [CrossRef] [Green Version]
  20. Rasko, D.A.; Sperandio, V. Anti-virulence strategies to combat bacteria-mediated disease. Nat. Rev. Drug. Discov. 2010, 9, 117–128. [Google Scholar] [CrossRef]
  21. Klein, T.; Abgottspon, D.; Wittwer, M.; Rabbani, S.; Herold, J.; Jiang, X.; Kleeb, S.; Lüthi, C.; Scharenberg, M.; Bezençon, J.; et al. FimH antagonists for the oral treatment of urinary tract infections: From design and synthesis to in vitro and in vivo evaluation. J. Med. Chem. 2010, 53, 8627–8641. [Google Scholar] [CrossRef] [PubMed]
  22. Cusumano, C.K.; Pinkner, J.S.; Han, Z.; Greene, S.E.; Ford, B.A.; Crowley, J.R.; Henderson, J.P.; Janetka, J.W.; Hultgren, S.J. Treatment and prevention of urinary tract infection with orally active FimH inhibitors. Sci. Transl. Med. 2011, 3, 109ra115. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Mousavifar, L.; Vergoten, G.; Charron, G.; Roy, R. Comparative study of Aryl O-, C-, and S-Mannopyranosides as potential adhesion inhibitors toward uropathogenic E. coli FimH. Molecules 2019, 24, 3566. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Ofek, I.; Mirelman, D.; Sharon, N. Adherence of Escherichia coli to human mucosal cells mediated by mannose receptors. Nature 1977, 265, 623–625. [Google Scholar] [CrossRef] [PubMed]
  25. Mousavifar, L.; Touaibia, M.; Roy, R. Development of mannopyranoside therapeutics against adherent-invasive Escherichia coli infections. Acc. Chem. Res. 2018, 51, 2937–2948. [Google Scholar] [CrossRef] [PubMed]
  26. Mousavifar, L.; Roy, R. Alternative therapeutic strategies to fight bacterial infections. Front. Drug. Chem. Clin. Res. 2018, 2, 1–4. [Google Scholar] [CrossRef]
  27. Touaibia, M.; Krammer, E.M.; Shiao, T.C.; Yamakawa, N.; Wang, Q.; Glinschert, A.; Papadopoulos, A.; Mousavifar, L.; Maes, E.; Oscarson, S.; et al. Sites for dynamic protein-carbohydrate interactions of O- and C-linked mannosides on the E. coli FimH adhesin. Molecules 2017, 22, 1101. [Google Scholar] [CrossRef] [Green Version]
  28. Firon, N.; Ofek, I.; Sharon, N. Interaction of mannose-containing oligosaccharides with the fimbrial lectin of Escherichia coli. Biochem. Biophys. Res. Commun. 1982, 105, 1426–1432. [Google Scholar] [CrossRef]
  29. O’Brien, V.P.; Hannan, T.J.; Nielsen, H.V.; Hultgren, S.J. Drug and vaccine development for the treatment and prevention of urinary tract infections. Microbiol. Spectr. 2016, 4. [Google Scholar] [CrossRef] [Green Version]
  30. Zacchè, M.M.; Giarenis, I. Therapies in early development for the treatment of urinary tract inflammation. Expert Opin. Investig. Drugs 2016, 25, 531–540. [Google Scholar] [CrossRef]
  31. Domenici, L.; Monti, M.; Bracchi, C.; Giorgini, M.; Colagiovanni, V.; Muzii, L.; Benedetti Panici, P. D-mannose: A promising support for acute urinary tract infections in women. A pilot study. Eur. Rev. Med. Pharmacol. Sci. 2016, 20, 2920–2925. [Google Scholar] [PubMed]
  32. Aronson, M.; Medalia, O.; Schori, L.; Mirelman, D.; Sharon, N.; Ofek, I. Prevention of colonization of the urinary tract of mice with Escherichia coli by blocking of bacterial adherence with methyl alpha-D-mannopyranoside. J. Infect. Dis. 1979, 139, 329–332. [Google Scholar] [CrossRef] [PubMed]
  33. Michaels, E.K.; Chmiel, J.S.; Plotkin, B.J.; Schaeffer, A.J. Effect of D-mannose and D-glucose on Escherichia coli bacteriuria in rats. Urol. Res. 1983, 11, 97–102. [Google Scholar] [CrossRef] [PubMed]
  34. Kranjcec, B.; Papes, D.; Altarac, S. D-mannose powder for prophylaxis of recurrent urinary tract infections in women: A randomized clinical trial. World J. Urol. 2014, 32, 79–84. [Google Scholar] [CrossRef]
  35. Altarac, S.; Papeš, D. Use of D-mannose in prophylaxis of recurrent urinary tract infections (UTIs) in women. BJU Int. 2014, 113, 9–10. [Google Scholar] [CrossRef]
  36. Porru, D.; Parmigiani, A.; Tinelli, C.; Barletta, D.; Choussos, D.; Di Franco, C.; Bobbi, V.; Bassi, S.; Miller, O.; Gardella, B.; et al. Oral D-mannose in recurrent urinary tract infections in women: A pilot study. J. Clin. Urol. 2014, 7, 208–213. [Google Scholar] [CrossRef]
  37. Wang, X.; Liu, L.H.; Ramström, O.; Yan, M. Engineering nanomaterial surfaces for biomedical applications. Exp. Biol. Med. Maywood 2009, 234, 1128–1139. [Google Scholar] [CrossRef] [Green Version]
  38. Tsakama, M.; Ma, X.; He, Y.; Chen, W.; Dai, X. A Simple Mannose-Coated Poly (p-Phenylene Ethynylene) for Qualitative Bacterial Capturing. Molecules 2018, 23, 2056. [Google Scholar] [CrossRef] [Green Version]
  39. Mukhopadhyay, B.; Martins, M.B.; Karamanska, R.; Russell, D.A.; Field, R.A. Bacterial detection usingcarbohydrate-functionalised CdS quantum dots: A model study exploiting E. coli recognition of mannosides. Tetrahedron Lett. 2009, 50, 886–889. [Google Scholar] [CrossRef]
  40. Bucior, I.; Abbott, J.; Song, Y.; Matthay, M.A.; Engel, J.N. Sugar administration is an effective adjunctive therapy in the treatment of Pseudomonas aeruginosa pneumonia. Am. J. Physiol. Lung Cell Mol. Physiol. 2013, 305, L352–L363. [Google Scholar] [CrossRef] [Green Version]
  41. Thorsing, M.; Bentin, T.; Givskov, M.; Tolker-Nielsen, T.; Goltermann, L. The bactericidal activity of β-lactam antibiotics is increased by metabolizable sugar species. Microbiology 2015, 161, 1999–2007. [Google Scholar] [CrossRef] [PubMed]
  42. Ferenci, T.; Kornberg, H.L. The role of phosphotransferase-mediated syntheses of fructose 1-phosphate and fructose 6-phosphate in the growth of Escherichia coli on fructose. Proc. R. Soc. Lond. B. Biol. Sci. 1974, 187, 105–119. [Google Scholar] [PubMed]
  43. Schleif, R. Regulation of the L-arabinose operon of Escherichia coli. Trends Genet. 2000, 16, 559–565. [Google Scholar] [CrossRef]
  44. Stouthamer, A.H. A theoretical study on the amount of ATP required for synthesis of microbial cell material. Antonie Van Leeuwenhoek 1973, 39, 545–565. [Google Scholar] [CrossRef] [PubMed]
  45. Aidelberg, G.; Towbin, B.D.; Rothschild, D.; Dekel, E.; Bren, A.; Alon, U. Hierarchy of non-glucose sugars in Escherichia coli. BMC Syst. Biol. 2014, 8, 133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Varma, A.; Palsson, B.O. Metabolic capabilities of Escherichia coli: I. synthesis of biosynthetic precursors and cofactors. J. Theor. Biol. 1993, 165, 477–502. [Google Scholar] [CrossRef] [PubMed]
  47. Plumbridge, J. Control of the expression of the manXYZ operon in Escherichia coli: Mlc is a negative regulator of the mannose PTS. Mol. Microbiol. 1998, 27, 369–380. [Google Scholar] [CrossRef]
  48. Ferenci, T. Adaptation to life at micromolar nutrient levels: The regulation of Escherichia coli glucose transport by endoinduction and cAMP. FEMS Microbiol. Rev. 1996, 18, 301–317. [Google Scholar] [CrossRef]
  49. Shimizu, K. Metabolic regulation of a bacterial cell system with emphasis on Escherichia coli metabolism. ISRN Biochem. 2013, 2013, 645983. [Google Scholar] [CrossRef] [Green Version]
  50. Fine, J. Glucose content of normal urine. Br. Med. J. 1965, 1, 1209–1214. [Google Scholar] [CrossRef] [Green Version]
  51. Long, C. Biochemists’ Handbook; E. & F. N. SPON Ltd.: London, UK, 1971; pp. 918–936. [Google Scholar]
  52. Choudhury, D.; Thompson, A.; Stojanoff, V.; Langermann, S.; Pinkner, J.; Hultgren, S.J.; Knight, S.D. X-ray structure of the FimC-FimH chaperone-adhesin complex from uropathogenic Escherichia coli. Science 1999, 285, 1061–1066. [Google Scholar] [CrossRef] [PubMed]
  53. Aprikian, P.; Tchesnokova, V.; Kidd, B.; Yakovenko, O.; Yarov-Yarovoy, V.; Trinchina, E.; Vogel, V.; Thomas, W.; Sokurenko, E. Interdomain interaction in the FimH adhesin of Escherichia coli regulates the affinity to mannose. J. Biol. Chem. 2007, 282, 23437–23446. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Chen, S.L.; Hung, C.S.; Pinkner, J.S.; Walker, J.N.; Cusumano, C.K.; Li, Z.; Bouckaert, J.; Gordon, J.I.; Hultgren, S.J. Positive selection identifies an in vivo role for FimH during urinary tract infection in addition to mannose binding. Proc. Natl. Acad. Sci. USA 2009, 106, 22439–22444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Rabbani, S.; Krammer, E.M.; Roos, G.; Zalewski, A.; Preston, R.; Eid, S.; Zihlmann, P.; Prévost, M.; Lensink, M.F.; Thompson, A.; et al. Mutation of Tyr137 of the universal Escherichia coli fimbrial adhesin FimH relaxes the tyrosinegate prior to mannose binding. IUCrJ 2017, 4, 7–23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Crépin, S.; Houle, S.; Charbonneau, M.È.; Mourez, M.; Harel, J.; Dozois, C.M. Decreased expression of type 1 fimbriae by a pst mutant of uropathogenic Escherichia coli reduces urinary tract infection. Infect. Immun. 2012, 80, 2802–2815. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Crépin, S.; Porcheron, G.; Houle, S.; Harel, J.; Dozois, C.M. Altered regulation of the diguanylate cyclase YaiC reduces production of type 1 fimbriae in a Pst mutant of uropathogenic Escherichia coli CFT073. J. Bacteriol. 2017, 199, e00168-17. [Google Scholar] [CrossRef] [Green Version]
  58. Sokurenko, E.V.; Chesnokova, V.; Doyle, R.J.; Hasty, D.L. Diversity of the Escherichia coli type 1 fimbrial lectin. Differential binding to mannosides and uroepithelial cells. J. Biol. Chem. 1997, 272, 17880–17886. [Google Scholar] [CrossRef] [Green Version]
  59. Weissman, S.J.; Beskhlebnaya, V.; Chesnokova, V.; Chattopadhyay, S.; Stamm, W.E.; Hooton, T.M.; Sokurenko, E.V. Differential stability and trade-off effects of pathoadaptive mutations in the Escherichia coli FimH adhesin. Infect. Immun. 2007, 75, 3548–3555. [Google Scholar] [CrossRef] [Green Version]
  60. Hartmann, M.; Papavlassopoulos, H.; Chandrasekaran, V.; Grabosch, C.; Beiroth, F.; Lindhorst, T.K.; Röhl, C. Inhibition of bacterial adhesion to live human cells: Activity and cytotoxicity of synthetic mannosides. FEBS Lett. 2012, 586, 1459–1465. [Google Scholar] [CrossRef] [Green Version]
  61. Scharenberg, M.; Schwardt, O.; Rabbani, S.; Ernst, B. Target Selectivity of FimH Antagonists. J. Med. Chem. 2012, 55, 9810–9816. [Google Scholar] [CrossRef]
  62. Ambrosi, C.; Sarshar, M.; Aprea, M.R.; Pompilio, A.; Di Bonaventura, G.; Strati, F.; Pronio, A.; Nicoletti, M.; Zagaglia, C.; Palamara, A.T.; et al. Colonic adenoma-associated Escherichia coli express specific phenotypes. Microbes Infect. 2019, 21, 305–312. [Google Scholar] [CrossRef] [PubMed]
  63. Scribano, D.; Damico, R.; Ambrosi, C.; Superti, F.; Marazzato, M.; Conte, M.P.; Longhi, C.; Palamara, A.T.; Zagaglia, C.; Nicoletti, M. The Shigella flexneri OmpA amino acid residues 188EVQ190 are essential for the interaction with the virulence factor PhoN2. Biochem. Biophys. Rep. 2016, 8, 168–173. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Ambrosi, C.; Pompili, M.; Scribano, D.; Limongi, D.; Petrucca, A.; Cannavacciuolo, S.; Schippa, S.; Zagaglia, C.; Grossi, M.; Nicoletti, M. The Shigella flexneri OspB effector: An early immunomodulator. Int. J. Med. Microbiol. 2015, 305, 75–84. [Google Scholar] [CrossRef] [PubMed]
  65. Laemmli, U.K. Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature 1970, 277, 680–685. [Google Scholar] [CrossRef]
  66. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef]
  67. Sokurenko, E.V.; Courtney, H.S.; Ohman, D.E.; Klemm, P.; Hasty, D.L. FimH family of type 1 fimbrial adhesins: Functional heterogeneity due to minor sequence variations among fimH genes. J. Bacteriol. 1994, 176, 748–755. [Google Scholar] [CrossRef] [Green Version]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 25 00316 g001 550
Figure 1. Impact of d-mannose on bacterial properties and antimicrobial activity. (a) Strain CFT073 was seeded on Mueller Hinton agar (MHA) plates supplemented with and without 10% d-mannose. (b,c) Otherwise, strain CFT073 grown overnight in Luria Bertani (LB) broth with and without 10% d-mannose was Gram stained or spotted onto soft agar (SA) plates, respectively. (d) The antibiotic susceptibility of strain CFT073 was assessed in the presence or absence of 5% d-mannose by the Kirby–Bauer disk diffusion susceptibility test on MHA plates; CN: Gentamicin; AMP: Ampicillin; AZM: Azithromycin; LZD: Linezolid; TE: Tetracycline; CIP: Ciprofloxacin. Representative images of two independent experiments.
Figure 1. Impact of d-mannose on bacterial properties and antimicrobial activity. (a) Strain CFT073 was seeded on Mueller Hinton agar (MHA) plates supplemented with and without 10% d-mannose. (b,c) Otherwise, strain CFT073 grown overnight in Luria Bertani (LB) broth with and without 10% d-mannose was Gram stained or spotted onto soft agar (SA) plates, respectively. (d) The antibiotic susceptibility of strain CFT073 was assessed in the presence or absence of 5% d-mannose by the Kirby–Bauer disk diffusion susceptibility test on MHA plates; CN: Gentamicin; AMP: Ampicillin; AZM: Azithromycin; LZD: Linezolid; TE: Tetracycline; CIP: Ciprofloxacin. Representative images of two independent experiments.
Molecules 25 00316 g001
Molecules 25 00316 g002a 550Molecules 25 00316 g002b 550

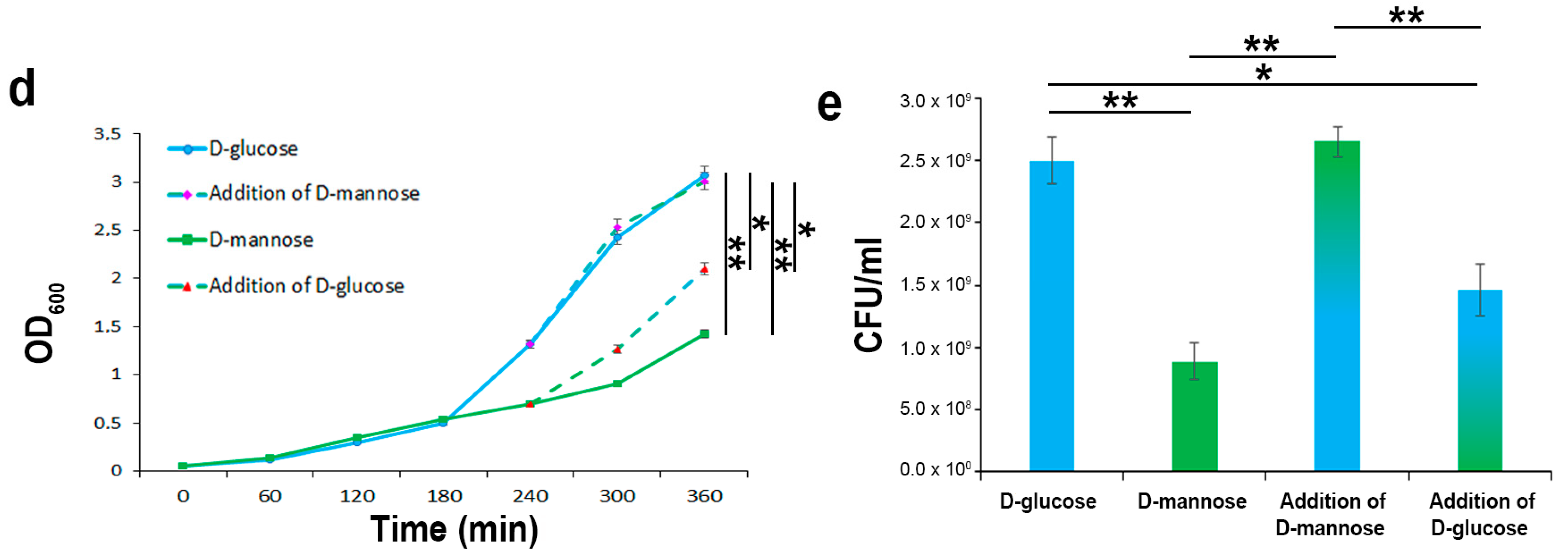

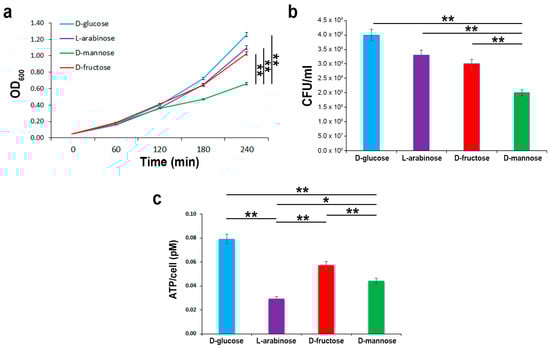

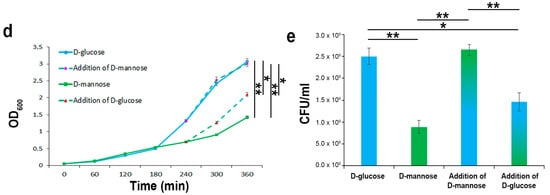

Figure 2. E. coli growth kinetics and ATP yields using different carbon sources. Strain CFT073 was grown on an M9 medium supplemented with the indicated sugars at a final concentration of 0.5% for 4 h. Growth curves were followed by OD600 measurements (a), while CFU/mL counting (b) and ATP intracellular content were assessed at endpoint (c). Strain CFT073 was grown on M9 medium supplemented with 0.5% d-glucose or 0.5% d-mannose. After 4 h, 0.5% of d-mannose or 0.5% d-glucose were added to the d-glucose or d-mannose-supplemented bacterial cultures, respectively, and the growth rates were recorded for a further 2 h by OD600 measurements (d) and CFU/mL counting at endpoint (e). Data represent the mean of three independent experiments. Asterisks indicate p values evaluated by one-way ANOVA; ** p ≤ 0.01, * p ≤ 0.05.
Figure 2. E. coli growth kinetics and ATP yields using different carbon sources. Strain CFT073 was grown on an M9 medium supplemented with the indicated sugars at a final concentration of 0.5% for 4 h. Growth curves were followed by OD600 measurements (a), while CFU/mL counting (b) and ATP intracellular content were assessed at endpoint (c). Strain CFT073 was grown on M9 medium supplemented with 0.5% d-glucose or 0.5% d-mannose. After 4 h, 0.5% of d-mannose or 0.5% d-glucose were added to the d-glucose or d-mannose-supplemented bacterial cultures, respectively, and the growth rates were recorded for a further 2 h by OD600 measurements (d) and CFU/mL counting at endpoint (e). Data represent the mean of three independent experiments. Asterisks indicate p values evaluated by one-way ANOVA; ** p ≤ 0.01, * p ≤ 0.05.
Molecules 25 00316 g002aMolecules 25 00316 g002b
Molecules 25 00316 g003 550

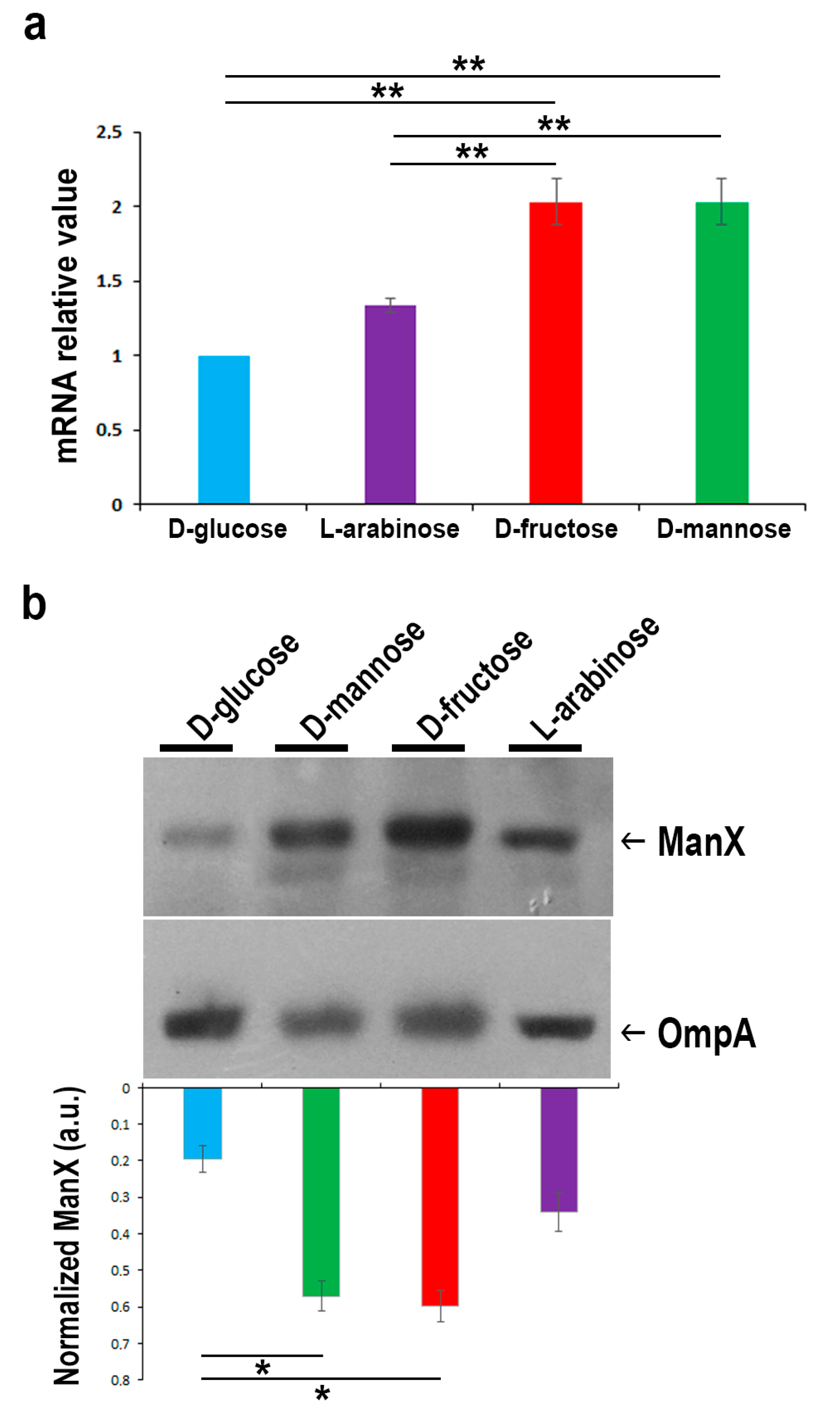

Figure 3. Comparison of manX gene and protein expression levels in strain CFT073 grown on M9 medium supplemented with 0.5% of the indicated sugars. (a) Real time-PCR analysis of manX mRNA. Total bacterial RNA was isolated from strain CFT073 grown to the mid-exponential phase, as described in the “Materials and Methods” section. The 16S rRNA gene (rrsG) was used as the normalizer. Data shown are fold increase (± SD) in manX mRNA relative to the d-glucose sample, considered 1. (b) Western blot analysis of ManX. Total proteins from bacteria under the same experimental conditions were separated by SDS/PAGE, transferred onto nitrocellulose, and probed with monoclonal anti-ManX antibody. The OmpA protein was used as the normalizer. Bars represent the amount of ManX calculated by densitometric analyses and expressed as arbitrary units (a.u.). Data represent the mean of three independent experiments. Asterisks indicate p values evaluated by one-way ANOVA; ** p ≤ 0.01, * p ≤ 0.05.
Figure 3. Comparison of manX gene and protein expression levels in strain CFT073 grown on M9 medium supplemented with 0.5% of the indicated sugars. (a) Real time-PCR analysis of manX mRNA. Total bacterial RNA was isolated from strain CFT073 grown to the mid-exponential phase, as described in the “Materials and Methods” section. The 16S rRNA gene (rrsG) was used as the normalizer. Data shown are fold increase (± SD) in manX mRNA relative to the d-glucose sample, considered 1. (b) Western blot analysis of ManX. Total proteins from bacteria under the same experimental conditions were separated by SDS/PAGE, transferred onto nitrocellulose, and probed with monoclonal anti-ManX antibody. The OmpA protein was used as the normalizer. Bars represent the amount of ManX calculated by densitometric analyses and expressed as arbitrary units (a.u.). Data represent the mean of three independent experiments. Asterisks indicate p values evaluated by one-way ANOVA; ** p ≤ 0.01, * p ≤ 0.05.
Molecules 25 00316 g003
Molecules 25 00316 g004 550
Figure 4. Representative images of yeast agglutination activity of E. coli after removal of d-mannose from FimH. Strain CFT073 grown in the presence of d-mannose was vortexed and sonicated to break FimH–d-mannose bonds (referred to as V-S bacteria). Thus, E. coli suspensions of untreated, d-mannose-treated, and d-mannose-treated V-S bacteria were tested for yeast cell agglutination on microscope slides. (a) Macroscopic images of yeast agglutination assay. (b) Microscopic images of Gram-stained yeast agglutination assay recorded with the 10× (upper panels) and 40× (lower panels) objectives using a Leica DM5000B microscope and processed using the Leica Application Suite 2.7.0.R1 software (Leica). Scale bars: 100 and 10 μm.
Figure 4. Representative images of yeast agglutination activity of E. coli after removal of d-mannose from FimH. Strain CFT073 grown in the presence of d-mannose was vortexed and sonicated to break FimH–d-mannose bonds (referred to as V-S bacteria). Thus, E. coli suspensions of untreated, d-mannose-treated, and d-mannose-treated V-S bacteria were tested for yeast cell agglutination on microscope slides. (a) Macroscopic images of yeast agglutination assay. (b) Microscopic images of Gram-stained yeast agglutination assay recorded with the 10× (upper panels) and 40× (lower panels) objectives using a Leica DM5000B microscope and processed using the Leica Application Suite 2.7.0.R1 software (Leica). Scale bars: 100 and 10 μm.
Molecules 25 00316 g004
Molecules 25 00316 g005 550

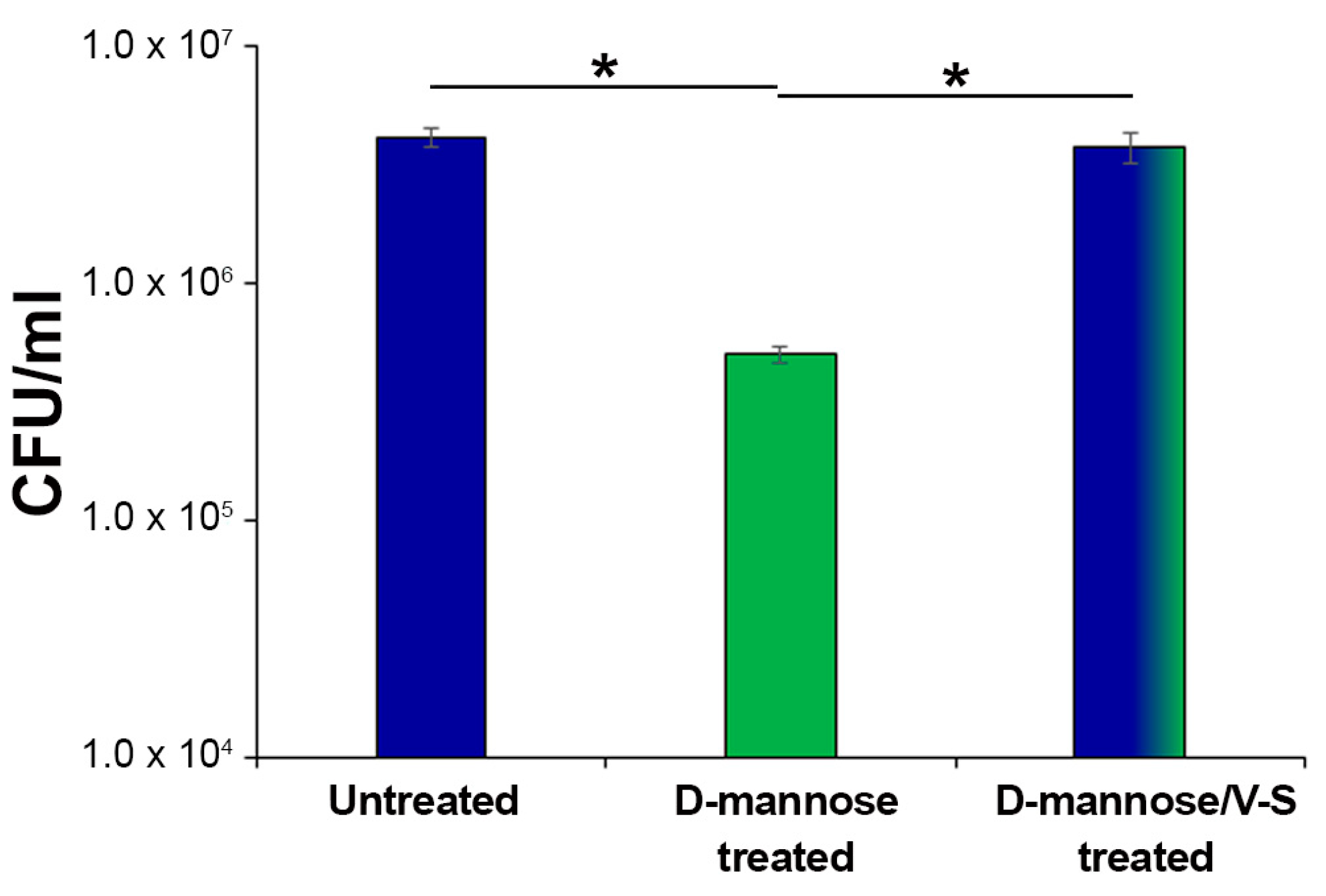

Figure 5. Bacterial adherence to bladder epithelial HTB-9 cells. Strain CFT073 was sub-cultured extensively with 1.5% d-mannose; one aliquot was vortexed and sonicated to break FimH–d-mannose bonds (referred to as V-S bacteria). Thus, E. coli suspensions of untreated, d-mannose-treated, and d-mannose-treated V-S were used to infect HTB-9 cell monolayers, at a multiplicity of infection (MOI) of 10. The total number of adherent bacteria was determined after 2 h of incubation with HTB-9 cell monolayers and expressed as CFU/mL. Data represent the mean of three independent experiments performed in triplicate. Asterisks indicate p values evaluated by one-way ANOVA; * p ≤ 0.05.
Figure 5. Bacterial adherence to bladder epithelial HTB-9 cells. Strain CFT073 was sub-cultured extensively with 1.5% d-mannose; one aliquot was vortexed and sonicated to break FimH–d-mannose bonds (referred to as V-S bacteria). Thus, E. coli suspensions of untreated, d-mannose-treated, and d-mannose-treated V-S were used to infect HTB-9 cell monolayers, at a multiplicity of infection (MOI) of 10. The total number of adherent bacteria was determined after 2 h of incubation with HTB-9 cell monolayers and expressed as CFU/mL. Data represent the mean of three independent experiments performed in triplicate. Asterisks indicate p values evaluated by one-way ANOVA; * p ≤ 0.05.
Molecules 25 00316 g005
