Article

Synthesis and Conformational Analysis of Naphthoxazine-Fused Phenanthrene Derivatives

1
Institute of Pharmaceutical Chemistry and MTA-SZTE Stereochemistry Research Group, Hungarian Academy of Sciences, University of Szeged, Eötvös u. 6, H-6720 Szeged, Hungary
2
Institute of Pharmaceutical Chemistry, University of Szeged, Interdisciplinary excellence center, H-6720 Szeged, Hungary
3
Department of Chemistry, University of Potsdam, Karl-Liebknecht-Str. 24-25, D-14476 Potsdam (Golm), Germany
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(11), 2524; https://doi.org/10.3390/molecules25112524
Submission received: 15 May 2020 / Revised: 24 May 2020 / Accepted: 26 May 2020 / Published: 28 May 2020
(This article belongs to the Special Issue Structure and Conformational Analysis of Heterocyclic Compounds)

Abstract

:
The synthesis of new phenanthr[9,10-e][1,3]oxazines was achieved by the direct coupling of 9-phenanthrol with cyclic imines in the modified aza-Friedel–Crafts reaction followed by the ring closure of the resulting bifunctional aminophenanthrols with formaldehyde. Aminophenanthrol-type Mannich bases were synthesised and transformed to phenanthr[9,10-e][1,3]oxazines via [4 + 2] cycloaddition. Detailed NMR structural analyses of the new polyheterocycles as well as conformational studies including Density Functional Theory (DFT) modelling were performed. The relative stability of ortho-quinone methides (o-QMs) was calculated, the geometries obtained were compared with the experimentally determined NMR structures, and thereby, the regioselectivity of the reactions has been assigned.

Graphical Abstract

1. Introduction

It is known that 9-phenanthrol is one of the most attractive structural units present in a large number of biologically active compounds. It is the identified inhibitor of the transient receptor potential melastatin (TRPM) 4 channels, a Ca2+ activated non-selective cation channel whose mechanism of action remains to be determined [1,2,3,4]. Subsequent studies have proven that it modulates smooth muscle contraction in bladder and cerebral arteries, affects spontaneous activity in neurons and in the heart, and reduces lipopolysaccharide-induced cell death [5,6,7].
The Mannich reaction is one of the most important reactions in organic synthesis to form C–C bonds [8,9,10]. This synthetic pathway is widely used in the formation of secondary and tertiary amine derivatives and it is a key step in the synthesis of numerous bioactive molecules and complex natural products [11,12]. In one of the special variations of the modified Mannich reaction (mMR), 1- and 2-naphthol were applied as electron-rich aromatic compounds [13,14]. Mechanistically, the modified aza-Friedel–Crafts reaction can be interpreted as a special mMR, where electron-rich aromatic compounds such as 1- and 2-naphthol and their N-containing analogues are reacted with a wide range of cyclic imines to furnish aminonaphthols [15,16], aminoquinolinols, or aminoisoquinolinols [17,18,19]. Accordingly, our first aim was to examine the reactivity of 9-phenanthrol with different cyclic imines in the modified aza-Friedel–Crafts reaction.
Recent publications pointed out that ortho-quinone methides (o-QMs) can also be generated from Mannich bases after thermal elimination of the amino group [20]. The reactive moiety thus formed can be stabilized by reactions with different dienophiles [14,21,22] or it can participate in [4 + 2] cycloadditions with cyclic imines to form new heterocycles [18,23,24]. Very recently the transformation of functionalised 1-aminobenzyl-2-naphthols via [4 + 2] cycloaddition has been examined [25]. It was found that the regio- and diastereoselectivity of the cycloaddition depend on the functional group of the phenyl substituent. Based on these findings, our aim was to synthesise aminobenzylphenanthrols or functionalised aminobenzylphenanthrols and to study their reactivity with cyclic imines as a novel precursor Mannich bases in [4 + 2] cycloaddition. Finally, we wanted to explore both the structure and conformational behaviour of the novel polyheterocycles by NMR spectroscopy and accompanying theoretical quantum chemical (QC) calculations.

2. Results

2.1. Synthesis

To examine the possibility of the extension of 9-phenanthrol (1) in the modified aza-Friedel–Crafts reaction, 1 was reacted with 1.5 equiv. of 3,4-dihydroisoquinoline (2) [26] (Scheme 1) under neat conditions at 80 °C. After a reaction time of 120 min, the desired product (3) was isolated only with a yield of 10%. By increasing the temperature to 100 °C the yield of 3 increased slightly to 19%. Yields found under these conditions were not satisfactory and the appearance of side products was also observed. By changing the solvent to acetonitrile, treatment at reflux temperature (90 °C) afforded 3 in an isolated yield of 49%. The product was easily separated out from the reaction mixture that is acetonitrile proved to be an optimal solvent. To further improve the yield, the reaction was repeated under microwave (MW) conditions. In this case the reaction was driven at 100 °C and after a short reaction time (10 min) 3 was isolated in a yield of 67%, that could be improved to 82% by increasing the reaction time to 20 min (Table 1). It should be noted that the optimal workup procedure remained the filtration of the formed product from the cold reaction mixture. Subsequently, with the satisfactory optimal reaction conditions in hand, the extension possibility of the reaction was tested by using various cyclic imines, including 6,7-dihydrothieno[3,2-c]pyridine (4) [27] or 3,4-dihydro-β-carboline (6) [28]. These reactions afforded new 1-(9-phenanthrol-10-yl)-thieonopyridine 5 and 1-(9-phenanthrol-10-yl)-β-carboline 7 in yields of 92% and 76%, respectively (Table 1).
In the next step, the ring closures of aminophenanthrols 3, 5, and 7 were performed with 35% aqueous formaldehyde in CHCl3 at room temperature. Reactions completed in relatively short time and phenanthrooxazines 810 were isolated in excellent yields by simple crystallization from n-hexane.
To test aminophenanthrols in cycloaddition reaction, first the synthesis of precursor 13 was achieved by reacting 9-phenanthrol (1) with morpholine in the presence of benzaldehyde. The reaction was carried out under solvent-free conditions at 80 °C. After a 4-h reaction, the desired 10-morpholinobenzyl-9-phenanthrol (13) was isolated by crystallization with n-hexane (Scheme 2).
First, aminophenanthrol 13 was reacted with 3,4-dihydroisoquinoline 2 as dienophile. The reaction was performed in 1,4-dioxane under microwave irradiation at three different temperatures (60, 80, and 100 °C). In our first experiment, the reaction was performed at 60 °C and after a relatively short reaction time the desired product (14) was isolated only in a low yield (47%). Since the yield was not satisfactory, the reaction was repeated at 80 and 100 °C. As Table 2 shows, 80 °C and 15 min reaction time were found to be the optimal reaction conditions. The series of dienophiles was extended by using 6,7-dihydrothieno[3,2-c]pyridine 4 and 3,4-dihydro-β-carboline 6 (Scheme 3). The optimal conditions and related yields are listed in Table 2. Since two new stereogenic centres are generated during the reaction, two epimeric structures (a and b) can be obtained. The reaction was monitored by TLC and the compositions of the crude reaction mixtures were verified by 1H-NMR analysis. All reactions were found to be diastereoselective and the relative configuration of H-9a:H-17 (14), H-9a:H-16 (15) and H-9a:H-18 (16) proved to be trans, based on the detailed NMR analysis (vide infra).
Next, we wanted to investigate how o-QMs generated from functionalised aminophenanthrol derivatives can influence the [4 + 2] cycloaddition reaction. Accordingly, 9-phenanthrol and salicylic aldehyde were reacted in the presence of morpholine. The reaction was carried out under neat conditions at 80 °C. The characteristic spot formed according to the TLC was isolated and the NMR spectra of the formed compound confirmed the structure of 19. Formation of the dibenzo[a,c]xanthene (19) side-product can be explained by the elimination of water from diol 18. In this latter modified Mannich reaction, the availability of the nucleophile (morpholine) was postulated. Therefore, it was replaced by pyrrolidine applying again the above conditions (80 °C, neat). After a reaction time of 4 h, the expected phenanthrol derivative 21 was isolated in a yield of 76% (Scheme 4).
To test the scope and limitations of the [4 + 2] cycloaddition, precursor 21 was first reacted with 3,4-dihydro-β-carboline as dienophile. The reaction was performed in 1,4-dioxane at three different temperatures (60, 80, and 100 °C) under microwave irradiation (Table 3). After the thermal decomposition of starting material 21, two types of o-QMs (22a and 22b) can be formed that can lead to the formation of two regioisomers and two diastereomers (Scheme 5) verified by 1H-NMR analysis of the crude reaction mixture. Then, various reaction conditions were applied as depicted in Table 3. In all cases, reactions were found to be regio- and diastereoselective. The detailed NMR analysis (vide infra) confirmed that the formed/isolated product 24a is a phenanthroxazine and the relative configuration of H-9a:H-18 is trans.
The reaction was then extended by using 3,4-dihydroisoquinoline (2) and 6,7-dihydrothieno[3,2-c]pyridine (4) as cyclic imines (Scheme 6). In these cases, similar regio- and diastereoselectivity of the reactions were proved too. Detailed NMR analysis (vide infra) adequately supported that the isolated products are trans-phenanthroxazines (26a, 28a, Scheme 6). The optimal reaction conditions together with the yields are summarised in Table 3.

2.2. Structural and Conformational Analysis

The complete 1H and 13C-NMR study of both diastereomeric phenanthr[9,10-e]oxazine derivatives 1416 and regioisomeric/diastereotopic phenanthroxazine derivatives 24a, 26a, and 28a showed identical stereoisomerism (only one set of NMR spectra obtained). The NMR analyses of β-carboline derivative 16 and thiophene compound 28a are exemplarily utilised. The same stereoisomeric results were obtained for 14 and 24a, as well as 15 and 26a. For the corresponding structure elucidation, in addition to the NMR spectra (chemical shift, coupling constants, NOEs), quantum chemical calculations were also performed.

2.3. Detailed NMR Analysis of New Phenanthr[9,10-e]Oxazine 16

Determination of the relative configuration of 1416 is based mainly on NOE interactions and their comparison with the corresponding calculated QC structures. As an example, β-carboline derivative 16 is examined (see Figure 1). Only one of the two possible diastereomers fits the experimental results: the position of methine hydrogens H-9a and H-18 was always found to be trans. The complete spatial information, found with the example of 16, is collected in Table 4, comparing NOE results with the calculated distances from QM calculations.

2.4. Detailed NMR Analysis of New Phenanthr[9,10-e]Oxazines 27a,b28a,b

In analogy to previous investigations [25] and to the results of the structural analyses of 1416 (vide supra), reactions starting from 21, in all cases, yielded trans isomers 24a, 26a, and 28a. Their NMR spectra are akin to the corresponding spectra of the compounds without an OH group at position 2′ (1416) and to compounds having a naphthalene moiety instead of phenanthrene [25].
To get the preferred stereoisomers of 28a,b, the trans/cis diastereomers of the regioisomers were calculated by the DFT method. Both the most stable structures and the corresponding energy differences are given in Figure 2. On the basis of these data, 28a could be confirmed to be the most stable structure. Energy differences around 1 kcal/mol to the next coming structure are rather unequivocal. Consequently, this structure of trans isomer 28a will be adjusted with the available experimental NMR [δ(1H)/ppm, δ(13C)/ppm, nJH,H/Hz)] and spatial NMR information (qualitative NOE′s).
First, all 1H-NMR and 13C-NMR chemical shifts for 28a could be unequivocally assigned. Hereby, the two singlets of protons H-16 and H-9a and the AX spin system of thiophene protons H-10 and H-11 can serve as useful starting points. The latter is the only spin system of aromatic protons with two doublets and with characteristic ortho-coupling constant of about 5.2 Hz. The high-field doublet (at 7.09 ppm) was assigned to the H-10 proton due to the substantial NOE to tertiary proton H-9a. On the other hand, no NOE between H-10 and the second tertiary proton (H-16) could be measured. The trans position of these two protons and, consequently, the trans stereochemistry of 28a can be proved. Furthermore, the HMBC connectivity of the same proton singlet (H-16) established the access to both the 1H and 13C assignments of the present aromatic moieties ((i) to C-6′, C-1′, and C-2′ of the phenolic, and (ii) to C-16a and C-8b of the phenanthryl parts of the molecule), and to the piperidyl moiety via C-14. The trans stereochemistry of 28a could be proved additionally by the strong NOEs of H-16 to one of the H-14 protons, to the aromatic proton H-6’ and to one of the H-14 protons. That is H-12a did not show any NOE to protons of the piperidyl ring.
The excellent agreement between the protons, proton distances, as calculated and the existence of strong NOEs in 28a can serve as an excellent further proof of the present regio- and diastereoselectivity. Similar 1H/13C-NMR studies of the isoquinoline (25a,b and 26a,b) and β-carboline analogues (23a,b and 24a,b) allowed to arrive at the same conclusion. These compounds also prefer the same regioisomerism in trans configuration of 24a and 26a, respectively.

3. Materials and Methods

3.1. General Methods

Melting points were determined on a Hinotek X-4 (Ningbo, China) melting point apparatus. Elemental analyses were performed with a Perkin-Elmer 2400 CHNS elemental analyzer (Waltham, MA, USA) in the Institute of Pharmaceutical Chemistry, University of Szeged. Merck Kieselgel 60F254 plates (Budapest, Hungary)were used for TLC. Microwave reactions were performed with a CEM Discover SP microwave reactor (Matthwes, NC, USA).
The starting cyclic imines 3,4-dihydroisoquinoline (2) [26], 6,7-dihydrothieno[3,2-c]pyridine (4) [27] and 4,9-dihydro-β-carboline (6) [28] were synthesised according to literature processes.
Quantum chemical calculations were performed using the Gaussian 09 program package [29] and carried out on LINUX clusters. The various different conformations and configurations of the studied compounds were optimised [30]. The B3LYP density functional method was selected for all calculations. The method is based on Becke′s three-parameter hybrid functionals [31] and the correlation functional of Lee et al. [32]. All optimizations were carried out without any restriction at this B3LYP/6-311G(d,p) level of theory [33,34,35].
The 1H and 13C-NMR spectra were recorded in CDCl3, CD2Cl2, or DMSO-d6 solution in 5 mm tubes at room temperature on a Bruker Avance NEO spectrometer (Karlsruhe, Germany) at 400.18 (1H) MHz, or on a Bruker Avance spectrometer (Karlsruhe, Germany) at 500.17 (1H) and 125.77 (13C) MHz, or on a Bruker Avance III spectrometer (Karlsruhe, Germany) at 600.13 (1H) and 150.61 (13C) MHz, with the deuterium signal of the solvent as the lock and TMS as internal standard. All spectra (1H, 13C, gs-H,H COSY, edited HSQC, gs-HMBC and NOESY) were acquired and processed with the standard BRUKER software (TopSpin 3.6 or TopSpin 4.0).

3.2. Procedures

3.2.1. General Procedure for the Synthesis of Hydroxyphenanthryl-Isoquinoline, -Thienopyridine and -β-Carboline (3, 5 and 7)

The mixture of the cyclic imine [3,4-dihydroisoquinoline (2), 6,7-dihydrothieno[3,2-c]pyridine (4) or 4,9-dihydro-β-carboline (6) 0.51 mmol] and 9-phenanthrol (1: 100 mg, 0.51 mmol) in acetonitrile (5 mL) was placed in a 10-mL pressurised reaction vial and heated under microwave conditions at 100 °C. After the reaction completed, the mixture was cooled down and the formed crystals were filtered and washed with cold acetonitrile (2 × 5 mL).
1-(9-Hydroxyphenanthr-10-yl)-1,2,3,4-tetrahydroisoquinoline (3)
Reaction time: 20 min; recrystallised from iPr2O (5 mL); Rf = 0.70 (n-hexane/EtOAc, 2:1); 135 mg (82%); white crystals; m.p.: 147–149 °C; 1H-NMR (DMSO-d6, 500 MHz): δ 8.80 (1H, d, J = 8.3 Hz, H-4 or H-5), 8.80 (1H, d, J = 8.3 Hz, H-4 or H-5), 8.23(1H, d, J = 8.3 Hz, H-8), 8.17 (1H, d, J = 8.2 Hz, H-1), 7.67 (1H, m, H-6), 7.66 (1H, m, H-2), 7.60 (1H, t, J = 7.5 Hz, H-7), 7.52 (1H, t, J = 7.7 Hz, H-3), 7.18 (1H, d, J = 7.5 Hz, H-5′), 7.09 (1H, t, J = 7.4 Hz, H-6′), 6.86 (1H, t, J = 7.4 Hz, H-7′), 6.58 (1H, d, J = 7.9 Hz, H-8′), 6.10 (1H, s, H-1′), 3.44 (1H, m, H-3′), 3.20 (2H, m, H-3′, H-4′), 2.90 (1H, d, J = 14.1 Hz, H-4′); elemental analysis calcd (%) for C23H19NO (323.41): C 84.89, H 5.89, N 4.30; found: C 84.82, H 5.90, N 4.26. (Figures S1–S9).
4-(9-Hydroxyphenanthr-10-yl)-4,5,6,7-tetrahydrothieno[3,2-c]pyridine (5)
Reaction time: 35 min; recrystallised from iPr2O (4 mL); Rf = 0.75 (n-hexane/EtOAc, 2:1); 155 mg (92%); Light beige crystals; m.p.: 191–188 °C; 1H-NMR (DMSO-d6, 500 MHz): δ 14.33 (1H, d, J = 7.7 Hz, H-4 or H-5), 8.78 (1H, d, J = 7.9 Hz, H-4 or H-5), 8.19 (1H, d, J = 8.7 Hz, H-1), 8.17 (1H, dd, J = 8.2, 1.2 Hz, H-8), 7.66 (1H, m, H-6), 7.65 (1H, m, H-2), 7.60 (1H, t, J = 7.5 Hz, H-7), 7.51 (1H, t, J = 7.7 Hz, H-3), 7.06 (1H, d, J = 5.2 Hz, H-6′), 6.16 (1H, d, J = 5.2 Hz, H-7′), 6.01 (1H, s, H-1′), 4.74 (1H, br s, H-2′), 3.53 (1H, m, H-3′), 3:13 (2H, m, H-3′, H-4′), 2.94 (1H, m, H-4′); elemental analysis calcd (%) for C21H17NOS (331.43): C 76.10, H 5.17, N 4.23; found: C 76.25, H 5.17, N 4.13 (Figures S10–S18).
1-(9-Hydroxyphenanthr-10-yl)-1,2,3,4-tetrahydro-β-carboline (7)
Reaction time: 40 min; recrystallised from iPr2O (6 mL); Rf = 0.73 (n-hexane/EtOAc, 2:1); 146 mg (76%); brown crystals; m.p.: 205–207 °C; 1H-NMR (DMSO-d6, 500 MHz): δ 9.76 (1H, s, 9-OH), 8.83 (1H, d, J = 8.2 Hz, H-4 or H-5), 8.81 (1H, d, J = 8.2 Hz, H-4 or H-5), 8.29 (1H, d, J = 8.3 Hz, H-8), 8.17 (1H, dd, J = 8.1, 0.9 Hz, H-1), 7.68 (2H, m, H-6, H-7), 7.59 (1H, t, J = 7.6 Hz, H-2), 7.55 (1H, t, J = 7.5 Hz, H-3), 7.44 (1H, m, H-5′); 7.15 (1H; m; H-8′), 6.95 (2H, m, H-6′, H-7′), 6.24 (1H, s, H-1′), 3.55 (1H, dd, J = 11.5, 5.1 Hz, H-3′), 3.18 (1H, ddd, J = 11.6, 11.6, 5.1 Hz, H-3′), 3.02 (1H, m, H-4′); 2:87 (1H, dd, J = 15.4 Hz, H-4′); elemental analysis calcd (%) for C25H20N2O (364.45): C 82.39, H 5.53, N 7.69; found: C 82.25, H 5.49, N 7.72 (Figures S19–S26).

3.2.2. General Procedure for the Synthesis of Phenanthr[9,10-e][1,3]Oxazinoisoquinoline,-Thienopyridine and -β-Carboline (810)

Aminophenanthrols (3, 5 and 7; 0.25 mmol) was dissolved in 10 mL CHCl3, aqueous solution of formaldehyde (20 mg, 0.66 mmol, 35%) was then added and the mixture was stirred at room temperature. The mixture was next extracted with 10 mL distilled water. The organic phase was collected and then dried on Na2SO4. The solvent was evaporated off and the residue was crystallised from n-hexane (10 mL).
Phenanthr[9,10-e][1,3]oxazino[4,3-a]isoquinoline (8)
Reaction time: 25 min; recrystallised from n-hexane: iPr2O (4:1, 5 mL); Rf = 0.65 (n-hexane/EtOAc, 2:1); 73 mg (87%); Purple crystals. m.p.: 139–141 °C 1H-NMR (CD2Cl2, 500 MHz): δ 8.71 (2H, m, H-4, H-5), 8.28 (1H, d, J = 8.1 Hz, H-8), 7.73 (1H, m, H-1), 7.70 (1H, m, H-6), 7.63 (1H, t, J = 7.5 Hz, H-7), 7.54 (2H, m, H-2, H-3), 7.24 (1H, d, J = 7.3 Hz, H-14), 7.20 (1H, t, J = 7.3 Hz, H-15), 6.97 (1H, t, J = 7.4 Hz, H-16), 6.85 = (1H, d, J = 7.7 Hz, H-17), 5.54 (1H, s, H-17b), 4.76 (1H, d, J = 7.0 Hz, H-10), 4.68 (1H, d, J = 6.9 Hz, H-10), 3.87 (1H, m H-12), 2.99 (3H, m, H-12, H-13); elemental analysis calcd (%) for C24H19NO (337.42): C 85.43, H 5.68, N 4.15; found: C 85.35, H 5.56, N 4.20 (Figures S27–S35).
Phenanthr[9,10-e][1,3]oxazino[4,3-a]thieno[3,2-c]pyridine (9)
Reaction time: 20 min; recrystallised from n-hexane: iPr2O (4:1, 4 mL); Rf = 65 (n-hexane/EtOAc, 2:1); 80 mg (94%); Yellow crystals. m.p.: 186–188 °C 1H-NMR (CD2Cl2, 500 MHz): δ 8.70 (1H, d, J = 8.1 Hz, H-4), 8.69 (1H, d, J = 8.2 Hz, H-5), 8.26 (1H, d, J = 8.1 Hz, H-8), 7.99 (1H, d, J = 8.1 Hz, H-1), 7.69 (1H, t, J = 7.5 Hz, H-6), 7.63 (2H, m, H-2, H-7), 7.58 (1H, t, J = 7.7 Hz, H-3), 6.95 (1H, d, J = 5.2 Hz, H-15), 6.66 (1H, d, J = 5.2 Hz, H-16), 5.67 (1H, s, H-16b), 4.96 (1H, d, J = 6.9 Hz, H-10), 4.93 (1H, d, J = 6.9 Hz, H-10), 3.75 (1H, ddd, J = 14.2, 12.2, 6.0 Hz, H-12), 3.66 (1H, dd, J = 14.3, 6.8 Hz, H-12), 3.03 (1H, m, H-13), 2.87 (1H, dd, J = 17.1, 5.7 Hz, H-13); elemental analysis calcd (%) for C22H17NOS (343.44): C 76.94, H 4.99, N 4.08; found: C 76.86, H 5.02, N 4.13 (Figures S36–S45).
Phenanthr[9,10-e][1,3]oxazino[4,3-a]-β-carboline (10)
Reaction time: 30 min; recrystallised from n-hexane: iPr2O (4:1, 5 mL); Rf = 0.60 (n-hexane/EtOAc, 2:1); 74 mg (79%); Dark pink crystals. m.p.: 183–185 °C 1H-NMR (CD2Cl2, 500 MHz): δ 8.78 (1H, d, J = 8.2 Hz, H-4), 8.71 (1H, d, J = 8.3 Hz, H-5), 8.28 (1H, dd, J = 8.2, 0.7 Hz, H-8), 8.15 (1H, d, J = 8.1 Hz, H-1), 7.85 (1H, br s, H-18), 7.76 (1H, t, J = 7.5 Hz, H-2), 7.71 (1H, t, J = 7.6 Hz, H-6), 7.66 (1H, t, J = 7.5 Hz, H-3), 7.64 (1H, t, J = 7.6 Hz, H-7), 7.51 (1H, m, H-14), 7.11 (1H, m, H-17), 7.06 (2H, m, H-15, H-16), 5.92 (1H, s, H-18b), 5.01 (1H, d, J = 7.1 Hz, H-10), 4.95 (1H, d, J = 7.1 Hz, H-10), 3.77 (1H, ddd, J = 14.2, 12.0, 5.7 Hz, H-12), 3.71 (1H, dd, J = 14.3, 6.3 Hz, H-12), 2.99 (1H, dddd, J = 16.2, 11.9, 6.7, 2.4 Hz, H-13), 2.83 (1H, dd, J = 16.3, 5.1 Hz, H-13); elemental analysis calcd (%) for C26H20N2O (376.46): C 82.95, H 5.36, N 7.44; found: C 83.03, H 5.45, N 7.32 (Figures S46–S56).
10-[(Phenyl)-morpholin-4-yl-methyl]-9-phenanthrol (13)
Briefly, 9-phenanthrol (1.0 g, 5.13 mmol), benzaldehyde (0.54 g, 5.13 mmol), and morpholine (0.45 g, 5.13 mmol) were stirred and heated at 80 °C under neat conditions for 4 h. The residue was crystallized with n-hexane (14 mL) and recrystallised from iPr2O (9 mL) Rf = 0.75 (n-hexane/EtOAc, 2:1); 1.38g (73%); Light beige crystals; m.p.: 107–109 °C; 1H-NMR (DMSO-d6, 500 MHz): δ 14.37 (1H, s, 9-OH), 8.75 (1H, d, J = 7.6 Hz, H-5), 8.71 (1H, d, J = 7.8 Hz, H-4), 8.39 (1H, m, H-8), 8.07 (1H, d, J = 8.3 Hz, H-1), 7.69 (4H, m, H-6, H-7, H-2′), 7.51 (1H, t, J = 7.7 Hz, H-2), 7.42 (1H, t, J = 7.5 Hz, H-3), 7.31 (2H, t, J = 7.5 Hz, H-3′); 7.23 (1H, t, J = 7.3 Hz, H-4′), 5.45 (1H, s, H-11), 3.72 (4H, m, H-3”), 3.72 (1H, m, H-2”); elemental analysis calcd (%) for C25H23NO2 (369.46): C 81.27, H 6.28, N 3.79; found: C 81.31, H 6.12, N 3.71 (Figures S57–S65).

3.2.3. General Procedure for the Synthesis of Phenanthr[9,10-e][1,3]Oxazines (14, 15 and 16)

A mixture of the appropriate aminophenanthrol 13 (60 mg 0.16 mmol) and 0.13 mmol of the cyclic imine (3,4-dihydroisoquinoline (2), 6,7-dihydrothieno[3,2-c]pyridine (4), or 4,9-dihydro-β-carboline (6)) in 1,4-dioxane (5 mL) was placed in a 10 mL pressurized reaction vial and heated under microwave conditions at 80 °C for 20 min. The solvent was removed under reduced pressure, and the residue was isolated by crystallisation with MeOH (5 mL).
9aR*,17S*-15-(Phenyl)-phenanthr[9,10-e]oxazino[2,3-a]isoquinoline (14)
Recrystallised from n-hexane: iPr2O (2:1, 4 mL); Rf = 0.62 (n-hexane/EtOAc, 2:1); 56 mg (86%); Light yellow crystals. m.p.: 209–211 °C 1H-NMR (CD2Cl2, 500 MHz): δ 8.72 (1H, d, J = 8.3 Hz, H-5), 8.69 (1H, d, J = 8.4 Hz, H-4), 8.28 (1H, dd, J = 8.2, 0.9 Hz, H-8), 7.70 (1H, ddd, J = 8.3, 7.0, 1.3 Hz, H-6), 7.61 (1H, ddd, J = 8.1, 7.0, 1.1 Hz, H-7), 7.51-7.41 (6H, m, H-1, H-2, H-3, H-13, H-2′); 7:37-7:24 (6H, m, H-10, H-11, H-12, H-3′, H-4′), 5.83 (1H, s, H-9a), 5.49 (1H, s, H-17), 3.40 (1H, m, H-15-ψ-ax), 3.31 (1H, m, H-14-ψ- ax), 3.18 (1H, dd, J = 10.4, 5.7 Hz, H-15-ψ-eq), 2.89 (1H, dd, J = 16.0, 2.8 Hz, H-14-ψ-eq);13C-NMR (CD2Cl2, 125 MHz): δ 148.1 (C-8b), 142.9 (C-1′), 135.7 (C-13a), 133.5 (C-9b), 131.8 (C-4a or 4b), 131.3 (C-4a or 4b), 129.8 (C-2′), 129.3 (C-10 or 12 or 13), 129.2 (C-10 or 12 or 13), 129.1 (C-10 or 12 or 13), 128.6 (C-3′), 127.8 (C-4′), 127.5 (C-6), 127.3 (C-2), 126.9 (C-7), 126.5 (C-8a), 126.4 (C-11), 125.9 (C-17b), 124.3 (C-3), 123.7 (C-1), 123.2 (C-4), 122.9 (C-5), 122.8 (C-8), 107.8 (C-17a), 82.9 (C-9a), 63.3 (C-17), 45.9 (C-15), 29.8 (C-14); elemental analysis calcd (%) for C30H23NO (413.52): C 87.14, H 5.61, N 3.39; found: C 87.09, H 5.45, N 3.32 (Figures S66–S78).
9aR*,16S*-16-(Phenyl)-phenanthr[9,10-e]oxazino[2,3-a]thieno[3,2-c]pyridine (15)
Recrystallised from n-hexane: iPr2O (2:1, 4 mL); Rf = 0.68 (n-hexane/EtOAc, 2:1); 63 mg (94%); white crystals. m.p.: 216–218 °C 1H-NMR (CD2Cl2, 500 MHz): δ 8.71 (1H, d, J = 8.3 Hz, H-5), 8.67 (1H, d, J = 8.5 Hz, H-4), 8.29 (1H, dd, J = 8.1, 0.9 Hz, H-8), 7.70 (1H, ddd, J = 8.3, 7.0, 1.3 Hz, H-6), 7.62 (1H, ddd, J = 8.1, 7.0, 1.1 Hz, H-7), 7.47 (2H, m, H-1, H-3), 7.42 (1H, m, H-2), 7.37 (2H, m, H-2′), 7.29 (2H, m, H-3′), 7.25 (1H, m, H-4′), 7.21 (1H, d, J = 5.2 Hz, H-11), 7.11 (1H, d, J = 5.2 Hz, H-10), 5.83 (1H, s, H-9a), 5.51 (1H, s, H-16), 3.42 (1H, m, H-14-ψ-ax), 3.24 (2H, m, H-14-ψ-eq, H-13-ψ-ax), 2.94 (1H, m, H-13-ψ-eq);13C-NMR (CD2Cl2, 125 MHz): δ 147.9 (C-8b), 142.9 (C-1′), 138.7 (C-12a), 133.8 (C-9b), 131.7 (C-4a), 131.3 (C-4b), 129.8 (C-2′), 128.6 (C-3′), 127.9 (C-4′), 127.6 (C-6), 127.3 (C-2), 126.9 (C-7), 126.5 (C-8a), 126.3 (C-10), 125.8 (C-16b), 124.3 (C-3), 123.8 (C-1), 123.6 (C-11), 123.2 (C-4), 122.8 (C-5. 8), 107.8 (C-16a), 79.6 (C-9a), 62.9 (C-16), 46.7 (C-14), 26.5 (C-13); elemental analysis calcd (%) for C28H21NOS (419.54): C 80.16, H 5.05, N 3.34; found: C 83.10, H 5.15, N 3.32 (Figures S79–S91).
9aR*,18S*-19-(Phenyl)-phenanthr[9,10-e]oxazino[2,3-a]-β-carboline (16)
Recrystallised from n-hexane: iPr2O (2:1, 4 mL); Rf = 0.70 (n-hexane/EtOAc, 2:1); 55 mg (76%); Light yellow crystals. m.p.: 180–182 °C 1H-NMR (CD2Cl2, 500 MHz): δ 8.72 (1H, J = 8.3 Hz, H-5), 8.68 (1H, d, J = 7.9 Hz, H-4), 8.31 (1H, br s, H-10), 8.30 (1H, d, J = 8.3 Hz, H-8), 7.70 (1H, ddd, J = 8.3, 7.0, 1.3 Hz, H-6), 7.61 (1H, m, H-7), 7.58 (1H, d, J = 8.1 Hz, H-14), 7.51 (1H, m, H-1), 7.49 (1H, m, H-3), 7.45 (1H, m, H-2), 7.42 (1H, m, H-11), 7.41 (2H, m, H-2′), 7.30 (2H, m, H-3′), 7.27 (1H, m, H-4′), 7.23 (1H, ddd, J = 8.2, 7.1, 1.1 Hz, H-12), 7.14 (1H, t, J = 7.5 Hz, H-13), 5.98 (1H, s, H-9a), 5.58 (1H, s, H-18), 3.46 (1H, m, H-16-ψ-ax), 3.32 (1H, dd, J = 10.9, 5.5 Hz, H-16-ψ-eq), 3.13 (1H, ddd, J = 15.5, 11.8, 5.9 Hz, H-15-ψ-ax), 2.89 (1H, ddd, J = 15.4, 4.2, 1.3 Hz, H-15-ψ-eq); 13C-NMR (CD2Cl2, 125 MHz): δ 47,6 (C-8b), 142,8 (C-1′), 136,9 (C-10a), 131,7 (C-4a), 131,3 (C-4b), 130,9 (C-9b), 129,8 (C-2′), 128,7 (C-3′), 128,0 (C-4′), 127,6 (C-6), 127,4 (C-2), 126,9 (C-7), 126,6 (C-8a or 14a), 126,5 (C-8a or 14a), 125,8 (C-18b), 124,4 (C-3), 123,6 (C-1), 123,3 (C-4), 123,1 (C-12), 122,8 (C-5), 122,7 (C-8), 120,0 (C-13), 119,4 (C-14), 111,8 (C-11), 111,5 (C-14b), 108,2 (C-18a), 78,7 (C-9a), 62,8 (C-18), 47,3 (C-16), 22,6 (C-15); elemental analysis calcd (%) for C32H26N2O (454.57): C 84.55, H 5.77, N 6.16; found: C 84.49, H 5.67, N 6.21 (Figures S92–S104).
14-Morpholin-4-yl-dibenzo[a,c]xanthene (19)
Briefly, 9-phenanthrol (100. mg, 0.51 mmol), salicylic aldehyde (62 mg, 0.51 mmol), and morpholine (44 mg, 0.51 mmol) were stirred and heated at 80 °C under neat conditions for 4 h. The residue was crystallised with iPr2O (15 mL) and recrystallised from n-hexane: EtOAc (10 mL; 10:1) Rf = 0.65 (n-hexane/EtOAc, 2:1); 127 mg (68%); Browne crystals; m.p.: 176–178 °C; 1H-NMR (CDCl3, 500 MHz): δ 8.68 (2H, m, H4, H-5), 8.58 (1H, m, H-1), 8.22 (1H, d, J = 7.5 Hz, H-8), 7.71 (1H, m, H-2), 7.66 (2H, m, H-3, H-7), 7.60 (1H, m, H-6), 7.40 (3H, m, H-11, H-12, H-14), 7.23 (1H, m, H-13), 5.52 (1H, s, H-15), 3.52 (4H, m, H-2′), 2.52 (2H, m H-3′), 2.40 (2H, m H-3′); 13C-NMR (CDCl3, 125 MHz) δ 153.0 (C-10a), 147.2 (C-9), 131.3 (C-4a or C-4b), 131.2 (C-4a or C-4b), 130.0 (C-14), 128.8 (C-12), 128.3 (C-15b), 127.7 (C-2 or C-3 or C-7), 127.2 (C-2 or C-3 or C-7), 127.0 (C-2 or C-3 or C-7), 125.2 (C-6), 124.6 (C-8a), 124.5 (C-8), 123.2 (C-13), 123.0 (C-1 or C-4 or C-5), 122.8 (C-1 or C-4 or C-5), 122.7 (C-1 or C-4 or C-5), 117.6 (C-14a), 116.5 (C-11), 110.5 (C-15a), 67.5 (C-3′), 57.7 (C-15), 48.7 (C-2′);. elemental analysis calcd (%) for C25H21NO2 (367.45): C 81.72, H 5.76, N 3.81; found: C 81.34, H 5.65, N 3.77 (Figures S105–S113).
10-[(2-Hydroxyphenyl)-pyrrolidin-1-yl-methyl]-9- phenanthrol (21)
Briefly, 9-phenanthrol (500 mg, 2.56 mmol), salicylic aldehyde (312 mg, 2.56 mmol), and pyrrolidine (182 mg, 2.56 mmol) were stirred and heated at 80 °C under neat conditions for 4 h. The residue was crystallised with n-hexane (16 mL) and recrystallised from iPr2O (11 mL) Rf = 0.70 (n-hexane/EtOAc, 2:1); 718 mg (76%); Light beige crystals; m.p.: 172–174 °C; 1H-NMR (DMSO-d6, 500 MHz): δ 15.32 (1H, br s, OH), 10.12 (1H, br s, OH), 8.74 (1H, d, J = 8.4 Hz, H-5), 8.68 (1H, d, J = 8.1 Hz, H-4), 8.38 (1H, d, J = 8.5 Hz, H-8), 7.94 (1H, d, J = 8.3 Hz, H-1), 7.67 (2H, m, H-6, H-7), 7.45 (1H, t, J = 7.5 Hz, H-2), 7.38 (2H, m, H-3, H-6′), 7.04 (1H, t, J = 7.4 Hz, H-4′), 6.91 (1H, d, J = 8.1 Hz, H-3′), 6.66 (1H, t, J = 7.4 Hz, H-5′), 5.82 (1H, s, H-11), 3.16 (2H, m, H-2”), 2.66 (2H, m, H-3”), 2.49 (2H, m, H-3”), 2.40 (2H, m, H-2”); 13C-NMR (DMSO-d6, 125 MHz): δ 154.3 (C-2′), 151.9 (C-9), 131.3 (C-4a), 130.3 (C-4b), 128.7 (2C, C-4′, C-6′), 126.9 (C-8a), 126.9 (2C, C-2, C-6), 126.2 (C-7), 124.9 (C-10a), 123.0 (C-4), 122.9 (C-3), 122.6 (C-8), 122.4 (C-5), 121.5 (C-1), 119.7 (C-5′), 115.5 (C-3′), 112.4 (C-10), 61.1 (C-11), 54.1 (C-2”), 49.6 (C-3”); elemental analysis calcd (%) for C25H23NO2 (369.46): C 81.27, H 6.28, N 3.79; found: C 81.31, H 6.15, N 3.76 (Figures S114–S125).

3.2.4. General Procedure for the Synthesis of Phenanthr[9,10-e][1,3]Oxazines (24, 26 and 28)

The mixture of aminophenanthrol 21 (50 mg 0.13 mmol) and 0.13 mmol of the correspondent cyclic imine (3,4-dihydroisoquinoline (2), 6,7-dihydrothieno[3,2-c]pyridine (4), or 4,9-dihydro-β-carboline (6))_was dissolved in 1,4-dioxane (5 mL) and placed in a 10 mL pressurized reaction vial. The mixture was heated at 80 °C for 15 min under microwave conditions. The solvent was removed in vacuo, and the residue was isolated by crystallisation with MeOH (5 mL).
9aR*,18S*-19-(2-Hydroxyphenyl)-phenanthr[9,10-e]oxazino[2,3-a]-β-carboline (24)
Recrystallised from iPr2O (7 mL); Rf = 0.38 (n-hexane/EtOAc, 2:1); 47 mg (78%). Brown crystals; m.p.: 163–165 °C 1H-NMR (CDCl3, 500 MHz): δ 8.69 (2H, br s, H-4 and H-5), 8.21 (2H, br s, H-8 and H-10), 7.69 (1H, t, J = 7.1 Hz, H-6), 7.57 7.54 (5H, m, H-1, H-2, H-3, H-7 and H-14), 7.41 (1H, d, J = 7.8 Hz, H-11), 7.16 (2H, m, H-13 and H-4′), 6.95 (1H, d, J = 7.7 Hz, H-3′), 6.64 (2H, br s, H-5′ and H-6′), 6.12 (1H, s, H-9a), 5.82 (1H, s, H-18), 3.44 (1H, m, H-16-ψ-ax), 3.31 (1H, m, H-16-ψ-eq), 3.21 (1H, m, H-15-ψ-ax), 2.97 (1H, dd, J = 15.7, 3.1 Hz, H-15-ψ-eq); 13C-NMR (CDCl3, 125 MHz): δ 156.8 (C-2′), 146.6 (C-8b), 136.8 (C-10a), 131.5 (C-4a or 4b), 131.4 (C-4a or 4b), 131.0 (C-6′), 129.9 (C-9b), 129.8 (C-4′), 127.8 (C-6 or C-2), 127.7 (C-6 or C-2), 126.8 (C-7), 126.4 (C-14a or C-8a), 126.3 (C-14a or C-8a), 125.5 (C-18b), 125.2 (C-1′), 124.7 (C-3), 123.4 (C-12), 123.2 (C-1. 5), 122.7 (C-8 or C-4), 122.6 (C-8 or C-4), 120.3 (C-13), 120.1 (C-5′), 119.4 (C-14), 117.7 (C-3′), 111.7 (C-11), 110.9 (C-14b), 106.0 (C-18a), 77.7 (C-9a), 60.7 (C-18), 45.4 (C-16), 22.4 (C-15);. elemental analysis calcd (%) for C32H24N2O2 (468.56): C 82.03, H 5.16, N 5.98; found: C 82.12, H 5.09, N 5.82 (Figures S126–S139).
9aR*,17S*-15-(2-Hydroxyphenyl)-phenanthr[9,10-e]oxazino[2,3-a]isoquinoline (26)
Recrystallised from iPr2O (5 mL); Rf = 0.35 (-n-hexane/EtOAc, 2:1); 47 mg (85%). Light beige crystals; m.p.: 194–196 °C 1H-NMR (CDCl3, 500 MHz): δ 9.67 (1H, br s, 2′-OH) 8.68 (2H, m, H-4 and H-6), 8.22 (1H, d, J = 8.2 Hz, H-8), 7.68 (1H, d, J = 7.6 Hz, H-6), 7.53 (4H, m, H-1, H-2, H-3 and H-7), 7.41 (1H, d, J = 7.5 Hz, H-10), 7.37 (1H, t, J = 7.6 Hz, H-12), 7.31 (1H, t, J = 7.4 Hz, H-11), 7.24 (1H, m, H-13), 7.19 (1H, m, H-4′), 6.95 (1H, d, J = 8.1 Hz, H-3′), 6.66 (2H, m, H-5′ and H-6′), 5.96 (1H, s, H-9a), 5.73, (1H, s, H-17), 3.37 (1H, m, H-15-ψ-ax), 3.32 (1H, m, H-14-ψ-ax), 3.18 (1H, m, H-15-ψ-eq), 2.95 (1H, m, H-14-ψ-eq); 13C-NMR (CDCl3, 125 MHz): δ (C-147.1 (C-8b), 134.3 (C-13a), 132.7 (C-9b), 131.6 (C-4a or C-4b), 131.4 (C-4a or C-4b), 131.2 (C-6′), 129.7 (C-4′), 129.5 (C-12), 129.3 (C-10), 129.0 (C-13), 127.7 (C-6), 127.6 (C-2), 126.8 (C-7), 126.7 (C-11), 126.4 (C-8a), 125.7 (C-17b), 125.4 (C-1′), 124.5 (C-3), 123.3 (C-1), 123.2 (C-4 or C-5), 122.9 (C-8), 122.6 (C-4 or C-5), 120.1 (C-5′), 117.6 (C-3′), 105.6 (C-17a), 81.9 (C-9a), 61.1 (C-17), 44.0 (C-15), 29.4 (C-14); elemental analysis calcd (%) for C30H23NO2 (429.52): C 83.89, H 5.40, N 3.26; found: C 83.78, H 5.35, N 3.29 (Figures S140–S152).
9aR*,16S*-16-(2-Hydroxyphenyl)-phenanthr[9,10-e]oxazino[2,3-a]thieno[3,2-c]pyridine (28)
Recrystallised from iPr2O (4 mL); Rf = 0.40 (n-hexane/EtOAc, 2:1); 52 mg (93%). Light beige crystals; m.p.: 181–183 °C 1H-NMR (CDCl3, 500 MHz): δ 9.65 (1H, br s, 2′-OH), 8.69 (2H, m, H-4, H-5), 8.25 (1H, d, J = 8.1 Hz, H-8), 7.69 (1H, t, J = 7.5 Hz, H-6), 7.60 (1H, m, H-7), 7.55 (1H, m, H-1), 7.53 (1H, m, H-3), 7.50 (1H, m, H-2), 7.22 (1H, d, J = 5.3 Hz, H-11), 7.19 (1H, m, H-4′); 7:09 (1H, d, J = 5:1 Hz, H-10), 6:96 (1H, d, J = 8:0 Hz, H-3′), 6.65 (1H, m, H-5′), 6.63 (1H, m, H-6′), 5.98 (1H, s, H-9a), 5.77 (1H, s, H-16), 3.40 (1H, m, H-14-ψ-ax), 3.30 (1H, m, H-13-ψ-ax), 3.25 (1H, m, H-14-ψ-eq), 3.01 (1H, m, H-13-ψ-eq); 13C-NMR (CDCl3, 125 MHz): δ 156.6 (C- 2′), 146.9 (C- 8b), 137.4 (C- 12a), 133.2 (C- 9b), 131.6 (C- 4a or C-4b), 131.4 (C- 4a or C-4b), 131.1 (C- 6′), 129.7 (C- 4′), 127.7 (C- 6), 127.6 (C- 2), 126.8 (C- 7), 126.4 (C- 8a), 126.2 (C- 10), 125.6 (C- 16b or C-1′), 125.3 (C- 16b or C-1′), 124.6 (C- 3), 124.2 (C- 11), 123.2 (C- 5), 123.2 (C- 10), 122.8 (C- 4 or C-8), 122.6 (C- 4 or C-8), 120.1 (C- 5′), 117.6 (C- 3′), 105.5 (C- 16a), 78.7 (C- 9a), 60.7 (C- 16), 44.8 (C- 14), 26.2 (C- 13); elemental analysis calcd (%) for C28H21NO2S (435.54): C 77.22, H 4.86, N 3.22; found: C 77.12, H 4.75, N 3.31 (Figures S153–S165).

4. Conclusions

Herein, 9-phenanthrol, a unique electron-rich aromatic compound, was tested in the modified aza-Friedel–Crafts reaction. The reactions of 3,4-dihydroisoquinoline, 6,7-dihydrothieno[3,2-c]pyridine or 3,4-dihydro-β-carboline as cyclic imines led to the formation of the corresponding bifunctional phenanthrol derivatives that were further transformed to the new phenanthr[9,10-e][1,3]oxazines (810). Furthermore, 9-phenanthrol was aminoalkylated by using morpholine in the presence of benzaldehyde: The functionalised aminophenanthrol (21) could only be synthesised by using salicylic aldehyde in the presence of pyrrolidine. Morpholine in this latter modified Mannich reaction led to the formation of 14-morpholinyl-dibenzo[a,c]xanthene (19). Phenanthrol-based bifunctional Mannich products were further tested in [4 + 2] cycloaddition by using 3,4-dihydroisoquinoline, 6,7-dihydrothieno[3,2-c]pyridine or 3,4-dihydro-β-carboline as dienophiles. The regio- and diastereoselectivity of the reactions were proved by NMR spectroscopy and supported by DFT calculations. All products were found to have trans-configuration (1416, 24a, 26a, and 28a). Applying functionalised aminophenanthrol precursors in [4 + 2] cycloaddition, the reactions regioselectively led to the formation of new phenanthr[9,10-e][1,3]oxazines (24a, 26a, and 28a) in good yields.

Supplementary Materials

Supplementary materials are available online: Figures S1−S165.

Author Contributions

I.S., K.B., and F.F. planned and designed the project. K.B., L.T., and I.S. performed the syntheses. E.K., M.H., and A.K. characterized the synthesised compounds. K.B., F.F., E.K., and I.S. prepared the manuscript for publication. All authors discussed the results and commented on the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

This research is part of Khadija Belasri′s PhD thesis. The authors′ thanks are due to the Hungarian Research Foundation (OTKA No. K-129037); Ministry of National Economy, National Research Development and Innovation Office [GINOP-2.3.2-15-2016-00038]; the EU-funded Hungarian Grant [EFOP-3.6.1-16-2016-00008]; Ministry of Human Capacities, Hungary grant, TUDFO/47138-1/2019.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

References

  1. Grand, T.; Demion, M.; Norez, C.; Mettey, Y.; Launay, P.; Becq, F.; Bois, P.; Guinamard, R. 9-Phenanthrol Inhibits Human TRPM4 but not TRPM5 Cationic Channels. Br. J. Pharmacol. 2008, 153, 1697–1705. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Guinamard, R.; Hof, T.; Del Negro, C.A. The TRPM4 Channel Inhibitor 9-Phenanthrol. Br. J. Pharmacol. 2014, 171, 1600–1613. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Cho, C.H.; Lee, Y.S.; Kim, E.; Hwang, E.M.; Park, J.Y. Physiological Functions of the TRPM4 Channels via Protein Interactions. BMB Reports 2015, 48, 1–5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Gonzales, A.L.; Amberg, G.C.; Earley, S. Ca2+ Release from the Sarcoplasmic Reticulum is Required for Sustained TRPM4 Activity in Cerebral Artery Smooth Muscle Cells. Am. J. Physiol. Cell. Physiol. 2010, 299, C279–C288. [Google Scholar] [CrossRef] [Green Version]
  5. Parajuli, S.P.; Hristov, K.L.; Sullivan, M.N.; Xin, W.; Smith, A.C.; Earley, S.; Malysz, J.; Petkov, G.V. Control of Urinary Bladder Smooth Muscle Excitability by the TRPM4 Channel Modulator 9-Phenanthrol. Channels 2013, 7, 537–540. [Google Scholar] [CrossRef]
  6. Becerra, A.; Echeverría, C.; Varela, D.; Sarmiento, D.; Armisén, R.; Nuñez-Villena, F.; Montecinos, M.; Simon, F. Transient Receptor Potential Melastatin 4 Inhibition Prevents Lipopolysaccharide-Induced Endothelial Cell Death. Cardiovasc. Res. 2011, 91, 677–684. [Google Scholar] [CrossRef] [Green Version]
  7. Hou, J.; Fei, Y.; Li, W.; Chen, Y.; Wang, Q.; Xiao, Y.; Wang, Y.; Li, Y. The Transient Receptor Potential Melastatin 4 Channel Inhibitor 9-Phenanthrol Modulates Cardiac Sodium Channel. Br. J. Pharmacol. 2018, 175, 4325–4337. [Google Scholar] [CrossRef] [Green Version]
  8. Bur, S.K.; Martin, S.F. Vinylogous Mannich Reactions: Selectivity and Synthetic Utility. Tetrahedron 2001, 57, 3221–3242. [Google Scholar] [CrossRef]
  9. Speckamp, W.N.; Moolenaar, M.J. New Developments in the Chemistry of N-Acyliminium Ions and Related Intermediates. Tetrahedron 2000, 56, 3817–3856. [Google Scholar] [CrossRef]
  10. Arend, M.; Westermann, B.; Risch, N. Modern Variants of the Mannich Reaction. Angew. Chem. Int. Ed. Engl. 1998, 37, 1045–1070. [Google Scholar] [CrossRef]
  11. Liras, S.; Davoren, J.E.; Bordner, J. An Approach to the Skeleton of the Securinega Alkaloids. The Total Synthesis of (±)-Securinine. Org. Lett. 2001, 3, 703–706. [Google Scholar] [CrossRef] [PubMed]
  12. Ito, M.; Clark, C.W.; Mortimore, M.; Goh, J.B.; Martin, S.F. Biogenetically Inspired Approach to the Strychnos Alkaloids. Concise Syntheses of (±)-Akuammicine and (±)-Strychnine. J. Am. Chem. Soc. 2001, 123, 8003–8010. [Google Scholar] [CrossRef] [PubMed]
  13. Szatmári, I.; Fülöp, F. Syntheses and Transformations of 1-(α-Aminobenzyl)-2-Naphthol Derivatives. Curr. Org. Synth. 2004, 1, 155–165. [Google Scholar] [CrossRef] [Green Version]
  14. Szatmári, I.; Fülöp, F. Syntheses, Transformations and Applications of Aminonaphthol Derivatives Prepared via Modified Mannich Reactions. Tetrahedron 2013, 69, 1255–1278. [Google Scholar] [CrossRef] [Green Version]
  15. MacLeod, P.D.; Li, Z.; Feng, J.; Li, C.J. Solvent-Free Direct aza-Friedel–Crafts Reactions between 3,4-Dihydroisoquinoline and 1- or 2-Naphthols. Tetrahedron Lett. 2006, 47, 6791–6794. [Google Scholar] [CrossRef]
  16. Heydenreich, M.; Koch, A.; Klod, S.; Szatmári, I.; Fülöp, F.; Kleinpeter, E. Synthesis and Conformational Analysis of Naphth[1′,2′:5,6][1,3]oxazino[3,2-c][1,3]benzoxazine and Naphth[1′,2′:5,6][1,3]oxazino[3,4-c][1,3]benzoxazine Derivatives. Tetrahedron 2006, 62, 11081–11089. [Google Scholar] [CrossRef]
  17. Heydenreich, M.; Koch, A.; Szatmári, I.; Fülöp, F.; Kleinpeter, E. Synthesis and Conformational Analysis of Naphth[1,2-e][1,3]oxazino[4,3-a][1,3]isoquinoline and Naphth[2,1-e][1,3]oxazino[4,3-a]isoquinoline Derivatives. Tetrahedron 2008, 64, 7378–7385. [Google Scholar] [CrossRef]
  18. Szatmári, I.; Barta, P.; Tóth, G.; Balázs, A.; Halász, J.; Fülöp, F. Synthesis and Conformational Behaviour of Enantiomeric Naphthoxazinoquinoxalinone Derivatives. Eur. J. Org. Chem. 2017, 5537–5545. [Google Scholar]
  19. Barta, P.; Szatmári, I.; Fülöp, F.; Heydenreich, M.; Koch, A.; Kleinpeter, E. Synthesis and Stereochemistry of New Naphth[1,3]oxazino[3,2-a]benzazepine and Naphth[1,3]oxazino[3,2-e]thienopyridine Derivatives. Tetrahedron. 2016, 72, 2402–2410. [Google Scholar] [CrossRef] [Green Version]
  20. Barta, P.; Fülöp, F.; Szatmári, I. Mannich Base-Connected Syntheses Mediated by Ortho-Quinone Methides. Beilstein J. Org. Chem. 2018, 14, 560–575. [Google Scholar] [CrossRef] [Green Version]
  21. Osyanin, V.A.; Osipov, D.V.; Klimochkin, Y.N. Convenient One-Step Synthesis of 4-Unsubstituted 2-Amino-4H-chromene-2-carbonitriles and 5-Unsubstituted 5H-chromeno[2,3-b]pyridine-3-carbonitriles From Quaternary Ammonium salts. Tetrahedron 2012, 68, 5612–5618. [Google Scholar] [CrossRef]
  22. Pettigrew, J.D.; Freeman, R.P.; Wilson, P.D. Total Synthesis of ()-Xyloketal D and its Enantiomer Confirmation of Absolute Stereochemistry. Can. J. Chem. 2004, 82, 1640–1648. [Google Scholar] [CrossRef]
  23. Szatmári, I.; Fülöp, F. Simple Access to Pentacyclic Oxazinoisoquinolines via an Unexpected Transformation of Aminomethylnaphthols. Tetrahedron Lett. 2011, 52, 4440–4442. [Google Scholar] [CrossRef]
  24. Szatmári, I.; Barta, P.; Csámpai, A.; Fülöp, F. Synthesis and Detailed Conformational Analysis of New Naphthoxazino[2,3-a]benz[c]azepine and Naphthoxazino[2,3-a]thieno[3,2-c]pyridine Derivatives. Tetrahedron 2017, 73, 4790–4804. [Google Scholar] [CrossRef]
  25. Szatmári, I.; Belasri, K.; Heydenreich, M.; Koch, A.; Kleinpeter, E.; Fülöp, F. Ortho-Quinone Methide Driven Synthesis of New O,N- or N,N-Heterocycles. ChemistryOpen. 2019, 8, 961–971. [Google Scholar] [CrossRef] [Green Version]
  26. Szatmári, I.; Sas, I.; Fülöp, F. Catalyst-Free Coupling of Indole Derivatives with 3,4-Dihydroisoquinoline and Related Compounds. Tetrahedron Lett. 2013, 54, 5069–5071. [Google Scholar] [CrossRef]
  27. Herz, W.; Tsai, L. Sulfur analogs of isoquinolines. IV. The Pictet-Gams Reaction and Attempts to Prepare Analogs of Papaverine1,2. J. Chem. Soc. 1955, 77, 3529–3533. [Google Scholar] [CrossRef]
  28. Chen, Z.; Hu, G.; Li, D.; Chen, J.; Li, Y.; Zhou, H.; Xie, Y. Synthesis and Vasodilator Effects of Rutaecarpine Analogues which Might be Involved Transient Receptor Potential Vanilloid Subfamily, Member 1 (TRPV1). Bioorg. Med. Chem. 2009, 17, 2351–2359. [Google Scholar] [CrossRef]
  29. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09; (Revision A.02); Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  30. Becke, A.D.A. Density-Functional Thermochemistry. III. The Role of Exact Exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  31. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti Correlation-Energy Formula into a Functional of the Electron Density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [Green Version]
  32. Hehre, W.J.; Radom, L.; von Rague Schleyer, P.; Pople, J. Ab Initio Molecular Orbital Theory; Wiley: New York, NY, USA, 1986. [Google Scholar]
  33. Becke, A.D. A New Mixing of Hartree–Fock and Local Density-Functional Theories. J. Chem. Phys. 1993, 98, 1372–1492. [Google Scholar] [CrossRef]
  34. Ditchfield, R. Self-Consistent Perturbation Theory of Diamagnetism. Mol. Phys. 1974, 27, 789–807. [Google Scholar] [CrossRef]
  35. Cheeseman, G.G.W.; Trucks, T.A.; Keith, M.J. A Comparison of Models for Calculating Nuclear Magnetic Resonance Shielding Tensors. J. Chem. Phys. 1996, 104, 5497–5509. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available.

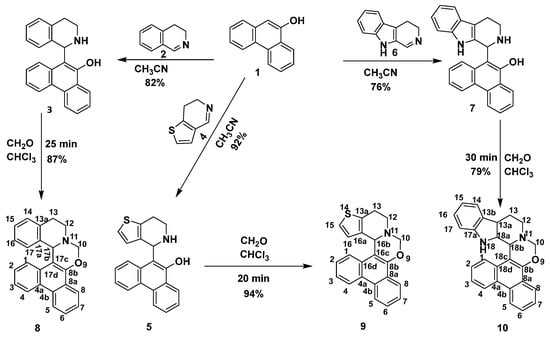

Scheme 1. Syntheses and ring closures of bifunctional compounds 3, 5 and 7.
Scheme 1. Syntheses and ring closures of bifunctional compounds 3, 5 and 7.
Molecules 25 02524 sch001

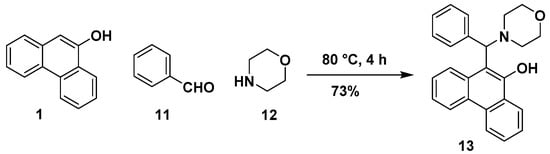

Scheme 2. Synthesis of 10-morpholinobenzyl-9-phenanthrol (13).
Scheme 2. Synthesis of 10-morpholinobenzyl-9-phenanthrol (13).
Molecules 25 02524 sch002

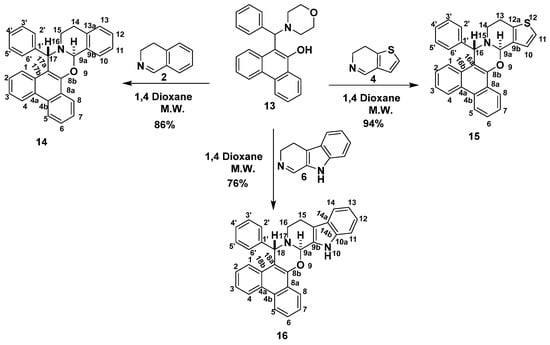

Scheme 3. Synthesis of phenanthr[9,10-e]oxazine derivatives (1416).
Scheme 3. Synthesis of phenanthr[9,10-e]oxazine derivatives (1416).
Molecules 25 02524 sch003

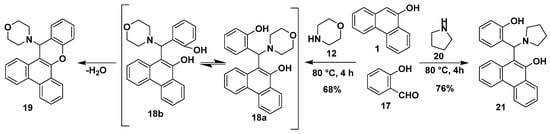

Scheme 4. Synthesis of compounds 19 and 21.
Scheme 4. Synthesis of compounds 19 and 21.
Molecules 25 02524 sch004

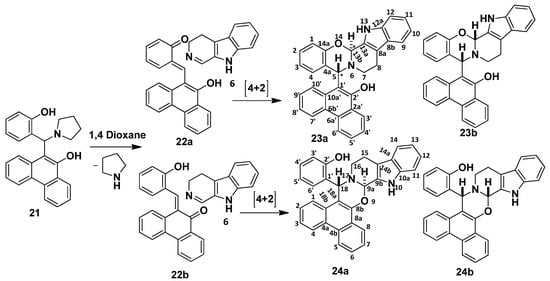

Scheme 5. [4 + 2] Cycloaddition between 21 and 3,4-dihydro-β-carboline.
Scheme 5. [4 + 2] Cycloaddition between 21 and 3,4-dihydro-β-carboline.
Molecules 25 02524 sch005

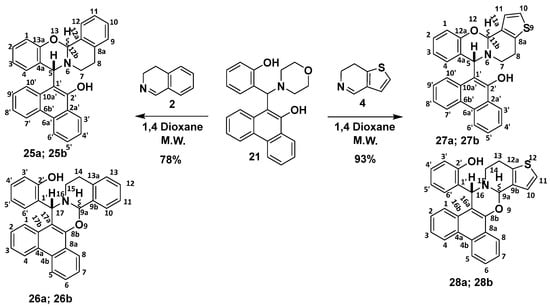

Scheme 6. Reaction of functionalised aminophenanthrol 21 with cyclic imines.
Scheme 6. Reaction of functionalised aminophenanthrol 21 with cyclic imines.
Molecules 25 02524 sch006

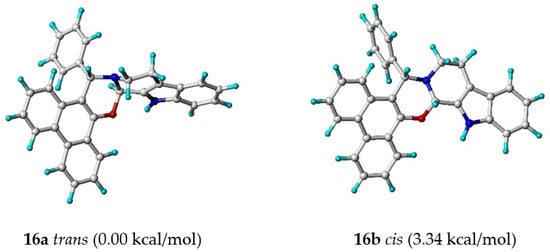

Figure 1. Most stable structures of the diastereotopic heterocycle 16 (DFT calculated relative energies on the B3LYP/6-311G(d,p) level of theory).
Figure 1. Most stable structures of the diastereotopic heterocycle 16 (DFT calculated relative energies on the B3LYP/6-311G(d,p) level of theory).
Molecules 25 02524 g001

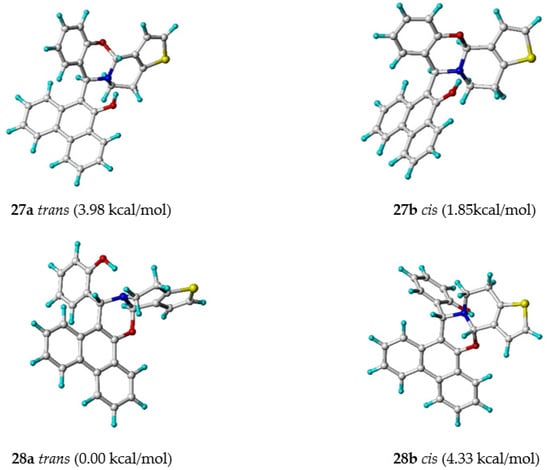

Figure 2. The most stable structures of regioisomeric heterocycles 27a,b and 28a,b including their trans (a) and cis (b) diastereomeric possibilities (DFT calculated relative energies on the B3LYP/6-311G(d,p) level of theory).

Figure 2. The most stable structures of regioisomeric heterocycles 27a,b and 28a,b including their trans (a) and cis (b) diastereomeric possibilities (DFT calculated relative energies on the B3LYP/6-311G(d,p) level of theory).
Molecules 25 02524 g002
Table 1. Synthesis of aminophenanthrols 3, 5 and 7 under varied reaction conditions.
Table 1. Synthesis of aminophenanthrols 3, 5 and 7 under varied reaction conditions.
ProductsType of HeatingSolventReaction TimeTemperature Yield (%)
3Oil bath -120 min 80 °C 10
Oil bath -60 min 100 °C 19
Oil bath Acetonitrile60 min 90 °C 49
MWAcetonitrile10 min100 °C 67
MWAcetonitrile20 min 100 °C 82
5MWAcetonitrile20 min100 °C 72
MWAcetonitrile35 min100 °C 92
7MWAcetonitrile20 min 100 °C 63
MWAcetonitrile40 min 100 °C 76
Table 2. Syntheses of phenanthr[9,10-e]oxazine derivatives (1416) under varied reaction conditions.
Table 2. Syntheses of phenanthr[9,10-e]oxazine derivatives (1416) under varied reaction conditions.
ProductReaction TimeTemperature (°C)Yield (%)
1415 min6047
8086
10029
1515 min6052
8094
10037
1615 min6021
8076
10032
Table 3. Optimizing reaction conditions for the synthesis of 24b, 26b and 28b.
Table 3. Optimizing reaction conditions for the synthesis of 24b, 26b and 28b.
ProductsReaction TimeTemperature (°C)Yield (%)
23a,b
24a,b
15 min6048
8085
10033
25a,b
26a,b
15 min6028
8078
10019
27a,b
28a,b
15 min6051
8093
10038
Table 4. Experimental NOE′s and calculated distances in 16 (as DFT calculated on the B3LYP/6-311G(d,p) level of theory).
Table 4. Experimental NOE′s and calculated distances in 16 (as DFT calculated on the B3LYP/6-311G(d,p) level of theory).
Positions1/189a/1818/16
(ř-eq)
9a/16
(ř-eq)
9a/16
(ř-ax)
9a/1014/15
(ř-ax)
14/15
(ř-eq)
Measured NOEstrongmediumstrongweakweakmediumweakmedium
Calculated distances d [Ĺ]2.2
2.2(cis)
3.6
2.7(cis)
2.2
2.7(cis)
4.1
3.8(cis)
3.8
2.7(cis)
2.8
3.0(cis)
4.3
3.4(cis)
2.9
2.9(cis)
NOE-estimated distances d [Ĺ]2.23.42.34.44.32.83.53.0
ψ-eq (smaller signal at higher field); ψ-ax (the corresponding broadened signal at lower field).
