Sustainable Process for the Depolymerization/Oxidation of Softwood and Hardwood Kraft Lignins Using Hydrogen Peroxide under Ambient Conditions
Abstract
1. Introduction
2. Results

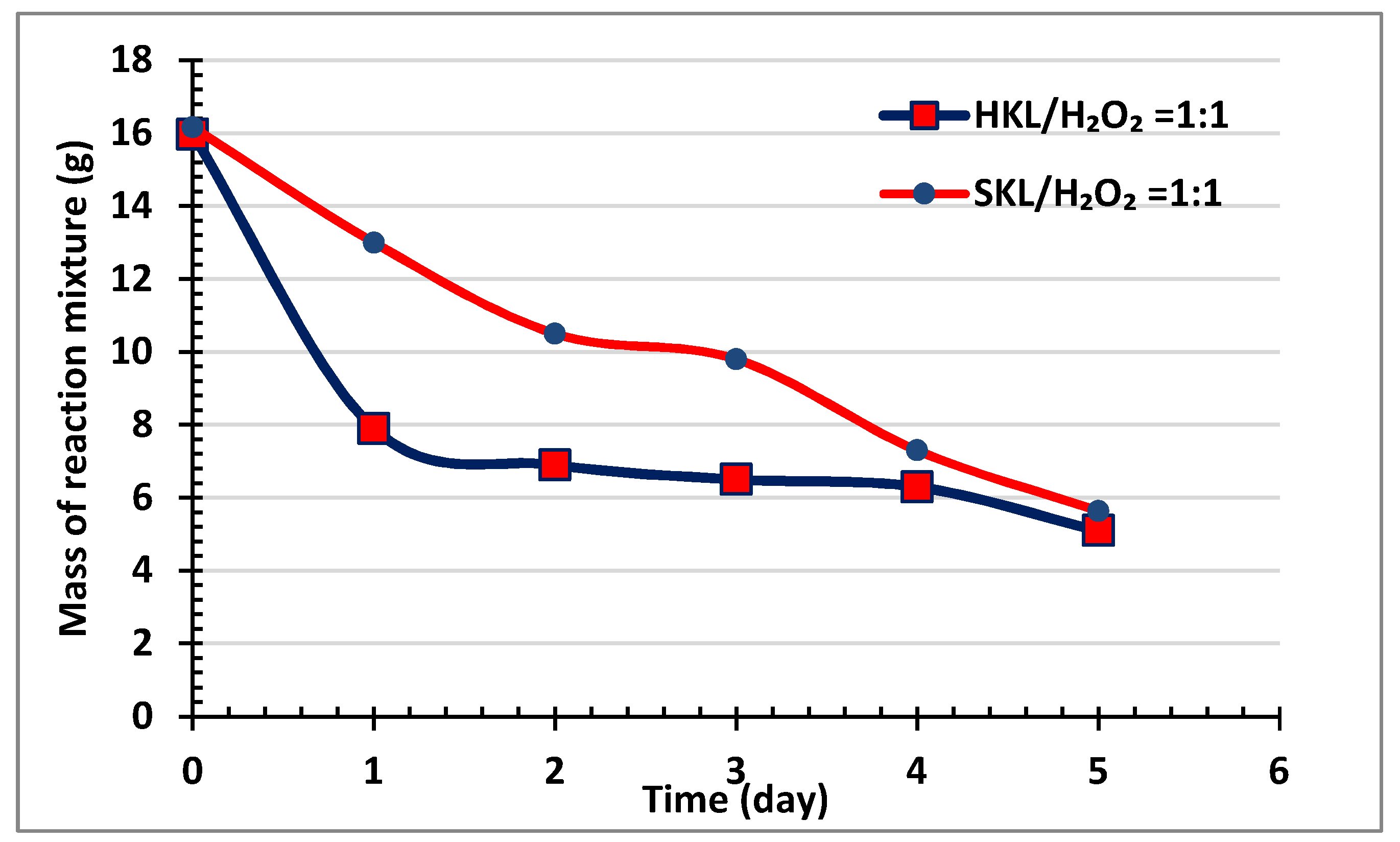

2.1. General Observations and Product Yields
2.2. Elemental Analysis

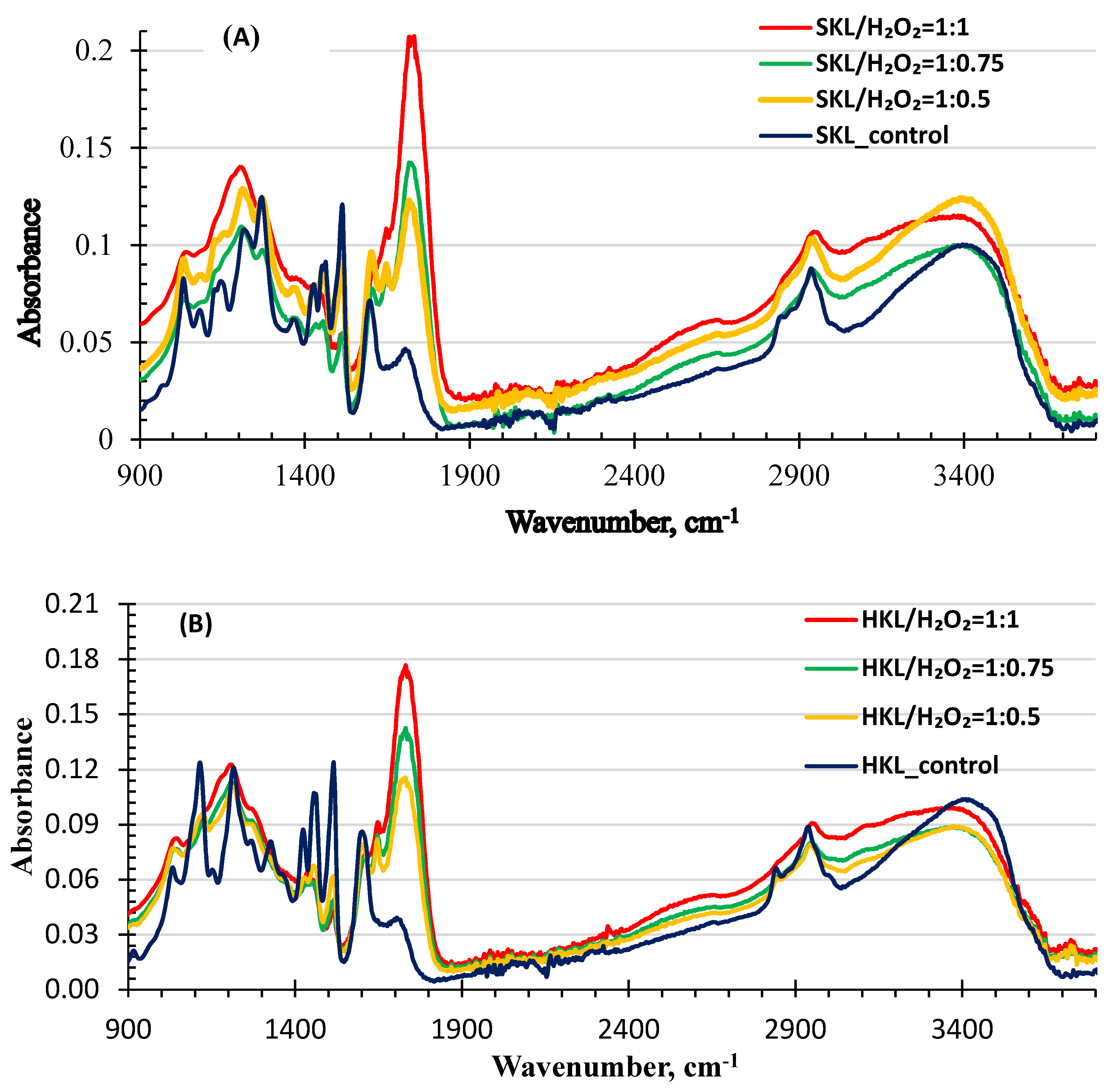

2.3. FTIR Analysis

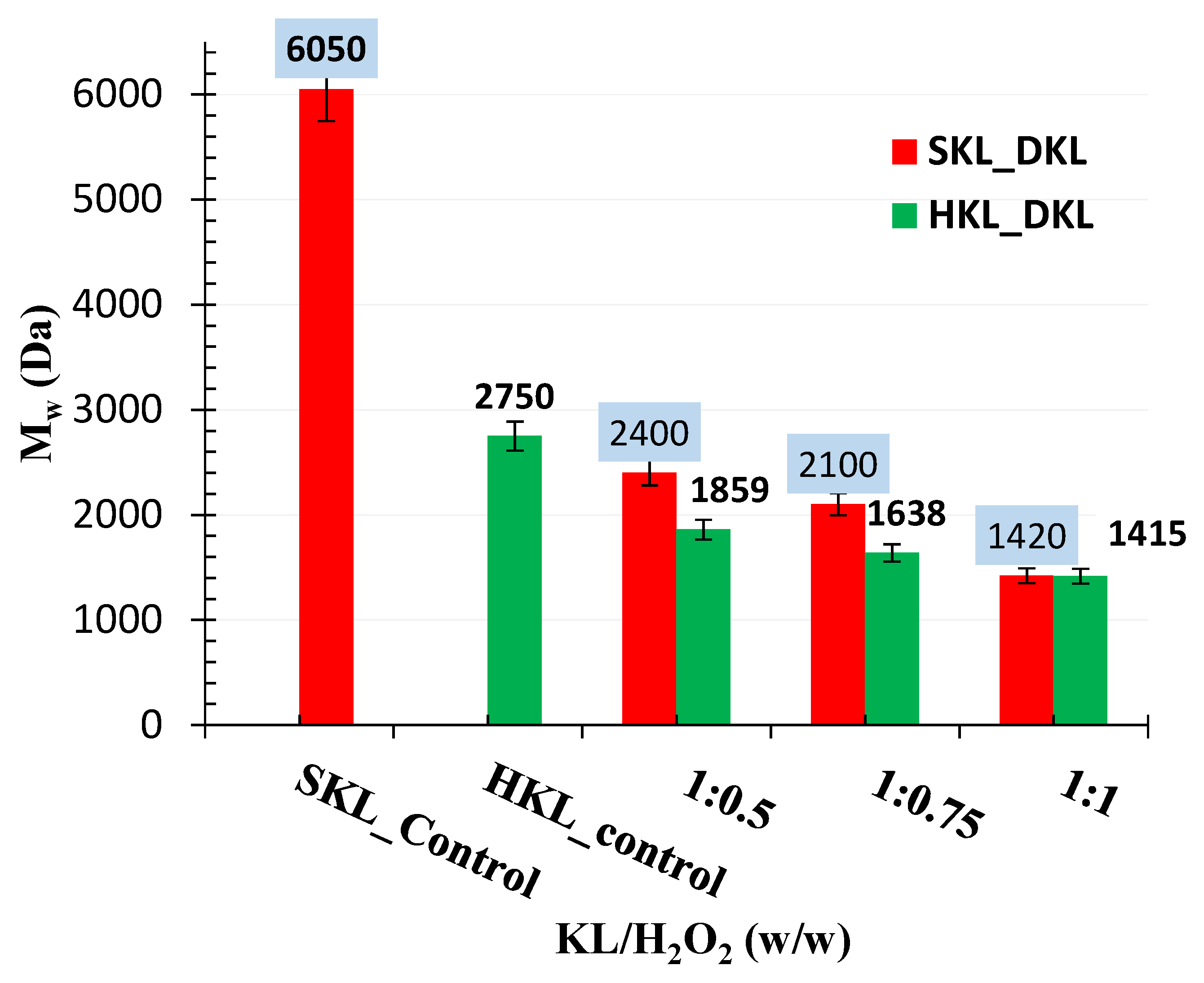

2.4. Molecular Weight Distribution by GPC

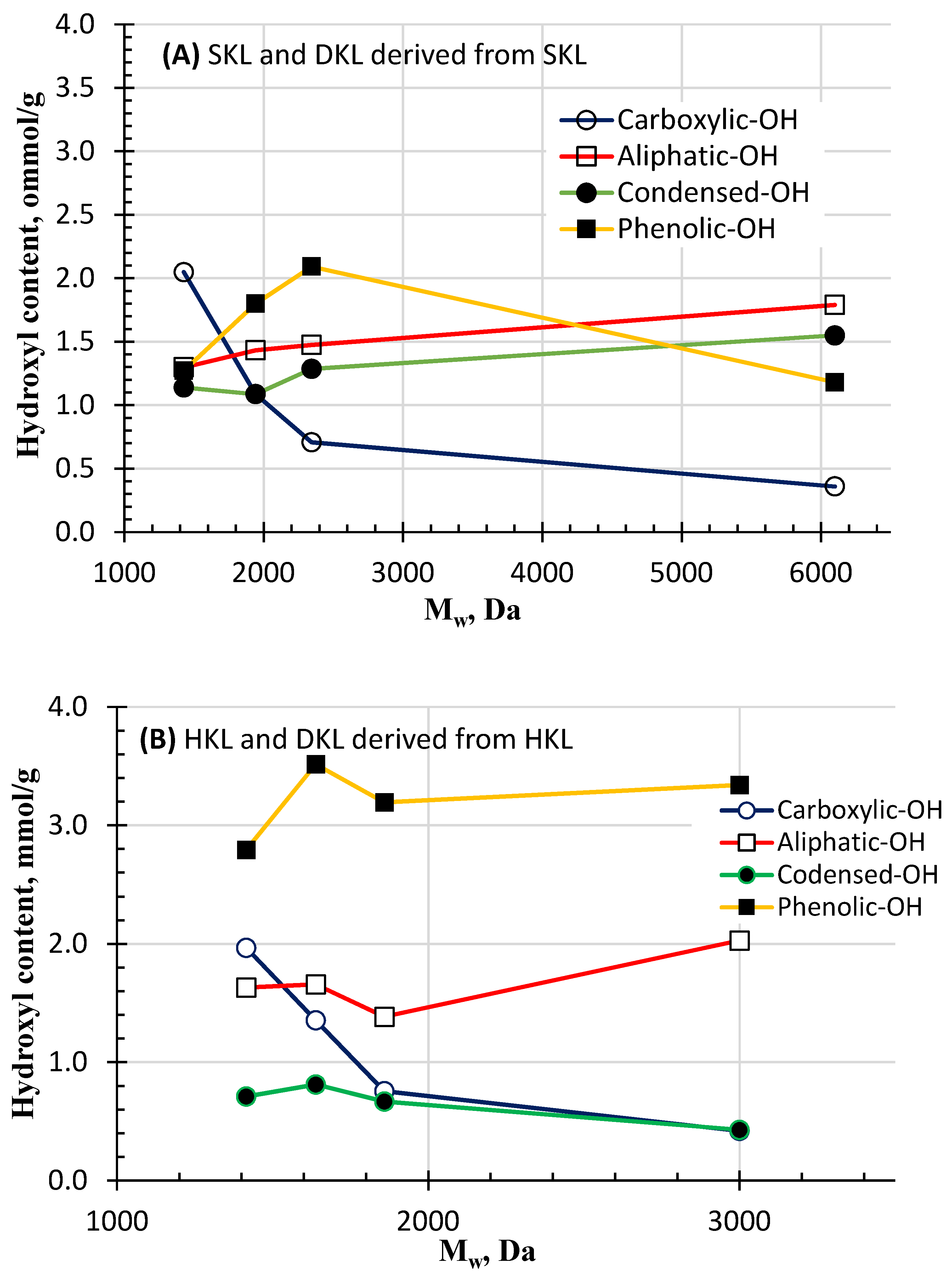

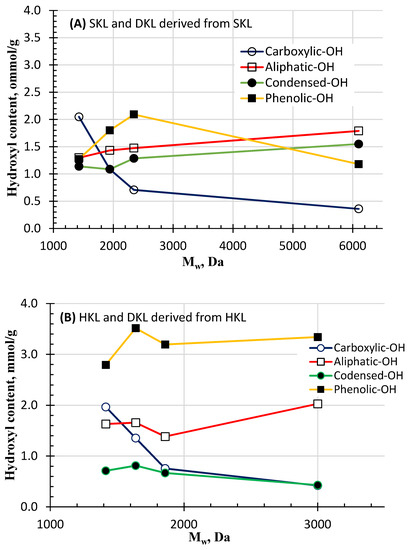

2.5. Functional Group Analysis Using 31P-NMR

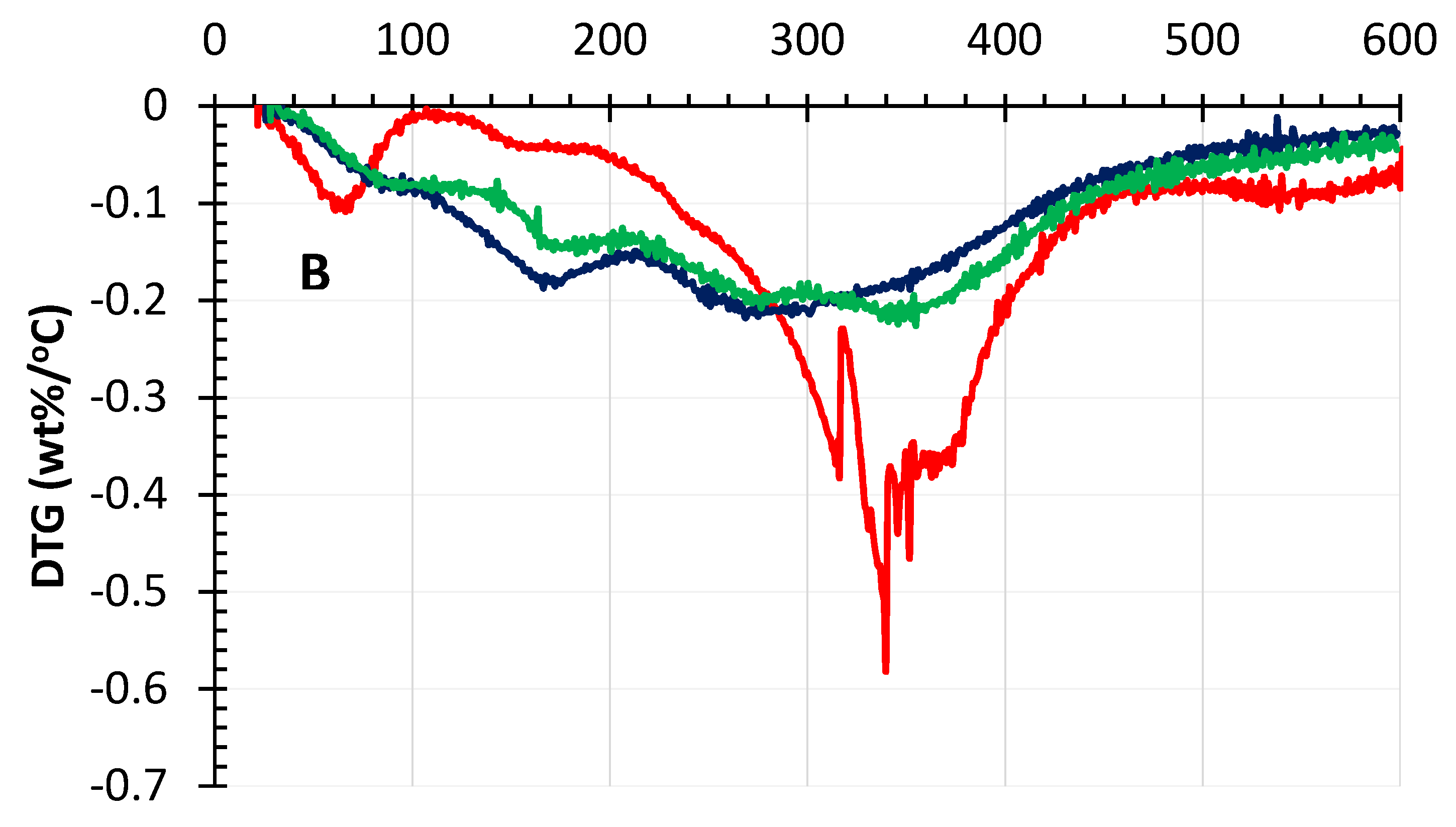

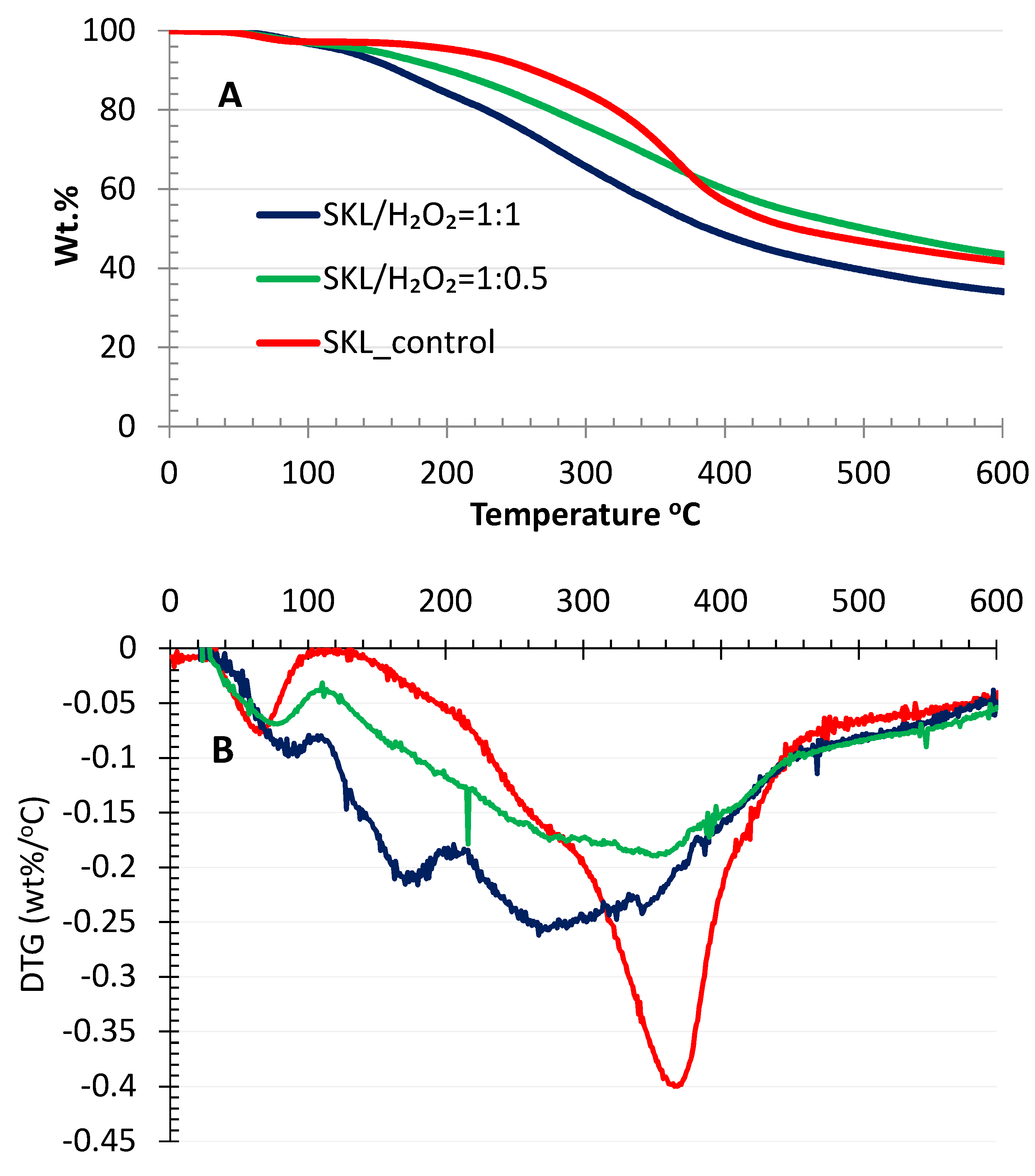

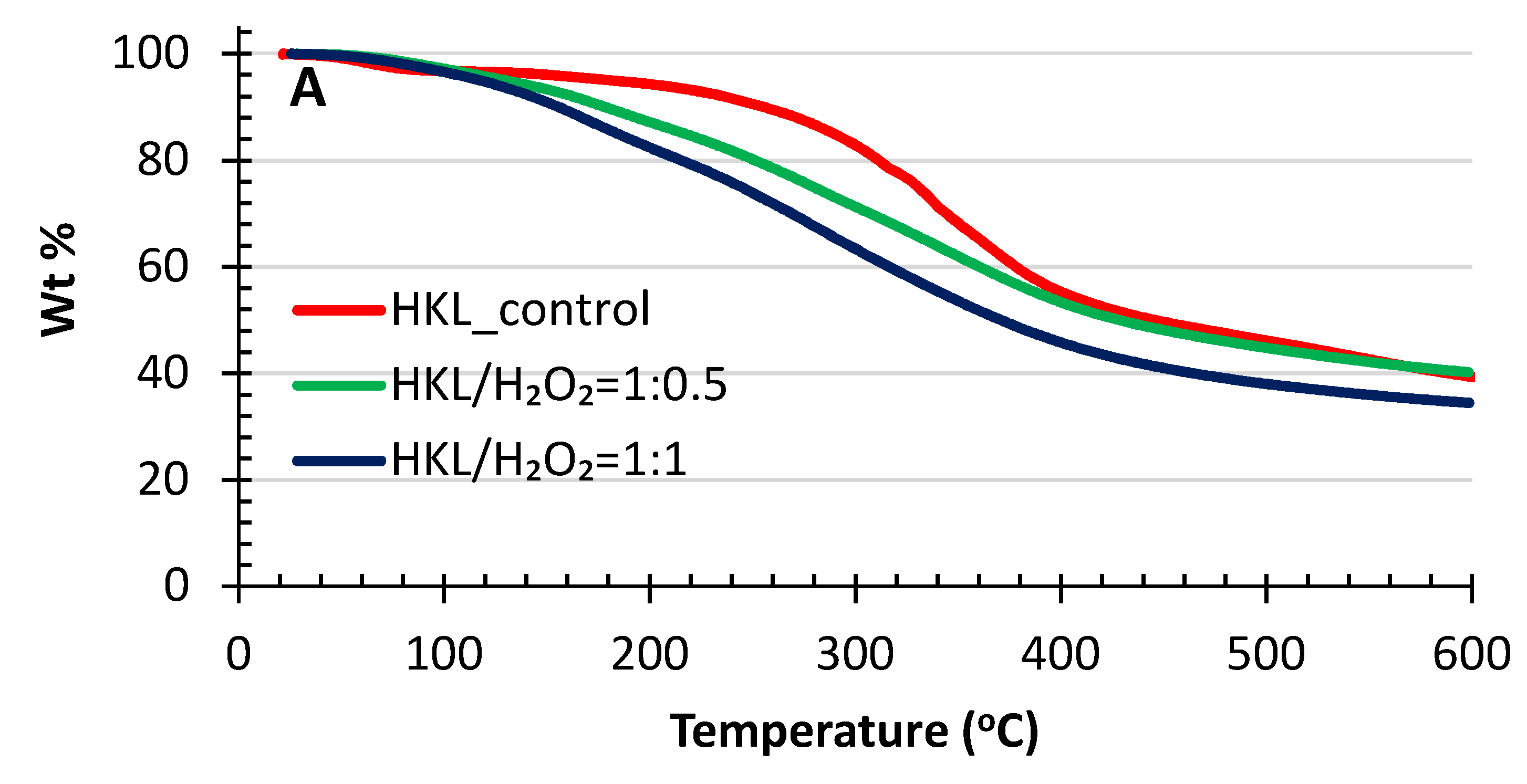

2.6. TGA Analysis
2.7. Py–GC/MS Analysis

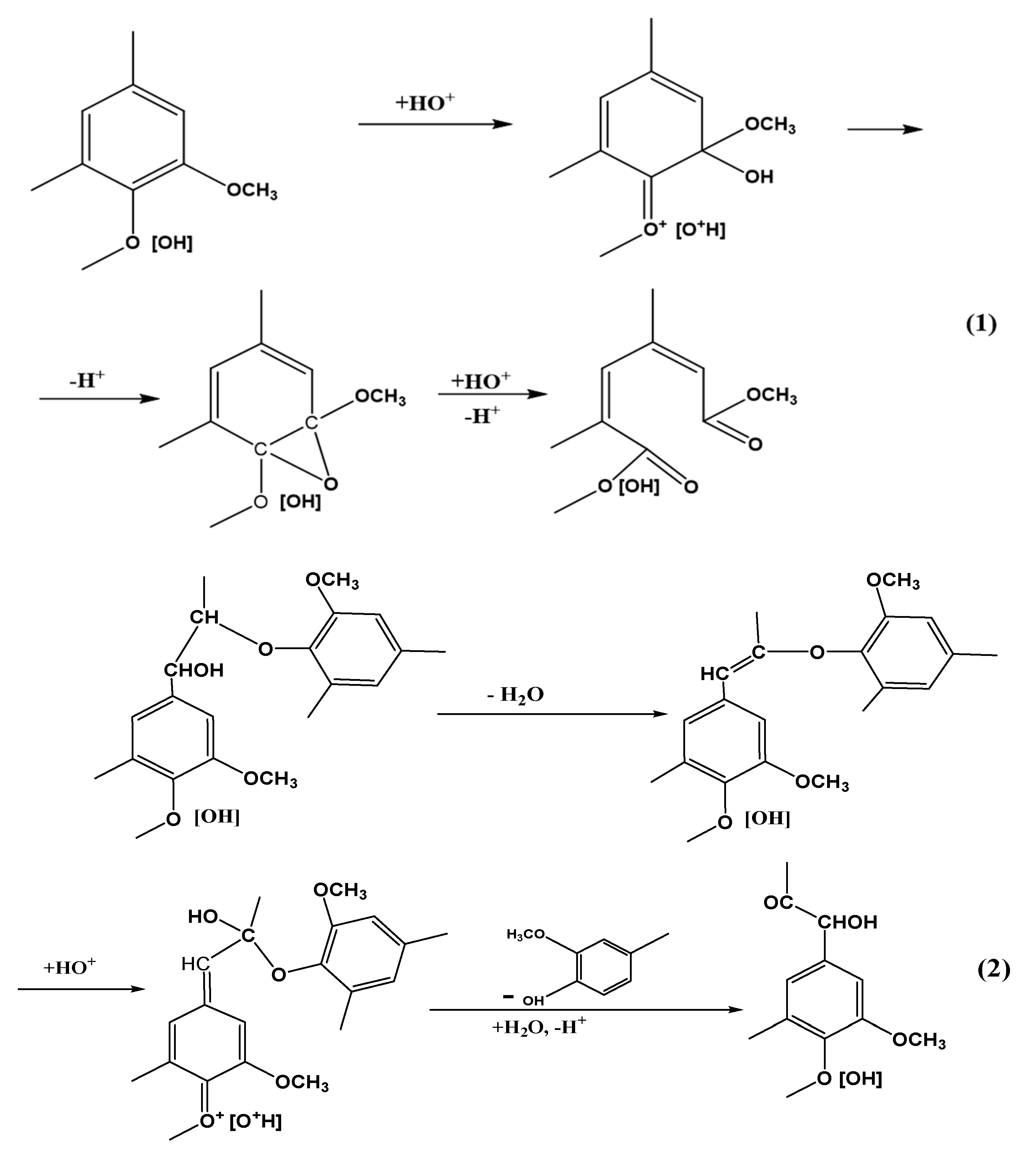

3. Discussion
4. Materials and Methods
4.1. Materials
4.2. Oxidative Treatment of SKL and HKL
4.3. Product Characterization
4.3.1. Elemental analysis
4.3.2. GPC Analysis
4.3.3. FTIR Analysis
4.3.4. 31P-NMR
4.3.5. TGA Analysis
4.3.6. Py–GC/MS
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
