Molecules 2019, 24(9), 1807; https://doi.org/10.3390/molecules24091807

Article
Synthesis of Tris-pillar[5]arene and Its Association with Phenothiazine Dye: Colorimetric Recognition of Anions
Kazan Federal University, Kremlevskaya, 18 Kazan, Russia
*
Author to whom correspondence should be addressed.
Academic Editor: Roman Dembinski
Received: 10 April 2019 / Accepted: 8 May 2019 / Published: 10 May 2019

Abstract

:
A multicyclophane with a core based on tris(2-aminoethyl)amine (TREN) linked by amide spacers to three fragments of pillar[5]arene was synthesized. The choice of the tris-amide core allowed the multicyclophane to bind to anion guests. The presence of three terminal pillar[5]arene units provides the possibility of effectively binding the colorimetric probe N-phenyl-3-(phenylimino)-3H-phenothiazin-7-amine (PhTz). It was established that the multicyclophane complexed PhTz in chloroform with a 1:1 stoichiometry (lgKa = 5.2 ± 0.1), absorbing at 650 nm. The proposed structure of the complex was confirmed by 1H-NMR spectroscopy: the amide group linking the pillar[5]arene to the TREN core forms a hydrogen bond with the PhTz imino-group while the pillararenes surround PhTz. It was established that the PhTz:tris-pillar[5]arene complex could be used as a colorimetric probe for fluoride, acetate, and dihydrogen phosphate anions due to the anion binding with proton donating amide groups which displaced the PhTz probe. Dye displacement resulted in a color change from blue to pink, lowering the absorption band at 650 nm and increasing that at 533 nm.
Keywords:
pillar[5]arene; complex; phenothiazine; anion; multipillar[5]arene

1. Introduction

Creating supramolecular systems capable of anion detection is an important direction for modern chemistry. Contamination of the environment [1] with fertilizers, industrial byproducts (phosphates, nitrates, hydrosulfates) has led to the necessity of creating systems which are capable of recognizing anionic analytes; anions also play an important role in medicine [2]. Detecting inorganic anions allows the control of food quality [3]. In contrast to the sensors toward cations, the goal of creating sensors for inorganic anions remains unsolved. Low charge density and the large size of anions compared to cations are the main hindrances for creating selective sensors of anions. The introduction of amide, hydroxyl, urea, and thiourea fragments into receptor structures allow for the formation of additional coordination sites for more effective and selective binding of anionic substrates by hydrogen bonds [4,5,6]. One of the most widespread approaches to constructing macrocycle-derived anion sensors is using a macrocyclic platform for spatial preorganization of proton donating groups, which provides conformity of the receptors spatial structure to the substrate [7]. The anion is bound by forming hydrogen bonds with spatially preorganized functional groups [8,9] and with macrocyclic fragments [10,11].
Pillar[n]arenes are capable of anion recognition [12], forming supramolecular complexes [13], and they may serve as components of sensors [14,15]. They form inclusion complexes and associates with aromatic compounds [16], which makes them suitable structure blocks for receptor systems working on the dye-displacement principle for inorganic anions [17] and biologically relevant anion substrates, e.g., adenosine triphosphate [18]. However, the cavity of pillar[5]arene is too small for effective binding of most of the redox-active substrates. Only relatively small fragments are bound within the pillar[5]arene cavity with effectiveness. For example, alkyl groups and pyridinium fragments can enter into the pillar[5]arene cavity, while the pillar[n]arenes with the larger macrocycle size are still synthetically difficult to achieve [19]. This is the reason why we have proposed as an alternative approach to binding relatively large aromatic substrates to unify in one structure several pillar[5]arene fragments, which increase the effectivity of association with the aromatic substrate by multicenter interactions.
The synthesis of multicyclophanes is non-trivial from the point of view of organic chemistry. Several approaches to the synthesis of multicyclophanes based on thiacalixarene [20,21], pillararene [22], and of hybrid structures containing both fragments [23] in high yields have been developed previously in our group. It was shown that synthesized multicyclophanes are capable of forming stable supramolecular associates [20,21] and also can participate in oxidative polymerization reactions with supramolecular assistance [23]. TREN as a convenient platform for the design of anion receptors and sensors [24,25] has been chosen as a core of the synthesized multicyclophane. Pillararenes can effectively interact with phenazines, e.g., percarboxylated pillar[6]arene can form an inclusion complex with methylene blue in water with a high association constant [26]. Pillar[5]arenes as guest-molecules can form complexes with C-shaped strips formed by several phenazine structural units [27]. We have proposed a third approach, i.e., surrounding of phenazine with pillar[5]arene fragments. As a compound belonging to the phenazine class, a derivative of phenothiazine, PhTz (N-phenyl-3-(phenylimino)-3H-phenothiazin-7-amine) was chosen as a structural analog of methylene blue, containing two phenyl groups [28]. Due to the redox-activity of phenothiazine derivatives, investigation of supramolecular ensembles with this compound offers the opportunity for further application of obtained systems in electrochemical sensors [29,30]. Formation of stable complexes of multicyclophane with phenazine derivatives, considering the wide variety of structural derivatives of phenazines (in particular, phenothiazines) [31] opens wide opportunities for constructing colorimetric [32] and electrochemical [33] sensors.
In this study, we have developed an approach to synthesize a multicyclophane with a TREN core. Multicyclophane was synthesized by aminolysis of pillar[5]arene ethyl ester derivative with TREN. It was established that association of PhTz, a structural analog of methylene blue, with synthesized tris-pillar[5]arene occurs in chloroform. The formation of the complex is accompanied by the color change of PhTz from pink to blue. The interaction of the complex with inorganic anions was monitored by UV-vis spectrophotometry. Competition of tris-pillar[5]arene with anions and PhTz changed the solution color from blue (complex of tris-pillararene with PhTz) to pink in the presence of F, AcO, or H2PO4 anions. This work is a proof-of-concept for creating supramolecular sensor systems based on multicyclophanes and phenothiazine-based dyes based on the dye-displacement principle for detecting anions by the colorimetric method.

2. Results and Discussion

2.1. Synthesis of Tris-pillar[5]arene

Aminolysis of the cyclophane mono-ester derivatives with polyamine compounds [34] is a well-known reaction that helps achieve target product in high yields. The necessity to adjust the reagents ratio and reaction conditions and many possible byproducts make it one of the least widespread approaches to multicyclophane synthesis. Pillar[5]arene 3 was chosen as a synthon. It was obtained by the literary procedure [22] in two stages, i.e., sequential mono-O-demethylation of pillar[5]arene 1 and further alkylation of phenol group of the compound 2 with ethyl bromoacetate (Scheme 1). Then, the macrocycle 3 was introduced into the reaction with tris(2-aminoethyl)amine. The conditions of reaction and reagents ratio were adjusted to obtain target tris-pillar[5]arene 4. The optimal yield was reached with a 3.3-fold excess of the compound 3 against TREN in the toluene/methanol mixture under reflux for 72 h. As a result of aminolysis, tris-pillar[5]arene 4 was obtained with a yield of 62%. Based on a thin layer chromatography (TLC), byproducts of aminolysis (mono- and bis-derivatives) were found and then separated by column chromatography on silica gel (CH2Cl2:propanol-2 = 10:3).
In the MALDI mass-spectrum of compound 4 on a 2,5-dihydroxybenzoic acid matrix (Figure S1), molecular ion peaks corresponding to protonated and cationized with sodium molecular ions of tris-pillar[5]arene 4 were observed. The individual product was established by TLC, the structure of the compound was confirmed by FTIR, 1H, and 13C-NMR spectroscopy, MALDI mass-spectrometry (Figures S1–S4) and its composition by elemental analysis.

2.2. Study on the Interaction of Tris-pillar[5]arene 4 with PhTz

The interaction of the synthesized tris-pillar[5]arene 4 with PhTz was studied (Figure 1). Chloroform was specified as a solvent due to the solubility of both components. Based on UV-spectrophotometric titration (Figure 2), a 1:1 complex was formed with the association constant lgKa = 5.2 ± 0.1. Due to the presence of two absorption bands at 533 nm (free PhTz) and 650 nm (complex PhTz:4) the titration was accompanied with visually detectable color change (533 nm—pink, 650 nm—blue).
An assumption was made, that hydrogen bonding of PhTz to the amide groups of tris-pillar[5]arene 4 led to lower electron density in phenothiazine fragment significantly stabilized by interaction with the pillar[5]arene fragments. The cause of red shift is due to the two factors, i.e., hydrogen bond of tris-pillar[5]arene amide fragments with the imino group of PhTz and interaction of PhTz with the pillar[5]arene fragments (Figure 1). Examples of such effects of shifts of the absorption band of the phenothiazine derivatives in their complex are known in the literature. Thus, a significant red shift of the absorption band was observed in the interaction with d-metal cations also explained by lowering electron density in phenothiazine fragment [35] (152 nm red shift), [36] (90 nm red shift). There are examples of hydrogen bond and aromatic system interactions in dimers influencing the UV-spectra of structural analogs of methylene blue [37].
This assumption is supported by the 1H-NMR spectroscopy (Figures S5 and S6). Most significant changes are observed in proton signals of ethylidene fragment of tris-pillar[5]arene 4 core, TREN (appearance of a new wide signal), in proton signals of oxymethylene fragments (appearance of new signals with upfield shift) and phenothiazine aromatic protons (upfield shift). Participation of pillar[5]arene fragment in forming of the complex with PhTz is confirmed by widening of corresponding aromatic proton signals. For further support of assumption, additional experiments in DMSO-d6 were carried out: in the presence of PhTz, the signal of NH-protons of multicyclophane is shifted from 8.14 ppm to 8.40 ppm (Figure S7).
The effects described above in 1H-NMR spectra of PhTz: the tris-pillar[5]arene 4 complex are in accordance with previously reported ones for inclusion complexes involving the pillar[6]arene cavity [26]. The association constant obtained (lgKa = 5.2 ± 0.1) is lower than described in the literature (lgKa = 7.06), for the inclusion complex of methylene blue implemented into percarboxylated pillar[6]arene cavity in water. However, this difference is not so dramatic taking into account the fact that host and guest mentioned in [26] have opposite (negative and positive, correspondingly) charges.

2.3. Investigation of Complex PhTz:4 Interaction with Anions

The interaction of the PhTz:4 complex with a 10-fold excess of the tetrabutylammonium salts (NBu4X, where X = Br, NO3, F, H2PO4, AcO, Cl, and I) was investigated. The most prominent effect was observed in the case of fluoride, dihydrogen phosphate, and acetate anions when the absorption band at 650 nm disappeared. In the case of chloride and bromide anions, the effect on the intensity of absorption bands was negligible while in the case of iodide and nitrate, the intensity of absorption band at 650 nm was slightly lower, than that for the PhTz:4 complex (Figure 3). Fluoride, acetate, and dihydrophosphate anions have a similar basicity and surface charge density, which explains the high sensitivity of dye-displacement effect in the presence of corresponding tetrabutylammonium salts. Among other anions studied, the slight sensitivity of PhTz-tris-pillar[5]arene complex to nitrate and iodide compared to smaller chloride and bromide anions can be explained by steric effect of bulky pillararene substituents.
Competitive binding with dihydrogen phosphate anion was confirmed by 31P-NMR spectroscopy. The experiment was conducted with 5 × 10−3 M solution of 4, PhTz, and tetrabutylammonium dihydrogen phosphate. The chemical shift of the signal corresponding to the dihydrogen phosphate anion shifted by δ = 0.67 ppm upfield in the presence of tris-pillar[5]arene 4 and occurred as a widened signal with the center shifted upfield by δ = 0.19 ppm in the presence of 4 and PhTz (Figure S8).
Changes in the spectrum of the PhTz:4 complex (Figure 4) were observed with 3.3 × 10−6 M dihydrogen phosphate and acetate anions and 6 × 10−6 M fluoride anion. Therefore, the proposed system has characteristics comparable to modern colorimetric probes. It is the first example of the multicyclophane–phenazine derivative complex which is sensitive to small concentrations of anions. This offers principally new opportunities for the supramolecular design of materials for colorimetric sensors.

3. Materials and Methods

3.1. General Experimental Information

All reagents and solvents were used directly as purchased or purified according to the standard procedures. Analytical TLC was carried out using commercial silica gel plates and visualization was performed with the short wavelength UV light (254 nm). Column chromatography was performed with silica gel 60 H, slurry packed. The 1H and 13C-NMR spectra were recorded on a Bruker Avance 400 spectrometer (400.17 MHz for H-atoms) for 3–5% solutions in CDCl3 and DMSO-d6. The residual solvent peaks were used as an internal standard. Elemental analysis was performed on the Perkin-Elmer 2400 Series II instruments. IR spectra were recorded with Spectrum 400 IR spectrometer (Perkin Elmer (Waltham, MA, USA)). Absorbance frequencies are expressed in reciprocal centimeters (cm−1). MALDI spectra were recorded using an Ultraflex III mass spectrometer with 2,5-dihydroxybenzoic acid as a matrix. The peaks of molecular ions are represented by the most abundant mass. Melting points were determined using the Boetius Block apparatus.
The UV measurements were performed with a Shimadzu UV-3600 instrument. Quartz cuvettes with an optical path length of 10 mm were used. Binding constants were determined from the analysis of the binding isotherms obtained by UV spectroscopy and fitted to a 1:1 stoichiometry of binding. The Bindfit application [38,39] was used to calculate the association constant of 4 with PhTz. Absorbance values at 535 and 650 nm were used. Stoichiometry models 1:1, 1:2, and 2:1 were tried and the best fit was attained for 1:1. Three independent experiments were carried out.
Macrocycles 1, 2, and 3 were synthesized by previously reported methods [22]. 7-Phenylamino-3-phenylimino-3H-phenothiazine PhTz were synthesized by previously reported methods [27] (see Supporting Information for details, spectra are presented in Figures S9 and S10).

3.2. Synthesis of Tris-pillar[5]arene 4

Tris{N-2-(4-carbonylmethoxy-8,14,18,23,26,28,31,32,35 nonamethoxypillar[5]arene)aminoethyl}amine: to 0.57 g (0.69 mmol) of compound 3, a mixture of toluene (14 mL) and methanol (6 mL) was added, followed by the addition of 0.031 g of tris(2-aminoethyl)amine (0.21 mmol). The mixture was refluxed under vigorous stirring during 72 h. The mixture was evaporated on a rotary evaporator, chloroform (25 mL) was added, and washed with 2M HCl solution (2 × 20 mL) and 5% ammonia solution (2 × 20 mL). Then the chloroform layer was dried with anhydrous sodium sulfate. The obtained reaction mixture was separated with column chromatography (CH2Cl2:propanol-2 = 10:3).
Product yield 0.32 g (62%), m. p.: 154°C; 1Н-NMR (DMSO-d6, 400 MHz) δ: 2.57 (m, 6H, -N-CH2-CH2-N), 3.25–3.26 (m, 6H, -N-CH2-CH2-N), 3.66–3.69 (m, 111H, -O-CH3, -CH2-), 4.66 (s, 6H, -O-CH2-C(O)-), 6.73–6.83 (m, 30H, Ar-H), 8.14 (m, 3H, -NH-); 13C-NMR (DMSO-d6, 100 MHz) δ: 28.42, 28.97, 29.31, 36.71, 51.35, 55.41, 65.11, 113.09, 113.28, 113.39, 113.72, 115.29, 127.16, 127.33, 127.46, 127.54, 127.64, 128.37, 148.35, 148.57, 149.93, 150.25, 150.69, 168.34; IR (cm−1) νmax = 2988 (CPh–H), 2932(CH2, -CH22-), 1677 (C=О), 1498 (CH2), 1206 (CPh–O–CH2); [Anal. Calcd. for C144H162N4O33: C, 69.83; H, 6.59; N, 2.26; found: C, 68.31; H, 5.77; N, 1.33]; MS (MALDI–TOF, m/z): found m/z = 2476.2 [M + H]+ and 2496.0 [M + Na]+, C144H162N4O33 for 2476.12.

4. Conclusions

A method of tris-pillar[5]arene synthesis was developed through the aminolysis of an ethyl carboxylate derivative of pillar[5]arene with TREN. The use of a tris-pillar[5]arene–phenothiazine derivative complex as an anion sensor has been demonstrated for the first time. The interaction of tris-pillar[5]arene with PhTz through hydrogen bond formation with the amide group and stabilization with the electron-rich pillar[5]arenes leads to a significant red shift from 535 to 650 nm. It was shown that due to competitive complex formation with anions, this system is capable of a colorimetric response due to phenothiazine dye displacement. Thus the findings of this work can be used in the development of new sensory systems, especially redox-sensitive and electrochemical sensors based on the proposed complexes of phenothiazine derivatives with multipillararene.

Supplementary Materials

Supplementary Materials are available online; Figures S1–S10.

Author Contributions

The listed authors contributed to this work as described in the following: A.K. performed the UV-spectrometry experiments; V.G. wrote the paper and interpreted the experimental results; D.S. synthesized tris-pillar[5]arene; I.S. conceived the synthesis and concept of the colorimetric dye displacement sensor. A.K., V.G., D.S., and I.S. performed the revision before submission. A.K. and V.G. revealed the financial support for the work. All authors have read and approved the final manuscript.

Funding

We gratefully acknowledge the support for this paper by the Russian Science Foundation grant (No. 18-73-00293).

Acknowledgments

Study of the compound and complex structures by NMR spectroscopy was funded by a subsidy of the Russian Government to support the Program of Competitive Growth of Kazan Federal University among World’s Leading Academic Centers.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fréchet Hallberg, G.R. Agricultural chemicals in ground water: Extent and implications. Am. J. Alternative Agr. 1987, 2, 3–15. [Google Scholar] [CrossRef]
  2. Omar, S.A.; Webb, A.J.; Lundberg, J.O.; Weitzberg, E. Therapeutic effects of inorganic nitrate and nitrite in cardiovascular and metabolic diseases. J. Intern. Med. 2016, 279, 315–336. [Google Scholar] [CrossRef]
  3. Sorvin, M.; Belyakova, S.; Stoikov, I.; Shamagsumova, R.; Evtugyn, G. Solid-contact potentiometric sensors and multisensors based on polyaniline and thiacalixarene receptors for the analysis of some beverages and alcoholic drinks. Front. Chem. 2018, 6. [Google Scholar] [CrossRef] [PubMed]
  4. Anand, T.; Sivaraman, G.; Iniya, M.; Siva, A.; Chellappa, D. Aminobenzohydrazide based colorimetric and ‘turn-on’ fluorescence chemosensor for selective recognition of fluoride. Anal. Chim. Acta 2015, 876, 1–8. [Google Scholar] [CrossRef] [PubMed]
  5. Zhou, X.; Kim, J.; Liu, Z.; Jo, S.; Pak, Y.L.; Swamy, K.M.K.; Yoon, J. Selective fluorescent and colorimetric recognition of cyanide via altering hydrogen bonding interaction in aqueous solution and its application in bioimaging. Dyes Pigm. 2016, 128, 256–262. [Google Scholar] [CrossRef]
  6. Zhang, L.; Liu, F. Synthesis of bisimidazole derivatives for selective sensing of fluoride ion. Molecules 2017, 22, 1519. [Google Scholar] [CrossRef] [PubMed]
  7. Langton, M.J.; Serpell, C.J.; Beer, P.D. Anion recognition in water: Recent advances from a supramolecular and macromolecular perspective. Angew. Chem. Int. Ed. 2016, 55, 1974–1987. [Google Scholar] [CrossRef] [PubMed]
  8. Vavilova, A.A.; Stoikov, I.I. p-tert-Butylthiacalix[4]arenes functionalized by N-(4’-nitrophenyl) acetamide and N, N-diethylacetamide fragments: Synthesis and binding of anionic guests. Beilstein J. Org. Chem. 2017, 13, 1940–1949. [Google Scholar] [CrossRef]
  9. Vavilova, A.A.; Nosov, R.V.; Stoikov, I.I. Selective fluoride ion recognition by a thiacalix[4]arene receptor containing N-(4-nitrophenyl) acetamide and 1-amidoanthraquinone fragments. Mendeleev Comm. 2016, 6, 508–510. [Google Scholar] [CrossRef]
  10. Saha, I.; Lee, J.T.; Lee, C.H. Recent Advancements in calix[4]pyrrole-based anion-receptor chemistry. Eur. J. Org. Chem. 2015, 2015, 3859–3885. [Google Scholar] [CrossRef]
  11. Zhu, H.; Shi, B.; Chen, K.; Wei, P.; Xia, D.; Mondal, J.H.; Huang, F. Cyclo[4]carbazole, an Iodide Anion Macrocyclic Receptor. Org. Lett. 2016, 18, 5054–5057. [Google Scholar] [CrossRef]
  12. Yakimova, L.S.; Shurpik, D.N.; Stoikov, I.I. Amide-functionalized pillar[5]arenes as a novel class of macrocyclic receptors for the sensing of H2PO4 anion. Chem. Commun. 2016, 52, 12462–12465. [Google Scholar] [CrossRef]
  13. Shurpik, D.N.; Padnya, P.L.; Evtugyn, V.G.; Mukhametzyanov, T.A.; Khannanov, A.A.; Kutyreva, M.P.; Stoikov, I.I. Synthesis and properties of chiral nanoparticles based on (p S)-and (p R)-decasubstituted pillar[5]arenes containing secondary amide fragments. RSC Adv. 2016, 6, 9124–9131. [Google Scholar] [CrossRef]
  14. Smolko, V.; Shurpik, D.; Evtugyn, V.; Stoikov, I.; Evtugyn, G. Organic acid and DNA sensing with electrochemical sensor based on carbon black and pillar[5]arene. Electroanalysis 2016, 28, 1391–1400. [Google Scholar] [CrossRef]
  15. Stoikova, E.E.; Sorvin, M.I.; Shurpik, D.N.; Budnikov, H.C.; Stoikov, I.I.; Evtugyn, G.A. Solid-contact potentiometric sensor based on polyaniline and unsubstituted pillar[5]arene. Electroanalysis 2015, 27, 440–449. [Google Scholar] [CrossRef]
  16. Yakimova, L.S.; Shurpik, D.N.; Gilmanova, L.H.; Makhmutova, A.R.; Rakhimbekova, A.; Stoikov, I.I. Highly selective binding of methyl orange dye by cationic water-soluble pillar[5]arenes. Org. Biomol. Chem. 2016, 14, 4233–4238. [Google Scholar] [CrossRef][Green Version]
  17. Lin, Q.; Zheng, F.; Liu, L.; Mao, P.P.; Zhang, Y.M.; Yao, H.; Wei, T.B. Efficient sensing of fluoride ions in water using a novel water soluble self-assembled supramolecular sensor based on pillar[5]arene. RSC Adv. 2016, 6, 111928–111933. [Google Scholar] [CrossRef]
  18. Bojtár, M.; Kozma, J.; Szakács, Z.; Hessz, D.; Kubinyi, M.; Bitter, I. Pillararene-based fluorescent indicator displacement assay for the selective recognition of ATP. Sens. Actuators B Chem. 2017, 248, 305–310. [Google Scholar] [CrossRef][Green Version]
  19. Yang, K.; Pei, Y.; Wen, J.; Pei, Z. Recent advances in pillar [n] arenes: Synthesis and applications based on host–guest interactions. Chem. Commun. 2016, 52, 9316–9326. [Google Scholar] [CrossRef]
  20. Nosov, R.V.; Stoikov, I.I. Pentakis-amidothiacalix [4] arene stereoisomers: Synthesis and effect of central core conformation on their aggregation properties. Macroheterocycles 2015, 8, 120–127. [Google Scholar] [CrossRef]
  21. Nosov, R.; Padnya, P.; Shurpik, D.; Stoikov, I. Synthesis of water-soluble amino functionalized multithiacalix[4]arene via quaternization of tertiary amino groups. Molecules 2018, 23, 1117. [Google Scholar] [CrossRef] [PubMed]
  22. Shurpik, D.N.; Stoikov, I.I. Covalent assembly of tris-pillar[5]arene. Russ. J. Gen. Chem. 2016, 86, 752–755. [Google Scholar] [CrossRef]
  23. Shurpik, D.N.; Yakimova, L.S.; Gorbachuk, V.V.; Sevastyanov, D.A.; Padnya, P.L.; Bazanova, O.B.; Stoikov, I.I. Hybrid multicyclophanes based on thiacalix[4]arene and pillar[5]arene: Synthesis and influence on the formation of polyaniline. Org. Chem. Front. 2018, 5, 2780–2786. [Google Scholar] [CrossRef]
  24. Jowett, L.A.; Ricci, A.; Wu, X.; Howe, E.N.W.; Gale, P.A. Investigating the influence of steric hindrance on selective anion transport. Molecules 2019, 24, 1278. [Google Scholar] [CrossRef] [PubMed]
  25. Dey, S.K.; Das, G. A selective fluoride encapsulated neutral tripodal receptor capsule: Solvatochromism and solvatomorphism. Chem. Commun. 2011, 47, 4983–4985. [Google Scholar] [CrossRef]
  26. Yang, K.; Wen, J.; Chao, S.; Liu, J.; Yang, K.; Pei, Y.; Pei, Z. A supramolecular photosensitizer system based on the host–guest complexation between water-soluble pillar[6]arene and methylene blue for durable photodynamic therapy. Chem. Commun. 2018, 54, 5911–5914. [Google Scholar] [CrossRef]
  27. Liu, X.; Weinert, Z.J.; Sharafi, M.; Liao, C.; Li, J.; Schneebeli, S.T. Regulating molecular recognition with C-Shaped strips attained by chirality-assisted synthesis. Angew. Chem. Int. Ed. 2015, 54, 12772–12776. [Google Scholar] [CrossRef]
  28. Wainwright, M.; Grice, N.J.; Pye, L.E. Phenothiazine photosensitizers: Part 2. 3, 7-Bis (arylamino) phenothiazines. Dyes Pigm. 1999, 42, 45–51. [Google Scholar] [CrossRef]
  29. Pauliukaite, R.; Ghica, M.E.; Barsan, M.M.; Brett, C.M. Phenazines and polyphenazines in electrochemical sensors and biosensors. Anal. Lett. 2010, 43, 1588–1608. [Google Scholar] [CrossRef]
  30. Khadieva, A.I.; Gorbachuk, V.V.; Evtugyn, G.A.; Belyakova, S.V.; Latypov, R.R.; Drobyshev, S.V.; Stoikov, I.I. Phenyliminophenothiazine based self-organization of polyaniline nanowires and application as redox probe in electrochemical sensors. Sci. Rep. 2019, 9, 417. [Google Scholar] [CrossRef]
  31. Wainwright, M.; McLean, A. Rational design of phenothiazinium derivatives and photoantimicrobial drug discovery. Dyes Pigm. 2017, 136, 590–600. [Google Scholar] [CrossRef]
  32. Zhao, S.; Wu, F.; Zhao, Y.; Liu, Y.; Zhu, L. Phenothiazine-cyanine-functionalized upconversion nanoparticles for LRET and colorimetric sensing of cyanide ions in water samples. J. Photochem. Photobiol. A Chem. 2016, 319, 53–61. [Google Scholar] [CrossRef]
  33. Kuzin, Y.; Ivanov, A.; Evtugyn, G.; Hianik, T. Voltammetric detection of oxidative DNA damage based on interactions between polymeric dyes and DNA. Electroanalysis 2016, 28, 2956–2964. [Google Scholar] [CrossRef]
  34. Othman, A.B.; Lee, Y.H.; Ohto, K.; Abidi, R.; Kim, Y.; Vicens, J. Multi-calixarenes with multidentate coordination sites. J. Incl. Phenom. Macrocycl. Chem. 2008, 62, 187–191. [Google Scholar] [CrossRef]
  35. Kaur, M.; Cho, M.J.; Choi, D.H. A phenothiazine-based “naked-eye” fluorescent probe for the dual detection of Hg2+ and Cu2+: Application as a solid state sensor. Dyes Pigm. 2016, 125, 1–7. [Google Scholar] [CrossRef]
  36. Weng, J.; Mei, Q.; Zhang, B.; Jiang, Y.; Tong, B.; Fan, Q.; Ling, Q.; Huang, W. Multi-functional fluorescent probe for Hg2+, Cu2+ and ClO based on a pyrimidin-4-yl phenothiazine derivative. Analyst 2013, 138, 6607–6616. [Google Scholar] [CrossRef]
  37. Ghanadzadeh Gilani, A.; Dezhampanah, H.; Poormohammadi-Ahandani, Z. A comparative spectroscopic study of thiourea effect on the photophysical and molecular association behavior of various phenothiazine dyes. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2017, 179, 132–143. [Google Scholar] [CrossRef]
  38. Bindfit v0.5, Open Data Fit. Available online: http://supramolecular.org/bindfit/ (accessed on 8 April 2019).
  39. Thordarson, P. Determining association constants from titration experiments in supramolecular chemistry. Chem. Soc. Rev. 2011, 40, 1305–1323. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.

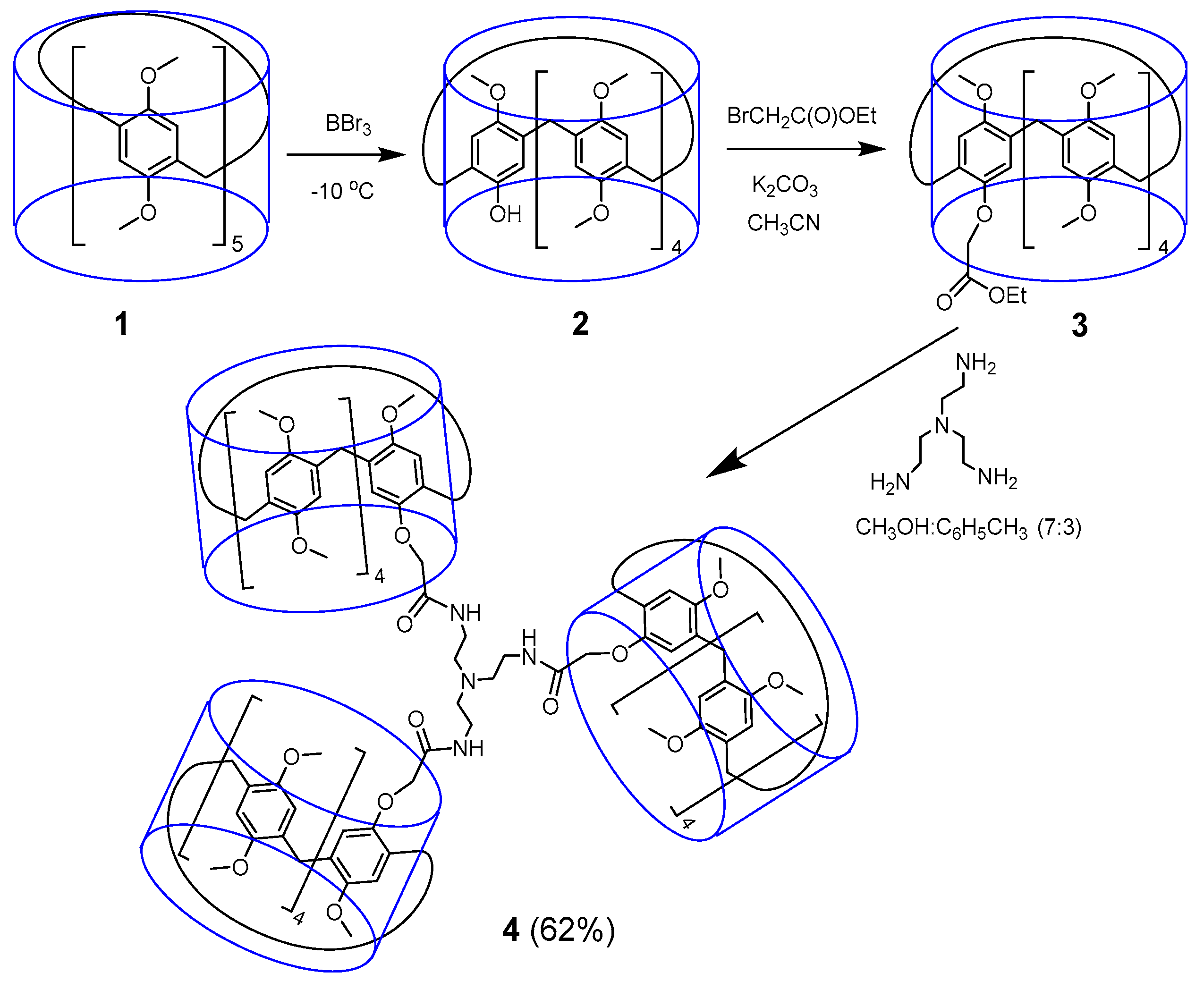

Scheme 1. Synthesis of tris-pillar[5]arene 4.
Scheme 1. Synthesis of tris-pillar[5]arene 4.
Molecules 24 01807 sch001

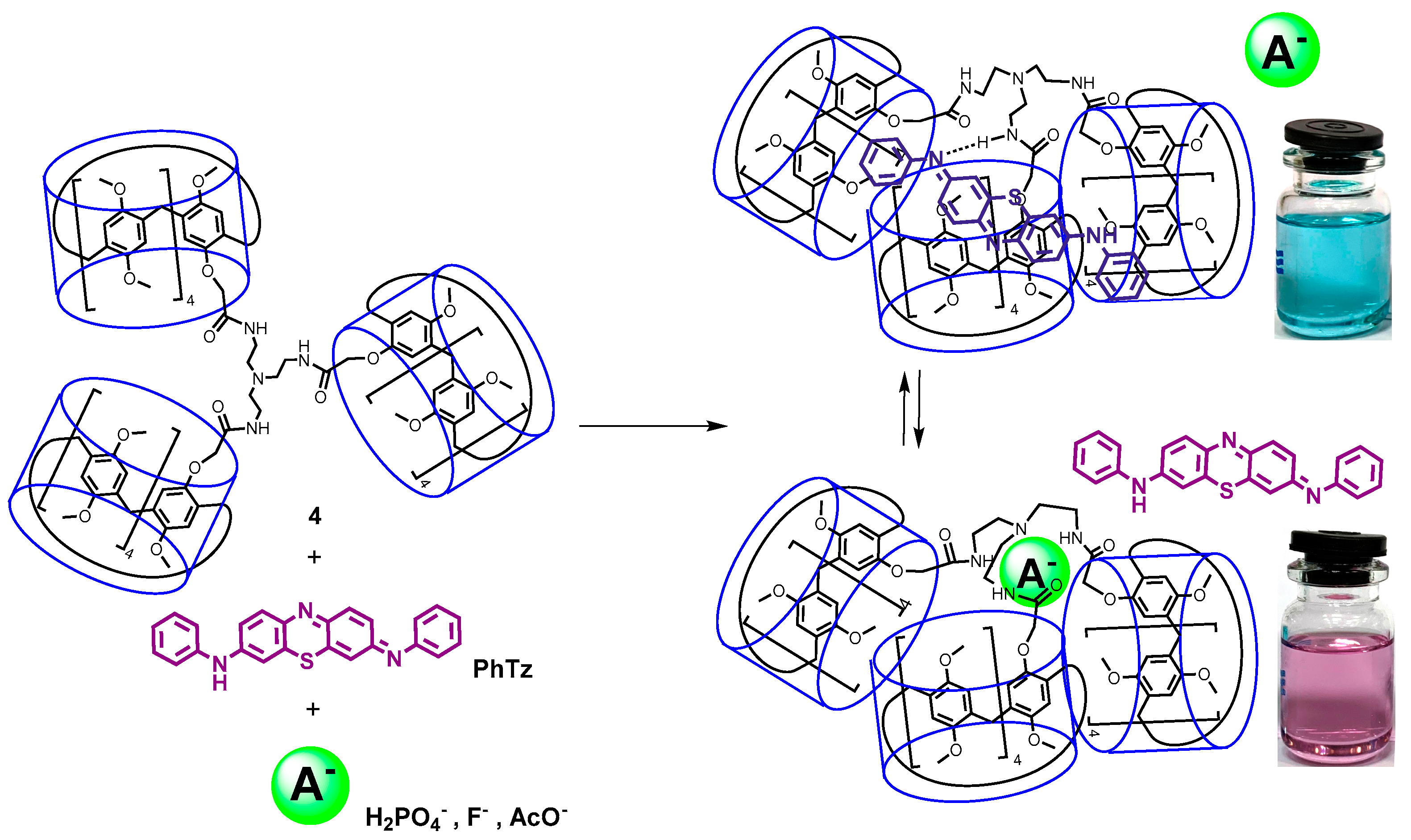

Figure 1. Scheme of complex formation of compound 4 with PhTz and competitive complexation with anions.
Figure 1. Scheme of complex formation of compound 4 with PhTz and competitive complexation with anions.
Molecules 24 01807 g001

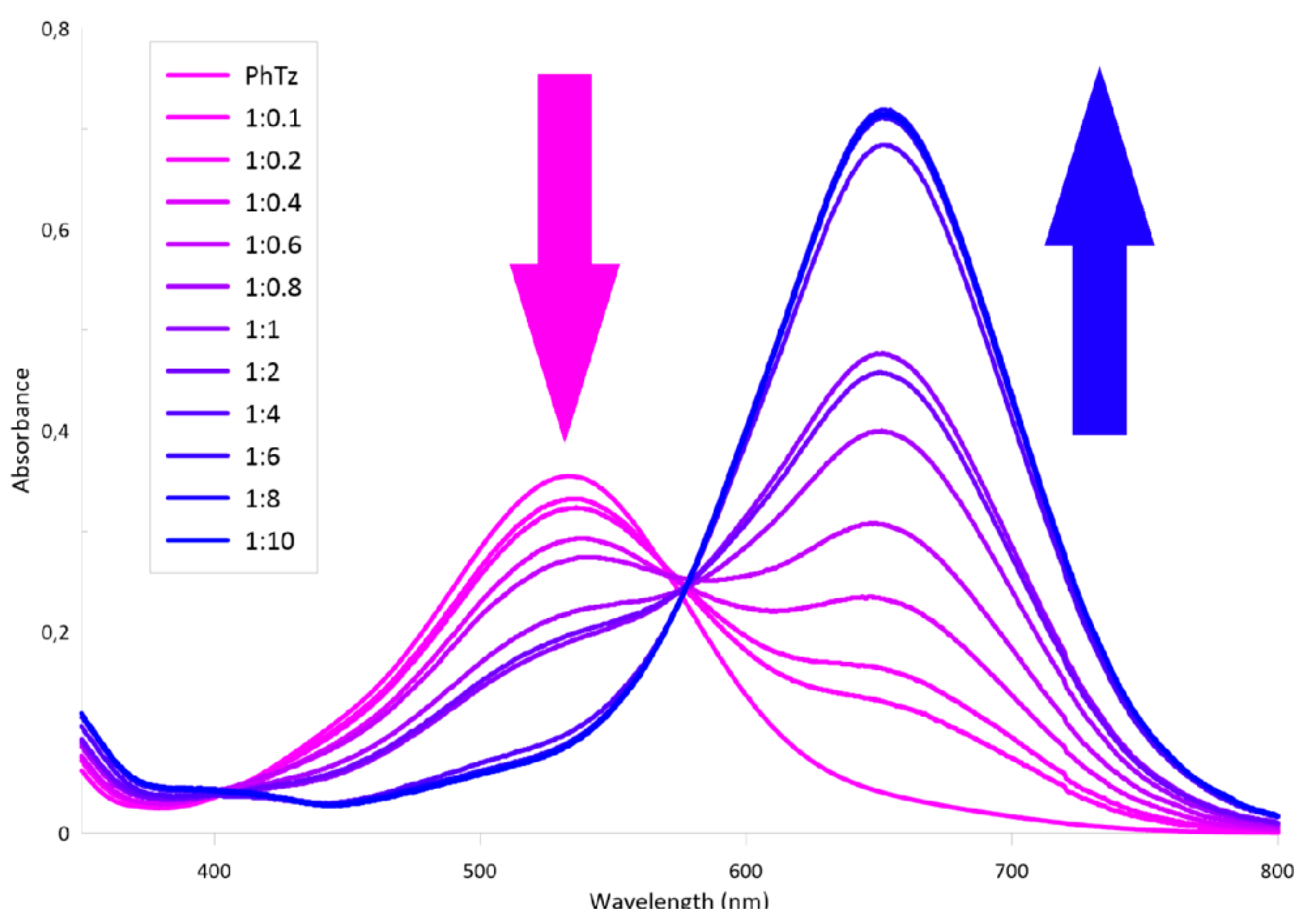

Figure 2. Titration graph of PhTz (C = 1 × 10−5 M) with tris-pillararene 4 (C=1 × 10−6 M–1 × 10−4 M), in legend the corresponding to graphs concentration ratios (eq.) [PhTz]:[4] are listed.
Figure 2. Titration graph of PhTz (C = 1 × 10−5 M) with tris-pillararene 4 (C=1 × 10−6 M–1 × 10−4 M), in legend the corresponding to graphs concentration ratios (eq.) [PhTz]:[4] are listed.
Molecules 24 01807 g002

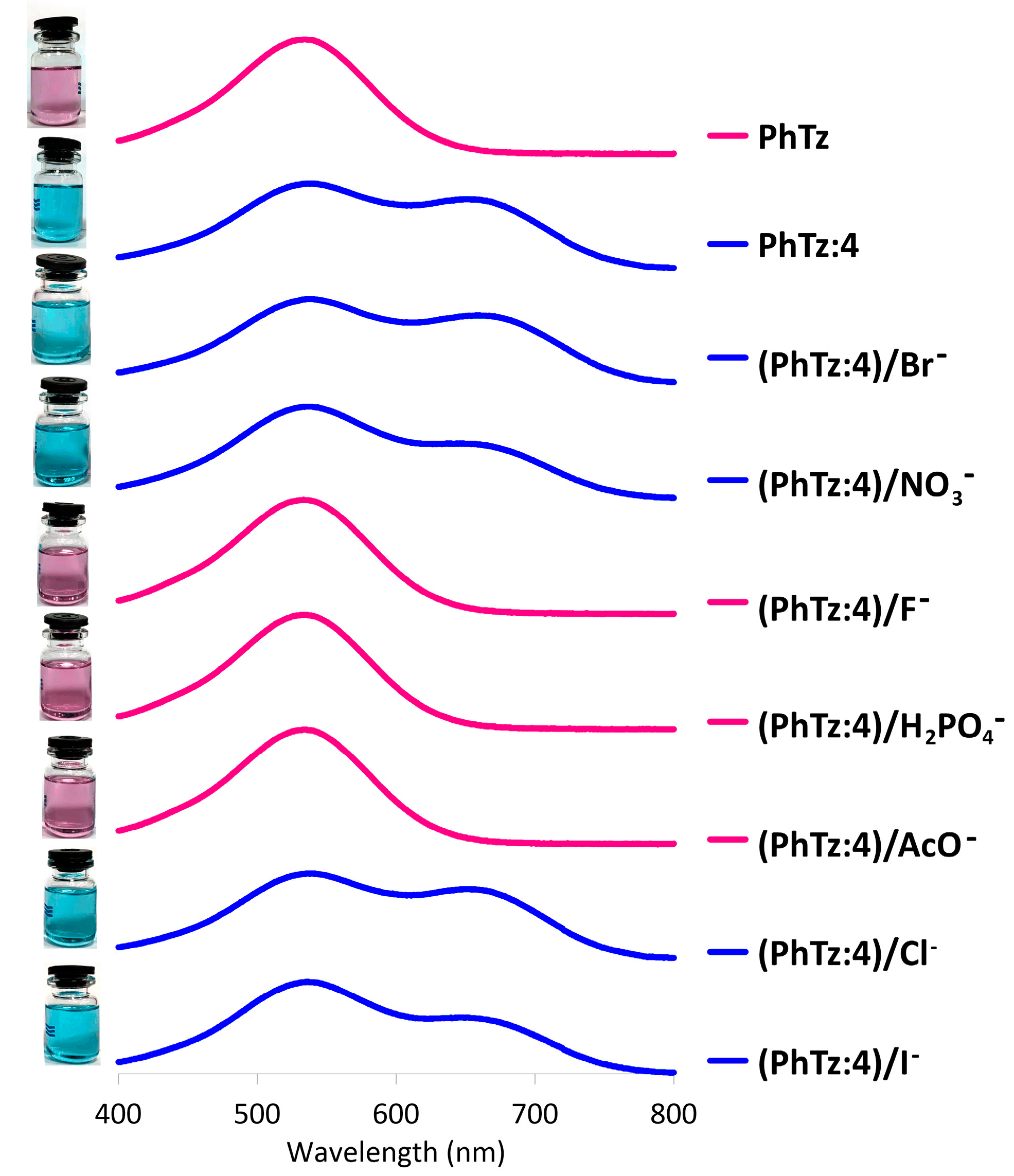

Figure 3. Absorption spectra of PhTz:4 complex (C = 1 × 10−5 M, PhTz:4, ratio 1:1) in the presence of the tetrabutylammonium salts (C = 1 × 1 0−4 M) and photographs of corresponding solutions.
Figure 3. Absorption spectra of PhTz:4 complex (C = 1 × 10−5 M, PhTz:4, ratio 1:1) in the presence of the tetrabutylammonium salts (C = 1 × 1 0−4 M) and photographs of corresponding solutions.
Molecules 24 01807 g003

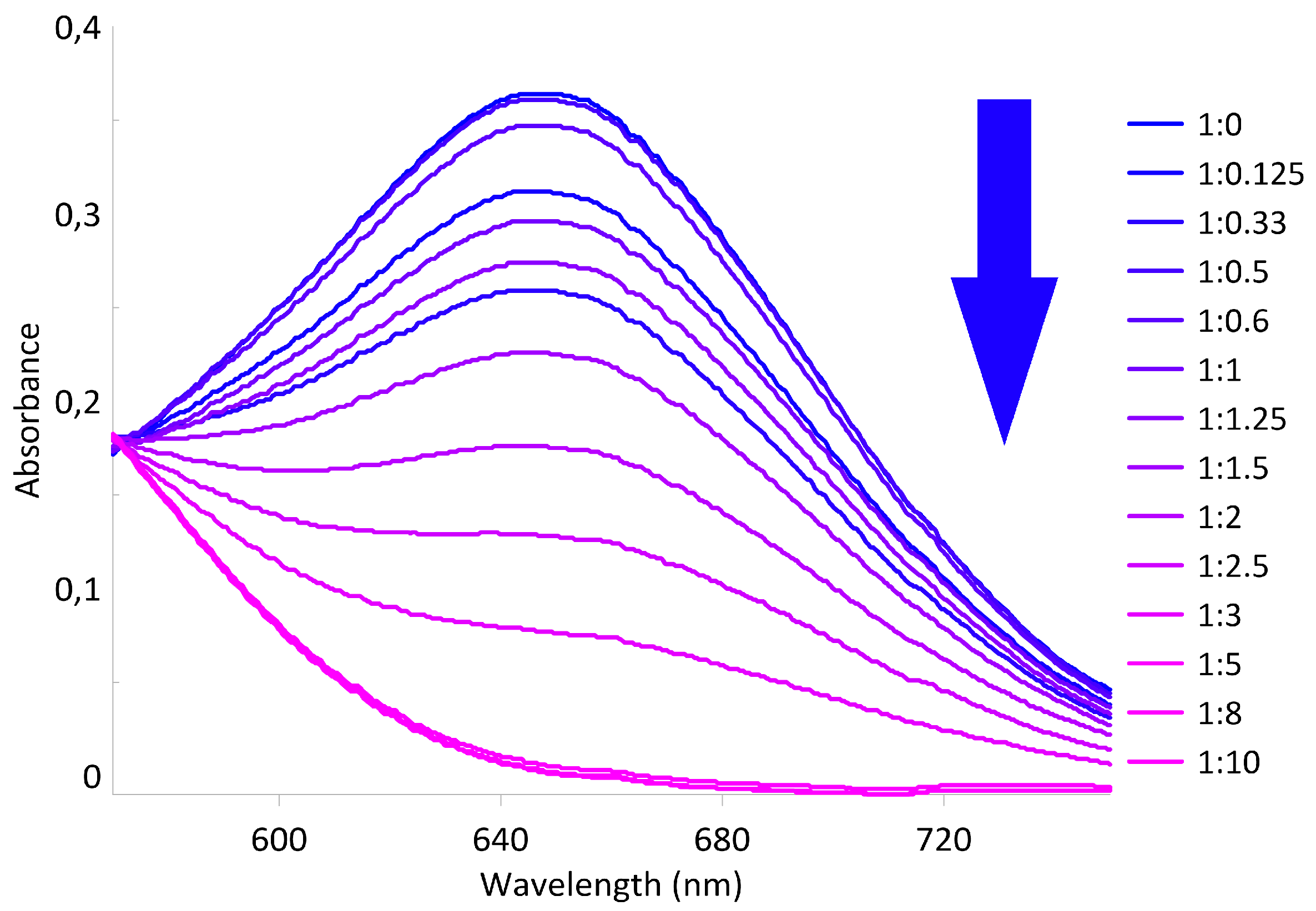

Figure 4. The absorption band of complex PhTz:4 (equimolar mixture, C = 1 × 10−5 M) at different ratios of the dihydrogen phosphate anion. Ratios of [PhTz]:[H2PO4] are listed on the inset.
Figure 4. The absorption band of complex PhTz:4 (equimolar mixture, C = 1 × 10−5 M) at different ratios of the dihydrogen phosphate anion. Ratios of [PhTz]:[H2PO4] are listed on the inset.
Molecules 24 01807 g004
