Molecules 2019, 24(4), 655; https://doi.org/10.3390/molecules24040655

Article
Efficient Synthesis of UDP-Furanoses via 4,5-Dicyanoimidazole(DCI)-Promoted Coupling of Furanosyl-1-Phosphates with Uridine Phosphoropiperidate
Jiangxi Key Laboratory of Organic Chemistry, Jiangxi Science and Technology Normal University, 605 Fenglin Avenue, Nanchang 330013, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Katherine L. Seley-Radtke
Received: 18 January 2019 / Accepted: 11 February 2019 / Published: 13 February 2019

Abstract

:
A P(V)-N activation method based on nucleoside phosphoropiperidate/DCI system has been developed for improved synthesis of diverse UDP-furanoses. The reaction conditions including temperature, amount of activator, and reaction time were optimized to alleviate the degradation of UDP-furanoses to cyclic phosphates. In addition, an efficient and facile phosphoramidite route was employed for the preparation of furanosyl-1-phosphates.
Keywords:
NDP-sugar; P(V)-N activation; furanosyl-1-phosphate; nucleoside phosphoropiperidate; 4,5-dicyanoimidazole

1. Introduction

d-Galactofuranose (d-Galf) is a ubiquitous glycosyl residue in the extracelluar glycans, glycoproteins, and glycosphingolipids of microorganisms, such as bacteria, protozoa, fungi, and parasites [1,2,3]. In addition, many other furanoses, such as d-glucofuranose (d-Glcf), d-fucofuranose (d-Fucf), d-mannofuranose (d-Manf), l-arabinofuranose (l-Araf), and l-fucofuranose (l-Fucf) have also been found in various microbes and plants [4,5,6,7,8]. It has been revealed that furanose-containing polysaccharides and glycoconjugates are crucial for the survival and pathogenicity of many microorganisms, but completely absent in mammalian cells [9,10,11,12]. Therefore, their biosynthesis has long been recognized as a potential therapeutic target for microbial infections [13,14]. Currently, it has been elucidated that UDP-galactofuranose (UDP-Galf) as the sugar donor is transformed from UDP-galactopyranose (UDP-Galp) by UDP-Galp mutase [15,16,17] and is the substrate of galactofuranosyltransferase for the incorporation into microbial sugar derivatives [18]. However, the limited availability of UDP-Galf as well as other UDP-furanoses from enzymatic synthesis greatly hampers the identification of more UDP-pyranose mutases/furanosyltransferases and further understanding of their mechanism of actions [19].
Since the five-membered ring of furanoses is thermodynamically disfavored, furanosyl-1-phosphates are difficult to prepare [20]. Compared to UDP-pyranoses, UDP-furanoses are much more prone to degrade into furanosyl-1,2-cyclic phosphate and UMP even during the coupling process. Therefore, the chemical synthesis and purification of UDP-furanoses are notoriously inefficient [21]. Up to date, there are only very limited reports on the chemical synthesis of UDP-furanoses. The coupling of furanosyl-1-phosphate with activated UMPs, such as imidazolide [22,23,24], morpholidate [25,26], N-methyl imidazolide [27,28], has been utilized as the major approach to afford UDP-furanoses. The reactions of imidazolide and morpholidate are typically low-yielding (<20%) and require 1–2 days to finish. Although the employment of more reactive N-methyl imidazolide shortens the reaction time to a few hours, the yields of UDP-furanoses are low (8–35%). Alternatively, benzimidazolyl thiofuranosides have been prepared to couple with UDP [29]. The reaction rate of this method is fast (10 min–1 h). But the yields of UDP-furanoses are still within the range of 20–30%. In addition, the benzimidazolyl thiofuranosides have also been employed for the preparation of furanosyl-1-phosphates. The combined strength of chemical synthesis of furanosyl-1-phosphates and a galactose-1-phosphate uridylyltransferase provided a stereoselective chemoenzymatic approach to specific UDP-furanoses [30].
In our previous research, we developed a novel P(V)-N activation strategy based on nucleoside 5′-phosphoropiperidate/4,5-dicyanoimidazole (DCI) system for highly efficient synthesis of nucleoside 5′-polyphosphates [31,32,33]. Its further application on the synthesis of NDP-6-deoxy-l-pyranoses showed that piperidate/DCI system is much more reactive than the conventional imidazolide or morpholidate/1H-tetrazole system [34]. Herein, we report an improved synthesis of diverse UDP-furanoses based on the piperidate/DCI system. An efficient and facile phosphoramidite route for the preparation of furanosyl-1-phosphates was also developed.

2. Results and Discussion

2.1. A Phosphoramidite Approach for Furanosyl-1-Phosphate Synthesis

For the P(V)–N activation strategy-based synthesis of UDP-furanoses, sugar-1-phosphate is an essential reactant but with poor availability. Previously, furanosyl-1-phosphates have been primarily prepared by coupling benzoyl-protected furanosyl-1-bromide with dibenzyl phosphate [20]. This method typically requires long reaction time and the yields are moderate (40–50%). Alternatively, furanosyl-1-phosphates have been prepared from thiofuranosides [30,35]. Based on our previous research on the phosphorylation of saccharides and nucleosides [36,37], we attempted to synthesize furanosyl-1-phosphates via a phosphoramidite route. As shown in Scheme 1, phosphitylation of 1-OH of Bz-protected furanoses 14 with benzyl-N,N-diisopropylchlorophosphoramidite, 1H-tetrazole- catalyzed alcoholysis, and in situ oxidation with H2O2 afforded crude 58 in good yields over three consecutive fast steps. However, we found that the α anomer of l-Araf (5) decomposed completely during flash column chromatography and only the β anomer was isolated in 32% yield. Similarly, only the β anomer of d-Galf (6) survived column purification and was obtained in 30% yield. In contrast, the phosphate triesters of d-Glcf (7) and d-6F-Galf (8) were much more stable and isolated as anomeric mixtures in over 75% yields. Catalytic hydrogenation followed by treatment with MeOH/H2O/Et3N (5:2:1) gave the desired furanosyl-1-phosphates 912 in excellent yields.

2.2. The Attempt to Synthesize UDP-l-Araf (16) from Benzoyl-Protected l-Arabinofuranosyl-1-Phosphate (13)

As mentioned above, UDP-furanoses are easy to decompose to 1,2-cyclic furanosyl phosphate due to the presence of free 2-OH. To avoid the formation of 1,2-cyclic phosphate byproduct, our initial attempt to synthesize UDP-furanoses via the P(V)-N activation strategy was to couple 2,3,5-tribenzoyl-protected l-Araf-1-phosphate (13) with 2 equiv of uridine 5′-phosphoropiperidate (14) in the presence of 2 equiv of DCI in DMF at 30 °C. 31P NMR tracing experiment (Figure 1) showed that Bz-protected UDP-l-Araf (15) formed smoothly over 24 h when piperidate 14 was completely consumed. While ~10% of the starting sugar phosphate 13 was left unreacted, its conversion to 15 was nearly 90% based on 31P NMR integration. Meanwhile, diuridine diphosphate (Up2U) and uridine monophosphate (UMP) were observed as the major byproducts. It is noteworthy that benzoyl-protection on l-Araf moiety completely suppressed the formation of 1,2-cyclic phosphate byproduct and the desired 15 was isolated in 71% yield.
Although the P(V)-N activation strategy yielded an excellent result in the coupling step, we were also clearly aware of the possibility that the final deprotection step may cause undesired decomposition to sugar 1,2-cyclic phosphate. As shown in Scheme 2, both MeOH/H2O/Et3N (7:3:1) [38] and MeONa/MeOH [36] deprotection methods caused almost total breakdown of 15 to equal amounts of 1,2-cyclic phosphate and UMP, while the MeOH/TEAB buffer/Et3N (3:4:0.05) method reported by Williams et al. [39] was not effective at the claimed low temperature (−20 °C). The above experimental results reveal that the UDP-l-Araf has very strong tendency to decompose via the intramolecular cyclization under basic conditions at room temperature.

2.3. The P(V)-N Activation Method for the Synthesis UDP-Furanoses from Furanosyl-1-Phosphates

The failure to deprotect 15 without causing decomposition urged us to go back to the direct coupling of phosphate 9 with piperidate 14 under the P(V)-N activation conditions (Figure 2). The reaction temperature was intentionally lowered to 20 °C to alleviate degradation of the UDP-l-Araf product. As expected, the formation of 1,2-cyclic phosphate was observed. Surprisingly, the reaction between 14 and fully deprotected 9 was significantly faster (8 h) than that with Bz-protected 13, which in turn reduced the undesired self-condensation of 14. On the basis of 31P NMR integration, it was estimated that UDP-l-Araf (16) and 1,2-cyclic phosphate were obtained in 61% and 25% yields, respectively.
To suppress the degradation of 16 and self-condensation of 14, we further reduced the amount of activating reagent. When 1.25 equiv of DCI was applied, close analysis of the composition of the reaction mixture at different reaction time showed that the yield of 16 reached the maximum level (68%) at 8 h when 22% of 9 remained unreacted and 10% 1,2-cyclic phosphate byproduct was formed (Figure 3). However, as the reaction proceeded, the yield of 16 did not increase anymore due to its degradation, which occurred in a comparable rate to its formation. When most of 9 was consumed (5% left) at 18 h, the formation of 1,2-cyclic phosphate (increased to 27%) and Up2U byproduct was further aggravated. Therefore, quenching the reaction at 8 h should be beneficial for easier purification.
With the optimized conditions, four UDP-furanoses 1619 were prepared via the P(V)-N activation method. The coupling of furanosyl-1-phosphates 912 with 2 equiv of piperidate 14 in the presence of 1.25 equiv of DCI at 20 °C for 8 h afforded 1619 in 49–53% yields after preparative HPLC purification (Scheme 3). It was determined that adjustment of the pH of TEAB buffer (10 mM) to 8.0 by adding acetic acid is helpful to minimize the decomposition of UDP-furanoses during HPLC purification. It is worth mentioning that 31P NMR tracing of the reactions of 18 and 19 showed that the anomeric configuration of furanosyl is an important factor for not only the stability of the UDP-furanose product but also the reactivity of the sugar-1-phosphate reactant. For instance, the UDP-α-d-Glcf was much labile than UDP-β-d-Glcf and completely decomposed during the reaction. When the reaction of d-6F-Galf-1-phosphate (12) was stopped at 8 h, 95% of the β anomer had been converted to the product, but only 68% of the α anomer had reacted. After preparative HPLC purification, only UDP-β-d-6F-Galf (19) was obtained as the sole product.

3. Materials and Methods

3.1. General Methods

General chemical reagents and solvents were obtained from commercial suppliers. The Bz-protected furanoses (14) were prepared according to known procedures [27,29,40,41,42]. Uridine 5′-phosphoropiperidate (14) was prepared according to a previous report [32]. All reactions were performed under an atmosphere of inert gas and monitored by thin layer chromatography on plates coated with 0.25 mm silica gel 60 F254. TLC plates were visualized by UV irradiation (254 nm). Flash column chromatography employed silica gel (particle size 32–63 μm). All NMR spectra were obtained with a Bruker AV-400 instrument (Billerica, MA, USA) with chemical shifts reported in parts per million (ppm, δ) and referenced to CDCl3, MeOH-d4, or D2O. The NMR spectra of compounds 513 and 1519 were provided in Supplementary Materials (Figures S1–S42). Low- and high-resolution mass spectra were reported as m/z and obtained with a Bruker amaZon SL and a Bruker Dalton microTOFQ II mass spectrometer, respectively. The HPLC traces of 1619 were recorded on an Agilent 1260 instrument equipped with a Waters XTerra MS C18 analytical column (4.6 × 150 mm, 5 μm) [flow rate = 1.0 mL/min; linear gradient of 5% to 100% MeOH in TEAB buffer (10 mM, pH 8.0) over 10 min; UV detection at 254 nm] and provided in Supplementary Materials (Figures S43–S46).

3.2. General Synthetic Procedure and Characterization of Protected Furanosyl-1-Phosphates 58

To a solution of Bz-protected furanoses 14 (1.0 mmol) and Et3N (2.0 mmol) in CH2Cl2 (1.7 mL) was added a solution of benzyl-N,N-diisopropylchlorophosphoramidite (1.7 mmol) in CH2Cl2 (0.3 mL), dropwise, at 35 °C. The reaction was stirred for 30 min and concentrated in vacuo. The residue was co-evaporated with CH3CN (5 mL × 2), and redissolved in EtOAc (5 mL). The Et3N∙HCl salt was removed by filtration and the filtrate was concentrated to afford the crude phosphoramidite intermediate. To a solution of the intermediate in CH2Cl2 (10 mL) was added 1H-tetrazole (4.0 mmol) and benzyl alcohol (2 mmol). The reaction was stirred for 1 h, diluted with CH2Cl2 (20 mL), and washed with HCl aqueous solution (0.1 M, 10 mL) followed by deionized H2O (10 mL). The organic phase was dried over anhydrous Na2SO4 and concentrated in vacuo to give the crude phosphite triester intermediates, which were briefly purified by an ultrafast flash column chromatography method (PE/EA = 5:1, elution time = ~5 min). To an ice-cooled solution of the phosphite triesters in THF (10 mL) was added 30% H2O2 (10 mmol) dropwise. The reaction was stirred for 10 min and concentrated in vacuo. The residue was dissolved in EtOAc (30 mL) and the organic phase was washed with HCl aqueous solution (0.1 M, 10 mL) followed by deionized H2O (10 mL), dried over anhydrous Na2SO4, and concentrated in vacuo. Flash column chromatography (PE/EA = 6:1) afforded 58 in pure form.
Dibenzyl 2,3,5-tri-O-benzoyl-β-l-arabinofuranosyl-1-phosphate (5). The reaction of 1 (462 mg, 1.0 mmol) afforded 5 (231 mg, 32%) as a colorless syrup. 1H NMR (400 MHz, CDCl3) δ 8.08–8.03 (m, 6H), 7.62–7.55 (m, 2H), 7.52–7.44 (m, 3H), 7.39 (t, J = 7.7 Hz, 2H), 7.32 (t, J = 7.7 Hz, 3H), 7.28–7.24 (m, 5H), 7.21–7.18 (m, 2H), 7.12–7.09 (m, 2H), 6.34 (dd, J1 = 5.3 Hz, J2 = 4.6 Hz, 1H), 6.05–5.99 (m, 1H), 5.77–5.72 (m, 1H), 5.06–4.99 (m, 1H), 4.98–4.89 (m, 2H), 4.88–4.81 (m, 1H), 4.80–4.74 (m, 1H), 4.68–4.59 (m, 2H) ppm; 13C NMR (100 MHz, CDCl3) δ 166.0, 165.7, 165.5, 135.4, 133.7, 133.6, 133.1, 130.0, 129.9, 129.8, 129.6, 128.8, 128.4, 128.3, 127.7, 127.6, 98.1, 80.0, 75.1, 69.3, 65.3 ppm; 31P NMR (162 MHz, CDCl3) δ −2.4 ppm; LRMS (ESI+) m/z calcd for C40H36O11P+ [M + H]+ 723.2; found 723.2.
Dibenzyl 2,3,5,6-tetra-O-benzoyl-β-d-galactofuranosyl-1-phosphate (6). The reaction of 2 (596 mg, 1.0 mmol) afforded 6 (257 mg, 30%) as a colorless syrup. 1H NMR (400 MHz, CDCl3) δ 8.03 (d, J = 7.8 Hz, 4H), 7.93 (d, J = 7.6 Hz, 2H), 7.85 (d, J = 7.9 Hz, 2H), 7.60 (t, J = 7.4 Hz, 1H), 7.56–7.47 (m, 3H), 7.42 (t, J = 7.6 Hz, 2H), 7.38–7.24 (m, 15H), 6.13 (d, J = 4.8 Hz, 1H), 6.08–6.05 (m, 1H), 5.63 (d, J = 4.3 Hz, 1H), 5.53 (s, 1H), 5.18–5.09 (m, 4H), 4.72 (t, J = 3.9 Hz, 1H), 4.65 (d, J = 5.6 Hz, 2H) ppm; 13C NMR (100 MHz, CDCl3) δ 164.8, 164.5, 164.4, 164.1, 134.5, 134.4, 134.3, 132.6, 132.5, 132.2 132.0, 129.0, 128.8, 128.7, 128.4, 127.7, 127.6, 127.5, 127.4, 127.3, 127.0, 126.8, 102.1, 82.9, 81.0, 76.2, 69.1, 68.6, 68.5, 62.4 ppm; 31P NMR (162 MHz, CDCl3) δ −3.0 ppm; LRMS (ESI+) m/z calcd for C48H42O13P+ [M + H]+ 857.2; found 857.2.
Dibenzyl 2,3,5,6-tetra-O-benzoyl-d-glucofuranosyl-1-phosphate (7). The reaction of 3 (596 mg, 1.0 mmol) afforded 7 (676 mg, 79%) as a colorless syrup. α-Isomer: 1H NMR (400 MHz, CDCl3) δ 8.06 (d, J = 7.6 Hz, 2H), 7.97 (d, J = 8.0 Hz, 2H), 7.83 (d, J = 7.7 Hz, 2H), 7.75 (d, J = 6.6 Hz, 2H), 7.64 (t, J = 7.4 Hz, 2H), 7.45–7.24 (m, 15H), 7.24–7.19 (m, 2H), 7.12 (d, J = 6.6 Hz, 2H), 6.38 (t, J = 4.8 Hz, 1H), 6.23 (t, J = 5.8 Hz, 1H), 5.81–5.78 (m, 2H), 5.62 (s, 1H), 5.08–5.01 (m, 2H), 4.98–4.94 (m, 3H), 4.89–4.85 (m, 1H), 4.60 (dd, J1 = 5.2, J2 = 12.3 Hz, 1H) ppm; 13C NMR (100 MHz, CDCl3) δ 166.0, 165.4, 165.2, 165.0, 135.4, 133.7, 133.5, 133.2, 133.1, 130.0, 129.9, 129.7, 129.6, 128.6, 128.5, 128.4, 128.3, 128.2, 127.8, 127.7, 97.4, 77.7, 75.3, 73.8, 69.4, 69.2, 63.3 ppm; 31P NMR (162 MHz, CDCl3) δ −2.6 ppm; β-Isomer: 1H NMR (400 MHz, CDCl3) δ 8.08 (d, J = 7.6 Hz, 2H), 8.01 (d, J = 7.6 Hz, 2H), 7.91 (d, J = 7.6 Hz, 2H), 7.77 (d, J = 7.3 Hz, 2H), 7.57 (t, J = 7.3 Hz, 2H), 7.56–7.45 (m, 5H), 7.45–7.24 (m, 13H), 6.19 (d, J = 4.8 Hz, 1H), 6.04 (d, J = 5.1 Hz, 1H), 5.97–5.95 (m, 1H), 5.61 (s, 1H), 5.34–5.25 (m, 2H), 5.22–5.18 (m, 3H), 4.99–4.96 (m, 3H), 4.72–4.67 (m, 1H) ppm; 13C NMR (100 MHz, CDCl3) δ 166.0, 164.9, 164.7, 164.6, 135.5, 135.4, 135.3, 133.9, 133.5, 133.1, 133.0, 130.0, 129.9, 129.7, 129.5, 128.7, 128.6, 128.5, 128.4, 128.3, 128.2, 128.0, 127.9, 102.7, 80.7, 80.4, 73.4, 69.7, 69.6, 69.5, 63.6 ppm; 31P NMR (162 MHz, CDCl3) δ −3.2 ppm; LRMS (ESI+) m/z calcd for C48H42O13P+ [M + H]+ 857.2; found 857.2.
Dibenzyl 2,3,5-tri-O-benzoyl-6-deoxy-6-fluoro-d-galactofuranosyl-1-phosphate (8). The reaction of 4 (494 mg, 1.0 mmol) afforded 8 (565 mg, 75%) as a colorless syrup. α-Isomer: 1H NMR (400 MHz, CDCl3) δ 8.28 (d, J = 7.6 Hz, 2H), 8.13 (d, J = 8.2 Hz, 4H), 7.73 (t, J = 7.4 Hz, 2H), 7.69–7.61 (m, 2H), 7.57 (t, J = 7.5 Hz, 2H), 7.53–7.37 (m, 9H), 7.29 (d, J = 6.6 Hz, 2H), 7.21 (d, J = 7.0 Hz, 2H), 6.47 (t, J = 5.0 Hz, 1H), 6.29 (d, J = 8.0 Hz, 2H), 6.07–5.95(m, 1H), 5.88–5.82 (m, 2H), 5.78 (dd, J = 16.5, 4.7 Hz, 1H), 5.15–5.04 (m, 1H), 4.75–4.69 (m, 3H) ppm; 13C NMR (100 MHz, CDCl3) δ 165.5, 165.1, 135.6, 135.5, 135.4, 130.1, 129.9, 129.8, 128.6, 128.5, 128.4, 127.8, 97.6, 80.3 (d, J = 172 Hz), 79.1, 76.5, 71.2, 69.5, 69.3 ppm; 31P NMR (162 MHz, CDCl3) δ −2.8 ppm; β-Isomer: 1H NMR (400 MHz, CDCl3) δ 8.17 (d, J = 7.5 Hz, 4H), 8.00 (d, J = 7.6 Hz, 2H), 7.73 (t, J = 7.4 Hz, 1H), 7.69–7.61 (m, 2H), 7.57 (t, J = 7.6 Hz, 2H), 7.53–7.37 (m, 9H), 6.26 (d, J = 4.6 Hz, 1H), 6.04–5.94 (m, 1H), 5.72 (d, J = 4.5 Hz, 1H), 5.56 (s, 1H), 5.32–5.23 (m, 4H), 4.99–4.91 (m, 1H), 4.84–4.79 (m, 2H) ppm; 13C NMR (100 MHz, CDCl3) δ 165.6, 165.1, 133.7, 133.6, 133.4, 130.1, 130.0, 129.9, 128.6, 128.5, 128.4, 128.0, 127.9, 103.1, 83.0, 82.1, 80.9 (d, J = 173 Hz), 76.9, 70.3, 70.1, 69.7, 69.5 ppm; 31P NMR (162 MHz, CDCl3) δ −3.5 ppm; LRMS (ESI+) m/z calcd for C41H37PO11F+ [M + H]+ 755.2; found 755.2.

3.3. General Synthetic Procedure and Characterization of Furanosyl-1-Phosphates 913

To a solution of phosphite triesters 58 (200 mg) and 2 equiv of Et3N in dry methanol (3 mL) was added 5wt% Pd/C (20 mg). The reaction was stirred under an atmosphere of hydrogen at ambient temperature for 8 h. Then, the catalyst was filtered off. The filtrate was dried to afford crude phosphate. For compound 13, the crude product was directly dissolved in CH2Cl2 and purified by Sephadex LH-20 size exclusion gel chromatography. For compounds 9–12, the crude products were dissolved in MeOH/H2O/Et3N (5:2:1, 10 mL) and stirred for 24 h at ambient temperature. After concentration, the crude product was dissolved in MeOH and purified by Sephadex LH-20 size exclusion gel chromatography. A combination of appropriate fractions and concentration afforded 913 in triethylammonium salt form.
Triethylammonium β-l-arabinofuranosyl-1-phosphate (9). The reaction of 5 (200 mg, 0.28 mmol) afforded 9 (73 mg, 83%) as a colorless syrup. 1H NMR (400 MHz, D2O) δ 5.54 (d, J = 3.6 Hz, 1H), 4.16 (d, J = 4.4 Hz, 2H), 3.93–3.89 (m, 1H), 3.81 (dd, J1 = 12.5 Hz, J2 = 2.8 Hz, 1H), 3.69 (dd, J1 = 12.5 Hz, J2 = 5.8 Hz, 1H), 3.21 (q, J = 7.6 Hz, 6H), 1.29 (t, J = 7.6 Hz, 9H) ppm; 13C NMR (100 MHz, D2O) δ 97.1, 82.6, 76.9, 73.6, 62.4, 47.0, 8.5 ppm; 31P NMR (162 MHz, D2O) δ −0.8 ppm; LRMS (ESI−) m/z calcd for C5H10O8P [M − H] 229.1; found 229.1.
Triethylammonium β-d-galactofuranosyl-1-phosphate (10). The reaction of 6 (200 mg, 0.23 mmol) afforded 10 (83 mg, 85%) as a colorless syrup. 1H NMR (400 MHz, D2O) δ 5.38 (d, J = 6.1 Hz, 1H), 4.07 (s, 1H), 4.01 (dd, J1 = 6.0 Hz, J2 = 4.2 Hz, 2H), 3.97 (dd, J1 = 5.7 Hz, J2 = 3.2 Hz, 1H), 3.75–3.68 (m, 1H), 3.63 (dd, J1 = 11.6 Hz, J2 = 4.6 Hz, 1H), 3.55 (dd, J1 = 11.6 Hz, J2 = 7.2 Hz, 1H), 3.22 (q, J = 7.2 Hz, 6H), 1.23 (t, J = 7.2 Hz, 9H) ppm; 13C NMR (100 MHz, D2O): δ 102.5, 83.2, 81.6, 76.4, 70.5, 62.2, 46.2, 7.8 ppm; 31P NMR (162 MHz, D2O) δ −0.3 ppm; LRMS (ESI−) m/z calcd for C6H12O9P [M − H] 259.0; found 259.0.
Triethylammonium d-glucofuranosyl-1-phosphate (11). The reaction of 7 (200 mg, 0.23 mmol) afforded 11 (90 mg, 88%) as a colorless syrup. α-Isomer: 1H NMR (400 MHz, D2O) δ 5.57 (t, J = 5.2 Hz, 1H), 4.24 (t, J = 4.0 Hz, 1H), 4.15–4.10 (m, 2H), 3.81–3.86 (m, 1H), 3.75–3.66 (m, 2H), 3.23 (q, J = 7.2 Hz, 6H), 1.25 (t, J = 7.2 Hz, 9H) ppm; 13C NMR (100 MHz, D2O) δ 97.8, 80.7 78.3, 77.3, 75.2, 63.1, 46.8, 8.2 ppm; 31P NMR (162 MHz, D2O) δ −0.9 ppm; β-Isomer: 1H NMR (400 MHz, D2O) δ 5.37 (d, J = 6.3 Hz, 1H), 4.19–4.14 (m, 2H), 4.12–4.04 (m, 1H), 3.98–3.90 (m, 1H), 3.77–3.65 (m, 2H), 2.93 (q, J = 7.2 Hz, 6H), 1.16 (t, J = 7.2 Hz, 9H) ppm; 13C NMR (100 MHz, D2O) δ 103.4, 82.0, 80.7, 75.0, 69.7, 63.5, 46.9, 8.3 ppm; 31P NMR (162 MHz, D2O) δ −1.9 ppm; LRMS (ESI−) m/z calcd for C6H12O9P [M − H] 259.0; found 259.0.
Triethylammonium 6-deoxy-6-fluoro-d-galactofuranosyl-1-phosphate (12). The reaction of 8 (200 mg, 0.27 mmol) afforded 12 (112 mg, 86%) as a colorless syrup. α-Isomer: 1H NMR (400 MHz, D2O) δ 5.55 (d, J = 4.7 Hz, 1H), 4.74–4.48 (m, 2H), 4.31–3.88 (m, 4H), 2.93 (q, J = 7.2 Hz, 6H), 1.19 (t, J = 7.2 Hz, 9H) ppm; 13C NMR (100 MHz, D2O) δ 96.5, 83.6 (d, J = 162 Hz), 80.5, 76.2, 73.2, 70.1 46.3, 7.9 ppm; 31P NMR (162 MHz, D2O) δ −0.76 ppm; β-Isomer: 1H NMR (400 MHz, D2O) δ 5.53 (d, J = 5.8 Hz, 1H), 4.74–4.48 (m, 2H), 4.31–3.88 (m, 4H), 2.93 (q, J = 7.2 Hz, 6H), 1.19 (t, J = 7.2 Hz, 9H) ppm; 13C NMR (100 MHz, D2O) δ 102.9, 84.2(d, J = 165 Hz), 83.0, 81.5, 76.4, 69.1, 46.3, 7.9 ppm; 31P NMR (162 MHz, D2O) δ −1.8 ppm; LRMS (ESI−) m/z calcd for C6H11PO8F [M − H] 261.1; found 261.1.
Triethylammonium 2,3,5-tri-O-benzoyl-β-l-arabinofuranosyl-1-phosphate (13). The reaction of 5 (200 mg, 0.28 mmol) afforded 13 (179 mg, 98%) as a colorless syrup. 1H NMR (400 MHz, CDCl3) δ 8.11 (d, J = 7.7 Hz, 2H), 7.98 (dd, J1 = 11.6 Hz, J2 = 8.0 Hz, 2H), 7.58–7.43 (m, 3H), 7.43–7.32 (m, 5H), 7.27 (t, J = 7.6 Hz, 2H), 6.22–6.10 (m, 1H), 6.04 (t, J = 6.2 Hz, 1H), 5.73–5.63 (m, 1H), 4.75 (d, J = 6.3 Hz, 2H), 4.50 (q, J = 6.0 Hz, 1H), 2.91 (q, J = 8.0 Hz, 6H), 1.14 (t, J = 8.0 Hz, 9H) ppm; 13C NMR (100 MHz, CDCl3) δ 166.3, 166.0, 165.8, 133.4, 133.1, 132.9, 130.3, 129.9 (×2), 129.5, 128.5, 128.4, 128.3, 96.6, 78.6, 77.6, 77.3, 77.1, 77.0, 66.6, 45.4, 8.6 ppm; 31P NMR (162 MHz, CDCl3) δ −0.8 ppm; LRMS (ESI−) m/z calcd for C26H22O11P [M − H] 541.1; found 541.1.

3.4. General Synthetic Procedure and Characterization of UDP-Furanoses 1519

To a solution of uridine 5′-phosphoropiperidate (0.4 mmol) and furanosyl-1-phosphates 913 (0.2 mmol) in dry DMF was added 4,5-dicyanoimidazole (DCI, 0.25 mmol (912) or 0.4 mmol (13)). The reaction was stirred at 20 °C for 8 h (912) or 30 °C for 24 h (13). Then, the solution was concentrated in vacuo. The residues of 1619 was dissolved in TEAB buffer (0.5 mL, pH = 8.0) and purified by a preparative reverse phase HPLC (XTerra Prep MS C18, 10 μm, 19 × 250 mm) [flow rate = 20 mL/min; linear gradient of 5% to 15% MeOH in TEAB buffer (10 mM, pH 8.0) over 15 min; UV detection at 254 nm; the retention time of 1619 was between 5–7 min]. Compound 15 was purified using NH4HCO3 buffer (10 mM, pH = 8.5) [flow rate = 20 mL/min; linear gradient of 10% to 55% MeOH in NH4HCO3 buffer over 5 min, then 55% to 100% MeOH in NH4HCO3 buffer over 10 min; UV detection at 254 nm; the retention time of 15 was 12.8 min]. Combination of appropriate fractions and lyophilization afforded products 1619 in triethylammonium salt form. The ammonium salt of 15 was further converted into disodium salt by passing through a small column of Na+ ion exchange resin.
UDP-2,3,5-tri-O-benzoyl-β-l-arabinofuranose (15). The reaction of 13 (20 mg, 0.031 mmol) afforded 15 (20 mg, 71%) as disodium salt, a glassy solid. 1H NMR (400 MHz, MeOH-d4) δ 8.11 (d, J = 7.5 Hz, 2H), 7.99 (d, J = 7.3 Hz, 3H), 7.94 (d, J = 7.3 Hz, 2H), 7.64–7.54 (m, 2H), 7.54–7.41 (m, 5H), 7.31 (t, J = 7.8 Hz, 2H), 6.21 (s, 1H), 6.01 (t, J = 6.3 Hz, 1H), 5.92 (d, J = 5.0 Hz, 1H), 5.80 (d, J = 8.0 Hz, 1H), 5.75–5.66 (m, 1H), 4.75 (d, J = 6.3 Hz, 2H), 4.58 (q, J = 6.0 Hz, 1H), 4.29 (t, J = 4.4 Hz, 1H), 4.24–4.14 (m, 3H), 4.05 (s, 1H) ppm; 13C NMR (100 MHz, MeOH-d4) δ 165.2, 164.7, 164.6, 163.8, 150.2, 140.3, 132.1, 132.0, 131.7, 128.7, 128.5, 128.3, 128.2, 128.1, 127.2, 127.1, 127.0, 100.8, 95.9, 87.4, 82.5, 77.1, 75.7, 73.2, 68.8, 64.8, 63.7 ppm; 31P NMR (162 MHz, MeOH-d4) δ −10.3, −12.7 ppm; IR νmax 3563, 3062, 2975, 2927, 2893, 1723, 1698, 1682, 1602, 1585, 1452, 1316, 1266, 1179, 1111, 1071, 1047, 1001, 936, 880, 709 cm−1; HRMS (ESI−) m/z calcd for C35H33N2O19P2 [M − H] 847.1158; found 847.1153.
UDP-β-l-arabinofuranose (16). The reaction of 9 (20 mg, 0.063 mmol) afforded 16 (24 mg, 52%) as bis(triethylammonium) salt, a glassy solid. 1H NMR (400 MHz, D2O) δ 7.88 (d, J = 8.1 Hz, 1H), 5.88 (d, J = 8.4 Hz, 2H), 5.55 (s, 1H), 4.29 (s, 2H), 4.23–4.17 (m, 3H), 4.07 (d, J = 4.7 Hz, 2H), 3.83 (s, 1H), 3.72 (d, J = 12.5 Hz, 1H), 3.65–3.55 (m, 1H), 3.12 (q, J = 7.3 Hz, 12H), 1.19 (t, J = 7.3 Hz, 18H) ppm; 13C NMR (100 MHz, D2O) δ 167.7, 153.3, 143.1, 104.2, 99.3, 89.9, 84.8, 84.2, 78.2, 75.2, 74.9, 71.2, 66.5, 63.8, 48.2, 9.7 ppm; 31P NMR (162 MHz, D2O) δ −11.1, −12.4 ppm; LRMS (ESI−) m/z calcd for C14H21N2O16P2 [M − H] 535.0; found 535.0.
UDP-β-d-galactofuranose (17). The reaction of 10 (20 mg, 0.048 mmol) afforded 17 (19 mg, 51%) as bis(triethylammonium) salt, a glassy solid. 1H NMR (400 MHz, D2O) δ 7.90 (d, J = 7.9 Hz, 1H), 5.91 (d, J = 9.6 Hz, 2H), 5.52 (d, J = 5.3 Hz, 1H), 4.31 (s, 2H), 4.22–4.10 (m, 5H), 4.02 (s, 1H), 3.76 (s, 1H), 3.71–3.52 (m, 2H), 3.13 (q, J = 7.2 Hz, 12H), 1.21 (t, J = 7.2 Hz, 18H) ppm; 13C NMR (100 MHz, D2O) δ 167.0, 152.6, 142.4, 104.7, 103.5, 89.1, 85.0, 84.1, 82.7, 77.6, 74.6, 71.6, 70.5, 65.7, 63.4, 47.5, 9.0 ppm; 31P NMR (162 MHz, D2O) δ −11.2, −13.5 ppm; LRMS (ESI−) m/z calcd for C15H23N2O17P2 [M − H] 565.0; found 565.0.
UDP-β-d-glucofuranose (18). The reaction of 11 (20 mg, 0.046 mmol) afforded 18 (19 mg, 53%) as bis(triethylammonium) salt, a glassy solid. 1H NMR (400 MHz, D2O) δ 7.87 (d, J = 8.1 Hz, 1H), 5.89 (d, J = 7.8 Hz, 2H), 5.49 (d, J = 6.2 Hz, 1H), 4.37 (s, 2H), 4.29 (s, 1H), 4.24–4.17 (m, 5H), 4.00 (s, 1H), 3.79 (d, J = 11.8 Hz, 1H), 3.63 (dd, J1 = 12.0, J2 = 5.8 Hz, 1H), 3.11 (q, J = 7.2 Hz, 12H), 1.19 (t, J = 7.2 Hz, 18H) ppm; 13C NMR (100 MHz, D2O) δ 166.3, 152.0, 141.8, 104.0, 102.8, 88.5, 83.5, 82.3, 80.6, 75.0, 73.9, 69.9, 65.1, 64.2, 63. 6, 46.9, 8.4; 31P NMR (162 MHz, D2O) δ −11.1, −13.8 ppm; LRMS (ESI−) m/z calcd for C15H23N2O17P2 [M − H] 565.0; found 565.0.
UDP-6-deoxy-6-fluoro-β-d-galactofuranose (19). The reaction of 12 (20 mg, 0.048 mmol) afforded 19 (18 mg, 49%) as bis(triethylammonium) salt, a glassy solid. 1H NMR (400 MHz, D2O) δ 8.00 (d, J = 8.1 Hz, 1H), 6.02 (d, J = 8.2 Hz, 2H), 5.65 (d, J = 5.5 Hz, 1H), 4.73–4.52 (m, 2H), 4.42 (s, 2H), 4.33–4.24 (m, 5H), 4.15–4.05 (m, 2H), 3.24 (q, J = 7.3 Hz, 12H), 1.32 (t, J = 7.3 Hz, 18H) ppm; 13C NMR (100 MHz, D2O) δ 166.4, 152.1, 141.9, 104.2, 103.0, 88.6, 84.8 (d, J = 173 Hz), 84.0, 83.6, 82.1, 77.0, 74.0, 70.0, 69.7, 65.2, 47.0, 8.5 ppm; 31P NMR (162 MHz, D2O) δ −10.8, −13.2 ppm; LRMS (ESI−) m/z calcd for C15H22FN2O16P2 [M − H] 567.0; found 567.0.

4. Conclusions

In summary, our attempt to synthesize UDP-furanoses via the phosphoropiperidate/DCI system-based P(V)-N activation strategy afforded a more efficient approach. Due to the labile nature of UDP-furanoses, reaction conditions such as temperature (20 °C), amount of activator (1.25 equiv), and reaction time (8 h) were optimized to alleviate the degradation of UDP-furanoses to sugar 1,2-cyclic phosphates. In addition, a phosphoramidite approach for the preparation of furanosyl-1-phosphates, which involves three consecutive fast steps, was also developed. Although the deprotection of benzoyl groups of UDP-l-Araf precursor 15 caused severe degradation to l-Araf-1,2-cyclic phosphate, the much higher coupling efficacy of protected sugar-1-phosphate and complete absence of product degradation exhibited a huge advantage over the coupling with fully deprotected furanosyl-1-phosphates. Future discovery of an efficient and selective deprotection method for benzoyl groups could greatly improve the chemical synthesis of UDP-furanoses.

Supplementary Materials

The following are available online. Figure S1–S42: The NMR spectra of compounds 513 and 1519; Figure S43–S46: The HPLC traces of 1619.

Author Contributions

W.-J.C., S.-S.G., and Q.S. conceived and designed the experiments; W.-J.C., S.-B.H., Z.-B.X., H.-S.H., and D.-H.J. performed the experiments and analyzed the data; S.-S.G. and Q.S. wrote the paper.

Funding

This research was funded by National Natural Science Foundation of China (21562021), Natural Science Foundation (20143ACB21014) and Fellowship for Young Scientists (2015BCB23009) of Jiangxi Province.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. de Lederkremer, R.M.; Colli, W. Galactofuranose-containing glycoconjugates in trypanosomatids. Glycobiology. 1995, 5, 547–552. [Google Scholar] [CrossRef]
  2. Bernnan, P.J.; Nikaido, H. The envelope of mycobacteria. Annu. Rev. Biochem. 1995, 64, 29–63. [Google Scholar] [CrossRef] [PubMed]
  3. Previato, J.O.; Mendonca-Previato, L.; Jones, C.; Wait, R. Structure of the carbohydrate moiety of the glycophosphosphingolipid of Endotrypanum schaudinni. Glycoconjugate. J. 1993, 10, 340. [Google Scholar] [CrossRef]
  4. Moriguchi, T.; Wada, T.; Sekine, M. New nucleoside-sugar conjugates: 6-N-Glycosyloxyphosphorylated adenosine derivatives as partial structures of agrocin 84. J. Org. Chem. 1996, 61, 9223–9228. [Google Scholar] [CrossRef]
  5. Sato, N.; Nakazawa, F.; Sato, M.; Hoshino, E.; Ito, T. Structural studies of the antigenic polysaccharide of Eubacterium saburreum, strain T19. Carbohydr. Res. 1993, 245, 105–111. [Google Scholar] [CrossRef]
  6. Micovic, V.M.; Hranisavljevic-Jakovljevic, M.; Miljkovic-Stojanovic, J. Structural study of polysaccharides from the oak lichen Evernia prunastri (L) Ach.: Part I. An alkali-soluble galatomannan. Carbohydr. Res. 1969, 10, 525–533. [Google Scholar] [CrossRef]
  7. Costantino, V.; Fattorusso, E.; Imperatore, C.; Mangoni, A.; Teta, R. Terpioside from the marine sponge Terpios sp., the first glycosphingolipid having an l-fucofuranose unit. Eur. J. Org. Chem. 2008, 8, 2130–2134. [Google Scholar] [CrossRef]
  8. Fincher, G.B.; Stone, B.A.; Clarke, A.E. Arabinogalactan-proteins: Structure, biosynthesis, and function. Annu. Rev. Plant Physiol. 1983, 34, 47–70. [Google Scholar] [CrossRef]
  9. Peltier, P.; Euzen, R.; Daniellou, R.; Nugier-Chauvin, C.; Ferrières, V. Recent knowledge and innovations related to hexofuranosides: Structure, synthesis and applications. Carbohydr. Res. 2008, 343, 1897–1923. [Google Scholar] [CrossRef]
  10. Brennan, P.J. Structure, function, and biogenesis of the cell wall of mycobacterium tuberculosis. Tuberculosis 2003, 83, 91–97. [Google Scholar] [CrossRef]
  11. Chlubnova, I.; Legentil, L.; Dureau, R.; Pennec, A.; Almendros, M.; Daniellou, R.; Nugier-Chauvin, C.; Ferrières, V. Specific and non-specific enzymes for furanosyl-containing conjugates: Biosynthesis, metabolism, and chemo-enzymatic synthesis. Carbohydr. Res. 2012, 356, 44–61. [Google Scholar] [CrossRef] [PubMed]
  12. Pan, F.; Jackson, M.; Ma, Y.; McNeil, M. Cell wall core galactofuran synthesis is essential for growth of mycobacteria. J. Bacteriol. 2001, 183, 3991–3998. [Google Scholar] [CrossRef] [PubMed]
  13. Richards, M.R.; Lowary, T.L. Chemistry and biology of galactofuranose-containing polysaccharides. ChemBioChem. 2009, 10, 1920–1938. [Google Scholar] [CrossRef] [PubMed]
  14. Pedersen, L.L.; Tourco, S.J. Galactofuranose metabolism: A potential target for antimicrobial chemotherapy. Cell. Mol. Life. Sci. 2003, 60, 259–266. [Google Scholar] [PubMed]
  15. Nassau, P.M.; Martin, S.L.; Brown, R.E.; Weston, A.; Monsey, D.; McNeil, M.R.; Duncan, K. Galactofuranose biosynthesis in Escherichia coli K-12: Identification and cloning of UDP-galactopyranose mutase. J. Bacteriol. 1996, 178, 1047–1052. [Google Scholar] [CrossRef] [PubMed]
  16. Bakker, H.; Kleczka, B.; Gerardy-Schahn, R.; Routier, F.H. Identification and partial characterization of two eukaryotic UDP-galactopyranose mutases. Biol. Chem. 2005, 386, 657–661. [Google Scholar] [CrossRef] [PubMed]
  17. Poulin, M.B.; Nothaft, H.; Hug, I.; Feldman, M.F.; Szymanski, C.M.; Lowary, T.L. Characterization of a bifunctional pyranose-furanose mutase from Campylobacter jejuni 11168. J. Bio. Chem. 2010, 285, 493–501. [Google Scholar] [CrossRef] [PubMed]
  18. Belanova, M.; Dianiskova, P.; Brennan, P.J.; Completo, G.C.; Rose, N.L.; Lowary, T.L.; Mikusova, K. Galactosyl transferases in mycobacterial cell wall synthesis. J. Bacteriol. 2008, 190, 1141–1145. [Google Scholar] [CrossRef]
  19. Lee, R.; Monsey, D.; Weston, A.; Duncan, J.K.; Rithner, C.; McNeil, M. Enzymatic synthesis of UDP-galactofuranose and an assay for UDP-galactopyranose mutase based on high-performance liquid chromatography. Anal. Biochem. 1996, 242, 1–7. [Google Scholar] [CrossRef]
  20. de Lederkremer, R.M.; Nahmad, V.B.; Varela, O. Synthesis of α-d-galactofuranosyl phosphate. J. Org. Chem. 1994, 59, 690–692. [Google Scholar] [CrossRef]
  21. Kovensky, J.; McNeil, M.; Sinay, P. d-Galactofuranosylphosphonates. First synthesis of UDP-C-d-galactofuranose. J. Org. Chem. 1999, 64, 6202–6205. [Google Scholar] [CrossRef]
  22. Tsvetkov, Y.E.; Nikolaev, A.V. The first chemical synthsis of UDP-α- d-galactofuranose. J. Chem. Soc. Perkin Trans. 2000, 1, 889–891. [Google Scholar] [CrossRef]
  23. Mariño, K.; Marino, C.; Lima, C.; Baldoni, L.; de Lederkremer, R.M. The first chemical synthesis of UDP[6 -3H]-α- d-galactofuranose. Eur. J. Org. Chem. 2005, 14, 2958–2964. [Google Scholar]
  24. Snitynsky, R.B.; Lowary, T.L. Synthesis of nitrogen-containing furanose sugar nucleotides for use as enzymatic probes. Org. Lett. 2014, 16, 212–215. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, Q.B.; Liu, H.-W. Studies of UDP-galactopyranose mutase from Escherichia coli: An unusual role of reduced FAD in its catalysis. J. Am. Chem. Soc. 2000, 122, 9065–9070. [Google Scholar] [CrossRef]
  26. Zhang, Q.B.; Liu, H.-W. Chemical synthesis of UDP-β-l-arabinofuranose and its turnover to UDP-β-l-arabinopyranose by UDP-galactopyranose mutase. Bioorg. Med. Chem. Lett. 2001, 11, 145–149. [Google Scholar] [CrossRef]
  27. Marlow, A.L.; Kiessling, L.L. Improved chemical synthesis of UDP-galactofuranose. Org. Lett. 2001, 3, 2517–2519. [Google Scholar] [CrossRef]
  28. Brown, C.D.; Rusek, M.S.; Kiessling, L.L. Fluorosugar chain termination agents as probes of the sequence specificity of a carbohydrate polymerase. J. Am. Chem. Soc. 2012, 134, 6552–6555. [Google Scholar] [CrossRef]
  29. Peltier, P.; Daniellou, R.; Nugier-Chauvin, C.; Ferrières, V. Versatile synthesis of rare nucleotide furanoses. Org. Lett. 2007, 9, 5227–5230. [Google Scholar] [CrossRef]
  30. Peltier, P.; Guegan, J.-P.; Daniellou, R.; Nugier-Chauvin, C.; Ferrières, V. Stereoselective chemoenzymatic synthesis of UDP-1,2-cis-furanoses from α,β-furanosyl 1-phosphates. Eur. J. Org. Chem. 2008, 5988–5994. [Google Scholar] [CrossRef]
  31. Sun, Q.; Gong, S.-S.; Sun, J.; Liu, S.; Xiao, Q.; Pu, S.-Z. A P(V)–N activation strategy for synthesis of nucleoside polyphosphates. J. Org. Chem. 2013, 78, 8417–8426. [Google Scholar] [CrossRef] [PubMed]
  32. Sun, Q.; Gong, S.-S.; Sun, J.; Wang, C.-J.; Liu, S.; Liu, G.-D.; Ma, C. Efficient synthesis of nucleoside 5′-triphosphates and their β,γ-bridging oxygen-modified analogs from nucleoside 5′-phosphates. Tetrahedron Lett. 2014, 55, 2114–2118. [Google Scholar] [CrossRef]
  33. Sun, Q.; Sun, J.; Gong, S.-S.; Wang, C.-J.; Pu, S.-Z.; Feng, F.-D. Efficient synthesis of 5-hydroxymethyl-, 5-formyl-, and 5-carboxyl-2′-deoxycytidine and their triphosphates. RSC Adv. 2014, 4, 36036–36039. [Google Scholar] [CrossRef]
  34. Sun, Q.; Li, X.-J.; Sun, J.; Gong, S.-S.; Liu, G.; Liu, G.-D. An improved P(V)-N activation strategy for the synthesis of nucleoside diphosphate 6-deoxy-l-sugars. Tetrahedron 2014, 70, 294–300. [Google Scholar] [CrossRef]
  35. Ferrières, V.; Blanchard, S.; Fischer, D.; Plusquellec, D. A novel synthesis of d-galactofuranosyl, d-glucofuranosyl and d-mannofuranosyl 1-phosphates based on remote activation of new and free hexofuranosyl donors. Bioorg. Med. Chem. Lett. 2012, 12, 3515–3518. [Google Scholar] [CrossRef]
  36. Sun, Q.; Yang, Q.-K.; Gong, S.-S.; Fu, Q.-L.; Xiao, Q. Synthesis and enzymatic evaluation of phosphoramidon and its β anomer: Anomerization of α-l-rhamnose triacetate upon phosphitylation. Bioorg. Med. Chem. 2013, 21, 6778–6787. [Google Scholar] [CrossRef] [PubMed]
  37. Huang, H.-S.; Wang, R.; Chen, W.-J.; Chen, J.-Z.; Gong, S.-S.; Sun, Q. The first chemical synthesis of pyrazofurin 5′-triphosphate. Tetrahedron Lett. 2018, 59, 3423–3427. [Google Scholar] [CrossRef]
  38. Zamyatina, A.; Gronow, S.; Oertelt, C.; Puchberger, M.; Brade, H.; Kosma, P. Efficient chemical synthesis of the two anomers of ADP-l-glycero- and d-glycero-d-manno-heptopyranose allows the determination of the substrate specificities of bacterial heptosyltransferases. Angew. Chem. Int. Ed. 2000, 39, 4150–4153. [Google Scholar] [CrossRef]
  39. Dinev, Z.; Wardak, A.Z.; Brownleed, R.T.C.; Williams, S.J. A convenient gram-scale synthesis of uridine diphospho(13C6)glucose. Carbohydr. Res. 2006, 341, 1743–1747. [Google Scholar] [CrossRef]
  40. Lubineau, A.; Fischer, J.-C. High-yielding one-step conversion of d-glucose and d-galactose to the corresponding α and β methyl- d-glucofuranosides and galactofuranosides. Synth. Commun. 1991, 21, 815–818. [Google Scholar] [CrossRef]
  41. Euzen, R.; Lopez, G.; Nugier-Chauvin, C.; Ferrières, V.; Plusquellec, D.; Remond, C.; O’Donohue, M. A chemoenzymatic approach for the synthesis of unnatural disaccharides containing d-galacto- or d-fucofuranosides. Eur. J. Org. Chem. 2005, 22, 4860–4869. [Google Scholar] [CrossRef]
  42. Wei, G.; Zhang, L.; Cai, C.; Cheng, S.; Du, Y. Selective cleavage of sugar anomeric O-acyl groups using FeCl3·6H2O. Tetrahedron Lett. 2008, 49, 5488–5491. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.
Scheme 1. A phosphoramidite method for the synthesis of furanosyl-1-phosphates 912.
Scheme 1. A phosphoramidite method for the synthesis of furanosyl-1-phosphates 912.
Molecules 24 00655 sch001

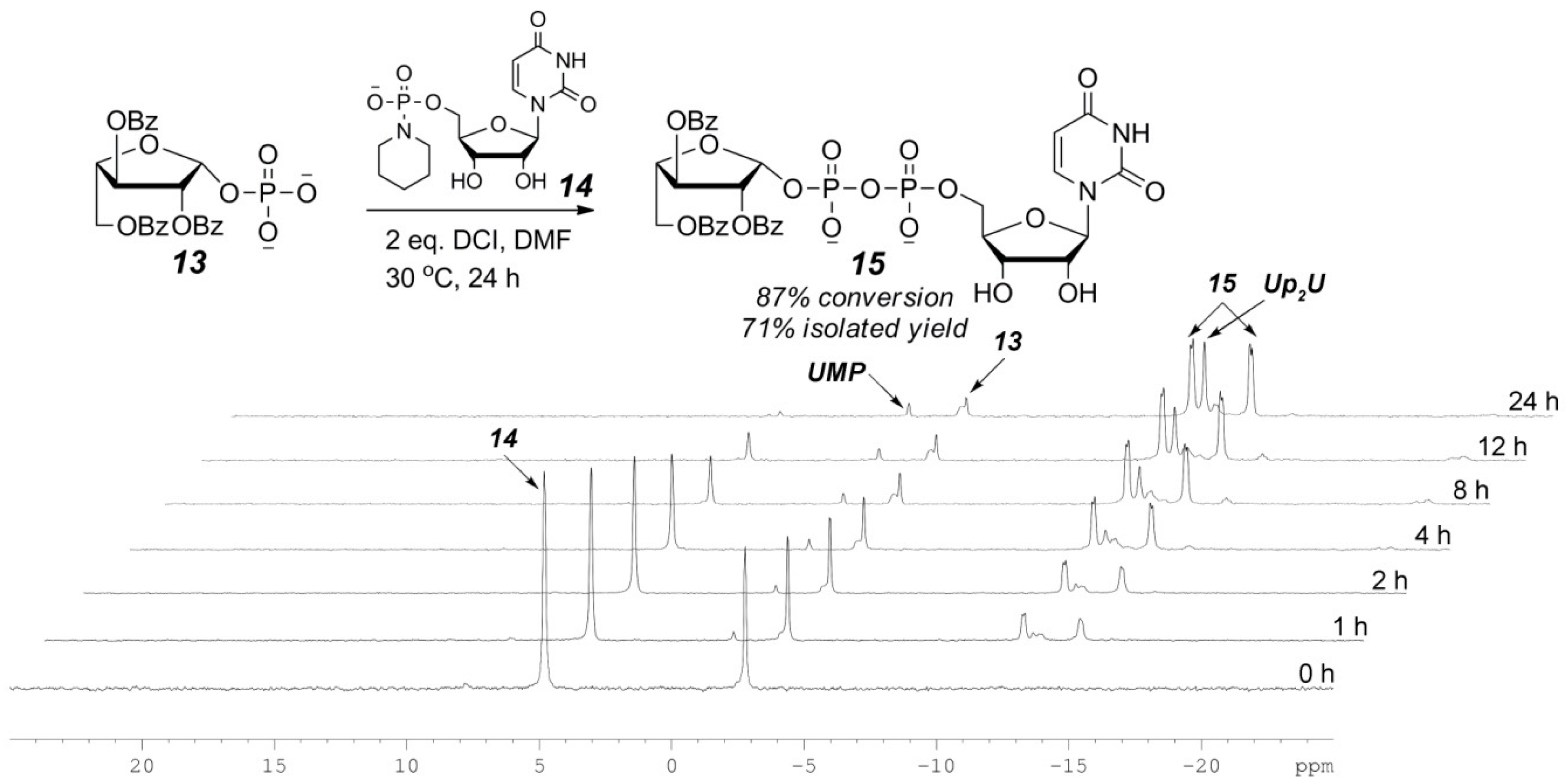

Figure 1. 31P NMR tracing of the P(V)-N activation coupling reaction of 13 and 14.
Figure 1. 31P NMR tracing of the P(V)-N activation coupling reaction of 13 and 14.
Molecules 24 00655 g001

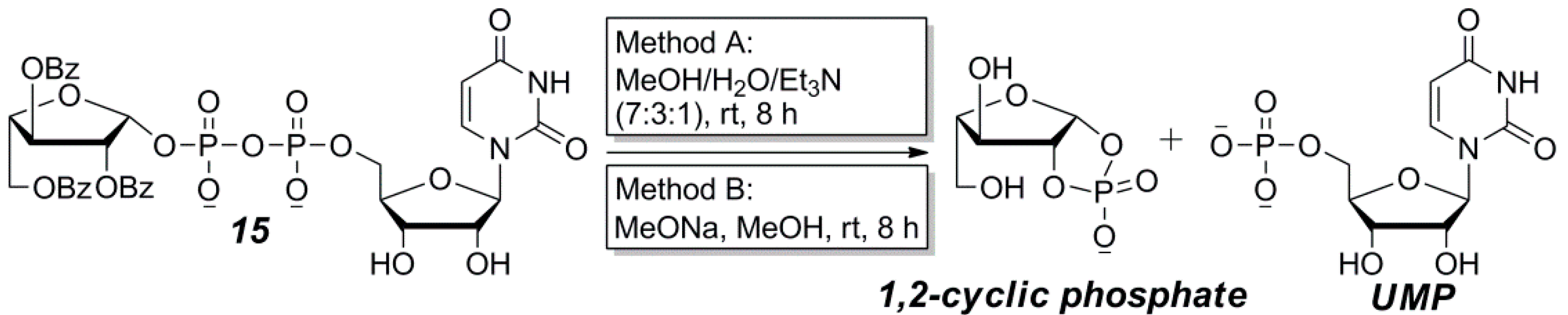

Scheme 2. The decomposition of UDP-l-Araf (15) during benzoyl deprotection.
Scheme 2. The decomposition of UDP-l-Araf (15) during benzoyl deprotection.
Molecules 24 00655 sch002

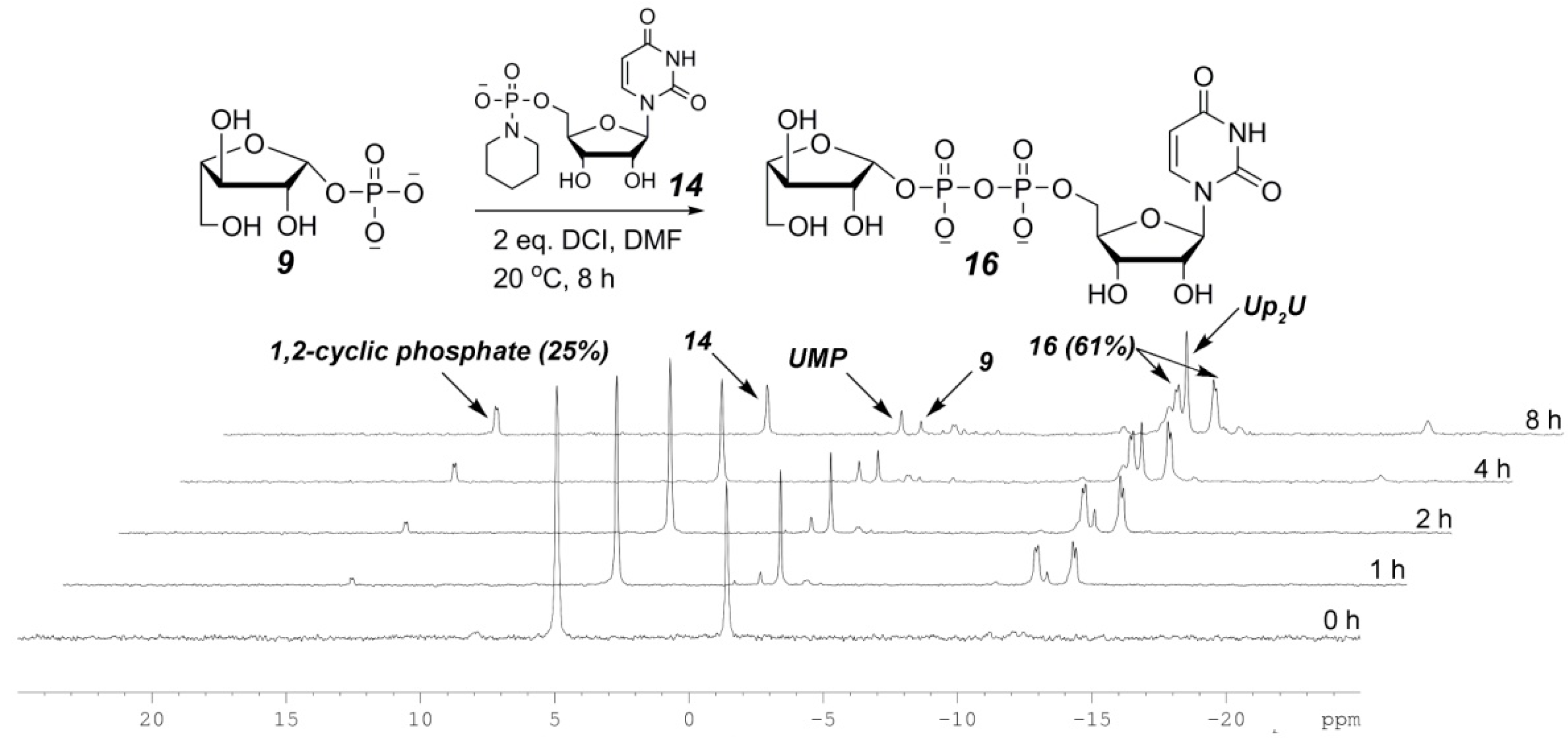

Figure 2. 31P NMR tracing of the coupling reaction of 9 and 14 with 2 equiv of DCI.
Figure 2. 31P NMR tracing of the coupling reaction of 9 and 14 with 2 equiv of DCI.
Molecules 24 00655 g002

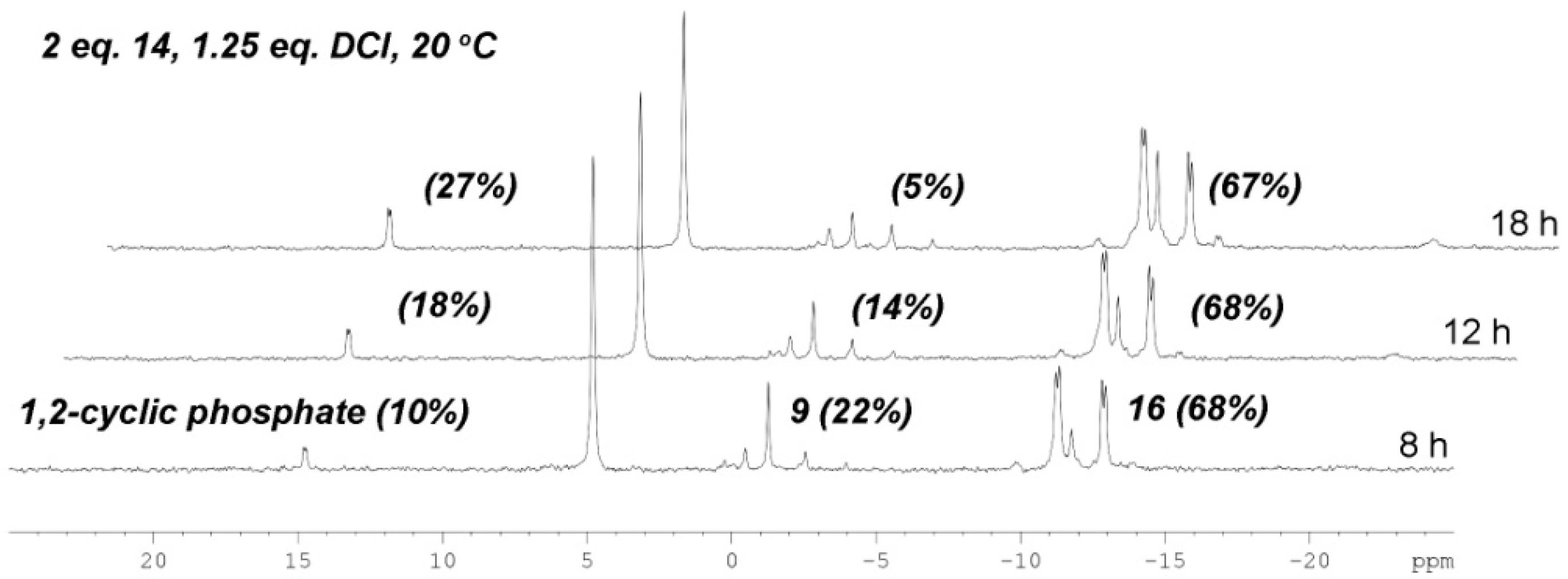

Figure 3. The composition of the coupling reaction of 9 and 14 with 1.25 equiv of DCI at different time points.
Figure 3. The composition of the coupling reaction of 9 and 14 with 1.25 equiv of DCI at different time points.
Molecules 24 00655 g003

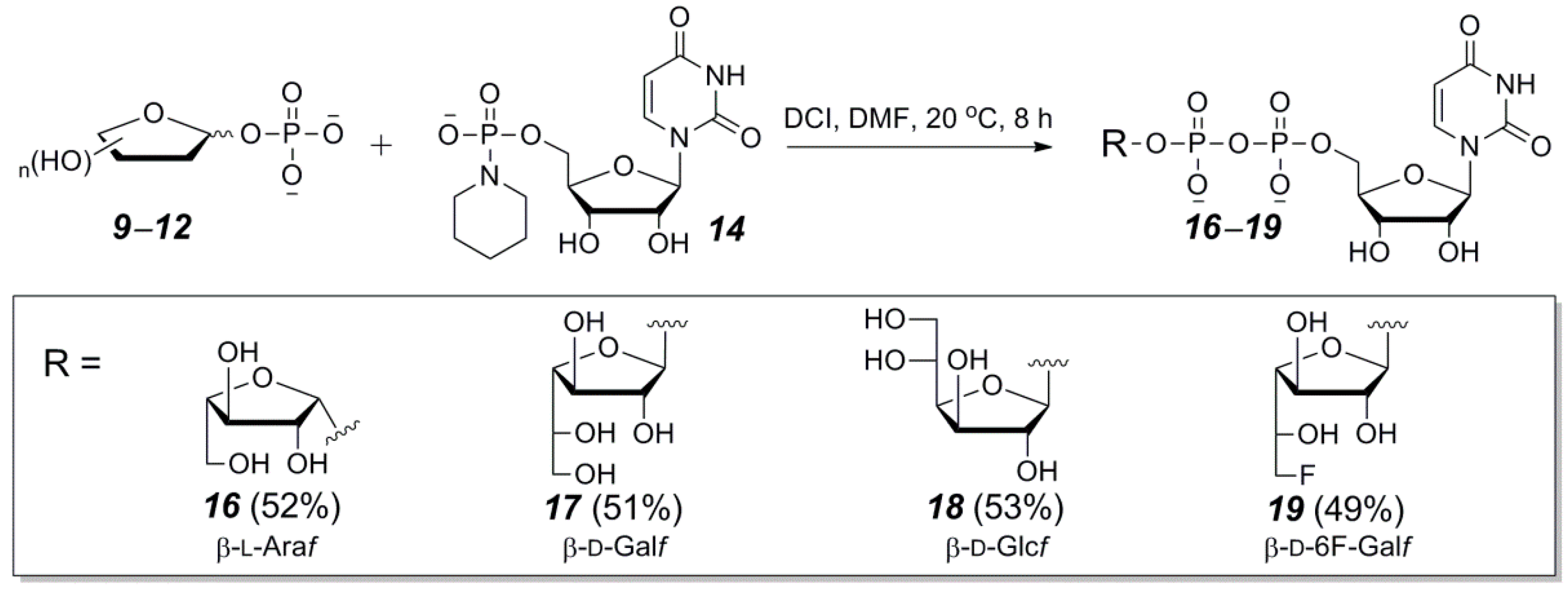

Scheme 3. The P(V)-N activation method for the synthesis of UDP-furanoses (1619).
Scheme 3. The P(V)-N activation method for the synthesis of UDP-furanoses (1619).
Molecules 24 00655 sch003
