Article

Microwave-Assisted Synthesis of Mono- and Disubstituted 4-Hydroxyacetophenone Derivatives via Mannich Reaction: Synthesis, XRD and HS-Analysis

1
Chemistry Department, College of Science, Taibah University, P.O. Box 30002, Al-Madinah Al-Munawarah 14177, Saudi Arabia
2
Institut für Chemie und Biochemie, Anorganische Chemie, Freie Universität Berlin, Fabeckstr. 34-36, 14195 Berlin, Germany
3
Department of Chemistry, Faculty of Science, Universiti Teknologi Malaysia, Johor Bahru 81310, Malaysia
4
Department of Physics, College of Science, Jeddah University, P.O. BOX 80327, Jeddah 21589, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(3), 590; https://doi.org/10.3390/molecules24030590
Submission received: 23 December 2018 / Revised: 31 January 2019 / Accepted: 2 February 2019 / Published: 7 February 2019
(This article belongs to the Special Issue Microwave-Mediated Chemistry)

Abstract

:
An efficient microwave-assisted one-step synthetic route toward Mannich bases is developed from 4-hydroxyacetophenone and different secondary amines in quantitative yields, via a regioselective substitution reaction. The reaction takes a short time and is non-catalyzed and reproducible on a gram scale. The environmentally benign methodology provides a novel alternative, to the conventional methodologies, for the synthesis of mono- and disubstituted Mannich bases of 4-hydroxyacetophenone. All compounds were well-characterized by FT-IR, 1H NMR, 13C NMR, and mass spectrometry. The structures of 1-{4-hydroxy-3-[(morpholin-4-yl)methyl]phenyl}ethan-1-one (2a) and 1-{4-hydroxy-3-[(pyrrolidin-1-yl)methyl]phenyl}ethan-1-one (3a) were determined by single crystal X-ray crystallography. Compound 2a and 3a crystallize in monoclinic, P21/n, and orthorhombic, Pbca, respectively. The most characteristic features of the molecular structure of 2a is that the morpholine fragment adopts a chair conformation with strong intramolecular hydrogen bonding. Compound 3a exhibits intermolecular hydrogen bonding, too. Furthermore, the computed Hirshfeld surface analysis confirms H-bonds and π–π stack interactions obtained by XRD packing analyses.

Graphical Abstract

1. Introduction

Mannich bases can be easily transformed into numerous compounds due to their high reactivity. Several Mannich bases are of particular interest due to their importance as precursors of valuable pharmaceuticals products and their use as synthetic building blocks [1,2]. Mannich bases have attracted more and more attention from chemists due to their specific biological activities, such as antiviral [3,4], acetylcholinesterase inhibitory [5,6,7], antioxidant [8,9], and antiproliferative [10,11] activity. Mannich bases are also key precursors to accessing amino alcohols, peptides, lactams, and optically active amino acids [12,13]. Consequently, many researchers were attracted to investigating green protocols for the Mannich reaction during the last period [2]. The Mannich reaction is an essential reaction for the direct formation of new C–C and C–N bonds [10,14]. The products of Mannich reaction of 4-hydroxyacetophenone as substrate vary depending on the reaction conditions. Using classical conditions, such as low pH, the acetyl group undergoes reaction, producing β-amino alkyl ketone. In this case, the substrate is converted into the corresponding Mannich base through an aminomethylation process. On the other hand, under an alkaline medium, the Mannich reaction is selectively undergoes electrophilic aromatic substitution in the ortho position to the hydroxyl group (Scheme 1) [1]. The conventional multicomponent Mannich reactions are found to have drawbacks such as a long reaction time, harsh reaction conditions, and toxic vapor and byproducts [15]. As a consequence, different reaction conditions have been widely described for Mannich reaction in the presence of a variety of catalysts [16,17]. Additionally, a continuous search for the synthetic methodologies of cleaner Mannich reactions seeking green chemistry principles includes the use of protocols in water [14], biodegradable and reusable catalysts [18,19], ionic liquids [12,19,20], and solvent-free and/or catalyst-free media reaction conditions under microwave (MW) and ultrasound irradiation [21,22,23,24,25,26,27]. Microwave irradiation has been used to synthesize a lot of organic compounds. In fact, the use of microwave irradiation offers a higher reaction rate and better product in chemical synthesis [28], however, few studies have been done utilizing microwave irradiation in the synthesis of Mannich bases [21,25]. These studies were done under acidic conditions using substituted acetophenones whereas the regioselectivity of the reaction was studied on the 2-hydroxy-chalcone backbone [29]. Hence, we describe, herein, the first efficient, gram-scale, non-catalyzed and microwave-assisted synthetic approach of mono- and disubstituted Mannich bases of para-hydroxyacetophenone with various secondary amines.

2. Results and Discussion

2.1. General Synthesis

Firstly, the reactions were run in small scales (2 mmol) of 4-hydroxyacetophenone with different ratios of morpholine as a model reaction, to find out the optimal conditions in terms of solvent, time, reactant ratio, and temperature. Four different solvents, namely, water, ethanol, ethylene glycol, and 1,4-dioxane, at fixed power (300 W) were used for optimization. The temperature ranged between 100 and 120 °C, higher than the boiling points of the chosen solvent as the experiments were done in a sealed vessel. When water was used as a solvent, the corresponding product was not observed based on the TLC monitoring and the reaction led to the formation of an insoluble product in classical organic solvents. On the other hand, using polar protic solvents (ethanol or ethylene glycol) gave the corresponding monosubstituted Mannich product 2a at a very low yield. Interestingly, an excellent yield was obtained when 1,4-dioxane was used as a solvent. The TLC showed complete consumption of 4-hydroxyacetophenone after 30 min by disappearance of the starting material spot, and two new main spots were observed using 1.5 equivalents of formaldehyde and morpholine as a model for optimization (Scheme 2).
The resulting mixture was purified via column chromatography. The first eluted compound was characterized using spectroscopic analysis. The 1H NMR analysis of compound 2a showed the disappearance of one of the aromatic protons, revealing regioselective monosubstitution on the aromatic ring. 1H NMR exhibits a broad singlet at 3.78 ppm integrated to six protons related to the benzylic protons which overlapped with four protons in (OCH2) related to morpholine moiety. A multiplet peak, between 2.54 and 2.59 ppm, was assigned to the protons in (NCH2) in the morpholine moiety and the methyl group. The 13C spectrum verified the formation of Mannich base 2a due to the presence of three peaks of CH2 group related to (NCH2) at 52.74 ppm, benzylic (CH2) at 61.24 ppm, and (OCH2) of morpholine moiety at 66.52 ppm. Moreover, the presence of only three resonances for the aromatic CH at 116.07, 129.75, and 130.56 ppm confirmed the formation of monosubstituted Mannich base. On the other hand, the 1H NMR spectral analysis of the second compound showed the formation of disubstituted Mannich product 2b. As a result, two protons disappeared in the aromatic region and the integration of two morpholine moieties to the other protons confirmed the formation of 2b. The 13C exhibit a single resonance of two equivalent aromatic CH at 130.24m confirming the occurrence of disubstitution reaction at the benzene ring. Meanwhile, the mass spectral data are in agreement with the molecular formula of 2a and 2b. Due to the successful results, a gram-scale (16 mmol) experiment was run for morpholine to determine the overall yield of both 2a and 2b.
Comparing the conventional method to the microwave radiation, it was found that the reaction time decreased considerably from 22 h, using thermal heating, to 30 min in order to furnish mono- and/or disubstituted Mannich bases 2a and 2b in quantitative yield [30]. Using the same optimized conditions (power, solvent, temperature, and reactant ratio) for the formation of mono- or disubstituted Mannich bases, compounds 3a5a and 3b4b were synthesized after 15 min in overall yields of 64% to 77% (Table 1, Supplementary Materials). The time was monitored for each amine based on TLC results.
In order to improve the product ratios, different reactant ratios were used in 1,4-dioxane at 120 °C (which was found to be the optimal reaction temperature) and 300 W. It was found that the monosubstituted Mannich base 2a was obtained as a major product (80% after column) when 1.5 equivalent of the secondary amine and formaldehyde were used. However, the disubstituted Mannich base 2b was formed quantitively as the only product when 2 equivalents of the secondary amine and formaldehyde were used (Table 1, Supplementary Materials). The product yield was greatly increased in quantitative yield, compared to the 60% that had been obtained before [30]. For the novel compounds 3b and 4b, the yield under the same conditions was 86% and 94%, respectively. It should be noted that the diethylamine used did not undergo disubstituted Mannich reaction under the same conditions and only monosubstituted 5a was obtained but in nearly quantitative yield. This may be due to the free rotation of diethyl groups that might sterically prevent the occurrence of disubstituted reaction in comparison to the rigid cyclic secondary amines.

2.2. Crystal Structure Description

The structures of the monosubstituted compounds 2a and 3a were proposed on the basis of 1H and 13C NMR, and IR spectroscopic analyses. In order to gain information on their structural characteristics, X-ray crystallographic analyses were carried out for both 2a and 3a [31,32,33,34,35,36,37]. The molecular structures and some atom-numbering schemes are depicted in Figure 1 and Figure 2 for 2a and 3a respectively. Crystallographic data and structure refinement parameters for 2a and 3a are listed in Table 2. Selected bond lengths, angles, and torsion angles are listed in Table 3 and Table 4. The most characteristic feature of the molecular structure of 2a is that the morpholine fragment adopts a chair conformation with strong intramolecular hydrogen bonding. One carbon atom of the chair conformation deviates from the main plane by only 0.015 Å, indicating an almost perfect chair conformation for the morpholine fragment. The acetyl substituent is located almost in the plane of the aromatic with a torsion C5–C4–C12–O3 of 1.6°. However, the morpholino substituent is turned out of the ring plane resulting in C1–C2–C7–N1 of −45.7°. There exists only one intramolecular hydrogen bond of H1 to the nitrogen atom N1 (O1…N1 2.634 (2) with a normalized [38,39] O–H of 0.938 Å, resulting in a N…H distance of 1.801 and an O1–H1–N1 angle of 146.5°). No intermolecular hydrogen bonds can be detected for 2a.
By contrast, compound 3a exhibits intermolecular hydrogen bonding. Another interesting structural aspect in 3a is related to the molecular packing stability. It is documented that intermolecular hydrogen bonding plays a significant role in the assembling of molecules into a well-ordered crystal packing structure. This is because intermolecular hydrogen bonding helps to form a network (Figure 3) [40,41]. It is worth mentioning that heterocycles containing a pyrrolidine moiety are frequently found in many bioactive compounds [42]. The pyrrolidine ring in 3a has a slightly twisted envelop conformation with a deviation of the C11 atom from the main plane of C8, C9 and C10 by 0.234 Å (Figure 2), indicating that the pyrrolidine ring has some ring strain [42]. The N1 atom is found above this main plane by 0.444 Å (Figure 2). On the other side, the angles around N1 of 114.80°, 103.19°, and 112.90° indicating a distorted tetrahedral geometry around the central atom N1.

2.3. Hirshfeld Analysis

The Hirshfeld surface analysis (HSA), mapped over dnorm and shape index plots, are illustrated in Figure 4a,b for compounds 2a and 3a, respectively. Table 5 summarizes the relative contributions of different atomic contacts to the HSs. The dnorm surface of 2a compound (ranging from –0.259 Å to 1.364 Å) shows two deep red spots related to H…O (2.267 Å) and H…H (2.767 Å), indicating strong short contacts. The H…H interaction is found to be dominating for the 2a compound, accounting for 55.8% of HS area, whereas H…O/O…H contact accounted for 12.6% and 14.8% of HS area. The white spots on HS are mainly due to H…H contact. Shape index plot for 2a compound shows adjacent red and blue triangle (red-dash circle) indicating the presence of π–π stacking. The dnorm surface of 3a (ranging from –0.758 Å to 1.239 Å) shows two deep red spots related to O–H…N/N…H–O strong short contacts (due to distances of 1.657 Å/2.132 Å), which accounted for only 1.6% of HS area. Most of the white spots on the shape index surface are due to H…H contacts, which contribute with 60.7% to HS area. The zero contribution of C…C interaction to HS for 3a compound indicates the absence of π–π stacking. This is in agreement with that shown by XRD. The π–π stacking distance, in 3a, is measured as the distance between the aromatic centroids. The X-ray structure of 3a shows a separation of 6.183 Å between the aromatic centroids. Shape index plots for 2a and 3a show red concave and blue convex areas, which characterize the packing mode with nearby molecules (Figure 4).
Figure 5 shows the 2D fingerprint plots for the overall compounds, as well as for specific contacts. The H…H interaction is indeed the dominating one for 2a and 3a compounds. The comparable wings of 2a and 3a fingerprint plots, which are due to C…H/H…C contacts, indicate similarity between the two compounds. C…H/H…C contact acts as a secondary interaction with no significant peaks. For 2a, the red-dash circle indicates the 0.9% contribution of π–π stacking. While O–H…N/N…H–O contact plays a critical role in 3a compound, it is completely absent in the 2a compound. The two small side peaks obtained for 2a compound are due to O…H/H…O contact with tips at di + de =2.25 Å. However, the shortest contact is obtained by the middle peaks (with tips at di + de =2.2 Å), which are due to H…H contact, indicating strong H…H interaction. Interestingly, two distinct sharp spikes are obtained for 3a, which are due to considerably short O–H…N/N…H–O contacts, indicating strong molecular interaction. The corresponding di and de combination are 0.65 Å and 1.05 Å with tips at di + de =1.7 Å. Consequently, HAS findings are in agreement with XRD packing analyses.

3. Materials and Methods

All solvents and reagents were purchased from Sigma-Aldrich (Deisenhofen, Germany) and used without further purification. 4-Hydroxyacetophenone was purchased from Acros (Thermo Fisher Scientific Geel–Belgium). The monitoring of reaction was done by the utilization of pre-coated silica gel plates (60 F254) and thin layer chromatography (TLC). The normal phase silica gel (Merck, 70–230 mesh) was used to perform column chromatography purification, while the Merck silica gel (230–400 mesh) was utilized to perform the vacuum liquid chromatography.
A controllable single-mode microwave reactor, CEM Discover Microwave™ designed for synthetic utilization, was used. The reactor consists of power and pressure controls in addition to a magnetic stirrer. The temperature is controlled by an IR sensor. Melting points were measured using Sanyo MPD350 apparatus (Gallenkamp, Osaka, Japan) with digital display, and they were not corrected. A Perkin Elmer ATR spectrophotometer (Waltham, MA, USA) was used to record the infrared (IR) spectra. A Bruker Advance 400 MHz spectrometer (Fällanden, Switzerland) was used to record 1H NMR and 13C NMR spectra. NMR samples were separately measured in DMSO, CDCl3, and MeOD at room temperature. Mass spectra were recorded on Finnigan MAT95XL (ThermoFisher Scientific, Bremen, Germany) using (EI), at 70 eV.

3.1. General Synthesis of Mannich Bases (25)

To a solution of 4-hydroxy-acetophenone (1) (16 mmol, 2.18 g) and formaldehyde (24 mmol or 32 mmol) in 1,4-dioxane (15 mL), the corresponding secondary amine (morpholine (2), pyrrolidine (3), piperidine (4) or diethylamine (5)) was added using the same ratio of formaldehyde. This mixture was placed in the MW sealed vessel with stirring. The reaction mixture was irradiated for 15–30 min at 120 °C (power 300 W). TLC was used to monitor the progress of the reaction. After consumption of the starting materials, the vessel was removed and cooled down to room temperature. The reaction mixture was concentrated under reduced pressure and purified using column chromatography.

3.1.1. 1-{4-Hydroxy-3-[(morpholin-4-yl)methyl]phenyl}ethan-1-one (2a)

The purification of the crude product, which has been synthesized in the respective ratio of 1:1.5:1.5 of compound 1, formaldehyde, and morpholine, was done using column chromatography with hexanes/EtOAc (8:2) as eluent to yield 2a as colorless crystals (3.02 g; 80%), mp 69–70 °C. IR spectrum (νmax/cm−1): 1110 (C–N), 1246 (C–O), 1581 (C=C), 1666 (C=O), 2978 (CH3, sp3). 1H NMR (ppm/δ, 400 MHz, CDCl3): 2.59–2.54 (m, 7H), 3.77 (br s, 6H), 6.85 (d, J = 8.5 Hz, 1H), 7.69 (s, 1H), 7.82 (d, J = 8.5 Hz, 1H), 11.32 (br s, 1H, –OH). 13C NMR (ppm/δ, 100 MHz, CDCl3) δ 26.24, 52.74, 61.24, 66.52, 116.07, 120.23, 129.20, 129.75, 130.56, 162.43, 196.77. EIMS, m/z (% rel. intensity): 235(100) [M+, C13H17NO3], 204 (16), 188 (38), 176 (12), 162 (20), 149 (76), 133 (18), 106 (10), 100 (10), 86 (45), 77 (21), 57 (22).

3.1.2. 1-{4-Hydroxy-3,5-bis[(morpholin-4-yl) methyl]phenyl}ethan-1-one (2b)

The purification of the crude product which has been synthesized in the respective ratio of 1:2:2 of compound 1, formaldehyde, and morpholine was done using column chromatography with EtOAc/MeOH (9:1) as eluent to yield 2b as colorless needles (5.32 g; quantitative yield) mp 88–90 °C after removing the solvent. IR spectrum (νmax/cm−1): 1113 (C–N), 1304 (C–O), 1597(C=C), 1669(C=O), 2958 (CH3, sp3). 1H NMR (ppm/δ, 400 MHz, MeOD): 2.59–2.55 (m, 11H), 3.74–3.72 (m, 12H), 7.83 (s, 2H), 7.92 (s, 1H). 13C NMR (ppm/δ, 100 MHz, MeOD): 24.90, 52.78, 58.18, 66.32, 121.97, 128.25, 130.24, 161.44, 197.94. EIMS, m/z (% rel. intensity): 334(14) [M+, C18H26N2O4], 276 (6), 247 (100), 217 (12), 189 (14), 162 (8), 133 (34), 119 (11), 86 (24), 56 (14).

3.1.3. 1-{4-Hydroxy-3-[(pyrrolidin-1-yl) methyl]phenyl}ethan-1-one (3a)

A ratio of 1:1.5:1.5 of compound 1, formaldehyde, and pyrrolidine, respectively, were used to synthesize 3a. Eluting system of hexanes/EtOAc (6:4), was used to purify the crude product to yield pale-yellow crystals, (1.72 g; 49%), mp 92–95 °C. IR spectrum (νmax/cm−1): 1191 (C–N), 1284 (C–O), 1595 (C=C), 1661 (C=O), 2965 (CH3, sp3). 1H NMR (ppm/δ, 400 MHz, MeOD): 1.99–1.94 (m, 4H), 2.51 (s, 3H), 2.92 (t, J = 7.0 Hz, 4H), 4.03 (s, 2H), 6.72 (d, J = 8.5 Hz, 1H), 7.79 (d, J = 2.3 Hz, 1H), 7.83 (dd, J = 8.7 and 2.4 Hz, 1H). 13C NMR (ppm/δ, 100 MHz, MeOD): 23.02, 24.67, 52.88, 57.13, 116.53, 121.21, 126.14, 130.22, 130.73, 167.15, 197.75. EIMS, m/z (% rel. intensity): 219 (13) [M+, C13H17NO2], 149 (5), 133 (3), 106 (2), 91 (2), 84 (9), 77 (4), 70(100), 51 (2).

3.1.4. 1-{4-Hydroxy-3,5-bis[(pyrrolidin-1-yl) methyl] phenyl} ethan-1-one (3b)

The purification of the crude product which has been synthesized in the respective ratio of 1:2:2 of compound 1, formaldehyde and pyrrolidine was done using column chromatography with EtOAc/MeOH (9:1) as eluent to yield 3b as dark red oily liquid (4.2 g; 86%). IR spectrum (νmax/cm−1): 1302 (C–O), 1356 (C–N), 1597 (C=C), 1665 (C=O), 2963 (CH3, sp3). 1H NMR (ppm/δ, 400 MHz, DMSO-d6): 1.76 (br s, 8H), 2.47 (s, 3H), 2.57 (br s, 8H), 3.77 (s, 4H), 7.69 (s, 2H). 13C NMR (100 MHz, DMSO) ppm: δ 23.66, 26.67, 53.54, 55.59, 123.68, 127.57, 128.98, 162.09, 196.56. EIMS, m/z (% rel. intensity): 302 (14) [M+, C18H26N2O2], 231 (100), 216 (9), 188 (12), 159 (14), 147 (7), 133 (20), 119 (11), 84 (11), 70 (43), 55 (4).

3.1.5. 1-{4-Hydroxy-3-[(piperidin-1-yl) methyl] phenyl} ethan-1-one (4a)

The crude product of 4a was obtained from the reaction of the respective ratio 1:1.5:1.5 of compound 1, formaldehyde, and piperidine. The obtained product was purified by using hexanes/EtOAc (6:4) as an eluent to yield 4a as colorless crystals (2.15 g, 58%), mp 82–83 °C. IR spectrum (νmax/cm−1): 1256 (C–N), 1287 (C–O), 1594 (C=C), 1661 (C=O), 2946 (CH3, sp3). 1H NMR (ppm/δ, 400 MHz, CDCl3): 1.67–1.52 (m, 6H), 2.53 (br s, 7H), 3.75 (s, 2H), 6.84 (d, J = 8.4 Hz, 1H), 7.68 (s, 1H), 7.80 (d, J = 8.4 Hz, 1H), 11.41 (br s, 1H). 13C NMR (ppm/δ, 100 MHz, CDCl3): 23.71, 25.6, 26.22, 53.73, 61.51, 115.93, 121.06, 128.73, 129.35, 130.24, 163.32, 196.86. EIMS, m/z (% rel. intensity): 233 (10) [M+, C14H19NO2], 149 (4), 133 (2), 106 (1), 98 (5), 84 (100), 77 (3), 56 (2).

3.1.6. 1-{4-Hydroxy-3,5-bis[(piperidin-1-yl) methyl] phenyl} ethan-1-one (4b)

The crude product resulted from the reaction of the respective ratio 1:2:2 of compound 1, formaldehyde, and piperidine was purified using hexanes/EtOAc (3:7) as eluent to yield 4b as pale-yellow crystals mp 93–96 °C (5 g, 94%). IR spectrum (νmax/cm−1): 1300 (C–O), 1349 (C–N), 1594 (C=C), 1669 (C=O), 2925 (CH3, sp3). 1H NMR (ppm/δ, 400 MHz, DMSO): 1.53–1.42(m, 12H), 2.46–2.43 (m, 11H), 3.6 (s, 4H), 5.51 (br s, 1H), 7.68 (s, 2H). 13C NMR (ppm/δ, 100 MHz, DMSO): 24. 13, 25.90, 26.65, 53.84, 58.65, 123.01, 127.92, 129.27, 161.97, 196.59. EIMS, m/z (% rel. intensity): 330 (14) [M+, C20H30N2O2], 245 (100), 228 (4), 202 (10), 147 (4), 133 (13), 119 (4), 98 (4), 84 (24), 55 (3).

3.1.7. 1-{3-[(Diethylamino) methyl]-4-hydroxyphenyl} ethan-1-one (5a)

The crude product of 5a was obtained from the reaction of the respective ratio 1:2:2. of compound 1, formaldehyde, and diethylamine. The product was purified by column chromatography using hexanes/EtOAc (6:4) to yield 5a as a yellow oily liquid (3.53 g, quantitative yield). IR spectrum (νmax/cm−1): 1280 (C–N), 1357 (C–O), 1589(C=C), 1667(C=O), 2972 (CH3, sp3). 1H NMR (ppm/δ, 400 MHz, CDCl3): 1.07 (t, J = 7.0 Hz, 6H), 2.46 (s, 3H), 2.59 (q, J = 7.0 Hz, 4H), 3.77 (s, 2H), 6.74 (d, J = 8.4 Hz, 1H), 7.60 (s,1H), 7.73 (d, J = 8.4 Hz, 1H), 11.47 (br s, 1H). 13C NMR (ppm/δ, 100 MHz, CDCl3): 10.99, 26.08, 46.22, 56.61, 115.87, 121.68, 128.51, 128.95, 130.06, 163.77, 196.74. EIMS, m/z (% rel. intensity): 221 (5) [M+, C13H19NO2], 206 (6), 149 (8), 132 (2), 106 (1), 77 (2), 58 (100).

3.2. X-ray Structure Determination

Crystal data, data collection, and structure refinement details are summarized in Table 2. Crystallographic data for 2a and 3a were collected on Bruker D8 Venture diffractometer; cell refinement—Bruker SAINT, data reduction—Bruker SAINT [31]; program(s) used to solve and refine structures—SHELXT 2014/5 and SHELXL2014/7 [32,33]; molecular graphics—ORTEP [34,35]; and software used to prepare material for publication—WinGX [37]. All non-hydrogen atoms were refined anisotropically. The hydrogen atoms at the oxygen atoms were located from Fourier map, at carbon and nitrogen atoms placed in calculated positions and refined as rigid atoms. All calculations were performed on PC using WinGX program. Data collection: images were indexed, integrated, and scaled using the APEX3 data reduction package [31]. All figures were made using the program ORTEP and Diamond program [32,33,34,35,36].

3.3. Computations

Hirshfeld surface analysis (HSA) and 2D fingerprint plots calculations were carried via dnorm surface property with rescale using CRYSTAL EXPLORER 3.0 program [43]. Normalized distances, dnorm, based on di and de, are calculated for each point on the surface. HSA mapped over dnorm generates a surface with red, blue, and white areas—red spots correspond to closer contacts (the sum of van der Waals radii and dnorm is negative), blue spots correspond to longer contacts (the sum of van der Waals radii and dnorm is positive) and white spots correspond to dnorm values around van der Waals separations. The 2D fingerprint plots provide information about the frequency of each di and de combination across all points on HS. The green, blue, and gray colors correspond to interactions with large contribution, with moderate contribution, and without contribution to HS area, respectively. The identical features along 2D plots diagonal correspond to mirrored internal–external atomic contacts (e.g., O…H and H…O contacts).

4. Conclusions

It can be concluded that this novel alternative methodology offers significantly less synthesis time with competitive product yield of Mannich bases in the absence of any catalyst. The X-ray crystal structure of 2a shows an intramolecular hydrogen bonding and displays a chair conformation for the morpholine fragment and, unlike 3a, exhibits intermolecular hydrogen bonding. The HAS shows that the intermolecular interactions are dominated by H…H interaction for both compounds, though for 2a it is stronger. Moreover, 2D fingerprint plots confirm that π–π stacking is only present for 2a.

Supplementary Materials

Supplementary Materials are available online.

Author Contributions

Conceptualization, A.A.A., S.Y.A. and N.B., Supervision; G.A.; Methodology, All authors, mainly, G.A.; Writing-Review & Editing; D.L. and M.A.S; X-ray work, A.A.; HSA work.

Funding

This research received no external funding.

Acknowledgments

Ghadah Aljohani and Norazah Basar gratefully acknowledge support by Taibah University and Universiti Teknologi. Musa A. Said thanks the Alexander von Humboldt foundation for the valuable and continuous support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tramontini, M. Advances in the Chemistry of Mannich Bases. Synthesis 1973, 12, 703–775. [Google Scholar] [CrossRef]
  2. Filho, J.F.A.; Lemos, B.C.; de Souza, A.S.; Pinheiro, S.; Greco, S.J. Multicomponent Mannich reactions: General aspects, methodologies and applications. Tetrahedron 2017, 73, 6977–7004. [Google Scholar] [CrossRef]
  3. Teissier, E.; Zandomeneghi, G.; Loquet, A.; Lavillette, D.; Lavergne, J.-P.; Montserret, R.; Cosset, F.-L.; Böckmann, A.; Meier, B.H.; Penin, F.; et al. Mechanism of Inhibition of Enveloped Virus Membrane Fusion by the Antiviral Drug Arbidol. PLoS ONE 2011, 6, e15874. [Google Scholar] [CrossRef] [PubMed]
  4. Boriskin, Y.; Leneva, I.; Pecheur, E.-I.; Polyak, S. Arbidol: A Broad-Spectrum Antiviral Compound that Blocks Viral Fusion. Curr. Med. Chem. 2008, 15, 997–1005. [Google Scholar] [CrossRef] [PubMed]
  5. Fernández-Bachiller, M.I.; Pérez, C.; González-Muñoz, G.C.; Conde, S.; López, M.G.; Villarroya, M.; García, A.G.; Rodríguez-Franco, M.I. Novel Tacrine−8-Hydroxyquinoline Hybrids as Multifunctional Agents for the Treatment of Alzheimer’s Disease, with Neuroprotective, Cholinergic, Antioxidant, and Copper-Complexing Properties. J. Med. Chem. 2010, 53, 4927–4937. [Google Scholar] [CrossRef] [PubMed]
  6. Qin, J.; Lan, W.; Liu, Z.; Huang, J.; Tang, H.; Wang, H. Synthesis and biological evaluation of 1, 3-dihydroxyxanthone mannich base derivatives as anticholinesterase agents. Chem. Cent. J. 2013, 7, 78. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Alonso, D.; Dorronsoro, I.; Rubio, L.; Muñoz, P.; García-Palomero, E.; Del Monte, M.; Bidon-Chanal, A.; Orozco, M.; Luque, F.J.; Castro, A.; et al. Donepezil–tacrine hybrid related derivatives as new dual binding site inhibitors of AChE. Bioorg. Med. Chem. 2005, 13, 6588–6597. [Google Scholar] [CrossRef]
  8. Malhotra, M.; Sharma, R.; Sanduja, M.; Kumar, R.; Jain, E.; Deep, A. Synthesis, characterization and evaluation of Mannich bases as potent antifungal and hydrogen peroxide scavenging agents. Acta Pol. Pharm. Drug Res. 2012, 69, 355–361. [Google Scholar]
  9. Buravlev, E.V.; Shevchenko, O.G.; Kutchin, A.V. Synthesis and membrane-protective activity of novel derivatives of α-mangostin at the C-4 position. Bioorg. Med. Chem. Lett. 2015, 25, 826–829. [Google Scholar] [CrossRef]
  10. Aeluri, R.; Alla, M.; Polepalli, S.; Jain, N. Synthesis and antiproliferative activity of imidazo[1,2-a]pyrimidine Mannich bases. Eur. J. Med. Chem. 2015, 100, 18–23. [Google Scholar] [CrossRef]
  11. Issa, S.; Walchshofer, N.; Kassab, I.; Termoss, H.; Chamat, S.; Geahchan, A.; Bouaziz, Z. Synthesis and antiproliferative activity of oxazinocarbazole and N,N-bis(carbazolylmethyl)amine derivatives. Eur. J. Med. Chem. 2010, 45, 2567–2577. [Google Scholar] [CrossRef] [PubMed]
  12. Sahoo, S.; Joseph, T.; Halligudi, S.B. Mannich reaction in Brönsted acidic ionic liquid: A facile synthesis of β-amino carbonyl compounds. J. Mol. Catal. A Chem. 2006, 244, 179–182. [Google Scholar] [CrossRef]
  13. Müller, R.; Goesmann, H.; Waldmann, H. N,N-Phthaloylamino Acids as Chiral Auxiliaries in Asymmetric Mannich-Type Reactions. Angew. Chem. Int. Ed. 1999, 38, 184–187. [Google Scholar] [CrossRef]
  14. Xie, L.-H.; Cheng, J.; Luo, Z.-W.; Lu, G. Mannich Reaction of Indole with Cyclic Imines in Water. Tetrahedron Lett. 2018, 59, 457–461. [Google Scholar] [CrossRef]
  15. Zhang, X.; Yin, S.; Qiu, R.; Xia, J.; Dai, W.; Yu, Z.; Au, C.-T.; Wong, W.-Y. Synthesis and structure of an air-stable hypervalent organobismuth (III) perfluorooctanesulfonate and its use as high-efficiency catalyst for Mannich-type reactions in water. J. Organomet. Chem. 2009, 694, 3559–3564. [Google Scholar] [CrossRef]
  16. Abedini-Torghabeh, J.; Eshghi, H.; Bakavoli, M.; Rahimizadeh, M. PPh3-catalyzed Mannich reaction: A facile one-pot synthesis of β-amino carbonyl compounds under solvent-free conditions at room temperature. Res. Chem. Intermed. 2015, 41, 3649–3658. [Google Scholar] [CrossRef]
  17. Wei, C.; Li, C.J. A highly efficient three-component coupling of aldehyde, alkyne, and amines via C-H activation catalyzed by gold in water. J. Am. Chem. Soc. 2003, 125, 9584–9585. [Google Scholar] [CrossRef]
  18. Li, Z.; Ma, X.; Liu, J.; Feng, X.; Tian, G.; Zhu, A. Silica-supported aluminum chloride: A recyclable and reusable catalyst for one-pot three-component Mannich-type reactions. J. Mol. Catal. A Chem. 2007, 272, 132–135. [Google Scholar] [CrossRef]
  19. Nagarajan, S.; Kandasamy, E. Reusable 1,2,4-Triazolium Based Brønsted Acidic Room Temperature Ionic Liquids as Catalyst for Mannich Base Reaction. Catal. Lett. 2014, 144, 1507–1514. [Google Scholar] [CrossRef]
  20. Zhao, G.; Jiang, T.; Gao, H.; Han, B.; Huang, J.; Sun, D. Mannich reaction using acidic ionic liquids as catalysts and solvents. Green Chem. 2004, 6, 75–77. [Google Scholar] [CrossRef]
  21. Lehmann, F.; Pilotti, Å.; Luthman, K. Efficient large scale microwave assisted Mannich reactions using substituted acetophenones. Mol. Divers. 2003, 7, 145–152. [Google Scholar] [CrossRef] [PubMed]
  22. Kabalka, G.W.; Zhou, L.-L.; Wang, L.; Pagni, R.M. A microwave-enhanced, solventless Mannich condensation of terminal alkynes and secondary amines with para-formaldehyde on cuprous iodide doped alumina. Tetrahedron 2006, 62, 857–867. [Google Scholar] [CrossRef]
  23. Rao, G.V.; Reddy, P.N.; Reddy, Y.T.; Kumar, V.N.; Rajitha, B. Synthesis of benzo [b] furan Mannich bases under solventless, PTSA/PTC catalytic conditions assisted by microwave irradiation. Indian J. Chem. 2005, 44, 1109–1111. [Google Scholar] [CrossRef]
  24. McLean, N.J.; Tye, H.; Whittaker, M. Microwave assisted Petasis boronic-Mannich reactions. Tetrahedron Lett. 2004, 45, 993–995. [Google Scholar] [CrossRef]
  25. Mete, E.; Gul, H.I.; Bilginer, S.; Algul, O.; Topaloglu, M.E.; Gulluce, M.; Kazaz, C. Synthesis and Antifungal Evaluation of 1-Aryl-2-dimethyl-aminomethyl-2-propen-1-one Hydrochlorides. Molecules 2011, 16, 4660–4671. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Akhter, M.; Habibullah, S.; Hasan, S.M.; Alam, M.M.; Akhter, N.; Shaquiquzzaman, M. Synthesis of some new 3,4-dihydro-2H-1,3-benzoxazines under microwave irradiation in solvent-free conditions and their biological activity. Med. Chem. Res. 2011, 20, 1147–1153. [Google Scholar] [CrossRef]
  27. Sreevalli, W.; Ramachandran, G.; Madhuri, W.; Sathiyanarayanan, K.I. ChemInform Abstract: Green Trends in Mannich Reaction. ChemInform 2015, 46, 97–115. [Google Scholar] [CrossRef]
  28. Mavandadi, F.; Pilotti, Å. The impact of microwave-assisted organic synthesis in drug discovery. Drug Discov. Today 2006, 11, 165–174. [Google Scholar] [CrossRef]
  29. Dong, X.; Liu, T.; Chen, J.; Ying, H.; Hu, Y. Microwave-Assisted Mannich Reaction of 2-Hydroxy-chalcones. Synth. Commun. 2009, 39, 733–742. [Google Scholar] [CrossRef]
  30. Reddy, M.V.B.; Su, C.R.; Chiou, W.F.; Liu, Y.N.; Chen, R.Y.H.; Bastow, K.F.; Lee, K.H.; Wu, T.S.; Bhaskar, M.V.; Su, C.R.; et al. Design, synthesis, and biological evaluation of Mannich bases of heterocyclic chalcone analogs as cytotoxic agents. Bioorg. Med. Chem. 2008, 16, 7358–7370. [Google Scholar] [CrossRef]
  31. APEX2 (Version 2.1), SAINTPlus. Data Reduction and Correction Program (Version 7.31A, Bruker Advansed X-ray Solutions; BrukerAXS Inc.: Madison, WI, USA, 2006.
  32. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  33. Sheldrick, G.M. Sheldrick SHELXS-97—Program for the Solution of Crystal Structures; University of Gottingen: Gottingen, Germany, 1997. [Google Scholar]
  34. Johnson, C.K. ORTEP II, Report ORNL-5138; Oak Ridge National Laboratory: Oak Ridge, TN, USA, 1976. [Google Scholar]
  35. Farrugia, L.J. UCr ORTEP-3 for Windows—A version of ORTEP-III with a Graphical User Interface (GUI). J. Appl. Crystallogr. 1997, 30, 565. [Google Scholar] [CrossRef]
  36. Brandenburg, K.; Putz, H. Diamond-Crystal and Molecular Structure Visualization; Crystal Impact: Bonn, Germany, 2012. [Google Scholar]
  37. Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Crystallogr. 2012, 45, 849–854. [Google Scholar] [CrossRef]
  38. Taylor, R.; Kennard, O. Comparison of X-ray and Neutron Diffraction Results for the N--H…O--C Hydrogen Bond. Acta Crystallogr. Sect. B 1983, 39, 133–138. [Google Scholar] [CrossRef]
  39. Jeffrey, G.A.; Lewis, L. Cooperative aspects of hydrogen bonding in carbohydrates. Carbohydr Res. 1978, 60, 179–182. [Google Scholar] [CrossRef]
  40. Rivera, A.; Duarte, Y.; González-Salas, D.; Ríos-Motta, J.; Zaragoza, G. X-ray and hydrogen-bonding Properties of 1-((1H-benzotriazol-1-yl)methyl) naphthalen-2-ol. Molecules 2009, 14, 1234–1244. [Google Scholar] [CrossRef] [PubMed]
  41. Desiraju, G.R. Supramolecular Synthons in Crystal Engineering—A New Organic Synthesis. Angew. Chem. Int. Ed. Engl. 1995, 34, 2311–2327. [Google Scholar] [CrossRef]
  42. Mozzchukhin, A.O.; Macharashvili, A.A.; Shklover, V.E.; Struchkov, Y.T.; Shipov, A.G.; Sergeev, V.N.; Artamkin, S.A.; Pestunovich, S.V.; Baukov, Y.I. Crystal and molecular structures of (O-Ge)-chelate 1-(dimethylchlorogermylmethyl)pyrrolidone-2 and 1-(dimethylchlorogermylmethyl)piperidone-2, and of (N-Ge)-chelate O-(dimethylchlorogermylmethyl)-δ-valerolactim and 2-(chlorodimethylgermylmethylthio)-pyrro. J. Organomet. Chem. 1991, 408, 305–322. [Google Scholar] [CrossRef]
  43. Wolff, S.K.; Grimwood, D.J.; McKinnon, J.J. Crystal Explorer 3.0; University of Westren Australia: Perth, Australia, 2007. [Google Scholar]
Sample Availability: Atomic coordinates, bond lengths, bond angles and thermal parameters have been deposited at the Cambridge Crystallographic Data Centre (CCDC). These data can be obtained free of charge via www.ccdc.cam.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; fax: +44 1223 336 033; or deposit@ ccdc.cam.ac.uk). Any requests to the CCDC for data should quote the full literature citation and CCDC reference numbers for 2a and 3a 1832359, 1832328 respectively.

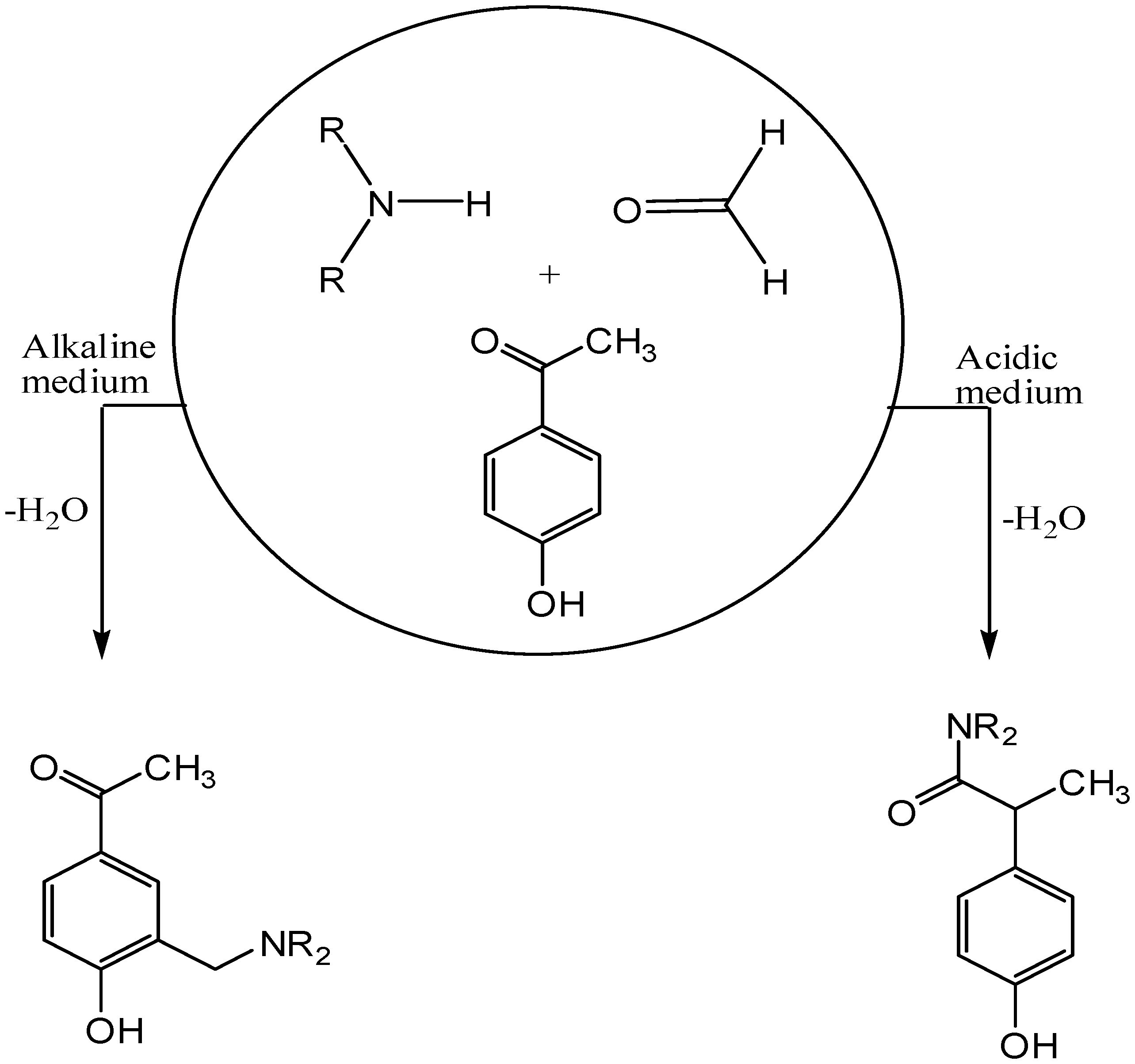

Scheme 1. Possible products of Mannich-type reaction using classical conditions.
Scheme 1. Possible products of Mannich-type reaction using classical conditions.
Molecules 24 00590 sch001

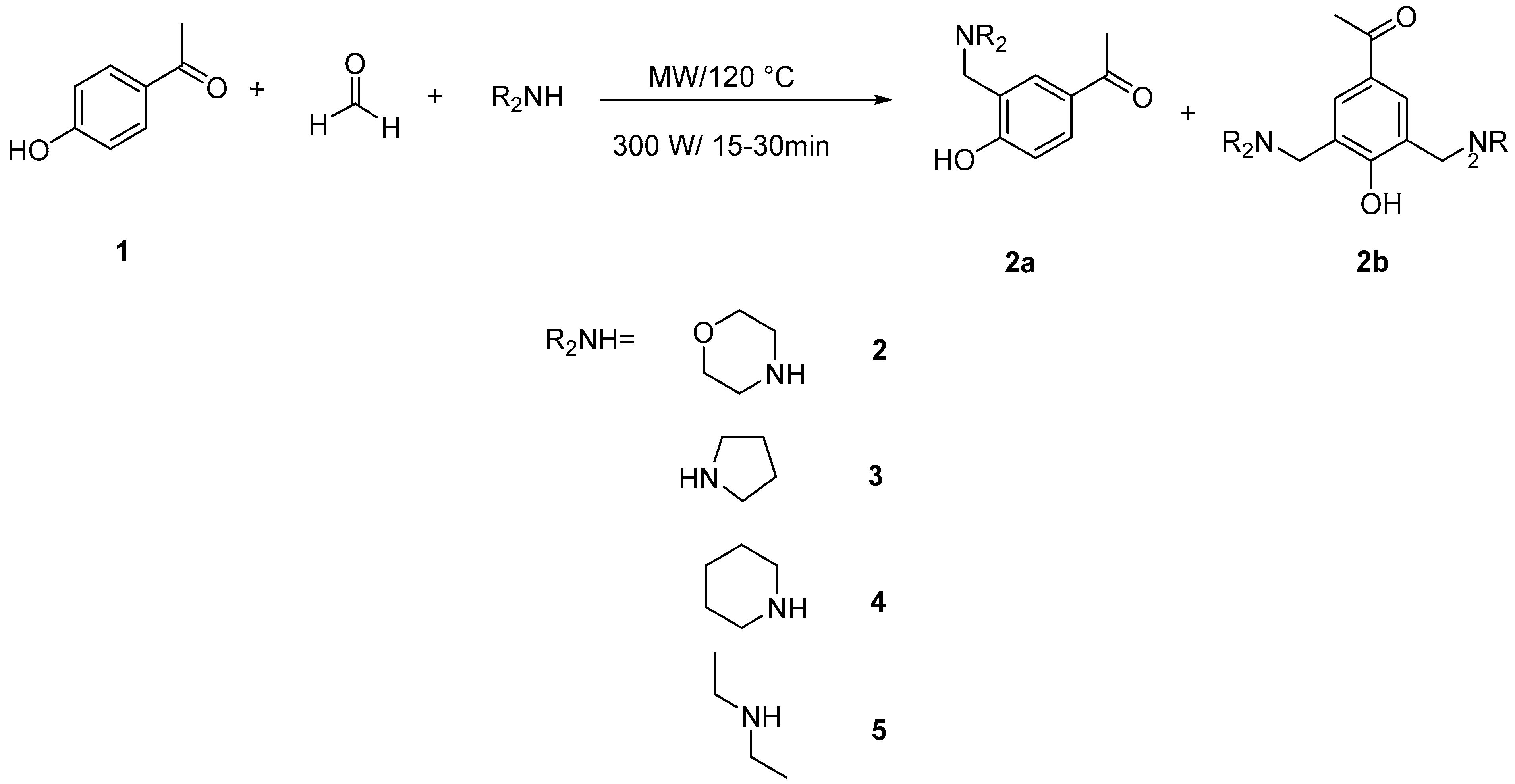

Scheme 2. Synthetic approach for synthesis of mono- and disubstituted Mannich bases of 4-hydroxyacetophenone (1).
Scheme 2. Synthetic approach for synthesis of mono- and disubstituted Mannich bases of 4-hydroxyacetophenone (1).
Molecules 24 00590 sch002

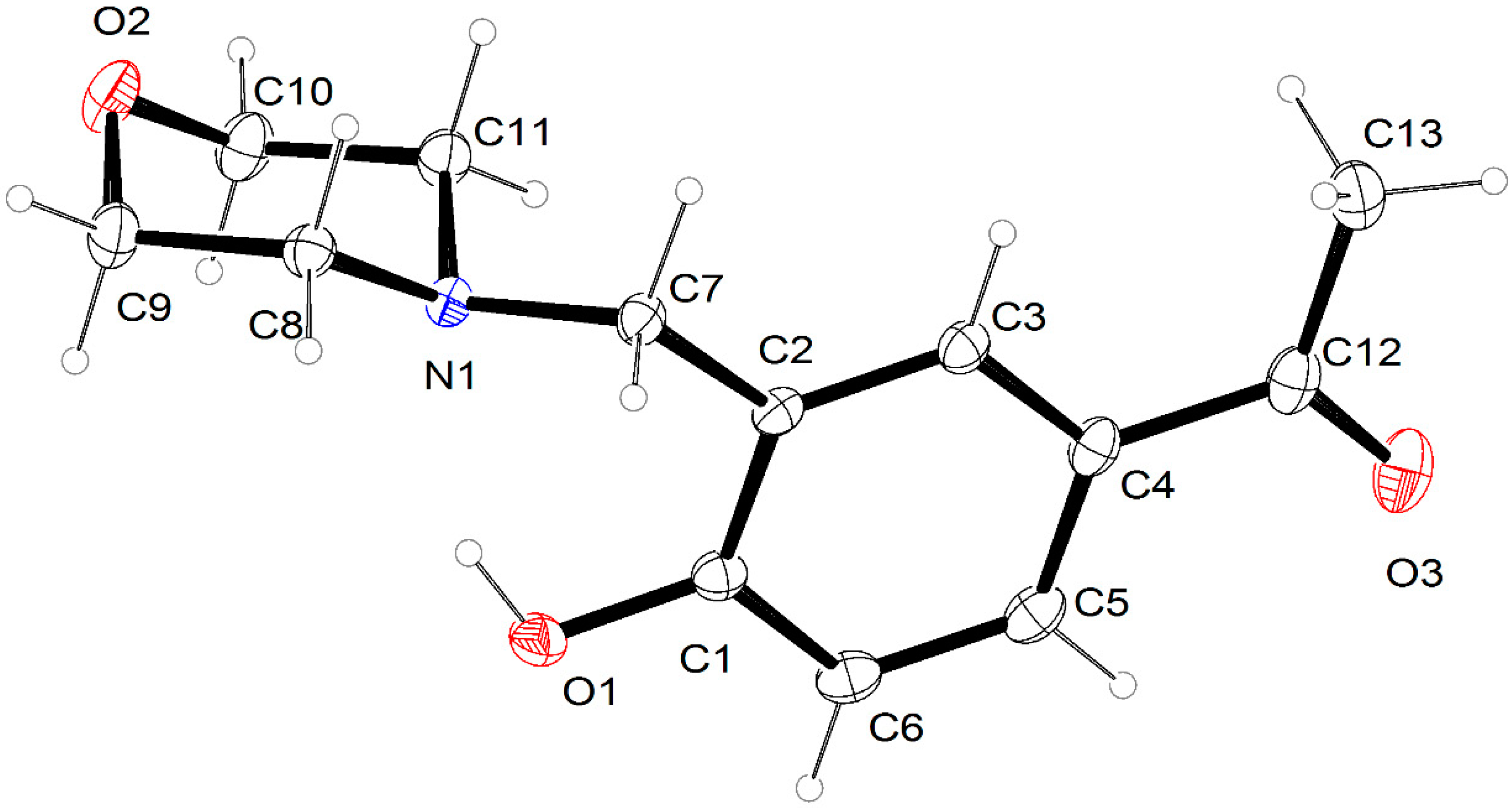

Figure 1. An ORTEP [34,35] drawing of 2a with an atom-numbering scheme. The thermal ellipsoids are drawn at the 50% probability level.
Figure 1. An ORTEP [34,35] drawing of 2a with an atom-numbering scheme. The thermal ellipsoids are drawn at the 50% probability level.
Molecules 24 00590 g001

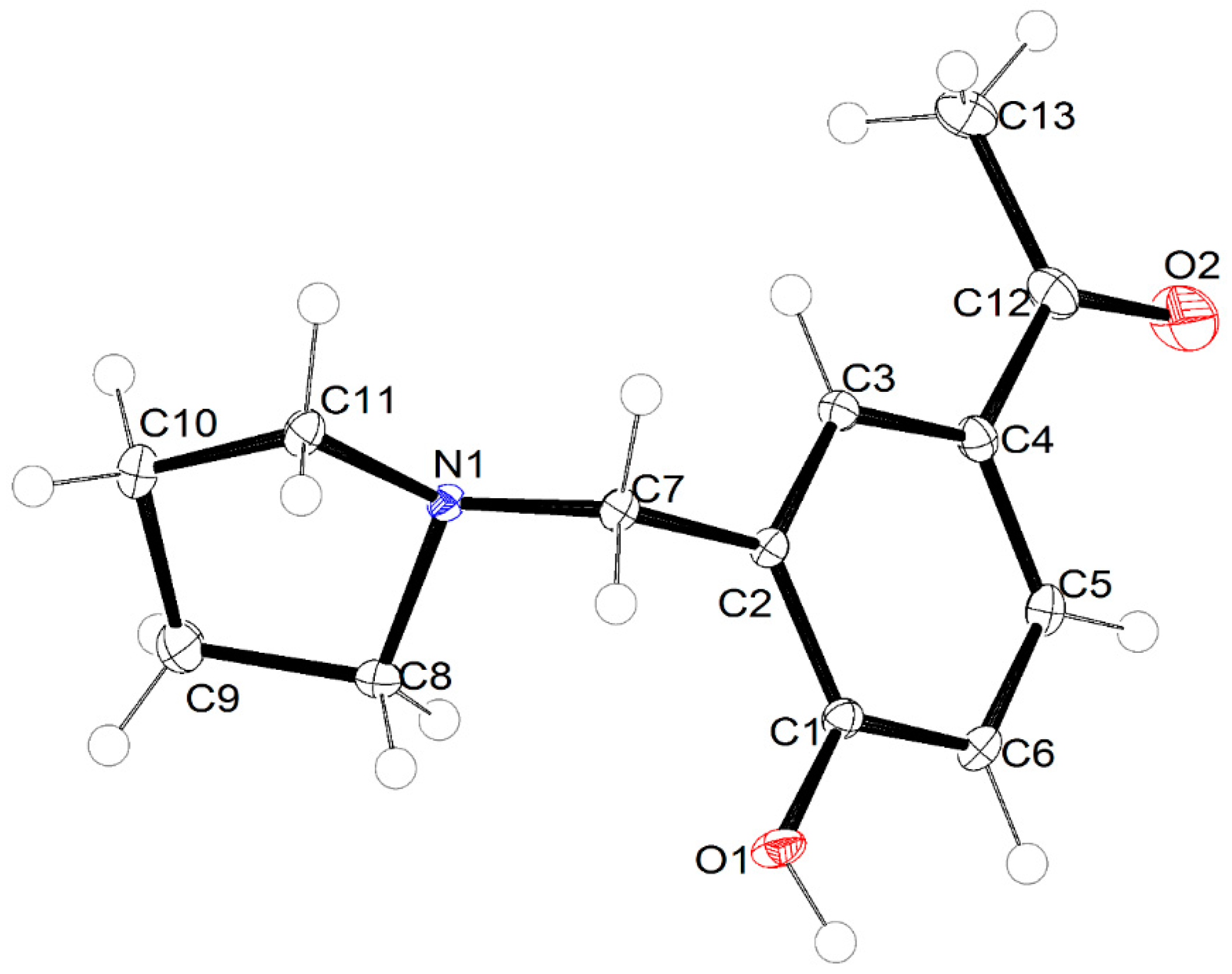

Figure 2. ORTEP [34,35] and numbering scheme of 3a, thermal ellipsoids are drawn at the 50% probability level.
Figure 2. ORTEP [34,35] and numbering scheme of 3a, thermal ellipsoids are drawn at the 50% probability level.
Molecules 24 00590 g002

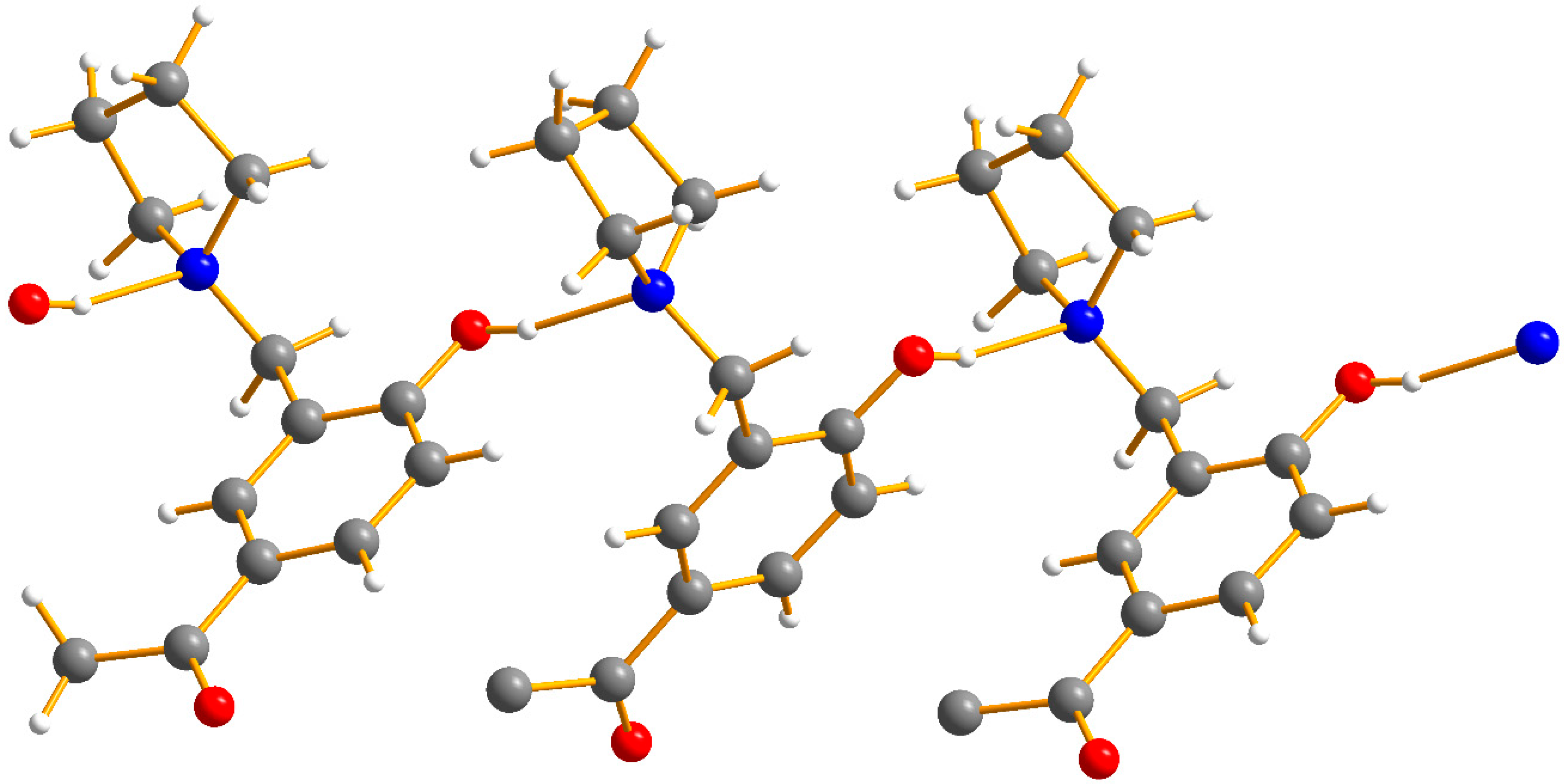

Figure 3. Intermolecular hydrogen bond network of 3a (Diamond [36]). View along the a-axis.
Figure 3. Intermolecular hydrogen bond network of 3a (Diamond [36]). View along the a-axis.
Molecules 24 00590 g003

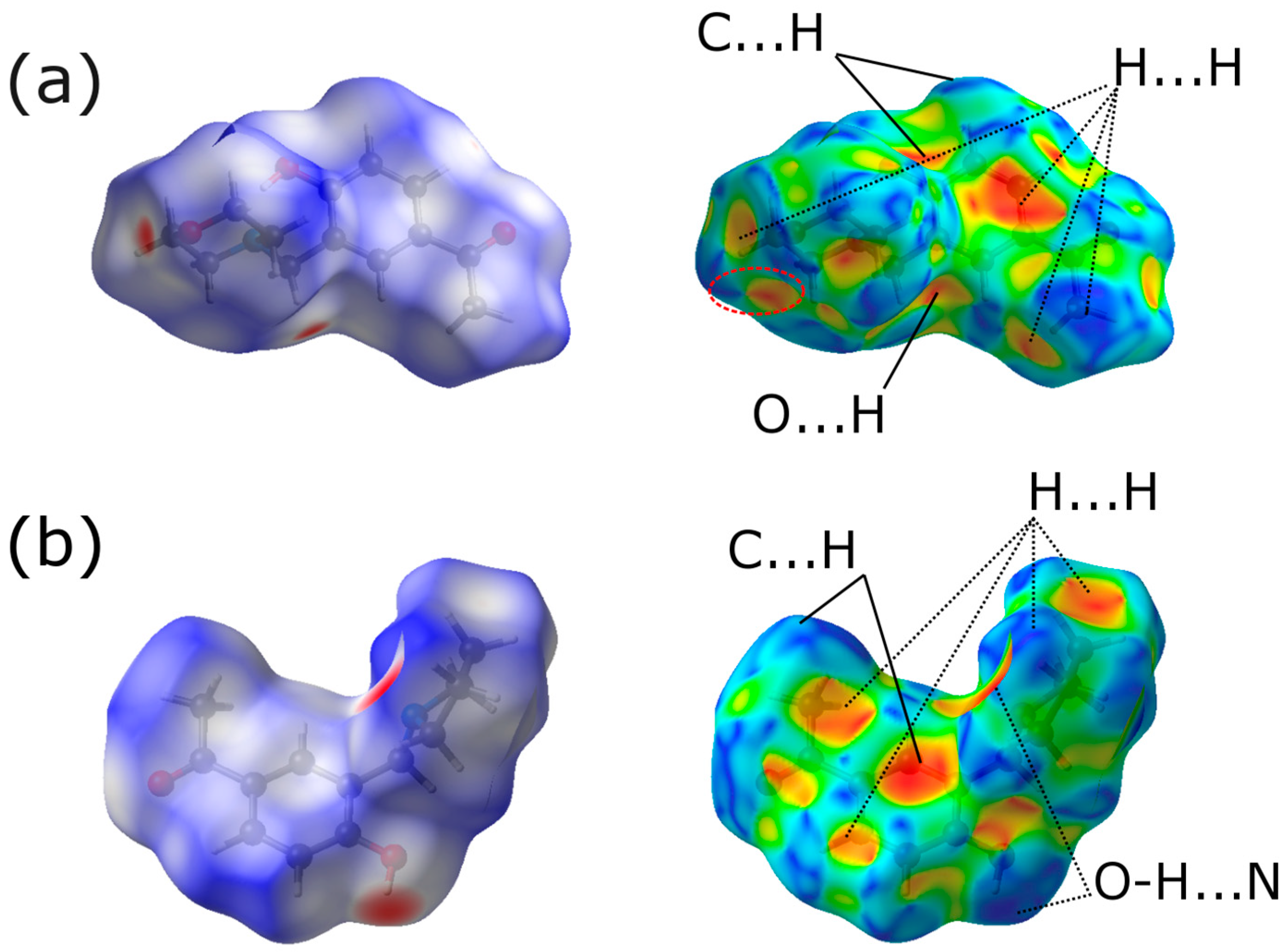

Figure 4. Hirshfeld surfaces mapped with dnorm (left) and sharp index (right) for (a) 2a and (b) 3a compounds.
Figure 4. Hirshfeld surfaces mapped with dnorm (left) and sharp index (right) for (a) 2a and (b) 3a compounds.
Molecules 24 00590 g004

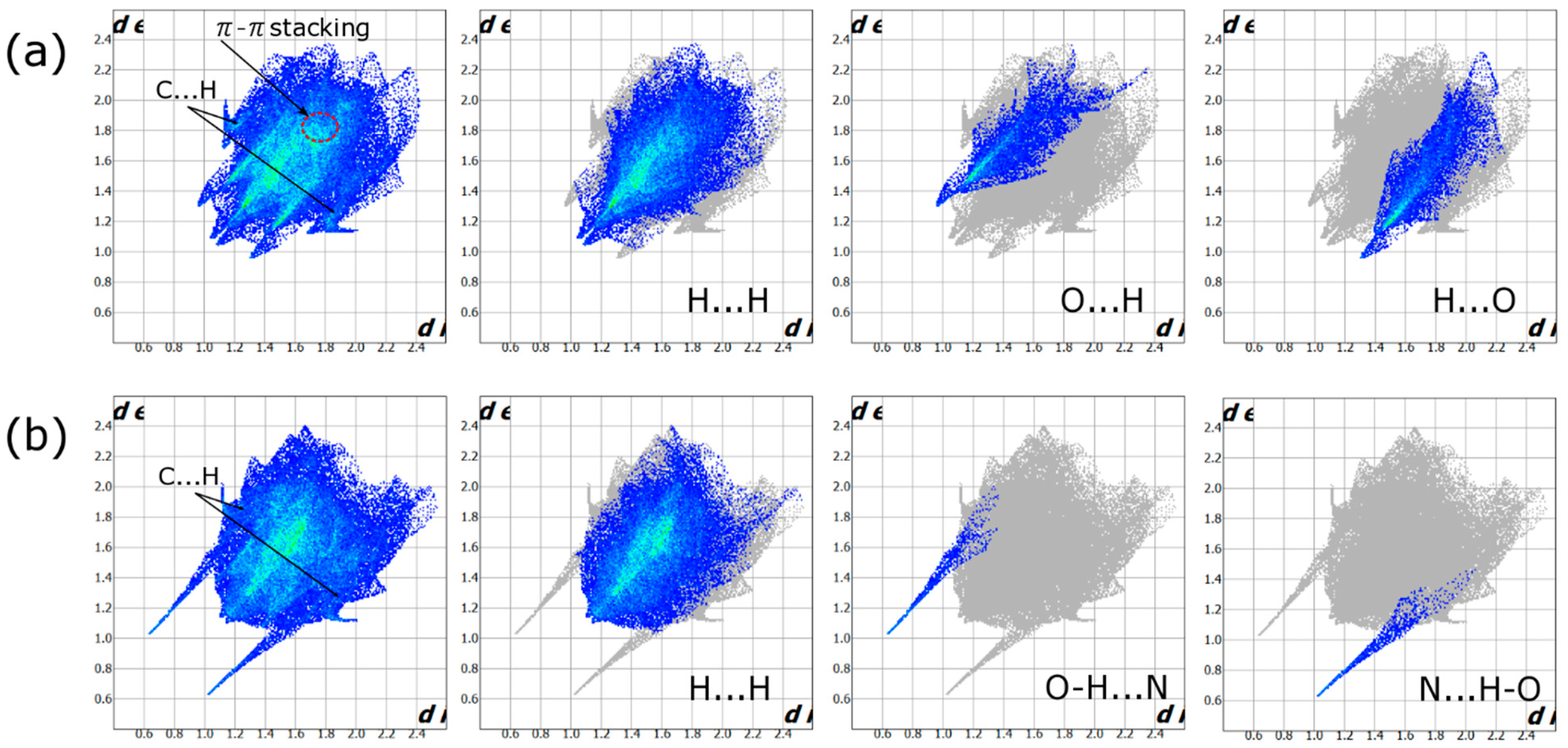

Figure 5. 2D fingerprint plots for (a) 2a and (b) 3a: full (left) and then resolved into H…H, O…H/H…O, and O–H…N/N…H–O contacts.
Figure 5. 2D fingerprint plots for (a) 2a and (b) 3a: full (left) and then resolved into H…H, O…H/H…O, and O–H…N/N…H–O contacts.
Molecules 24 00590 g005
Table 1. Mannich bases derivatives 2a/b5a under microwave irradiation (300 W, 120 °C using dioxane as solvent).
Table 1. Mannich bases derivatives 2a/b5a under microwave irradiation (300 W, 120 °C using dioxane as solvent).
CompoundabMicrowave Yield % Reactant Ratio 1:1.5:1.5Microwave Yield % Reactant Ratio 1:2:2Time (min)
abab
2 Molecules 24 00590 i001 Molecules 24 00590 i0028020-quantitative yield30
3 Molecules 24 00590 i003 Molecules 24 00590 i0044915-8615
4 Molecules 24 00590 i005 Molecules 24 00590 i0065814-9415
5 Molecules 24 00590 i007-77-quantitative yield-15
Table 2. Crystallographic data and structure refinement parameters for 2a and 3a.
Table 2. Crystallographic data and structure refinement parameters for 2a and 3a.
Compound2a3a
Chemical formulaC13H17NO3C13H17NO2
Mr235.27219.27
Crystal system, space groupMonoclinic, P21/nOrthorhombic, Pbca
Temperature (K)100 (2)100 (2)
a, b, c (Å)7.297 (6), 11.375 (8), 14.571 (12)10.8735 (8), 10.9988 (9), 19.0645 (15)
β (°)93.79 (3)
V3)1206.9 (16)2280.0 (3)
Z48
Radiation typeMo KαMo Kα
μ (mm−1)0.090.09
Crystal size (mm)0.50 × 0.40 × 0.350.44 × 0.18 × 0.17
Data collection
DiffractometerBruker D8 Venture PhotonBruker D8 Venture Photon
Absorption correctionMulti-scan SADABS2016/2 (Bruker AXS)Multi-scan SADABS2016/2 (Bruker AXS)
Tmin, Tmax0.879, 0.9280.879, 0.928
No. Of measured, independent and observed [I > 2σ(I)] reflections28902, 3719, 344786662, 3500, 3186
Rint0.0250.034
(sin ϴ/λ)max−1)0.7170.650
Refinement
R[F2 > 4σ(F2)], wR(F2), S0.034, 0.095, 1.030.037, 0105, 1.054
No. Of reflection37193500
No. Of parameters157147
H-atom treatmentH-atom parameters constrainedH-atom parameters constrained
Δρmax, Δρmin (e·−3)0.41, −0.200.39 and −0.308
Computer programs: Bruker APEX3, Bruker SAINT [31], SHELXT 2014/5, [32,33].
Table 3. Geometric parameters (Å, °) for compound 2a.
Table 3. Geometric parameters (Å, °) for compound 2a.
O1–C11.3539 (13)C11–C101.5160 (14)
O1–H10.8400N1–C111.4675 (15)
O2–C101.4209 (12)N1–C71.4759 (13)
O2–C91.4241 (15)C1–C61.3959 (14)
O3–C121.2208 (13)C1–C21.4048 (13)
N1–C81.4633 (12)C12–C131.5031 (15)
C10–O2–C9110.06 (7)O3–C12–C4120.84 (8)
C8–N1–C11109.45 (7)O3–C12–C13120.05 (9)
C8–N1–C7110.34 (7)C4–C12–C13119.09 (8)
C11–N1–C7111.90 (7)C5–C6–C1119.33 (8)
O1–C1–C6119.13 (7)C6–C5–C4121.58 (8)
O1–C1–C2120.61 (7)C3–C2–C1119.27 (7)
N1–C8–C9109.95 (7)N1–C11–C10109.34 (7)
N1–C7–C2111.38 (6)O2–C9–C8111.10 (7)
Table 4. Geometric parameters (Å, °) for compound 3a.
Table 4. Geometric parameters (Å, °) for compound 3a.
O1–C11.3381 (9)C6–H60.9500
O1–H10.8400C5–H50.9500
N1–C71.4777 (10)C8–C91.5386 (12)
N1–C111.4781 (10)O2–C121.2226 (12)
N1–C81.4817 (10)C3–C21.3924 (10)
C7–N1–C11112.43 (6)N1–C11–C10102.67 (6)
C7–N1–C8113.93 (6)O2–C12–C4120.57 (8)
C11–N1–C8103.46 (6)O2–C12–C13120.09 (8)
O1–C1–C2118.31 (7)N1–C7–C2112.27 (6)
C3–C2–C1–O1177.70 (7)C7–C2–C1–O1−1.46 (11)
C11–N1–C7–C2−169.16 (6)C7–N1–C8–C9162.59 (7)
C8–N1–C7–C273.55 (8)C8–N1–C11–C10−46.12 (7)
C3–C2–C7–N180.26 (9)C3–C4–C12–O2173.05 (9)
C1–C2–C7–N1−100.58 (8)C5–C4–C12–O2−6.28 (13)
Table 5. Relative contributions of internal and external atomic contacts to the Hirshfeld surface for 2a and 3a compounds.
Table 5. Relative contributions of internal and external atomic contacts to the Hirshfeld surface for 2a and 3a compounds.
ContactPercentage in 2aPercentage in 3a
H…H55.8%60.7%
H…O12.6%7.9%
O…H14.8%9.4%
C…C0.9%0.0%
N…H/H…N0.0%1.6%
H…C6.7%10.3%
C…H8.8%8.3%
O…C/C…O0.0%0.1%

Share and Cite

MDPI and ACS Style

Aljohani, G.; Said, M.A.; Lentz, D.; Basar, N.; Albar, A.; Alraqa, S.Y.; Ali, A.A.-S. Microwave-Assisted Synthesis of Mono- and Disubstituted 4-Hydroxyacetophenone Derivatives via Mannich Reaction: Synthesis, XRD and HS-Analysis. Molecules 2019, 24, 590. https://doi.org/10.3390/molecules24030590

AMA Style

Aljohani G, Said MA, Lentz D, Basar N, Albar A, Alraqa SY, Ali AA-S. Microwave-Assisted Synthesis of Mono- and Disubstituted 4-Hydroxyacetophenone Derivatives via Mannich Reaction: Synthesis, XRD and HS-Analysis. Molecules. 2019; 24(3):590. https://doi.org/10.3390/molecules24030590

Chicago/Turabian Style

Aljohani, Ghadah, Musa A. Said, Dieter Lentz, Norazah Basar, Arwa Albar, Shaya Y. Alraqa, and Adeeb Al-Sheikh Ali. 2019. "Microwave-Assisted Synthesis of Mono- and Disubstituted 4-Hydroxyacetophenone Derivatives via Mannich Reaction: Synthesis, XRD and HS-Analysis" Molecules 24, no. 3: 590. https://doi.org/10.3390/molecules24030590

Article Metrics

Back to TopTop
