Molecules 2019, 24(22), 4070; https://doi.org/10.3390/molecules24224070

Article
Synthesis and Fluorescent Properties of Novel Isoquinoline Derivatives
1
Department of Chemical Technology of Drugs, Faculty of Pharmacy, Medical University of Gdańsk, 80-416 Gdańsk, Poland
2
Faculty of Chemistry, Adam Mickiewicz University, 61-614 Poznań, Poland
*
Correspondence: [email protected]; Tel.: +48-58-349-1952; Fax: +48-58-349-1654
Deceased 18 October 2018.
Received: 26 September 2019 / Accepted: 8 November 2019 / Published: 10 November 2019

Abstract

:
Isoquinoline derivatives have attracted great interest for their wide biological and fluorescent properties. In the current study, we focused on the synthesis of a series of novel isoquinoline derivatives substituted at position 3 of the heteroaromatic ring. Compounds were obtained in a Goldberg–Ullmann-type coupling reaction with appropriate amides in the presence of copper(I) iodide, N,N-dimethylethylenediamine (DMEDA), and potassium carbonate. The structures of novel isoquinolines were confirmed by IR, NMR, and elemental analysis, as well as X-ray crystallography. In the course of our research work, the visible fluorescence of this class of compounds was observed. The above findings prompted us to investigate the optical properties of the selected compounds.
Keywords:
isoquinoline derivatives; copper-catalyzed coupling; fluorescence; X-ray crystallography

1. Introduction

Among heteroaromatic compounds, the isoquinoline (benzo[c]pyridine) scaffold constitutes an important and privileged structural framework, and may be found in several naturally occurring alkaloids [1,2]. Biological activities of isoquinoline derivatives found in nature, as well as those obtained by organic synthetic procedures, have been widely explored. Isoquinoline compounds possess antihypertensive, anti-inflammatory, anti-oxidant, antipyretic, and analgesic properties [3,4,5]. It was also demonstrated that isoquinoline derivatives exhibit antifungal, antibacterial [6], and anti-malarial activities [7]. In addition, it was found that isoquinolines may act as antidepressants and antipsychotic agents [8]. Several compounds with isoquinoline core were found to exhibit anti-tumor or antiproliferative activity serving as a lead structure for the development of potential anticancer drugs [9,10,11,12]. Noteworthy is the fact that the isoquinoline ring constitutes an important molecular part of topical anesthetic drug quinisocaine, whereas the 1,2,3,4-tetrahydroisoquinoline moiety is found in the structure of antihypertensive drugs, quinapril and debrisoquine.
An inspection of the literature data indicates that isoquinoline-3-amine derivatives exhibit fluorescent properties and may constitute potential fluorophores [13,14,15]. Moreover, for many years the electronic states and optical properties of isoquinoline and its derivatives have been an object of particular interest and study [16,17,18,19,20,21,22,23,24,25]. Recently, notable progress has been made in the synthesis and development of novel organic fluorophores with diverse applications and uses in in vivo imaging. Derivatives with high extinction coefficients, long absorption wavelengths, high quantum yields of fluorescence, and high fluorescence lifetimes may be obtained by molecular design [26].

2. Results and Discussion

2.1. Synthesis of 1-(Isoquinolin-3-yl)heteroalkyl(aryl)-2-ones 3a-d and 1,3-di(Isoquinolin-3-yl)heteroalkyl(aryl)-2-ones 4a-c

Novel isoquinoline derivatives were obtained according to copper-catalyzed Goldberg–Ullmann-type coupling of aryl halides with 2-imidazolidinone [27,28]. The reactions of 3-bromoisoquinoline (1) with azetidin-2-one (2a), pyrrolidin-2-one (2b), 3-methylpyrrolidin-2-one (2c), and piperidin-2-one (2d) were carried out in the presence of anhydrous potassium carbonate, copper(I) iodide (CuI), and N,N-dimethylethylenediamine (DMEDA) as a ligand, affording the corresponding 1-(isoquinolin-3-yl)heteroalkyl-2-ones 3a-d (Scheme 1).
In turn, the use of imidazolidin-2-one (2e), 1H-benzimidazol-2(3H)-one (2f), or 5-methoxy-1H-benzimidazol-2(3H)-one (2g) as the substrate allowed obtaining the target 1-(isoquinolin-3-yl)heteroalkyl(aryl)-2-ones 3eh (major products) and the corresponding 1,3-disubstituted derivatives 4ac (minor products) (Scheme 2).
The formation of the fluorescent product was controlled by sampling the reaction mixture for thin-layer chromatography when the reaction was expected to be completed (3 to 85 h). After the required time, mixtures were cooled to room temperature and diluted with chloroform followed by filtration. Products were separated by preparative thin-layer chromatography (chromatotron). We began by studying the catalytic coupling reaction of 3-bromoisoquinoline with imidazolidin-2-one at different temperatures and various solvents, such as toluene, tetrahydrofuran, dimethylformamide, n-butanol, and 1,4-dioxane. It was found that the higher conversion of starting materials and better yields of desired products were achieved using n-butanol as a solvent. Reactions using cesium carbonate instead of potassium carbonate as a base were unsuccessful. Synthesis of 3a required anhydrous 1,4-dioxane at 90 °C, due to limited stability of the substrate 2a. The use of dimethylformamide as a solvent had a negative effect on the purity and further isolation of the desired products.
In our study, we found that for the 1-(isoquinolin-3-yl)heteroalkyl(aryl)-2-ones a stoichiometric ratio of the reactants in terms of yields and purity was the most important factor. In the synthesis of 3b, 3d, 3f, 3g, 3h, and 4ac, a three-fold excess of compound 2 gave the best result. The equimolar ratio of substrates 1 and 2a in 1,4-dioxane was used in the synthesis of 3a giving the product in 61% yield. On the other hand, the highest yield of the product 3e was achieved in the presence of a five-fold excess of compound 2e (reaction time 3 h). Importantly, a longer reaction time resulted in an increasing amount of 1,3-di(isoquinolin-3-yl)imidazolidin-2-one (4a), even though a large excess of imidazolidin-2-one (2e) was used.
The lowest reactivity was observed in the case of the benzimidazole derivatives 2f and 2g, and the yields were diminished (5–18% yield, 80 or 85 h heating at 100 °C). Reaction involving 1-isopropenyl-2-benzimidazolidione under the same conditions (100 °C, 85 h) provided no product. Furthermore, the reaction of 1 with 5-methoxy-1H-benzimidazol-2(3H)-one (2g) afforded a mixture of the two isomeric products: 1-(isoquinolin-3-yl)-5-methoxy-1H-benzimidazol-2(3H)-one (3g) and 1-(isoquinolin-3-yl)-6-methoxy-1H-benzimidazol-2(3H)-one (3h). Due to difficulties associated with purification, compounds 3g and 3h could not be isolated in pure form by chromatographic methods. The 1H NMR spectrum revealed the 1:1 ratio of the isomers 3g and 3h.

2.2. Synthesis of 1-(Isoquinolin-3-yl)-3-methylimidazolidin-2-one (5) and 1-(Isoquinolin-3-yl)-3-(hetero)aryl-2-ones 7a-d

The reaction of 1-(isoquinolin-3-yl)-3-imidazolidin-2-one (3e) with methyl iodide and solid sodium hydroxide in dimethylformamide at room temperature gave N-methyl derivative 5 in moderate yield. Treatment of compound 3e with aryl or heteroaryl iodides in the presence of copper(I) iodide, N,N’-dimethylethylenediamine, and potassium carbonate in n-butanol at 100 °C gave corresponding 1-(isoquinolin-3-yl)-3-(hetero)aryl-2-ones 7ad (Scheme 3).

2.3. Synthesis of n-Butyl 3-(isoquinolin-3-ylamino)propanoate (8) and 3-(Isoquinolin-3-ylamino)-1-(pyrrolidin-1-yl)propan-1-one (9)

It was found that the reaction of 3-bromoisoquinoline (1) with azetidin-2-one (2a) carried out at 100 °C in n-butanol led to the formation of the n-butyl 3-(isoquinolin-3-ylamino)propanoate (8) as shown in Scheme 4. The reaction consists of three mechanistic steps: formation of 1-(isoquinolin-3-yl)azetidin-2-one (3a), followed by nucleophilic 1,2-addition of the solvent to the carbonyl group of the β-lactam ring. Finally, n-butyl ester 8 is formed as a result of ring-opening of the unstable hemiacetal, followed by [1.3] proton shift. In addition, compound 8 heated under reflux with an excess of pyrrolidine in ethanol gave amide 9 in moderate yield (Scheme 4). It should be noted that in the proposed mechanism, the formation of fluorescent β-lactam 3a was observed. The compound 3a was detected by sampling the reaction mixture for thin-layer chromatography and HPLC.
The structures of novel isoquinoline derivatives were confirmed by IR and NMR spectroscopic data, mass spectrometry, and elementary analysis. Moreover, the crystal structure of compound 3e was determined by X-ray crystallography. The molecule of 3e, as shown in Figure 1, adopts a strongly flattened conformation with the isoquinoline N atom oriented trans relative to the 2-imidazolidinone carbonyl oxygen. The best planes calculated through the isoquinoline and 2-imidazolidinone fragments form a dihedral angle of 3.49°. The trans configuration of the 2-pirydyl and 2-imidazolidinone-1-yl fragments about a partially double C-N bond has been found so far in all crystal structures of N-(2-pyridyl)imidazolidin-2-one derivatives [29,30,31,32]. It contrasts with the cis configuration adopted by this type of molecule in coordination compounds where they act as O,N-chelating ligands [33]. Most probably, the trans configuration of N-(2-pyridyl)imidazolidin-2-ones is stabilized by intramolecular C-H···O interaction with a short H4···O16 distance of 2.26 Å. In crystal, the molecules of 3e are connected through a pair of N-H···O hydrogen bonds (H···O 1.99 Å) between 2-imidazolidinone fragments forming centrosymmetric dimers. These dimers are further connected into tapes by much weaker C-H···N interactions (H···N 2.60 Å) (Figure 2).
Absorption measurements were carried out using a Perkin-Elmer Lambda UV/VIS (Evolution 300 UV-vis) spectrophotometer. Spectra were recorded between 190 and 600 nm at 22 ± 2 °C. The fluorescence spectra of selected compounds 3af, 5, 7ad, 8, and 9 were measured under the same conditions. The spectra of the test compounds were recorded in 0.1 M H2SO4 solution. The photophysical properties data of the selected isoquinoline derivatives (3af, 5, 7ad, 8, and 9) are summarized in Table 1. Due to the poor solubility in aqueous solution and organic solvents of the di-substituted isoquinolines 4ac (minor products), their fluorescent properties were not investigated.
The photophysical properties may be strongly affected by solvent properties. In protic hydrogen-bonding solvents such as water, quantum yields are higher compared to hydrocarbon solvents. In case of heteroaromatic compounds, e.g., quinolines or isoquinolines, the hydrogen bond between the lone pair electrons on the nitrogen atom and water stabilizes the 1(π,π*) state, destabilizing the 1(n,π*) state [34]. This increases the energy gap, reducing the vibronic interaction between the states and results in enhance of fluorescence. The solvent used may have a significant effect on the determined absorption maxima (λmax) and the molar absorption coefficient (εmax). The most preferred solvent is water, which occurs under physiological conditions and has a permeability limit of 200 nm. In addition, the high polarity of water can cause bathochromic shifts of the bands π → π* and hypsochromic shifts of bands n → π*, associated with groups capable of binding a free electron pair with hydrogen bonds. Thus, compounds 3ae, 5, 8, and 9 were studied in acidic aqueous solution. In the case of compounds 3f and 7ad, chloroform was chosen.
The emission maxima of isoquinoline derivatives 3af, 5, 7a, 7b, and 7d range from 328 to 391 nm (near-ultraviolet region). By contrast, strong electron-withdrawing properties of the NO2 group ensures that 1-(isoquinolin-3-yl)-3-(4-nitrophenyl)imidazolidin-2-one (7c) has no intrinsic emission (absmax = 350 nm). Fluorescence quenching or decreasing intensity may be observed in the case of nitro compounds [35,36].
Compounds 8 and 9 display the same absorption maximum at 406 nm and have favorably long emission wavelengths (494 and 495 nm). A disadvantage of the compounds 8 and 9 is their low quantum yields: 0.223·10−13 and 0.053, respectively. Therefore, in the case of 9, a very weak emission spectrum was observed.
Experiments with isoquinoline derivatives bearing a 4, 5 or 6-membered lactam ring 3ad provided additional evidence that the absorption and emission spectra are dependent upon their chemical structure. The highest quantum yield value (0.963) was observed for 1-(isoquinolin-3-yl)azetidin-2-one (3a), which could be due to the greater structural rigidity. A four-membered ring coupled to the isoquinoline with restricted rotation leads to stabilization of the structure (Figure 3).
Table 1 shows that the fluorescence intensity decreases with increasing heterocyclic ring size. In contrast to the 3a with the β-lactam ring, compound 3d with a 6-membered ring displays a lower quantum yield (0.389) and molar extinction coefficient (2541 M−1cm−1).
Compounds 3a-f display small Stokes shifts ranging from 54 to 76 nm. Figure 4 shows the fluorescence of compounds 3a, 3b, 3d, and 3e in 0.1 M H2SO4. In this group the highest molar extinction coefficient (5083 M−1cm−1) displays 1-(isoquinolin-3-yl)imidazolidin-2-one (3e), whereas the lowest is observed for 1H-benzimidazol-2(3H)-one derivative 3f (2032 M−1cm−1). Compounds 3a-c and 3e can be excited at 356, 363, 368, and 377 nm. Figure 5 shows absorption and fluorescence spectra of 1-(isoquinolin-3-yl)imidazolidin-2-one (3e). In contrast to compound 3e, its N-methyl analog 5 obtained from 3e in reaction with methyl iodide has lower fluorescence quantum yield (0.479). The absorption and emission maxima of the N-methyl derivative 5 are red-shifted (380 nm and 448 nm).
Due to the lack of solubility of 1-(isoquinolin-3-yl)-3-(hetero)aryl-2-ones 7a-d in water and a 0.1 molar solution of sulfuric acid, the spectra were recorded in chloroform (permeability limit: 250 nm). Compounds 7a-d are characterized by the absorption of electromagnetic radiation in the near-ultraviolet range. The observed absorption maxima are found at the following wavelengths: 302 nm (7a), 344 nm (7b), 350 nm (7c), and 304 nm (7d). The heteroaromatic derivative 7d with the pyridine ring has an electron spectrum very close to its analog 7a (absorption maxima 304 and 302 nm). The presence of the substituent at the C-4 position of the phenyl ring, both an electron donor (OCH3) and an electron acceptor (NO2), causes a bathochromic shift of the absorption band (π → π*) by the following values: 42 nm (7b) and 48 nm (7c). The compounds 7a, 7b, and 7d emit violet light in solution. The attempt to register the emission spectrum of the 4-nitrophenyl derivative 7c failed. The presence in the structure of the nitro group associated with the aromatic ring causes fluorescence quenching. The determined emission maxima of the compounds 7a, 7b, and 7d are respectively: 391 nm (7a and 7b) and 385 nm (7d). In comparison with the unsubstituted compound 7a, the presence of the methoxy substituent at the C-4 position of the phenyl ring (7b) does not change the emission properties. Compound 7a displays the strongest absorption (λmax = 302 nm) and the molar absorption coefficient (εmax) was 34,537 M−1cm−1. Lower values of the molar absorption coefficient were determined for compounds 7c and 7d: 11,072 M−1cm−1 and 15,581 M−1cm−1 respectively. The lowest value, εmax, of 2251 M−1cm−1 was characterized by the compound 7b with a methoxy substituent. Higher values of the Stokes shift were recorded for compounds 7a (Δυ = 89 nm) and 7d (Δυ = 81 nm).

3. Experimental Details

Materials. Quinine hemisulfate salt monohydrate of ≥98.0% purity suitable for fluorescence was obtained from Sigma-Aldrich. All of the solvents and reagents used in this study were of analytical grade.
Methods. Freshly prepared acidic medium 0.1 M H2SO4 for optical measurements, as well as freshly prepared solutions of compounds, were used. Fluorescence quantum yields were determined in reference to the solution of quinine sulfate in 0.1 M H2SO4f = 0.577, at the wavelength of excitation 350 nm) [37].
The melting points were determined using a Boetius apparatus (VEB Analytik Dresden) and are uncorrected. The infrared spectra were obtained using a Nicolet 380 FTIR spectrophotometer in potassium bromide or in the liquid film. Magnetic resonance spectra (NMR) were recorded with a Varian Gemini 200 BB (1H 200 MHz) spectrometer, Varian Unity Inova 500 (1H 500 MHz) or Varian Mercury-VX 300 (1H 300 MHz) spectrometer. Chemical shifts (δ) are reported in ppm relative to residual solvent signals. Coupling constants (J) are given in Hz. The mass spectra were recorded on a Shimadzu LCMS 2010 instrument in positive ion mode with an electrospray ionization source (ESI) using a mixture of methanol and acetonitrile containing 0.1% of acetic acid (1:1). The absorption spectra were obtained using a Perkin-Elmer Lambda UV/VIS (Evolution 300 UV-vis) spectrophotometer. The fluorescence spectra were recorded on a Hitachi F-7000 (Scinco FS-2) fluorescence spectrometer.
Compounds were purified by preparative thin-layer chromatography using a Harrison Research Inc. USA chromatotron. Plates were coated with silica gel containing 30% gypsum (Merck Silica Gel PF254). Dichloromethane-ethyl acetate or diethyl ether mixtures as mobile phases were applied. Thin-layer chromatography was performed on silica gel plates with fluorescence detection (Merck Silica Gel 254). After drying, spots were detected under UV light at 254 nm or 365 nm.
A representative procedure for the reaction of 3-bromoisoquinoline with β, γ, δ-lactams, imidazolidin-2-one, 2-hydroxybenzimidazole or 5-methoxy-1H-benzimidazol-2(3H)-one (3a–h, 4a–c)
To a stirring solution of 3-bromoisoquinoline (0.104 g, 0.5 mmol) in n-butanol (2–3 cm3) was added the appropriate lactam (β, γ, δ), imidazolidin-2-one, 2-hydroxybenzimidazole or 5-methoxy-1H-benzimidazol-2(3H)-one (0.5–2.5 mmol), potassium carbonate (0.207 g, 1.5 mmol), copper(I) iodide (0.01g, 0.05 mmol), and N,N-dimethylethylenediamine (DMEDA) (0.013 g, 0.15 mmol). For the synthesis of compound 3a, anhydrous 1,4-dioxane was used at 90 °C. A mixture was heated in an oil bath at 90–100 °C for 3–80 h. The progress of the reaction was controlled by TLC. The mixture was then evaporated under reduced pressure and the residue was extracted four times with 10 cm3 portions of chloroform, dried over anhydrous MgSO4 and filtered. The solvent was removed in vacuo and the semi-crystalline residue was purified on silica gel by preparative thin-layer chromatography (chromatotron). Thus, the chemical yield of the isolated product was determined.
1-(Isoquinolin-3-yl)azetidin-2-one (3a)
Starting from 0.036 g (0.5 mmol) azetidin-2-one; yield 3a 0.06 g (61%); reaction time 48 h; eluent: dichloromethane followed by diethyl ether; m.p. 142–146 °C; νmax (KBr, cm−1): 3085, 3044, 3003, 2983, 2914, 1739, 1630, 1590, 1466, 1390, 1241, 1138, 849, 752; δH (200 MHz, CDCl3): 3.16 (t, 2H, CH2); 3.91 (t, 2H, CH2); 7.46 (t, 1H, isoquin.); 7.64 (t, 1H, isoquin.); 7.78 (d, J = 8.3 Hz, 1H, isoquin.); 7.89 (d, J = 7.9 Hz, 1H, isoquin.); 8.05 (s, 1H, isoquin.); 9.01 (s, 1H, isoquin.); δC (50 MHz, CDCl3): 36.24, 38.30, 107.47, 125.97, 126.52, 126.67, 127.88, 131.16, 137.82, 145.43, 151.72, 165.30; m/z (ESI): 199 [M+H]+. Anal. Calcd for C12H10N2O (198.22): C, 72.71; H, 5.08; N, 14.13. Found: C, 72.56; H, 5.23; N, 14.01.
1-(Isoquinolin-3-yl)pyrrolidin-2-one (3b)
Starting from 0.128 g (1.5 mmol) pyrrolidin-2-one; yield 3b 0.06 g (57%); reaction time 65 h; eluent: dichloromethane:ethyl acetate, (19:1 and 9:1, v/v); m.p. 100–105 °C; νmax (KBr, cm−1): 3098, 3063, 3037, 2999, 2967, 2905, 1690, 1624, 1582, 1489, 1448, 1397, 1356, 1292, 1238, 881, 755; δH (500 MHz, DMSO-d6): 2.08 (qui, 2H, CH2); 2.61 (t, 2H, CH2); 4.11 (t, 2H, CH2); 7.55 (t, 1H, isoquin.); 7.71 (t, 1H, isoquin.); 7.93 (d, J = 8.2 Hz, 1H, isoquin.); 8.06 (d, J = 8.2 Hz, 1H, isoquin.); 8.64 (s, 1H, isoquin.); 9.19 (s, 1H, isoquin.); m/z (ESI): 213 [M+H]+. Anal. Calcd for C13H12N2O (212.25): C, 73.56; H, 5.70; N, 13.20. Found: C, 73.26; H, 5.98; N, 12.86.
1-(Isoquinolin-3-yl)-3-methylpyrrolidin-2-one (3c)
Starting from 0.099 g (1 mmol) 3-methylpyrrolidin-2-one; yield 3c 0.09 g (80%) as an oil; reaction time 5 h; eluent: dichloromethane:ethyl acetate, (1:1, v/v); νmax (liquid film, cm−1): 3058, 2973, 2926, 1698, 1627, 1584, 1448, 1392, 1236, 1207, 1139, 753; δH (500 MHz, CDCl3): 1.36 (d, J = 6.35 Hz, 3H, CH3); 1.79–1.85 (m, 1H, CH2); 2.37–2.44 (m, 1H, CH2); 2.60–2.67 (m, 1H, CH2); 2.77–2.84 (m, 1H, CH2); 5.04–5.08 (m, 1H, CH); 7.53 (t, 1H, isoquin.); 7.68 (t, 1H, isoquin.); 7.86 (d, J = 8.3 Hz, 1H, isoquin.); 7.94 (d, J = 8.3 Hz, 1H, isoquin.); 8.55 (s, 1H, isoquin.); 9.12 (s, 1H, isoquin.); δC (125 MHz, DMSO-d6): 20.55, 26.08, 32.35, 54.78, 112.14, 126.50 (two overlapping signals), 127.11, 127.58, 130.88, 137.87, 146.00, 150.70, 174.67; m/z (ESI): 227 [M+H]+. Anal. Calcd for C14H14N2O (226.27): C, 74.31; H, 6.24; N, 12.38. Found: C, 74.06; H, 6.38; N, 12.20.
1-(Isoquinolin-3-yl)piperidin-2-one (3d)
Starting from 0.149 g (1.5 mmol) piperidin-2-one; yield 3d 0.04 g (35%); reaction time 5 h; eluent: dichloromethane:ethyl acetate, (9:1, v/v) followed by diethyl ether; m.p. 81–83 °C; νmax (KBr, cm−1): 3060, 2938, 2873, 1655, 1624, 1577, 1481, 1446, 1409, 1352, 1300, 763; δH (500 MHz, DMSO-d6): 1.85–1.93 (m, 4H, 2× CH2); 2.48–2.50 (m, 2H, CH2), 3.90 (t, 2H, CH2); 7.62 (t, 1H, isoquin.); 7.75 (t, 1H, isoquin.); 7.94 (d, J = 8.3 Hz, 1H, isoquin.); 8.01 (s, 1H, isoquin.); 8.11 (d, J = 8.3 Hz, 1H, isoquin.); 9.24 (s, 1H, isoquin.); m/z (ESI): 227 [M+H]+. Anal. Calcd for C14H14N2O (226.27): C, 74.31; H, 6.24; N, 12.38. Found: C, 74.48; H, 6.30; N, 12.51.
1-(Isoquinolin-3-yl)imidazolidin-2-one (3e)
Starting from 0.215 g (2.5 mmol) imidazolidin-2-one; yield 3e 0.038 g (36%); reaction time 3 h; eluent: dichloromethane:ethyl acetate, (8:2, v/v); m.p. 233–236°C; νmax (KBr, cm−1): 3201, 3111, 3053, 2996, 2965, 2902, 1717, 1625, 1583, 1488, 1454, 1415, 1365, 1268, 877, 750; δH (500 MHz, DMSO-d6): 3.43 (t, 2H, CH2); 4.11 (t, 2H, CH2); 7.20 (s, 1H, NH); 7.44 (t, 1H, isoquin.); 7.64 (t, 1H, isoquin.); 7.83 (d, J = 8.2 Hz, 1H, isoquin.); 7.98 (d, J = 8.2 Hz, 1H, isoquin.); 8.46 (s, 1H, isoquin.); 9.11 (s, 1H, isoquin.); δC (125 MHz, DMSO-d6): 37.29, 44.56, 105.63, 125.32, 125.59, 126.74, 128.18, 131.33, 137.76, 148.86, 151.31, 159.28; m/z (ESI): 214 [M+H]+. Anal. Calcd for C12H11N3O (213.24): C, 67.59; H, 5.20; N, 19.71. Found: C, 67.68; H, 5.27; N, 19.56.
Single crystals of 3e were obtained by crystallization from CHCl3. Diffraction data were collected at room temperature with an Oxford Diffraction SuperNova diffractometer using Cu Kα radiation and processed with CrysAlisPro software [38]. Using Olex2 [39], the structure was solved with the program SHELXT [40] and refined by the full-matrix least-squares method on F2 with SHELXL-2016/6 [41].
Crystal Data for 3e (C12H11N3O, M = 213.24 g/mol): monoclinic, space group P21/c (no. 14), a = 5.9861(1) Å, b = 8.4459(1) Å, c = 20.2004(2) Å, β = 94.6230(10)°, V = 1017.97(2) Å3, Z = 4, T = 294 K, μ(CuKα) = 0.750 mm−1, Dcalc = 1.391 g/cm3, 12,358 reflections measured (11.362° ≤ 2Θ ≤ 153.02°), 2115 unique (Rint = 0.0205, Rsigma = 0.0101) which were used in all calculations. The final R1 was 0.0350 (I > 2σ(I)) and wR2 was 0.1019 (all data). Illustrations were prepared with the OLEX2 software [39]. CCDC 1,944,714 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected].
1-(Isoquinolin-3-yl)-1H-benzimidazol-2(3H)-one (3f)
Starting from 0.201 g (1.5 mmol) 1H-benzimidazol-2(3H)-one; yield 3f 0.017 g (13%); reaction time 80 h; eluent: dichloromethane:ethyl acetate, (8:2, v/v); m.p. 186–189 °C; νmax (KBr, cm−1): 3183, 3138, 3068, 2902, 2838, 1731, 1628, 1594, 1583, 1486, 1454, 1387, 1177, 873, 741, 720; δH (500 MHz, DMSO-d6): 7.05 (t, 1H, arom.); 7.11 (m, 2H, arom.); 7.69 (t, 1H, isoquin.); 7.75 (d, J = 7.7 Hz, 1H, arom.); 7.82 (t, 1H, isoquin.); 8.07 (d, J = 8.3 Hz, 1H, isoquin.); 8.20 (d, J = 8.2 Hz, 1H, isoquin.); 8.35 (s, 1H, isoquin.); 9.38 (s, 1H, isoquin.); 11.32 (s, 1H, NH); m/z (ESI): 362 [M + H]+. Anal. Calcd for C16H11N3O (261.28): C, 73.55; H, 4.24; N, 16.08. Found: C, 73.62; H, 4.36; N, 16.18.
1-(Isoquinolin-3-yl)-5-methoxy-1H-benzimidazol-2(3H)-one (3g) and 1-(isoquinolin-3-yl)-6-methoxy-1H-benzimidazol-2(3H)-one (3h)
Starting from 0.246 g (1.5 mmol) 5-methoxy-1H-benzimidazol-2(3H)-one; yield mixture of 3g and 3h 0.026 g (18%); reaction time 85 h; eluent: dichloromethane:ethyl acetate, (4:1, v/v); m.p. 164–170 °C; νmax (KBr, cm−1): 3165, 3056, 2946, 2901, 2832, 1706, 1628, 1611, 1583, 1495, 1450, 1378, 1269, 1199, 1159, 746; δH 3g and 3h (500 MHz, DMSO-d6): 3.72 (s, 3H, OCH3); 3.76 (s, 3H, OCH3); 6.64–6.67 (m, 2H, 2xarom.); 6.71 (dd, J1 = 2.2 Hz, J2 = 8.8 Hz, 1H, arom.); 6.99 (d, J = 8.2 Hz, 1H, arom.); 7.38 (d, J = 2.2 Hz, 1H, arom.); 7.65–7.71 (m, 2H, 2xisoquin.); 7.77 (d, J = 8.8 Hz, 1H, arom.); 7.79–7.84 (m, 2H, 2xisoquin.); 8.04–8.07 (m, 2H, 2xisoquin.); 8.17–8.21 (m, 2H, 2xisoquin.); 8.34 (s, 1H, isoquin.); 8.39 (s, 1H, isoquin.); 9.34 (s, 1H, isoquin.); 9.39 (s, 1H, isoquin.); 11.12 (s, 1H, NH); 11.27 (s, 1H, NH); m/z (ESI): 292 [M + H]+. Anal. Calcd for C17H13N3O2 (291.30): C, 70.09; H, 4.50; N, 14.42. Found: C, 70.31; H, 4.64; N, 14.38.
1.3-Di(isoquinolin-3-yl)imidazolidin-2-one (4a)
Starting from 0.129 g (1.5 mmol) imidazolidin-2-one; yield 4a 0.03 g (35%); reaction time 19 h; eluent: dichloromethane:ethyl acetate, (19:1, v/v); m.p. 218–220 °C; νmax (KBr, cm−1): 3053, 2926, 2857, 1720, 1628, 1585, 1443, 1393, 1352, 1291, 1244, 872, 737; δH (500 MHz, DMSO-d6): 4.27 (s, 4H, CH2-CH2); 7.52 (t, 2H, 2xisoquin.); 7.72 (t, 2H, 2× isoquin.); 7.93 (d, J = 8.2 Hz, 2H, 2xisoquin.); 8.06 (d, J = 8.2 Hz, 2H, 2× isoquin.); 8.64 (s, 2H, 2× isoquin.); 9.21 (s, 2H, 2xisoquin.); m/z (ESI): 341 [M + H]+. Anal. Calcd for C21H16N4O (340.38): C, 74.10; H, 4.74; N, 16.46. Found: C, 73.89; H, 4.59; N, 16.41.
1.3-Di(isoquinolin-3-yl)-1H-benzimidazol-2(3H)-one (4b)
Starting from 0.201 g (1.5 mmol) 1H-benzimidazol-2(3H)-one; yield 4b 0.005 g (5%); reaction time 80 h; eluent: dichloromethane:ethyl acetate, (9:1, v/v); m.p. 277–278 °C; νmax (KBr, cm−1): 3055, 2955, 2925, 1717, 1629, 1594, 1583, 1487, 1450, 1397, 1180, 1156, 740; δH (200 MHz, DMSO-d6): 7.21–7.26 (m, 2H, arom.); 7.69–7.80 (m, 4H, arom.+2× isoquin.); 7.89 (t, 2H, 2× isoquin.); 8.13 (d, J = 8.1 Hz, 2H, 2× isoquin.); 8.26 (d, J = 7.9 Hz, 2H, 2× isoquin.); 8.43 (s, 2H, 2xisoquin.); 9.47 (s, 2H, 2× isoquin.); m/z (ESI): 389 [M + H]+. Anal. Calcd for C25H16N4O (388.42): C, 77.30; H, 4.15; N, 14.42. Found: C, 77.21; H, 4.03; N, 14.53.
1.3-Di(isoquinolin-3-yl)-5-methoxy-1H-benzimidazol-2(3H)-one (4c)
Starting from 0.246 g (1.5 mmol) 5-methoxy-1H-benzimidazol-2(3H)-one; yield 4c 0.005 g (5%); reaction time 85 h; eluent: dichloromethane:ethyl acetate, (9:1, v/v); m.p. 189–189 °C; νmax (KBr, cm−1): 3050, 2988, 2934, 2898, 2828, 1725, 1629, 1582, 1494, 1447, 1394, 1275, 1179, 737; δH (500 MHz, DMSO-d6): 3.76 (s, 3H, OCH3); 6.82 (dd, J1 = 2.2 Hz, J2 = 8.8 Hz, 1H, arom.); 7.35 (d, J = 2.7 Hz, 1H, arom.); 7.71–7.77 (m, 2H, 2× isoquin.); 7.79 (d, J = 8.8 Hz, 1H, arom.); 7.83–7.88 (m, 2H, 2× isoquin.); 8.08–8.12 (m, 2H, 2× isoquin.); 8.23–8.26 (m, 2H, 2× isoquin.); 8.40 (s, 1H, isoquin.); 8.44 (s, 1H, isoquin.); 9.43 (s, 1H, isoquin.); 9.46 (s, 1H, isoquin.); m/z (ESI): 419 [M + H]+. Anal. Calcd for C26H18N4O2 (418.45): C, 74.63; H, 4.34; N, 13.39. Found: C, 74.76; H, 4.48; N, 13.52.
1-(Isoquinolin-3-yl)-3-methylimidazolidin-2-one (5)
To a stirred compound 3e (0.213 g, 1 mmol) in 1–2 mL of anhydrous DMF was added solid NaOH (0.1 g, 2.5 mmol) and methyl iodide (0.852 g, 6 mmol). After 48 h a mixture was dissolved with chloroform (15 mL) and evaporated to dryness. Compound 5 was separated by use of chromatotron, eluent: dichloromethane:ethyl acetate: methanol, (8:1.5:0.5, v/v/v); yield 5 0.109 g (48%); m.p. 148–150 °C; νmax (KBr, cm−1): 3104, 3037, 2917, 2883, 1702, 1626, 1585, 1504, 1487, 1455, 1432, 1387, 1274, 1228, 878, 763, 748, 733; δH (400 MHz, DMSO-d6): 2.82 (s, 3H, CH3), 3.48 (t, 2H, CH2), 4.06 (t, 2H, CH2), 7.46 (t, 1H, isoquin.), 7.66 (t, 1H, isoquin.), 7.84 (d, J = 8.4 Hz, 1H, isoquin.), 8.01 (d, J = 8.3 Hz, 1H, isoquin.), 8.48 (s, 1H, isoquin.), 9.13 (s, 1H, isoquin.); δC (100 MHz, DMSO-d6): 31.20, 41.70, 43.90, 105.24, 125.18, 125.37, 126.49, 127.96, 131.11, 137.55, 148.64, 151.12, 157.55; m/z (ESI, MeOH:0,1% AcOH+ACN, 1:1, v/v): 228 [M + H]+ and 250 [M + Na]+. Anal. Calcd for C13H13N3O (227.26): C, 68.70; H, 5.77; N, 18.49. Found: C, 68.48; H, 6.01; N, 18.61.
Synthesis of 1-(Isoquinolin-3-yl)-3-(hetero)aryl-imidazolidin-2-ones7a-d
To a stirred compound 3e (0.213 g, 1 mmol) in 2–3.5 mL of n-butanol was added appropriate aryl iodide (2–5 mmol), copper(I) iodide (0.019 g; 0.1 mmol), N,N’-dimethylethylenediamine (DMEDA) (0.026 g, 0.3 mmol) and anhydrous potassium carbonate (0.415 g, 3 mmol). A mixture was heated in an oil bath at 90–100 °C for 12–90 h. The progress of reaction was controlled by TLC. Then to a mixture were added 5 mL of water and 5 mL of chloroform and solvents were evaporated under reduced pressure. The residue was extracted five times with 10 cm3 portions of chloroform, dried over anhydrous MgSO4, and filtered. The solvent was removed in vacuo and semi-crystalline residue was purified on silica gel by preparative thin layer chromatography by use of chromatotron or 20 × 20 cm glass plates (silica gel: 5–17 μm, layer thickness 0.25 mm, medium pore diameter 60Å).
1-(Isoquinolin-3-yl)-3-phenylimidazolidin-2-one (7a)
Starting from 1.02 g (5 mmol; 0.56 mL; 1.823 g/mL) of iodobenzene (6a) (added gradually); yield 7a 0.195 g (67%); reaction time 54 h; eluent: chloroform:ethyl acetate, (4:1, v/v); m.p. 212–213 °C; νmax (KBr, cm−1): 3060, 3025, 2963, 2904, 1704, 1629, 1598, 1586, 1504, 1454, 1410, 1318, 1290, 1250, 735, 685; δH (300 MHz, CDCl3): 3.98 (t, 2H, CH2), 4.31 (t, 2H, CH2), 7.11 (t, 1H, arom.), 7.36–7.45 (m, 3H, arom.), 7.57–7.67 (m, 3H, arom.), 7.80 (d, J = 8.3 Hz, 1H, arom.), 7.87 (d, J = 8.2 Hz, 1H, arom.), 8.64 (s, 1H, arom.), 9.02 (s, 1H, arom.); δC (75 MHz, CDCl3): 36.23, 37.32, 102.48, 113.41 (two overlapping signals), 118.41, 120.50, 120.81, 121.93, 122.53, 124.14 (two overlapping signals), 125.66, 133.03, 135.18, 142.78, 145.58, 150.05; m/z (ESI): 290 [M + H]+ and 312 [M + Na]+. Anal. Calcd for C18H15N3O (289.33): C, 74.72; H, 5.23; N, 14.52. Found: C, 74.56; H, 5.01; N, 14.37.
1-(Isoquinolin-3-yl)-3-(4-methoxyphenyl)imidazolidin-2-one (7b)
Starting from 0.702 g (3 mmol) of 1-iodo-4-methoxybenzene (6b); yield 7b 0.092 g (29%); reaction time 27 h; eluent: chloroform:ethyl acetate, (4:1, v/v); crystallized from methanol; m.p. 166–169 °C; νmax (KBr, cm−1): 3003, 2957, 2927, 2847, 1692, 1624, 1581, 1514, 1479, 1461, 1432, 1288, 1247, 1039, 824; δH (300 MHz, CDCl3): 3.81 (s, 3H, OCH3), 3.95 (t, 2H, CH2), 4.30 (t, 2H, CH2), 6.94 (d, J = 9.0 Hz, 1H, arom.), 7.41 (t, 1H, arom.), 7.54 (d, J = 9.2 Hz, 2H, arom.), 7.59 (t, 1H, arom.), 7.79 (d, J = 8.3, 1H, arom.), 7.86 (d, J = 8.2, 1H, arom.), 8.63 (s, 1H, arom.), 9.01 (s, 1H, arom.); δC (75 MHz, CDCl3): 41.07, 42.58, 55.51, 107.07, 114.16 (two overlapping signals), 120.19 (two overlapping signals), 125.16, 125.49, 126.67, 127.28, 130.38, 133.19, 137.81, 147.70, 150.30, 155.05, 155.81; m/z (ESI): 320 [M + H]+ and 342 [M + Na]+. Anal. Calcd for C19H17N3O2 (319.36): C, 71.46; H, 5.37; N, 13.16. Found: C, 71.38; H, 5.34; N, 12.98.
1-(Isoquinolin-3-yl)-3-(4-nitrophenyl)imidazolidin-2-one (7c)
Starting from 0.5 g (2 mmol) of 1-iodo-4-nitrobenzene (6c); yield 7c 0.019 g (6%); reaction time 71 h; eluent: petrol ether:chloroform, (1:1, v/v) and chloroform:ethyl acetate, (4:1, v/v); m.p. 187–189 °C; νmax (KBr, cm−1): 3126, 2955, 2925, 2854, 1710, 1630, 1597, 1507, 1478, 1401, 1327, 1309, 1286, 1246, 1114, 842, 750, 735; δH (300 MHz, DMSO-d6): 4.06–4.11 (m, 2H, CH2), 4.24–4.29 (m, 2H, CH2), 7.52 (t, 1H, arom.), 7.71 (t, 1H, arom.), 7.88–7.94 (m, 3H, arom.), 8.05 (d, J = 8.3 Hz, 1H, arom.), 8.26 (d, J = 9.1, 2H, arom.), 8.55 (s, 1H, arom.), 9.19 (s, 1H, arom.); m/z (ESI): 335 [M+H]+ and 357 [M + Na]+. Anal. Calcd for C18H14N4O3 (334.33): C, 64.66; H, 4.22; N, 16.76. Found: C, 64.58; H, 4.12; N, 16.64.
1-(Isoquinolin-3-yl)-3-(pyridin-2-yl)imidazolidin-2-one (7d)
Starting from 0.41 g (2 mmol; 0.213 mL; 1.928 g/mL) of 2-iodopyridine (6d); yield 7d 0.176 g (61%); reaction time 49 h; eluent: chloroform and chloroform:ethyl acetate, (4:1, v/v); crystallized from methanol; m.p. 208–209 °C; νmax (KBr, cm−1): 3117, 3062, 3000, 2917, 1712, 1627, 1589, 1473, 1435, 1389, 1357, 1287, 1244, 1136, 778, 740; δH (300 MHz, CDCl3): 4.17–4.33 (m, 4H, CH2-CH2), 6.96–7.00 (m, 1H, arom.), 7.43 (t, 1H, arom.), 7.60 (t, 1H, arom.), 7.69 (t, 1H, arom.), 7.81 (d, J = 8.4 Hz, 1H, arom.), 7.87 (d, J = 8.2 Hz, 1H, arom.), 8.34 (dd, J1 = 1.2 Hz, J2 = 4.4 Hz, 1H, arom.), 8.33–8.39 (m, 2H, arom.), 8.62 (s, 1H, arom.), 9.03 (s, 1H, arom.); δC (75 MHz, CDCl3): 40.77, 41.07, 107.44, 113.30, 118.17, 125.39, 125.69, 126.68, 127.29, 130.42, 137.37, 137.70, 147.30, 147.50, 150.46, 152.22, 154.52; m/z (ESI): 291 [M+H]+ and m/z = 313 [M + Na]+. Anal. Calcd for C17H14N4O (290.32): C, 70.33; H, 4.86; N, 19.30. Found: C, 70.21; H, 4.78; N, 19.22.
n-Butyl 3-(Isoquinolin-3-ylamino)propanoate (8)
To a stirring solution of 3-bromoisoquinoline (0.208 g, 1 mmol) in n-butanol (2–3 cm3) was added azetidin-2-one (0.213 g, 3 mmol), potassium carbonate (0.415 g, 3 mmol), copper(I) iodide (0.019 g, 0.1 mmol) and N,N-dimethylethylenediamine (DMEDA) (0.026 g, 0.3 mmol). A mixture was heated in an oil bath at 100 °C for 3 h. The progress of reaction was controlled by TLC. The mixture was then evaporated under reduced pressure and the residue was extracted five times with 10 cm3 portions of chloroform, dried over anhydrous MgSO4, and filtered. The solvent was removed in vacuo and the residue was dissolved in chloroform (3–5 cm3). Compound 8 was isolated on silica gel by preparative thin layer chromatography (chromatotron, eluent: diethyl ether:petrol ether, 6:4, v/v); green crystals; yield 0.11 g (40%); m.p. 65–67 °C; νmax (KBr, cm−1): 3278, 3059, 2959, 2894, 2870, 1736, 1629, 1594, 1543, 1479, 1403, 1363, 1318, 1181, 1105; 810, 749; δH (500 MHz, DMSO-d6): 0.85 (t, 3H, CH3); 1.29 (sxt, 2H, CH2); 1.52 (qui, 2H, CH2); 2.62 (t, 2H, CH2); 3.50 (q, 2H, CH2); 4.02 (t, 2H, CH2); 6.47 (t, 1H, NH); 6.60 (s, 1H, isoquin.); 7.15 (t, 1H, isoquin.); 7.45 (t, 1H, isoquin.); 7.55 (d, J = 8.2 Hz, 1H, isoquin.); 7.79 (d, J = 8.2 Hz, 1H, isoquin.); 8.85 (s, 1H, isoquin.); δC (125 MHz, DMSO-d6): 14.01, 19.07, 30.62, 34.37, 38.19, 64.06, 96.37, 122.28, 123.01, 124.85, 128.16, 130.61, 138.90, 151.80, 156.05, 172.24; m/z (ESI): 273 [M + H]+. Anal. Calcd for C16H20N2O2 (272.34): C, 70.56; H, 7.40; N, 10.29. Found: C, 70.42; H, 7.28; N, 10.34.
3-(Isoquinolin-3-ylamino)-1-(pyrrolidin-1-yl)propan-1-one (9)
To a solution of n-butyl 3-(isoquinolin-3-ylamino)propanoate (8) (0.095 g, 0.35 mmol) in ethanol (3 cm3) was added pyrrolidine (0.075 g, 1.05 mmol). A mixture was stirred under reflux (oil bath at 90–100 °C) for 17 h and evaporated in vacuo. Crude product was extracted four times with 10 cm3 portions of chloroform, dried over anhydrous MgSO4, and filtered. The solvent was removed under reduced pressure and the oily residue was dissolved in chloroform (3 cm3). Compound 9 was isolated on silica gel by preparative thin layer chromatography (chromatotron, eluent: ethyl acetate:methanol, 9:1, v/v); green powder; yield 0.05 g (53%); m.p. 141–143 °C; νmax (KBr, cm−1): 3280, 3064, 2970, 2872, 1646, 1627, 1593, 1545, 1438, 1220, 814, 752; δH (500 MHz, DMSO-d6): 1.74 (qui, 2H, CH2); 1.83 (qui, 2H, CH2); 2.56 (t, 2H, CH2); 3.28 (t, 2H, CH2); 3.37 (t, 2H, CH2); 3.46 (q, 2H, CH2); 6.35 (t, 1H, NH); 6.59 (s, 1H, isoquin.); 7.14 (t, 1H, isoquin.); 7.45 (t, 1H, isoquin.); 7.54 (d, J = 8.3 Hz, 1H, isoquin.); 7.78 (d, J = 8.3 Hz, 1H, isoquin.); 8.84 (s, 1H, isoquin.); m/z (ESI): 270 [M + H]+. Anal. Calcd for C16H19N3O (269.34): C, 71.35; H, 7.11; N, 15.60. Found: C, 71.51; H, 6.98; N, 15.74.

4. Conclusions

In conclusion, we synthesized novel isoquinoline derivatives substituted at position 3 of the heteroaromatic ring in Goldberg–Ullmann-type coupling with appropriate amides in the presence of copper(I) iodide and N,N-dimethylethylenediamine (DMEDA). Optimization of the coupling reaction of 3-bromoisoquinoline with a series of lactams and imidazolidinones was studied at different temperatures and various solvents. It was found that the higher conversion of starting materials and better yields of desired products were achieved using n-butanol.
The isoquinolines 3ae and N-methyl derivative 5 studied in this report displayed promising fluorescent properties. Compounds 3a, 3c, and 3e possess a higher fluorescence quantum yield (Φf = from 63.4% to 96.3%) in an acidic aqueous solution than quinine hemisulfate (Φf = 57.7%) used as a reference standard. Interestingly, compound 3e with a secondary amide group offering an anchoring group is a prominent scaffold for further functionalization. Moreover, 1-(isoquinolin-3-yl)imidazolidin-2-one (3e) displayed the highest molar extinction coefficient (5083 M−1cm−1). The highest quantum yield value (Φf = 96.3%) was measured for derivative containing β-lactam ring 3a. This may be connected with the structural rigidity of this compound. Although these are preliminary results, novel isoquinoline derivatives 3ae and 5 constitute a promising group of fluorescent compounds with potential applications in medicinal chemistry.

Supplementary Materials

Supplementary data including 1H NMR spectra for novel compounds as well as absorption and fluorescence spectra of selected compounds associated with this article are available online. CCDC 1944714 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected].

Author Contributions

F.S. and Ł.B. conceived and designed the experiments; Ł.B., K.C. and A.J. performed the experiments; M.G. analyzed the data; Ł.B., A.K. and M.G. wrote the paper.

Funding

This research was supported by the Funds for Statutory Activity of the Medical University of Gdańsk (ST-020038/07).

Acknowledgments

The NMR spectra were carried out at The Nuclear Magnetic Resonance Laboratory, Gdańsk University of Technology, Poland and The Nuclear Magnetic Resonance Spectroscopy Laboratory, Collegium Medicum, Jagielonian University, Kraków, Poland.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Menachery, M.D.; Lavanier, G.L.; Wetherly, M.L.; Guinaudeau, H.; Shamma, M. Simple isoquinoline alkaloids. J. Nat. Prod. 1986, 49, 745–778. [Google Scholar] [CrossRef]
  2. Li, G.-Y.; Li, B.-G.; Yang, T.; Liu, G.-Y.; Zhang, G.-L. Chaetoindicins A-C, three isoquinoline alkaloids from the fungus Chaetomium indicum. Org. Lett. 2006, 8, 3613–3615. [Google Scholar] [CrossRef] [PubMed]
  3. Demerson, C.A.; Philipp, A.H.; Humber, L.G.; Kraml, M.J.; Charest, M.P.; Tom, H.; Vavra, I. Pyrrolo [4,3,2-de]isoquinolines with central nervous system and antihypertensive activities. J. Med. Chem. 1974, 17, 1140–1145. [Google Scholar] [CrossRef] [PubMed]
  4. Alagumuthu, M.; Sathiyanarayanan, K.I.; Arumugam, S. Molecular docking, design, synthesis, in vitro antioxidant and anti-inflammatory evaluations of new isoquinoline derivatives. Int. J Pharm. Pharm. Sci. 2015, 7, 200–208. [Google Scholar]
  5. Manikandan, A.; Sivakumar, A. Analgesic, anti-inflammatory and antipyretic evaluations of new isoquinoline derivatives. J. Pharm. Sci. 2016, 8, 339–343. [Google Scholar]
  6. Galán, A.; Moreno, L.; Párraga, J.; Serrano, A.; Sanz, M.J.; Cortes, D.; Cabedo, N. Novel isoquinoline derivatives as antimicrobial agents. Bioorg. Med. Chem. 2013, 21, 3221–3230. [Google Scholar] [CrossRef]
  7. Pingaew, R.; Prachayasittikul, S.; Ruchirawat, S. Synthesis, cytotoxic and antimalarial activities of benzoyl thiosemicarbazone analogs of isoquinoline and related compounds. Molecules 2010, 15, 988–996. [Google Scholar] [CrossRef]
  8. Zajdel, P.; Marciniec, K.; Maślankiewicz, A.; Grychowska, K.; Satała, G.; Duszyńska, B.; Lenda, T.; Siwek, A.; Nowak, G.; Partyka, A.; et al. Antidepressant and antipsychotic activity of new quinoline- and isoquinoline-sulfonamide analogs of aripiprazole targeting serotonin 5-HT1A/5-HT2A/5-HT7 and dopamine D2/D3 receptors. Eur. J. Med. Chem. 2013, 60, 42–50. [Google Scholar] [CrossRef]
  9. Hassaneen, H.M.; Wardkhan, W.W.; Mohammed, Y.S. A novel route to isoquinoline[2,1-g][1,6]naphthyridine, pyrazolo[5,1-a] isoquinoline and pyridazino[4’,5´:3,4]pyrazolo[5,1-a]isoquinoline derivatives with evaluation of antitumor activities. Z. Naturforsch. 2013, 68, 895–904. [Google Scholar] [CrossRef]
  10. Kakhki, S.; Shahosseini, S.; Zarghi, A. Design, synthesis and cytotoxicity evaluation of new 2-aryl-5, 6-dihydropyrrolo[2,1-a]isoquinoline derivatives as topoisomerase inhibitors. Iran J. Pharm. Res. 2014, 13, 71–77. [Google Scholar]
  11. Wu, H.L.; Hsu, C.Y.; Liu, W.H.; Yung, B.Y.M. Berberine-induced apoptosis of human leukemia HL-60 cells is associated with down-regulation of nucleophosmin/B23 and telomerase activity. Int. J. Cancer 1999, 81, 923–929. [Google Scholar] [CrossRef]
  12. Cushman, M.; Jayaraman, M.; Vroman, J.A.; Fukunaga, A.K.; Fox, B.M.; Kohlhagen, G.; Strumberg, D.; Pommier, Y. Synthesis of new indeno[1,2-c]isoquinolines: cytotoxic non-camptothecin topoisomerase I inhibitors. J. Med. Chem. 2000, 43, 3688–3698. [Google Scholar] [CrossRef] [PubMed]
  13. Balog, J.; Riedl, Z.; Hajós, G.; Miskolczy, Z.; Biczók, L. Novel fluorescent isoquinoline derivatives obtained via Buchwald-Hartwig coupling of isoquinolin-3-amines. ARKIVOC 2012, 5, 109–119. [Google Scholar]
  14. Balog, J.; Riedl, Z.; Hajós, G.; Miskolczy, Z.; Biczók, L. New fluorescent isoquinoline derivatives. Tetrahedron Lett. 2011, 52, 5264–5266. [Google Scholar] [CrossRef]
  15. Wan, Y.; Niu, W.; Behof, W.J.; Wang, Y. Aminoisoquinolines as colorimetric Hg2+ sensors: The importance of molecular structure and sacrificial base. Tetrahedron 2009, 65, 4293–4297. [Google Scholar] [CrossRef]
  16. Evans, D.A.; Smith, G.F.; Wahid, M.A. The tautomerism of 3-hydroxyisoquinolines. J. Chem. Soc. (B) 1967, 590–595. [Google Scholar] [CrossRef]
  17. Huber, J.R.; Mahaney, M.; Morris, J.V. Temperature dependence of radiationless processes. Isoquinoline in solution. Chem. Phys. 1976, 16, 329–335. [Google Scholar] [CrossRef]
  18. Moomaw, W.R.; Anton, M.F. Luminescence studies of proton transfer in the excited electronic states of hydrogen bonded quinoline and isoquinoline. J. Phys. Chem. 1976, 80, 2243–2247. [Google Scholar] [CrossRef]
  19. Rollinson, A.M.; Schuster, G.B.; Drickamer, H.G. High pressure studies of isoquinoline luminescence in polymeric media. Chem. Phys. Lett. 1978, 59, 559–561. [Google Scholar] [CrossRef]
  20. Lai, T.; Lim, E.C. Temperature effects on S1-S0/S1-T1 branching ratio in radiationless transitions of N-heterocyclic compounds. Chem. Phys. Lett. 1979, 62, 507–510. [Google Scholar] [CrossRef]
  21. Wei, C.-Y.; Yu, W.-S.; Chou, P.-T.; Hung, F.-T.; Chang, C.-P.; Lin, T.-C. Conjugated dual hydrogen-bond mediating proton-transfer reaction in 3-hydroxyisoquinoline. J. Phys. Chem. B 1998, 102, 1053–1064. [Google Scholar] [CrossRef]
  22. Krishnakumar, V.; Ramasamy, R. DFT studies and vibrational spectra of isoquinoline and 8-hydroxyquinoline. Spectrochim. Acta Part A 2005, 61, 673–683. [Google Scholar] [CrossRef] [PubMed]
  23. Megyesi, M.; Biczók, L. Effect of ion pairing on the fluorescence of berberine, a natural isoquinoline alkaloid. Chem. Phys. Lett. 2007, 447, 247–251. [Google Scholar] [CrossRef]
  24. Singh, D.; Ghosh, S.K.; Baruah, J.B. Solvent-dependent fluorescence emission in heterocyclic compounds having isoquinoline backbone. J. Heterocyclic Chem. 2010, 47, 199–206. [Google Scholar] [CrossRef]
  25. Joshi, N.K.; Joshi, H.C.; Gahlaut, R.; Tewari, N.; Rautela, R.; Pant, S. Steady state and time-resolved fluorescence study of isoquinoline: Reinvestigation of excited state proton transfer. J. Phys. Chem. A 2012, 116, 7272–7278. [Google Scholar] [CrossRef]
  26. Kobayashi, H.; Ogawa, M.; Alford, R.; Choyke, P.L.; Urano, Y. New strategies for fluorescent probe design in medical diagnostic imaging. Chem. Rev. 2010, 110, 2620–2640. [Google Scholar] [CrossRef]
  27. Stabile, P.; Lamonica, A.; Ribecai, A.; Guercio, G.; Castoldi, D.; Curcuruto, O. Mild, convenient and versatile Cu-mediated synthesis of N-aryl-2-imidazolidinones. Tetrahedron Lett. 2010, 51, 3232–3235. [Google Scholar] [CrossRef]
  28. Klapars, A.; Huang, X.; Buchwald, S.L. A general and efficient copper catalyst for the amidation of aryl halides. J. Am. Chem. Soc. 2002, 124, 7421–7428. [Google Scholar] [CrossRef]
  29. Balewski, Ł.; Sączewski, F.; Gdaniec, M.; Bednarski, P.J.; Jara, I. Synthesis of N-(2-pyridyl)imidazolidin-2-ones and 1-(2-pyridyl)-2,3,7,8-tetrahydro-1H-imidazo[2,1-b][1,3,5]triazepin-5(6H)-ones with potential biological activities. Heterocycl. Commun. 2013, 19, 331–341. [Google Scholar] [CrossRef]
  30. German, E.A.; Ross, J.E.; Knipe, P.C.; Don, M.F.; Thompson, S.; Hamilton, A.D. β--Strand Mimetic Foldamers Rigidified through Dipolar Repulsion. Angew. Chem. Int. Ed. 2015, 54, 2649–2652. [Google Scholar] [CrossRef]
  31. Knipe, P.C.; Thompson, S.; Hamilton, A.D. Acid-mediated topological control in a functionalized foldamer. Chem. Commun. 2016, 52, 6521–6524. [Google Scholar] [CrossRef] [PubMed]
  32. Young, I.S.; Glass, A.-L.; Cravillion, T.; Han, C.; Zhang, H.; Gosselin, F. Palladium-catalyzed site-selective amidation of dichloroazines. Org. Lett. 2018, 20, 3902–3906. [Google Scholar] [CrossRef] [PubMed]
  33. Balewski, Ł.; Sączewski, F.; Bednarski, P.J.; Gdaniec, M.; Borys, E.; Makowska, A. Structural diversity of copper(II) complexes with N-(2-pyridyl)imidazolidin-2-ones(thiones) and their in vitro antitumor activity. Molecules 2014, 19, 17026–17051. [Google Scholar] [CrossRef]
  34. Dey, J.; Haynes, J.L.; Warner, I.M. Fluorescence spectral study of 9-acridinecarboxylic acid and its methyl ester. Understanding the unusual fluorescence behavior of 9-anthroic acid. J. Phys. Chem. 1997, 101, 2271–2278. [Google Scholar] [CrossRef]
  35. Motoyoshiya, J.; Fengqiang, Z.; Nishii, Y.; Aoyama, H. Fluorescence quenching of versatile fluorescent probes based on strongly electron-donating distyrylbenzenes responsive to aromatic chlorinated and nitro compounds, boronic acid and Ca2+. Spectrochim. Acta Part A 2008, 69, 167–173. [Google Scholar] [CrossRef] [PubMed]
  36. Al-Kindy, S.M.Z.; Miller, J.N. Fluorescence quenching studies of nitrated polycyclic aromatic hydrocarbons. Luminescence 2011, 26, 148–152. [Google Scholar] [CrossRef] [PubMed]
  37. Eastman, J.W. Quantitative spectrofluorimetry - the fluorescence quantum yield of quinine sulfate. Photochem. Photobiol. 1967, 6, 55–72. [Google Scholar] [CrossRef]
  38. Rigaku Oxford Diffraction. CrysAlisPro Software system, version 1.171.38.46; Rigaku Corporation: Oxford, UK, 2015. [Google Scholar]
  39. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  40. Sheldrick, G.M. SHELXT - Integrated Space-Group and Crystal-Structure Determination. Acta Cryst. 2015, A71, 3–8. [Google Scholar] [CrossRef]
  41. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, C71, 3–8. [Google Scholar]
Sample Availability: None.

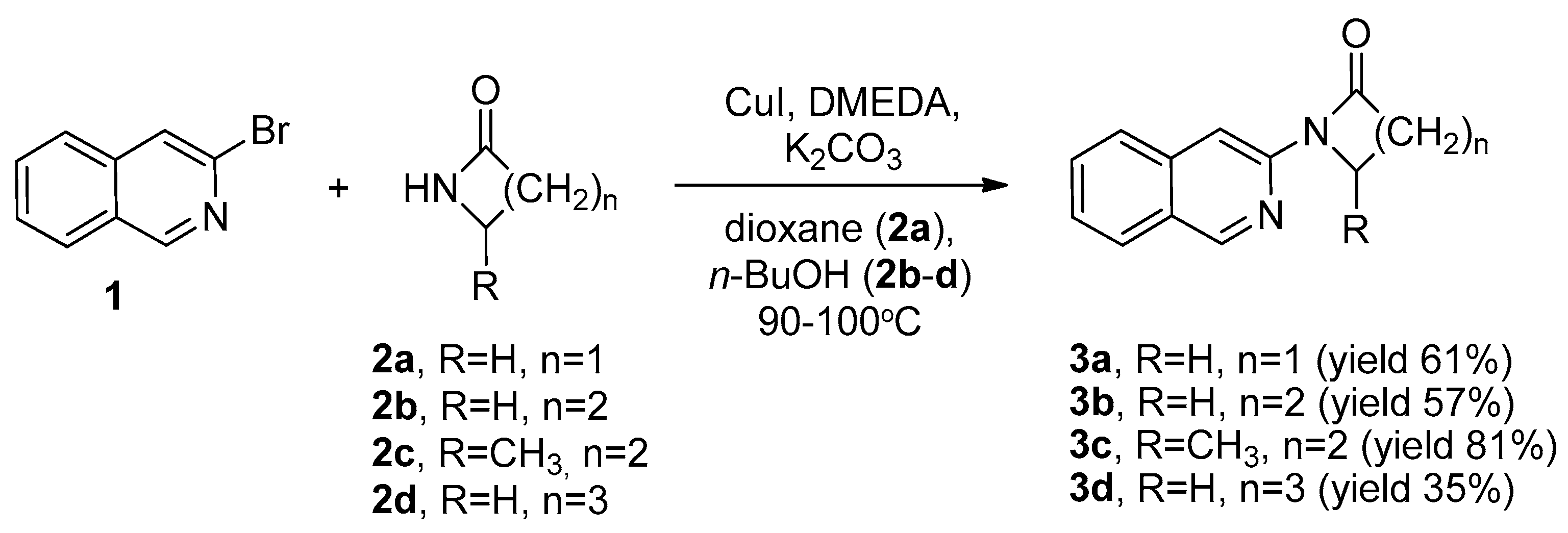

Scheme 1. Synthesis of 1-(isoquinolin-3-yl)heteroalkyl-2-ones 3ad.
Scheme 1. Synthesis of 1-(isoquinolin-3-yl)heteroalkyl-2-ones 3ad.
Molecules 24 04070 sch001

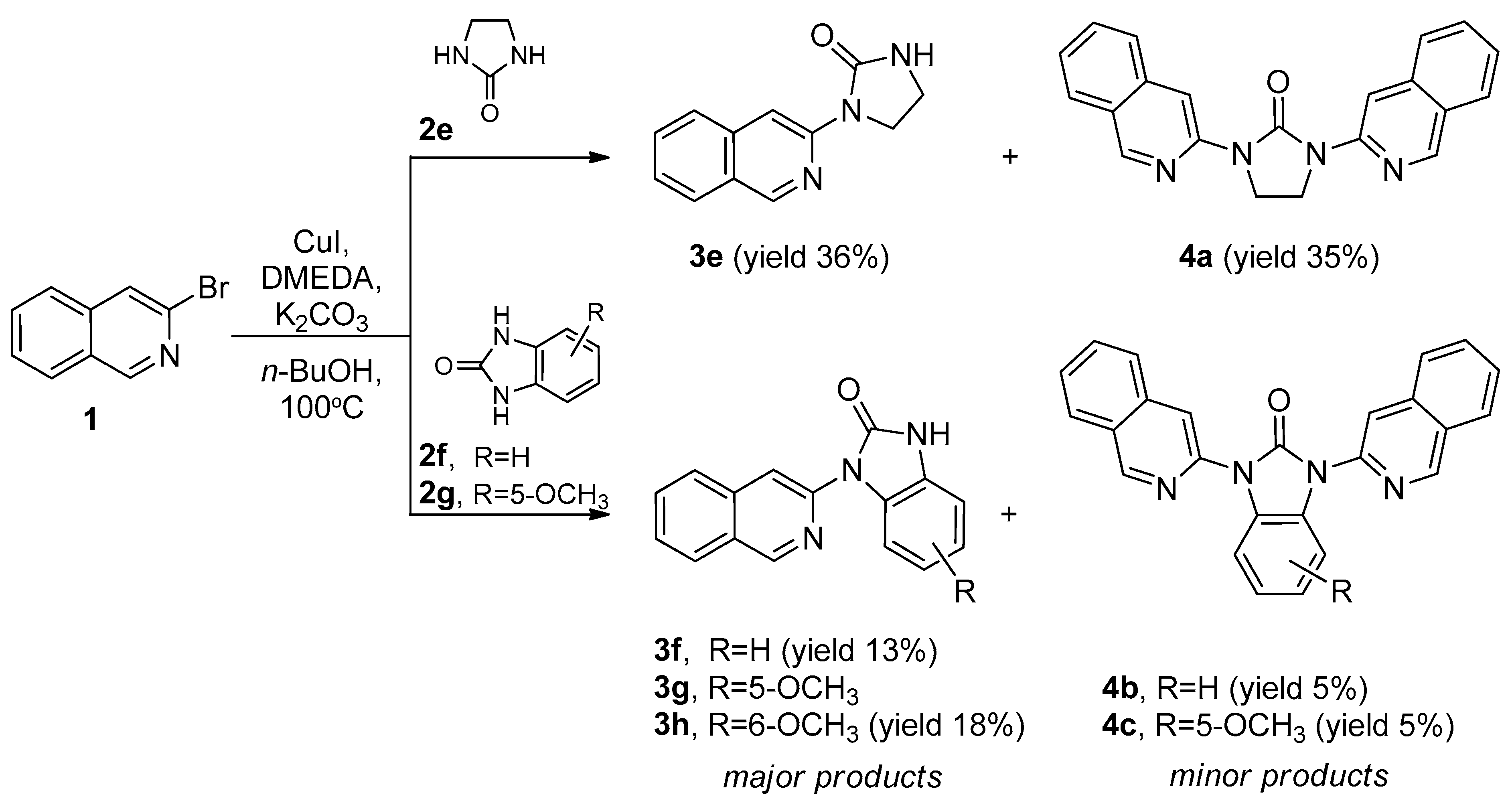

Scheme 2. Synthesis of 1-(isoquinolin-3-yl)heteroalkyl(aryl)-2-ones 3eh and 1,3-di(isoquinolin-3-yl)heteroalkyl(aryl)-2-ones 4a–c.
Scheme 2. Synthesis of 1-(isoquinolin-3-yl)heteroalkyl(aryl)-2-ones 3eh and 1,3-di(isoquinolin-3-yl)heteroalkyl(aryl)-2-ones 4a–c.
Molecules 24 04070 sch002
Scheme 3. Synthesis of 1-(isoquinolin-3-yl)-3-methylimidazolidin-2-one (5) and 1-(isoquinolin-3-yl)-3-(hetero)aryl-2-ones 7a–d.
Scheme 3. Synthesis of 1-(isoquinolin-3-yl)-3-methylimidazolidin-2-one (5) and 1-(isoquinolin-3-yl)-3-(hetero)aryl-2-ones 7a–d.
Molecules 24 04070 sch003

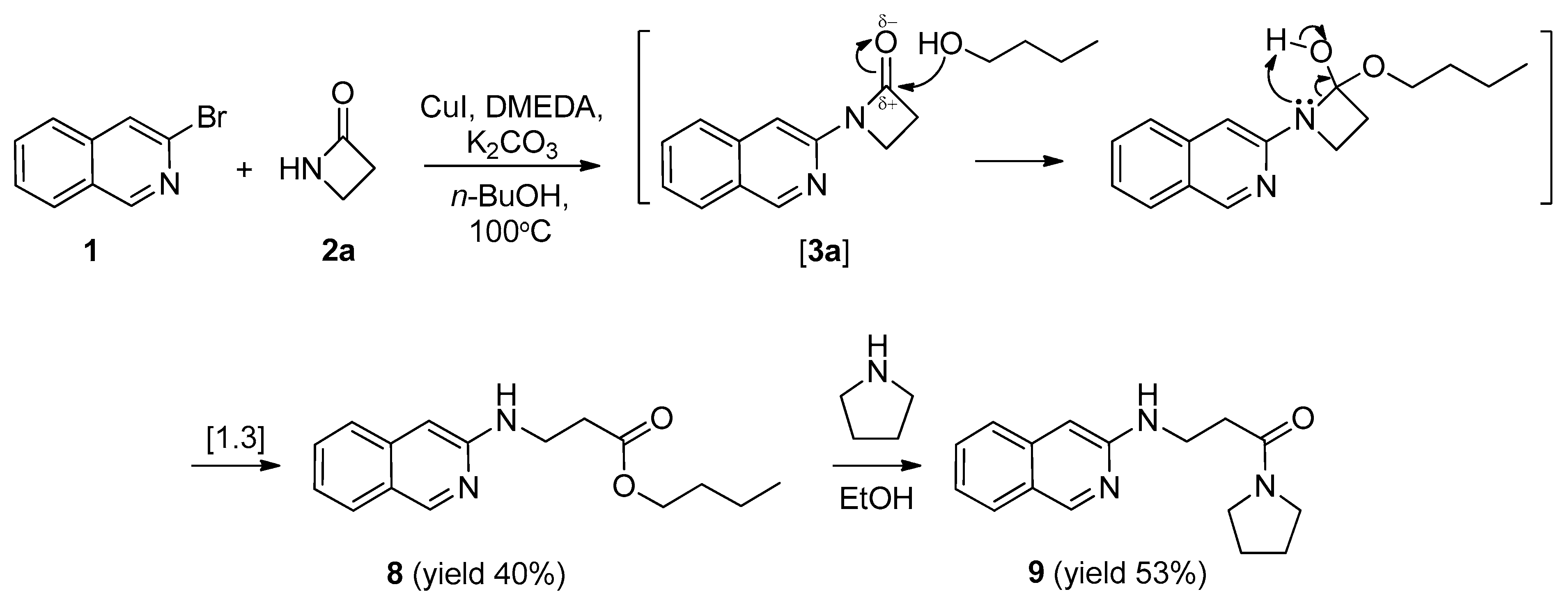

Scheme 4. Synthesis of n-butyl 3-(isoquinolin-3-ylamino)propanoate (8) and 3-(isoquinolin-3-ylamino)-1-(pyrrolidin-1-yl)propan-1-one (9).
Scheme 4. Synthesis of n-butyl 3-(isoquinolin-3-ylamino)propanoate (8) and 3-(isoquinolin-3-ylamino)-1-(pyrrolidin-1-yl)propan-1-one (9).
Molecules 24 04070 sch004

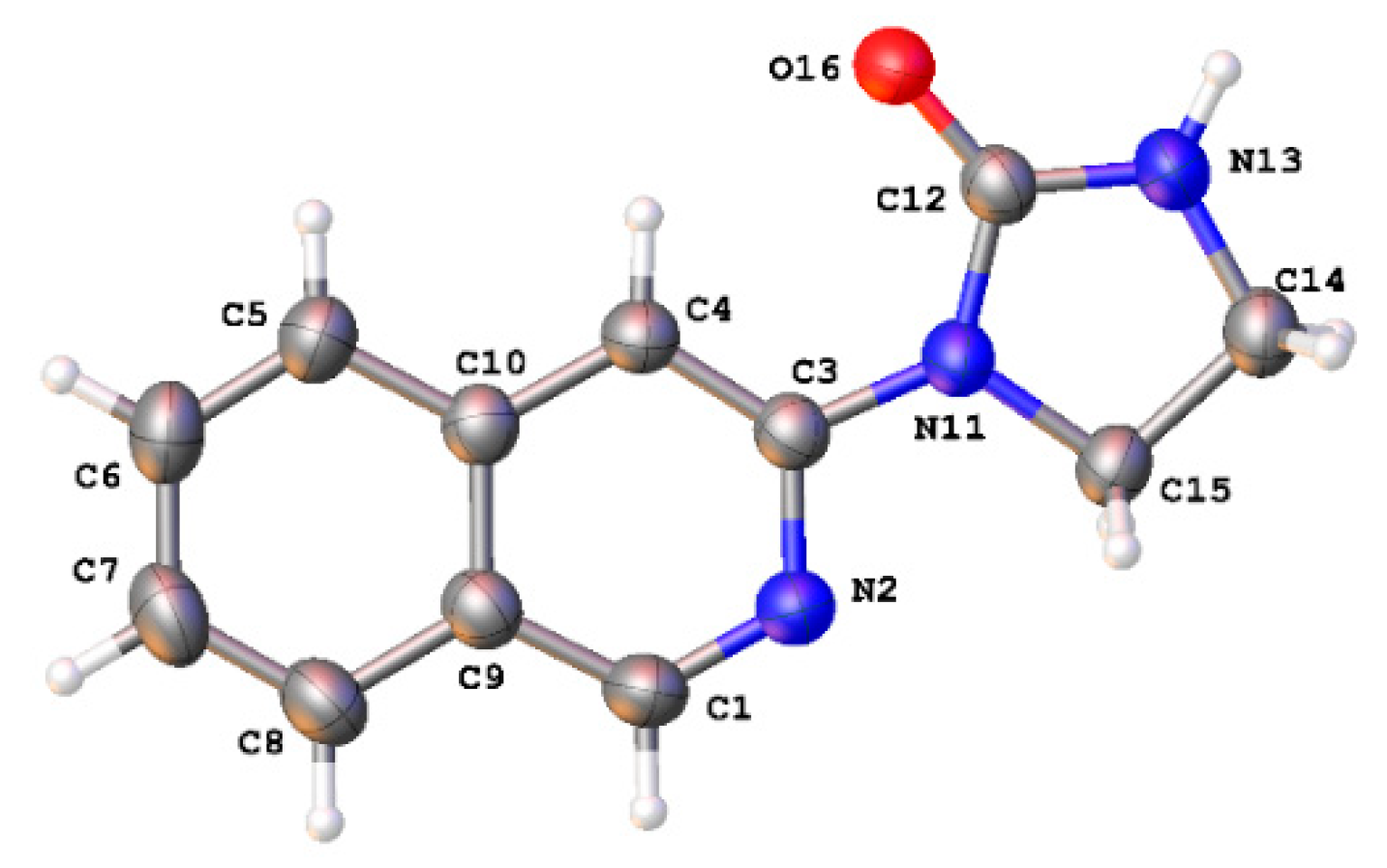

Figure 1. Molecular structure of 3e. Displacement ellipsoids are shown at the 50% probability level.
Figure 1. Molecular structure of 3e. Displacement ellipsoids are shown at the 50% probability level.
Molecules 24 04070 g001

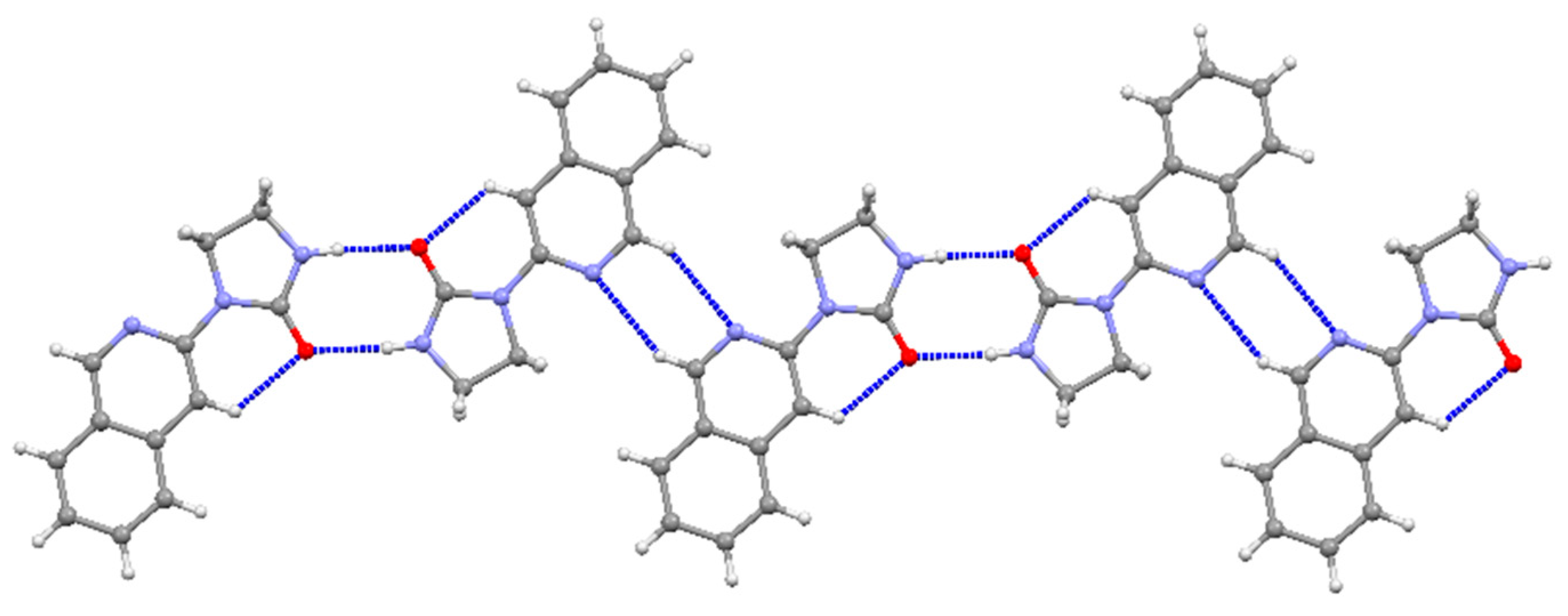

Figure 2. Tapes formed via N-H···O and C-H···N interactions in the crystal structure of 3e. Short contacts are indicated with dashed lines.
Figure 2. Tapes formed via N-H···O and C-H···N interactions in the crystal structure of 3e. Short contacts are indicated with dashed lines.
Molecules 24 04070 g002

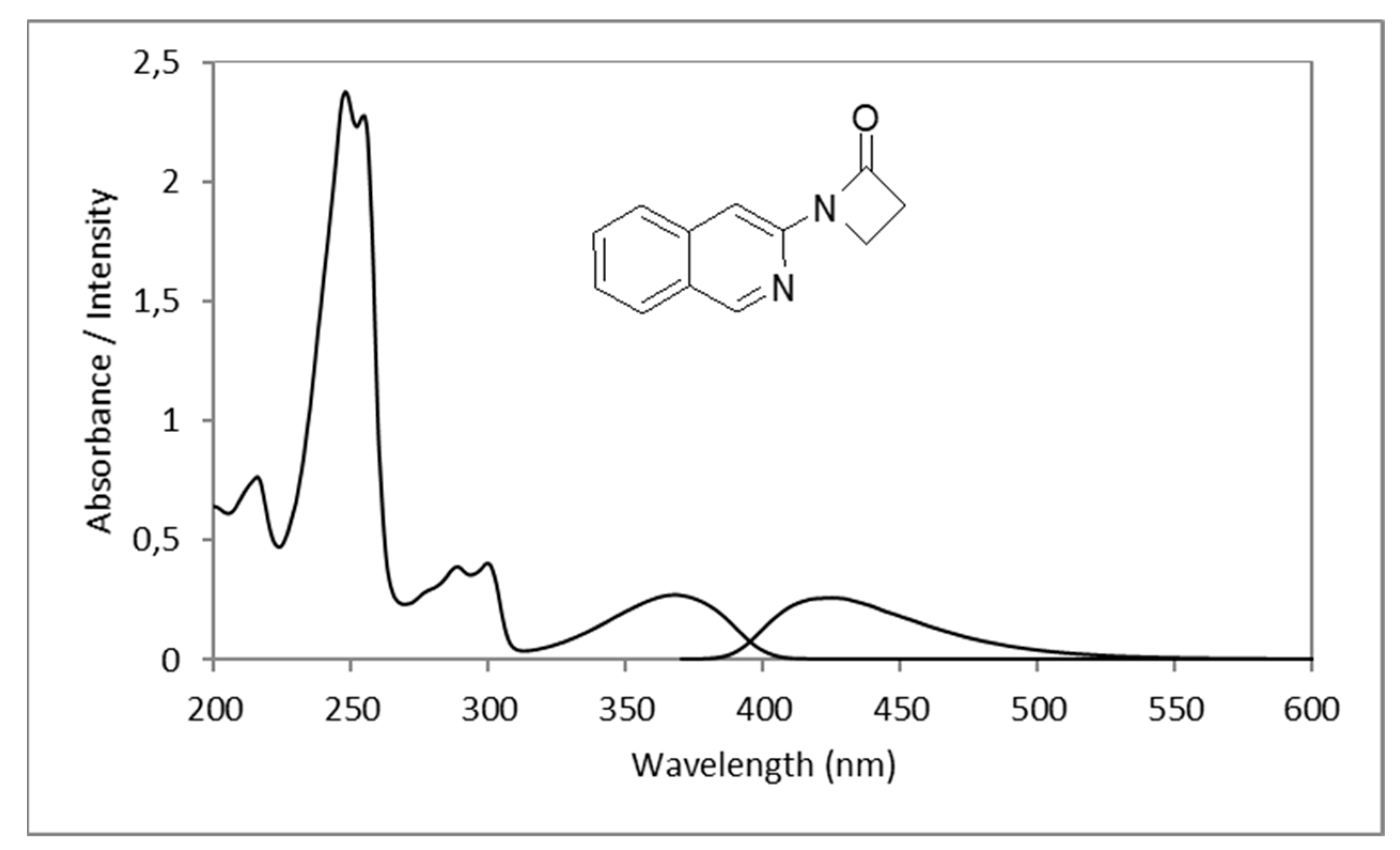

Figure 3. Absorption and fluorescence spectra of 1-(isoquinolin-3-yl)azetidin-2-one (3a).
Figure 3. Absorption and fluorescence spectra of 1-(isoquinolin-3-yl)azetidin-2-one (3a).
Molecules 24 04070 g003
Figure 4. Photograph of fluorescence of compounds 3a, 3b, 3d, and 3e in 0.1 M H2SO4 at a concentration of 10−4 M under UV (365 nm) light.
Figure 4. Photograph of fluorescence of compounds 3a, 3b, 3d, and 3e in 0.1 M H2SO4 at a concentration of 10−4 M under UV (365 nm) light.
Molecules 24 04070 g004
Figure 5. Absorption and fluorescence spectra of 1-(isoquinolin-3-yl)imidazolidin-2-one (3e).
Figure 5. Absorption and fluorescence spectra of 1-(isoquinolin-3-yl)imidazolidin-2-one (3e).
Molecules 24 04070 g005
Table 1. Photophysical properties: molar absorptivity (ε), absorption maxima (λmax abs.), emission maxima (λmax em.), Stokes shift (Δυ) and fluorescence quantum yield (Φfl) of the selected isoquinoline derivatives in 0.1 M H2SO4*.
Table 1. Photophysical properties: molar absorptivity (ε), absorption maxima (λmax abs.), emission maxima (λmax em.), Stokes shift (Δυ) and fluorescence quantum yield (Φfl) of the selected isoquinoline derivatives in 0.1 M H2SO4*.
Molecules 24 04070 i001
Comp.Rε
(M−1cm−1)
λmax abs. (nm)λmax em. (nm)Δυ
(nm)
Φfl
3a Molecules 24 04070 i0025066368425570.963
3b Molecules 24 04070 i0034744363417540.559
3c Molecules 24 04070 i0042955356417610.954
3d Molecules 24 04070 i0052541340416760.389
3e Molecules 24 04070 i0065083377436590.639
3f* Molecules 24 04070 i0072032328383550.101
5 Molecules 24 04070 i0085271380448680.479
7a* Molecules 24 04070 i00934,537302391890.251
7b* Molecules 24 04070 i0102251344391470.443
7c* Molecules 24 04070 i01111,072350ndndnd
7d* Molecules 24 04070 i01215,581304385810.570
8 Molecules 24 04070 i0133826406495892.23·10−14
9 Molecules 24 04070 i0143705406494880.053
I-3-A** nd363431680.28
QS*** nd(exc. at 350)ndnd0.577
* compounds were dissolved in chloroform. nd - not determined. ** 3-aminoisoquinoline (isoquinolin-3-amine) dissolved in acetonitrile [14]. *** quinine sulfate in 0.1 M H2SO4 (used as a standard).
