1-Carbomethoxy-β-Carboline, Derived from Portulaca oleracea L., Ameliorates LPS-Mediated Inflammatory Response Associated with MAPK Signaling and Nuclear Translocation of NF-κB

by
Kang-Hoon Kim
1,†,
Eun-Jae Park
1,2,†,
Hyun-Jae Jang
1,
Seung-Jae Lee
1,
Chan Sun Park
1,
Bong-Sik Yun
2,
Seung Woong Lee
1,* and
Mun-Chual Rho
1,*
1
Immunoregulatory Material Research Center, Korea Research Institute of Biotechnology, 181 Ipsin-gil, Jeongeup-si, Jeonbuk 56212, Korea
2
Division of Biotechnology and Advanced Institute of Environment and Bioscience, College of Environmental and Bioresource Sciences, Chonbuk National University, Iksan-si 570-752, Korea
*
Authors to whom correspondence should be addressed.
†
These authors equally contributed to this study.
Molecules 2019, 24(22), 4042; https://doi.org/10.3390/molecules24224042
Submission received: 2 October 2019 / Revised: 25 October 2019 / Accepted: 5 November 2019 / Published: 7 November 2019
(This article belongs to the Section Natural Products Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
Portulaca oleracea is as a medicinal plant known for its neuroprotective, hepatoprotective, antidiabetic, antioxidant, anticancer, antimicrobial, antiulcerogenic, and anti-inflammatory activities. However, the specific active compounds responsible for the individual pharmacological effects of P. oleracea extract (95% EtOH) remain unknown. Here, we hypothesized that alkaloids, the most abundant constituents in P. oleracea extract, are responsible for its anti-inflammatory activity. We investigated the phytochemical substituents (compounds 1–22) using nuclear magnetic resonance (NMR) and electrospray ionization mass spectrometry (ESI-MS) and screened their effects on NO production in lipopolysaccharide (LPS)-induced macrophages. Compound 20, 1-carbomethoxy-β-carboline, as an alkaloid structure, ameliorated nitric oxide (NO) production, inducible nitric oxide synthase (iNOS), and proinflammatory cytokines associated with the mitogen-activated protein kinase (MAPK) pathways, p38, extracellular signal-regulated kinase (ERK), and c-Jun N-terminal kinase (JNK). Subsequently, we observed that compound 20 suppressed nuclear translocation of nuclear factor κB (NF-κB) using immunocytochemistry. Moreover, we recently reported that compound 8, trans-N-feruloyl-3’, 7’-dimethoxytyramine, was originally purified from P. oleracea extracts. Our results suggest that 1-carbomethoxy-β-carboline, the most effective anti-inflammatory agent among alkaloids in the 95% EtOH extract of P. oleracea, was suppressing the MAPK pathway and nuclear translocation of NF-κB. Therefore, P. oleracea extracts and specifically 1-carbomethoxy-β-carboline may be novel therapeutic candidates for the treatment of inflammatory diseases associated with the activation of MAPKs and NF-κB.

1. Introduction

Portulaca oleracea L. (P. oleracea), an annual succulent belonging to the family Portulacaceae, may grow to a height of 40 cm in many parts of the Mediterranean and tropical Asian countries [1]. Although P. oleracea tastes salty and sour, it has been consumed for its nutrients [2] and as a traditional medicine as a febrifuge, antiseptic, and vermifuge [3]. Moreover, P. oleracea is safe as it has been prescribed for thousands of years as a traditional Chinese medicine as well as in recent clinical studies [4], and the World Health Organization (WHO) listed P. oleracea as being effective as a global panacea in 1990. Recent studies have shown that P. oleracea extracts have diverse pharmacological effects including neuroprotective, hepatoprotective, antidiabetic, antioxidant, anticancer, antimicrobial, antiulcerogenic, and anti-inflammatory activities with minimal side effects [5]. The diverse effects seem to be caused by the presence of many phytochemical constituents in P. oleracea extracts, such as vegetable sources of omega-3 fatty acids, polyphenols, flavonoids, terpenoids, fatty acids, ferulic amide, and alkaloids [6,7].
Among these phytochemicals in P. oleracea extracts, the most abundant are alkaloids such as aurantiamideacetate, aurantiamide, 1,5-dimethyl-6-phenyl-1,6,3,4-tetrahydro-1,2,4-2(1H)-triazine, trollisine, cyclo(L-tyrosinyl-L-tyrosinyl), 3,5-bis(3-methoxy,4-hydroxyphenyl)-5,6-dihydro,2(1H)-pyridinone, N-feruloyl normetanephrine, N-trans-feruloyl tyramine, and 1-carbomethoxy-beta-carboline [8,9,10,11]. In terms of bioactivity, alkaloids derived from medicinal plants such as Hydrastis canadensis, Coptidis rhizome, Phellodendri cortex, and Berberis crataegina have shown novel anti-inflammatory responses involving the suppression of the nuclear translocation of nuclear factor κB (NF-κB) and the inhibition of nitric oxide (NO) production or proinflammatory cytokines such as tumor necrosis factor alpha (TNF-α), interleukin-6 (IL-6), and interleukin-1β (IL-1β) [12].
NF-κB acts on a family of inducible transcription factors that regulate a large array of genes engaged in different processes in immune response and inflammation in innate immune cells, including macrophages [13]. The canonical NF-κB pathway responds to several stimuli, including ligands of various cytokine receptors, pattern-recognition receptors (PRRs) [14]. In particular, mammalian cells express five families of PRRs, namely, Toll-like receptors (TLRs), RIG-I-like receptors, nucleotide-binding and oligomerization domain (NOD)-like receptors (NLRs), C-type lectin-like receptors, and cytosolic DNA sensors [15]. Among these PRRs, toll-like receptor 4 (TLR4) ligand lipopolysaccharide (LPS) leads to macrophage differentiation toward the M1 phenotype [16]. NF-κB is a novel transcription factor of M1 macrophages and is required for the induction of diverse inflammatory genes, including those encoding TNF-α, IL-6, and IL-1β [17]. Additionally, mitogen-activated protein kinase (MAPK) pathways, associated with extracellular signal-regulated kinase (ERK), c-Jun N-terminal kinase (JNK), and p38 kinase, enhance NO production and inducible inducible nitric oxide synthase (iNOS) by the activation of the nuclear translocation of NF-κB [18]. If a natural compound suppresses MAPK pathways and reduces the activation of the nuclear translocation of NF-κB, it may be a potential therapeutic agent for the treatment of inflammatory diseases.
Although P. oleracea extracts exhibit diverse pharmacological effects, including anti-inflammatory activity, individual components of P. oleracea extracts must be separated and the bioactivity of each component should be evaluated prior to the therapeutic application of this material in clinical trials or as a health functional food. In our study, we first elucidated the chemical structures of the phytochemical constituents (compounds 1 to 22) from P. oleracea extracts (95% EtOH) using spectroscopic data, including NMR and ESI-MS. Among these constituents, this is the first report that 1-carbomethoxy-β-carboline, an alkaloid structure, significantly ameliorated NO production and proinflammatory cytokines associated with the MAPK pathway and the nuclear translocation of NF-κB under LPS-mediated inflammatory conditions in RAW 264.7. Additionally, we originally report the identification of a new compound, trans-N-feruloyl-3’, 7’-dimethoxytyramine, from the P. oleracea extract.

2. Results and Discussion

2.1. Isolation and Structural Elucidation of Compounds

We used a variety of separate purification procedures to find components that exhibit anti-inflammatory activity from P. oleracea extracts (95% EtOH). Twenty-two compounds (Figure 1), namely, a new ferulic amide (8) and 21 known compounds, including 10 ferulic amides (1–7 and 9–11) and 11 phenolic compounds (12–22), were isolated from the P. oleracea extracts. The structures of the isolated compounds were identified by spectroscopic data acquired using 1H NMR, 13C NMR, 1H-1H correlated spectroscopy (COSY), heteronuclear multiple bond correlation (HMBC), heteronuclear multiple quantum correlation (HMQC), high resolution electrospray ionization mass spectrometry (HRESIMS), infrared (IR) spectroscopy, and polarimetry techniques. By comparing the NMR data of the isolated compounds with data reported in the literature, the known compounds were identified as trans-N-courmaroyltyramine (1) [19], trans-N-feruloyloctopamine (2) [20], trans-N-feruloyltyramine (3) [19], (7’S)-trans-N-feruloyloctopamine (4) [21], (S)-3-(4-hydroxy-3-methoxyphenyl)-N-(2-(4-hydroxyphenyl)-2-methoxyethyl)-acrylamide (5) [22], trans-N-feruloyl-3’-methoxytyramine (6) [21], (7’S)-trans-N-feruloylnormetanephrine (7) [21], N-trans-hibiscusamide (9) [21], perillascens (10) [23], aurantiamide acetate (11) [24], methyl N-acetylphenylalaninate (12) [25], N-benzoyl-l-aspartic acid dimethyl ester (13) [26], N-benzoyl-d-aspartic acid dimethyl ester (14) [26], scinamide C (15) [27], oleracein E (16) [28], methyl hematinate (17) [29], 3-formylindole (18) [30], 3-propionylindole (19) [30], 1-carbomethoxy-beta-carboline (20) [11], methyl pyroglutamate (21) [31], and ethyl pyroglutamate (22) [32].
Additionally, we newly isolated compound 8, as a yellowish oil (Figure 2). A molecular formula of C20H23NO6 was determined based on its HRESIMS spectrum and was deduced from ion peak at m/z 396.1423 [M + Na] + (396.1423, calcd for C20H23O6Na, Figure S1). The ultraviolet (UV) spectrum showed absorption peaks at 200, 227, 283, and 320 nm. The IR spectrum suggested the presence of OH groups, as indicated by a wide band at 3356 cm−1 and an amide carbonyl, as indicated by bands at 1737 cm−1 and 1653 cm−1 (Figure S2). The 1H NMR spectrum exhibited signals for three methoxy groups at δH 3.89 (3H, s, OCH3-3), 3.86 (3H, s, OCH3-3’), and 3.24 (3H, s, OCH3-7’); two olefinic protons at δH 7.44 (1H, d, J = 15.6 Hz, H-7) and 6.45 (1H, d, J = 15.6 Hz, H-8); two ABX aromatic ring protons at δH 7.13 (1H, d, J = 1.8 Hz, H-2), 7.03 (1H, dd, J = 8.4, 1.8 Hz, H-6), 6.92 (1H, s), and 6.80 (3H, overlap); one methylene proton at δH 3.53 (1H, dd, J = 13.8, 4.8 Hz, H-8’α) and 3.42 (1H, dd, J = 13.8, 8.4 Hz, H-8’β); and one methine proton at δH 4.26 (1H, dd, J = 8.4, 4.8 Hz, H-7’) (Figure S3). The 13C NMR spectrum showed 20 resonances, which were classified as three methoxy carbons, sp2 carbon signals corresponding to two benzene rings, one carbonyl, one methylene, one methane, and one alkyne (Figure S4). These proton and carbon assignments were further confirmed by detailed analysis of the 1H-1H COSY, HMQC, and HMBC spectra. The 1H-1H COSY spectrum showed correlations of H-7/H-8, H-7’/H-8’, and H-6/H-5 (Figure S5). The HMQC spectrum exhibited correlations from the aromatic ring proton at 6.80 ppm to C-5, C-5’, and C-6’, indicating that the aromatic ring protons overlap with three of the aromatic ring carbons (Figure S6). Additionally, the HMBC spectrum showed cross-peaks for 3-OCH3/C-3, 3’-OCH3/C-3’, and 7’-OCH3/C-7’, indicating the positions of the methoxy groups. The HMBC cross-peaks of H-7/C-8, H-7/C-1, H-7/C-2, H-7/C-6, and H-6/C-7 suggested that C-7 of the alkyne was connected to the A ring. The HMBC cross-peaks of H-7’/C-2’, H-7’/C-8’, H-7’/C-1’, H-7’/C-6’, and H-2’/C-7’ suggested that C-7’ of the methine group was connected to the B ring and a methylene group (Figure S7). Except for the additional methoxy group at C-7’, the NMR signals of 8 were similar to those of compound 6 (trans-N-feruloyl-3’-methoxytyramine). Compound 8 was finally identified as trans-N-feruloyl-3’, 7’-dimethoxytyramine (Table 1, Figures S3–S7).

2.2. Nitric Oxide Production Screening Using Twenty-Two Compounds Isolated from Portulaca oleracea

NO is a major proinflammatory mediator, involved in the pathogenesis of inflammation [33]. During an inflammatory response, the large amount of NO formed by the action of iNOS surpasses the standard physiological amount of NO [34]. A previous study reported that P. oleracea extracts had anti-inflammatory effects and ameliorated inflammatory bowel disease under dextran sulfate sodium-induced colitis by inhibiting NF-κB and MAPK activation [35,36]. However, the specific active compound responsible for the inflammatory effects remained unclear. Then, we evaluated NO production in LPS-induced RAW 264.7, a mouse macrophage cell line, upon treatment with the 22 compounds isolated from the P. oleracea extract (Figure 3).
After screening the impacts of these compounds on NO production, we selected the most potent inhibitor of NO production based on an inhibitory effect of 50% or more as the cut-off. Phenylbutazone (100 μg/mL), one of the nonsteroidal anti-inflammatory drugs, had the best inhibitory effect on nitric oxide of about 50% in RAW 264.7 cells [37]. Of these isolated compounds, compounds that inhibited NO production beyond 50% cut-off under LPS-induced inflammatory conditions were compounds 15 (scinamide C) and 20 (1-carbomethoxy-β-carboline) (Figure 3A), and their inhibitory rates were 50.92 ± 0.95% (compound 15) and 53.33 ± 2.49% (compound 20).
In NO production screening in Figure 3, compounds 3, 5, 6, 9, and 16 showed inhibitory effects of NO production similar to compounds 15 and 20. However, compounds 3, 5, 6, 9, and 16 were already reported in previous studies associated with anti-inflammatory effects or cellular toxicity. Compound 3, derived from Arcangelisia gusanlung and Wolfberry, and compound 6, derived from Wolfberry, were previously reported to inhibit NO production [38,39]. Compound 5, derived from Solanum nigrum, had an anti-inflammatory effect by inhibition of leukotriene C4 (LTC4) [40] and compound 16, derived from P. oleracea, had a neuroprotective effect by reducing reactive oxygen species (ROS) and inhibiting ERK 1/2 phosphorylation [41]. Compound 9, derived from Hibiscus tiliaceus, had a cytotoxic effect [42]. Thus, we decided to further evaluate compounds 15 and 20. Additionally, to investigate the cellular toxicology after treatment with compounds 15 and 20, we tested cell viability upon treatment with the test compounds at 1 to 100 μM using the MTT assay (Figure 3B). Neither compound showed toxicological effects below 100 μM. These results suggested that the major constituents of P. oleracea extract responsible for its ability to inhibit NO production were compounds 15 and 20.

2.3. Inhibitory Activities of Proinflammatory Mediators by Compounds 15 and 20

iNOS, which is involved in the production of NO, is a novel signaling molecule associated with the MAPK pathway and NF-κB activity in both microglia and macrophage cells [43]. Subsequently, proinflammatory cytokines such as TNF-α, IL-6, and IL-1β are induced by activating nuclear translocation of NF-κB [44]. To investigate intracellular biological evidence of reduced NO level by compound 15 or 20, we evaluated the effect of compounds 15 and 20 on the proinflammatory mediators such as iNOS, TNF-α, IL-6, and IL-1β in LPS-induced macrophages (Figure 4). In our results, compound 20 was found to be the most effective inhibitor of iNOS under LPS-induced macrophages based on Western blotting compared with compound 15 (Figure 4A). The inhibitory effect of compound 20 (12.5 µM) was similar to that of dexamethasone (positive control, 10 µM). Moreover, we tested proinflammatory cytokines after treatment with compound 15 or 20. Treatment with compound 15 (25 µM) or 20 (12.5 µM) significantly inhibited the proinflammatory cytokine mRNA of TNF-α, IL-6, and IL-1β. There were significantly inhibitory effects of proinflammatory cytokine mRNA of TNF-α, IL-6, and IL-1β after treatment of compound 15 (25 µM) or 20 (12.5 µM). These results suggested that of the alkaloids in P. oleracea extracts (95% EtOH), the major active compound responsible for its anti-inflammatory activity was compound 20 (1-carbomethoxy-beta-carboline).

2.4. Portulaca oleracea Inhibits Proinflammatory and Inflammatory Signaling

If compound 20 decreased proinflammatory mediators associated with MAPKs and nuclear translocation of NF-κB with a potency similar to dexamethasone and nonsteroidal anti-inflammatory drugs (NSAIDs) [45], compound 20 may be a useful therapeutic agent for treating inflammatory diseases with minimal toxic side effects. Then, to further investigate the anti-inflammatory effects associated with the inhibition of NO production and iNOS, we evaluated the major inflammatory signaling pathways, MAPKs, associated with p38, ERK, and JNK and nuclear translocation of NF-κB in LPS-induced murine macrophages, RAW 264.7 cells upon treatment with or without compound 20. Western blotting indicated that pretreatment with compound 20 remarkably disturbed the MAPK signaling pathways associated with JNK, ERK, and p38 under LPS-induced inflammatory conditions in RAW 264.7 cells (Figure 5A). The protein expression ratios of p38, ERK, and JNK are shown in Figure 5B–D.
Subsequently, we tested prevention by pretreatment with compound 20 and qualitatively and quantitatively analyzed NF-κB (Figure 6). First, we determined whether compound 20 suppressed the nuclear translocation of NF-κB. Immunocytochemistry clearly demonstrated that compound 20 reduced the translocation of NF-κB into the nucleus in RAW 264.7 cells (Figure 6A). Furthermore, we evaluated nuclear NF-κB and cytosolic IκBα using Western blotting (Figure 6B). Compound 20 remarkably ameliorated translocation of nuclear NF-κB by suppressing the degradation of IκBα, similar to dexamethasone (Figure 6C,D). A schematic of the mechanism of compound 20 is shown in Figure 6E. These results suggest that compound 20 significantly inhibited the MAPK pathway and suppressed the degradation of IκBα along with the nuclear localization of NF-κB under LPS-induced inflammation in RAW 264.7 cells.

3. Materials and Methods

3.1. General Experimental Procedures

The structures of isolated compounds were identified by spectroscopic data including 1H NMR, 13C NMR, COSY, HMBC, HMQC, HRESIMS, IR, and optical rotation. 1H, 13C, and 2D NMR spectra were recorded on a JNM-ECA600 (Jeol, Tokyo, Japan) instrument using TMS as references. High-resolution electrospray ionization mass spectrometry (HRESIMS) was carried out using a Waters SYNAPT G2-Si HDMS spectrometer (Waters, Milford, MA, USA). IR spectra were obtained on a FT/IR-4600 (Jasco, Tokyo, Japan) spectrometer. UV spectra were recorded on a spectraMax M2ϴ (Molecular Devices, Sunnyvale, CA, USA) spectrophotometer. Optical rotations were measured on a Jasco P-2000 polarimeter (Jasco). The HPLC analysis was performed using an Agilent 1220 infinity HPLC system (Agilent Technologies, CA, USA) equipped with a quaternary pump.

3.2. Plant Material

Dried P. oleracea (20 kg) was purchased from the Kyung-dong market in Seoul, Korea in May 2013. One of the authors (M.–C.R.) performed botanical identification, and a voucher specimen (KRIB-KR2013-003) was deposited at the laboratory of the Immunoregulatory Materials Research Center, Jeonbuk Branch of the Korea Research Institute of Bioscience and Biotechnology.

3.3. Extraction and Isolation

Dried powder of P. oleracea (20 kg) was refluxed with 95% EtOH (5 h, 3 × 35 L). After removal of solution under reduced pressure, the 95% EtOH extract (1.5 kg) was suspended in H2O and partitioned with n-hexane (3 × 10 L), ethyl acetate (3 × 10 L), and n-butanol (3 × 10 L). Each fraction was evaporated under reduced pressure. The hexane fraction (200 g) was subjected to column chromatography (CC) on silica gel (40 × 10 cm, 200 ~ 400 mesh, Merck, Kenilworth, NJ, USA) with a hexane-ethyl acetate gradient solvent system (each 1L, 1:0—0:1, v/v) to yield 16 fractions (POH–POH 16). POH 1, 5, 6, 8, 9, 10, and 11 were applied to silica gel CC again with a hexane-ethyl acetate gradient solvent system (each 1L, 1:0—0:1, v/v) and subfractions were obtained.
Compound 11 (tR = 45 min, 6.2 mg) was purified from POH 6G (65 mg) by semipreparative HPLC (45% MeCN). The POH 8I (901 mg) was subjected to chromatography on a C18 MPLC using H2O and MeOH (8:2—0:10, v/v) to obtain 14 subfractions (POH 8I1–8I14). Compounds 18 (tR 48 min, 14.6 mg) and 19 (tR = 59 min, 1.9 mg) were purified from POH 8I1 (87 mg) by semipreparative HPLC (25% MeCN. The POH 10B (812 mg) was subjected to chromatography on a C18 MPLC using H2O and MeOH (2:8—0:10, v/v) to yield 12 subfractions (POH 10B1–POH 10B12), and POH 10B3 (132 mg) was further purified by semipreparative HPLC (25% MeCN) to obtain compound 6 (tR = 32 min, 7.4 mg). POH 10C (954 mg) was chromatographed on a C18 MPLC using H2O and MeOH (2:8—0:10, v/v) to yield 12 subfractions (POH 10C1–POH 10C12), and POH 10C1 (103 mg) was purified by semipreparative HPLC (25% MeCN) to yield compound 3 (tR = 65 min, 31 mg). Compound 1 (tR = 38 min, 2.1 mg) was purified from POH 10E (403 mg) by semipreparative HPLC (20% MeCN). POH 11E (245 mg) was subjected to chromatography on a C18 MPLC using H2O and MeOH (7:3—0:10, v/v) to yield four subfractions (POH 11E1–POH 11E4), and compound 7 (tR = 54 min, 3.4 mg) was purified from the POH 11E2 (80 mg) by semipreparative HPLC (25% MeCN). The POH 11F (245 mg) was subjected to chromatography on a C18 MPLC using H2O and MeOH (6:4—0:10, v/v) to yield five subfractions (POH 11F1–POH 11F5), and the POH 11F1 (173 mg) was purified by semipreparative HPLC (20% MeCN) to obtain compounds 2 (tR = 47 min, 5.1 mg) and 4 (tR = 53 min, 68 mg).
The ethyl acetate fraction (150 g) was subjected to column chromatography (CC) on silica gel (40 × 8 cm, 200–400 mesh, Merck, New Jersey, USA) with a chloroform–methanol gradient (each 1L, 1:0—0:1, v/v) to yield nine fractions (POE 1–POE 9). POE 2, 3, 4, 5, 6, and 8 were applied to silica gel CC again and eluted with a chloroform–methanol gradient (100:0—0:100, v/v). POE 1 was subjected to chromatography on a SiO2 MPLC with a chloroform–methanol gradient (100:0—0:100, v/v) and subfractions were obtained.
The POE 1E (503 mg) was subjected to chromatography on a SiO2 MPLC using H2O and MeOH (1:9—0:10, v/v) to yield 12 subfractions (POE 1E1–POE 1E12). Compound 20 (tR = 54 min, 1.9 mg) was purified from the POE 1E5 (85 mg) by semipreparative HPLC (35% MeCN). The POE 2A (240 mg) was subjected to chromatography on a C18 MPLC using H2O and MeOH (2:8—0:10, v/v) to obtain nine subfractions (POE 2A1–POE 2A9), and POE 2A2 (42 mg) was purified from semipreparative HPLC (20% MeCN) to isolate compound 17 (tR = 48 min, 2.4 mg). The POE 2B (2.6 g) was chromatographed on a C18 MPLC using H2O and MeOH (2:8—0:10, v/v) to yield 12 subfractions (POE 2B1–POE 2B12). The POE 2B2 (220 mg) was obtained by semipreparative HPLC (15% MeCN) to obtain compound 22 (tR = 57 min, 25 mg). The POE 2C (2.4 g) was subjected to chromatography on a C18 MPLC using H2O and MeOH (25:75—0:100, v/v) to obtain 13 subfractions (POE 2C1–POE 2C13). Compound 9 (tR = 64 min, 8.0 mg) was isolated from POE 2C7 (147 mg) by semipreparative HPLC (69% MeCN). The POE 2D (2.8 g) was chromatographed on a C18 MPLC using H2O and MeOH (25:75—0:100, v/v) to gain 11 subfractions (POE 2D1–POE 2D11). The POE 2D4 (119 mg) was purified by semipreparative HPLC (20% MeCN) to obtain compound 16 (tR = 66 min, 7.7 mg). The POE 2D8 (291 mg) was isolated by semipreparative HPLC (40% MeCN) to obtain compound 10 (tR = 37 min, 11.8 mg). Compounds 12 (tR = 50 min, 4.8 mg), 13 (tR = 58 min, 5.2 mg), and 14 (tR = 70 min, 2.5 mg) were purified from POE 3B (504 mg) by semipreparative HPLC (25% MeCN). The POE 3D (687 mg) was purified by semipreparative HPLC (30% MeCN) to obtain compound 8 (tR = 78 min, 5.6 mg). The POE 3E (2.6 g) was subjected to chromatography on a C18 MPLC using H2O and MeOH (85:100–0:100, v/v) to gain 14 subfractions, and 15 (tR = 65 min, 4.1 mg). Compound 5 (tR = 54 min, 14.5 mg) was obtained from the POE 4D (102 mg) by semipreparative HPLC (25% MeCN). Compound 21 (tR = 41 min, 10.4 mg) was isolated from POE 5A (201 mg) by semipreparative HPLC (15% MeCN).
Compound 8: White solid; [ α ] D 25 = −18 (c 0.1, MeOH); HRESIMS m/z 396.1422 [M + Na]+ (396.1423, calcd for C20H23O6Na); 1H NMR data in methanol-d4 (600 MHz) and 13C NMR data in methanol-d4 (150 MHz) are reported in Table 1.
Compound 15: Brown liquid; [ α ] D 25 = + 15 (c 0.1, MeOH); ESI-MS m/z 273.8 [M-H]+; 1H NMR (methanol-d4, 600 MHz) δH 9.40 (1H, s, H-7), 6.94 (1H, d, J = 4.2 Hz, H-3), 6.57 (1H, d, J = 7.8 Hz, H-2’), 6.47 (1H, d, J = 2.4 Hz, H-5’), 6.34 (1H, dd, J = 7.8, 2.4 Hz, H-6’), 6.14 (1H, d, J = 4.2 Hz, H-4), 4.35 (2H, t, J = 7.8 Hz, H-8’), 4.07 (2H, s, H-6), 3.22 (3H, s, OCH3-6), 2.75 (2H, t, J = 7.2 Hz, H-7’); 13C NMR (methanol-d4, 150 MHz) δC 181.1 (C-7), 146.5 (C-3’), 145.2 (C-4’), 141.6 (C-5), 133.8 (C-2), 131.5 (C-1’), 124.5 (C-3), 121.3 (C-6’), 117.2 (C-2’), 116.5 (C-5’), 112.6 (C-4), 66.6 (C-6), 58.3 (OCH3-6), 49.8 (C-8’), 38.3 (C-7’), (Figures S8–S12).
Compound 20: Colorless needles; [ α ] D 25 = + 20 (c 0.1, MeOH); ESI-MS m/z 227.0 [M + H]+; 1H NMR (methanol-d4, 600 MHz) δH 8.45 (1H, d, J = 5.4 Hz, H-4), 8.35 (1H, d, J = 5.4 Hz, H-3), 8.25 (1H, d, J = 7.8 Hz, H-5), 7.74 (1H, d, J = 7.8 Hz, H-8), 7.63 (1H, m, H-6), 7.34 (1H, m, H-7), 4.12 (3H, s, OCH3-1’); 13C NMR (methanol-d4, 150 MHz) δC 164.1 (C-1’), 153.8 (C-1), 153.7 (C-3), 138.9 (C-13), 133.7 (C-10), 130.8 (C-12), 130.6 (C-6), 122.9 (C-5), 121.9 (C-11), 121.8 (C-7), 120.1 (C-4), 113.6 (C-8), 53.1 (OCH3-1’), (Figure S13 and Figure S14).

3.4. Cell Culture

RAW 264.7 (ATCC TIB-71) cells were cultured in Dulbecco’s modified Eagle medium (DMEM) and RPMI 1640 medium supplemented with 10% fetal bovine serum, 2 mM glutamine, 100 U/mL penicillin, and 100 mg/mL streptomycin sulfate. Cell were maintained at 37 °C in humidified air with 5% CO2.

3.5. Measurement of NO Contents and Cell Cytotoxicity

RAW 264.7 (ATCC TIB-71) cells were cultured in Dulbecco’s modified Eagle medium (DMEM) and NO assay was carried out for measurements of NO release using previously reported method [46]. Briefly, RAW 264.7 cells were plated at 1 × 105 cell density in a 96-well microplate and cultured for 24 h. Compounds (1–22) were pretreated with increasing dose concentrations (0.5, 1, 5, 10, 25, 50, and 100 μM), and then stimulated with LPS (1 μg/mL, Sigma–Aldrich, St. Louis, MO, USA) for 18 h. The mixture of cell supernatant (100 μL) and Griess reagent [1% sulfanilamide + 0.1% N-(1-naphthyl)ethylenediamine (Sigma–Aldrich)] in 5% phosphoric acid was recorded at 550 nm using a microplate reader (Varioskan LUX, Thermo Fisher Scientific Inc., Waltham, MA, USA). RAW 264.7 cell cytotoxicity was evaluated using 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay [47].

3.6. Immunoblot Analysis

The whole cell lysate was extracted using Cell Lysis Buffer (Cell Signaling Technology, Beverly, MA, USA). The cytosolic and nuclear extracts were prepared using an NE-PER Nuclear and Cytoplasmic Extraction Kit (Thermo Fisher Scientific) according to the manufacturer’s protocol. Immunoblot analysis was performed as previously described [48]. After transfer to nitrocellulose (NC) membrane, the blocking membrane with 5% skimmed milk powder was incubated overnight at 4 °C with primary antibody, including anti-phospho-JNK (1:1000), anti-JNK (1:1000), anti-phospho-p38 (1:1000), anti-p38 (1:1000), anti-phospho-ERK (1:1000), anti-ERK (1:1000), anti-p65 (1:1000), anti- IκBα (1:1000), anti-iNOS (1:1000), and anti-β-actin antibodies (Cell Signaling Technology, Beverly, MA, USA). The membranes were then incubated with a horseradish peroxide-conjugated anti-rabbit secondary antibody (1:5000) at room temperature. The band densities were calculated with Quantity One software (Bio-Rad Laboratories, Hercules, CA, USA).

3.7. Real-Time PCR Using TaqMan Probe

Total RNA was extracted from RAW 264.7 cells using the TaKaRa MiniBEST Universal RNA Extraction Kit following the manufacturer’s instructions (TaKaRa Bio Inc., Shiga, Japan). The complementary DNA (cDNA) was synthesized from 1 μg of the total RNA using a PrimeScript 1st strand cDNA synthesis kit (Takara Bio Inc. Japan). Quantitative real-time PCR (qPCR) of Il1bβ (Mm00434228_m1), Il6 (Mm00446190_m1), and Tnf (Mm00443258_m1) was performed with a TaqMan Gene Expression Assay Kit (Thermo Fisher Scientific, San Jose, CA, USA). To normalize the gene expression, an 18S rRNA endogenous control (Applied Biosystems, Foster City, CA, USA) was used. The qPCR was employed to verify the mRNA expression using a Step-One Plus Real-Time PCR system. To quantify mRNA expression, TaqMan mRNA assay was performed according to the manufacturer’s protocol (Applied Biosystems) [49]. PCR amplification was analyzed using the comparative ΔΔCT method.

3.8. Immunocytochemistry

RAW 264.7 (1 × 106 per well) cells were seeded on collagen-coated coverslips in six-well plates and incubated overnight. Then, the cells were pretreated with compound 20 (12.5 µM) or dexamethasone (10 µM) for 2 h. Then, the coverslips were washed with phosphate-buffered saline (PBS) and fixed with ice-cold methanol for 10 min at room temperature. After blocking with 1% bovine serum albumin (BSA) in PBS containing 0.1% Tween 20 (PBST) for 30 min, the coverslips were incubated overnight with an anti-p65 NF-κB antibody in a humidified chamber at 4 °C, followed by coincubation with an FITC-labeled anti-rabbit IgG antibody in a 37 °C humidified chamber for 60 min in the dark. The coverslips were sealed and stained with DAPI by using ProLong Gold antifade reagent with DAPI (Thermo Fisher Scientific, Waltham, MA, USA). Immunofluorescence images were obtained using an Olympus IX73 microscope with cellSens software (Olympus, Center Valley, PA, USA) [47].

3.9. Statistical Analysis

GraphPad Prism 5 software (GraphPad software, San Diego, CA, USA) was used for the statistical analysis of the experimental results. Each experiment, including NO assay, MTT assay, immunoblot, and real-time PCR, was performed independently three times, and these data represent the mean ± standard error of the mean (SEM). For comparisons between the control and LPS-treated groups, the unpaired t-test or Mann–Whitney U-test was used according to the data distribution. The statistical significance of each value was measured by the unpaired Student’s t-test or Mann–Whitney U-test. * p < 0.05, ** p < 0.01, and *** p < 0.001 were considered significant.

4. Conclusions

The 1-carbomethoxy-β-carboline (compound 20), which has an alkaloid structure as an active compound responsible for the anti-inflammatory activity of P. oleracea extract (95%), disturbed one of the major intracellular inflammatory signaling pathways associated with MAPKs and suppressed the nuclear translocation of NF-κB, decreasing proinflammatory mediators such as iNOS, TNF-α, IL-6, and IL-1β. These results indicate that P. oleracea extract and its components, specifically alkaloid compound 20, may be useful and safe therapeutic agents for treating the painful symptoms of inflammatory diseases such as rheumatoid arthritis, allergic asthma, and atopic dermatitis as an alternative to NSAIDs and dexamethasone. Further studies are necessary to improve the extraction efficiency of compound 20 and determine the structural characteristics responsible for its bioactivity and to evaluate better clinical mimic experiments such as using human monocytes rather than the single mouse cell line, RAW 264.7.

Supplementary Materials

The following are available online at https://www.mdpi.com/1420-3049/24/22/4042/s1, Figure S1: HRESIMS spectrum of compound 8. Figure S2: IR spectrum of compound 8. Figure S3: 1H NMR (600 MHz, methanol-d4) spectrum of compound 8. Figure S4: 13C NMR (150 MHz, methanol-d4) spectrum of compound 8. Figure S5: COSY (600 MHz, methanol-d4) spectrum of compound 8. Figure S6: HMQC (600 MHz, methanol-d4) spectrum of compound 8. Figure S7: HMBC (600 MHz, methanol-d4) spectrum of compound 8. Figure S8: 1H NMR (600 MHz, methanol-d4) spectrum of compound 15. Figure S9: 13C NMR (150 MHz, methanol-d4) spectrum of compound 15. Figure S10: COSY (600 MHz, methanol-d4) spectrum of compound 15. Figure S11: HMQC (600 MHz, methanol-d4) spectrum of compound 15. Figure S12: HMBC (600 MHz, methanol-d4) spectrum of compound 15. Figure S13: 1H NMR (600 MHz, methanol-d4) spectrum of compound 20. Figure S14: 13C NMR (150 MHz, methanol-d4) spectrum of compound 20.

Author Contributions

E.-J.P. and H.-J.J. performed the general experiments which were isolation and elucidation of chemical structures. K.-H.K., S.-J.L., and C.S.P. carried out the biological experiments. H.-J.J., B.-S.Y., S.W.L., and M.-C.R. analyzed the spectroscopic data. K.-H.K., E.-J.P., and S.W.L. wrote the manuscript.

Funding

This research was financially supported by a grant from the KRIBB Research Initiative Program (KGS9531911 and KGS9601911) and the National Research Foundation of Korea (NRF) grant funded by the Korea government (MEST) (No. 2019R1A2C2087608).

Conflicts of Interest

The authors have declared that there is no conflict of interest.

References

  1. Yang, X.; Zhang, W.; Ying, X.; Stien, D. New flavonoids from Portulaca oleracea L. and their activities. Fitoterapia 2018, 127, 257–262. [Google Scholar] [CrossRef] [PubMed]
  2. Cakilcioglu, U.; Turkoglu, I. An ethnobotanical survey of medicinal plants in Sivrice (Elazig-Turkey). J. Ethnopharmacol. 2010, 132, 165–175. [Google Scholar] [CrossRef] [PubMed]
  3. Abbasi, A.M.; Khan, M.A.; Shah, M.H.; Shah, M.M.; Pervez, A.; Ahmad, M. Ethnobotanical appraisal and cultural values of medicinally important wild edible vegetables of Lesser Himalayas-Pakistan. J. Ethnobiol. Ethnomed. 2013, 9, 66. [Google Scholar] [CrossRef] [PubMed]
  4. Syed, S.; Fatima, N.; Kabeer, G. Portulaca oleracea L.: A mini review on phytochemistry and phramacology. Int. J. Biol. Biotechnol. 2016, 13, 637–641. [Google Scholar]
  5. Zhou, Y.X.; Xin, H.L.; Rahman, K.; Wang, S.J.; Peng, C.; Zhang, H. Portulaca oleracea L.: A review of phytochemistry and pharmacological effects. Biomed. Res. Int. 2015, 2015, 925631. [Google Scholar] [CrossRef]
  6. Gallo, M.; Conte, E.; Naviglio, D. Analysis and Comparison of the Antioxidant Component of Portulaca Oleracea Leaves Obtained by Different Solid-Liquid Extraction Techniques. Antioxidants 2017, 6, 64. [Google Scholar] [CrossRef]
  7. Kim, Y.; Lim, H.J.; Jang, H.-J.; Lee, S.; Jung, K.; Lee, S.W.; Lee, S.-J.; Rho, M.-C. Portulaca oleracea extracts and their active compounds ameliorate inflammatory bowel diseases in vitro and in vivo by modulating TNF-α, IL-6 and IL-1β signalling. Food Res. Int. 2018, 106, 335–343. [Google Scholar] [CrossRef]
  8. Xiu, F.; Li, X.; Zhang, W.; He, F.; Ying, X.; Stien, D. A new alkaloid from Portulaca oleracea L. and its antiacetylcholinesterase activity. Nat. Prod. Res. 2019, 33, 2583–2590. [Google Scholar] [CrossRef]
  9. Liang, X.; Tian, J.; Li, L.; Gao, J.; Zhang, Q.; Gao, P.; Song, S. Rapid determination of eight bioactive alkaloids in Portulaca oleracea L. by the optimal microwave extraction combined with positive–negative conversion multiple reaction monitor (+/−MRM) technology. Talanta 2014, 120, 167–172. [Google Scholar] [CrossRef]
  10. Lajide, L.; Escoubas, P.; Mizutani, J. Termite Antifeedant Activity in Tropical Plants. Part 1. Termite Antifeedant Activity in Xylopia aethiopica. Phytochemistry 1995, 40, 1105–1112. [Google Scholar] [CrossRef]
  11. Joo Lee, J.; Oh, C.-H.; Heon Yang, J.; Baek, N.-I.; Kim, S.-H.; Hyeon Cho, C.; Keun Kim, D. Cytotoxic Alkaloids from the Wood of Picrasma quassioides. J. Korean Soc. Appl. Biol. Chem. 2009, 52, 663–667. [Google Scholar]
  12. Souto, A.L.; Tavares, J.F.; da Silva, M.S.; Diniz Mde, F.; de Athayde-Filho, P.F.; Barbosa Filho, J.M. Anti-inflammatory activity of alkaloids: An update from 2000 to 2010. Molecules 2011, 16, 8515–8534. [Google Scholar] [CrossRef] [PubMed]
  13. Oeckinghaus, A.; Ghosh, S. The NF-κB family of transcription factors and its regulation. Cold Spring Harb. Perspect. Biol. 2009, 1, a000034. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, H.; Sun, S.C. NF-κB in inflammation and renal diseases. Cell Biosci. 2015, 5, 63. [Google Scholar] [CrossRef]
  15. Newton, K.; Dixit, V.M. Signaling in innate immunity and inflammation. Cold Spring Harb. Perspect. Biol. 2012, 4, a006049. [Google Scholar] [CrossRef]
  16. Lu, Y.C.; Yeh, W.C.; Ohashi, P.S. LPS/TLR4 signal transduction pathway. Cytokine 2008, 42, 145–151. [Google Scholar] [CrossRef]
  17. Wang, N.; Liang, H.; Zen, K. Molecular mechanisms that influence the macrophage M1-M2 polarization balance. Front. Immunol. 2014, 5, 614. [Google Scholar] [CrossRef]
  18. Kaminska, B. MAPK signalling pathways as molecular targets for anti-inflammatory therapy—from molecular mechanisms to therapeutic benefits. Biochim. Biophys. Acta 2005, 1754, 253–262. [Google Scholar] [CrossRef]
  19. Al-Taweel, A.M.; Perveen, S.; El-Shafae, A.M.; Fawzy, G.A.; Malik, A.; Afza, N.; Iqbal, L.; Latif, M. Bioactive phenolic amides from Celtis africana. Molecules 2012, 17, 2675–2682. [Google Scholar] [CrossRef]
  20. Chao, J.-B.; Tong, H.; Huang, S.-P.; Liu, D.-S. Preparation and study on the solid inclusion complex of sparfloxacin with β-cyclodextrin. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2004, 60, 161–166. [Google Scholar] [CrossRef]
  21. Hwang, J.T.; Kim, Y.; Jang, H.J.; Oh, H.M.; Lim, C.H.; Lee, S.W.; Rho, M.C. Study of the UV Light Conversion of Feruloyl Amides from Portulaca oleracea and Their Inhibitory Effect on IL-6-Induced STAT3 Activation. Molecules 2016, 21, 865. [Google Scholar] [CrossRef] [PubMed]
  22. Xing, X.; Ho, P.; Bourquin, G.; Yeh, L.-A.; Cuny, G.D. Synthesis, stereochemistry confirmation and biological activity evaluation of a constituent from Isodon excisus. Tetrahedron 2003, 59, 9961–9969. [Google Scholar] [CrossRef]
  23. Wan Woo, K.; Young Han, J.; Suh, W.S.; Hyun Lee, J.; Ro Lee, K. ChemInform Abstract: Two New Chemical Constituents from Leaves of Perilla frutescens var. acuta. Bull. Korean Chem. Soc. 2014, 35, 2151–2154. [Google Scholar] [CrossRef]
  24. Zhou, B.; Yang, Z.; Feng, Q.; Liang, X.; Li, J.; Zanin, M.; Jiang, Z.; Zhong, N. Aurantiamide acetate from Baphicacanthus cusia root exhibits anti-inflammatory and anti-viral effects via inhibition of the NF-κB signaling pathway in Influenza A virus-infected cells. J. Ethnopharmacol. 2017, 199, 60–67. [Google Scholar] [CrossRef] [PubMed]
  25. Moulin, D.; Darcel, C.; Jugé, S. Versatile synthesis of P-chiral (ephedrine) AMPP ligands via their borane complexes. Structural consequences in Rh-catalyzed hydrogenation of methyl α-acetamidocinnamate. Tetrahedron Asymmetry 1999, 10, 4729–4743. [Google Scholar] [CrossRef]
  26. Lee, S.-H.; Bok, J.; Qi, X.; Kim, S.K.; Lee, Y.-S.; Yoon, J. Ring-opening of oxazolines derived from l-serine: A short and efficient stereoselective synthesis of all four diastereomers of 3-mercaptoaspartic acid derivatives. Tetrahedron Lett. 2007, 48, 7309–7312. [Google Scholar] [CrossRef]
  27. Yu, J.; Song, X.; Yang, P.; Wang, X.; Wang, X. Alkaloids from Scindapsus officinalis (Roxb.) Schott. and their biological activities. Fitoterapia 2018, 129, 54–61. [Google Scholar] [CrossRef]
  28. Xiang, L.; Xing, D.; Wang, W.; Wang, R.-F.; Ding, Y.; Du, L. Alkaloids from Portulaca oleracea L. Phytochemistry 2005, 66, 2595–2601. [Google Scholar] [CrossRef]
  29. Jao, C.-W.; Hung, T.-H.; Chang, C.; Chuang, T.-H. Chemical Constituents of Phaius mishmensis. Molecules 2016, 21, 1605. [Google Scholar] [CrossRef]
  30. Xu, H.; Bin Yang, W.; Wang, Q. Antifungal Agents. Part 3: Synthesis and Antifungal Activities of 3-Acylindole Analogs against Phytopathogenic Fungi In Vitro. Chem. Biol. Drug Des. 2011, 78, 864–868. [Google Scholar] [CrossRef]
  31. Yang, Y.B.; Tan, N.H.; Zhang, F.; Lu, Y.Q.; He, M.; Zhou, J. Cyclopeptides and Amides from Pseudostellaria heterophylla (Caryophyllaceae). Helv. Chim. Acta 2003, 86, 3376–3379. [Google Scholar] [CrossRef]
  32. Takaya, Y.; Furukawa, T.; Miura, S.; Akutagawa, T.; Hotta, Y.; Ishikawa, N.; Niwa, M. Antioxidant Constituents in Distillation Residue of Awamori Spirits. J. Agric. Food Chem. 2007, 55, 75–79. [Google Scholar] [CrossRef] [PubMed]
  33. Sharma, J.N.; Al-Omran, A.; Parvathy, S.S. Role of nitric oxide in inflammatory diseases. Inflammopharmacology 2007, 15, 252–259. [Google Scholar] [CrossRef] [PubMed]
  34. Xie, Q.W.; Kashiwabara, Y.; Nathan, C. Role of transcription factor NF-kappa B/Rel in induction of nitric oxide synthase. J. Biol. Chem. 1994, 269, 4705–4708. [Google Scholar] [PubMed]
  35. Gayeong, H. Bioactive effects of a Herbal Formula KDC16-2 Consisting Portulaca leracea L. Extracts. Korea. J. Pharmacogn. 2019, 50, 37–45. [Google Scholar]
  36. Miao, L.; Tao, H.; Peng, Y.; Wang, S.; Zhong, Z.; El-Seedi, H.; Dragan, S.; Zengin, G.; Cheang, W.S.; Wang, Y.; et al. The anti-inflammatory potential of Portulaca oleracea L. (purslane) extract by partial suppression on NF-κB and MAPK activation. Food Chem. 2019, 290, 239–245. [Google Scholar] [CrossRef]
  37. Cho, J.Y. Immunomodulatory effect of nonsteroidal anti-inflammatory drugs (NSAIDs) at the clinically available doses. Arch. Pharmacal Res. 2007, 30, 64–74. [Google Scholar] [CrossRef]
  38. Jiang, Y.; Yu, L.; Wang, M.H. N-trans-feruloyltyramine inhibits LPS-induced NO and PGE2 production in RAW 264.7 macrophage: Involvement of AP-1 and MAP kinase signaling pathways. Chem. Bio. Interact. 2015, 235, 56–62. [Google Scholar] [CrossRef]
  39. Wang, S.; Suh, J.H.; Zheng, X.; Wang, Y.; Ho, C.-T. Identification and Quantification of Potential Anti-inflammatory Hydroxycinnamic Acid Amides from Wolfberry. J. Agric. Food Chem. 2017, 65, 364–372. [Google Scholar] [CrossRef]
  40. Cai, X.F.; Chin, Y.W.; Oh, S.R.; Kwon, O.K.; Ahn, K.S.; Lee, H.K. Anti-inflammatory constituents from solanum nigrum. Bull. Korean Chem. Soc. 2010, 31, 199–201. [Google Scholar] [CrossRef]
  41. Sun, H.; He, X.; Liu, C.; Li, L.; Zhou, R.; Jin, T.; Yue, S.; Feng, D.; Gong, J.; Sun, J.; et al. Effect of Oleracein E, a Neuroprotective Tetrahydroisoquinoline, on Rotenone-Induced Parkinson’s Disease Cell and Animal Models. ACS Chem. Neurosci. 2017, 8, 155–164. [Google Scholar] [CrossRef] [PubMed]
  42. Chen, J.J.; Huang, S.Y.; Duh, C.Y.; Chen, I.S.; Wang, T.C.; Fang, H.Y. A new cytotoxic amide from the stem wood of Hibiscus tiliaceus. Planta Med. 2006, 72, 935–938. [Google Scholar] [CrossRef] [PubMed]
  43. Tripathi, P.; Tripathi, P.; Kashyap, L.; Singh, V. The role of nitric oxide in inflammatory reactions. FEMS Immunol. Med. Microbiol. 2007, 51, 443–452. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Liu, T.; Zhang, L.; Joo, D.; Sun, S.C. NF-κB signaling in inflammation. Signal. Transduct. Target. Ther. 2017, 2, 17023. [Google Scholar] [CrossRef] [PubMed]
  45. Liggett, J.L.; Zhang, X.; Eling, T.E.; Baek, S.J. Anti-tumor activity of non-steroidal anti-inflammatory drugs: Cyclooxygenase-independent targets. Cancer Lett. 2014, 346, 217–224. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Su, X.D.; Jang, H.J.; Wang, C.Y.; Lee, S.W.; Rho, M.C.; Kim, Y.H.; Yang, S.Y. Anti-inflammatory Potential of Saponins from Aster tataricus via NF-κB/MAPK Activation. J. Nat. Prod. 2019, 82, 1139–1148. [Google Scholar] [CrossRef]
  47. Lim, H.J.; Jang, H.J.; Bak, S.G.; Lee, S.; Lee, S.W.; Lee, K.M.; Lee, S.J.; Rho, M.C. In vitro inhibitory effects of cirsiliol on IL-6-induced STAT3 activation through anti-inflammatory activity. Bioorganic Med. Chem. Lett. 2019, 29, 1586–1592. [Google Scholar] [CrossRef]
  48. Jang, H.J.; Lee, S.; Lee, S.J.; Lim, H.J.; Jung, K.; Kim, Y.H.; Lee, S.W.; Rho, M.C. Anti-inflammatory Activity of Eudesmane-Type Sesquiterpenoids from Salvia plebeia. J. Nat. Prod. 2017, 80, 2666–2676. [Google Scholar] [CrossRef]
  49. Bertucci, A.; Kim, K.H.; Kang, J.; Zuidema, J.M.; Lee, S.H.; Kwon, E.J.; Kim, D.; Howell, S.B.; Ricci, F.; Ruoslahti, E.; et al. Tumor-Targeting, MicroRNA-Silencing Porous Silicon Nanoparticles for Ovarian Cancer Therapy. ACS Appl. Mater. Interfaces 2019, 11, 23926–23937. [Google Scholar] [CrossRef] [Green Version]
Molecules 24 04042 g001 550

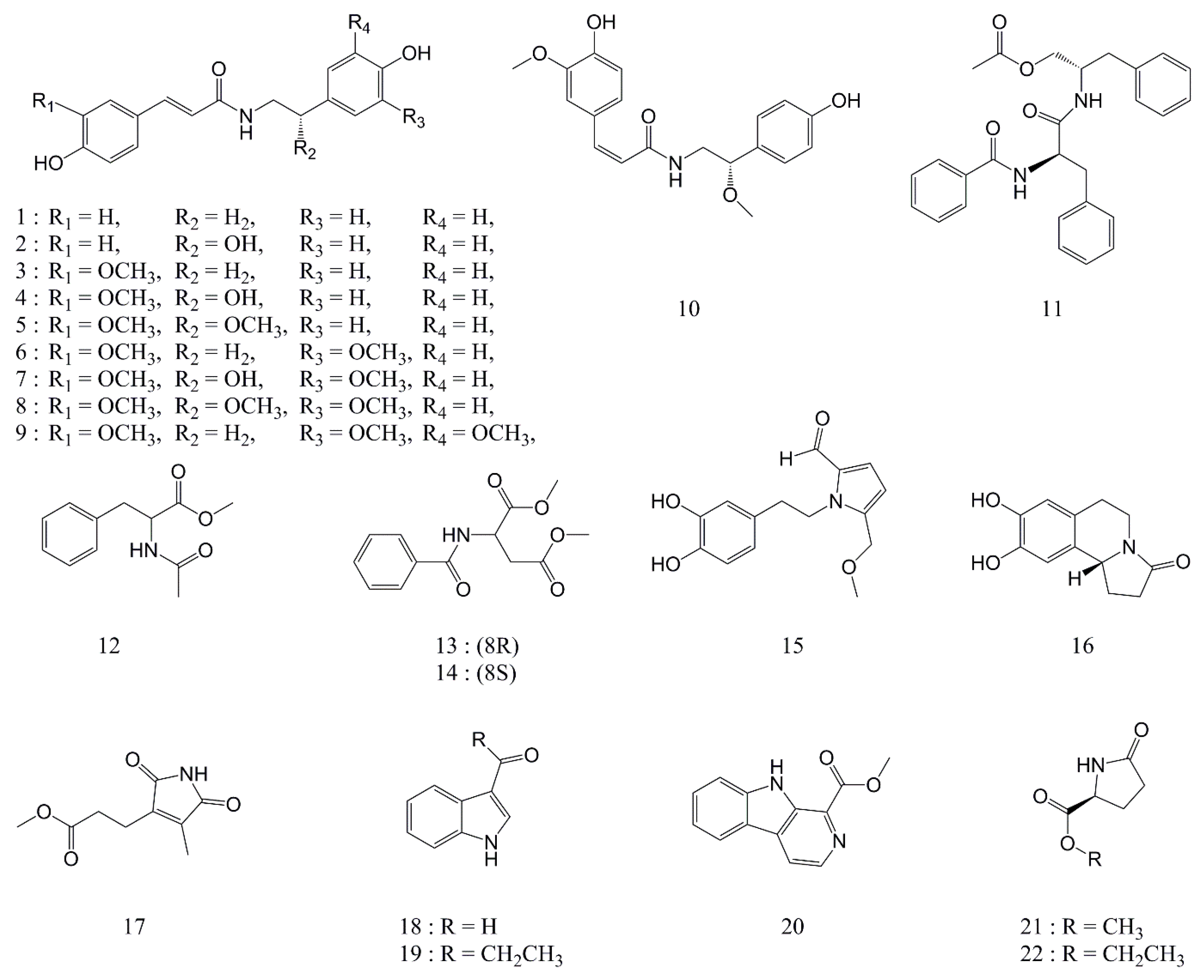

Figure 1. Chemical structures of the isolated compounds (1–22).
Figure 1. Chemical structures of the isolated compounds (1–22).
Molecules 24 04042 g001
Molecules 24 04042 g002 550

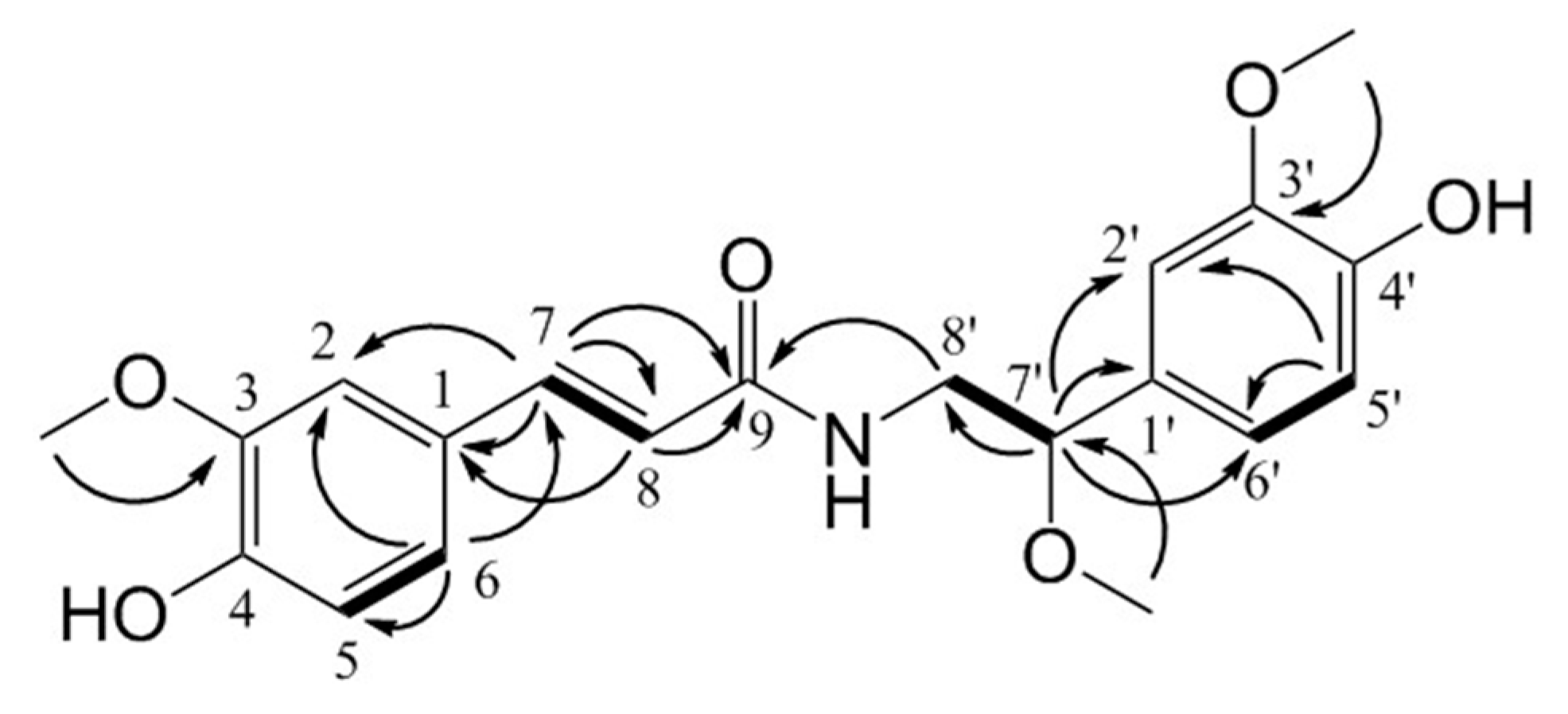

Figure 2. Selected key HMBC (plain arrow) and 1H-1H COSY (bold line) correlations for 8.
Figure 2. Selected key HMBC (plain arrow) and 1H-1H COSY (bold line) correlations for 8.
Molecules 24 04042 g002
Molecules 24 04042 g003 550

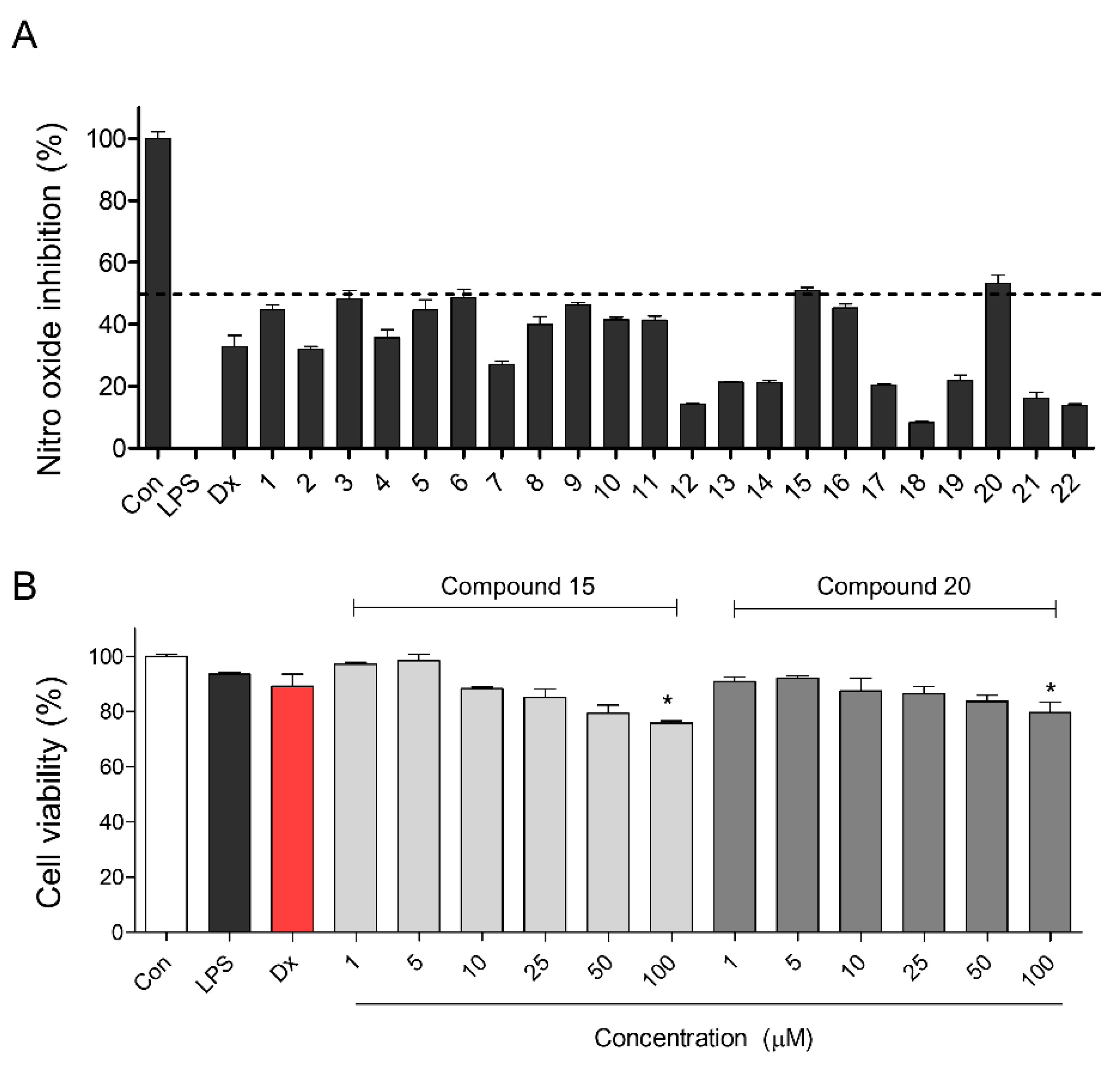

Figure 3. Nitric oxide screening in P. oleracea constituents in RAW 264.7 cell line. (A) NO screening was evaluated among 22 constituents in P. oleracea. NO screening was performed as triplicate tests, and results are expressed as means ± standard error of the mean (SEM). (B) For selected compounds 15 and 20, MTT assay was performed at 1 to 100 μM. MTT assay was performed as triplicate tests, and results are expressed as means ± SEM. An unpaired Student’s t-test was used for statistical analysis. * p < 0.05 versus Con. Con: control, LPS: lipopolysaccharide, Dx: dexamethasone.
Figure 3. Nitric oxide screening in P. oleracea constituents in RAW 264.7 cell line. (A) NO screening was evaluated among 22 constituents in P. oleracea. NO screening was performed as triplicate tests, and results are expressed as means ± standard error of the mean (SEM). (B) For selected compounds 15 and 20, MTT assay was performed at 1 to 100 μM. MTT assay was performed as triplicate tests, and results are expressed as means ± SEM. An unpaired Student’s t-test was used for statistical analysis. * p < 0.05 versus Con. Con: control, LPS: lipopolysaccharide, Dx: dexamethasone.
Molecules 24 04042 g003
Molecules 24 04042 g004 550

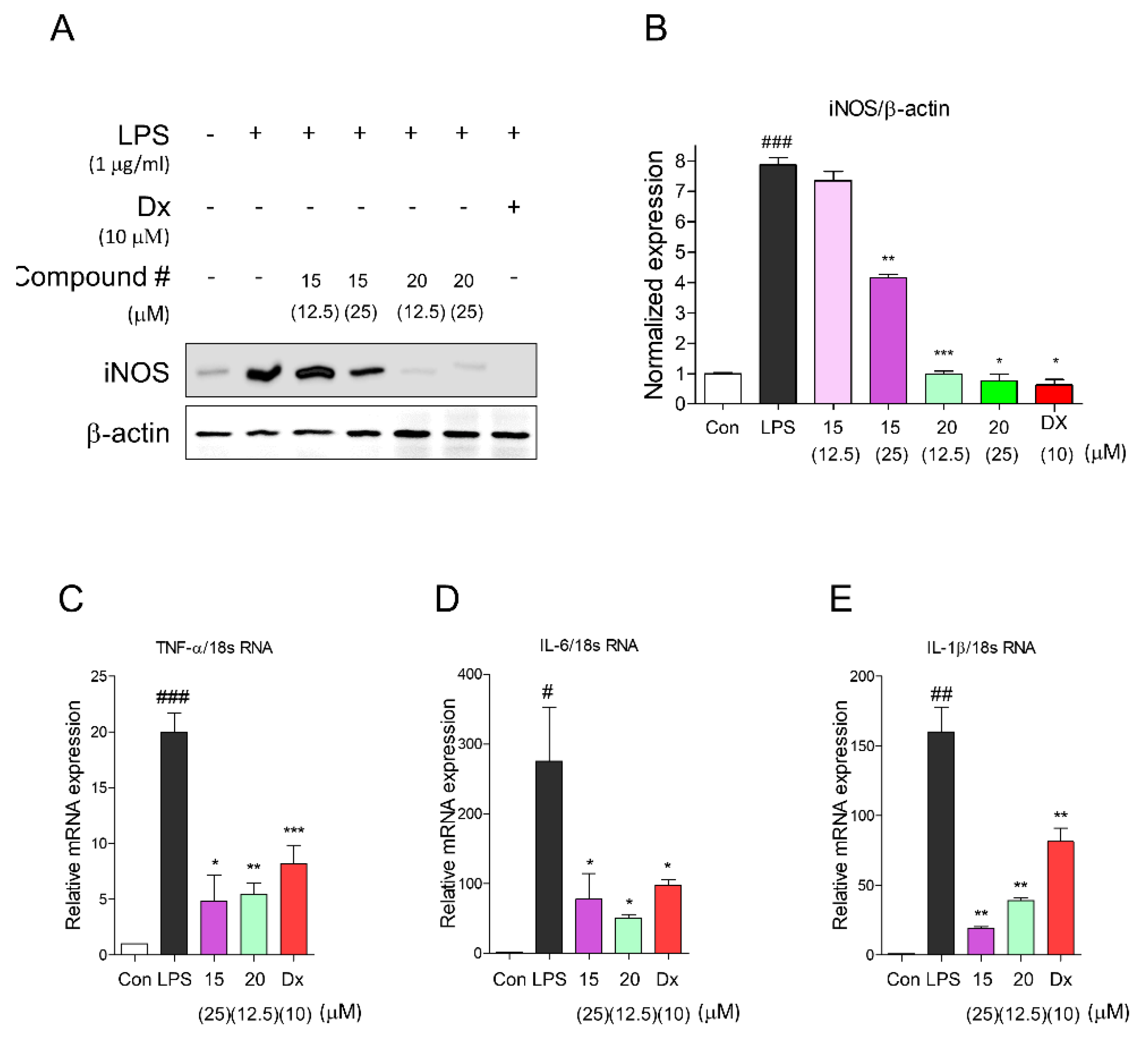

Figure 4. Compound 15 and 20 showed anti-inflammatory effects by inhibiting proinflammatory mediators. (A) Compounds 15 and 20 decreased iNOS expression levels in LPS-induced RAW 264.7 cells. (B) Relative ratio of iNOS versus β-actin was measured using densitometry, and dexamethasone was used as positive control. These graphs represented that compounds 15 and 20 dose-dependently inhibited iNOS using immunoblot analysis. Cells were pretreated with each compound for 2 h and stimulated with LPS (1 μg/mL) for 16 h. Immunoblot analysis was performed in triplicate tests, and results are expressed as means ± SEM. An unpaired Student’s t-test was used for statistical analysis. ### p < 0.001 versus Con, * p < 0.05, ** p < 0.01, and *** p < 0.001 versus LPS. (C–E) The mRNA expression levels of TNF-α, IL-6, and IL-1β were measured using quantitative real-time PCR experiment, and these proinflammatory cytokines were significantly diminished by compounds 15 and 21. Cells were preincubated for 2 h with compounds 1 and 3 at concentrations of 5 and 10 μM, respectively, and activated by LPS (1 μg/mL) for 2 h. Results represented as mean ± SEM, and dexamethasone was used as a positive control. # p < 0.05, ## p < 0.01, ### p < 0.001 versus Con, * p < 0.05, ** p < 0.01, and *** p < 0.001 versus LPS. Con: control, LPS: lipopolysaccharide, Dx: dexamethasone.
Figure 4. Compound 15 and 20 showed anti-inflammatory effects by inhibiting proinflammatory mediators. (A) Compounds 15 and 20 decreased iNOS expression levels in LPS-induced RAW 264.7 cells. (B) Relative ratio of iNOS versus β-actin was measured using densitometry, and dexamethasone was used as positive control. These graphs represented that compounds 15 and 20 dose-dependently inhibited iNOS using immunoblot analysis. Cells were pretreated with each compound for 2 h and stimulated with LPS (1 μg/mL) for 16 h. Immunoblot analysis was performed in triplicate tests, and results are expressed as means ± SEM. An unpaired Student’s t-test was used for statistical analysis. ### p < 0.001 versus Con, * p < 0.05, ** p < 0.01, and *** p < 0.001 versus LPS. (C–E) The mRNA expression levels of TNF-α, IL-6, and IL-1β were measured using quantitative real-time PCR experiment, and these proinflammatory cytokines were significantly diminished by compounds 15 and 21. Cells were preincubated for 2 h with compounds 1 and 3 at concentrations of 5 and 10 μM, respectively, and activated by LPS (1 μg/mL) for 2 h. Results represented as mean ± SEM, and dexamethasone was used as a positive control. # p < 0.05, ## p < 0.01, ### p < 0.001 versus Con, * p < 0.05, ** p < 0.01, and *** p < 0.001 versus LPS. Con: control, LPS: lipopolysaccharide, Dx: dexamethasone.
Molecules 24 04042 g004
Molecules 24 04042 g005 550
Figure 5. Compound 20 suppressed MAPK signaling pathway. (A) Immunoblot analysis showed that phosphorylated protein levels of MAPKs pathway, p38, ERK, and JNK were inhibited by compounds 20 in RAW 264.7 macrophages. (B–D) The graphs represent ratio of protein level of p38 (B), ERK (C), and JNK (D). Cells were preincubated for 2 h with compound 20 at concentration of 12.5 μM and stimulated with LPS (1 μg/mL) for 1 h. Dexamethasone served as positive control. Immunoblot analysis performed as triplicate experiments, and data represented as means ± SEM. Significant difference was considered at the levels of # p < 0.05 and ## p < 0.01 versus Con, * p < 0.05 and ** p < 0.01 versus LPS. Con: control, LPS: lipopolysaccharide, Dx: dexamethasone.
Figure 5. Compound 20 suppressed MAPK signaling pathway. (A) Immunoblot analysis showed that phosphorylated protein levels of MAPKs pathway, p38, ERK, and JNK were inhibited by compounds 20 in RAW 264.7 macrophages. (B–D) The graphs represent ratio of protein level of p38 (B), ERK (C), and JNK (D). Cells were preincubated for 2 h with compound 20 at concentration of 12.5 μM and stimulated with LPS (1 μg/mL) for 1 h. Dexamethasone served as positive control. Immunoblot analysis performed as triplicate experiments, and data represented as means ± SEM. Significant difference was considered at the levels of # p < 0.05 and ## p < 0.01 versus Con, * p < 0.05 and ** p < 0.01 versus LPS. Con: control, LPS: lipopolysaccharide, Dx: dexamethasone.
Molecules 24 04042 g005
Molecules 24 04042 g006 550

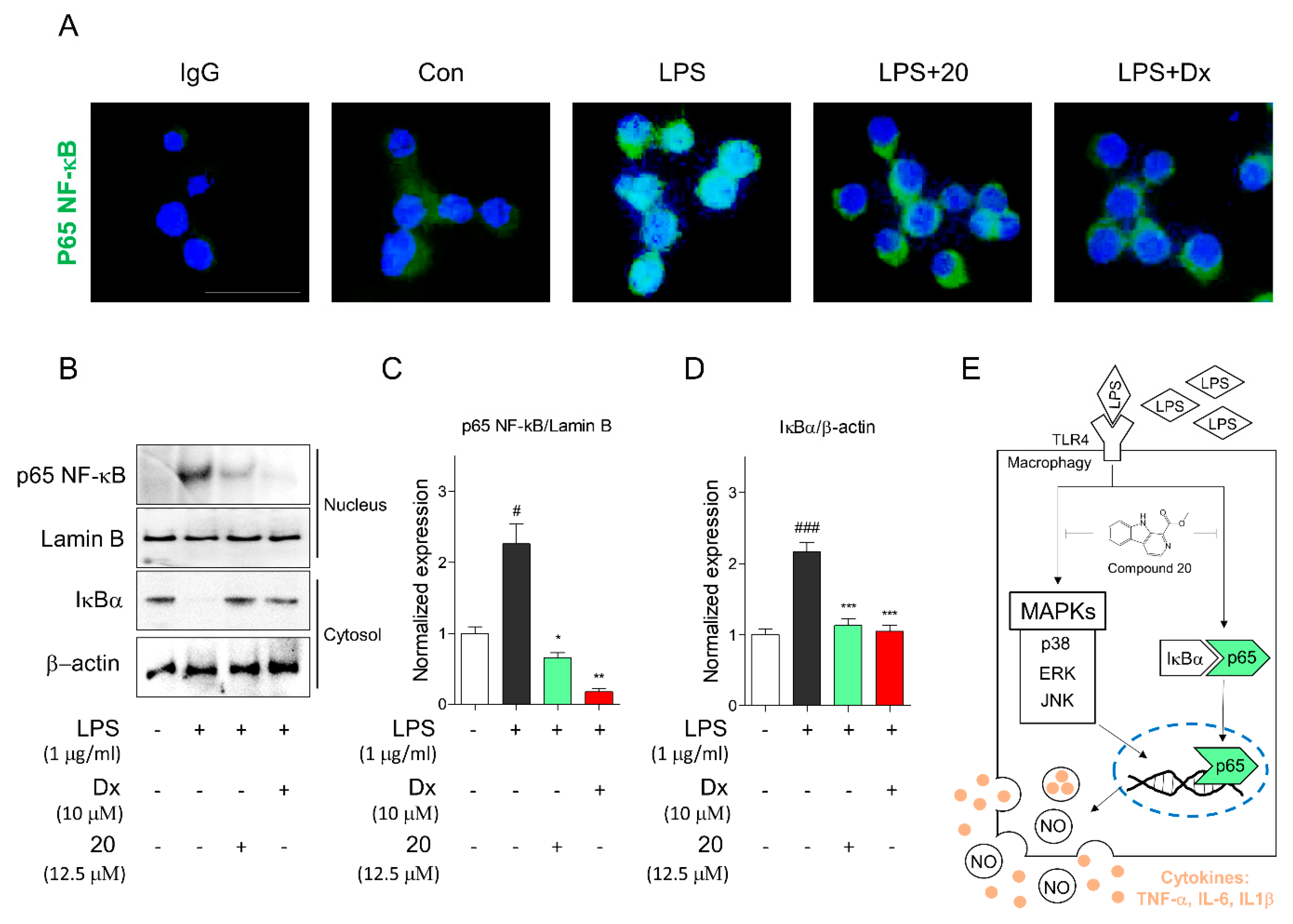

Figure 6. Compound 20 suppressed activation of NF-κB. (A) Compound 20 suppressed nuclear translocation of NF-κB. After 2 h of compound 20 treatment, the cells were fixed and permeabilized. NF-κB (green) was immunostained with rabbit-anti-NF-κB followed by FITC-conjugated secondary antibodies and the nuclei (blue) were stained with DAPI. The results shown are representative of two independent experiments. (B) Immunoblot analysis displayed that translocation of NF-κB into nucleus and degradation of cytosolic IκBα were suppressed by compound 20 in RAW 264.7 cells. (C) The graph is described as relative ratio of NF-κB to lamin B. (D) The graph shows the relative ratio of IκBα to β-actin using densitometry of ImageJ. (E) The schematic pathway of compound 20 is exhibited. Cells were pretreated for 2 h with compound 20 at concentration of 12.5 μM, and stimulated with LPS (1 μg/mL) for 1 h. Dexamethasone was used as positive control, and immunoblot analysis was performed as triplicate experiments. Values are means ± SEM, and an unpaired Student’s t-test was used for statistical analysis. # p < 0.05, and ### p < 0.001 versus Con, * p < 0.05, ** p < 0.01, and *** p < 0.001 represented significant differences from the LPS-treated group. Con: control, LPS: lipopolysaccharide, Dx: dexamethasone.
Figure 6. Compound 20 suppressed activation of NF-κB. (A) Compound 20 suppressed nuclear translocation of NF-κB. After 2 h of compound 20 treatment, the cells were fixed and permeabilized. NF-κB (green) was immunostained with rabbit-anti-NF-κB followed by FITC-conjugated secondary antibodies and the nuclei (blue) were stained with DAPI. The results shown are representative of two independent experiments. (B) Immunoblot analysis displayed that translocation of NF-κB into nucleus and degradation of cytosolic IκBα were suppressed by compound 20 in RAW 264.7 cells. (C) The graph is described as relative ratio of NF-κB to lamin B. (D) The graph shows the relative ratio of IκBα to β-actin using densitometry of ImageJ. (E) The schematic pathway of compound 20 is exhibited. Cells were pretreated for 2 h with compound 20 at concentration of 12.5 μM, and stimulated with LPS (1 μg/mL) for 1 h. Dexamethasone was used as positive control, and immunoblot analysis was performed as triplicate experiments. Values are means ± SEM, and an unpaired Student’s t-test was used for statistical analysis. # p < 0.05, and ### p < 0.001 versus Con, * p < 0.05, ** p < 0.01, and *** p < 0.001 represented significant differences from the LPS-treated group. Con: control, LPS: lipopolysaccharide, Dx: dexamethasone.
Molecules 24 04042 g006
Table
Table 1. Spectroscopic data for compound 8 a in methanol-d4.
Table 1. Spectroscopic data for compound 8 a in methanol-d4.
PositionsδC cTypeδH (J in Hz) b
1127.0C
2110.2CH7.13 (1H, d, 1.8)
3148.8C
4148.5C
5115.1CH6.80 (1H, overlap)
6121.9CH7.03 (1H, dd, 8.4, 1.8)
7140.9CH7.44 (1H, d, 15.6)
8117.3CH6.45 (1H, d, 15.6)
9167.9C
OCH3-355.6CH33.89 (3H, s)
1’130.9C
2’109.8CH36.92 (3H, s)
3’147.9C
4’146.2C
5’114.8CH6.80 (1H, overlap)
6’119.5CH6.80 (1H, overlap)
7’82.2CH4.26 (1H, dd, 8.4, 4.8)
8’α48.2CH23.53 (1H, dd, 13.8, 4.8)
8’β3.42 (1H, dd, 13.8, 8.4)
OCH3-3’55.1CH33.86 (3H, s)
OCH3-7’45.7CH33.24 (3H, s)
a TMS was used as an internal standard; chemical shifts (δ) are reported in ppm; J values are reported in Hz. Data were measured in methanol–d4 at b 600 MHz or c 150 MHz.
