Applied Trace Alkali Metal Elements for Semiconductor Property Modulation of Perovskite Thin Films
1
Beijing Advanced Innovation Center for Materials Genome Engineering, Research Center for Sensor Technology, Beijing Key Laboratory for Sensor, MOE Key Laboratory for Modern Measurement and Control Technology, School of Applied Sciences, Beijing Information Science and Technology University, Jianxiangqiao Campus, Beijing 100101, China
2
State Key Laboratory on Integrated Optoelectronics, Institute of Semiconductors, Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Chinese Academy of Sciences, Beijing 100864, China
*
Author to whom correspondence should be addressed.
Received: 30 September 2019 / Accepted: 2 November 2019 / Published: 7 November 2019

Abstract

:
With the rapid consumption of energy, clean solar energy has become a key study and development subject, especially the when new renewable energy perovskite solar cells (PSCs) are involved. The doping method is a common means to modulate the properties of perovskite film. The main work of this paper is to incorporate trace amounts of alkali metal elements into the perovskite layer and observe the effects on the properties of the perovskite device and the majority carrier type of the perovskite film. Comparative analysis was performed by doping with Na+, K+, and Rb+ or using undoped devices in the perovskite layer. The results show that the incorporation of alkali metal ions into the perovskite layer has an important effect on the majority carrier type of the perovskite film. The majority carrier type of the undoped perovskite layer is N-type, and the majority carrier type of the perovskite layer doped with the alkali metal element is P-type. The carrier concentration of perovskite films is increased by at least two orders of magnitude after doping. That is to say, we can control the majority of the carrier type of the perovskite layer by controlling the doping subjectively. This will provide strong support for the development of future homojunction perovskite solar cells. This is of great help to improve the performance of PSC devices.
Keywords:
alkali metal; perovskite solar cells; N-type; P-type; homojunction; doping; films

1. Introduction

The astonishing development of the economy has imposed challenges for the energy industry and made it indispensable [1]. However, fossil energy is not renewable and causes serious environmental pollution. In contrast, solar energy is an inexhaustible source of clean energy. At present, the mature devices on the market are mainly silicon solar cells. Thin film solar cells are developing rapidly, especially perovskite solar cells (PSCs). The device efficiency certified by the US National Renewable Energy Laboratory recently reached 25.2% [2]. Perovskite materials have become the leader in new solar materials due to their many excellent material properties, such as suitable band gap, long carrier diffusion length, long minority carrier lifetime, low cost, and simple preparation [3,4,5,6,7]. However, there are still some problems in perovskite materials, such as efficiency, toxicity, marketization, and stability [8,9]. More research and exploration are still needed. In order to control the properties of perovskite thin films, common means include doping technology, the film forming process, environmental control, and so on. Most of the previous studies used doping to enhance the planar heterojunction [10,11] to improve device performance, essentially reducing the carrier recombination loss of the carrier to reduce the defects of the perovskite film [12,13,14].
Huang et al. reviewed the effects of metal ions on the performance of PSC devices [15]. For example, Na+ doping can reduce nonradiative and recombination rate, improve grain size, and reduce grain boundary and trap density [10,16,17]. K+ doping can improve grain size and reduce grain boundary and trap density [10,17]. Rb+ doping leads to passivation of grain boundaries [18]. Although there have been many studies on the influence of alkali metal doping on PSC devices, the modulation of perovskite semiconductor types by alkali metal doping is still rare. The use of metal nano-ions can increase light trapping ability and expand the range of light absorption [19]. Although some metal ions have already proved effective in modulating bandgaps through alloying, their ability to control crystallization, carrier concentration, and emissive effects still require significant improvements in fundamental understanding [15].
As early as 2014, the research group of Tingting Shi calculated the doping method of perovskite solar cells based on density functional theory, and predicted that P-type perovskite solar cells could be prepared by incorporating alkali metal elements into perovskite materials under certain conditions [20]. In 2016, Wang et al. studied improving crystal quality by doping Al3+ to reduce microstrain in polycrystalline films [21]. In 2017, Liu et al. studied one-step doping with Na+ and K+ to reduce trap density to improve device performance [17]. In 2018, our research group (Bai et al.) found that the incorporation of Rb+ into the perovskite-absorbing material by a one-step process could change the semiconductor type and carrier concentration of perovskite [22]. Theoretical simulations and experimental results show that perovskites can be prepared into P-type or N-type by specific means [23,24,25,26,27]. Moreover, concerning modulating the carriers type of behavior, it is also relevant to look at the internal charge anomaly distribution of PSCs [28]. These studies provide a theoretical basis for the extrinsic doping of perovskite to change the majority of carrier types, contributing to solving challenges impeding the development of homojunction in perovskite.
Here we assume that if the majority carrier type of the perovskite film can be controlled subjectively, the composite perovskite layer with homojunction can be prepared step by step. The homojunction inside the perovskite film can better improve the separation and migration ability of carriers by forming the built-in electric field [12], thereby reducing the defects of the perovskite film. Huang et al. self-doped the perovskite into P-type or N-type by controlling the ratio of the two precursors of perovskite [23]. Li et al. prepared P-type or N-type perovskite [12] by controlling the preparation process and growth conditions. In this paper we intend to further systematically introduce the effect of external doping of alkali metal elements on the majority carrier type of perovskite.
In this paper, we prepared perovskite solar cells by two-step method and doped trace alkali metal elements in PbI2 precursor solution. We prepared four different groups using Na+-, K+-, and Rb+-doped as well as undoped samples. We used different alkali metal elements to study the extrinsic doping of the perovskite layer, and experimental data showing that CH3NH3PbI3 (MAPbI3) can be used for extrinsic doping from the N-type to P-type are provided. This revealed that the physical properties of perovskite thin films can be modulated by controlling precursor solution compositions and doping craft, leading to the change in the majority carrier type and demonstrating a promising platform for opening new horizons in homojunction PSCs.

2. Materials and Experimental Methods

2.1. Materials

The conductive glass is a transparent conductive SnO2 glass doped with fluorine (FTO) as the substrate of the thin-film solar cell. It was purchased from Shanghai MaterWin New Materials Co., Ltd. (Shanghai, China, 7–8 Ω/square, 2.2 mm in thickness, 1.5 × 1.5 cm2 in specification). Dimethyl sulfoxide (DMSO) and N, N-dimethyl formamide (DMF) were purchased from Alfa Aesar (China) Co., Ltd. (Shanghai, China). Acid titanium dioxide solution (bl-TiO2, product code MTW-CL-H-002, commodity name HH-TiOx, colorless and transparent in appearance, 99.98% purity), 18NR-T TiO2 (mp-TiO2, product code MTW-CL-H-001, commodity name 18NR-T TiO2, beige paste in appearance, solid content 4%), isopropanol (IPA, CAS No. 67-63-0, colorless and transparent in appearance, 99.8% purity), and chlorobenzene (CAS No. 108-90-7, colorless and transparent in appearance, 99.8% purity) were purchased from Shanghai MaterWin New Materials Co., Ltd. (Shanghai, China). Spiro-OMeTAD solution (Spiro-OMeTAD, CAS No. 207739-72-8, yellow powder in appearance, purity ≥99.5%), methylammonium iodide (MAI, CAS No. 14965-49-2, white powder in appearance, purity ≥99.5%), PbI2 (CAS No. 10101-63-0, yellow crystalline powder in appearance, purity >99.99%), NaI (CAS No. 7790-29-6, white granular, 99.9% in purity), KI (CAS No. 7681-11-0, white granular, purity ≥99.999%), and RbI (CAS No. 7681-82-5, white granular, 99.999% purity) were obtained from Xi’an Polymer Light Technology Corp. (Xi’an China).

2.2. Device Fabrication

The overall structure of the device is FTO/bl-TiO2/mp-TiO2/CH3NH3PbI3/Spiro/FTO(C), from bottom to top. FTO conductive glass is a photoanode material for solar cell devices, which must be cleaned before use. After cutting the glass, ultrasonic cleaning of FTO was carried out successively with mixed solution (detergent and deionized water), glass water (acetone: deionized water: 2-propanol = 1:1:1), and alcohol. Washed with deionized water and dry for 30 min, the FTO was ozone-treated with ultraviolet ozone (UVO) for one hour before use. The compact TiO2 layer (bl-TiO2) was spin-coated with a layer of acidic TiOx solution at a rate of 2000 rpm for 60 s, and then heated to 100 °C for 10 min on a hot plate. Finally in the muffle furnace, 30 min under 500 °C calcination resulted in a smooth TiO2-dense layer. The TiO2 mesoporous layer (mp-TiO2) was spin-coated with a layer of the 18NR-T TiO2 slurry solution at 2000 rpm for 30 s, and was afterward heated on the hot plate to 100 °C for 10 min. Finally, in the muffle furnace, 500 °C calcination for 1 h was used to obtain a uniform mesoporous TiO2 layer.
The perovskite layer was prepared using two solution deposition methods. On weighing 0.5993 g PbI2 (1.3 mol/L) with an electronic balance and baking it on a hot plate at 70 °C for 30 min, PbI2 changed from light yellow to orange. Then, the precursor PbI2 was dissolved using dimethyl sulfoxide (DMSO) and N, N-dimethylformamide (DMF) as two kinds of solvents (volume ratio of 0.05:0.95) in the mixed solution. Four PbI2 precursor solutions were prepared in this experiment, which were undoped, doped with a concentration of 0.04 M/L NaI, doped concentration of 0.04 M/L KI, and doped concentration of 0.04 M/L RbI. Then, 0.06 g of NaI, 0.0664 g of KI, and 0.0848 g of RbI were respectively incorporated into three bottles of the PbI2 precursor solution. They were placed in an ultrasonic device for sonication until the solute was completely dissolved; then the solution was filtered and the PbI2 solution was ready. MAI (0.07 g) was weighed with an electronic balance, and 1 mL of isopropanol (solvent) was added. This was placed in an ultrasonic device for sonication until the solute was completely dissolved, the solution was filtered, and then the MAI solution was ready. The first step in the two-step process was to spin coat the PbI2 solution and spin it on the mesoporous film at 1500 rpm for 30 s. The second step was to spin-coat the MAI solution on the newly formed PbI2 film at 1500 rpm for 30 s, and then place it on a hot plate at 150 °C for 15 min. The perovskite film was then obtained. An appropriate amount of Spiro spin coating was applied to the perovskite film. The hole transport layer was obtained by rotating it for 30 s at the rate of 3000 rpm. Finally, the counter electrode was cleaned with FTO as the substrate, and the smoke particles generated by candle combustion formed the carbon film. The prepared carbon film was aligned on the top layer of the prepared device. A small clip was used to clamp the sides for easy packaging.

2.3. Characterization

The morphology details of perovskite films were measured by scanning electron microscope (SEM) (SIGMA, Zeiss, Jena, Germany). Energy dispersive X-ray spectroscopy (EDS) was used for testing and analyzing the content of chemical constituents in perovskite films. X-ray diffraction (XRD) data from samples of perovskite thin films substrates were collected using an X-ray diffractometer (D8 Focus, Bruker, Dresden, Germany). The four different sets of samples were analyzed using an ultraviolet (UV) visible absorption spectrometer (Avantes, Apeldoom, the Netherlands) and the Photoluminescence (PL) Spectroscopy data were obtained by a LabRAW HR800 PL testing system (HORIBA JObin Yvon, Paris, France). Hall effect data were measured by the Hall Effect Measurement System HL5500PC (QUATEK, Shanghai, China). The photocurrent density-voltage (J-V) characteristics were measured under simulated standard air quality daylight (AM 1.5, 100 mW/cm2) with a solar simulator (Sol 3A, Oriel, New Port, RI, USA).
The Hall effect test described in this paper used a perovskite film prepared on a glass substrate. In other tests, perovskite film refers to the film prepared on carrier transport layer. All the tests contain substrates. The perovskite layer described refers to a single layer of perovskite, and the test results do not include other layer.

3. Results and Discussion

The PbI2 films that are undoped, have a doped concentration of 0.04 M/L NaI, doped concentration of 0.04 M/L KI, and doped concentration of 0.04 M/L RbI were named as PbI2, PbI2 + 0.04NaI, PbI2 + 0.04KI, and PbI2 + 0.04RbI, respectively. All of the PbI2 films in the paper were deposited on the TiO2 layer. Figure 1 shows the top view and cross section view of PbI2 thin film; (a) and (b) correspond to the top view and cross-sectional view of the undoped PbI2 thin film, as a reference sample. Figure 1c,d correspond to the top view and cross-sectional view of PbI2 + 0.04NaI thin film, Figure 1e,f correspond to the top view and cross-sectional view of PbI2 + 0.04KI thin film, and Figure 1g,h correspond to PbI2 + 0.04RbI thin film. Top and cross-sectional views are provided, with magnification of 30,000 times, and the scale line is 1 μm.
It can be seen from Figure 1 that whether PbI2 films are doped or not, they are not very flat and dense, and there are many pinholes in the undoped films. On the one hand, these pinholes reduce the crystallinity of PbI2 films. On the other hand, it is beneficial for MAI solution to enter into PbI2 film and react with it, thereby facilitating the formation of perovskite film. It can be seen from the cross-sectional view in Figure 1a that there are holes in the undoped PbI2 film. From Figure 1c, it can be seen that the surface of the PbI2 layer doped with Na+ is the roughest, and the hole is also found to be the largest in the cross-sectional view, almost forming an isolation layer. In Figure 1e,f, the surface of the PbI2 layer doped with K+ is also rough, but the pores and roughness are lower than those doped with Na+. It is found in Figure 1g,h that the film of the PbI2 layer doped with Rb+ is relatively flat and has fewer holes than the surface of the undoped film.
Figure 2 shows the XRD patterns of the undoped PbI2 film and the PbI2 film doped with trace alkali metal elements. The data were measured on a PbI2 film deposited on a mesoporous layer of TiO2. The peaks in Figure 2 include the TiO2 peak and the FTO peak. It can be seen from the figure that the intensity of the first main peak of PbI2 (about 12° position) is significantly reduced after doping with alkali metal elements, and has the largest change after incorporation of K+. The change after doping with Na+ and Rb+ is small. This indicates that with the addition of alkali metal elements, the crystallinity of PbI2 is affected. In addition, the second main peak of PbI2 (about 22° position) was found to increase in strength when Na+ was incorporated, and the peak position is shifted to the right. The intensity was almost zero after incorporation of K+ and Rb+. This indicates that the PbI2 crystal type is distorted with the incorporation of an alkali metal element.
The perovskite films that are undoped, have an doped concentration of 0.04 M/L NaI, doped concentration of 0.04 M/L KI, and doped concentration of 0.04 M/L RbI were named as MAPbI3, MAPbI3 + 0.04NaI, MAPbI3 + 0.04KI, and MAPbI3 + 0.04RbI, respectively. Figure 3 provides a top and cross-sectional view of an alkali metal doped perovskite film. Figure 3a,b correspond to the top view and cross-sectional view of the undoped MAPbI3 thin film, as a reference sample. Figure 3c,d correspond to the top and cross-sectional view of MAPbI3 + 0.04NaI thin film, Figure 3e,f correspond to the top view and cross-sectional view of MAPbI3 + 0.04KI thin film, and Figure 3g,h correspond to MAPbI3 + 0.04RbI thin film. Top and cross-sectional views are provided, with magnifications of 30,000 times, and the scale line is 1 μm.
It can be seen from Figure 3a that the top view of the undoped perovskite film is flat, the perovskite crystal grain is larger, the maximum diameter is about 800 nm, and the grain size is different, but the grain boundaries are obvious. Figure 3b provides a corresponding cross-sectional view of the perovskite layer, the TiO2 mesoporous layer, the TiO2 dense layer, and FTO from top to bottom. It can be observed that the perovskite grains penetrate the entire perovskite layer, the grain thickness is the thickness of the film, and the thickness is about 680 nm. Figure 3c shows the top view of MAPbI3 + 0.04NaI film. Compared with the undoped perovskite film, the grain size of MAPbI3 + 0.04NaI film does not increase, the surface flatness is reduced, and no pinholes appear. Figure 3d provides a corresponding cross-sectional view. It can be seen that the vertical grain boundary of the MAPbI3 + 0.04NaI film is significantly increased relative to the undoped perovskite film, and the grain no longer runs through the whole perovskite layer. Figure 3e shows the top view of the MAPbI3 + 0.04KI film. Compared to the undoped perovskite film, it can be seen that the surface becomes uneven and the grain size becomes smaller. The white part of the figure indicates the protruding part. Figure 3f provides its corresponding cross-sectional view; it can be seen that the surface of the film is high and low, and the flatness is reduced. The grain boundary in the vertical direction of the perovskite film is obviously increased, and more perovskite grains no longer penetrate the entire perovskite layer, but the film is dense and has no pores. Figure 3g shows the top view of the MAPbI3 + 0.04M RbI-doped perovskite film. Compared with the undoped perovskite film, the grain size is obviously reduced, and the maximum is about 300 nm. Moreover, a white phase appeared, which indicates that the surface flatness is lowered. From the corresponding cross-sectional view (h), it can be seen that the grain boundary of the perovskite film is significantly increased in the vertical direction, the grain size is small, and no holes are formed.
Figure 4 shows the XRD patterns of the undoped MAPbI3 film and the MAPbI3 film doped with trace alkali metal elements. It can be seen from the diagram that the intensity of the first main peak of the perovskite (about a 14° position) increases with the incorporation of alkali metal elements. This indicates that the crystallinity of the perovskite increases with the incorporation of alkali metal elements. It is obvious that there is no significant change in the position of all the XRD peaks of the perovskite. That is, no new peak appeared and no peak disappeared after doping, indicating that the crystal structure of the perovskite did not change significantly.
Figure 5 is an EDS diagram of the alkali metal element-doped perovskite film, the peaks of which are indicated by blue rectangles in the corresponding figures, indicating that the alkali metal elements are successfully incorporated into the perovskite film. Table 1 shows the atomic percentage of EDS of the alkali metal element-doped perovskite film. It can be seen that the atomic percentage of the alkali metal element is shown in the corresponding data, which confirms that the alkali metal element has been incorporated into the perovskite film. Oxygen and silicon may come from the glass substrate.
Table 2 shows the Hall test parameters for the alkali metal element-doped perovskite layer. As can be seen from the table, the undoped perovskite layer has a negative majority carrier concentration and is an N-type semiconductor. After the alkali metal element is doped, the majority carrier concentration of the perovskite layer has a positive value and is a P-type semiconductor. This indicates that the incorporation of the alkali metal element changes the perovskite from an N-type semiconductor to a P-type semiconductor. This is consistent with the results predicted by Shi et al. according to density functional theory [20]. Combined with the above data, it is found that the preparation of the perovskite layer with a trace amount of alkali metal elements can change the majority carrier type of the perovskite layer. That is to say, via controlling the incorporation of alkali metal elements, we can subjectively modulate the majority carrier type of the perovskite film. This lays the foundation for the next study of homojunction perovskite solar cells.
The results of the Hall test on semiconductor types are consistent with the literature [22,29]. The undoped perovskite layer semiconductor type is N-type, the doped semiconductor type is P-type, and the carrier concentration is slightly higher herein [30]. The carrier concentration after doping with metal ions is also increased [31].
Figure 6 is the UV absorption spectrum of perovskite layer doped with alkali metal elements. It can be seen from the diagram that the UV absorption spectrum intensity of the alkali metal-doped perovskite layer is greater than the undoped perovskite layer UV absorption spectrum intensity in the visible light wavelength range. Doping with Na+ and K+ causes the absorption band edge to show a red shift, and doping with Rb+ causes a slight blue shift in the absorption band edge.
After calculation, the band gap of the undoped sample is 1.56 eV, the band gap of the Na+-doped sample is 1.55 eV, the band gap of the K+ -doped sample is 1.54 eV, and the band gap of the Rb+-doped sample is 1.57 eV. The incorporation of Na+ or K+ resulted in a red shift in absorption edge and band gap shrinkage, whereas the incorporation of Rb+ caused a blue shift and band gap increase. The identical trend was also found in the photoluminescence spectra, indicating the modification of the band gap by the alkali metal cations. The experimental results are consistent with the literature [32].
Figure 7 include the PL spectrum and a normalized PL spectrum of a perovskite layer doped with an alkali metal element. It can be seen from the figure that as the photoluminescence intensity of the alkali metal element incorporated into the perovskite layer increases, the ability of carriers to implant into the TiO2 layer is weakened. From the normalized PL spectrum, the emission peaks of the photoluminescence spectra doped with Na+ and K+ show a red shift, and the doping of Rb+ causes a slight blue shift in the emission peak. This is consistent with the display of the UV absorption spectral shift of Figure 6. This also reflects a change in the band gap width of the perovskite after doping, which may change the film type of the perovskite layer.
Figure 8 shows the Reverse Scan (RS) and Forward Scan (FS) J-V curve for four sample perovskite devices. Table 3 shows the photovoltaic parameters of the four sample perovskite devices. After the alkali metal element is doped, the open circuit voltage shows a slight floating, but the open circuit voltage of the device doped with K+ is the largest. It can be seen from Figure 8 that the device with K+ doping has the lowest hysteresis. This may be the mainly reason for the best performance of K+-doped devices. This paper selects typical data from the prepared samples [33]. The spongy carbon is employed as counter electrode in perovskite photovoltaic devices. The preparation of the entire installation is done in the air.

4. Conclusions

In this paper, the comparative analysis of undoped and alkali metal-doped perovskite devices was performed. Scanning electron microscopy and XRD patterns were performed on the PbI2 film and the perovskite film of the samples. Although the incorporation of alkali metal elements has a great influence on the morphology and crystal structure of the PbI2 film, it has little effect on the crystal structure of the perovskite film prepared by the two-step method. The EDS test confirmed that alkali metal elements were successfully incorporated into perovskite layer. The UV-visible absorption spectrum showed that the samples doped with alkali metal elements had higher absorption intensity. The incorporation of Na+ or K+ resulted in a red shift in absorption edge and band gap shrinkage, whereas the incorporation of Rb+ caused a blue shift and band gap increase. It can be seen from the from the photoluminescence spectrum that the undoped sample perovskite layer carrier is more capable of injecting the TiO2 layer. Compared to the alkali metal element-doped samples, the undoped perovskite layer has a larger grain size, a more complete grain, and fewer grain boundaries.
The Hall effect test was also carried out in this experiment. The results show that the majority carrier type of the undoped perovskite layer prepared by the two-step method is the N-type, and the majority carrier type of the perovskite layer doped with alkali metal element is the P-type. This is consistent with the results predicted by Shi et al. according to density functional theory [20]. The carrier concentration of perovskite films is increased by at least two orders of magnitude after doping. In summary, we presented a method to modulate majority carrier type from perspective of extrinsic doping, which will contribute to the performance optimization of PSCs. That is to say, we can subjectively control the majority carrier type of perovskite film by controlling the experimental process and doping composition. This experimental conclusion is significant and will lay a solid foundation for the subsequent homojunction perovskite solar cell.

Author Contributions

C.C. wrote the paper. T.L. designed the experiments. C.C. and J.C. analyzed the data. D.C. and Y.Y. prepared the samples. X.Z. supervised the project. All authors commented and approved the paper.

Funding

This research was funded by the project of the Natural Science Foundation of China (no. 61875186), the project of the Natural Science Foundation of Beijing (no. Z160002), the Key Research Projects of BISTU (2018-22, 2019-22, 2019-23, and 2019-27), and the Beijing Key Laboratory for Sensors of BISTU (no. 2019CGKF007).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. González-Pedro, V.; Juarez-Perez, E.J.; Arsyad, W.-S.; Barea, E.M.; Fabregat-Santiago, F.; Mora-Seró, I.; Bisquert, J. General Working Principles of CH3NH3PbX3Perovskite Solar Cells. Nano Lett. 2014, 14, 888–893. [Google Scholar] [CrossRef] [PubMed]
  2. NREL. Best Research-Cell Efficiencies. Available online: http://www.nrel.gov/ncpv/images/efficiency_chart.jpg (accessed on 2 August 2019).
  3. Zhao, Z.; Sun, W.; Li, Y.; Ye, S.; Rao, H.; Gu, F.; Liu, Z.; Bian, Z.; Huang, C. Simplification of device structures for low-cost, high-efficiency perovskite solar cells. J. Mater. Chem. A 2017, 5, 4756–4773. [Google Scholar] [CrossRef]
  4. Hsieh, C.-M.; Liao, Y.-S.; Lin, Y.-R.; Chen, C.-P.; Tsai, C.-M.; Diau, E.W.-G.; Chuang, S.-C. Low-temperature, simple and efficient preparation of perovskite solar cells using Lewis bases urea and thiourea as additives: Stimulating large grain growth and providing a PCE up to 18.8%. RSC Adv. 2018, 8, 19610–19615. [Google Scholar] [CrossRef]
  5. He, M.; Zheng, D.; Wang, M.; Lin, C.; Lin, Z. High efficiency perovskite solar cells: From complex nanostructure to planar heterojunction. J. Mater. Chem. A 2014, 2, 5994–6003. [Google Scholar] [CrossRef]
  6. Brenner, T.M.; Egger, D.A.; Kronik, L.; Hodes, G.; Cahen, D. Hybrid organic—Inorganic perovskites: Low-cost semiconductors with intriguing charge-transport properties. Nat. Rev. Mater. 2016, 1, 15007. [Google Scholar] [CrossRef]
  7. Johnston, M.B.; Herz, L.M. Hybrid Perovskites for Photovoltaics: Charge-Carrier Recombination, Diffusion, and Radiative Efficiencies. Acc. Chem. Res. 2016, 49, 146–154. [Google Scholar] [CrossRef]
  8. Wang, R.; Wang, J.; Tan, S.; Duan, Y.; Wang, Z.-K.; Yang, Y. Opportunities and Challenges of Lead-Free Perovskite Optoelectronic Devices. TrAC Trends Anal. Chem. 2019, 1, 368–379. [Google Scholar] [CrossRef]
  9. Jena, A.K.; Kulkarni, A.; Miyasaka, T. Halide Perovskite Photovoltaics: Background, Status, and Future Prospects. Chem. Rev. 2019, 119, 3036–3103. [Google Scholar] [CrossRef]
  10. Chang, J.; Lin, Z.; Zhu, H.; Isikgor, F.H.; Xu, Q.-H.; Zhang, C.; Hao, Y.; Ouyang, J. Enhancing the photovoltaic performance of planar heterojunction perovskite solar cells by doping the perovskite layer with alkali metal ions. J. Mater. Chem. A 2016, 4, 16546–16552. [Google Scholar] [CrossRef]
  11. Kim, S.S.; Bae, S.; Jo, W.H. Performance enhancement of planar heterojunction perovskite solar cells by n-doping of the electron transporting layer. Chem. Commun. 2015, 51, 17413–17416. [Google Scholar] [CrossRef]
  12. Cui, P.; Wei, D.; Ji, J.; Huang, H.; Jia, E.; Dou, S.; Wang, T.; Wang, W.; Li, M. Planar p–n homojunction perovskite solar cells with efficiency exceeding 21.3%. Nat. Energy 2019, 4, 150–159. [Google Scholar] [CrossRef]
  13. Yang, W.S.; Park, B.-W.; Jung, E.H.; Jeon, N.J.; Kim, Y.C.; Lee, D.U.; Shin, S.S.; Seo, J.; Kim, E.K.; Noh, J.H.; et al. Iodide management in formamidinium-lead-halide–based perovskite layers for efficient solar cells. Science. 2017, 356, 1376–1379. [Google Scholar] [CrossRef] [PubMed]
  14. Zheng, X.; Chen, B.; Dai, J.; Fang, Y.; Bai, Y.; Lin, Y.; Wei, H.; Zeng, X.C.; Huang, J. Defect passivation in hybrid perovskite solar cells using quaternary ammonium halide anions and cations. Nat. Energy 2017, 2, 17102. [Google Scholar] [CrossRef]
  15. Rudd, P.N.; Huang, J. Metal Ions in Halide Perovskite Materials and Devices. TrAC Trends Anal. Chem. 2019, 1, 394–409. [Google Scholar] [CrossRef]
  16. Abdi-Jalebi, M.; Pazoki, M.; Philippe, B.; Dar, M.I.; Alsari, M.; Sadhanala, A.; Divitini, G.; Imani, R.; Lilliu, S.; Kullgren, J.; et al. Dedoping of Lead Halide Perovskites Incorporating Monovalent Cations. ACS Nano 2018, 12, 7301–7311. [Google Scholar] [CrossRef]
  17. Zhao, W.; Yao, Z.; Yu, F.; Yang, D.; Liu, S. Alkali Metal Doping for Improved CH3NH3PbI3 Perovskite Solar Cells. Adv. Sci. 2017, 5, 1700131. [Google Scholar] [CrossRef]
  18. Turren-Cruz, S.-H.; Saliba, M.; Mayer, M.T.; Juárez-Santiesteban, H.; Mathew, X.; Nienhaus, L.; Tress, W.; Erodici, M.P.; Sher, M.-J.; Bawendi, M.G.; et al. Enhanced charge carrier mobility and lifetime suppress hysteresis and improve efficiency in planar perovskite solar cells. Energy Environ. Sci. 2018, 11, 78–86. [Google Scholar] [CrossRef]
  19. Alexandre, M.; Chapa, M.; Haque, S.; Mendes, M.J.; Águas, H.; Fortunato, E.; Martins, R. Optimum Luminescent Down-Shifting Properties for High Efficiency and Stable Perovskite Solar Cells. ACS Appl. Energy Mater. 2019, 2, 2930–2938. [Google Scholar] [CrossRef]
  20. Shi, T.; Yin, W.-J.; Yan, Y. Predictions for p-Type CH3NH3PbI3Perovskites. J. Phys. Chem. C 2014, 118, 25350–25354. [Google Scholar] [CrossRef]
  21. Wang, J.T.-W.; Wang, Z.; Pathak, S.; Zhang, W.; Dequilettes, D.W.; Wisnivesky-Rocca-Rivarola, F.; Huang, J.; Nayak, P.K.; Patel, J.B.; Yusof, H.A.M.; et al. Efficient perovskite solar cells by metal ion doping. Energy Environ. Sci. 2016, 9, 2892–2901. [Google Scholar] [CrossRef]
  22. Bai, X.; Zou, X.; Zhu, J.; Pei, Y.; Yang, Y.; Jin, W.; Chen, D. Effect of Rb doping on modulating grain shape and semiconductor properties of MAPbI 3 perovskite layer. Mater. Lett. 2018, 211, 328–330. [Google Scholar] [CrossRef]
  23. Wang, Q.; Shao, Y.; Xie, H.; Lyu, L.; Liu, X.; Gao, Y.; Huang, J. Qualifying composition dependent p and n self-doping in CH3NH3PbI3. Appl. Phys. Lett. 2014, 105, 163508. [Google Scholar] [CrossRef]
  24. Kim, J.; Lee, S.-H.; Lee, J.H.; Hong, K.-H. The Role of Intrinsic Defects in Methylammonium Lead Iodide Perovskite. J. Phys. Chem. Lett. 2014, 5, 1312–1317. [Google Scholar] [CrossRef] [PubMed]
  25. Yin, W.-J.; Shi, T.; Yan, Y. Unusual defect physics in CH3NH3PbI3 perovskite solar cell absorber. Appl. Phys. Lett. 2014, 104, 63903. [Google Scholar] [CrossRef]
  26. Frolova, L.A.; Dremova, N.N.; Troshin, P.A. The chemical origin of the p-type and n-type doping effects in the hybrid methylammonium–lead iodide (MAPbI 3) perovskite solar cells. Chem. Commun. 2015, 51, 14917–14920. [Google Scholar] [CrossRef]
  27. Dänekamp, B.; Müller, C.; Sendner, M.; Boix, P.P.; Sessolo, M.; Lovrincic, R.; Bolink, H.J. Perovskite–Perovskite Homojunctions via Compositional Doping. J. Phys. Chem. Lett. 2018, 9, 2770–2775. [Google Scholar] [CrossRef]
  28. Panigrahi, S.; Jana, S.; Calmeiro, T.; Nunes, D.; Martins, R.; Fortunato, E. Imaging the Anomalous Charge Distribution Inside CsPbBr3 Perovskite Quantum Dots Sensitized Solar Cells. ACS Nano 2017, 11, 10214–10221. [Google Scholar] [CrossRef]
  29. Yang, Y.; Zou, X.; Pei, Y.; Bai, X.; Jin, W.; Chen, D. Effect of doping of NaI monovalent cation halide on the structural, morphological, optical and optoelectronic properties of MAPbI(3) perovskite. J. Mater. Sci. Mater. Electron. 2018, 29, 205–210. [Google Scholar] [CrossRef]
  30. Dong, Q.; Fang, Y.; Shao, Y.; Mulligan, P.; Qiu, J.; Cao, L.; Huang, J. Electron-hole diffusion lengths > 175 mu m in solution-grown CH3NH3PbI3 single crystals. Science 2015, 347, 967–970. [Google Scholar] [CrossRef]
  31. Zhou, Y.; Chen, J.; Bakr, O.M.; Sun, H.-T. Metal-Doped Lead Halide Perovskites: Synthesis, Properties, and Optoelectronic Applications. Chem. Mater. 2018, 30, 6589–6613. [Google Scholar] [CrossRef]
  32. Tang, Z.; Uchida, S.; Bessho, T.; Kinoshita, T.; Wang, H.; Awai, F.; Jono, R.; Maitani, M.M.; Nakazaki, J.; Kubo, T.; et al. Modulations of various alkali metal cations on organometal halide perovskites and their influence on photovoltaic performance. Nano Energy 2018, 45, 184–192. [Google Scholar] [CrossRef]
  33. Christians, J.A.; Manser, J.S.; Kamat, P.V. Best Practices in Perovskite Solar Cell Efficiency Measurements. Avoiding the Error of Making Bad Cells Look Good. J. Phys. Chem. Lett. 2015, 6, 852–857. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds in this manuscript are available from the authors.

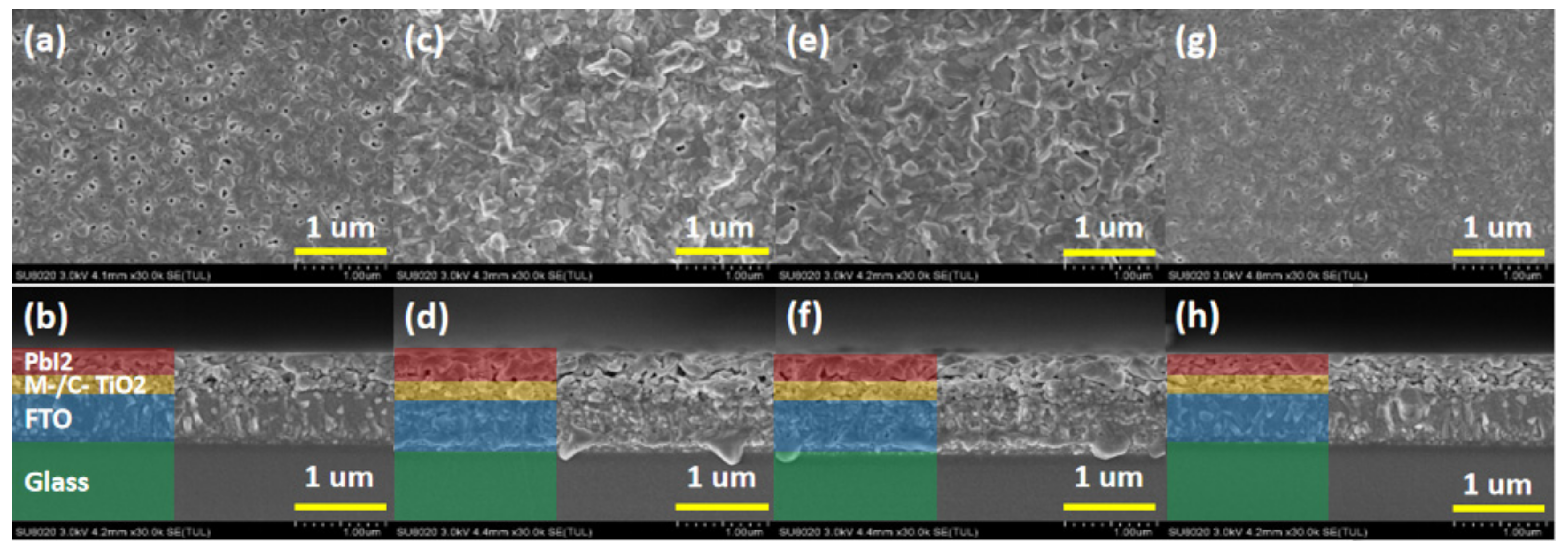

Figure 1. Top view and cross-sectional view of the alkali metal-doped PbI2 film for (a,b) PbI2, (c,d) PbI2 + 0.04NaI, (e,f) PbI2 + 0.04KI, (g,h) PbI2 + 0.04RbI. The PbI2 films that are undoped, have doped concentration of 0.04 M/L NaI, doped concentration of 0.04 M/L KI, and doped concentration of 0.04 M/L RbI are referred to as PbI2, PbI2 + 0.04NaI, PbI2 + 0.04KI, and PbI2 + 0.04RbI, respectively.
Figure 1. Top view and cross-sectional view of the alkali metal-doped PbI2 film for (a,b) PbI2, (c,d) PbI2 + 0.04NaI, (e,f) PbI2 + 0.04KI, (g,h) PbI2 + 0.04RbI. The PbI2 films that are undoped, have doped concentration of 0.04 M/L NaI, doped concentration of 0.04 M/L KI, and doped concentration of 0.04 M/L RbI are referred to as PbI2, PbI2 + 0.04NaI, PbI2 + 0.04KI, and PbI2 + 0.04RbI, respectively.
Molecules 24 04039 g001

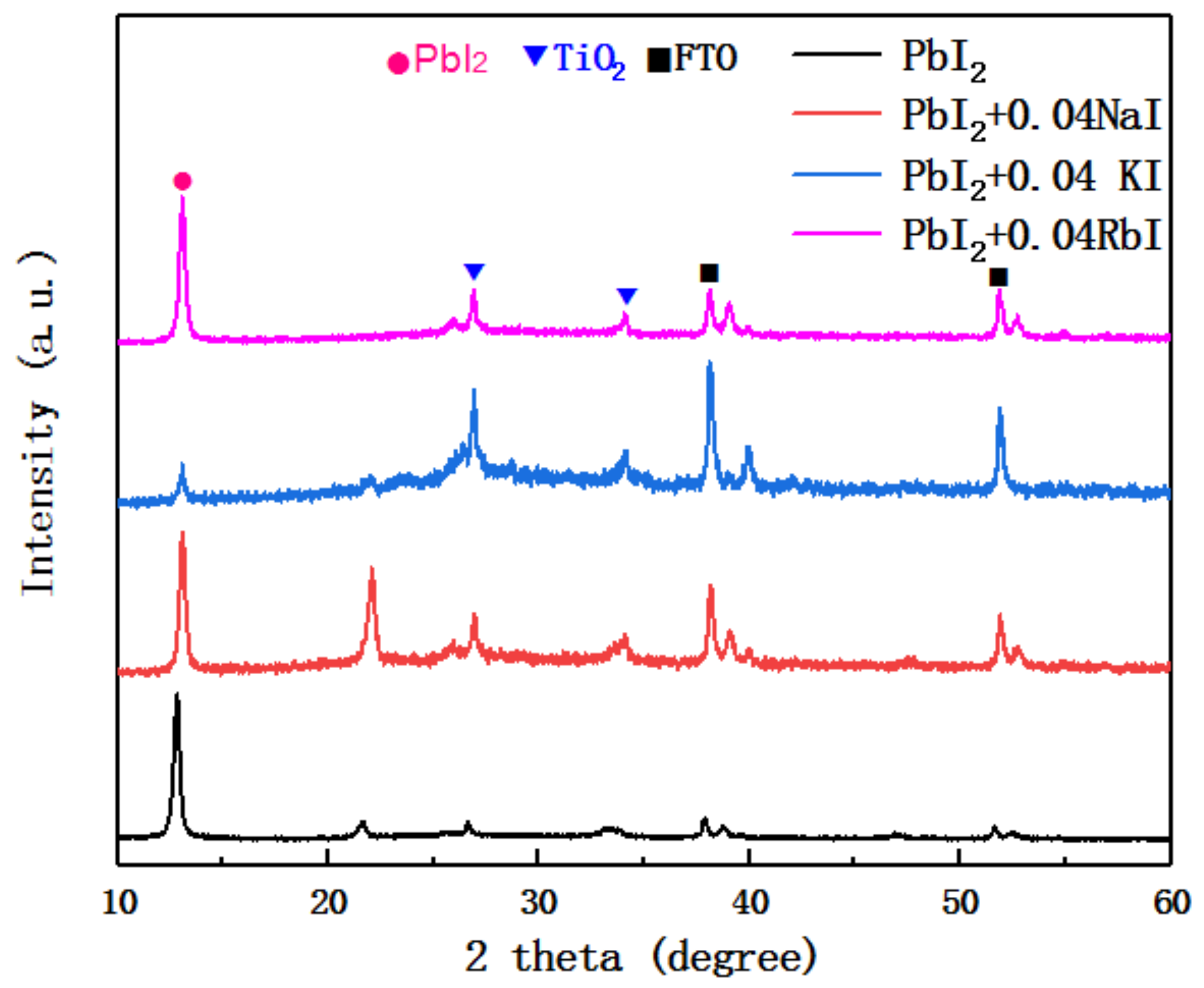

Figure 2. XRD patterns of undoped and alkali metal-doped PbI2 films.
Figure 2. XRD patterns of undoped and alkali metal-doped PbI2 films.
Molecules 24 04039 g002
Figure 3. Top view and cross-sectional view of the alkali metal-doped MAPbI3 film for (a,b) MAPbI3, (c,d) MAPbI3 + 0.04NaI, (e,f) MAPbI3 + 0.04KI, and (g,h) MAPbI3 + 0.04RbI. The perovskite films that are undoped, have an doped concentration of 0.04 M/L NaI, doped concentration of 0.04 M/L KI, and doped concentration of 0.04 M/L RbI are referred to as MAPbI3, MAPbI3 + 0.04NaI, MAPbI3 + 0.04KI, and MAPbI3 + 0.04RbI, respectively.
Figure 3. Top view and cross-sectional view of the alkali metal-doped MAPbI3 film for (a,b) MAPbI3, (c,d) MAPbI3 + 0.04NaI, (e,f) MAPbI3 + 0.04KI, and (g,h) MAPbI3 + 0.04RbI. The perovskite films that are undoped, have an doped concentration of 0.04 M/L NaI, doped concentration of 0.04 M/L KI, and doped concentration of 0.04 M/L RbI are referred to as MAPbI3, MAPbI3 + 0.04NaI, MAPbI3 + 0.04KI, and MAPbI3 + 0.04RbI, respectively.
Molecules 24 04039 g003

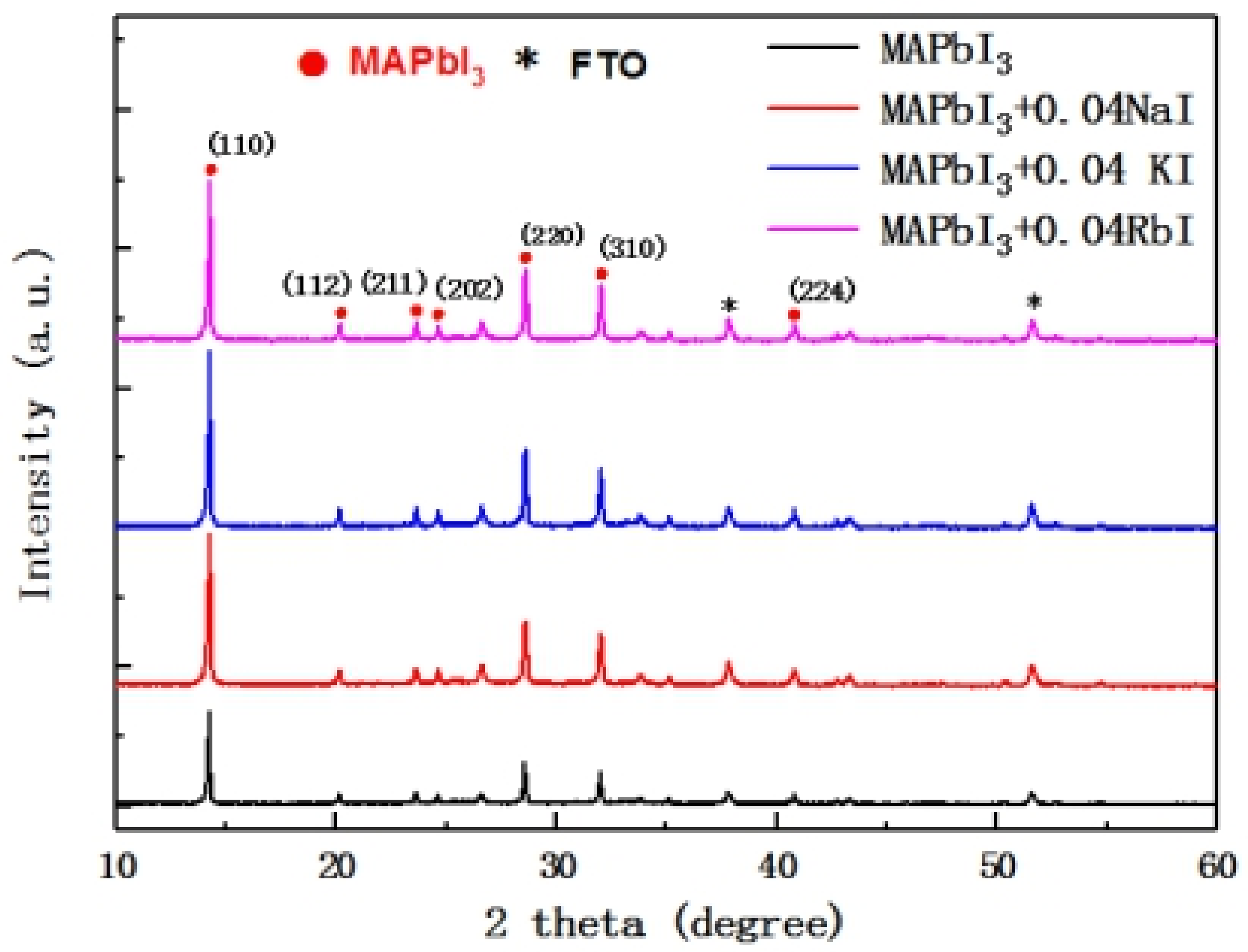

Figure 4. XRD patterns of undoped and alkali metal-doped MAPbI3 films.
Figure 4. XRD patterns of undoped and alkali metal-doped MAPbI3 films.
Molecules 24 04039 g004

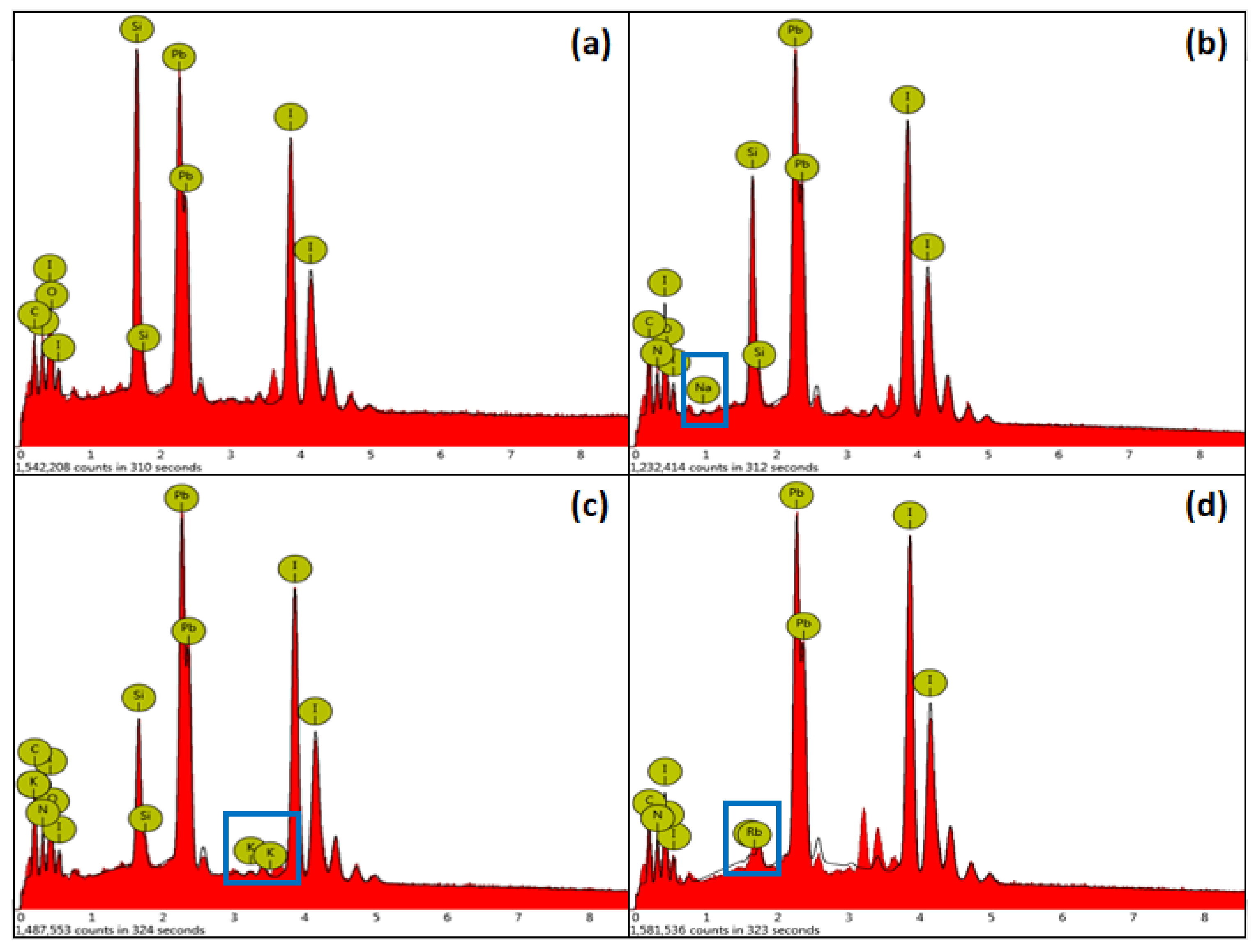

Figure 5. Undoped and alkali metal-doped perovskite film EDS images, (a) MAPbI3, (b) MAPbI3 + 0.04NaI, (c) MAPbI3 + 0.04KI, (d) MAPbI3 + 0.4RbI.
Figure 5. Undoped and alkali metal-doped perovskite film EDS images, (a) MAPbI3, (b) MAPbI3 + 0.04NaI, (c) MAPbI3 + 0.04KI, (d) MAPbI3 + 0.4RbI.
Molecules 24 04039 g005

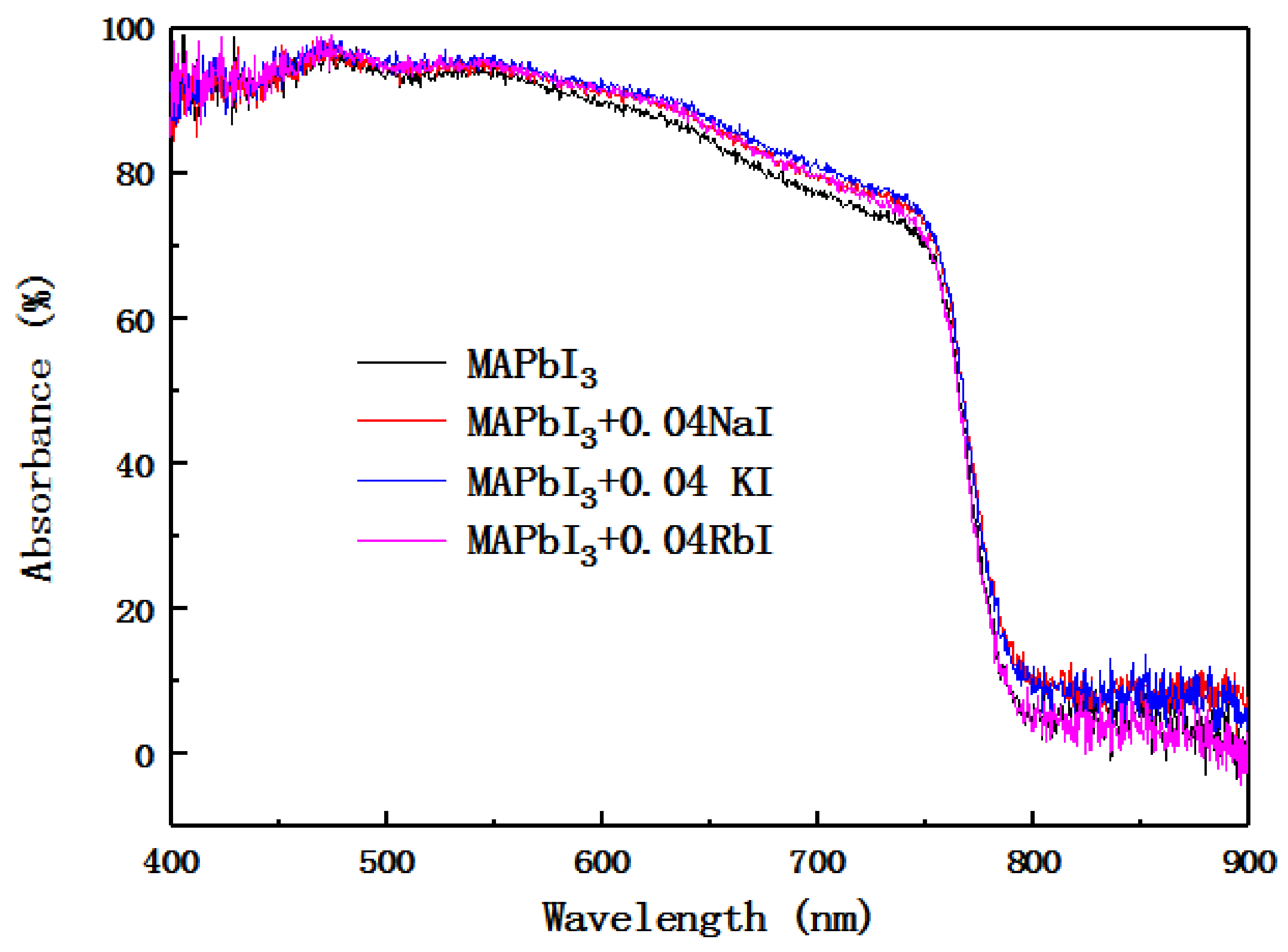

Figure 6. UV-visible absorption spectra of perovskite films with the undoped and the alkali metal-doped layers.
Figure 6. UV-visible absorption spectra of perovskite films with the undoped and the alkali metal-doped layers.
Molecules 24 04039 g006

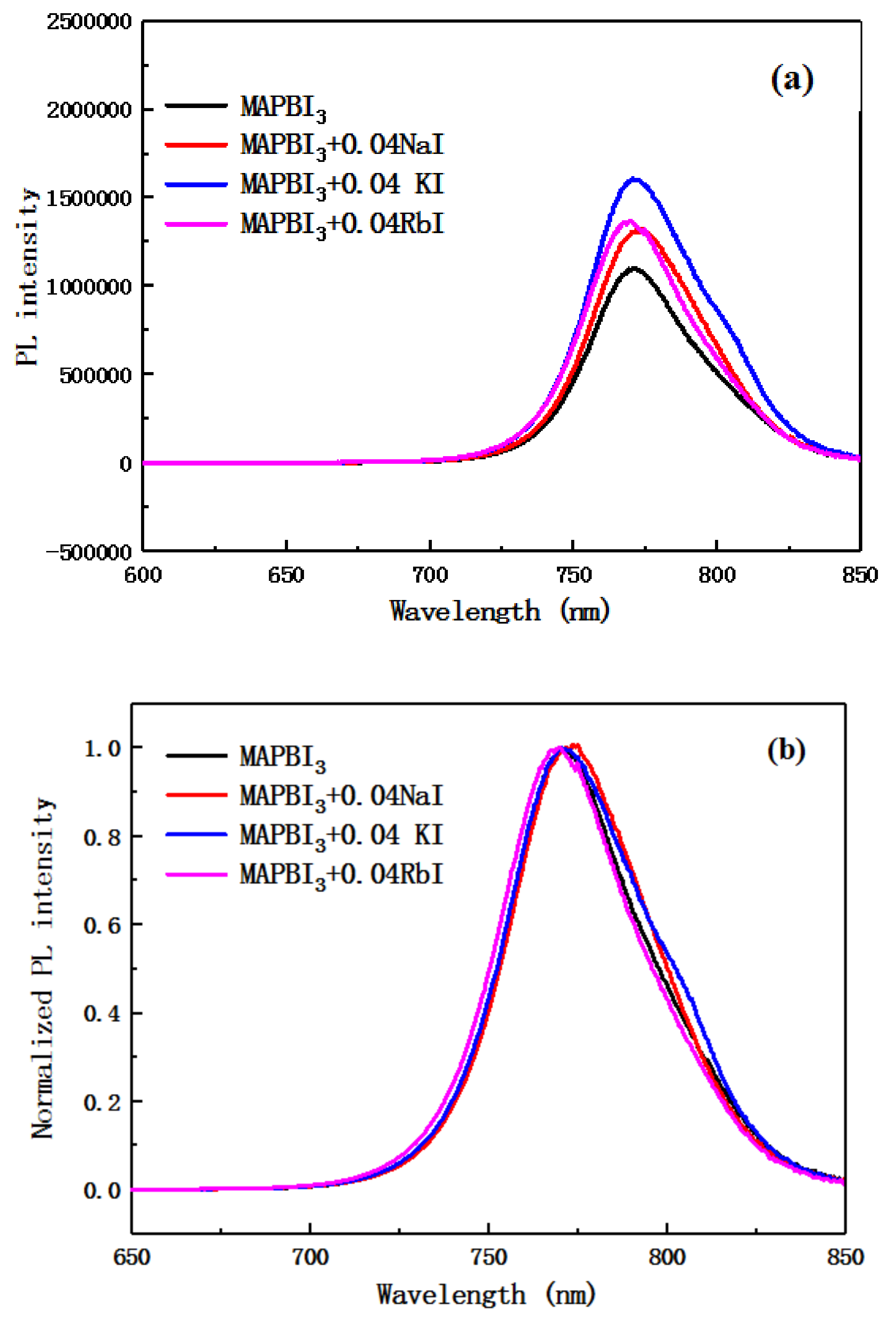

Figure 7. Photoluminescence spectra of perovskite films with the undoped and the alkali metal-doped layers. Unsmoothed (a) and smoothed after (b).
Figure 7. Photoluminescence spectra of perovskite films with the undoped and the alkali metal-doped layers. Unsmoothed (a) and smoothed after (b).
Molecules 24 04039 g007

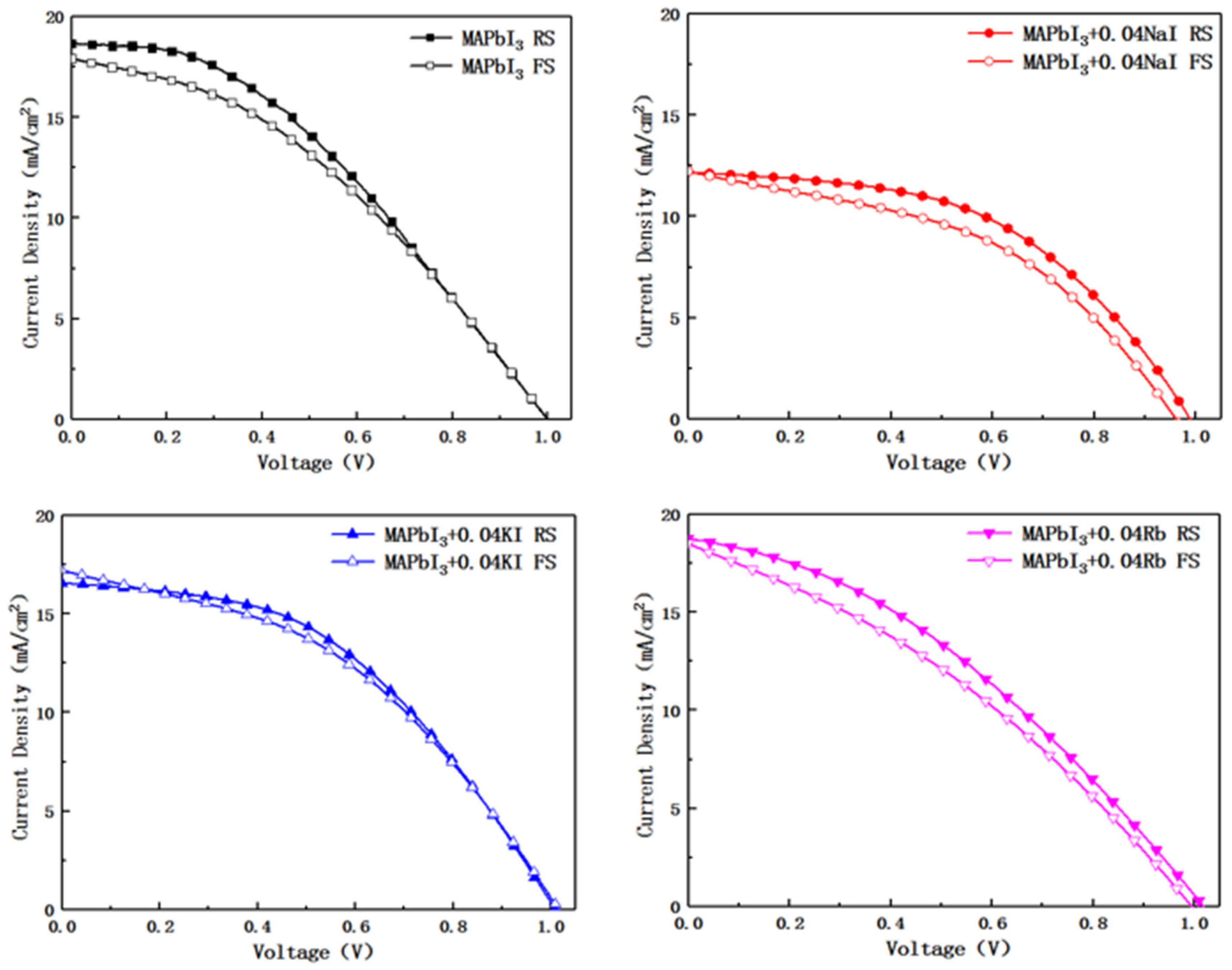

Figure 8. Photocurrent voltage density Reverse Scan and Forward Scan curve of undoped and alkali metal-doped devices.
