Article

Anticancer Indole-Based Chalcones: A Structural and Theoretical Analysis

1
Department of Pharmacognosy, Faculty of Pharmacy, Mansoura University, Mansoura 35516, Egypt
2
Department of Chemistry, Faculty of Science, Alexandria University, P.O. Box 426, Ibrahimia, Alexandria 21321, Egypt
3
Department of Chemistry, College of Science & Arts, King Abdulaziz University, P.O. Box 344, Rabigh 21911, Saudi Arabia
4
Department of Chemistry, College of Science, King Saud University, P.O. Box, 2455, Riyadh 11451, Saudi Arabia
5
Department of Physics, Faculty of Arts and Sciences, Ondokuz Mayıs University, Atakum, Samsun 55139, Turkey
6
Department of Medicinal Chemistry, Faculty of Pharmacy, Mansoura University, Mansoura 35516, Egypt
7
Department of Chemistry, Faculty of Science, Mansoura University, Mansoura 35516, Egypt
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(20), 3728; https://doi.org/10.3390/molecules24203728
Submission received: 15 September 2019 / Revised: 10 October 2019 / Accepted: 11 October 2019 / Published: 16 October 2019
(This article belongs to the Section Computational and Theoretical Chemistry)

Abstract

:
The crystal structures of five new chalcones derived from N-ethyl-3-acetylindole with different substituents were investigated: (E)-3-(4-bromophenyl)-1-(1-ethyl-1H-indol-3-yl)prop-2-en-1-one (3a); (E)-3-(3-bromophenyl)-1-(1-ethyl-1H-indol-3-yl)prop-2-en-1-one (3b); (E)-1-(1-ethyl-1H-indol-3-yl)-3-(4-methoxyphenyl)prop-2-en-1-one (3c); (E)-1-(1-ethyl-1H-indol-3-yl)-3-mesitylprop-2-en-1-one (3d); and (E)-1-(1-ethyl-1H-indol-3-yl)-3-(furan-2-yl)prop-2-en-1-one (3e). The molecular packing of the studied compounds is controlled mainly by C–H⋅⋅⋅O hydrogen bonds, C–H⋅⋅⋅π interactions, and π···π stacking interactions, which were quantitatively analyzed using Hirshfeld topology analysis. Using density functional theory (DFT) calculations, the order of polarity (3b ˂ 3d ˂ 3e ˂ 3a ˂ 3c) was determined. Several chemical reactivity indices such as the ionization potential (I), electron affinity (A), chemical potential (μ), hardness (η), electrophilicity (ω) and nucleophilicity (N) indices were calculated, and these properties are discussed and compared. In addition, the antiproliferative activity of the five new chalcones was studied.

1. Introduction

The class of compounds based on an indole scaffold is of immense chemical and biological significance [1,2]. Among the nitrogen containing heterocycles, indole is the parent core in a large number of naturally occurring bioactive compounds. Indole and its derivatives have received significant attention because of their wide range of biological activities including antimicrobial, anticancer, anti-HIV, antileishmanial, and anti-inflammatory activities [3]. Many natural, as well as synthetic, indole analogs are potent anticancer agents. Recently, Reyes and coworkers isolated a family of indole alkaloids, aplicyanins, from the Antarctic tunicate Aplidiumcyaneum [4]. The aplicyanins with a bromoindole nucleus and 6-tetrahydropyrimidine at the C-3 position were found to be cytotoxic against human tumor cell lines, including MDA-MB-231 (breast adenocarcinoma), A549 (lung carcinoma), and HT-29 (colorectal carcinoma), via the inhibition of tubulin polymerization [5,6,7,8,9,10]. Hu et al. reported indolylpyrimidine as a potent antiproliferative agent with average 50% inhibitory concentration (IC50) values ranging from 5.01 to 14.36 µM against the tested cancer cell lines [11].
After heart disease, cancer is the prominent cause of deaths worldwide, and the identification of potent and selective anticancer drugs with reduced side effects requires increasingly sophisticated techniques in medicinal chemistry. Here, we report the synthesis, X-ray single crystal, DFT, and Hirshfeld surface analysis. The selective anticancer activity of some indole-chalcone-based compounds were evaluated using seven cancer cell lines and proved that ER-negative breast cancer cells (MDA-MB-231) were more sensitive to some of the tested compounds than the ER-positive breast cancer cell line (MCF-7).

2. Results

Synthesis

The requisite compounds chalcones were prepared by the reaction of N-ethyl-3-acetylindole and aryl aldehyde derivatives with stirring in EtOH/H2O (1:1) with NaOH at room temperature for 24 h. The product was produced in high yield (up to 90%), as shown in Scheme 1.

3. Discussion

3.1. X-ray Structure

The structure and atom numbering of (E)-3-(4-bromophenyl)-1-(1-ethyl-1H-indol-3-yl)prop-2-en-1-one (3a) are shown in Figure 1A. Having four molecular units per unit cell and one molecule per asymmetric unit, 3a crystallized in the monoclinic crystal system and the P21/c space group. The most important bond distances and angles are given in Table S2 (Supplementary data). The indole ring is perfectly planar, and the p-bromophenyl moiety deviates by 13.21° from the mean plane of the indole ring. The molecules are packed in the crystal structure via weak C–H⋅⋅⋅O hydrogen bonds (Figure 1B) and the π–π stacking interactions, as shown in Figure 1C. Details regarding the hydrogen bond parameters are given in Table 1. The shortest C⋅⋅⋅C contact distances among the stacked indole rings are 3.408 and 3.484 Å for the C7⋅⋅⋅C8 and C1⋅⋅⋅C10 contacts, respectively.
The structure and atom numbering of (E)-3-(3-bromophenyl)-1-(1-ethyl-1H-indol-3-yl)prop-2-en-1-one (3b) are shown in Figure 2A. Having four molecular units per unit cell and one molecule per asymmetric unit, 3b crystallized in the monoclinic crystal system and the P21/c space group. The most important bond distances and angles are given in Table S2 (Supplementary data). The m-bromophenyl moiety deviates from the mean plane of the indole ring more than that in 3a, probably because of the presence of the bulky Br atom at the meta position. The twist angle between the mean plane of the indole ring and the m-bromophenyl moiety is 25.96°. The molecules are packed in the crystal structure via weak C–H⋅⋅⋅O hydrogen bonds and C–H⋅⋅⋅π interactions, as shown in Figure 2B,C, respectively. C–H⋅⋅⋅O hydrogen bonds occur between the carbonyl oxygen atom as the hydrogen bond acceptor and the neighboring C–H groups as the hydrogen bond donors (Table 1). The C–H···π interactions occurred between the C–H hydrogen atoms from the methyl group and the carbon atoms from the phenyl group of the indole moiety. The shortest C–H···π contact distances are 2.992 and 2.993 Å for the C4⋅⋅⋅H19B and C5⋅⋅⋅H19B contacts, respectively.
The structure and atom numbering of (E)-1-(1-ethyl-1H-indol-3-yl)-3-(4-methoxyphenyl)prop-2-en-1-one (3c) are shown in Figure 3A. In this case, compound 3c crystallized in the triclinic crystal system and the P-1 space group, having two molecular units per unit cell and one molecule per asymmetric unit. The most important bond distances and angles are given in Table S2 (Supplementary data). In this case, the p-methoxyphenyl group showed smaller twist (12.20°) from the mean plane of the indole ring compared to those in compounds 3a and 3b. The methoxy group O-atom as a hydrogen acceptor site connects the molecules via C–H⋅⋅⋅O hydrogen bonds with the neighboring C–H bonds (Figure 3B). In addition, the indole rings are connected by C–H⋅⋅⋅π interactions between one hydrogen atom from the CH2 group with the four C-atoms in the indole five-membered ring, as shown in Figure 3C. The C–H···π contact distances range from 2.909 Å (C7⋅⋅⋅H19B) to 2.980 Å (C1⋅⋅⋅H19B).
The structure and atom numbering of (E)-1-(1-ethyl-1H-indol-3-yl)-3-mesitylprop-2-en-1-one (3d) are shown in Figure 4A. Like 3c, this compound crystallized in the triclinic crystal system and the P-1 space group, having two molecular units per unit cell and one molecule per asymmetric unit. The most important bond distances and angles are given in Table S2 (Supplementary data). In this case, the mesitylene ring showed a similar twist from the mean plane of the indole ring to that of 3c (11.98°). In this case, the carbonyl group O-atom is the hydrogen bond acceptor site and one C–H bond from the CH2 group connect the molecules via C–H···O hydrogen bonds (Table 1), thus forming disconnected dimers of 3d, as shown in Figure 4B. In addition, the molecules are connected by C–H···π interactions between the stacked aryl moieties. The hydrogen atoms from the methyl substituents at the aryl moiety form C–H···π contacts with the aromatic π-system from another aryl moiety (Figure 4C). The C–H···π contact distances range from 2.914 Å (C16···H20B) to 2.934 Å (C17···H20B).
The structure and atom numbering of (E)-1-(1-ethyl-1H-indol-3-yl)-3-(furan-2-yl)prop-2-en-1-one (3e) are shown in Figure 5A. Having four molecular units per unit cell and one molecule per asymmetric unit, 3e crystallized in the monoclinic crystal system and the P21/c space group. The most important bond distances and angles are given in Table S2 (Supplementary data). In this case, the furanyl ring showed the least twist from the mean plane of the indole ring (3.47°) of the studied compounds. The carbonyl group O-atom and one C–H bond from the furanyl ring connect the molecules via C–H···O hydrogen bonds, forming disconnected dimers of 3e (Figure 5B). Details regarding the hydrogen bond parameters are given in Table 1. In addition, the molecules are connected by π···π stacking interactions between the stacked molecular units. The C···C contact distances ranges from 3.437 Å (C8···C10) to 3.496 Å (C8···C9) (Figure 5C).

3.2. Analysis of Molecular Packing

Hirshfeld surfaces mapped over dnorm, the shape index (SI), and the curvedness for the studied compounds are shown in Figure S1 (Supplementary data). A summary of the most important contacts and their percentages are shown in Figure 6 and Table 2, respectively. All the studied systems contained many H···H, O···H, and C···H contacts. The H···H contacts range from 41.4% (compound 3a) to 64.4% (compound 3d), and the percentage of O···H hydrogen bonds is highest in compound 3e (12.8%) and is lowest in compound 3b (7.8%). Most of these hydrogen bonds are considered short contacts and are important in the molecular packing of all the studied compounds, as indicated from the sharp spikes of these interactions in the corresponding fingerprint plots (see Figure 7). The strongest hydrogen bond was observed in compound 3a (2.243 Å), whereas the weakest was observed in compound 3d (2.601 Å). The two bromo-substituted compounds form many short Br···H interactions, ranging from 14.4% (compound 3b) to 16.0% (compound 3a). It is clear from Figure 8 that the Br···H interactions are more significant in the latter (3.045 Å, Br1···H2A) compared to the former (3.203 Å, Br1···H19A). Most of the studied compounds show significant π···π stacking interactions as well as C–H···π stacking interactions. The percentages of the C···C/C···N contacts range from 5.6% (compound 3b) to 8.0% (compound 3a). Those π···π stacking interactions appeared as blue/red triangles in the shape index maps of the studied molecules. On the other hand, the C···H contact percentages ranges from 21.1% (compounds 3d and 3e) to 28.0% (compound 3b). These appear in the shape index maps as a large red hole, which is related to the aromatic π-systems involved in the C–H···π interactions.

3.3. Reactivity Studies

The reactivity indices of the studied compounds (ionization potential (I), electron affinity (A), chemical potential (μ), hardness (η), softness (S), electronegtivity (x), electrophilicity (ω) and nucleophilicity (N) indices were calculated using Equations (1)–(6) [12,13,14,15,16,17,18,19,20], and the results are listed in Table 3. These descriptors were used to understand the pharmacological and biological reactivity of the compounds.
I = −EHOMO,
A = −ELUMO,
η = (I − A),
μ = −(I + A)/2,
ω = μ2/2η,
N = EHOMO(Nucleophile) − EHOMO(TCE)
The results show that compound 3d is the hardest molecule while 3b is the softest. Based on the chemical potentials, the most electron donating system is compound 3d. In agreement with this conclusion, the electrophilicity index of the studied compounds decreases in the order 3b > 3a > 3e > 3d > 3c. In addition, 3b has the highest electrophilicity index [19], which is consistent with the presence of a strong electron-withdrawing substituent on the phenyl ring.
The nucleophilicity N index [20] is referred to tetracyanoethylene (TCE), which is the most electrophilic neutral species. Hence, the expected least nucleophilic neutral species which allowed convenient handling of a nucleophilicity scale of positive values. It is clear that, the order of the compounds according to the global nucleophilicity index is 3c > 3e > 3d > 3a > 3b. Among the studied compounds, 3b has the highest nucleophilic characters among the others.

3.4. Biological Activity

The anticancer activities of the synthesized chalcone derivatives were tested against seven cancer cell lines: ER-positive MCF-7 and triple negative MDA-MB-231 breast cancer cells, liver cancer (HepG2 and HuH-7), prostate cancer (PC-3), colon cancer (HCT-116), and oral cancer (SAS) (Table 4). The triple negative breast cancer cells (MDA-MB-231) were more sensitive to the tested compounds (3ae) than the ER-positive breast cancer cell line (MCF-7), where their IC50 values ranged from 13 to 19 µM, which is comparable to that of cisplatin (15 µM) (Table 4). Compounds 3b, 3d, and 3e showed moderate anticancer activity only against HepG2 and not the other hepatocellular carcinoma cell line (HuH-7), unlike cisplatin, which was active against both liver cancer cell lines. Compounds 3c and 3d did not show cytotoxic activity against the oral, prostate or colon cancer cell lines.

4. Materials and Methods

4.1. General Procedure for the Synthesis of Chalcones 3a–e

The chalcones were prepared following a reported procedure [21,22,23].
(E)-3-(4-Bromophenyl)-1-(1-ethyl-1H-indol-3-yl)prop-2-en-1-one (3a) [22,23]. Yield 1.75 g (4.95 mmol, 93%); m.p. 139–140 °C; 1H-NMR (400 MHz, DMSO-d6) δ: 1.49 (t, 3H, J = 7.2 Hz, CH3), 4.17 (q, 3H, J = 7.2 Hz, CH2), 7.23–7.29 (m, 4H, Ar–H and CH=CH), 7.41 (q, 4H, J = 6.8 Hz, Ar–H), 7.64 (d, 1H, J = 15.2 Hz, CH=CH), 7.82 (s, 1H, Ar–H), 8.42–8.45 (m, 1H, Ar–H); 13C-NMR (100 MHz, DMSO-d6) δ: 15.1, 41.8, 109.8, 117.6, 122.7, 123.0, 123.6, 123.8, 124.4, 126.9, 129.5, 131.9, 133.7, 133.3, 136.7, 139.5, and 183.8; IR (KBr, cm−1) v ¯ max = 3449, 3041, 2977, 1645, 1610, 1588, 1525, 1481, 1469, 1454, 1399, 1310, 1241, 1267, 1268, 1016, 978, 835, 771, 744, 718, 675, and 478; Anal. Calcd. for C19H16BrNO: C, 64.42; H, 4.55; N, 3.95; Found: C, 64.31; H, 4.67; N, 4.15; Liquid chromatography (LC)/mass spectrometry (MS) (electrospray ionization (ESI), m/z): [M+], found 353.00, C19H16BrNO for 353.04.
(E)-3-(3-Bromophenyl)-1-(1-ethyl-1H-indol-3-yl)prop-2-en-1-one (3b) [23]. Yield 1.60 g (4.53 mmol, 85%); m.p. 126–127 °C; 1H-NMR (400 MHz, DMSO-d6) δ: 1.54 (t, 3H, J = 5.6 Hz, CH3), 4.22 (q, 2H, J = 5.6 Hz, CH2), 7.25–7.36 (m, 5H, Ar–H and CH=CH), 7.49 (t, 2H, J = 8.8 Hz, Ar–H), 7.68–7.78 (m, 2H, J = 15.2 Hz, Ar–H and CH=CH), 7.92 (s, 1H, Ar–H), 8.50–8.53 (m, 1H, Ar–H); 13C-NMR (100 MHz, DMSO-d6) δ: 15.3, 42.0, 109.9, 117.7, 122.9, 123.01, 123.2, 123.8, 125.1, 127.05, 127.3, 130.3,130.4, 132.6, 134.03, 136.8, 137.6, 139.3, and 183.7; IR (KBr, cm−1) v ¯ max = 3445, 3042, 2971, 1643, 1617, 1585, 1521, 1482, 1467, 1455, 1399, 1312, 1242, 1261, 1264, 1012, 976, 837, 777, 744, 715, 673, and 474; Anal. Calcd. for C19H16BrNO: C, 64.42; H, 4.55 N, 3.95; found: C, 64.65; H, 4.38; N, 4.17; LC/MS (ESI, m/z): [M+ found 353.00, C19H16BrNO for 353.04.
(E)-1-(1-Ethyl-1H-indol-3-yl)-3-(4-methoxyphenyl)prop-2-en-1-one (3c) [23]. Yield 1.60 g (5.2 mmol, 98%); m.p. 123–124 °C; 1H-NMR (400 MHz, DMSO-d6) δ: 1.52 (t, 3H, J = 6.4 Hz, CH3), 3.82 (s, 3H, OCH3) 4.18 (q, 2H, J = 7.2 Hz, CH2), 6.88 (d, 1H, J = 8.8 Hz, Ar–H), 7.2–7.33 (m, 4H, J = 8.4 Hz, Ar–H and CH=CH), 7.55 (d, 2H, J = 8.8 Hz, Ar–H), 7.76 (d, 1H, J = 15.2 Hz, Ar–H), 7.87 (s, 1H, Ar–H), 8.50–8.52 (m, 1H, Ar–H); 13C-NMR (100 MHz, DMSO-d6) δ: 15.1, 41.7, 55.3, 109.6, 114.6, 117.7, 121.6, 122.4, 123.0, 123.3, 127.0, 128.0, 129.7, 133.4, 136.6, 140.6, 161.0, and 184.4; IR (KBr, cm−1) v ¯ max = 3431, 3104, 2988, 2947, 2832, 1749, 1679, 1645, 1589, 1527, 1514, 1426, 1377, 1332, 1243, 1207, 1125, 1108, 1006, 844, and 755; Anal. Calcd. for C20H19NO2: C, 78.66; H, 6.27; N, 4.59; found: C, 78.85; H, 6.12; N, 4.85; LC/MS (ESI, m/z): [M+], found 305.10, C20H19NO2 for 305.38.
(E)-1-(1-Ethyl-1H-indol-3-yl)-3-mesitylprop-2-en-1-one (3d) [23]. Yield 1.10 g (3.4 mmol, 65%); m.p. 83–84 °C; 1H-NMR (400 MHz, DMSO-d6) δ: 1.52 (t, 3H, J = 7.6 Hz, CH3), 2.29 (s, 3H, CH3) 2.36 (s, 6H, CH3), 4.22 (q, 2H, J = 7.6 Hz, CH2), 6.91 (s, 2H, Ar–H), 6.99 (d, 1H, J = 16.4 Hz, CH=CH), 7.30–7.38 (m, 3H, Ar–H), 7.80 (s, 1H, Ar–H), 7.93 (d, 1H, J = 16.4 Hz, CH=CH), 8.50–8.53 (m, 1H, Ar–H); 13C-NMR (100 MHz, DMSO-d6) δ: 15.3, 21.1, 21.3, 41.9, 109.8, 117.8, 122.7, 123.2, 123.6, 127.1, 129.1, 129.3, 132.3, 133.8, 136.8, 136.9, 137.9, 139.6, and 184.5; IR (KBr, cm−1) v ¯ max = 3041, 2974, 1641, 1584, 1525, 1483, 1447, 1385, 1302, 1294, 1202, 1206, 1188, 1089, 1062, 992, 978, 862, 816, 772, 725, 601, 495, 449, and 422; Anal. Calcd. for C22H23NO: C, 83.24; H, 7.30; N, 4.41; found: C, 83.52; H, 7.19; N, 4.61; LC/MS (ESI, m/z): [M+], found 317.20; C22H23NO for 317.18.
(E)-1-(1-Ethyl-1H-indol-3-yl)-3-(furan-2-yl)prop-2-en-1-one (3e) [23]. Yield 1.35 g (5.09 mmol, 95%); m.p. 74–75 °C; 1H-NMR (400 MHz, DMSO-d6) δ: 1.54 (t, 3H, J = 7.2 Hz, CH3), 4.23 (q, 2H, J = 7.2 Hz, CH2), 7.32–7.37 (m, 3H, Ar–H), 7.42 (d, 1H, J = 15.6 Hz, CH=CH), 7.61 (d, 2H, J = 8.0 Hz, Ar–H), 7.69 (d, 2H, J = 8.0 Hz, Ar–H), 7.75 (d, 1H, J = 15.2 Hz, CH=CH), 7.92 (s, 1H, Ar–H), 8.49–8.51 (m, 1H, Ar–H); 13C-NMR (100 MHz, DMSO-d6) δ: 15.1, 41.7, 109.7, 112.3, 114.6, 117.7, 121.3, 123.0, 123.4, 126.9, 127.4, 133.8, 136.7, 144.0, 152.0, and 183.7; IR (KBr, cm−1) v ¯ max = 3478, 3102, 3075, 2972, 2929, 1631, 1562, 1524, 1488, 1442, 1389, 1365, 1204, 1102, 1086, 964, 857, 832, 744, 578, and 653; Anal. Calcd. for C17H15NO2: C, 76.96; H, 5.70; N, 5.28; found: C, 76.55; H, 5.95; N, 5.10; LC/MS (ESI, m/z): [M+], found 265.10, C17H15NO2 for 265.11.

4.2. X-ray Structure Measurements

X-ray crystal data were collected on a Bruker APEX-II D8 Venture area diffractometer. Crystal data, data collection, and structure refinement details are summarized in Table S1 (Supplementary data). All H atoms were found in the difference Fourier maps.

4.3. DFT Calculations

The structures of the studied systems were optimized at the B3LYP/6-311G (d,p) level of theory using Gaussian 09 [24]. In all cases, the input structures were taken from the CIF data obtained from the corresponding X-ray single crystal structures. All optimized structures showed no imaginary vibrations in the frequency calculations. All images were prepared in GaussView [25].

4.4. Hirshfeld Surface Analysis

The topology analyses were performed using Crystal Explorer 3.1 [26] to determine the percentages of different intermolecular interactions in the crystal structure of the studied complexes.

4.5. Anticancer Activity Assays

The anticancer activities for the five compounds were evaluated against five different cancer types (breast, oral, prostate, colon, and liver). The initial screening was performed at 50 µM, and the inhibitory activity was detected using the crystal violet assay [27]. Subsequently, the compound that showed inhibitory activity was further used in MTT assay for determination of the IC50 [28]. The standard deviation (±) was calculated from three independent experiments.

5. Conclusions

Five chalcone-based indole scaffolds were successfully synthesized from N-alkyl-3-acetylindole and five aldehydes. Structures of the obtained chalcones were clarified, and the study of the chemical behavior including (DFT) calculations, ionization potential (I), electron affinity (A), chemical potential (μ), hardness (η), electrophilicity (ω) and nucleophilicity (N) indices and Hirshfeld surface analysis were investigated. The anticancer activity of the synthesized chalcones was carried out and exhibited more sensitivity to the triple negative breast cancer cells (MDA-MB-231) than the ER-positive breast cancer cell line (MCF-7). Further investigation will be carried out in the near future.

Supplementary Materials

The following are available online. Table S1: Crystal data and refinement details; Table S2: Geometric parameters (bond distances (Å) and angles (°)) of the studied compounds; Table S3: The calculated geometric parameters (bond distances and angles) of the studied compounds; Figure S1: The optimized molecular structures of the studied molecules.

Author Contributions

Conceptualization, A.B.; data curation, S.M.S., N.D., and H.A.G.; formal analysis, F.A.B. and F.F.E.-S.; investigation, M.S.I.; methodology, S.A. and M.A.; project administration, M.A.; resources, A.M.A.-M.; software, S.M.S. and N.D.; supervision, A.M.A.-M.; validation, H.A.G.; visualization, A.B.; writing—original draft, S.M.S.; writing—review and editing, A.B.

Funding

This research was funded by the Deanship of Scientific Research at King Saud University.

Acknowledgments

The authors would like to extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for funding granted to this research group (RGP-044). The authors would like to thank RSSU at KSU for the editing and reviewing of the English language of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kawase, M.; Sakagami, H.; Motohashi, N. The chemistry of bioactive mesoionic heterocycles. Top. Heterocycl. Chem. 2009, 16, 135–152. [Google Scholar]
  2. Vitaku, E.; Smith, D.T.; Njardarson, J.T. Analysis of the structural diversity, substitution patterns, and frequency of nitrogen heterocycles among US FDA approved pharmaceuticals: Miniperspective. J. Med. Chem. 2014, 57, 10257–10274. [Google Scholar] [CrossRef] [PubMed]
  3. Kaushik, N.K.; Kaushik, N.; Attri, P.; Kumar, N.; Kim, C.-H.; Verma, A.K.; Choi, E.-H. Biomedical importance of indoles. Molecules 2013, 18, 6620–6662. [Google Scholar] [CrossRef] [PubMed]
  4. Reyes, F.; Fernández, R.; Rodríguez, A.; Francesch, A.; Taboada, S.; Ávila, C.; Cuevas, C. Aplicyanins A–F, new cytotoxic bromoindole derivatives from the marine tunicate Aplidium cyaneum. Tetrahedron 2008, 64, 5119–5123. [Google Scholar] [CrossRef]
  5. Liu, L.F.; Desai, S.D.; Li, T.-K.; Mao, Y.; Sun, M.; Sim, S.-P. Mechanism of action of camptothecin. Ann. N. Y. Acad. Sci. 2006, 922, 1–10. [Google Scholar] [CrossRef]
  6. Onyeibor, O.; Croft, S.L.; Dodson, H.I.; Feiz-Haddad, M.; Kendrick, H.; Millington, N.J.; Parapini, S.; Phillips, R.M.; Seville, S.; Shnyder, S.D.; et al. Synthesis of some cryptolepine analogues, assessment of their antimalarial and cytotoxic activities, and consideration of their antimalarial mode of action. J. Med. Chem. 2005, 48, 2701–2709. [Google Scholar] [CrossRef]
  7. Chien, C.M.; Yang, S.H.; Lin, K.L.; Chen, Y.L.; Chang, L.S.; Lin, S.R. Novel indoloquinoline derivative, IQDMA, suppresses STAT5 phosphorylation and induces apoptosis in HL-60 cells. Chem. Biol. Interact. 2008, 176, 40–47. [Google Scholar] [CrossRef]
  8. Franco, L.H.; de Kier Joffé, E.B.; Puricelli, L.; Tatian, M.; Seldes, A.M.; Palermo, J.A. Indole alkaloids from the tunicate aplidium m eridianum. J. Nat. Prod. 1998, 61, 1130–1132. [Google Scholar] [CrossRef]
  9. Pauletti, P.M.; Cintra, L.S.; Braguine, C.G.; Da Silva Filho, A.A.; Silva, M.L.A.; Cunha, W.R.; Januário, A.H. Halogenated indole alkaloids from marine invertebrates. Mar. Drugs 2010, 8, 1526–1549. [Google Scholar] [CrossRef]
  10. Wang, X.F.; Ohkoshi, E.; Wang, S.B.; Hamel, E.; Bastow, K.F.; Morris-Natschke, S.L.; Lee, K.H.; Xie, L. Synthesis and biological evaluation of N-alkyl-N-(4-methoxyphenyl) pyridin-2-amines as a new class of tubulin polymerization inhibitors. Bioorganic Med. Chem. 2013, 21, 632–642. [Google Scholar] [CrossRef]
  11. Hu, M.J.; Zhang, B.; Yang, H.K.; Liu, Y.; Chen, Y.R.; Ma, T.Z.; Lu, L.; You, W.W.; Zhao, P.L. Design, synthesis and molecular docking studies of novel indole–pyrimidine hybrids as tubulin polymerization inhibitors. Chem. Biol. Drug Des. 2015, 86, 1491–1500. [Google Scholar] [CrossRef] [PubMed]
  12. Geerlings, P.; De Proft, F.; Langenaeker, W. Conceptual Density Functional Theory. Chem. Rev. 2003, 103, 1793. [Google Scholar] [CrossRef] [PubMed]
  13. Domingo, L.R.; Ríos-Gutiérrez, M.; Pérez, P. Applications of the Conceptual Density Functional Theory Indices to Organic Chemistry Reactivity. Molecules 2016, 21, 748. [Google Scholar] [CrossRef] [PubMed]
  14. Foresman, J.B.; Frisch, A. Exploring Chemistry with Electronic Structure Methods, 2nd ed.; Gaussian: Pittsburgh, PA, USA, 1996. [Google Scholar]
  15. Chang, R. Chemistry, 7th ed.; McGraw-Hill: New York, NY, USA, 2001. [Google Scholar]
  16. Kosar, B.; Albayrak, C. Spectroscopic investigations and quantum chemical computational study of (E)-4-methoxy-2-[(p-tolylimino) methyl] phenol. Spectrochim. Acta-Part A Mol. Biomol. Spectrosc. 2011, 78, 160–167. [Google Scholar] [CrossRef] [PubMed]
  17. Koopmans, T.A. Über die Zuordnung von Wellenfunktionen und Eigenwerten zu den einzelnen Elektronen eines Atoms. Physica 1934, 1, 104–113. [Google Scholar] [CrossRef]
  18. Parr, R.G.; Yang, W. Density Functional Theory of Atoms and Molecules; Oxford University Press: Oxford, UK, 1989. [Google Scholar]
  19. Parr, R.G.; Szentpaly, L.V.; Liu, S. Electrophilicity index. J. Am. Chem. Soc. 1999, 121, 1922–1924. [Google Scholar] [CrossRef]
  20. Chamorro, E.; Pérez, P. Understanding the Reactivity of Captodative Ethylenes in Polar Cycloaddition Reactions. A Theoretical Study. J. Org. Chem. 2008, 73, 4615. [Google Scholar]
  21. Gao, Y.H.; Yang, L.; Zhou, W.; Xu, L.W.; Xia, C.G. Highly efficient bimetallic iron-palladium catalyzed Michael-type Friedel–Crafts reactions of indoles with chalcones. Appl. Organomet. Chem. 2009, 23, 114–116. [Google Scholar] [CrossRef]
  22. Zinser, C.M.; Warren, K.G.; Nahra, F.; Al-Majid, A.; Barakat, A.; Islam, M.S.; Nolan, S.P.; Cazin, C.S. Palladate precatalysts for the formation of C–N and C–C bonds. Organometallics 2019, 38, 2812–2817. [Google Scholar] [CrossRef]
  23. Badria, F.A.; Atef, S.; Al-Majid, A.M.; Ali, M.; Elshaier, Y.A.M.M.; Ghabbour, H.A.; Islam, M.S.; Barakat, A. Synthesis and inhibitory effect of some indole-pyrimidine based hybrid heterocycles on α-glucosidase and α-amylase as potential hypoglycemic agents. Chem. Open 2019, 8, 1–11. [Google Scholar]
  24. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A. Gaussian 09, Revision A.02; Gaussian, Inc.: Wallingford, CT, USA, 2007. [Google Scholar]
  25. Dennington, R., II; Keith, T.; Millam, J. GaussView, Version 4.1; Semichem Inc.: Shawnee Mission, KS, USA, 2007. [Google Scholar]
  26. Crystal Explorer 17. Available online: http://hirshfeldsurface.net (accessed on 6 September 2017).
  27. Feoktistova, M.; Geserick, P.; Leverkus, M. Crystal violet assay for determining viability of cultured cells. Cold Spring Harbor Protocols 2016, 2016. [Google Scholar] [CrossRef] [PubMed]
  28. Chiba, K.; Kawakami, K.; Tohyama, K. Simultaneous evaluation of cell viability by neutral red, MTT and crystal violet staining assays of the same cells. Toxicol. In Vitro 1998, 12, 251–258. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds 3a–e are available from the authors.

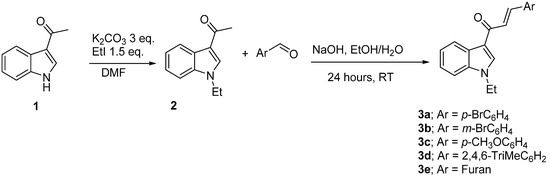

Scheme 1. Synthesis of chalcones (E)-3-(4-bromophenyl)-1-(1-ethyl-1H-indol-3-yl)prop-2-en-1-one (3a); (E)-3-(3-bromophenyl)-1-(1-ethyl-1H-indol-3-yl)prop-2-en-1-one (3b); (E)-1-(1-ethyl-1H-indol-3-yl)-3-(4-methoxyphenyl)prop-2-en-1-one(3c); (E)-1-(1-ethyl-1H-indol-3-yl)-3-mesitylprop-2-en-1-one(3d); and (E)-1-(1-ethyl-1H-indol-3-yl)-3-(furan-2-yl)prop-2-en-1-one (3e).
Scheme 1. Synthesis of chalcones (E)-3-(4-bromophenyl)-1-(1-ethyl-1H-indol-3-yl)prop-2-en-1-one (3a); (E)-3-(3-bromophenyl)-1-(1-ethyl-1H-indol-3-yl)prop-2-en-1-one (3b); (E)-1-(1-ethyl-1H-indol-3-yl)-3-(4-methoxyphenyl)prop-2-en-1-one(3c); (E)-1-(1-ethyl-1H-indol-3-yl)-3-mesitylprop-2-en-1-one(3d); and (E)-1-(1-ethyl-1H-indol-3-yl)-3-(furan-2-yl)prop-2-en-1-one (3e).
Molecules 24 03728 sch001

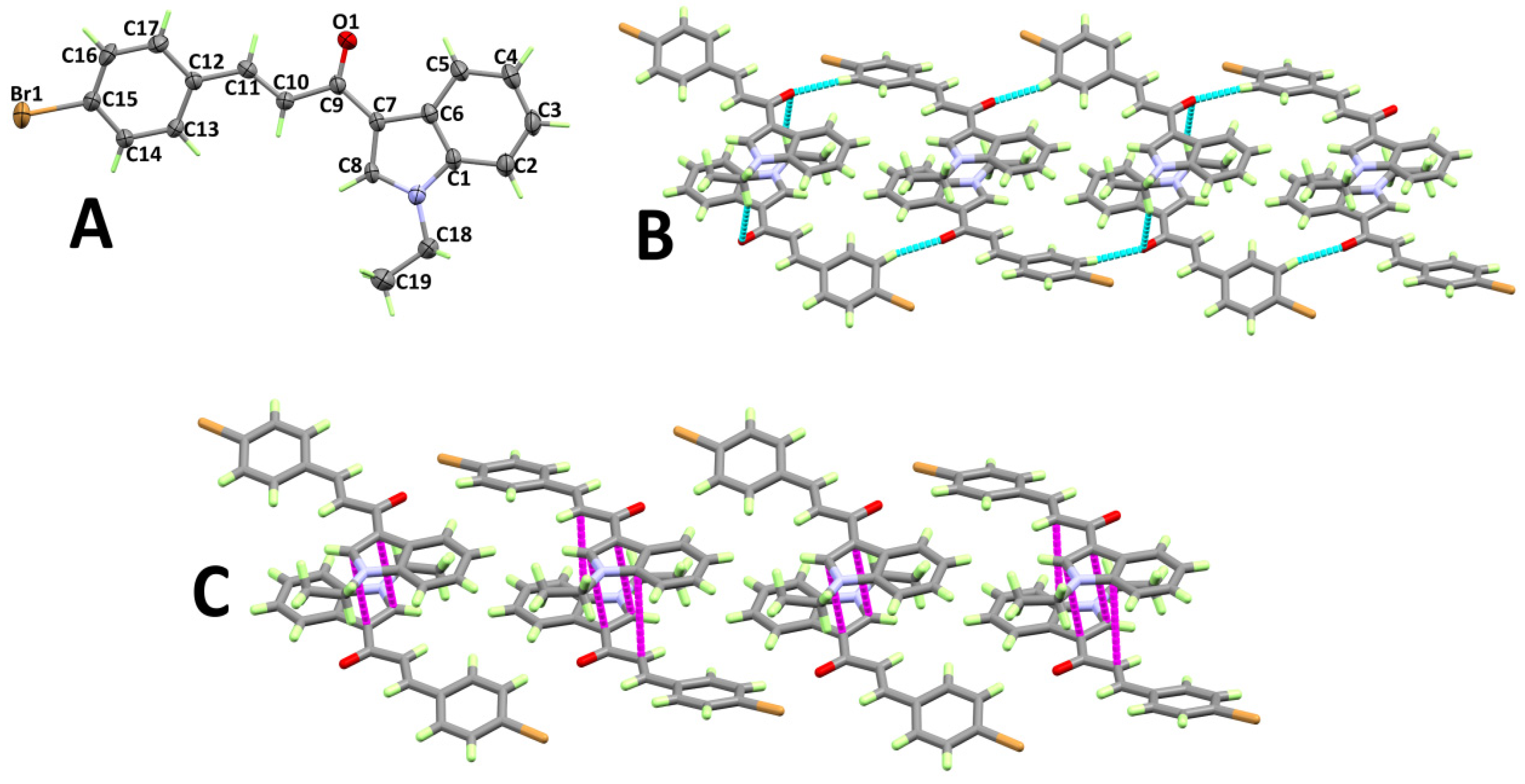

Figure 1. Atom numbering and thermal ellipsoids drawn at 30% probability level (A), hydrogen bonds (B), and π–π stacking interactions (C) in 3a.
Figure 1. Atom numbering and thermal ellipsoids drawn at 30% probability level (A), hydrogen bonds (B), and π–π stacking interactions (C) in 3a.
Molecules 24 03728 g001

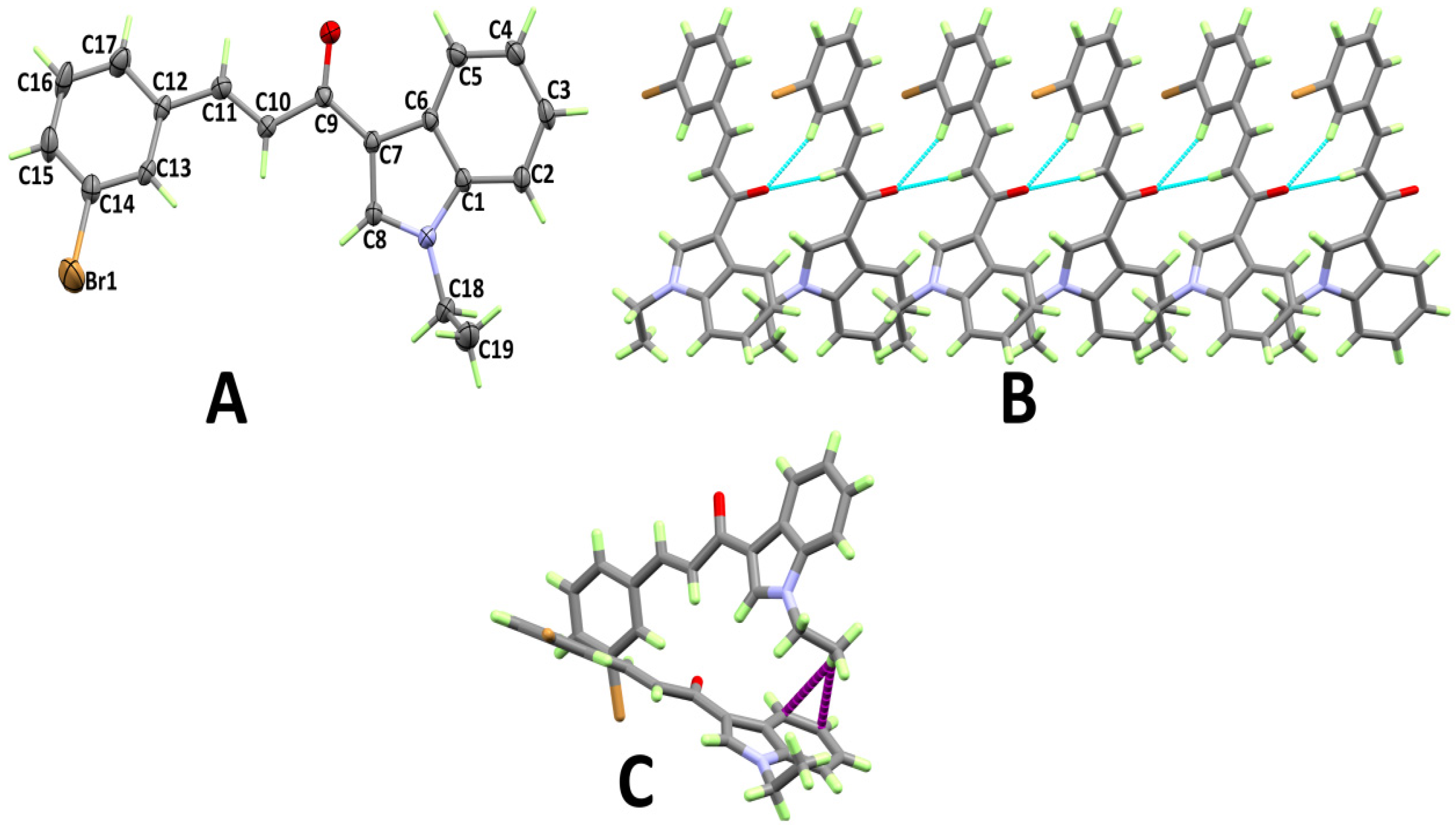

Figure 2. Atom numbering and thermal ellipsoids drawn at 30% probability level (A), hydrogen bonds, (B) and C–H···π interactions (C) in 3b.
Figure 2. Atom numbering and thermal ellipsoids drawn at 30% probability level (A), hydrogen bonds, (B) and C–H···π interactions (C) in 3b.
Molecules 24 03728 g002

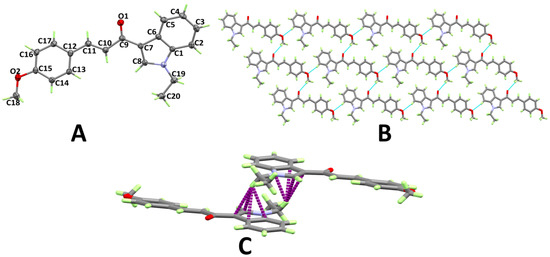

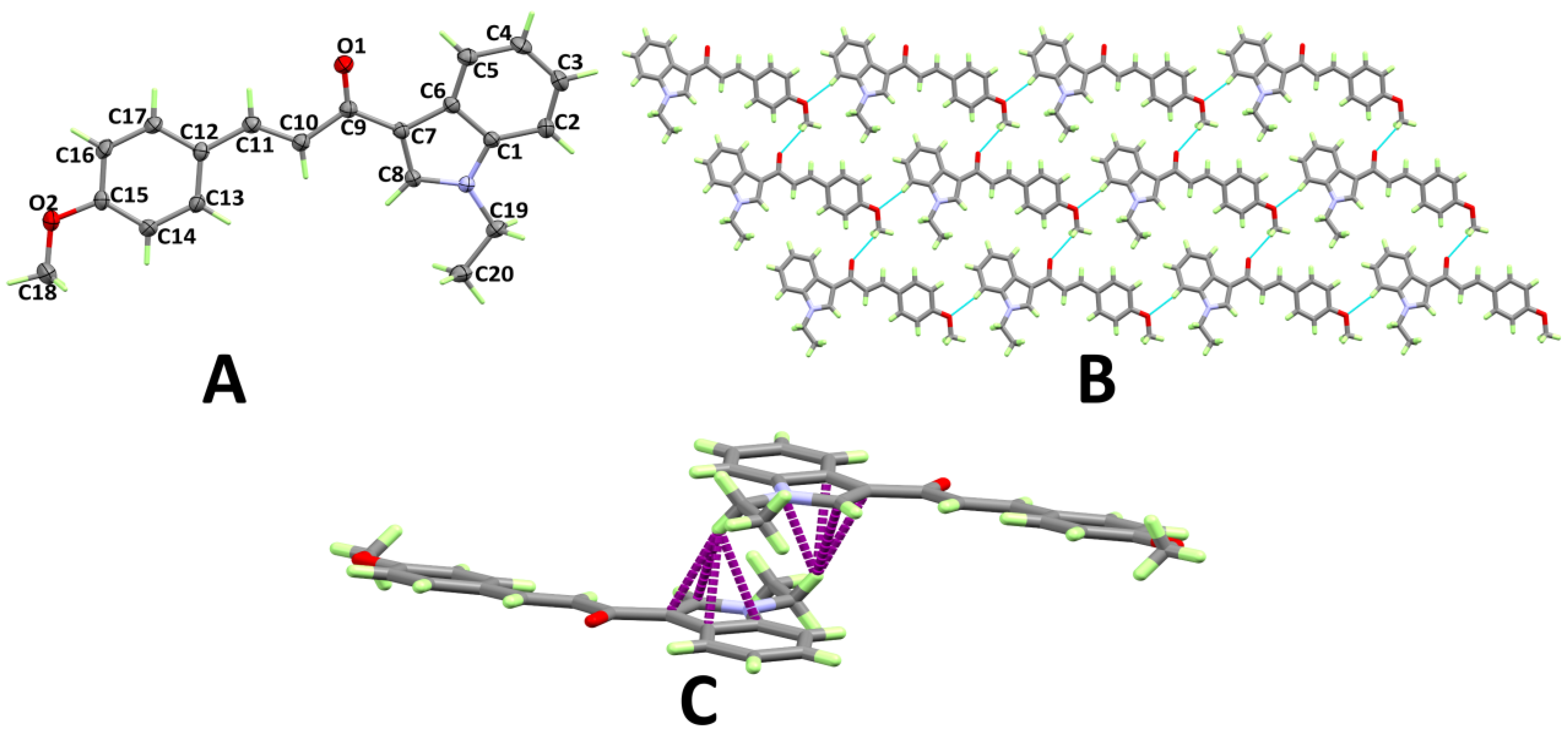

Figure 3. Atom numbering and thermal ellipsoids drawn at 30% probability (A), hydrogen bonds (B), and C–H···π interactions (C) in 3c.
Figure 3. Atom numbering and thermal ellipsoids drawn at 30% probability (A), hydrogen bonds (B), and C–H···π interactions (C) in 3c.
Molecules 24 03728 g003

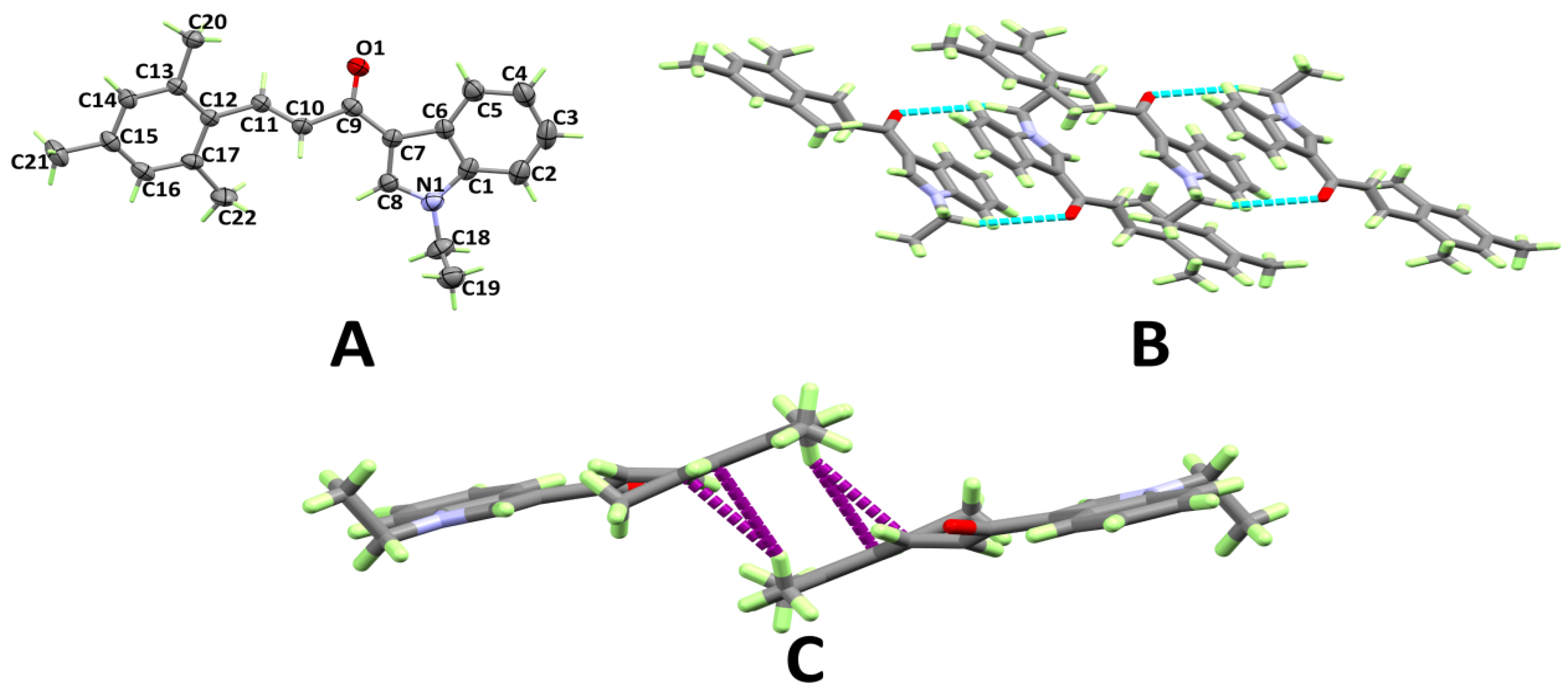

Figure 4. Atom numbering and thermal ellipsoids drawn at 30% probability level (A), hydrogen bonds (B), and C–H···π (C) stacking interactions in 3d.
Figure 4. Atom numbering and thermal ellipsoids drawn at 30% probability level (A), hydrogen bonds (B), and C–H···π (C) stacking interactions in 3d.
Molecules 24 03728 g004

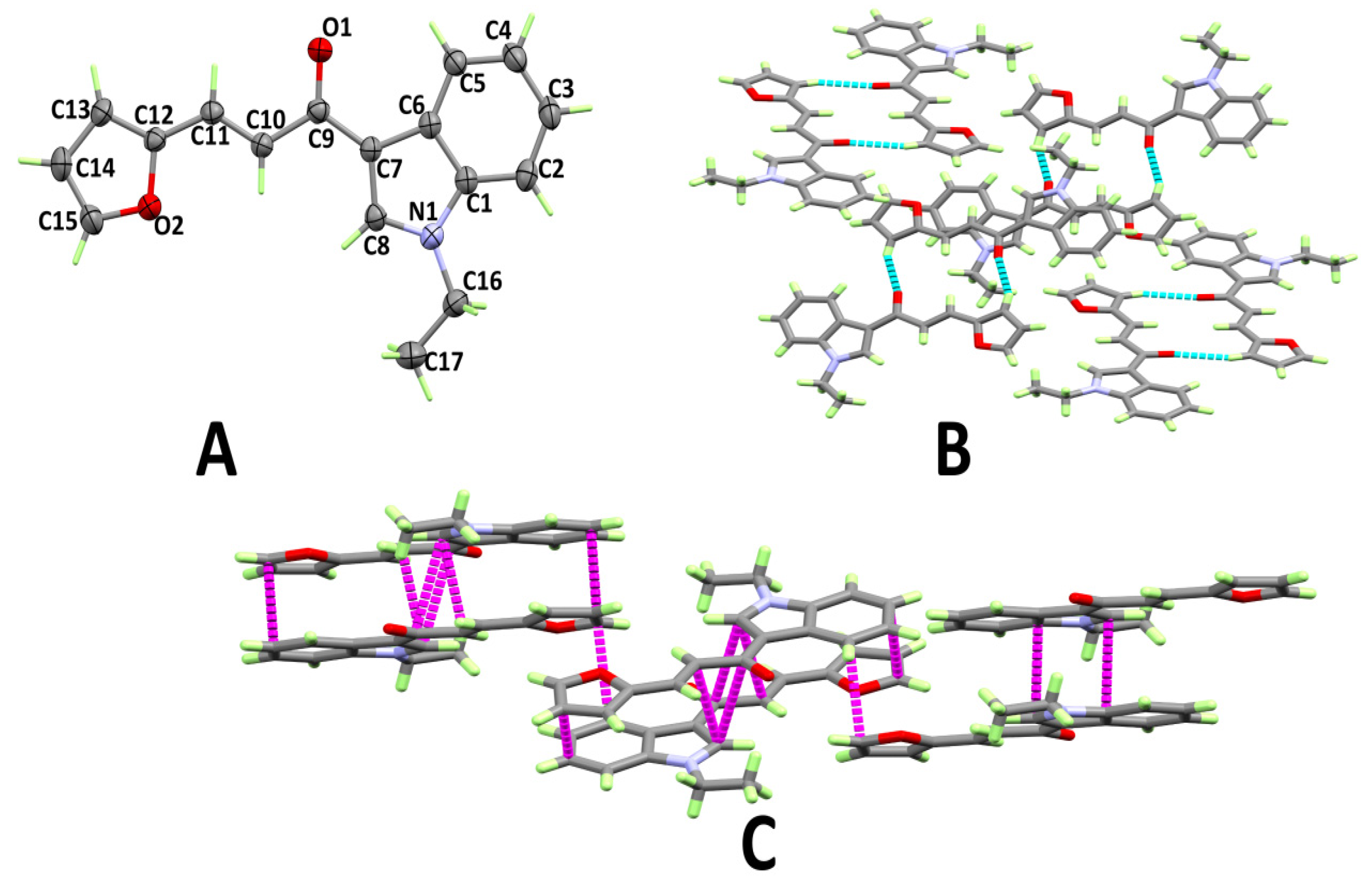

Figure 5. Atom numbering and thermal ellipsoids drawn at 30% probability level (A), hydrogen bonds (B), and π···π (C) stacking interactions in 3e.
Figure 5. Atom numbering and thermal ellipsoids drawn at 30% probability level (A), hydrogen bonds (B), and π···π (C) stacking interactions in 3e.
Molecules 24 03728 g005

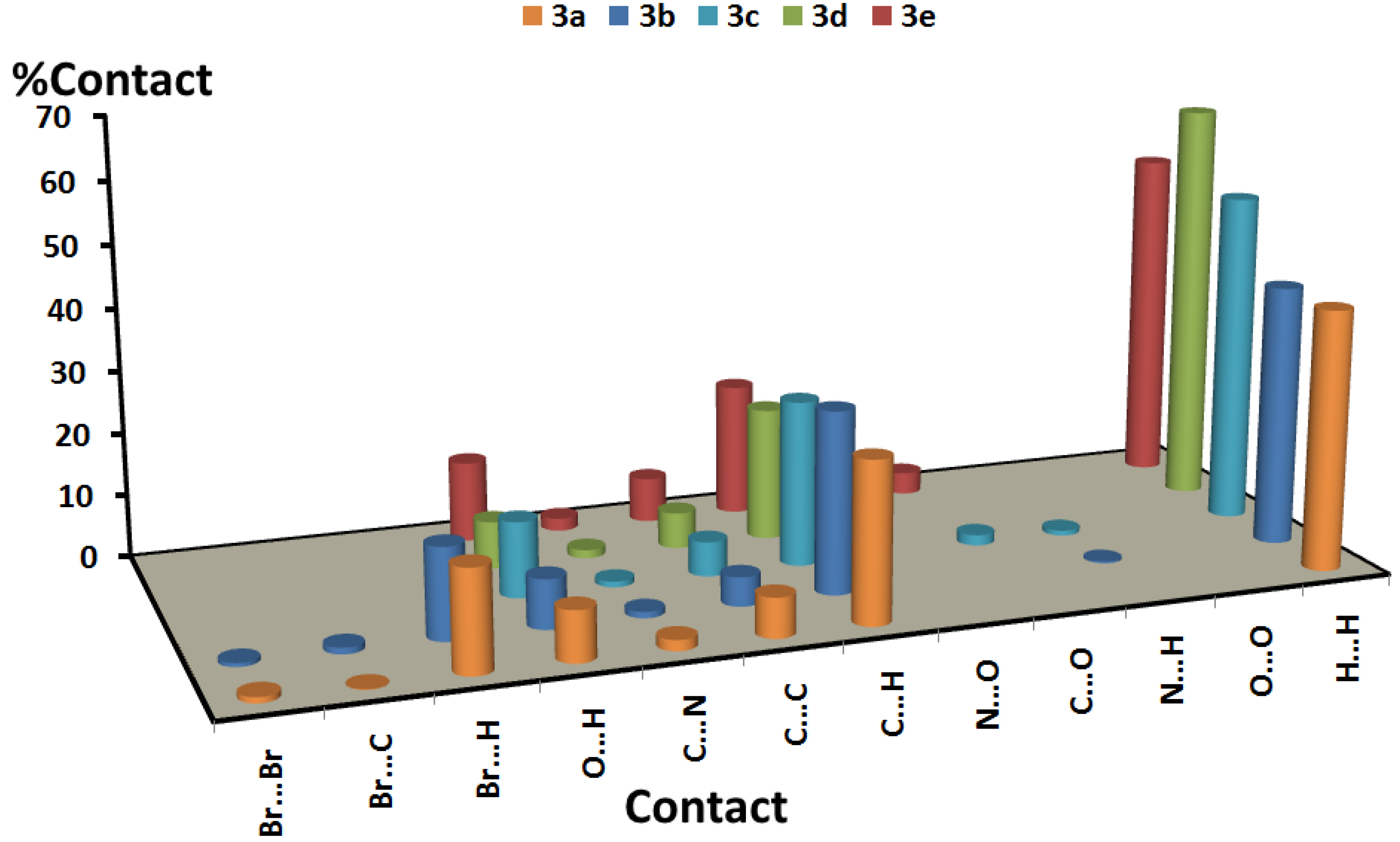

Figure 6. Summary of the intermolecular interactions and their percentages in the crystal structures of the studied compounds.
Figure 6. Summary of the intermolecular interactions and their percentages in the crystal structures of the studied compounds.
Molecules 24 03728 g006

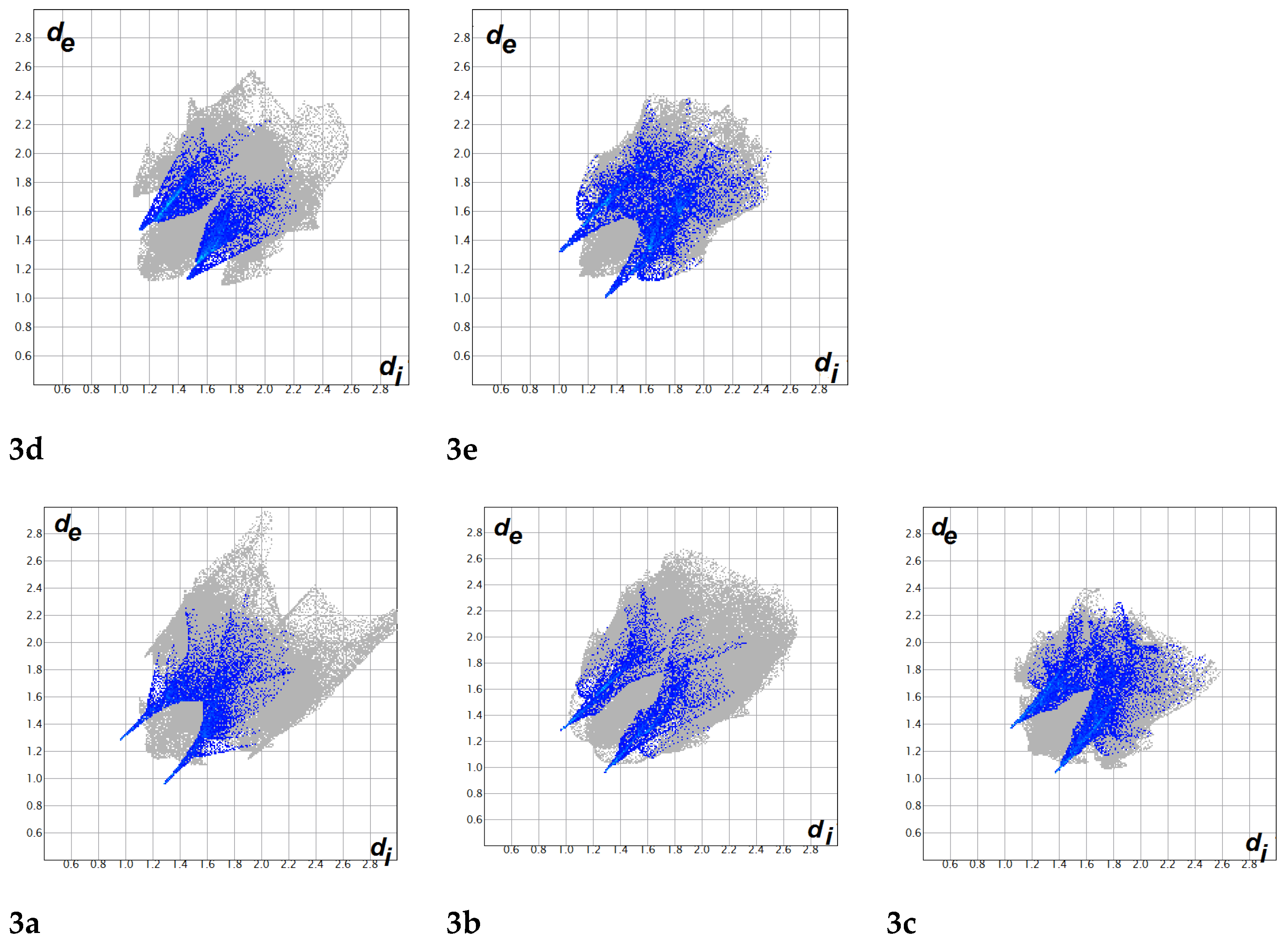

Figure 7. The decomposed fingerprint (FP) plots of the O···H contacts in the studied compounds: Sharper spikes indicate shorter O···H contacts. The O···H contacts are the shortest in compound 3a and the longest in 3d.
Figure 7. The decomposed fingerprint (FP) plots of the O···H contacts in the studied compounds: Sharper spikes indicate shorter O···H contacts. The O···H contacts are the shortest in compound 3a and the longest in 3d.
Molecules 24 03728 g007

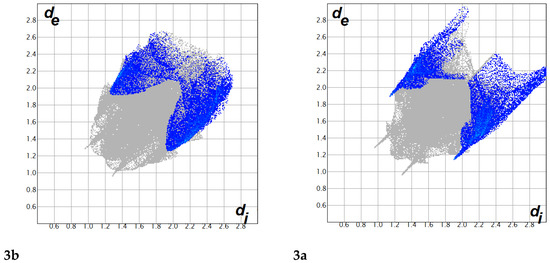

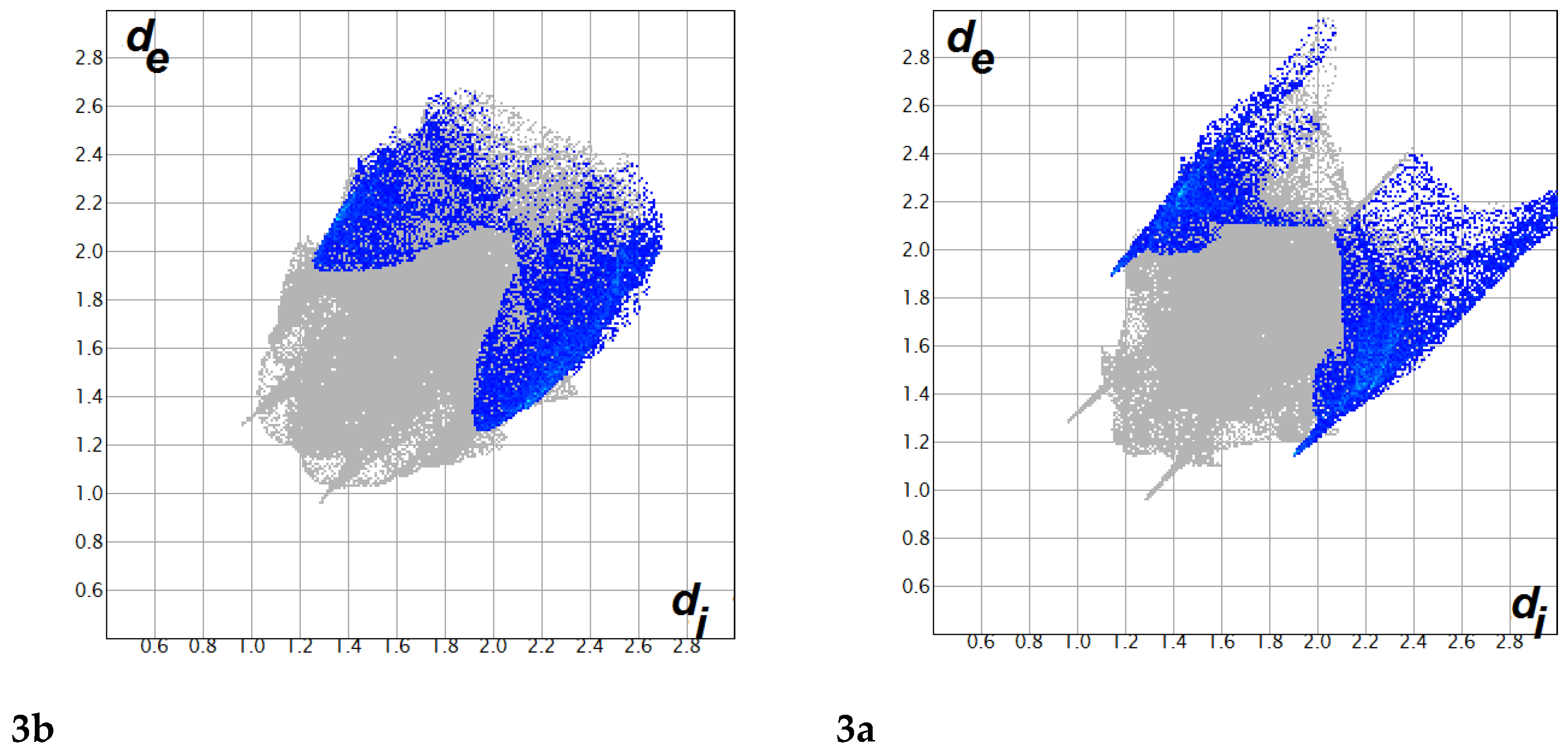

Figure 8. The decomposed FP plots of the Br···H contacts in compounds 3b (left) and 3a (right): The sharper spikes in the FP plot of compound 3a indicate shorter contact distances compared to 3b.
Figure 8. The decomposed FP plots of the Br···H contacts in compounds 3b (left) and 3a (right): The sharper spikes in the FP plot of compound 3a indicate shorter contact distances compared to 3b.
Molecules 24 03728 g008
Table 1. Hydrogen bond parameters in the studied compounds.
Table 1. Hydrogen bond parameters in the studied compounds.
D–H···AD–H (Å)H···A (Å)D···A (Å)D–H···A (°)Symm. Codei
3a
C14–H14A···O1i0.9302.3903.307 (7)167.7x, 3/2 − y, −1/2 + z
C18–H18B···O1i0.9712.7333.420 (1)128.51 − x, 2 − y, 1 − z
3b
C10–H10A···O1i0.9312.5263.447 (5)170.8x, 3/2 − y, −1/2 + z
C13–H13A···O1i0.9312.3913.269 (5)157.1x, 3/2 − y, −1/2 + z
3c
C2–H2A···O2i0.9302.5623.474 (2)166.8−1 + x, −1 + y, 1 + z
C18–H18B···O1i0.9602.6173.441 (2)144.1x, −1 + y, z
3d
C18–H18B···O1i0.9712.6973.564 (5)149.0x, 1 − y, 1 − z
3e
C13–H13A···O1i0.9302.4603.291 (3)148.81 − x, 2 − y, 1 − z
Table 2. List of all intermolecular contacts and their percentages using Hirshfeld Topology analysis.
Table 2. List of all intermolecular contacts and their percentages using Hirshfeld Topology analysis.
3a3b3c3d3e
Br…Br0.90.6
Br…C0.11.0
Br…H16.014.4
O…H8.07.812.07.512.8
C…N1.71.00.91.32.0
C…C6.34.65.55.77.1
C…H25.528.826.321.121.1
N…O
C…O 1.7 3.5
N…H 0.30.8
O…O
H…H41.441.552.864.453.5
Table 3. The calculated dipole moment (μ), EHOMO, and ELUMO and the calculated reactivity indices (eV) of the studied compounds calculated using B3LYP/6-311G(d,p) method.
Table 3. The calculated dipole moment (μ), EHOMO, and ELUMO and the calculated reactivity indices (eV) of the studied compounds calculated using B3LYP/6-311G(d,p) method.
3a3b3c3d3e
μ5.6503.8667.2825.3525.573
EHOMO−5.909−5.949−5.676−5.812−5.730
ELUMO−2.132−2.175−1.758−1.771−1.887
ΔE3.7773.7733.9184.0413.843
I5.915.955.685.815.73
A2.132.181.761.771.89
η3.783.773.924.043.84
μ-4.02-4.06-3.72-3.79-3.81
x4.024.063.723.793.81
S0.260.270.260.250.26
ω2.142.191.761.781.89
N3.463.423.693.563.64
Table 4. IC50 values of the tested chalcone derivatives against seven cancer cell lines: The symbol ± represents the standard deviation from three independent experiments. The viability of the cells was detected using the MTT assay. NA means that the compound did not show cytotoxic activity at 50 µM.
Table 4. IC50 values of the tested chalcone derivatives against seven cancer cell lines: The symbol ± represents the standard deviation from three independent experiments. The viability of the cells was detected using the MTT assay. NA means that the compound did not show cytotoxic activity at 50 µM.
Type BreastOralProstateColonLiver
Cell line MCF-7MDA-MB-231SASPC-3HCT-116HuH-7HepG2
3a30 ± 215 ± 130 ± 1.530 ± 2.220 ± 1.328.4 ± 1.6720 ± 1.5
3b>5013 ± 0.529 ± 3>5025 ± 2.1NA15 ± 0.57
3c>5019 ± 1.6NANANANA25 ± 0.97
3d50 ± 5.518.5 ± 1NANANANA25 ± 1.7
3e35 ± 318 ± 2.432 ± 242 ± 330 ± 2.529.2 ± 3.429 ± 1.4
cisplatin9 ± 0.315 ± 1.64.5 ± 0.412 ± 18 ± 1.314.7 ± 210 ± 1.2
