Molecules 2019, 24(20), 3634; https://doi.org/10.3390/molecules24203634

Article
Nematicidal Activities of Three Naphthoquinones against the Pine Wood Nematode, Bursaphelenchus xylophilus
Division of Forest Insects and Diseases Division, National Institute of Forest Science, Seoul 02455, Korea
*
Author to whom correspondence should be addressed.
Received: 23 September 2019 / Accepted: 7 October 2019 / Published: 9 October 2019

Abstract

:
Bursaphelenchus xylophilus (Steiner & Buhrer) Nickle, is a serious forest pest, causing enormous economic losses in pine trees in Korea, China, Japan, and countries in Western Europe. To prevent pine wilt disease (PWD), trunk injection with nematicide is performed in Korea. Although these nematicidal agents are quite efficient, the development of new nematicidal agents is needed to prevent pesticide resistance and reduce pest management costs. The aim of this study was to investigate nematicidal activities of pure naphthoquinones (NTQs)–1,4-NTQ, juglone, and plumbagin—against B. xylophilus via in vitro and semi-in vivo assays to identify new candidate agents for trunk injection. Estimated LC50 values (48 h exposure) were 100.0 ppm, 57.0 ppm, and 104.0 ppm for 1,4-NTQ, juglone, and plumbagin, respectively. In the semi-in vivo assay on pine bolt of the Japanese black pine, Pinus thunbergii, the population of inoculated B. xylophilus was significantly decreased at two weeks after treatment with juglone when compared with the effects of treatment with 1,4-NTQ and plumbagin. We also observed that naphthoquinones could generate reactive oxygen species, which presumably indicated that naphthoquinones caused significant oxidative stress in B. xylophilus. The findings of this study suggest the nematicidal potential of naphthoquinones and their possible use in further in vivo assays to test their nematicidal efficacy against B. xylophilus when injected through trunk injection.
Keywords:
Bursaphelenchus xylophilus; naphthoquinone; reactive oxygen species

1. Introduction

The pine wilt disease (PWD) caused by the pinewood nematode, Bursaphelenchus xylophilus (Steiner & Buhrer) Nickle, results in huge economic losses in coniferous species, especially pines, throughout East Asian countries, including Japan, South Korea, and China [1], as well as in Western Europe [2]. In South Korea, PWD was first reported in Busan in 1988 [3], and after several decades, it eventually spread to most parts of the country. Trunk injection with systemic nematicides is an effective way to manage PWD by directly killing B. xylophilus, which is the source of PWD, and is a more environmentally stable strategy of pest control; thus, this strategy is widely used in South Korea [4]. Despite some advantages of trunk injection, improvements in nematicides for trunk injection are required owing to various associated disadvantages, e.g., high cost and possible development of nematicide resistance. Therefore, several studies using plant essential oils and herbal extracts have been conducted to search for novel nematicides that negatively affect the propagation of B. xylophilus [5,6,7]. Despite these efforts, no nematicides for trunk injection against B. xylophilus have been developed as they have significantly lower efficacy than do conventional nematicides, such as avermectin and emamectin benzoate, for preventing PWD in vivo [8].
Naphthoquinone is a class of organic compounds structurally related to naphthalene and is easily found in nature as products of microorganisms and as secondary metabolites in plants. The bioactivities, such as potential antibacterial, insecticidal, and nematicidal effects, have been studied [9,10,11,12,13,14]. The mechanism of naphthoquinone in organisms is related to enhanced reactive oxygen species (ROS) generation and results in the death of cells [15]. The basic researches on the mechanism of ROS generation by naphthoquinone and its analogs and ROS-related gene expression patterns have been conducted in Caenorhabditis elegans. The results of these studies indicated that naphthoquinone caused the generation of ROS, even in low concentrations [16]. In addition, studies on the insecticidal activity of naphthoquinone against the root-lesion nematode Pratylenchus thornei, showed its possibility as a nematicide [17].
The objective of this study was to confirm the possibility of the use of naphthoquinone and analogs as a nematicide for trunk injection against PWD by determining the in vitro and semi-in vivo nematicidal activity of pure 1,4-naphthoquinone (1,4-NTQ), 5-hydroxy-1,4-naphthoquinone (juglone), and 5-hydroxy-2-methyl-1,4-naphthoquinone (plumbagin) against B. xylophilus. In addition, although several studies revealed that naphthoquinone is a redox cycler that could cause the generation of ROS in various organisms, the nematicidal mechanism of naphthoquinones for B. xylophilus has not been elucidated. Thus, we also performed assays on ROS detection to demonstrate that naphthoquinones could be lethal to B. xylophilus by inducing oxidative stress.

2. Results

2.1. In Vitro Nematicidal Activities of Three Naphthoquinones on B. xylophilus

The mortality of B. xylophilus in the 1% dimethyl sulfoxide (DMSO) control treatment (cumulative mortality = 1–8%) was not significantly different from that observed in the control with water (one-way ANOVA, F1,22 = 0.095, p = 0.761). However, the mortality of B. xylophilus was significantly affected by the presence of the three NTQs at concentrations above 62.5 ppm (one-way ANOVA, p < 0.05). No significant differences in mortality were found in all treatments with 500 ppm and 250 ppm NTQ solutions and the mortalities at these concentrations were more than 95% at 48 h after treatment (HAT) (Figure 1). Juglone showed the strongest nematicidal activity among the NTQ treatments, although there was no significant difference. LC50 values of 1,4-NTQ, juglone, and plumbagin at 48 HAT were 100.0, 57.0, and 103.9 ppm, respectively (Table 1).

2.2. Semi-In Vivo Nematicidal Activities of Three Naphthoquinones on B. xylophilus

Two weeks after NTQ treatments, the number of B. xylophilus in pine blocks were affected by each treatment. In the 1% DMSO treated pine block, the number of B. xylophilus per 10 g of pinewood was 708 ± 160. In contrast, the number of B. xylophilus was shown to be decreased with all NTQ treatments when compared with the effects of treatment with 1% DMSO. Among NTQ treatments, the number of B. xylophilus in the 500 ppm juglone-treated pine block was shown to be significantly decreased (N = 0.67 ± 0.94) when compared with the number of nematodes in 500 ppm 1,4-NTQ- (N = 196 ± 124) and 500 ppm plumbagin-treated (N = 96 ± 58) pine blocks (Figure 2).

2.3. Naphthoquinone-Generated ROS Detection

ROS generation with three naphthoquinones, 1,4-NTQ, juglone, and plumbagin, in B. xylophilus, was evaluated using two methods. First, the Amplex red hydrogen peroxide assay kit, 10-acetyl-3,7-dihydroxyphenoxazine, was used to selectively detect H2O2 [18]. Second, using the 2′,7′-dichlorofluorescein diacetate (DCFDA) assay, fluorescent dye staining was used to detect all induced ROS [19]. In the result of the Amplex red hydrogen peroxide assay, treatment of B. xylophilus with 50 ppm juglone generated 1.5–2.5 times more H2O2 than the 1% DMSO treatment, taken as the control (p < 0.05). However, treatment of B. xylophilus with 50 ppm 1,4-NTQ or plumbagin did not show a difference in the H2O2 level when compared with the effects of the 1% DMSO treatment (Figure 3). Next, in the result of the DCFDA assay, among all treatments, treatment of B. xylophilus with 50 ppm juglone and 1,4-NTQ showed higher fluorescence intensity than did the 1% DMSO treatment (Figure 4).

3. Discussion

Through the in vitro and semi-in vivo experiments, it was revealed that the three NTQs had nematicidal activity within short periods following exposure. NTQs have been reported for their insecticidal and nematicidal activity [11,12,17,20,21]. Among the NTQ analogs, juglone and plumbagin showed the strongest acaricidal activities against P. cuniculi [14]. Plumbagin obtained from persimmon root, Diospyros kaki, had the most potent larvicidal activity against Aedes aegypti, and Ochlerotatus togoi [22].
The potential insecticidal activity of 1,4-naphthoquinone structural derivatives has been established [22,23]. Juglone and plumbagin have a hydroxyl group at the 5- position, and plumbagin has a methyl group at the 2- position in addition to the naphthoquinone structure (Figure 5). The type and placement of functional groups on the skeleton of cyclic compounds determine their biological efficacy [12]. For example, phenolic monoterpenoids, e.g., thymol and carvacrol, showed higher nematicidal activity against B. xylophilus among all monoterpenoids [24]. In aliphatic compounds, alcohols exhibited higher nematicidal activity than did hydrocarbons, which have the same skeleton [25]. In our results, juglone showed the highest nematicidal activity, consistent with the findings of several studies on the nematicidal activity of naphthoquinone wherein juglone showed the highest nematicidal activity when compared with other naphthoquinone analogs [11,17].
We performed a semi-in vivo experiment using pine blocks. To the best of our knowledge, this is the first example of a bioassay conducted for testing nematicidal activity against B. xylophilus. Results similar to those of the in vitro test were obtained. Results of the semi-in vivo test suggested that after being absorbed into the pine blocks, the three naphthoquinones effectively inhibited the population growth of B. xylophilus. Therefore, this bioassay method would be a useful test for nematicidal activity. Unlike the results in pine blocks, nematicidal activities of naphthoquinones against B. xylophilus might be different in living pine trees. However, it is obvious that the number of B. xylophilus did not significantly increase even after two weeks in the dark condition after treatment with naphthoquinones. Thus, the results of our semi-in vivo experiment show the possibility of applying naphthoquinones through trunk injection to pine trees to prevent infection of B. xylophilus.
ROS was measured to understand the mechanism of NTQs. The results of the Amplex red hydrogen peroxide assay revealed that the treatment of B. xylophilus with NTQ has a large effect on intracellular ROS production in B. xylophilus. However, no difference was observed in fluorescence intensity in the case of the treatment of B. xylophilus with 50 ppm plumbagin compared to the 1% DMSO treatment. This result is probably because the treatment concentration (50 ppm) of plumbagin in the bioassay was lower than the LC50 concentration of plumbagin. However, in the case of 1,4-NTQ, the fluorescence level at the same concentration was higher than that of plumbagin. Although both naphthoquinone analogs had a similar range of LC50 concentration in our in vitro result, in low concentration, among the 62.5 ppm to 31.25 ppm treatments, 1,4-NTQ showed slightly higher mortality than plumbagin (Figure 1). Therefore, the difference in fluorescence intensity between 1,4-NTQ and plumbagin would have been caused by their different nematicidal activities on B. xylophilus at the low concentration. Several studies revealed that quinones stimulate the production of ROS in various organisms [9,10,11,12,13,14]. Our results from the two assays also showed that naphthoquinone could obviously affect the generation of ROS in B. xylophilus, and thus, it was speculated that the nematicidal activity on B. xylophilus was caused by the ROS produced by the naphthoquinone.

4. Materials and Methods

4.1. Nematodes

B. xylophilus was provided by the National Institute of Forest Science, Seoul, Korea. The identification of B. xylophilus was confirmed using morphological characters and genetic differences, which were confirmed by RFLP method [26]. B. xylophilus were reared on a fungal mat of Botrytis cinerea on potato dextrose agar media at 25 ± 1 °C and 40% humidity for several generations.

4.2. Nematicidal Activities of Three Naphthoquinones on B. xylophilus In Vitro

Three naphthoquinones (NTQs), 1,4-NTQ, juglone, and plumbagin (Sigma-Aldrich, St. Louis, MO, USA), were solubilized in 1% DMSO solution (laboratory grade) to obtain the final NTQ concentrations of 500, 250, 125, 62.5, and 31.25 ppm using half-fold serial dilutions, and a 1% DMSO solution was used as the control (mortality with the 1% DMSO solution was not different from that in the untreated groups using water). Working solutions of NTQs were prepared and used on the day of the experiment. Each treatment comprised six replicates, and each mortality experiment was repeated thrice. Approximately 300 nematodes were placed on each well of a 6-well cell culture plate containing 3 mL of each prepared NTQ solution and 1% DMSO solution (control). Then, the 6-well cell culture plates were maintained at 25 ± 1 °C and 40% humidity, in the dark, and nematode mortality was observed at 6, 12, 24, and 48 h after treatment (HAT). Nematodes were considered as dead if their bodies were straight and when they did not move, even after transferring to clean water.

4.3. Semi-In Vivo Bioassay

The pine blocks (P. thunbergii, 10 cm width and 15 cm long) were sterilized using an autoclave (121 °C for 30 min). Then, 30 mL of 500 ppm of each NTQ (1,4-NTQ, juglone, and plumbagin) solution and 1% DMSO solution as the control were absorbed through the hall by drilling from the pine blocks under dark conditions. After complete absorption, approximately 4500 individuals of B. xylophilus per 1 mL were inoculated in each pine block. Finally, the treated pine blocks were incubated at 25 ± 1 °C and 40% humidity for 2 weeks in the dark. Two weeks after treatment, 10 g of pinewood chips was obtained from the upper, middle, and bottom parts of the block by drilling, the nematodes were extracted from the chips of pinewood using the Baermann funnel method, and the number of B. xylophilus were counted under a microscope (Leica, Wetzlar, Germany).

4.4. Naphthoquinone-Generated ROS Detection

The measurement of ROS produced by naphthoquinones in B. xylophilus was performed using two methods. First, H2O2 produced as a result of ROS production was measured using the Amplex red hydrogen peroxide assay kit (Invitrogen, Seoul, Korea) according to the manufacturer′s instructions with some modification. Approximately 300 male adult individuals of B. xylophilus were collected and washed thrice with ddH2O to eliminate Botrytis cinerea. B. xylophilus individuals were transferred to a 1.5 mL tube containing 50 ppm working solution of each NTQ and 1% DMSO solution as the control. Then, the tubes were incubated at 25 ± 1 °C for 3 h in the dark. After incubation, each treatment was washed thrice with 1X Amplex reaction buffer. Fifty microliters of the buffer with approximately 300 live B. xylophilus individuals or standard H2O2 solutions (2.5 μM to 40 μM) was mixed with 50 μL of Amplex Red working solution (100 μM Amplex® Red reagent with 0.2 U/mL HRP, Waltham, MA, USA) at each well in a 96-well plate and incubated for 3 h at 25 ± 1 °C in the dark. After incubation, H2O2 was measured with a microplate reader (EPOCH2, BioTek, Winooski, VT, USA) at 570 nm. Data of absorbance levels from H2O2 produced by NTQ treatments was calculated in comparison to the relative values of the control (1% DMSO solution). Second, the levels of ROS were measured using 2′,7′-dichlorofluorescein-diacetate (DCFDA), which is activated by ROS. Approximately 300 adult individuals of B. xylophilus were collected and washed thrice with ddH2O to eliminate Botrytis cinerea. B. xylophilus were transferred to a 1.5 mL tube containing 50 ppm of each NTQ working solution and 1% DMSO solution as the control. Then, the tubes were incubated at 25 ± 1 °C for 3 h in the dark. After incubation, each treatment was washed thrice with ddH2O. The ddH2O (500 μL) with live B. xylophilus was mixed with 500 μL of 25 μM DCFDA solution (final volume 12.5 μM) and incubated at 25 ± 1 °C for 30 min in the dark. After incubation, each treatment was washed thrice with ddH2O to eliminate the unreacted DCFDA in the solution. Then, B. xylophilus were mounted on a glass slide for examination with a fluorescence microscope system (Leica DM6 with CTR 6 LED, Wetzlar, Germany) at 488 nm of excitation wavelength and 510 nm of emission filter. Finally, fluorescence intensities were semi-quantified as relative fluorescent units measured by ImageJ (ver. 1.8.0, https://imagej.nih.gov/ij/index.html). For detecting ROS, we only used adult males of B. xylophilus as the female varies in body size depending on ovulation status. In addition, we limited the treatment time to 3 h to keep B. xylophilus alive in order to exclude ROS values measured from dead B. xylophilus affected by NTQ or natural longevity.

4.5. Statistics

The mortality of each NTQ treatment at each concentration was transformed to arcsine square-root and compared using one-way ANOVA. The LC values were estimated by probit analysis with dose-response data at 48 HAT [27]. Statistical analysis was performed using R (ver. 3.5.2, https://cran.r-project.org/mirrors.html) [28]. Untransformed data are shown.

5. Conclusions

In this study, three NTQs–1,4-NTQ, juglone, and plumbagin were investigated for their nematicidal activities against B. xylophilus for the first time. In addition, this may be the first report of the semi-in vivo bioassay method. Our results indicate that NTQs could be alternative nematicidal agents applied via trunk injection. However, further studies, including their formulation and application on living trees, are necessary for practical use.

Author Contributions

Conceptualization, D.J.C., D.S.K., and J.K.; methodology, D.J.C. and D.S.K.; formal analysis, D.J.C. and J.K.; writing—original draft preparation, D.J.C.; writing—review and editing, D.J.C., D.S.K., and J.K.

Funding

This research was funded by the National Institute of Forest Science (FE0702-2016-01-2019).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mamiya, Y. History of pine wilt disease in Japan. J. Nematol. 1988, 20, 219–226. [Google Scholar] [PubMed]
  2. Mota, M.; Braasch, H.; Bravo, M.A.; Penas, A.C.; Burgermeister, W.; Metge, K.; Sousa, E. First report of Bursaphelenchus xylophilus in Portugal and in Europe. Nematology 1999, 1, 727–734. [Google Scholar]
  3. Yi, C.K.; Byun, B.H.; Park, J.D.; Yang, S.I.; Chang, K.H. First finding of the pine wood nematode, Bursaphelenchus xylophilus (Steiner et Buhrer) Nickle and its insect vector in Korea. Res. Rep. For. Res. Inst. 1989, 38, 141–149. [Google Scholar]
  4. Shin, W.S.; Jung, Y.H.; Lee, S.M.; Lee, C.M.; Lee, C.J.; Kim, D.S.; Mun, L.S.; Lee, D.W. Development of effective screening method for efficacy test of trunk injection agents against pine wood nematode, Bursaphelenchus xylophilus in Japanese black pine, Pinus thunbergii. Korean J. Pestic. Sci. 2015, 19, 440–449. [Google Scholar] [CrossRef]
  5. Barbosa, P.; Lima, A.S.; Vieira, P.; Dias, L.S.; Tinoco, M.T.; Barroso, J.G.; Pedro, L.G.; Figueiredo, A.C.; Mota, M. Nematicidal activity of essential oils and volatiles derived from Portuguese aromatic flora against the pinewood nematode, Bursaphelenchus xylophilus. J. Nematol. 2010, 42, 8–16. [Google Scholar] [PubMed]
  6. Park, I.K.; Kim, J.; Lee, S.G.; Shin, S.C. Nematicidal activity of plant essential oils and components from ajowan (Trachyspermum ammi), allspice (Pimenta dioica) and litsea (Litsea cubeba) essential oils against pine wood nematode (Bursaphelenchus xylophilus). J. Nematol. 2007, 39, 275–279. [Google Scholar]
  7. Kim, J.; Seo, S.-M.; Park, I.-K. Nematicidal activity of plant essential oils and components from Gaultheria fragrantissima and Zanthoxylum alatum against pine wood nematode (Bursaphelenchus xylophilus). Nematology 2011, 13, 87–93. [Google Scholar]
  8. Bi, Z.; Gong, Y.; Huang, X.; Yu, H.; Bai, L.; Hu, J. Efficacy of four nematicides against the reproduction and development of pinewood nematode, Bursaphelenchus xylophilus. J. Nematol. 2015, 47, 126–132. [Google Scholar]
  9. Chelinho, S.; Maleita, C.M.N.; Francisco, R.; Braga, M.E.M.; da Cunha, M.J.M.; Abrantes, I.; Sousa, H.C.; Morais, P.V.; Sousa, J.P. Toxicity of the bionematicide 1,4-naphthoquinone on non-target soil organisms. Chemosphere 2017, 181, 579–588. [Google Scholar] [CrossRef]
  10. Hu, W.; Du, W.; Bai, S.; Lv, S.; Chen, G. Phenoloxidase, an effective bioactivity target for botanical insecticide screening from green walnut husks. Nat. Prod. Res. 2018, 32, 2848–2851. [Google Scholar] [CrossRef]
  11. Maleita, C.M.N.; Esteves, I.; Chim, R.; Fonseca, L.; Braga, M.E.M.; Abrantes, I.; Sousa, H.C. Naphthoquinones from walnut husk residues show strong nematicidal activities against the root-knot nematode Meloidogyne hispanica. ACS Sustain. Chem. Eng. 2007, 5, 3390–3398. [Google Scholar] [CrossRef]
  12. Pavela, R. Efficacy of naphthoquinones as insecticides against the house fly, Musca domestica L. Ind. Crops Prod. 2013, 43, 745–750. [Google Scholar] [CrossRef]
  13. Ravichandiran, P.; Sheet, S.; Premnath, D.; Kim, A.R.; Yoo, D.J. 1,4-Naphthoquinone analogues: Potent antibacterial agents and mode of action evaluation. Molecules 2019, 24, 1437. [Google Scholar] [CrossRef] [PubMed]
  14. Shang, X.F.; Liu, Y.Q.; Guo, X.; Miao, X.L.; Chen, C.; Zhang, J.X.; Xu, X.S.; Yang, G.Z.; Yang, C.J.; Li, J.C.; et al. Application of sustainable natural resources in agriculture: Acaricidal and enzyme inhibitory activities of naphthoquinones and their analogs against Psoroptes cuniculi. Sci. Rep. 2018, 8, 1609. [Google Scholar] [CrossRef] [PubMed]
  15. Ma, W.D.; Zou, Y.P.; Wang, P.; Yao, X.H.; Sun, Y.; Duan, M.H.; Fu, Y.J.; Yu, B. Chimaphilin induces apoptosis in human breast cancer MCF-7 cells through a ROS-mediated mitochondrial pathway. Food Chem. Toxicol. 2014, 70, 1–8. [Google Scholar] [CrossRef]
  16. Wang, J.; Zeng, G.; Huang, X.; Wang, Z.; Tan, N. 1,4-naphthoquinone triggers nematode lethality by inducing oxidative stress and activating insulin/IGF signaling pathway in Caenorhabditis elegans. Molecules 2017, 22, 798. [Google Scholar] [CrossRef]
  17. Esteves, I.; Maleita, C.M.N.; Fonseca, L.; Braga, M.E.M.; Abrantes, I.; Sousa, H.C. In vitro nematicidal activity of naphthoquinones against the root-lesion nematode, Pratylenchus thornei. Phytopathol. Meditter. 2017, 56, 127–132. [Google Scholar]
  18. Mohanty, J.G.; Jaffe, J.S.; Schulman, E.S.; Raible, D.G. A highly sensitive fluorescent micro-assay of H2O2 release from activated human leukocytes using a dihydroxyphenoxazine derivative. J. Immunol. Methods 1997, 202, 133–141. [Google Scholar] [CrossRef]
  19. Yoon, D.S.; Lee, M.H.; Cha, D.S. Measurement of intracellular ROS in Caenorhabditis elegans using 2′,7′-dichlorodihydrofluorescein diacetate. Bio. Protoc. 2018, 8, E2774. [Google Scholar] [CrossRef]
  20. Akhtar, Y.; Isman, M.B.; Lee, C.-H.; Lee, S.-G.; Lee, H.-S. Toxicity of quinones against two-spotted spider mite and three species of aphids in laboratory and greenhouse conditions. Ind. Crops Prod. 2012, 37, 536–541. [Google Scholar] [CrossRef]
  21. Jeon, J.-H.; Kim, M.-G.; Lee, H.-S. Larvicidal activity of naturally occurring naphthalenedione and its structurally related analogs against three mosquito species. J. Am. Mosq. Control Assoc. 2015, 31, 71–76. [Google Scholar] [CrossRef] [PubMed]
  22. Kim, M.-G.; Lee, H.-S. Insecticidal toxicities of naphthoquinone and its structural derivatives. Appl. Biol. Chem. 2016, 59, 2–8. [Google Scholar] [CrossRef]
  23. Michaelakis, A.; Strongilos, A.T.; Bouzas, E.A.; Koliopoulos, G.; Couladouros, E.A. Larvicidal activity of naturally occurring naphthoquinones and derivatives against the West Nile virus vector Culex pipiens. Parasitol. Res. 2009, 104, 657–662. [Google Scholar] [CrossRef] [PubMed]
  24. Choi, I.-H.; Kim, J.; Shin, S.-C.; Park, I.-K. Nematicidal activity of monoterpenoids against the pine wood nematode (Bursaphelenchus xylophilus). Russ. J. Nematol. 2007, 1, 35–40. [Google Scholar]
  25. Seo, S.-M.; Kim, J.; Kim, E.; Park, H.-M.; Kim, Y.-J.; Park, I.-K. Structure-activity relationship of aliphatic compounds for nematicidal activity against pine wood nematode (Bursaphelenchus xylophilus). J. Agric. Food Chem. 2010, 58, 1823–1827. [Google Scholar] [CrossRef] [PubMed]
  26. Han, H.-R.; Han, B.Y.; Chung, Y.J.; Shin, S.C. A simple PCR-RFLP for idenficiation of Bursaphelenchus spp. collected from Korea. Plant Pathol. J. 2008, 24, 150–163. [Google Scholar] [CrossRef]
  27. Finney, D.J. Probit Analysis, 3rd ed.; Cambridge University Press: Cambridge, UK, 1971; p. 333. [Google Scholar]
  28. R Development Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2008. [Google Scholar]
Sample Availability: Sample of the compounds 1,4-naphthoquinone, juglone, and plumbagin are available from the authors.

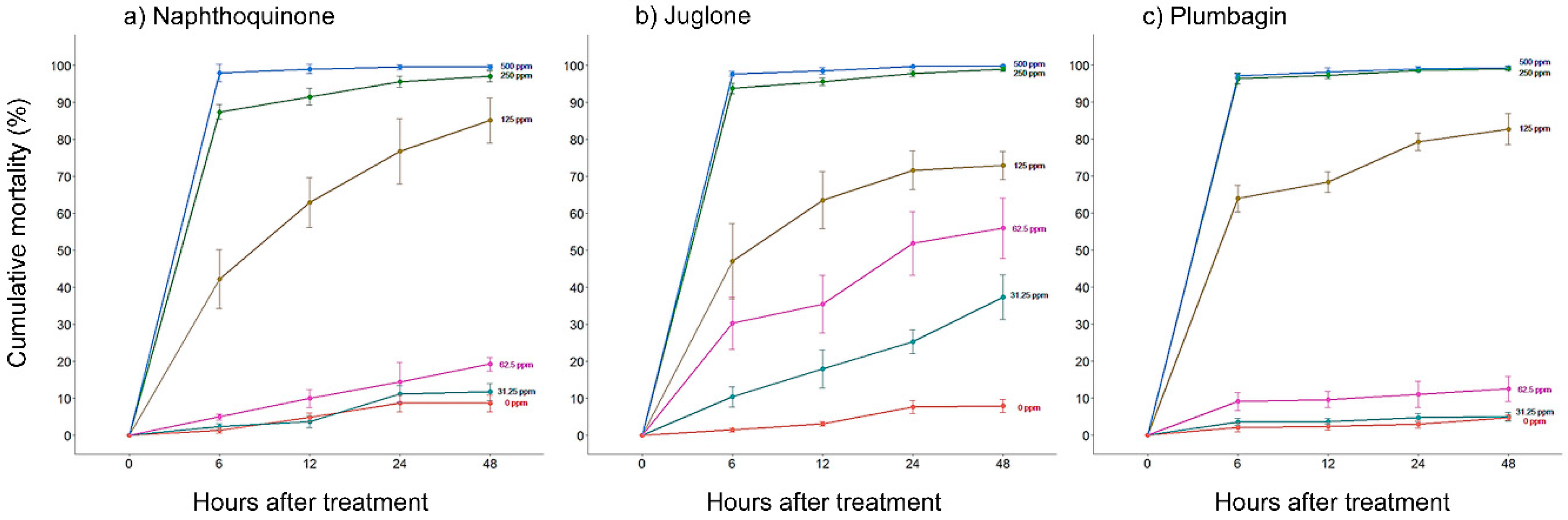

Figure 1. Cumulative mortality (%) in Bursaphelenchus xylophilus exposed to serial concentrations from 500 ppm to 31.25 ppm of (a) 1,4-naphthoquinone, (b) juglone, and (c) plumbagin. A 1% dimethyl sulfoxide (DMSO) solution was used as the control. Data are averages of six replicates, and bars represent standard deviations.
Figure 1. Cumulative mortality (%) in Bursaphelenchus xylophilus exposed to serial concentrations from 500 ppm to 31.25 ppm of (a) 1,4-naphthoquinone, (b) juglone, and (c) plumbagin. A 1% dimethyl sulfoxide (DMSO) solution was used as the control. Data are averages of six replicates, and bars represent standard deviations.
Molecules 24 03634 g001

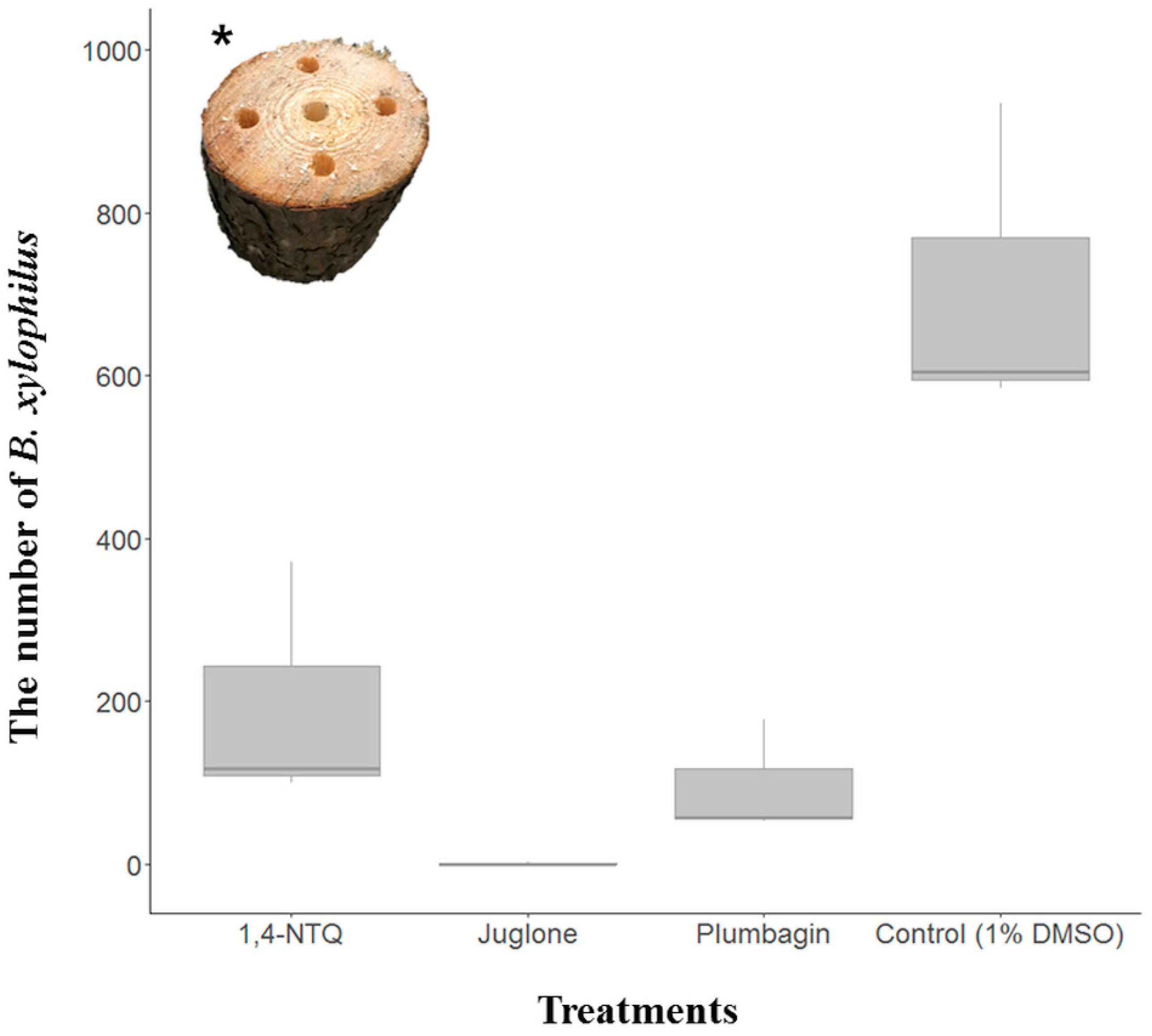

Figure 2. Semi-in vivo assay for nematicidal activities of three naphthoquinones against Bursaphelenchus xylophilus. * Picture of the tested pine bloks.
Figure 2. Semi-in vivo assay for nematicidal activities of three naphthoquinones against Bursaphelenchus xylophilus. * Picture of the tested pine bloks.
Molecules 24 03634 g002

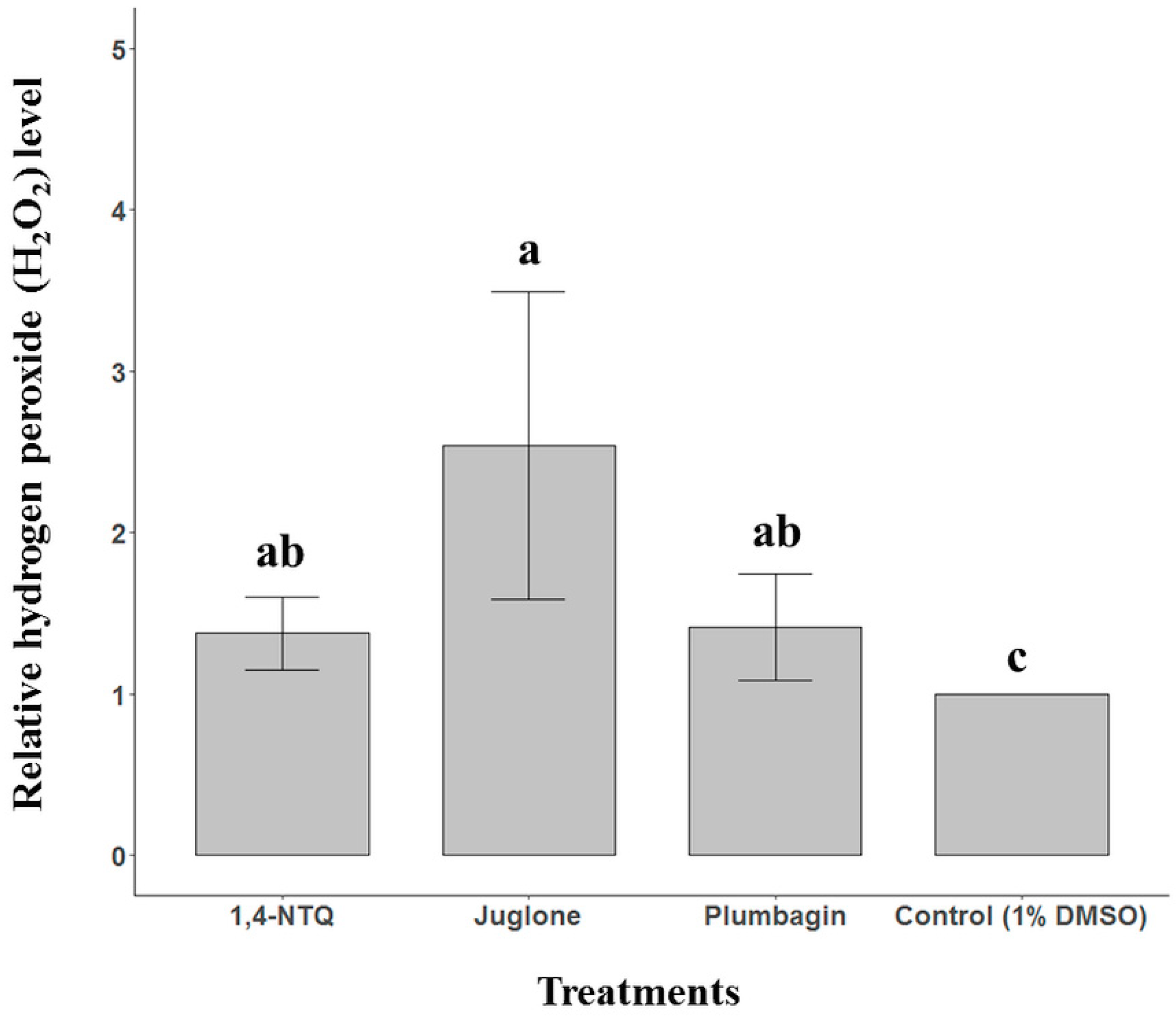

Figure 3. Measurement of H2O2 levels in Bursaphelenchus xylophilus treated with three naphthoquinones in vitro. The differences in letters above the bars represent significantly different statistical values at p < 0.05 (Tukey’s test).
Figure 3. Measurement of H2O2 levels in Bursaphelenchus xylophilus treated with three naphthoquinones in vitro. The differences in letters above the bars represent significantly different statistical values at p < 0.05 (Tukey’s test).
Molecules 24 03634 g003
Figure 4. Three naphthoquinones stimulate the reactive oxygen species (ROS) production in Bursaphelenchus xylophilus in vitro. (a) B. xylophilus was incubated with 50 ppm concentrations of 1,4-NTQ, juglone, and plumbagin and a 1% DMSO solution as the control for 3 h, and then treated with 12.5 μM 2′,7′-dichlorofluorescein diacetate for 30 min and photographed by fluorescence microscopy. (b) The graph represents relative fluorescent intensity of 2′,7′-dichlorofluorescein generated by the three naphthoquinones compared with that by 1% DMSO. Statistical differences in the means are indicated with different lower-case letters. Bars represent standard deviation.
Figure 4. Three naphthoquinones stimulate the reactive oxygen species (ROS) production in Bursaphelenchus xylophilus in vitro. (a) B. xylophilus was incubated with 50 ppm concentrations of 1,4-NTQ, juglone, and plumbagin and a 1% DMSO solution as the control for 3 h, and then treated with 12.5 μM 2′,7′-dichlorofluorescein diacetate for 30 min and photographed by fluorescence microscopy. (b) The graph represents relative fluorescent intensity of 2′,7′-dichlorofluorescein generated by the three naphthoquinones compared with that by 1% DMSO. Statistical differences in the means are indicated with different lower-case letters. Bars represent standard deviation.
Molecules 24 03634 g004

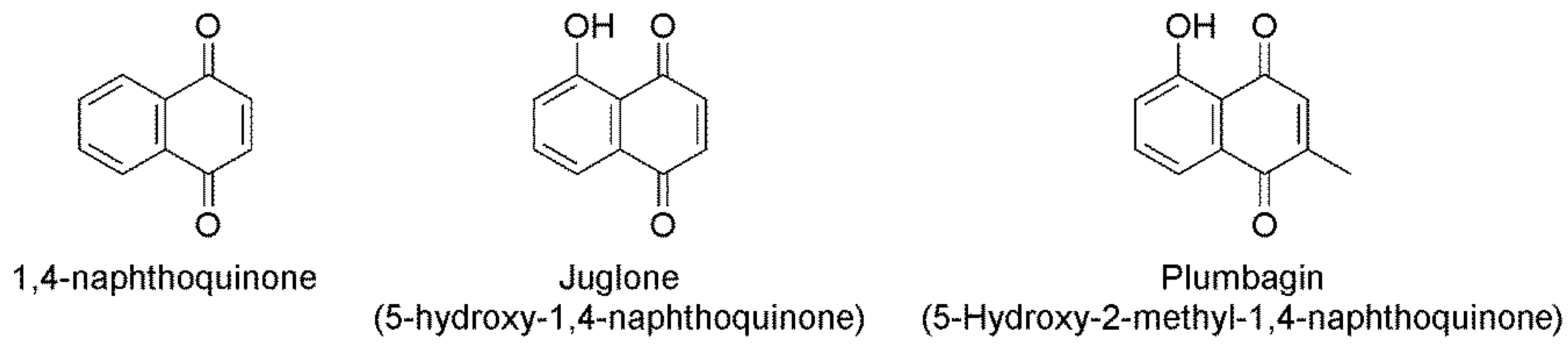

Figure 5. Structure of the three naphthoquinones.
Figure 5. Structure of the three naphthoquinones.
Molecules 24 03634 g005
Table 1. The median lethal concentration (LC50) values of naphthoquinones against Bursaphelenchus xylophilus mixed development stages in vitro at 48 h after exposure to 1,4-naphthoquinone, juglone, and plumbagin.
Table 1. The median lethal concentration (LC50) values of naphthoquinones against Bursaphelenchus xylophilus mixed development stages in vitro at 48 h after exposure to 1,4-naphthoquinone, juglone, and plumbagin.
CompoundsLC50 (ppm) 195% CI (ppm) 2R SquareRegression Line
1,4-NTQ (1,4-Naphthoquinone)10060–140R2 = 0.8489y = 92.086x − 134.17
Juglone (5-Hydroxy-1,4-naphthoquinone)56.9816.98–96.98R2 = 0.9238y = 60.502x − 56.227
Plumbagin (5-Hydroxy-2-methyl-1,4-naphthoquinone)103.8663.86–143.86R2 = 0.8512y = 95.707x − 142.99
1 LC50 was analyzed according to the mortality (%) of nematodes at 48 h. 2 CI: confidence interval.
