Article

Aggregation-Morphology-Dependent Electrochemical Performance of Co3O4 Anode Materials for Lithium-Ion Batteries

by
Linglong Kong
1,2,
Lu Wang
3,
Deye Sun
2,
Su Meng
2,
Dandan Xu
1,
Zaixin He
1,
Xiaoying Dong
1,
Yongfeng Li
1,* and
Yongcheng Jin
2,*
1
State Forestry and Grassland Administration Key Laboratory of Silviculture in downstream areas of the Yellow River, Shandong Agricultural University, No. 61 Daizong Road, Taian 271018, China
2
Qingdao Institute of Bioenergy and Bioprocess Technology, Chinese Academy of Sciences, No.189 Songling Road, Qingdao 266101, China
3
School of Materials Science and Engineering, Nankai University, Tianjin 300350, China
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(17), 3149; https://doi.org/10.3390/molecules24173149
Submission received: 5 August 2019 / Revised: 26 August 2019 / Accepted: 26 August 2019 / Published: 29 August 2019
Browse Figures
Review Reports Versions Notes

Abstract

:
The aggregation morphology of anode materials plays a vital role in achieving high performance lithium-ion batteries. Herein, Co3O4 anode materials with different aggregation morphologies were successfully prepared by modulating the morphology of precursors with different cobalt sources by the mild coprecipitation method. The fabricated Co3O4 can be flower-like, spherical, irregular, and urchin-like. Detailed investigation on the electrochemical performance demonstrated that flower-like Co3O4 consisting of nanorods exhibited superior performance. The reversible capacity maintained 910.7 mAh·g−1 at 500 mA·g−1 and 717 mAh·g−1 at 1000 mA·g−1 after 500 cycles. The cyclic stability was greatly enhanced, with a capacity retention rate of 92.7% at 500 mA·g−1 and 78.27% at 1000 mA·g−1 after 500 cycles. Electrochemical performance in long-term storage and high temperature conditions was still excellent. The unique aggregation morphology of flower-like Co3O4 yielded a reduction of charge-transfer resistance and stabilization of electrode structure compared with other aggregation morphologies.

1. Introduction

Recently, secondary batteries, especially lithium-ion batteries (LIBs) have become significant components in portable devices, electric vehicles, and exploitation systems of clean energy, due to their satisfactory energy density, lifetime, and environmental friendliness [1,2]. However, the booming society is imposing a strong demand on energy density of LIBs [3,4]. The current LIBs utilizing traditional electrode materials, such as lithium cobalt oxides and graphite, can only achieve limited enhancement of energy density in the range of 150–300 Wh·kg−1 [5]. Thus, exploiting high-capacity electrode materials has been the primary solution [6]. Regarding anodes, transition metal oxides, such as NiO [7], Fe2O3 [8], ZnO [9], CuO [10], MnO [11], Co3O4 [12], ZnCo2O4 [13], and NiCo2O4 [14], are promising future anode materials to substitute for the widely used carbon materials. Typically, Co3O4, with its high theoretical capacity (890 mAh·g−1) owing to storage for eight lithium ions per molecule based on the reversible conversion reaction between Co3O4/Li and Co/Li2O (Co3O4 + 8Li ↔ 3Co + 4Li2O), has been an important candidate as a next generation anode. Additionally, high volumetric capacity of Co3O4 over graphite is another crucial advantage [15].However, the intrinsic low electrical conductivity, poor Coulombic efficiency [16], high voltage hysteresis [17], high average delithiation potential [15], and high large volume fluctuation in the discharge/charge procedure induce severe pulverization and electrochemical instability, and thus impair the capacity stability and power performance.
Numerous effective solutions have been developed to solve the existing issues of Co3O4 anode materials. They can be classified in three types: (i) rational design of the microstructure, (ii) surface or bulk modification, and (iii) constructing composites. The microstructure of Co3O4 can be designed as nanorods [18], nanotubes [19], nanocubes [20], nanosheets [21], nanowires [22], microspheres [23], polyhedra [24], fusiform [25], and 3D structures, such as dumbbells [26], hierarchical networks [27], hierarchical arrays [28], mesoporous octahedra [29], and multishelled spheres [30]. Nano- and microscale Co3O4 structures can alleviate the volume expansion/shrink, enhance the contact of particles and electrolyte, and shorten the pathway of ions and electrons. Modification of Co3O4 by coating with carbon [31,32], conductive polymer [33], and MoS2 [34], as well as by doping C [35], K [36], Ni, and Zn [37], has been demonstrated to inhibit the structure and capacity decay. Similarly, fabricating Co3O4 composites with CNTs [38], graphene [39], metal oxides [40,41], and porous carbon [42] through in situ or ex situ methods has contributed to the improvement of its electrochemical stability. It has been positively confirmed that the structural characteristics, such as particle size, elemental distribution, and aggregation morphology, largely influence the electrochemical performance of Co3O4. Nano-scale Co3O4 particles can effectively solve the problem of conductivity and volume effect, but their high surface area may also cause undesirable aggregation, large interparticle resistance, and excessive loss of lithium in forming the solid electrolyte interphase (SEI) [24]. Bottom-up assembly based on nanoparticles to microscale aggregations may avoid these faults, and make Co3O4 more available as a commercial micrometer electrode material. Although many works have synthesized diverse Co3O4 structures with nano primary particles, the main focus has mostly centered on improved electrochemical properties, and the detailed study on the structure–function relationship between electrochemical performance and aggregation morphology to date is not sufficient.
Herein, four kinds of precursors with different morphology were prepared by mild coprecipitation reaction using different cobalt sources. Co3O4 anode materials in distinct aggregations (flower-like, spherical, irregular, and urchin-like) were obtained after calcination. The systematic testing results revealed that flower-like Co3O4 materials possessed superior electrochemical stability, especially at higher current densities. The reversible capacity maintained 910.7 mA·g−1 at 500 mA·g−1 and 717 mAh·g−1 at 1000 mA·g−1 after the 500th cycle, respectively. The superior electrochemical behavior of flower-like Co3O4 derived from its structural stability and lower reaction impedance.

2. Experimental Results and Discussion

The aggregation morphology of Co3O4 materials was flexibly regulated by constructing various precursors, as shown in Figure 1. Specifically, the homogeneous precipitation method was applied in mild conditions, using urea as precipitant and cobalt salts as cobalt sources. SEM images of the synthesized precursors proved the successful regulation of the morphology (Figure 2a). It was proven that different cobalt salts produced precursors in various shapes. Bunches of flower-like precursors consisting of nanorods were inclined to generate when using cobalt chlorate. The configuration resulting from a cobalt sulfate precursor was spherical. Micro-clusters made of flakes tended to form for cobalt acetate. Urchin-like particles were prepared by applying cobalt nitrate. The formation process of the precursors involves nuclei and growth, which can be largely influenced by the microenvironment of the reaction solution. The CO32− and OH− produced from the decomposition of urea contributed to the initial nuclei, and the formed crystal nuclei were inclined to adsorb the existing anions in the solution, leading to a negatively charged surface [43]. The existing Cl−, SO42−, AC−, and NO3− may then exert influence on the following growth behavior based on electrostatic interactions [43]. Thus, the morphology of the precursors corresponding to different cobalt sources could be easily adjusted. The crystal structures of the obtained precursors originating from different cobalt salts were confirmed and are shown in Figure 2b. The XRD pattern of the precursor from cobalt chlorate demonstrated fine crystallinity, a good match with the Co(CO3)0.35Cl0.20(OH)1.10 (JCPDS card No. 38–0547), and no apparent impurity. The precursor prepared by cobalt sulfate possessed similar crystal structure, but the crystallinity seemed relatively low. As to the precursors corresponding to cobalt acetate and cobalt nitrate, the characteristic diffraction peaks were well indexed to Co(CO3)0.5(OH) 0.11H2O (JCPDS card No. 48–0083). The obvious peaks at 2θ = 14.44° and 24.03° may be assigned to CoC2O4 (JCPDS card No. 37–0719). Thermal behavior analysis of the as-prepared precursors was conducted by TG and is displayed in Figure 2c. During the testing process, the main weight loss occurred in the range of 200–300 °C, and the residual weight remained stable until 550 °C. The total loss in weight was calculated to be 26.2%, 26.3%, 25.3%, and 27.7%, respectively, values which are basically consistent with the theoretical values [40,41]. Thus, the calcination temperature was fixed at 550 °C, and the precursors transformed into oxides.
After calcinating at 550 °C for 2 h, the acquired samples had the structure shown in Figure 3a. All the diffraction peaks corresponded to the characteristic peaks of cubic Co3O4 (JCPDS card No. 09–0418), revealing the generation of Co3O4 with the expected crystallinity and no impurity. The lattice constants (a) of Co3O4-Cl, Co3O4-SO4, Co3O4-AC, and Co3O4-NO3 were 8.087 Å, 8.076 Å, 8.070 Å, and 8.060 Å, respectively, which were close to the value (a = 8.084 Å) of the standard Co3O4 (Figure 3b). Moreover, the average particle size of the as-prepared Co3O4 could be calculated based on XRD data and Scherrer equation. Co3O4-Cl possessed a larger particle size of 27.8 nm than that of Co3O4-SO4 (16.9 nm), while the values for Co3O4-AC and Co3O4-NO3 were identical (25.2 nm). FT-IR and Raman spectra further verified the formation of the desired oxides. The absorption peaks at 576 and 662 cm−1 in Figure 3c stand for the characteristic stretching vibration peaks of Co–O band, and the typical peaks seen at 464, 507, 604, and 674 cm−1 (Figure 3d) belong to crystalline Co3O4 [44,45], which provided sufficient evidence for successful synthesis.
Aggregation morphology of the Co3O4 obtained with different cobalt salts was investigated by SEM. The images in Figure 4 present the distinct differences. The morphology of the calcinated products was maintained to some degree from the precursors, but obvious changes occurred. For Co3O4-Cl, flower-like particles were assembled into bamboo-like rods, and the rods consisted of nanograins (Figure 4a,b). Spherical precursors of Co3O4-SO4 were sintered into ellipsoids (Figure 4c), which consisted of numerous small grains (Figure 4d). Flake-like precursors corresponding to Co3O4-AC were transformed to monodispersed nanoparticles, but serious aggregation occurred and led to irregular clusters (Figure 4e,f). The urchin-like shape still existed for Co3O4-NO3 (Figure 4g), but the nanorods changed into bamboo-like rods (Figure 4h). Using the EDS detecting system, the distributions of elemental oxygen and cobalt were acquired for the as-prepared Co3O4 with different micromorphologies, as shown in Figure 5. The results showed that elemental O and Co were distributed homogenously in the various aggregates. The above results demonstrate that Co3O4 materials with different aggregation morphologies can be successfully prepared by the rational use of cobalt sources in the synthesis process.
The relationship between the aggregation states of Co3O4 and its performance were illustrated in detail by electrochemical analysis. Cyclic voltammograms (CV) were first collected in the coin cells from 0.01 V to 3.0 V, and shown in Figure 6. In the initial negative scanning process, the obvious cathodic peaks located around 0.80 V were ascribed to the transformation from Co3O4 to Co and some side reactions, including the generation of the SEI layer [46,47] The reduction potentials for Co3O4-Cl, Co3O4-SO4, Co3O4-AC, and Co3O4-NO3 were 0.854 V, 0.765 V, 0.850 V, and 0.817 V (Table 1), respectively, and the difference in potential may indicate that small grains benefited the electrochemical reaction. In the subsequent positive scanning, broad anodic peaks near 2.1 V occurred, and were related to the transition of Co and Li2O [48]. The corresponding oxidation potentials were 2.055 V, 2.118 V, 2.061 V, and 2.070 V (Table 1), respectively. The slight increase of anodic potential for Co3O4-SO4 may have been caused by excessive formation of SEI on the smaller primary particles. As the CV test proceeded, the potential for reduction reaction inclined to shift to 1.1 V, and the values of Co3O4-SO4 displayed a larger increase, while the oxidation potential stayed at almost 2.1 V. The tested curves were basically overlapped, revealing preferable reversibility during the electrochemical conversion. The CV results demonstrate that Co3O4 materials exhibit similar electrochemical behavior in spite of particle morphology.
The practical capacity for lithium storage of the as-prepared Co3O4 was evaluated through galvanostatic test. The relevant results are listed in Figure 7. The initial discharge–charge curves at 200 mA·g−1, shown in Figure 7a, showed a similar rule to the cathodic/anodic potentials of the CV data. The plateau potential in discharging of to Co3O4-SO4 was slightly lower, combined with a larger capacity (1281.8 mAh·g−1). The initial coulombic efficiencies (CE) of Co3O4-Cl, Co3O4-SO4, Co3O4-AC, and Co3O4-NO3 were close, and irreversible capacity can occur due to undesired side reactions. It seemed that the spherical Co3O4-SO4 with smaller grains displayed superior electrochemical performance. Long-term cycling was conducted at 200 mA·g−1, 500 mA·g−1, and 1000 mA·g−1. Figure 7b reveals that Co3O4-SO4 delivered a higher capacity in the first 30 cycles, which demonstrates the advantage of decreasing grain size compared with morphology. The capacity then showed abrupt decay, which may have been due to the collapse of secondary particles. By contrast, Co3O4-Cl, Co3O4-AC, and Co3O4-NO3 possessed stable cyclic traits. The capacity of Co3O4-Cl was relatively smaller than those of Co3O4-AC and Co3O4-NO3 during the 100 cycles, which indicates that grain size may be the key at low current density, regardless of aggregation morphology. Reaction sites can be maximized along with the reduction on particle size. Obviously, the discharged capacities for Co3O4-Cl, Co3O4-AC, and Co3O4-NO3 samples were still higher than the theoretical value even after 100 cycles, and the extra capacity be in part due to surface pseudocapacitive behavior, which is commonly discovered in transition metal oxides with high surface area and nano size [47]. Moreover, the reversible capacities at 200 mA·g−1 for Co3O4-Cl, Co3O4-AC, and Co3O4-NO3 samples increased along with the cycling, originating from the progressive activation and gradual formation of a gel-like surface film [47,48,49,50]. Cycle properties at higher currents (500 mA·g−1 and 1000 mA·g−1) were then analyzed. At 500 mA·g−1 (Figure 7c), spherical Co3O4-SO4 materials still had superior capacity before 30 cycles, then the capacity sharply decreased and fluctuated. By contrast, the flower-like Co3O4-Cl sample showed preferable cycle stability. The capacity remained at 910.7 mAh·g−1 after 500 cycles, and the capacity retention rate reached to 92.7% with only tiny decay (0.015% per cycle). Co3O4-AC clusters and urchin-like Co3O4-NO3 performed unstably in the long-term cycle. The same situation appeared at the current density of 1000 mA·g−1 (Figure 7d). The Co3O4-Cl electrode achieved a capacity of 717 mAh·g−1 in the 500th cycle, with an acceptable retention rate (78.27%). Admittedly, nanoparticles benefitted from a reducing path length of Li+, but side reactions were also enhanced [43]. In addition, the volume changes may have resulted in the irreversible destruction of secondary particles. Therefore, the flower-like Co3O4-Cl with relatively larger grains displayed more satisfactory stability, especially at high current density.
The rate performance in Figure 8a and low-temperature test in Figure 8c also demonstrated that Co3O4 with small grains (Co3O4-SO4) had advantages on capacity, but the capacity stability seemed slight deficient. As to the cells with a standing time of 60 days (Figure 8b), the reversible capacity at 500 mA·g−1 decreased compared to the cells without standing (Figure 7c). Co3O4-Cl anode materials with flower-like morphology possessed superior cyclic stability. The capacity reached 695.9 mAh·g−1 after 300 cycles, indicating the structural advantages of Co3O4-Cl. Cells working under extreme conditions, such as high temperatures, can induce aggravating side reactions. Transition metal oxides anodes have the same problem. The test results at 45 °C and 500 mA·g−1 proved the enhanced cycle stability of flower-like Co3O4 anode materials, and the relevant capacity reached 947.6 mAh·g−1 in the 100th cycle (Figure 8d).
Electrochemical kinetics and reaction mechanism were then investigated by implementing CV tests at different scan rates from 0.1 mV·s−1 to 1.0 mV·s−1 (Figure 9a–d). The relationship between peak current (Ip) and scan rate (ν) can be described with Equation (1) to determine the contributions of diffusion-limited and capacitive effects during the cathodic and anodic process.
Ip = aνb
where a and b refer to variable parameters. B = 1 implies capacitive behavior, while b = 0.5 corresponds to a diffusion-controlled process. The specific value of b can be calculated by fitting the line of logIp vs. logν and obtaining the slope. The detailed data for cathodic and anodic peaks are shown in Figure 9e,f, including the fitted slopes. The b values of the Co3O4-SO4 sample were 0.764 and 0.827, respectively, related to the cathodic and anodic process, which were higher than those of other Co3O4 samples. A higher b value reflects the enhanced capacitive effect and improved rate property [51]. In the same way, the lithium ion diffusion property can also be calculated according to Equation (2).
Ip = (2.69 × 105)n1.5aD0.5ν0.5ΔC0
where Ip represents peak current, n relates to the number of electrons per reactant, a corresponds to the area of active electrode, D denotes lithium ion diffusion coefficient, and ΔC0 refers to the concentration change of Li during electrochemical reaction. Considering the constant parameters of n, a, and ΔC0, the slope for the line between Ip and square root of the scan rate can illustrate the lithium ion diffusion property. The relevant plots are displayed in Figure 9g,h. The results by linear fitting demonstrated that spherical Co3O4 with small grains (Co3O4-SO4) had higher D values in both cathodic and anodic processes. In comparison, flower-like Co3O4 with nanorods (Co3O4-Cl) possessed inferior lithium ion diffusion.
Since the spherical Co3O4 with small grains (Co3O4-SO4) had stronger Li+ diffusion ability than that of flower-like Co3O4 with nanorods (Co3O4-Cl), the relevant electrochemical performance should be superior. However, the above electrochemical results reveal that flower-like Co3O4 exhibited more excellent performance. Therefore, it can be concluded that grain size plays an important role in delivering capacity, and aggregation morphology decides the cycle performance under various working conditions. Irregular clusters with nanoparticles (Co3O4-AC) may promote excessive side reactions. Spherical Co3O4 with small grains (Co3O4-SO4) may easily suffer from the fracture of secondary particles, as might urchin-like Co3O4 with nanorods (Co3O4-NO3). Flower-like Co3O4 with nanorods (Co3O4-Cl) may preferably balance stability of structure and capacity.
Further measurement on the cycled electrodes by EIS and SEM provided more proof of the performance difference. EIS spectra (Figure 10) were collected on fresh electrodes and cycled electrodes after 500 cycles at 500 mA·g−1 and 1000 mA·g−1. All the spectra comprised a semicircle (medium–high frequency) and an inclined line (low frequency region) before and after cycling. The charge-transfer resistance corresponding to the semicircle of the cycled Co3O4-Cl electrodes was obviously smaller than those of other electrodes at 500 mA·g−1 and 1000 mA·g−1. The reduced resistance to charge transfer facilitates rapid electrochemical reaction. Meanwhile, the active particles were clearly seen on the fresh electrodes (Figure 11a–d). After 500 cycles at 500 mA·g−1, the surface on the electrode was covered with SEI films, which has also been detected in other studies [47]. The surface for the Co3O4-Cl electrode remained intact (Figure 11e), while pores and fractures emerged on the electrodes of Co3O4-SO4, Co3O4-AC, and Co3O4-NO3. In turn, this indicates the enhanced structural stability of the electrode, which may be radically ascribed to the active materials. Flower-like Co3O4 with nanorods (Co3O4-Cl) exhibited advantages in constructing a stable electrode with superior performance. Therefore, aggregation morphology of the Co3O4 materials played a vital role in achieving high performance and stability.
By utilizing the prepared Co3O4 as anode active materials, full batteries were assembled to evaluate a realistic application scenario. The cathodes were composed of commercial NCM811 with an areal loading of 4.0–5.0 mg·cm−1. The working voltage window was set at 0.01–4.3 V, and the specific capacity was calculated according to the weight of NCM. Moreover, the capacity of the Co3O4 electrode was almost equal to that of the positive electrode, and moderate pre-lithiation on the Co3O4 negative electrode was adopted before assembling full battery. Figure 12a reveals the initial charge–discharge curves of the full batteries at 40 mA·g−1. The inclined charging and discharging platforms in the full batteries were similar to those of the NCM/Li half-cell. Figure 12b presents the cycle performance of the assembled full batteries at 100 mA·g−1. The cycle stability was relatively good, and the capacities of the batteries using Co3O4-Cl, Co3O4-SO4, Co3O4-AC, and Co3O4-NO3 remained at 137.2, 124.3, 126.4, and 107.1 mAh·g−1, respectively, after 20 cycles. The full battery adopting the flower-like Co3O4 delivered a comparatively higher capacity, indicating the structural advantage of flower-like Co3O4 in practical applications.

3. Experimental Materials and Methods

3.1. Experimental Materials

The chemical reagents used, including cobalt chlorate hexahydrate (AR, ≥ 99.0%), cobalt sulfate heptahydrate (AR, ≥ 99.5%), cobalt acetate tetrahydrate (99.9% metal basis), cobalt nitrate hexahydrate (AR, 99.0%), and urea (AR, 99.0%) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China) and used without further purification.

3.2. Experimental Methods

3.2.1. Synthesis of the Precursors

The precursors were prepared using the homogeneous precipitation method [52]. In the typical preparation process, 0.004 mol cobalt salts and 0.02 mol urea were weighed and transferred into a 100 mL Teflon liner with 50 mL distilled water, followed by 15 min ultrasonic treatment. The liner was then placed in a stainless steel autoclave and heated at 95 °C for 8 h. The precipitates in the cooling autoclave were separated, washed repeatedly with distilled water and ethanol, and dehydrated at 60 °C for 12 h. Four kinds of precursors were used, corresponding to four cobalt salts, respectively, and the preparation procedure was the same.

3.2.2. Synthesis of Cobalt Oxides

The dried precursors were calcined in the muffle furnace under air atmosphere. The sintering temperature and holding time were set at 550 °C and 2 h, respectively. The heating rate was fixed at 5 °C·min−1. The black cobalt oxide powders were obtained after the furnace cooling to ambient temperature. The four cobalt oxides were marked as Co3O4-Cl, Co3O4-SO4, Co3O4-AC, and Co3O4-NO3, respectively.

3.2.3. Material Characterization

The crystal structure, morphologies, and elemental distribution of the synthesized materials and electrodes were characterized by X-ray diffraction (XRD, Bruker AXS D8, Karlsruhe, Germany) at 4°·min−1, and scanning electron microscopy (SEM, Hitachi S-4800, Tokyo, Japan) combined with EDS detector. The chemical states of the obtained materials were tested by applying Fourier transformation infrared spectroscopy (FT-IR, Bruker V80, Karlsruhe, Germany) at 4000–400 cm−1 and Raman spectroscopy (Thermo Scientific DXR, Waltham, MA, USA, λ = 532 nm). Thermal behavior analysis was carried out in air using a thermal gravimetric analyzer (TGA, Thermo Scientific, Waltham, MA, USA) at 10 °C·min−1 from 30 °C to 800 °C.

3.2.4. Electrochemical Measurements

Electrochemical measurements of the prepared anode materials were carried out in 2032-type coin cells, including working electrodes, separators (Celgard 2400, Φ = 17 mm), counter electrodes (Li foils, Φ = 16 mm), and electrolyte (1 M LiPF6 in EC/DEC, EC: DEC = 3:7, mass ratio). The working electrodes (Φ = 12 mm) were fabricated by blending active materials, Super P and poly(vinylidene fluoride) (70:20:10, weight ratio) in the dispersant (N-methyl-2-pyrrolidone, NMP) for 4 h, coating the slurry on the copper foil, evaporating the solvent in the oven, and subsequently punching into disks. The mass loading of active materials was controlled at 0.7–1.0 mg·cm−1. The cells were assembled in the glove-box and aged for 4 h before testing. Galvanostatic discharge/charge results were acquired using Land instruments (CT-2001A) within the given potential region (0.01–3.0 V, vs. Li/Li+). Cyclic voltammograms (CV) and electrochemical impedance spectra (EIS) were conducted on an electrochemical workstation (Bio-logic VSP) with a set potential window (0.01–3.0 V, vs. Li/Li+) and frequency range (10 mHz–100 kHz).

4. Conclusions

In summary, the aggregation morphology of the Co3O4 materials can be easily regulated by synthesizing precursors in various shapes with different cobalt sources in the coprecipitation process, including spherical, flower-like, irregular, and urchin-like Co3O4. Applied in a battery system, flower-like Co3O4 with nanorods displayed a superior reversible capacity of 910.7 mAh·g−1 at 500 mA·g−1 and 717 mAh·g−1 at 1000 mA·g−1 after 500 cycles, enhanced cyclic stability with a capacity retention rate of 92.7% at 500 mA·g−1 and 78.27% at 1000 mA·g−1 after 500 cycles, and high performance in harsh environments (long-term storage and high temperature). Although the capacitive character and diffusion property of flower-like Co3O4 were slightly poor, the lower charge-transfer resistance and stable electrode structure owing to the advantage of its unique aggregation morphology contributed a satisfying performance. When constructing Co3O4-based anode materials, the property of single grains and aggregates should be simultaneously considered, especially the morphology of the aggregates. Thus, the relationship between aggregation morphology and performance of Co3O4 can be applied to synthesize other high-performance anode materials for LIBs.

Author Contributions

L.K., Y.L. and Y.J. designed the experiment. L.K. performed the whole experiments. L.W., D.S., S.M., D.X., Z.H. and X.D. helped to analyze the characterizations. L.K., Y.L. and Y.J. wrote the paper. Everybody comments on the final manuscript.

Funding

This work was supported by China-Japanese Research Cooperative Program founded by the Ministry of Science and Technology of the People’s Republic of China (2017YFE0127600) and Project of Shandong Provincial Agricultural Science and Technology Foundation (Forestry Science and Technology) (Grant. No. 2019LY008).

Acknowledgments

We acknowledge the supports of the above fundings and the kind help from Xiaofei Yan and Suying Li on SEM, FT-IR and Raman characterizations.

Conflicts of Interest

All the authors declare no conflict of interest.

References

  1. Armand, M.; Tarascon, J.M. Building better batteries. Nature 2008, 451, 652–657. [Google Scholar] [CrossRef] [PubMed]
  2. Tabassum, H.; Zou, R.; Mahmood, A.; Liang, Z.; Wang, Q.; Zhang, H.; Gao, S.; Qu, C.; Guo, W.; Guo, S.; et al. A Universal Strategy for Hollow Metal Oxide Nanoparticles Encapsulated into B/N Co-Doped Graphitic Nanotubes as High-Performance Lithium-Ion Battery Anodes. Adv. Mater. 2018, 30, 1705441. [Google Scholar] [CrossRef] [PubMed]
  3. Tarascon, J.M.; Armand, M. Issues and challenges facing rechargeable lithium batteries. Nature 2001, 414, 359–367. [Google Scholar] [CrossRef] [PubMed]
  4. Etacheri, V.; Marom, R.; Elazari, R.; Salitra, G.; Aurbach, D. Challenges in the development of advanced Li-ion batteries: A review. Energy Environ. Sci. 2011, 4, 3243–3262. [Google Scholar] [CrossRef]
  5. Goodenough, J.B.; Park, K.S. The Li-ion rechargeable battery: A perspective. J. Am. Chem. Soc. 2013, 135, 1167–1176. [Google Scholar] [CrossRef] [PubMed]
  6. Gao, X.P.; Yang, H.X. Multi-electron reaction materials for high energy density batteries. Energy Environ. Sci. 2010, 3, 174–189. [Google Scholar] [CrossRef]
  7. Trang, V.T.; Rai, A.K.; Gim, J.; Jaekook, K. High performance of Co-doped NiO nanoparticle anode material for rechargeable lithium ion batteries. J. Pow. Sour. 2015, 292, 23–30. [Google Scholar]
  8. Zheng, Z.; Zao, Y.; Zhang, Q.; Cheng, Y.; Chen, H.; Zhang, K.; Wang, M.; Peng, D. Robust erythrocyte-like Fe2O3@ carbon with yolk-shell structures as high-performance anode for lithium ion batteries. Chem. Eng. J. 2018, 347, 563–573. [Google Scholar] [CrossRef]
  9. Yue, H.; Shi, Z.; Wang, Q.; Cao, Z.; Dong, H.; Qiao, Y.; Yin, Y.; Yang, S. MOF-derived cobalt-doped ZnO@C composites as a high-performance anode material for lithium-ion batteries. ACS Appl. Mater. Inter. 2014, 6, 17067–17074. [Google Scholar] [CrossRef]
  10. Zhang, W.; Ma, G.; Gu, H.; Yang, Z.; Cheng, H. A new lithium-ion battery: CuO nanorod array anode versus spinel LiNi0.5Mn1.5O4 cathode. J. Pow. Sour. 2015, 273, 561–565. [Google Scholar] [CrossRef]
  11. Sun, Y.; Hu, X.; Luo, W.; Xia, F.; Huang, Y. Reconstruction of conformal nanoscale MnO on graphene as a high-capacity and long-life anode material for lithium ion batteries. Adv. Funct. Mater. 2013, 23, 2436–2444. [Google Scholar] [CrossRef]
  12. Shi, Y.; Pan, X.; Li, B.; Zhao, M.; Pang, H. Co3O4 and its composites for high-performance Li-ion batteries. Chem. Eng. J. 2018, 343, 427–446. [Google Scholar] [CrossRef]
  13. Wang, Y.; Ke, J.; Zhang, Y.; Huang, Y. Microwave-assisted rapid synthesis of mesoporous nanostructured ZnCo2O4 anode materials for high-performance lithium-ion batteries. J. Mater. Chem. A 2015, 3, 24303–24308. [Google Scholar] [CrossRef]
  14. Gao, G.; Wu, H.; Lou, X. Citrate-assisted growth of NiCo2O4 nanosheets on reduced graphene oxide for highly reversible lithium storage. Adv. Energy Mater. 2014, 4, 1400422. [Google Scholar] [CrossRef]
  15. Andre, D.; Hain, H.; Lamp, P.; Maglia, F.; Stiaszny, B. Future high-energy density anode materials from an automotive application perspective. J. Mater. Chem. A 2017, 5, 17174–17198. [Google Scholar] [CrossRef]
  16. Cabana, J.; Monconduit, L.; Larcher, D.; Palacín, R.M. Beyond intercalation-based Li-ion batteries: The state of the art and challenges of electrode materials reacting through conversion reactions. Adv. Energy Mater. 2010, 22, E170–E192. [Google Scholar] [CrossRef] [PubMed]
  17. Meister, P.; Jia, H.; Li, J.; Kloepsch, R.; Winter, M.; Placke, T. Best practice: performance and cost evaluation of lithium ion battery active materials with special emphasis on energy efficiency. Chem. Mater. 2016, 28, 7203–7217. [Google Scholar] [CrossRef]
  18. Xu, R.; Wang, J.; Li, Q.; Sun, G.; Wang, E.; Li, S.; Gu, J.; Ju, M. Porous cobalt oxide (Co3O4) nanorods: Facile syntheses, optical property and application in lithium-ion batteries. J. Solid State Chem. 2009, 182, 3177–3182. [Google Scholar] [CrossRef]
  19. Chen, M.; Xia, X.; Yin, J.; Chen, Q. Construction of Co3O4 nanotubes as high-performance anode material for lithium ion batteries. Electrochim. Acta 2015, 160, 15–21. [Google Scholar] [CrossRef]
  20. Song, H.; Shen, L.; Wang, C. Template-free method towards quadrate Co3O4 nanoboxes from cobalt coordination polymer nano-solids for high performance lithium ion battery anodes. J. Mater. Chem. A 2014, 2, 20597–20604. [Google Scholar] [CrossRef]
  21. Zhan, F.; Geng, B.; Guo, Y. Porous Co3O4 nanosheets with extraordinarily high discharge capacity for lithium batteries. Chem. A Eur. J. 2009, 15, 6169–6174. [Google Scholar] [CrossRef] [PubMed]
  22. Yao, X.; Xin, X.; Zhang, Y.; Wang, J.; Liu, Z.; Xu, X. Co3O4 nanowires as high capacity anode materials for lithium ion batteries. J. Alloys Compd. 2012, 521, 95–100. [Google Scholar] [CrossRef]
  23. Li, T.; Li, X.; Wang, Z.; Guo, H.; Hu, Q.; Peng, W. Synthesis of nanoparticles-assembled Co3O4 microspheres as anodes for Li-ion batteries by spray pyrolysis of CoCl2 solution. Electrochim. Acta 2016, 209, 456–463. [Google Scholar] [CrossRef]
  24. Jang, K.; Hwang, D.K.; Auxili, F.M.; Jang, J.; Song, H.; Oh, B.Y.; Kim, Y.; Nam, J.; Park, J.W.; Jeong, S.; et al. Sub-10-nm Co3O4 nanoparticles/graphene composites as high-performance anodes for lithium storage. Chem. Eng. J. 2017, 309, 15–21. [Google Scholar] [CrossRef]
  25. Huang, G.; Xu, S.; Lu, S.; Li, L.; Sun, H. Porous polyhedral and fusiform Co3O4 anode materials for high-performance lithium-ion batteries. Electrochim. Acta 2014, 135, 420–427. [Google Scholar] [CrossRef]
  26. Wang, X.; Zhou, B.; Guo, J.; Zhang, W.; Guo, X. Selective crystal facets exposing of dumbbell-like Co3O4 towards high performances anode materials in lithium-ion batteries. Mater. Res. Bull. 2016, 83, 414–422. [Google Scholar] [CrossRef]
  27. Zhu, S.; Li, J.; Deng, X.; He, C.; Liu, E.; He, F.; Shi, C.; Zhao, N. Ultrathin-Nanosheet-induced synthesis of 3D transition metal oxides networks for lithium ion battery anodes. Adv. Funct. Mater. 2017, 27, 1605017. [Google Scholar] [CrossRef]
  28. Xia, X.; Tu, J.; Xiang, J.; Huang, X.; Wang, X.; Zhao, X. Hierarchical porous cobalt oxide array films prepared by electrodeposition through polystyrene sphere template and their applications for lithium ion batteries. J. Pow. Sour. 2010, 195, 2014–2022. [Google Scholar] [CrossRef]
  29. Guo, J.; Xiao, L.C.; Jiang, Z.B.; Ma, L. Sol-gel synthesis of mesoporous Co3O4 octahedra toward high-performance anodes for lithium-ion batteries. Electrochim. Acta 2014, 129, 410–415. [Google Scholar] [CrossRef]
  30. Wang, J.; Yang, N.; Tang, H.; Dong, Z.; Jin, Q.; Yang, M.; Kisailus, D.; Zhao, H.; Tang, Z.; Wang, D. Accurate control of multishelled Co3O4 hollow microspheres as high-performance anode materials in lithium-ion batteries. Angew. Chem. Int. Edit. 2013, 52, 6417–6420. [Google Scholar] [CrossRef]
  31. Tang, X.; Feng, Q.; Huang, J.; Liu, K.; Luo, X.; Peng, Q. Carbon-coated cobalt oxide porous spheres with improved kinetics and good structural stability for long-life lithium-ion batteries. J. Colloid Inter. Sci. 2018, 510, 368–375. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, X.; Zhang, J.; Kong, X.; Huang, X.; Shi, B. Increasing rigidness of carbon coating for improvement of electrochemical performances of Co3O4 in Li-ion batteries. Carbon 2016, 104, 1–9. [Google Scholar] [CrossRef]
  33. Zhan, L.; Chen, H.; Fang, J.; Wang, S.; Ding, L.X.; Li, Z.; Ashman, P.J.; Wang, H. Coaxial Co3O4@polypyrrole core-shell nanowire arrays for high performance lithium ion batteries. Electrochim. Acta 2009, 10, 192–200. [Google Scholar]
  34. Wang, J.; Zhou, H.; Zhu, M.; Yuan, A.; Shen, X. Metal-organic framework-derived Co3O4 covered by MoS2 nanosheets for high-performance lithium-ion batteries. J. Alloys Compd. 2018, 744, 220–227. [Google Scholar] [CrossRef]
  35. Yan, C.; Chen, G.; Zhou, X.; Sun, J.; Lv, C. Template-based engineering of carbon-doped Co3O4 hollow nanofibers as anode materials for Lithium-ion batteries. Adv. Funct. Mater. 2016, 26, 1428–1436. [Google Scholar] [CrossRef]
  36. Anh, L.T.; Rai, A.K.; Thi, T.V.; Gim, J.; Kim, S.; Mathew, V.; Kim, J. Enhanced electrochemical performance of novel K-doped Co3O4 as the anode material for secondary lithium-ion batteries. J. Mater. Chem. A 2014, 2, 6966–6975. [Google Scholar] [CrossRef]
  37. Han, Y.; Li, J.; Zhang, T.; Qi, P.; Li, S.; Gao, X.; Zhou, J.; Feng, X.; Wang, B. Zinc/nickel-doped hollow core–shell Co3O4 derived from a metal–organic framework with high capacity, stability, and rate performance in lithium/sodium-ion batteries. Chem. A Eur. J. 2018, 24, 1651–1656. [Google Scholar] [CrossRef] [PubMed]
  38. Xie, Z.; Jiang, C.; Xu, W.; Cui, X.; Reyes, C.; Martíb, A.; Wang, Y. Facile self-assembly route to Co3O4 nanoparticles confined into single-walled carbon nanotube matrix for highly reversible lithium storage. Electrochim. Acta 2017, 235, 613–622. [Google Scholar] [CrossRef]
  39. Wang, S.; Wang, R.; Chang, J.; Hu, N.; Xu, C. Self-supporting Co3O4/graphene hybrid films as binder-free anode materials for lithium ion batteries. Sci. Rep. 2018, 8, 3182. [Google Scholar] [CrossRef]
  40. Shi, L.; Fan, C.; Fu, X.; Yu, S.; Qian, G.; Wang, Z. Carbonate-assisted hydrothermal synthesis of porous hierarchical Co3O4/CuO composites as high capacity anodes for lithium-ion batteries. Electrochim. Acta 2016, 197, 23–31. [Google Scholar] [CrossRef]
  41. Li, Z.; Li, B.; Yin, L.; Qi, Y. Prussion blue-supported annealing chemical reaction route synthesized double-shelled Fe2O3/Co3O4 hollow microcubes as anode materials for lithium-ion battery. ACS Appl. Mater. Inter. 2014, 6, 8098–8107. [Google Scholar] [CrossRef] [PubMed]
  42. Zheng, F.; Wei, L. Synthesis of ultrafine Co3O4 nanoparticles encapsulated in nitrogen-doped porous carbon matrix as anodes for stable and long-life lithium ion battery. J. Alloys Compd. 2019, 790, 955–962. [Google Scholar] [CrossRef]
  43. Wang, B.; Lu, X.Y.; Tsang, C.-W.; Wang, Y.; Au, W.K.; Guo, H.; Tang, Y. Charge-driven self-assembly synthesis of straw-sheaf-like Co3O4 with superior cyclability and rate capability for lithium-ion batteries. Chem. Eng. J. 2018, 338, 278–286. [Google Scholar] [CrossRef]
  44. Wang, G.; Shen, X.; Horvat, J.; Wang, B.; Liu, H.; Wexler, D.; Yao, J. Hydrothermal synthesis and optical, magnetic, and supercapacitance properties of nanoporous cobalt oxide nanorods. J. Phys. Chem. C 2009, 113, 4357–4361. [Google Scholar] [CrossRef]
  45. Dong, X.; Xu, H.; Wang, X.; Huang, Y.; Chan-Park, M.B.; Zhang, H.; Wang, L.; Huang, W.; Chen, P. 3D graphene–cobalt oxide electrode for high-performance supercapacitor and enzymeless glucose detection. ACS Nano 2012, 6, 3206–3213. [Google Scholar] [CrossRef] [PubMed]
  46. Jing, M.; Zhou, M.; Li, G.; Chen, Z.; Xu, W.; Chen, X.; Hou, Z. Graphene-embedded Co3O4 rose-spheres for enhanced performance in lithium ion batteries. ACS Appl. Mater. Inter. 2017, 9, 9662–9668. [Google Scholar] [CrossRef]
  47. Deng, X.; Zhu, S.; He, F.; Liu, E.; He, C.; Shi, C.; Li, Q.; Li, J.; Ma, L.; Zhao, N. Three-dimensionally hierarchical Co3O4/Carbon composites with high pseudocapacitance contribution for enhancing lithium storage. Electrochim. Acta 2018, 283, 1269–1276. [Google Scholar] [CrossRef]
  48. Hao, F.; Zhang, Z.; Yin, L. Co3O4/carbon aerogel hybrids as anode materials for lithium-ion batteries with enhanced electrochemical properties. ACS Appl. Mater. Inter. 2013, 5, 8337–8344. [Google Scholar] [CrossRef]
  49. Gan, Q.; Zhao, K.; He, Z.; Liu, S.; Li, A. Zeolitic imidazolate framework-8-derived N-doped porous carbon coated olive-shaped FeOx nanoparticles for lithium storage. J. Pow. Sour. 2018, 384, 187–195. [Google Scholar] [CrossRef]
  50. Zhu, G.; Wang, L.; Lin, H.; Ma, L.; Zhao, P.; Hu, Y.; Chen, T.; Chen, R.; Wang, Y.; Tie, Z.; et al. Walnut-like multicore–shell MnO encapsulated nitrogenrich carbon nanocapsules as anode material for longcycling and soft-packed lithium-ion batteries. Adv. Funct. Mater. 2018, 28, 1800003. [Google Scholar] [CrossRef]
  51. Zhao, C.; Yu, C.; Qiu, B.; Zhou, S.; Zhang, M.; Huang, H.; Wang, B.; Zhao, J.; Sun, X.; Qiu, J. Ultrahigh rate and long-life sodium-ion batteries enabled by engineered surface and near-surface reactions. Adv. Mater. 2018, 30, 1702486. [Google Scholar] [CrossRef] [PubMed]
  52. Wang, Z.; Chen, X.; Zhang, M.; Qian, Y. Synthesis of Co3O4 nanorod bunches from a single precursor Co(CO3)0.35Cl0.20(OH)1. Solid State Sci. 2005, 7, 13–15. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.
Molecules 24 03149 g001 550

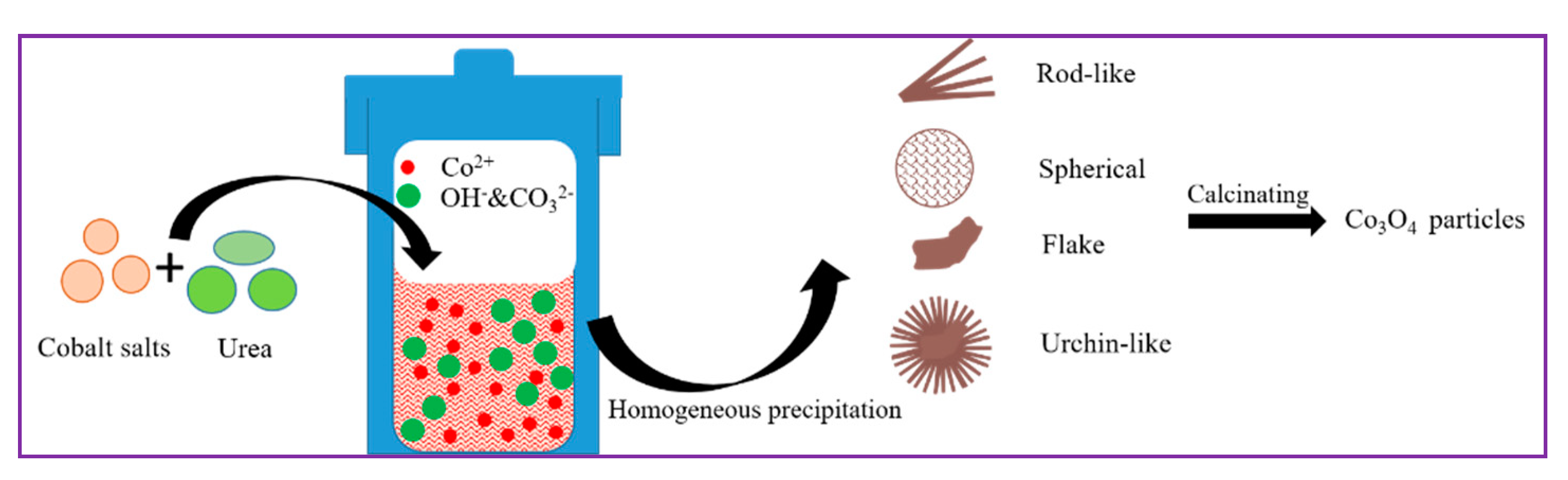

Figure 1. Schematic illustrations of synthesizing precursors and calcinated products.
Figure 1. Schematic illustrations of synthesizing precursors and calcinated products.
Molecules 24 03149 g001
Molecules 24 03149 g002 550

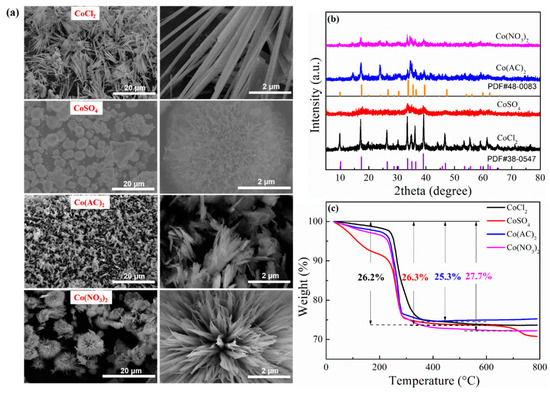

Figure 2. (a) Scanning electron microscope (SEM) images of the precursors obtained with cobalt chloride, cobalt sulfate, cobalt acetate, and cobalt nitrate as cobalt sources. (b) X-ray diffraction (XRD) patterns of the prepared precursors and (c) thermogravimetric (TG) curves of the synthesized precursors with different cobalt sources.
Figure 2. (a) Scanning electron microscope (SEM) images of the precursors obtained with cobalt chloride, cobalt sulfate, cobalt acetate, and cobalt nitrate as cobalt sources. (b) X-ray diffraction (XRD) patterns of the prepared precursors and (c) thermogravimetric (TG) curves of the synthesized precursors with different cobalt sources.
Molecules 24 03149 g002
Molecules 24 03149 g003 550

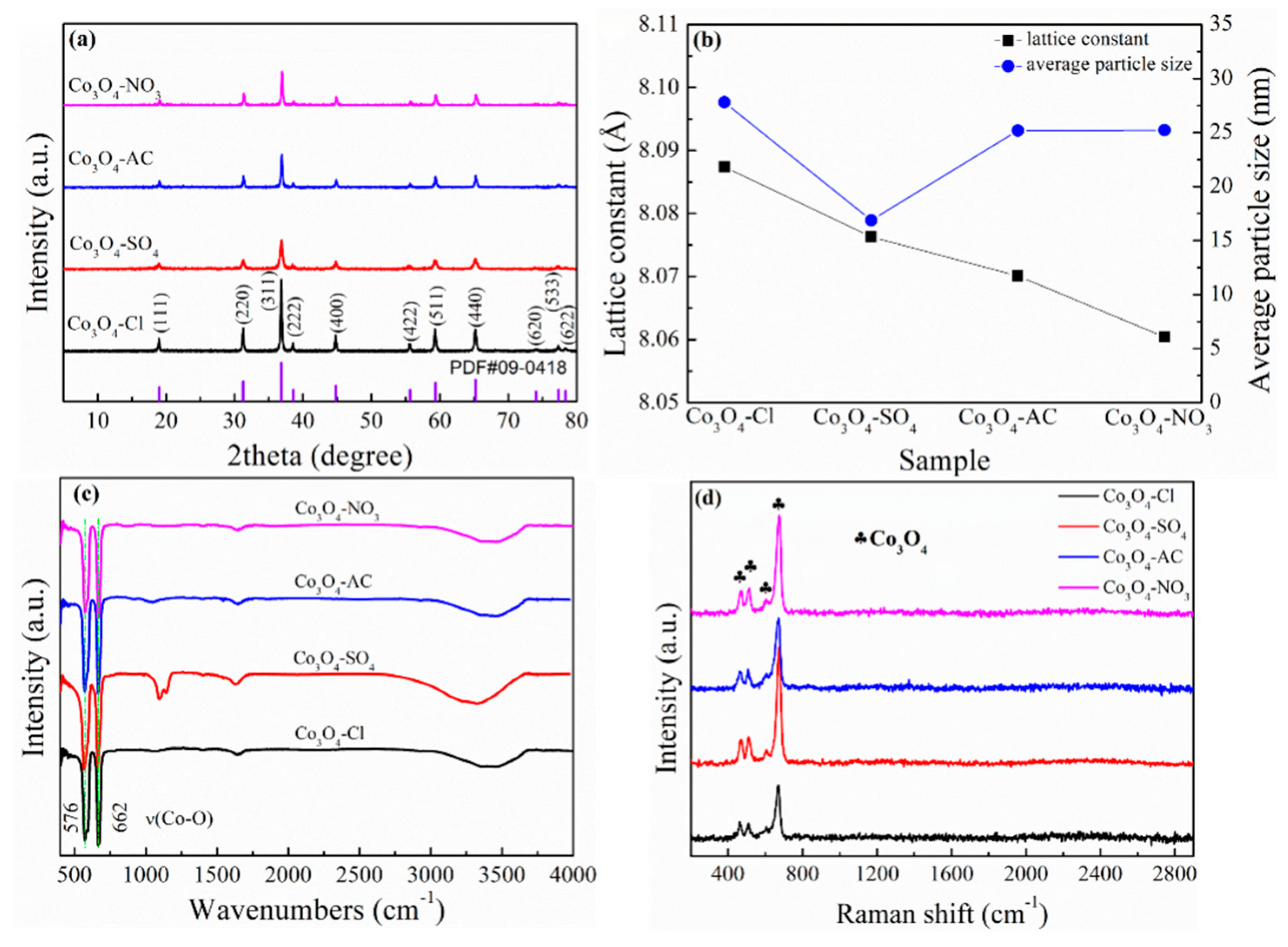

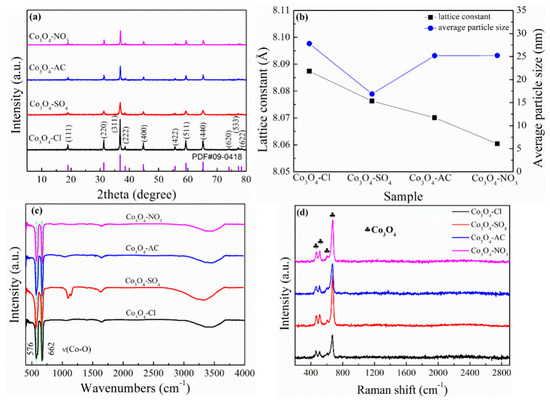

Figure 3. (a) XRD patterns of the calcinated products combined with the (b) lattice constant/average particle size, (c) Fourier transform infrared (FT-IR) spectra, and (d) Raman spectra.
Figure 3. (a) XRD patterns of the calcinated products combined with the (b) lattice constant/average particle size, (c) Fourier transform infrared (FT-IR) spectra, and (d) Raman spectra.
Molecules 24 03149 g003
Molecules 24 03149 g004 550
Figure 4. SEM images of the calcinated products related to (a,b) Co3O4-Cl, (c,d) Co3O4-SO4, (e,f) Co3O4-AC, and (g,h) Co3O4-NO3.
Figure 4. SEM images of the calcinated products related to (a,b) Co3O4-Cl, (c,d) Co3O4-SO4, (e,f) Co3O4-AC, and (g,h) Co3O4-NO3.
Molecules 24 03149 g004
Molecules 24 03149 g005 550
Figure 5. Distribution of elemental cobalt and oxygen corresponding to (a) Co3O4-Cl, (b) Co3O4-SO4, (c) Co3O4-AC, and (d) Co3O4-NO3.
Figure 5. Distribution of elemental cobalt and oxygen corresponding to (a) Co3O4-Cl, (b) Co3O4-SO4, (c) Co3O4-AC, and (d) Co3O4-NO3.
Molecules 24 03149 g005
Molecules 24 03149 g006 550

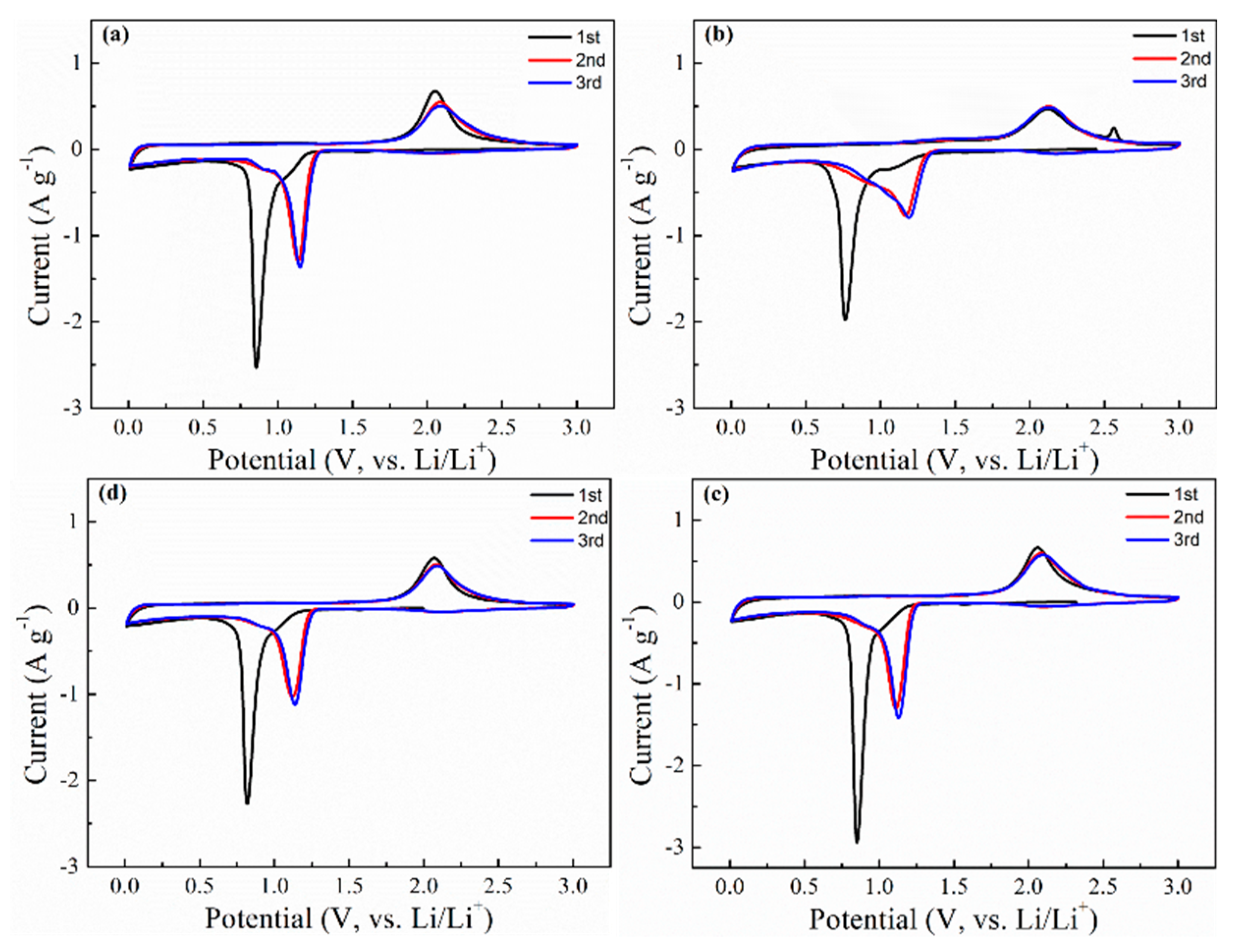

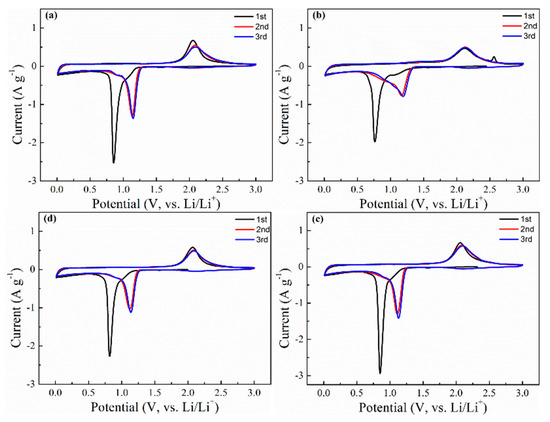

Figure 6. CV curves of (a) Co3O4-Cl, (b) Co3O4-SO4, (c) Co3O4-AC, and (d) Co3O4-NO3.
Figure 6. CV curves of (a) Co3O4-Cl, (b) Co3O4-SO4, (c) Co3O4-AC, and (d) Co3O4-NO3.
Molecules 24 03149 g006
Molecules 24 03149 g007 550

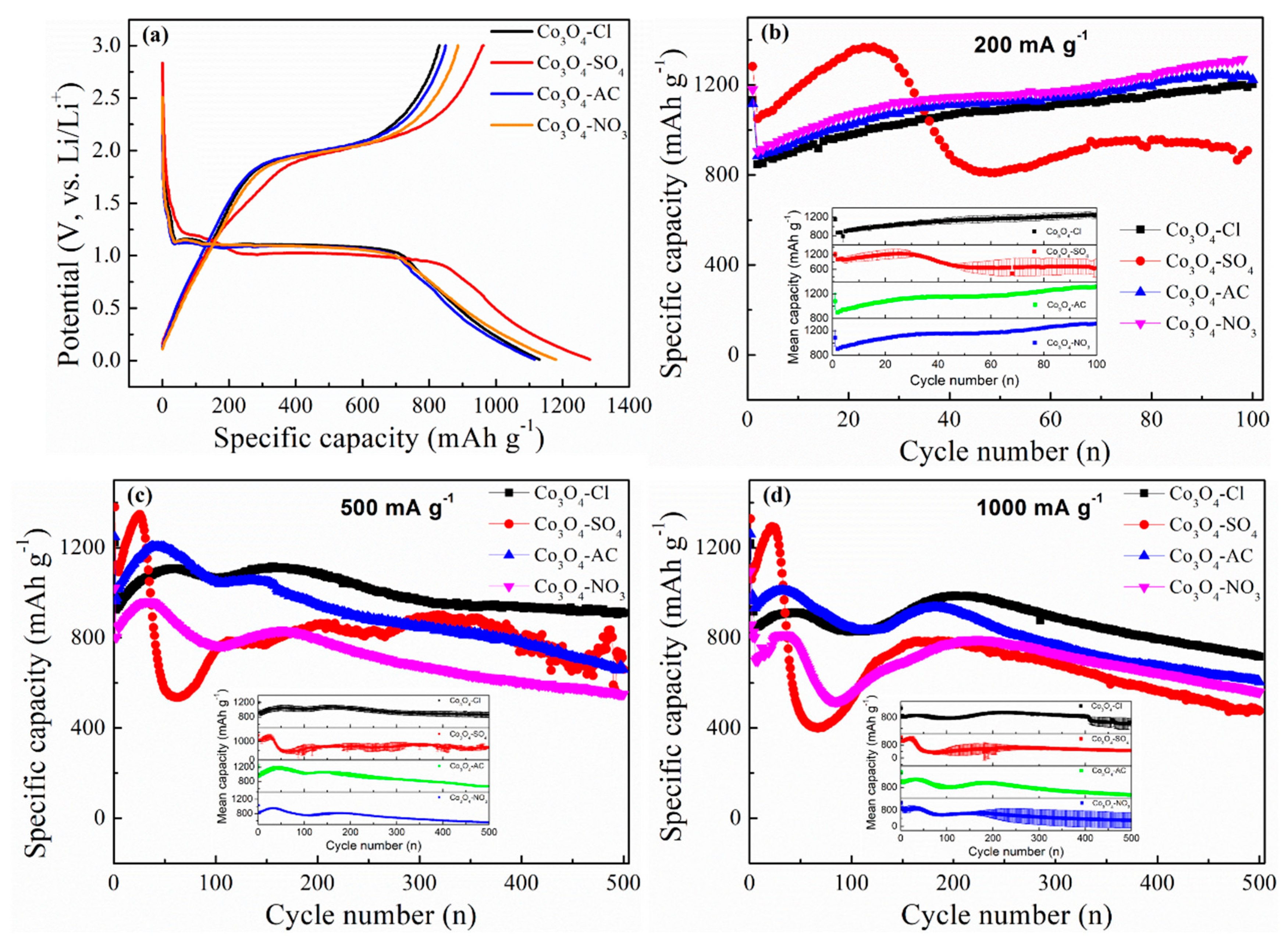

Figure 7. (a) Initial discharge–charge curves of Co3O4 at 200 mA·g−1. Cycle performance of different Co3O4 at the current density of (b) 200 mA·g−1, (c) 500 mA·g−1, and (d) 1000 mA·g−1. The insert pictures represent the error bar with standard deviation. The specific capacity corresponds to the discharge process, i.e., Co3O4 reacts with Li+ to form Co and Li2O.
Figure 7. (a) Initial discharge–charge curves of Co3O4 at 200 mA·g−1. Cycle performance of different Co3O4 at the current density of (b) 200 mA·g−1, (c) 500 mA·g−1, and (d) 1000 mA·g−1. The insert pictures represent the error bar with standard deviation. The specific capacity corresponds to the discharge process, i.e., Co3O4 reacts with Li+ to form Co and Li2O.
Molecules 24 03149 g007
Molecules 24 03149 g008 550

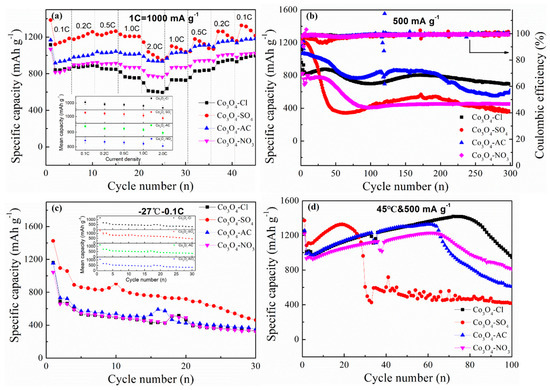

Figure 8. (a) Rate performances of the as-prepared Co3O4-Cl, Co3O4-SO4, Co3O4-AC, and Co3O4-NO3 at various current densities from 0.1 C to 2.0 C. (b) Cycle stability of Co3O4-Cl, Co3O4-SO4, Co3O4-AC, and Co3O4-NO3 materials in the cells standing for 60 days and cycled at 500 mA·g−1. (c,d) Cycle performance of the cells at low temperature (−27 °C) and high temperature (45 °C). The insert pictures represent the error bar with standard deviation. The specific capacity corresponds to the discharge process, i.e., Co3O4 reacts with Li+ to form Co and Li2O.
Figure 8. (a) Rate performances of the as-prepared Co3O4-Cl, Co3O4-SO4, Co3O4-AC, and Co3O4-NO3 at various current densities from 0.1 C to 2.0 C. (b) Cycle stability of Co3O4-Cl, Co3O4-SO4, Co3O4-AC, and Co3O4-NO3 materials in the cells standing for 60 days and cycled at 500 mA·g−1. (c,d) Cycle performance of the cells at low temperature (−27 °C) and high temperature (45 °C). The insert pictures represent the error bar with standard deviation. The specific capacity corresponds to the discharge process, i.e., Co3O4 reacts with Li+ to form Co and Li2O.
Molecules 24 03149 g008
Molecules 24 03149 g009 550

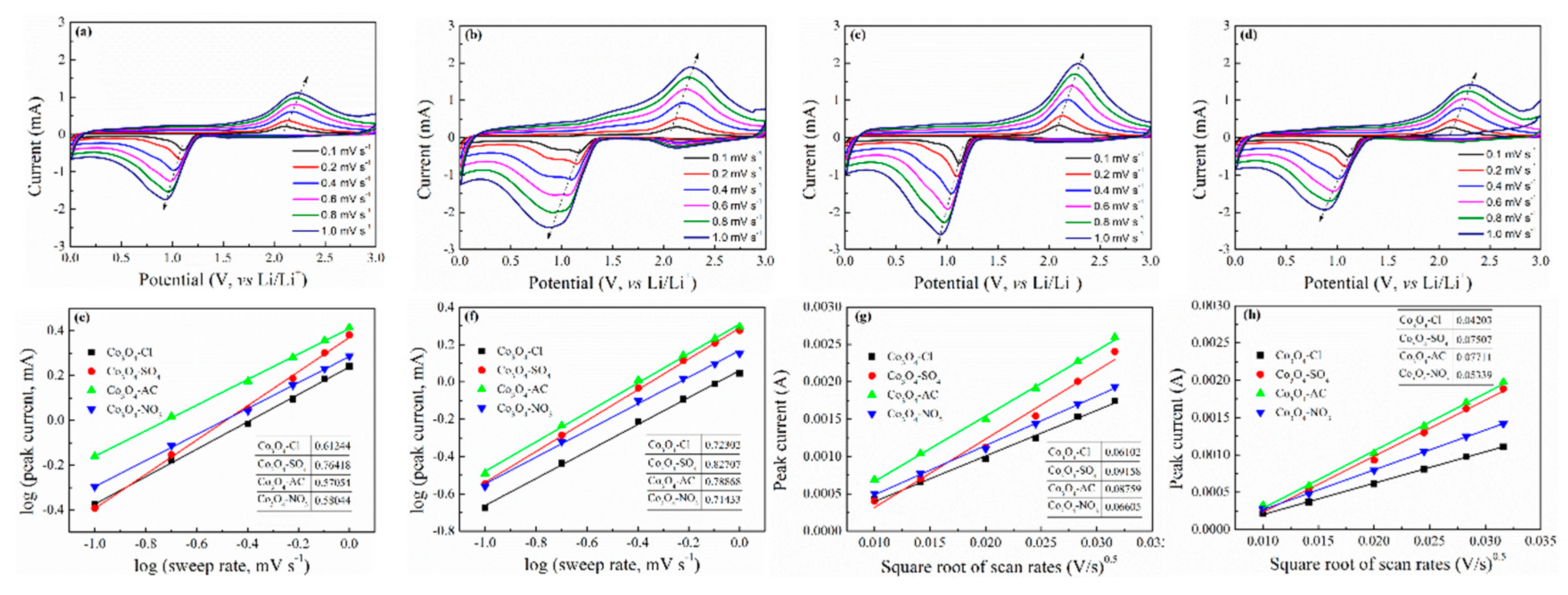

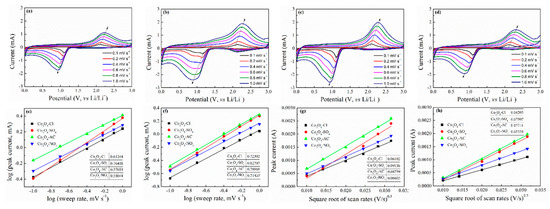

Figure 9. CV curves of (a) Co3O4-Cl, (b) Co3O4-SO4, (c) Co3O4-AC, and (d) Co3O4-NO3 at different scan rates (0.1 mV·s−1, 0.2 mV·s−1, 0.4 mV·s−1, 0.6 mV·s−1, 0.8 mV·s−1, and 1.0 mV·s−1). The relationship between peak current and scan rate in the (e) cathodic and (f) anodic process determines the value b in the equation (I = aνb). Plot of peak current of (g) cathodic reaction and (h) anodic reaction versus the square root of scan rates.
Figure 9. CV curves of (a) Co3O4-Cl, (b) Co3O4-SO4, (c) Co3O4-AC, and (d) Co3O4-NO3 at different scan rates (0.1 mV·s−1, 0.2 mV·s−1, 0.4 mV·s−1, 0.6 mV·s−1, 0.8 mV·s−1, and 1.0 mV·s−1). The relationship between peak current and scan rate in the (e) cathodic and (f) anodic process determines the value b in the equation (I = aνb). Plot of peak current of (g) cathodic reaction and (h) anodic reaction versus the square root of scan rates.
Molecules 24 03149 g009
Molecules 24 03149 g010 550

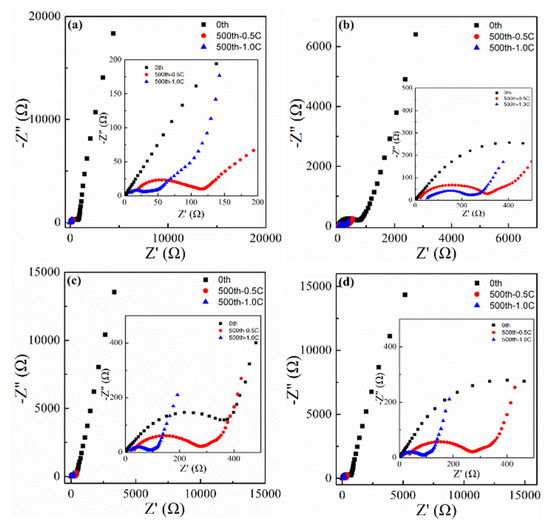

Figure 10. Electrochemical impedance spectra (EIS) spectra for the cells employing (a) Co3O4-Cl, (b) Co3O4-SO4, (c) Co3O4-AC, and (d) Co3O4-NO3 before and after cycling.
Figure 10. Electrochemical impedance spectra (EIS) spectra for the cells employing (a) Co3O4-Cl, (b) Co3O4-SO4, (c) Co3O4-AC, and (d) Co3O4-NO3 before and after cycling.
Molecules 24 03149 g010
Molecules 24 03149 g011 550
Figure 11. SEM images of the (a–d) fresh electrode and (e–h) cycled electrode (500th cycle at 500 mA·g−1) using (a,e) Co3O4-Cl, (b,f) Co3O4-SO4, (c,g) Co3O4-AC, and (d,h) Co3O4-NO3 as active materials.
Figure 11. SEM images of the (a–d) fresh electrode and (e–h) cycled electrode (500th cycle at 500 mA·g−1) using (a,e) Co3O4-Cl, (b,f) Co3O4-SO4, (c,g) Co3O4-AC, and (d,h) Co3O4-NO3 as active materials.
Molecules 24 03149 g011
Molecules 24 03149 g012 550

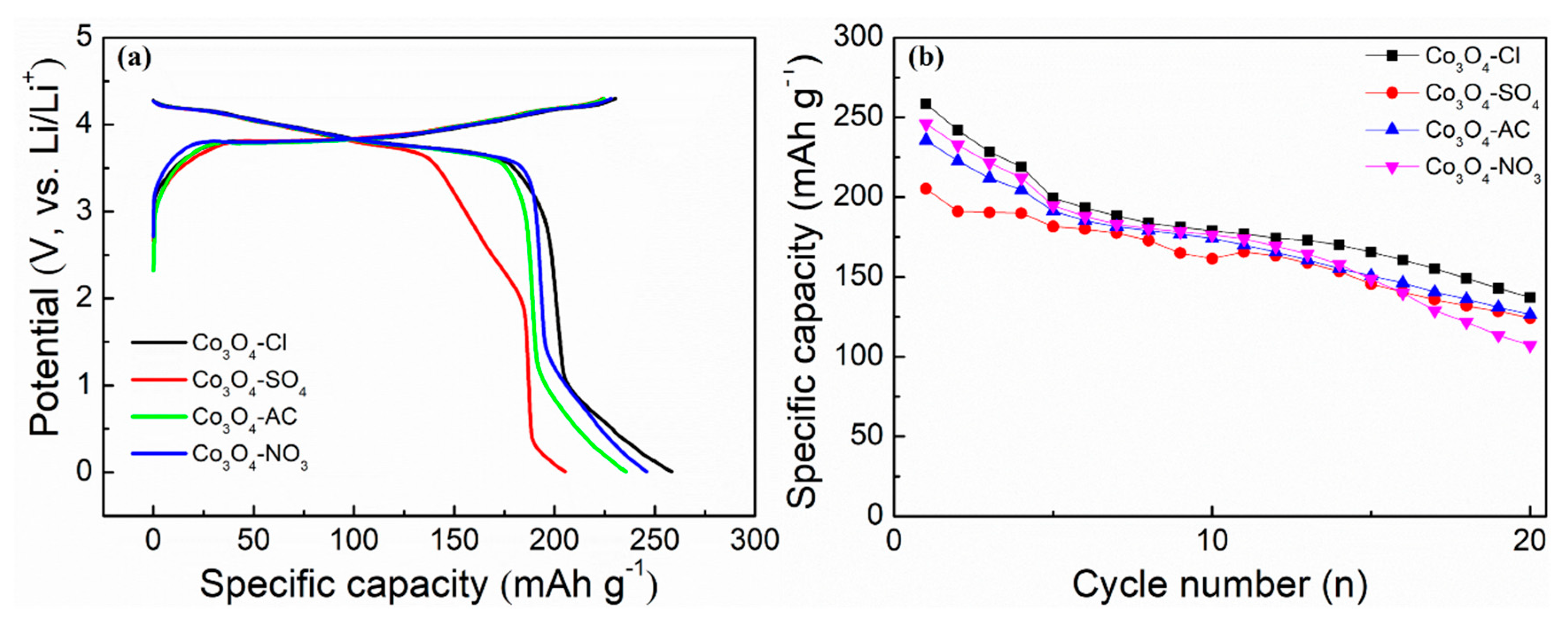

Figure 12. (a) The initial charge–discharge profiles of the full batteries at 40 mA·g−1, and (b) cycle performance of the full batteries using NCM811 cathode materials and the synthesized Co3O4 anode materials at 100 mA·g−1.
Figure 12. (a) The initial charge–discharge profiles of the full batteries at 40 mA·g−1, and (b) cycle performance of the full batteries using NCM811 cathode materials and the synthesized Co3O4 anode materials at 100 mA·g−1.
Molecules 24 03149 g012
Table
Table 1. The data originating from the CV curves in Figure 6.
Table 1. The data originating from the CV curves in Figure 6.
Sample1st Cycle2nd Cycle3rd Cycle
ER (V)EO (V)ER (V)EO (V)ER (V)EO (V)
Co3O4-Cl0.8542.0551.1352.0851.1462.094
Co3O4-SO40.7652.1181.1662.1271.1902.123
Co3O4-AC0.8502.0611.1112.0851.1292.097
Co3O4-NO30.8172.0701.1202.0841.1382.092
