Molecules 2019, 24(10), 1969; https://doi.org/10.3390/molecules24101969

Article
An Eco-Friendly Technique: Solvent-Free Microwave Synthesis and Docking Studies of Some New Pyridine Nucleosides and Their Pharmacological Significance
1
Department of Pharmaceutics and Pharmaceutical Technology, College of Pharmacy, Taif University, Taif 5700, Saudi Arabia
2
Department of Information Technology, College of Computers and Information Technology, Taif University, Taif 5700, Saudi Arabia
3
Department of Pharmaceutical Chemistry, College of Pharmacy, Taif University, Taif 5700, Saudi Arabia
4
Department of Medicinal chemistry, Faculty of Pharmacy, Beni-Suef University, Beni-Suef 1441, Egypt
*
Author to whom correspondence should be addressed.
Received: 7 April 2019 / Accepted: 16 May 2019 / Published: 22 May 2019

Abstract

:
Two series of novel 5-arylazo-3-cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galacto pyranosyloxy) pyridines and 3-cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxy) pyridines were synthesized in high yields utilizing a microwave-assisted synthesis tool guided by the principles of green chemistry. The chemical structures of the new substances were confirmed on the basis of their elemental analysis and spectroscopic data (FT-IR, 1D, 2D-NMR). Activity against different bacterial strains was studied. The anticancer potential of the new compounds is also discussed. Molecular docking was used as a tool in this research work to get better insight into the possible interactions, affinities, and expected modes of binding of the most promising derivatives of the potential chemotherapeutic target (DHFR).
Keywords:
green chemistry; microwave synthesis; pyridine galactosides; anticancer activity; antimicrobial; molecular docking

1. Introduction

The production of organic chemicals as reagents or raw substances for many applications, such as pharmaceuticals, manufacturing polymers, artificial fibers, pesticides, paints, and food additives, is continuous. Conventional methods have been employed for decades to synthesize organic chemical substances. There are many harmful situations in terms of safety and health hazards for workers caused by these processes and the disposition of waste. On the other hand, pharmaceutical companies tend to highlight their role in saving lives, with little impact on the manufacturing processes that might have an effect on public health and the environment. “Green Chemistry” expresses a great scientific interest in changing the methodologies of organic synthesis to advance on a small-scale laboratory level and also extend to industrial large-scale manufacturing methods. Green chemistry techniques can help to increase the effectiveness of synthetic methods, to use less toxic solvents, to reduce the steps of synthetic ways, and to reduce waste as far as practically convenient. In this direction, organic synthesis is considered a part of potential sustainable progress. In recent decades, pyridine analogues have been identified as a cornerstone in medicinal chemistry, showing diverse pharmacological actions such as antibacterial [1,2], antifungal [3], anti-inflammatory [4], antiviral [5,6], antitumor [7], and antiplatelet [8,9] properties. In addition, 2-pyridone derivatives are utilized in the production of paints [10], pigments, acid–base indicators, stabilizers for polymers and coatings, and additives for fuels and lubricants [11]. Various pyridine nucleosides have been outlined to have important biological properties [12]. In particular, 4-Amino-3-fluoro-1-(β-d-ribofuranosyl)-2(1H)-pyridone I inhibits the growth of HL-60 lymphoid leukemia cells with IC50 = 1.07 × 10−5 M, while a 2′-deoxy analogue of I has a potent effect on lymphoid leukemia L1210 cells. In addition, an acetyl derivative of I exhibits similar potent activities [13]. Selective inhibitors for the human immunodeficiency virus type 1 reverse transcriptase (HIV-RT) (for example, 3-(4′,7′-Dimethyl benzoxazol-2′-yl)-amino-5-ethyl-6-methyl pyridine-2(1H)-one (II) and its 4,7-dichloro analogue, which are derivatives of pyridine) have been reported to inhibit the spread of HIV-1 infection by 95% in MT4 cell cultures and were appointed to clinical trials as antiviral agents. In addition, 4-Benzylpyridone (III) has been shown to possess potent HIV-1 specific reverse transcriptase inhibitor properties [14].

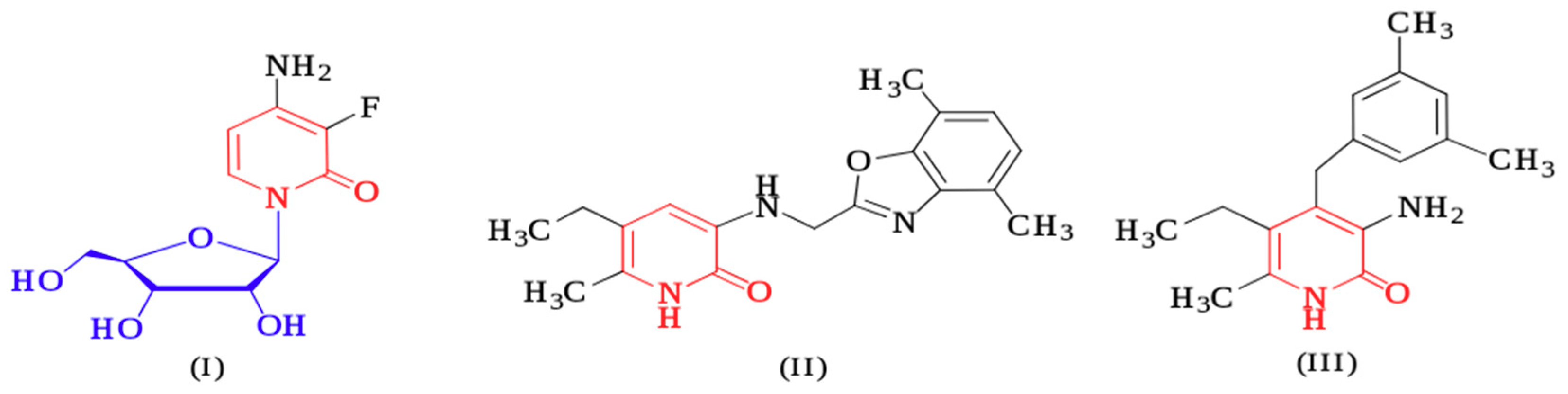

Molecules 24 01969 i001
All of these facts prove the importance of pyridine derivatives as promising bioactive agents. In addition, some pyridine-2(1H)-one derivatives have been shown to be hopeful antineoplastic active agents for the treatment of cancers [15] and to possess potential activity against different microorganisms [16,17,18]. This guided us to prepare novel pyridine nucleoside analogues in solvent-free medium using microwave irradiation as an economic, fast, ecofriendly, and efficient method for getting these promising candidates.

2. Results and Discussion

2.1. Chemistry

A one-pot microwave synthetic protocol was used to obtain a variety of different pyridine-2(1H)-one derivatives (3a–d) and (10a–c) [19,20]. In this paper, three different synthetic strategies to construct pyridine galactosides (8a–d) and (11a–c) were employed. Microwave synthetic methods (methods A and B) were used as simple, efficient approaches to the preparation of the targeted galactosides (8a–d) and (11a–c) in a limited time with an excellent yield. In method A, the solvent-free reaction was conducted using microwave irradiation to enhance the reaction between the routine pyridine-2(1H)-ones (3a–d, 10a–c) and 1″,2″,3″,4″,6″-penta-O-acetyl-α-d-galactopyranose (6) in the presence of a catalyst [21] to afford the 3-cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxy) pyridines (8a–d) and (11a–c) in high yields (87–95%). The same galactosides (8a–d) and (11a–c) were obtained in better yields utilizing the pyridinium salts (4a–d, 13a–c) and (2″,3″,4″,6″-tetra-O-acetyl-α-d-galactopyranosyl bromide) (7) (in dry acetone/DMF without any catalyst under microwave irradiation). A classical procedure (C), an expensive and time-consuming approach, was established for nucleosidation via formation of the 2-silyloxypyridine intermediates (5a–d, 12a–c) (Scheme 1 and Scheme 2). Yields and reaction times given in the three synthetic pathways were compared (Table 1 and Table 2). The chemical structures of the resulting galactosides (8a–d) and (11a–c) were set up and confirmed on the basis of their elemental analyses and spectral data (LC-MS, IR, UV, 1D- and 2D-NMR). Thus, the analytical data for (8c) had a molecular formula of C33H31ClN4O10, and LC-MS (ionization method) yielded m/z 679 [M + H]+. The 1H-NMR (400 MHz, CDCl3) spectrum showed the anomeric proton as a doublet at δ = 5.99, JH-1-H2 = 8.3 Hz due to diaxial orientation between the H-1″ and H-2″ protons, indicating a β-configuration and 4C1 conformation. On the other hand, the nine aromatic hydrogen atom signals appeared as a multiplet at δ = 7.60 ppm. 13C-NMR was used for further confirmation. However, the results were in agreement with the assigned structure. The nitrile carbon atom appeared at δ 113.8 ppm, while four signals showed at δ 168.3, 169.6, 170.0, and 170.9 ppm, assigned to the four acetoxy carbonyl carbon atoms. The IR spectrum showed bands at υ 2228 and 1757 cm−1, indicating the presence of the CN and C=O of acetoxy groups, respectively. On the other hand, no peak corresponding to the amide carbonyl at the pyridine C-2 indicated that the sugar was linked to the pyridine ring through oxygen at C-2, giving the O-galactosides as suggested (Scheme 1 and Scheme 2). More specifically, the formation of (8c) was proven using the phase-sensitive 2D-NOESY spectrum, which revealed the presence of inter-ring cross-peaks between the anomeric proton H-1″ at δ = 5.99 ppm and both H-5″ at δ = 3.94 ppm and H-3″ at δ = 4.26 ppm. Meanwhile, no cross-peak interaction was observed between the anomeric H-1″ at δ = 5.99 ppm and ortho-phenyl protons at δ = 7.60 ppm at the pyridine C-6, supporting the formation of O-galactosides as the sole isomer and not N-glucosides. A long-range 1H-13C heteronuclear correlation was employed to assign clear structure elucidation, whereas methyl protons at pyridine C-4 (δ = 2.56 ppm) showed strong cross-peak interactions with pyridine C-3 (δ = 94.8 ppm). A weak cross-peak interaction was observed between methyl protons at pyridine C-4 (δ = 2.56 ppm) and carbonitrile carbon (C≡N) (δ 113.8 ppm). The data obtained from 2D-GHMBC strongly agreed with the mechanistic pathway shown in Scheme 1.
Dry ammonia or triethyl amine in methanol methods were applied to convert the protected galactosides into their related free galactosides. Table 3 and Table 4 show the yield comparison between the two methods.

2.2. Antimicrobial Activity

A panel of standard strains of the Institute of Fermentation of Osaka (IFO), namely gram-positive bacteria (Staphylococcus aureus IFO 3060 and Bacillus subtilis IFO 3007) and gram-negative bacteria (Escherichia coli IFO 3301 and Proteus vulgaris IFO 3851), were used to investigate the antimicrobial potential of all of the newly synthesized substances (8a–d, 9a–d, 11a–c, and 14a–c) (30 μg/disc). However, the obtained data of the preliminary antimicrobial screening of the new compounds (8a–d, 9a–d, 11a–c, and 14a–c) were compared to standard samples of the antibacterial antibiotics penicillin and ceftazidime (30 μg/disc). The results revealed that the obtained substances showed varying degrees of inhibition against the tested microorganisms. New substances (8c, 9c, and 9d) exhibited a moderate inhibitory effect on the growth of the gram-positive bacteria, while the obtained compounds (11c and 14c) were effective at inhibiting the growth of both the gram-positive bacteria and the gram-negative bacteria compared to the local samples, as shown in Figure 1. However, the hydroxy and trifluoromethyl groups contributed to raising the antibacterial potential of the new pyridine galactosides against both the gram-positive and gram-negative bacteria strains.

2.3. Anticancer Activity

The newly synthesized compounds (8a–d, 9a–d, 11a–c, and 14a–c) were tested for their in vitro antitumor activity against lung cancer cells (NCI-H460-Luc2), liver cancer cells (HEPG-2), and breast cancer cells (MDA-MB-231). The newly synthesized compounds exhibited cytotoxic activity against NCI-H460-Luc2 and liver cancer cells (HEPG-2). However, compound (9d) revealed moderate antitumor activity against both the lung cancer cells NCI-H460-Luc2 (with IC50 = 31.2 μM) and the liver cancer cells HEPG-2 (IC50 = 51.6 μM) and low activity against the breast cancer cells MDA-MB-231 (IC50 = 72.9 μM). The compounds 8d, 11c, and 14c showed moderate activity against NCI-H460-Luc2 and noticeable activity against both the HEPG-2 and MDA-MB-231 cancer cells.

2.4. Molecular Docking Studies

Molecular docking is one of the most preferred methods in structure-based drug design, as it gives a good exploration into the binding mode of the new small molecules in the binding site of their appropriate targets. Understanding binding behavior is a key step in rational drug design [21,22]. Docking studies were performed in this research work to give insight into possible interactions, the docking score, and the mode of binding between the enzyme active binding site and the new bioactive molecules. Dihydrofolate reductase is a well-known target for infectious diseases, and DHFR inhibitors represent an important class of chemotherapeutic agents, as this enzyme is a key enzyme in the synthesis of thymidylate, and therefore DNA. Compounds that inhibit the DHFR enzyme have been found to have antibiotic properties. This enzyme is also considered to be a primary target for the development of new anticancer agents [23]. Thus, finding a new generation of DHFR inhibitors will be so useful in producing new anti-infective agents. The newly synthesized compounds 8d, 9d, 11c, and 14c were revealed to be more potent than penicillin against S. aureus, as shown in Figure 1. In addition, compounds 8d, 9d, 11c, and 14c showed good anticancer activity. Consequently, it is thought worldwide that docking studies are beneficial in supporting in vitro activity. The previously mentioned active compounds were chosen for docking using the Molecular Operating Environment (MOE) software program [24] to find the potential of these molecules against the DHFR enzyme and also to know the hypothetical binding mode of these active compounds in the active site of the dihydrofolate reductase enzyme. The crystal structure of the DHFR enzyme in complex with its inhibitor methotrexate was obtained from (PDB:ID:4DFR) [25]. Methotrexate was extracted and redocked into the active site of DHFR to perform validation, and then it was replaced with the new compounds in order to compare the binding mode of the tested compounds to methotrexate. All of the docked compounds showed comparable docking scores with methotrexate, and some of them showed lower docking energy as compound 8d. The amino acid residue revealed that compounds 12d and 13c shared the Gly15 amino acid as methotrexate, and compound 14c formed a hydrogen bond with the lle94 amino acid as methotrexate. In addition, compounds 13c and 14c formed three hydrogen bonds with the binding site. The obtained binding interactions and docking scores are represented in Table 5, and also 2D and 3D interactions for all of the docked compounds and methotrexate are pictured in Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6.

3. Conclusion

Green synthesis techniques were employed to synthesize 2-pyridone galactoside analogues (8a–d and 11a–c) at a high yield within a very short time. Here, 2D-NMR revealed clear structure elucidation for the resulting compounds. Antimicrobial screening showed that some of the obtained derivatives had potential activity against the growth of both G+ and G- tested bacteria. The new derivatives 9c, 9d, 11c, and 14c were revealed to be more potent than penicillin against S. aureus. In addition, compounds 8d, 9d, and 14c showed moderate anticancer activity. Moreover, molecular docking studies revealed the good binding affinity of these molecules with the DHFR binding site, which was comparable to that of methotrexate.

4. Materials and Methods

4.1. Chemistry

General: A microwave synthetic protocol was performed using a CEM Microwave system. Melting points were determined on (Pyrex capillary) a Gallenkamp apparatus. Infrared spectra were recorded with a Thermo Nicolet Nexus 470 FT-IR spectrometer (Thermo Scientific, Waltham, MA, USA) in the range 4000–400 cm−1 in potassium bromide disks. Ultraviolet absorption spectra in the region 200–600 nm were recorded on a Secoman Anthelie 2 Advanced spectrophotometer (Secomam, France) in 1.00-cm cells at 25 °C. The spectra were run in spectra quality methanol using a concentration of 5 × 10−5 M. 1H-NMR spectra, 1D-NMR spectra, and 2D-NMR (COSY, NOESY, Ghmbc, and Ghmqc) spectra were obtained on a Varian Gemini 400-MHz FT NMR spectrometer (Varian, Agilent Technologies, Edinburgh, UK) in CDCl3 and DMSO-d6. Chemical shifts were recorded in (ppm) units relative to Me4Si as an internal standard. The mass spectra were recorded on a Shimadzu LCMS-QP 800 LC-MS (Shimadzu, Tokyo, Japan) and an AB-4000 Q-trap LC-MS/MS (Applied Biosystems, Grand Island, NY, USA). Analytical data were obtained using a PerkinElmer 2400 II series CHN Analyzer (Perkin Elmer, Waltham, MA, USA). Optical rotations were measured with a PerkinElmer digital polarimeter (Perkinelmer, Waltham, MA, USA) at 589 nm (sodium D line) in a 1-dm cell. Thin-layer chromatography (TLC) was carried out on precoated Merck silica gel F254 plates, and UV light was used for visualization. Column chromatography was performed on Merck silica gel. The reagents were purchased from Aldrich (St. Louis, MO, USA) and were used without further purification.

4.1.1. General Procedure for the Synthesis of 3-Cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxo)-pyridines (8a–d, 11a–c)

Microwave Methods A (Solvent-Free Method)

Pyridine-2(1H)-ones (3a–d, 10a–c) (10 mmol) were mixed with 1″,2″,3″,4″,6″-penta-O-acetyl-α-d-galacto-pyranose 9 (11 mmol, 4.29 g). A mixture was dissolved of methylene chloride/methanol (80/20) followed by the addition of 1.0 g of silica gel (200–400 mesh), and then the solvent was removed by evaporation. The dried residue was transferred into a 10-mL vial and irradiated for 2–3 min using a CEM Microwave system. The product was purified using column chromatography in MeOH (0–2%) CHCl3 to afford the products (8a–d, 11a–c).

Microwave Methods B (Catalyst-Free Method)

Pyridinium salts (4a–d, 13a–c) (10 mmol) were dissolved in acetone or a mixture of acetone/DMF (5 mL, 10 mmol), and 2″,3″,4″,6″-tetra-O-acetyl-α-d-galactopyranosyl bromide 7 (11 mmol, 4.52 g) was added. The reaction mixture was irradiated for a suitable time using a CEM Microwave system. The reaction mixture was filtered off, and the solvent was evaporated under reduced pressure at room temperature. The product was dried and purified using column chromatography in MeOH (0–2%) CHCl3 to afford the products (8a–d, 11a–c).

Conventional Synthesis Method C (Silyl Method)

Pyridine-2(1H)-ones (3a–d, 10a–c) (10 mmol) were heated under reflux, with stirring and under anhydrous conditions, for 48 h with hexamethyldisilazane (25 mL) and (NH4)2SO4 (0.02 g). The excess of the HMDS was removed under diminished pressure, providing the silylated bases as colorless oils. To a solution of silylated base in dry MeCN (30 mL) was added a solution of 1″,2″,3″,4″,6″-penta-O-acetyl-α-d-galactopyranose (6) (11 mmol, 4.29 g) in dry MeCN (10 mL), followed by SnCl4 (1.6 mL). The reaction mixture was stirred at room temperature until the reaction was judged complete through TLC. The reaction mixture was poured into saturated NaHCO3 solution and extracted with CHCl3 (3 × 20 mL). The organic layers were dried over MgSO4, filtered, and concentrated to give the crude nucleoside. The crude product was dried and purified using column chromatography in MeOH (0–2%) CHCl3 to afford the products (8a–d, 11a–c).
3-Cyano-4,6-dimethyl-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactoyranosyl-oxy)-5-(4′-chlorophenylazo)-pyridine (8a): mp 189 °C; IR (KBr, cm−1) υ 2227 (CN), 1755 (CO); COSY; NOESY; gHMBC; 1H-NMR (400 MHz, CDCl3) δ = 2.05, 2.055, 2.060, and 2.07 (4s, 12H, 4CH3CO), 2.61 (s, 3H, CH3), 2.62 (s, 3H, CH3), 3.95–4.00 (m, 1H, H-5″), 4.17 (t, 1H, H-4″, JH-4″-H-3 = 9.2 Hz), 4.22 (t, 1H, H-3″, JH-3″-H-4 = 9.2 Hz), 5.23 (t, 1H, H-2″, JH-2″-H-1 = 7.8 Hz), 5.32–5.37 (m, 2H, H-6″), 6.01 (d, 1H, H-1″, J = 8.2 Hz,), 7.63 (d, 2H, Ar-H, J = 8.6 Hz), 7.71 (d, 2H, Ar-H, J = 8.6 Hz); 13C-NMR (100 MHz, CDCl3) δ = 18.1 (CH3), 19.5, 19.55, 20.0, and 20.5 (4CH3CO), 22.3 (CH3), 61.2 (C-6″), 67.5 (C-5″), 70.4 (C-4″), 72.5 (C-3″), 72.7 (C-2″), 94.1(C-3), 97.1 (C-1″), 112.7 (CN), 123.8–154.7 (Ar-C), 159.6 (C-2), 168.5, 168.8, 169.2, and 170.1 (4CO); LC-MS (ionization method): m/z 618 [M + 1]; Anal. calcd for C28H29ClN4O10: C, 54.51; H, 4.74; N, 9.08%. Found C, 54.61; H, 4.67; N, 9.22%.
3-Cyano-4,6-dimethyl-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosylox-y)-5-(3-nitrophenylazo) (8b): mp 218 °C; IR (KBr, cm−1) υ 2228 (CN), 1753 (CO); COSY; NOESY; gHMBC; 1H-NMR (400 MHz, CDCl3) δ = 1.95, 2.00, 2.05, and 2.06 (4s, 12H, 4CH3CO), 2.58 (s, 3H, CH3), 2.61 (s, 3H, CH3), 3.93–3.98 (m, 1H, H-5″), 4.18 (t, 1H, H-4″, JH-4″-H-3 = 9.2 Hz), 4.25 (t, 1H, H-3″, JH-3″-H-4 = 9.2 Hz), 5.21 (t, 1H, H-2″, JH-2″-H-1 = 7.8 Hz), 5.34–5.38 (m, 2H, H-6″), 5.97 (d, 1H, H-1″, J = 8.1 Hz), 7.65–7.80 (m, 4H, Ar-H); 13C-NMR (100 MHz, CDCl3) δ = 18.1 (CH3), 19.5, 19.55, 20.0, and 20.5 (4CH3CO), 22.3 (CH3), 61.2 (C-6″), 67.5 (C-5″), 70.4 (C-4″), 72.5 (C-3″), 72.7 (C-2″), 94.1(C-3), 97.1 (C-1″), 112.7 (CN), 123.8–154.7 (Ar-C), 159.6 (C-2), 168.5, 168.8, 169.2 and 170.1 (4CO); LC-MS (ionization method): m/z 627 [M]; Anal. calcd for C28H29N5O12: C, 53.59; H, 4.66; N, 11.16%. Found: C, 53.71; H, 4.82; N, 10.95%.
3-Cyano-4-methyl-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactoyranosyloxy)-6-phenyl-5-(4′-chlorophenylazo)-pyridine (8c): mp 178 °C; IR (KBr, cm−1) υ 2228 (CN), 1757 (CO); COSY; NOESY; gHMBC; 1H-NMR (400 MHz, CDCl3) = 1.97, 1.99, 2.01, and 2.02 (4s, 12H, 4CH3CO), 2.56 (s, 3H, CH3), 3.91-3.97 (m, 1H, H-5″), 4.20 (t, 1H, H-4″, JH-4″-H-3 = 9.2 Hz), 4.26 (t, 1H, H-3″, JH-3″-H-4 = 9.2 Hz), 5.23 (t, 1H, H-2″, JH-2″-H-1 = 7.8 Hz), 5.32–5.37 (m, 2H, H-6″), 5.99 (d, 1H, H-1″, J = 8.1 Hz), 7.33–7.81 (m, 9H, Ar-H); 13C-NMR (100 MHz, CDCl3) δ = 18.7 (CH3), 20.6, 20.65, 20.7, and 20.8 (4CH3CO), 62.3 (C-6″), 68.4 (C-5″), 70.5 (C-4″), 72.9 (C-3″), 73.1 (C-2″), 94.8 (C-3), 98.1 (C-1″), 113.8 (CN), 124.2–154.7 (Ar-C), 159.7 (C-2), 168.3, 169.6, 170.0 and 170.9 (4CO); LC-MS (ionization method): m/z 679 [M + 1]; Anal. calcd for C33H31ClN4O10: C, 58.37; H, 4.60; N, 8.25%. Found: C, 58.61; H, 4.73; N, 8.11%.
3-Cyano-4-methyl-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxy)-6-phenyl-5-(3-nitrophenylazo)-pyridine (8d): mp 168 °C; IR (KBr, cm−1) υ 2230 (CN), 1756 (CO); COSY; NOESY; (400 MHz, CDCl3) = 1.95, 2.01, 2.07, and 2.09 (4s, 12H, 4CH3CO), 2.60 (s, 3H, CH3), 3.99–4.03 (m, 1H, H-5″), 4.22 (t, 1H, H-4″, JH-4″-H-3 = 9.2 Hz), 4.29 (t, 1H, H-3″, JH-3″-H-4 = 9.2 Hz), 5.33 (t, 1H, H-2″, JH-2″-H-1 = 7.8 Hz), 5.37–5.40 (m, 2H, H-6″), 6.09 (d, 1H, H-1″, J = 8.0 Hz), 7.33–7.81 (m, 9H, Ar-H); 13C-NMR (100 MHz, CDCl3) δ = 18.7 (CH3), 20.5, 20.55, 20.6, and 20.7 (4CH3CO), 61.8 (C-6″), 68.4 (C-5″), 70.5 (C-4″), 72.3 (C-3″), 73.2 (C-2″), 94.8 (C-3), 97.9 (C-1″), 113.5 (CN), 123.2–154.7 (Ar-C), 160.2 (C-2), 168.8, 169.5, 170.3 and 170.5 (4CO); LC-MS (ionization method): m/z 690 [M + 1]; Anal. calcd for C33H31N5O12: C, 57.47; H, 4.53; N, 10.16%. Found: C, 57.58; H, 4.62; N, 10.33%.
3-Cyano-4,6-dimethyl-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosylox-y) pyridine (11a): mp 147 °C; IR (KBr, cm−1) υ 2232 (CN), 1758 (CO); 1H-NMR (400 MHz, CDCl3) δ = 2.01, 2.01, 2.03, and 2.05 (4s, 12H, 4CH3CO), 2.43 (s, 3H, CH3), 2.52 (s, 3H, CH3), 4.02–4.05 (m, 1H, H-5″), 4.24 (t, 1H, H-4″, JH-4″-H-3 = 9.2 Hz), 4.31 (t, 1H, H-3″, JH-3″-H-4 = 9.2 Hz), 5.31 (t, 1H, H-2″, JH-2″-H-1 = 7.8 Hz), 5.39–5.44 (m, 2H, H-6″), 6.02 (d, 1H, H-1″, JH-1″-H-2 = 8.0 Hz), 6.80 (s, 1H, pyridine H-5); 13C-NMR (100 MHz, CDCl3) δ = 20.4 (CH3), 20.6, 20.7, 20.75, and 20.8 (4CH3CO), 24.3 (CH3), 61.3 (C-6″), 67.8 (C-5″), 70.7 (C-4″), 72.8 (C-3″), 74.1 (C-2″), 93.8 (C-3), 95.0 (C-1″), 114.2 (CN), 120.2 (C-5), 154.8 (C-4), 160.8 (C-6), 161.7 (C-2), 169.1, 170.0, 170.5 and 170.8 (4CO); LC-MS (ionization method): m/z 479 [M + 1]; Anal. calcd for C22H26N2O10: C, 55.23; H, 5.48; N, 5.86%. Found: C, 55.46; H, 5.72; N, 5.98%.
3-Cyano-4-methyl-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxy)-6-phenyl-pyridine (11b): mp 167 °C; IR (KBr, cm−1) υ 2230 (CN), 1764 (CO); 1H-NMR (400 MHz, CDCl3) δ = 2.00, 2.01, 2.02, and 2.03 (4s, 12H, 4CH3CO), 2.57 (s, 3H, CH3), 3.90–3.94 (m, 1H, H-5″), 4.12 (t, 1H, H-4″, JH-4″-H-3 = 9.2 Hz), 4.11 (t, 1H, H-3″, JH-3″-H-4 = 9.2 Hz), 5.22 (t, 1H, H-2″, JH-2″-H-1 = 7.8 Hz), 5.40-5.46 (m, 2H, H-6″), 5.97 (d, 1H, H-1″, JH-1″-H-2 = 8.0 Hz), 7.40 (s, 1H, pyridine H-5), 7.39–7.45 (m, 3H, Ar-H), 7.94–7.99 (m, 2H, Ar-H); 13C-NMR (100 MHz, CDCl3) δ = 20.4, 20.5, 20.6, and 20.7 (4CH3CO), 24.2 (CH3), 62.4 (C-6″), 68.6 (C-5″), 70.5 (C-4″), 72.8 (C-3″), 73.1 (C-2″), 93.7 (C-3), 96.3 (C-1″), 113.8 (CN), 116.3 (C-5), 127.2–137.1 (Ar-C), 155.6 (C-4), 157.5 (C-6), 161.4 (C-2), 168.3, 168.9, 169.8, and 170.8 (4CO); LC-MS (ionization method): m/z 563 [M + Na]+; Anal. calcd for C27H28N2O10: C, 60.00; H, 5.22; N, 5.18%. Found: C, 59.88; H, 5.42; N, 5.30%.
3-Cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxy)-4-trifluromethyl-6-phenyl-pyridine (11c): mp 161 °C; IR (KBr, cm−1) υ 2230 (CN), 1753 (CO); 1H-NMR (400 MHz, CDCl3) δ = 2.00, 2.01, 2.02, and 2.03 (4s, 12H, 4 CH3CO), 3.97–4.01 (m, 1 H, H-5″), 4.19 (t, 1H, H-4″, JH-4″-H-3 = 9.2 Hz), 4.08 (t, 1H, H-3″, JH-3″-H-4 = 9.2 Hz), 5.19 (t, 1H, H-2″, JH-2″-H-1 = 7.8 Hz), 5.42-5.47 (m, 2H, H-6″), 6.12 (d, 1H, H-1″, JH-1″-H-2 = 8.0 Hz), 7.51–7.53 (m, 3H, Ar-H), 7.68 (s, 1H, pyridine H-5), 7.84–8.03 (m, 2H, Ar-H); 19F-NMR (376 MHz, CDCl3) δ = (-63.81) (s, 3F, CF3); 13C-NMR (100 MHz, CDCl3) δ = 20.0, 20.1, 20.15 and 20.2 (4CH3CO), 61.8 (C-6″), 68.0 (C-5″), 70.1 (C-4″), 72.3 (C-3″), 73.0 (C-2″), 91.8 (C-1″), 94.3 (C-3), 110.7 (CN), 110.9 (C-5), 119.8 (CF3), 127.2–135.2 (Ar-C), 144.9 (C-4), 160.0 (C-6), 162.2 (C-2), 168.3, 168.8, 169.3, and 170.4 (4 CO); LC-MS (ionization method): m/z 595 [M + 1]; Anal. calcd for C27H25F3N2O10: C, 54.55; H, 4.24; N, 4.71%. Found: C, 54.76; H, 4.51; N, 4.52%.

4.1.2. General Procedure for the Synthesis of 3-cyano-2-(β-d-galactopyranosyloxy)-pyridines (9a–d, 14a–c).

General Procedure for Nucleoside Deactylation Method A

Triethylamine (1.0 mL) was added to a solution of protected galactosides (11a–d, 13a–c) (10 mmol) in 10 mL MeOH and 3 drops of water. The mixture was stirred for 18 h at room temperature. The solvent was evaporated under reduced pressure, and the residue was coevaporated with MeOH until triethylamine was removed. The residue was crystallized from an appropriate solvent to give deprotected galactosides (9a–d, 14a–c).

General Procedure for Nucleoside Deactylation Method B

Dry ammonia gas was passed into a solution of protected galactosides (8a–d, 11a–c) (0.5 g) in 20 mL of dry methanol at 0 °C for 30 min. The reaction mixture was stirred until completion, as shown by TLC (10–12 h), using chloroform/methanol 19:1 (Rf 0.60–62 region). The resulting mixture was then concentrated under reduced pressure to afford a crude solid. The crude products were purified by silica gel chromatography (chloroform/methanol 20:1). The products were crystallized from methanol to furnish the products (9a–d, 14a–c).
3-Cyano-4,6-dimethyl-2-(β-d-galactopyranosyloxy)-5-(4′-chlorophenylazo)-pyridine (9a): mp 144 °C; IR (KBr, cm−1) υ 3431 (OH), 2227 (CN); 1H-NMR (400 MHz, DMSO-d6) δ = 2.44 (s, 3H, CH3), 2.63 (s, 3H, CH3), 3.28-3.71 (m, 6H, H-2″, H-3″, H-4″, H-5″, 2H-6″), 4.62–5.59 (4OH, exchangeable with D2O), 5.8 (d, 1H, H-1″, JH-1″-H-2 = 7.7 Hz), 7.71–7.82 (m, 4H, Ar-H); 13C-NMR (100MHz, DMSO-d6) δ = 19.5 (CH3), 24.4 (CH3), 60.6 (C-6″), 68.8 (C-5″), 72.8 (C-4″), 76.7 (C-3″), 77.6 (C-2″), 96.8 (C-3), 98.2 (C-1″), 114.6 (CN), 125.2–156.8 (Ar-C), 160.8 (C-2); LC-MS (ionization method): m/z 448 [M]; Anal. calcd for C20H21ClN4O6: C, 53.52; H, 4.72; Cl, 7.90; N, 12.48%. Found: C, 53.71; H, 4.93; N, 12.76%.
3-Cyano-4,6-dimethyl-2-(β-d-galactopyranosyloxy)-5-(3-nitrophenylazo)-pyridine (9b): mp 147 °C; IR (KBr, cm−1) υ 3421 (OH), 22,230 (CN); 1H-NMR (400 MHz, DMSO- d6) δ = 2.44 (s, 3 H, CH3), 2.63 (s, 3H, CH3), 3.31–3.77 (m, 6 H, H-2″, H-3″, H-4″, H-5″, 2H-6″), 4.71–5.60 (4OH, exchangeable with D2O), 5.91 (d, 1 H, H-1″, JH-1″-H-2 = 7.8 Hz), 7.61–7.89 (m, 4H, Ar-H); 13C-NMR (100 MHz, DMSO-d6) δ = 18.1 (CH3), 22.5 (CH3), 60.2 (C-6″), 68.7 (C-5″), 72.8 (C-4″), 76.7 (C-3″), 77.6 (C-2″), 96.2 (C-1″), 97.2 (C-3), 114.1 (CN), 122.3-153.9 (Ar-C), 160.6 (C-2); LC-MS (ionization method): m/z 460 [M + H]; Anal. calcd for C20H21N5O8: C, 52.29; H, 4.61; N, 15.24%. Found: C, 52.48; H, 4.87; N, 14.93%.
3-Cyano-4-methyl-2-(β-d-galactopyranosyloxy)-6-phenyl-5-(4′-chlorophen-ylazo)-pyridine (9c): mp 157 °C; IR (KBr, cm−1) υ 3418 (OH), 2227 (CN); 1H-NMR (400 MHz, DMSO-d6) δ = 2.61 (s, 3H, CH3), 3.23-3.80 (m, 6H, H-2″, H-3″, H-4″, H-5″, 2H-6″), 4.77–5.83 (4OH, exchangeable with D2O), 5.91 (d, 1H, H-1″, JH-1″-H-2 = 7.2 Hz), 7.45–7.87 (m, 9H, Ar-H); 13C-NMR (50 MHz, DMSO-d6) δ = 18.1 (CH3), 60.6 (C-6″), 69.6 (C-5″), 72.6 (C-4″), 76.8 (C-3″), 77.8 (C-2″), 96.4 (C-1), 96.8 (C-3), 114.1 (CN), 123.8–153.6 (Ar-C), 160.5 (C-2); LC-MS (ionization method): m/z 511 [M + 1]; Anal. calcd for C25H23ClN4O6: C, 58.77; H, 4.54; Cl, 6.94; N, 10.97%. Found: C, 58.61; H, 4.83; N, 10.72%.
3-Cyano-4-methyl-2-(β-d-galactopyranosyloxy)-6-phenyl-5-(3-nitrophenyl-azo)pyridine (9d): mp 136 °C; IR (KBr, cm−1) υ 3390 (OH), 2231 (CN); 1H-NMR (400 MHz, DMSO-d6) δ = 2.67 (s, 3H, CH3), 3.11–3.76 (m, 6 H, H-2″, H-3″, H-4″, H-5″, 2H-6″), 4.67–5.49 (4OH, exchangeable with D2O), 5.89 (d, 1H, H-1″, JH-1″-H-2 = 7.5 Hz), 7.41–7.75 (m, 9H, Ar-H); 13C-NMR (100 MHz, DMSO-d6) δ = 18.7 (CH3), 60.5 (C-6″), 69.9 (C-5″), 72.7 (C-4″), 76.8 (C-3″), 77.5 (C-2″), 96.7 (C-3), 97.1 (C-1″), 114.1(CN), 122.0–153.1 (Ar-C), 159.8 (C-2); LC-MS (ionization method): m/z 522 [M + 1]; Anal. calcd for C25H23N5O8: C, 57.58; H, 4.45; N, 13.43%. Found: C, 57.37; H, 4.67; N, 13.62%.
3-Cyano-4,6-dimethyl-2-(β-d-galactopyranosyloxy)-pyridine (14a): mp 201 °C; IR (KBr, cm−1) υ 3422 (OH), 2227 (CN); 1H-NMR (400 MHz, DMSO- d6) δ = 2.56 (s, 3H, CH3), 2.61 (s, 3H, CH3), 3.32–3.78 (m, 6H, H-2″, H-3″, H-4″, H-5″, 2H-6″), 4.65–5.46 (4OH, exchangeable with D2O), 5.91 (d, 1H, H-1″, JH-1″-H-2 = 7.9 Hz), 7.09 (s, 1H, pyridine H-5); 13C-NMR (100 MHz, DMSO-d6) δ = 20.1 (CH3), 24.3 (CH3), 60.7 (C-6″), 70.2 (C-5″), 73.1(C-4″), 76.9 (C-3″), 77.2 (C-2″), 93.2 (C-3), 96.3 (C-1″), 114.2 (CN), 119.2 (C-5), 155.2 (C-4), 161.0 (C-6), 161.9 (C-2); Anal. calcd for C14H18N2O6: C, 54.19; H, 5.85; N, 9.03%. Found: C, 54.03; H, 5.83; N, 9.12%.
3-Cyano-4-methyl-2-(β-d-galactopyranosyloxy)-6-phenyl-5-pyridine (14b): mp 212 °C; IR (KBr, cm−1) υ 3391 (OH), 2224 (CN); 1H-NMR (200 MHz, DMSO-d6) δ = 2.50 (s, 3H, CH3), 3.24–3.65 (m, 6H, H-2″, H-3″, H-4″, H-5″, 2H-6″), 4.57–5.37 (4OH, exchangeable with D2O), 6.08 (d, 1H, H-1″, JH-1″-H-2 = 6.6 Hz), 7.50–7.52 (m, 3H, Ar-H), 7.79 (s, 1H, pyridine H-5), 8.11–8.13 (m, 2H, Ar-H);13C-NMR (50 MHz, DMSO-d6) δ = 20.2 (CH3), 60.5 (C-6″), 69.5 (C-5″), 72.7 (C-4″), 76.9 (C-3″), 77.9 (C-2″), 94.6 (C-1″), 96.3 (C-3), 114.3 (CN), 115.4 (C-5), 127.0–136.2 (Ar-C), 155.8 (C-4), 156.3 (C-6), 161.8 (C-2); Anal. calcd for C19H20N2O6: C, 61.29; H, 5.41; N, 7.52%. Found: C, 61.20; H, 5.56; N, 7.70%.
3-Cyano-2-(β-d-galactopyranosyloxy)-4-trifluromethyl-6-phenyl-pyridine (14c): mp 142 °C; IR (KBr, cm−1) υ 3418 (OH), 2233 (CN); 1H-NMR (400 MHz, DMSO-d6) δ = 3.35–3.49 (m, 6H, H-2″, H-3″, H-4″, H-5″, 2H-6″), 4.62–5.51 (4OH, exchangeable with D2O), 5.97 (d, 1 H, H-1″, JH-1″-H-2 = 7.7 Hz), 7.58–7.60 (m, 3H, Ar-H), 8.31 (s, 1H, pyridine H-5), 8.31–8.34 (m, 2H, Ar-H); 19F-NMR (376 MHz, DMSO-d6) δ = (−62.71) (s, 3F, CF3); 13C-NMR (100 MHz, DMSO-d6) δ = 60.8 (C-6”), 69.1 (C-5″), 72.8 (C-4″), 76.8 (C-3″), 77.8 (C-2″), 90.2(C-3), 97.2 (C-1″), 112.0 (C-5), 113.5 (CN), 118.8 (CF3), 128.0–136.5 (Ar-C), 143.3 (C-4), 160.8 (C-6), 162.3 (C-2); LC-MS (ionization method): m/z 427 [M + 1]; Anal. calcd for C19H17F3N2O6: C, 53.53; H, 4.02; N, 6.57%. Found: C, 53.67; H, 4.22; N, 6.70%.

4.2. Biological Activity Evaluations

4.2.1. Antimicrobial Activity

Materials and Methods

The synthesized compounds (8a–d, 9a–d, 11a–c, and 14a–c) were tested for their in vitro growth inhibitory activity against a panel of standard strains of the Institute of Fermentation of Osaka (IFO, Osaka, Japan), namely gram-positive bacteria (Staphylococcus aureus IFO 3060 and Bacillus subtilis IFO 3007) and gram-negative bacteria (Escherichia coli IFO 3301 and Proteus vulgaris IFO 3851). The primary screening was carried out using the agar disc-diffusion method using Müller–Hinton agar medium [26].

Agar Disc-Diffusion Method

Sterile filter paper discs (5 mm in diameter) were moistened with the compound solution in dimethylsulfoxide of a specific concentration (30 µg/disc) and were carefully placed on the agar culture plates, which had been previously inoculated separately with the microorganisms. The plates were incubated at 37 °C for 24 h, and the diameter of the clear zone of inhibition surrounding the sample was taken as a measure of the inhibitory power of the sample against the particular test organism (% inhibition = sample inhibition zone (cm)/plate diameter × 100). All measurements were done in DMSO as a solvent, which has zero inhibition activity. The obtained results were compared to some reference antibiotics.

4.2.2. Anticancer Activity

Materials and Methods: Cell Culture and Viability Assay

Human breast cancer cells (MDA-MB-231) and liver cancer cells (HT29) (Caliper LifeSciences, Waltham, MA, USA) were maintained in DMEM medium (Invitrogen, Cergy Pontoise, France), and human lung cancer cells (NCI-H460-Luc2) (Caliper LifeSciences) (NSCLC) were maintained in RPMI 1640 (Hyclone Thermo Scientific, MA, USA). All media were supplemented with antibiotics (penicillin 50 U/mL; streptomycin 50 mg/mL) (Invitrogen, Cergy Pontoise, France) and 10% fetal bovine serum (FBS, Biowest, Nouaille, France). Cells were seeded in 96-well plates at a density of 5000 cells/well. After 24 h, the cells were treated for 24 h or 48 h with increasing concentrations of the test compounds (5–100 µM) in triplicate. Control cultures were treated with 0.1% DMSO. The effect of the test compounds on cell viability was determined using a CellTiter-Glo Luminescent Cell Viability assay (Promega Corporation, Madison, WI, USA) based on a quantification of ATP, which signals the presence of metabolically active cells. The luminescent signal was measured using a GLOMAX Luminometer system. The data are presented as a proportional viability (%) from comparing the treated group to the untreated cells, the viability of which was assumed to be 100% [27].

4.2.3. Molecular Docking

The molecular docking studies were performed using the Molecular Operating Environment (MOE; Chemical Computing Group, Montreal, QC, Canada). Energy minimizations were performed at an RMSD gradient value of 0.05 kcal/mol Å and an MMFF94X force field, and partial charges were automatically added. The methotrexate bound to dihydrofolate reductase (DHFR) enzyme (Pdb ID:4DFR) was obtained from the Protein Data Bank. The cocrystallized ligand with the enzyme was checked and refined, and hydrogen atoms were added: Water molecules and bound ligands were removed. The active site was detected using the MOE-Alpha site finder. A validation process was performed by redocking the cocrystallized ligand in the DHFR binding site. The selected compounds were drawn in 2D form, saved as mol, and then transformed into 3D using the MOE program: The energy was minimized, protonated, and then saved as a data base file for docking. Docking for the selected compounds was applied, and amino acid interactions, the scoring energy, and hydrogen bonds were determined.

Author Contributions

Investigation, M.A., A.B. and H.A.E.; Methodology, S.A.A. and H.A.E.; Project administration, H.A.E.

Funding

Support for this research came from the Deanship of Scientific Research, Taif University, Kingdom of Saudi Arabia: [Grant Number 1-438-6001].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, Q.; Mitscher, L.; Shen, L. The 2-pyridone antibacterial agents: Bacterial topoisomerase inhibitors. Med. Res. Rev. 2000, 20, 231–293. [Google Scholar] [CrossRef]
  2. Fujita, Y.; Oguri, H.; Oikawa, H. Biosynthetic studies on the antibiotics PF1140: A novel pathway for a 2-pyridone framework. Tetrahedron Lett. 2005, 46, 5885–5888. [Google Scholar] [CrossRef]
  3. Fassihi, A.; Abedi, D.; Saghaie, L.; Sabet, R.; Fazeli, H.; Bostaki, G.; Deilami, O.; Sadinpou, H. Synthesis, antimicrobial evaluation and QSAR study of some 3-hydroxypyridine-4-one and 3-hydroxypyran-4-one derivatives. Eur. J. Med. Chem. 2009, 44, 2145–2157. [Google Scholar] [CrossRef]
  4. Semple, G.; Andersson, B.; Chhajlani, V.; Georgsson, J.; Johansson, M.; Rosenquist, Å. Swanson, Synthesis and Biological activity of kappa opioid receptor agonists. Part 2: Preparation of 3-aryl-2-pyridone analogues generated by solution- and solid-phase parallel synthesis methods. Bioorg. Med. Chem. Lett. 2003, 13, 1141–1145. [Google Scholar] [CrossRef]
  5. Parreira, R.; Abrahão, O.; Galembeck, E. Conformational preferences of non-nucleoside HIV-1 reverse transcriptase inhibitors. Tetrahedron 2001, 57, 243–3253. [Google Scholar] [CrossRef]
  6. Dragovich, P.; Prins, T.; Zhou, R.; Brown, E.; Maldonado, F.; Fuhrman, S.; Zalman, S.; Tuntland, T.; Lee, C.; Patick, A.; et al. Structure-Based Design, Synthesis, and Biological Evaluation of Irreversible Human Rhinovirus 3C Protease Inhibitors. 6. Structure−Activity Studies of Orally Bioavailable, 2-Pyridone-Containing Peptidomimetics. J. Med. Chem. 2002, 45, 1607–1623. [Google Scholar] [CrossRef]
  7. Hasvold, L.; Wang, W.; Gwaltney, S.; Rockway, T.; Nelson, L.; Mantei, R.; Fakhoury, S.; Sullivan, G.; Li, Q.; Lin, N.; et al. Pyridonecontaining farnesyltransferase inhibitors: Synthesis and biological evaluation. Bioorg. Med. Chem. Lett. 2003, 13, 4001–4005. [Google Scholar] [CrossRef]
  8. Parlow, J.; Kurumbail, R.; Stegeman, R.; Stevens, A.; Stallings, W.; South, M. Design, Synthesis, and Crystal Structure of Selective 2-Pyridone Tissue Factor VIIa Inhibitors. J. Med. Chem. 2003, 46, 4696–4701. [Google Scholar] [CrossRef]
  9. Parlow, J.; South, M. Synthesis of 2-pyridones as tissue factor VIIa inhibitors. Tetrahedron 2003, 59, 7695–7701. [Google Scholar] [CrossRef]
  10. Mijin, D.; Ušćumlić, G.; Valentić, N.; Marinković, A. Sinteza arilazo piridonskih boja. Hem. Ind. 2011, 65, 517–532. [Google Scholar] [CrossRef]
  11. Litvinov, V.; Krivokolysko, S.; Dyachenko, V. Synthesis and properties of 3-cyanopyridine-2(1H)-chalcogenones. Review. Chem. Heterocyclic Comp. 1999, 35, 509–540. [Google Scholar] [CrossRef]
  12. Nesnow, S.; Miyazaki, T.; Kawaja, T.; Meyer, B. Pyridine nucleosides related to 5-fluorouracil and thymine. J. Med. Chem. 1973, 16, 524–528. [Google Scholar] [CrossRef]
  13. Imai, K.I.; Nohara, A.; Honjo, M. Reaction of Steroidal Diosphenols with Manganese Dioxide. Chem. Pharm. Bull. 1966, 14, 1377–1381. [Google Scholar] [CrossRef]
  14. Onodera, K.; Hirano, S.F. Syntheses of O-Glycosides, Glycosylamines and Purine Nucleosides by Fusion Reaction in the Presence of Polyphosphoric Acid or Ethyl Polyphosphate as New catalyst. Agr. Biol. Chem. 1964, 28, 173–178. [Google Scholar]
  15. Abdou, I.; Rateb, N.; Eldeab, H. Fast and efficient microwave synthetic methods for some new 2(1H)-pyridone arabinosides. Heterocycl. Commun. 2012, 18, 135–141. [Google Scholar] [CrossRef]
  16. Rateb, N.; Eldeab, H.; Abdou, I. Antimicrobial Evaluation of New Synthesized Pyridine Nucleosides under Solvent-Free Conditions. Nucleosides, Nucleotides and Nucleic Acids 2013, 32, 493–509. [Google Scholar] [CrossRef]
  17. Abdellattif, M.; Maghrabi, I.; Areef, M.; ElDeab, H.; Mouneirand, S.; Belal, A. Efficient Microwave-Assisted Solvent-Free Synthesis and Molecular Docking Studies of 2-pyridone derivatives as Anticancer Agents and Evaluation of Cytotoxic Effects. J. Adv. Chem. 2016, 12, 4351–4364. [Google Scholar] [CrossRef]
  18. Maghrabi, I.; Alghamdi, S.; Alrobaian, M.; Eldeab, H. Green Technique-Solvent Free Microwave Synthesis and Antimicrobial Evaluation of New Thiopyridine Arabinosides. Molecules 2016, 21, 477. [Google Scholar] [CrossRef]
  19. Abdou, I.; Salem, A.; Adem, A.; Zohdy, H.; Eldeab, H. Substituted Pyridine Derivatives Useful in the Treatment of Cancer. U.S. Patent 9,051,271B2, 9 June 2015. [Google Scholar]
  20. Eldeab, H.; Greish, Y.; Thomas, S.; Karam, S. Pyridine Compound, Making, and Use Thereof. WO2017115321A1, 6 July 2017. [Google Scholar]
  21. Eldeab, H. Ecofriendly microwave assisted synthesis of some new pyridine glycosides. Nucleosides Nucleotides Nucleic Acids 2019, 38, 509–520. [Google Scholar] [CrossRef]
  22. Kitchen, D.B.; Decornez, H.; Furr, J.R.; Bajorath, J. Docking and scoring in virtual screening for drug discovery: Methods and applications. Nat. Rev. Drug Discov. 2004, 3, 935–949. [Google Scholar] [CrossRef]
  23. Sharma, M.; Chauhan, M. Dihydrofolate reductase as a therapeutic target for infectious diseases: Opportunities and challenges. Future Med. Chem. 2012, 4, 1335–1365. [Google Scholar] [CrossRef] [PubMed]
  24. Molecular Operating Environment. Available online: https://www.chemcomp.com/MOE-Molecular_Operating_Environment.htm (accessed on 20 December 2018).
  25. Protein Data Bank. Available online: http://www.rcsb.org/pdb/explore.do?structureId=4dfr (accessed on 18 December 2018).
  26. Atlas, R.M. Handbook of Microbiological Media; CRC Press: London, UK, 2004; p. 1226. [Google Scholar]
  27. Stoddart, M. Mammalian Cell Viability, (Methods in Molecular Biology Series); Humana Press: New York, NY, USA, 2011. [Google Scholar]
Sample Availability: Samples of the compounds are not available from the authors.

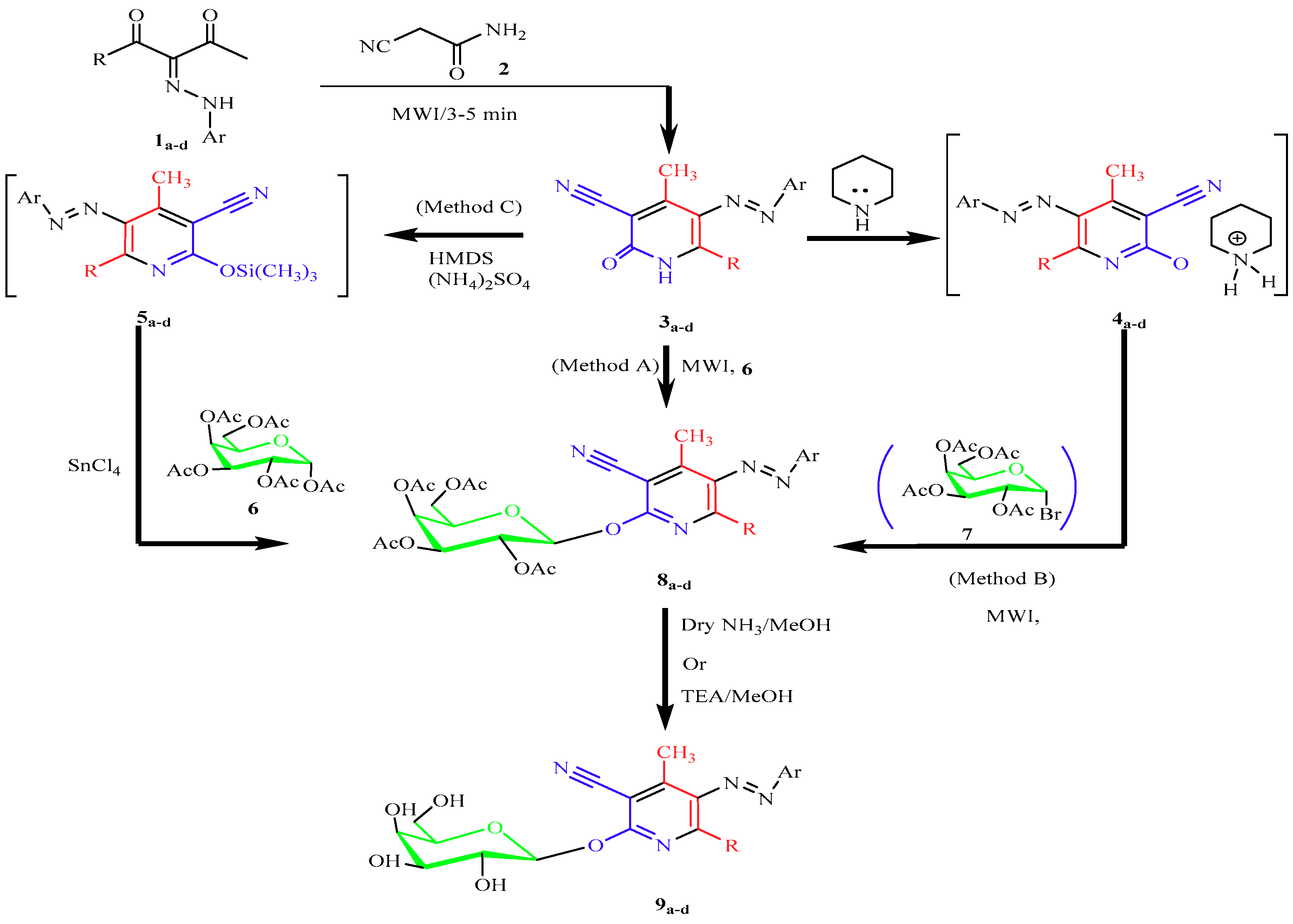

Scheme 1. Synthetic pathways of 5-arylazo-3-cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxo)-pyridines (8a–d).
Scheme 1. Synthetic pathways of 5-arylazo-3-cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxo)-pyridines (8a–d).
Molecules 24 01969 sch001
Scheme 2. Synthesis of 3-Cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxo)-pyridines (11a–c). Reagents: (i) Pip., 4 h, 80 °C; (ii) 1″,2″,3″,4″,6″-penta-O-acetyl-α-d-galacto-pyranose, silica gel, MW (200 W, 2–3 min); (iii) hexamethyldisilazane, (NH4)2SO4, reflux, 48 h, N2, 2″,3″,4″,6″-tetra-O-acetyl-α-D-galactopyranosyl bromide (7); (iv) acetone/DMF, MW (200 W, 6–7 min), 1″,2″,3″,4″,6″-penta-O-acetyl-α-d-galactopyranose (6), dry MeCN, SnCl4, 0–25 °C; (v) TEA/MeOH; (vi) dry NH3/MeOH; (vii) TEA/MeOH.
Scheme 2. Synthesis of 3-Cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxo)-pyridines (11a–c). Reagents: (i) Pip., 4 h, 80 °C; (ii) 1″,2″,3″,4″,6″-penta-O-acetyl-α-d-galacto-pyranose, silica gel, MW (200 W, 2–3 min); (iii) hexamethyldisilazane, (NH4)2SO4, reflux, 48 h, N2, 2″,3″,4″,6″-tetra-O-acetyl-α-D-galactopyranosyl bromide (7); (iv) acetone/DMF, MW (200 W, 6–7 min), 1″,2″,3″,4″,6″-penta-O-acetyl-α-d-galactopyranose (6), dry MeCN, SnCl4, 0–25 °C; (v) TEA/MeOH; (vi) dry NH3/MeOH; (vii) TEA/MeOH.
Molecules 24 01969 sch002

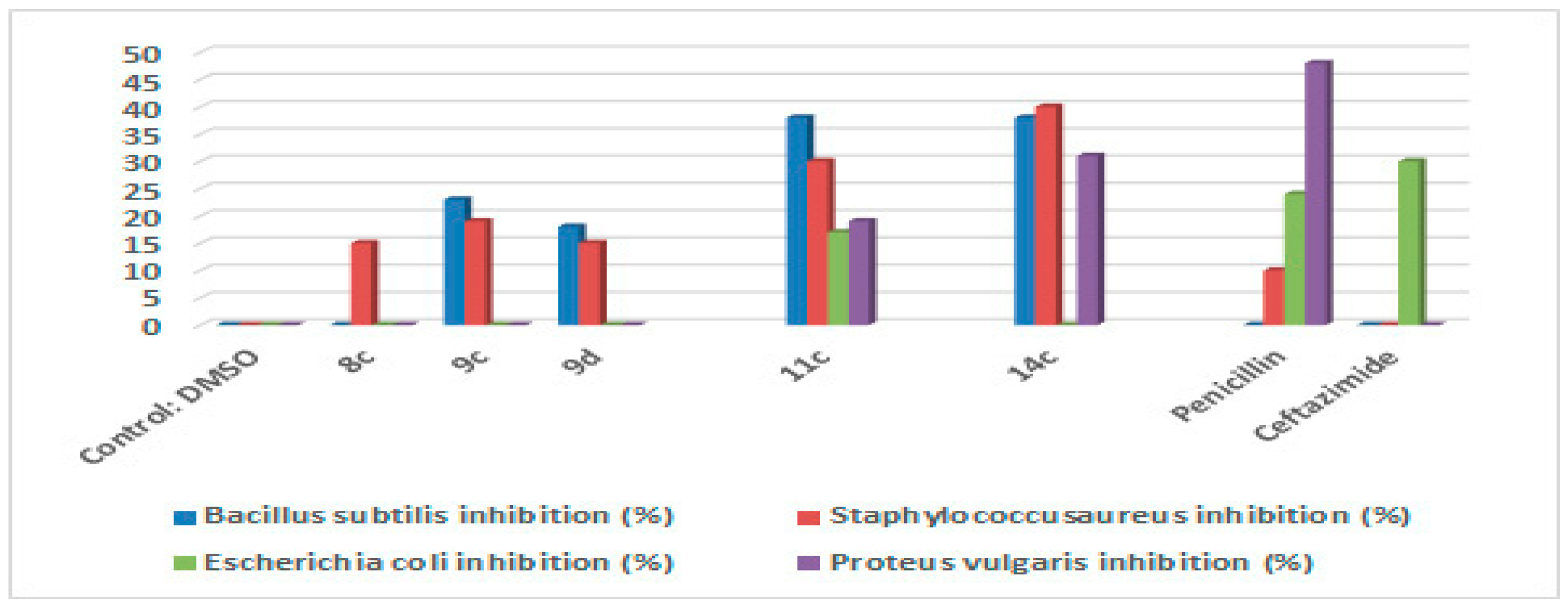

Figure 1. Antimicrobial activity of the active synthesized compounds.
Figure 1. Antimicrobial activity of the active synthesized compounds.
Molecules 24 01969 g001

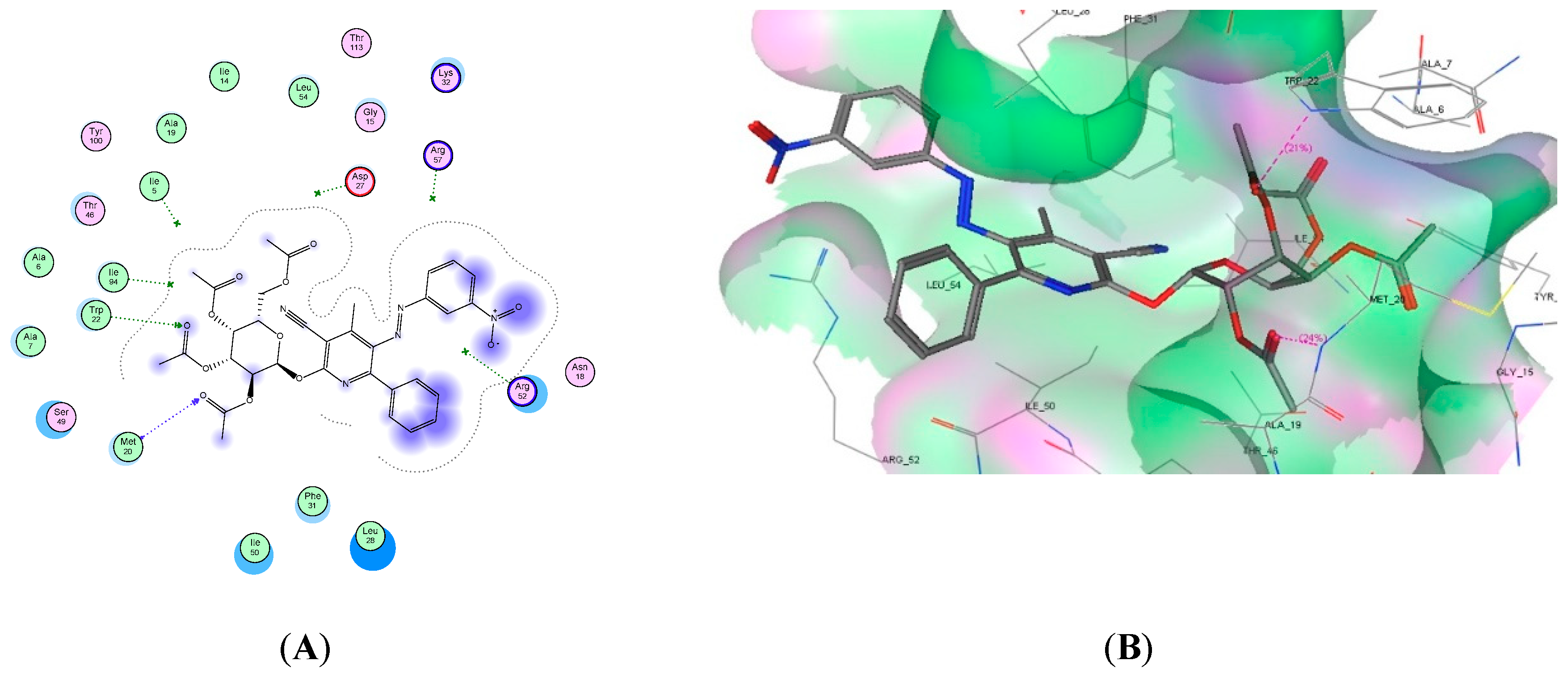

Figure 2. (A) 2D interactions of compound 8d with the DHFR binding site. (B) 3D interactions of compound 8d with the DHFR binding site.
Figure 2. (A) 2D interactions of compound 8d with the DHFR binding site. (B) 3D interactions of compound 8d with the DHFR binding site.
Molecules 24 01969 g002
Figure 3. (A) 2D interactions of compound 9d with the DHFR binding site. (B) 3D interactions of compound 9d with the DHFR binding site.
Figure 3. (A) 2D interactions of compound 9d with the DHFR binding site. (B) 3D interactions of compound 9d with the DHFR binding site.
Molecules 24 01969 g003

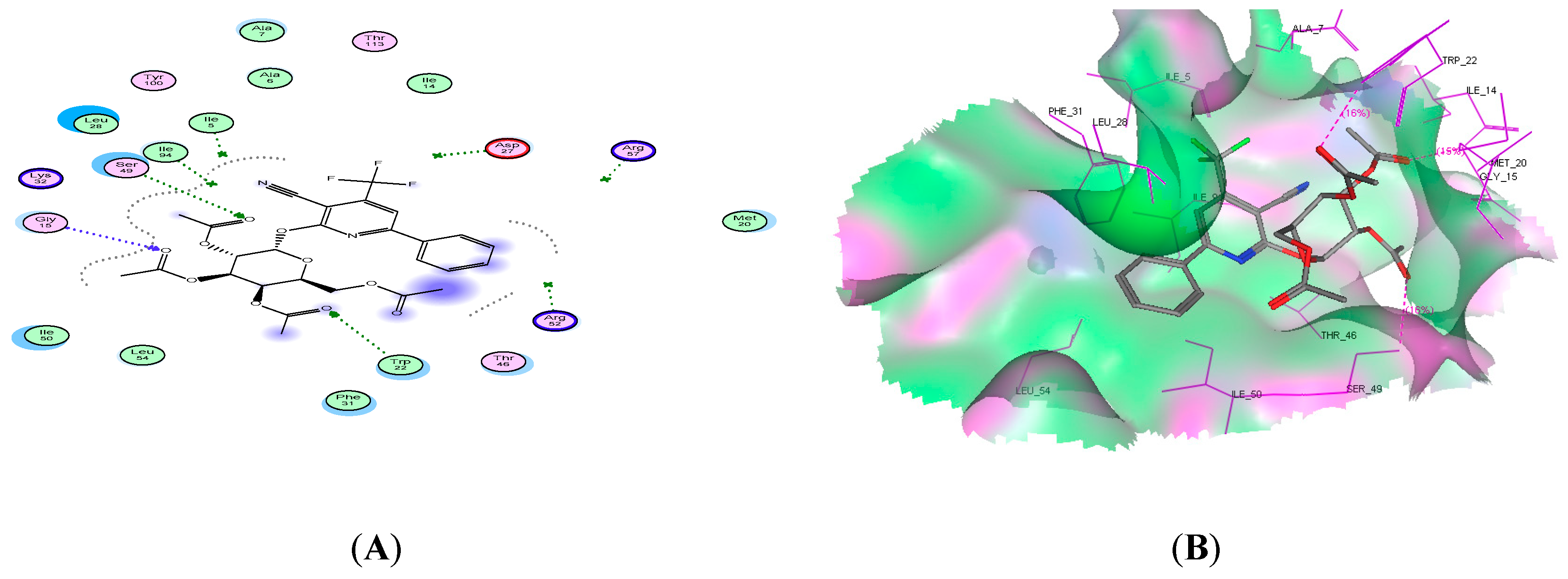

Figure 4. (A) 2D interactions of compound 11c with the DHFR binding site. (B) 3D interactions of compound 11c with the DHFR binding site.
Figure 4. (A) 2D interactions of compound 11c with the DHFR binding site. (B) 3D interactions of compound 11c with the DHFR binding site.
Molecules 24 01969 g004

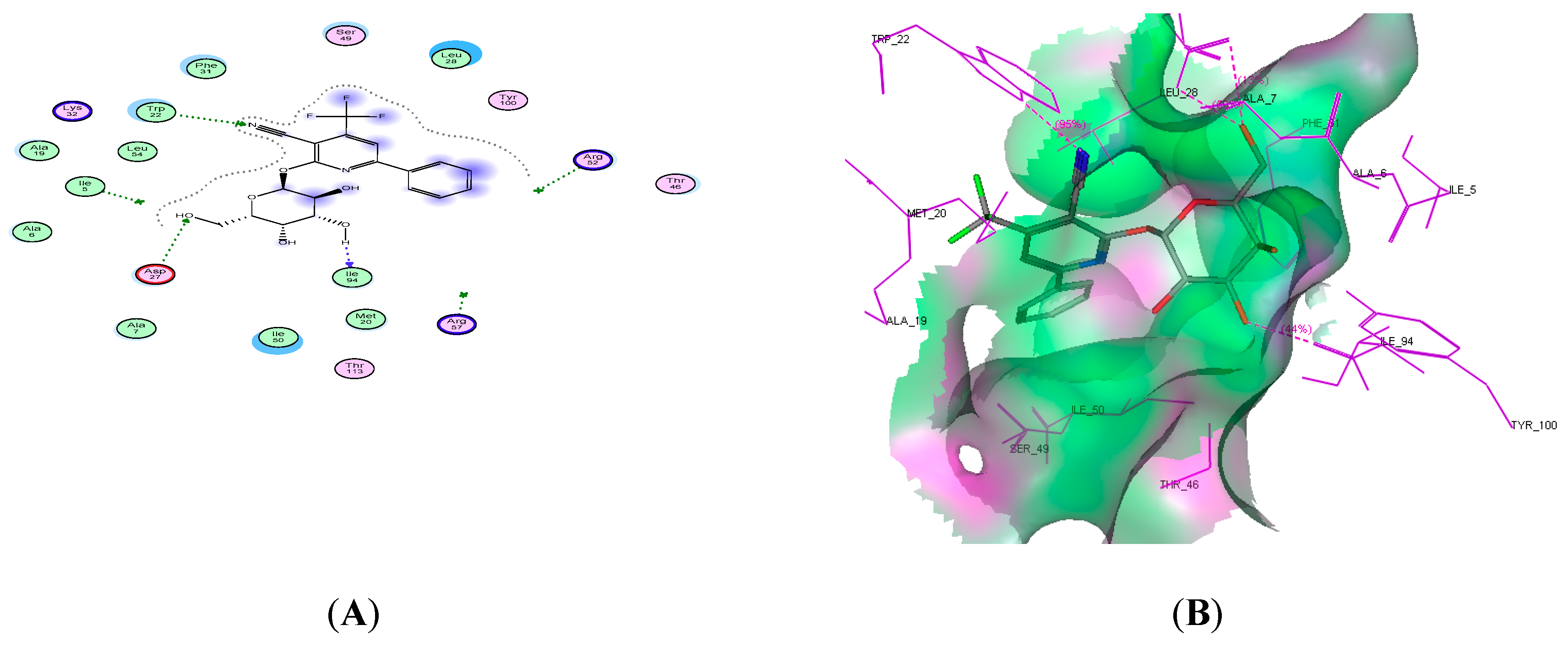

Figure 5. (A) 2D interactions of compound 14c with the DHFR binding site. (B) 3D interactions of compound 14c with the DHFR binding site.
Figure 5. (A) 2D interactions of compound 14c with the DHFR binding site. (B) 3D interactions of compound 14c with the DHFR binding site.
Molecules 24 01969 g005

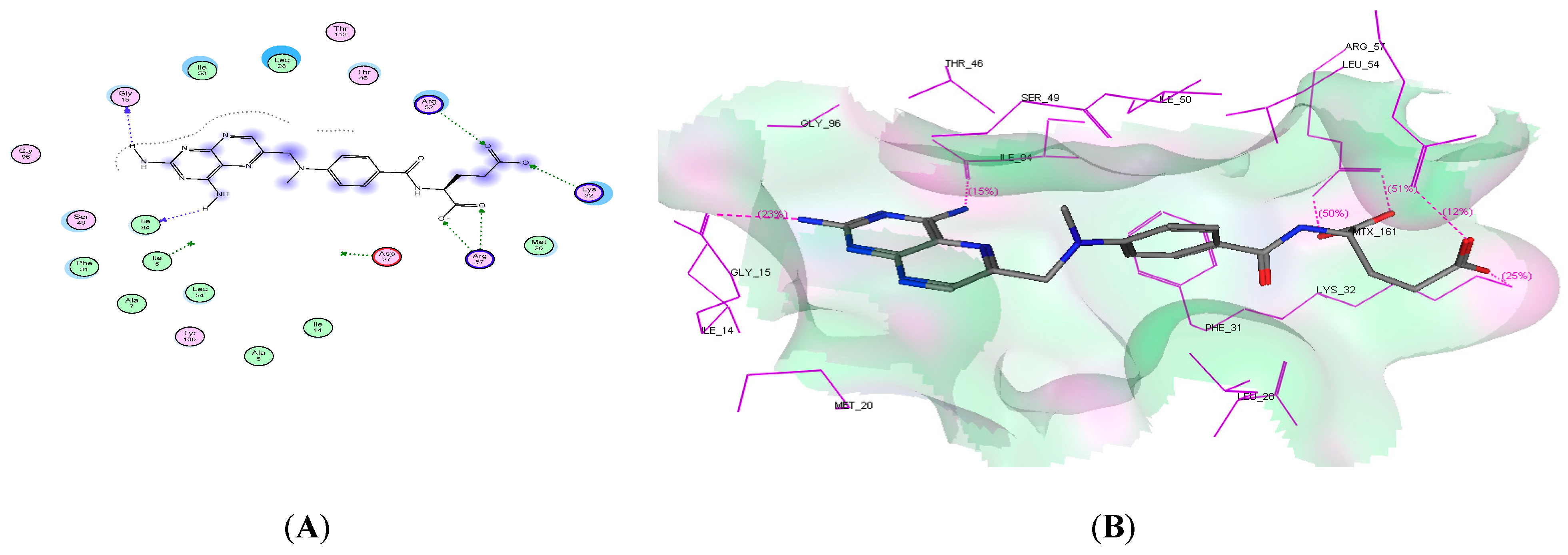

Figure 6. (A) 2D interactions of methotrexate with the DHFR binding site. (B) 3D interactions of methotrexate with the DHFR binding site.
Figure 6. (A) 2D interactions of methotrexate with the DHFR binding site. (B) 3D interactions of methotrexate with the DHFR binding site.
Molecules 24 01969 g006
Table 1. Yield and reaction time comparison between microwave and conventional methods in the synthesis of 5-arylazo-3-cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxo)-pyridines (8a–d).
Table 1. Yield and reaction time comparison between microwave and conventional methods in the synthesis of 5-arylazo-3-cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxo)-pyridines (8a–d).
Compound No.RArMicrowave SynthesisConventional Synthesis
Reaction Time/min
Yield (%)
Reaction Time/h
Yield (%)
Method AMethod BMethod C
8aCH34-ClC6H42 (92)5 (86)53 (50)
8bCH33-NO2C6H43 (90)5 (81)53 (49)
8cC6H54-ClC6H42 (95)4 (85)51 (44)
8dC6H53-NO2C6H42 (93)4 (83)51 (51)
Table 2. Yield and reaction time comparison between conventional and microwave-assisted synthesis of 3-Cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxo)-pyridines (11a–c).
Table 2. Yield and reaction time comparison between conventional and microwave-assisted synthesis of 3-Cyano-2-(2″,3″,4″,6″-tetra-O-acetyl-β-d-galactopyranosyloxo)-pyridines (11a–c).
Compound No.R1R2Microwave SynthesisConventional Synthesis
Reaction Time/min
Yield (%)
Reaction Time/h
Yield (%)
Method AMethod BMethod C
11aCH3CH33 (87)7 (80)62 (61)
11bC6H5CH32 (91)7 (83)67 (70)
11cC6H5CF32 (94)6 (85)65 (61)
Table 3. Yield comparison of triethylamine and ammonia methods for synthesis of deprotected galactosides (9a–d).
Table 3. Yield comparison of triethylamine and ammonia methods for synthesis of deprotected galactosides (9a–d).
Comound No.RArMethod A
Yield %
Method B
Yield %
9aCH34-ClC6H49083
9bCH33-NO2C6H48887
9cC6H54-ClC6H48783
9dC6H53-NO2C6H48980
Table 4. Yield comparison of triethylamine and ammonia methods for synthesis of deprotected galactosides (14a–c).
Table 4. Yield comparison of triethylamine and ammonia methods for synthesis of deprotected galactosides (14a–c).
Comound No.R1R2Method A
Yield %
Method B
Yield %
14aCH3CH38581
14bC6H5CH38781
14cC6H5CF39083
Table 5. The docking scores and binding interactions of the docked compounds inside the DHFR active site.
Table 5. The docking scores and binding interactions of the docked compounds inside the DHFR active site.
Compound No.Docking Score
(kcal/mol)
No. of H-BondsAmino Acid ResidueInteracting Group
8d−21.862Met20 and Trp222 C=O
9d−19.913Gly15, Ser49, and Tyr1003 OH
11c−19.093Ser49, Tre22, and Gly153 C=O
14c−19.593Trp22, Asp27, and lle94CN, 2OH
Ligand−19.546Gly15, lle94, Arg57, Lys32, and Arg522NH2 and 2 COO
