A Charge-Transfer Salt Based on Ferrocene/Ferrocenium Pairs and Keggin-Type Polyoxometalates

by
Beñat Artetxe
1,*,
Amaia Iturrospe
2,
Pablo Vitoria
1,
Estibaliz Ruiz-Bilbao
1,
José S. Garitaonandia
3,4 and
Juan M. Gutiérrez-Zorrilla
1,4
1
Departamento de Química Inorgánica, Facultad de Ciencia y Tecnología, Universidad del País Vasco UPV/EHU, P.O. Box 644, 48080 Bilbao, Spain
2
Centro de Física de Materiales CFM (CSIC–UPV/EHU), Paseo Manuel Lardizabal 5, 20018 Donostia-San Sebastián, Spain
3
Departamento de Física Aplicada II, Facultad de Ciencia y Tecnología, Universidad del País Vasco UPV/EHU, P. O. Box 644, 48080 Bilbao, Spain
4
BCMaterials, Basque Center for Materials, Applications and Nanostructures, UPV/EHU Science Park, 48940 Leioa, Spain
*
Author to whom correspondence should be addressed.
Molecules 2018, 23(12), 3150; https://doi.org/10.3390/molecules23123150
Submission received: 13 November 2018 / Revised: 27 November 2018 / Accepted: 29 November 2018 / Published: 30 November 2018
(This article belongs to the Special Issue Polyoxometalates and Polyoxometalate-Based Systems)
Browse Figures
Versions Notes

Abstract

:
A new hybrid inorganic-organometallic salt has been obtained from the reaction of the Keggin-type silicotungstate anion with ferrocene in a water/methanol mixture as a result of the partial oxidation of ferrocene molecules to ferrocenium cations. Single-crystal X-ray diffraction analysis reveals the presence of four ferrocenium (FeIII) cations and one ferrocene (FeII) molecule per plenary Keggin anion in the crystal structure of [FeIII (Cp)2]4[SiW12O40]·[FeII(Cp)2]·2CH3OH (1). Compound 1 thus constitutes the first example in the literature in which ferrocenium and ferrocene species coexist in the structure of a polyoxometalate-based salt. The two crystallographically independent ferrocenium species in the asymmetric unit of 1 exhibit different configurations: One displays an eclipsed conformation with ideal D5h symmetry, whereas the conformation in the other one is staggered D5d. The crystal packing of 1 can be best described as an organometallic sub-lattice of ferrocenium and ferrocene species linked by a network of π-π interactions that generates rectangular cavities of about 14 × 10 Å in which strings of Keggin anions and methanol molecules are hosted, further connected to each other via weak OPOM···CMeOH-OMeOH···OPOM type hydrogen bonds. The charge-transfer nature of the salt has been studied by solid-state diffuse reflectance UV-Vis spectroscopy and the presence of magnetically isolated FeIII/FeII centres has been confirmed by Mössbauer spectroscopy. A topological study carried out on all of the pristine ferrocenyl species deposited in the Cambridge Structural Database (CSD) has allowed two main conclusions to be drawn: (1) these species tend to adopt extreme conformations (either eclipsed or staggered) with less than a 15% of examples showing intermediate states and (2) the oxidation state of the iron centres can be unequivocally assigned on the basis of a close inspection of the Fe···Cp distances, which allows ferrocene neutral molecules and ferrocenium cations to be easily distinguished.

Graphical Abstract

1. Introduction

Polyoxometalates (POM) are anionic metal-oxide clusters with rich structural and electronic variety and applications in areas of current interest such as catalysis, nanotechnology, materials science and biomedicine [1]. One of the most relevant properties of POMs is represented by their electron acceptor capability, which can be nicely exemplified by the super-reduced Keggin-type [PMo12O40]27− cluster reported by Nishimoto et al. for the preparation of molecular cluster batteries and capacitors [2]. Due to their high negative charges and large sizes, POMs can be used as acceptors in the formation of charge-transfer (CT) salts with organic and/or organometallic electron donors. The first example of such compounds was reported in 1988 and included the tetrathiafulvalene (TTF) organic donor in combination with the Keggin-type tungstophosphate anion as acceptor unit [3]. These studies were later extended to Keggin anions with different heteroatoms [4] or transition metal substitutions [5] and to some other POM clusters with different topologies, such as the hexametalate [M6O19]2− anions. [6] In regard to the organic donor molecules, distinct TTF-like derivatives have also been used in the construction of this type of CT salts, such as bis(ethylenedithio)-tetrathiofulvalene (BEDT-TTF) [7] and tetramethyltetraselenafulvalene (TMTSF) [8]. These studies were mainly focused on the preparation of hybrids with a mixed-valence state on both the organic and inorganic components in order to obtain materials with interesting conducting and magnetic properties [9].
Besides TTF-like groups, organometallic cations, such as ferrocenium [FeIII (C5H5)2]+·(Fc+) and its derivatives, have also been thoroughly combined with POM clusters to prepare donor-acceptor hybrid materials, because the easily accessible reduction potential of these organometallic species makes them suitable for the formation of radical cations [10]. Ferrocenyl species have attracted great interest in the field of molecular magnetism since the first molecule-based ferromagnet was reported in 1985, namely the [Fe{C5(CH3)5}]·[TCNE] salt based on decamethylferrocenium cations (Fc*+) and tetracyanoethylene anions [11,12]. Throughout the last three decades, several ferroceniun-POM salts have been synthesized targeting outer sphere CT molecule-based magnets, in which the interaction between donors and acceptors is based on electrostatic forces and hydrogen bond formation [13]. The structural analysis of such compounds has been revealed as a key factor for the identification of potential interesting properties and therefore, an extensive work has been dedicated to the single-crystal structure resolution of compounds combining Fc+ or Fc*+ units with POM clusters of very different nature. These include fully-oxidized or partially reduced [HxXM12O40]n− Keggin-type plenary polyoxomolybdates (X = Si, Ge, P, As; H = 0–1) [14,15,16,17] or –tungstates (X = Si, FeIII; H = 0–1) [17], first-row transition metal mono-substituted [HPCu(H2O)W11O39]4− Keggin or [Cr(OH)6Mo6O18]3− Anderson–Evans paramagnetic anions [18] and redox-active [HS2Mo18O62]5− Wells–Dawson-type species [19]. Some authors have opted for the organic derivatization of ferrocene units with positively-charged functional groups to lead to ammonium [20] or phosphonium [21] cations that can act as acceptors in the formation of CT salts with Keggin [22] or [M6O19]2− Lindqvist–type POMs (M = Mo, W) [23]. The covalent linkage of the ferrocene groups to the POM cluster skeleton has also been achieved through the replacement of shell O atoms with ferrocenyl-containing N- or O-donor ligands, as exemplified by some ferrocenylimido derivatives of Lindqvist-type molybdates [24,25] or tris(alkoxo)-capped hexavanadates bearing ferrocene-like substituents [26].
Despite the varied examples of compounds combining ferrocenyl units and POM clusters that can be found in the literature, to date there is no structural evidence of both ferrocenium cations and ferrocene neutral species coexisting in the crystal packing of any POM-based salt. Herein we report the synthesis and structural characterization of compound [Fe(Cp)2]4[SiW12O40]·[Fe(Cp)2]·2CH3OH (1) containing ferrocenyl units with both FeIII and FeII centres as assessed by Mössbauer spectroscopy analyses. The CT nature of the salt has been confirmed by diffuse-reflectance UV-Vis spectroscopy and the topological study carried out using all of the entries deposited in the Cambridge Structural Database (CSD) [27] that contain isolated, pristine ferrocenyl species has allowed to easily discriminate between ferrocenium cations (FeIII) and ferrocene molecules (FeII) in the title compound upon close inspection of the Fe-C bond lengths, as well as to establish that this type of organometallic species tend to adopt extreme conformations (either eclipsed or staggered) as observed for 1.

2. Results and Discussion

2.1. Synthesis and Infrared Spectroscopy

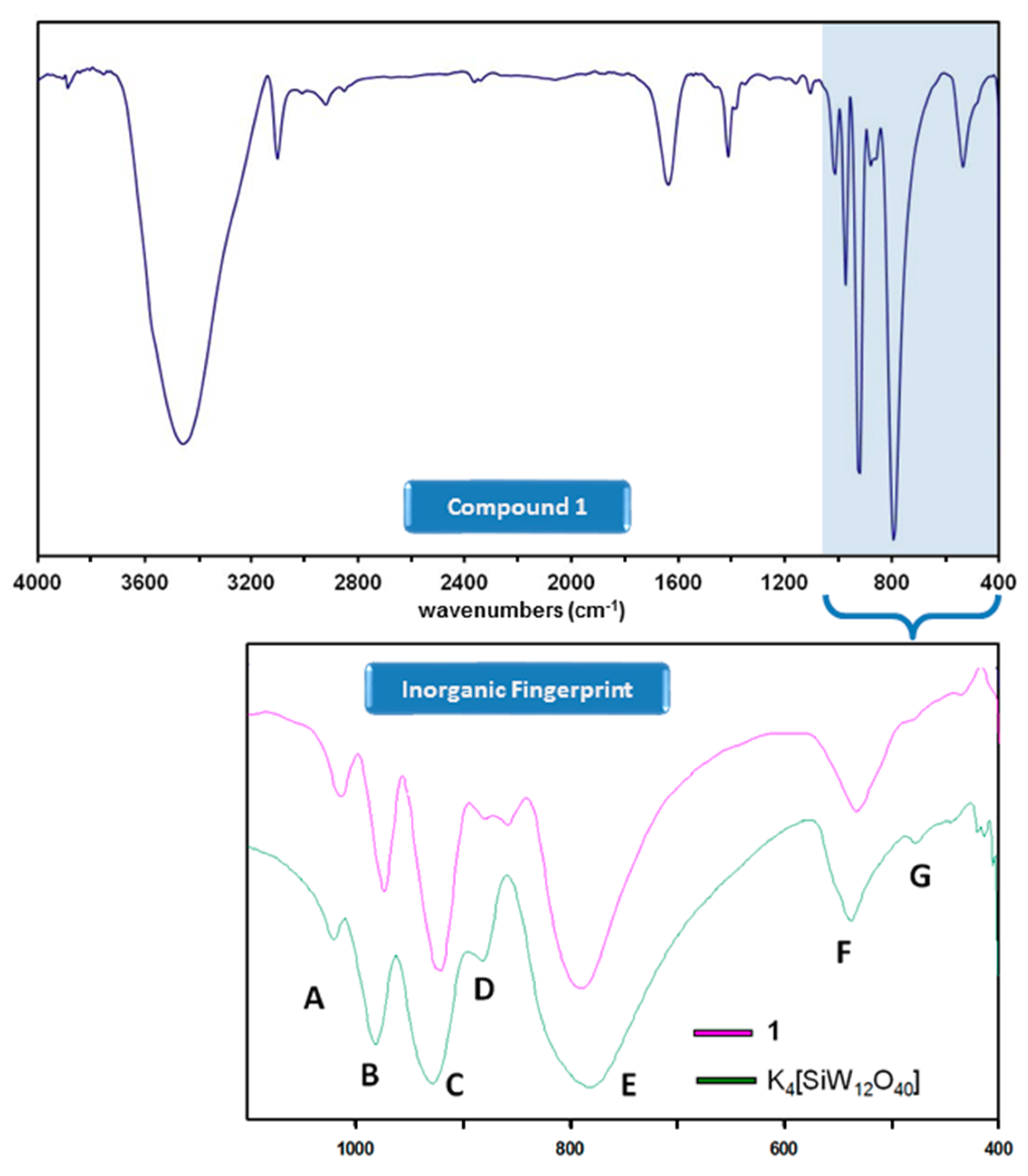

Compound 1 was obtained in low yields as single crystals suitable for X-ray diffraction studies from the reaction of the [α-SiW12O40]4− precursor and ferrocene (1:2 ratio) in a water/methanol mixture at reflux conditions. In contrast to what has been observed for the ferrocenium-POM salts reported to date, only partial oxidation of ferrocene took place in the formation of 1, resulting in the first example in the literature in which ferrocenium (FeIII) and ferrocene (FeII) species coexist in the same crystal structure. The formation of a compound combining Keggin-type POM clusters and ferrocenyl units such as 1 was firstly confirmed by FT-IR spectroscopy. Two parts can be clearly differentiated in the FT-IR spectrum of 1 (Figure 1): the inorganic fingerprint below 1000 cm−1 (a comparative detail with that of the K4[α-SiW12O40]·17H2O precursor is also depicted) and the organometallic region above. The spectrum of 1 exhibits the four characteristic bands of strong intensity (A, B, C and E) that unequivocally correspond to the plenary α-Keggin tungstosilicate anion [28] but with small red shifts of about 10 cm−1 that affect those three to which the νas(W-Ot) (Ot: terminal O atom) vibrational mode contributes (bands A at 1011 cm−1, B at 972 cm−1 and C at 922 cm−1). The signal of medium-to-weak intensity that originates from the antisymmetric stretching vibration of the W-O-W bridges involving corner-sharing appears split at 880 and 856 cm−1 (signal D), whereas negligible modifications are noticed for those signals associated with the stretching vibrations of the W-O-W bridges between edge-sharing W centres (signal E at 785 cm−1) and the overall bending vibrations in both the oxometallic skeleton and the central heterogroup (signals F and G at 532 and 483 cm−1).
Focusing on the organic region, the presence of ferrocenyl species in 1 is confirmed by the signals associated with the stretching of the C(sp2)-H and C=C bonds that can be observed as peaks of medium intensity at ca. 3100 and 1410 cm−1, respectively. According to the literature, ferrocenyl groups in staggered (D5d) and eclipsed (D5h) conformation can be easily differentiated by IR spectroscopy because the fingerprint of both forms is substantially different in the 450–500 cm−1 region of the spectrum [29]. Unfortunately, the presence of the strong absorption bands of the [SiW12O40]4− cluster below 1000 cm−1 and more specifically, of the broad signal F, corresponding to the (W-Oe-W) + (Si-Oc) combination (Oe: bridging O atom between edge-sharing W centres; Oc: central O atoms), makes impossible to perform such analysis in our case as it shadows this entire range.

2.2. Crystal Structure

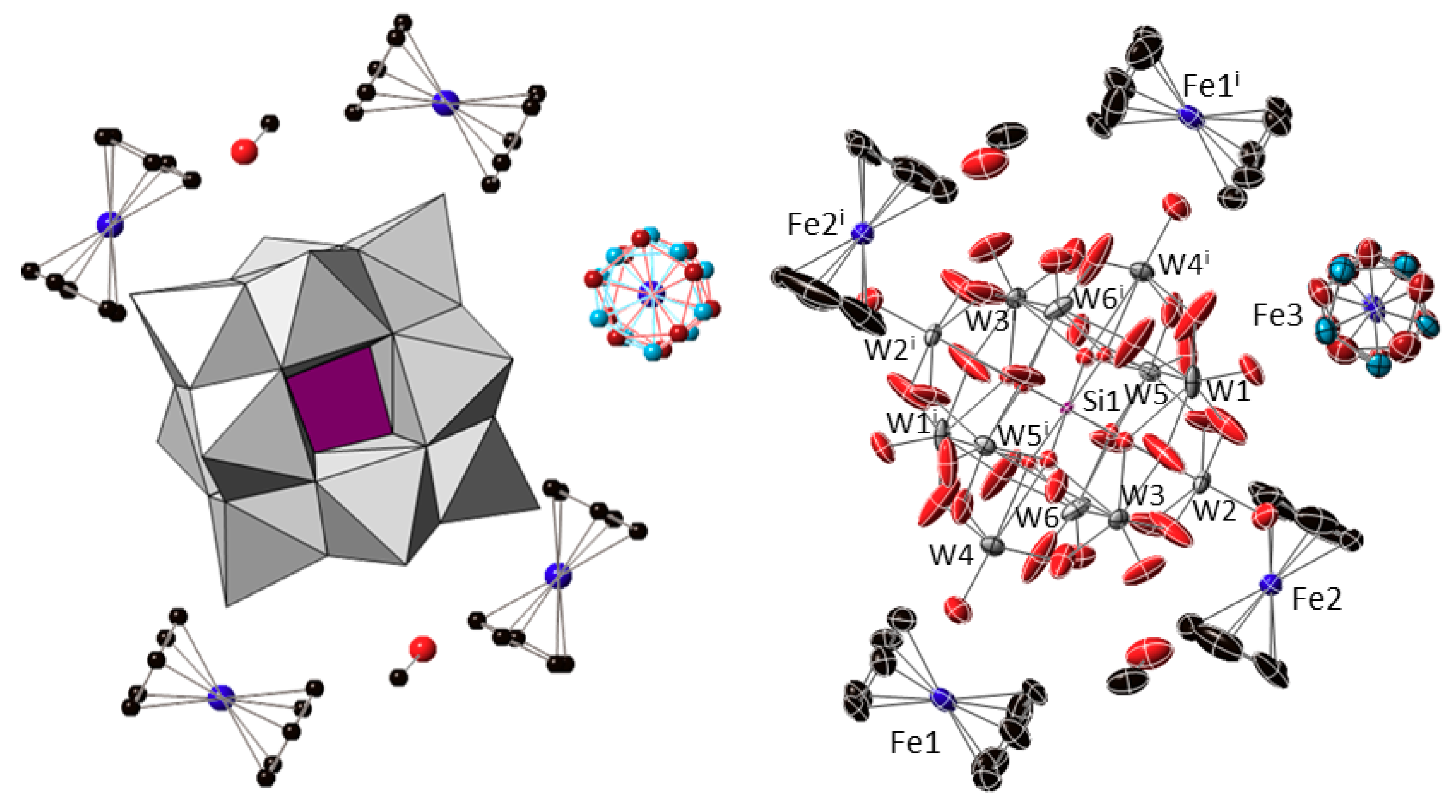

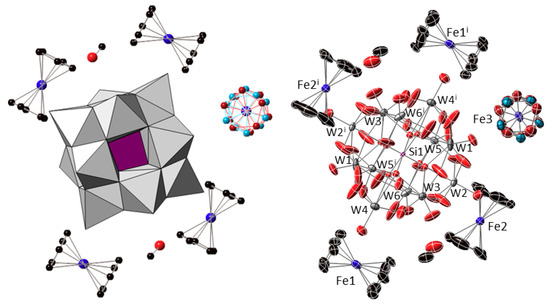

Compound 1 crystallizes in the triclinic space group P-1 with the following content in the asymmetric unit: one half of the [α-SiW12O40]4− cluster unit located on a centre of inversion; two ferrocenyl {Fe(C5H5)2} fragments placed in general positions (Fe1 and Fe2); one half of a centrosymmetric ferrocenyl {Fe(C5H5)2} unit, the cyclopentadienyl ligand of which is disordered over two positions that are related by an ideal in-plane rotation of 36° and show nearly equivalent population factors (Fe3); and one methanol molecule of crystallization (Figure 2). The [SiW12O40]4− cluster shows the characteristic structure of the α-Keggin anion, which is constituted by four {W3O13} trimers composed each by three edge-sharing WO6 octahedra. These trimers are linked to each other and to the central {SiO4} tetrahedron through corner-sharing in ideal Td symmetry. The central tetrahedron is disordered over two positions related by the centre of inversion on which the cluster is located, in such a way that a distorted {SiO8} cube with half-occupancies for the O sites is observed as a result. Table A1 (Appendix A) compiles the bond lengths (W–O and Si–O) and most relevant distances (W···Wtrans, W···Si and O···Otrans) for the Keggin cluster in the title compound and their comparison with the magnitudes DFT-calculated for the [SiW12O40]4− anion with idealized tetrahedral geometry [30]. In addition, Bond Valence Sum calculations [31] confirmed the highest oxidation state for all the tungsten atoms (WVI), indicating that no reduction took place for any of the POM metal centres. All the Fe–C bond lengths, Fe···Cg(Cp) distances and torsion angles between cyclopentadienyl rings for each crystallographically independent ferrocenyl unit in 1 are listed in Table 1. The presence of five ferrocenyl groups per [SiW12O40]4− anion suggests different oxidation states for the iron centres belonging to the three crystallographically independent species that have been tentatively assigned as ferrocenium cations (Fe1 and Fe2) and ferrocene molecules (Fe3) in order to maintain the electroneutrality of the system. It is also worth mentioning that the two ferrocenium species in the organometallic sub-lattice exhibit different conformations: one of the cations (Fe1) displays an eclipsed configuration, whereas that of the second ferrocenium (Fe2) is staggered.
In order to crystallographically discriminate between ferrocenium cations and ferrocene molecules upon close inspection of the bond lengths and analyse the different geometrical conformations they can adopt, a topological study was carried out using all of the entries deposited in the CSD that contain isolated, pristine ferrocenyl species. Geometrical parameters of crystallographically independent 90 ferrocene and 49 ferrocenium fragments belonging to 119 different crystal structures have been determined in the CSD database (last visit: June 2018; last update: February 2018), excluding powder structures and those containing disordered fragments. All the Fe–C bond lengths, Cg(Cp)···Cg(Cp) and Fe···Cg(Cp) distances, torsion angles between cyclopentadienyl rings and oxidation states for the iron centres have been compiled in Table A2 (Appendix B).

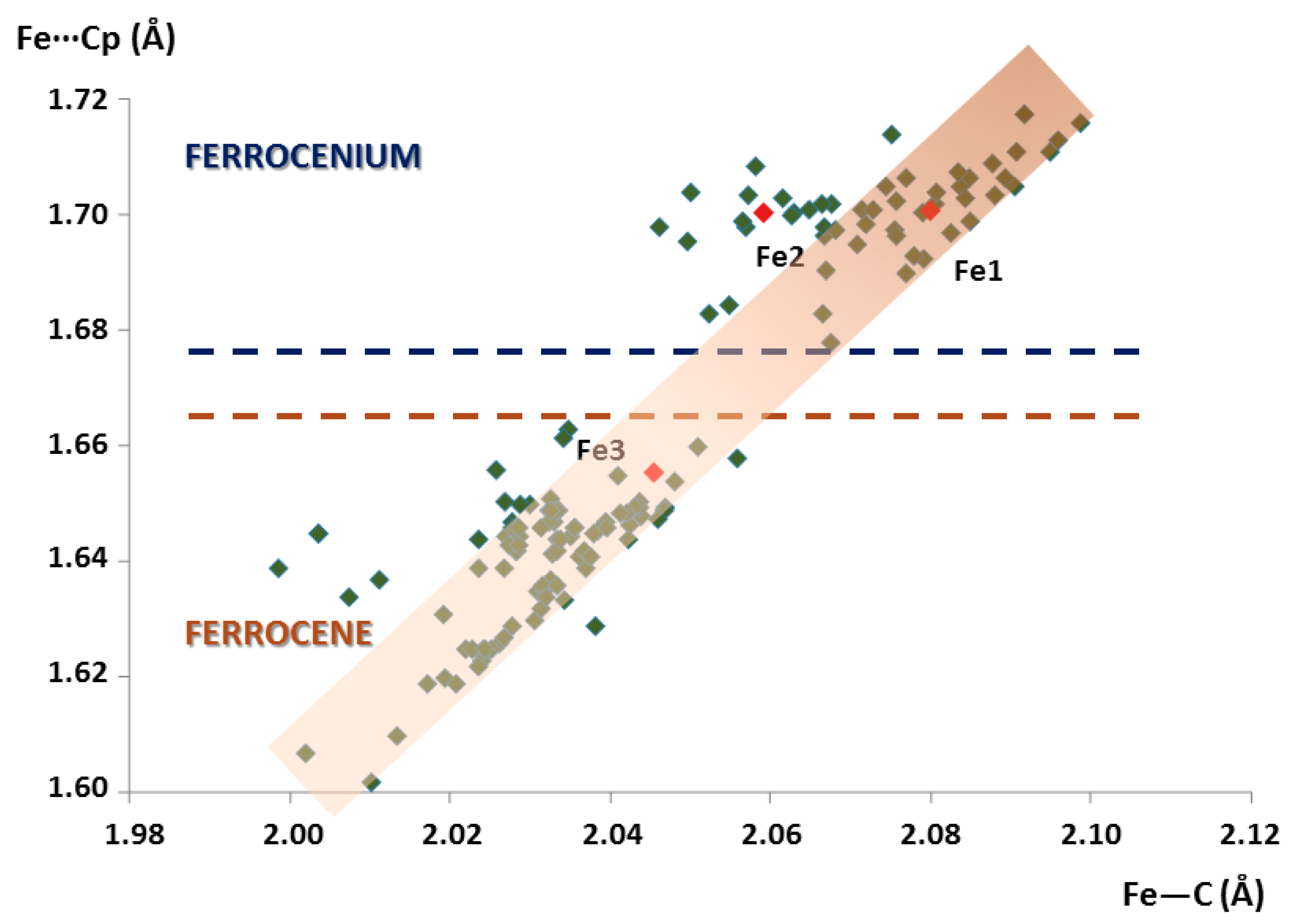

The scatter plot of the average Fe···Cg(Cp) distances versus Fe–C bond lengths is depicted in Figure 3. It is worth mentioning that Fe···Cg(Cp) distances increase linearly with the Fe–C bond lengths, as defined by the <C–Fe···Cg(Cp)> angle of about 34–36° displayed by all the molecular units included in this search. All the ferrocenyl species can be graphically classified into two main groups depending on the oxidation state of the Fe atoms. The more stable FeII state for ferrocene moieties (obeys the 18-electron rule) exhibits shorter Fe–C and Fe···Cg(Cp) distances in the ca. 2.00–2.06 Å and 1.60–1.66 Å range respectively, whereas longer bond lengths in the ca. 2.05–2.11 Å and 1.68–1.72 Å range are found for ferrocenium cations. According to this distribution, the fact that the Fe···Cg(Cp) distances lay above or below 1.67 Å can be regarded as a direct method to unequivocally distinguish the nature of ferrocenyl units as ferrocene species or ferrocenium cations. When it comes to the crystal structure of 1, two species belong to the latter group (Fe···Cg(Cp) = 1.70 Å) whereas the third is included in the former classification (Fe···Cg(Cp) = 1.66 Å). Therefore, we confirmed our initial assumption: Fe1 and Fe2 are ferrocenium cations, whereas Fe3 is a neutral ferrocene group.

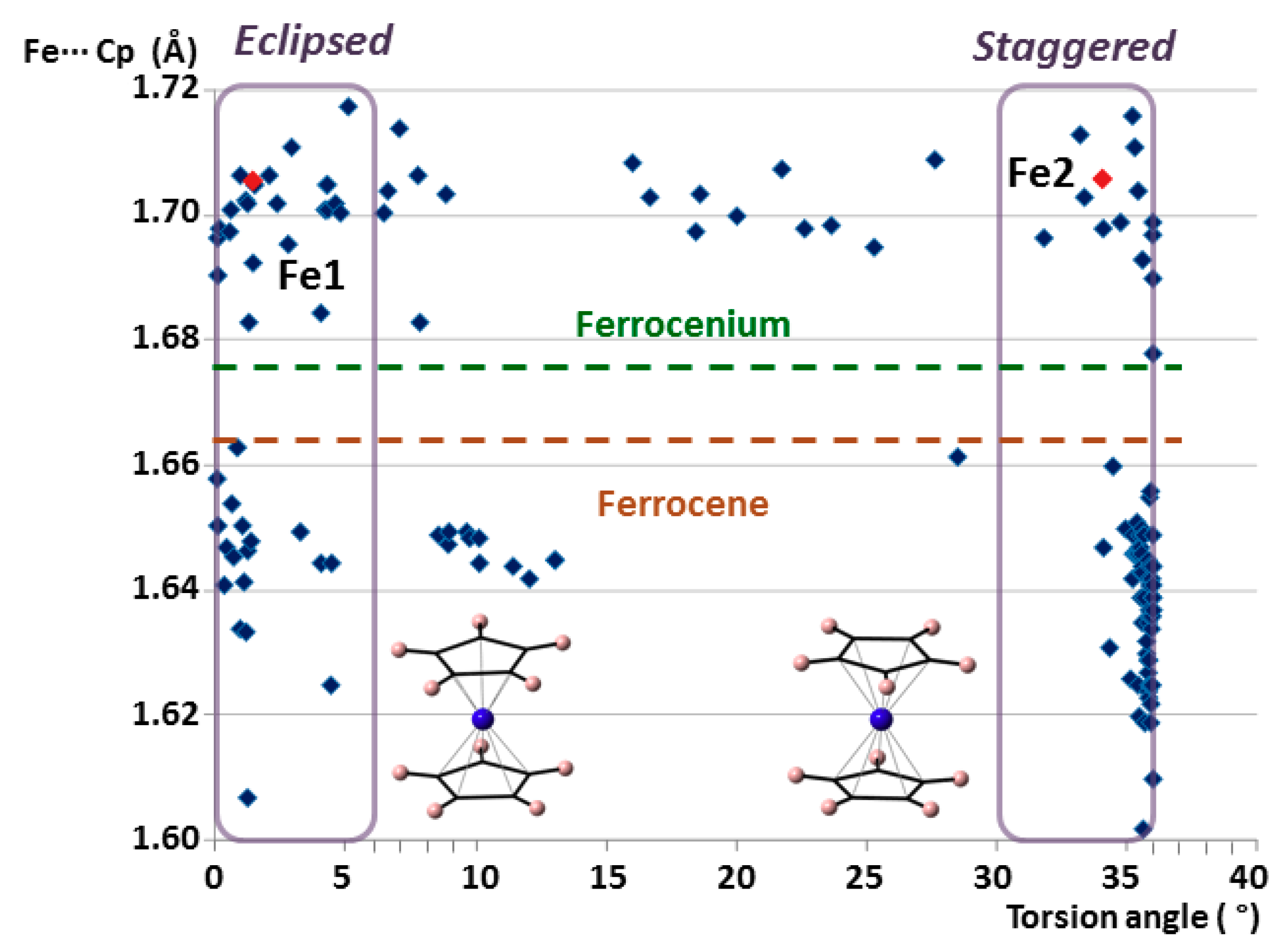

It is well known that ferrocenyl species can adopt two extreme conformations depending on the relative position of the cyclopentadienyl rings: eclipsed with ideal D5h symmetry and staggered with ideal D5d symmetry. Both configurations are very common because the rotation barrier along the C5 axis has been calculated to be as low as 0.9 ± 0.3 kcal mol−1 (≈4 kJ mol−1). [32] Analysis of the torsion angles between cyclopentadienyl rings determines the conformation of a given group that goes from 0° in a totally eclipsed form to 36° for a completely staggered configuration. Figure 4 displays the Fe···Cg(Cp) distance versus torsion-angle scatter plot for all the ferrocenyl units from the CSD database mentioned above. Considering an arbitrary criterion, torsion angles ranging from 0 to 6° have been classified as eclipsed, whereas those from 30 to 36° are staggered. The plot clearly shows that most of the species show extreme configurations, with less than 15% of the cases in intermediate states. In the case of ferrocenes, this effect is even more pronounced. More than 90% of the structures exhibit extreme conformations and 2/3 of the cases are staggered. Focusing on the non-disordered moieties in 1, Fe1 is included within the group of eclipsed ferrocenium cations, whereas Fe2 is staggered.

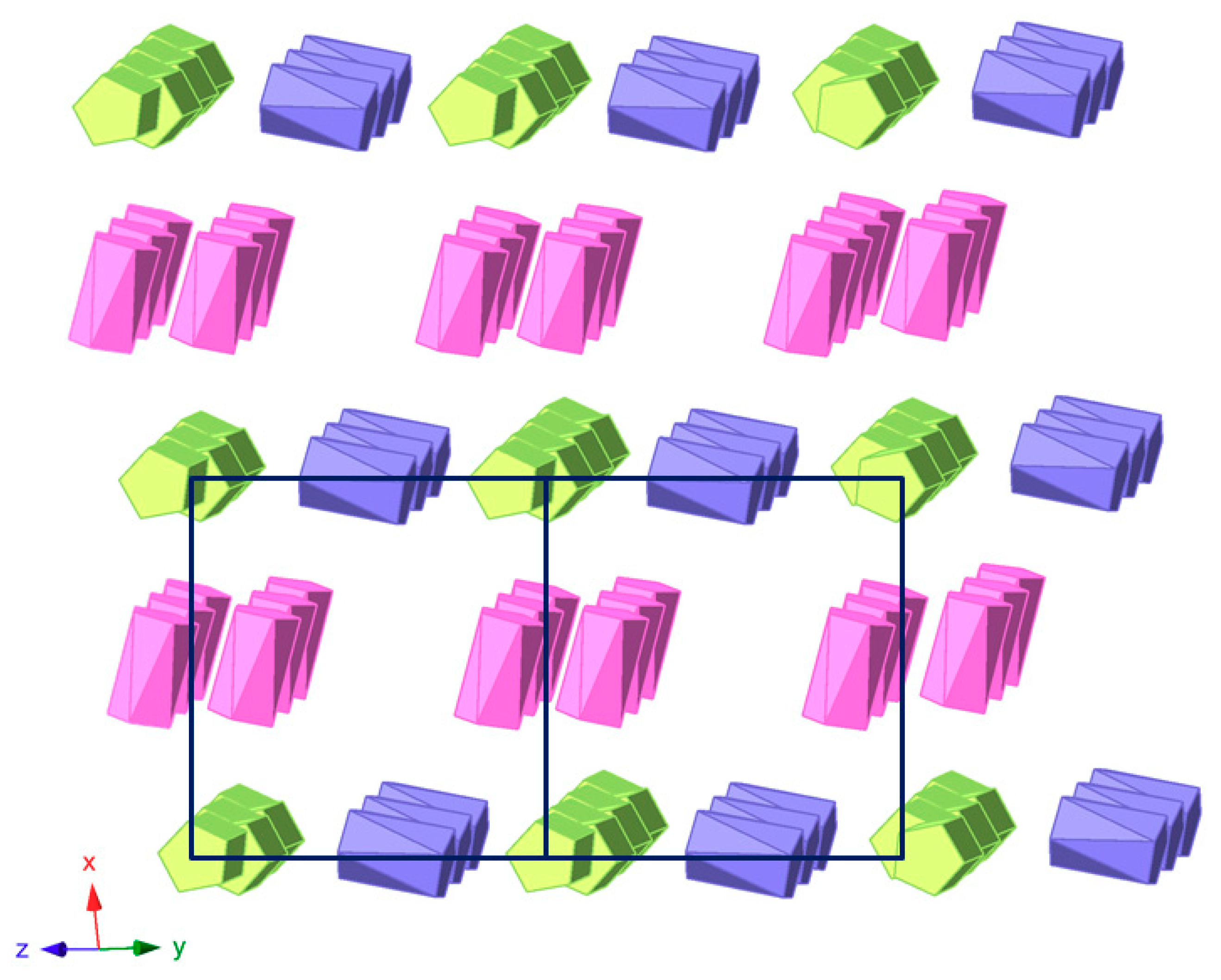

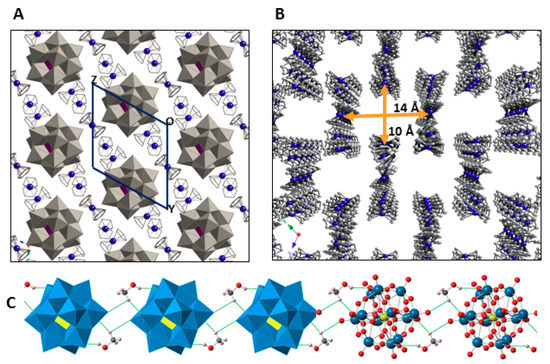

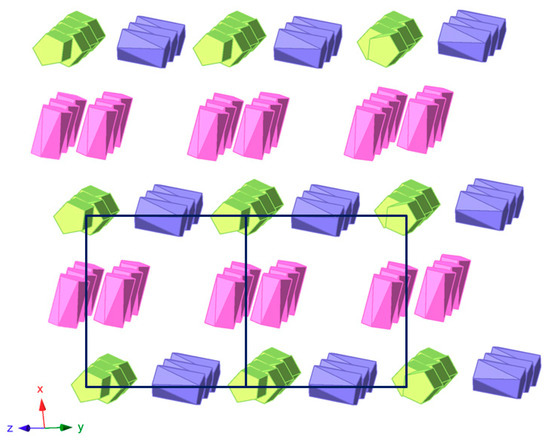

The crystal packing of 1 can be best described as an organometallic sub-lattice formed by ferrocenyl species that generate rectangular cavities of about 14 × 10 Å along the [100] direction where the [SiW12O40]4− anions are hosted. Polyanions located in these cavities are linked to each other via weak OPOM···CMeOH–OMeOH···OPOM type bonds involving methanol solvent molecules and surface O atoms from POM clusters (Figure 5). Pairs of Fe1 ferrocenium columns running along the [011] direction interact with each other in an anti-parallel manner through π-π stacking as can be viewed in Figure 6. The three dimensional network of the organometallic sub-lattice is completed by the other ferrocenyl units establishing weak T-type π-π interactions: Fe3 groups link Fe1 columns in the yz plane, whereas Fe2 units play a similar role along the crystallographic x axis. Geometrical parameters of the π-π interactions established between cyclopentadyenil rings are compiled in Table 2. Additionally, inorganic and organometallic components interact through CFc–H···OPOM type contacts established between cyclopentadienyl rings from ferrocenyl groups and O atoms from the POM surface. Bond lengths and angles of such supramolecular interactions are summarized in Table 3.

2.3. Diffuse Reflectance UV-Vis Spectroscopy

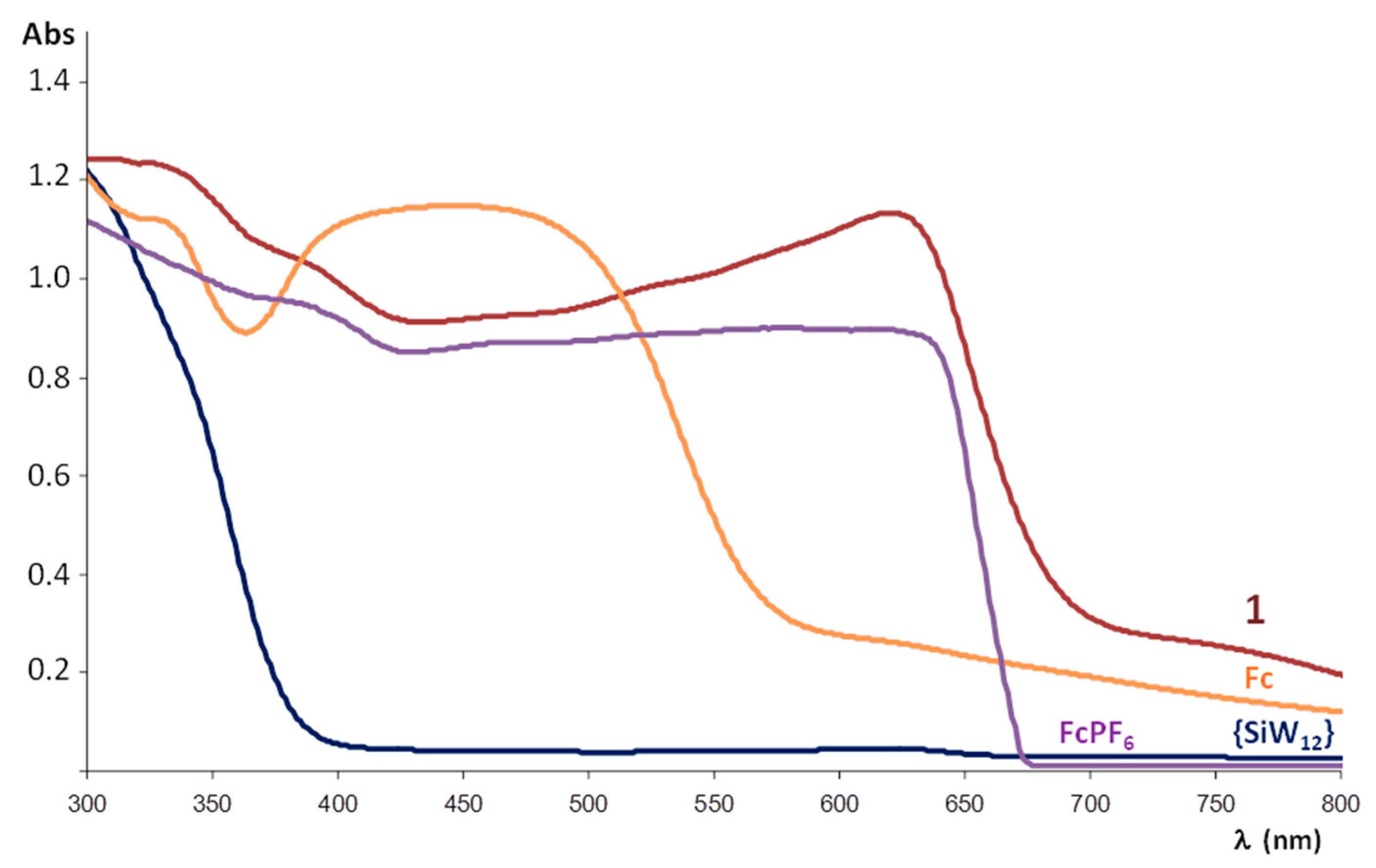

To evaluate the electronic properties of the title compound, it has been analysed by diffuse reflectance UV-Vis spectroscopy. The spectra registered for a powdered crystalline sample of 1, the K4[SiW12O40]·17H2O POM precursor, commercial ferrocene and the FcPF6 salt prepared for comparative purposes following reported procedures [33] are displayed in Figure 7. The electronic spectrum of the POM precursor shows a strong absorption band centred in the UV region (below 300 nm) that extends up to 375 nm and it is associated with the O→W ligand-to-metal charge transfer (LMCT) transition of the plenary inorganic framework. In the case of ferrocene, the band at ca. 340 and the broad adsorption in the blue region that extends from 360 to 580 nm (centred at ca. 450 nm) have been attributed to Fe (e2g) → Cp (e1g) charge transfer and symmetry-forbidden Fe (a1g) → Fe (e1g) transitions, respectively [34]. For its oxidized ferrocenium form in FcPF6, the continuous adsorption below 650 nm is in the origin of its dark blue colour. The O→W LMCT and adsorption bands belonging to both ferrocene and ferrocenium species can also be observed in the spectrum of 1. However, the band at lower energy (ca. 640 nm) is exclusive for 1 and may be ascribed to an intermolecular charge-transfer transition between ferrocenyl donors and POM acceptors [19,21] since none of its constituents exhibit any absorption in this range.

2.4. 57Fe Mössbauer Spectroscopy

Preliminary Electronic Spin Resonance spectroscopy studies were conducted for 1 that proved how ferrocenium salts are silent at room temperature due to the short T1 relaxation time. The unpaired electron is not in the FeIII centre and it seems to get delocalized all over the aromatic system. [35] Therefore, we decided to make use of 57Fe Mössbauer spectroscopy, because it allows for determining among others the oxidation and spin states of iron centres, as well as their symmetry, magnetic interactions and chemical environment. The technique is based on the absorption of energetically slightly different γ rays generated by Doppler effect in a radioactive source moving at speeds of several mm/s, in such a way that different absorption peaks are registered and their position is defined by the δ isomer shift. Nuclei in states with non-spherical charge distribution produce an asymmetrical quadrupolar electric field, which splits the nuclear energy levels. These are quantified by their quadrupolar splitting of the signals (Δ). Additionally, Zeeman splitting can be generated by magnetic coupling between centres. [36]

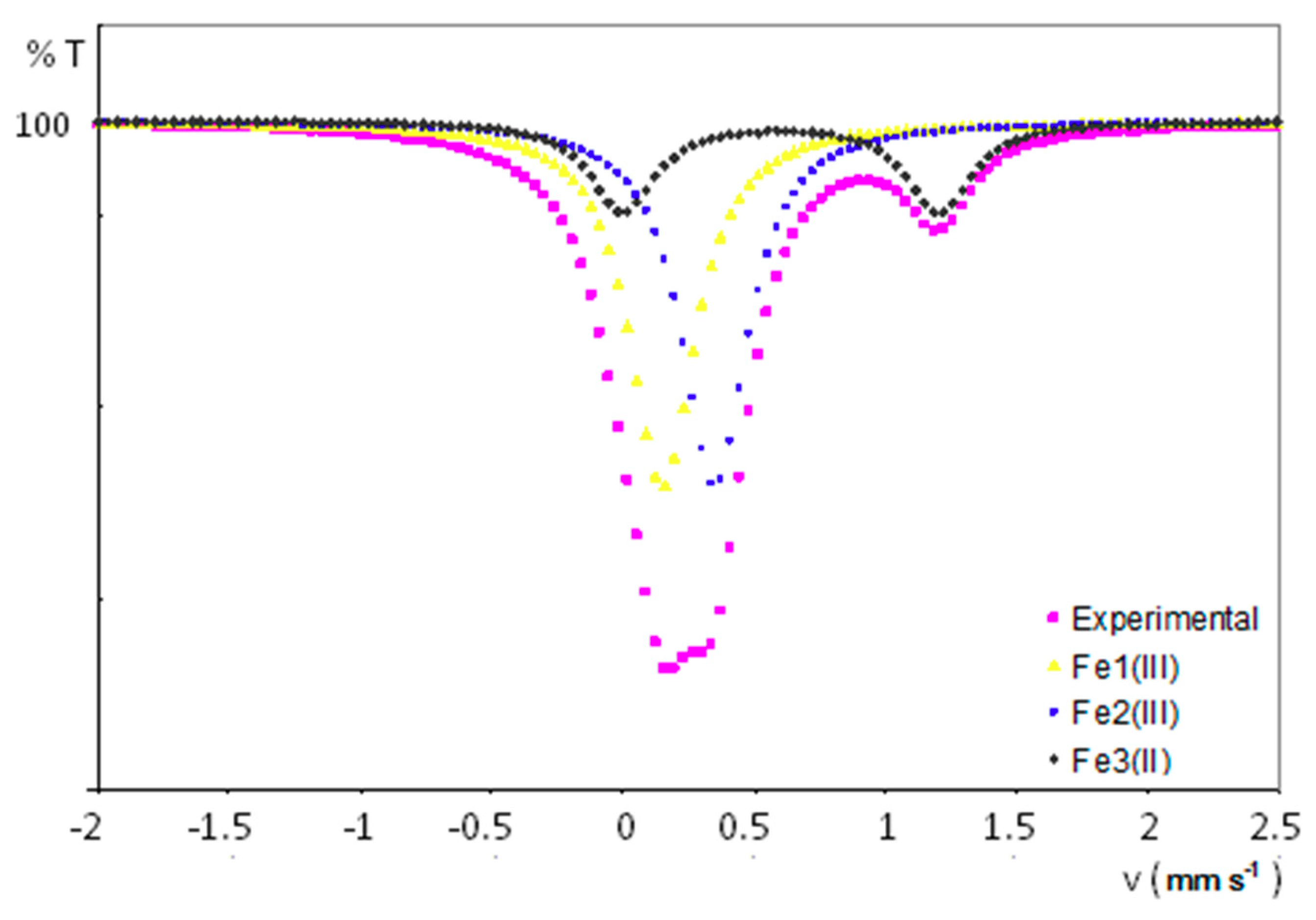

Figure 8 displays the experimental 57Fe Mössbauer spectrum for a powdered sample of 1, together with the curve fits for each different iron-containing chemical species present in its crystal structure. All the experimental results are summarized in Table 4. The spectrum has been fitted to two singlets attributed to iron nuclei with a very similar chemical environment (δ = 0.27 and 0.44 mm/s) and a wide doublet with a quadrupolar splitting of 1.17 mm/s and a larger isomer shift of 0.71 mm/s. It is worth highlighting the absence of any extra peak, which indicates that paramagnetic centres are magnetically well isolated. The presence of both singlets compares well with the signals arising from ferrocenium units (FeIII centres with spherical charge distribution) displaying isomer shifts that typically range from 0.30 to 0.65 mm/s. [37] Conversely, doublets with a chemical shift in the 0.50–1.0 range and quadrupolar splitting values of ca. 1–3 mm/s could be expected for ferrocene FeII nuclei. [38] These results are in line with the two crystallographically independent ferrocenium groups and the additional ferrocene molecule determined in the crystal structure of 1. In fact, the relative atomic ratio for Fe1III:Fe2III:Fe3II centres was calculated to be 2:2:1 from the integration of the area delimiting each of the sub-spectra, in good agreement with the molecular formula of 1.

3. Experimental Section

3.1. Materials and Methods

The K4[α-SiW12O40]·17H2O precursor was synthesized following reported procedures [39] and identified by infrared spectroscopy (FT-IR). All other reagents were purchased from commercial sources and used without further purification. The FT-IR spectra were recorded as KBr pellets on a Shimadzu FTIR-8400S spectrophotometer (Shimadzu, Kyoto, Japan) in the 400−4000 cm−1 spectral range. The carbon and hydrogen contents were determined on a Perkin Elmer 2400 CHN analyser (PerkinElmer Inc., Waltham, MA, USA), whereas metal analyses (Fe) were performed on a Q-ICP-MS ThermoXSeries II analyser (Fisher Scientific International, Inc, Pittsburgh, PA, USA). Diffuse Reflectance studies were carried out on a UV-Vis-NIR Varian Cary 500 spectrophotometer (Varian, Palo Alto, CA, USA). The Mössbauer spectra were recorded at room temperature in transmission geometry using a conventional constant-acceleration spectrometer with a 57Co-Rh source calibrated with a Fe sheet (δ = −0.11 mm s−1). The fitting was performed using the NORMOS program (Universität Dortmund, Dortmund, Germany) [40].

3.2. Synthesis of [Fe(Cp)2]4[SiW12O40]·[Fe(Cp)2]·2CH3OH (1)

To a hot solution of K4[α-SiW12O40]·17H2O (990 mg, 0.30 mmol) in water (10 mL) Fe(Cp)2 (112 mg, 0.60 mmol) dissolved in methanol (5 mL) was added. The resulting yellow solution was refluxed for 2 h, stirred while cooling down to room temperature overnight and left to slowly evaporate in an open container. Purple prismatic crystals suitable for X-ray diffraction were obtained over a period of approximately two weeks (yield: 80 mg, 17% based on Fe). Elemental analysis (%) calc. for C52H58Fe5O42SiW12: C, 16.14; H, 1.51; Fe, 7.22. Found: C, 15.09; H, 1.42; Fe, 7.03. FT-IR (KBr, cm−1): 3101 (m), 1412 (m), 1011 (m), 972 (s), 922 (s), 88 0 (w), 856 (sh), 785 (s), 532 (m).

3.3. X-ray Crystallography

Crystallographic data for compound 1 are summarized in Table 5. Intensity data were collected at 100(2) K on an Oxford Diffraction Xcalibur (Rigaku Oxford Diffraction, Oxford, UK) single-crystal diffractometer (Mo Kα radiation, λ = 0.71073 Å) fitted with a Sapphire charge-coupled device detector. The data collection, unit cell determination, intensity data integration, routine corrections for Lorentz and polarization effects and analytical absorption correction with face indexing were processed using the CrysAlis software package (Rigaku Oxford Diffraction, Oxford, UK) [41]. The structure was solved using direct methods as implemented in SIR-2004 (Istituto di Cristallografia, CNR, Roma, Italy) [42] and refined by full-matrix least-squares analysis with the SHELXL-97 program (University of Göttingen, Göttingen, Germany) [43]. Heavy atoms (W, Fe, Si) were located in the initial resolution and the remaining light atoms (O, C) were located from successive Fourier maps. The C atoms from the ferrocene unit (Fe3) were disordered over two positions with 50% population factors. Thermal vibrations were treated anisotropically and those from non-disordered cyclopentadienyl C atoms were restrained to be similar to each other using default DELU commands. Thermal ellipsoids belonging to disordered cyclopentadienyl C atoms were restrained using more restrictive ISOR commands. For the All H atoms in the methanol molecules and cyclopentadienyl ligands were included in calculated positions and refined as riding atoms using default SHELXL parameters. Final geometrical calculations were carried out with PLATON (Utrecht University, Utrecht, The Netherlands) [44] as integrated in the WinGX (University of Glasgow, Glasgow, UK) crystallographic software package [45]. CCDC-1878742 (1) contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif.

4. Conclusions

Compound [FeIII(Cp)2]4[SiW12O40]·[FeII(Cp)2]·2CH3OH (1) constitutes the first example in the literature in which ferrocenium (FeIII) and ferrocene (FeII) species coexist in the structure of a polyoxometalate-based salt. The asymmetric unit of 1 displays two crystallographically independent ferrocenium cations (one in an eclipsed D5h conformation and the other one in staggered D5d) and one half of a neutral ferrocene molecule disordered over two positions with similar population factors. The crystal packing of 1 can be best described as an organometallic sub-lattice of ferrocenyl-type species linked by a network of π-π interactions that generates rectangular cavities in which strings of Keggin anions and methanol molecules connected to each other via weak OPOM···CMeOH–OMeOH···OPOM interactions, are hosted. The charge-transfer nature of the salt has been assessed by solid-state diffuse reflectance UV-Vis spectroscopy and 57Fe Mössbauer spectroscopy have proved to be a very useful tool to confirm the presence of magnetically isolated FeIII/FeII centres in a 4:1 ratio. Finally a thorough topological study on the pristine ferrocenyl species deposited in the CSD led us to conclude that (1) ferrocenyl groups tend to present extreme conformations; and (2) close inspection of geometrical parameters allows ferrocene neutral molecules and ferrocenium cations to be easily distinguished, because the later exhibit significant longer Fe···Cp distances (above or below 1.67 Å). For the near future, we plan to react transition metal- or lanthanide-containing POMs showing accessible centres with ferrocene derivatives with coordinating ability (e.g., ferrocene carboxylate, ferrocene-appended 2,2’-bipyrydine ligands) with the aim of studying the effect on their electronic properties (i.e., redox properties, charge-transfer processes).

Supplementary Materials

The following are available online: CIF file for the crystal structure of 1 reported in this paper.

Author Contributions

A.I. synthesized the title compound and performed its physicochemical characterization in close collaboration with B.A. and E.R.-B.; P.V. collected the single-crystal X-ray diffraction data and solved the structure; J.S.G. was in charge of the Mössbauer spectroscopy; B.A. and E.R.-B. prepared the manuscript; J.M.G.-Z. conceived the work and acted together with B.A. as scientific coordinator.

Funding

This work was funded by UPV/EHU (grants PPG17/37 and GIU17/050), Eusko Jaurlaritza/Gobierno Vasco (PIBA2018-59) and Ministerio de Economía, Industria y Competitividad (grant MAT2017-89553-P).

Acknowledgments

Technical and human support provided by SGIker (UPV/EHU, MICINN, GV/EJ, ERDF and ESF) is gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript and in the decision to publish the results.

Appendix A

Table
Table A1. W-O and Si-OC bond lengths and W···Si, W···Wtrans and O···Otrans (Å) distances for the inorganic building block [SiW12O40]4− in 1 and their comparison with those of the optimized polyanion.
Table A1. W-O and Si-OC bond lengths and W···Si, W···Wtrans and O···Otrans (Å) distances for the inorganic building block [SiW12O40]4− in 1 and their comparison with those of the optimized polyanion.
1
W1 W2 W3 W4 W5 W6
OtO11.670 (5)O21.655 (6)O31.667 (6)O41.658 (6)O51.669 (7)O61.666 (6)
ObO71.872 (8)O121.891 (6)O141.870 (6)O161.885 (8)O161.894 (6)O171.885 (7)
O101.880 (8)O71.904 (7)O81.885 (8)O111.892 (7)O151.893 (6)O131.891 (7)
O111.887 (8)O131.909 (6)O91.891 (6)O181.895 (8)O171.900 (6)O101.899 (7)
O91.888 (7)O81.913 (8)O151.900 (7)O141.896 (7)O121.905 (6)O181.900 (8)
OcO222.372 (9)O192.367 (11)O192.344 (10)O222.323 (10)O202.348 (10)O222.360 (11)
[SiW12O40]4−1Optimized [30]
RangeAverage
W–Oc2.323–2.4612.3852.325
W–Ob1.870–1.9131.8931.916
W–Ot1.655–1.6701.6641.743
Si–Oc1.591–1.7051.6441.667
W···Si3.516–3.5413.5293.588
W···Wtrans7.032–7.0827.0577.172
O···Otrans10.364–10.42110.38610.619
Oc: central oxygen atom; Ob: bridging oxygen atoms between W centres; Ot: terminal oxygen atoms.

Appendix B

Table
Table A2. Selected distances (Å), torsion angles (T, °) and oxidation states of Fe centres (OS) for all the structures containing pristine ferrocenyl units included in the CSD database.
Table A2. Selected distances (Å), torsion angles (T, °) and oxidation states of Fe centres (OS) for all the structures containing pristine ferrocenyl units included in the CSD database.
RefcodeFe–CMeanCg···Cg′Fe···CgTOS
AFALAV2.0742.0762.0712.0652.0712.0752.0862.0882.0772.0712.0753.3951.6971.69818.844III
AFALID2.0982.1072.0812.0812.1072.0812.0812.1072.0982.1072.0953.4221.7111.71135.251III
AFALID012.0812.0932.0682.0682.0932.0682.0682.0932.0812.0932.0813.4081.7041.70435.423III
AFALOJ2.0862.0742.0722.0942.0762.0782.0792.0812.0982.1042.0843.4061.7041.70217.247III
AGEFEX2.062.0272.0392.0562.0462.0662.0512.032.0772.0472.0503.4071.7021.7065.975III
BEJLOR (Fe1)2.0932.0652.0282.0092.0382.0582.0032.0432.0382.0622.0443.2931.6501.6461.615II
BEJLOR (Fe2)2.0382.0512.0642.0652.0491.9862.0782.0872.0582.0032.0483.3051.6581.6500.369II
COTPUW022.0562.0462.1032.0462.0562.072.0732.0872.0732.072.0683.3941.6981.6970III
DOMZEM2.122.1152.0852.0662.082.0642.0742.0872.1112.1022.0903.411.7071.7033.723III
DOQHOG1.9851.9911.9591.9342.012.011.9341.9591.9911.9851.9763.1181.5591.5590II
FANNUE2.012.012.0152.012.012.0152.012.012.012.012.0113.2751.6371.63734.704II
FANNUE012.0012.0052.0542.0052.0012.0542.0052.0012.0012.0052.0133.2211.6101.61034.268II
FEHYAS022.0292.0442.0492.0372.0332.0252.0422.0242.0192.0242.0333.2831.6441.6390.241II
FEHYAS032.042.0472.0442.0372.0452.0362.0432.0372.032.0242.0383.2911.6471.6440.622II
FEHYAS041.9952.0252.0472.0242.012.021.9992.0171.991.9652.0073.2631.6431.6251.051II
FEOCAS2.0742.0622.0632.0522.0652.0662.0642.0682.0782.0832.0673.4031.6991.7052.783III
FERCBI102.0682.0732.0732.1142.0862.0652.092.0712.0542.0622.0763.4041.7061.6990.487III
FERCBI112.1092.0862.0632.0732.1052.1022.0942.0682.0852.1072.0893.4121.7051.7082.391III
FEROCE16 (Fe1)2.0432.0382.0462.0512.0492.052.0452.0482.0482.0482.0473.2971.6481.6508.735II
FEROCE16 (Fe2)2.0412.0452.0532.0482.0462.0462.0482.0452.0422.0442.0463.2951.6491.6469.023II
FEROCE17 (Fe1)2.0382.0352.0412.0482.0442.0492.0412.0482.0442.0472.0433.2991.6481.6519.118II
FEROCE17 (Fe2)2.0352.0432.052.0462.042.0422.0482.0422.0382.0452.0433.2981.651.6499.512II
FEROCE18 (Fe1)2.0342.0352.0392.0432.0452.052.0432.0462.0412.0432.0423.2971.6471.6509.837II
FEROCE18 (Fe2)2.0272.0392.0522.0452.0362.0432.0462.0432.0342.0462.0413.2961.6481.64910.283II
FEROCE242.0552.0512.0632.0632.0512.0542.0522.0522.0542.0622.0563.3161.6551.6610.069II
FEROCE262.0122.0352.0422.0232.0052.0232.0052.0122.0352.0422.0233.2871.6441.64435.998II
FEROCE272.0092.0122.0312.0392.0262.0312.0392.0262.0092.0122.0233.2771.6391.63935.983II
FEROCE352.0312.012.0052.0172.0222.0172.0222.0312.012.0052.0173.2381.6191.61935.735II
FEROCE362.0382.0112.0072.0162.0242.0162.0242.0382.0112.0072.0193.2391.6201.62035.44II
FEROCE372.0412.0162.0092.0182.0332.0182.0332.0412.0162.0092.0233.2441.6221.62235.585II
FEROCE382.0322.0122.0082.0172.0342.0172.0342.0322.0122.0082.0213.2381.6191.61935.778II
FEROCE392.0412.0112.0162.0162.0352.0162.0352.0412.0112.0162.0243.2471.6231.62335.762II
FEROCE402.0362.0152.0162.0212.0332.0212.0332.0362.0152.0162.0243.2491.6251.62535.833II
FEROCE412.0372.0182.0142.0212.0352.0212.0352.0372.0182.0142.0253.2511.6251.62535.731II
FEROCE422.0262.0522.0212.0122.0192.0212.0522.0262.0192.0122.0263.2521.6261.62634.943II
FEROCE432.0312.0172.0172.022.0352.022.0352.0312.0172.0172.0243.2471.6241.62435.825II
FEROCE442.042.0222.0182.0222.0362.0222.0362.042.0222.0182.0283.2581.6291.62935.816II
FEROCE452.0442.0212.0182.0282.0412.0282.0412.0442.0212.0182.0303.261.6301.63035.881II
FEROCE462.0442.0212.022.0262.0452.0262.0452.0442.0212.022.0313.2641.6321.63235.498II
FEROCE472.0452.0252.0242.0272.0362.0272.0362.0452.0252.0242.0313.2721.6361.63635.870II
FEROCE482.0442.0242.0292.0322.0372.0322.0372.0442.0242.0292.0333.2711.6361.63635.723II
FEROCE492.0402.0332.0272.022.0342.0202.0342.042.0332.0272.0313.2701.6351.63535.471II
FEROCE502.0532.0282.0362.0232.0442.0232.0442.0532.0282.0362.0373.2771.6391.63935.602II
FEROCE512.0542.0262.0262.032.0512.0262.032.0512.0542.0262.0373.2821.6411.64135.753II
FEROCE522.0452.0292.0282.0322.0492.0322.0492.0452.0292.0282.0373.2851.6421.64235.794II
FEROCE532.0522.0242.0272.0312.0462.0272.0312.0462.0522.0242.0363.2821.6411.64135.743II
FEROCE542.0512.0282.0222.0252.0422.0252.0422.0512.0282.0222.0343.2881.6441.64435.784II
FEROCE552.0732.0162.0172.0112.062.0172.0112.062.0732.0162.0353.2921.6461.64634.983II
FEROCE562.0612.0252.0162.0182.0362.0162.0182.0362.0612.0252.0313.2931.6461.64634.804II
FEROCE572.0622.0182.0192.0152.0282.0192.0152.0282.0622.0182.0283.2921.6461.64634.976II
FEROCE582.0602.0222.0212.0132.0222.0212.0132.0222.062.0222.0283.2941.6471.64734.540II
FEROCE592.0492.042.0092.0302.0342.0092.0302.0342.0492.0402.0323.3011.6511.65135.456II
FEROCE602.0591.9812.0092.0332.0852.0091.9812.0592.0852.0332.0333.2991.6491.64935.317II
FEROCE612.0112.0722.0721.9702.0361.9702.0362.0112.0722.0722.0323.2971.6491.64935.955II
FEROCE622.0242.0171.9822.0672.0731.9822.0172.0242.0732.0672.0333.2971.6491.64935.283II
FEROCE632.0302.0381.9952.0272.0521.9952.0382.0302.0522.0272.0283.2871.6431.64335.361II
FEROCE642.0322.0422.0252.0262.0392.0252.0422.0322.0392.0262.0333.2941.6471.64735.406II
FEROCE652.0312.0522.0442.0462.0242.0462.0242.0312.0522.0442.0393.2921.6461.64635.621II
FEROCE662.0312.0262.0012.0422.0332.0012.0262.0312.0332.0422.0273.2791.6391.63935.444II
FEROCE672.0552.0182.0112.0162.0282.0112.0162.0282.0552.0182.0263.3121.6561.65634.620II
FEROCE682.0652.0232.0142.0222.0372.0142.0222.0372.0652.0232.0323.2931.6471.64734.804II
FEROCE692.0452.0302.0112.0282.0292.0112.0282.0292.0452.032.0293.3001.6501.65035.185II
FEROCE702.0442.0192.0352.0172.0472.0352.0192.0442.0472.0172.0323.2991.6491.64935.774II
FEROCE712.0472.0322.0192.0282.0232.0192.0282.0232.0472.0322.0303.3001.6501.65035.510II
FEROCE722.0442.0242.0152.0192.0392.0152.0192.0392.0442.0242.0283.2841.6421.64234.859II
FEROCE732.0362.0262.0192.0292.0282.0192.0292.0282.0362.0262.0283.2911.6461.64635.373II
FEROCE742.0442.0312.0242.032.0372.0242.032.0372.0442.0312.0333.2981.6491.64935.724II
FEROCE752.0512.022.0252.0252.0452.0252.0252.0452.0512.022.0333.2871.6441.64434.980II
FEROCE762.0442.0262.022.0282.0482.022.0282.0482.0442.0262.0333.2851.6421.64235.101II
FEROCE772.0532.032.0262.0282.0522.0262.0282.0522.0532.0302.0383.2891.6451.64535.651II
FEROCE782.052.0262.0232.0262.0372.0262.0372.052.0262.0232.0323.2741.6371.63735.912II
FEROCE792.0572.0262.0152.0332.0592.0332.0592.0572.0262.0152.0383.2571.6291.62934.954II
FEROCE802.0382.0452.0282.022.0272.0282.0452.0382.0272.022.0323.2691.6351.63535.770II
FEROCE812.0432.0452.0292.0212.0212.0292.0452.0432.0212.0212.0323.2681.6341.63435.826II
FEROCE822.0432.0142.0092.0272.0272.0272.0272.0432.0142.0092.0243.2491.6251.62535.719II
FEROCE832.0462.0142.0122.0232.0382.0232.0382.0462.0142.0122.0273.2541.6271.62735.783II
FEROCE842.042.0072.0062.0222.0382.0222.0382.042.0072.0062.0233.2501.6251.62535.797II
FEROCE852.0632.0261.9482.042.0591.9482.0262.0632.0592.042.0273.2861.6431.64335.437II
FERRIC012.062.062.0632.062.0632.0642.072.0642.0812.0812.0673.3951.7011.6950.507III
FUZGOY2.0862.0752.0542.0972.0742.0552.0642.0682.0632.0712.0713.3901.6951.69525.674III
GOFLUI2.0931.951.981.9751.9411.9552.0352.0012.0281.941.9993.1351.5641.5734.696II
GOKRIH2.0572.0622.1162.0472.052.052.0472.1162.0622.0572.0663.3651.6831.6837.076III
GUNGAX2.0682.0642.0752.0942.082.082.0722.0332.0232.0742.0663.4031.7081.6964.352III
GUNGEB2.0672.0682.0562.0872.0672.0062.0352.0542.0862.0422.0573.3951.7001.69622.686III
GUNGIF2.0742.0642.0572.0372.052.0572.0372.052.0742.0642.0563.3971.6991.69932.324III
HARGIQ2.0182.0272.0372.0432.0222.0342.0242.0272.0292.0242.0283.2891.6451.6444.206II
HIGHUA2.0822.0922.0792.082.0692.082.0792.0922.0822.0692.0803.4041.7021.7020.333III
HUZLAR2.0552.062.0542.0382.0422.0482.0542.0232.0542.012.0443.2881.6581.6316.107II
IMUBEZ1.9992.0052.0081.9942.0111.9992.0111.9942.0082.0052.0033.2911.6451.64513.012II
INIKIZ (Fe1)2.0692.052.0852.0742.0292.0742.0292.0692.052.0852.0613.4051.7031.70335.837III
INIKIZ (Fe2)2.0412.0282.0162.0272.0732.042.0522.0492.031.9842.0343.3231.6611.66224.793II
INIKIZ (Fe3)2.0852.0662.0782.0772.0832.0782.0772.0832.0852.0662.0783.3871.6931.69335.733III
INIKIZ (Fe4)2.0772.0762.0922.0512.0462.0972.092.0562.1072.0582.0753.4271.7081.7209.735III
INIKIZ (Fe5)2.0072.0272.0362.0351.992.0362.0272.0071.992.0352.0193.2621.6311.63135.683II
INIKIZ(Fe6)2.0982.0952.0862.0542.0572.0892.0812.0492.0562.0912.0763.3921.7031.69028.649III
IVUHIQ (Fe1)2.0312.0422.0342.0262.0242.042.0412.0392.0352.0372.0353.2881.6411.6489.552II
IVUHIQ (Fe2)2.0142.0282.0282.0222.0292.0372.0352.0192.032.0382.0283.2841.6381.64612.375II
JAHQAK2.0382.0572.0692.0662.0512.0582.0782.062.0462.0482.0573.4071.7051.70216.247III
JALWIC (Fe1)2.0512.0422.0652.0772.0422.1132.0722.0182.0782.072.0633.4001.7071.6944.775III
JALWIC (Fe2)2.0952.0732.0442.0812.0822.072.0712.0732.0852.0692.0743.4101.7061.7042.117III
JUXZEJ2.0742.0652.0112.0242.0762.0262.0432.052.0562.072.0493.391.6931.6981.978III
KAFMAG2.0392.0132.0152.0452.0632.0712.0482.0462.0272.0542.0423.2871.6371.65111.147II
KALGEL2.0452.0332.0002.0632.0322.0632.0322.0452.0332.0002.0353.3271.6631.6630.239II
KEFXUO (Fe1)2.062.0792.0452.0382.0322.0382.0322.062.0792.0452.0513.3191.6601.66035.92II
KEFXUO (Fe3)2.0532.0342.0912.0132.0392.0132.0392.0532.0342.0912.0463.3971.6981.69832.032III
KEFXUO03 (Fe1)2.0862.1012.0952.0742.0682.0742.0682.0862.1012.0952.0853.3991.6991.69936.000III
KEFXUO03 (Fe2)2.092.0642.0422.0552.0862.0552.0862.092.0642.0422.0673.3561.6781.67835.987III
KOVMUD2.0462.0372.0632.0632.0372.0612.0512.0512.0612.0522.0523.3661.6941.6720.069III
KUVNOE2.0462.0412.0412.0442.0472.0492.0392.0512.0582.0512.0473.2991.6481.6512.706II
KUVNOE012.0492.0292.042.0442.0482.0532.0392.0382.0432.0522.0433.3011.6491.6521.307II
LAWTIM2.0932.0922.0922.112.0922.112.0922.0932.0922.0922.0963.4251.7131.71333.351III
LETSAF2.0822.0772.0652.0672.0762.072.0532.0712.0722.082.0713.4021.7001.7024.472III
LETSAF01 (Fe1)2.1142.0912.1162.0912.0732.062.082.0952.0912.0952.0913.4221.7151.7073.588III
LETSAF01 (Fe2)2.0682.0982.1162.0592.0732.0972.0932.0782.082.1172.0883.4071.7021.7057.904III
LIYNAI (Fe1)2.0762.0622.0672.0722.0222.0622.0722.0812.0562.0552.0623.3971.6991.70121.828III
LIYNAI (Fe2)2.0622.0542.0782.0832.0572.0742.0952.092.0732.0612.0733.4011.6971.7053.528III
LONGOK2.0392.0382.0442.0462.0442.0392.0452.052.0372.0412.0423.2931.6461.6471.214II
LUZJIB2.0242.032.0152.0242.0242.0172.0272.0322.0532.0222.0273.2881.6461.6434.092II
MACWUJ2.0462.12.1152.0882.0452.0572.0862.0972.0772.0572.0773.4121.7081.7058.353III
NAHMEP2.0362.042.0352.0312.0352.0352.0312.0352.0362.042.0353.2921.6461.64635.310II
NIRSAK2.0822.0852.0872.0642.082.0742.1092.1092.0832.062.0833.4151.7111.70419.850III
NOHKAX2.0542.0322.0372.0342.0472.0342.0472.0542.0322.0372.0413.3091.6551.65535.656II
NUMXAU2.0682.0682.0932.092.0932.0472.0452.0472.0482.0482.0653.4021.7101.6920.141III
OCUJIF2.022.0061.9961.9741.9961.9741.9962.022.0061.9961.9983.2791.6391.63933.580II
POTTOH (Fe1)2.0792.0932.0872.082.0732.0832.0912.0912.0852.0742.0843.411.7051.7054.606III
POTTOH (Fe2)2.0392.0362.0352.0352.0332.0352.0352.0422.0412.0312.0363.2821.6401.6420.702II
POTTOH (Fe3)2.0792.0762.0822.082.0872.082.0712.072.0812.0832.0793.4011.7021.6994.256III
PUVFIV2.062.062.0612.0672.0612.0642.0692.0642.082.082.0673.3931.6981.6950.166III
QIDREB2.0442.0372.0262.0322.0392.0432.0442.0432.0452.0422.0393.2901.6371.6538.297II
RAMTII (Fe1)2.0532.0752.1082.1052.0712.1082.1052.0712.0532.0752.0823.3931.6971.69735.970III
RAMTII (Fe2)2.062.0712.092.0912.0722.092.0712.062.0722.0912.0773.3791.6901.69035.978III
RETMOS (Fe1)2.1012.1112.0712.0912.1192.0912.1192.1012.1112.0712.0993.4321.7161.71635.505III
RETMOS (Fe2)2.0692.0962.0352.0532.0822.0872.0742.0762.0632.0832.0723.3971.7041.69319.144III
TIBCUE1.8722.0192.0442.0872.0282.0442.0872.0281.8722.0192.0103.2051.6021.60232.946II
VOVLOJ2.042.0422.0452.0352.032.0342.0412.0452.0492.0322.0393.2941.6471.6470.174II
XITDIP2.1092.0892.0812.0882.082.0792.0882.0912.1022.0692.0883.4171.7111.70725.129III
YIPQIX2.062.062.0662.0592.0662.0652.0712.0652.0782.0782.0673.3801.6921.6890.308III
ZAGXEK2.0872.0622.0662.0642.0462.0552.0632.0582.0552.0242.0583.4151.7091.70818.764III
ZOZLEF2.0972.082.0672.0762.0942.0982.0852.0732.0782.0992.0853.4121.7071.7060.892III
Cg = ring centroid; T = torsion angle between the two cyclopentadienyl rings.

References

  1. Pope, M.T. Heteropoly and Isopoly Oxometalates; Springer: Berlin, Germany, 1983. [Google Scholar]
  2. Nishimoto, Y.; Yokogawa, D.; Yoshikawa, H.; Awaga, K.; Irle, S. Super-Reduced Polyoxometalates: Excellent Molecular Cluster Battery Components and Semipermeable Molecular Capacitors. J. Am. Chem. Soc. 2010, 136, 9042–9052. [Google Scholar] [CrossRef] [PubMed]
  3. Ouahab, L.; Bencharif, M.; Grandjean, D. Premiers solides où coexistent des états de valence mixte sur les entités organiques et minérales: Préparation et données structurales du ternaire (TTF)6PWI2O40 (Et4N)2. C. R. Acad. Sci. Paris Sér. II 1988, 307, 749–752. [Google Scholar]
  4. Ouahab, L.; Bencharif, M.; Mhanni, A.; Pelloquin, D.; Halet, J.F.; Peña, O.; Padiou, J.; Grandjean, D.; Garrigou Lagrange, C.; Amiell, J.; et al. Preparations, x-ray crystal structures, EH band calculations and physical properties of [(TTF)6(H)(XM12O40)(Et4N)] (M = tungsten, molybdenum; X = phosphorus, silicon): Evidence of electron transfer between organic donors and polyoxometalates. Chem. Mater. 1992, 4, 666–674. [Google Scholar] [CrossRef]
  5. Gómez-García, C.J.; Borrás-Almenar, J.J.; Coronado, E.; Delhaès, P.; Garrigou-Lagrange, C.; Baker, L.C.W. Organic-inorganic salts made by TTF and magnetic clusters. Synth. Met. 1993, 56, 2023–2027. [Google Scholar] [CrossRef]
  6. Triki, S.; Ouahab, L.; Padiou, J.; Grandjean, D. The use of polyoxometallates as acceptors in charge transfer salts: Preparation, X-ray crystal structures and preliminary spectroscopic characterizations of D3M6O19, D = TTF, TMTSF; M = Mo, W. J. Chem. Soc. Chem. Commun. 1989, 15, 1068–1070. [Google Scholar] [CrossRef]
  7. Davidson, A.; Boubekeur, K.; Pénicaud, A.; Auban, P.; Lenoir, C.; Batail, P.; Hervé, G. Mixed-valence bis(ethylenedithio)tetrathiafulvalenium (BEDT-TTF) monolayers sandwiched between extended close-packed Keggin-type molecular metal oxide cluster arrays: Synthesis, unprecedented acentric structure and preliminary conducting and e.s.r. properties of (BEDT-TTF)8SiW12O40. J. Chem. Soc. Chem. Commun. 1989, 18, 1373–1374. [Google Scholar]
  8. Triki, S.; Ouahab, L.; Halet, J.F.; Peña, O.; Padiou, J.; Grandjean, D.; Garrigou-Lagrange, C.; Delhaès, P. Preparation and properties of tetrathia- and tetramethyltetraselena-fulvalene salts of [M6O19]2− (M = Mo or W). J. Chem. Soc. Dalton Trans. 1992, 7, 1217–1227. [Google Scholar] [CrossRef]
  9. Gómez-García, C.J.; Ouahab, L.; Gimenez-Saiz, C.; Triki, S.; Coronado, E.; Delhaès, P. Coexistence of Mobile and Localized Electrons in Bis(ethylene)dithiotetrathiafulvalene (BEDT-TTF) Radical Salts with Paramagnetic Polyoxometalates: Synthesis and Physical Properties of (BEDT-TTF)8[CoW12O40]·5.5 H2O. Angew. Chem. Int. Ed. Engl. 1994, 33, 223–226. [Google Scholar] [CrossRef]
  10. Ouahab, L. Coordination complexes in conducting and magnetic molecular materials. Coord. Chem. Rev. 1998, 178, 1501–1534. [Google Scholar] [CrossRef]
  11. Miller, J.S.; Calabrese, J.C.; Epstein, A.J.; Bigelow, R.W.; Zhang, J.H.; Reiff, W.M. Ferromagnetic properties of one-dimensional decamethylferrocenium tetracyanoethylenide (1:1): [Fe(η5-C5Me5)2]+[TCNE]−. J. Chem. Soc. Chem. Commun. 1986, 13, 1026–1028. [Google Scholar] [CrossRef]
  12. Miller, J.S.; Epstein, A.J.; Reiff, W.M. Linear Chain Ferromagnetic Compounds—Recent Progress. Mol. Cryst. Liq. Cryst. 1985, 120, 27–34. [Google Scholar] [CrossRef]
  13. Coronado, E.; Gomez-García, C.J. Polyoxometalate-Based Molecular Materials. Chem. Rev. 1998, 98, 273–296. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, X.; Xue, G.; Hu, H.; Gao, Q.; Fu, F.; Wang, J. Synthesis and crystal structure of a new charge transfer salt [NBu4]6H[Fe(C5H5)2][PMoVMo11O40]2. J. Mol. Struct. 2006, 787, 101–105. [Google Scholar] [CrossRef]
  15. Li, Z.; Cui, R.; Xue, G.; Hu, H.; Fu, F.; Wang, J. Synthesis, structure and absorption spectrum of a new charge transfer salt [Fe(C5H5)2]4H[GeMo12O40]·CH3CN·H2O. J. Coord. Chem. 2009, 62, 1951–1958. [Google Scholar] [CrossRef]
  16. Li, Z.; Cui, R.; Liu, B.; Xue, G.; Hu, H.; Fu, F.; Wang, J. Structural and property characterization of two new charge-transfer salts based on Keggin ions and ferrocene. J. Mol. Struct. 2009, 920, 436–440. [Google Scholar] [CrossRef]
  17. Le Maguerès, P.; Ouahab, L.; Golhen, S.; Grandjean, D.; Peña, O.; Jegaden, J.C.; Gomez-Garcia, C.J.; Delhaès, P. Diamagnetic and Paramagnetic Keggin Polyoxometalate Salts Containing 1-D and 3-D decamethylferrocenium Networks: Preparation, Crystal Structures and Magnetic Properties of [Fe(C5Me5)2]4(POM)(solv)n (POM = [SiMo12O40]4−, [SiW12O40]4−, [PMo12O40]4−, [HFeW12O40]4−; solv = H2O, C3H7ON, CH3CN). Inorg. Chem. 1994, 33, 5180–5187. [Google Scholar]
  18. Golhen, S.; Ouahab, L.; Grandjean, D.; Molinié, P. Preparation, Crystal Structures and Magnetic and ESR Properties of Molecular Assemblies of Ferrocenium Derivatives and Paramagnetic Polyoxometalates. Inorg. Chem. 1998, 37, 1499–1506. [Google Scholar] [CrossRef]
  19. Juraja, S.; Vu, T.; Richardt, P.J.S.; Bond, A.M.; Cardwell, T.J.; Cashion, J.D.; Fallon, G.D.; Lazarev, G.; Moubaraki, B.; Murray, K.S.; et al. Electrochemical, Spectroscopic, Structural and Magnetic Characterization of the Reduced and Protonated α-Dawson Anions in [Fe(η5-C5Me5)2]5[HS2Mo18O62]·3HCONMe2·2Et2O and [NBu4]5[HS2Mo18O62]·2H2O. Inorg. Chem. 2002, 41, 1072–1078. [Google Scholar] [CrossRef] [PubMed]
  20. Veya, P.L.; Kochi, J.K. Structural and spectral characterization of novel charge-transfer salts of polyoxometalates and the cationic ferrocenyl donor. J. Organomet. Chem. 2002, 41, 1072–1078. [Google Scholar] [CrossRef]
  21. Xiong, J.; Niu, Y.; Xu, H.; Cao, G.; Liu, B.; Hu, H.; Xue, G. Charge-transfer salts based on Lindqvist and Keggin polyoxoanion acceptors and ferrocenyl cationic donors. New J. Chem. 2012, 36, 1224–1230. [Google Scholar] [CrossRef]
  22. Li, Z.; Liu, B.; Xu, H.; Xue, G.; Hu, H.; Fu, F.; Wang, J. Preparation, crystal structures, EPR and reflectance spectra of two new charge-transfer salts, [CpFeCpCH2N(CH3)3]4[XMo12O40]·nCH3CN (n = 0 for X = P or n = 1 for X = Ge). J. Organomet. Chem. 2009, 694, 2210–2216. [Google Scholar] [CrossRef]
  23. Xu, H.; Li, Z.; Liu, B.; Xue, G.; Hu, H.; Fu, F.; Wang, J. Charge-Transfer Salts via Cocrystallization of the Cationic Ferrocenyl Donor with Polyoxometalate Acceptors. Cryst. Growth Des. 2010, 10, 1096–1103. [Google Scholar] [CrossRef]
  24. Stark, J.L.; Young, V.G., Jr.; Maatta, E.A. A Functionalized Polyoxometalate Bearing a Ferrocenylimido Ligand: Preparation and Structure of [(FcN)Mo6O18]2−. Angew. Chem., Int. Ed. Engl. 1995, 34, 2547–2548. [Google Scholar] [CrossRef]
  25. Kang, J.; Nelson, J.A.; Lu, M.; Xie, B.; Peng, Z.; Powell, D.R. Charge-Transfer Hybrids Containing Covalently Bonded Polyoxometalates and Ferrocenyl Units. Inorg. Chem. 2004, 43, 6408–6413. [Google Scholar] [CrossRef] [PubMed]
  26. Schulz, J.; Gyepes, R.; Císařová, I.; Štěpnička, P. Synthesis, structural characterisation and bonding in an anionic hexavanadate bearing redox-active ferrocenyl groups at the periphery. New. J. Chem. 2010, 34, 2749–2756. [Google Scholar] [CrossRef]
  27. Groom, C.R.; Bruno, I.J.; Lightfoot, M.P.; Ward, S.C. The Cambridge Structural Database. Acta Crystallogr. 2016, 72, 171–179. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. San Felices, L.; Vitoria, P.; Gutiérrez-Zorrilla, J.M.; Lezama, L.; Reinoso, S. Hybrid Inorganic−Metalorganic Compounds Containing Copper (II)-Monosubstituted Keggin Polyanions and Polymeric Copper (I) Complexes. Inorg. Chem. 2006, 45, 7748–7757. [Google Scholar] [CrossRef] [PubMed]
  29. Mohammadi, N.; Ganesan, A.; Chantler, C.T.; Wang, F. Differentiation of ferrocene D5d and D5h conformers using IR spectroscopy. J. Organomet. Chem. 2012, 713, 51–59. [Google Scholar] [CrossRef]
  30. Reinoso, S.; Vitoria, P.; San Felices, L.; Lezama, L.; Gutiérrez-Zorrilla, J.M. Organic–Inorganic Hybrids Based on Novel Bimolecular [Si2W22Cu2O78(H2O)]12− Polyoxometalates and the Polynuclear Complex Cations [Cu(ac)(phen)(H2O)]nn+ (n = 2, 3). Chem. Eur. J. 2005, 11, 1538–1548. [Google Scholar] [CrossRef] [PubMed]
  31. Brown, I.D.; Alternatt, D. Bond-Valence Parameters obtained from a systematic analysis of the Inorganic Crystal Structure Database. Acta Crystallogr. 1985, 41, 244–247. [Google Scholar] [CrossRef]
  32. Duggan, D.M.; Hendrickson, D.N. Electronic structure of various ferricenium systems as inferred from Raman, infrared, low-temperature electronic absorption and electron paramagnetic resonance measurements. Inorg. Chem. 1975, 14, 955–970. [Google Scholar] [CrossRef]
  33. Connelly, N.G.; Geiger, W.E. Chemical Redox Agents for Organometallic Chemistry. Chem. Rev. 1996, 96, 877–910. [Google Scholar] [CrossRef] [PubMed]
  34. Trivedi, R.; Bhavya Deepthi, S.; Giribabu, L.; Sridhar, B.; Sujitha, P.; Kumar, C.G.; Ramakrishna, K.V.S. Synthesis, Crystal Structure, Electronic Spectroscopy, Electrochemistry and Biological Studies of Ferrocene–Carbohydrate Conjugates. Eur. J. Inorg. Chem. 2012, 13, 2267–2277. [Google Scholar] [CrossRef]
  35. Churchill, M.R.; Li, Y.J.; Nalewajek, D.; Schaber, P.M.; Dorfman, J. Preparation crystal and molecular structure and properties of tetrakis(ferrocenecarboxylato)bis(tetrahydrofuran)dicopper (II). A structure containing both eclipsed and staggered ferrocenyl fragments. Inorg. Chem. 1985, 24, 2684–2687. [Google Scholar] [CrossRef]
  36. Greenwood, N.N.; Gibb, T.C. Mössbauer Spectroscopy; Chapman and Hall: London, UK, 1971. [Google Scholar]
  37. Ernst, R.D.; Wilson, D.R.; Herber, R.H. Bonding, Hyperfine Interactions and Lattice Dynamics of Bis(pentadienyl)iron Compounds. J. Am. Chem. Soc. 1984, 106, 1646–1650. [Google Scholar] [CrossRef]
  38. Magalhaes, C.I.R.; Gomes, A.C.; Lopes, A.D.; Gonçalves, I.S.; Pillinger, M.; Jin, E.; Kim, I.; Ko, Y.H.; Kim, K.; Nowik, I.; et al. Ferrocene and ferrocenium inclusion compounds with cucurbiturils: A study of metal atom dynamics probed by Mossbauer spectroscopy. Phys. Chem. Chem. Phys. 2017, 19, 21548–21555. [Google Scholar] [CrossRef] [PubMed]
  39. Tézé, A.; Hervé, G. Early transition metal polyoxoanions. Inorg. Synth. 1990, 27, 85–96. [Google Scholar]
  40. Brand, R.A. Normos Mössbauer Fitting Program; Universität Dortmund: Dortmund, Germany, 2007. [Google Scholar]
  41. CrysAlis Pro CCD V38.2 and RED; Oxford Diffraction, Ltd.: Oxford, UK, 2009.
  42. Burla, M.C.; Caliandro, R.; Camalli, M.; Carrozzini, B.; Cascarano, G.L.; De Caro, L.; Giacovazzo, C.; Polidori, G.; Spagna, T. SIR2004: An Improved Tool for Crystal Structure Determination and Refinement. J. Appl. Crystallogr. 2005, 38, 381–388. [Google Scholar] [CrossRef]
  43. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]
  44. Spek, A.L. Structure validation in chemical crystallography. Acta Crystallogr. 2009, 65, 148–155. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Farrugia, L.J. WinGX suite for small-molecule single-crystal crystallography. J. Appl. Crystallogr. 1999, 32, 837–838. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 23 03150 g001 550
Figure 1. FT-IR spectrum of 1 and comparative detail of the inorganic fingerprint below 1000 cm−1 with that of the K4[α-SiW12O40] precursor.
Figure 1. FT-IR spectrum of 1 and comparative detail of the inorganic fingerprint below 1000 cm−1 with that of the K4[α-SiW12O40] precursor.
Molecules 23 03150 g001
Molecules 23 03150 g002 550
Figure 2. Combined polyhedral/ball-&-stick representation (left) and ORTEP view with 50% probability displacement ellipsoids (right) of the formula unit of 1. Colour code: W and {WO6} octahedra, grey; Si and {SiO4} tetrahedron, purple; Fe, blue; C, black; O, red. The two positions over which the Cp ligands of the Fe3 unit are disordered are depicted in brown and light blue. Hydrogen atoms are omitted for clarity. Symmetry code: (i) 1 − x, −y, 1 − z.
Figure 2. Combined polyhedral/ball-&-stick representation (left) and ORTEP view with 50% probability displacement ellipsoids (right) of the formula unit of 1. Colour code: W and {WO6} octahedra, grey; Si and {SiO4} tetrahedron, purple; Fe, blue; C, black; O, red. The two positions over which the Cp ligands of the Fe3 unit are disordered are depicted in brown and light blue. Hydrogen atoms are omitted for clarity. Symmetry code: (i) 1 − x, −y, 1 − z.
Molecules 23 03150 g002
Molecules 23 03150 g003 550
Figure 3. Plot of the average Fe···Cg(Cp) distances vs. Fe–C bond lengths for all the ferrocenyl moieties included in the search within the CSD database. Crystallographically independent ferrocenyl units in 1 are indicated in red.
Figure 3. Plot of the average Fe···Cg(Cp) distances vs. Fe–C bond lengths for all the ferrocenyl moieties included in the search within the CSD database. Crystallographically independent ferrocenyl units in 1 are indicated in red.
Molecules 23 03150 g003
Molecules 23 03150 g004 550
Figure 4. Plot of the average Fe···Cg(Cp) distances vs torsion angles for all the ferrocenyl moieties included in the search within the CSD database. The non-disordered crystallographically independent ferrocenyl units in 1 are indicated in red.
Figure 4. Plot of the average Fe···Cg(Cp) distances vs torsion angles for all the ferrocenyl moieties included in the search within the CSD database. The non-disordered crystallographically independent ferrocenyl units in 1 are indicated in red.
Molecules 23 03150 g004
Molecules 23 03150 g005 550
Figure 5. View of the crystal packing of 1 along the [100] direction (A). Channels formed by the organometallic sub-lattice. (B) Hydrogen atoms and methanol molecules are omitted for clarity. Hybrid polyhedral and ball & sticks representation of the hydrogen-bonded, methanol-bridged POM chain running along the [100] direction (C).
Figure 5. View of the crystal packing of 1 along the [100] direction (A). Channels formed by the organometallic sub-lattice. (B) Hydrogen atoms and methanol molecules are omitted for clarity. Hybrid polyhedral and ball & sticks representation of the hydrogen-bonded, methanol-bridged POM chain running along the [100] direction (C).
Molecules 23 03150 g005
Molecules 23 03150 g006 550
Figure 6. View of the organometallic sub-lattice formed by π-π interactions between ferrocenyl units in 1 along the [011] direction. Colour code: Fe1 ferrocenium (green), Fe2 ferrocenium (pink), Fe3 ferrocene (blue).
Figure 6. View of the organometallic sub-lattice formed by π-π interactions between ferrocenyl units in 1 along the [011] direction. Colour code: Fe1 ferrocenium (green), Fe2 ferrocenium (pink), Fe3 ferrocene (blue).
Molecules 23 03150 g006
Molecules 23 03150 g007 550
Figure 7. Diffuse Reflectance UV-Vis spectrum of powdered crystalline sample of 1 compared with those of the K4[SiW12O40]·17H2O precursor, ferrocene (Fc) and the FcPF6 salt.
Figure 7. Diffuse Reflectance UV-Vis spectrum of powdered crystalline sample of 1 compared with those of the K4[SiW12O40]·17H2O precursor, ferrocene (Fc) and the FcPF6 salt.
Molecules 23 03150 g007
Molecules 23 03150 g008 550
Figure 8. Experimental 57Fe Mössbauer spectrum and curve fits for each iron-containing species in 1.
Figure 8. Experimental 57Fe Mössbauer spectrum and curve fits for each iron-containing species in 1.
Molecules 23 03150 g008
Table
Table 1. Selected geometrical parameters (Å, °) for the three crystallographically independent ferrocenyl species in 1.
Table 1. Selected geometrical parameters (Å, °) for the three crystallographically independent ferrocenyl species in 1.
Fe1 Fe2 Fe3
C12.084 (9)C112.044 (9)C21A2.077 (18)
C22.086 (8)C122.059 (12)C22A2.048 (19)
C32.080 (7)C132.057 (11)C23A2.02 (2)
C42.075 (7)C142.043 (10)C24A2.037 (10)
C52.078 (8)C152.034 (10)C25A2.019 (10)
C62.060 (9)C162.062 (9)C21B1.98 (3)
C72.073 (8)C172.084 (8)C22B2.03 (2)
C82.089 (10)C182.083 (8)C23B2.09 (2)
C92.086 (10)C192.062 (8)C24B2.095 (19)
C102.068 (9)C202.049 (9)C25B2.03 (2)
Average2.08Average2.06Average2.05
Fe···Cg(Cp1)1.704Fe···Cg(Cp3)1.701Fe···Cg(Cp5A)1.648
Fe···Cg(Cp2)1.699Fe···Cg(Cp4)1.708Fe···Cg(Cp5B)1.667
Torsion angle0.94 34.53 -
SymmetryD5h D5d Disordered
Cg(Cpi): Centroid of the i cyclopentadienyl ring defined by the following atoms: i = 1: C1, C2, C3, C4, C5; i = 2: C6, C7, C8, C9, C10; i = 3: C11, C12, C13, C14, C15; i = 4: C16, C17, C18, C19, C20; i = 5: C21, C22, C23, C24, C25 (A and B represent the two equivalent positions in the disordered ferrocene unit).
Table
Table 2. Geometrical parameters (Å, °) of the intermolecular π-π interactions in 1.
Table 2. Geometrical parameters (Å, °) of the intermolecular π-π interactions in 1.
π-π InteractionsCg(Cp)··· PlaneANGCg(Cp)··· Cg(Cp)Slippage
StackingCp1-Cp1i3.4450.003.4970.603
Cp2-Cp2ii3.3260.003.8291.898
T-typeCp1-Cp3iii3.72889.4 (5)5.1453.545
Cp1-Cp5A4.26488.7 (9)4.5371.550
Cp1-Cp5B4.24487.1 (11)4.4801.435
Cp2-Cp44.68088.3 (5)4.7200.618
Cp3-Cp5Aiv4.93888.4 (10)5.0791.188
Cp3-Cp5Biv4.87387.4 (11)4.9891.061
Cpi: i cyclopentadienyl rings defined in Table 2. Cg(Cp)···plane: distance from one centroid to the plane containing the other ring. ANG: dihedral angle between planes containing both rings. Cg(Cp)··· Cg(Cp): distance between centroids. Slippage: distance between one centroid and its perpendicular projection to the plane containing the second ring. Symmetry codes: (i) −x, 1 − y, 1 − z; (ii) −x, −y, −z; (iii) −1 + x, y, z; (iv) 1 + x, y, z.
Table
Table 3. Bond lengths (Å) and angles (°) for C–H···O type interactions in 1.
Table 3. Bond lengths (Å) and angles (°) for C–H···O type interactions in 1.
D-AD-HH···AD···AD-H···A
O1M–H1M···O130.842.253.018 (12)152
C1M–H1M1···O140.982.363.281 (15)157
C1M–H1M1···O4i0.982.883.168 (16)98
C4-H4···O4i0.952.443.182 (12)135
C7-H7···O5ii0.952.553.450 (12)157
C8-H8···O6i0.952.483.286 (10)143
C11-H11···O12iii0.952.563.389 (13)145
C12-H12···O2iii0.952.483.225 (14)135
C13-H13···O3iv0.952.533.342 (14)144
C13-H13···O8iv0.952.513.371 (15)150
C14-H14···O10.952.463.380 (14)164
C15-H15···O6v0.952.423.352 (16)167
C16-H16···O6iii0.952.443.240 (11)142
C18-H18···O7iv0.952.593.414 (15)146
C19-H19···O1iv0.952.593.308 (11)133
C20-H20···O150.952.563.272 (11)132
C24B-H24B···O16iiii0.952.593.427 (12)147
D = donor; A = acceptor. Symmetry codes: (i) 1 − x, −y, 1 − z; (ii) −1 + x, y, −1 + z; (iii) x, y, −1 + z; (iv) 1 − x, 1 − y, 1 − z; (v) 1 − x, −y, 1 − z.
Table
Table 4. Experimental results obtained from the 57Fe Mössbauer spectrum of 1.
Table 4. Experimental results obtained from the 57Fe Mössbauer spectrum of 1.
Signalδ (mm/s)MultiplicityΔ (mm/s)Oxidation StateAreaAtomic %
Fe10.271-III240
Fe20.441-III240
Fe30.7121.17II120
δ isomer shifts are relative to the α-Fe.
Table
Table 5. Crystallographic data for 1.
Table 5. Crystallographic data for 1.
Parameters1
FormulaC52H58Fe5O42SiW12
FW (g mol−1)3868.40
Crystal SystemTriclinic
Space GroupP–1
a (Å)12.5120 (5)
b(Å)13.0831 (6)
c (Å)13.3076 (6)
α (°)117.296 (5)
β (°)95.632 (3)
γ (°)101.909 (4)
V (Å3)1874.03 (18)
Z1
ρcalcd (g cm−3)3.478
μ (mm−1)19.651
Collected Reflections19620
Unique Reflections (Rint)8904 (0.036)
Observed Reflections [I > 2σ(I)]6061
Parameters505
Restrains120
R(F) a [I > 2σ(I)]0.036
wR(F2) a [all data]0.072
GoF0.860
aR(F) = Σ||Fo − Fc||/Σ|Fo|; wR(F2) = {Σ[w(Fo2 − Fc2)2]/Σ[w(Fo2)2]}1/2.

Share and Cite

MDPI and ACS Style

Artetxe, B.; Iturrospe, A.; Vitoria, P.; Ruiz-Bilbao, E.; S. Garitaonandia, J.; Gutiérrez-Zorrilla, J.M. A Charge-Transfer Salt Based on Ferrocene/Ferrocenium Pairs and Keggin-Type Polyoxometalates. Molecules 2018, 23, 3150. https://doi.org/10.3390/molecules23123150

AMA Style

Artetxe B, Iturrospe A, Vitoria P, Ruiz-Bilbao E, S. Garitaonandia J, Gutiérrez-Zorrilla JM. A Charge-Transfer Salt Based on Ferrocene/Ferrocenium Pairs and Keggin-Type Polyoxometalates. Molecules. 2018; 23(12):3150. https://doi.org/10.3390/molecules23123150

Chicago/Turabian Style

Artetxe, Beñat, Amaia Iturrospe, Pablo Vitoria, Estibaliz Ruiz-Bilbao, José S. Garitaonandia, and Juan M. Gutiérrez-Zorrilla. 2018. "A Charge-Transfer Salt Based on Ferrocene/Ferrocenium Pairs and Keggin-Type Polyoxometalates" Molecules 23, no. 12: 3150. https://doi.org/10.3390/molecules23123150

Article Metrics

Back to TopTop
