The success of parasitic helminths in evading detection and expulsion from their hosts is believed to be due to a range of strategies that the parasites employ to regulate host immune responses and to maintain homeostasis. Thus, active helminth infection and also immunomodulatory helminth-derived excretory/secretory (ES) products have been shown to induce a range of regulatory immune responses that can skew host immunity (reviewed in [1
]). Furthermore, such responses appear to have knock-on effects, as epidemiological studies have shown that exposure early in life to helminth infections is negatively correlated with the development of allergy and autoimmunity, and that anthelminthic therapies can result in loss of helminth-induced immunoregulation (reviewed in [1
Amongst the most widely characterised helminth ES product is ES-62, which is produced by Acanthocheilonema viteae
(reviewed in [2
]). ES-62 is a tetrameric protein that is decorated with phosphorylcholine (PC) moieties covalently attached to N
-type glycans. The PC is largely responsible for ES-62’s immunomodulatory actions which, via degradation of MyD88 and downstream transducers like PKC-α, can dampen inflammatory responses to pathogen-associated molecular patterns (PAMPS) such as lipopolysaccharide (LPS), as well as to certain antigens (reviewed in [2
]). Such subversion of immune signalling dictates that ES-62 can be used to treat disease, both prophylactically and therapeutically, in a number of pre-clinical models of autoimmunity and allergy, including rheumatoid arthritis (RA; collagen-induced arthritis (CIA) (reviewed in [2
])), systemic lupus erythematosus (SLE; MRL/Lpr mouse model [3
]), and asthma (acute and chronic ovalbumin (OVA)-induced asthma models [4
]). This has raised the idea of employing ES-62 as a novel therapy, but such thoughts are tempered by its likely immunogenicity and by the fact that its active moiety is a post-translational modification. Therefore, a library of synthetic non-immmunogenic, small molecule analogues (SMAs), based around the structure of the active PC-moiety, was designed and screened to find compounds mimicking ES-62’s immunomodulatory properties [6
]. From this work, SMAs 11a and 12b were identified as possessing anti-inflammatory profiles matching ES-62’s properties, both in vitro and in pre-clinical models of RA, SLE and allergy [6
]. However as parasitic helminths and their ES products have been shown to be protective in a wide range of mouse models of inflammatory conditions (reviewed in [13
]), we decided to investigate the therapeutic potential of ES-62 and its SMAs in other pathologies. In particular, we employed the non-obese diabetic (NOD) mouse model of type 1 diabetes (T1D), the experimental autoimmune encephalomyelitis (EAE) model of multiple sclerosis (MS), and the dextran sodium sulphate (DSS)-induced and T cell transfer models of inflammatory bowel disease (IBD) in an attempt to gauge the range of ES-62’s therapeutic potential.
The NOD mouse spontaneously develops a Th1 response to islet antigens that results in inflammatory infiltration of pancreatic islets from 4–5 weeks of age, leading to β cell destruction, insulitis, and diabetes. There are a number of reports of parasitic worms, their extracts and products preventing diabetes development in NOD mice. Thus, short term treatment of the mice from four weeks of age with non-viable eggs or soluble extracts from the egg or worm of the parasitic trematode Schistosoma mansoni
was found to be sufficient to prevent the development of diabetes and preserve β islet cells [14
]. Roles for NKT cells [14
] and regulatory T cells (Tregs) [15
] have been put forward to explain these data. More recently, ES products from another trematode, Fasciola hepatica
, were also reported to prevent the onset of diabetes, specifically by inducing M2 peritoneal macrophages that are capable of generating a potent Treg response [16
]. With respect to nematodes, protection against T1D was demonstrated using live Litomosoides sigmodontis
larvae or adult worms and also adult worm antigen (LsAg), acting via the generation of a Th2 immunological phenotype and the induction of a Treg response [17
]. Together, these data suggest that pathogenic Th1 responses can be subverted by helminth-induced Th2 polarisation and immunoregulatory responses, to prevent diabetes in the NOD mouse.
In MS models, unlike in the NOD mouse where disease develops spontaneously, EAE is generated following immunisation with myelin oligodendrocyte glycoprotein (MOG) or myelin basic protein (MBP) in Complete Freunds Adjuvant (CFA) to induce a potent Th1/17 autoimmune response. This model is characterised by infiltration of the central nervous system (CNS) by inflammatory T cells and macrophages, which leads to rapid paralysis. Administration of S. mansoni
eggs, S. japonicum
soluble egg antigen (SEA) or live F. hepatica
infection was each found to suppress EAE by inducing strong Th2 and Treg responses in the CNS that promoted IL-4 and reduced IFN-γ production [18
]. Furthermore, live infection with the model gastrointestinal nematode Heligmosomoides polygyrus
resulted in remission of active EAE disease [21
] and transfer of regulatory B cells from the mesenteric lymph nodes of such infected mice could prevent disease onset in recipient mice [22
Inflammatory bowel disease (IBD) is an umbrella term for a collection of diseases, including ulcerative colitis and Crohn’s disease that can be investigated using a variety of in vivo pre-clinical models, in which helminth infections or the use of their ES products have proven to be effective in reducing disease. For example, mirroring its effects in diabetes and EAE, S. mansoni
SEA induced potent Th2 and Treg responses that protected animals from generating an exaggerated immune responses towards DSS-induced colitis [23
]. Using this same DSS model, ES products from the hookworm Ancylostoma caninum
protected against colitis by dampening Th1/17 responses, again via the promotion of Th2 immune responses [24
Despite the different aetiologies/target organs involved in these autoimmune diseases, there are similar underlying mechanisms; each disease being driven by a potent Th1/17 response that results in the pathological destruction of tissue. Here, we demonstrate that despite our previous success in exploiting the ability of ES-62 and the SMAs to dampen such responses, we were unable to (i) decrease diabetes incidence in the NOD mouse model, (ii) prevent the onset of paralysis in the EAE model, and (iii) protect against colonic inflammation in chronic IBD models. In spite of this, by reflecting on the successes and failures of ES-62, we hope to further elucidate the immunoregulatory mechanisms of action of this helminth product.
2. Materials and Methods
2.1. ES-62 and SMAs
Highly purified ES-62 was prepared from spent culture medium of adult mixed-sex A. viteae
by size exclusion centrifugation using endotoxin-free reagents and procedures, as described previously [25
]: SMAs were synthesised as previously described [6
2.2. Type I Diabetes Model
The NOD mouse was employed as a model of type I diabetes (T1D), and initial experiments were based on regimens where ES-62 had been successfully employed to prevent the development of autoimmunity [3
], and where extracts of adult Schistosoma mansoni
, or its eggs, had been in effective in preventing diabetes development [14
]. BDC2.5 mice are T cell receptor transgenic mice expressing a T cell receptor for islet antigen on CD4+
T cells [26
]. The study was carried out in accordance with the recommendations of the Animals (Scientific Procedures) act and was conducted under UK Home Office project license regulations (numbers PPL 80/1560 and PPL 80/2242) after approval by the Ethical Review Committees of the University of Cambridge. NOD mice and BDC2.5 NOD transgenic mice were bred and maintained under specific pathogen-free barrier conditions. Mice were housed in individually ventilated cages with standard ad libitum conditions.

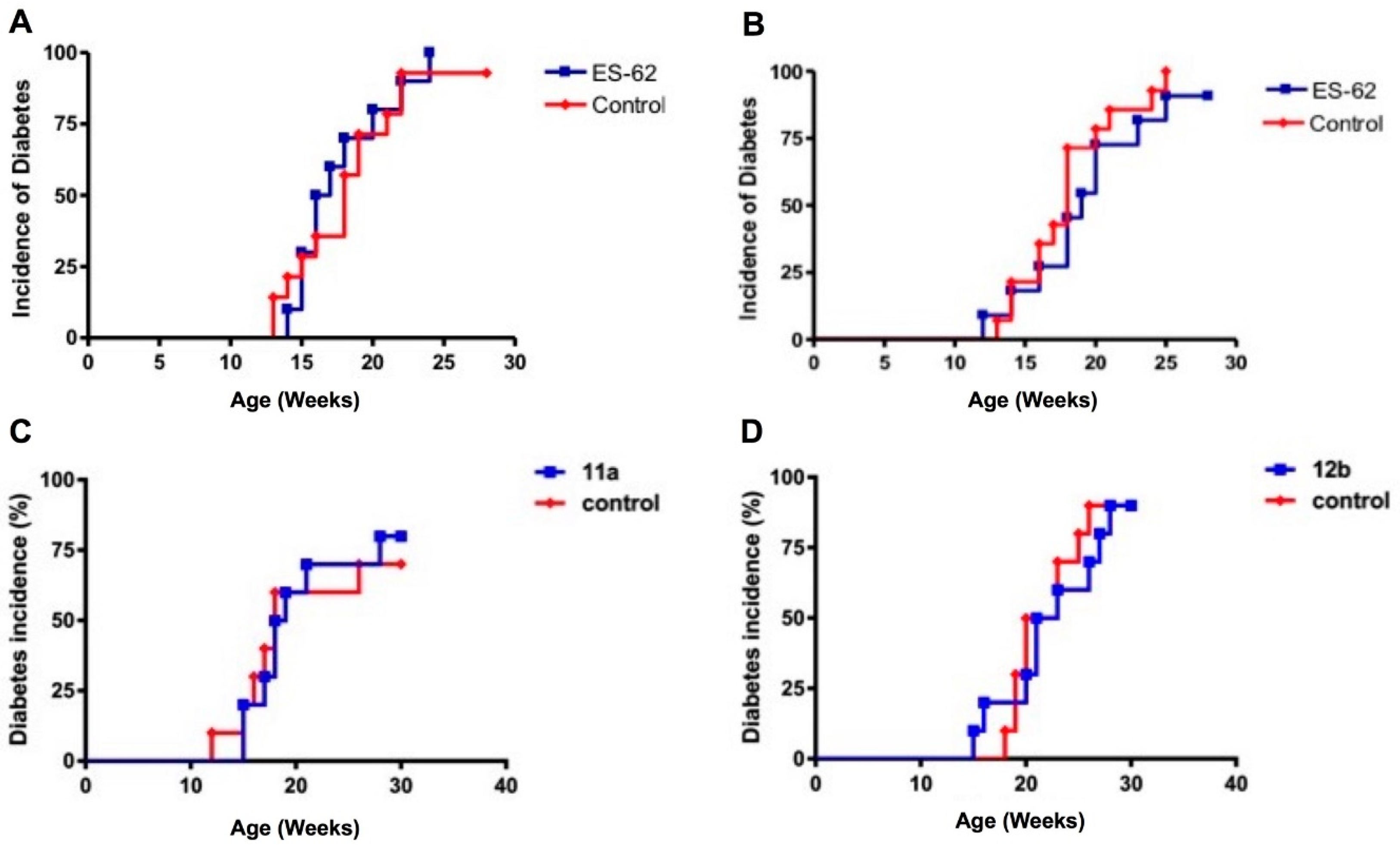

Female NOD mice received intraperitoneal injections of 2 μg ES-62 in sterile PBS (n = 10 mice) or sterile PBS alone (n = 13 mice) once a week from four weeks until 12 weeks of age. Non-diabetic female NOD mice (9–10-week-old, n = 9 mice/group) were injected six times intraperitoneally with sterile PBS (Control) or 10 μg of ES-62 in sterile PBS over a two-week period. For the SMA experiment, 5-week-old female NOD mice (n = 10 mice/group) received intraperitoneal injections of 1 μg of SMA 11a or 12b twice a week for 10 weeks. The incidence of diabetes was determined by monitoring glycosuria using Diastix reagent strips (Bayer Diagnostics, Basingstoke, UK) and confirmed by a blood glucose measurement of >13.3 mM, using a Breeze2 blood glucose meter (Bayer).

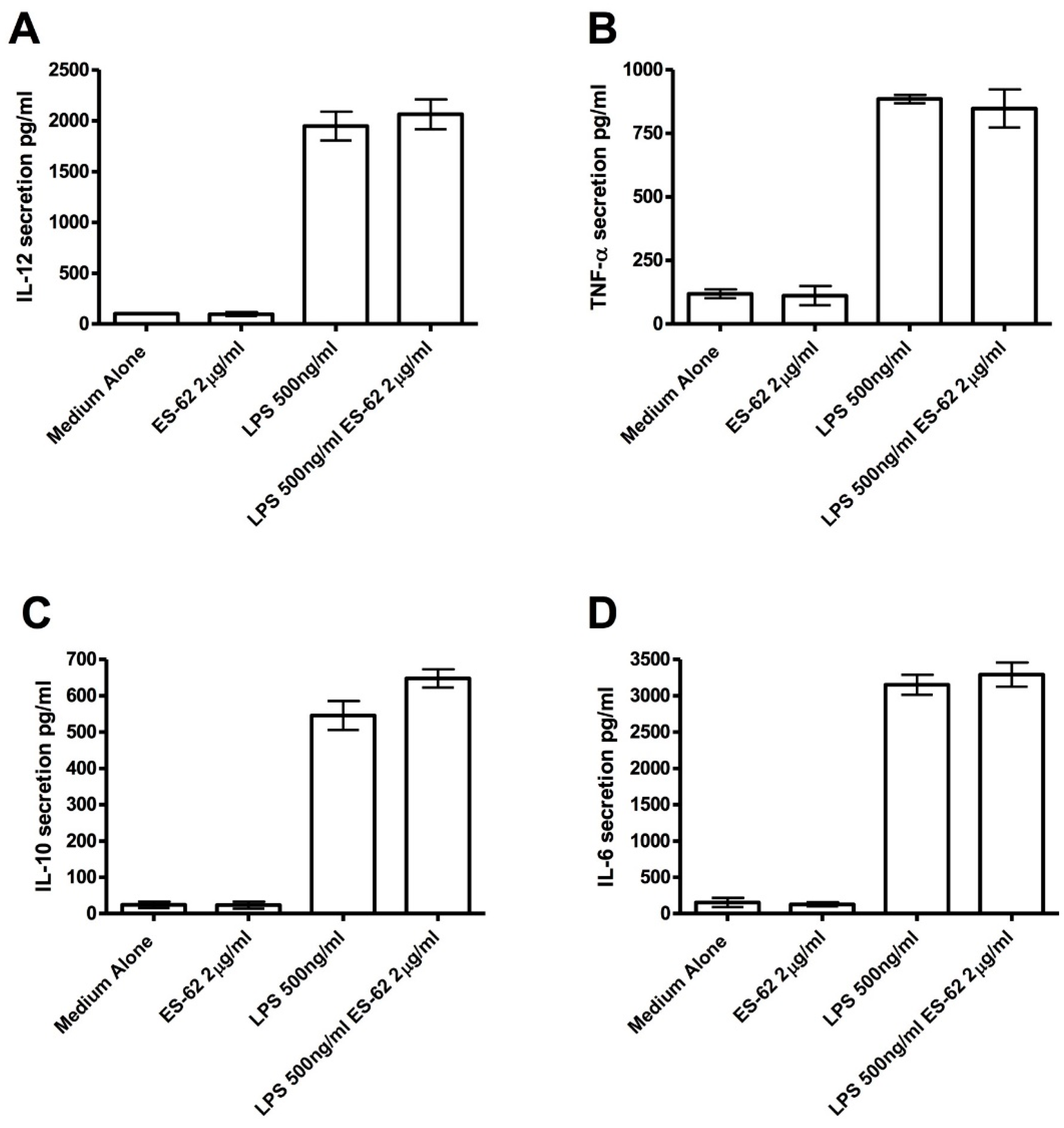

Bone marrow-derived dendritic cells (DCs) were generated by culturing bone marrow cells flushed from NOD femurs and tibia, red cell lysed, re-suspended and cultured at 106/mL in Iscove’s Modified Dulbecco’s Medium (IMDM) supplemented with 10% foetal calf serum (FCS), penicillin (100 U/mL), streptomycin (100 μg/mL), 2-mercaptoethanol (25 μM), and l-glutamine (2 mM) in the presence of 20 ng/mL recombinant murine granulocyte-macrophage colony-stimulating factor (GM-CSF; Preprotech, London, UK) and 10 ng/mL IL-4 (Preprotech, London, UK). Non-adherent cells were discarded at day 3 and cells re-suspended in the supplemented medium described above for a further 5–7 days before the non-adherent cells were used as DCs. DCs were washed and adjusted to 5 × 104 cells/well in a flat bottomed, 96-well plate in 200 μL final volume. The cells were set up in triplicate cultures and incubated with 500 ng/mL LPS (S. minnesota, Sigma, Poole, UK) PBS and/or ES-62. The supernatants were collected at 48 or 72 h and analysed for cytokines by sandwich enzyme-linked immunosorbent assay (ELISA).
Four-week-old BDC2.5NOD mice were given two injections of 2 μg ES-62 (in PBS with PBS as a control) over the course of a week either by the intraperitoneal or subcutaneous route. Single cell suspensions of red blood cell lysed spleen cells were cultured in the presence of BDC2.5 peptide in the presence or absence of 1 or 2 μg ES-62. Supernatants were taken at 72 h and the presence of cytokines in supernatants was assessed by ELISA. The BDC2.5 peptide (RTRPLWVRME) was supplied by Cambridge Peptides, Cambridge, UK.

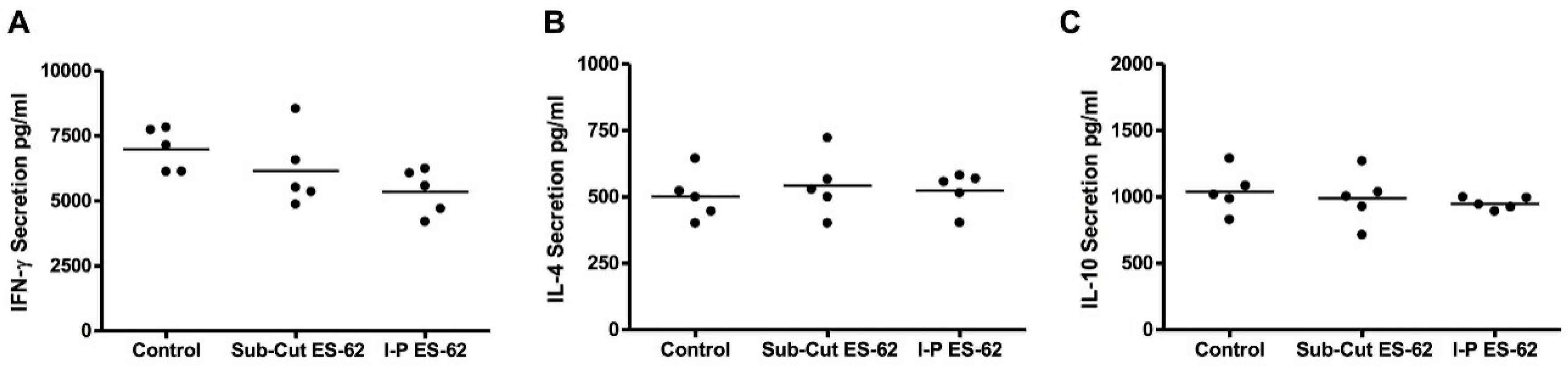

Analysis of cytokines produced by DCs or spleen cells was carried out using ELISA kits (R&D systems, Abingdon, UK) for TNF-α IL-12p40, IL-6, IL-10, IL-4, and IFN-γ. Protocols were followed according to the manufacturer’s instructions.

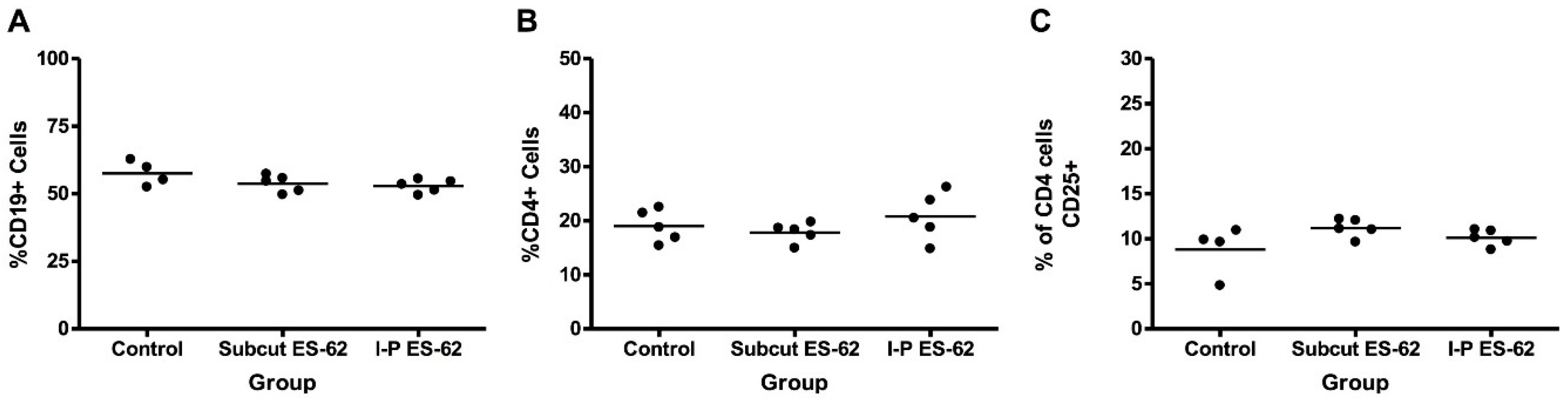

Single-cell suspensions were made from spleens of BDC2.5NOD mice incubated with ES-62 as described above for flow cytometry. Cells were washed and re-suspended in staining buffer (PBS containing 2% bovine serum albumin and 0.05% NaN3). Fc receptors were blocked using antibody 24G2 (a kind gift from Dr Nick Holmes, University of Cambridge, Cambridge, UK). Cells were stained with the following monoclonal antibodies directly conjugated to fluorochromes: anti-CD19-FITC, anti-CD4-PE, anti-CD4-PerCP, and anti-CD25-PE (BD Pharmingen, Wokingham, UK), and then washed and analysed using a FACScan flow cytometer and CELLQUEST software (Becton Dickinson Europe, Erembodegem, Belgium).
2.3. Experimental Autoimmune Encephalomyelitis

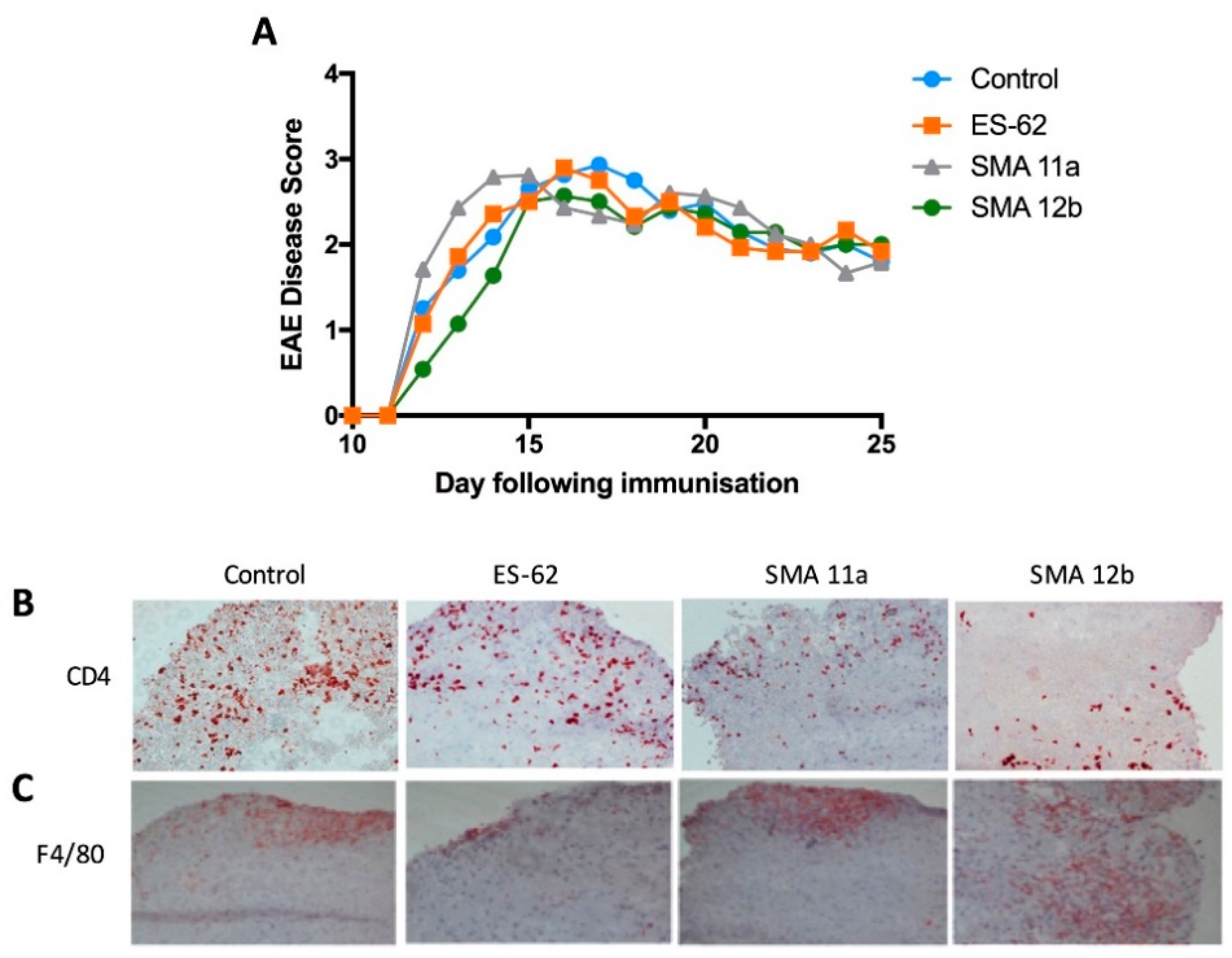

EAE was employed as a model of MS using naïve C57BL/6 mice that were bred and maintained in the Biological Procedure Unit at the University of Strathclyde. Mixed-sex animals (we find no effect of gender on disease incidence or severity) at 7–9-weeks old were used in the experiments, which were performed under the guidelines of the UK Animals (Scientific Procedures) Act 1986.
Mice were immunised subcutaneously on day 0 with 50 μL of 150 μg MOG35–55 peptide (ChinaPeptides Co. Ltd., Shanghai, China) emulsified in 50 μL of CFA (Sigma) supplemented with 400 μg Mycobacterium tuberculosis (BD Biosciences). In addition, each mouse received two injections of pertussis toxin (PTX; Tocris Bioscience, Bristol, UK) intraperitoneally (150 ng in 100 μL PBS) on day 0 and day 2. Mice received three doses of treatment with PBS (Control), 2 μg of ES-62, or 1 μg of SMAs 11a or 12b on Day-2, Day 0, and Day 2 by the sub-cutaneous route. EAE clinical symptoms were carefully monitored, and the clinical score was recorded based on the following evaluation system: 0: normal with no clinical sign; 1: complete loss of tail tone; 2: hind limb weakness; 3: hind limb paralysis; 4: forelimb involvement in addition to hind limb paralysis; 5: moribund.
2.4. Induction and Assessment of Chronic Colitis

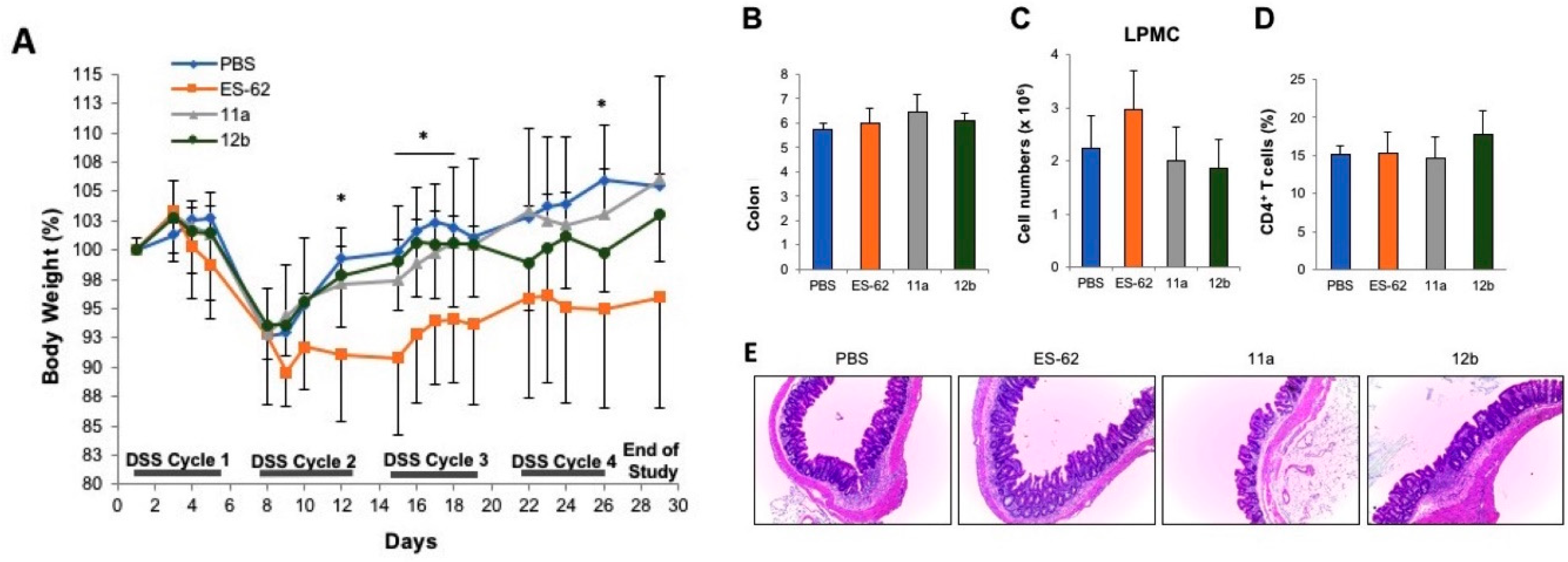

DSS-induced chronic colitis was initiated by multi-cycle administration of DSS drinking water [27
]. Female mice of eight weeks of age received 2.3% (w
) DSS (40,000–50,000 MW; MP Biomedicals, Irvine, CA, USA) in drinking water on days 1–5, 8–12, 15–19, and 22–26. Mice were injected with PBS, ES-62 (2 μg/mouse), SMA 11a or SMA 12b (1 μg/mouse each) three times per week starting on day 1 of DSS treatment. Mice were checked daily for the development of colitis by monitoring body weight, gross rectal bleeding, and stool consistency, and were sacrificed at day 29. The cecum and colon were removed, tissues were fixed in 10% formalin in PBS, paraffin-embedded, and cross sections were stained with haematoxylin and eosin (H&E). Lamina propria mononuclear cells (LPMC) were isolated from the large intestine as previously described [28
]. Single-cell suspensions of LPMC were stained with anti-CD4 antibodies for flow cytometry. To determine the percentage of cells expressing surface markers and the intensity of expression, samples were examined using a CyAn™ ADP flow cytometer (Dako Cytomation, Carpinteria, CA, USA) and analysed with the FlowJo (TreeStar, Ashland, OR, USA). Percentages of CD4+
cells were analysed on the gated lymphocyte population.

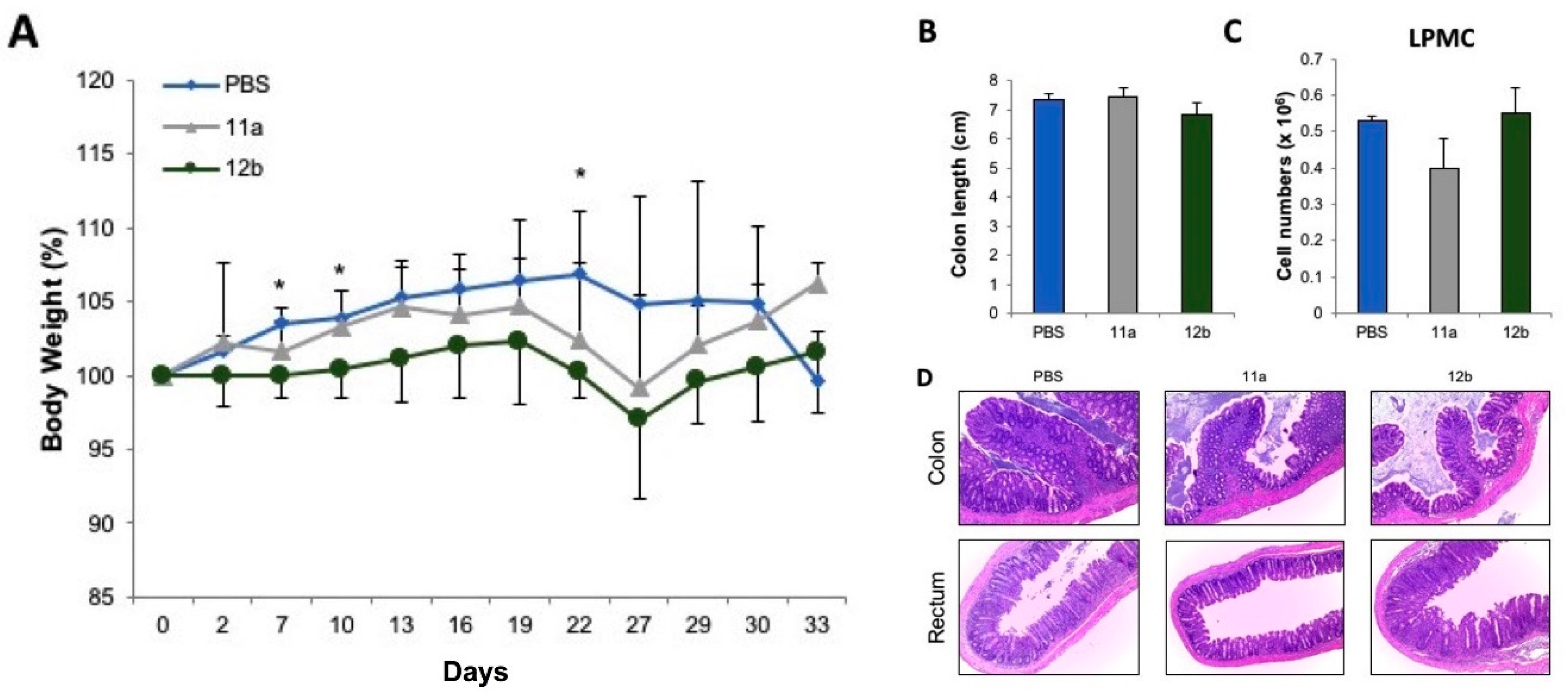

2.5. T Cell Transfer Model
Female C57BL/6 mice were used for donors, and male Rag1−/− mice of the C57BL/6 background were used as recipients. Spleens were homogenised and the resulting cell suspension was passed through a 25-gauge needle. CD4+ T cells were negatively selected using the EasySep Mouse CD4+ T Cell Enrichment Kit (STEMCELL Technologies Inc., Vancouver, BC, Canada). Cells were labeled with anti-CD4, anti-CD25, and anti-CD45RB. Using the MoFlow cell sorter (Dako Cytomation, Carpinteria, CA, USA), CD4+ CD25− CD45RBhigh cells were purified by gating and sorting 40% of the highest fluorescing CD45RB cells. Each recipient mouse was injected i.p. with 0.5 × 106 cells in sterile PBS. Mice were injected with PBS, 11a, or 12b (1 μg/mouse each) three times per week, starting on day 1 of T cell transfers. Animals were weighed and observed for signs of colitis over a 6- to 8-week period. Mice were sacrificed at the indicated time points. Large intestines, and caeca were collected, formalin-fixed, paraffin-embedded, and stained with H&E.
The data presented in this manuscript indicate that ES-62 and its SMAs do not provide any therapeutic benefits in models of T1D, MS and chronic IBD. This is despite the use of treatments based on regimens that are successfully employed in other inflammatory disease models, which apparently involve similar pathogenic mechanisms such as unresolving Th17-driven inflammation. We could have undertaken further experiments employing additional doses of ES-62/SMAs, but our previous experience with ovalbumin-induced airway hypersensitivity suggests that this would have no significant effect on the results [9
]. In attempting to understand these failures, the organ-specific nature of the three resistant conditions, targeting pancreatic islets in the NOD mouse, CNS in EAE, and colon in IBD, is a consideration. These organ-specific situations are quite different from the autoimmune disease models (CIA; MRL/Lpr mouse) where ES-62/SMAs have previously shown efficacy, in that the latter have a systemic disease component and exhibit various tissue co-morbidities, reflecting the conditions found in their human disease counterparts. Thus, it is possible that ES-62 and the SMAs might be more suited to tackling pathogenic cellular networks in disorders with a substantial systemic inflammatory component [30
]. However, at the same time, ES-62/SMAs are very effective in models of asthma that, in being essentially a condition affecting the lungs, could be considered as organ-specific in nature.
Thus, perhaps a more likely factor to consider is the induction of Treg responses, which dominate host immunity involving helminth infections and can also be induced by a number of ES products. Indeed, the induction of such cells by parasitic helminths or their ES products constitutes a protective mechanism in the three ES-62-resistant disease models. For example, SEA-induced Tregs play a role in preventing T1D in NOD mice [15
], H. polygrus
-induced Tregs [32
] represent one of the major mechanisms by which this worm is able to prevent colitis in mouse models [33
] and infection of mice with F. hepatica
elicits a (modest) increase in FoxP3+
T cells in the pleural cavity, which is associated with increased IL-10 and protection against EAE [19
]. Of note therefore, although ES-62 promotes B regulatory responses (Bregs) in models of each of asthma, RA and SLE, [3
], it does not induce Treg responses. Pertinent to this, although protective roles for Bregs have also been proposed for EAE/MS and DSS colitis/IBD, these have generally reflected regulatory mechanisms involving their interaction with Tregs [35
]. Focusing on Bregs in particular, it is also worth pointing out that there is a lack of a definitive Breg phenotype(s) and the precise mechanisms (IL-10-dependent and independent) and phenotype of Bregs utilised appears to be disease-dependent. Indeed, as ES-62 appears to restore different Breg subsets in the asthma, RA and SLE models [3
], its potential inability to target the Breg subtypes that are protective in EAE and DSS-colitis may provide a rationale for its failure to afford protection in these models. Likewise, there is a single report of Breg protection against NOD-T1D, the mechanism of which involves TGF-β-production and FasL-mediated apoptosis of auto-reactive T cells [35
], but perhaps reflecting the paucity of research in this area, B cell depletion studies in NOD mice and T1D patients suggest that Bregs play a very minor, if any, role in preventing T1D [35
]. In any case, despite its ability to restore protective Bregs levels in some inflammatory conditions, its failure to induce Treg-interacting Bregs and also as mentioned earlier, Tregs, may need to be taken into account when considering ES-62’s failure to demonstrate protective effects against disease development in certain models.
Given the role of the gut microbiome in regulating the homeostatic production of inflammation-resolving Bregs in experimental arthritis [36
], another potential reason underpinning ES-62-resistance may relate to how the microbiome influences host (auto)immunity in specific conditions, and in particular, the potentially differential impact of ES-62 and helminth infections in these diseases. Certainly, perturbation of the gut microbiota has been shown to influence both ES-62-resistant (diabetes [37
], EAE [38
] and IBD [39
]) and -responsive (asthma [40
], arthritis [42
] and lupus [43
]) inflammatory conditions in mice and humans. Perhaps pertinently, certain species of Clostridium
can promote Tregs, to regulate aberrant inflammation [44
], and dietary supplementation with probiotics, including Lactobacillus
species, can reduce IBD and atopic dermatitis by inducing a strong FoxP3+
T regulatory response at the site of inflammation [46
]. However, although the dramatic differences in microbiota and inflammatory responses observed in animal facilities amongst labs and commercial vendors [47
] could contribute to the protective (or not) outcomes of ES-62 treatment in some of the animal models tested, the differential effects of ES-62/SMAs on asthma and EAE were observed within the same animal facility whilst the protective actions of ES-62 on CIA, MRL/Lpr mice, and both acute and chronic asthma models were detected in a range of mouse strains housed in conventional and SPF animal facilities in different geographical locations. Thus, any microbiome-related effects of ES-62 more likely reflect the differential changes in bacterial species in distinct intestinal microenvironments induced under particular pathogenic conditions: for example, changes in the ileum and colon are associated with Th17 and regulatory cell responses, respectively [36
]. Thus, it seems likely that analysis of the perturbation of the microbiota and its modulation by ES-62 in resistant and responsive models might provide an important insight into the ability of ES-62 to ameliorate inflammatory conditions, and the protective mechanisms involved.
Finally, it has recently become apparent that the primary effect of ES-62 and the SMAs on immune system cells is to down-regulate the aberrantly elevated MyD88-dependent responses pertaining during chronic inflammation, restoring them back towards the steady-state levels observed in healthy animals. This has been observed with macrophages [6
], dendritic cells [51
], mast cells [52
], and Th17 cells [30
], and at least in the case of the SMAs, has been shown to reflect direct interaction with the MyD88 TIR domain [53
]. Interestingly, mice lacking MyD88 are resistant to the development of EAE [54
] and this may suggest that ES-62/SMAs’ mechanism of action involving reduction rather than the abrogation of adaptor levels [6
] may be insufficient to achieve protection against inflammatory responses in this particular model. Alternatively, the reduced My88-dependent signalling in EAE-mice may be compensated for by other inflammatory pathways that are not activated in RA, SLE and asthma models. Clearly, these are ideas that could be explored in future experiments.
In summary, ES-62 and its SMAs generally appear to be effective in treating diseases in model systems that have a strong systemic inflammatory component rather than a more organ-specific pathology. Thus, in the human situation, the SMAs are perhaps more likely to be better suited to treating multifactorial disorders such as RA or SLE which have a range of co-morbidities. Finally, although, ES-62 is somewhat unusual in not inducing Treg responses and this sets it apart to some extent from other helminth-derived molecules, it also re-enforces that ES-62 is not simply a broad immunosuppressant, but rather a focused immunomodulatory agent that can nevertheless treat a variety of conditions.
