Molecules 2017, 22(8), 1340; https://doi.org/10.3390/molecules22081340

Article
7-Dialkylaminocoumarin Oximates: Small Molecule Fluorescent “Turn-On” Chemosensors for Low-Level Water Content in Aprotic Organic Solvents
1
Faculty of Natural Sciences, Institute of Chemistry, Comenius University, Ilkovičova 6, Mlynská dolina CH-2, SK-842 15 Bratislava, Slovakia
2
Department of Pharmaceutical Chemistry, Faculty of Pharmacy, Comenius University, Odbojárov 10, SK-832 32 Bratislava, Slovakia
*
Author to whom correspondence should be addressed.
Received: 14 July 2017 / Accepted: 11 August 2017 / Published: 12 August 2017

Abstract

:
The water sensing properties of two efficient two-component fluorescent “turn-on” chemo-sensors based on the 7-dialkylaminocoumarin oxime acid-base equilibrium were investigated. Interestingly, although simple frontier orbital analysis predicts an intramolecular photoinduced electron transfer quenching pathway in conjugated oximates, TD-DFT (Time-dependent density functional theory) quantum chemical calculations support non-radiative dark S1 excited state deactivation as a fluorescence quenching mechanism. Due to the acid-base sensing mechanism and sensitive “turn-on” fluorescent response, both studied coumarin aldoxime chemosensors exhibit rapid response to low-level water content in polar aprotic solvents, with detection limits comparable to chemodosimeters or chemosensors based on interpolymer π-stacking aggregation.
Keywords:
water sensing; fluorescent probe; coumarin; oxime/oximate equilibrium; dark excited state; photoinduced electron transfer

1. Introduction

A qualitative and quantitative detection of low-level water present as an impurity in organic solvents has great significance in several fields of chemistry and industry processes (pharmaceutical manufacturing, food processing, production of anhydrous solvents and chemical reagents, petroleum fuel industry, paper production and biomedical or environmental monitoring) [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23]. Many analytical approaches and techniques have been established for the determination of water in a wide variety of organic solvents, such as Karl Fischer titration and gas chromatography methods on the laboratory scale, and electrochemical/electrophysical methods particularly for large-scale industry processes. However, electrical sensors suffer often from the lack of insufficient portability/precision and exhibit undesirable sensitivity to electromagnetic interference [4]. Laboratory methods have the disadvantage of requiring time-consuming sample preparation, inability of real-time monitoring of the water content, a need for skilled personnel and special equipment and interference from other co-existing species [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23]. Moreover, the Karl–Fisher titration is less sensitive in aprotic and non-alcoholic solvents [19]. Therefore, the development of optical (colorimetric and fluorescent) sensors for water sensing have drawn considerable attention due to their flexibility in readout, the possibility of remote and in situ monitoring, as well as their easy and low-cost fabrication [3,4].
In particular, low-cost, rapid, simple and sensitive fluorescence methods, including photo-induced electron transfer (PET), intramolecular charge transfer (ICT), excited state intramolecular proton transfer (ESIPT), Förster resonance energy transfer (FRET), aggregation induced emission (AIE), aggregation based monomer-excimer/exciplex switching, interpolymer π-stacking aggregation, competitive ligand/acid-base sensing mechanism, have been widely investigated for this purpose. An excellent review related to recent advances in the field of colorimetric and fluorescent sensors for low-level water content, categorized by sensing mechanism, was recently published by Kim et al. [24].
Our research group also recently published the sensing properties of four donor/acceptor para- substituted 7-dimethylaminocoumarin (7-dialkylamino-2H-chromen-2-one) phenylsemicarbazones for low-level water content in aprotic polar organic solvents [25]. Competition with water in a reversible acid-base reaction led to effective two-component coumarin phenylsemicarbazone/anion optical chemosensors. Despite the fact their sensing mechanism is based on an acid-base equilibrium, they can be classified as “competitive ligand-based” chemosensors, similar to the quinoline or phenolic dyes published by Kim et al. and Moon et al., respectively, with detection limits of 0.16–0.17 wt % [10,26]. Determined detection limits (LOD) for water by the studied phenylsemicarbazones were amongst the lowest detection limits published in the literature and they can compete in sensitivity with chemodosimeters (LOD: 0.0016–0.0026 wt %) [25].
Herein, we report results of a comprehensive investigation of the water sensing properties and sensing/response mechanism of two similar two-component fluorescent “turn-on” chemosensors based on the 7-dialkylaminocoumarin oxime acid-base equilibrium (Scheme 1). 7-Dialkylaminocoumarin oxime chemosensors exhibit similar detection limits as the corresponding coumarin phenyl- semicarbazones and, contrary to phenylsemicarbazones, their fluorescence is not quenched by basic CH3COO anions. In general, 7-dialkylaminocoumarins are arguably the most important and applicable subset of coumarin fluorescent probes due to their strong fluorescent response dependence on polarity, hydrogen bonding ability, pH, presence of quest anions, various metal ions, biologically important compounds, chemical warfare agents and micro-viscosity or rotational hindrance in their local environment [11,27,28,29,30,31,32,33,34,35]. Moreover, 7-donor-subsituted coumarin oximes/oximates are known fluorescent probes for HOCl, chloramine and chemical warfare simulants/organophosphorus nerve agents [36,37,38,39].

2. Results and Discussion

2.1. Spectral Characteristics

Both studied 7-dialkylaminocoumarin oximes 1 and 2 exhibit strong blue-violet light absorption and high fluorescent quantum yields (ΦF > 0.8) with almost constant 3–4 ns excited state lifetimes in all three polar aprotic solvents used (Table 1). High ΦF and a significant bathochromic shift of both the absorption and fluorescence maxima (λA and λF) compared to the parent 2-oxo-2H-chromene clearly support a characteristic charge-transfer character of the dialkylaminocoumarin excited state with only a small portion of competing non-radiative deexcitation pathways (intersystem crossing and/or intramolecular rotation; Table 1—τ1) [40]. Whereas the oxime 1 shows lower light absorption intensity (εA) and its λA and λF are hypsochromically shifted compared to the previously studied acceptor 7-dimethylaminocoumarin phenylsemicarbazones (~15 nm), both oximes exhibit higher emission efficiency, particularly in MeCN [25]. As expected, due to the restricted intramolecular rotation of the dialkylamino group, the oxime 2 ΦF reaches almost 100% in highly polar DMF and DMSO.

2.2. Water Sensing

Although fluoride (F) anion addition to oxime 1 and 2 solutions practically does not affect their light absorption and leads only to small hypsochromic shift of λA and non-significant decrease in extinction intensity (Supplementary Materials ESI Figures S1–S4), solution fluorescence almost completely disappears (ESI Figures S5 and S6). Practically unchanged fluorescence lifetime τ2 and significant short-lifetime τ1 component contribution in fluorescence decay curve after F addition indicate a chemical reaction (static quenching) between oxime and F and simultaneously exclude dynamic collisional quenching of oxime fluorescence by F anion (ESI Figure S7; collisional process should lead to gradual τ2 decrease with increasing F content). Unfortunately, changes in emission characteristics are not sufficiently sensitive to allow studied coumarin oximes to achieve the status of fluorescent probes for this anion.
However, already traces of water (gradual low-level water addition) result in initial light absorption and intense fluorescence recovery (Figure 1 and ESI Figures S1–S4). The ΦF practically returns to its initial high value (ΦF ~ 0.8) and the long-lifetime component τ2 contributes again dominantly to the overall fluorescence (Figure 2 vs. Table 1). The two-component oxime/F system therefore could be used as a chemosensor for low-level water content in aprotic organic solvents.
As indicated by 1H-NMR spectroscopy, the addition of water returns all C-H signals to the initial state (before the F anion addition; Figure 3 and ESI Figures S8 and S9). Only the =N-O-H proton in 1H-NMR spectra of both oximes is not visible due to fast chemical exchange with water. Its initial downfield position (~11 ppm) in pure oxime 1 and 2 solutions indicates the presence of five-membered intramolecular hydrogen bonding (ESI Table S1 and ESI Figure S10—conformers I-III vs. conformers IV and V).
The sensing mechanism therefore includes back aldoxime base (oximate) protonation by water as acid to the corresponding initial oxime after previous most acidic =N-O-H hydrogen deprotonation by the strongly basic F anion (Scheme 2).
Because the shape of the fluorescence decay curve after F addition (ESI Figure S7) and oximate fluorescence insensitivity to matrix viscosity/rigidity (ESI Figure S11) exclude dynamic quenching and intramolecular rotation (C=N isomerization or TICT state formation), respectively, as dominant quenching mechanism, the quenching of oxime fluorescence in the presence of F anions could result from dark-state quenching or reductive photoinduced electron transfer (PET). Already Anslyn et al. [39] indicated PET quenching mechanism in similar 4-butyl-substituted 7-dimethylaminocoumarin oximate anion. However, due to absence of separated donor and acceptor molecule parts by unconjugated bridge and thus isolated acceptor part excitation, we do not assume typical PET in the oximate anion (although simple frontier orbital analysis of artificially separated donor and acceptor parts allows the PET quenching pathway—ESI Table S2; ESI Scheme S1).
Our quantum chemical calculations support the presence of dark S1 excited state [41] with almost zero oscillator strength related to S0 → S1 excitation process of oximate 1 (TD-DFT; M06-2X/311+G(2d,p); Figure 4 and Table 2). This excitation is represented dominantly by HOMO−1 to LUMO+1 and LUMO+2 transitions (Table 2; Figure 5). The HOMO−1 molecular orbital of oximate is a combination of almost 2p and 3p atomic orbitals of oxime nitrogen and oxygen (TD-DFT; M06-2X/311+G(2d,p)).
Nature bond orbital (NBO) analysis of oximate 1 shows single bond between these two atoms and presence of four lone electron pairs with significant p-orbital contributions on both atoms (ESI Table S3—yellow mark). One lone pair is localized on N16 and the other three on O17 atoms. Therefore, we assume that the dark S1 excited state of oximate 1 has significant n-π* character. This dark state can deactivate through internal conversion (ic) to the S0 ground state or by intersystem crossing (isc) to the triplet T2 excited state (Figure 4).
However, absence of any excited state absorption (ESA) signal in the transient absorption spectrum of oximate 1 using nanosecond flash photolysis system favours S1 excited state deactivation by internal conversion (ESI Figure S12). Contrary to aldoxime base, the lowest S1 excited state of initial oxime 1 has high oscillator strength and deactivates dominantly by a radiative (fluorescent) pathway (ESI Table S4; ESI Figure S13).
Calculated detection (3σ/S) limits for water using the studied two-component colorimetric and fluorescence “turn-on” 7-dialkylaminocoumarin oxime/F chemosensors 1/F and 2/F are amongst the lowest published detection limits for water in MeCN and DMF and chemosensor 1/F in particular can compete in sensitivity with chemodosimeters or chemosensors based on interpolymer π-stacking aggregation (Table 3) [24]. Compared to other “competitive ligand-based” chemosensors for water content in aprotic polar solvents, determined 3σ/S in MeCN for 1/F is even lower than that of the most sensitive Eu3+ luminiscent chemosensor published by Song et al. [42].
The valid water detection range for chemosensors 1/F and 2/F lies in the interval of 0–4 wt % and shows a good linearity in the range of 0–1 wt % for 1/F in MeCN and 2/F in DMF (Figure 6). Significant deviation from linearity was observed for chemosensor 2/F in MeCN due to its slow thermal isomerization in this solvent. Chemosensor 1/F exhibits rather double-linear behaviour in DMF and achieves high sensitivity particularly in 0–0.1 wt % region (ESI Figure S14).
Contrary to the significant fluorescence quenching of coumarin phenylsemicarbazones by basic CH3COO anions, neither other basic anions (such as CH3COO, Br, Cl) nor excess Zn2+ cation influence the shape/spectral intensity of the studied coumarin oximes (ESI Figure S15).
However, addition of alcohols or acids to the coumarin oxime/F two-component system gives a similar response as the water addition (ESI Figures S16 and S17). Therefore the studied oximate chemosensors cannot be used for low-level water content determination in polar protic solvents or under acidic conditions. Although the sensing mechanism is based on a fast reversible acid-base equilibrium, sensor recovery will require oxime immobilization or its incorporation into a polymer matrix [43].
To consider the benefits of our oxime based fluorescent “turn-on” method, we compared the calibration curve for water detection in acetonitrile with those obtained by ionic liquid-based gas chromatography with mass spectrometry (GC-MS) detection (Figure 7 and ESI Figure S18; the same H2O/MeCN calibration solutions were used). As shown in Figure 7, oxime chemosensors 1/F gives steeper response to low-level water content compared to GC-MS method, however, GC-MS offers more universal application, small sample volume analysis and low-level water detection also in polar protic solvents.

3. Materials and Methods

3.1. General Information

All chemicals were purchased from Sigma-Aldrich (St. Louis, MO, USA). FTIR spectra were recorded on a Nicolet iS10 FT-IR instrument using the ATR technique (Thermo Scientific, Waltham, MA, USA) Elemental analyses were obtained on an Elementar vario MICRO cube (Elementar Analysensysteme GmbH, Langenselbold, Germany). Melting points were recorded on an IA-9200 Kofler apparatus (Cole-Parmer, Stone, United Kingdom). NMR spectra were recorded in 5 mm NMR tubes on a Varian VNMRS 600 MHz spectrometer (600 MHz for 1H and 150 MHz for 13C, Varian, Inc. Palo Alto, CA, USA) in DMSO-d6, with tetramethylsilane (TMS) as an internal standard.
Poly (propylene carbonate) thin polymer films of pure 7-dimethylaminocoumarin oxime 1 and two-component 7-dimethylaminocoumarin oxime 1/F system were prepared by casting 1 mL chloroform solution of polymer (11 g/100 mL) containing the appropriate amount of oxime 1 (or oxime 1 + tetrabutylammonium fluoride) onto a large Teflon plate. The solvent was evaporated slowly. Remaining solvent was not additionally removed from the polymer. Poly (propylene carbonate) was purchased from Sigma-Aldrich, Mn ~ 50,000 by GPC). Final concentration of oxime 1 in chloroform solution was ~ 5 × 10−4 mol dm−3.
Gas chromatography with mass spectrometry (GC-MS) was used as a comparative method for low-level water content determination in acetonitrile. GC-MS measurements were performed on a 6890N gas chromatograph with a 5973 Network mass-selective detector (Agilent Technologies, Palo Alto, CA, USA). The injection port was maintained at 250 °C, and 1 μL of sample was injected with split ratio 10:1. The samples were separated using a 30 m capillary column with 0.25 mm inside diameter, coated with a 0.2 μm film thickness of ionic liquid SPB-IL100 (1,9-di(3-vinylimidazolium)nonane bis(trifluoromethylsulfonyl)imide) as stationary phase (Supelco, Bellefonte, PA, USA). The column temperature was 40 °C initially for 3 min, then increased to 70 °C at a ramp rate of 5 °C min−1. Helium carrier gas with a constant flow of 1.9 mL min−1 was used. The transfer line temperature was set at 300 °C. The mass spectrometer detector conditions were 2.5 min solvent delay, electron energy of 70 eV, ion source temperature of 230 °C and SIM acquisition mode with 17 and 18 m/z for water. The data handling was carried out using the MSD ChemStation software E.02.02 (Agilent Technologies).

3.2. Synthesis

3.2.1. Synthesis of Coumarin Oximes 1 and 2

Method A: 7-dimethylamino-2-oxo-2H-chromene-3-carbaldehyde or 10-oxo-2,3,5,6-tetrahydro-1H, 4H,10H-11-oxa-3a-aza-benzo[de]anthracene-9-carbaldehyde (1 mmol) and hydroxylamine dihydro-chloride (0.53 g, 5 mmol) were refluxed in ethanol (20 mL) for 24 h. The reaction mixture was then cooled to 0 °C and the solid residue was filtered, washed with cold ethanol (3 × 10 mL), recrystalized from boiling methanol (2 × 50 mL) and air dried. The solids were obtained in 96–98% yields.
Method B: By analogy with a literature procedure [44], hydroxylamine hydrochloride (0.07 g, 64.0 mmol) and Et3N (0.26 mL, 2 mmol) or NaOH (0.08 g, 2 mmol) were added to a solution of 7-dimethylamino-2-oxo-2H-chromene-3-carbaldehyde (0.22 g, 1 mmol) or 10-oxo-2,3,5,6-tetrahydro-1H, 4H,10H-11-oxa-3a-aza-benzo[de]anthracene-9-carbaldehyde (0.27 g, 1 mmol) in EtOH (30 mL). After stirring for 1 h, the reaction mixture was concentrated under reduced pressure to give a residue to which H2O (25 mL) was added, followed by extraction with dichloromethane (4 × 50 mL). The combined organic layers were washed with brine, dried over anhydrous NaSO4, filtered, and evaporated to give the crude product, which was recrystallized in n-pentane-EtOAc (1:1) to give the target oximes.
After treatment of the reaction mixture, the presence of starting aldehydes was observed in the corresponding NMR spectra. We assume that the oximes undergo hydrolysis to the corresponding aldehydes and hydroxylamine. The final product was also chromatographed on silicagel with dichloromethane as eluent, but the aldehydes were still present. Even six-fold crystallization from dry, polar aprotic acetonitrile, followed by preparative thin layer chromatography was not effective. We also tried to purify oximes by chromatography over a neutral alumina layer, but the result of this separation was even worse than in the case of chromatography on silicagel. We anticipate the presence of starting aldehydes (with relatively strong intermolecular bonding) derived from oxime hydrolysis. Final purity of oxime 1 and 2 based on 1H-NMR was 98% and 93%, respectively.

3.2.2. Product Characterization

7-Dimethylamino-2-oxo-2H-chromene-3-carbaldehyde oxime (1). Yield 98% (purity 98%); yellow solid, m.p. 244–246 °C, Anal. Calcd. for C12H12N2O3 (232.24) C, 62.06; H, 5.21; N, 12.06. Found: C, 62.04; H, 5.20; N, 12.06. 1H-NMR (DMSO-d6) δ: 11.32 (s, 1H, OH, exchanged with D2O), 8.18 (s, 1H), 7.99 (s, 1H), 7.57 (d, 1H, J = 8.9 Hz), 6.76 (dd, 1H, J = 8.9, 2.3 Hz), 6.58 (d, 1H, J = 2.3 Hz), 3.05 (s, 3H, CH3) ppm. 13C-NMR (DMSO-d6) δ: 160.10, 155.79, 153.24, 142.9, 138.42, 129.97, 112.04, 109.79, 108.16, 96.99, 40.07 ppm. IR (ATR, cm−1): 3196 (O-H), 1701 (C=O), 1619 and 1520 (C=C and C=N). TLC (dichloromethane): Rf = 0.1.
10-Oxo-2,3,5,6-tetrahydro-1H,4H,10H-11-oxa-3a-aza-benzo[de]anthracene-9-carbaldehyde oxime (2). Yield 96% (purity 93%); orange solid, m.p. 257–259 °C, Anal. Calcd. for C16H16N2O3 (284.31) C, 67.59; H, 5.67; N, 9.85. Found: C, 67.56; H, 5.65; N, 9.85. 1H-NMR (DMSO-d6) δ: 11.22 (s, 1H, OH, exchanged with D2O), 8.03 (s, 1H), 7.98 (s, 1H), 7.13 (s, 1H), 1.85–1.91 (m, 4H, 2× CH2), 2.69–2.74 (m, 4H, 2× CH2-N), 3.25–3.30 (m, 4H, 2× CH2-AR) ppm. 13C-NMR (DMSO-d6) δ: 160.75, 151.58, 146.85, 143.41, 138.89, 126.56, 119.17, 110.79, 108.03, 105.67, 49.83, 49.32, 27.26, 21.20, 20.29, 20.14 ppm. IR (ATR, cm−1): 3327 (O-H), 2934 (N-CH2), 2840 (N-CH2), 1663 (C=O), 1513 and 1435 (C=C and C=N). TLC (dichloromethane): Rf = 0.2.
The corresponding 1H-, 13C- and 2D NMR spectra are shown in ESI Figures S19 and S20.

3.3. Spectroscopic Measurements

Electronic absorption spectra were obtained on a HP 8452A diode array spectrophotometer (Hewlett Packard, Palo Alto, CA, USA). The solvents used (MeCN, DMSO, DMF) were HPLC (MeCN; LiChrosolv ®, Merck, Darmstadt, Germany) or UV-spectroscopy grade (DMSO and DMF; Uvasol ®, Merck, Darmstadt, Germany) and were used without further purification. Solution fluorescence was measured in a 1 cm cuvette with a FSP 920 (Edinburgh Instruments, Edinburgh, United Kingdom) spectrofluorimeter in a right-angle or front-face arrangement (to exclude solution self-absorption). The fluorescent quantum yield (ΦF) of studied compounds in solution was determined by Equations (1) and (2) using integrating sphere (Edinburgh Instruments):
Φ F X = L Sam E Ref E Sam ( % )
corrected to re-absorption by:
Φ F = Φ F X 1 a + a Φ F X / 100   ( % )
where LSam is the area under the detected spectrum in the part of the spectrum where sample emission occurs, ERef is the area under the reflection part of the detected spectrum using pure solvent as reference material (diffuse reflectance), ESam is the area under the reflection part of the detected spectrum after absorption by sample and a is reabsorbed area. The time-resolved fluorescence measurements were performed on a FSP 920 spectrofluorimeter (Edinburgh Instruments) with a time-correlated single-photon counting (TCSPC) module and a red sensitive high speed photomultiplier in peltier housing, featuring Hamamatsu H5773-04 detector (R928P detector; Edinburgh Photonics, Edinburgh, United Kingdom). Excitation source was 402.8 nm picosecond pulsed diode laser (Model EPL-405; Pulse Width: 60.5 ps; Edinburgh Photonics). Reconvolution fit analysis software (F900, Edinburgh Instruments) was used for lifetime data analysis. Transient absorption spectra of oximate 1 were measured on a Flash photolysis LP980-Spectrometer (Edinburgh Instruments).

3.4. Titration Experiments

3.4.1. Materials

In the titration experiments all four anions (F, CH3COO, Br and Cl) were added in the form of the corresponding tetrabutylammonium (TBA+) salts purchased from Sigma-Aldrich and used without further purification. Zn2+ cation was added in the form of ZnCl2 (Sigma-Aldrich). Distilled water was used in all H2O titration experiments.

3.4.2. General Method

All titration experiments were carried out in MeCN (or in DMF) at 298.16 K. The coumarin oxime solutions were titrated with distilled water to obtain 5 × 10−5 mol·dm−3 overall coumarin oxime concentrations in the resultant solution. The titration process was monitored by UV-Vis (HP 8452A, Hewlett Packard, Palo Alto, CA, USA) and fluorescence (FSP 920, Edinburgh Instruments, Edinburgh, United Kingdom) spectroscopy (using a 1 cm cuvette).

3.4.3. Detection and Quantification Limits

Detection limit (3σ/S) and quantification limit (10σ/S) for water in MeCN were determined by the following equations:
3 σ / S = 3 Σ ( F F ¯ ) 2 n 1 S ;
10 σ / S = 10 Σ ( F F ¯ ) 2 n 1 S ,
where: σ is the standard deviation, F is the area under the fluorescence emission curve of coumarin oxime and S is the slope of the F = f(wt %) or F = f(v/v %) plot in the initial linear portion of the curve; in all cases n = 5.

3.5. Quantum-Chemical Calculations

The Gibbs free energy of the 7-dimethylaminocoumarin oxime/oximate conformers, natural bond orbital (NBO) analysis [45,46,47], excitation energies and oscillator strength of most stable conformers were investigated using quantum-chemical calculations at the M06-2X/6-311+G(2d,p) level of theory. Geometries were optimized at the M06-2X/6-31+G(d,p) level of theory. Stationary points were characterized as minima by computation of harmonic vibrational frequencies. All calculations were performed by Gaussian 09 program package [48].

4. Conclusions

This paper investigated the sensing mechanism, fluorescent response pathways and sensitivity of two new two-component fluorescent “turn-on” chemosensors based on the 7-dialkyl-aminocoumarin oxime acid-base equilibrium. Addition of strongly basic anions to the coumarin oxime solutions leads to the deprotonation of the most acidic =N-O-H hydrogen and almost complete fluorescence quenching based on the dark S1 excited state population in conjugate oximates. However, traces of water already result in intense fluorescence recovery of the initial oxime due to back aldoxime base protonation. Polar protic solvents compete with water as base in an acid-base equilibrium and the studied chemosensors therefore cannot be used for low-level water content determination in these solvents. To the best of our knowledge, the determined detection limits for water by the studied chemosensors are amongst the lowest detection limits ever published in the literature and can compete in sensitivity with chemodosimeters or chemosensors based on interpolymer π-stacking aggregation. Their deficiency is, however, the necessity of F base presence.

Supplementary Materials

The following are available online at www.mdpi.com/1420-3049/22/8/1340/s1, Figure S1: Evolution of the fluorescence spectrum of 7-dimethylaminocoumarin oxime 1 in MeCN after F anion and subsequent water addition; Figure S2: Evolution of the fluorescence spectrum of 7-dimethylaminocoumarin oxime 1 in DMF after F anion and subsequent water addition; Figure S3: Evolution of the fluorescence spectrum of 7-coumarin oxime 2 in MeCN after F anion and subsequent water addition; Figure S4: Evolution of the fluorescence spectrum of coumarin oxime 2 in DMF after F anion and subsequent water addition; Figure S5: Evolution of the emission spectrum of 7-coumarin oxime 1 in MeCN during 1 solution titration with TBA+F; Figure S6: Evolution of the emission spectrum of coumarin oxime 2 in MeCN during 2 solution titration with TBA+F; Figure S7: Evolution of fluorescence decay of 7-coumarin oxime 1 in MeCN during 1 solution titration with TBA+F; Figure S8: 1H NMR spectrum of 7-dimethylaminocoumarin oxime 1 in DMSO-d6 before and after F anion (TBA+F) and subsequent water addition; Figure S9: 1H-NMR spectrum of coumarin oxime 2 in DMSO-d6 before and after F anion (TBA+F) and subsequent water addition; Figure S10: Geometries of oxime 1/oximate 1 stable conformers optimized at the M06-2X/6-31+G(d,p) level of theory; Figure S11: Poly(propylene carbonate) thin polymer films of pure 7-dimethylaminocoumarin oxime 1 and two-component 7-dimethylaminocoumarin oxime 1/F system on teflon plate; Figure S12: Transient absorption spectrum of oximate 1 in MeCN, Table S4: Excitation energies, oscillator strengths (f) and orbital contributions to corresponding electronic transitions from ground state (S0) of studied coumarin oxime 1; Figure S13: Frontier molecular orbitals of 7-dimethylaminocoumarin oxime 1; Figure S14: Fluorescence intensity behaviour of studied two-component coumarin oxime sensor 1/F in DMF during titration with water; Figure S15: Fluorescence spectrum of 7-dimethylaminocoumarin oxime 1/F system in MeCN after 4 wt % water addition in the presence of various ion excess; Figure S16: Evolution of the emission spectrum of 7-dimethylaminocoumarin oxime 1/F system in MeCN during 1/F solution titration with methanol; Figure S17: Evolution of the emission spectrum of 7-dimethylaminocoumarin oxime 1/F system in MeCN during 1/F solution titration with acetic acid; Figure S18: GC-MS chromatogram of water analysis in MeCN in ionic liquid capillary column; Figure S19: Coumarin oxime 1: 1H-NMR, 13C-NMR, HSQC and HMBC; Figure S20: Coumarin oxime 2: 1H-NMR, 13C-NMR, HSQC and HMBC, Scheme S1: Molecular structure of compounds 46 and scheme of possible intramolecular photoinduced electron transfer (PET), Table S1: Relative Gibbs free energy (∆G) of oxime 1/oximate 1 stable conformers calculated at the M06-2X/6-311+G(2d,p) level in vacuum; Table S2: Calculated HOMO and LUMO orbital energy of compounds 36 at the M06-2X/6-31+G(d,p) level in vacuum; Table S3: Natural bond orbital (NBO) analysis of oximate 1.

Acknowledgments

This contribution was supported by grant agency VEGA (project No. 1/0463/15).

Author Contributions

J.D. and K.J. performed the spectroscopic and titration experiments; M.H. synthesized and characterized both oximes; J.F. performed the NMR and flash photolysis experiments and interpreted the data related to NMR experiments; V.G. performed the TD-DFT quantum chemical calculations; M.C. wrote the paper and together with A.G. designed the experiments and interpreted the data.

Conflicts of Interest

“The authors declare no conflict of interest.” “The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results”.

References

  1. De Silva, A.P.; Gunaratne, H.Q.N.; Gunnlaugsson, T.; Huxley, A.J.M.; McCoy, C.P.; Rademacher, J.T.; Rice, T.E. Signaling Recognition Events with Fluorescent Sensors and Switches. Chem. Rev. 1997, 97, 1515–1566. [Google Scholar] [CrossRef] [PubMed]
  2. Choi, M.M.F.; Tse, O.L. Humidity-sensitive optode membrane based on a fluorescent dye immobilized in gelatin film. Anal. Chim. Acta 1999, 378, 127–134. [Google Scholar] [CrossRef]
  3. Citterio, D.; Minamihashi, K.; Kuniyoshi, Y.; Hisamoto, H.; Sasaki, S.; Suzuki, K. Optical determination of low-level water concentrations in organic solvents using fluorescent acridinyl dyes and dye-immobilized polymer membranes. Anal. Chem. 2001, 73, 5339–5345. [Google Scholar] [CrossRef] [PubMed]
  4. Niu, C.-G.; Guan, A.-L.; Zeng, G.-M.; Liu, Y.-G.; Li, Z.-W. Fluorescence water sensor based on covalent immobilization of chalcone derivative. Anal. Chim. Acta 2006, 577, 264–270. [Google Scholar] [CrossRef] [PubMed]
  5. de Silva, A.P.; Moody, T.S.; Wright, G.D. Fluorescent PET (Photoinduced Electron Transfer) sensors as potent analytical tools. Analyst 2009, 134, 2385–2393. [Google Scholar] [CrossRef] [PubMed]
  6. Gao, F.; Luo, F.; Chen, X.; Yao, W.; Yin, J.; Yao, Z.; Wang, L. Fluorometric determination of water in organic solvents using europium ion-based luminescent nanospheres. Microchim. Acta 2009, 166, 163–167. [Google Scholar] [CrossRef]
  7. Niu, C.; Li, L.; Qin, P.; Zeng, G.; Zhang, Y. Determination of water content in organic solvents by naphthalimide derivative fluorescent probe. Anal. Sci. 2010, 26, 671–674. [Google Scholar] [CrossRef] [PubMed]
  8. Eliseeva, V.; Bünzli, J.-C.G. Lanthanide luminescence for functional materials and bio-sciences. Chem. Soc. Rev. 2010, 39, 189–227. [Google Scholar] [CrossRef] [PubMed]
  9. Chen, X.; Zhou, Y.; Peng, X.; Yoon, J. Fluorescent and colorimetric probes for detection of thiols. Chem. Soc. Rev. 2010, 39, 2120–2135. [Google Scholar] [CrossRef] [PubMed]
  10. Kim, Y.-H.; Han, Y.K.; Kang, J. A new chromogenic water sensing system utilizing deprotonation and protonation of anion receptor. Bull. Korean Chem. Soc. 2011, 32, 4244–4246. [Google Scholar] [CrossRef]
  11. Wu, J.; Liu, W.; Ge, J.; Zhang, H.; Wang, P. New sensing mechanisms for design of fluorescent chemosensors emerging in recent years. Chem. Soc. Rev. 2011, 40, 3483–3495. [Google Scholar] [CrossRef] [PubMed]
  12. Karuppannan, S.; Chambron, J.-C. Supramolecular chemical sensors based on pyrene monomer-excimer dual luminescence. Chem. Asian J. 2011, 6, 964–984. [Google Scholar] [CrossRef] [PubMed]
  13. Deng, Q.; Li, Y.; Wu, J.; Liu, Y.; Fang, G.; Wang, S.; Zhang, Y. Highly sensitive fluorescent sensing for water based on poly(m-aminobenzoic acid). Chem. Commun. 2012, 48, 3009–3011. [Google Scholar] [CrossRef] [PubMed]
  14. Zhao, J.; Ji, S.; Chen, Y.; Guo, H.; Yang, P. Excited state intramolecular proton transfer (ESIPT): From principal photophysics to the development of new chromophores and applications in fluorescent molecular probes and luminescent materials. Phys. Chem. Chem. Phys. 2012, 14, 8803–8817. [Google Scholar] [CrossRef] [PubMed]
  15. Kim, Y.H.; Choi, M.G.; Im, H.G.; Ahn, S.; Shim, I.W.; Chang, S.K. Chromogenic signalling of water content in organic solvents by hydrazine-acetate complexes. Dyes Pigm. 2012, 92, 1199–1203. [Google Scholar] [CrossRef]
  16. Zhao, K.; Liu, T.; Wang, G.; Chang, X.; Xue, D.; Belfield, K.D.; Fang, Y. A butterfly-shaped pyrene derivative of cholesterol and its uses as a fluorescent probe. J. Phys. Chem. 2013, 117, 5659–5667. [Google Scholar] [CrossRef] [PubMed]
  17. Kim, K.-H.; Lee, W.-J.; Kim, J.N.; Kim, H.J. An off-on fluorescent sensor for detecting a wide range of water content in organic solvents. Bull. Korean Chem. Soc. 2013, 34, 2261–2266. [Google Scholar] [CrossRef]
  18. Chen, W.; Zhang, Z.; Li, X.; Ågren, H.; Su, J. Highly sensitive detection of low-level water content in organic solvents and cyanide in aqueous media using novel solvatochromic AIEE fluorophores. RSC Adv. 2015, 5, 12191–12201. [Google Scholar] [CrossRef]
  19. Huang, D.; Bing, Y.; Hong, W.; Lai, C.; Guo, Q.; Niu, C. An optical-fiber sensor based on time-gated fluorescence for detecting water content in organic solvents. Anal. Methods 2015, 7, 4621–4628. [Google Scholar] [CrossRef]
  20. Lee, M.H.; Kim, J.S.; Sessler, J.L. Small molecule-based ratiometric fluorescence probes for cations, anions, and biomolecules. Chem. Soc. Rev. 2015, 44, 4185–4194. [Google Scholar] [CrossRef] [PubMed]
  21. Shen, P.; Li, M.; Liu, C.; Yang, W.; Liu, S.; Yang, C. Two sensitive fluorescent bopim probes with tunable tict character for low-level water detection in organic solvents. J. Fluoresc. 2016, 26, 363–369. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, L.; Yang, L.; Cao, D. The synthesis and highly sensitive detection of water content in THF using a novel solvatochromic AIE polymer containing diketopyrrolopyrrole and triphenylamine. New J. Chem. 2016, 40, 6706–6713. [Google Scholar] [CrossRef]
  23. Schäfel, K.; Ihmels, H. Ratiometric detection of water in acetonitrile with 9-hydroxybenzo[b]quinolizinium as fluorosolvatochromic probe. J. Fluoresc. 2017, 27, 1221–1224. [Google Scholar] [CrossRef] [PubMed]
  24. Jung, H.S.; Verwilst, P.; Kim, W.Y.; Kim, J.S. Fluorescent and colorimetric sensors for the detection of humidity or water content. Chem Soc. Rev. 2016, 45, 1242–1256. [Google Scholar] [CrossRef] [PubMed]
  25. Cigáň, M.; Gašpar, J.; Gáplovská, K.; Holekšiová, J.; Jakusová, K.; Donovalová, J.; Garaj, V.; Stankovičová, H. Coumarin phenylsemicarbazones: Sensitive colorimetric and fluorescent “turn-on” chemosensors for low-level water content in aprotic organic solvents. New J. Chem. 2016, 40, 8946–8953. [Google Scholar] [CrossRef]
  26. Moon, J.O.; Kim, Y.H.; Choi, M.G.; Chang, S.-K. Colorimetric signaling of water content in acetonitrile by phenolic dye-fluoride complexes. Bull. Korean Chem. Soc. 2011, 32, 3517–3520. [Google Scholar] [CrossRef]
  27. Wagner, B.D. The use of Coumarins as environmentally-sensitive fluorescent probes of heterogeneous inclusion systems. Molecules 2009, 14, 210–237. [Google Scholar] [CrossRef] [PubMed]
  28. Li, H.; Cai, L.; Chen, Z. Coumarin-Derived Fluorescent Chemosensors. In Advances in Chemical Sensors; Wang, W., Ed.; InTech: Rijeka, Croatia, 2012; ISBN 978-953-307-792-5. [Google Scholar]
  29. Park, S.; Kim, H.-J. Highly selective chemodosimeter for cyanide based on a doubly activated Michael acceptor type of coumarin thiazole fluorophore. Sens. Actuator B Chem. 2012, 161, 317–321. [Google Scholar] [CrossRef]
  30. Kwon, H.; Lee, K.; Kim, H.-J. Coumarin-malonitrile conjugate as a fluorescence turn-on probe for biothiols and its cellular expression. Chem. Commun. 2011, 47, 1773–1775. [Google Scholar] [CrossRef] [PubMed]
  31. Kim, T.-K.; Lee, D.-N.; Kim, H.-J. Highly selective fluorescent sensor for homocysteine and cysteine. Tetrahedron Lett. 2008, 49, 4879–4881. [Google Scholar] [CrossRef]
  32. Kim, G.-J.; Kim, H.-J. Highly selective and sensitive fluorescence turn-on probe for proline. Tetrahedron Lett. 2010, 51, 4670–4672. [Google Scholar] [CrossRef]
  33. Li, J.; Zhang, C.-F.; Yang, S.-H.; Yang, W.-C.; Yang, G.-F. A Coumarin-based fluorescent probe for selective and sensitive detection of thiophenols and its application. Anal. Chem. 2014, 86, 3037–3042. [Google Scholar] [CrossRef] [PubMed]
  34. He, L.; Xu, Q.; Liu, Y.; Wei, H.; Tang, Y.; Lin, W. Coumarin-based turn-on fluorescence probe for specific detection of glutathione over cysteine and homocysteine. ACS Appl. Mater. Interfaces 2015, 7, 12809–12813. [Google Scholar] [CrossRef] [PubMed]
  35. He, G.; Li, J.; Yang, L.; Hou, C.; Ni, T.; Yang, Z.; Qian, X.; Li, C. The Synthesis of a coumarin carbohydrazide dinuclear copper complex based fluorescence probe and its detection of thiols. PLoS ONE 2016, 11, e0148026. [Google Scholar] [CrossRef] [PubMed]
  36. Yu, S.-Y.; Hsu, C.-Y.; Chen, W.-C.; Wei, L.-F.; Wu, S.-P. A hypochlorous acid turn-on fluorescent probe based on HOCl-promoted oxime oxidation and its application in cell imaging. Sens. Actuator B Chem. 2014, 196, 203–207. [Google Scholar] [CrossRef]
  37. Lee, S.K.; Choi, M.G.; Chang, S.-K. Signaling of chloramine: A fluorescent probe for trichloroisocyanuric acid based on deoximation of a coumarin oxime. Tetrahedron Lett. 2014, 55, 7047–7050. [Google Scholar] [CrossRef]
  38. Wallace, K.J.; Fagbemi, R.I.; Folmer-Andersen, F.J.; Morey, J.; Lynth, V.M.; Anslyn, E.V. Detection of chemical warfare simulants by phosphorylation of a coumarin oximate. Chem. Commun. 2006, 3886–3888. [Google Scholar] [CrossRef] [PubMed]
  39. Dale, T.J.; Rebek, J., Jr. Hydroxy oximes as organophosphorus nerve agent sensors. Angew. Chem. Int. Ed. 2009, 48, 7850–7852. [Google Scholar] [CrossRef] [PubMed]
  40. Donovalová, J.; Cigáň, M.; Stankovičová, H.; Gašpar, J.; Danko, M.; Gaplovský, A.; Hrdlovič, P. Spectral properties of substituted coumarins in solution and polymer matrices. Molecules 2012, 17, 3259–3276. [Google Scholar] [CrossRef] [PubMed]
  41. Escudero, D. Revising Intramolecular Photoinduced electron transfer (pet) from first-principles. Acc. Chem. Res. 2016, 49, 1816–1824. [Google Scholar] [CrossRef] [PubMed]
  42. Song, L.; Wu, Y.-W.; Chai, W.-X.; Tao, Y.-S.; Jiang, C.; Wang, Q.-H. Fluorescence quenching of a europium coordination compound for the detection of trace amounts of water: Uncovering the response mechanism by structural confirmation. Eur. J. Inorg. Chem. 2015, 2264–2271. [Google Scholar] [CrossRef]
  43. Rostami, A.; Taylor, M.S. Polymers for anion recognition and sensing. Macromol. Rapid Commun. 2012, 33, 21–34. [Google Scholar] [CrossRef] [PubMed]
  44. Garcia-Beltran, O.; Cassels, B.K.; Mena, N.; Nuñez, M.T.; Yañez, O.; Caballero, J. A coumarinylaldoxime as a specific sensor for Cu2+ and its biological application. Tetrahedron Lett. 2014, 55, 873–876. [Google Scholar] [CrossRef]
  45. Foster, J.P.; Weinhold, F. Natural hybrid orbitals. J. Am. Chem. Soc. 1980, 102, 7211–7218. [Google Scholar] [CrossRef]
  46. Reed, A.E.; Weinhold, F. Natural localized molecular orbitals. J. Chem. Phys. 1985, 83, 1736–1740. [Google Scholar] [CrossRef]
  47. Reed, A.E.; Curtiss, L.A.; Weinhold, F. Intermolecular interactions from a natural bond orbital, donor-acceptor viewpoint. Chem. Rev. 1998, 88, 899–926. [Google Scholar] [CrossRef]
  48. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, revision A.1; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
Sample Availability: Samples of the compounds are available from the authors.
Scheme 1. Molecular structures of the studied coumarin oximes 1 and 2.
Scheme 1. Molecular structures of the studied coumarin oximes 1 and 2.
Molecules 22 01340 sch001

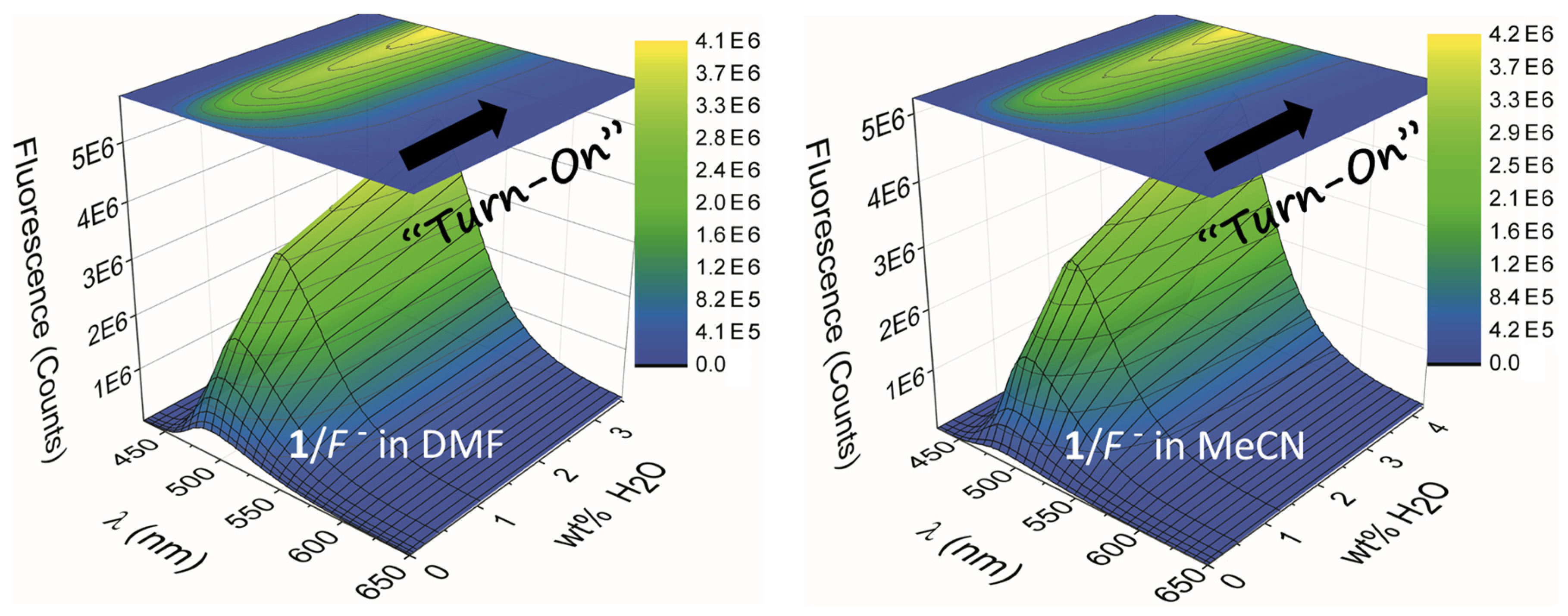

Figure 1. Evolution of the fluorescence spectrum of two-component coumarin oxime 1/F sensor in DMF and MeCN during its titration with water (DMF: 2 × 10−5 mol L−1 1 + 1 × 10−2 mol L−1 TBA+F; MeCN: 5 × 10−5 mol L−1 1 + 1 × 10−2 mol L−1 TBA+F; λEX = λA(oxime); T = 298.15 K).
Figure 1. Evolution of the fluorescence spectrum of two-component coumarin oxime 1/F sensor in DMF and MeCN during its titration with water (DMF: 2 × 10−5 mol L−1 1 + 1 × 10−2 mol L−1 TBA+F; MeCN: 5 × 10−5 mol L−1 1 + 1 × 10−2 mol L−1 TBA+F; λEX = λA(oxime); T = 298.15 K).
Molecules 22 01340 g001

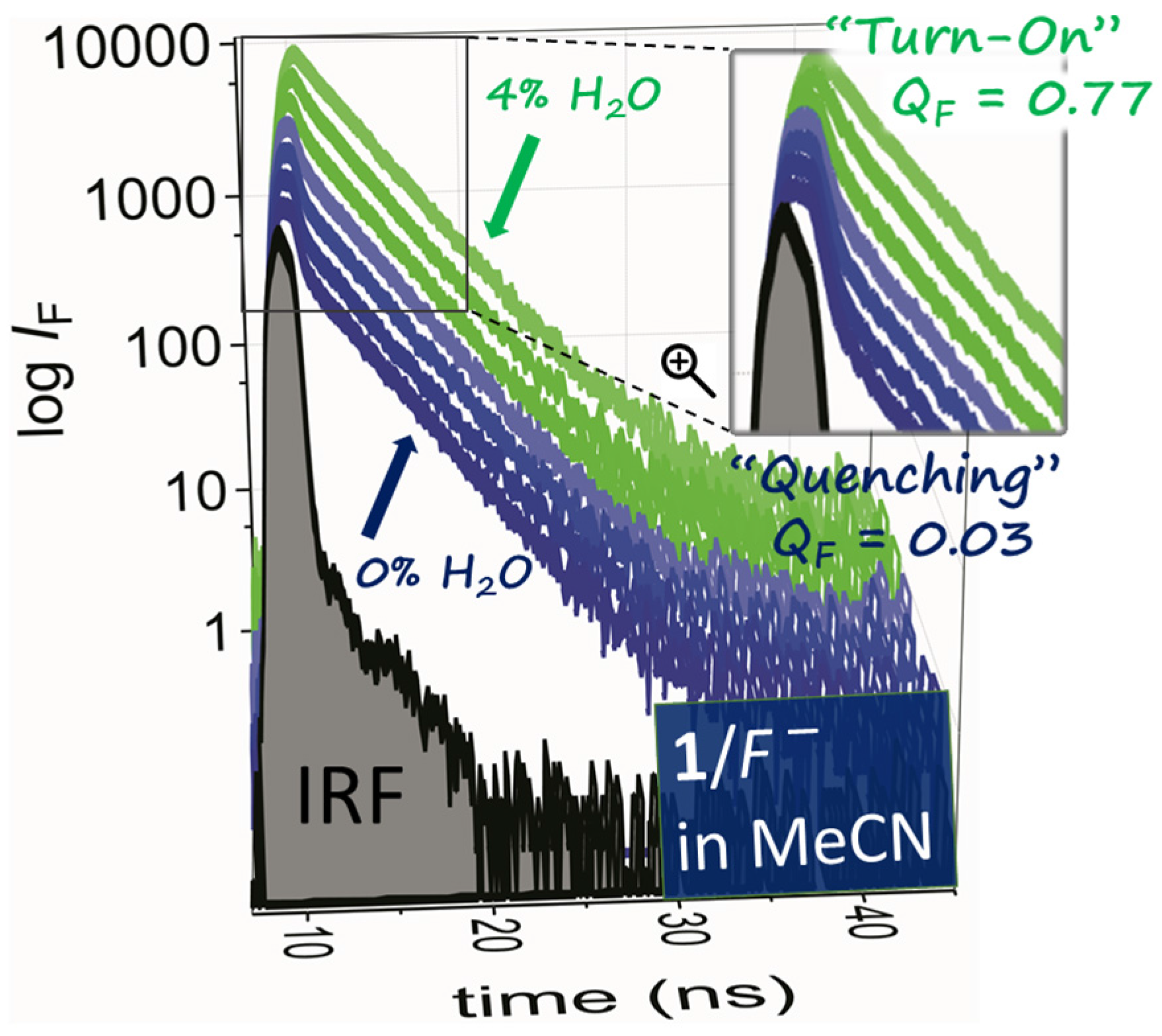

Figure 2. Evolution of the fluorescence lifetime of two-component coumarin oxime 1/ F sensor in MeCN during its titration with water (5 × 10−5 mol L−1 1 + 1 × 10−2 mol L−1 TBA+F; T = 298.15 K; λEX = λA(oxime) = 413 nm ; IRF—instrument response function; results of fitting: Initial state (F addition): τ1 = 0.2 ns (36%), τ2 = 3.1 ns (64%), χ2 = 1.192; Water addition (4% (v/v)): τ1 = 1.0 ns (6%), τ2 = 3.3 ns (94%), χ2 = 1.130).
Figure 2. Evolution of the fluorescence lifetime of two-component coumarin oxime 1/ F sensor in MeCN during its titration with water (5 × 10−5 mol L−1 1 + 1 × 10−2 mol L−1 TBA+F; T = 298.15 K; λEX = λA(oxime) = 413 nm ; IRF—instrument response function; results of fitting: Initial state (F addition): τ1 = 0.2 ns (36%), τ2 = 3.1 ns (64%), χ2 = 1.192; Water addition (4% (v/v)): τ1 = 1.0 ns (6%), τ2 = 3.3 ns (94%), χ2 = 1.130).
Molecules 22 01340 g002
Figure 3. 1H NMR spectrum of 7-dimethylaminocoumarin oxime 1 in DMSO-d6 before and after F anion (TBA+F) and subsequent water addition (c1 = 5 × 10−4 mol L−1; cF = 1 × 10−1 mol L−1; 4% (v/v) of water; T = 298.15 K).
Figure 3. 1H NMR spectrum of 7-dimethylaminocoumarin oxime 1 in DMSO-d6 before and after F anion (TBA+F) and subsequent water addition (c1 = 5 × 10−4 mol L−1; cF = 1 × 10−1 mol L−1; 4% (v/v) of water; T = 298.15 K).
Molecules 22 01340 g003
Scheme 2. Acid-base sensing mechanism for low-level water content determination in polar aprotic solvents using two-component coumarin oxime/F chemosensors 1/F and 2/F.
Scheme 2. Acid-base sensing mechanism for low-level water content determination in polar aprotic solvents using two-component coumarin oxime/F chemosensors 1/F and 2/F.
Molecules 22 01340 sch002

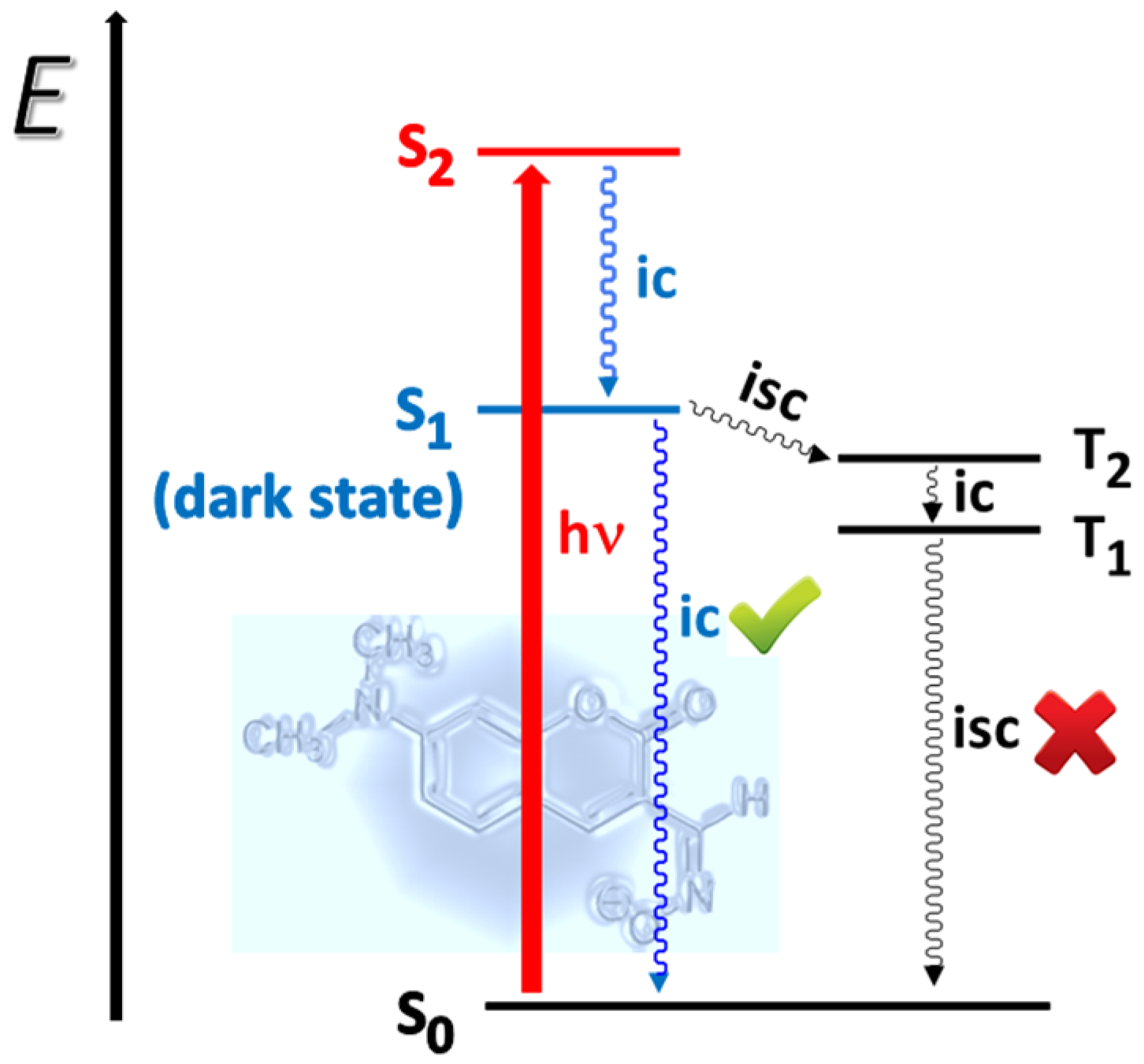

Figure 4. Fluorescence quenching mechanism of 7-dimethylaminocoumarin oxime 1 in the presence of strongly basic F anions (state diagram and de-excitation pathways for 7-dimethylaminocoumarin oximate anion).
Figure 4. Fluorescence quenching mechanism of 7-dimethylaminocoumarin oxime 1 in the presence of strongly basic F anions (state diagram and de-excitation pathways for 7-dimethylaminocoumarin oximate anion).
Molecules 22 01340 g004

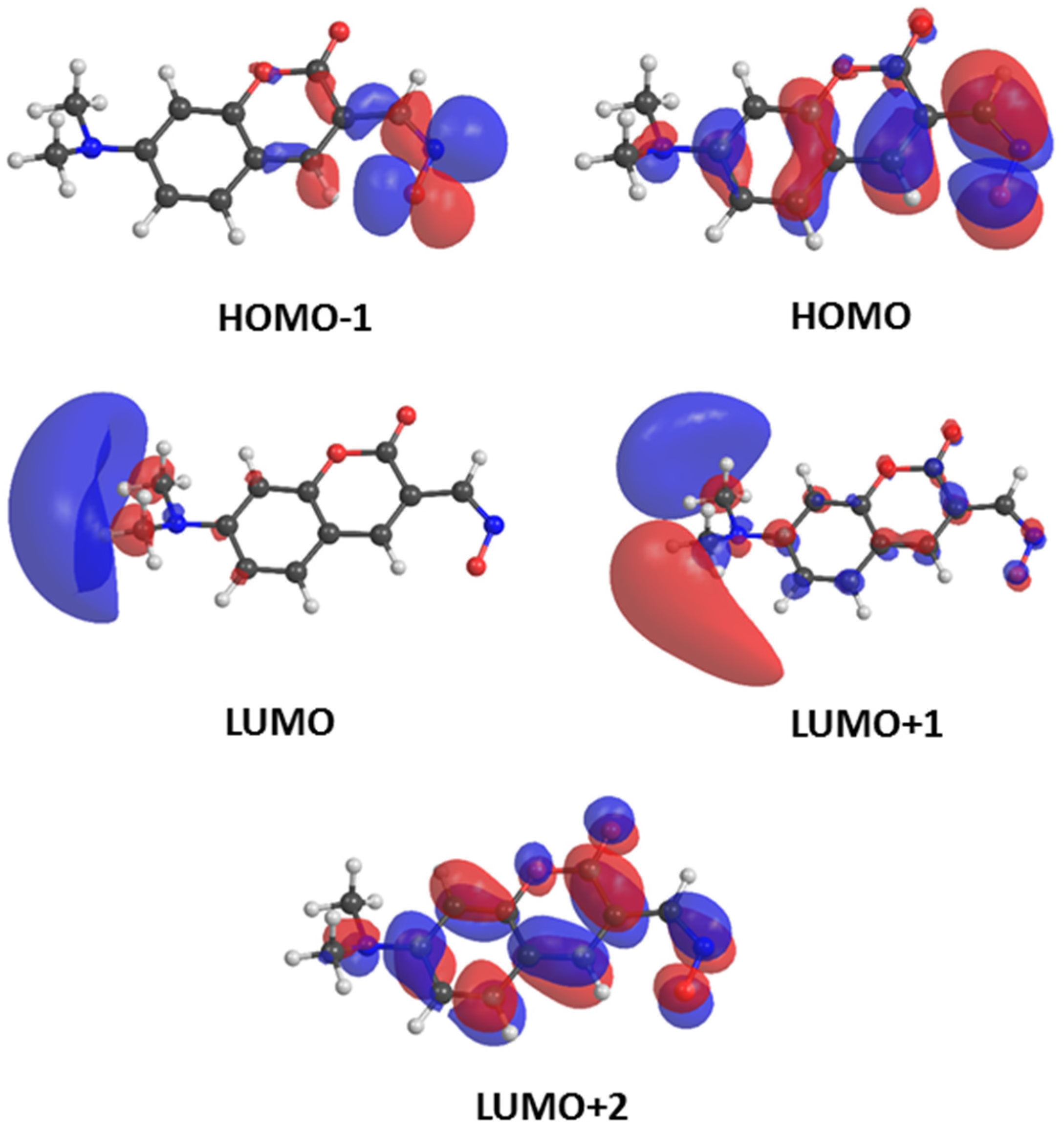

Figure 5. Molecular orbitals of most stable 7-dimethylaminocoumarin oximate 1 conformer (unusual shape of LUMO and LUMO+1 results mainly from combination of N(CH3)2 carbon 5s and 4p atomic orbitals; N(CH3)2 nitrogen 5s orbital also significantly contributes to LUMO molecular orbital).
Figure 5. Molecular orbitals of most stable 7-dimethylaminocoumarin oximate 1 conformer (unusual shape of LUMO and LUMO+1 results mainly from combination of N(CH3)2 carbon 5s and 4p atomic orbitals; N(CH3)2 nitrogen 5s orbital also significantly contributes to LUMO molecular orbital).
Molecules 22 01340 g005

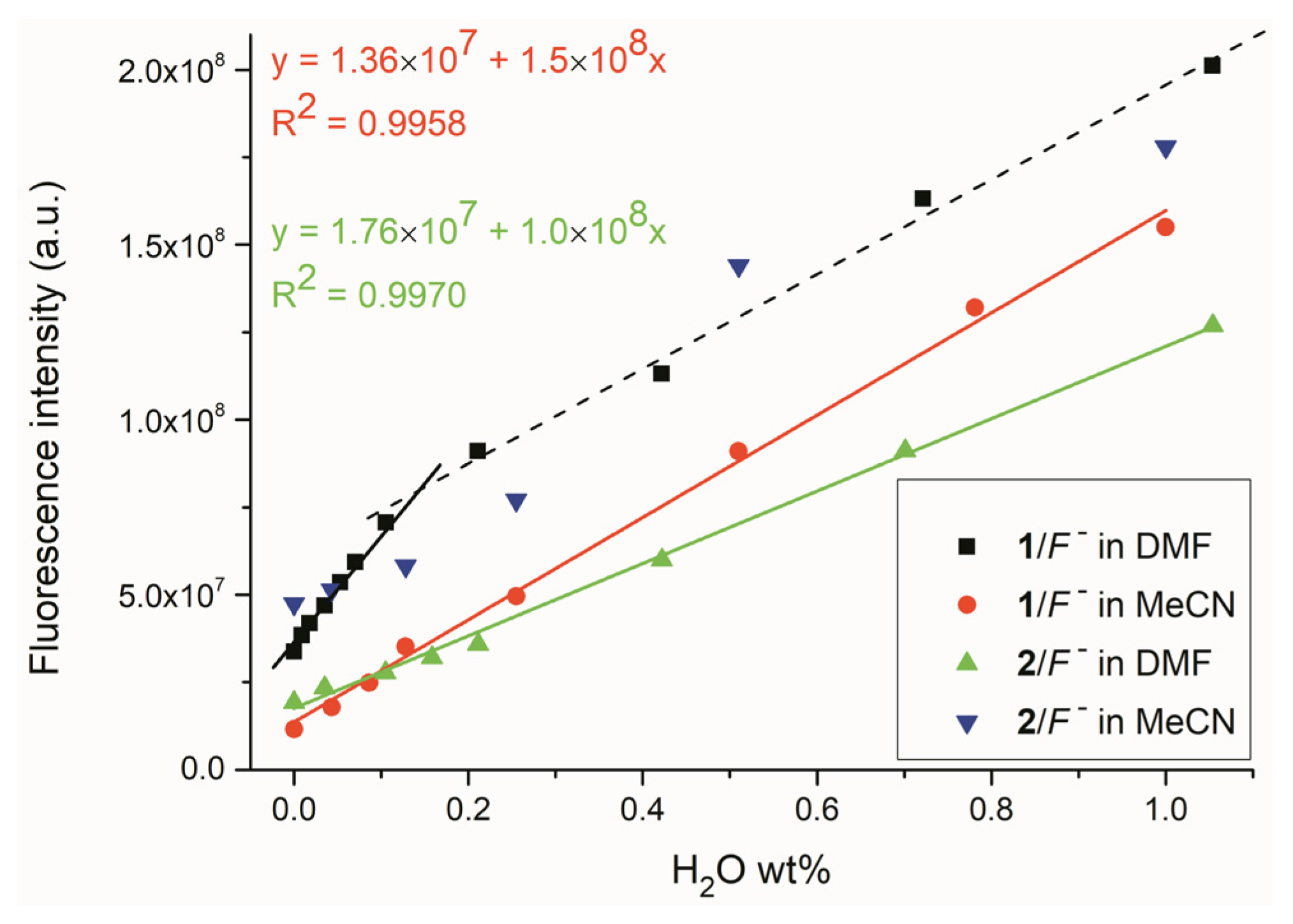

Figure 6. Fluorescence intensity behaviour of studied two-component coumarin oxime sensors 1/F and 2/F in MeCN and DMF during titration with water (λEX = λA(oxime); T = 298.15 K).
Figure 6. Fluorescence intensity behaviour of studied two-component coumarin oxime sensors 1/F and 2/F in MeCN and DMF during titration with water (λEX = λA(oxime); T = 298.15 K).
Molecules 22 01340 g006

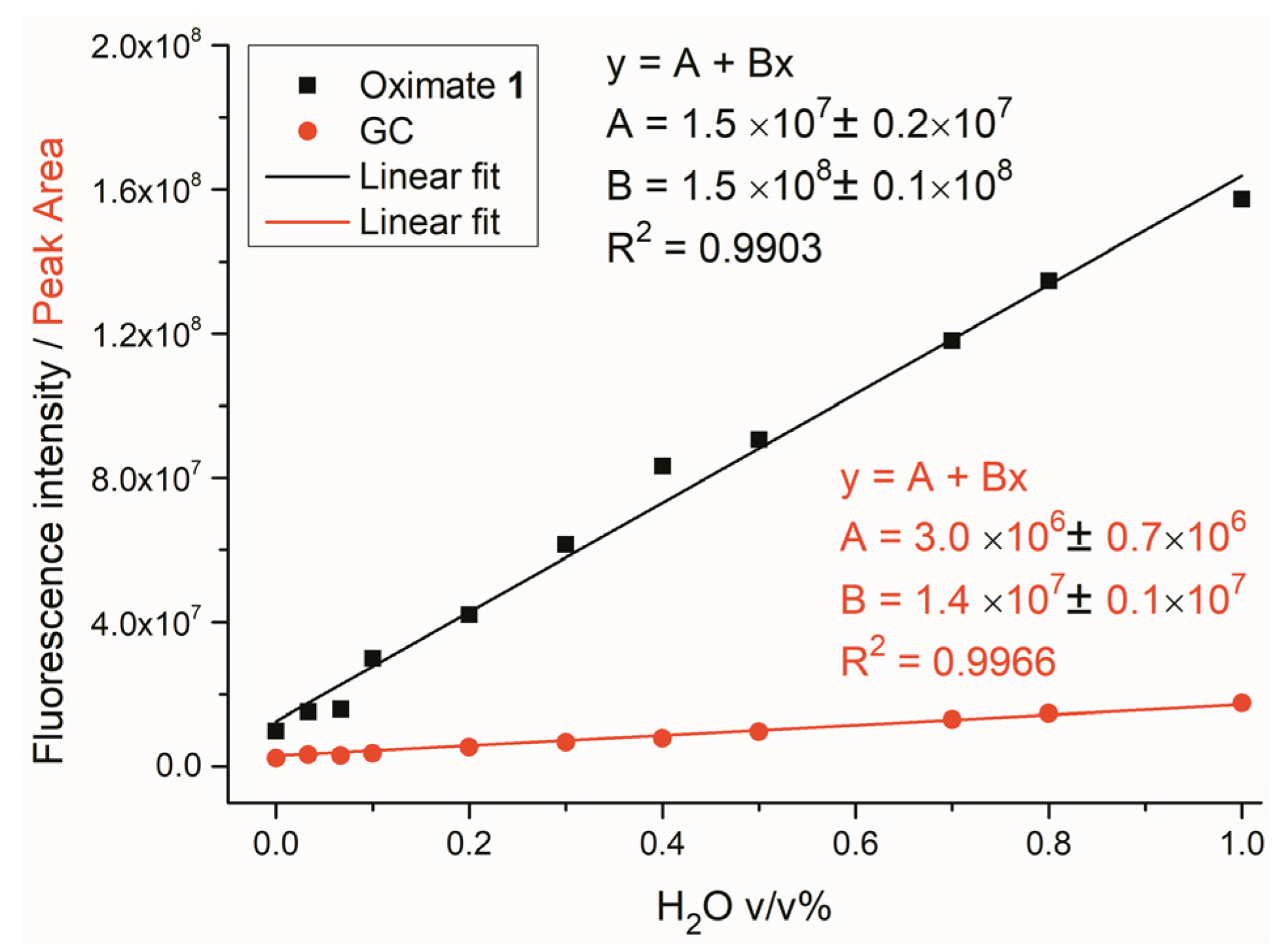

Figure 7. Calibration curves for low-level water content determination in acetonitrile using investigated oxime 1 based fluorescent “turn-on” chemosensor and gas chromatography with mass spectrometry (GC-MS) detection (capillary column coated with a 0.2 μm film thickness of ionic liquid SPB-IL100 as stationary phase was used; v/v (%)—volume of water/volume of solution in %).
Figure 7. Calibration curves for low-level water content determination in acetonitrile using investigated oxime 1 based fluorescent “turn-on” chemosensor and gas chromatography with mass spectrometry (GC-MS) detection (capillary column coated with a 0.2 μm film thickness of ionic liquid SPB-IL100 as stationary phase was used; v/v (%)—volume of water/volume of solution in %).
Molecules 22 01340 g007
Table 1. Basic spectral characteristics of studied coumarin oximes 1 and 2 in MeCN, DMF and DMSO.
Table 1. Basic spectral characteristics of studied coumarin oximes 1 and 2 in MeCN, DMF and DMSO.
Compd.λA (nm)Log εAλF (nm)ΦFτ (ns)χ2
MeCN
14134.274870.80τ1 = 1.6 (10%)1.111
τ2 = 3.5 (90%)
24384.285040.87τ1 = 0.5 (2%)1.050
τ2 = 3.6 (98%)
DMF
14144.524910.87τ1 = 0.3 (3%)1.171
τ2 = 3.3 (97%)
24424.555070.95τ1 = 0.5 (2%)1.196
τ2 = 3.6 (98%)
DMSO
14194.544970.88τ1 = 1.5 (8%)1.007
τ2 = 3.3 (92%)
24424.515121.00τ = 3.6 (100%)1.130
λA—Long-wavelength absorption maximum; Log εA—Log of the molar extinction coefficient in λA; λF—Fluorescence maximum; ΦF—Fluorescent quantum yield; τ—Fluorescence/excited state lifetime (relative fluorescence intensity of the corresponding component); χ2—Quality of fluorescence lifetime fitting.
Table 2. Excitation energies, oscillator strengths (f) and orbital contributions to corresponding electronic transitions from ground state (S0) of oximate 1 (geometry was optimized at the M06-2X/6-31+G(d,p) level of theory and energies were calculated at the M06-2X/6-311+G(2d,p) level of theory).
Table 2. Excitation energies, oscillator strengths (f) and orbital contributions to corresponding electronic transitions from ground state (S0) of oximate 1 (geometry was optimized at the M06-2X/6-31+G(d,p) level of theory and energies were calculated at the M06-2X/6-311+G(2d,p) level of theory).
7-Dimethylaminocoumarin Oximate 1
Excited StateOrbital ContributionsEnergyOscillator Strength
[eV][nm]
T1 HOMO → LUMO (2%)1.319460.0000
HOMO → LUMO+1 (10%)
HOMO → LUMO+2 (77%)
T2HOMO−1 → LUMO+1 (7%)1.369140.0000
HOMO−1 → LUMO+2 (54%)
S1HOMO−1 → LUMO+1 (8%)1.806860.0003
HOMO−1 → LUMO+2 (61%)
S2 HOMO → LUMO (12%)3.064060.5360
HOMO → LUMO+1 (10%)
HOMO → LUMO+2 (73%)
* Transitions to higher molecular orbitals than LUMO+2 are not shown.
Table 3. Detection limit (LOD) and quantification limit (LOQ) for water in MeCN and DMF using studied two-component coumarin oxime/F chemosensors (determined by fluorescence spectroscopy; T = 298.16 K).
Table 3. Detection limit (LOD) and quantification limit (LOQ) for water in MeCN and DMF using studied two-component coumarin oxime/F chemosensors (determined by fluorescence spectroscopy; T = 298.16 K).
LOD (3σ/S)LOQ (10σ/S)
wt %v/v %wt %v/v %
MeCN
1/F0.00140.00120.00480.0039
2/F0.0175 *0.0137 *0.0583 *0.0457 *
DMF
1/F0.00590.00460.01960.0153
2/F0.00460.00440.01540.0146
wt (%)—weight of water/weight of solution in %; v/v (%)—volume of water/volume of solution in %; *—standard deviation is probably influenced by slow thermal isomerization.
