Molecules 2017, 22(6), 968; doi:10.3390/molecules22060968

Article
Hemi-Synthesis and Anti-Oomycete Activity of Analogues of Isocordoin
1
Departamento de Química, Facultad de Ciencias Naturales y Exactas, Universidad de Playa Ancha, Avda. Leopoldo Carvallo 270, Playa Ancha, Valparaíso 2340000, Chile
2
Escuela de Obstetricia y Puericultura, Facultad de medicina, Campus de la Salud, Universidad de Valparaíso, Angamos 655, Reñaca, Viña del Mar 2520000, Chile
3
Centro de Investigaciones Biomédicas (CIB), Escuela de Medicina, Universidad de Valparaíso, Av. Hontaneda Nº 2664, Valparaíso 2340000, Chile
4
Departamento De Ciencias Básicas, Campus Fernando May Universidad del Biobío. Avda. Andrés Bello s/n casilla 447, Chillán 3780000, Chile
5
Instituto de Microbiología Clínica, Facultad de Medicina, Universidad Austral de Chile, Los Laureles s/n, Isla Teja, Valdivia 5090000, Chile
6
Center for Integrative Medicine and Innovative Science (CIMIS), Facultad de Medicina, Universidad Andrés Bello, Santiago 8320000, Chile
*
Author to whom correspondence should be addressed.
Received: 25 May 2017 / Accepted: 8 June 2017 / Published: 10 June 2017

Abstract

:
An efficient synthesis of a series of 4′-oxyalkyl-isocordoin analogues (28) is reported for the first time. Their structures were confirmed by 1H-NMR, 13C-NMR, and HRMS. Their anti-oomycete activity was evaluated by mycelium and spores inhibition assay against two selected pathogenic oomycetes strains: Saprolegnia parasitica and Saprolegnia australis. The entire series of isocordoin derivatives (except compound 7) showed high inhibitory activity against these oomycete strains. Among them, compound 2 exhibited strong activity, with minimum inhibitory concentration (MIC) and minimum oomyceticidal concentration (MOC) values of 50 µg/mL and 75 µg/mL, respectively. The results showed that 4′-oxyalkylated analogues of isocordoin could be potential anti-oomycete agents.
Keywords:
isocordoin; oxyalkyl derivates; anti-oomycete activity; Saprolegnia sp.

1. Introduction

Chalcones bearing prenyl groups are an abundant subclass of naturally occurring chalcones [1]. The biosynthesis of C-prenyl chalcones involves the coupling of products from the shikimic and mevalonic acid pathways. The latter produces the prenyl group, while the former produces the aromatic compound. The two products are linked together by prenyl tranferase enzymes [2]. Almost 80% of these molecules are monoprenylated and the remaining 20% consist of di and/or triprenyl derivatives. C-prenylation takes place more frequently on ring A at positions 3′ and/or 5′, as well as 3 and/or 5 [3]. Prenylated chalcones have been isolated from plants mainly belonging to the families of Leguminosae and Moraceae [4]. This class of compounds has been found to display a variety of biological activities that are anticarcinogenic, antiprotozoal, larvicidal, anti-inflammatory, antibacterial, antioxidant, and antifungal [5,6]. A representative example of naturally occurring bioactive C-prenylated chalcones, isocordoin (1), was isolated from Lonchocarpus species [7,8] or Aeschynomene fascicularis [9]. Isocordoin has been found to have a range of interesting biological properties in vitro that may have therapeutic and industrial utilities including antiprotozoal (for treatment of Leishmania mexicana, L. braziliensis, L. amazonensis and Trypanosoma cruzi) [10,11], insect antifeedant (for treating lepidopterous larvae of Spodoptera littoralis and S. exempta, which are considered one of the most destructive pests of crops) [12] and a vasorelaxant effect [13], as well as a potential “broad-spectrum” anticancer agent (applicable to both oral-laryngeal and prostate cancers) [9,10,14]. These bioactivities have stimulated the interest of researchers in the preparation of isocordoin. The synthesis of 1 via the Claisen–Schmidt condensation was obtained in unsatisfactory yields [15,16]. In contrast, the enzymatic prenylation of 2′,4′-dihydroxychalcone with cell cultures of Morus nigra biosynthetically produced isocordoin in very high yield [16,17]. Recent works have explored the introduction of isoprenoids into the structure of chalcones to obtain more active hybrid compounds [18], or even with new biological properties for the development of novel products either in medicine or in agrochemistry. In this paper, a series of 4-oxyalkyl-isocordoin analogues 28 were synthesized and evaluated for their anti-oomycete activity against Saprolegnia parasitica and S. australis.

2. Results and Discussion

2.1. Synthesis and Characterization

One naturally occurring chalcone, 1, and seven oxyalkyl derivates, 28, were synthesized. The synthetic strategies applied for the synthesis of new chalcones are outlined in Scheme 1 [19,20].
Isocordoin (1) was purified in analogy to the procedures described in [21,22] with small variations from the resinous exudate of Adesmia balsamica. The targeted compounds 28 were easily attained in high yields (70–92%) through nucleophilic substitution of isocordoin with the appropriate alkyl halide in acetonitrile. This reaction resulted in the exclusive formation of the 4-oxyalkyl-derivative, due to steric hindrance caused by the the prenyl chain in position 3′ of the aromatic ring A [23,24] and the influence exerted by the intramolecular hydrogen bond present in the isocordoin [25].
The structures of compounds 18 were established on the basis of IR, NMR, and HR-MS techniques. 13C-NMR assignments were achieved by 2D heteronuclear single quantum correlation (HSQC) and heteronuclear multiple bond correlation (HMBC) experiments.
The IR, NMR, and MS data of compound 1 concurred with those reported for the known chalcone, commonly named as isocordoin, previously reported from Lonchocarpus xuul [8]. The 1H spectrum of 4′-oxyalkyl-isocordoin derivatives 28 showed a number of signals that correspond to an isocordoin-type structure. The spectra of these compounds showed two trans-olefinic protons at δ = 7.89 and 7.60 ppm (d, J = 15.4 Hz) readily assigned to those of the 8 and 7 position, respectively; two aromatic protons at ortho positions (d, J = 9.1 Hz at δ = 6.48 and 7.77 ppm); and the presence of a prenyl group (d, J = 7.1 Hz, 2H at δ = 3.39–3.40 ppm; m, 1H at δ = 5.25 ppm; and two singlets, 3H each, at δ = 1.68 and 1.80 ppm), and two multiplets at δ = 7.65 ppm (2H) and 7.42 ppm (3H), corresponding to the five protons of a unsubstituted aromatic ring. The 1H-NMR spectrum of 28 showed a chelated hydroxyl-proton signal at δ 13.39–13.37 ppm, together with a chelated carbonyl-carbon resonance at δ = 192.1 ppm, were consistent with the selectivity of the O-alkylation at position 4′ of isocordoin. The compound 2, obtained as an amorphous bright yellow solid, proved to be identical to derricin, previously reported from Lonchocarpus sericeus [26]. For 4′-oxyalkyl-isocordoin derivatives 38 the 1H-NMR spectrum revealed resonances at δ = 4.54–4.65 ppm (d, 2H) ascribed to O-CH2 protons of alkoxy chain linking 4′-OH-chalcone ring. This is characteristic of allylic chains on aromatic rings, resulting by the alkylation reaction. For example, the 1H-NMR spectrum of compound 3 showed the signal at 4.65 ppm (d, J = 5.1 Hz, 2H, H-1′′) correlated (by 2D HSQC) with a carbon atom at δ 65.4 ppm (C-1″), indicating the coupling point between the allyl fragment and the aromatic hydroxyl group. These data also were corroborated by 2D HMBC correlations, where H-1″ showed heteronuclear 3J correlations with the carbons signal at δ = 117.6 (C-3′′) and 162.6 (C-4′) ppm. Heteronuclear 2J correlations were also observed at δ 132.7 (C-2″) (Figure 1).

2.2. Anti-Oomycete Activity Assays of Compounds 18

In this study, isocordoin (1) and a series of seven oxyalkylated derivatives (28) were screened for minimum inhibitory concentration (MIC) values (Table 1).
Among them, isocordoin (1) and compound 7 were considered to have no inhibition effect against Saprolegnia with MIC values ≥ 200.0 µg/mL, while the other six compounds showed anti-oomycete activities with MIC ≤ 150.0 µg/mL, in which derricin (2) and compound 3 had the most promising anti-Saprolegnia activities with MIC values of 50 and 75 µg/mL, respectively.
Table 2 lists the minimum oomyceticidal concentration (MOC) values of compounds 18 against Saprolegnia spores at 72 h. The results reveal that derricin (2) showed significant anti-oomycete activity with an MOC value of 75 µg/mL, followed by compound 3 with a value of 100 µg/mL.
Table 3 lists the mycelial growth inhibition (MIG) percentage values of compounds 18 against Saprolegnia mycelium at 48 h.
The growth inhibition rate of Saprolegnia after 48 h of exposure to derricin (2) to was partially affected by the concentration of the chemical. However, it was more than twice as effective as bronopol, a broad-spectrum biocide, that has been used as an effective and economically acceptable alternative in the treatment and control of Saprolegnia sp. [20]. The inhibition of S. parasitica and S. australis was 52% and 58%, respectively, with concentrations of derricin at 200 µg/mL.
The results of this research provides evidence that lipophilicity is an important characteristic of anti-oomycete agents, such as ketoconazole and clotrimazole [27,28,29,30], and it is also evident that drugs with oxyalkyl chains on the A-ring contribute to an increase in anti-oomycete activity [20,31], which has proven effectiveness in the treatment of Saprolegniasis.

3. Materials and Methods

3.1. General

All chemicals were obtained from Aldrich (St. Louis, MO, USA) and were used without further purification. A detailed description of conditions used to register Fourier transform infrared (FT-IR) spectra, high resolution mass spectra, and 1H, 13C, 13C DEPT-135, gs-2D Heteronuclear Single Quantum Coherence (HSQC) and gs-2D HMBC spectra has been given elsewhere [32]. Column chromatography (CC) was performed with silica gel 60 from Merck (Darmstadt, Germany), and thin layer chromatography (TLC) was carried out on precoated silica plates F-254 from Merck (Darmstadt, Germany). Melting points were determined on an electrothermal instrument and are uncorrected.

3.2. Plant Material

Adesmia balsamica were collected in Melosillas, Casablanca, Chile, in October 2016. A voucher specimen was deposited at the Valparaíso (VALP) Herbarium, Department of Biology, Universidad de Playa Ancha, Valparaíso, Chile and was identified by comparison with the herbarium specimen (collection number 1899).

3.3. Isolation and Characterization of Isocordoin (1)

The fresh plant (1.0 kg) extracted with cold dichloromethane (5 L) at room temperature for 40 s. The organic extract was concentrated in a rotatory evaporator to give a residue of 120.5 g of resin. Pure isocordoin (1) was isolated to obtain 166.5 mg of a solid yellow powder. Its structure was established by comparison of their spectroscopic data (1H and 13C-NMR and HRMS) with those in the literature [8].

3.4. General Procedure for the Synthesis of 4-Oxyalkyl-isocordoin Analogues (28)

A solution of isocordoin (1) (5 mmol), alkyl halide (6 mmol), and K2CO3 (6.5 mmol) in anhydrous acetonitrile (3 mL) was refluxed for 4 h at 80 °C. After the reaction, the mixture was distilled to remove the solvent. The residue was poured into ice water (40 mL), and then filtered. The resulting filtrate was extracted three times with ethylacetate. The resulting organic phase was dried over anhydrous magnesium sulfate, and distilled in vacuo to remove the solvent to provide the target compounds 28.
(2E)-1-[2-Hydroxy-4-methoxy-3-(3-methylbut-2-en-1-yl)phenyl]-3-phenylprop-2-en-1-one (2). Yellow solid. Yield: 89.0%. Spectroscopic data and physical properties of compound 2 were consistent with those reported in the literature [26].
(2E)-1-[4-(Allyloxy)-2-hydroxy-3-(3-methylbut-2-en-1-yl)phenyl]-3-phenylprop-2-en-1-one (3). Yellow solid. Yield: 92.0%, melting point: 93–96 °C. IR (KBr, cm−1): 3024, 2895, 1647, 1577, 1298, 1195, and 1134. 1H-NMR (400 MHz, CDCl3): δ 13.37 (s, 1H, 2′-OH), 7.88 (d, J = 15.4 Hz, 1H, H-8); 7.77 (d, J = 9.1 Hz, 1H, H-6′); 7.65 (m, 2H, H-2 and H-6); 7.60 (d, J = 15.4 Hz, 1H, H-7); 7.42 (m, 3H, H-3, H-4 and H-5); 6.48 (d, J = 9.0 Hz, 1H, H-5′); 6.07 (m, 1H, H-2′′); 5.45 (m, 1H, H-3′′b); 5.31 (m, 1H, H-3′′a); 5.26 (m, 1H, H-8′); 4.65 (d, J = 5.1 Hz, 2H, H-1′′); 3.40 (d, J = 7,1 Hz, 1H, H-7′); 1.80 (s, 3H, H-10′); 1.68 (s, 3H, H-11′). 13C-NMR (100 MHz, CDCl3): δ 192.4 (C-9); 163.2 (C-2′); 162.4 (C-4′); 144.1 (C-7); 134.8 (C-1); 132.7 (C-2′′); 131.8 (C-6′); 130.5 (C-9′); 129.1 (C-4); 129.0 (C-2 y C-6); 128.5 (C-3 y C-5); 121.9 (C-8′); 120.6 (C-8); 118.4 (C-3′); 117.6 (C-3′′); 114.6 (C-1′); 103.2 (C-5′); 65.4 (C-1′′); 25.8 (C-11′); 21.8 (C-7′); 17.9 (C-10′). MS: M + H ion m/z 349.4432 (C23H24O3: 348.4348).
(2E)-1-[4-[(2-Methylprop-2-en-1-yl)oxy]-2-hydroxy-3-(3-methylbut-2-en-1-yl)phenyl]-3-phenylprop-2-en-1-one (4). Yellow solid. Yield: 85.0%, melting point: 99–101 °C. IR (KBr, cm−1): 2958, 1635, 1519, 1243, and 1131. 1H-NMR (400 MHz, CDCl3): δ 13.39 (s, 1H, 2′-OH), 7.87(d, J = 15.5 Hz, 1H, H-8); 7.77 (d, J = 9.0 Hz, 1H, H-6′); 7.65 (m, 2H, H-2 and H-6); 7.60 (d, J = 15.4 Hz, 1H, H-7); 7.42 (m, 3H, H-3, H-4 and H-5); 6.48 (d, J = 9.0 Hz, 1H, H-5′); 5.26 (m, 1H, H-2′′); 5.11 (s, 1H, H-3b′′); 5.01 (s, 1H, H-3a′′); 4.54 (s, 2H, H-1′′); 3.43 (d, J = 7.1Hz, 1H, H-7′); 1.84 (s, 3H, H-4′′); 1.80 (s, 3H, H-10′); 1.68 (s, 3H, H-11′). 13C-NMR (100 MHz, CDCl3 ): δ 192.2 (C-9); 163.2 (C-2′); 162.4 (C-4′); 144.1 (C-7); 140.3 (C-2′′); 134.9(C-1); 131.8 (C-6′); 130.5 (C-9′); 129.1 (C-4); 129.0 (C-2 and C-6); 128.5 (C-3 and C-5); 122.0 (C-8′); 120.6 (C-8); 117.8 (C-3′); 114.6 (C-1′); 113.0 (C-3′′); 103.2 (C-5′); 71.9 (C-1′′); 25.8 (C-11′); 21.8 (C-7′); 19.3 (C-4′′); 17.9 (C-10′). MS: M + H ion m/z 363.4702 (C24 H26O3: 362.4616).
(2E)-1-[4-(Crotyloxy)-2-hydroxy-3-(3-methylbut-2-en-1-yl)phenyl]-3-phenylprop-2-en-1-one (5). Yellow solid. Yield: 85.0%, melting point: 93–94 °C. IR (KBr, cm−1): 2958, 1635, 1519, 1243, and 1131. 1H-NMR (400 MHz, CDCl3): δ 13.37 (s, 1H, 2′-OH), 7.87 (d, J = 15.5 Hz, 1H, H-8); 7.77 (d, J = 9.1 Hz, 1H, H-6′); 7.65 (m, 2H, H-2 and H-6); 7.60 (d, J = 15.4 Hz, 1H, H-7); 7.42 (m, 3H, H-3, H-4 and H-5); 6.49 (d, J = 9,0 Hz, 1H, H-5′); 5.87 (m, 1H, H-2′′); 5.82 (m, 1H, H-3′′); 5.26 (m, 1H, H-8′); 4.57 (d, J = 5.9 Hz, 2H, H-1′′); 3.40 (d, J = 7.2 Hz, 1H, H-7′); 1.80 (s, 3H, H-10′); 1.77 (s, 3H, H-4′′); 1.68 (s, 3H, H-11′). 13C-NMR (100 MHz, CDCl3): δ 192.2 (C-9); 163.2 (C-2′); 162.6 (C-4′); 144.0 (C-7); 134.9 (C-1); 131.7 (C-6′); 130.5 (C-9′); 130.3 (C-4); 129.1 (C-2′′); 129.0 (C-2 and C-6); 128.5 (C-3 and C-5); 125.6 (C-3′′); 122.0 (C-8′); 120.7 (C-8); 118.0 (C-3′); 117.8 (C-3′); 115.6 (C-1′); 103.3 (C-5′); 69.0 (C-1′′); 25.8 (C-11′); 21.8 (C-7′); 17.9 (C-10′); 17.8 (C-4′′). MS: M + H ion m/z 363.4702 (C24H26O3: 362.4614).
(2E)-1-[4-(Prenyloxy)-2-hydroxy-3-(3-methylbut-2-en-1-yl)phenyl]-3-phenylprop-2-en-1-one (6). Yellow solid. Yield: 79.0%, melting point: 106–108 °C. IR (KBr, cm−1): 2959, 1631, 1519, 1374, 1211, 1147, and 990. 1H-NMR (400 MHz, CDCl3): δ 13.37 (s, 1H, 2′-OH), 7.87 (d, J = 15.5 Hz, 1H, H-8); 7.77 (d, J = 9.1 Hz, 1H, H-6′); 7.65 (m, 2H, H-2 and H-6); 7.60 (d, J = 15.4 Hz, 1H, H-7); 7.42 (m, 3H, H-3, H-4 and H-5); 6.49 (d, J = 9.0 Hz, 1H, H-5′); 5.48 (m, 1H, H-2′′); 5.25 (m, 1H, H-8′); 4,62 (d, J = 6.6 Hz, 2H, H-1′′); 3.39 (d, J = 7.2 Hz, 1H, H-7′); 1.80 (s, 6H, H-4′′ and H-10′); 1.75 (s, 3H, H-5′′); 1.68 (s, 3H, H-11′). 13C-NMR (100 MHz, CDCl3): δ 192.1 (C-9); 163.2 (C-2′); 162.8 (C-4′); 144.0 (C-7); 138.1 (C-3′′); 134.9 (C-1); 131.7 (C-6′); 130.5 (C-9′); 129.1 (C-4); 129.0 (C-2 and C-6); 128,5 (C-3 and C-5); 122.1 (C-8′); 120.7 (C-8); 119.5 (C-2′′) 117.9 (C-3′); 114.5 (C-1′); 103.3 (C-5′); 65.3 (C-1′′); 25.8 (C-4′′); 25.7 (C-11′); 21.8 (C-7′); 18.3 (C-5′′); 17.8 (C-10′). MS: M + H ion m/z 377.4972 (C25H28O3: 376.4880).
(2E)-1-[4-(Geranyloxy)-2-hydroxy-3-(3-methylbut-2-en-1-yl)phenyl]-3-phenylprop-2-en-1-one (7). Yellow solid. Yield: 73.0%, melting point: 78–80 °C. IR (KBr, cm−1): 2940, 2865, 1631, 1530, 1512, 1338, 1241, 1129, 817. 1H-NMR (400 MHz, CDCl3): δ 13.37 (s, 1H, 2′-OH), 7,87 (d, J = 15.5 Hz, 1H, H-8); 7.77 (d, J = 9.1 Hz, 1H, H-6′); 7.65 (m, 2H, H-2 and H-6); 7.60 (d, J = 15.4 Hz, 1H, H-7); 7.42 (m, 3H, H-3, H-4 and H-5); 6.49 (d, J = 9.0 Hz, 1H, H-5′); 5.48 (m, 1H, H-2′′); 5.25 (m, 1H, H-8′); 5.08 (m, 1H, H-6′′); 4.65 (d, J = 6.4 Hz,2H, H-1′′); 3.39 (d, J = 7.2 Hz, 1H, H-7′); 2.10 (m, 4H, H-4′′ and H-5′′); 1.80 (s, 3H, H-10′); 1.75 (s, 3H, H-9′′); 1.68 (s, 3H, H-8′′); 1.61 (s, 3H, H-11′). 13C-NMR (100 MHz, CDCl3): δ 191.1 (C-9); 163.1 (C-2′); 162.8 (C-4′); 144.0 (C-7); 141.3 (C-3′′); 134.9 (C-1); 131.9 (C-6′); 131.7 (C-7′′); 130.5 (C-9′); 129.1 (C-4); 129.0 (C-2 and C-6); 128.5 (C-3 and C-5); 123.7 (C-8′); 120.7 (C-8); 119.3 (C-2′′); 117.8 (C-3′); 114.4 (C-1′); 103.3 (C-5′); 65.4 (C-1′′); 39.5 (C-4′′); 26.3 (C-5′′); 25.8 (C-11′); 25.7 (C-8′′); 21.8 (C-7′); 17.9 (C-10′); 17.7 (C-10′′); 16.7 (C-9′′). MS: M + H ion m/z 445.6261 (C30H36O3: 444.6051).
(2E)-1-[4-(Farnesyloxy)-2-hydroxy-3-(3-methylbut-2-en-1-yl)phenyl]-3-phenylprop-2-en-1-one (8). Yellow solid. Yield: 70.0%, melting point: 62–64 °C. IR (KBr, cm−1): 2955, 1632, 1541, 1374, 1203, 1140, 978. 1H-NMR (400 MHz, CDCl3): δ 13.37 (s, 1H, 2′-OH), 7.87 (d, J = 15.5 Hz, 1H, H-8); 7.77 (d, J = 9.1 Hz, 1H, H-6′); 7.65 (m, 2H, H-2 and H-6); 7.60 (d, J = 15.4 Hz, 1H, H-7); 7.42 (m, 3H, H-3, H-4 and H-5); 6.49 (d, J = 9.0 Hz, 1H, H-5′); 5.48 (m, 1H, H-2′′); 5.25 (m, 1H, H-8′); 5.08 (m, 2H, H-6′′ and H-10′′); 4.65 (d, J = 6.6 Hz, 2H, H-1′′); 3.39 (d, J = 7.2 Hz, 1H, H-7′); 2.09 (m, 4H, H-4′′, H-5′′, H-8′′ and H-9′′); 1.80 (s, 6H, H-10′ and H-13′′); 1.75 (s, 3H, H-11′); 1.67 (s, 6H, H-14′′ and H-15′′). 13C-NMR (100 MHz, CDCl3): δ 192.1 (C-9); 163.2 (C-2′); 162.9 (C-4′); 144.0 (C-7); 141.3 (C-3′′); 135.3 (C-7′′); 134.9 (C-1); 131.5 (C-9′ and C-11′′); 131,3 (C-6′); 130.5 (C-4); 129.0 (C-2 and C-6); 128.5 (C-3 and C-5); 124.3 (C-6′′); 123.6 (C-10′′); 122.1 (C-8); 120.7 (C-8); 119.3 (C-2′′) 117.9 (C-3′); 114.5 (C-1′); 103.3 (C-5′); 65.4 (C-1′′); 39.7 (C-4′′); 39.5 (C-8′′); 26.7 (C-9′′); 26.2 (C-5′′); 25.8 (C-12′′); 25.7 (C-11′); 21.8 (C-7′); 17.9 (C-10′); 17.7 (C-15′′); 16.7 (C-14′′); 16.0 (C-13′). MS: M + H ion m/z 513.7351 (C35H44O3: 512.7220).

3.5. Oomycete Strain

Pure strains of S. parasitica and S. australis were received from the Cell Biology Laboratory, Faculty of medicine, Universidad de Valparaíso, placed on potato dextrose agar (PDA) slants, and stored at 4 °C. This pure strain was isolated from Salmo salar carp eggs [33].

3.6. Minimum Inhibitory Concentration Evaluation

The method used in this study for anti-oomycete activity assay was performed according to methods previously reported [34]. The compounds 18 were tested at 200.0, 150.0, 100.0, 50.0, 25.0, 12.5, 6.3, and 3.1 µg/L to find a preliminary minimum inhibitory concentration (MIC) interval. The MIC values were recorded visually on the basis of mycelia growth. All the independent experiments were conducted three times with quadruplicates at each test concentration. Ethanol solution 1% in water was the negative control and bronopol, clotrimazole, and itraconazole were the positive controls.

3.7. Spores Germination Inhibition Assay

The spore germination assay against Saprolegnia strains was performed according to the agar dilution method [35]. The minimum oomyceticidal concentration (MOC) and detailed protocols for the biological assays was defined previously [34].

3.8. Mycelial Growth Inhibition Assay

Inhibition of mycelial growth was assayed using the method described by Hu [29] with small modifications. Oomycete growth was measured as the colony diameter, and toxicity of the compounds 18 against Saprolegnia strains was measured in terms of the percentage of mycelia inhibition by a formula described in detail elsewhere [34].

3.9. Statistical Analysis

The statistical data of recovery rates were performed by comparison within isolates and between culturing media following a standard method [20].

4. Conclusions

In the current study, we demonstrated that the novel oxyalkylated analogues of isocordoin (28) showed higher inhibitory effect, but isocordoin 1 and chalcone with a geranyl group, such as 7, showed very weak activity, when compared with bronopol, clotrimazole, and itraconazole. Derricin (2) and compound 3 are the main compounds responsible for the observed biological activity against Saprolegnia strains and are potential candidates for drug development based on their effective anti-oomycete activities.

Acknowledgments

The authors thank FONDECYT (grant No. 11140193) and the Dirección General de Investigación of Universidad de Playa Ancha.

Author Contributions

A.M. supervised the whole study. B.E. performed the synthesis of all compounds. P.G. contributed to the identification and sequencing of Saprolegnia parasitica strains. I.M. conceived and designed the biologic experiments; I.M., J.V. and E.W. performed the biologic experiments. A.M., I.M. and Y.O. collaborated in the discussion and interpretation of the results. A.M. wrote the manuscript. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sugamoto, K.; Matsusita, Y.; Matsui, K.; Kurogi, C.; Matsui, T. Synthesis and antibacterial activity of chalcones bearing prenyl or geranyl groups from Angelica keiskei. Tetrahedron 2011, 67, 5346–5359. [Google Scholar] [CrossRef]
  2. Yazaki, K.; Sasaki, K.; Tsurumaru, Y. Prenylation of aromatic compounds, a key diversification of plant secondary metabolites. Phytochemistry 2009, 70, 1739–1745. [Google Scholar] [CrossRef] [PubMed]
  3. Barron, D.; Ibrahim, R. Isoprenylated flavonoids—A survey. Phytochemistry 1996, 43, 921–982. [Google Scholar] [CrossRef]
  4. Botta, B.; Vitali, A.; Menendez, P.; Misitia, D.; Delle Monache, G. Prenylated flavonoids: Pharmacology and biotechnology. Curr. Med. Chem. 2005, 12, 713–739. [Google Scholar] [CrossRef]
  5. Chen, X.; Mukwaya, E.; Wong, M.S.; Zhang, Y. A systematic review on biological activities of prenylated flavonoids. Pharm. Biol. 2014, 52, 655–660. [Google Scholar] [CrossRef] [PubMed]
  6. Patil, V.; Barragan, E.; Patil, S.A.; Patil, S.; Bugarin, A. Direct Synthesis and antimicrobial evaluation of structurally complex chalcones. Chem. Sel. 2016, 1, 3647–3650. [Google Scholar] [CrossRef]
  7. Delle Monach, F.; Cuca Suarez, L.E.; Marini-Bettolo, G.B. Flavonoids from the seeds of six Lonchocarpus species. Phytochemistry 1978, 27, 1812–1813. [Google Scholar] [CrossRef]
  8. Borges-Argáez, R.; Peña-Rodríguez, L.M.; Waterman, P. Flavonoids from two Lonchocarpus species of the Yucatan Peninsula. Phytochemistry 2002, 60, 533–540. [Google Scholar] [CrossRef]
  9. Caamal-Fuentes, E.E.; Peraza-Sánchez, S.R.; Torres-Tapia, L.W.; Moo-Puc, R.E. Isolation and identification of cytotoxic compounds from Aeschynomene fascicularis, a Mayan medicinal plant. Molecules 2015, 20, 13563–13574. [Google Scholar] [CrossRef] [PubMed]
  10. Borges-Argáez, R.; Poot-Díaz, M.E.; Waterman, P.G.; Peña-Rodríguez, L.M. Cytotoxic and antiprotozoal activity of flavonoids from Lonchocarpus spp. Phytomedicine 2007, 14, 530–533. [Google Scholar] [CrossRef] [PubMed]
  11. Borges-Argáez, R.; Vela-Catzín, T.; Yam-Puc, A.; Chan-Bacab, M.J.; Moo-Puc, R.E.; Cáceres-Farfán, M. Antiprotozoal and cytotoxic studies on some isocordoin derivatives. Planta Med. 2009, 75, 1336–1338. [Google Scholar] [CrossRef] [PubMed]
  12. Simmonds, M.S.J.; Blaney, W.M.; Delle Monache, F.; Marini-Bettolo, G.B. Insect antifeedant activity associated with compounds isolated from species of Lonchocarpus and Tephrosia. J. Chem. Ecol. 1990, 16, 365–380. [Google Scholar] [CrossRef] [PubMed]
  13. Avila-Villarreal, G.; Hernández-Abreu, O.; Hidalgo-Figueroa, S.; Navarrete-Vázquez, G.; Escalante-Erosa, F.; Peña-Rodríguez, L.M.; Villalobos-Molina, R.; Estrada-Soto, S. Antihypertensive and vasorelaxant effects of dihydrospinochalcone-A isolated from Lonchocarpus xuul Lundell by NO production: Computational and ex vivo approaches. Phytomedcine 2013, 20, 1241–1246. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, E.H.; Wang, R.F.; Guo, S.Z.; Liu, B. An update on antitumor activity of naturally occurring chalcones. Evid. Based Complement Altern. Med. 2013, 2013, 815621. [Google Scholar] [CrossRef] [PubMed]
  15. Shen, J.H.; Shi, S.C.; Ma, X.J.; Zhou, B.N. Total synthesis of two prenylated flavanonols from Maackia tenuifolia. Nat. Prod. Lett. 1992, 1, 99–102. [Google Scholar] [CrossRef]
  16. Vitali, A.; Ferrari, F.; Monache, G.D.; Bombardelli, E.; Botta, B. Synthesis and biosynthesis of isocordoin. Planta Med. 2001, 67, 475–477. [Google Scholar] [CrossRef] [PubMed]
  17. Bolasco, A.; Fioravanti, R.; Rossi, F.; Rossi, P.; Vitali, A. Use of cyclodextrins in biotransformation reactions with cell cultures of Morus nigra: Biosynthesis of prenylated chalcone isocordoin. Biotechnol. Appl. Biochem. 2010, 56, 77–84. [Google Scholar] [CrossRef] [PubMed]
  18. Basabe, P.; de Román, M.; Díez, D.; Marcos, I.S.; Blanco, A.; Bodero, O.; Mollinedo, F.; Sierra, B.G.; Urones, J.G. Prenylflavonoids and prenyl/alkyl-phloroacetophenones: Synthesis and antitumour biological evaluation. Eur. J. Med. Chem. 2010, 45, 4258–4269. [Google Scholar] [CrossRef] [PubMed]
  19. Seyedi, S.; Jafari, Z.; Attaran, N.; Sadeghian, H.; Saberi, M.; Riazi, M. Design, synthesis and SAR studies of 4-allyoxyaniline amides as potent 15-lipoxygensae inhibitors. Bioorg. Med. Chem. 2009, 17, 1614–1622. [Google Scholar] [CrossRef] [PubMed]
  20. Flores, S.; Montenegro, I.; Villena, J.; Cuellar, M.; Werner, E.; Godoy, P.; Madrid, A. Synthesis and Evaluation of novel oxyalkylated derivatives of 2′,4′-dihydroxychalcone as anti-oomycete agents against bronopol resistant strains of Saprolegnia sp. Int. J. Mol. Sci. 2016, 17, 1366. [Google Scholar] [CrossRef] [PubMed]
  21. Modak, M.; Rojas, M.; Torres, R. Chemical analysis of the resinous exudate isolated from Heliotropium taltalense and evaluation of the antioxidant activity of the phenolics components and the resin in homogeneous and heterogeneous systems. Molecules 2009, 14, 1980–1989. [Google Scholar] [CrossRef] [PubMed]
  22. Madrid, A.; Espinoza, L.; González, C.; Mellado, M.; Villena, J.; Santander, S.; Silva, V.; Montenegro, I. Antifungal study of the resinous exudate and of meroterpenoids isolated from Psoralea glandulosa (Fabaceae). J. Ethnopharmacol. 2012, 144, 809–811. [Google Scholar] [CrossRef] [PubMed]
  23. Kito, T.; Yamamoto, K.; Hirao, I. The O-alkylation of phenols of esters II. The steric hindrance and electronic effect in the O-alkylation of phenols by esters. Bull. Chem. Soc. Jpn. 1977, 50, 706–709. [Google Scholar] [CrossRef]
  24. Lei, T.; Wang, J.Y.; Pei, J. Roles of Flexible Chains in Organic Semiconducting Materials. Chem. Mater. 2014, 26, 594–603. [Google Scholar] [CrossRef]
  25. Da Silva, G.; da Silva, M.; Souza, E.; Barison, A.; Simões, S.; Varotti, F.; Barbosa, L.; Viana, G.; Villar, J. Design and Synthesis of New Chalcones Substituted with Azide/Triazole Groups and Analysis of Their Cytotoxicity Towards HeLa Cells. Molecules 2012, 17, 10331–10343. [Google Scholar] [CrossRef] [PubMed]
  26. Do nascimento, M.C.; Mors, W.B. Chalcones of the root bark of Derris sericea. Phytochemistry 1972, 11, 3023–3028. [Google Scholar] [CrossRef]
  27. Tse, B.; Balkovec, J.M.; Blazey, C.M.; Hsu, M.J.; Nielsen, J.; Schmatz, D. Alkyl side-chain derivatives of sordaricin as potent antifungal agents against yeast. Bioorg. Med. Chem. Lett. 1998, 8, 2269–2272. [Google Scholar] [CrossRef]
  28. Schreier, S.; Malheiros, S.V.P.; Paula, E. Surface active drugs: Self-association and interaction with membranes and surfactants. Physicochemical and biological aspects. Biochim. Biophys. Acta. 2000, 1508, 210–234. [Google Scholar] [CrossRef]
  29. Mousa, W.K.; Raizada, M.N. The Diversity of Anti-Microbial Secondary Metabolites Produced by Fungal Endophytes: An Interdisciplinary Perspective. Front. Microbiol. 2013, 4, 65. [Google Scholar] [CrossRef] [PubMed]
  30. Warrilow, A.G.S.; Hull, C.; Rolley, N.J.; Parker, E.; Nes, W.N.; Smith, S.N.; Kelly, D.E.; Kelly, S.T. Clotrimazole as a Potent Agent for Treating the Oomycete Fish Pathogen Saprolegnia parasitica through Inhibition of Sterol 14α-Demethylase (CYP51). Appl. Environ. Microbiol. 2014, 80, 6154–6166. [Google Scholar] [CrossRef] [PubMed]
  31. Kandaswamy, N.; Raveendiran, N. Synthesis, Characterization, and In Vitro Antimicrobial and Anticancer Evaluation of Copolyester Bearing 4-Arylidene Curcumin in the Main Chain. Int. Sch. Res. Not. 2014, 495927. [Google Scholar] [CrossRef]
  32. Madrid Villegas, A.; Espinoza Catalán, L.; Montenegro Venegas, I.; Villena García, J.; Carrasco Altamirano, H. New Catechol derivatives of safrole and their antiproliferative activity towards breast cancer cells. Molecules 2011, 16, 4632–4641. [Google Scholar] [CrossRef] [PubMed]
  33. Zaror, L.; Collado, L.; Bohle, H.; Landskron, E.; Montaña, J.; Avendaño, F. Saprolegnia parasitica en salmones y truchas del sur de Chile. Arch. Med. Vet. 2004, 36, 71–78. [Google Scholar] [CrossRef]
  34. Madrid, A.; Godoy, P.; González, S.; Zaror, L.; Moller, A.; Werner, E.; Cuellar, M.; Villena, J.; Montenegro, I. Chemical Characterization and Anti-Oomycete Activity of Laureliopsis philippianna Essential Oils against Saprolegnia parasitica and S. australis. Molecules 2015, 20, 8033–8047. [Google Scholar] [CrossRef] [PubMed]
  35. Hu, X.G.; Liu, L.; Hu, K.; Yang, X.L.; Wang, G.X. In vitro screening of fungicidal chemicals for antifungal activity against Saprolegnia. J. World Aquacult. Soc. 2013, 44, 528–535. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds 18 are available from the authors.

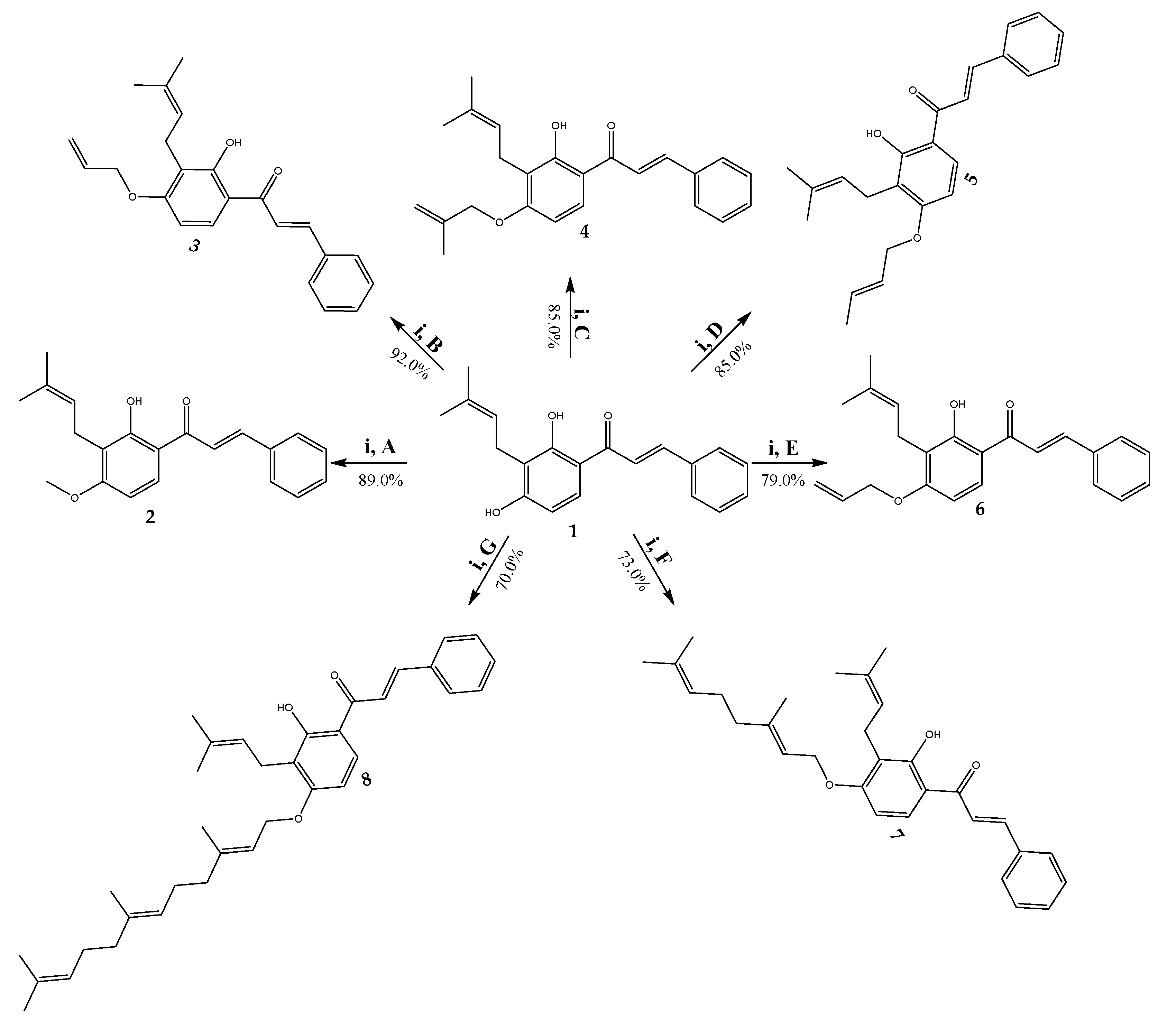

Scheme 1. Synthesis of 4-oxyalkyl-isocordoin derivatives 28. Reagents and conditions: (i) K2CO3/CH3CN, reflux at 80 °C for 4 h.; (A) CH3I; (B) allyl bromide; (C) 2-methyl-1-propenyl bromide; (D) crotyl bromide; (E) prenyl bromide; (F) geranyl bromide; (G) farnesyl bromide.
Scheme 1. Synthesis of 4-oxyalkyl-isocordoin derivatives 28. Reagents and conditions: (i) K2CO3/CH3CN, reflux at 80 °C for 4 h.; (A) CH3I; (B) allyl bromide; (C) 2-methyl-1-propenyl bromide; (D) crotyl bromide; (E) prenyl bromide; (F) geranyl bromide; (G) farnesyl bromide.
Molecules 22 00968 sch001

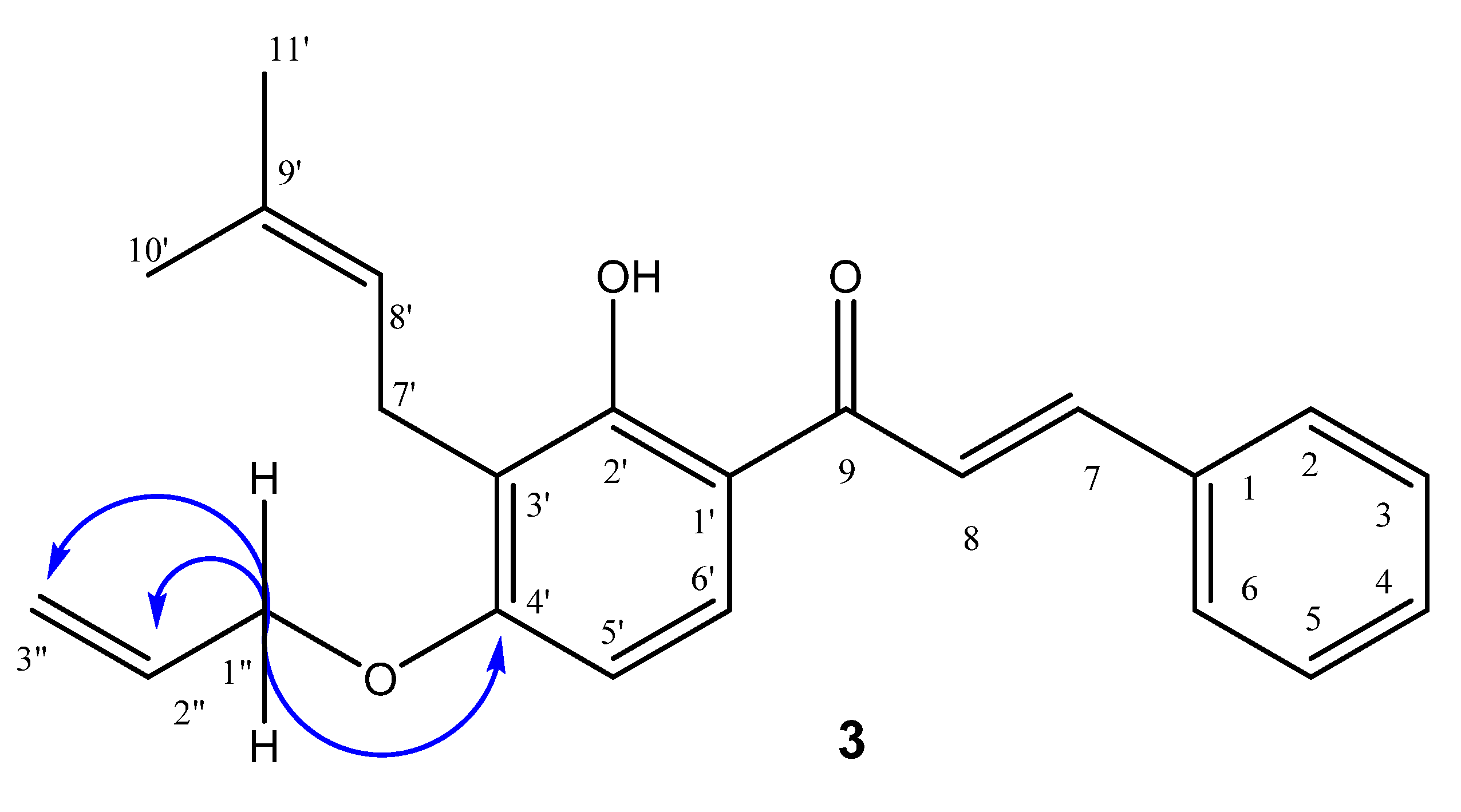

Figure 1. The most important correlations shown by 2D 1H-13C HMBC, compound 3.
Figure 1. The most important correlations shown by 2D 1H-13C HMBC, compound 3.
Molecules 22 00968 g001
Table 1. The MIC values a of the compounds 18 against Saprolegnia species.
Table 1. The MIC values a of the compounds 18 against Saprolegnia species.
CompoundsMIC (µg/mL)
S. parasiticaS. australis
1>200200
27550
310075
4125125
510075
6150125
7>200>200
815075
Bronopol>200175
Clotrimazole125150
Itraconazole100100
a Each value represents the mean ± SD of three experiments (p < 0.05), performed in quadruplicate.
Table 2. The MOC values a of the compounds 18 against spores at 72 h.
Table 2. The MOC values a of the compounds 18 against spores at 72 h.
CompoundsMOC (µg/mL)
S. parasiticaS. australis
1>200>200
27575
3100100
4125125
5125100
6150150
7>200>200
8150100
Bronopol>200200
Clotrimazole150175
Itraconazole100100
a Each value represents the mean ± SD of three experiments, performed in quadruplicate.
Table 3. The MIG values of the compounds 18 against mycelium at 48 h.
Table 3. The MIG values of the compounds 18 against mycelium at 48 h.
Compounds (200 µg/mL)MIG (%)
S. parasiticaS. australis
100
25258
33842
43538
52530
62830
700
83133
Bronopol033
