Development of User-Friendly Method to Distinguish Subspecies of the Korean Medicinal Herb Perilla frutescens Using Multiplex-PCR

by
Yonguk Kim
1,
Ah-Young Kim
2,
Ara Jo
1,
Hakjoon Choi
1,
Seung-Sik Cho
3 and
Chulyung Choi
1,*
1
Jeonnam Institute of Natural Resources Research, Jangheung-gun, Jeollanamdo 59338, Korea
2
School of Biological Sciences and Technology, Chonnam National University, Gwangju 61186, Korea
3
Department of Pharmacy, College of Pharmacy, Mokpo National University, Muan, Jeonnam 58554, Korea
*
Author to whom correspondence should be addressed.
Molecules 2017, 22(4), 665; https://doi.org/10.3390/molecules22040665
Submission received: 8 March 2017 / Revised: 8 April 2017 / Accepted: 19 April 2017 / Published: 21 April 2017
(This article belongs to the Section Molecular Diversity)
Browse Figures
Versions Notes

Abstract

:
Perilla (Perilla frutescens) is an economically and culturally important plant in East Asia. Plant breeding between cultivars has enhanced the genetic diversity of perilla overall, but means that functionally diverse subspecies are more difficult to identify and distinguish. In this study, we developed gene-based DNA markers to distinguish between the Korean herbal medicinal perilla varieties. We identified informative simple sequence repeat (SSR) regions on the promoter regions of the Myb-P1 and dihydroflavonol 4-reductase (DFR) genes, as well as a large insertion-deletion (indel) region in the limonene synthase (LS) gene, and developed markers to characterize the distinct subspecies differences (PfMyb-P1pro, PfDFRpro, and PfLS, respectively). Using the PfLS primers, a 430-bp region could be amplified from P. frutescens var. acuta, crispa, and f. viridis (known as Jasoyeop, Jureum-soyeop, and Chungsoyeop, respectively), but not from P. frutescens var. japonica (Dlggae). The PfMybpro primers resulted in PCR products of 314 or 316, 330, 322, and 315 bp from Dlggae, Jasoyeop, Jureum-soyeop, and Chungsoyeop, respectively, and the PfDFRpro primers resulted in products of 189 or 202, 187 or 189, 185 or 189, and 193bp, respectively, for the four perilla subspecies. Combining these three reactions into a single multiplex PCR approach resulted in subspecies-specific PCR band patterns for six common types of commercial perilla, distinguishing between three varieties of Dlggae (Cham-Dlggae, Ip-Dlggae, and Bora-Dlggae), as well as identifying Jasoyeop, Jureum-soyeop, and Chungsoyeop. These user-friendly markers will be valuable as a simple and efficient method for identifying the Korean medicinal herb Jasoyeop, as well as distinguishing between other functionally distinct subspecies, which may have broad applications in the Korean herbal industry.

1. Introduction

Perilla (Perilla frutescens) is an economically, culturally, and medicinally important annual in the Labiatae family, native to East Asia. It is cultivated primarily in China, India, Japan, Korea, Thailand, Turkey, and Vietnam, where it is prized for its multiple uses, including as an oilseed (P. frutescens var. japonica (Hassk.) H. Hara, known as ‘Ren’ in Chinese, ‘Dlggae’ in Korean, and ‘Egoma’ in Japanese), a leaf vegetable crop (‘Kkaennip’ in Korean), and a medicinal herb (‘Zisu’ in Chinese, ‘Cha-jo-ki’ or ‘so-yeop’ in Korean, and ‘Jiso’ in Japanese) [1,2,3]. Its recognized bioactivities include antioxidant [4,5], anti-allergic [6,7,8], anti-inflammatory [6,7,8,9], antipruritic [9], and anti-HIV-1 [10] activity. It is also a common ingredient in foods such as pickles (‘Shiso’ in Japanese), with two different leaf colors caused by their differing accumulation of anthocyanins [11,12,13]: a red-purple type (red perilla, P. frutescens var. acuta (Odash.) Kudo and crispa (Benth.) W. Deane, Jasoyeop in Korean, Aka-jiso in Japanese) and a green-purple type (green perilla, P. frutescens f. viridis Makino, ‘Chungsoyeop’ in Korean, ‘Ao-jiso’ in Japanese).
Perilla varieties are commonly classified into seven chemo-types based on their varying quantities of the main components of its essential oil, perillaldehyde (PA), perilla ketone (PK), elsholtzia ketone (EK), citral (C), perillene (PL), piperitenone (PT), and phenylpropanoid (PP) [14,15]. In Korea, the Perilla genus has been classified into two major chemo-types, PA (soyeop) and PK (Dlggae), according to the main components of their volatile oils. PA plants contain mostly perillaldehyde (19.8%) and limonene (57.7%), while the oil of PK plants is mainly perilla ketone (89.8%) [16]. The leaves and seeds of PK plants have traditionally been used as food, whereas the leaves and twigs of PA plants are used in herbal medicine.
Recently, Korean periila breeders have developed new and improved perilla varieties with high yield and nutritional quality by crossing between subspecies. These diverse varieties of PA and PK perilla are difficult to distinguish morphologically, and the accurate and rapid identification of these varieties using the nuclear ribosomal internal transcribed spacer (ITS) region or chloroplast DNA regions (matK, psbA-trnH, and trnL-trnF) is limited by the relatedness of the subspecies (Table S1). If they should be used in herbal medicine and as a health food supplement, the development of accurate methods for the identification and characterization of these varieties at the subspecies level is required. Previous studies have reported genetic differences between cultivated and weedy forms of perilla using random amplified polymorphic DNA and amplified fragment length polymorphism markers; however, the accuracy of these analyses is limited by population dynamics and their reproducibility as the diagnostic markers of perilla in the field [1,2].
Recent advances in next-generation sequencing and RNA sequencing have provided not only a fast, cost-effective, and reliable approach to generate large datasets for functional genomic and transcriptomic analysis, but also more comprehensive and efficient means to quantify specific expression patterns between subspecies. These new techniques have been applied to red and green perilla varieties, yielding useful information for transcript discovery, and expression profiling, highlighting differences between the two genotypes [17,18,19]. In the present study, we referred to data for the transcriptomic differences identified between the red and green PA perilla varieties [17,18] to select putative informative genes and establish simple sequence repeat (SSR) and insertion-deletion (indel) markers to enable breeders to readily distinguish between perilla varieties. SSR markers have been widely used as genetic markers, which are very useful for a spectrum of genetic and breeding applications because of their abundance, reproducibility, high level of polymorphism, co-dominance inheritance, and easy detection by PCR [20,21].
We selected three candidate genes, LS, Myb-P1, and DFR, among the identified differentially expressed genes for perilla plants that feature red and green forms of anthocyanin accumulation from RNA-seq data [17,18]. This genes are, respectively, involved in the biosynthesis of limonene from the universal acyclic precursor geranyl diphosphate (GPP), a major enzyme in the biosynthesis of perillaldehyde produced mainly in PA types, and two regulators of anthocyanin biosynthesis and drought stress acclimation of red-colored perilla [22,23]. We successfully revealed PA-type subspecies-specific markers using three of the candidate genes, LS, Myb-P1, and DFR, from 12 perilla cultivars in Korea (Table 1) and developed them for use in an optimized multiplex PCR. This approach enabled the detection and identification of PA-type varieties of P. frutescens in Korean Jasoyeop herbal products, resulting in a user-friendly, efficient, and accurate method to distinguish between perilla subspecies.

2. Results and Discussion

To identify subspecies-specific genomic regions in the PA and PK perilla varieties, the genome and promoter sequences of three previously identified [17,18] candidate genes, LS, Myb-P1, and DFR, were downloaded from NCBI. Based on PCR profiling derived from these sequences using 44 primer combinations (Table 2), three genes (LS, Myb-P1, and DFR) were found to contain distinct indel and SSR patterns that varied between the perilla varieties.
The primer pairs were developed from nucleotide or promoter sequences containing coding, encoding, 5′ and 3′ UTR regions. These sequences were identified from source sequence Genbank among PA type of perilla.
In the 4,315-bp LS sequence of the PA genotype, the four primer pairs (LS1-4) covered an approximately 0.9–1.0-kb region conserved between the PA and PK types (Table 2). Two primer pairs (LS6 and LS7 F/R2) amplified a region with a subspecies-specific difference in sequence length, amplifying 1012 bp in PA and 582 bp in PK between exon 3 and 3′ UTR. Indel DNA fragments were identified by sequencing and aligning the DNA sequences of this region from two accessions of P. frutescens var. japonica, as well as three accessions each of P. frutescens var. acuta, crispa, and P. frutescens f. viridis, with the published LS sequence (GenBank accession number: AF241791). This event was identified as a deletion of 430 bp in var. japonica across exon 4 and 3′ UTR; therefore, we considered the 430-bp indel site to be a unique identifier of the PA type. The PfLS primer pair generated a single, clear band in the PA-type accessions (Figure 1, Table 3).
Perillaldehyde and limonene has been reported as major volatile compounds and marker components in P. frutescens var. acuta grown in East asia. Ohk et al. [16] were reported that the contents of major component in PA chemotype grown in Korea analyzed 57.9% of limonene and 19.6% of perillaldehyde. Based on this result, we obtained the PA type specific indel region from limonene synthase (LS) gene by marker-based approaches. Therefore, we proved that limonene is a chemical major component as well as a subspecies specific marker between PA and PK types at the genetic level.
The 1,141-bp sequence of the Myb-P1 gene was sequenced from two accessions of P. frutescens var. japonica and nine accessions each of P. frutescens var. acuta, crispa, and f. viridis, then aligned with the previously published sequence (GenBank accession number: AB024053). A 657 bp region of the 5′ upstream promoter of Myb-P1 (Myb-P1pro2 primers) was found to have an informative nuclear SSR in a TA-rich region contained within a 5′-untranslated region (UTR) Py-rich sequence, a cis-acting element conferring high transcription levels (Table 2). To confirm the best amplification patterns for this polymorphic region, the observed product size including the number of alleles amplified and PIC value for Myb-P1pro marker used in this study is provided in Table 3. Myb-P1pro marker produced five alleles for all perilla accessions. As shown in Figure 2, the amplicon sizes of Myb-P1pro marker were 314 or 316 bp from P. frutescens var. japonica, whereas amplicons from P. frutescens var. acuta, crispa, and f. viridis were 330, 322, and 315 bp respectively (Table 2). The amplicon sizes showed clear differences among the three subspecies, while there was no difference between P. frutescens var. japonica and f. viridis.
Gong et al. [24] suggested that Myb-P1 is a key factor in the regulation of anthocyanin biosynthesis and the main factor responsible for determining anthocyanin formation in red P. frutescens. Fukushima et al. [17] reported that Myb-P1 is a highly upregulated gene associated with the anthocyanin biosynthesis and accumulation from red forms of perilla plants by RNA seq data. Therefore, according to these results, we performed the subspecies-specific SSR region from Myb-P1 promoter region, whereas there was no significant difference in coding and encoding region of Myb-P1 gene sequence.
In the same manner as described above, among total 1,364 bp of DFR sequence, a 745 bp region of the subspecies-specific nuclear SSR (DFRpro1 primers) was identified in aligned region with 5′-UTR Py-rich stretch between 11 perilla accessions (Table 2). To confirm the best amplification patterns for this polymorphic region, the observed product size including the number of alleles amplified and PIC value for DFRpro marker used in this study is provided in Table 3. DFRpro marker produced seven alleles for all perilla accessions. As shown in Figure 3, the product sizes for the DFRpro primers were as follows: 189 or 202 bp from P. frutescens var. japonica, 187 or 189 bp in acuta, 185 or 189 bp in crispa, and 193 bp in f. viridis. Although the amplicon sizes were similar between P. frutescens var. japonica, acuta, and crispa, the DFRpro marker could clearly distinguish these from Chungsoyeop, P. frutescens f. viridis (Table 3).
Dihydroflavonol reductase (DFR) gene known as one of the vital factor for the formation of anthocyanin, since the mutants lacking this enzyme do not produce anthocyanin [24,25]. Interaction between Myb-P1 and the promoter of gene encoding DFR from P. frutescens was shown that the expression of Myb-P1 was 10-fold abundant in red perilla than in green perilla as well as remarkably induced by light [25]. These data suggest that DFR gene may also be involved in formation and regulation of anthocyanin biosynthesis as well as the significant factor for determination of anthocyanin form in red and green perilla.
Based on above results, although we confirmed the subspecies-specific SSR marker for P. frutescens f. viridis from DFR promoter region, there was no significant difference between perilla subspecies.
The PfLS, PfMyb-P1pro, and PfDFRpro primers were used to develop a multiplex-PCR assay to distinguish the Korean herbal medicinal plant ‘Jasoyeop’ (P. frutescens var. acuta). The primer specificity, concentration, and melting temperature (Tm) are very crucial in the development of multiplex PCR since its success depends on the capacity of the primers to be relatively annealed with their targets under a single set of PCR conditions [26,27]. Optimal amplication conditions were determined by altering the following parameters: annealing time (85–90 s), annealing temperature (58–60 °C), primer concentration (0.5, 1.0, and 1.0 μM of each primer). Amplification with this combination of primers yielded distinct DNA fragments with two or three multi-bands that corresponded to the amplicons produced by the individual indel and SSR reactions. The amplicon sizes were used to identify the subspecies. Multiplex PCR with the three primer pairs clearly discriminated the six commercial perilla cultivars: three varieties of P. frutescens var. japonica (Cham-Dlggae, Ip-Dlggae, and Bora-Dlggae), and one variety each of P. frutescens var. crispa (Jureum-soyeop), acuta (Jasoyeop), and f. viridis (Chungsoyeop). The PCR products of the three P. frutescens var. japonica varieties were specific double-band amplicons: Cham-Dlggae had bands at 189 and 316 bp, Ip-Dlggae at 202 and 314 bp, and Bora-Dlggae at 202 and 316 bp, corresponding to PfDFRpro and PfMyb-P1pro, respectively. The PCR amplified three distinct products from the other three subspecies: P. frutescens var. crispa showed bands at 189, 322, and 430 bp; P. frutescens var. acuta showed bands at 189, 330, and 430 bp, and P. frutescens f. viridis had bands at 193, 315, and 430 bp. The bands corresponded to PfDFRpro, PfMyb-P1pro, and PfLS, respectively (Figure 4, Table 2).
Jasoyeop, a mixture of dried leaves and twigs of either P. frutescens var. acuta or crispa, is regularly consumed as a tea and herbal supplement in Korea. To validate the utility of multiplex PCR in commercial dried herbal materials, genomic DNA was extracted from leaf samples of 11 Jasoyeop products and amplified using the subspecies-specific primers. Almost all of the samples gave rise to clear triple band patterns consistent with the P. frutescens var. acuta or crispa, which are commonly used in Jasoyeop products (Figure 5a). The amplified PCR products were sequenced to confirm the identification of P. frutescens var. acuta (Figure 5b,c). As shown in Figure 5a, the band patterns and sequences revealed that A and B are P. frutescens var. acuta, while C-F, H, and J were identified as being P. frutescens var. crispa. Although G and I showed similar banding patterns to the other samples, they were determined not to be crispa nor acuta by their mixed size ranges; their PfDFRpro amplicons resembled P. frutescens f. viridis while their PfMyb-P1pro amplicon resembled P. frutescens var. crispa. Sample K was also not identified because only the 189 bp amplicon of PfDFRpro was detected. The sensitivity of the multiplex system was checked using template DNA dilution methods [27]. Optimized template DNA concentration isolated from fresh leaves of perilla was 10–20 ng. Therefore, the gel image (Figure 4a) clearly detected all perilla subspecies. However, Figure 5a shows that the three multi bands for lane G and K was difficult to detect when 10 ng DNA templates isolated from dried leaves of herbal products were used. Although these bands remained undetected in this study, our results demonstrated the specificity and sensitivity of these subspecies-specific primers, which were used to identify and distinguish between PK- and PA-type perilla varieties.
The Korean Food and Drug Administration noted that the two perilla medicinal varieties, P. frutescens var. acuta and crispa were established as Jasoyeop and are not currently distinguishable in herbal medicine [28]. Nevertheless, for the standardization efforts to control the quality of the medicinal plant, the distinction between P. frutescens var. acuta and crispa may be required. Nuclear ITS and chloroplast DNA sequences have commonly been used to develop molecular markers to identify various plant species [29]; however, the limited differences between perilla subspecies at these loci do not provide sufficient information to distinguish between subspecies (Table S1).
Using previously identified genes putatively providing distinct genetic differences between perilla cultivars [17,18], we identified subspecies-specific indels and SSRs in three genes and developed PfLS, PfMyb-P1pro, and PfDFRpro markers to distinguish between the four Korean perilla varieties, Dlggae (P. frutescens var. japonica), Chungsoyeop (P. frutescens f. viridis), Jasoyeop (P. frutescens var. acuta), and Jureum-soyeop (P. frutescens var. crispa), using indel and SSR sites identified from the exon4/3′ UTR regions of LS and the 5′ upstream promoter regions of Myb-P1 and DFR.

3. Materials and Methods

3.1. Plant Materials and Growth Conditions

A total of 80 samples from 12 perilla accessions (three of P. frutescens var. japonica, acuta, crispa, and P. frutescens f. viridis, respectively) were analyzed in this study (Table 1). Seeds were purchased from different commercial seed companies or collected from their native habitats in Korea and germinated at 25 °C under illumination in a glasshouse under a 16-h light period. After about 7–8 weeks, DNA was extracted from the young leaves. Herbal medicines were purchased from herbal markets in different geographical regions. Dried leaves and twigs of Jasoyeop products (mixed P. frutescens var. acuta or crispa) were purchased at local markets (Table 4) and used for the extraction of DNA.

3.2. Preparation of Genomic DNA

Total genomic DNA was extracted from 0.2 to 1.0 mg fresh and dried leaves using a Plant DNeasy extraction kit (Qiagen, Hilden, Germany), following the manufacturer′s protocol. The quantity and quality of the extracted DNA were determined using a Nanodrop ND-1000 (Thermo Fisher Scientific, Wilmington, DE, USA), after which it was diluted to approximately 10–20 ng·μL−1 for PCR and multiplex-PCR amplification and stored at −20 °C until required.

3.3. Gene Profiles and PCR Product Sequencing

In a previous study, Yuba et al. [14] reported limonene synthase (LS) full genome sequence from P. frutescens. Based on Gong et al. [12], we applied full genome of Myb-P1 and DFR promoters shown distinct differences between Perilla red- and green-colored types. To identify genomic regions containing subspecies-specific sequences for the development of markers based on indel mutations or SSRs, gene profiling was performed using gene-specific primers (Table 3). A total of 19 25-mer primer combinations were designed using the nucleotide and promoter sequences of LS, Myb-P1, and DFR, taken from NCBI GenBank (accession nos.: AF241791, AB024053, and AB024052). These primers were used to perform a PCR of the extracted genomic DNA using Ex Taq DNA polymerase (Takara, Kyoto, Japan). The PCR mixture consisted of 10–20 ng genomic DNA, 4nmol each dNTP, 10pmol each primer, 1 unit Ex. Taq DNA polymerase and 2 μL Ex. Taq buffer (TaKaRa, Kyoto, Japan) in a total volume of 20 μL. The PCR amplification was carried out under the following conditions: an initial denaturation at 95 °C for 5 min; 40 cycles of denaturation at 95 °C for 30 s, annealing at 58 °C for 30 s, and extension at 72 °C for 2 min; ending with a final extension at 72 °C for 5 min. The resulting products were separated by 2% agarose gel electrophoresis, and the target DNA was extracted and purified using a QIAquick Gel Extraction kit (Qiagen, Hilden, Germany). The purified PCR products were introduced into a TA cloning vector using the Topcloner™ TA kit (Enzynomics, Daejeon, Korea), and the ligation products were transformed into Escherichia coli DH5-α competent cells. The recombinant plasmids were purified using a Plasmid Mini kit (Qiagen, Hilden, Germany), and sequenced at Cosmo Genetech (Daejeon, Korea). Three colonies were sequenced for each variety, providing three biological repeats.

3.4. Development of Specific Markers and Data Analysis

The 16 LS, 12 Myb-P1, and 6 DFR, gene sequences obtained from the eight varieties were assembled, edited, and aligned using MEGA 6.0 and Clustal W2 [30,31]. The contigs were aligned to determine any regions containing subspecies-specific indels or SSRs. PCR reactions were performed to confirm primer specificity, using the following conditions: an initial denaturation at 94 °C for 5 min; followed by 40 cycles of denaturation at 94 °C for 30 s, annealing at 62 °C for 30 s, and extension at 72 °C for 30 s; with a final extension for 5 min at 72 °C. The amplified fragments were checked using a 3.0% MetaPhor agarose gel (Lonza, Rockland, ME, USA). The size of each amplification product was automatically estimated using the UVIsoft image analyzer system. For the band size measurements, a charge-coupled device camera imaging system and UVIsoft analysis (Gel documentation and analysis systems, Uvitec, Cambridge, UK) were used to capture the image and to calculate the band size. The polymorphic information content (PIC) was calculated for each fragment using the formula PICὶ = 2ƒί(1 − ƒὶ), where ƒὶ is the frequency of amplified fragments (bands that are present), and (1 − ƒὶ) is the frequency of non-amplified fragments (bands that are absent) of marker ὶ. The PIC value is a measure of how many alleles a marker generates on locus [32]. In this study, two SSR markers is considered as an allele for the purposes of calculations.

3.5. Development of the Multiplex-PCR Assay

Following the Multiplex PCR kit protocol (Qiagen, Hilden, Germany), three subspecies-specific primer sets derived from the LS, Myb-P1, and DFR genes were combined into a single PCR reaction. Optimal PCR conditions were determined by altering the annealing temperature (58–62 °C), the concentration of each primer (0.5–2.0 μM), and using various combinations of primers. Genomic DNA samples isolated from commercial perilla cultivars and dried Jasoyeop products were amplified in a multiplex PCR mix containing 25 μL 2x Qiagen Multiplex PCR master mix, 5 μL 5x Q-solution, 20 ng template DNA, and 5 μL 10x primer mix (final primer concentration: 0.5 μM PfLS, 1 μM PfMyb-P1, and 1 μM PfDFR). The PCR conditions were as follows: an initial denaturation at 95 °C for 5 min; followed by 40 cycles of denaturation at 95 °C for 30 s, annealing at 60 °C for 90 s, and extension at 72 °C for 90 s; with a final extension for 10 min at 68 °C.

4. Conclusions

We successfully developed a multiplex PCR assay combining the three markers, which amplifies three distinct DNA fragments to distinguish between these four subspecies in a single reaction. These marker combinations can be used to efficiently distinguish between the PA- and PK-types of perilla in Korea and to discriminate the medicinal herbal plant Jasoyeop (P. frutescens var. acuta) using fresh or dried plant material, and will therefore enable the analysis of Jasoyeop products in the herbal market.

Supplementary Materials

The following are available. Table S1: Multiple sequence alignments of nucleotide and chloroplast DNA sequences in Perilla subspecies [33].

Acknowledgments

This research was supported by the Support Program for Creative Industry Institutes (Commercial Bio-technology Sophistication Platform Construction Program, R0003950) funded by the Ministry of Trade, Industry & Energy (MOTIE, Korea).

Author Contributions

Y.K., S.-S.C., and C.C. conceived and designed the experiments; A.-Y.K., A.J., and H.C. performed the experiments; Y.K. analyzed the data and wrote the manuscript. All authors read and approved the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, J.; Ohnishi, O. Genetic relationships among cultivated types of Perilla frutescens and their weedy types in East Asia revealed by AFLP markers. Gen. Res. Crop Evol. 2003, 50, 65–74. [Google Scholar] [CrossRef]
  2. Nitta, M.; Ohmi, O. Genetic relationships among two Perilla crops, shiso and egoma, and the weedy type revealed by RAPD markers. Genes Genet. Syst. 1999, 74, 43–48. [Google Scholar] [CrossRef]
  3. Müller-Waldeck, F.; Sitzmann, J.; Schnitzler, W.H.; Graßmann, J. Determination of toxic perilla ketone, secondary plant metabolites and antioxidative capacity in five Perilla frutescens L. varieties. Food Chem. Toxicol. 2010, 48, 264–270. [Google Scholar] [CrossRef] [PubMed]
  4. Meng, L.; Lozano, Y.F.; Gaydou, E.M.; Li, B. Antioxidant activities of polyphenols extracted from Perilla frutescens varieties. Molecules 2008, 14, 133–140. [Google Scholar] [CrossRef] [PubMed]
  5. Lee, J.H.; Park, K.H.; Lee, M.H.; Kim, H.T.; Seo, W.D.; Kim, J.Y.; Ha, T.J. Identification, characterisation, and quantification of phenolic compounds in the antioxidant activity-containing fraction from the seeds of Korean perilla (Perilla frutescens) cultivars. Food Chem. 2013, 136, 843–852. [Google Scholar] [CrossRef] [PubMed]
  6. Ueda, H.; Chikako, Y.; Masatoshi, Y. Luteolin as an anti-inflammatory and anti-allergic constituent of Perilla frutescens. Biol. Pharm. Bull. 2002, 25, 1197–1202. [Google Scholar] [CrossRef] [PubMed]
  7. Osakabe, N.; Takano, H.; Sanbongi, C.; Yasuda, A.; Yanagisawa, R.; Inoue, K.I.; Yoshikawa, T. Anti-inflammatory and anti-allergic effect of rosmarinic acid (RA); inhibition of seasonal allergic rhinoconjunctivitis (SAR) and its mechanism. Biofactors 2004, 21, 127–131. [Google Scholar] [CrossRef] [PubMed]
  8. Ueda, H.; Masatoshi, Y. Anti-inflammatory and anti-allergic actions by oral administration of a perilla leaf extract in mice. Biosci. Biotechnol. Biochem. 2001, 65, 1673–1675. [Google Scholar] [CrossRef] [PubMed]
  9. Jeon, I.H.; Kim, H.S.; Kang, H.J.; Lee, H.S.; Jeong, S.I.; Kim, S.J.; Jang, S.I. Anti-inflammatory and antipruritic effects of luteolin from Perilla (P. frutescens L.) leaves. Molecules 2014, 19, 6941–6951. [Google Scholar] [CrossRef] [PubMed]
  10. Yamasaki, K.; Nakano, M.; Kawahata, T.; Otake, T.; Oishi, I.; Inami, R.; Nakanishi, T. Anti-HIV-1 activity of herbs in Labiatae. Biol. Pharm. Bull. 1998, 21, 829–833. [Google Scholar] [CrossRef] [PubMed]
  11. Yonekura-Sakakibara, K.; Tanaka, Y.; Fukuchi-Mizutani, M.; Fujiwara, H.; Fukui, Y.; Ashikari, T.; Kusumi, T. Molecular and biochemical characterization of a novel hydroxycinnamoyl-CoA: Anthocyanin 3-O-glucoside-6″-O-acyltransferase from Perilla frutescens. Plant Cell Physiol. 2000, 41, 495–502. [Google Scholar] [CrossRef] [PubMed]
  12. Gong, Z.; Yamazaki, M.; Sugiyama, M.; Tanaka, Y.; Saito, K. Cloning and molecular analysis of structural genes involved in anthocyanin biosynthesis and expressed in a forma-specific manner in Perilla Frutescens. Plant Mol. Biol. 1997, 35, 915–927. [Google Scholar]
  13. He, Y.K.; Yao, Y.Y.; Chang, Y.N. Characterization of anthocyanins in Perilla frutescens var. acuta extract by advanced UPLC-ESI-IT-TOF-MSn method and their anticancer bioactivity. Molecules 2015, 20, 9155–9169. [Google Scholar] [PubMed]
  14. Yuba, A.; Honda, G.; Koezuka, Y.; Tabata, M. Genetic analysis of essential oil variants in Perilla frutescens. Biochem. Genet. 1995, 33, 341–348. [Google Scholar] [CrossRef] [PubMed]
  15. Koezuka, Y.; Honda, G.; Tabata, M. Genetic control of phenylpropanoids in Perilla frutescens. Phytochemistry 1986, 25, 2085–2087. [Google Scholar] [CrossRef]
  16. Ohk, H.C.; Chae, Y.A. Analysis of volatile oil components and identification of chemotypes in Jaso (Perilla frutescens) collected in Korea. Korean J. Med. Crop Sci. 2004, 12, 97–101. [Google Scholar]
  17. Yamazaki, M.; Shibata, M.; Nishiyama, Y.; Springob, K.; Kitayama, M.; Shimada, N.; Aoki, T.; Ayabe, S.I.; Saito, K. Differential gene expression profiles of red and green forms of Perilla frutescens leading to comprehensive identification of anthocyanin biosynthetic genes. FEBS J. 2008, 275, 3494–3502. [Google Scholar] [CrossRef] [PubMed]
  18. Fukushima, A.; Nakamura, M.; Suzuki, H.; Saito, K.; Yamazaki, M. High-throughput sequencing and de novo assembly of red and green forms of the Perilla frutescens var. crispa transcriptome. PLoS ONE 2015, 10, e0129154. [Google Scholar] [CrossRef] [PubMed]
  19. Tong, W.; Kwon, S.J.; Lee, J.; Choi, I.Y.; Park, Y.J.; Choi, S.H.; Lee, J.K. Gene set by de novo assembly of Perilla species and expression profiling between P. frutescens (L.) var. frutescens and var. crispa. Gene 2015, 559, 155–163. [Google Scholar] [PubMed]
  20. Poczai, P.; Varga, I.; Laos, M.; Cseh, A.; Bell, N.; Valkonen, J.P.; Hyvönen, J. Advances in plant gene-targeted and functional markers: A review. Plant Method. 2013, 9, 6. [Google Scholar] [CrossRef] [PubMed]
  21. Kage, U.; Kumar, A.; Dhokane, D.; Karre, S.; Kushalappa, A.C. Functional molecular markers for crop improvement. Crit. Rev. Biotechnol. 2016, 36, 917–930. [Google Scholar] [CrossRef] [PubMed]
  22. Yamazaki, M.; Makita, Y.; Springob, K.; Saito, K. Regulatory mechanisms for anthocyanin biosynthesis in chemotypes of Perilla frutescens var. crispa. Biochem. Eng. J. 2003, 14, 191–197. [Google Scholar] [CrossRef]
  23. Ohara, K.; Ujihara, T.; Endo, T.; Sato, F.; Yazaki, K. Limonene production in tobacco with Perilla limonene synthase cDNA. J. Exp. Bot. 2003, 54, 2635–2642. [Google Scholar] [CrossRef] [PubMed]
  24. Gong, Z.Z.; Yamagishi, E.; Yamazaki, M.; Saito, K. A constitutively expressed Myc-like gene involved in anthocyanin biosynthesis from Perilla frutescens: Molecular characterization, heterologous expression in transgenic plants and transactivation in yeast cells. Plant Mol. Biol. 1999, 41, 33–44. [Google Scholar] [CrossRef] [PubMed]
  25. Gong, Z.Z.; Yamazaki, M.; Saito, K. A light inducible Myb-like gene that is specifically expressed in red Perilla frutescens and presumably acts as a determining factor of the anthocyanin forma. Mol. Gen. Genet. 1999, 262, 65–72. [Google Scholar] [CrossRef] [PubMed]
  26. Merdinoglu, D.; Butterlin, G.; Bevilacqua, L.; Chiquet, V.; Adam-Blondon, A.F.; Decroocq, S. Development and characterization of a large set of microsatellite markers in grapevine (Vitis vinifera L.) suitable for multiplex PCR. Mol. Breed. 2005, 5, 349–366. [Google Scholar] [CrossRef]
  27. James, D.; Schmidt, A.M.; Wall, E.; Green, M.; Masri, S. Reliable detection and identification of genetically modified maize, soybean, and canola by multiplex PCR analysis. J. Agric. Food Chem. 2003, 51, 5829–5834. [Google Scholar] [CrossRef] [PubMed]
  28. Group, C.P.W.; Hollingsworth, P.M.; Forrest, L.L.; Spouge, J.L.; Hajibabaei, M.; Ratnasingham, S.; van der Bank, M.; Chase, M.W.; Cowan, R.S.; Erickson, D.L.; et al. A DNA barcode for land plants. Proc. Natl. Acad. Sci. USA 2009, 106, 12794–12797. [Google Scholar] [CrossRef] [PubMed]
  29. Korea Food and Drug Administration. The Korean Herbal Pharmacopoeia, 9th ed.; KFDA: Soul, Korea, 2008; Volume 255, pp. 107–1088. [Google Scholar]
  30. Koichiro, T.; Glen, S.; Daniel, P.; Alan, F.; Sudhir, K. MEGA6: Molecular Evolutionary Genetics Analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar]
  31. Sievers, F.; Wilm, A.; Dineen, D.G.; Gibson, T.J.; Karplus, K.; Li, W.; Lopez, R.; McWilliam, H.; Remmert, M.; Söding, J.; Thompson, J.D.; Higgins, D. Fast, scalable generation of high-quality protein multiple sequence alignments using Clustal Omega. Mol. Syst. Biol. 2011, 7, 539. [Google Scholar] [CrossRef] [PubMed]
  32. Shete, S.; Tiwari, H.; Elston, R.C. On estimating the heterozygosity and polymorphism information content value. Theor. Popul. Biol. 2000, 57, 265–271. [Google Scholar] [CrossRef] [PubMed]
  33. Edgar, R.C. MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples are available from the authors.
Molecules 22 00665 g001 550

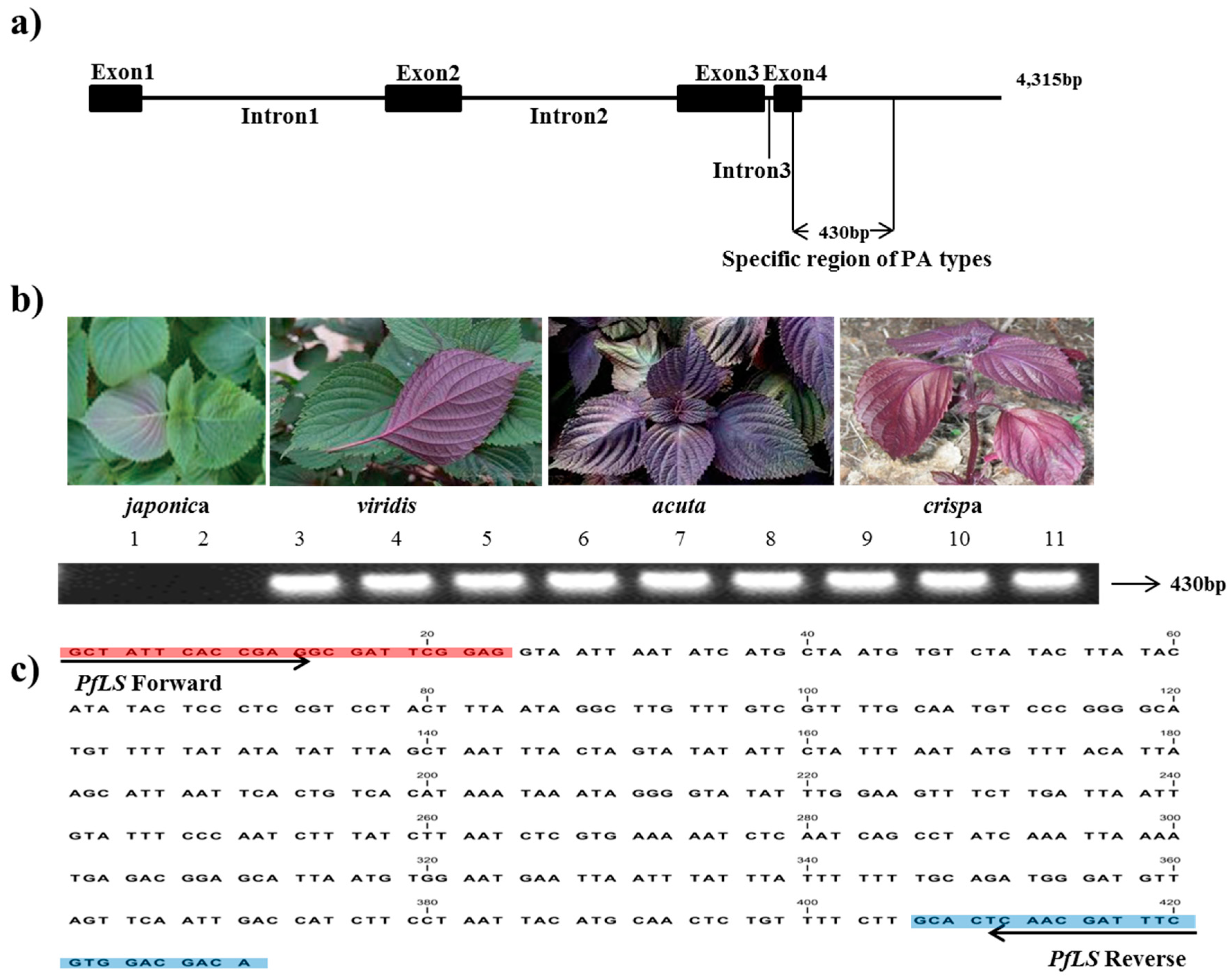

Figure 1. Development of the PfLS marker. (a) LS region specific to PA-type genomes identified in P. frutescens var. crispa, acuta, and viridis. The amplified region covered part of exon 4 and 3′ UTR; (b) Application of the PfLS marker in the commercial breeding perilla lines (1–2: P. frutescens var. japonica; 3–5:f. viridis; 6–8: var. acuta; 9–11: var. crispa). (c) 430 bp sites of specific target region.
Figure 1. Development of the PfLS marker. (a) LS region specific to PA-type genomes identified in P. frutescens var. crispa, acuta, and viridis. The amplified region covered part of exon 4 and 3′ UTR; (b) Application of the PfLS marker in the commercial breeding perilla lines (1–2: P. frutescens var. japonica; 3–5:f. viridis; 6–8: var. acuta; 9–11: var. crispa). (c) 430 bp sites of specific target region.
Molecules 22 00665 g001
Molecules 22 00665 g002 550

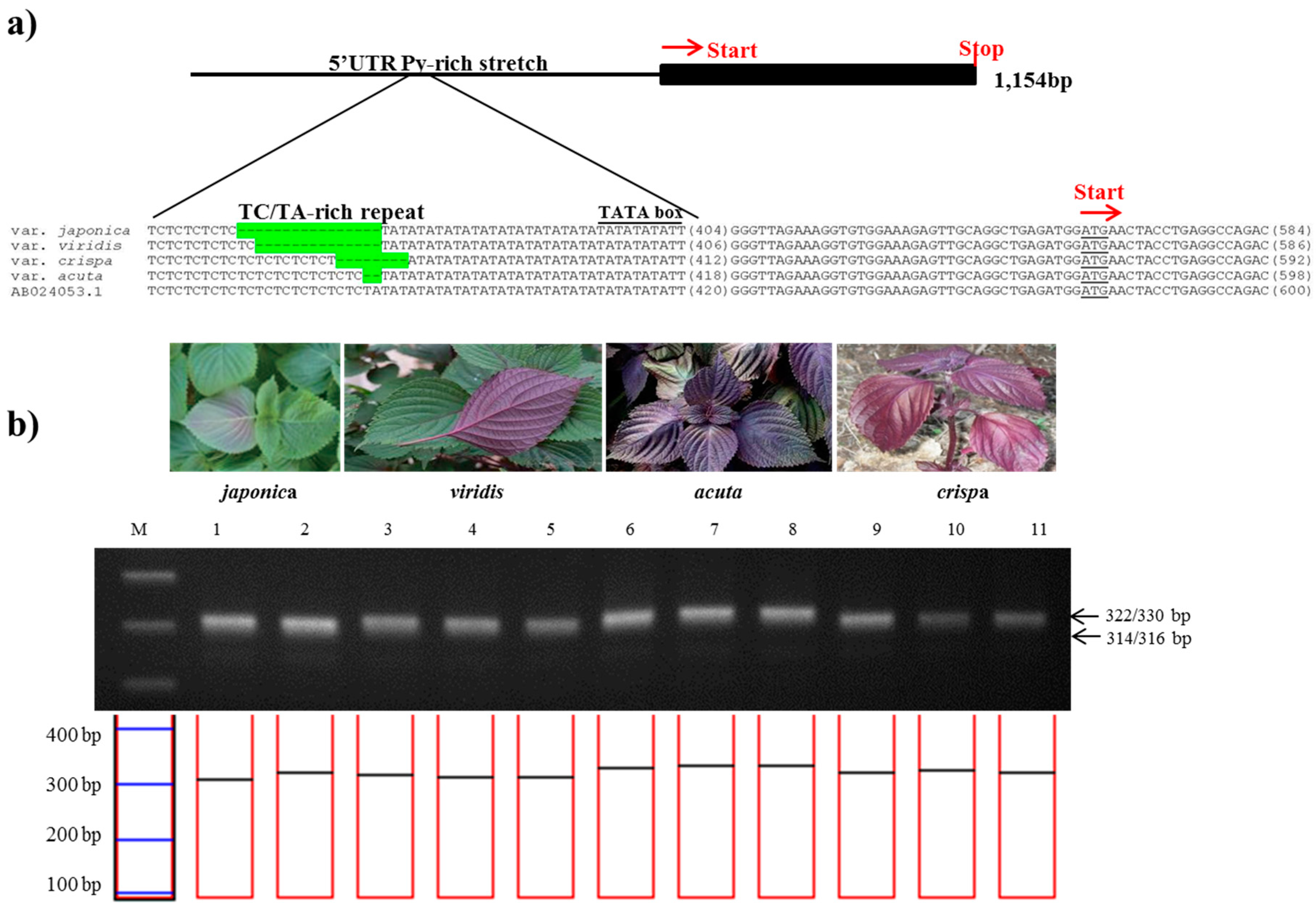

Figure 2. Development of the PfMyb-P1pro marker. (a) Identification of a simple sequence repeat (SSR) in the promoter region of the Myb-P1 gene. The sequence alignment shows the SSR variation of the 5′-UTR Py-rich stretch and AT-rich regions in the promoter of Myb-P1 among four subspecies of P. frutescens. The SSR variations are highlighted in green; (b) Application of the PfMyb-P1pro marker in the commercial breeding perilla lines. (M: 100bp DNA ladder; 1–2: P. frutescens var. japonica; 3–5: f. viridis; 6–8: var. acuta Kudo; 9–11: var. crispa).
Figure 2. Development of the PfMyb-P1pro marker. (a) Identification of a simple sequence repeat (SSR) in the promoter region of the Myb-P1 gene. The sequence alignment shows the SSR variation of the 5′-UTR Py-rich stretch and AT-rich regions in the promoter of Myb-P1 among four subspecies of P. frutescens. The SSR variations are highlighted in green; (b) Application of the PfMyb-P1pro marker in the commercial breeding perilla lines. (M: 100bp DNA ladder; 1–2: P. frutescens var. japonica; 3–5: f. viridis; 6–8: var. acuta Kudo; 9–11: var. crispa).
Molecules 22 00665 g002
Molecules 22 00665 g003 550

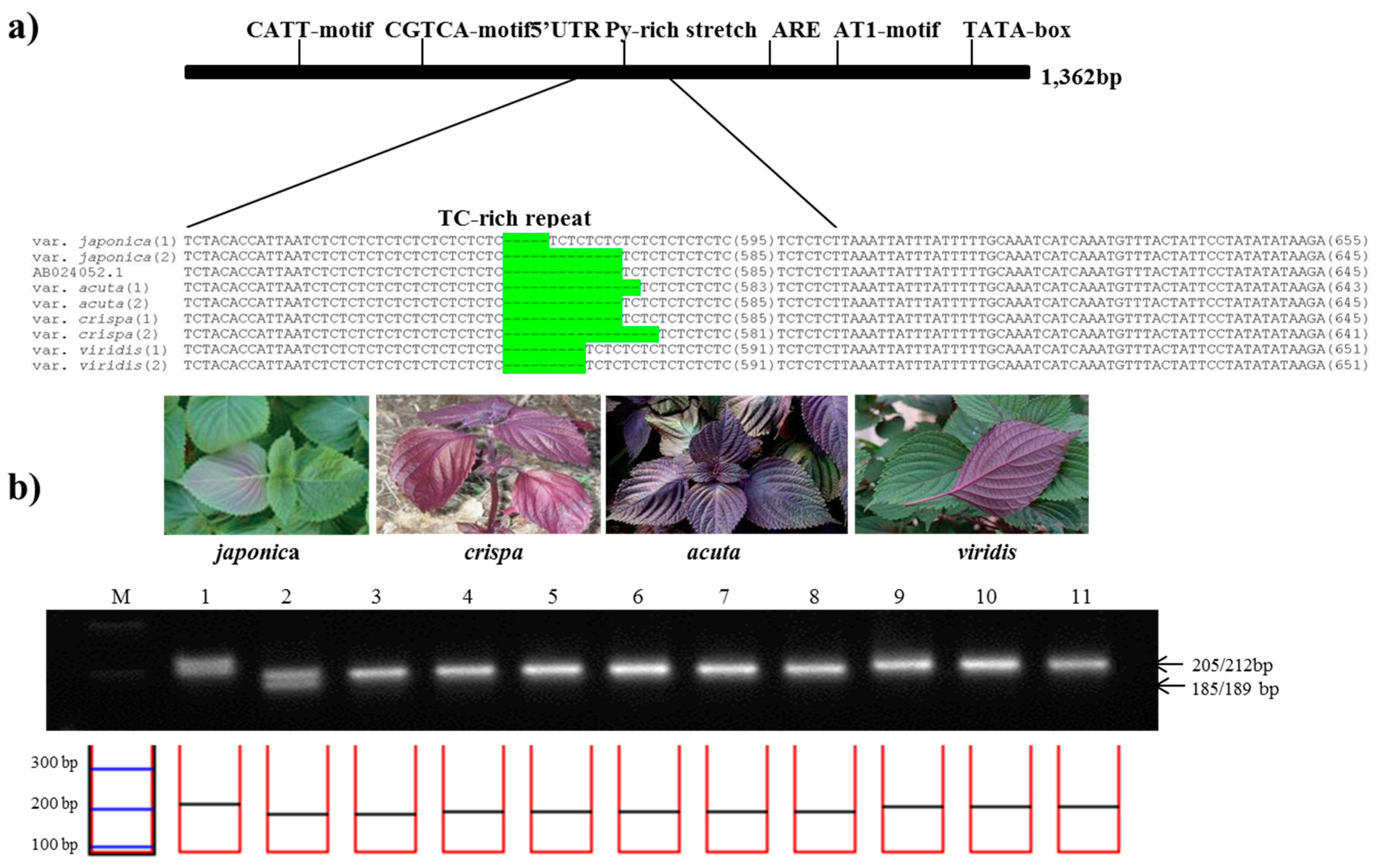

Figure 3. Development of the PfDFRpro marker. (a) Identification of a simple sequence repeat (SSR) in the promoter region of the DFR gene. The sequence alignment shows the SSR variation of 5′-UTR Py-rich stretch in the promoter of DFR among four subspecies of P. frutescens. The SSR variations are highlighted in green; (b) Application of the PfDFRpro marker in the commercial breeding perilla lines. (M: 100bp DNA ladder; 1–2: P. frutescens var. japonica; 3–5: var. crispa; 6–8: var. acuta; 9–11:f. viridis).
Figure 3. Development of the PfDFRpro marker. (a) Identification of a simple sequence repeat (SSR) in the promoter region of the DFR gene. The sequence alignment shows the SSR variation of 5′-UTR Py-rich stretch in the promoter of DFR among four subspecies of P. frutescens. The SSR variations are highlighted in green; (b) Application of the PfDFRpro marker in the commercial breeding perilla lines. (M: 100bp DNA ladder; 1–2: P. frutescens var. japonica; 3–5: var. crispa; 6–8: var. acuta; 9–11:f. viridis).
Molecules 22 00665 g003
Molecules 22 00665 g004 550

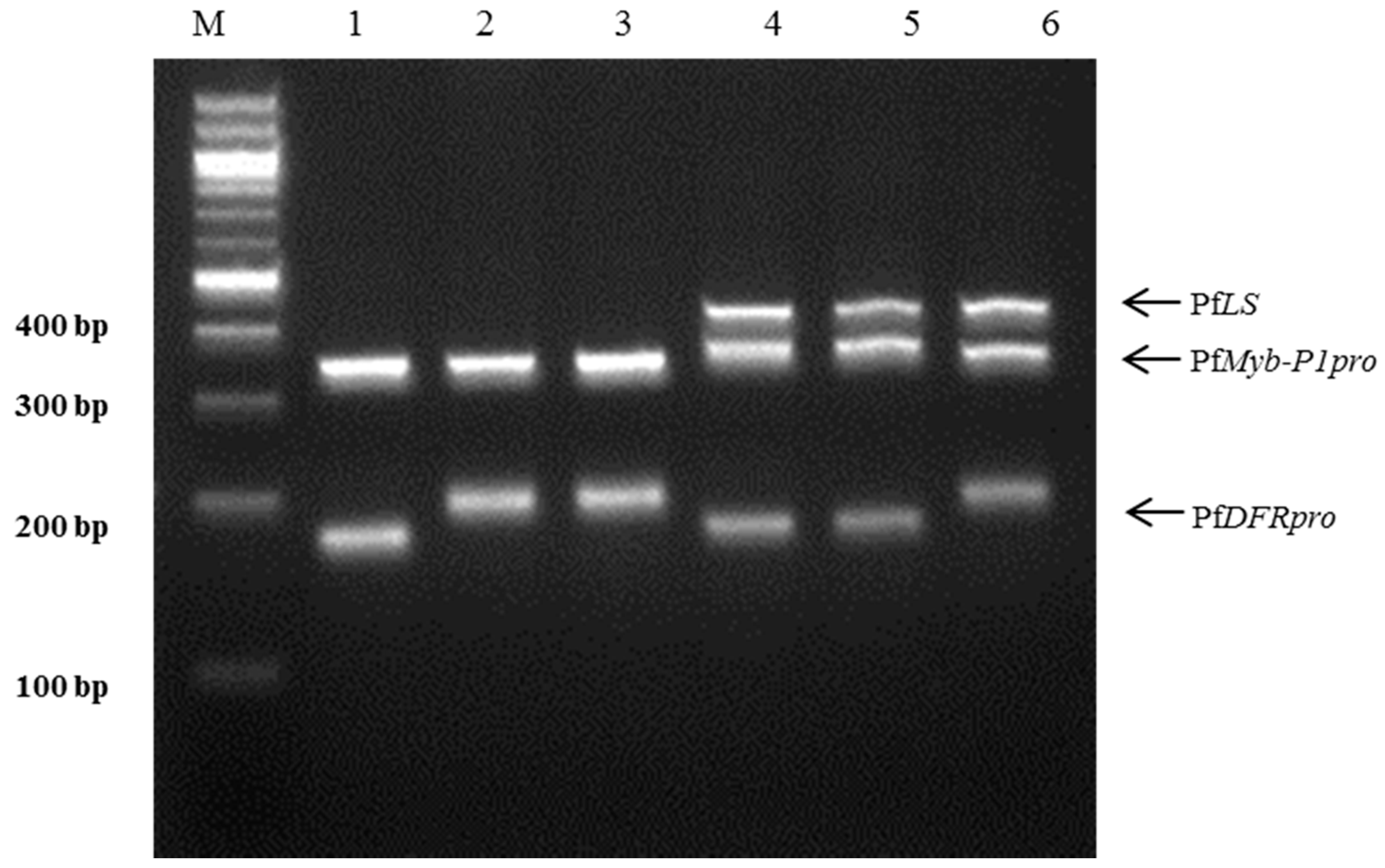

Figure 4. Multiplex PCR assay using three specific markers for the perilla subspecies in a single reaction. A mixture of three specific markers, PfLS, PfMyb-P1pro, and PfDFRpro, was used for PCR amplification. Lanes on 3% electrophoresis gel: M: 100 bp DNA ladder; 1–3: ‘Cham-Dlggae’, ‘Ip-Dlggae’, and ‘Bora-Dlggae’, respectively, which represent the three cultivar types of P. frutescens var. japonica; 4: ‘Jureum-soyeop’, representing P. frutescens var. crispa; 5: ‘Jasoyeop’, representing P. frutescens var. acuta; 6: ‘Chungsoyeop’, representing P. frutescens f. viridis.
Figure 4. Multiplex PCR assay using three specific markers for the perilla subspecies in a single reaction. A mixture of three specific markers, PfLS, PfMyb-P1pro, and PfDFRpro, was used for PCR amplification. Lanes on 3% electrophoresis gel: M: 100 bp DNA ladder; 1–3: ‘Cham-Dlggae’, ‘Ip-Dlggae’, and ‘Bora-Dlggae’, respectively, which represent the three cultivar types of P. frutescens var. japonica; 4: ‘Jureum-soyeop’, representing P. frutescens var. crispa; 5: ‘Jasoyeop’, representing P. frutescens var. acuta; 6: ‘Chungsoyeop’, representing P. frutescens f. viridis.
Molecules 22 00665 g004
Molecules 22 00665 g005 550

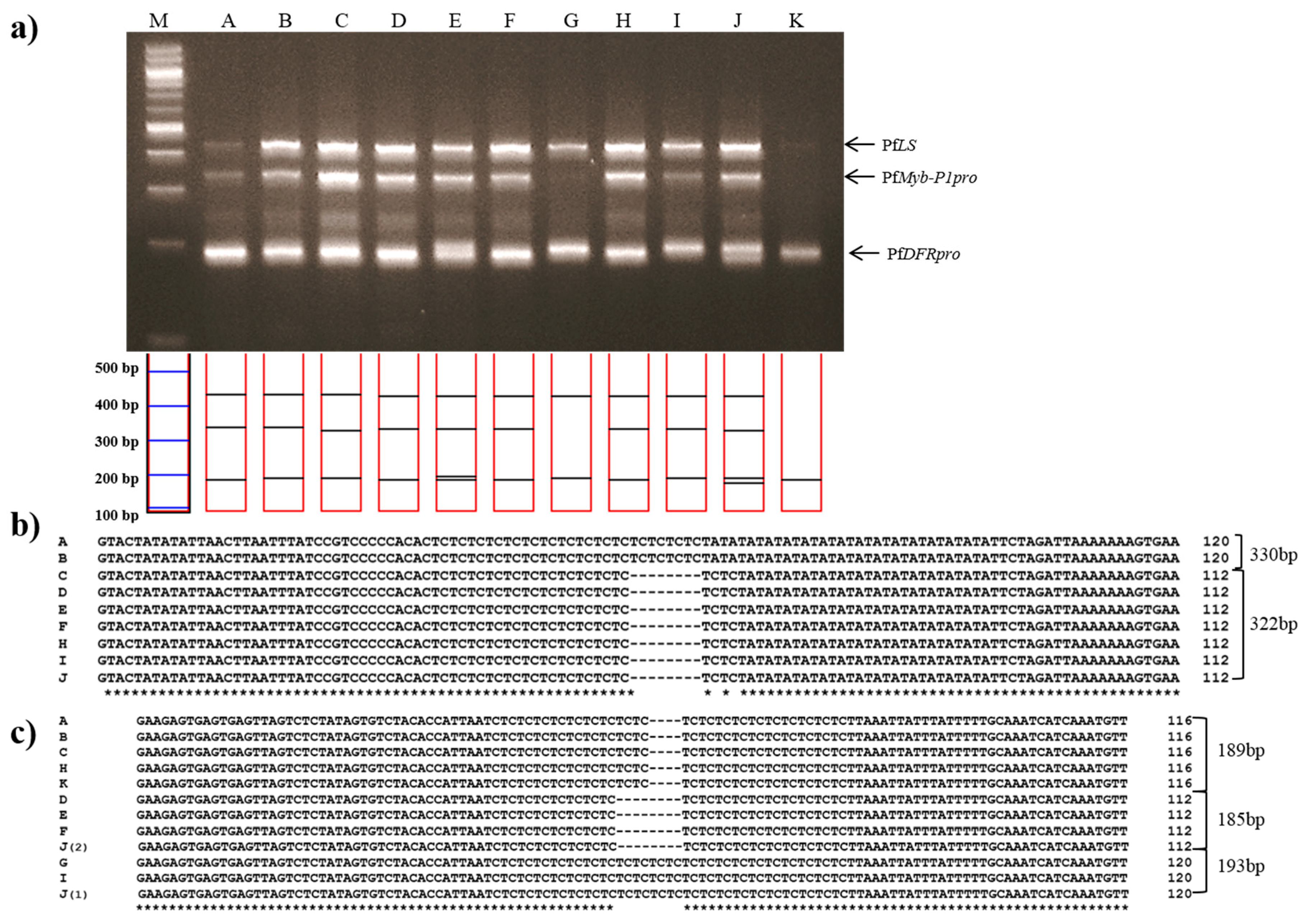

Figure 5. Multiplex PCR identification of 11 commercial dried leaves and twigs of Jasoyeop products. (a) Lanes on 3% electrophoresis gel: M: 100 bp DNA ladder; A–K: purchased commercial dried Jasoyeop products (see Table 3 for full details); (b,c) Sequence analysis of PCR products amplified using the PfMybpro and PfDFRpro marker primers, respectively, aligned using Clustal W2.
Figure 5. Multiplex PCR identification of 11 commercial dried leaves and twigs of Jasoyeop products. (a) Lanes on 3% electrophoresis gel: M: 100 bp DNA ladder; A–K: purchased commercial dried Jasoyeop products (see Table 3 for full details); (b,c) Sequence analysis of PCR products amplified using the PfMybpro and PfDFRpro marker primers, respectively, aligned using Clustal W2.
Molecules 22 00665 g005
Table
Table 1. Plant materials used in this study.
Table 1. Plant materials used in this study.
No.Scientific NameCommon NameCollectionLocation
1P. frutescens var. japonicaCham-DlggaeYongin-si, Gyeonggi-do, Korea37°06′32.7″N 127°07′09.7″E
2Ip-DlggaeYongin-si, Gyeonggi-do, Korea37°06′32.7″N 127°07′09.7″E
3Bora-DlggaeHwasun-gun, Jeollanam-do, Korea35°02′47.5″N 126°57′13.9″E
4P. frutescens var. crispaJureum-soyeopHwasun-gun, Jeollanam-do, Korea35°02′47.5″N 126°57′13.9″E
5Jangheung-gun, Jeollanam-do, Korea34°40′03.0″N 126°56′44.6″E
6Yongin-si, Gyeonggi-do, Korea37°06′32.7″N 127°07′09.7″E
7P. frutescens var. acutaJasoyeopYecheon-gun, Gyeongsangbuk-do, Korea35°59′28.1″N 128°55′33.3″E
8Namyangju-si, Gyeonggi-do, Korea37°38′58.1″N 127°11′31.7″E
9Hwasun-gun, Jeollanam-do, Korea35°02′47.5″N 126°57′13.9″E
10P. frutescens f. viridisChungsoyeopYecheon-gun, Gyeongsangbuk-do, Korea35°59′28.1″N 128°55′33.3″E
11Namyangju-si, Gyeonggi-do, Korea37°38′58.1″N 127°11′31.7″E
12Hwasun-gun, Jeollanam-do, Korea35°02′47.5″N 126°57′13.9″E
Table
Table 2. Primer pairs tested in PCR with genomic DNA from 12 perilla cultivars.
Table 2. Primer pairs tested in PCR with genomic DNA from 12 perilla cultivars.
Gene NameGenbank AccessionPrimer Sequences 5′ to 3′Tm °CSize (bp)Location
LS1 aAF241791F:GAATGTGCATTTGGAATATTATAAG
R:TTGTGAAGCGTACGTTCTGCCGGAG		582555′UTR
LS2 aF:CATCAGACGGTCTAACGGGTAACAA
R1:CACTATGCTCTATAATTAATTGGGTG
R2: AAATATATACCATAAAATGGATTAG
R3:GTTTTGTCCGACACTAACGTGTGAG		60
59
61
58		253
515
576		Exon1 to Intron1
LS3 aF: GAATAGTTAATTAATGGGTGTGCAG
R:AGGAGTCTGAATGCAAGAGCTGTCG		57308Exon2
LS4 aF: CCTGGTAGATACATATTTATATTAT
R:TTTAGCACAGTGCACGAGCCACACG		60189Intron2
LS5 aF:CAACACTTGAACTGTGGCGGGTTGA
R:ATGTCCAAAGAGTGGCGCACACATG		58358Exon3
LS6 aF: CTGGTGGATTGATGCCTATAAGAGG
R: TACATACATACATATATAACATGAG		59223Exon3 to Intron4
LS7 aF: GCTATTCACCGAGGCGATTCGGAGG
R1: ATTTTAATTTGATAGGCTGATTGAG
R2:TGTCGTCCACGAAATCGTTGAGTGC		60
60		301
430		Exon4 to 3′UTR
LS8 aF: AGCGGCCCTGTAATGCTTTGCCATG
R1:CACATCGCCTCGACTCACCTCCTCC
R2:ATAAGCCATCTGATGTGGCGTCGCG		62
59		284
492		3′UTR
Myb-P1pro1 bAB024053F: GAATTGGAAACAAATTAAGGATCGG
R: TGATGTCTGGCCTCAGGTAGTTCAT		596125′UTR
Myb-P1pro2 bF: TTAAGGATCGGAGATCGAATGAGG
R: AGCTTGATCATCAGCTCTTCTTCAT		606575′UTR
Myb-P1pro3 bF: ATGAACTACCTGAGGCCAGACATCA
R: ATGAGTATGAATATTTCTTTGAGGT		58601Coding
DFRpro1 cAB024052F: GAATTCGAGCTCGAATATGTACATT
R: CGACCAACTATTATAGGCATAGCTCC		597455′UTR
DFRpro2 cF: GGAGCTATGCCTATAATAGTTGGTCG
R: GAAACAATCTTGACCACCATTCTTG		606195′UTR
a Limonene Synthase; b Myb-P1 promoter; c DFR promoter.
Table
Table 3. Summary of subspecies-specific indel and two SSR markers used in the analysis of the 11 perilla accessions.
Table 3. Summary of subspecies-specific indel and two SSR markers used in the analysis of the 11 perilla accessions.
Marker NameMarker SequenceProduct Size (bp)Number of AllelesPIC
J aA bC cV d
PfLSFGCTATTCACCGAGGCGATTCGGAGGN/A430430430N/AN/A
RTGTCGTCCACGAAATCGTTGAGTGC
PfMybproFGTACTATATATTAACTTAATTTATCCGT314
316		33032231550.23
RGCTTGATCATCAGCTCTTCTTCATCCAC
PfDFRproFGAAGAGTGAGTGAGTTAGTCTCTATAGT189
202		187
189		185
189		19370.36
RGCAAGAGATTTATGAGCATGTTCTAGAT
a P. frutescens var. japonica; b P. frutescens var. acuta; c P. frutescens var. crispa; d P. frutescens f. viridis.
Table
Table 4. Herbal medicine material from 11 commercial dried Jasoyeop products used in this study.
Table 4. Herbal medicine material from 11 commercial dried Jasoyeop products used in this study.
Herbal MakersMaterial ComponentSource
ADried leaves and twigs of Jasoyeop or Jureum-soyeop productsGapyeong-gun, Gyeonggi-do, Korea
BAndong-si, Gyeongsangbuk-do, Korea
CYeongcheon-si, Gyeongsangbuk-do, Korea
DJecheon-si, Chungcheongbuk-do, Korea
EGapyeong-gun, Gyeonggi-do, Korea
FSancheong-gun, Gyeongsangnam-do, Korea
GTaean-gun, Chungcheongnam-do, Korea
HYeongcheon-si, Gyeongsangbuk-do, Korea
IUiseong-gun, Gyeongsangbuk-do, Korea
JHunan Province, China
KYeongcheon-si, Gyeongsangbuk-do, Korea

Share and Cite

MDPI and ACS Style

Kim, Y.; Kim, A.-Y.; Jo, A.; Choi, H.; Cho, S.-S.; Choi, C. Development of User-Friendly Method to Distinguish Subspecies of the Korean Medicinal Herb Perilla frutescens Using Multiplex-PCR. Molecules 2017, 22, 665. https://doi.org/10.3390/molecules22040665

AMA Style

Kim Y, Kim A-Y, Jo A, Choi H, Cho S-S, Choi C. Development of User-Friendly Method to Distinguish Subspecies of the Korean Medicinal Herb Perilla frutescens Using Multiplex-PCR. Molecules. 2017; 22(4):665. https://doi.org/10.3390/molecules22040665

Chicago/Turabian Style

Kim, Yonguk, Ah-Young Kim, Ara Jo, Hakjoon Choi, Seung-Sik Cho, and Chulyung Choi. 2017. "Development of User-Friendly Method to Distinguish Subspecies of the Korean Medicinal Herb Perilla frutescens Using Multiplex-PCR" Molecules 22, no. 4: 665. https://doi.org/10.3390/molecules22040665

APA Style

Kim, Y., Kim, A.-Y., Jo, A., Choi, H., Cho, S.-S., & Choi, C. (2017). Development of User-Friendly Method to Distinguish Subspecies of the Korean Medicinal Herb Perilla frutescens Using Multiplex-PCR. Molecules, 22(4), 665. https://doi.org/10.3390/molecules22040665

Article Metrics

Back to TopTop
