Communication

Glycerol as Precursor of Organoselanyl and Organotellanyl Alkynes

1
Laboratório de Síntese Orgânica Limpa (LASOL), Centro de Ciências Químicas, Farmacêuticas e de Alimentos (CCQFA), Universidade Federal de Pelotas (UFPel), P.O. Box 354, 96010-900 Pelotas, RS, Brazil
2
Department of Pharmaceutical Sciences, Group of Catalysis and Organic Green Chemistry, University of Perugia, Via del Liceo 1, 06100 Perugia, Italy
*
Authors to whom correspondence should be addressed.
Molecules 2017, 22(3), 391; https://doi.org/10.3390/molecules22030391
Submission received: 24 January 2017 / Revised: 22 February 2017 / Accepted: 28 February 2017 / Published: 2 March 2017

Abstract

:
Herein we describe the synthesis of organoselanyl and organotellanyl alkynes by the addition of lithium alkynylchalcogenolate (Se and Te) to tosyl solketal, easily obtained from glycerol. The alkynylchalcogenolate anions were generated in situ and added to tosyl solketal in short reaction times, furnishing in all cases the respective products of substitution in good yields. Some of the prepared compounds were deprotected using an acidic resin to afford new water-soluble 3-organotellanylpropane-1,2-diols. The synthetic versatility of the new chalcogenyl alkynes was demonstrated in the iodocyclization of 2,2-dimethyl-1,3-dioxolanylmethyl(2-methoxyphenylethynyl)selane 3f, which afforded 3-iodo-2-(2,2-dimethyl-1,3-dioxolanylmethyl) selenanylbenzo[b]furan in 85% yield, opening a new way to access water-soluble Se-functionalized benzo[b]furanes.

Graphical Abstract

1. Introduction

Organochalcogen chemistry is considered a very broad field due to the increasing research on the synthesis [1,2,3,4,5] and applications [2,6,7,8,9] of this class of compounds. Besides, organoselanyl and organotellanyl alkynes have become extensively studied due their pharmacological and biological activities [10,11,12,13] and their use as starting material in organic synthesis [2,14,15,16]. For example, organotellanyl alkynes exhibited antidepressive-like activity [17], while alkyne-derived organotellanyl alkenes showed in vitro antioxidant activity with slight toxicity [18,19]. Additionally, chalcogenyl alkynes are useful in electrophilic cyclization reactions to prepare benzo[b]furans [20], in [4 + 2]-cycloadditions to produce the corresponding 2-chalcogenyl-1-halonaphthalenes [21], and in the synthesis of bis-phenylchalcogen alkenes [22,23]. Despite all the advances in this area, most of the papers are restricted to the synthesis of chalcogenyl alkynes starting mainly from aromatic terminal alkynes [24,25,26,27,28,29,30], with only a few methods to prepare aliphatic alkynylselenides and tellurides with different chalcogen substitution patterns.
On the other hand, with the increasing overproduction of glycerol [31], solketal has become a useful intermediate in chemical transformations using glycerol as a raw material. It is well accepted that tosyl solketal plays an important role in a vast array of applications [32,33,34,35,36]; standing out is its use as a building block in organic synthesis. Recently, tosyl solketal was used as starting material for the synthesis of several biologically active compounds [36,37]. The synthesis of a series of organochalcogen glycerol derivatives was described, including chalcogen ethers [38,39] with antioxidant activity [38], as well as enantiomerically pure selenides and diselenides [40].
In a previous paper [41], we described a convenient procedure for the synthesis of new vinyl chalcogenides by the reaction of glycerol-derived dichalcogenides with terminal alkynes in the presence of NaBH4, using PEG-400 as the solvent. Chalcogenyl alkynes were selectively prepared from the same starting materials, when ethanol was the solvent. However, reaction times were in the range of 5 to 26 h, and the scope of the reaction was limited to organoselanyl alkynes, since the synthesis of only one organotellanyl alkyne in 55% yield was reported [41]. Trying to solve these limitations, and in continuation of our studies on the synthesis and reactivity of chalcogenyl alkynes, herein we describe a general and efficient synthesis of a new glycerol-derived organoselanyl and organotellanyl alkyne 3 via the nucleophilic substitution of lithium alkynylchalcogenolate 1′ (Se and Te) with tosyl solketal 2 (Scheme 1).

2. Results and Discussion

The first step of the reaction is the preparation of the nucleophilic species 1′ai, which were prepared in situ using a butyllithium solution and THF as the solvent. Phenylacetylene 1a (1.0 mmol) and elemental selenium (1.0 mmol) were used as standard reagents to optimize the preparation of the respective alkynylselenolate 1′a (R = C6H5; Y = Se) at 0 °C under N2 atmosphere. After stirring for 20 min at 0 °C, racemic tosyl solketal 2 (1.2 mmol) was added and the mixture was stirred at room temperature for an additional 1 h, giving 2,2-dimethyl-1,3-dioxolanylmethyl(phenylethynyl)selane 3a in 20% yield. When the reaction time was extended to 3 h, the yield was increased to 30%, but side products were also observed. Next, the amount of tosyl solketal 2 was reduced to 1.0 mmol (1 equiv. related to the alkynylselenolate anion 1′a) and after 3 h at r.t., 3a was isolated in 50% yield. However, the best performance of this reaction was achieved when the amount of tosyl solketal 2 was decreased to 0.5 mmol (0.5 equiv. related to 1′a), affording 3a in 80% yield after 3 h. By using 0.7 equiv. of tosyl solketal 2, a decrease in the yield of product 3a was observed (42%). These findings indicate that a large excess of chalcogenolate anion is mandatory for the reaction.
After determining the best conditions to prepare 3a, the protocol was extended to the differently substituted aliphatic and aromatic terminal alkynes 1bh (Table 1, entries 2–8). As shown in Table 1, a number of selenanyl alkynes were prepared in good yields. Starting from aliphatic hex-1-yne 1b, 2,2-dimethyl-1,3-dioxolanylmethyl(hex-1-yn-1-yl)selane 3b was obtained in 63% yield. This is a good outcome, considering that an aliphatic alkyne was used as the starting material (Table 1, entry 2). In principle, the presence of substituents in the aromatic ring of alkynes 1cg seems to negatively impact the reactivity, since all the respective products were obtained in lower yields. Experiments have shown that the overall result is similar in both situations; i.e., the yields of products 3cg are reduced to 60%–70% (Table 1, entries 3–7). Ethynylcyclohex-1-ene 1h afforded the respective selenanyl alkyne 3h in 52% yield, showing that the reaction can be successfully applied to conjugated enynes (Table 1, entry 8).
The optimized protocol was employed using tellurium instead selenium, in order to prepare organotellanyl alkynes 3im. However, by reacting phenylacetylene 1a with elemental tellurium under the same reaction conditions employed for the selenium derivatives, the respective 2,2-dimethyl-1,3-dioxolanylmethyl(phenylethynyl)tellane 3i was obtained in only 30% yield after 3 h. Trying to improve the yield of 3i, the same procedure was repeated, but the tosyl solketal 2 was added at 0 °C and the temperature maintained at 0 °C for an additional 3 h. In this case, the desired product 3h was obtained only in trace amounts, with a large amount of the bis(phenylethynyl)tellane as side product. Then, an additional test was performed: after addition of the solketal 2 to the previously formed alkynyltellurolate 1′ at 0 °C, the ice bath was replaced by an oil bath and the reaction mixture was stirred under reflux for 1.5 h. To our delight, this reaction afforded the desired tellanyl alkyne 3i in 85% yield (Table 1, entry 9). Under the new conditions, the reaction scope could be expanded to other alkynes and the respective tellanyl alkynes were obtained in good yields, similar to the selanyl alkynes analogues (Table 1, entries 10–13).
Due to our interest in the synthetic applications of organochalcogen compounds, as well as in studying new possibilities in their biological activities, we performed the synthesis of new 3-organotellanylpropane-1,2-diols 4 (Table 2). Starting from the organotellanyl alkynes 3i, 3l, and 3m, the 3-tellanylpropane-1,2-diols 4ac were obtained in moderate yields by treatment with Dowex 50WX8 (H+ form) in methanol, after 5 h (Table 2, entries 1–3). These new compounds generally showed a good solubility in water, which will facilitate biological tests where aqueous medium is required (Table 2).
Selanyl alkynes with an appropriate substitution pattern are attractive intermediates in organic synthesis [20]. For example, the intramolecular electrophilic cyclization of 3f with iodine was easily conduced in CH2Cl2 at r.t. for 1 h, delivering 85% yield of the densely functionalized 3-iodo-2-(2,2-dimethyl-1,3-dioxolanylmethyl)selenanylbenzo[b]furan 5 (Scheme 2). The combination of a selenium group with the benzo[b]furan scaffold could be an interesting strategy in the prospection of new drug candidates.

3. Experimental Section

3.1. General Information

The reactions were monitored by thin layer chromatography (TLC) carried out on Merck (Merck, Darmstadt, Germany) silica gel (60 F254) by using UV light as visualizing agent and 5% vanillin in 10% H2SO4 and heat as developing agent. NMR spectra were recorded with Bruker spectrometer (Bruker, Billerica, MA, USA) DPX 300, DPX 400, and DPX 500 (300, 400, and 500 MHz, respectively) instruments using CDCl3 as solvent and calibrated using tetramethylsilane (TMS) as internal standard. Chemical shifts (δ) are reported in ppm, coupling constants (J) are reported in Hertz. The NMR spectra are found in the Supplementary Materials. Low-resolution mass spectra were obtained with a Shimadzu GC-MS-QP2010 mass spectrometer (Shimadzu Corporation, Kyoto, Japan) and molecular ion values are reported according the exact mass. High-resolution mass spectra (HMRS) were recorded on a Shimadzu LC-MS-IT-TOF spectrometer (Shimadzu Corporation). Melting points were determined using a Marte PFD III melting point instrument (Marte Científica, Minas Gerais, Brazil).

3.2. General Procedure for Synthesis of Organoselanyl Alkynes 3ah

To a solution of alkyne 1 (1.0 mmol) in THF (5.0 mL) under N2 atmosphere, BuLi (1.6 mol/L in hexanes; 1.0 mmol) was added at 0 °C. After 20 min, the temperature was increased to room temperature, and elemental selenium (Se0, 1.0 mmol) was added. The stirring at room temperature was maintained until all selenium was consumed, and then a solution of racemic tosyl solketal 2 (0.5 mmol) in THF (2.0 mL) was added. After stirring for 3 h, the reaction mixture was quenched with water (15.0 mL) and extracted with ethyl acetate (3 × 15.0 mL). The organic phase was separated, dried over MgSO4, and the solvent was evaporated under reduced pressure. The product was isolated by column chromatography using hexanes/ethyl acetate as eluent.

Analytical Data of Products 3ah

2,2-Dimethyl-1,3-dioxolanylmethyl(phenylethynyl)selane 3a (Table 1, entry 1) [41]: Yield: 0.118 g (80%); yellow oil. 1H-NMR (CDCl3, 300 MHz); δ (ppm): 7.38–7.42 (m, 2H, Ar-H), 7.27–7.32 (m, 3H, Ar-H), 4.46–4.54 (m, 1H, O-CH), 4.21 (dd, J = 8.6 and 6.0 Hz, 1H, O-HCH), 3.88 (dd, J = 8.6 and 5.8 Hz, 1H, O-HCH), 3.07 (dd, J = 12.1 and 5.2 Hz, 1H, Se-HCH), 2.94 (dd, J = 12.1 and 7.7 Hz, 1H, Se-HCH), 1.45 (d, J = 0.5 Hz, 3H, C-CH3), 1.37 (d, J = 0.5 Hz, C-CH3). 13C-NMR (CDCl3, 75 MHz); δ (ppm): 131.5, 128.3 (3C), 123.2, 109.7, 99.4, 75.3, 69.3, 68.9, 31.8, 27.0, 25.5. MS: m/z (rel. int.) 296 (M+, 8.7), 181 (43.8), 115 (25.9), 102 (26.4), 43 (100.0).
2,2-Dimethyl-1,3-dioxolanylmethyl(hex-1-yn-1-yl)selane 3b (Table 1, entry 2) [41]: Yield: 0.087 g (63%); yellow oil. MS: m/z (rel. int.) 276 (M+, 8.5), 101 (39.1), 79 (22.4), 57 (31.0), 43 (100.0).
2,2-Dimethyl-1,3-dioxolanylmethyl(4-methylphenylethynyl)selane 3c (Table 1, entry 3) [41]: Yield: 0.101 g (65%); yellow solid. m.p. 45–47 °C. MS: m/z (rel. int.) 310 (M+, 23.7), 195 (66.0), 115 (87.0), 57 (66.0), 43 (100.0).
2,2-Dimethyl-1,3-dioxolanylmethyl(2-methylphenylethynyl)selane 3d (Table 1, entry 4) [41]: Yield: 0.109 g (70%); yellow oil. MS: m/z (rel. int.) 310 (M+, 9.3), 195 (12.4), 115 (100.0), 101 (10.0), 43 (39.7).
2,2-Dimethyl-1,3-dioxolanylmethyl(4-methoxyphenylethynyl)selane 3e (Table 1, entry 5) [41]: Yield: 0.098 g (60%); yellow solid; m.p. 39–41 °C. 1H-NMR (CDCl3, 400 MHz); δ (ppm): 7.27 (d, J = 8.9 Hz, 2H, Ar-H), 6.74 (d, J = 8.9 Hz, 2H, Ar-H), 4.37–4.43 (m, 1H, O-CH), 4.12 (dd, J = 8.5 and 6.0 Hz, 1H, O-HCH), 3.79 (dd, J = 8.5 and 5.9 Hz, 1H, O-HCH), 3.71 (s, 3H, Ar-OCH3), 2.98 (dd, J = 12.1 and 5.1 Hz, 1H, Se-HCH), 2.84 (dd, J = 12.1 and 7.7 Hz, 1H, Se-HCH), 1.37 (s, 3H, C-CH3), 1.29 (s, 3H, C-CH3). 13C-NMR (CDCl3, 100 MHz); δ (ppm): 159.8, 133.3, 115.5, 113.9, 109.7, 99.3, 75.4, 69.0, 67.3, 55.2, 31.8, 27.0, 25.5. MS: m/z (rel. int.) 326 (M+, 3.4), 211 (39.3), 196 (20.2), 132 (57.1), 43 (100.0).
2,2-Dimethyl-1,3-dioxolanylmethyl(2-methoxyphenylethynyl)selane 3f (Table 1, entry 6): Yield: 0.098 g (60%); yellow oil. 1H-NMR (CDCl3, 400 MHz); δ (ppm): 7.35–7.37 (m, 1H, Ar-H), 7.24–7.28 (m, 1H, Ar-H), 6.84–6.90 (m, 2H, Ar-H), 4.50–4.56 (m, 1H, O-CH), 4.21–4.25 (m, 1H, O-HCH), 3.93 (dd, J = 7.7 and 6.1 Hz, 1H, O-HCH), 3.86 (s, 3H, Ar-OCH3), 3.08 (dd, J = 12.0 and 4.0 Hz, 1H, Se-HCH), 2.93 (dd, J = 12.0 and 8.0 Hz, 1H, Se-HCH), 1.45 (s, 3H, C-CH3), 1.37 (s, 3H, C-CH3). 13C-NMR (CDCl3, 100 MHz); δ (ppm): 160.1, 133.3, 129.6, 120.3, 112.4, 110.5, 109.5, 95.7, 75.5, 73.0, 69.0, 55.6, 31.7, 26.9, 25.5. MS: m/z (rel. int.) 326 (M+, 29.4), 131 (100.0), 119 (51.2), 57 (71.9), 43 (91.4). HRMS: Calculated mass to C15H18O3Se: [M]+ 326.0421, found: 326.0439.
2,2-Dimethyl-1,3-dioxolanylmethyl(4-fluorophenylethynyl)selane 3g (Table 1, entry 7) [41]: Yield: 0.105 g (67%); yellow solid; m.p. 37–39 °C. MS: m/z (rel. int.) 314 (M+, 0.3), 199 (32.2), 120 (27.1), 107 (90.6), 43 (100.0).
2,2-Dimethyl-1,3-dioxolanylmethyl(cyclohex-1-en-1-ylethynyl)selane 3h (Table 1, entry 8): Yield: 0.078 g (52%); yellow oil. 1H-NMR (CDCl3, 400 MHz); δ (ppm): 6.07–6.09 (m, 1H, C=CH), 4.41–4.45 (m, 1H, O-CH), 4.18 (dd, J = 8.5 and 6.0 Hz, 1H, O-HCH), 3.83 (dd, J = 8.5 and 5.9 Hz, 1H, O-HCH), 2.99 (dd, J = 12.1 and 5.0 Hz, 1H, Se-HCH), 2.84 (dd, J = 12.1 and 8.0 Hz, 1H, Se-HCH), 2.09–2.10 (m, 4H), 1.55–1.65 (m, 4H), 1.43 (s, 3H, C-CH3), 1.36 (s, 3H, C-CH3). 13C-NMR (CDCl3, 100 MHz); δ (ppm): 135.3, 121.0, 109.6, 101.5, 75.5, 69.0, 65.7, 31.6, 29.1, 27.0, 25.61, 25.56, 22.3, 21.4. MS: m/z (rel. int.) 300 (M+, 6.0), 185 (6.7), 104 (35.1), 91 (19.9), 43 (100.0). HRMS: Calculated mass to C14H20O2Se: [M + H]+ 301.0707, found: 301.0690.

3.3. General Procedure for the Synthesis of Organotellanyl Alkynes 3im

To a solution of alkyne 1 (1.0 mmol) in THF (5.0 mL) under N2 atmosphere, BuLi (1.6 mol/L in hexanes; 1.0 mmol) was added at 0 °C. After 20 min, the temperature was increased to room temperature and elemental tellurium (Te0, 1.0 mmol) was added. The stirring at room temperature was maintained until all tellurium has been consumed and then a solution of racemic tosyl solketal 2 (0.5 mmol) in THF (2.0 mL) was added and the mixture was stirred under reflux for additional 1.5 h. After, the reaction mixture was quenched with water (15.0 mL) and extracted with ethyl acetate (3 × 15.0 mL). The organic phase was separated, dried over MgSO4, and the solvent was evaporated under reduced pressure. The product was isolated by column chromatography using hexanes/ethyl acetate as eluent.

Analytical Data of Products 3im

2,2-Dimethyl-1,3-dioxolanylmethyl(phenylethynyl)tellane 3i (Table 1, entry 9) [41]: Yield: 0.147 g (85%); red oil. 1H-NMR (CDCl3, 400 MHz); δ (ppm): 7.31–7.34 (m, 2H, Ar-H), 7.18–7.25 (m, 3H, Ar-H), 4.38–4.44 (m, 1H, O-CH), 4.12 (dd, J = 8.4 and 6.1 Hz, 1H, O-HCH), 3.73 (dd, J = 8.4 and 6.1 Hz, 1H, O-HCH), 3.00–3.08 (m, 2H, Te-CH2), 1.37 (s, 3H, C-CH3), 1.28 (s, 3H, C-CH3). 13C-NMR (CDCl3, 100 MHz); δ (ppm): 131.7, 128.3, 128.2, 123.4, 111.3, 109.7, 75.9, 70.0, 44.2, 27.0, 25.6, 13.6. MS: m/z (rel. int.) 346 (M+, 32.7), 231 (58.2), 101 (75.7), 57 (100.0), 43 (77.0).
2,2-Dimethyl-1,3-dioxolanylmethyl(hex-1-yn-1-yl)tellane 3j (Table 1, entry 10): Yield: 0.103 g (63%); red oil. 1H-NMR (CDCl3, 500 MHz); δ (ppm): 4.41–4.46 (m, 1H, O-CH), 4.18 (dd, J = 8.4 and 6.0 Hz, 1H, O-HCH), 3.77 (dd, J = 8.4 and 6.4 Hz, 1H, O-HCH), 3.02 (dd, J = 11.7 and 5.2 Hz, 1H, Te-HCH), 2.97 (dd, J = 11.7 and 7.6 Hz, 1H, Te-HCH), 2.48 (t, J = 7.0 Hz, 2H, CH2Csp), 1.47–1.53 (m, 2H), 1.43 (s, 3H, C-CH3), 1.37–1.43 (m, 2H), 1.35 (s, 3H, C-CH3), 0.91 (t, J = 7.3 Hz, 3H). 13C-NMR (CDCl3, 125 MHz); δ (ppm): 112.8, 109.7, 76.2, 70.0, 31.0, 27.0, 25.6, 21.9, 20.6, 13.5, 12.4. MS: m/z (rel. int.) 326 (M+, 21.5), 115 (63.0), 81 (79.9), 57 (100.0), 43 (77.2). HRMS: Calculated mass for C12H20O2Te: [M + OH]+ 343.0553, found: 343.0533.
2,2-Dimethyl-1,3-dioxolanylmethyl(4-methylphenylethynyl)tellane 3k (Table 1, entry 11): Yield: 0.099 g (55%); red oil. 1H-NMR (CDCl3, 500 MHz); δ (ppm): 7.29 (d, J = 8.1 Hz, 2H, Ar-H), 7.10 (d, J = 8.1 Hz, 2H, Ar-H), 4.45–4.50 (m, 1H, O-CH), 4.20 (dd, J = 8.4 and 6.0 Hz, 1H, O-HCH), 3.81 (dd, J = 8.4 and 6.4 Hz, 1H, O-HCH), 3.10–3.11 (m, 2H, Te-CH2), 2.35 (s, 3H, Ar-CH3), 1.45 (s, 3H, C-CH3), 1.35 (s, 3H, C-CH3). 13C-NMR (CDCl3, 125 MHz); δ (ppm): 138.6, 131.7, 128.9, 120.4, 111.4, 109.7, 76.0, 70.0, 42.9, 27.0, 25.6, 21.4, 13.5. MS: m/z (rel. int.) 360 (M+, 12.8), 245 (27.8), 115 (100.0), 57 (78.9), 43 (75.2). HRMS: Calculated mass for C15H18O2Te: [M + H]+ 361.0447, found: 361.0469.
2,2-Dimethyl-1,3-dioxolanylmethyl(cyclohex-1-en-1-ylethynyl)tellane 3l (Table 1, entry 12): Yield: 0.107 g (61%); yellow oil; 1H-NMR (CDCl3, 500 MHz); δ (ppm): 6.06–6.09 (m, 1H, C=CH), 4.42–4.47 (m, 1H, O-CH), 4.19 (dd, J = 8.4 and 5.9 Hz, 1H, O-HCH ), 3.78 (dd, J = 8.4 and 6.4 Hz, 1H, O-HCH), 3.02–3.03 (m, 2H, Te-CH2), 2.08–2.16 (m, 4H), 1.54–1.65 (m, 4H), 1.44 (s, 3H, C-CH3), 1.35 (s, 3H, C-CH3). 13C-NMR (CDCl3, 125 MHz); δ (ppm): 135.9, 121.1, 113.5, 109.7, 76.2, 70.0, 39.9, 29.2, 27.0, 25.6, 25.5, 22.2, 21.4, 13.2. MS: m/z (rel. int.) 350 (M+, 40.3), 115 (31.8), 105 (100.0), 57 (92.9), 43 (73.8). HRMS: Calculated mass for C14H20O2Te: [M + H]+ 351.0604, found: 351.0597.
2,2-Dimethyl-1,3-dioxolanylmethyl(4-tert-buthylphenylethynyl)tellane 3m (Table 1, entry 13): Yield: 0.127 g (63%); red oil. 1H NMR (CDCl3, 500 MHz); δ (ppm): 7.31–7.35 (m, 4H, Ar-H), 4.46–4.51 (m, 1H, O-CH), 4.21 (dd, J = 8.4 and 6.0 Hz, 1H, O-HCH ), 3.81 (dd, J = 8.4 and 6.4 Hz, 1H, O-HCH), 3.10–3.11 (m, 2H, Te-CH2), 1.45 (s, 3H, C-CH3), 1.35 (s, 3H, C-CH3), 1.30 (s, 9H, C-CH3). 13C NMR (CDCl3, 125 MHz); δ (ppm): 151.7, 131.6, 125.2, 120.4, 111.5, 109.7, 76.1, 70.0, 42.9, 34.7, 31.1, 27.0, 25.6, 13.5. MS: m/z (rel. int.) 402 (M+, 26.2), 287 (19.6), 143 (66.4), 57 (99.7), 43 (100.0). HRMS: Calculated mass for C18H24O2Te: [M + H]+ 403.0917, found: 403.0908.

3.4. General Procedure for the Synthesis of 3-(Organotellanyl)propane-1,2-diol 4ac

To a solution of the respective organotellanyl alkyne 3 (1.0 mmol) in MeOH (2.5 mL) Dowex® acidic ion-exchange resin (50WX8 20–50 mesh; 1.122 g) was added at room temperature. The reaction mixture was stirred for 5 h at room temperature and then it was filtered and washed with MeOH. The filtrate was concentrated and chromatographed (50% EtOAc/hexanes).

Analytical Data of Products 4ac

3-(Phenylethynyltellanyl)propane-1,2-diol 4a (Table 2, entry 1): Yield: 0.153 g (50%); red oil. 1H-NMR (CDCl3, 400 MHz); δ (ppm): 7.39–7.41 (m, 2H, Ar-H), 7.26–7.32 (m, 3H, Ar-H), 4.04–4.09 (m, 1H, O-CH), 3.81 (dd, J = 11.3 and 3.1 Hz, 1H, O-HCH), 3.66 (dd, J = 11.3 and 6.1 Hz, 1H, O-HCH), 2.81–3.07 (m, 4H, Te-CH2 and 2 O-H). 13C-NMR (CDCl3, 100 MHz); δ (ppm): 131.8, 128.4, 128.2, 123.4, 111.2, 71.5, 66.6, 45.1, 14.8. MS: m/z (rel. int.) 306 (M+, 7.9), 231 (11.7), 155 (44.9), 102 (43.7), 91 (100.0). HRMS: Calculated mass for C11H12O2Te: [M + H]+ 306.9978, found: 306.9903.
3-(Cyclohex-1-en-1-ylethynyltellanyl)propane-1,2-diol 4b (Table 2, entry 2): Yield: 0.155 g (50%); yellow oil. 1H-NMR (CDCl3, 400 MHz); δ (ppm): 6.07–6.10 (m, 1H, C=CH), 4.0–4.06 (m, 1H, O-CH), 3.79 (dd, J = 11.3 and 3.4 Hz, 1H, O-HCH ), 3.65 (dd, J = 11.3 and 6.1 Hz, 1H, O-HCH), 2.76–3.0 (m, 4H, Te-CH2 and 2 O-H), 2.07–2.17 (m, 4H), 1.54–1.65 (m, 4H). 13C-NMR (CDCl3,100 MHz); δ (ppm): 136.1, 121.1, 113.5, 71.7, 66.5, 40.7, 29.3, 25.5, 22.2, 21.4, 14.5. MS: m/z (rel. int.) 310 (M+, 20.6), 235 (6.8), 105 (100.0), 91 (43.0), 79 (54.0). HRMS: Calculated mass for C11H16O2Te: [M + H]+ 311.0291, found: 311.0273.
3-(4-tert-Buthylphenylethynyltellanyl)propane-1,2-diol 4c (Table 2, entry 3): Yield: 0.170 g (47%); red oil. 1H-NMR (CDCl3, 400 MHz); δ (ppm): 7.29–7.35 (m, 4H, Ar-H), 4.03–4.09 (m, 1H, O-CH), 3.80 (dd, J = 11.4 and 3.1 Hz, 1H, O-HCH), 3.64 (dd, J = 11.4 and 6.2 Hz, 1H, O-HCH), 3.03–3.30 (m, 4H, Te-CH2 and 2 O-H), 1.28 (s, 9H, C-CH3). 13C-NMR (CDCl3, 100 MHz); δ (ppm): 151.8, 131.6, 125.2, 120.4, 111.3, 71.6, 66.5, 44.3, 34.7, 31.1, 14.7. MS: m/z (rel. int.) 362 (M+, 20.2), 288 (11.4), 143 (100), 57 (98.2), 41 (44.1). HRMS: Calculated mass for C15H20O2Te: [M + H]+ 363.0604, found: 363.0583.

3.5. Procedure for the Synthesis of the 3-Iodo-2-(2,2-dimethyl-1,3-dioxolanylmethyl)selenanylbenzo[b]furan 5

To a solution of 2,2-dimethyl-1,3-dioxolanylmethyl(2-methoxyphenylethynyl)selane 3f (0.25 mmol) in CH2Cl2 (2.0 mL) a solution of I2 (0.28 mmol) in CH2Cl2 (3.0 mL) was added. The reaction mixture was stirred for 1 h at room temperature. Then, saturated aqueous Na2S2O3 was added to remove the excess of I2. The mixture was then extracted with ethyl acetate (3 × 10 mL) and the organic phase was separated, dried over MgSO4 and concentrated under vacuum. The product was isolated by column chromatography using hexanes/ethyl acetate as eluent.

Analytical Data of Product 5

3-Iodo-2-(2,2-dimethyl-1,3-dioxolanylmethyl)selenanylbenzo[b]furan 5 (Scheme 2): Yield: 0.093 g (85%); yellow oil; 1H-NMR (CDCl3, 400 MHz); δ (ppm): 7.44–7.47 (m, 1H, Ar-H), 7.28–7.37 (m, 3H, Ar-H), 4.36–4.42 (m, 1H, O-CH), 4.18 (dd, J = 8.5 and 6.0 Hz, 1H, O-HCH), 3.79 (dd, J = 8.5 and 6.0 Hz, 1H, O-HCH), 3.31 (dd, J = 12.3 and 5.2 Hz, 1H, Se-HCH), 3.11 (dd, J = 12.3 and 7.8 Hz, 1H, Se-HCH), 1.45 (s, 3H, C-CH3), 1.36 (s, 3H, C-CH3). 13C-NMR (CDCl3, 100 MHz); δ (ppm): 156.7, 146.6, 131.3, 125.6, 123.6, 121.2, 111.0; 109.8; 75.8, 75.4; 69.1; 30.8, 27.0; 25.5. MS: m/z (rel. int.) 438 (M+, 23.4), 168 (18.2), 115 (35.3), 101 (21.5), 57 (100.0). HRMS: Calculated mass for C14H15IO3Se: [M + NH4]+ 455.9575, found: 455.9577.

4. Conclusions

In summary, we developed a new and general protocol to prepare glycerol-derived organoselanyl and organotellanyl alkynes using tosyl solketal. Eight organoselanyl and five organotellanyl alkynes were obtained in good yields and short reaction times, when compared to previously described procedures. Some of the organotellanyl alkynes were deprotected using Dowex 50WX8-(H+) to give new water-soluble 3-organotellanylpropane-1,2-diols.

Supplementary Materials

Supplementary materials are available at https://www.mdpi.com/1420-3049/22/3/391/s1.

Acknowledgments

The authors thank FAPERGS, CNPq and CAPES for financial support. CNPq is also acknowledged for the fellowship for E.J.L., D.A. and G.P. This manuscript is part of the scientific activity of the international multidisciplinary “SeS Redox and Catalysis” network.

Author Contributions

E.J.L. and G.P. conceived and designed the experiments; E.L.B., G.S. and L.K.S. performed the experiments; D.A., R.F.S., L.B., F.M., E.J.L. and G.P. analyzed the data and wrote the paper.

Conflicts of Interest

The authors declared no conflict of interest.

References

  1. Wirth, T. Organoselenium Chemistry—Modern Developments in Organic Synthesis; Topics in Current Chemistry; Springer: Heidelberg, Germany, 2000; Volume 208. [Google Scholar]
  2. Zeni, G.; Lüdtke, D.S.; Panatieri, R.B.; Braga, A.L. Vinylic Tellurides: From Preparation to Their Applicability in Organic Synthesis. Chem. Rev. 2006, 106, 1032–1076. [Google Scholar] [CrossRef] [PubMed]
  3. Perin, G.; Lenardão, E.J.; Jacob, R.G.; Panatieri, R.B. Synthesis of Vinyl Selenides. Chem. Rev. 2009, 109, 1277–1301. [Google Scholar] [CrossRef] [PubMed]
  4. Menezes, P.H.; Zeni, G. Vinyl Selenides in Patai’s Chemistry of Functional Groups; John Wiley & Sons: New York, NY, USA, 2011. [Google Scholar]
  5. Palomba, M.; Bagnoli, L.; Marini, F.; Santi, C.; Sancineto, L. Recent advances in the chemistry of vinylchalcogenides. Phosphorus Sulfur Silicon Relat. Elem. 2016, 191, 235–244. [Google Scholar] [CrossRef]
  6. Nogueira, C.W.; Rocha, J.B.T. Organoselenium and organotellurium compounds: Toxicology and pharmacology. Chem. Rev. 2004, 104, 6255–6285. [Google Scholar] [CrossRef] [PubMed]
  7. Goswami, S.; Hazra, A.; Chakrabarty, R.; Fun, H.-K. Recognition of carboxylate anions and carboxylic acids by selenium-based new chromogenic fluorescent sensor: A remarkable fluorescence enhancement of hindered carboxylates. Org. Lett. 2009, 11, 4350–4353. [Google Scholar] [CrossRef] [PubMed]
  8. Rampon, D.S.; Rodembush, F.S.; Schneider, J.M.F.M.; Bechtold, I.H.; Gonçalves, P.F.B.; Merlo, A.A.; Schneider, P.H. Novel selenoesters fluorescent liquid crystalline exhibiting a rich phase polymorphism. J. Mater. Chem. 2010, 20, 715–722. [Google Scholar] [CrossRef]
  9. Samb, I.; Bell, J.; Toullec, P.Y.; Michelet, V.; Leray, I. Fluorescent phosphane selenide as efficient mercury chemodosimeter. Org. Lett. 2011, 13, 1182–1185. [Google Scholar] [CrossRef] [PubMed]
  10. Mugesh, G.; du Mont, W.-W.; Sies, H. Chemistry of biologically important synthetic organoselenium compounds. Chem. Rev. 2001, 101, 2125–2179. [Google Scholar] [CrossRef] [PubMed]
  11. Santoro, S.; Azeredo, J.B.; Nascimento, V.; Sancineto, L.; Braga, A.L.; Santi, C. The green side of the moon: Ecofriendly aspects of organoselenium chemistry. RSC Adv. 2014, 4, 31521–31535. [Google Scholar] [CrossRef]
  12. Santi, C. Organoselenium Chemistry between Synthesis and Biochemistry, 1st ed.; Bentham eBooks: Perugia, Italy, 2014. [Google Scholar]
  13. Barcellos, A.M.; Abenante, L.; Sarro, M.T.; Leo, I.D.; Lenardão, E.J.; Perin, G.; Santi, C. New prospective for redox modulation mediated by organoselenium and organotellurium compounds. Curr. Org. Chem. 2017, 21, 1–18. [Google Scholar] [CrossRef]
  14. Pérez-Balado, C.; Markó, I.E. 1-Iodo-1-selenoalkenes as versatile alkene 1,1-dianion equivalents. Novel connective approach towards the tetrahydropyran subunit of polycavernoside A. Tetrahedron 2006, 62, 2331–2349. [Google Scholar] [CrossRef]
  15. Liu, C.-R.; Yang, F.-L.; Jin, Y.-Z.; Ma, X.-T.; Cheng, D.-J.; Li, N.; Tian, S.-K. Catalytic regioselective synthesis of structurally diverse indene derivatives from n-benzylic sulfonamides and disubstituted alkynes. Org. Lett. 2010, 12, 3832–3835. [Google Scholar] [CrossRef] [PubMed]
  16. Mitamura, T.; Ogawa, A. Palladium-catalyzed alkynylselenation of acetylenedicarboxylates leading to enyne selenides and application to synthesis of multisubstituted aryl selenides. Tetrahedron Lett. 2010, 51, 3538–3541. [Google Scholar] [CrossRef]
  17. Okoronkwo, A.E.; Godoi, B.; Schumacher, R.F.; Neto, J.S.S.; Luchese, C.; Prigol, M.; Nogueira, C.W.; Zeni, G. Csp3-tellurium copper cross-coupling: Synthesis of alkynyl tellurides a novel class of antidepressive-like compounds. Tetrahedron Lett. 2009, 50, 909–915. [Google Scholar] [CrossRef]
  18. Savegnago, L.; Borges, V.C.; Alves, D.; Jesse, C.R.; Rocha, J.B.T.; Nogueira, C.W. Evaluation of antioxidant activity and potential toxicity of 1-buthyltelurenyl-2-methylthioheptene. Life Sci. 2006, 79, 1546–1552. [Google Scholar] [CrossRef] [PubMed]
  19. Ávila, D.S.; Gubert, P.; Palma, A.; Colle, D.; Alves, D.; Nogueira, C.W.; Rocha, J.B.T.; Soares, F.A.A. An organotellurium compound with antioxidant activity against excitotoxic agents without neurotoxic effects in brain of rats. Brain Res. Bull. 2008, 76, 114–123. [Google Scholar] [CrossRef] [PubMed]
  20. Manarin, F.; Roehrs, J.A.; Gay, R.M.; Brandão, R.; Menezes, P.H.; Nogueira, C.W.; Zeni, G. Electrophilic cyclization of 2-chalcogenealkynylanisoles: Versatile access to 2-chalcogen-benzo[b]furans. J. Org. Chem. 2009, 74, 2153–2162. [Google Scholar] [CrossRef] [PubMed]
  21. Mantovani, A.C.; Back, D.F.; Zeni, G. Chalcogenoalkynes: Precursors for the regioselective preparation of 2-chalcogeno-1-halonaphthalenes through [4 + 2] cycloaddition. Eur. J. Org. Chem. 2012, 4574–4579. [Google Scholar] [CrossRef]
  22. Lara, R.G.; Borges, E.L.; Lenardão, E.J.; Alves, D.; Jacob, R.G.; Perin, G. Addition of thiols to phenylselenoalkynes using KF/alumina under solvent-free conditions. J. Braz. Chem. Soc. 2010, 21, 2125–2129. [Google Scholar] [CrossRef]
  23. Perin, G.; Borges, E.L.; Alves, D. Highly stereoselective method to prepare bis-phenylchalcogen alkenes via addition of chalcogenolate to phenylseleno alkynes. Tetrahedron Lett. 2012, 53, 2066–2069. [Google Scholar] [CrossRef]
  24. Rampon, D.S.; Giovenardi, R.; Silva, T.L.; Rambo, R.S.; Merlo, A.A.; Schneider, P.H. Chalcogenoacetylenes obtained by indium(III) catalysis: Dual catalytic activation of diorgano dichalcogenides and Csp-H bonds. Eur. J. Org. Chem. 2011, 7066–7070. [Google Scholar] [CrossRef]
  25. Godoi, M.; Ricardo, E.W.; Frizon, T.E.; Rocha, M.S.T.; Singh, D.; Paixão, M.W.; Braga, A.L. An efficient synthesis of alkynyl selenides and tellurides from terminal acetylenes and diorganyl diselenides or ditellurides catalyzed by recyclable copper oxide nanopowder. Tetrahedron 2012, 68, 10426–10430. [Google Scholar] [CrossRef]
  26. Ahammed, S.; Bhadra, S.; Kundu, D.; Sreedhar, B.; Ranu, B.C. An efficient and general procedure for the synthesis of alkynyl chalcogenides (selenides and tellurides) by alumina-supported Cu(II)-catalyzed reaction of alkynyl bromides and diphenyl dichalcogenides. Tetrahedron 2012, 68, 10542–10549. [Google Scholar] [CrossRef]
  27. Movasssagh, B.; Yousefi, A.; Momeni, B.Z.; Heydari, S. A general and highly efficient protocol for the synthesis of chalcogenoacetylenes by copper(I)-terpyridine catalyst. Synlett 2014, 25, 1385–1390. [Google Scholar] [CrossRef]
  28. Godoi, M.; Liz, D.G.; Ricardo, E.W.; Rocha, M.S.T.; Azeredo, J.B.; Braga, A.L. Magnetite (Fe3O4) nanoparticles: An efficient and recoverable catalyst for the synthesis of alkynyl chalcogenides (selenides and tellurides) from terminal acetylenes and diorganyl dichalcogenides. Tetrahedron 2014, 70, 3349–3354. [Google Scholar] [CrossRef]
  29. Mohammadi, E. Movassagh, B. Cryptand-22 as an efficient ligand for the copper-catalyzed cross-coupling reaction of diorgano dichalcogenides with terminal alkynes leading to the synthesis of alkynyl chalcogenides. Tetrahedron Lett. 2014, 55, 1613–1615. [Google Scholar] [CrossRef]
  30. Alves, D.; Sachini, M.; Jacob, R.G.; Lenardão, E.J.; Contreira, M.E.; Savegnago, L.; Perin, G. Synthesis of (Z)-organylthioenynes using KF/Al2O3/solvent as recyclable system. Tetrahedron Lett. 2011, 52, 133–135. [Google Scholar] [CrossRef]
  31. Len, C.; Luque, R. Continuous flow transformations of glycerol to valuable products: An overview. Sustain. Chem. Process. 2014, 2, 1–10. [Google Scholar] [CrossRef]
  32. Mori, K. Pheromone synthesis. Part 253: Synthesis of the racemates and enantiomers of triglycerides of male Drosophila fruit flies with special emphasis on the preparation of enantiomerically pure 1-monoglycerides. Tetrahedron 2012, 68, 8441–8449. [Google Scholar] [CrossRef]
  33. Manzo, E.; Ciavatta, M.L.; Pagano, D.; Fontana, A. An efficient and versatile chemical synthesis of bioactive glyco-glycerolipids. Tetrahedron Lett. 2012, 53, 879–881. [Google Scholar] [CrossRef]
  34. Wu, W.; Li, R.; Malladi, S.S.; Warshakoon, H.J.; Kimbrell, M.R.; Amolins, M.W.; Ukani, R.; Datta, A.; David, S.A. Structure–activity relationships in toll-like receptor-2 agonistic diacylthioglycerol lipopeptides. J. Med. Chem. 2010, 53, 3198–3213. [Google Scholar] [CrossRef] [PubMed]
  35. Goubert, M.; Canet, I.; Sinibaldi, M.-E. An expedient route to new spiroheterocycles: Synthesis and structural studies. Eur. J. Org. Chem. 2006, 4805–4812. [Google Scholar] [CrossRef] [Green Version]
  36. Oh, K.; Yamada, K.; Asami, T.; Yoshizawa, Y. Synthesis of novel brassinosteroid biosynthesis inhibitors based on the ketoconazole scaffold. Bioorg. Med. Chem. Lett. 2012, 22, 1625–1628. [Google Scholar] [CrossRef] [PubMed]
  37. Gong, L.; Hirschfeld, D.; Tan, Y.-C.; Hogg, J.H.; Peltz, G.; Avnur, Z.; Dunten, P. Discovery of potent and bioavailable GSK-3β inhibitors. Bioorg. Med. Chem. Lett. 2010, 20, 1693–1696. [Google Scholar] [CrossRef] [PubMed]
  38. Perin, G.; Borges, E.L.; Duarte, J.E.G.; Webber, R.; Jacob, R.G.; Lenardão, E.J. Glycerol as renewable resource in the synthesis of thioethers using KF/Al2O3. Curr. Green. Chem. 2014, 1, 115–120. [Google Scholar] [CrossRef]
  39. Nobre, P.C.; Borges, E.L.; Silva, C.M.; Casaril, A.M.; Martinez, D.M.; Lenardão, E.J.; Alves, D.; Savegnago, L.; Perin, G. Organochalcogen compounds from glycerol: Synthesis of new antioxidants. Bioorg. Med. Chem. 2014, 22, 6242–6249. [Google Scholar] [CrossRef] [PubMed]
  40. Borges, E.L.; Peglow, T.J.; Silva, M.S.; Jacoby, C.G.; Schneider, P.H.; Lenardão, E.J.; Jacob, R.G.; Perin, G. Synthesis of enantiomerically pure bis(2,2-dimethyl-1,3-dioxolanylmethyl)chalcogenides and dichalcogenides. New J. Chem. 2016, 40, 2321–2326. [Google Scholar] [CrossRef]
  41. Soares, L.K.; Silva, R.B.; Peglow, T.J.; Silva, M.S.; Jacob, R.G.; Alves, D.; Perin, G. Selective synthesis of vinyl- or alkynyl chalcogenides from glycerol and their water-soluble derivatives. ChemistrySelect 2016, 1, 2009–2013. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds 25 are available from the authors.

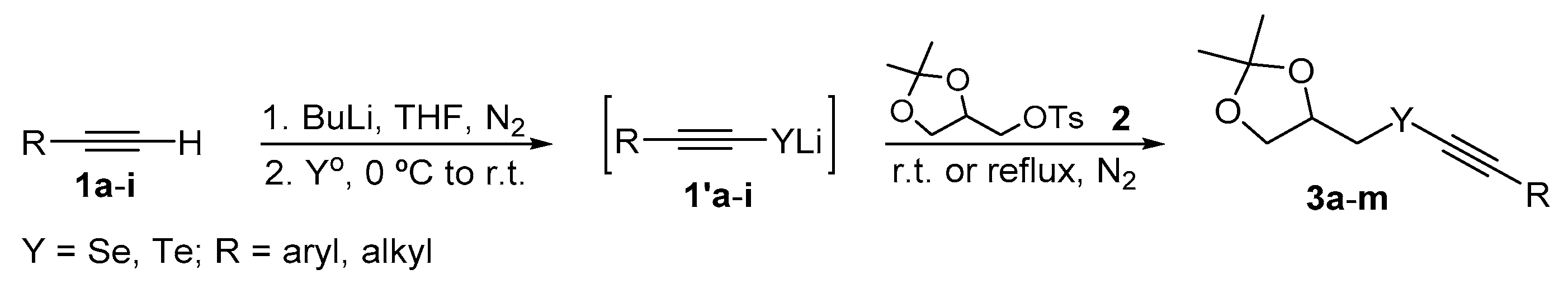

Scheme 1. General scheme of the reaction.
Scheme 1. General scheme of the reaction.
Molecules 22 00391 sch001

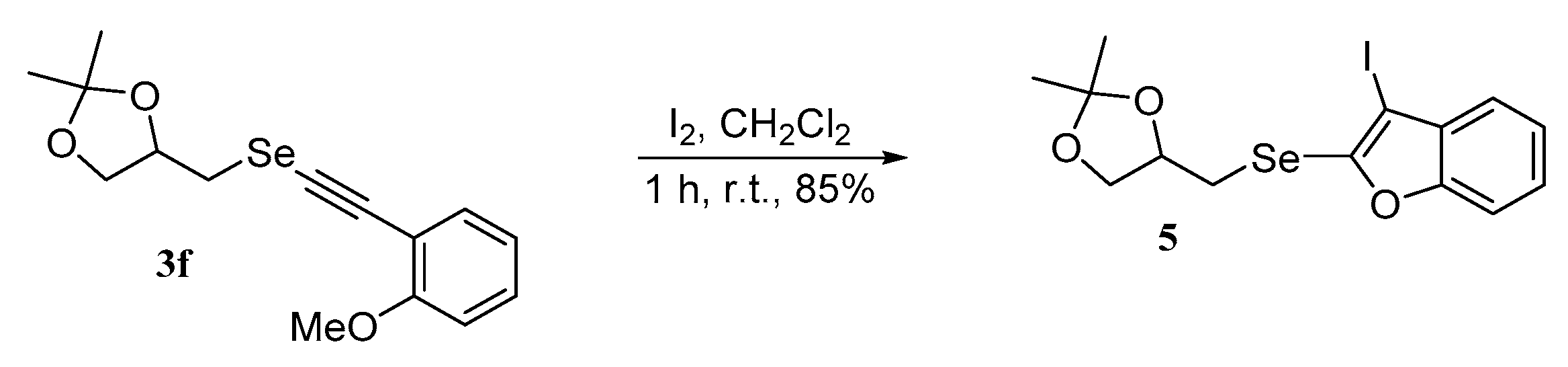

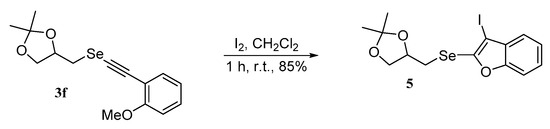

Scheme 2. Synthesis of 3-iodo-2-(2,2-dimethyl-1,3-dioxolanylmethyl)selenanylbenzo[b]furan 5.
Scheme 2. Synthesis of 3-iodo-2-(2,2-dimethyl-1,3-dioxolanylmethyl)selenanylbenzo[b]furan 5.
Molecules 22 00391 sch002
Table 1. Scope of the synthesis of organoselanyl 3ah and organotellanyl alkynes 3im a.
Table 1. Scope of the synthesis of organoselanyl 3ah and organotellanyl alkynes 3im a.
Molecules 22 00391 i001
EntryAlkyne 1YProduct 3Yield (%) b
1 Molecules 22 00391 i002Se Molecules 22 00391 i00380
2 Molecules 22 00391 i004Se Molecules 22 00391 i00563
3 Molecules 22 00391 i006Se Molecules 22 00391 i00765
4 Molecules 22 00391 i008Se Molecules 22 00391 i00970
5 Molecules 22 00391 i010Se Molecules 22 00391 i01160
6 Molecules 22 00391 i012Se Molecules 22 00391 i01360
7 Molecules 22 00391 i014Se Molecules 22 00391 i01567
8 Molecules 22 00391 i016Se Molecules 22 00391 i01752
91aTe Molecules 22 00391 i01885
101bTe Molecules 22 00391 i01963
111cTe Molecules 22 00391 i02055
121hTe Molecules 22 00391 i02161
13 Molecules 22 00391 i022Te Molecules 22 00391 i02363
a Reaction was performed using alkyne 1 (1.0 mmol), Se0 or Te0 (1.0 mmol), butyllithium solution (1.6 mol/L in hexanes; 1.0 mmol) at 0 °C in THF (5.0 mL) under N2 atmosphere. Then, tosyl solketal 2 (0.5 mmol) in THF (2.0 mL) was added at r.t. and the mixture stirred for additional 3 h (3ah) or under reflux for 1.5 h (3im); b Yields are given for isolated products.
Table 2. Synthesis of new 3-organotellanylpropane-1,2-diols 4ac a.
Table 2. Synthesis of new 3-organotellanylpropane-1,2-diols 4ac a.
Molecules 22 00391 i024
EntryTellanyl Alkyne 3Diol 4Solubility (mg/mL) bYield (%) c
1 Molecules 22 00391 i025 Molecules 22 00391 i0262.350
2 Molecules 22 00391 i027 Molecules 22 00391 i0282.850
3 Molecules 22 00391 i029 Molecules 22 00391 i0301.547
a Reaction was performed using 1.0 mmol of 3, 1.112 g of Dowex® in 2.5 mL of MeOH at r.t. for 5 h; b Solubility measured in water; c Yields are given for isolated products.
