Molecules 2015, 20(4), 6808-6826; doi:10.3390/molecules20046808

Article
Synthesis and Pharmacophore Modelling of 2,6,9-Trisubstituted Purine Derivatives and Their Potential Role as Apoptosis-Inducing Agents in Cancer Cell Lines
1
Departamento de Química Orgánica, Facultad de Química, Pontificia Universidad Católica de Chile, 702843 Santiago de Chile, Chile
2
Departamento de Farmacia, Facultad de Química, Pontificia Universidad Católica de Chile, 702843 Santiago de Chile, Chile
3
Centro de Bioinformática Estructural-DETEMA, Facultad de Química, Universidad de la República, C.C. 1157 Montevideo, Uruguay
*
Author to whom correspondence should be addressed.
Academic Editors: Jean Jacques Vanden Eynde, Annie Mayence and Tien L. Huang
Received: 4 March 2015 / Accepted: 10 April 2015 / Published: 15 April 2015

Abstract

:
A series of 2,6,9-trisubstituted purine derivatives have been synthesized and investigated for their potential role as antitumor agents. Twelve compounds were obtained by a three step synthetic procedure using microwave irradiation in a pivotal step. All compounds were evaluated in vitro to determine their potential effect on cell toxicity by the MTT method and flow cytometry analysis on four cancer cells lines and Vero cells. Three out of twelve compounds were found to be promising agents compared to a known and effective anticancer drug, etoposide, in three out of four cancer cell lines assayed with considerable selectivity. Preliminary flow cytometry data suggests that compounds mentioned above induce apoptosis on these cells. The main structural requirements for their activity for each cancer cell line were characterized with a preliminary pharmacophore model, which identified aromatic centers, hydrogen acceptor/donor center and a hydrophobic area. These features were consistent with the cytotoxic activity of the assayed compounds.
Keywords:
antitumor; purine derivatives; apoptosis; pharmacophoric model

1. Introduction

The purine framework is present in biological molecules that display key roles in signal pathways in all living organisms. Therefore, this heterocyclic structure represents an example of denominated “privilege scaffold”, a term that has been used to refer to the notion of multiple molecules of the same scaffold having bioactivity [1]. The purine scaffold is one the most abundant N-based heterocycle in nature and has been involved in a vast array of metabolic and other cellular processes [2] and the screening of purine libraries against a wide variety of biological targets has contributed to opening new applications as therapeutics agents [3]. Therefore, the purine scaffold is an interesting structural fragment that has been incorporated into new drugs. Some examples of major purine-based drugs that are currently being used are: anticancer agents (6-mercaptopurine, thioguanine) [4,5], antiviral agents to overcome infections such as herpes or AIDS (acyclovir, ganciclovir, carbovir, abavavir, ddI, etc.) [6,7,8,9] and agents to avoid organ rejection (azathioprine) [10].
In recent years, several di- and tri-substituted purine derivatives have been synthesized and tested on cancer cells. Schultz et al., synthetized libraries of purine-based compounds that could modulate the activity of cyclin dependent kinases (CDKs). Given the essential role of CDKs in regulating the cell cycle, these compounds were very novel and promising as anticancer agents [11]. On the other hand, the same group has identified a 2,6,9-trisubstituted purine denominated myoseverin (Figure 1), a microtubule assembly inhibitor with moderate cytostatic activity, which may induce apoptosis [12]. Some pyrazolo[1,5-a]-1,3,5-triazine myoseverin derivatives have been synthesized and evaluated as antiproliferative agents [13]. Furthermore, other purine’s 2,6,9-substitution pattern has been designed and screened as CDK inhibitors, such as roscovitine (Figure 1) and related compounds [14,15,16]. Specifically, the pure R-enantiomer of roscovitine is under study as an oncology drug candidate in patients diagnosed with non-small cell lung cancer or other malignancies [17,18]. Finally, olomoucine (Figure 1), is another example of 2,6,9-trisubstituted purines, with antiproliferative effects on cancer cell lines [19,20].

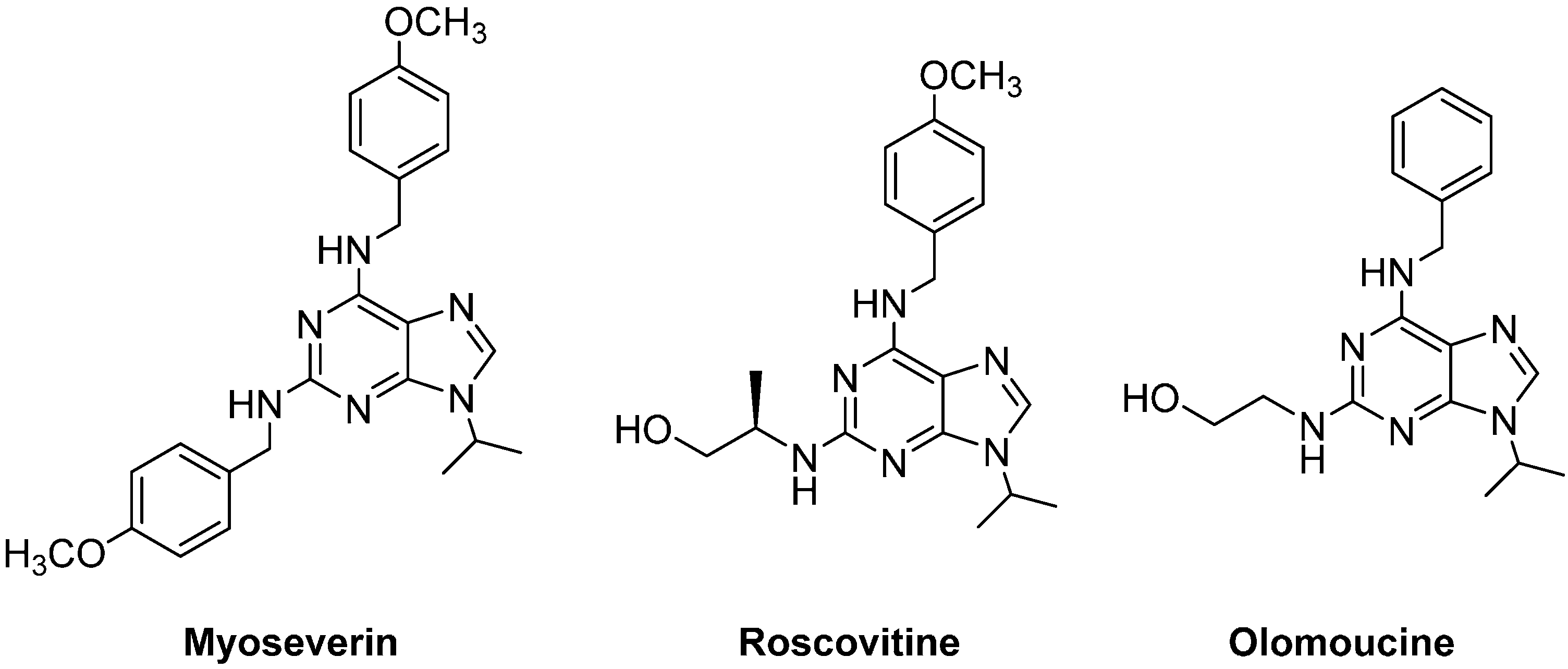

Figure 1. Chemical structures of 2,6,9-trisubstituted purines with biological properties.
Figure 1. Chemical structures of 2,6,9-trisubstituted purines with biological properties.
Molecules 20 06808 g001
Therefore, the search for new compounds with selective antitumor activity as an important driving force for the development and implementation of novel anticancer therapies, where the drug should exert a cytotoxic effect on malignant cells with a minimal effect on normal cells [21,22]. According to all the previous findings in the literature, a purine heterocycle scaffold is an interesting starting point to the identification of new antitumor compounds.
Because there is little data analyzing the influence of lipophilic properties of purine derivatives and their cytotoxic activity on normal and cancer cells, or their ability to induce apoptosis as part of a mechanism of action for the most active compounds; we decided to develop a new series of analogues to myoseverin and analyze the influence of the N-alkyl substitutions on the purine core. The hydrophobic moiety involved different chain lengths and special distribution, to correlate these molecular patterns with a potential antitumor activity. Compounds were tested on a panel of five cell lines, including Vero cells and four human-derived tumor cell lines, namely H1975 (lung), HL-60 (leukemia), HCT116 (colorectal) and HeLa. In addition, our study includes the elucidation of pharmacophore query for active molecules from a total of 12 compounds that led us to identify the principal structural features that might be responsible for their cytotoxicity.

2. Results and Discussion

2.1. Synthesis

The preparation of the 2,6,9-trisubstituted purines listed in Table 1 is described in Scheme 1. This three step-sequence using 2,6-dichloropurine (1) as substrate is shown in Scheme 1 [23,24,25] and is a useful and direct approach for the synthesis of required compounds 4al in the study. The first step was the alkylation of 1 with several alkyl halides under basic conditions, in DMF at room temperature to give a mixture of N9- and N7-alkylated purines regioisomers 2af: 2a'f' in a proportion 4:1 in most cases. The unequivocal structure of each regioisomer was established by HMBC analysis (For selected compounds see supporting information) [26]. For example, for compound 2b, the proton signal at 4.18 ppm (H-8) has correlations with the carbon signals at 145.88 ppm (C-5) and 153.16 ppm (C-3a), meanwhile the compound 2b',the proton signal at 4.42 ppm (H-8) has correlations with carbon signals at 121.59 ppm (C-6a) and 150.40 ppm (C-5), confirming the formation of both regioisomers (Figure 2).
The regiospecific SNAr on C-6, was efficiently achieved using benzylamine or p-methoxybenzylamine as nucleophile, using 1-butanol as solvent and in presence of DIPEA by reflux by 12 h (yields 73%–99%) [27]. Finally, for the last SNAr on C-2, the most unreactive site, we chose to use microwave irradiations (MW); since the displacement of this site needs harsh conditions (135 °C, 24 to 40 h) [16,28,29]. Therefore, the intermediates 3al were substituted by benzylamine in 1-butanol and DIPEA as a base, under MW for 1 h, afforded 2,6,9-trisubstituted purines 4al with medium to high yields (43%–95%). The structures of the new synthesized compounds were established on the basis of their spectral properties (IR, MS, 1H-NMR and 13C-NMR, see Supplementary Material).
Table 1. In vitro cytotoxicity of compounds 4a4l on cancer cell lines and Vero cells.
Table 1. In vitro cytotoxicity of compounds 4a4l on cancer cell lines and Vero cells.
EntryR1R2IC50 (µM) a
H1975HL-60HCT116HeLaVero
4ai-PropylH14.0 ± 0.2626.0 ± 0.1313.0 ± 0.1232.0 ± 0.1320.0 ± 0.11
4bButylH28.0 ± 0.08>50.07.2 ± 0.1618.0 ± 0.145.6 ± 0.15
4ci-ButylH36.0 ± 0.27>50.0>50.0>50.022.0 ± 0.23
4dPentylH12.0 ± 0.19>50.011.0 ± 0.1110.1 ± 0.142.5 ± 0.20
4ei-PentylH8.6 ± 0.18>50.05.1 ± 0.142.7 ± 0.132.5 ± 0.14
4fHexylH9.9 ± 0.18>50.03.0 ± 0.125.3 ± 0.1326.0 ± 0.12
4gi-PropylOCH3>50.022.0 ± 0.137.1 ± 0.1110.7 ± 0.1815.0 ± 0.23
4hButylOCH311.0 ± 0.25>50.07.0 ± 0.166.3 ± 0.1717.0 ± 0.20
4ii-ButylOCH33.4 ± 0.28>50.01.6 ± 0.124.9 ± 0.161.9 ± 0.24
4jPentylOCH32.3 ± 0.13>50.08.0 ± 0.219.5 ± 0.1426.0 ± 0.18
4ki-PentylOCH35.6 ± 0.23>50.011.0 ± 0.265.4 ± 0.3234.0 ± 0.13
4lHexylOCH3>50.0>50.06.8 ± 0.149.0 ± 0.1315.0 ± 0.06
Etoposide--8.0 ± 0.336.2 ± 0.182.8 ± 0.248.2 ± 0.33>25.0
a IC50 values were determined in triplicate in the range of 0.05 to 50 µM.

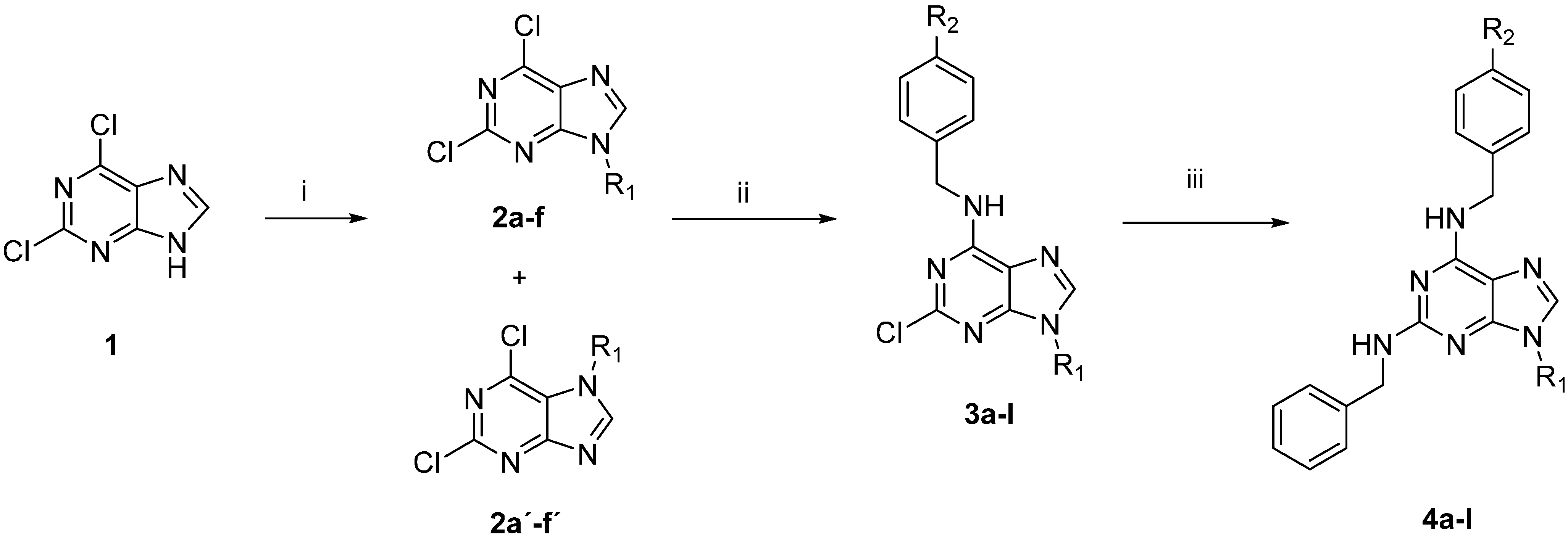

Scheme 1. Synthesis of target compounds 4al.
Scheme 1. Synthesis of target compounds 4al.
Molecules 20 06808 g006
Reagents and conditions: (i) alkyl halide, K2CO3, DMF, 6 h, rt, 51%–90% for 2af and 15%–24% for 2a'f'; (ii) benzylamine or 4-methoxybenzylamine, DIPEA, 1-BuOH, 12 h, 110 °C, 73%–99%; (iii) benzylamine, DIPEA, 1-BuOH, 1 h, 150 °C, MW, 43%–95%. For compounds 4al, the substituents R1 and R2 are indicated in Table 1.
Figure 2. Structures of compounds 2b and 2b' and key HMBC correlations.
Figure 2. Structures of compounds 2b and 2b' and key HMBC correlations.
Molecules 20 06808 g002

2.2. Cytotoxic Studies

The potential in vitro antitumor activity of compounds 4al was initially tested for their cytotoxic effects on H1975, HL-60, HCT116 and HeLa cancer cell lines and Vero cells. A conventional colorimetric assay was set up to estimate the IC50 values, which represent the concentration of a drug that is required for 50% inhibition in vitro after 72 h of continuous exposure to compounds. Four serial dilutions (from 12.5 to 100 µM) for each sample were evaluated in triplicate and etoposide was used as a positive control and reference drug.
Table 1 shows the IC50 values for cytotoxicity of compounds 4al on Vero cells and cancer cell lines. In general, 2,6,9-trisubstituted purines activity was quite heterogeneous: For example, HL-60 cells seemed to be more resistant (all compounds tested with IC50 > 20 µM), while H1975, HCT116, Hela and Vero cells exhibited variable sensitivity. However, a preliminary analysis about the cytotoxicity indicates that: (i) Compound 4c had no significant cytotoxic effects on four cancer cells (IC50 > 36 µM). (ii) Compounds 4b, 4d, 4e and 4i had no selectivity, affecting more Vero cells than cancer cells, although 4e was the most potent compound against Hela cells (IC50 = 2.7 µM). (iii) Compounds 4a, 4g, 4h and 4l showed little activity, compared to etoposide, on the most cancer cells (except 4h in Hela cells with IC50 = 6.3 µM). (iv) Compounds 4f, 4j and 4k, were the most active exhibiting single-digit micromolar IC50 values and with the highest Selectivity Index (SI) values, against three cancer lines, as shown in the Table 2. It is important to consider that a potential antitumor drug must show low toxicity in mammalian host cells, and because of that, those more selective compounds are very promising for the development of new antitumor agents. These results are in agreement with the National Cancer Institute (NCI) protocols, where compounds exhibiting IC50 values <10 μM or 15 μM are considered active [30]. To establish a structure–relationship with these compounds, there are some preliminary conclusions that can be derived from these results.
A quick look at the IC50 values for each cancer cell line suggests a positive correlation with the lipophilicity of these compounds, which are in agreement with the aim to evaluate the effect on the cytotoxicity by the alkyl moiety or the methoxy group in the phenyl ring, on the purine scaffold. The lipophilicity of compounds 4al could be estimated through the logarithm form (logP) the octanol-water partition coefficient (Table 2). However, no correlation was observed between compound cytotoxicity and their logP values in every cancer cell line. Although of no significance is the trend is that the compounds with low lipophilicity (logP > 5.3) exhibit the best antitumor activity.
The lack of correlation between lipophilicity and antitumor activity indicates that this parameter is not decisive in the cytotoxicity, and though is related with the membrane permeability, it does not always shows a quantitative correlation with this activity [26]. In fact, many other factors need to be considered in the relationship of structural pattern and cytotoxicity activity. Therefore, it is necessary to search for other tools to understand the antitumor activity in silico and to explore the structural requirements determining the observed biological properties [31,32].
Table 2. Selectivity Index and logP of compounds 4a4l.
Table 2. Selectivity Index and logP of compounds 4a4l.
CompoundSelectivity Index (SI) aLog P b
(Vero/H1975)(Vero/HCT116)(Vero/HeLa)
4a1.431.540.634.35
4b0.200.780.314.94
4c0.610.440.444.86
4d0.210.230.255.38
4e0.290.490.935.30
4f2.638.674.915.83
4g0.302.111.404.31
4h1.552.432.704.90
4i0.561.190.394.81
4j11.303.252.745.34
4k6.073.096.305.26
4l0.302.211.675.78
Etoposide3.104.033.05-
a Selectivity Index: expressed as the ratio IC50 (Vero)/IC50 (cancer cell line); b logP values calculated using MOE program.

2.3. Pharmacophore Elucidation

In order to generate a pharmacophore model (hypothesis) related with cytotoxicity (IC50) of compounds 4al on H1975, HCT116 and Hela cells, the compound with the highest IC50 in every cancer cell line was chosen as a structural template. These compounds were 4e, 4j and 4i for HeLa, H1975 and HCT116, respectively. The tridimensional structure of the selected molecule was created and then the pharmacophore hypothesis was generated using the polar-charged-hydrophobic (PHC) scheme of MOE program. Figure 3 shows the numbering used to identify pharmacophoric features in each model.

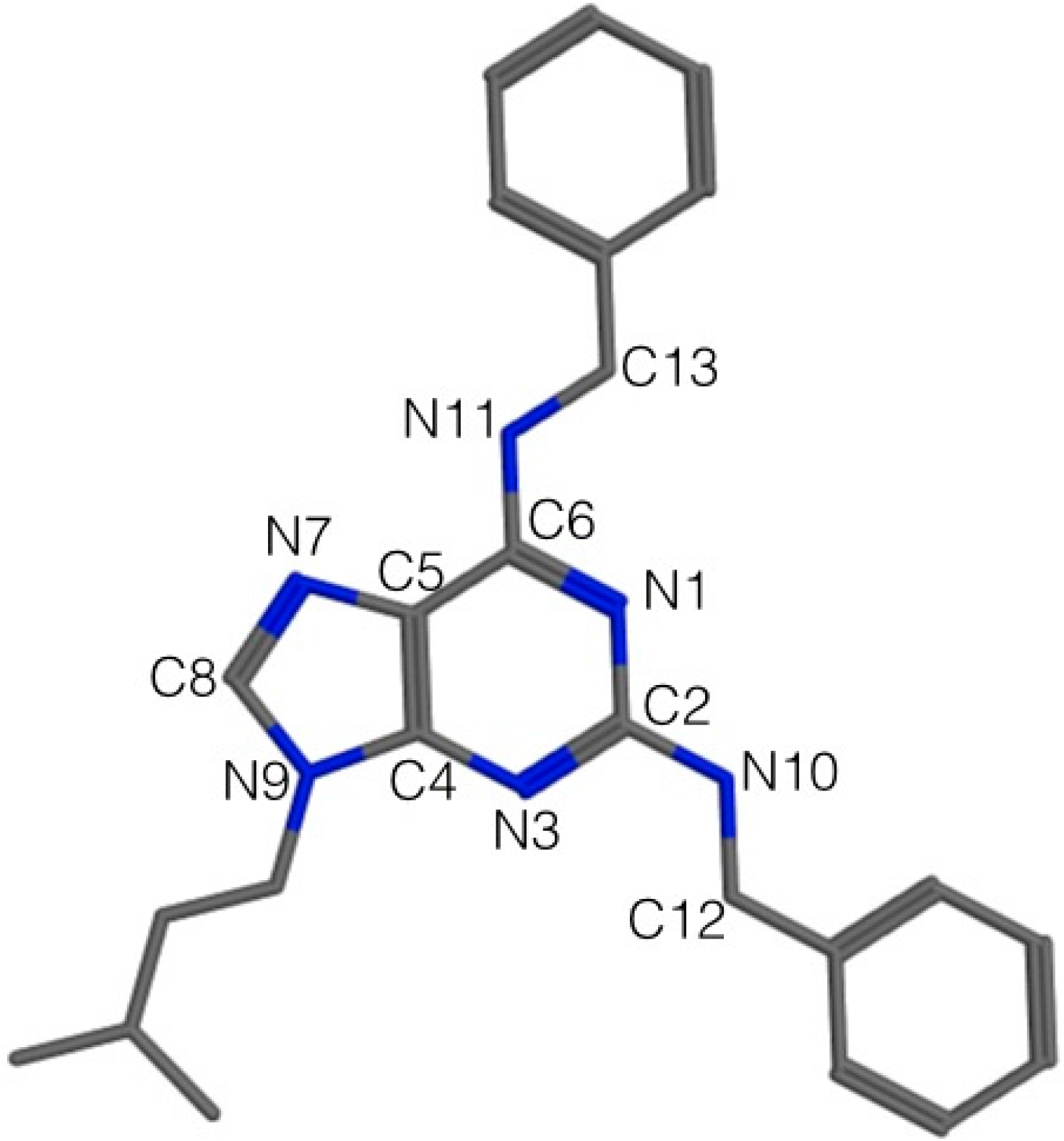

Figure 3. 2D representation of 4e and numbering used to identify the pharmacophoric features.
Figure 3. 2D representation of 4e and numbering used to identify the pharmacophoric features.
Molecules 20 06808 g003
Each initial hypothesis was evaluated by scoring both active and inactive compounds. The inactive compounds were not involved in model generation, they only were used to discard hypothesis that did not distinguish between active or inactive compounds. This fact is especially useful when active compounds share similar structural pattern. For HeLa and H1975 cells, all molecules with IC50 lower than 17.9 µM were accepted as actives and all those with IC50 lower than 12.9 µM were accepted as actives for HTC116. Several structural particularities were identified in each model: aromatic features (Aro, centered in the purine and phenyl rings), hydrophobic features (Hyd, due that alkyl moiety bonded to N9 and the benzyl radicals), acceptor features (Acc/Acc2, generated by the presence of N1, N3 and N7 nitrogen atoms), and donor features (Don/Don2) centered on the N10 and N11 nitrogen atoms.
The results for the complete elucidation strategy for each cancer cell line are summarized in Table 3 and Figure 4, where the essential features of each compound used in this study is seen. The most active compounds are also identified in every pharmacophoric model. For example: (i) For cytotoxic compounds on Hela cells, all features manually detected, five resulted associated with the most active compounds (4d and 4fl, Figure 4a), which is interpreted as a 91% of recovering and could be accepted by the pharmacophore as valid, selective and with the higher probability to recognize active and non-active molecules. (ii) For cytotoxic compounds on H1975 cells, five features resulted associated to the activity of these compounds and with the elucidated pharmacophore query, eight active compounds (4a, 4df, 4hk) were recognized (Figure 4b), a similar behavior than HeLa cells. (iii) For cytotoxic compounds on HTC116 cells, five features resulted associated to the most active compounds, three common features with HeLa but, two new features were detected: an H-bond donor characteristic centered in the N11 nitrogen atom, and a hydrophobic region centered in the hydrocarbon moiety adjacent to the N9 nitrogen atom (Figure 4c). With this set of pharmacophoric features, a search was done within the purine database and the ten most active from the eleven molecules were selected. In this case, the 4a analogue was rejected. This result proved the discriminatory capacity of the elucidated pharmacophore. However, these three models are preliminary, because a larger number of compounds will allow improved pharmacophore models.
Table 3. Pharmacophoric and structure features of the training set for each purine derivatives on cancer cell lines.
Table 3. Pharmacophoric and structure features of the training set for each purine derivatives on cancer cell lines.
Structure FeaturePharmacophoric Features
HelaH1975HTC116
Purine N1* Acc* Acc-
Purine N3* AccAcc-
Purine N7Acc-Acc
Alkyl moiety on N9--Aro/Hyd
N10-* Don-
N11--Don
Benzyl moiety on C2Aro/HydAro/HydAro/Hyd
Benzyl moiety on C2Aro/HydAro/HydAro/Hyd
* These are the named “projected features” and correspond to regions in which the lone pairs could be located, making possible the hydrogen bonding.

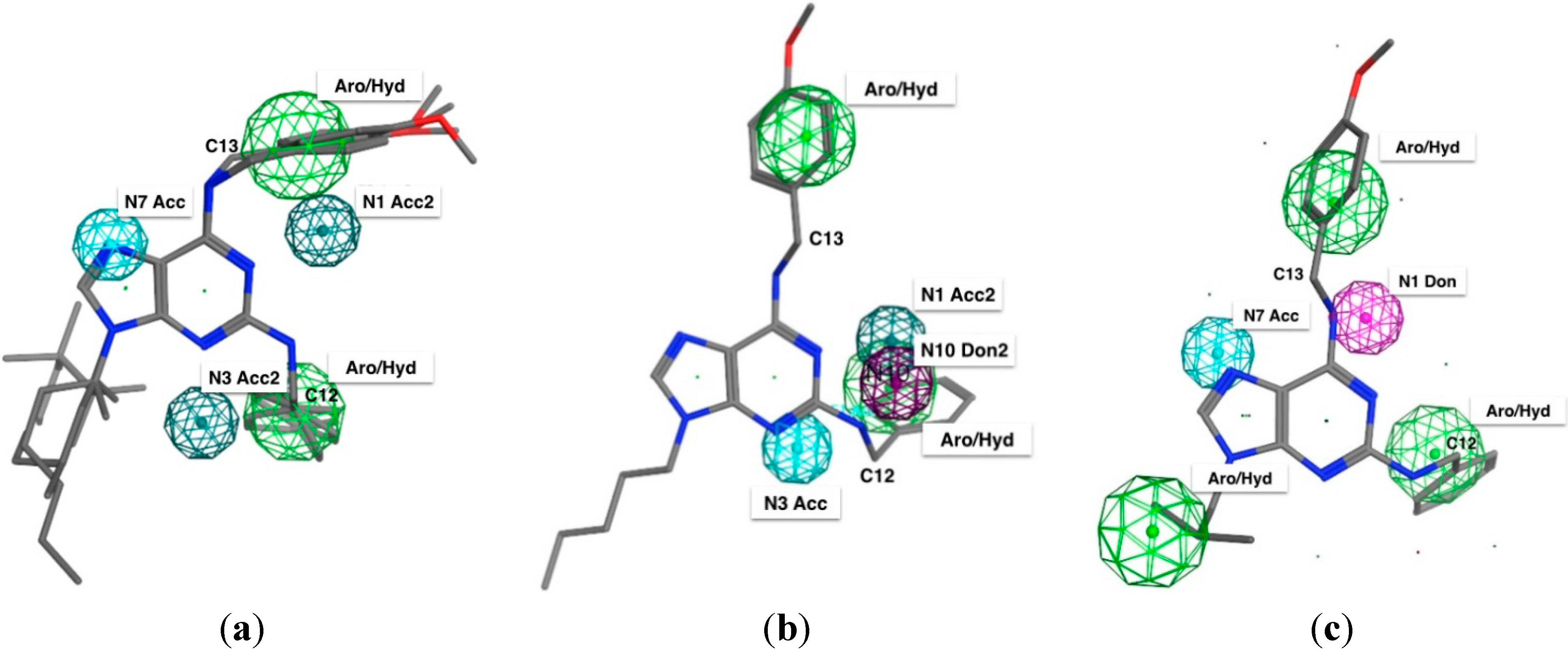

Figure 4. Elucidated pharmacophoric model for 2,6,9-trisubstituted purines against each cancer cell lines: (a) Hela; (b) H1975 and (c) HTC116.
Figure 4. Elucidated pharmacophoric model for 2,6,9-trisubstituted purines against each cancer cell lines: (a) Hela; (b) H1975 and (c) HTC116.
Molecules 20 06808 g004

2.4. Apoptosis Assay

Finally, to study the mechanism involved on the antitumor activity of the most active compounds (4f, 4j and 4k), the effects on the apoptosis were evaluated by flow cytometry (FACS) by staining with propidium iodide (PI). To evaluate sensitivity to 4f, 4j and 4k, Vero, HTC116, H1975 and Hela were treated with concentrations of 50 µM for 16 h. Fifty µM etoposide was used as positive control. All cells were completely sensitive to all compounds at the concentration used and the results are shown in Figure 5. As it can be seen in Figure 5, 4f, 4j and 4k induced apoptosis as a prevalent type of cell death, in high percentages (>70%), in every cancer cell line. Moreover, 4f, 4j, and 4k induced an apoptotic cell response greater than etoposide.
Figure 5. Viability assays of compounds 4f, 4j and 4k on cancer cell lines.
Figure 5. Viability assays of compounds 4f, 4j and 4k on cancer cell lines.
Molecules 20 06808 g005

3. Experimental Section

3.1. General Information

2,6-Dichloropurine, benzyl amines and the alkyl halides, were purchased from Sigma-Aldrich (St. Louis, MO, USA). Cell culture medium, fetal bovine serum and penicillin-streptomycin were purchased from Biological Industries (Kibbutz Beit Haemek, Israel). Etoposide, 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT) propidium iodide and all other chemicals were obtained from Sigma-Aldrich. Microwave-assisted reactions were carried out in a Microwave Synthesis Reactor Monowave 300 (Anton Paar GmbH, Graz, Austria), in 10 mL sealed vials. Melting points were determined on a Thermogeräte Kofler apparatus (Reichert, Werke A.G., Wien, Austria) and were uncorrected. Infrared spectra were recorded on a Vector 22 spectrophotometer (Bruker Optik GmbH, Bremen, Germany) using KBr discs. Nuclear magnetic resonance spectra were recorded on a Bruker AM-400 apparatus using CDCl3 solutions containing TMS as internal standard. HPLC-MS experiments were performed on an Exactive Plus Orbitrap MS (Bremen, Germany). Mass spectra were obtained on an HP 5988A spectrometer (Hewlett-Packard, Palo Alto, CA, USA). Thin layer chromatography (TLC) was performed using Merck GF-254 type 60 silica gel. Column chromatography was carried out using Merck silica gel 60 (70–230 mesh).

3.2. General Synthetic Procedure to Obtain N-Alkyl Purines 2af and 2a'f'

A mixture of 2,6-dichloropurine 1 (1.0 mmol), the respective alkyl halide (1.5 mmol), and potassium carbonate (3.0 mmol) in DMF (5 mL) was stirred for 6 h, then the mixture was filtered and evaporated under vacuum. The products were separated by flash chromatography on silica gel eluting with EtOAc/CH2Cl2 (2:3).
2,6-Dichloro-9-isopropyl-9H-purine (2a): White solid, yield (67%), mp 100–102 °C. 1H-NMR (CDCl3) δ 8.17 (s, 1H), 4.97–4.86 (m, 1H), 1.65 (d, J = 6.8 Hz, 6H). 13C-NMR (CDCl3) δ 152.73, 151.66, 146.93, 143.58, 131.05, 48.36, 22.51 (2C). IR (KBr, cm−1): 2985, 1588, 1555, 1358, 1216, 872. HRMS for (C8H8Cl2N4 [M+H]+). Calcd: 231.0204. Found: 231.0195.
2,6-Dichloro-7-isopropyl-9H-purine (2a'): White solid, yield (20%), mp 106–108 °C. 1H-NMR (CDCl3) δ 8.17 (s, 1H), 4.97–4.86 (m, 1H), 1.65 (d, J = 6.8 Hz, 6H). 13C-NMR (CDCl3) δ 152.73, 151.66, 146.93, 143.58, 131.05, 48.36, 22.51 (2C). IR (KBr, cm−1): 2990, 1584, 1557, 1364. HRMS for (C8H8Cl2N4 [M+H]+). Calcd: 231.0204. Found: 231.0180.
9-Butyl-2,6-dichloro-9H-purine (2b): White solid, yield (52%), mp 61–63 °C. 1H-NMR (CDCl3) δ 8.10 (s, 1H), 4.27 (t, J = 7.3 Hz, 2H), 2.00–1.80 (m, 2H), 1.51–1.27 (m, 2H), 0.98 (t, J = 7.4 Hz, 3H). 13C-NMR (CDCl3) δ 153.20, 152.89, 151.71, 145.74, 130.74, 44.42, 31.73, 19.81, 13.42. IR (KBr, cm−1): 2954, 1596, 1556, 1347, 1228, 878. HRMS for (C9H10Cl2N4 [M+H]+). Calcd: 245.0361. Found: 245.0352.
7-Butyl-2,6-dichloro-7H-purine (2b') White solid, yield (18%), mp 78–79 °C. 1H-NMR (CDCl3) δ 8.20 (s, 1H), 4.40 (t, J = 7.3 Hz, 2H), 1.85–1.80 (m, 2H), 1.35–1.27 (m, 2H), 0.89 (t, J = 7.1 Hz, 3H). 13C-NMR (CDCl3) δ 163.57, 151.49, 145.95, 130.69, 121.57, 47.45, 33.48, 19.57, 13.44. IR (KBr, cm−1): 2952, 1601, 1550, 1229. HRMS for (C9H10Cl2N4 [M+H]+). Calcd: 245.0361. Found: 245.0335.
2,6-Dichloro-9-isobutyl-9H-purine (2c): White solid, yield (61%), mp 40–43 °C. 1H-NMR (CDCl3) δ 8.08 (s, 1H), 4.08 (d, J = 7.4 Hz, 2H), 2.34–2.24 (m, 1H), 0.98 (d, J = 6.7 Hz, 6H). 13C-NMR (CDCl3) δ 153.39, 152.95, 151.75, 146.10, 130.65, 51.78, 28.98, 19.84 (2C). IR (KBr, cm−1): 2954, 1594, 1558, 1352, 1232, 879. HRMS for (C9H10Cl2N4 [M+H]+). Calcd: 245.0361. Found: 245.0351.
2,6-Dichloro-7-isobutyl-7H-purine (2c'): White solid, yield (22%), mp 94–96 °C. 1H-NMR (CDCl3) δ 8.19 (s, 1H), 4.20 (d, J = 7.4 Hz, 2H), 2.19–2.08 (m, 1H), 0.91 (d, J = 6.7 Hz, 6H). 13C-NMR (CDCl3) δ 163.59, 152.89, 150.81, 143.73, 121.68, 54.69, 30.50, 19.55. IR (KBr, cm−1): 2955, 1596, 1558, 1349, 1231. HRMS for (C9H10Cl2N4 [M+H]+). Calcd: 245.0361. Found: 245.0336.
2,6-Dichloro-9-pentyl-9H-purine (2d): White solid, yield (51%), mp 37–41 °C. 1H-NMR (CDCl3) δ 8.10 (s, 1H), 4.26 (t, J = 7.3 Hz, 2H), 1.99–1.83 (m, 2H), 1.44–1.20 (m, 4H), 0.91 (t, J = 7.1 Hz, 3H). 13C-NMR (CDCl3) δ 153.17, 152.77, 151.58, 145.83, 130.70, 44.66, 29.41, 28.60, 22.01, 13.77. IR (KBr, cm−1): 2958, 1596, 1554, 1351, 1235, 876. HRMS for (C10H12Cl2N4 [M+H]+). Calcd: 259.0517. Found: 259.0506.
2,6-Dichloro-7-pentyl-9H-purine (2d'): Light yellow oil (24%). 1H-NMR (CDCl3) δ 8.25 (s, 1H), 4.40 (t, J = 7.4 Hz, 2H), 1.87–1.79 (m, 2H), 1.28–1.20 (m, 4H), 0.86–0.73 (m, 3H). 13C-NMR (CDCl3) δ 163.52, 152.71, 150.57, 143.63, 121.57, 47.69, 31.22, 28.38, 22.03, 13.78. IR (KBr, cm−1): 2955, 1598, 1554, 1350, 1236. HRMS for (C10H12Cl2N4 [M+H]+). Calcd: 259.0517. Found: 259.0490.
2,6-Dichloro-9-isopentyl-9H-purine (2e): White solid, yield (56%), mp 77–79 °C. 1H-NMR (CDCl3) δ 8.11 (s, 1H), 4.31–4.26 (m, 2H), 1.82 (dd, J = 15.0, 7.1 Hz, 2H), 1.60 (td, J = 13.4, 6.7 Hz, 1H), 1.00 (d, J = 6.6 Hz, 6H). 13C-NMR (CDCl3) δ 153.18, 152.85, 151.66, 145.64, 130.71, 43.00, 38.46, 25.63, 22.17 (2C). IR (KBr, cm−1): 2956, 1596, 1555, 1347, 874. HRMS for (C10H12Cl2N4 [M+H]+). Calcd: 259.0517. Found: 259.0508.
2,6-Dichloro-7-isopentyl-7H-purine (2e'): White oil, yield (15%). 1H-NMR (CDCl3) δ 8.23 (s, 1H), 4.44–4.39 (m, 2H), 1.74 (q, 7.1 Hz, 2H), 1.68–1.52 (m, 1H), 0.92 (d, J = 6.7 Hz, 6H). 13C-NMR (CDCl3) δ 163.55, 152.79, 150.37, 143.59, 121.55, 46.14, 40.43, 25.72, 22.24 (2C). IR (KBr, cm−1): 2962, 1596, 1558, 1351, 1237. HRMS for (C10H12Cl2N4 [M+H]+). Calcd: 259.0517. Found: 259.0490.
2,6-Dichloro-9-hexyl-9H-purine (2f): White solid, yield (58%), mp 35–37 °C. 1H-NMR (CDCl3) δ 8.10 (s, 1H), 4.29–4.23 (m, 2H), 1.92–1.76 (m, 2H), 1.41–1.24 (m, 6H), 0.89 (t, J = 7.0 Hz, 3H). 13C-NMR (CDCl3) δ 153.18, 152.84, 151.65, 145.79, 130.73, 44.68, 31.05, 29.71, 26.20, 22.38, 13.88. IR (KBr, cm−1): 2953, 2922, 1599, 1556, 1347, 1217, 878. HRMS for (C11H14Cl2N4 [M+H]+). Calcd: 273.0674. Found: 273.0659.
2,6-Dichloro-7-hexyl-9H-purine (2f'): Light yellow oil, yield (23%). 1H-NMR (CDCl3) δ 8.24 (s, 1H), 4.41 (t, J = 7.4 Hz, 2H), 1.93–1.71 (m, 2H), 1.40–1.10 (m, 6H), 0.78 (t, J = 7.0 Hz, 3H). 13C-NMR (CDCl3) δ 163.53, 152.83, 150.47, 143.65, 121.57, 47.73, 31.50, 31.05, 25.98, 22.36, 13.85. IR (KBr, cm−1): 2954, 1597, 1554, 1350, 1228. HRMS for (C11H14Cl2N4 [M+H]+). Calcd: 273.0674. Found: 273.0646.

3.3. General Synthetic Procedure to Obtain N-Benzyl-9-Alkyl-2-Chloro-9H-Purin-6-Amines 3al

DIPEA (1.8 mmol) and the respective benzylamine (0.9 mmol) were added to a solution of the corresponding 9-alkyl-2,6-dichloro-9H-purine (2a2f, 1.00 mmol) in 1-butanol (5 mL) and the reaction mixture was heated at 110 °C overnight. Then, the solvent was removed under vacuum and the crude product was purified by column chromatographic on silica gel using as eluent a mixture 4:1 of chloroform/acetone for all derivatives.
N-Benzyl-2-chloro-9-isopropyl-9H-purin-6-amine (3a): White solid, yield (95%), mp 167–170 °C. 1H-NMR (CDCl3) δ 7.66 (s, 1H), 7.40–7.30 (m, 5H), 6.53 (s, 1H), 4.84–4.79 (m, 3H), 1.56 (d, J = 6.8 Hz, 6H). 13C-NMR (CDCl3) δ 154.93, 137.57 (2C), 128.66 (2C), 127.88, 127.86, 127,54, 127.56, 127.08, 118.48, 46.92, 44.59, 22.74 (2C). IR (KBr, cm−1): 3265, 1625, 1571, 1311. HRMS for (C15H16ClN5 [M+H]+). Calcd: 302.1172. Found: 302.1164.
N-Benzyl-9-butyl-2-chloro-9H-purin-6-amine (3b): White solid, yield (90%), mp 160–162 °C. 1H-NMR (CDCl3) δ 7.48 (s, 1H), 7.42–7.17 (m, 5H), 6.66 (s, 1H), 4.82 (br, 2H), 4.11 (t, J = 7.2 Hz, 2H), 1.87–1.77 (m, 2H), 1.38–1.30 (m, 2H), 0.95 (t, J = 7.4 Hz, 3H). 13C-NMR (CDCl3) δ 155.57, 140.52 (2C), 138.42, 131.32, 129.25, 129.11(2C), 128.35 (2C), 128.04, 44.06 (2C), 32.37, 20.20, 13.89. IR (KBr, cm−1): 3262, 1627, 1352. HRMS for (C16H18ClN5 [M+H]+). Calcd: 316.1329. Found: 316.1316.
N-Benzyl-2-chloro-9-isobutyl-9H-purin-6-amine (3c): White solid, yield (81%), mp 155–157 °C. 1H-NMR (CDCl3) δ 7.39–7.24 (m, 6H), 6.93 (s, 1H), 4.82 (s, 2H), 3.90 (d, J = 3.4 Hz, 2H), 2.30–2.06 (m, 1H), 0.92 (d, J = 6.5 Hz, 6H). 13C-NMR (CDCl3) δ 155.58, 140.97 (2C), 138.46, 129.09 (2C), 128.33 (2C), 128.02 (2C), 118.91, 51.51, 45.13, 29.33, 20.25 (2C). IR (KBr, cm−1): 3262, 1631, 1352. HRMS for (C16H18ClN5 [M+H]+). Calcd: 316.1329. Found: 316.1318.
N-Benzyl-2-chloro-9-pentyl-9H-purin-6-amine (3d): White solid, yield (92%), mp 110–113 °C. 1H-NMR (CDCl3) δ 7.42–7.20 (m, 6H), 7.00 (br, 1H), 4.82 (br, 2H), 4.08 (br, 2H), 1.88–1.71 (m, 2H), 1.40–1.18 (m, 4H), 0.89 (t, J = 7.1 Hz, 3H). 13C-NMR (CDCl3) δ 155.58, 140.54 (2C), 138.53, 129.06 (2C), 128.31 (2C), 127.98 (2C), 118.98, 45.05, 44.29, 30.03, 29.07, 22.52, 14.26. IR (KBr, cm−1): 3264, 1628, 1351. HRMS for (C17H20ClN5 [M+H]+). Calcd: 330.1485. Found: 330.1472.
N-Benzyl-2-chloro-9-isopentyl-9H-purin-6-amine (3e): White solid, yield (93%), mp 154–155 °C. 1H-NMR (CDCl3) δ 7.57–7.20 (m, 6H), 7.00 (br, 1H), 4.82 (s, 2H), 4.11 (d, J = 5.2 Hz, 2H), 1.72 (br, 2H), 1.63–1.50 (m, 1H), 0.96 (dd, J = 6.5, 1.8 Hz, 6H). 13C-NMR (CDCl3) δ 155.62, 140.38 (2C), 138.54, 129.10, 129.08, 128.34 (2C), 128.04, 128.00, 118.98, 45.08, 42.61, 39.05, 25.96, 22.65 (2C). IR (KBr, cm−1): 3264, 1629, 1306. HRMS for (C17H20ClN5 [M+H]+). Calcd: 330.1485. Found: 330.1473.
N-Benzyl-2-chloro-9-hexyl-9H-purin-6-amine (3f): White solid, yield (85%), mp 98–100 °C. 1H-NMR (CDCl3) δ 7.40–7.23 (m, 6H), 6.95 (s, 1H), 4.82 (s, 2H), 4.26–3.97 (m, 2H), 1.95–1.73 (m, 2H), 1.28 (br, 6H), 0.88 (t, J = 6.1 Hz, 3H). 13C-NMR (CDCl3) δ 155.57, 140.52 (2C), 138.51, 129.09, 129.07, 128.33, 128.32, 128.04, 128.00, 118.99, 45.06, 44.32, 31.58, 30.32, 26.64, 22.84, 14.33. IR (KBr, cm−1): 3265, 1630, 1306. HRMS for (C18H22ClN5 [M+H]+). Calcd: 344.1642. Found: 344.1631.
2-Chloro-9-isopropyl-N-(4-methoxybenzyl)-9H-purin-6-amine (3g): White solid, yield (99%), mp 140–141 °C. 1H-NMR (CDCl3) δ 7.37 (s, 1H), 7.25 (d, J = 7.3 Hz, 2H), 6.83 (d, J = 7.5 Hz, 2H), 4.85–4.61 (m, 3H), 3.78 (s, 3H), 1.50 (d, J = 5.5 Hz, 6H). 13C-NMR (CDCl3) δ 159.47, 155.56, 138.02 (2C), 130.66 (2c), 129.60 (2C), 119.17, 114.41 (2C), 55.66, 47.26, 44.44, 23.10 (2C). IR (KBr, cm−1): 3268, 2972, 1643, 1513, 1291, 1250. HRMS for (C16H18ClN5O [M+H]+). Calcd: 332.1278. Found: 332.1263.
9-Butyl-2-chloro-N-(4-methoxybenzyl)-9H-purin-6-amine (3h): White solid, yield (82%), mp 149–150 °C. 1H-NMR (CDCl3) δ 7.55 (s, 1H), 7.28 (dd, J = 7.1, 5.2 Hz, 2H), 6.89–6.82 (m, 2H), 6.63 (s, 1H), 4.73 (s, 2H), 4.12 (t, J = 7.2 Hz, 2H), 3.80 (s, 3H), 1.88–1.76 (m, 2H), 1.42–1.19 (m, 2H), 0.95 (t, J = 7.4 Hz, 3H). 13C-NMR (CDCl3) δ 159.57, 155.44, 140.39 (2C), 130.39, 129.81, 129.77 (2C), 129,73, 114.48 (2C), 55.69, 44.06 (2C), 32.37, 20.20, 13.88. IR (KBr, cm−1): 3262, 2953, 1625, 1513, 1305, 1257. HRMS for (C17H20ClN5O [M+H]+). Calcd: 346.1435. Found: 346.1424.
2-Chloro-9-isobutyl-N-(4-methoxybenzyl)-9H-purin-6-amine (3i): White solid, yield (81%), mp 115–120 °C. 1H-NMR (CDCl3) δ 7.47 (s, 1H), 7.34–7.22 (m, 2H), 6.91–6.79 (m, 2H), 6.66 (s, 1H), 4.73 (s, 2H), 3.92 (s, 2H), 3.80 (s, 3H), 1.42–1.11 (m, 1H), 0.94–0.91 (m, 6H). 13C-NMR (CDCl3) δ 159.57, 155.48, 140.87 (2C), 130.42, 130.39, 129.76 (2C), 114,49, 114.48 (2C), 55.69, 51.50 (2C), 29.34, 20.25 (2C). IR (KBr, cm−1): 3265, 2956, 1625, 1513, 1305, 1253. HRMS for (C17H20ClN5O [M+H]+). Calcd: 346.1435. Found: 346.1424.
2-Chloro-N-(4-methoxybenzyl)-9-pentyl-9H-purin-6-amine (3j): White solid, yield (83%), mp 124–127 °C. 1H-NMR (CDCl3) δ 7.47 (s, 1H), 7.30–7.23 (m, 2H), 6.85 (d, J = 8.6 Hz, 2H), 6.72 (s, 1H), 4.73 (s, 2H), 4.10 (t, J = 7.2 Hz, 2H), 3.80 (s, 3H), 1.90–1.76 (m, 2H), 1.43–1.16 (m, 4H), 0.89 (t, J = 7.1 Hz, 3H). 13C-NMR (CDCl3) δ 159.56, 155.45, 140.45 (2C), 130.40, 129.81, 129.74 (2C), 129.66, 114.45 (2C), 55.69, 44.29 (2C), 30.05, 29.08, 22.52, 14.25. IR (KBr, cm−1): 3262, 2919, 1626, 1513, 1304, 1243. HRMS for (C18H22ClN5O [M+H]+). Calcd: 360.1591. Found: 360.1559.
2-Chloro-9-isopentyl-N-(4-methoxybenzyl)-9H-purin-6-amine (3k): White solid, yield (73%), mp 106–110 °C. 1H-NMR (CDCl3) δ 7.53 (s, 1H), 7.34–7.23 (m, 2H), 6.88–6.82 (m, 2H), 6.66 (s, 1H), 4.73 (s, 2H), 4.18–4.08 (m, 2H), 3.80 (s, 3H), 1.79–1.67 (m, 2H), 1.64–1.51 (m, 1H), 0.97 (d, J = 6.6 Hz, 6H). 13C-NMR (CDCl3) δ 159.56, 155.46, 140.26 (2C), 130.40, 129.83, 129.74 (2C), 118.93, 114.47 (2C), 55.69, 42.62 (2C), 39.07, 25.97, 22.64 (2C). IR (KBr, cm−1): 3264, 2953, 1625, 1513, 1306, 1242. HRMS for (C18H22ClN5O [M+H]+). Calcd: 360.1591. Found: 360.1559.
2-Chloro-9-hexyl-N-(4-methoxybenzyl)-9H-purin-6-amine (3l): White solid, yield (74%), mp 83–86 °C. 1H-NMR (CDCl3) δ 7.53 (s, 1H), 7.28 (dd, J = 8.9, 1.9 Hz, 2H), 6.90–6.79 (m, 2H), 6.59 (s, 1H), 4.73 (s, 2H), 4.11 (t, J = 7.2 Hz, 2H), 3.83–3.75 (m, 3H), 1.83 (d, J = 5.8 Hz, 2H), 1.38–1.23 (m, 6H), 0.88 (t, J = 6.8 Hz, 3H). 13C-NMR (CDCl3) δ 159.56, 155.45, 140.42 (2C), 130.39, 129.84, 129.76, 129.70, 118.95, 114.47 (2C), 55.69, 44.32 (2C), 31.58, 30.34, 26.64, 22.84, 14.32. IR (KBr, cm−1): 3266, 2955, 1625, 1513, 1306, 1256. HRMS for (C19H24ClN5O [M+H]+). Calcd: 374.1478. Found: 374.1714.

3.4. General Synthetic Procedure to Obtain N2,N6-Dibenzyl-9-Alkyl-9H-Purine-2,6-Diamine Derivatives 4al

The N-benzyl-9-alkyl-2-chloro-9H-purin-6-amine 3al (1.0 mmol), benzylamine (0.9 mmol), DIPEA (2.0 mmol) and 1-butanol (3 mL) were added to a microwave reaction flask and the reaction mixture was irradiated for 1 hour at 150 °C. Then the solvent was evaporated under vacuum and the crude product was purified by column chromatographic on silica gel using chloroform as eluent.
N2,N6-Dibenzyl-9-isopropyl-9H-purine-2,6-diamine (4a): White solid, yield (95%), mp 74–76 °C. 1H-NMR (CDCl3) δ 7.39–7.22 (m, 11H), 6.35 (br, 1H), 6.08 (br, 1H), 4.62–4.57 (m, 3H), 4.40 (d, J = 5.5 Hz, 2H), 1.48 (d, J = 6.8 Hz, 6H). 13C-NMR (CDCl3) δ 170.34, 159.82, 155.32, 140.88, 139.82, 138.76, 134.94, 129.09, 128.89, 128.75, 128.25, 128.10, 128.06, 127.90, 127.51, 127.22, 115.13, 46.62, 46.44, 44.12, 22.93 (2C). IR (KBr, cm−1): 3289, 2922, 1629, 1548, 1352. HRMS for (C22H24N6 [M+H]+). Calcd: 373.2141. Found: 373.2127.
N2,N6-Dibenzyl-9-butyl-9H-purine-2,6-diamine (4b): White solid, yield (65%), mp 113–115 °C. 1H-NMR (CDCl3) δ 7.42–7.24 (m, 11H), 6.11 (br, 1H), 5.88 (br, 1H), 4.88–4.53 (m, 4H), 3.98 (t, J = 7.1 Hz, 2H), 1.86–1.66 (m, 2H), 1.41–1.16 (m, 2H), 0.92 (t, J = 7.3 Hz, 3H). 13C-NMR (CDCl3) δ 160.02, 155.30, 140.84, 139.71, 137.38, 129.49, 129.12, 128.90, 128.75, 128.27, 128.15, 128.06, 127.54, 127.23, 114.81, 114.31, 46.43, 44.17, 43.34, 32.31, 20.23, 13.94. IR (KBr, cm−1): 3373, 2929, 1632, 1521, 1351. HRMS for (C23H26N6 [M+H]+). Calcd: 387.2297. Found: 387.2261.
N2,N6-Dibenzyl-9-isobutyl-9H-purine-2,6-diamine (4c): White solid, yield (74%), mp 111–113 °C. 1H-NMR (CDCl3) δ 7.42–7.24 (m, 3H), 6.02 (br, 1H), 5.86 (br, 1H), 4.62 (d, J = 6.0 Hz, 1H), 4.42 (d, J = 5.7 Hz, 1H), 3.79 (d, J = 7.2 Hz, 1H), 2.18 (m, 1H), 0.90 (d, J = 6.7 Hz, 1H). 13C-NMR (CDCl3) δ 160.01, 155.26, 140.83, 139.64, 138.67, 137.85, 129.12, 128.91, 128.81, 128.74, 128.58, 128.27, 128.17, 128.08, 127.95, 127.58, 127.23, 114.72, 51.08, 46.45, 44.17, 29.27, 20.41 (2C). IR (KBr, cm−1): 3362, 2922, 1630, 1522, 1353. HRMS for (C23H26N6 [M+H]+). Calcd: 387.2297. Found: 387.2260.
N2,N6-Dibenzyl-9-pentyl-9H-purine-2,6-diamine (4d): White solid, yield (85%), mp 83–86 °C. 1H-NMR (CDCl3) δ 7.39–7.22 (m, 11H), 6.14 (br, 1H), 5.89 (br, 1H), 4.62 (d, J = 5.9 Hz, 2H), 4.49–4.31 (m, 2H), 3.97 (t, J = 7.0 Hz, 2H), 1.88–1.69 (m, 2H), 1.40–1.17 (m, 2H), 0.88 (t, J = 7.1 Hz, 3H). 13C- NMR (CDCl3) δ 159.98, 155.26, 140.82, 139.68, 138.70, 137.40, 129.12, 128.90, 128.75 (2C), 128.27, 128.15, 128.06 (2C), 127.95, 127.56, 127.24, 46.43, 44.17, 43.64, 29.94, 29.16, 22.56, 14.30. IR (KBr, cm−1): 3269, 2956, 1632, 1528, 1351. HRMS for (C24H28N6 [M+H]+). Calcd: 401.2454. Found: 401.2418.
N2,N6-Dibenzyl-9-isopentyl-9H-purine-2,6-diamine (4e): White solid, yield (43%), mp 69–70 °C. 1H-NMR (CDCl3) δ 7.37–7.19 (m, 11H), 6.41 (br, 1H), 5.93 (br, 1H), 4.84–4.66 (m, 2H), 4.61 (d, J = 6.0 Hz, 2H), 3.97–3.95 (m, 2H), 1.73–1.59 (m, 2H), 1.59–1.44 (m, 1H), 0.92 (d, J = 6.6 Hz, 6H). 13C-NMR (CDCl3) δ 160.02, 155.31, 151.62, 140.84, 140.31, 139.77, 137.20, 129.12, 129.06, 128.88, 128.75, 128.27, 128.11, 128.05, 127.94, 127.50, 127.23, 114.71, 46.40, 41.88, 39.15, 25.86, 22.71 (2C). IR (KBr, cm−1): 3267, 2955, 1630, 1526, 1352. HRMS for (C24H28N6 [M+H]+). Calcd: 401.2454. Found: 401.2417.
N2,N6-Dibenzyl-9-hexyl-9H-purine-2,6-diamine (4f): White solid, yield (93%), mp 79–81 °C. 1H-NMR (CDCl3) δ 7.46–7.26 (m, 11H), 6.06 (br, 1H), 5.81 (br, 1H), 4.79 (br, 2H), 4.63 (s, 2H), 3.98 (s, 2H), 1.74 (br, 2H), 1.28 (br, 6H), 0.80 (br, 3H). 13C-NMR (CDCl3) δ 160.01, 155.28, 140.83, 139.68, 137.40, 129.14, 128.91 (2C), 128.76 (2C), 128.17 (2C), 128.07 (2C), 127.57, 127.25, 114.84, 46.44, 44.19, 43.68, 31.66, 30.21, 26.72, 22.88, 14.39. IR (KBr, cm−1): 3371, 2954, 1630, 1523, 1351. HRMS for (C25H30N6 [M+H]+). Calcd: 415.2610. Found: 415.2571.
N2-Benzyl-9-isopropyl-N6-(4-methoxybenzyl)-9H-purine-2,6-diamine (4g): White solid, yield (83%), mp 69–70 °C. 1H-NMR (CDCl3) δ 7.36 (d, J = 7.6 Hz, 2H), 7.34–7.21 (m, 6H), 6.80 (d, J = 8.2 Hz, 2H), 6.09 (br, 2H), 4.67–4.59 (m, 4H), 4.40 (br, 1H), 3.76 (s, 3H), 1.49 (d, J = 6.4 Hz, 6H). 13C-NMR (CDCl3) δ 159.40, 158.78, 154.83, 140.48, 138.32, 134.47, 131.42, 129.06, 128.71 (2C), 128.36, 127.86, 127.65 (2C), 127.54, 127.51, 126.83, 113.89, 55.27, 46.03, 43.73, 22.55 (2C). IR (KBr, cm−1): 3291, 2927, 1628, 1541, 1354, 1249. HRMS for (C23H26N6O [M+H]+). Calcd: 403.2246. Found: 403.2231.
N2-Benzyl-9-butyl-N6-(4-methoxybenzyl)-9H-purine-2,6-diamine (4h): White solid, yield (91%), mp 92–94 °C. 1H-NMR (CDCl3) δ 7.36 (d, J = 7.4 Hz, 2H), 7.34–7.20 (m, 6H), 6.79 (d, J = 7.6 Hz, 2H), 6.06 (br, 2H), 4.64 (t, J = 8.4 Hz, 4H), 4.40 (d, J = 2.8 Hz, 2H), 3.76 (s, 3H), 1.81–1.72 (m, 2H), 1.34–1.26 (m, 2H), 0.92 (t, J = 7.4 Hz, 3H). 13C-NMR (CDCl3) δ 160.02, 159.22, 155.25, 140.88, 137.33, 131.80, 129.47, 129.09, 128.74 (2C), 128.24, 128.05 (2C), 127.90, 127.89, 127.22, 114.30, 55.66, 46.42, 44.12, 43.32, 32.30, 20.22, 13.94. IR (KBr, cm−1): 3290, 2928, 1632, 1519, 1351, 1251. HRMS for (C24H28N6O [M+H]+). Calcd: 417.2403. Found: 417.2367.
N2-Benzyl-9-isobutyl-N6-(4-methoxybenzyl)-9H-purine-2,6-diamine (4i): White solid, yield (85%), mp 110–112 °C. 1H-NMR (CDCl3) δ 7.35 (d, J = 7.3 Hz, 2H), 7.32–7.17 (m, 6H), 6.79 (d, J = 7.3 Hz, 2H), 6.22 (br, 2H), 4.71–4.52 (m, 4H), 4.41 (br, 2H), 3.76 (s, 3H), 2.14 (br, 1H), 0.89 (d, J = 6.6 Hz, 6H). 13C-NMR (CDCl3) δ 160.05, 159.19, 155.27, 140.91, 138.80, 137.81, 131.84, 129.46, 129.07, 128.73 (2C), 128.22, 128.07 (2C), 127.89, 127.86, 127.21, 114.29, 55.65, 46.43, 44.08, 29.25, 20.40 (2C). IR (KBr, cm−1): 3291, 2926, 1619, 1512, 1354, 1253. HRMS for (C24H28N6O [M+H]+). Calcd: 417.2403. Found: 417.2364.
N2-Benzyl-N6-(4-methoxybenzyl)-9-pentyl-9H-purine-2,6-diamine (4j): White solid, yield (79%), mp 86–88 °C. 1H-NMR (CDCl3) δ 7.36 (d, J = 7.2 Hz, 2H), 7.28–7.21 (m, 6H), 6.80 (d, J = 8.3 Hz, 2H), 6.08 (br, 2H), 4.63 (d, J = 5.8 Hz, 2H), 4.40 (d, J = 4.0 Hz, 2H), 3.95 (d, J = 6.7 Hz, 2H), 3.76 (s, 3H), 1.84–1.75 (m, 2H), 1.35–1.24 (m, 4H), 0.87 (t, J = 6.9 Hz, 3H). 13C-NMR (CDCl3) δ 160.01, 159.25, 155.23, 140.87, 138.78, 137.34, 131.78, 129.47, 129.09, 128.74 (2C), 128.23, 128.04 (2C), 127.89, 127.22, 114.33, 55.66, 46.42, 44.12, 43.63, 29.92, 29.15, 22.54, 14.28. IR (KBr, cm−1): 3293, 2925, 1629, 1527, 1355, 1252. HRMS for (C25H30N6O [M+H]+). Calcd: 431.2559. Found: 431.2518.
N2-Benzyl-9-isopentyl-N6-(4-methoxybenzyl)-9H-purine-2,6-diamine (4k): White solid, yield (74%), mp 86–90 °C. 1H-NMR (CDCl3) δ 7.39–7.22 (m, 8H), 6.80 (d, J = 8.4 Hz, 2H), 6.01 (br, 2H), 4.63 (d, J = 5.9 Hz, 2H), 4.40 (d, J = 5.6 Hz, 2H), 3.99 (t, J = 7.3 Hz, 2H), 3.76 (s, 3H), 1.68 (q, J = 7.0 Hz, 2H), 1.60–1.50 (m, 1H), 0.93 (d, J = 6.5 Hz, 6H). 13C-NMR (CDCl3) δ 159.59, 158.80, 154.80, 140.44, 138.29, 136.77, 131.32, 129.08, 128.70 (2C), 128.36, 127.85 (2C), 127.64, 127.52, 126.84, 113.90, 55.27, 45.99, 43.73, 41.48, 38.75, 25.46, 22.31 (2C). IR (KBr, cm−1): 3290, 2926, 1620, 1526, 1351, 1252. HRMS for (C25H30N6O [M+H]+). Calcd: 431.2559. Found: 431.2521.
N2-Benzyl-9-hexyl-N6-(4-methoxybenzyl)-9H-purine-2,6-diamine (4l): White solid, yield (98%), mp 108–111 °C. 1H-NMR (CDCl3) δ 7.35–7.21 (m, 8H), 6.79 (d, J = 8.6 Hz, 2H), 6.08 (br, 2H), 4.66–4.62 (m, 4H), 3.95 (t, J = 7.2 Hz, 2H), 3.76 (s, 3H), 1.83–1.73 (m, 2H), 1.27 (br, 6H), 0.86 (t, J = 6.7 Hz, 3H). 13C-NMR (CDCl3) δ 160.02, 159.22, 155.24, 140.88, 138.74, 137.33, 131.78, 129.47, 129.10, 128.74 (2C), 128.25, 128.04 (2C), 127.91, 127.22, 114.30, 55.66, 46.42, 44.14, 43.65, 31.65, 30.20, 26.71, 22.88, 14.38. IR (KBr, cm−1): 3363, 2927, 1632, 1524, 1351, 1242. HRMS for (C26H32N6O [M+H]+). Calcd: 445.2716. Found: 445.2675.

3.5. Anticancer Activity

3.5.1. Cell Lines Culture

Cancer cell lines were grown at 37 °C in humidified atmosphere and 5% CO2. H1975, HL60, HTC116 and Vero cells were grown in RPMI 1640 culture medium supplemented with 10% fetal bovine serum and (100 UI/mL) penicillin-streptomicyn. HeLa cells were grown in EMEM culture medium, supplemented with 10% fetal bovine serum and (100 UI/mL) penicillin-streptomicyn.

3.5.2. Cytotoxicity Study

Cytotoxicity assays were performed by using the MTT reduction method as described previously [23]. Briefly, cancer cell lines were plated in a flat-bottom 96-wells plate at 10,000 cells per well density. Then, the cells were incubated with synthetized compounds at different concentrations (from 0.1 to 50 µM) in 200 µL of 10% fetal bovine serum-RPMI or EMEM culture medium at 37 °C for 72 h. Ten µL of MTT was added at a final concentration of 0.5 mg/mL, incubated at 37 °C for 4 h, and then solubilized with 10% sodium dodecyl sulfate (SDS) in 0.1 mM HCl and incubated overnight at 37 °C. Formazan formation was measured at 570 nm in a multiwell reader (StatFax 4200, Awareness Technology, Inc. Palm City, FL, USA).

3.5.3. Viability Assays with Propidium Iodide

Cell viability was analyzed by FACS as previously described [24,25,26]. In this assay, after setting the baseline to exclude cell debris, cells impermeable to propidium iodide (PI negative) are considered as viable. Two populations of PI-permeable dead cells are distinguished based on fluorescence intensity, corresponding to either hypodiploid apoptotic cells or necrotic cells with intact DNA. Here, H1975, HTC116, and HeLa cells were incubated with concentrations of 50 µM of each compound for 16 h at 37 °C. Cells were harvested and stained with 10 µg/mL of propidium iodide to determine cell viability. Samples containing roughly 1 × 104 cells were evaluated by flow cytometry (FACScanto II; Becton Dickinson, Mountain View, CA, USA) and analyzed using the software program FCS Express v5.

3.5.4. Statical Analysis

Values are expressed as means ± standard deviations from three independent experiments. IC50 values, (Compound concentration necessary to decrease at 50% the MTT reduction) and the two-way analysis of variance (ANOVA) test were performed when necessary with Prism GraphPad 6.0f software (GraphPad Software Inc., San Diego, CA, USA).

3.6. Pharmacophore Elucidation

The 3D-structure of the pharmacophore hypothesis was carried out using Molecular Operating Environment (MOE) software version 2013–2014, Chemical Computing Group Inc. (Montreal, QC, Canada).

4. Conclusions

A study of new 2,6,9-trisubstituted purines on four cancer cell lines and Vero cells, showed that certain chemical modifications on the purine moiety increased the cytotoxicity and selective effects. Some of these compounds were more potent than the reference drug etoposide and exhibited selectivity against three cancer cell lines in comparison with VERO cells, most notably 4f, 4j and 4k. A preliminary analysis confirms the earlier conclusion that the purine core is a privilege scaffold, but attempts to reveal general structure-activity relationships using lipophilicity properties were unsuccessful, although pharmacophoric features have been recognized. Nevertheless, the main mechanism of action observed for the most active compounds in each cancer cell lines is the induction of apoptosis. These results showed that 4f, 4j and 4k are promising leads for the development of new antitumor drugs.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/20/04/6808/s1.

Acknowledgments

Financial support from FONDECYT (Research Grant) N° 1120128.

Author Contributions

J.C-A. and C.E-B synthesized and characterized all compounds. A.C-M, C.E-B and R.A.T. analyzed the data and help to write the paper. M.F, M.J.T and A.A performed the antitumor and FACS analysis. M.P. performed the pharmacophore elucidation. C.O.S. designed, analyzed and supervised the research and wrote the paper. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Welsch, M.E.; Snyder, S.A.; Stockwell, B.R. Privileged scaffolds for library design and drug discovery. Curr. Opin. Chem. Biol. 2010, 14, 347–361. [Google Scholar]
  2. Rosemeyer, H. The Chemodiversity of Purine as a Constituent of Natural Products. Chem. Biodivers. 2004, 1, 361–401. [Google Scholar]
  3. Legraverend, M.; Grierson, D.S. The purines: Potent and versatile small molecule inhibitors and modulators of key biological targets. Bioorg. Med. Chem. 2006, 14, 3987–4006. [Google Scholar]
  4. Hansen, S.W.; Skovsgaard, T.; Sorensen, J.B. Treatment of small cell lung cancer with 6-mercaptopurine: A phase II study. Cancer Treat. Rep. 1985, 69, 555. [Google Scholar]
  5. Munshi, P.N.; Lubin, M.; Bertino, J.R. 6-Thioguanine: A drug with unrealized potential for cancer therapy. Oncologist 2014, 19, 760–765. [Google Scholar]
  6. Masson, C. Treatment of herpes with acyclovir. Presse Med. 1983, 12, 1399–1400. [Google Scholar]
  7. Wang, X.; Wang, L.; Wu, N.; Ma, X.; Xu, J. Clinical efficacy of oral ganciclovir for prophylaxis and treatment of recurrent herpes simplex keratitis. Chin. Med. J. 2015, 128, 46–50. [Google Scholar]
  8. Vince, R. Synthesis and anti-HIV activity of carbovir and related carbocyclic nucleosides. Nucleic Acids Symp. Ser. 1991, 25, 193–194. [Google Scholar]
  9. De Clercq, E. In search of a selective antiviral chemotherapy. Clin. Microbiol. Rev. 1997, 10, 674–693. [Google Scholar]
  10. Flechner, S.M.; Zhou, L.; Derweesh, I.; Mastroianni, B.; Savas, K.; Goldfarb, D.; Modlin, C.S.; Krishnamurthi, V.; Novick, A. The impact of sirolimus, mycophenolate mofetil, cyclosporine, azathioprine, and steroids on wound healing in 513 kidney-transplant recipients. Transplantation 2003, 76, 1729–1734. [Google Scholar]
  11. Chang, Y.T.; Gray, N.S.; Rosania, G.R.; Sutherlin, D.P.; Kwon, S.; Norman, T.C.; Sarohia, R.; Leost, M.; Meijer, L.; Schultz, P.G. Synthesis and application of functionally diverse 2,6,9-trisubstituted purine libraries as CDK inhibitors. Chem. Biol. 1999, 6, 361–375. [Google Scholar]
  12. Chang, Y.T.; Wignall, S.M.; Rosania, G.R.; Gray, N.S.; Hanson, S.R.; Su, A.I.; Merlie, J.; Moon, H.S.; Sangankar, S.B.; Perez, O.; et al. Synthesis and biological evaluation of myoseverin derivatives: Microtubule assembly inhibitors. J. Med. Chem. 2001, 44, 4497–4500. [Google Scholar]
  13. Popowycz, F.; Schneider, C.; Debonis, S.; Skoufias, D.A.; Kozielski, F.; Galmarini, C.M.; Joseph, B. Synthesis and antiproliferative evaluation of pyrazolo[1,5-a]-1,3,5-triazine myoseverin derivatives. Bioorg. Med. Chem 2009, 17, 3471–3478. [Google Scholar]
  14. Gucky, T.; Jorda, R.; Zatloukal, M.; Bazgier, V.; Berka, K.; Reznickova, E.; Beres, T.; Strnad, M.; Krystof, V. A novel series of highly potent 2,6,9-trisubstituted purine cyclin-dependent kinase inhibitors. J. Med. Chem. 2013, 56, 6234–6247. [Google Scholar]
  15. Sroka, I.M.; Heiss, E.H.; Havlicek, L.; Totzke, F.; Aristei, Y.; Pechan, P.; Kubbutat, M.H.; Strnad, M.; Dirsch, V.M. A novel roscovitine derivative potently induces G1-phase arrest in platelet-derived growth factor-BB-activated vascular smooth muscle cells. Mol. Pharmacol. 2010, 77, 255–261. [Google Scholar]
  16. Yenugonda, V.M.; Deb, T.B.; Grindrod, S.C.; Dakshanamurthy, S.; Yang, Y.; Paige, M.; Brown, M.L. Fluorescent cyclin-dependent kinase inhibitors block the proliferation of human breast cancer cells. Bioorg. Med. Chem. 2011, 19, 2714–2725. [Google Scholar]
  17. Benson, C.; White, J.; de Bono, J.; O’>Donnell, A.; Raynaud, F.; Cruickshank, C.; McGrath, H.; Walton, M.; Workman, P.; Kaye, S.; et al. A phase I trial of the selective oral cyclin-dependent kinase inhibitor seliciclib (CYC202; R-Roscovitine), administered twice daily for 7 days every 21 days. Br. J. Cancer. 2007, 96, 29–37. [Google Scholar]
  18. Le Tourneau, C.; Faivre, S.; Laurence, V.; Delbaldo, C.; Vera, K.; Girre, V.; Chiao, J.; Armour, S.; Frame, S.; Green, S.R.; et al. Phase I evaluation of seliciclib (R-roscovitine), a novel oral cyclin-dependent kinase inhibitor, in patients with advanced malignancies. Eur. J. Cancer 2010, 46, 3243–3250. [Google Scholar]
  19. Krystof, V.; McNae, I.W.; Walkinshaw, M.D.; Fischer, P.M.; Muller, P.; Vojtesek, B.; Orsag, M.; Havlicek, L.; Strnad, M. Antiproliferative activity of olomoucine II, a novel 2,6,9-trisubstituted purine cyclin-dependent kinase inhibitor. Cell. Mol. Life Sci. 2005, 62, 1763–1771. [Google Scholar]
  20. Raynaud, F.I.; Whittaker, S.R.; Fischer, P.M.; McClue, S.; Walton, M.I.; Barrie, S.E.; Garrett, M.D.; Rogers, P.; Clarke, S.J.; Kelland, L.R.; et al. In vitro and in vivo pharmacokinetic-pharmacodynamic relationships for the trisubstituted aminopurine cyclin-dependent kinase inhibitors olomoucine, bohemine and CYC202. Clin. Cancer Res. 2005, 11, 4875–4887. [Google Scholar]
  21. Massard, C.; Soria, J.C.; Anthoney, D.A.; Proctor, A.; Scaburri, A.; Pacciarini, M.A.; Laffranchi, B.; Pellizzoni, C.; Kroemer, G.; Armand, J.P.; et al. A first in man, phase I dose-escalation study of PHA-793887, an inhibitor of multiple cyclin-dependent kinases (CDK2, 1 and 4) reveals unexpected hepatotoxicity in patients with solid tumors. Cell Cycle 2011, 10, 963–970. [Google Scholar]
  22. Ederhy, S.; Izzedine, H.; Massard, C.; Dufaitre, G.; Spano, J.P.; Milano, G.; Meuleman, C.; Besse, B.; Boccara, F.; Kahyat, D.; et al. Cardiac side effects of molecular targeted therapies: Towards a better dialogue between oncologists and cardiologists. Crit. Rev. Oncol. Hematol. 2011, 80, 369–379. [Google Scholar]
  23. Gray, N.S.; Wodicka, L.; Thunnissen, A.M.; Norman, T.C.; Kwon, S.; Espinoza, F.H.; Morgan, D.O.; Barnes, G.; le Clerc, S.; Meijer, L.; et al. Exploiting chemical libraries, structure, and genomics in the search for kinase inhibitors. Science 1998, 281, 533–538. [Google Scholar]
  24. Vandromme, L.; Legraverend, M.; Kreimerman, S.; Lozach, O.; Meijer, L.; Grierson, D.S. A Pd(0) based cross-coupling approach to the synthesis of 2-amidopurines and their evaluation as CDK inhibitors. Bioorg. Med. Chem. 2007, 15, 130–141. [Google Scholar]
  25. Bork, J.T.; Lee, J.W.; Chang, Y.T. The combinatorial synthesis of purine, pyrimidine and triazinebased libraries. QSAR Comb. Sci. 2004, 23, 245–260. [Google Scholar]
  26. Morales, F.; Ramirez, A.; Conejo-Garcia, A.; Morata, C.; Marchal, J.A.; Campos, J.M. Anti-proliferative activity of 2,6-dichloro-9- or 7-(ethoxycarbonylmethyl)-9H- or 7H-purines against several human solid tumour cell lines. Eur. J. Med. Chem. 2014, 76, 118–124. [Google Scholar]
  27. Ciszewski, L.; Waykole, L.; Prashad, M.; Repic, O. A practical synthesis of 2-arylamino-6-alkylaminopurines from 2,6-dichloropurine. Org. Process Res. Dev. 2006, 10, 799–802. [Google Scholar]
  28. Takvorian, A.G.; Combs, A.P. Microwave-assisted organic synthesis using minivials to optimize and expedite the synthesis of diverse purine libraries. J. Comb. Chem. 2004, 6, 171–174. [Google Scholar]
  29. Huang, H.; Liu, H.; Chen, K.; Jiang, H. Microwave-Assisted Rapid Synthesis of 2,6,9-Substituted Purines. J. Comb. Chem. 2007, 9, 197–199. [Google Scholar]
  30. NCI/NIH Developmental Therapeutcs Program. Available online: http://dtp.nci.nih.gov/branches/btb/handlingprep.html (accessed on 15 January 2015).
  31. Aboul-Fadl, T.; Bin-Jubair, F.A.; Aboul-Wafa, O. Schiff bases of indoline-2,3-dione (isatin) derivatives and nalidixic acid carbohydrazide, synthesis, antitubercular activity and pharmacophoric model building. Eur. J. Med. Chem. 2010, 45, 4578–4586. [Google Scholar]
  32. Saxena, S.; Chaudhaery, S.S.; Varshney, K.; Saxena, A.K. Pharmacophore-based virtual screening and docking studies on Hsp90 inhibitors. SAR QSAR Environ. Res. 2010, 21, 445–462. [Google Scholar]
  • Sample Availability: Samples of all compounds are available from the authors.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
