Molecules 2015, 20(10), 19051-19065; doi:10.3390/molecules201019051

Article
Antioxidant Properties of Essential Oil Extracted from Pinus morrisonicola Hay Needles by Supercritical Fluid and Identification of Possible Active Compounds by GC/MS
1
Department of Health Food, Chung Chou University of Science and Technology, Changhua 51591, Taiwan
2
Department of Bioindustry Technology, Dayeh University, Changhua 51591, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Maurizio Battino
Received: 11 August 2015 / Accepted: 15 October 2015 / Published: 20 October 2015

Abstract

:
Pine (Pinus morrisonicola Hay, PM) needles have been used as folk medicine for their antihypertension and lipid-lowering effects. As supercritical fluid extraction (SFE) is considered an ideal technique for the extraction of essential oil from plant materials, the present work investigated the optimal SFE conditions and the protective effects of different resulting fractions of PM needles on lipid peroxidation and foam cell production in macrophages. Nine PM needle extracts (PME1–9) were obtained in 1%–4% yields using different SFE conditions, of which PME1 had the lowest yield (1.1%) and PME3 the highest (3.9%). PME3 exhibited lower cytotoxic effects and stronger inhibition of lipid peroxidation and formation of foam cell in RAW 264.7 macrophages than those of other PME extracts. PME3-1 purified from PME3 by column and thin layer chromatography inhibited LDL oxidation more effectively than did PME3 in a cell-free system oxidized by Cu2+. PME3-1 dose-dependently (25–100 μg/mL) decreased conjugated diene levels and foam cell formation induced by ox-LDL. GC/MS analyses revealed that 1-docosene, neophytadiene, and methyl abietate were increased 5.2-, 1.7- and 4.3-fold in PME3-1 relative to PME3. A new hydrocarbon compound, cedrane-8,13-diol, was identified in PME3-1. Overall, the present study demonstrates the optimal extraction conditions of SFE of PM and identifies the most potent antioxidant fractions and possible active compounds in PM.
Keywords:
Pinus morrisonicola Hay; supercritical fluid extract; essential oil; lipid peroxidation; foam cell formation

1. Introduction

Oxidation of low-density lipoprotein (LDL) is crucial in plaque formation and the onset of atherosclerosis. The LDL is subject to oxidative modification to form oxidized LDL (ox-LDL) due to its high content of unsaturated fatty acyl groups [1]. Ox-LDL can cause macrophage growth inhibition, induction of monocyte differentiation into macrophages, promotion of its uptake by macrophages through scavenger receptors, and cytotoxicity of macrophages [2]. Consequently, macrophage apoptosis plays an important role in the development of atherosclerotic lesion. Occurrence of macrophage apoptosis in human atheroma has been demonstrated [3,4]. Much evidence has implicated that atherosclerosis has a close relationship with ox-LDL, which is clearly a main risk factor for coronary heart disease. In contrast, much evidence shows that dietary antioxidants (e.g., polyphenol and flavonoid) can potentially protect against LDL oxidation [5]. Epidemiological studies have repeatedly shown that diets rich in fruit and vegetables containing antioxidants are well associated with lower risks of cardiovascular diseases [6,7]. Thus, increased intakes of dietary antioxidants may be useful to prevent LDL oxidation and the atherosclerotic progression.
Pine (Pinus morrisonicola Hay, PM), also called Taiwanese short-leaf pine, belongs to the Pinaceae family [8,9]. PM needles have been used as tonic drinks and a folk medicine for antihypertension in Asia [8]. PM needles extracted with various solvents (water, ethanol, ethyl acetate) exhibit in vitro biological functions, including antioxidant activity, anti-mutagenicity, anti-inflammatory actions, inhibition of the growth of human leukemic cell line U937, and antitumor effects [9,10,11,12,13]. In addition, the ethyl acetate extract of PM needle was shown to inhibit Cu2+-induced LDL oxidation and attenuate excessive NO generation in mouse RAW 264.7 macrophages treated with lipopolysaccharide (LPS) [14].
The solvent lipid extraction methods for plant essential oils are being superseded by supercritical fluid extraction (SFE) methods, as the latter are rapid, automatable, selective, and can avoid the use of large amounts of solvent [15]. Among different supercritical fluids, CO2 is considered environmentally friendly, safe, non-toxic, non-carcinogenic, non-flammable, inexpensive, and to have modest critical conditions. The selectivity of the supercritical CO2 (SF-CO2) can be adjusted by varying temperature and pressure to obtain fractions consisting of desirable compounds [16]. It has been shown that the essential oils can be obtained from plants by SF-CO2 extraction (SFE-CO2) methods [17] and that the essential oil has hypolipidemic effects in vivo [18] and can potentially be used as a natural antioxidant and antimicrobial agent in food processing [19,20]. Besides, the majority of the essential oils are classified as Generally Recognized As Safe (GRAS) ingredients [21]. These features of SFE are ideal for extraction of essential oil from plant materials. However, to our knowledge, no reports have been available on the use of SFE for PM needle essential oil. Therefore, the present study aimed to determine the optimal conditions of SFE for PM needles and whether the PM extracts (PME) exert antioxidant activities in RAW 264.7 macrophages treated with ox-LDL. Furthermore, we analyzed the possible bioactive compounds in PME using GC/MS.

2. Results

2.1. Effect of PME on Cell Viability of Macrophages

The viability of macrophages was determined to select the non-cytotoxic concentrations of PME for the following experiments. As shown in Figure 1, PME2 and PME5 displayed strong cytotoxic effects by inhibiting cell viability of 40% and 50% at 100 μg/mL, respectively, whereas PME fractions 1, 3, 4, and 6 exhibited relatively low cytotoxic activities; each fraction retained about 80% cell viability at the concentration of 100 μg/mL. Thus, we selected PME 1, 3, 4 and 6 for the following antioxidant tests.

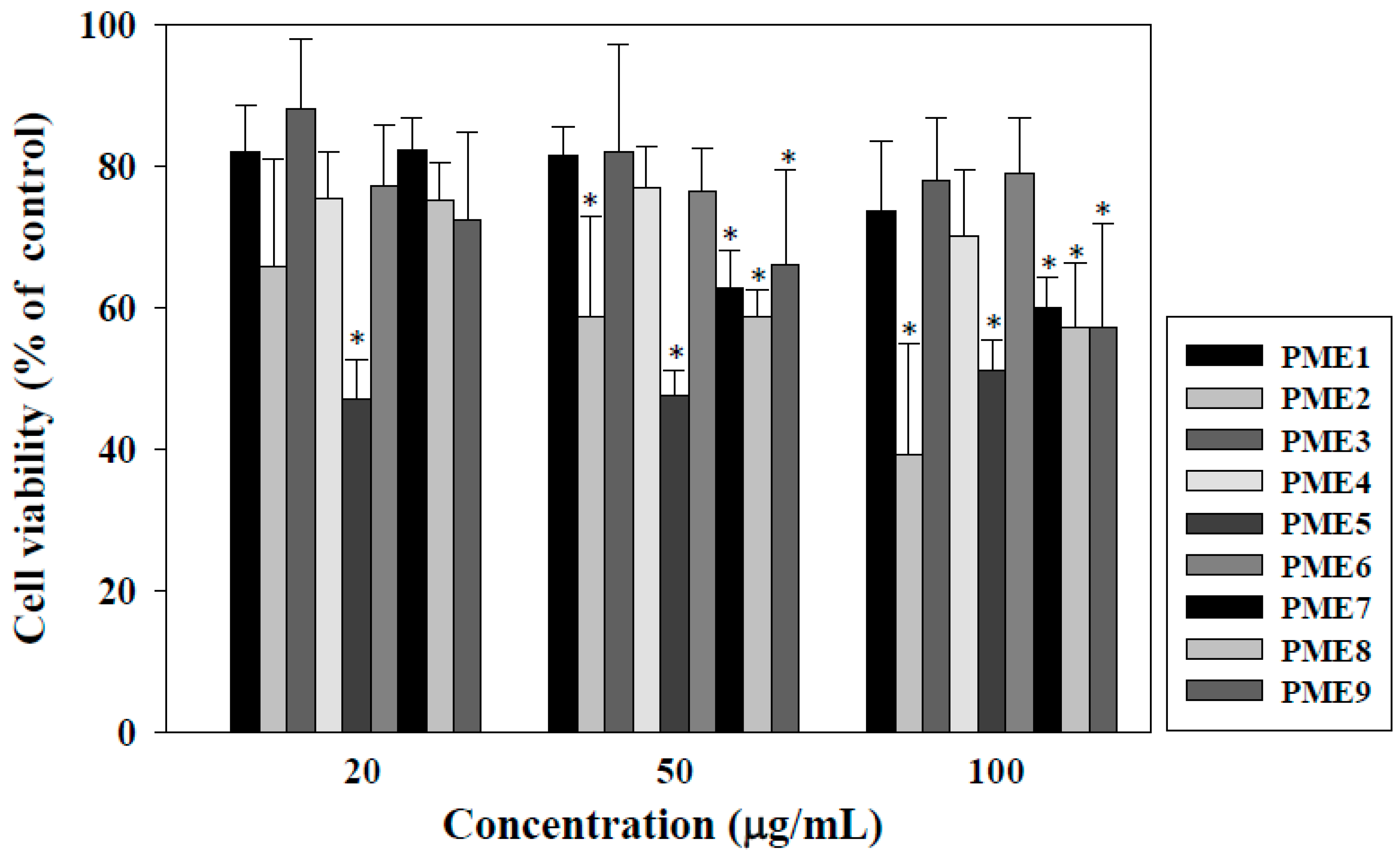

Figure 1. Effects of Pinus morrisonicola extract (PME) fractions 1 to 9 (PME1–9) on the viability of RAW 264.7 macrophages for 24 h. * indicate significantly different by comparison with the control (p < 0.05).
Figure 1. Effects of Pinus morrisonicola extract (PME) fractions 1 to 9 (PME1–9) on the viability of RAW 264.7 macrophages for 24 h. * indicate significantly different by comparison with the control (p < 0.05).
Molecules 20 19051 g001

2.2. Effect of PME on Lipid Peroxidation in Macrophages Treated with ox-LDL

As shown in Figure 2A, levels of TBARS in macrophages treated with ox-LDL were significantly increased, as compared to those treated with n-LDL (p < 0.05). The inhibition of lipid peroxidation (levels of TBARS) in macrophage by PME 1, 3, 4, and 6 was shown in Figure 2B. The results reveal that PME 1 and 3 significantly inhibited the levels of TBARS, with an inhibition of 29.1% and 46.8%, respectively, at the concentration of 100 μg/mL (p < 0.05). However, the other PME extracts did not significantly inhibit lipid peroxidation in macrophages treated with Cu2+ (p > 0.05). As a result, we used PME3 for the following experiments.

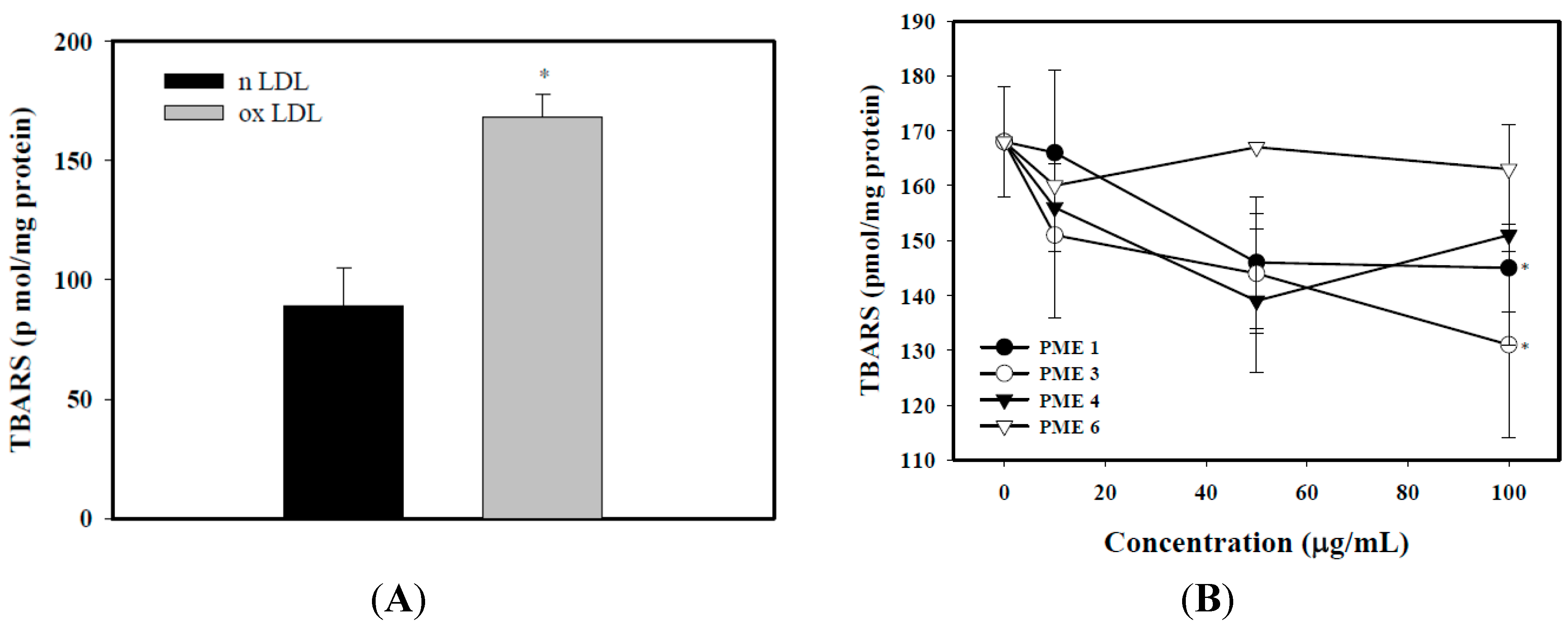

Figure 2. Thiobarbituric acid-reactive substances (TBARS) in RAW 264.7 macrophages incubated with n-LDL or ox-LDL (100 μg/mL). (A) * indicate significantly different by comparison with n-LDL (p < 0.05); (B) The inhibitory effects of Pinus morrisonicola extracts (PME) fractions 1, 3, 4, and 6. Asterisks are significantly different (p < 0.05) as compared to zero concentration of PME. Data are expressed as means ± SD of three separate experiments.
Figure 2. Thiobarbituric acid-reactive substances (TBARS) in RAW 264.7 macrophages incubated with n-LDL or ox-LDL (100 μg/mL). (A) * indicate significantly different by comparison with n-LDL (p < 0.05); (B) The inhibitory effects of Pinus morrisonicola extracts (PME) fractions 1, 3, 4, and 6. Asterisks are significantly different (p < 0.05) as compared to zero concentration of PME. Data are expressed as means ± SD of three separate experiments.
Molecules 20 19051 g002

2.3. Effect of PME3 on Foam cell Formation in Macrophages Treated with ox-LDL

Because PME3 RAW 264.7 macrophages treated with n-LDL for 24 h caused little or no formation of foam cell (Figure 3A). In contrast, RAW 264.7 macrophages treated with Cu2+-oxidized LDL for 24 h resulted in significantly increased formation of foam cells (Figure 3B), an indication of increased uptake of ox-LDL. However, when PME3 was included in the macrophages treated with LDL and CuSO4, the foam cell formation (i.e., ox-LDL accumulation) was significantly reduced (Figure 3C,D). The effect of PME3 was stronger at the higher concentration (25 μg/mL, Figure 3D) than at the lower concentration (10 μg/mL), whereas PME fractions 1, 4, and 6 added at the concentration of 25 μg/mL did not display significant inhibitory effects (data not shown).
Figure 3. Effects of Pinus morrisonicola extract fraction 3 (PME3) on foam cell formation in RAW 264.7 macrophages incubated with ox-LDL for 24 h. (A): RAW 264.7 cells treated with native LDL (n-LDL); (B): RAW 264.7 cells exposed to ox-LDL (ox-LDL); (C,D): RAW 264.7 cells exposed to ox-LDL in the presence of 10 μg/mL (C) and 25 μg/mL (D) of PME3. Arrow heads indicate foam cell formation.
Figure 3. Effects of Pinus morrisonicola extract fraction 3 (PME3) on foam cell formation in RAW 264.7 macrophages incubated with ox-LDL for 24 h. (A): RAW 264.7 cells treated with native LDL (n-LDL); (B): RAW 264.7 cells exposed to ox-LDL (ox-LDL); (C,D): RAW 264.7 cells exposed to ox-LDL in the presence of 10 μg/mL (C) and 25 μg/mL (D) of PME3. Arrow heads indicate foam cell formation.
Molecules 20 19051 g003aMolecules 20 19051 g003b

2.4. Fractionation of PME3 by Column Chromatography and Thin-Layer Chromatography

PME3-1, PME3-2, PME3-3 and PME3-4 were isolated from PME3 by silica gel column chromatography using an elution system of n-hexane–ethyl acetate = 1:0.2. The overall recovery of PME isolates from the column is 90%–95% at a loading capacity of 150 mg of PME per 10 g of silica gel. The complete separation of four PME isolates (PME3-1, PME3-2, PME3-3 and PME3-4) is also achieved by one-dimensional silica gel thin-layer chromatography with the solvent system n-hexane–ethyl acetate = 1:0.2. The elution sequence of PME3 was assigned as PME3-1 (tubes 1–6), PME3-2 (tubes 8–14), PME3-3 (tubes 20–32), and PME3-4 (tubes 251–270), and their yields were about 60%, 28%, 3%, and 0.5%, respectively, and their Rf values were 0.91, 0.50, 0.26, and 0.10, respectively (Table 1).
Table 1. Tube number, Rf value and yields of Pinus morrisonicola extract (PME) fractions 3-1 to 3-4 (PME3-1 to 3-4) by thin layer chromatography with the solvent system of n-hexane:ethyl acetate = 1:0.2.
Table 1. Tube number, Rf value and yields of Pinus morrisonicola extract (PME) fractions 3-1 to 3-4 (PME3-1 to 3-4) by thin layer chromatography with the solvent system of n-hexane:ethyl acetate = 1:0.2.
PME3 FractionsTube NumberRf ValueYields (%)
PME3-11–6 *0.9160
PME3-28–140.5028
PME3-320–320.263
PME3-4251–2700.100.5
*: The volume of the collecting tube is 10 mL.

2.5. Inhibitory Effects of PME3-1 on Conjugated Diene in Cell-Free n-LDL Oxidized by Cu2+

As shown in Figure 4, PME3-1 inhibited conjugated diene formation in cell-free n-LDL induced by ox-LDL in a dose-dependent manner (from 25–50 μg/mL). The maximum inhibition on conjugated diene of PME3-1 added at 50 and 100 μg/mL was between 80% and 100% at 120 min, after which time the effect weakened substantially. In contrast, PME3 itself had little inhibition at 30 min of incubation, but the inhibitory effect increased gradually with time and reached almost the same inhibition as was the PME3-1 added at 50 μg/mL at 150 min of incubation.

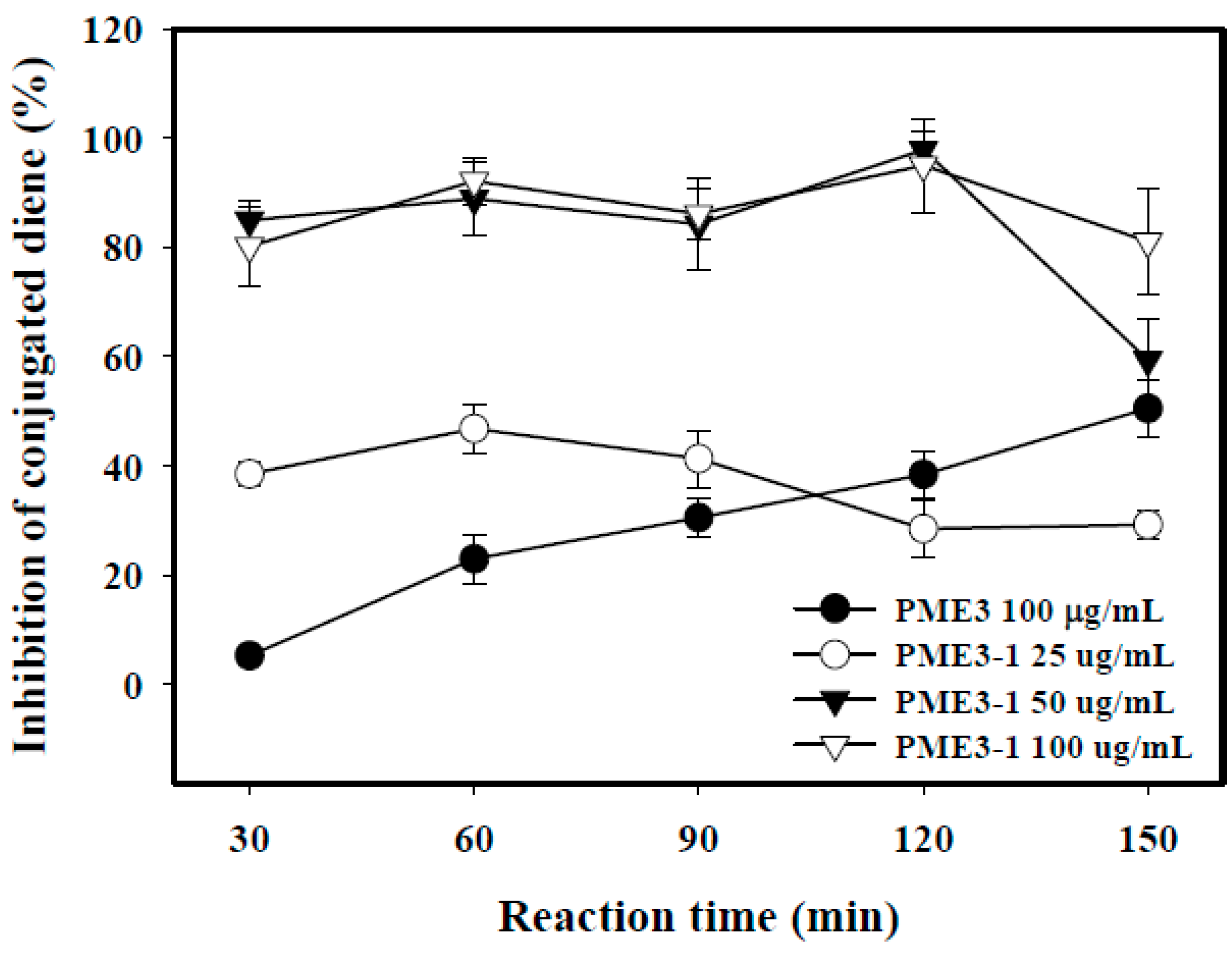

Figure 4. Inhibitory effects of the Pinus morrisonicola extract fraction 3 (PME3) and PME3-1 on conjugated diene levels in cell free n-LDL oxidized by Cu2+. Native LDL (n-LDL, 100 μg/mL) was pre-incubated with PME3 (100 μg/mL) or increasing concentration of PME3-1 (25–100 μg/mL) for 1 h. Conjugated diene was induced by the addition of CuSO4 (10 μM) at 37 °C for 150 min.
Figure 4. Inhibitory effects of the Pinus morrisonicola extract fraction 3 (PME3) and PME3-1 on conjugated diene levels in cell free n-LDL oxidized by Cu2+. Native LDL (n-LDL, 100 μg/mL) was pre-incubated with PME3 (100 μg/mL) or increasing concentration of PME3-1 (25–100 μg/mL) for 1 h. Conjugated diene was induced by the addition of CuSO4 (10 μM) at 37 °C for 150 min.
Molecules 20 19051 g004

2.6. Inhibitory Effects of PME3-1 on Foam Cell Formation in Macrophages Treated with ox-LDL

PME3-1 strongly and concentration-dependently inhibited foam cell formation in macrophage induced by ox-LDL (Figure 5). Incubation of RAW 264.7 cells with ox-LDL for 24 h resulted in significant uptakes of ox-LDL, causing higher intracellular foam cell accumulation (25%), as compared to control cells that were exposed to LDL alone (n-LDL; 7%). Addition of PME3-1 extract to ox-LDL treated macrophages significantly reduced ox-LDL uptake and formation of foam cells in RAW 264.7 macrophages, and the foam cell formation was completely inhibited by PME3-1 at the concentration of 100 μg/mL (Figure 5).

2.7. GC/MS Analysis of PME3 and PME3-1

The chemical components of the PME3 and PME3-1 were determined using GC/MS. Figure 6 shows that the hydrocarbon compounds such as 1-docosene, neophytadiene, and methyl abietate in PME3-1 increased 5.2-, 1.7-, and 4.3-fold, respectively, as compared to those in PME3. GC/MS analyses revealed a hydrocarbon compound cedrane-8,13-diol (4.2%) in PME3-1. Cedrane-8,13-diol has not been identified in PM previously. In the present study, this compound was found only in PME3-1 in sufficient amounts following the fractionation of PME3 by column chromatography and thin-layer chromatography.
Figure 5. Inhibitory effects of PME3-1 on foam cell formation in RAW 264.7 macrophages induced by oxidized-LDL. ox-LDL was induced by the addition of CuSO4 (10 μM) to n-LDL (100 μg/mL) at 37 °C for 24 h. Then, ox-LDL (or n-LDL), PME3, or PME3-1 was co-incubated with macrophages for 24 h. Data are expressed as means ± SD of three separate experiments. Values not sharing an alphabetic letter are significantly different (p < 0.05).
Figure 5. Inhibitory effects of PME3-1 on foam cell formation in RAW 264.7 macrophages induced by oxidized-LDL. ox-LDL was induced by the addition of CuSO4 (10 μM) to n-LDL (100 μg/mL) at 37 °C for 24 h. Then, ox-LDL (or n-LDL), PME3, or PME3-1 was co-incubated with macrophages for 24 h. Data are expressed as means ± SD of three separate experiments. Values not sharing an alphabetic letter are significantly different (p < 0.05).
Molecules 20 19051 g005

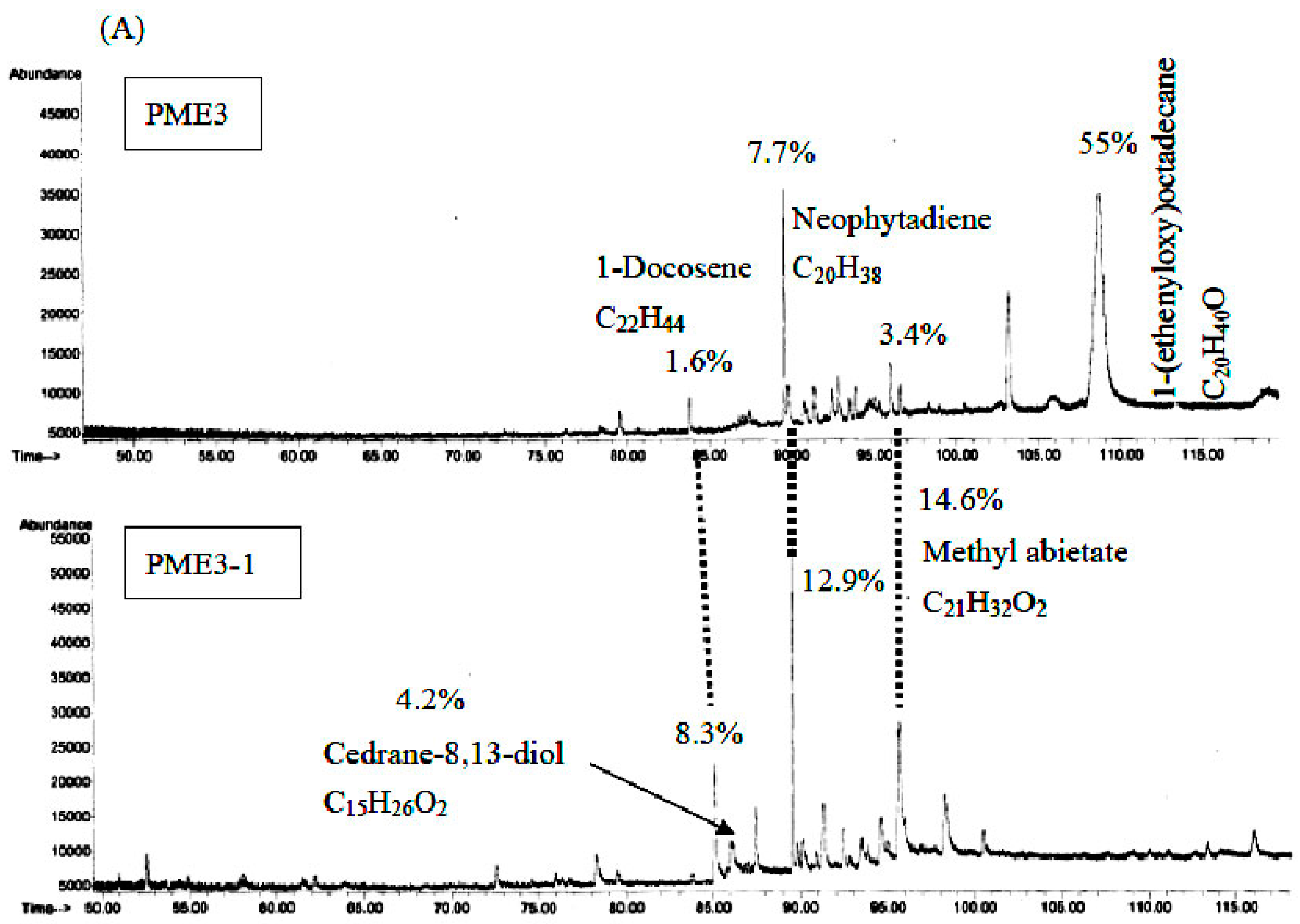

Figure 6. GC/MS analysis of hydrocarbon compounds in Pinus morrisonicola extract fraction 3 (PME3) and PME3-1. (A): GC/MS profile; (B): the constituent yield of PME3 and PME3-1. ND: not detectable.
Figure 6. GC/MS analysis of hydrocarbon compounds in Pinus morrisonicola extract fraction 3 (PME3) and PME3-1. (A): GC/MS profile; (B): the constituent yield of PME3 and PME3-1. ND: not detectable.
Molecules 20 19051 g006aMolecules 20 19051 g006b

3. Discussion

The aim of this study was to evaluate optimal extraction conditions of SFE for PM (i.e., temperature, pressure, time, and adjuvant volume) on antioxidant activity and to identify the active fractions and compounds in PM. The SFE conditions for extracting essential oil from PM reported in the present study may be applicable to the extraction of essential oil or pigment in various plants. The results reveal that the optimal SF-CO2 conditions for the antioxidant activity of PM were 25 MPa for 15 min at 40 °C. Under these conditions, the yield of SF extracts from PM increased with increasing ethanol volume. As indicated by Lin et al. [22], the SF-CO2 system has low polarity at high pressure, so only traces of polar compounds were extracted and often only the low polarity compounds, such as alkanes, alkoxy, aliphatic aldehydes and fat, were obtained. Consequently, SF with carbon dioxide requires the addition of small amounts of more polar solvents (such as ethanol) or modifiers to increase the solvent strength of the mobile phase, deactivate active sites on the surface of the packing material, and allow the elution of polar compounds with high efficiency [23]. It has been shown that plant extracts that have higher polarity are less cytotoxic [24]. We found that the inhibitory effects of PME on cell viability decreased with increasing polarity (i.e., no ethanol added) and that PME2 and PME5 had the strongest cell cytotoxicity (cell viability decreased to 40% and 50%, respectively, at the concentration of 100 μg/mL). However, PME fractions 1, 3, 4, and 6, which had higher polarity (75%–80%) displayed less cytotoxicity than the other PME fractions. In addition, the extracts obtained by higher extraction temperature had higher cytotoxic effects (i.e., PME fractions 7, 8, and 9). These results indicate that the lower polarity or higher temperature in the extraction conditions of SF-CO2 results in higher cytotoxicity in PME fractions.
Among the several SFE fractions of PM needles, PME3 was not cytotoxic and was the only fraction that effectively inhibited lipid peroxidation in RAW 264.7 macrophages. We then analyzed the components in PME3 and found that PME3 contained polyphenols, flavonoids, and p-coumaric acid (14,500, 960, and 460 μg/g) (data not shown). Yen et al. [14] indicated that the ethyl acetate extracts of PM may contribute to its anti-atherosclerotic effects by inhibition of LDL oxidation and that the main bioactive compounds in the ethyl acetate extracts of PM are epicatechin and p-coumaric acid. Fang et al. [25] also indicated that the acetone extract of heartwood from PM contains various flavonoids and stilbenes.
We further fractionated PME3 by column and thin-layer chromatography to obtain PME3-1 through PME3-4, and we found that the inhibitory effect of PME3-1 on conjugated diene and foam cell formation was about two times higher than those of PME3. Furthermore, we analyzed the components in PME3-1 by GC/MS, and our data suggest that the essential oil compounds, such as 1-docosene, neophytadiene, and methyl abietate, could be the major active components in PME3-1. This study represents the first to explore the appropriate condition to obtain SFE-CO2 extracts from PM and to identify the possible active compounds responsible for their antioxidant activities.
Regarding the active compounds in PM needle essential oil, a new abietic acid-type diterpene glucoside and terpinolene were found to exhibit remarkable protection against LDL-oxidation [26,27]. In addition, 3-methylene-7,11,15-trimethylhexadec-1-ene (neophytadiene) was found in the hexane extracts of Bursera simaruba (L.) Sarg. leaves which displays anti-inflammatory activities on carrageenan-induced inflammation in rats, and the effect observed at the dose of 1.50 g/kg·bw was comparable to that of phenylbutazone at the dose of 80 mg/kg·bw [28]. The same study also identified a hydrocarbon compound, cedrane-8,13-diol, a kind of sesquiterpenoid, which exhibits hypolipidemic and antioxidant activities [18]. In the present study, four major constituents were identified in PM needle essential oil by GC/MS in PME3-1, namely 1-docosene, cedrane-8,13-diol, neophytadiene, and methyl abietate, and their contents were 5.2-, 4.2-, 1.7- and 4.3-fold, respectively, higher than those of PME3. However, 1-(ethenyloxy)octadecane detected in PME3 was not found in PME3-1. Though we did not prove that cedrane-8, 13-diol, neophytadiene and methyl abietate were the active components in PME3-1. Evidence shows that cedrane-8,13-diol, neophytadiene and methyl abietate have hypolipidemic and antioxidant activities [18,26,27,28]. Thus, we speculate that cedrane-8,13-diol, neophytadiene and methyl abietate may participate in the antioxidant activity of PM3-1.
In conclusion, the present results demonstrate that the optimal operation conditions of SFE-CO2 for antioxidant activity of PM are 25 MPa for 15 min at 40 °C. The PME3 fraction of the PM needle is able to inhibit lipid peroxidation and foam cell formation in RAW 264.7 cells. We further showed that PME3-1 may contribute to the biological function of PME3 and that cedrane-8,13-diol may be the major active compound in PME3. Further studies are needed to ascertain the hypolipidemic effect of PME3-1 in vivo and the major active compounds in PME3.

4. Experimental Section

4.1. Chemical and Reagents

Sodium nitrite, albumin, bovine, potassium chloride, sodium bicarbonate, lipopolysaccharide (LPS), Oil Red O (ORO), 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) were purchased from Sigma Co. Ltd. (St Louis, MO, USA). Copper sulfate pentahydrate, sodium chloride, trichloroacetic acid, copper sulfate pentahydrate, and dimethyl sulfoxide (DMSO) were obtained from Merck (Darmstadt, Germany). Pine (P. morrisonicola Hay) needles were kindly supplied by the KARA Legend Biotechnology Co., Ltd. (Pingchen, Taoyuan County, Taiwan). All other chemicals were reagent grade.

4.2. Sample Preparation

Fresh pine (P. morrisonicola) needles were freeze-dried, ground to powder, passed through a 100 mesh sieve and stored at −20 °C until use.

4.3. Supercritical Fluid Extraction

The model 260D system for supercritical fluid extraction was purchased from Teledyne ISCO (Lincoln, NE, USA). Twenty grams of powdered sample of pine needles were placed in the 30-mL extraction vessel and set at 40, 50, 60 °C. The pressure was adjusted at 15, 20, and 25 MPa, respectively. Ethanol was used as an adjuvant solvent, and the volume was 1, 2, and 3 mL, respectively. The flow rates for CO2 were fixed at 6 mL/min. Once the set temperature and pressure were achieved after turning on the injection valve and the system was in equilibrium, the extraction was carried out for 15 min in each experimental run. The final extract was collected in a flask connected to the back pressure regulator. The solvent was evaporated by drying under vacuum using rotary evaporator; the extract was weighed to obtain the yield (calculated as percentage of 20-g pine needles converted into extract by SF) and stored at −20 °C before further analysis of bioactive compounds. Conditions and of the yields of supercritical fluid extraction for PME are shown in Table 2. Fractions of PME1 to 9 were obtained by different supercritical extraction conditions with 1%–4% yields, of which PME1 had the lowest yield (1.1%) and PME3 had the highest (3.9%).
Table 2. Conditions and the yields of supercritical fluid extraction for Pinus morrisonicola extract (PME).
Table 2. Conditions and the yields of supercritical fluid extraction for Pinus morrisonicola extract (PME).
ExtractTemperature (°C)Pressure (MPa)Time (min)Adjuvant (mL)Yield (%)
PME 14015511.1 ± 0.04 *
PME 240201023.2 ± 0.52
PME 340251533.9 ± 1.07
PME 450152033.7 ± 0.90
PME 550202513.4 ± 0.02
PME 650251522.7 ± 0.27
PME 760152522.8 ± 0.50
PME 860201533.7 ± 0.05
PME 960252012.5 ± 0.06
*: Data are expressed as means ± SD of three separate experiments.

4.4. Separation and Characterization of PME3

Fractions of PME3 are readily separated by silica gel column chromatography using an elution system of n-hexane–ethyl acetate = 1:0.2 (200 mL/bottle). The overall recovery of PME3 isolates from the column is 90%–95% at a loading capacity of 150 mg of PME per 10 g of silica gel. The complete separation of four PME3 subfractions (PME3-1, PME3-2, PME3-3 and PME3-4) was also achieved by one-dimensional silica gel thin-layer chromatography with the solvent system n-hexane–ethyl acetate = 1:0.2.

4.5. GC/MS Analysis of Chemical Components in PME3 and PME3-1

A HP6890 series GC coupled with a 5973 Network Mass Selective Detector (Agilent Technologies, Santa Clara, CA, USA) was used for quantification and determination of the chemical components in the PME3 and PME3-1 of the pine extract. The SF-CO2 extraction for PM in our study primarily fractionated the compounds with low polarity and low boiling point. To some extent, increasing the initial temperature of column will increase the polarity or boiling point of compounds [18]. Thus, we used low temperature and a high retention time to identification of the compounds. A capillary column type DB-1 (i.d. 0.25 mm × 60 m; membrane thickness, 0.25 μm) was used. Helium was used as the carrier gas and operated at a flow rate of 1 mL/min. The ionization potential used was 70 eV. The temperature of the ion source was set at 230 °C. The flux ratio was set at 50:1. Initially, the temperature was set at 40 °C for 10 min, then programmed at 1 °C/min up to 150 °C, than programmed at 5 °C/min up to 200 °C, then programmed at 11 °C/min up to 250 °C, and held at this temperature for 10 min. Quantification of PME3 and PME3-1. Aliquots (1.0 μL) of the extracts were, respectively, measured with a GC microsyringe from fractionates of pine extract and analyzed with GC/MS. Quantification of each constituent in PME3 and PME3-1 were calculated from the integrated diagrams obtained by Equation (1):
Q = A × Y
where Q = the quantity of each volatile constituent in extracts PME3 and PME3-1, A = the percent peak area in the gas chromatograms occupied by each constituent, and Y = the recovery yield of extracts.
The molecular weight and chemical structure splitting pattern of each peak in the GC chromatogram of PME3 and PME3-1 were compared with known compounds in the databases such as the Wiley MS Chemstation Libraries, NBS Computer Data [29], and reference mixture of n-alkanes (C5–C25) to calculate the retention indices (RI) from the retention time for each component. A compound is identified, when the similarity of the peak with the library compound is above 90%.

4.6. Lipoprotein Separation

Human plasma was obtained from the Taichung Blood Bank (Taichung, Taiwan), and LDL was isolated using sequential ultracentrifugation (p = 1.019–1.063 g/mL) in KBr solution containing 30 mM EDTA, stored at 4 °C in a sterile, dark environment, and used within 3 days as previously described [30]. Immediately before the oxidation tests, LDL was separated from EDTA and from diffusible low molecular mass compounds by gel filtration on PD-10 Sephadex G-25 M gel (Amersham Pharmacia Biotech Inc., Piscataway, NJ, USA) in 0.01 mol/L phosphate-buffered saline (136.9 mmol/L NaCl, 2.68 mmol/L KCl, LDL (100 μg of protein/mL) to obtain the native-LDL (n-LDL) for various tests in a cell-free LDL oxidation system and in macrophages.

4.7. Cell Culture and Treatment with Oxidized LDL

RAW 264.7 cells (BCRC 60001), the murine macrophage cell line, were obtained from the Bioresources Collection and Research Center, Food Industry Research and Development Institute (Hsinchu, Taiwan). Cells were cultured in endotoxin-free Dulbecco’s modified Eagle’s medium, supplemented with 10% fetal bovine serum and penicillin (100 units/mL) plus streptomycin (100 mg/mL) and maintained at 37 °C in 5% CO2. To induce lipid peroxidation and foam cell formation, RAW 264.7 macrophages were treated with oxidized-LDL (ox-LDL) which was obtained by incubating n-LDL with CuSO4 (50 μM) at 37 °C for 24 h. To determine the protective effects of PME extracts, the macrophages were pretreated with PME extracts for 2 h before incubation with ox-LDL or n-LDL.

4.8. Determination of Cell Viability

A portion (0–100 μg/mL) of PME fractions 1 to 9 was incubated with RAW 264.7 macrophages at 37 °C for 24 h. Cell viability was measured using the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT) assay according to the method of Denizot et al. [31]. Briefly, cells (1 × 104) were dispensed into 96-well plates and sample (PME1–9) was added then incubation at 37 °C in humidified atmosphere containing 5% CO2 for 24 h. Then, culture solutions were removed and replaced by 90 μL culture medium. Ten microliters of sterile filtered MTT solution (5 mg/mL) in PBS was added to each well, reaching a final concentration of 0.5 mg MTT/mL. Un-reacted dye was removed after 5 h. The insoluble formazan crystals were dissolved in 200 mL/well dimethyl sulfoxide (DMSO) and measured spectrophotometrically at 570 nm. The cell viability was expressed as the percentage of cell growth compared to control non-treated cells (at which growth is considered 100%) and it was calculated by A570 nm (sample)/A570 nm (control) × 100.

4.9. Determination of Thiobarbituric Acid-Reactive Substances (TBARS) in Macrophages Treated with Oxidized LDL

Lipid peroxidation in RAW 264.7 macrophages was determined as TBARS using the TBA assay [32]. Briefly, a portion (0–100 μg/mL) of PME 1, 3, 4, and 6 was incubated with macrophages for 2 h before incubation with ox-LDL (100 μg/mL) at 37 °C for 24 h. Butylated hydroxytoluene (10 μL, 50 mM) was added to terminate peroxidation reaction, and the mixture was then added with 1 mL of 7.5% (w/v) cold trichloroacetic acid. After centrifugation, the supernatant was allowed to react with 1 mL of 0.8% (w/v) TBA in a boiling water bath for 45 min. After cooling, levels of TBARS were determined spectrofluorimetrically (at 515 nm excitation and 555 nm emission) using 1,1,3,3-tetraethoxypropane as the standard. Results are expressed as pmoles of TBARS content per milligram protein.

4.10. Determination of Foam cell Formation in Macrophages Treated with Ox-LDL

The foam cell formation assay was carried out by the method of Halvorsen et al. [33]. RAW 264.7 cells were incubated with ox-LDL (100 μg/mL) or native LDL (n-LDL) in the absence or presence of PME3 and PME3-1 (25–100 μg/mL) for 24 h. After incubation, the cells were washed once in ice-cold PBS (phosphate buffered saline, pH 7.4), followed by formaldehyde fixation for 30 min at room temperature (25 °C). Neutral lipids were stained using 0.5% oil-red-O in isopropanol for 60 min. The ox-LDL uptake was using microscopy.

4.11. Determination of Conjugated Diene Formation in Cell-Free LDL Oxidized by Cu2+

Native LDL (n-LDL, 100 μg/mL) was pre-incubated with PME1, 3, 4, and 6 (100 μg/mL) at room temp for 1 h followed by addition of CuSO4 (50 μM) at 37 °C for 150 min. Conjugated diene formation was monitored by the method described by Yen et al. [14]. The UV spectrum (OD234nm) was recorded, and the increase in conjugated diene expressed in relative unit was obtained from the absorbance at 234 nm.

4.12. Statistical Analysis

All statistical analyses were performed using SPSS for Windows, version 17 (SPSS, Inc., Chicago, IL, USA). Data are expressed as means ± SD and analyzed using one-way ANOVA followed by Duncan’s multiple range test. p < 0.05 is considered statistically significant.

Acknowledgments

This work was supported by the Ministry of Education Funds to Chung Chou University of Science and Technology under the project on establishing a distinguishing feature on development and production of health food. We thank Hsiu-Chung Ou for helping the isolation of LDL.

Author Contributions

Tuzz-Ying Song and Ming-Ching Cheng conceived and designed the experiments; Wen-Hua Chang and Wen-Wing Li performed research and analyzed the data; Chin-Yin Tseng contributed reagents/materials/analysis tools; Tuzz-Ying Song and Chih-Wei Chen wrote the paper. All authors read and approved the final manuscript.

Conflicts of Interest

There is no conflict of interest for this study.

References

  1. Steinberg, D. Low density lipoprotein oxidation and its pathobiological significance. J. Biol. Chem. 1997, 272, 20963–20966. [Google Scholar] [CrossRef] [PubMed]
  2. Young, I.S.; McEneny, J. Lipoprotein oxidation and atherosclerosis. Biochem. Soc. Trans. Pt. 2001, 2, 358–362. [Google Scholar] [CrossRef]
  3. Isner, J.M.; Kearney, M.; Bortman, S.; Passeri, J. Apoptosis in human atherosclerosis and restenosis. Circulation 1995, 91, 2703–2711. [Google Scholar] [CrossRef] [PubMed]
  4. Kolodgie, F.D.; Narula, J.; Guillo, P.; Virmani, R. Apoptosis in human atherosclerotic plaques. Apoptosis 1999, 4, 5–10. [Google Scholar] [CrossRef] [PubMed]
  5. Fuhrman, B.; Aviram, M. Flavonoids protect LDL from oxidation and attenuate atherosclerosis. Curr. Opin. Lipidol. 2001, 12, 41–48. [Google Scholar]
  6. Ness, A.R.; Powles, J.W. Fruit and vegetables, and cardiovascular disease: A review. Int. J. Epidemiol. 1997, 26, 1–13. [Google Scholar] [CrossRef] [PubMed]
  7. Hartley, L.; Igbinedion, E.; Thorogood, M.; Clarke, A.; Stranges, S.; Hooper, L.; Rees, K. Increased consumption of fruit and vegetables for the primary prevention of cardiovascular diseases. Cochrane Database Syst. Rev. 2012. [Google Scholar] [CrossRef]
  8. Kim, K.Y.; Chung, H.J. Flavor compounds of pine sprout tea and pine needle tea. J. Agric. Food Chem. 2000, 48, 1269–1272. [Google Scholar] [CrossRef] [PubMed]
  9. Chen, Y.H.; Hsieh, P.C.; Mau, J.L.; Sheu, S.C. Antioxidant properties and mutagenicity of Pinus morrisonicola and its vinegar preparation. LTW-Food Sci. Technol. 2011, 44, 1477–1481. [Google Scholar]
  10. Rohdewald, P. A review of the French maritime pine bark extract (Pycnogenol), a herbal medication with a diverse clinical pharmacology. Int. J. Clin. Pharmacol. Ther. 2002, 40, 158–168. [Google Scholar] [CrossRef] [PubMed]
  11. Schafer, A.; Chovanova, Z.; Muchova, J.; Sumegova, K.; Liptakova, A.; Durackova, Z.; Högger, P. Inhibition of COX-1 and COX-2 activity by plasma of human volunteers after ingestion of French maritime pine bark extract (Pycnogenol). Biomed. Pharmacother. 2005, 60, 5–9. [Google Scholar] [CrossRef] [PubMed]
  12. Hsu, T.Y.; Sheu, S.C.; Liaw, E.T.; Wang, T.C.; Lin, C.C. Antioxidant activity and effect of Pinus morrisonicola Hay on the survival of leukemia cell line U937. Phytomedicine 2005, 12, 663–669. [Google Scholar] [CrossRef] [PubMed]
  13. Tourino, S.; Selga, A.; Jimenez, A.; Julia, L.; Lozano, C.; Lizarraga, D.; Cascante, M.; Torres, J.L. Procyanidin fractions from pine (Pinus pinaster) bark: Radical scavenging power in solution, antioxidant activity in emulsion, and antiproliferative effect in melanoma cells. J. Agric. Food Chem. 2005, 53, 4728–4735. [Google Scholar] [CrossRef] [PubMed]
  14. Yen, G.C.; Duh, P.; Huang, D.W.; Hsu, C.L.; Fu, T.Y. Protective effect of pine (Pinus morrisonicola Hay) needle on LDL oxidation and anti-inflammatory action by modulation of iNOS and COX-2 expression in LPS-stimulated RAW 264.7 macrophages. Food Chem. Toxicol. 2008, 46, 175–185. [Google Scholar] [CrossRef] [PubMed]
  15. Modey, W.K.; Mulholl, D.A.; Raynor, M.W. Analytical Supercritical Fluid Extraction of Natural Products. Phytochem. Anal. 1996, 7, 1–15. [Google Scholar] [CrossRef]
  16. Babovic, N.; Djilas, S.; Jadranin, M.; Vajs, V.; Ivanovic, J.; Petrovic, S.; Zizovic, I. Supercritical carbon dioxide extraction of antioxidant fractions from selected Lamiaceae herbs and their antioxidant capacity. Innov. Food Sci. Emerg. Technol. 2010, 11, 98–107. [Google Scholar]
  17. Chen, Z.; Mei, X.; Jin, Y.; Kim, E.H.; Yang, Z.; Tu, Y. Optimization of supercritical carbon dioxide extraction of essential oil of flowers of tea (Camellia sinensis L.) plants and its antioxidative activity. J. Sci. Food Agric. 2014, 94, 316–321. [Google Scholar] [CrossRef] [PubMed]
  18. Cheng, M.C.; Lin, L.Y.; Yu, T.H.; Peng, R.Y. Hypolipidemic and antioxidant activity of mountain celery (Cryptotaenia japonica Hassk) seed essential oils. J. Agric. Food Chem. 2008, 56, 3997–4003. [Google Scholar] [CrossRef] [PubMed]
  19. Zeng, W.C.; Zhu, R.X.; Jia, L.R.; Gao, H.; Zheng, Y.; Sun, Q. Chemical composition, antimicrobial and antioxidant activities of essential oil from Gnaphlium affine. Food Chem. Toxicol. 2011, 49, 1322–1328. [Google Scholar] [CrossRef] [PubMed]
  20. Zeng, W.C.; Zhang, Z.; Gao, H.; Jia, L.R.; He, Q. Chemical composition, antioxidant, and antimicrobial activities of essential oil from pine needle (Cedrus deodara). J. Food Sci. 2012, 77, C824–C829. [Google Scholar] [CrossRef] [PubMed]
  21. Kabara, J.J. Phenols and Chelators. In Food Preservatives, 2nd ed.; Russell, N.J., Gould, J.W., Eds.; Blackie, Glasgow: London, UK, 1991; pp. 200–214. [Google Scholar]
  22. Lin, M.C.; Tsai, M.J.; Wen, K.C. Supercritical fluid extraction of flavonoids from Scutellariae radix. J. Chromatogr A 1999, 830, 387–398. [Google Scholar] [CrossRef]
  23. Ibañez, E.; Señoráns, F.J. Tuning of mobile and stationary phase polarity for the separation of polar compounds by SFC. J. Biochem. Biophys. Methods 2000, 43, 25–43. [Google Scholar]
  24. Machana, S.; Weerapreeyakul, N.; Barusrux, S.; Thumanu, K.; Tanthanuch, W. Synergistic anticancer effect of the extracts from Polyalthia evecta caused apoptosis in human hepatoma (HepG2) cells. Asian Pac. J. Trop. Biomed. 2012, 2, 589–596. [Google Scholar] [CrossRef]
  25. Fang, J.M.; Chang, V.F.; Chang, Y.S. Flavonoids from P. morrisonicola. Phytochemistry 1987, 26, 2559–2561. [Google Scholar] [CrossRef]
  26. Jung, M.J.; Jung, H.A.; Kang, S.S.; Hwang, G.S.; Choi, J.S. A new abietic acid-type diterpene glucoside from the needles of Pinus densiflora. Arch. Pharm. Res. 2009, 32, 1699–1704. [Google Scholar] [CrossRef] [PubMed]
  27. Grassmann, J.; Hippeli, S.; Vollmann, R.; Elstner, E.F. Antioxidative properties of the essential oil from Pinus mugo. J. Agric. Food Chem. 2003, 51, 7576–7582. [Google Scholar] [CrossRef] [PubMed]
  28. Carretero, M.E.; López-Pérez, J.L.; Abad, M.J.; Bermejo, P.; Tillet, S.; Israel, A.; Noguera, P.B. Preliminary study of the anti-inflammatory activity of hexane extract and fractions from Bursera simaruba (Linneo) Sarg. (Burseraceae) leaves. J. Ethnopharmacol. 2008, 116, 11–15. [Google Scholar] [CrossRef] [PubMed]
  29. Schonburg, G.; Dielmann, G. Identification by means of retention parameters. J. Chromatogr. Sci. 1973, 11, 151–159. [Google Scholar]
  30. Ou, H.C.; Lee, W.J.; Lee, S.D.; Huang, C.Y.; Chiu, T.H.; Tsai, K.L.; Hus, W.C.; Sheu, W.H.H. Ellagic acid protects endothelial cells from oxidized low-density lipoprotein-induced apoptosis by modulating the PI3K/Akt/eNOS pathway. Toxicol. Appl. Pharmacol. 2010, 248, 134–143. [Google Scholar] [CrossRef] [PubMed]
  31. Denizot, F.; Wilson, A.; Battye, F.; Berke, G.; Shortman, K. Clonal expansion of T cells: A cytotoxic T-cell response in vivo that involves precursor cell proliferation. Proc. Natl. Acad. Sci. USA 1986, 83, 6089–6092. [Google Scholar] [CrossRef] [PubMed]
  32. Buege, A.J.; Aust, S.D. Microsomal lipid peroxidation. Methods Enzymol. 1978, 52, 302–310. [Google Scholar] [PubMed]
  33. Halvorsen, B.; Waehre, T.; Scholz, H.; Clausen, O.P.; von der Thusen, J.H.; Muller, F.; Heimli, H.; Tonstad, S.; Hall, C.; Frøland, S.S.; et al. Interluukin-10 enhances the oxidized LDL-induced foam cell formation of macrophages by antiapoptotic mechanisms. J. Lipid Res. 2005, 46, 211–219. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds PME3 are available from the authors.
