Article

Synthesis and in Silico Evaluation of Novel Compounds for PET-Based Investigations of the Norepinephrine Transporter

1
Department of Biomedical Imaging and Image-guided Therapy, Division of Nuclear Medicine, Medical University of Vienna, Waehringer Guertel 18-20, 1090 Vienna, Austria
2
Division of Drug Synthesis, Department of Pharmaceutical Chemistry, Faculty of Life Sciences, University of Vienna, Althanstraße 14, 1090 Vienna, Austria
3
Division of Drug Design and Medicinal Chemistry, Department of Pharmaceutical Chemistry, Faculty of Life Sciences, University of Vienna, Althanstraße 14, 1090 Vienna, Austria
*
Authors to whom correspondence should be addressed.
Molecules 2015, 20(1), 1712-1730; https://doi.org/10.3390/molecules20011712
Submission received: 20 November 2014 / Revised: 7 January 2015 / Accepted: 14 January 2015 / Published: 20 January 2015
(This article belongs to the Special Issue Preparation of Radiopharmaceuticals and Their Use in Drug Development)

Abstract

:
Since the norepinephrine transporter (NET) is involved in a variety of diseases, the investigation of underlying dysregulation-mechanisms of the norepinephrine (NE) system is of major interest. Based on the previously described highly potent and selective NET ligand 1-(3-(methylamino)-1-phenylpropyl)-3-phenyl-1,3-dihydro-2H-benzimidaz- ol-2-one (Me@APPI), this paper aims at the development of several fluorinated methylamine-based analogs of this compound. The newly synthesized compounds were computationally evaluated for their interactions with the monoamine transporters and represent reference compounds for PET-based investigation of the NET.

1. Introduction

Abnormal regulation of the norepinephrine transporter (NET) or NET dysfunction, respectively, cause either increased or decreased levels of norepinephrine (NE) in the synaptic cleft. Since NE is a fundamental neurochemical messenger, its accurate regulation is of major importance. Thus, the NET, responsible for NE equilibrium in the synaptic cleft, is representing the reuptake site and considered to be involved in a variety of neurological/psychiatric disorders [1,2], but also plays a pivotal role in cardiovascular [1,2,3] and metabolic diseases [3,4,5]. Reduced NET levels go along with neurological disorders like major depression [6,7], Parkinson’s disease (PD), Alzheimer’s disease (AD) [8,9,10,11,12,13,14,15,16,17,18], and cardiovascular diseases such as hypertension, cardiomyopathy, and heart failure [5,13]. Furthermore, a dysfunction of the NE system was reported in Attention Deficit Hyperactivity Disorder (ADHD) [9,17,19], suicide [1,12,20], substance abuse (cocaine dependence) [16], and schizophrenia [10]. A more recent discovery is the involvement of the NET in diseases like diabetes and obesity, due to its presence in brown adipose tissue (BAT) and the proposed activation thereof via NE [4,5,21].
Based on the fact that the NET is involved in such a variety of diseases, the investigation of the underlying dysregulation-mechanism of the NE system is of major interest. For this purpose, information about the transporter abundance and density in healthy and pathological living human brains is required. The most suitable and accurate technique to gain this information is positron emission tomography (PET). As a non-invasive molecular imaging technique, it represents a suitable approach towards the collection of missing data in the living organism and direct quantification of receptor/transporter densities in vivo. To fully gain insight in the molecular changes of the noradrenergic system via PET, however, prior development of suitable NET PET radioligands is required.
So far, radiolabeled NET binding reboxetine analogs [11C]MeNER, [11C]MRB, ((S,S)-2-(α-(2-[11C]- methoxyphenoxy)benzyl)morpholine) and [18F]FMeNER-D2 ((S,S)-2-(α-(2-[18F]fluoro[2H2]methoxy- phenoxy)benzyl)morpholine) have been described, which however display certain limitations such as metabolic instability, complex radiosyntheses, or late equilibria [22,23,24,25,26].
Recently, Zhang et al. [26] evaluated a series of benzimidazolone-based propanamines with in vitro inhibitory activity on the human norepinephrine transporter (hNET). The results of these investigations suggested that compounds containing a phenyl moiety directly attached at the benzimidazolone ring (e.g., 1, Figure 1) were the most potent, representing a half maximal inhibitory concentration (IC50) below 10 nM (IC50 < 10 nM). Furthermore, hNET selectivity over human serotonin transporter (hSERT) turned out >300-fold superior to those of reboxetine and atomoxetine (16- and 81-fold) [26]. Fluorination at position 2 of the phenyl moiety attached to the benzimidazolone ring (e.g., 2, Figure 1), indicated similar hNET potency, comparable to its non-fluorinated analogs (e.g., 1) and additionally exhibited hNET selectivity over hSERT (80-fold) similar to atomoxetine [26].

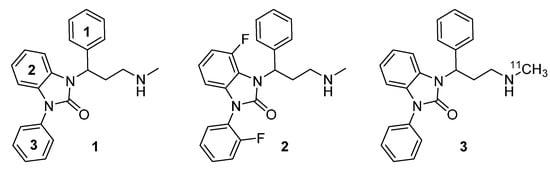

Figure 1. Structures of the highly potent and selective NET ligands 1-(3-(methylamino)- 1-phenylpropyl)-3-phenyl-1,3-dihydro-2H-benzimidazol-2-one (Me@APPI, 1) and 4-fluoro- 1-(2-fluorophenyl)-3-(3-(methylamino)-1-phenylpropyl)-1,3-dihydro-2H-benzimidazol-2- one (2) as well as radiolabeled analog [11C]Me@APPI (3).
Figure 1. Structures of the highly potent and selective NET ligands 1-(3-(methylamino)- 1-phenylpropyl)-3-phenyl-1,3-dihydro-2H-benzimidazol-2-one (Me@APPI, 1) and 4-fluoro- 1-(2-fluorophenyl)-3-(3-(methylamino)-1-phenylpropyl)-1,3-dihydro-2H-benzimidazol-2- one (2) as well as radiolabeled analog [11C]Me@APPI (3).
Molecules 20 01712 g001
Both benzimidazolone derived propanamines with a phenyl moiety (e.g., 1), as well as a fluorinated phenyl moiety (as in 2) indicated excellent hNET selectivity over human dopamine transporter (hDAT) with < 50% inhibition of the cocaine analog [3H]WIN-35,428, binding to hDAT at a concentration of 10 µM [26]. Given those findings, both described benzimidazolone-based propanamines 1 and 2 represent excellent candidates for selective and potent NET inhibition with high affinity and low unspecific binding. Thus, on the basis of the results of Zhang et al. [26] the methylamino moiety of the core compound 1 has been radiolabeled with 11C and tested by our research group [27]. All investigated preclinical parameters, such as affinity, blood brain barrier penetration, lipophilicity, metabolic degradation, and selectivity showed excellent results, thus suggesting suitability of 11C-radiolabeled 1-(3-(methylamino)-1-phenylpropyl)-3-phenyl-1,3-dihydro-2H-benzimidazole-2-one ([11C]Me@APPI) (3, Figure 1) as a NET radioligand for use in PET.
Due to successful preclinical testing of [11C]Me@APPI (3) and given the excellent in vitro results of compound 2, shown by Zhang et al. [26] the aim of this paper is the synthesis and docking studies of several fluorinated analogs 46 of compound 1 (Figure 2) as reference compounds for their later prepared radioactive analogs. All methylamine-derived benzimidazolone derivatives 46 will be subjected to affinity, selectivity, and lipophilicity studies towards the NET as well as blood brain barrier penetration experiments at the Medical University of Vienna. The most promising NET ligands will then be selected for the development of new, selective PET tracers for the NET and after radiolabeling with both 11C and 18F, they will be the subject of further experiments.

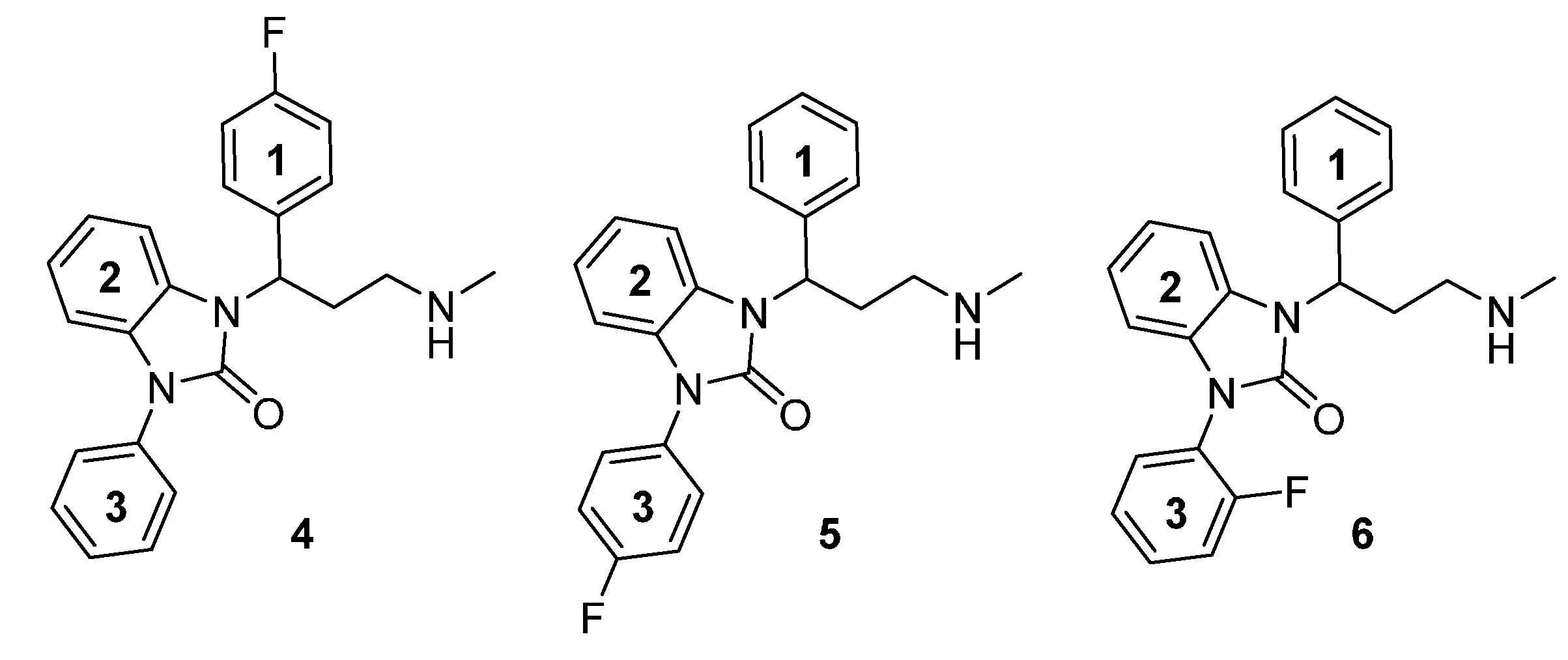

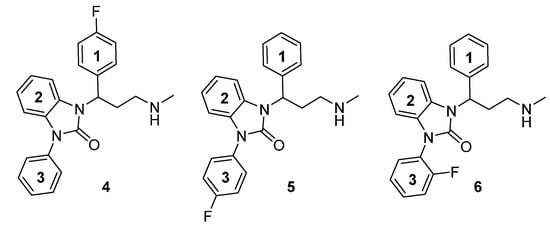

Figure 2. Chemical structure of envisaged reference compounds 46 (FAPPI:1-3).
Figure 2. Chemical structure of envisaged reference compounds 46 (FAPPI:1-3).
Molecules 20 01712 g002

2. Results and Discussion

The synthesis of reference compounds 46 first required the preparation of side chains 11 and 12, as well as core compounds 1618. After successful preparation, side chain 11 was merged in a condensation reaction with core compound 16, whereas side chain 12 was reacted with core compounds 17 and 18, prior to halogen exchange and substitution with methylamine (Scheme 1).

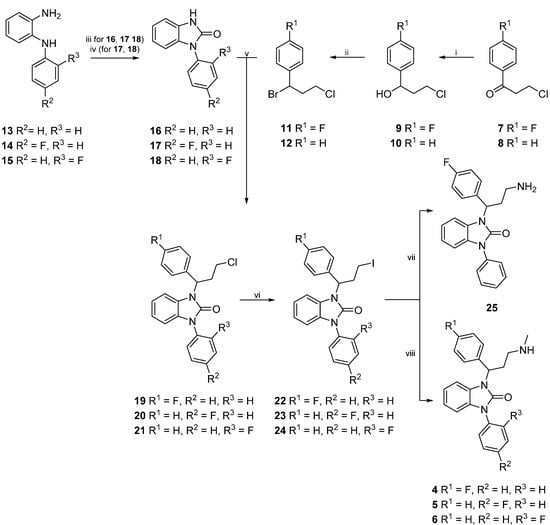

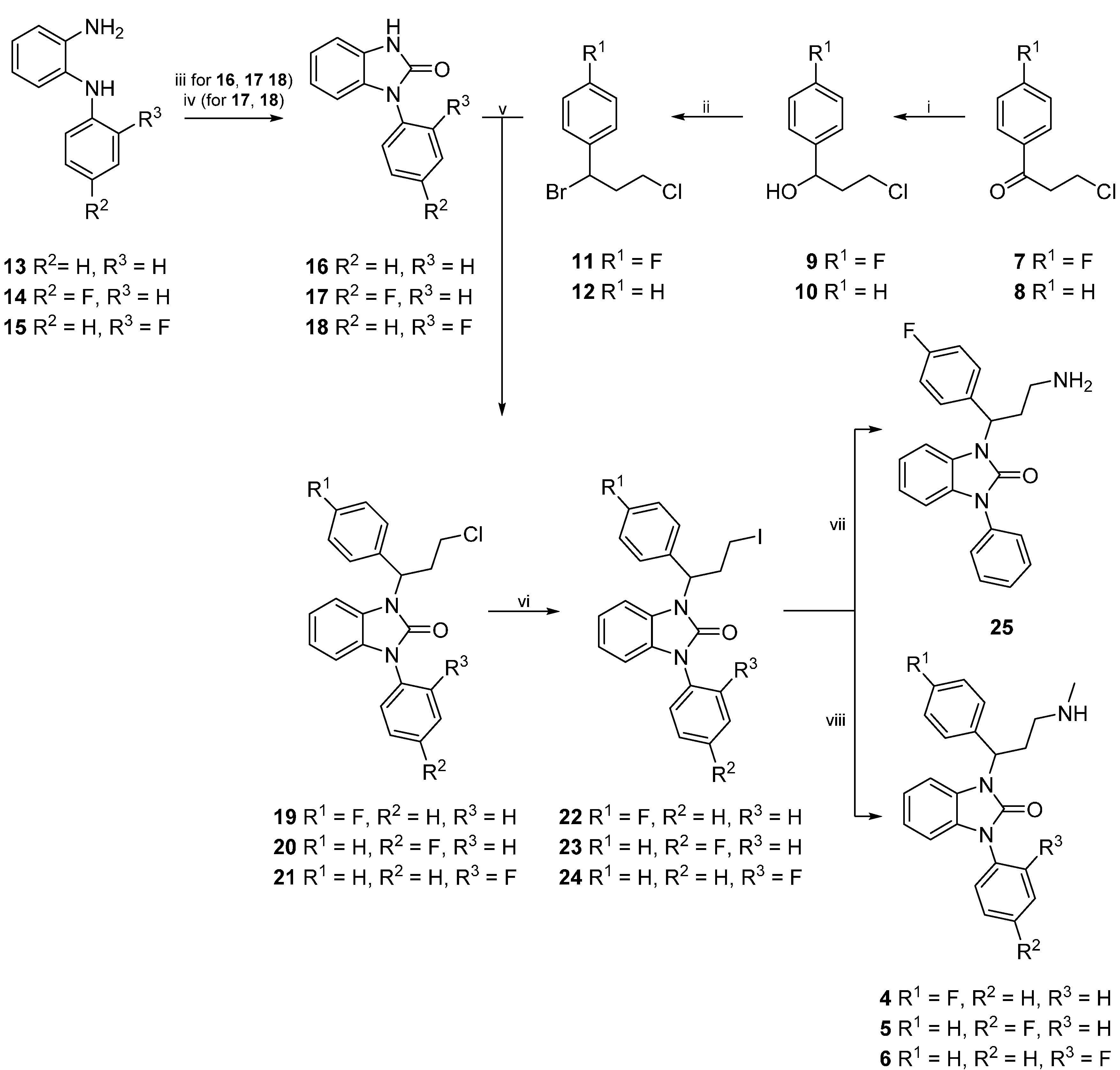

Scheme 1. Synthesis of compounds 46.
Scheme 1. Synthesis of compounds 46.
Molecules 20 01712 g006
Reagents and conditions: (i) THF, EtOH, NaBH4, −10 °C → −5 °C, 10 min, yields for 9: 95%, 10: 100%; (ii) aq. HBr, rt, 3 h, yields for 11: 64%, 12: 86%; (iii) 1,1'-carbonyldiimidazole, anhyd. THF, rt, overnight, yields for 16: 74%, 17: 61%, 18: 69%; (iv) 1,1'-carbonyldiimidazole, anhyd. DMF, 90 °C, 2 h, yields for 17: 80%, 18: 80%; (v) K2CO3, DMF, rt, 30 min → addition of 11 and 12 → rt, 30 min, yields for 19: 32%, 20: 63%, 21: 55%; (vi) NaI, acetone, reflux, 24 h, yields for 22: 82%, 23: 76%, 24: 53%; (vii) NH3 in isopropanol, 80 °C, 3 h, yield for 25: 50%; (viii) methylamine in EtOH, 80 °C, 3 h, yields for 4: 48%, 5: 29%, 6: 30%.
For the synthesis of side chains 11 and 12, a protocol of Varney et al. [28] was adopted and the keto group of commercially available compounds 7 and 8 was reduced with sodium borohydride in order to obtain intermediate alcohols 9 and 10. Subsequent bromination of 9 and 10 with aqueous hydrogen bromide led to the formation of products 11 and 12, respectively.
Core compound 16 was prepared by the reaction of commercially available N-phenylbenzene-1,2-diamine (13) with 1,1'-carbonyldiimidazole. For the preparation of 17 and 18 however, 14 and 15 first had to be made accessible (Scheme 2). Thus, 1-fluoro-2-nitrobenzene (26) reacted with commercially available fluoroanilines 27 and 28, respectively, to obtain disubstituted amines 29 and 30. Therefore, two different methods were applied (Scheme 2): The first method (i) was conducted by heating 26 and 27 with anhydrous potassium fluoride and potassium carbonate in a microwave oven [29]. Since the adoption of an alternative method [30]—conventional heating at 180 °C—gave compound 29 in higher yields, this approach (ii) was chosen for the large scale synthesis of 29 as well as for the preparation of 30.

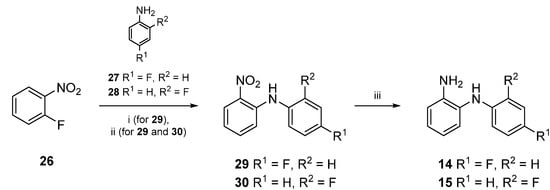

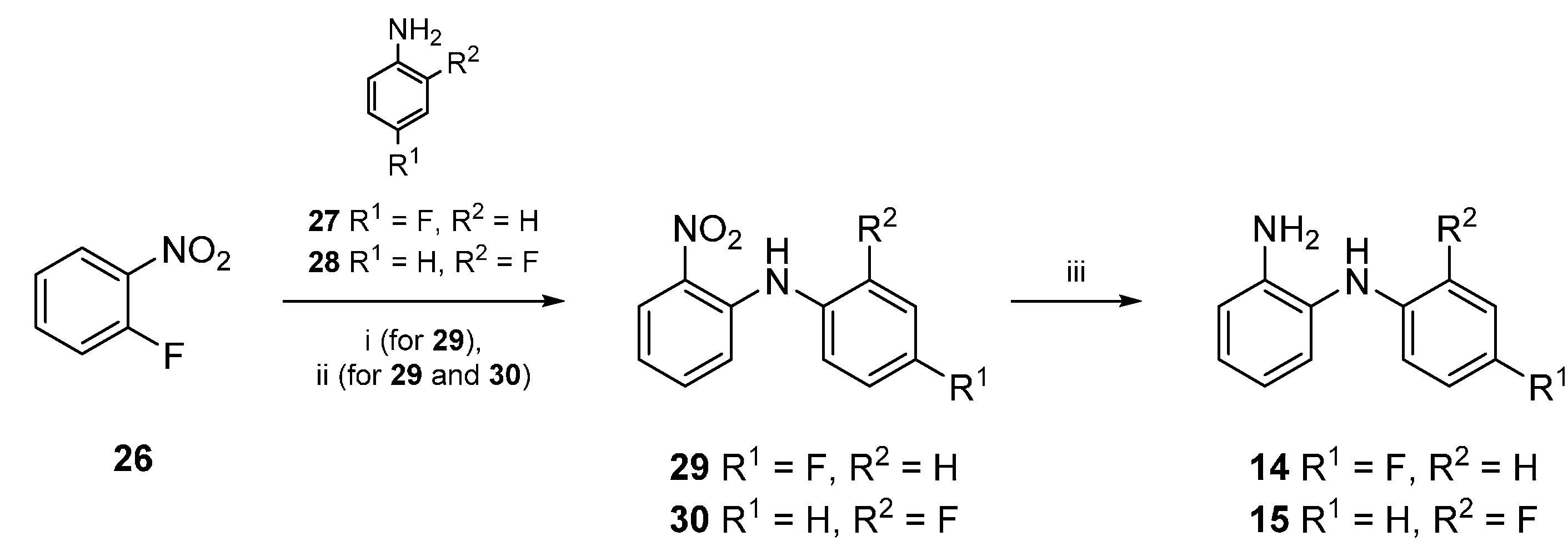

Scheme 2. Synthesis of compounds 1415.
Scheme 2. Synthesis of compounds 1415.
Molecules 20 01712 g007
Reagents and conditions: (i) anhyd. KF, K2CO3, microwave oven, 900 W, 10 min, yields for 29: 58%; (ii) anhyd. KF, K2CO3, 180 °C, 2 d, yields for 29: 68%, 30: 52%; (iii) Zn, AcOH, 0 °C → rt, 2 h, yields for 14: 93%, 15: n.d.
In the next reaction step, the nitro groups of both disubstituted amines 29 and 30 were reduced. For this purpose 29 or 30 were added to a mixture of zinc/acetic acid. The resulting amines 14 or 15 were obtained in excellent yields (Scheme 2) [30].
Freshly prepared intermediates 14 and 15 were then subjected to a cyclization reaction with 1,1'-carbonyldiimidazole in DMF under anhydrous conditions (Scheme 1) by modifying a synthesis protocol according to Zhang et al. [26]. DMF was preferred over THF to ensure higher yields and shorter reaction times.
Condensation reactions of benzimidazolones 16, 17, and 18 with side chains 11 and 12, respectively were performed under basic conditions (Scheme 1) by adapting a procedure of Jona et al. [31]. After purification, the chloro-substituted derivatives 1921 were converted into the iodo compounds 2224 in a Finkelstein reaction. Target compounds 46 (FAPPI:1-3) were then obtained by heating derivatives 2224 in a solution of methylamine in ethanol in a sealed tube for 3 h. In addition to reference compounds 46, free amine 25 was synthesized by dissolving 22 in a solution of ammonia in isopropanol and heating the resulting mixture in a sealed tube for 3 h. As compound 25 features a free amine moiety, it can be considered a precursor for radiosynthesis.
Since compounds 4 and 5 comprise a novel fluoro substitution, a computational docking study was performed to assess if these compounds still would fit in the binding site of the NET. Furthermore, we aimed at creating a binding mode hypothesis which allows gaining insights into the molecular basis of binding and selectivity towards the monoamine transporters. As the basic scaffold has been shown to act in an enantioselective manner, the respective (R) enantiomers were used throughout the docking studies [26]. The ligands were docked in the substrate binding site (S1) of the outward-open conformation of the transporter models (see Experimental Section for details), since related inhibitors, such as nortriptyline, sertraline, mazindol, etc. were also shown to fit in the S1 of the Drosophila DAT (dDAT) and the “SERT”-ized leucine transporter (“LeuBAT”) in the same protein conformation [32,33]. Interestingly, the co-crystallized ligand in dDAT, nortriptyline (31), has the same ranking of human NET, SERT and DAT activity as reference compound 1, i.e., 4.4, 18 and 1149 nM KD vs. 9, 2995 and >10,000 nM IC50, respectively [26,34]. Additionally, nortriptyline shares important structural features with the benzimidazolones, i.e., two aromatic moieties and an N-methyl-ethylenamine side chain. Therefore their binding mode can be expected to be similar.
Common scaffold clustering [35] revealed two binding hypotheses (see Experimental Section) which indicated that compounds 46 fit in the S1 of all three transporters. Hence, additional fluorination does not seem to cause steric clashes. In both hypotheses, the most prominent protein-ligand interaction was the cationic nitrogen atom placed in the A sub pocket [36], located between the central Asp75/98/79 side chain as a salt-bridge and the Phe72/95/76 side chain as a cation-pi interaction in NET/SERT/DAT, respectively. This is well in accordance with the X-ray structures of the templates. Additional pi-pi stacking interactions with Phe152/176/156 and Phe323/355/341 further promote the binding in both hypotheses obtained:
Hypothesis 1: the benzimidazolone heterocycle (ring 2) is placed in the B sub pocket and ring 3 in the C pocket, whereas ring 1 is solvent exposed (see figure in Experimental Section).
Hypothesis 2: Ligand ring 1 is placed in the B pocket whereas ring 2 is placed at the same height (measured from the membrane-water interface) and overlap with the rings of nortriptyline (31, Figure 3). The solvent exposed Tyr151/Tyr175/Phe155 in NET/SERT/DAT, resp. T-stacks with ring 2 whereas ring 3 points extracellularly (Table 1, Figure 4).

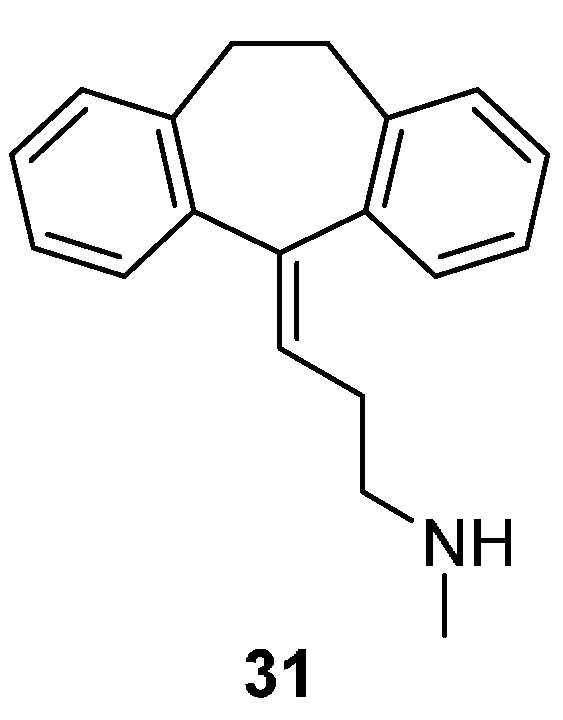

Figure 3. Chemical structure of nortriptyline (co-crystallized ligand from the template, PDB code 4M48) [28].
Figure 3. Chemical structure of nortriptyline (co-crystallized ligand from the template, PDB code 4M48) [28].
Molecules 20 01712 g003
Table 1. Sequence alignment of all distinct monoamine transporter residues located in sub sites (reference [32]) in the vicinity of the docked compounds. Red: hydrophilic side chain, green: lipophilic side chain, bold: bulkier side chain.
Table 1. Sequence alignment of all distinct monoamine transporter residues located in sub sites (reference [32]) in the vicinity of the docked compounds. Red: hydrophilic side chain, green: lipophilic side chain, bold: bulkier side chain.
B Site C Site Outer Site
hNETS420M424G149V148A145F72D473Y151A477
hSERTT439L443A173I172A177Y95E493Y175T497
hDATA423M427G153V152S149F76D476F155A480

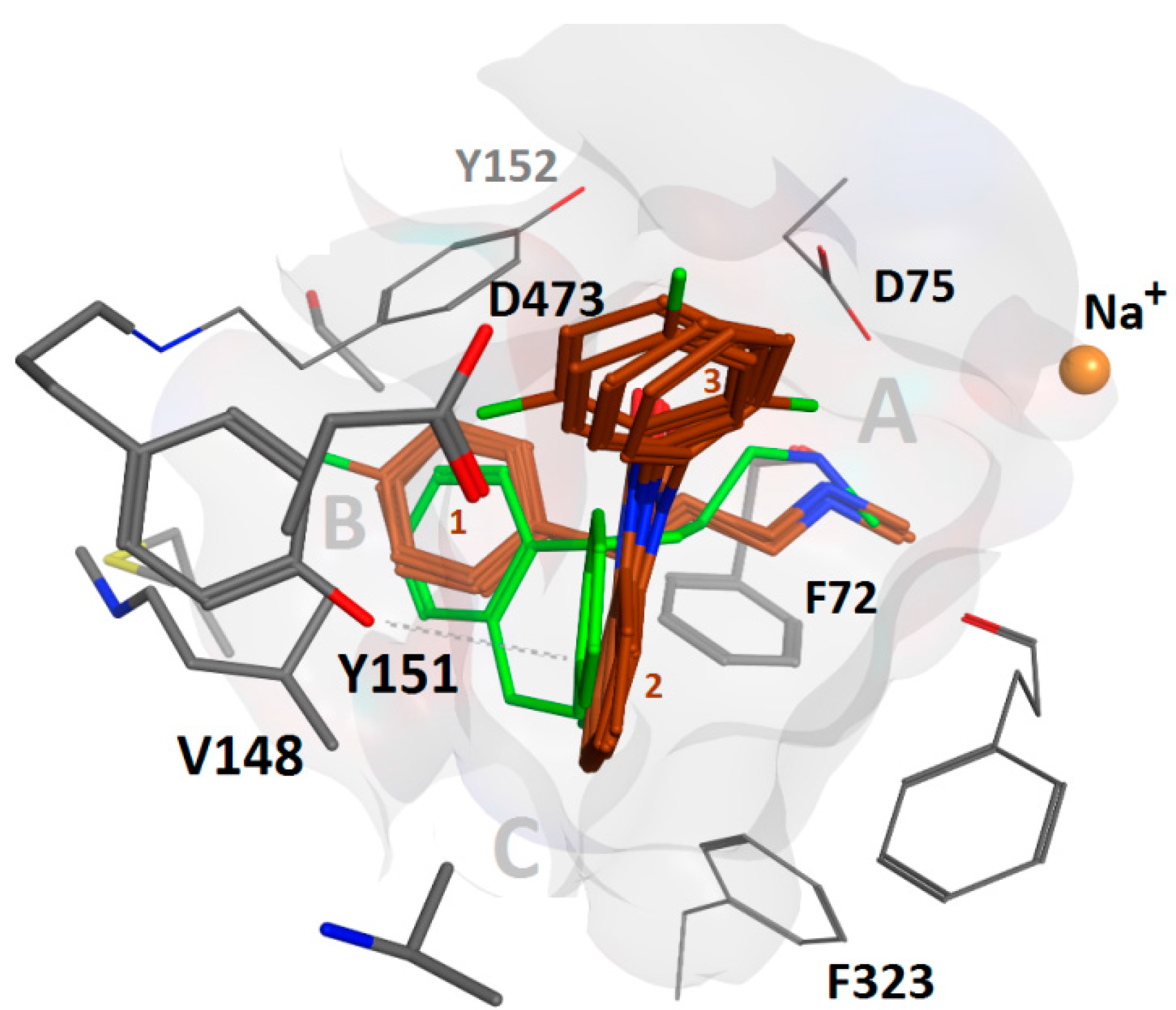

Figure 4. Overlay of compounds 1, 2, and 46 (maroon) in binding hypothesis 2 in hNET showing agreement with the co-crystal pose of nortriptyline (31) (green). Val148 and Asp473 allow more space than Ile172 and Glu439 in hSERT, resp., whereas Tyr151 might induce a more potent stacking interaction as compared to Phe155 in hDAT. The angle between ligand ring 2 and 3 is almost 90° in all poses. The extracellular space is located above.
Figure 4. Overlay of compounds 1, 2, and 46 (maroon) in binding hypothesis 2 in hNET showing agreement with the co-crystal pose of nortriptyline (31) (green). Val148 and Asp473 allow more space than Ile172 and Glu439 in hSERT, resp., whereas Tyr151 might induce a more potent stacking interaction as compared to Phe155 in hDAT. The angle between ligand ring 2 and 3 is almost 90° in all poses. The extracellular space is located above.
Molecules 20 01712 g004
As binding hypothesis 2 is in close agreement with the co-crystallized ligands in dDAT and LeuBAT, we focus further analysis on this proposed binding mode. Binding hypothesis 2 indicates why the investigated compounds (46) show weaker affinity to SERT and DAT than to NET: lower SERT affinity may be due to Ile172 and Glu439, allowing less space for the ligand to be accommodated as compared to in NET, that comprises a valine and an aspartate at the homologous positions, respectively.
Lower DAT affinity could be ascribed to weaker T stacking interactions of Phe155 as compared to Tyr151 in NET, based on previous findings that a Tyr-Phe pair has a stronger binding energy than a Phe-Phe pair [37].
Since the docking studies indicate that fluorinated methyl amines 46 (FAPPI:1-3) bind in an analogous way to the NET as reference compound 1 [26], compounds 46 will be employed in future studies and evaluated for affinity and selectivity towards the NET. Additionally, lipophilicity studies and blood brain barrier penetration experiments are planned for compounds 46 at the Medical University of Vienna. The most promising derivatives regarding their suitability as NET ligands will then be selected for the further development of new and selective PET tracers for the NET, which will comprise either a [11C]methylamine, [18F]fluoroalkyl amine or [18F]fluorobenzene radiolabel, respectively. The results of ongoing studies on affinity, selectivity and lipophilicity of the discussed compounds, will be published in a subsequent paper.

3. Experimental Section

3.1. General

The NMR spectra were recorded from CDCl3 or DMSO-d6 solutions on a Bruker DPX200 spectrometer (200 MHz for 1H, 50 MHz for 13C) or on a Bruker Avance III 400 spectrometer (400 MHz for 1H, 100 MHz for 13C, 40 MHz for 15N, 376 MHz for 19F) at 25 °C. The center of the solvent (residual) signal was used as an internal standard which was related to TMS with δ 7.26 ppm (1H in CDCl3), δ 2.49 ppm (1H in DMSO-d6), δ 77.0 ppm (13C in CDCl3) and δ 39.5 ppm (13C in DMSO-d6). 15N NMR spectra (gs-HMBC, gs-HSQC) were referenced against neat, external nitromethane, 19F NMR spectra by absolute referencing via Ξ ratio. Digital resolutions were 0.25 Hz/data point in the 1H and 0.3 Hz/data point in the 13C-NMR spectra. Coupling constants (J) are quoted in Hz. The following abbreviations were used to show the multiplicities: s: singlet, d: doublet, t: triplet, q: quadruplet, dd: doublet of doublet, m: multiplet. Mass spectra were obtained on a Shimadzu QP 1000 instrument (EI, 70 eV), high-resolution mass spectrometry (HRMS) was carried out on a Finnigan MAT 8230 (EI, 10 eV) or Finnigan MAT 900 S (ESI, 4 kV, 3 μA, CH3CN/MeOH) electrospray ionization mass spectrometer with a micro-TOF analyzer. Microwave experiments were carried out in a Synthos 3000 microwave oven (SXQ80 rotor, Anton Paar, Graz, Austria) with an internal temperature probe. Compound purity: all compounds synthesized featured a purity of at least 95%.

3.2. Syntheses

3.2.1. General Procedure for the Synthesis of 9 and 10

Starting materials 7 or 8, respectively (1 mmol) was dissolved in THF (1 mL) and EtOH (1 mL) was added. The mixture was cooled to −10 °C and NaBH4 (1.05 mmol) was slowly added at this temperature. The solution was stirred at −5 °C for 10 min and thereafter, poured into a mixture of saturated aqueous ammonium chloride (3 mL) in ice (1.5 g). The product was extracted with diethyl ether, dried over Na2SO4 and evaporated to dryness. The crude product was employed directly in the subsequent reaction step without further purification.
3-Chloro-1-(4-fluorophenyl)propan-1-ol (9). Yield: 4.78 g (95%), pale yellow oil, analytical data are in complete accordance with literature values [38].
3-Chloro-1-phenylpropan-1-ol (10). Yield: 4.61 g (99%), light yellow oil, analytical data are in complete accordance with literature values [28].

3.2.2. General Procedure for the Synthesis of 11 and 12

To starting material 9 or 10, respectively (1 mmol) was added 48% aqueous HBr (3 mL) and the mixture was stirred for 3h at room temperature. Thereafter, the solution was poured into a mixture of K2CO3 (1 g) in ice (5.5 g) and additional solid K2CO3 was added for neutralization (pH 7). The crude reaction product was extracted with diethyl ether, the combined organic layers were dried with MgSO4 and evaporated to dryness. The crude product was employed directly in the subsequent reaction step without further purification.
1-(1-Bromo-3-chloropropyl)-4-fluorobenzene (11). Yield: 64%, pale yellow oil, analytical data are in complete accordance with literature values [39].
(1-Bromo-3-chloropropyl)benzene (12). Yield: 5.64 g (86%), yellow oil, analytical data are in complete accordance with literature values [28].

3.2.3. General Procedure for the Synthesis of 29 and 30

4-Fluoroaniline or 2-fluoroaniline, respectively (1 mmol), anhydrous KF (1 mmol), and K2CO3 (1 mmol) were well powdered with a mortar and a pestle, then 1-fluoro-2-nitrobenzene (1 mmol) was added and the mixture was stirred for 2 days at 180 °C. Thereafter, water (5 mL) and CH2Cl2 (5 mL) were added and the organic layer was washed with 10% HCl (5 mL) and brine (5 mL). The combined organic layers were dried over Na2SO4 and evaporated to dryness prior to purification by column chromatography.
N-(4-Fluorophenyl)-2-nitroaniline (29). Yield: 68%, dark orange crystals, mp. 82–83 °C, purification: silica gel 60, petroleum ether/ethyl acetate 9:1 and RP-18 silica gel, methanol/water 7:3, analytical data are in complete accordance with literature values [29].
2-Fluoro-N-(2-nitrophenyl)aniline (30). Yield: 52%, orange crystals, mp. 79–80 °C, purification: silica gel 60, petroleum ether/ethyl acetate 9:1, analytical data are in complete accordance with literature values [40].

3.2.4. Alternative Procedure for the Synthesis of 29

4-Fluoroaniline (7.89 g, 6.73 mL, 70.87 mmol), anhydrous KF (4.13 g, 70.87 mmol), and K2CO3 (9.81 g, 70.87 mmol) were well powdered with a mortar and a pestle, then 1-fluoro-2-nitrobenzene (10.00 g, 7.47 mL, 70.87 mmol) was added and the mixture was irradiated in the microwave (900 W, 10 min). Thereafter, water (8 mL) and CH2Cl2 (10 mL) were added and the organic layer was washed with 10% HCl (5 mL) and brine (5 mL). The combined organic layers were dried over Na2SO4 and evaporated to dryness prior to purification by column chromatography (silica gel 60, petroleum ether/ethyl acetate 9.5:0.5). Yield: 9.51 g (58%), dark orange crystals, mp. 82 °C–83 °C.

3.2.5. General Procedure for the Synthesis of 14 and 15

To a solution of Zn0 (13.8 mmol) in glacial acetic acid (1 mL) was added starting material 28 or 29 (1 mmol) at 0 °C under argon atmosphere. After the addition, the mixture was allowed to warm to room temperature and was stirred for 2 h. Zn0 was filtered off and the pH of the solution was adjusted to pH 9 with 2N NaOH. Thereafter, the aqueous layer was extracted three times with CH2Cl2, the combined organic layers were dried over MgSO4 and evaporated to dryness.
N-(4-Fluorophenyl)benzene-1,2-diamine (14). Yield: 93%, dark orange-reddish oil, purification: silica gel 60, petrol ether/ethyl acetate 9:1, analytical data are in complete accordance with literature values [30].
N-(2-Fluorophenyl)benzene-1,2-diamine (15). The crude reaction product was subjected to the next reaction step without further purification.

3.2.6. General Procedure for the Synthesis of 1618

To a solution of starting materials 13, 14, or 15 (1 mmol) in THF was added 1,1'-carbonyldiimidazole (1.4 mmol) under argon atmosphere and the mixture was stirred at room temperature overnight. Thereafter, the crude reaction product was purified by column chromatography.
1-Phenyl-1,3-dihydro-2H-benzimidazol-2-one (16). Yield: 0.85 g (74%), pink crystals, mp. 201 °C–202 °C, THF: 10 mL, purification: silica gel 60, petroleum ether/ethyl acetate 1:1, analytical data are in complete accordance with literature values [41].
1-(4-Fluorophenyl)-1,3-dihydro-2H-benzimidazol-2-one (17). Yield: 61%, brown resin, THF: 25 mL, purification: silica gel 60, petroleum ether/ethyl acetate 9:1, 1H-NMR (200 MHz, CDCl3): δ (ppm) 6.74–6.81 (m, 2H), 6.89–7.11 (m, 2H), 7.14–7.23 (m, 2H), 7.48–7.59 (m, 1H), 7.73–7.78 (m, 1H), 9.03 (br s, 1H), 13C-NMR (50 MHz, CDCl3): δ (ppm) 108.5, 110.0, 116.3, 116.8, 121.4, 121.7, 122.3, 128.0, 128.2, 130.4, 135.1, 155.1, 159.3, 164.2, MS: m/z (%) 228 (M+, 100), 199 (31), 172 (8), 114 (9), 95 (10), 75 (17), 51 (10), HRMS: m/z calculated for C13H10FN2O [M + H]+: 229.0772. Found: 229.0769.
1-(2-Fluorophenyl)-1,3-dihydro-2H-benzimidazol-2-one (18). Yield: 69%, brown resin, THF: 20 mL, purification: silica gel 60, petroleum ether/ethyl acetate 9:1, 1H-NMR (200 MHz, CDCl3): δ (ppm) 6.82–6.85 (m, 1H), 7.00–7.19 (m, 3H), 7.26–7.88 (m, 2H), 7.43–7.60 (m, 2H), 10.54 (br s, 1H), 13C-NMR (50 MHz, CDCl3): δ (ppm) 108.9, 110.1, 117.0, 117.4, 121.5, 121.9, 122.4, 124.9, 125.0, 128.2, 129.6, 130.4, 154.8, 155.4, 160.5, MS: m/z (%) 228 (M+, 33), 199 (9), 181 (15), 149 (17), 111 (22), 97 (20), 71 (41), 69 (100), 55 (53), 43 (56), HRMS: m/z calculated for C13H9FN2NaO [M + Na]+: 251.0597. Found: 251.0592.

3.2.7. Alternative Procedure for the Synthesis of 17 and 18

A solution of 1,1'-carbonyldiimidazole (1.4 mmol) in DMF (4 mL) was slowly added to a mixture of 14 or 15 (1 mmol) in DMF (4 mL) under argon atmosphere. The resulting solution was stirred at 90 °C for 2 h. After completion of the reaction, the solvent was evaporated in vacuo, the slurry was taken up in water, filtered and dried.
1-(4-Fluorophenyl)-1,3-dihydro-2H-benzimidazol-2-one (17). Yield: 80%, brown resin.
1-(2-Fluorophenyl)-1,3-dihydro-2H-benzimidazol-2-one (18). Yield: 80%, brown resin.

3.2.8. General Procedure for the Synthesis of 19–21

Starting materials 1618 (1 mmol) and K2CO3 (2 mmol) were suspended in DMF (1.8 mL) and stirred at 25 °C for 30 min. 11 and 12, respectively (1.5 mmol) were added after 30 min and the solution was stirred at room temperature overnight. To the mixture was added ethyl acetate (5 mL) and water (5 mL). The aqueous layer was extracted several times with ethyl acetate (10 mL) and the combined organic layers were washed with brine, dried over MgSO4 and evaporated to dryness.
1-(3-Chloro-1-(4-fluorophenyl)propyl)-3-phenyl-1,3-dihydro-2H-benzimidazol-2-one (19). Yield: 32%, white oil, purification: silica gel 60, petroleum ether/ethyl acetate 8:2, 1H-NMR (200 MHz, CDCl3): δ (ppm) 2.70–2.87 (m, 1H), 3.12–3.30 (m, 1H), 3.60–3.66 (m, 2H), 5.73 (m, 1H), 7.00–7.11 (m, 6H), 7.38–7.57 (m, 7H), 13C-NMR (50 MHz, CDCl3): δ (ppm) 34.3, 42.0, 53.8, 108.7, 109.0, 115.5, 115.9, 121.7, 122.0, 126.0, 127.8, 129.2, 129.4, 129.5, MS: m/z (%) 380 (M+, 21), 210 (100) (M+-C9H9ClF), 181 (8), 167 (12), 135 (9), 115 (5), 109 (58), 77 (12), HRMS: m/z calculated for C22H18ClFN2ONa [M + Na]+: 403.0989. Found: 403.0989.
1-(3-Chloro-1-phenylpropyl)-3-(4-fluorophenyl)-1,3-dihydro-2H-benzimidazol-2-one (20). Yield: 63%, dark orange resin, purification: silica gel 60, petroleum ether/ethyl acetate 9:1 and RP-18 silica gel, methanol, 1H-NMR (400 MHz, CDCl3): δ (ppm) 2.80–2.88 (m, 1H, 2'-CH2), 3.17–3.26 (m, 1H, 2'-CH2), 3.62–3.70 (m, 2H, 3'-CH2), 5.79 (dd, J = 10.0 Hz and 5.6 Hz, 1H, 1'-CH), 7.04–7.09 (m, 4H, benzim 4-CH, benzim 5-CH, benzim 6-CH, benzim 7-CH), 7.21–7.26 (m, 2H, f-phen 3-CH, f-phen 5-CH), 7.31–7.33 (m, 1H, phen 4-CH), 7.36–7.40 (m, 2H, phen 3-CH, phen 5-CH), 7.52–7.56 (m, 4H, f-phen 2-CH, f-phen 6-CH, phen 2-CH, phen 6-CH), 13C-NMR (100 MHz, CDCl3): δ (ppm) 34.1 (2'-CH2), 42.0 (3'-CH2), 54.4 (1'-CH), 108.6 (benzim 4-CH), 109.0 (benzim 7-CH), 116.4 (d, J = 22.9 Hz, f-phen 3-CH, 116.4 (d, J = 22.9 Hz, f-phen 5-CH), 121.6 (benzim 5-CH), 122.1 (benzim 6-CH), 127.4 (phen 2-CH), 127.4 (phen 6-CH), 127.9 (d, J = 8.6 Hz, f-phen 2-CH), 127.9 (d, J = 8.6 Hz, f-phen 6-CH), 128.1 (phen 4-CH), 128.7 (benzim 7a-C), 128.8 (phen 3-CH), 128.8 (phen 5-CH), 129.4 (benzim 3a-C), 130.3 (d, J = 3.1 Hz, f-phen 1-C), 138.4 (phen 1-C), 153.2 (benzim 2-CO), 161.6 (d, J = 247.7 Hz, f-phen 4-CF), 19F-NMR (471 MHz, CDCl3): δ (ppm) -113.31 (m, 5-CF), MS: m/z (%) 380 (M+, 2), 228 (100) (M+-C9H10Cl), 199 (11), 185 (16), 153 (6), 117 (14), 91 (73), 75 (8), HRMS: m/z calculated for C22H19ClFN2O [M + H]+: 381.1170. Found: 381.1176.
1-(3-Chloro-1-phenylpropyl)-3-(2-fluorophenyl-1,3-dihydro-2H-benzimidazol-2-one (21). Yield: 55%, orange resin, purification: silica gel 60, petroleum ether/ethyl acetate 9:1, 1H-NMR (400 MHz, CDCl3): δ (ppm) 2.78–2.86 (m, 1H, 2'-CH2), 3.23 (br s, 1H, 2'-CH2), 3.64–3.68 (m, 2H, 3'-CH2), 5.79 (br s, 1H, 1'-CH), 6.85–6.87 (m, 1H, benzim 4-CH) 7.05–7.06 (m, 3H, benzim 5-CH, benzim 6-CH, benzim 7-CH), 7.28–7.40 (m, 5H, f-phen 3-CH, f-phen 6-CH, phen 3-CH, phen 4-CH, phen 5-CH), 7.43–7.48 (m, 1H, f-phen 4-CH), 7.52–7.56 (m, 3H, f-phen 5-CH, phen 2-CH, phen 6-CH), 13C-NMR (100 MHz, CDCl3): δ (ppm) 34.2 (2'-CH2), 41.9 (3'-CH2), 54.5 (1'-CH), 108.8 (d, J = 1.7 Hz, benzim 4-CH), 109.0 (benzim 7-CH), 117.1 (d, J = 19.5 Hz, f-phen 3-CH), 121.6 (benzim 5-CH), 121.9 (f-phen 1-C), 122.0 (benzim 6-CH), 124.8 (d, J = 3.9 Hz, f-phen 6-CH), 127.3 (phen 2-CH), 127.3 (phen 6-CH), 128.1 (phen 4-CH), 128.8 (phen 3-CH), 128.8 (phen 5-CH), 129.4 (benzim 3a-C), 129.5 (f-phen 5-CH), 130.2 (d, J = 7.8 Hz, f-phen 4-CH), 138.4 (phen 1-C), 153.0 (benzim 2-CO), 157.9 (d, J = 253.2 Hz, f-phen 2-CF), due to limited resolution of the measuring apparatus, quaternary carbon benzim 7a-C could not be detected, 19F-NMR (471 MHz, CDCl3): δ (ppm) -118.39 (m, f-phen 2-CF), MS: m/z (%) 380 (M+, 12), 228 (100) (M+-C9H10Cl), 199 (5), 153 (3), 117 (7), 91 (49), 75 (5), HRMS: m/z calculated for C22H19ClFN2O [M + H]+: 381.1170. Found: 381.1164.

3.2.9. General Procedure for the Synthesis of 22–24

A solution of starting materials 19, 20, or 21 (1 mmol) and NaI (1.03 g, 6.89 mmol) in acetone (7 mL) was refluxed for 24 h. The precipitate formed was filtered and the solvent was removed in vacuo.
1-(1-(4-Fluorophenyl)-3-iodopropyl)-3-phenyl-1,3-dihydro-2H-benzimidazol-2-one (22). Yield: 82%, yellow resin, 1H-NMR (200 MHz, CDCl3): δ (ppm) 2.77–2.92 (m, 1H), 3.14–3.31 (m, 3H), 5.63–5.70 (m, 1H), 7.01–7.10 (m, 6H), 7.36–7.56 (m, 7H), 13C-NMR (50 MHz, CDCl3): δ (ppm) 2.3, 35.3, 57.0, 108.8, 108.9, 115.5, 115.9, 121.6, 122.0, 126.0, 127.7, 128.5, 129.1, 129.3, 129.4, 134.0, 134.1, 134.3, 153.0, 159.9, 164.8, MS: m/z (%) 472 (M+, 32), 317 (8), 210 (100) (M+-C9H9F), 181 (11), 167 (23), 140 (3), 135 (43), 115 (8), 109 (34), 77 (15), 51 (7), HRMS: m/z calculated for C22H18FIN2ONa [M + Na]+: 495.0346. Found: 495.0353.
1-(4-Fluorophenyl)-3-(3-iodo-1-phenylpropyl)-1,3-dihydro-2H-benzimidazol-2-one (23). Yield: 76%, yellow crystals, mp. 39 °C–41 °C, purification: silica gel 60, petrol ether/ethyl acetate 9:1, 1H-NMR (200 MHz, CDCl3): δ (ppm) 2.81–2.99 (m, 1H, 2'-CH2), 3.11–3.35 (m, 3H, 2'-CH2, 3'-CH2), 5.70 (dd, J = 6 Hz and 2 Hz, 1H, 1'-CH), 7.04–7.09 (m, 4H, benzim 4-CH, benzim 5-CH, benzim 6-CH, benzim 7-CH), 7.17–7.42 (m, 5H, f-phen 3-CH, f-phen 5-CH, phen 4-CH, phen 2-CH, phen 5-CH), 7.51–7.57 (m, 4H, f-phen 2-CH, f-phen 6-CH, phen 2-CH, phen 6-CH), 13C-NMR (50 MHz, CDCl3): δ (ppm) 2.4 (2'-CH2), 35.2 (3'-CH2), 57.6 (1'-CH), 108.6 (benzim 4-CH), 109.2 (benzim 7-CH), 116.4 (d, J = 23 Hz, f-phen 3-CH), 116.4 (d, J = 23 Hz, f-phen 5-CH), 121.6 (benzim 5-CH), 122.1 (benzim 6-CH), 127.3 (phen 2-CH), 127.3 (phen 6-CH), 127.8 (phen 4-CH), 128.1 (d, J = 5 Hz, f-phen 2-CH), 128.1 (d, J = 5 Hz, f-phen 6-CH), 128.5 (benzim 7a-C), 128.8 (phen 3-CH), 128.8 (phen 5-CH), 129.4 (benzim 3a-C), 130.3 (d, J = 3Hz, f-phen 1-C), 138.1 (phen 1-C), 153.2 (benzim 2-CO), 161.6 (d, J = 247 Hz, f-phen 4-CF), MS: m/z (%) 472 (M+, 13), 317 (5), 228 (100) (M+-C9H10I), 199 (8), 185 (15), 117 (47), 103 (2), 91 (40), 75 (8), 55 (5), HRMS: m/z calculated for C22H19FIN2O [M + H]+: 473.0526. Found: 473.0506.
1-(2-Fluorophenyl)-3-(3-iodo-1-phenylpropyl)-1,3-dihydro-2H-benzimidazol-2-one (24). Yield: 53%, yellow crystals, mp. 38 °C–39 °C, purification: silica gel 60, petrol ether/ethyl acetate 9:1, 1H-NMR (200 MHz, CDCl3): δ (ppm) 2.80–2.98 (m, 1H, 2'-CH2), 3.13–3.36 (m, 3H, 2'-CH2, 3'-CH2), 5.67–5.74 (m, 1H, 1'-CH), 6.85–6.88 (m, 1H, benzim 4-CH) 6.99–7.07 (m, 3H, benzim 5-CH, benzim 6-CH, benzim 7-CH), 7.26–7.45 (m, 5H, f-phen 3-CH, f-phen 6-CH, phen 3-CH, phen 4-CH, phen 5-CH), 7.47–7.58 (m, 4 H, f-phen 4-CH, f-phen 5-CH, phen 2-CH, phen 6-CH), 13C-NMR (50 MHz, CDCl3): δ (ppm) 2.3 (2'-CH2), 35.4 (3'-CH2), 57.6 (1'-CH), 108.9 (d, J = 1.5 Hz, benzim 4-CH), 109.1 (benzim 7-CH), 117.1 (d, J = 19 Hz, f-phen 3-CH), 121.6 (benzim 5-CH), 121.9 (f-phen 1-C), 122.0 (benzim 6-CH), 124.8 (d, J = 3.5 Hz, f-phen 6-CH), 127.3 (phen 2-CH), 127.3 (phen 6-CH), 128.1 (phen 4-CH), 128.8 (phen 3-CH), 128.8 (phen 5-CH), 129.5 (f-phen 5-CH), 130.2 (d, J = 8 Hz, f-phen 4-CH), 138.2 (phen 1-C), 153.0 (benzim 2-CO), 157.8 (d, J = 251.5 Hz, f-phen 2-CF), MS: m/z (%) 472 (M+, 9), 317 (5), 241 (4), 228 (100) (M+-C9H10I), 199 (5), 185 (10), 117 (37), 91 (29), 75 (7), HRMS: m/z calculated for C22H19FIN2O [M + H]+: 473.0526. Found: 473.0532.

3.2.10. General procedure for the synthesis of 1-(3-amino-1-(4-fluorophenyl)propyl)-3-phenyl-1,3- dihydro-2H-benzimidazol-2-one (25)

1-(1-(4-fluorophenyl)-3-iodopropyl)-3-phenyl-1,3-dihydro-2H-benzimidazol-2-one (0.26 g, 0.55 mmol) and a solution of NH3 in isopropanol (2 M, 22 mL) were heated in a sealed tube for 3 h at 80 °C. After evaporation of the solvent, the crude product was purified by column chromatography (silica gel 60, CH2Cl2/MeOH 9:1). Yield: 0.10 g (50%), light brown crystals, mp. 87–88 °C. 1H-NMR (400 MHz, CDCl3): δ (ppm) 2.74–2.84 (m, 3H, 2'-CH2, 3'-CH2), 2.98–3.04 (m, 1H, 3'-CH2), 5.74–5.78 (m, 1H, 1'-CH), 6.79–6.81 (m, 1H, benzim 7-CH), 6.96–7.01 (m, 5H, benzim 4-CH, benzim 5-CH, benzim 6-CH, f-phen 3-CH, f-phen 5-CH), 7.30–7.33 (m, 1H, phen 4-CH), 7.40–7.48 (m, 4H, f-phen 2-CH, f-phen 6-CH, phen 3-CH, phen 5-CH), 7.52–7.54 (m, 2H, phen 2-CH, phen 6-CH), due to limited resolution of the instrumentation, the NH2 protons could not be detected, 13C-NMR (100 MHz, CDCl3): δ (ppm) 30.3 (2'-CH2), 37.8 (3'-CH2), 52.7 (1'-CH), 109.2 (benzim 4-CH), 110.0 (benzim 7-CH), 115.7 (d, J = 21.5 Hz, f-phen 3-CH), 115.7 (d, J = 8.2 Hz, f-phen 5-CH), 122.0 (benzim 5-CH), 122.3 (benzim 6-CH), 126.4 (phen 2-CH), 126.4 (phen 6-CH), 127.5 (benzim 7a-C), 128.1 (phen 4-CH), 129.2 (d, J = 8.2 Hz, f-phen 2-CH), 129.2 (d, J = 8.2 Hz, f-phen 6-CH), 129.5 (benzim 3a-C), 129.7 (phen 3-CH), 129.7 (phen 5-CH), 133.3 (d, J = 3.2 Hz, f-phen 1-C), 134.0 (phen 1-CH), 153.8 (benzim 2-CO), 162.3 (d, J = 247.4 Hz, f-phen 4-CF), 19F-NMR (471 MHz, CDCl3): δ (ppm) -113.68 (m, f-phen CF), MS: m/z (%) 361 (M+, 17), 331 (10), 210 (100) (M+-C9H11FN), 181 (15), 167 (16), 149 (29), 128 (17), 77 (19), 57 (20), 43 (12), HRMS: m/z calculated for C22H21FN3O [M + H]+: 362.1669. Found: 362.1674.

3.2.11. General Procedure for the Synthesis of 4–6

Starting materials 18, 19 or 20 (1 mmol) and a solution of methylamine in EtOH (12.5 mL, 8 M) were heated in a sealed tube for 3 h at 80 °C. After evaporation of the solvent, the crude reaction product was purified by column chromatography.
1-(1-(4-Fluorophenyl)-3-(methylamino)propyl)-3-phenyl-1,3-dihydro-2H-benzimidazol-2-one (4). Yield: 48%, light orange resin, purification: silica gel 60, dichloromethane/methanol 9:1 and dichloromethane/ethyl acetate/methanol 7:2:1, 1H-NMR (400 MHz, CDCl3): δ (ppm) 2.42 (s, 3H, NHCH3), 2.57–2.74 (m, 4H, 2'-CH2, 3'-CH2), 3.15 (br s, 1H, NHCH3), 5.76–5.79 (m, 1H, 1'-CH), 6.88–6.90 (m, 1H, benzim 7-CH), 6.97–7.05 (m, 4H, benzim 5-CH, benzim 6-CH, f-phen 3-CH, f-phen 5-CH), 7.07–7.10 (m, 1H, benzim 4-CH), 7.39–7.43 (m, 1H, phen 4-CH), 7.46–7.57 (m, 6H, f-phen 2-CH, f-phen 6-CH, phen 2-CH, phen 3-CH, phen 5-CH, phen 6-CH), 13C-NMR (100 MHz, CDCl3): δ (ppm) 30.6 (2'-CH2), 35.9 (NHCH3), 48.3 (3'-CH2), 53.1 (1'-CH), 108.9 (benzim 4-CH), 109.5 (benzim 7-CH), 115.5 (d, J = 21.5 Hz, f-phen 3-CH), 115.5 (d, J = 21.5 Hz, f-phen 5-CH) 121.4 (benzim 5-CH), 121.8 (benzim 6-CH), 126.0 (phen 2-CH), 126.0 (phen 6-CH), 127.7 (phen 4-CH), 128.0 (benzim 7a-C), 129.0 (d, J = 8.1 Hz, f-phen 2-CH), 129.0 (d, J = 8.1 Hz, f-phen 6-CH), 129.4 (benzim 3a-C), 129.5 (phen 3-CH), 129.5 (phen 5-CH), 134.4 (phen 1-CH), 134.6 (d, J = 3.4 Hz, f-phen 1-CH), 153.5 (benzim 2-CO), 162.1 (d, J = 246.7 Hz, f-phen 4-CF), 19F-NMR (471 MHz, CDCl3): δ (ppm) -114.36 (m, f-phen 4-CF), MS: m/z (%) 375 (M+, 16), 210 (57) (M+-C10H13FN), 181 (10), 167 (12), 150 (10), 109 (22), 97 (16), 71 (27), 57 (78), 44 (100), HRMS: m/z calculated for C23H23FN3O [M + H]+: 376.1825. Found: 376.1821.
1-(4-Fluorophenyl)-3-(3-(methylamino)-1-phenylpropyl)-1,3-dihydro-2H-benzimidazol-2-one (5). Yield: 29%, light yellow crystals, mp. 100 °C–102 °C, purification: silica gel 60, dichloromethane/methanol 9:1 and RP-18 silica gel methanol/water 9:1 and 7:3, 1H-NMR (200 MHz, CDCl3): δ (ppm) 2.53 (s, 3H, NHCH3), 3.13 (br s, 4H, 2'-CH2, 3'-CH2), 5.77–5.81 (m, 1H, 1'-CH), 6.96–7.03 (m, 4H, benzim 4-CH, benzim 5-CH, benzim 6-CH, benzim 7-CH), 7.16–7.34 (5H, f-phen 3-CH, f-phen 5-CH, phen 4-CH, phen 2-CH, phen 5-CH), 7.49–7.56 (m, 4H, f-phen 2-CH, f-phen 6-CH, phen 2-CH, phen 6-CH), due to limited resolution of the instrumentation, the NH proton could not be detected, 13C-NMR (50 MHz, CDCl3): δ (ppm) 27.6 (2'-CH2), 33.1 (NHCH3), 47.0 (3'-CH2), 54.2 (1'-CH), 108.8 (benzim 4-CH), 109.9 (benzim 7-CH), 116.6 (d, J = 23 Hz, f-phen 3-CH), 116.6 (d, J = 23 Hz, f-phen 5-CH), 122.1 (benzim 5-CH), 122.6 (benzim 6-CH), 127.2 (phen 2-CH), 127.2 (phen 6-CH), 127.7 (phen 4-CH), 128.3 (d, J = 6 Hz, f-phen 2-CH), 128.3 (d, J = 6 Hz, f-phen 6-CH), 128.4 (benzim 7a-C), 128.9 (phen 3-CH), 128.9 (phen 5-CH), 129.2 (benzim 3a-C), 129.7 (d, J = 3 Hz, f-phen 1-C), 136.9 (phen 1-C), 153.4 (benzim 2-CO), 161.7 (d, J = 248 Hz, f-phen 4-CF), MS: m/z (%) 375 (M+, 11), 330 (7), 228 (50) (M+-C10H14N), 199 (7), 185 (9), 147 (17), 128 (26), 117 (8), 91 (13), 58 (34), 44 (100), HRMS: m/z calculated for C23H23FN3O [M + H]+: 376.1825. Found: 376.1828.
1-(2-Fluorophenyl)-3-(3-(methylamino)-1-phenylpropyl)-1,3-dihydro-2H-benzimidazol-2-one (6). Yield: 30%, yellow crystals, mp. 92 °C–93 °C, purification: silica gel 60, dichloromethane/methanol 9:1 and RP-18 silica gel methanol/water 9:1 and 7:3, 1H-NMR (200 MHz, CDCl3): δ (ppm) 2.57 (s, 3H, NHCH3), 3.01–3.15 (m, 4H, 2'-CH2, 3'-CH2), 5.75–5.86 (m, 1H, 1'-CH), 6.83–6.87 (m, 1H, benzim 4-CH) 6.98–7.05 (m, 3H, benzim 5-CH, benzim 6-CH, benzim 7-CH), 7.25–7.42 (m, 5H, f-phen 3-CH, f-phen 6-CH, phen 3-CH, phen 4-CH, phen 5-CH), 7.48–7.61 (m, 4 H, f-phen 4-CH, f-phen 5-CH, phen 2-CH, phen 6-CH), due to limited resolution of the instrumentation, the NHCH3 proton could not be detected, 13C-NMR (50 MHz, CDCl3): δ (ppm) 27.7 (2'-CH2), 33.2 (NHCH3), 46.9 (3'-CH2), 53.5 (1'-CH), 109.0 (benzim 4-CH), 110.1 (benzim 7-CH), 117.1 (d, J = 19.5 Hz, f-phen 3-CH), 122.2 (benzim 5-CH), 122.7 (benzim 6-CH), 125.1 (d, J = 3.0 Hz, f-phen 6-CH), 127.3 (phen 2-CH), 127.1 (phen 6-CH), 128.3 (phen 4-CH), 128.9 (phen 3-CH), 128.9 (phen 5-CH), 129.5 (f-phen 5-CH), 130.7 (d, J = 4.5 Hz, f-phen 4-CH), 136.5 (phen 1-C), 153.6 (benzim 2-CO), 157.6 (d, J = 250.5 Hz, f-phen 2-CF), due to limited resolution of the measuring apparatus, quaternary carbon f-phen 1-C could not be detected, MS: m/z (%) 375 (M+, 17), 318 (10), 228 (82) (M+-C10H14N), 199 (9), 185 (9), 147 (16), 128 (35), 117 (9), 91 (20), 58 (43), 44 (100), HRMS: m/z calculated for C23H23FN3O [M + H]+: 376.1825. Found: 376.1822.

3.3. Computational Methods

The ligand structures were built in the protonated form using Molecular Operating Environment (MOE) 2013 [42]. Homology models of human NET, SERT and DAT were obtained from the Drosophila dopamine transporter template (dDATcryst, PDB id 4M48 [32]), by selecting the model with the most favorable Discrete Optimized Protein Energy (DOPE) of 250 generated by Modeller 9.11 [43]. The co-crystallized inhibitor nortriptyline was retained during model generation and the compounds were docked in the same site using Genetic Optimization for Ligand Docking (GOLD) 5.2 [44]. One hundred poses per ligand (i.e., five hundred poses per protein target) were generated based on the GoldScore scoring function, while keeping the ligand flexible and the protein rigid.
The common chemical scaffold, i.e., the reference compound, was extracted from the resulting poses, analogous to the methods of our previous study [35]. Cluster analysis was performed based on Euclidian distance and complete linkage of the root-mean square deviation of the ligand’s heavy atoms matrix using XLStat [45]. The dendrogram was cut at eight clusters and the ones containing all five ligands were selected (Figure 5).

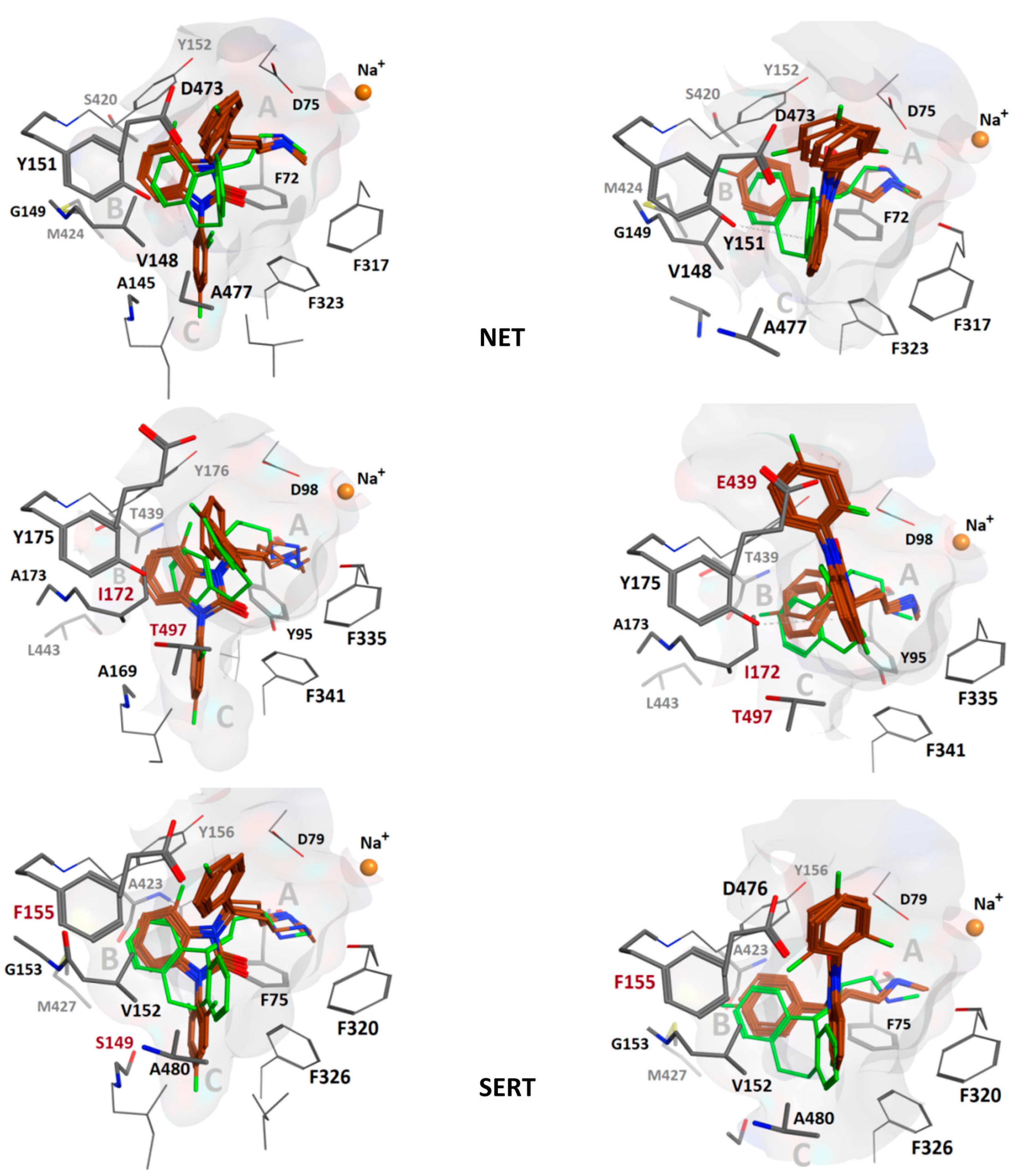

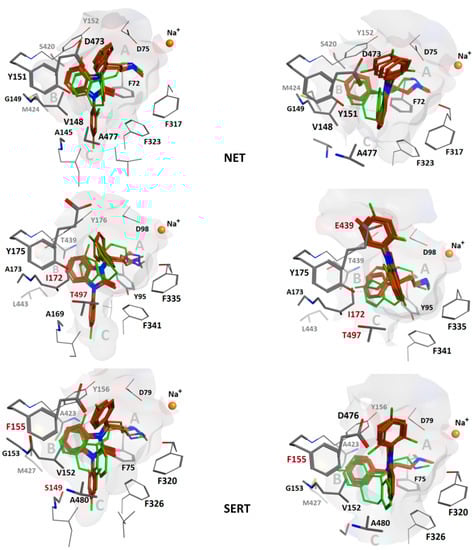

Figure 5. Left column: Overlay of compounds 1, 2, and 46 (maroon) in binding hypothesis 1 and comparison with the co-crystal pose of nortriptyline (31) (green). In NET, V148 allows more space than I172 in SERT. The angle between ligand ring 2 and 3 is ca. 60° in all poses. Right column: Overlay of compounds 1, 2, and 46 (maroon) in binding hypothesis 2. In NET, V148 still allows more space than in hSERT, whereas E439 might disrupt ligand ring 3. DAT lacks a more potent stacking interaction due to F155 as compared to NET[Y151] and SERT[Y175]. Binding mode 2 poses are more in agreement with the co-crystal pose. The angle between ligand ring 2 and 3 is almost 90° in all poses. The extracellular space is located above in all figures.
Figure 5. Left column: Overlay of compounds 1, 2, and 46 (maroon) in binding hypothesis 1 and comparison with the co-crystal pose of nortriptyline (31) (green). In NET, V148 allows more space than I172 in SERT. The angle between ligand ring 2 and 3 is ca. 60° in all poses. Right column: Overlay of compounds 1, 2, and 46 (maroon) in binding hypothesis 2. In NET, V148 still allows more space than in hSERT, whereas E439 might disrupt ligand ring 3. DAT lacks a more potent stacking interaction due to F155 as compared to NET[Y151] and SERT[Y175]. Binding mode 2 poses are more in agreement with the co-crystal pose. The angle between ligand ring 2 and 3 is almost 90° in all poses. The extracellular space is located above in all figures.
Molecules 20 01712 g005

4. Conclusions

In conclusion, ten new compounds have been synthesized within the scope of this work, which aimed at the development of new, selective, high affinity references for the imaging of the NET system via PET. Four of these new compounds (46 and 25) will be employed in future studies. Whilst methylamines 46 (FAPPI:1-3) represent reference compounds for their later prepared radioactive analogs, additionally prepared free amine 25 (APPI:1) will serve as precursor for radiolabeling. Since docking studies indicate that fluorinated methyl amines 46 (FAPPI:1-3) bind in an analogous way to the NET as reference compound 1, these compounds 46 are promising candidates for biological evaluation.

Acknowledgments

AS, AJ, and GFE acknowledge financial support provided by the Austrian Science Fund, grants AW/0123221 and F3502. This article was supported by the Open Access Publishing Fund of the University of Vienna.

Author Contributions

Catharina Neudorfer: Responsible for the performance of the syntheses and writing; Amir Seddik: Structure activity relationships calculations; Karem Shanab: Contributions to syntheses and experimental procedures; Andreas Jurik: Structure activity relationships calculations; Christina Rami-Mark: Participated in design and performance of the experiments; Wolfgang Holzer: Performance of the NMR analyses; Gerhard Ecker: Conceived and supervised the SAR experiments; Markus Mitterhauser: Designed parts of the research and proofread the manuscript; Wolfgang Wadsak: Designed parts of the research and proofread the manuscript; Helmut Spreitzer: Conceived and supervised the syntheses.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sung, U.; Apparsundram, S.; Galli, A.; Kahlig, K.M.; Savchenko, V.; Schroeter, S.; Quick, M.W.; Blakely, R.D. A regulated interaction of syntaxin 1A with the antidepressant-sensitive norepinephrine transporter establishes catecholamine clearance capacity. J. Neurosci. 2003, 23, 1697–1709. [Google Scholar]
  2. Kim, C.H.; Hahn, M.K.; Joung, Y.; Anderson, S.L.; Steele, A.H.; Mazei-Robinson, M.S.; Gizer, I.; Teicher, M.H.; Cohen, B.M.; Robertson, D.; et al. A polymorphism in the norepinephrine transporter gene alters promoter activity and is associated with attention-deficit hyperactivity disorder. Proc. Natl. Acad. Sci. USA 2006, 103, 19164–19169. [Google Scholar]
  3. Hahn, M.K.; Robertson, D.; Blakely, R.D. A mutation in the human norepinephrine transporter gene (SLC6A2) associated with orthostatic intolerance disrupts surface expression of mutant and wild-type transporters. J. Neurosci. 2003, 23, 4470–4478. [Google Scholar]
  4. Mirbolooki, M.R.; Upadhyay, S.K.; Constantinescu, C.C.; Pan, M.L.; Mukherjee, J. Adrenergic pathway activation enhances brown adipose tissue metabolism: A [18F]FDG PET/CT study in mice. Nucl. Med. Biol. 2014, 41, 10–16. [Google Scholar]
  5. Lin, S.L.; Fan, X.; Yeckel, C.W.; Weinzimmer, D.; Mulnix, T.; Gallezot, J.D.; Carson, R.E.; Sherwin, R.S.; Ding, Y.S. Ex vivo and in vivo Evaluation of the Norepinephrine Transporter Ligand [11C]MRB for Brown Adipose Tissue Imaging. Nucl. Med. Biol. 2012, 39, 1081–1086. [Google Scholar]
  6. Stöber, G.; Nöthen, M.M.; Pörzgen, P.; Brüss, M.; Bönisch, H.; Knapp, M.; Beckmann, H.; Propping, P. Systematic search for variation in the human norepinephrine transporter gene: Identification of five naturally occurring missense mutations and study of association with major psychiatric disorders. Am. J. Med. Genet. (Neuropsychiatr. Genet.) 1996, 67, 523–532. [Google Scholar]
  7. Young, J.B.; Landsberg, L. Catecholamines and the adrenal medulla. In Williams Textbook of Endocrinology, 9th ed.; Wilson, J.D., Foster, D.W., Eds.; W.B. Saunders Co.: Philadelphia, PA, USA, 1998; p. 680. [Google Scholar]
  8. Tellioglu, T.; Robertson, D. Genetic or acquired deficits in the norepinephrine transporter: Current understanding of clinical implications. Exp. Rev. Mol. Med. 2001, 1–10. [Google Scholar]
  9. Blakely, R.D.; Bauman, A.L. Biogenic amine transporters: regulation in flux. Curr. Opin. Neurobiol. 2000, 10, 328–336. [Google Scholar]
  10. Zhu, M.Y.; Shamburger, S.; Li, J.; Ordway, G.A. Regulation of the Human Norepinephrine Transporter by Cocaine and Amphetamine. J. Pharmacol. Exp. Ther. 2000, 295, 951–959. [Google Scholar]
  11. Moron, J.A.; Brockington, A.; Wise, R.A.; Rocha, B.A.; Hope, B.T. Dopamine Uptake through the Norepinephrine Transporter in Brain Regions with Low Levels of the Dopamine Transporter: Evidence from Knock-Out Mouse Lines. J. Neurosci. 2002, 22, 386–395. [Google Scholar]
  12. Schroeter, S.; Apparsundaram, S.; Wiley, R.G.; Miner, L.H.; Sesack, S.R.; Blakely, R.D. Immunolocalization of the cocaine- and antidepressant-sensitive l-norepinephrine transporter. J. Comp. Neurol. 2000, 420, 211–232. [Google Scholar]
  13. Torres, G.E.; Gainetdinov, R.R.; Caron, M.G. Plasma membrane monoamine transporters: Structure, regulation and function. Nat. Rev. Neurosci. 2003, 4, 13–25. [Google Scholar]
  14. Ordway, G.A.; Stockmeier, C.A.; Cason, G.W.; Klimek, V. Pharmacology and Distribution of Norepinephrine Transporters in the Human Locus Coeruleus and Raphe Nuclei. J. Neurosci. 1997, 17, 1710–1719. [Google Scholar]
  15. Smith, H.R.; Beveridge, T.J. R.; Porrino, L.J. Distribution of norepinephrine transporters in the non-human primate brain. Neuroscience 2006, 138, 703–714. [Google Scholar]
  16. Zhou, J. Norepinephrine transporter inhibitors and their therapeutic potential. Drugs Future 2004, 29, 1235–1244. [Google Scholar]
  17. Curatolo, P.; D’Agati, E.; Moavero, R. The neurobiological basis of ADHD. Ital. J. Pediatr. 2010, 36, 79. [Google Scholar] [Green Version]
  18. Mash, D.C.; Ouyang, Q.; Qin, Y.; Pablo, J. Norepinephrine transporter immunoblotting and radioligand binding in cocaine abusers. Neurosci. Methods 2005, 143, 79–85. [Google Scholar]
  19. Barr, C.L.; Kroft, J.; Feng, Y.; Wigg, K.; Roberts, W.; Malone, M.; Ickowicz, A.; Schachar, R.; Tannock, R.; Kennedy, J.L. The Norepinephrine Transporter Gene and Attention-Deficit Hyperactivity Disorder. Am. J. Med. Genet. (Neuropsychiatr. Genet.) 2002, 114, 255–229. [Google Scholar]
  20. Klimek, V.; Stockmeier, C.; Overholser, J.; Meltzer, H.Y.; Kalka, S.; Dilley, G.; Ordway, G.A. Reduced Levels of Norepinephrine Transporters in the Locus Coeruleus in Major Depression. J. Neurosci. 1997, 17, 8451–8458. [Google Scholar]
  21. Nedergaard, J.; Cannon, B. The changed metabolic world with human brown adipose tissue: Therapeutic visions. Cell Metab. 2010, 11, 268–272. [Google Scholar]
  22. Gulyas, B.; Brockschnieder, D.; Nag, S.; Pavlova, E.; Kasa, P.; Beliczai, Z.; Legradi, A.; Gulya, K.; Thiele, A.; Dyrks, T.; et al. The norepinephrine transporter radioligand [18F]FD2MeNER shows significant decreases in NET density in the locus coeruleus and the thalamus in Alzheimer’s disease: A post-mortem autoradiographic study in human brains. Neurochem. Int. 2010, 56, 789–798. [Google Scholar]
  23. Wilson, A.A.; Johnson, D.P.; Mozley, D.; Hussey, D.; Ginovart, N.; Nobrega, J.; Garcia, A.; Meyer, J.; Houle, S. Synthesis and in vivo evaluation of novel radiotracers for the in vivo imaging of the norepinephrine transporter. Nucl. Med. Biol. 2003, 30, 85–92. [Google Scholar]
  24. Takano, A.; Gulyas, B.; Varrone, A.; Halldin, C. Saturated norepinephrine transporter occupancy by atomoxetine relevant to clinical doses: a rhesus monkey study with (S,S)-[(18)F]FMeNER-D (2). Eur. J. Nucl. Med. Mol. Imaging 2009, 36, 1308–1314. [Google Scholar]
  25. Schou, M.; Zoghbi, S.S.; Shetty, H.U.; Shchukin, E.; Liow, J.S.; Hong, J.; Andrée, B.A.; Gulyás, B.; Farde, L.; Innis, R.B.; et al. Investigation of the metabolites of [11C](S,S)-MeNER in humans, monkeys and rats. Mol. Imaging Biol. 2009, 11, 23–30. [Google Scholar]
  26. Zhang, P.; Terefenko, E.A.; McComas, C.C.; Mahaney, P.E.; Vu, A.; Trybulski, E.; Koury, E.; Johnston, G.; Bray, J.; Deecher, D. Synthesis and activity of novel 1- or 3-(3-amino-1-phenyl propyl)-1,3-dihydro-2H-benzimidazol-2-ones as selective norepinephrine reuptake inhibitors. Bioorg. Med. Chem. Lett. 2008, 18, 6067–6070. [Google Scholar]
  27. Mark, C.; Bornatowicz, B.; Mitterhauser, M.; Hendl, M.; Nics, L.; Haeusler, D.; Lanzenberger, R.; Berger, M.L.; Spreitzer, H.; Wadsak, W. Development and automation of a novel NET-PET tracer: [C-11]Me@APPI. Nucl. Med. Biol. 2013, 40, 295–303. [Google Scholar]
  28. Varney, M.D.; Romines, W.H.; Boritzki, T.; Margosiak, S.A.; Barlett, C.; Howland, E.J. Synthesis and biological evaluation of -n[4-(2-trans-[([2,6-diamino-4(3H)-oxopyrimidin-5-yl]methyl)thio]cyclobutyl)benzoyl] -l-glutamic acid a novel 5-thiapyrimidinone inhibitor of dihydrofolate reductase. J. Heterocycl. Chem. 1995, 32, 1493–1498. [Google Scholar]
  29. Xu, Z.B.; Lu, Y.; Guo, Z.R. An Efficient and Fast Procedure for the Preparation of 2-Nitrophenylamines under Microwave Conditions. Synlett 2003, 4, 564–566. [Google Scholar]
  30. Wang, X.J.; Xi, M.Y.; Fu, J.H.; Zhang, F.R.; Cheng, G.F.; Yin, D.L.; You, Q.D. Synthesis, biological evaluation and SAR studies of benzimidazole derivatives as H1-antihistamine agents. Chin. Chem. Lett. 2012, 23, 707–710. [Google Scholar]
  31. Jona, H.; Shibata, J.; Asai, M.; Goto, Y.; Arai, S.; Nakajima, S.; Okamoto, O.; Kawamoto, H.; Iwasawa, Y. Efficient and practical asymmetric synthesis of 1-tert-butyl 3-methyl (3R,4R)-4-(2-oxo-2,3-dihydro-1H-benzimidazol-1-yl)piperidine-1,3-dicarboxylate, a useful intermediate for the synthesis of nociceptin antagonists. Tetrahedron: Asymmetry 2009, 20, 2439–2446. [Google Scholar]
  32. Penmatsa, A.; Wang, K.H.; Gouaux, E. X-ray structure of dopamine transporter elucidates antidepressant mechanism. Nature 2013, 503, 85–90. [Google Scholar]
  33. Wang, H.; Goehring, A.; Wang, K.H.; Penmatsa, A.; Ressler, R.; Gouaux, E. Structural basis for action by diverse antidepressants on biogenic amine transporters. Nature 2013, 503, 141–145. [Google Scholar]
  34. Tatsumi, M.; Groshan, K.; Blakely, R.D.; Richelson, E. Pharmacological profile of antidepressants and related compounds at human monoamine transporters. Eur. J. Pharmacol. 1997, 340, 249–258. [Google Scholar]
  35. Richter, L.; de Graaf, C.; Sieghart, W.; Varagic, Z.; Morzinger, M.; de Esch, I.J.; Ecker, G.F.; Ernst, M. Diazepam-bound GABAA receptor models identify new benzodiazepine binding-site ligands. Nat. Chem. Biol. 2012, 8, 455–464. [Google Scholar]
  36. Andersen, J.; Olsen, L.; Hansen, K.B.; Taboureau, O.; Jorgensen, F.S.; Jorgensen, A.M.; Bang-Andersen, B.; Egebjerg, J.; Stromgaard, K.; Kristensen, A.S. Mutational Mapping and Modeling of the Binding Site for (S)-Citalopram in the Human Serotonin Transporter. J. Biol. Chem. 2010, 285, 2051–2063. [Google Scholar]
  37. Chelli, R.; Gervasio, F.L.; Procacci, P.; Schettino, V. Stacking and T-shape Competition in Aromatic–Aromatic Amino Acid Interactions. J. Am. Chem. Soc. 2002, 124, 6133–6143. [Google Scholar]
  38. Yu, F.; Zhou, J.N.; Zhang, X.C.; Sui, Y.Z.; Wu, F.F.; Xie, L.J.; Chan, A.S.C.; Wu, J. Copper(II)-Catalyzed Hydrosilylation of Ketones Using Chiral Dipyridylphosphane Ligands: Highly Enantioselective Synthesis of Valuable Alcohols. Chemistry 2011, 17, 14234–14240. [Google Scholar]
  39. La Regina, G.; Diodata D’Auria, F.; Tafi, A.; Piscitelli, F.; Olla, S.; Caporuscio, F.; Nencioni, L.; Cirilli, R.; La Torre, F.; Rodrigues De Melo, N.; et al. 1-[(3-Aryloxy-3-aryl)propyl]-1H-imidazoles, new imidazoles with potent activity against Candida albicans and dermatophytes. Synthesis, structure-activity relationship, and molecular modeling studies. J. Med. Chem. 2008, 51, 3841–3855. [Google Scholar]
  40. Panagopoulos, A.M.; Steinman, D.; Goncharenko, A.; Geary, K.; Schleisman, C.; Spaargaren, E.; Zeller, M.; Becker, D.P. Apparent Alkyl Transfer and Phenazine Formation via an Aryne Intermediate. J. Org. Chem. 2013, 78, 3532–3540. [Google Scholar]
  41. Liu, P.; Wang, Z.; Hu, X. Highly Efficient Synthesis of Ureas and Carbamates from Amides by Iodosylbenzene-Induced Hofmann Rearrangement. Eur. J. Org. Chem. 2012, 10, 1994–2000. [Google Scholar]
  42. Molecular Operating Environment (MOE); Chemical Computing Group Inc.: Montreal, QC, Canada, 2013.
  43. Sali, A.; Potterton, L.; Yuan, F.; van Vlijmen, H.; Karplus, M. Evaluation of comparative protein modeling by MODELLER. Proteins 1995, 23, 318–326. [Google Scholar]
  44. Jones, G.; Willett, P.; Glen, R.C.; Leach, A.R.; Taylor, R. Development and validation of a genetic algorithm for flexible docking. J. Mol. Biol. 1997, 267, 727–748. [Google Scholar]
  45. XLStat; Addinsoft Inc.: New York, NY, USA, 2009.
  • Sample Availability: Samples of the compounds 46, 925, and 29 and 30 are available from the authors.
