Preparation of α,β-Unsaturated Ketones Bearing a Trifluoromethyl Group and Their Application in Organic Synthesis

,
and
Department of Chemistry, Moscow State University, 119899 Moscow, Russia
*
Author to whom correspondence should be addressed.
Molecules1997, 2(12), 186-232;https://doi.org/10.3390/21200186
Version Notes
Order Reprints

Abstract

The approaches to the synthesis of α,β-unsaturated CF3-containing ketones and their use in organic chemistry are reviewed. The synthetic applications of these ketones are discussed. The formation of 4-, 5-, 6- and 7-membered heterocycles bearing a CF3 group based on reactions of α,β-unsaturated CF3-containing ketones with different nucleophiles are discussed.

Introduction

Organofluorine compounds, particularly heterocyclic ones, are very attractive targets both from a theoretical and synthetic point of view. They have attracted much attention especially in the last decade in biological and medicinal chemistry [1]. This is due to the unique features of fluorine compounds and foremost their high physiological activity [2, 3]. The introduction of fluorine into organic compounds often permits dramatic modification of their chemical and pharmaceutical properties.
The preparation of fluorine heterocycles is well documented. There are two general approaches: 1) fluorination of an existing heterocyclic ring including functional group transformations [4], for example transformation of a carboxy moiety to a trifluoromethyl group [5] or the trifluoromethylation of heterocycles using CF3Cu [6, 7] or CF3 radicals [8, 9]. 2) construction of heterocyclic rings using fluorinated synthons. Many approaches to the synthesis of CF3-containing heterocycles are based on the use of β-dicarbonyl compounds [10, 11]. Cycloaddition reactions (using trifluoromethylalkenes [12], trifluoroacetonitrileoxide [13] or trifluoroacylketenes [14]) were also widely used in recent years. However, the disadvantages of these methods, e.g. availability of starting compounds or utilization of aggressive and highly toxic reagents, have stimulated the development of new methods for synthesis of trifluoromethylated heterocyclic compounds. Many new synthetic methods for the preparation of trifluoromethylated heterocycles were first elaborated 30 years ago, however the search for new reagents and approaches to the synthesis of CF3-containing compounds is still an actual goal of modern organic synthesis.
One simple and useful approach to the synthesis of trifluoromethyl-containing heterocycles is the synthesis based on the utilization of unsaturated ketones with a trifluoromethyl group (Scheme 1).

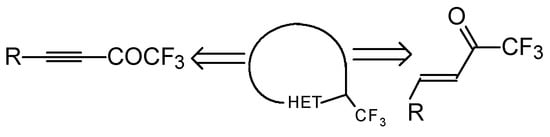

Scheme 1.
In recent years a considerable effort has been devoted to find ways of preparation of unsaturated ketones with a CF3 group. Unsaturated ketones with a CF3 group are potential important in organic synthesis. However, these ketones, especially ethylenic ones, are not readily accessible. Conventional procedures for the synthesis of ethylenic ketones have not been applicable to the preparations of these ketones. Some approaches to the synthesis of these ketones were summarized earlier by Bégué and Bonnet-Delpon [15].

Preparation of α,β-Unsaturated Ketones Bearing a Trifluoromethyl Group

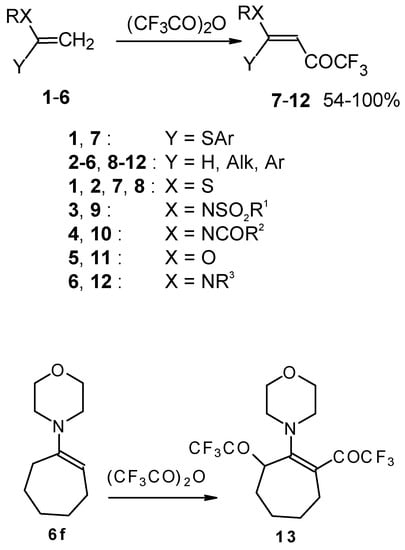

Some trifluoromethyl-containing ketones are readily available by acylation of electron reach alkenes with trifluoroacetic anhydride (or other derivatives of trifluoroacetic acid). Trifluoroacetylation of ketene dithioacetals [16], vinyl sulfides [16], vinyl amides [17], vinyl ethers [17, 18] (including cyclic vinyl ethers [18, 19]), enamines [20, 21] proceeds at room temperature to give the corresponding β-trifluoroacetylated compounds in high yields (Scheme 2). Activated dienes, e.g. 1,1-bisalkylthio-1,3-alkadienes, react quite easily also (Scheme 3) [22]. The addition-elimination mechanism of trifluoroacylation of electron-reach alkenes was confirmed by 1H NMR and kinetic study [23, 24]. More reactive enamines such as 1-morpholino-1-cyclopentene or 1-morpholino-1-cyclohexene give very complicated reaction mixtures. In the case of 1-morpholino-1-cyclohexene the product of bis trifluoroacylation was isolated (Scheme 2) [20].
Scheme 2.
Scheme 3.
Trifluoroacetylation of trithioorthoacetates results in the acylated ketene thioacetals in high yield (Scheme 4) [25]. The products seem to result from trifluoroacylation of ketene dithioacetals formed by elimination of thiols from trithioorthoacetates.

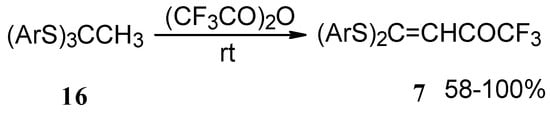

Scheme 4.

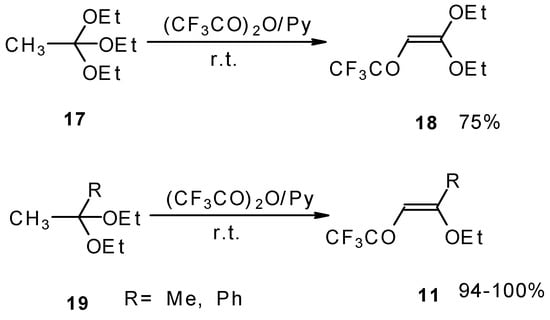

Trifluoroacylation of triethylorthoacetate and the diethylacetal of some methyl ketones proceeds similarly (Scheme 5). It is very interesting that this reaction takes place only in the case of trifluoro(trichloro)acetic anhydride. In the case of acetic anhydride this reaction does not proceed [26].
Scheme 5.

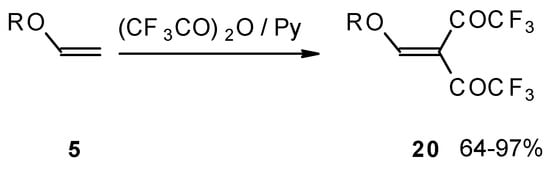

Recently the trifluoroacylation of vinyl ethers was successfully extended to the diacylation of alkyl vinyl ethers with the use of excess trifluoroacetic anhydride (3 equivalents) in the presence of pyridine (Scheme 6) [27].
Scheme 6.

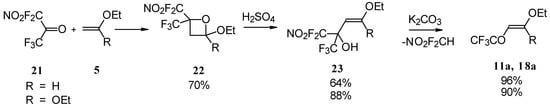

4-Ethoxy-1,1,1-trifluoro-3-buten-2-one 11a was firstly prepared by the three step procedure from nitropentafluoroacetone. Cycloaddition of nitropentafluoroacetone 21 with ethylvinyl ether gives rise to the formation of oxetane 22, subsequent cleavage of the four-membered ring in the presence of sulphuric acid leads to the formation of the corresponding carbinol 23. The thermolysis of this carbinol in the presence of K2CO3 gives rise to the target CF3 ketone. A similar transformation was also investigated for ketene diethylacetal (Scheme 7) [28, 29].
Scheme 7.
The reaction of nitropentafluoroacetone 21 with isobutylene gives rise to the corresponding carbinol 23 (Scheme 8). Subsequent elimination of difluoronitromethane in the presence of K2CO3 leads to trifluoromethyl-β,β-dimethylvinyl ketone 24a [30].
Scheme 8.

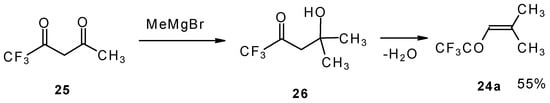

The same ketone was previously prepared by Henne from trifluoroacetylacetone (Scheme 9). Addition of methylmagnesium bromide with subsequent spontaneous dehydration of water gives this ketone in 55% yield [31].
Scheme 9.
Perfluoroacylation of non-activated alkenes was not described before 1992. Trifluoroacylating reagents are restricted to trifluoroacetic anhydride and other derivatives of trifluoroacetic acid. However, the electrophilicity of these reagents is insufficient for acylation of alkenes. Attempts to improve their activity with Lewis acids (as in the case of aromatic hydrocarbons' trifluoroacylation [32,33,34]) lead to cationic polymerization of the unsaturated substrates. Perfluorinated acylium salts which can be used for the perfluoracylation of unsaturated hydrocarbons are unstable and decompose readily with decarbonylation (Eq.1) [35, 36].
RfCOCl + AgSbF6 → [RfCO+SbF6−] → RfF + SbF5 + CO

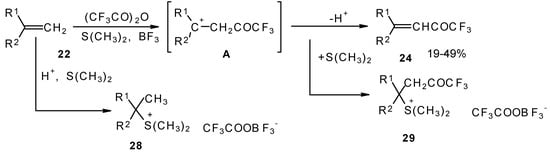

A novel method of direct electrophilic perfluoroacylation of alkenes was proposed, which is based on the use of trifluoroacetic anhydride (or other anhydrides of perfluorinated acids) in the presence of a dimethyl sulphide-borontrifluoride complex (Scheme 10) [37].
Scheme 10.
This method enables unsaturated ketones containing perfluoroalkyl groups without β-heteroalkyl substituents to be obtained in moderate yields (Scheme 10) [37,38,39,40,41,42]. Recently it was found that this complex is more appropriate for the trifluoroacylation of various aromatic compounds then other trifluoroacylating reagents [43].
The reaction takes place only for alkenes which give cations with stabilized groups - phenyl, allyl or cyclopropyl or tertiary cations. The electrophilicity of this reagent exceeds the electrophilicity of trifluoroacetic anhydride, which reacts only with electron rich alkenes having heteroatoms at a double bond. In spite of a considerable raising of synthetic possibilities of this method compared with other perfluoroacylating reagents the reactivity of the new reagent is not sufficient to react with all alkenes. The essential disadvantage of this reaction is also the low yields of ketones due to the specific chemistry of the acylation which restricts yield to 50%.

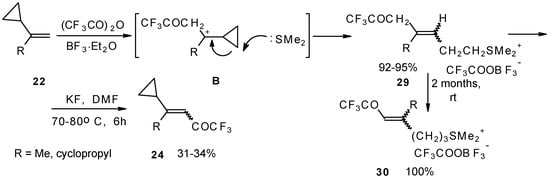

The trifluoroacylation of cyclopropyl containing alkenes such as isopropenylcyclopropane and 1,1-dicyclopropylethylene by trifluoroacetic anhydride in the presence of the dimethyl sulphide-borontrifluoride complex proceeds in an unusual manner (Scheme 11). This reaction leads to the formation of the corresponding sulphonium salts in high yields [40], which are the products of the trapping of the homoallyl cation, formed in the process of cyclopropane ring opening. Since these compounds are β,γ-unsaturated ketones, they are prone to spontaneous transformation to the corresponding α,β-unsaturated ketones. The rearrangement of the compounds proceeds over ca. two months at room temperature with no catalyst in quantitative yield.
Scheme 11.
The action of potassium fluoride, as a base, on these sulfonium salts furnishes intramolecular nucleophilic substitution of the dimethyl sulphide group, which results in α,β-unsaturated ketones containing a perfluorinated group (Scheme 11).
The trifluoroacylation of phenyl-substituted acetylenes having both terminal and internal triple bonds using the complex (CF3CO)2O-BF3-SMe2 was studied. This reaction leads to the formation of the corresponding sulfonium salts 32, which are the products of conjugate addition of the CF3CO group and dimethyl sulfide to the acetylene molecule (Scheme 12). Reaction of these sulfonium salts with the excess of dimethyl sulphide yields the corresponding trifluoroacetylated vinyl sulphides 33 in high yields. Oxidation of the sulphides by hydrogen peroxide in acetic acid gives rise to the corresponding unsaturated sulfones 34 with the CF3CO moiety in the β-position [42].
Scheme 12.

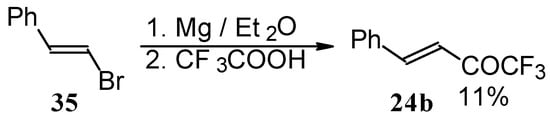

Some other existing methods for the preparation for unsaturated ketones with trifluoromethyl group are based on the acylation of organoelement compounds. The first synthesis of 1,1,1-trifluoro-4-phenylbut-3-en-2-one by the reaction of phenylvinylmagnesium bromide with trifluoroacetic acid was described in 1959, but the yield was very low (Scheme 13) [44].
Scheme 13.

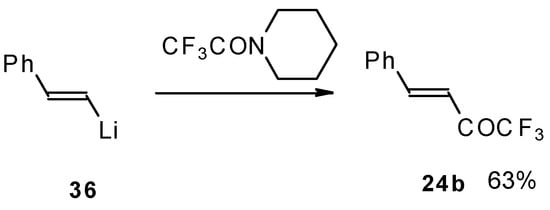

It was found in subsequent investigations that organolithium compounds were more appropriate for the synthesis of trifluoromethyl containing ketones and gave higher yields of the target products (Scheme 14) [45].
Scheme 14.

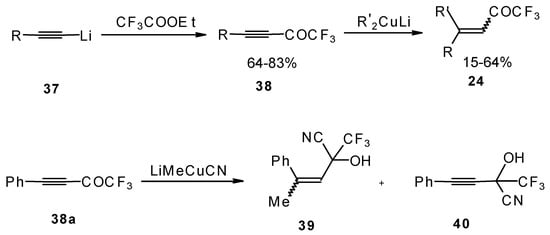

A good route for the synthesis of fluorinated ketones involves 1, 4-addition of an organocuprate to the acetylenic ketones, which are readily obtained by acylation of acetylides (Scheme 15). This method affords ethylenic ketones with high regioselectivity, however stereoselectivity is variable and yields are moderate [46,47,48,49,50].
Scheme 15.
It should be noted that in the case of some cuprates regioselectivity is low and the products of both 1,2- and 1,4-additions are formed, but use of cyano and higher order cuprates results in only unsaturated CF3 ketones [48] . In some cases the formation of cyanohydrins takes place (Scheme 15).
A novel method of the synthesis of trifluromethyl containing unsaturated ketones was described recently [51]. The first step in this approach involves trifluoroacylation of the corresponding vinyltellurides with trifluoroacetic anhydride (Scheme 16) [52]. The reaction proceeds stereospecifically to give only Z isomers of β-trifluoroacetylvinyltellurides in good yields. The subsequent reaction of β-trifluoroacetylvinyltellurides with different zinc cuprates via a conjugate addition-elimination process affords the corresponding α,β-unsaturated trifluoromethyl ketones. In some cases competitive double addition of zinc cuprates takes place [51].

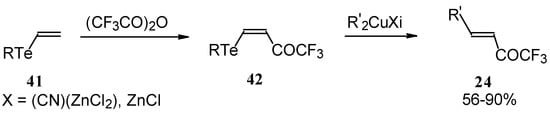

Scheme 16.
Although the required ketones were obtained in good yields, utilization of organotellurium compounds seems to be a big disadvantage of this method.

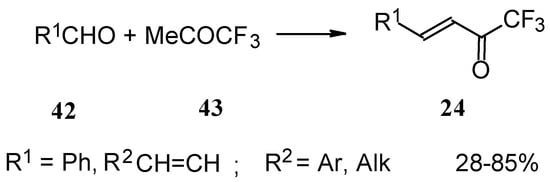

Other described methods for the syntheses of these ketones include crotonic condensation of trifluoroacetone with unsaturated or aryl aldehydes (Scheme 17) [53, 54]. However, since competitive self-condensation of trifluoroacetone takes place, it is necessary to use a 10 fold excess of trifluoroacetone.
Scheme 17.

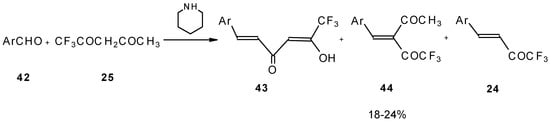

The reaction of aryl aldehydes with 1,1,1-trifluoroacetylacetone results in the corresponding unsaturated CF3-containing ketones, but yields of the target ketones are very low [55].
Molecules 02 00186 sch018 550
Scheme 18.
Quite recently a novel method for the synthesis of α-alkoxycarbonyl-α,β-unsaturated trifluoromethyl ketones was found involving the Knoevenagel condensation of aldehydes with trifluoroacetoacetates in the presence of silica gel functionalized with amino groups and p-toluenesulfonic acid (Scheme 19). It should be noted that the use of such a catalyst as piperidine/acetic acid gives raise to very low yields of products [56].
Scheme 19.
Polyfluoroalkyl α,β-enones may be also prepared from β-iminophosphonates, accessible in four steps from perfluoroalkanoyl chlorides. The β-iminophosphonate anions condensed with an aldehyde lead to the corresponding trifluoromethyl or perfluoroalkyl enones after acidic hydrolysis (Scheme 20) [57].
Scheme 20.
Quite recently a novel one pot procedure based on the Horner-Emmons olefination was elaborated. N-phenylrifluoroacetimidoyl chloride reacts with diethoxyphosphorylmethyl (or ethyl) lithium, generated in situ from diethylmethylphosphonate and lithium diisopropylamide (Scheme 21). Subsequent addition of the aldehyde gives rise to 1-aza-1,3-diene readily converted by HCl hydrolysis to the corresponding unsaturated ketone bearing a CF3 group [58].
Scheme 21.

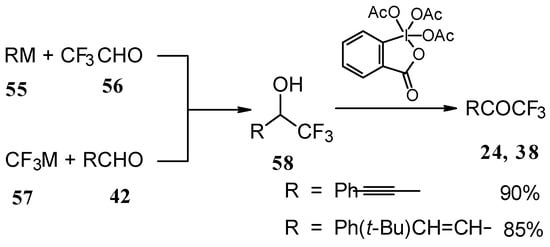

Secondary carbinols, obtained by the addition of vinyl organometallics to trifluoroacetaldehyde [59] or perfluoroalkyl organometallics to unsaturated aldehydes (Scheme 22) [60,61,62] can be oxidized by Dess-Martin [63, 64] or Swern [65] reagents or using MnO2 [66] in dichloromethane to the α,β-ethylenic trifluoromethyl ketones in good yields. [66, 67] It should be noted that the reduction of acetylenic CF3 ketones using LiAlH4 or NaBH4 does not give CF3 enones but the corresponding allyl alcohols [50, 64, 68].
Scheme 22.

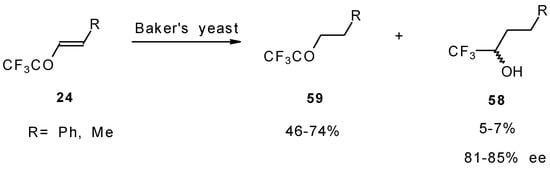

The diastereoselective reduction of CF3 enones with baker’s yeast was also investigated (Scheme 23). However, the main reaction product is a CF3 ketone rather then an alcohol. The optical purity of alcohols prepared by this procedure is 81-85 % ee [69].
Scheme 23.

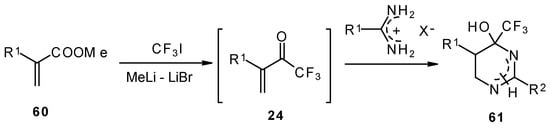

Vinyl perfluoroalkyl ketones are formed in situ from the reactions of perfluoroalkyllithiums with ethyl acrylate. They can be converted to 4-(perfluoroalkyl)tetrahydropyrimidines in moderate to good yields [70].
Molecules 02 00186 sch024 550
Scheme 24.

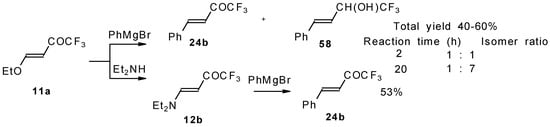

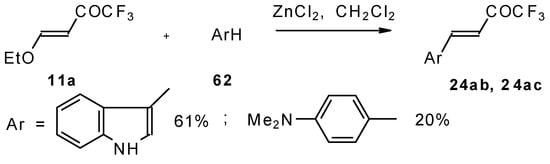

4-Ethoxy-1,1,1-trifluoro-3-buten-2-one 11a is readily obtained by the trifluoroacylation of ethylvinyl ether with trifluoroacetic anhydride [71]. The reactions of this ketone with electron-rich aromatics (Scheme 25) or phenyl magnesium bromide (Scheme 26) results in the formation of trifluoromethyl unsaturated ketones [72]. However, only very active aromatic compounds such as indole and dimethylaniline take part in the reaction. Reaction with anisole does not take place. The application of stronger Lewis acids such as BF3 or TiCl4 at room temperature or on heating was unsuccessful.
Scheme 25.
Scheme 26.

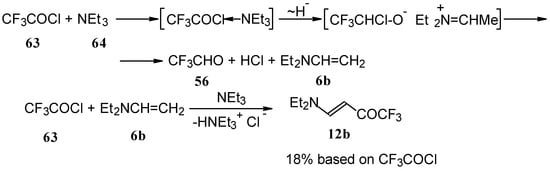

β-Diethylamino-substituted trifluoromethyl-containing enones can be obtained by the reaction of triethylamine with trifluoroacetyl chloride, trifluoroacetyl fluoride or trifluoroacetic anhydride. Reaction of trifluoroacetyl chloride with two equivalents of triethylamine results in the 4-diethylamino-1,1,1-trifluoro-3-buten-2-one 12b. A proposed reaction mechanism involves the oxidation of triethylamine to diethylvinylamine by one equivalent of trifluoroacetyl chloride which is itself reduced to floural (Scheme 27). Diethylvinylamine immediately reacts with another equivalent of trifluoroacetyl chloride to give rise to the corresponding enone [73].
Scheme 27.
In a subsequent investigation it was found that the reaction of triethylamine with an equimolar amount of trifluoroacetic anhydride proceeds almost quantitatively and leads to the product of double trifluoroacetylation of diethylvinylamine (Scheme 28) [74].

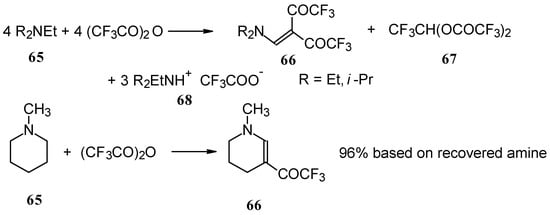

Scheme 28.
β-Alkyl- or dialkylamino substituted enones bearing a CF3 group are a very interesting type of unsaturated ketone. These compounds are readily available from the reaction of secondary or primary amines (including aromatic ones) with 4-ethoxy-1,1,1-trifluoro-3-buten-2-one or other trifluoroacylated vinyl ethers. The alkoxy group in these enones is easily substituted by ammonia and mono- or dialkylamines with the formation of β-aminosubstituted CF3-bearing enones [75, 76]. 4-Ethoxy-1,1,1-trifluoro-3-buten-2-one can be also used as a protecting reagent in peptide synthesis [77]. The reaction with amino acids proceeds readily at room temperature to give protected amino acids without racemization. The amino acids protected by this procedure were used for dipeptide preparation (Scheme 29). The removal of the N-4,4,4-trifluoro-3-oxo-butenyl protecting group occurs under mild conditions in the presence of 3N HCl.

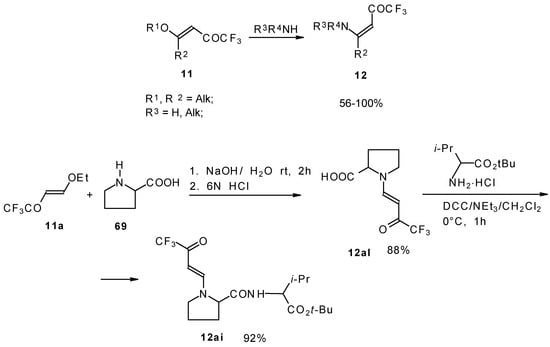

Scheme 29.

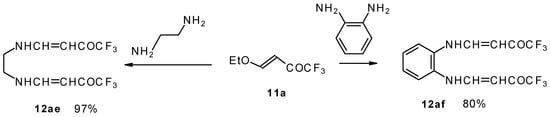

It is also possible to undergo reaction with diamines. The reaction of 4-ethoxy-1,1,1-trifluoro-3-buten-2-one with ethylenediamine and o-phenylenediamine gives rise to the linking of two molecules of a ketone (Scheme 30) [75].
Scheme 30.

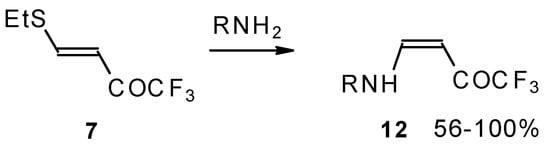

The same transformation proceeds readily also with unsaturated trifluoroacetyl ketones having a thioalkyl group in the β-position (Scheme 31) [76].
Scheme 31.
A very interesting possibility is the transaminolisis of β-aminosubstituted ketones. N-N exchange proceeds readily at room temperature without a large excess of the reagent amine. Usually a 1-3 times excess is enough. However the reaction depends on the relative basicities of the leaving and entering amine. As a result the (CH3)2N moiety can not be replaced by ammonia, but NH3 can readily be replaced by dimethylamine (Scheme 32) [76].

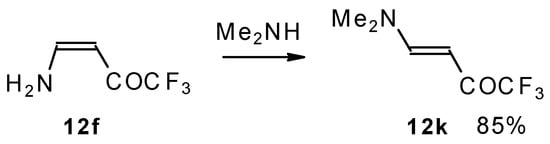

Scheme 32.
Another approach to the synthesis of β-aminosubstituted CF3 ketones was elaborated in the reaction of amines with β-diketones having a CF3 group (Scheme 33) [78, 79].
Scheme 33.
The structure and stereochemistry of these type of enones were investigated by NMR and IR spectroscopy [75, 76, 80]. It was found that the configuration of the ketone depends on the structure of the amine substituent. In the case of NH2 and AlkNH or ArNH only the Z configuration of ketones exists in low polar solvents or in the pure form (Scheme 34). This stereochemistry is due to the possibility of an intramolecular H-bond. More polar solvents such as acetonitrile give rise to transformation to the E-isomer. The 19F NMR spectroscopy shows the presence of an equilibrium among three forms of the ketone. IR spectra give similar data [75].

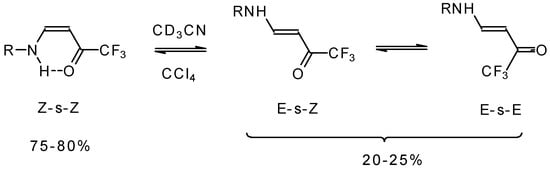

Scheme 34.
β-Dialkylaminosubstituted ketones as shown by 1H NMR spectra have hindered rotation around the N-C bond due to the interaction of the nitrogen lone pair with the carbonyl group (Scheme 35).

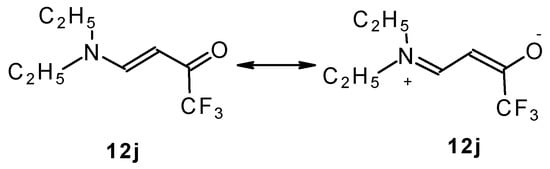

Scheme 35.
Acetylenic ketones with a CF3 group are good dienophiles in the Diels-Alder reaction giving with cyclopentadiene the corresponding bicyclic CF3 enone. Zefirov at al [81] investigated reversible photoinitiated cycloaddition of this ketone to the quadricyclane skeleton (Scheme 36).
Scheme 36.

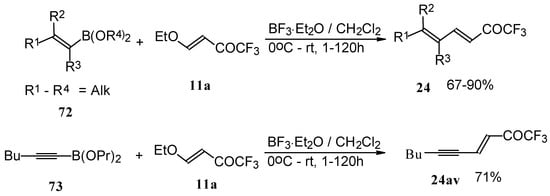

Alkadienyl trifluoromethyl ketones were stereoselectively prepared by the reaction of 4-ethoxy-1,1,1-trifluoro-3-buten-2-one with alkenyldialkoxyboranes in the presence of borontrifluoride etherate (Scheme 37) [82].
Scheme 37.
Similar reactions proceed also with ketones without heteroatom substituents to give 3-alkynyl substituted (Scheme 38) or γ,δ−unsaturated CF3 ketones (Scheme 39) [83, 84].
Scheme 38.
Scheme 39.

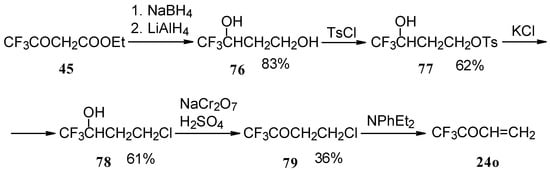

The parent CF3 bearing enone - trifluoromethyl vinyl ketone 24o is not accessible with the procedures described above. This ketone has been prepared by a five stage procedure from trifluoracetoacetate (Scheme 40) [85].
Scheme 40.

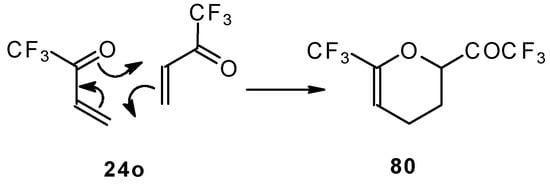

This ketone is spontaneously dimerized to the corresponding pyran (Scheme 41) [85].
Scheme 41.
Table
Table 1. Synthesis of α,β−unsaturated trifluoromethyl ketones.
Table 1. Synthesis of α,β−unsaturated trifluoromethyl ketones.
NKetoneMeth.YieldRef.NKetoneMeth.YieldRef.
7a Molecules 02 00186 i001A100257b Molecules 02 00186 i002A9316
A9825
7c Molecules 02 00186 i003A58257d Molecules 02 00186 i004A7525
8a Molecules 02 00186 i005A97168b Molecules 02 00186 i006A7916
8c Molecules 02 00186 i007A100169a Molecules 02 00186 i008A9217
A6723
9b Molecules 02 00186 i009A95179c Molecules 02 00186 i010A10017
10a Molecules 02 00186 i011A561710b Molecules 02 00186 i012A9622
11a Molecules 02 00186 i013A1001711b Molecules 02 00186 i014A8218
A7918
A5823
11c Molecules 02 00186 i015A661811d Molecules 02 00186 i016A7718
11e Molecules 02 00186 i017A841811f Molecules 02 00186 i018A7818
A8119A10019
A7823A6723
11g Molecules 02 00186 i019A722311h Molecules 02 00186 i020A10017
11h Molecules 02 00186 i021A792311i Molecules 02 00186 i022A6323
12a Molecules 02 00186 i023A832012b Molecules 02 00186 i024A5320
12c Molecules 02 00186 i025A822012d Molecules 02 00186 i026A-20
12e Molecules 02 00186 i027A-2012f Molecules 02 00186 i028F8675
F9376
12g Molecules 02 00186 i029F997612h Molecules 02 00186 i030F8975
F9676
12i Molecules 02 00186 i031F1007612j Molecules 02 00186 i032F8675
F10076
12k Molecules 02 00186 i033F967612l Molecules 02 00186 i034F9376
12m Molecules 02 00186 i035F1007612n Molecules 02 00186 i036F9976
12o Molecules 02 00186 i037F927612p Molecules 02 00186 i038F9876
12q Molecules 02 00186 i039F937612r Molecules 02 00186 i040F8876
12s Molecules 02 00186 i041F1007612t Molecules 02 00186 i042F9376
12u Molecules 02 00186 i043F937612v Molecules 02 00186 i044F8287
F8875
F10076
12w Molecules 02 00186 i045F887612x Molecules 02 00186 i046F8987
12y Molecules 02 00186 i047F868712z Molecules 02 00186 i048F8787
12aa Molecules 02 00186 i049F778712ab Molecules 02 00186 i050F9687
12ac Molecules 02 00186 i051F727512ad Molecules 02 00186 i052F9775
12ae Molecules 02 00186 i053F807512af Molecules 02 00186 i054F9775
12ag Molecules 02 00186 i055F998712ah Molecules 02 00186 i056F8977
12ai Molecules 02 00186 i057F927712aj Molecules 02 00186 i058F7077
12ak Molecules 02 00186 i059F887712al Molecules 02 00186 i060F8877
12am Molecules 02 00186 i061F757712an Molecules 02 00186 i062F9477
12ao Molecules 02 00186 i063F727712ap Molecules 02 00186 i064F9177
12aq Molecules 02 00186 i065F807712ar Molecules 02 00186 i066F8277
12as Molecules 02 00186 i067I6510012at Molecules 02 00186 i068I71100
12au Molecules 02 00186 i069I5910012av Molecules 02 00186 i070I78100
13 Molecules 02 00186 i071A572015a Molecules 02 00186 i072A4322
15b Molecules 02 00186 i073A672215c Molecules 02 00186 i074A4322
15d Molecules 02 00186 i075A1002218 Molecules 02 00186 i076A7526
I9029
20a Molecules 02 00186 i077A662220b Molecules 02 00186 i078A9722
24a Molecules 02 00186 i079 24b Molecules 02 00186 i080C9051
D5553
I2828E7457
I2931E5958
F5572
G4537
24c Molecules 02 00186 i081G283724d Molecules 02 00186 i082G1941
24e Molecules 02 00186 i083G114124f Molecules 02 00186 i084G4941
24g Molecules 02 00186 i085G264124h Molecules 02 00186 i086G3041
24i Molecules 02 00186 i087G114124j Molecules 02 00186 i088G3240
24k Molecules 02 00186 i089G344024l Molecules 02 00186 i090G3140
24m Molecules 02 00186 i091I365024n Molecules 02 00186 i092I4250
24o Molecules 02 00186 i093I-8524p Molecules 02 00186 i094B2946
24q Molecules 02 00186 i095B444624r Molecules 02 00186 i096C6551
24s Molecules 02 00186 i097C715124t Molecules 02 00186 i098C8451
E6358
24u Molecules 02 00186 i099C805124v Molecules 02 00186 i100C7051
24w Molecules 02 00186 i101B514424x Molecules 02 00186 i102C5851
G2841
24y Molecules 02 00186 i103E685124z Molecules 02 00186 i104E5458
24aa Molecules 02 00186 i105E525824ab Molecules 02 00186 i106F6172
24ac Molecules 02 00186 i107F207224ad Molecules 02 00186 i108E7258
24ae Molecules 02 00186 i109E585324af Molecules 02 00186 i110B6646
24ag Molecules 02 00186 i111B564624ah Molecules 02 00186 i112E4858
24ai Molecules 02 00186 i113E595824aj Molecules 02 00186 i114G3139
24ak Molecules 02 00186 i115D855324al Molecules 02 00186 i116C8851
E6058
G3939
24am Molecules 02 00186 i117D805324an Molecules 02 00186 i118D6753
24ao Molecules 02 00186 i119D705324ap Molecules 02 00186 i120G2739
24aq Molecules 02 00186 i121G213924ar Molecules 02 00186 i122D2853
24as Molecules 02 00186 i123E605824at Molecules 02 00186 i124D4053
24au Molecules 02 00186 i125H-8124av Molecules 02 00186 i126F7183
24aw Molecules 02 00186 i127F759024ax Molecules 02 00186 i128F7690
24ay Molecules 02 00186 i129F789024az Molecules 02 00186 i130F7090
24ba Molecules 02 00186 i131F858224bb Molecules 02 00186 i132F7682
24bc Molecules 02 00186 i133F858224bd Molecules 02 00186 i134F7082
24be Molecules 02 00186 i135F748224bf Molecules 02 00186 i136F7482
24bg Molecules 02 00186 i137F708224bh Molecules 02 00186 i138F7282
24bi Molecules 02 00186 i139F678224bj Molecules 02 00186 i140F9082
24bk Molecules 02 00186 i141F788230a Molecules 02 00186 i142G10040
30b Molecules 02 00186 i143G1003832a Molecules 02 00186 i144G9542
32b Molecules 02 00186 i145G904232c Molecules 02 00186 i146G9442
33a Molecules 02 00186 i147G964233b Molecules 02 00186 i148G9442
33c Molecules 02 00186 i149G874234a Molecules 02 00186 i150G8842
34b Molecules 02 00186 i151G934234c Molecules 02 00186 i152G8842
38a Molecules 02 00186 i153B814638b Molecules 02 00186 i154B7146
H3550
38c Molecules 02 00186 i155B694638d Molecules 02 00186 i156B8146
H4650H4550
38e Molecules 02 00186 i157B834638f Molecules 02 00186 i158B9146
H7350H6550
38g Molecules 02 00186 i159H795038h Molecules 02 00186 i160H6950
38i Molecules 02 00186 i161B714638j Molecules 02 00186 i162B7246
42a Molecules 02 00186 i163A845242b Molecules 02 00186 i164A6952
42c Molecules 02 00186 i165A755242d Molecules 02 00186 i166A7052
42e Molecules 02 00186 i167A505242f Molecules 02 00186 i168A5552
46a Molecules 02 00186 i169D585646b Molecules 02 00186 i170D6156
46c Molecules 02 00186 i171D555646d Molecules 02 00186 i172D4356
46e Molecules 02 00186 i173D705646f Molecules 02 00186 i174D5856
42g Molecules 02 00186 i175A8152103a Molecules 02 00186 i176I92100
103b Molecules 02 00186 i177I100100103c Molecules 02 00186 i178I83100
103d Molecules 02 00186 i179I77100103e Molecules 02 00186 i180I83100
103f Molecules 02 00186 i181I98100111a Molecules 02 00186 i182I71103
111b Molecules 02 00186 i183I73103111c Molecules 02 00186 i184I68103
111d Molecules 02 00186 i185I76103
  • - yield not given
  • Methods for the preparation of trifluoromethyl α,β-unsaturated ketones:
  • (A) Trifluoroacetylation of electron-rich alkenes with trifluoroacetic anhydride
  • (B) Condensation of acetylide anions with ethyl trifluoroacetate and addition of organocuprates to acetylenic trifluoromethyl ketones
  • (C) Addition of organocuprates to β-trifluoroacetylvinyltellurides
  • (D) Condensation of trifluoroacetone or ethyl trifluoroacetate with aromatic and ethylenic aldehydes
  • (E) Condensation of aldehydes with β-iminophosphonates
  • (F) Interaction of β-alkoxy-substituted CF3 enones with nucleophiles
  • (G) Trifluoroacetylation of alkenes and alkynes with trifluoroacetic anhydride / BF3./ Me2S complex
  • (H) Alcohol oxidation
  • (I) Multi-step procedures

Synthetic application of α,β-unsaturated ketones bearing a trifluoromethyl group

It seems to be very fruitful to use unsaturated ketones with a trifluoromethyl group for the synthesis of trifluoromethyl-containing heterocycles. But the use of these enones in synthetic organic chemistry can be considered as unexploited. The first application of unsaturated ketones with CF3 for the preparation of the corresponding heterocycles was dated 1959 [44]. However, really extensive utilization of trifluoroacetyl ketones in organic synthesis was started only quite recently.
There are two general approaches: 1) syntheses based on acetylenic CF3 ketones or enones having an heteroalkyl substituent in the β−position to the CF3CO group, for example, trifluoroacylated vinyl ethers; 2) syntheses based on ketones without a heteroatom substituent. These two approaches differ in oxidation states of both reagents and the resulting products. It is obvious that the first way gives rise to aromatic heterocycles and the second one leads to the corresponding hydrogenated heterocycles. Investigation of the latter approach was started only quite recently. The first publication is dated 1994 [50, 114]. Possibly this is due to the fact that the ketones without a heteroatom substituent in the β-position to CF3CO group are less available and their preparation is more complex.
Syntheses of trifluoromethyl-containing heterocycles based on the reactions of acetylenic ketones with some bifunctional nucleophiles were described by Linderman [86, 87]. The reaction with hydrazine results in the formation of the corresponding pyrazoles (Scheme 42). In the case of reactions with hydroxylamine under basic or acidic conditions isomeric, the 3-CF3 or 5-CF3 isoxazoles 83 and 85 were formed [86]. It is very interesting that in the case of the reaction of acetylenic ketones with hydroxylamine under basic conditions (MeONa / MeOH) the corresponding

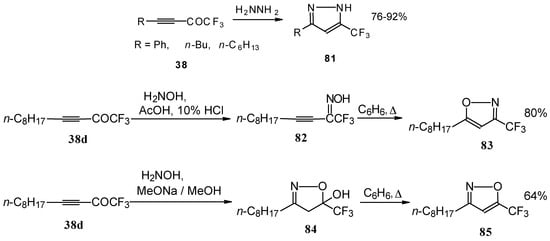

Scheme 42.
4,5-dihydro-5-isoxazolol was isolated (Scheme 42). Subsequent elimination of water by reflux in benzene gave rise to the corresponding aromatic CF3 substituted heterocycle.
The cyclization of adducts of acetylenic ketones 38 (or 4-ethoxy-1,1,1-trifluoro-3-buten-2-one 11a) with aromatic amines under acidic conditions leads to 2-CF3 or 4-CF3 substituted quinolines 87 and 88 in moderate yields (Scheme 43) [87,88,89].

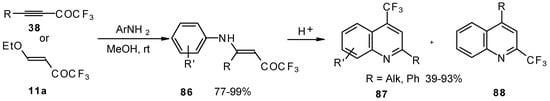

Scheme 43.

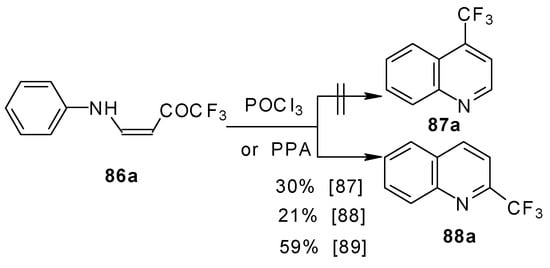

It should be noted that in the case of the aniline derivative only the 2-CF3 substituted quinoline was obtained probably via retro-1,4 addition (Scheme 44) [88, 89].
Scheme 44.

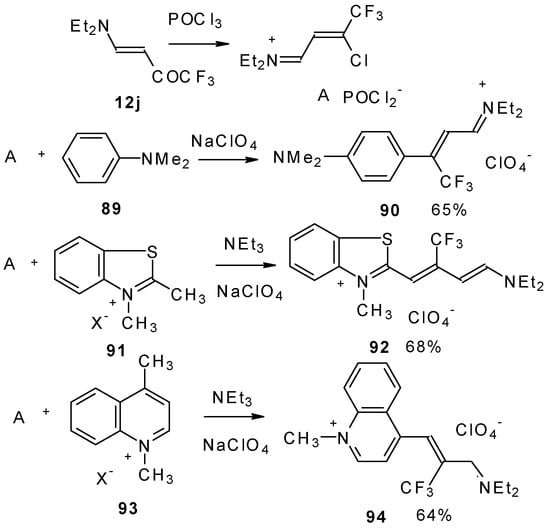

β-Dialkylamino substituted CF3 ketones react with phosphorous oxychloride to give Vilsmeier-like iminium salts (Scheme 45) [90]. These salts are less reactive electrophiles than the DMFA-POCl3 complex. They react with dimethylaniline and some active methylene bases to give hemicyanines which are valuable for the synthesis of cyanine dyes [90].
Scheme 45.
Under more rigorous conditions complex A reacts with two molecules of an ammonium salt to give β-trifluoromethyldicarbocyanines (Scheme 46).

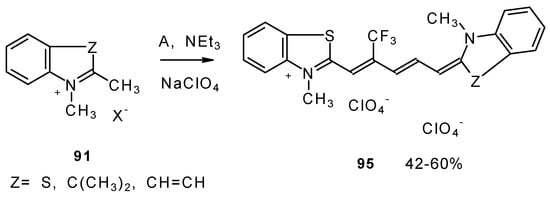

Scheme 46.
β-Alkoxy substituted CF3 ketones 11a and 11i also react readily with heterocyclic ammonium salts to give δ-trifluoromethylbutadienylmerocyanines in high yield (Scheme 47).

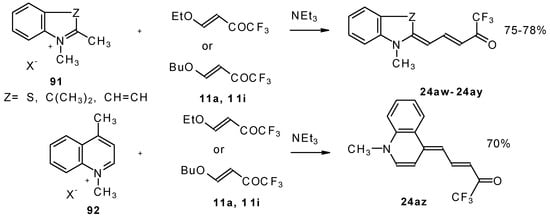

Scheme 47.
Trifluoromethyl containing cyanine dyes had not been described previously. The same authors also investigated spectroscopic data of these dyes [90].
Trifluoroacylated enol ethers are convenient precursors for 5- and 6-membered heterocycles. The reaction of β-alkoxy enones, having a CF3 group, with hydroxylamine proceeds analogously to the reaction of acetylenic ketones to give a trifluoromethyl-containing 4,5-dihydro-5-isoxazolol (applicable also to condensed rings) in good to excellent yield (Scheme 48) [18, 75]. The dehydration of these dihydroisoxazolols with phosphorous pentoxide or sulphuric acid results in the corresponding 5-CF3 substituted isoxazole [18, 75, 91].

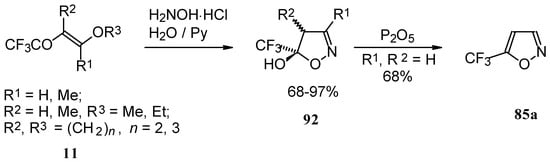

Scheme 48.
In the case of trifluoroacylated 2,3-dihydrofuran and 3,4-dihydro-2H-pyran the reaction with hydroxylamine proceeds unexpectedly (Scheme 49). At a reaction temperature of 0-20 °C the corresponding dihydroisoxazolols which are the products of furan or pyran ring opening were isolated. However, raising of the reaction temperature gave rise to formation of rearranged products [18].

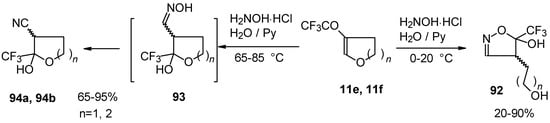

Scheme 49.
It seems likely that this rearrangement proceeds via elimination of water from the oximes of the aldehydes forming after recyclization of the ketones to furan or pyrans [18].

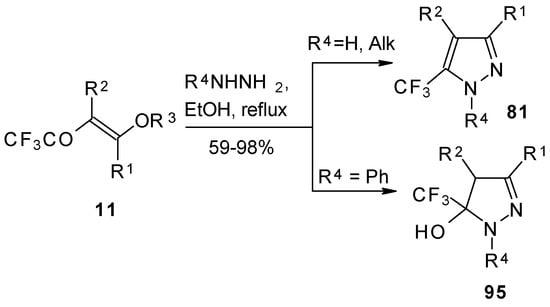

Hydrazine and alkylhydrazines react with trifluoroacetylated vinyl ethers to afford the corresponding pyrazoles in good yield [75, 92]. Reaction with phenylhydrazine yields the corresponding pyrazoline [92].
Molecules 02 00186 sch050 550
Scheme 50.

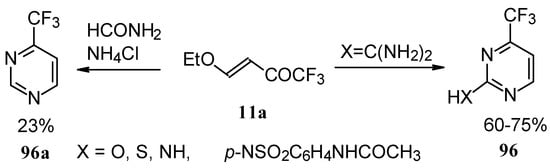

Trifluoromethyl-containing pyrimidines were prepared by reaction of 4-ethoxy-1,1,1-trifluoro-3-buten-2-one 11a with urea derivatives or formamide in the presence of NH4Cl [93].
Molecules 02 00186 sch051 550
Scheme 51.

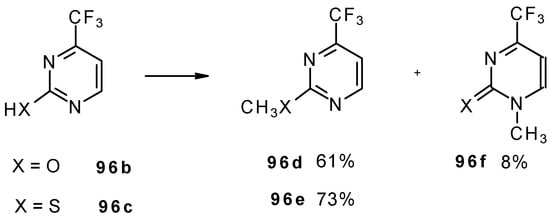

Alkylation of 4-CF3 pyrimidinone or 4-CF3 pyrimidinethione with diazomethane gives rise to a mixture of products of methylation at O (or S) and N atoms (Scheme 52). The same authors also investigated the tautomeric equilibrium of 4-CF3 pyrimidines in different solvents [93].
Scheme 52.
The synthesis of thiomethyl substituted CF3 pyrimidines was studied by reaction of 2-methyl-2-thiopseudourea sulphate with trifluoroacetylated vinyl ethers. The target products were prepared in 14-94% yield [94].
The reaction of tert-butylhydrazones with trifluoroacetylated vinyl ether results in the corresponding 4-trifluoroacetylpyrazoles (Scheme 53) [95]. This reaction proceeds by a nucleophilic displacement of the ethoxy group by hydrazone followed by cyclization, initiated by protonation on the azomethine nitrogen. Air oxidation of the intermediate dihydropyrazoles gives the corresponding 4-trifluoroacetylpyrazoles in good yield.

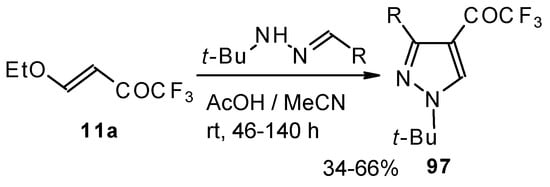

Scheme 53.
Ketones bearing a CF3 group enter into the reaction with isonitriles to give the corresponding dihydrofurans, products of 1,4-cycloaddition (Scheme 54). This reaction proceeds readily both with ketones having a β-alkoxy group and with ketones without a heteroatom substituent. This reaction proceeds below room temperature. Ketones without a CF3 group do not enter into this reaction even on prolonged heating [96, 97].

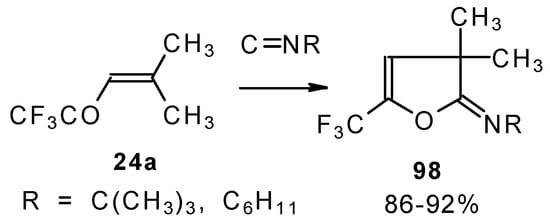

Scheme 54.

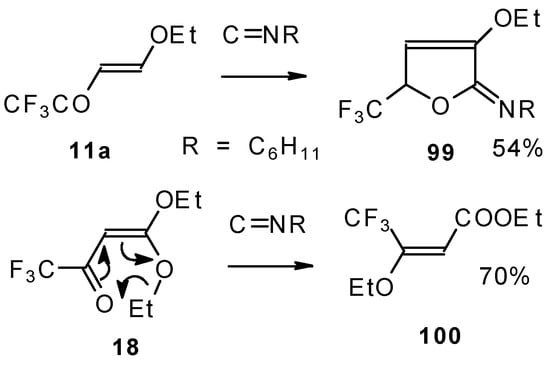

Under the same conditions 4-ethoxy-1,1,1-trifluoro-3-buten-2-one 11a gives the more stable 3-oxolene. When the trifluoroacetyl derivative of ketenediethylacetal 18 was reacted with isonitriles no cycloaddition was observed. Only isomerisation of the ketone to the ester 100 takes place (Scheme 55) [98].
Scheme 55.

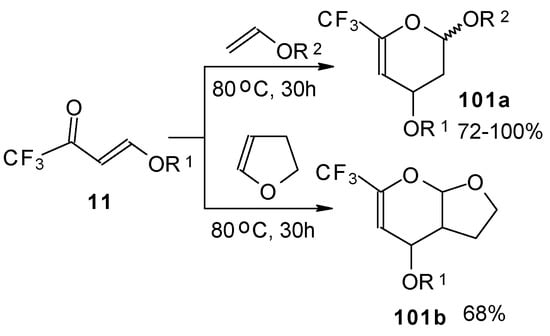

Trifluoroacetylated vinyl ether 11 represents a 1-oxa-1,3-butadiene system bearing an electronwithdrawing CF3 substituent in the 2-position. It was found that this ketone behaves as an effective heterodiene. Hetero-Diels-Alder reaction with vinyl ethers leads to the corresponding dihydro-2H-pyrans in good yield (Scheme 56) [99].
Scheme 56.
The same reaction proceeds readily with β,β-bis(trifluoroacetyl)vinyl ethers and various electron rich alkenes under very mild conditions to provide functionalized 5-trifluoroacetyl-6-trifluoromethyl-3,4-dihydro-2H-pyrans in excellent yields (Scheme 57) [25]. ββ-Bis(trifluoroacetyl)vinyl alkyl ethers are much more active dienes than the corresponding β-monotrifluoroacetylvinyl ethers for which vigorous reaction conditions (80 °C, 30h) are required for cycloaddition. The presence of the electron withdrawing COCF3 group at the C-3 of the 1-oxa-1,3-butadiene system, decreases the energy of the LUMO.

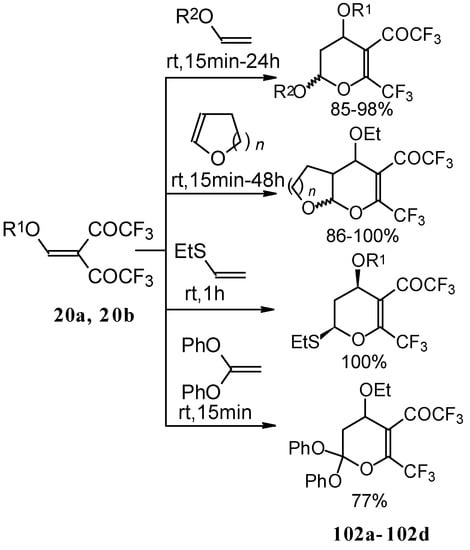

Scheme 57.

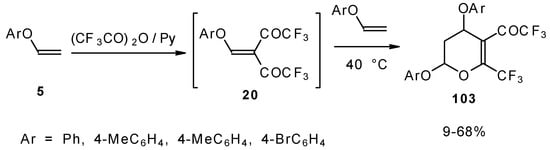

It was found by Hojo and coworkers [27] that the corresponding β-aryloxy substituted enones with a CF3 group, which are the products of double trifuoroacylation of aryl vinyl ethers decompose readily and could not be isolated in pure form. However, these authors found it possible to generate the ketones in situ by diacylation of aryl vinyl ethers with trifluoroacetic anhydride followed by a Hetero-Diels-Alder reaction with an excess of substrate at 40 °C (Scheme 58). Thus, the corresponding 2-trifluoromethyl substituted dihydropyrans were prepared in a one-pot reaction from aryl vinyl ethers in good yield.
Scheme 58.
Cleavage of the corresponding dihydropyrans with dialkylamines opens up the route to 1-amino-4,4-bis(trifluoroacetyl)-1,3-butadienes (Scheme 59). These ketones can be converted to the 1-amino-4-trifluoroacetyl-1,3-butadienes in the presence of HCl in good yields [100].
Scheme 59.
A suggested reaction mechanism involves elimination of i-butanol, electrocyclic ring opening and nucleophilic O-N exchange. This transformation takes place only for CF3 containing pyrans (Scheme 60). It was found that the same reaction for the corresponding non-fluorinated compound did not proceed.
Scheme 60.
The same authors found it possible to prepare 1-amino-4,4-bis(trifluoroacetyl)-1,3-butadiene by trifluoroacylation of 1-amino-4-trifluoroacetyl-1,3-butadiene. This reaction proceeds quantitatively at room temperature (Scheme 61).
Scheme 61.

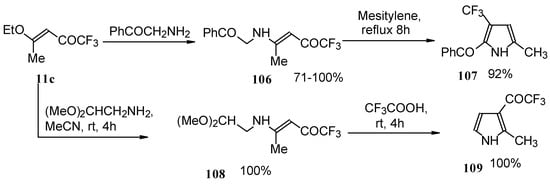

Trifluromethyl-containing pyrroles were prepared in excellent yields by reaction of trifluoroacetylated vinyl ethers with α-amino ketones or acetals of aminoaldehydes with subsequent cyclization of the adducts by heating in mesitylene or trifluoroacetic acid (Scheme 62) [101, 102].
Scheme 62.
CF3-Substituted pyridines were prepared by the reaction of enaminonitriles with trifluoroacylated vinyl ethers. Acyclic intermediates were isolated in the case of 4-ethoxy-1,1,1-trifluoro-3-buten-2-one (Scheme 63) [103]. The raising of the reaction temperature leads to heterocyclization to the substituted CF3 pyridines.

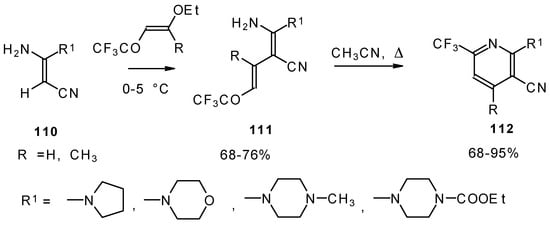

Scheme 63.
The reaction of 4-ethoxy-1,1,1-trifluoro-3-buten-2-one with α-sulfinyl carbanions was investigated (Scheme 64) [104].
Scheme 64.

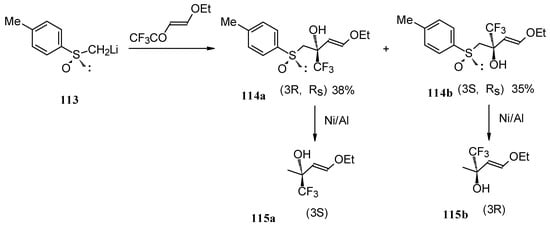

The reaction with the lithium salt of (R)-methyl p-tolylsulfoxide proceeds in THF at -60 °C totally regioselectively, affording only a tertiary alcohol, through a 1,2-addition (Scheme 64). Stereoselectivity of addition was poor, diastereoisomeric alcohols were formed in a 1:1 ratio. The diastereoisomers could be separated by column chromatography. Subsequent desulphurization with Raney Ni resulted in enantiomerically pure CF3 substituted alcohols [104].
These transformations proceed cleanly under mild conditions in contrast to non-fluorinated enones of similar structure which give a complex mixture of products of both 1,2- and 1,4-addition [104].
Another type of trifluoromethyl containing ketone used for the preparation of a CF3 substituted heterocycles is a ketone without a heteroatom substituent at β-position. In contrast to the above mentioned reactions this ketone gives rise to hydrogenated heterocycles.
The thiol addition reaction to unsaturated CF3 ketones was investigated (Scheme 65 and Scheme 66). The reaction proceeds as a 1,4-addition to give the corresponding keto sulphides [50].

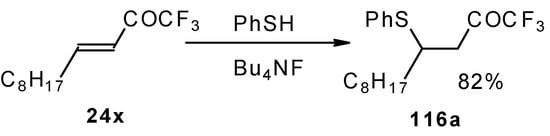

Scheme 65.

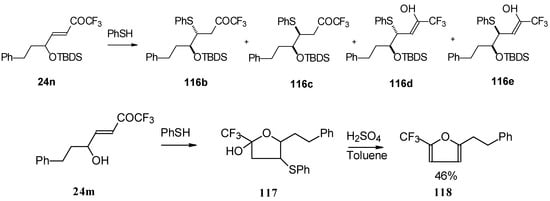

Scheme 66.
In the case of γ-silyloxy CF3 enone a diastereomeric mixture of keto sulphides and enol sulphides in a 1/1 ratio was formed. In the case of γ-hydroxy CF3 enone the corresponding tetrahydrofuran was isolated which is easily converted to the furan (Scheme 66). Also the addition of glutathione was investigated [50].
It was found that the reactions of some trifluoromethyl ketones of this type proceed easily with various nucleophiles. The CF3 enones studied for the preparation of heterocycles have other substituents at the double bond and their reactivity is rather different (Scheme 67).

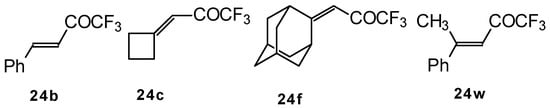

Scheme 67.
Heterocyclic derivatives of various structures, including one with a heterocyclic spiro fragment and a small ring, are obtained.
These reactions open up the possibility of a one-step synthesis of CF3-containing derivatives of pyrazolidines, pyrazolines, isoxazoles, thiazines, thiopyrans, thietane, pyrimidines, pyridines, pyrans and benzodiazepines (Scheme 68).

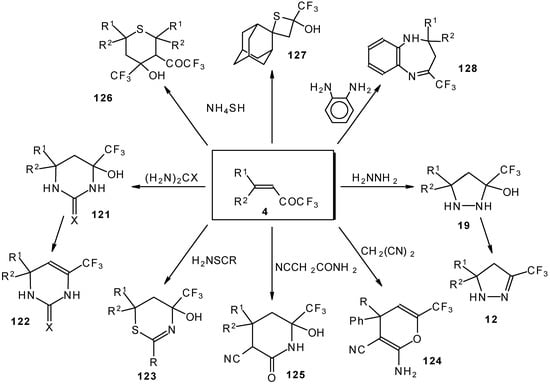

Scheme 68.

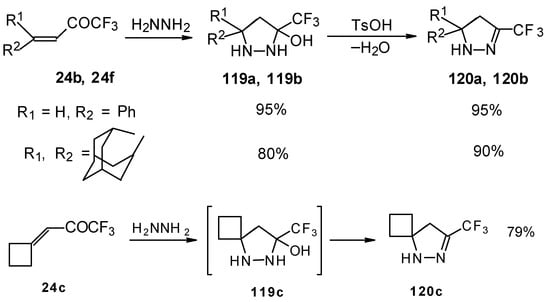

The reaction of these ketones with different hydrazines proceeds readily under mild conditions (Scheme 69) [105]. In the case of the hydrazine the reaction results in the formation of the corresponding pyrazolidines, in contrast to non-fluorinated ketones which react with hydrazine to give the corresponding pyrazolines. The pyrazolidines obtained contain a rather stable aminoalcohol fragment due to a electron withdrawing action of the CF3 group, however it was found possible to transform them to pyrazolines by heating a toluene solution with a catalytic amount of p-toluenesulfonic acid. In some cases the elimination of water proceeds spontaneously, for example in the case of the pyrazolidine derivative of the ketone containing a cyclobutane fragment. In the case of 1,1,1-trifluoro-4-phenyl-3-buten-2-one 24b the pyrazolidines obtained eliminated water spontaneously, but this transformation required ca. two months [105].
Scheme 69.
The reaction of 1,1,1-trifluoro-4-phenyl-3-buten-2-one 24b with different substituted hydrazines was studied. The heterocyclization can proceed by two routes. The first route is a primary Michael addition of a nucleophile to an enone with subsequent cyclization, and the second route is a primary addition of a nucleophile at the carbonyl group with subsequent cyclization. However, it seems possible that both routes may take place depending on the reaction conditions and the structure of the hydrazine [105].

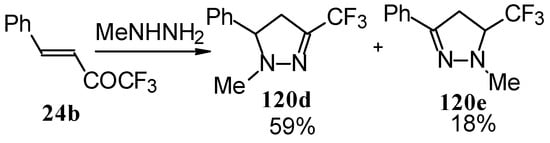

In the case of methyl hydrazine two possible regioisomers of the pyrazoline were isolated in a ~3:1 ratio (Scheme 70). It is possible that this regiochemistry observed is due to both the similar nucleophilicity of the two nucleophilic centers of methylhydrazine and the possibility of attack of the nucleophile at both the double bond and the carbonyl group.
Scheme 70.
In the case of phenyl hydrazine, reaction leads to formation of the corresponding pirazoline and here the primary attack of the nucleophile takes place at the carbonyl group of the ketone (Scheme71) [105]. In the case of 1,2-dimethylhydrazine the corresponding pirazolidine was obtained in good yield.

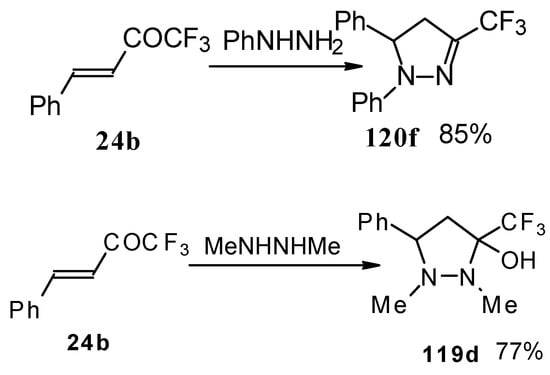

Scheme 71.

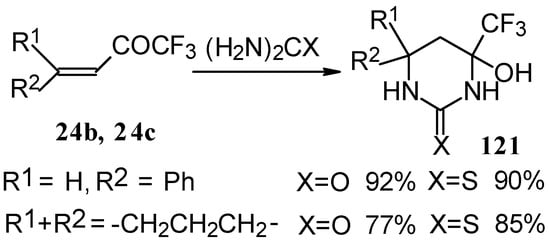

The reaction with various urea derivatives results in tetra- or dihydropyrimidines, bearing a CF3 substituent, in excellent yields (Scheme 72) [106].
Scheme 72.

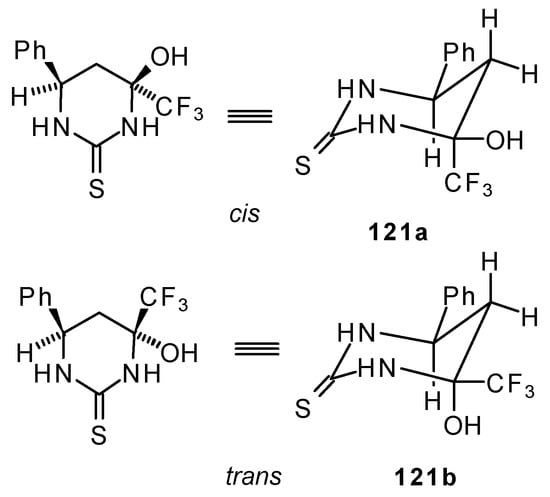

The reaction of 1,1,1-trifluoro-4-phenyl-3-buten-2-one 24b with urea derivatives could result in a mixture of two possible diastereoisomers of tetrahydropyrimidines with cis and tras arranged phenyl and CF3 groups (Scheme 73).
Scheme 73.
However the reaction with urea and thiourea proceeds stereoselectively to give preferably isomers having diequatorially arranged Ph and CF3 moieties. Only trace amounts of other diastereoisomers are observed. The configuration of the products was determined by NOE data and X-ray crystallography.
It is possible that the transition state for the cyclization of β-trifluoroacetylstyrene 24b to the corresponding pyrimidine has a chair conformation with the bulky groups (Ph and CF3) equatorial. It is known that a trifluoromethyl moiety is almost double the bulk of a methyl group and does not fall much behind that of a tert-butyl group. The energy required for the conformational promotion from the equatorial to the axial position for a trifluoromethyl group is more, than for an isopropyl group [107].

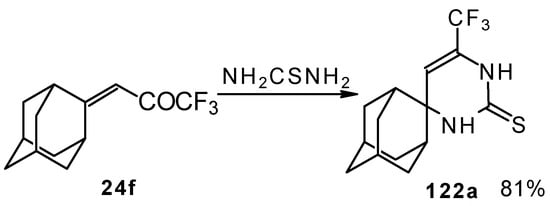

In the case of an adamantane containing CF3 ketone 24f reaction with thiourea under the same conditions gives rise to the corresponding dihydropyrimidinethione (Scheme 74).
Scheme 74.

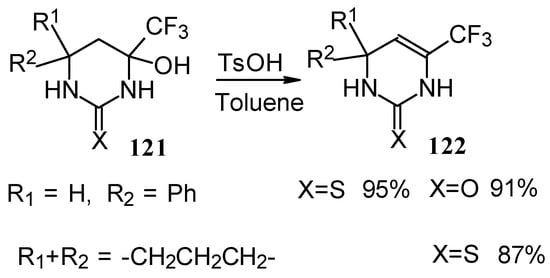

The possibility of water elimination from tetrahydropyrimidines to transform them to the corresponding dihydroderivatives has been investigated (Scheme 75). This reaction proceeds smoothly when the compounds are heated in toluene with catalytic amounts of p-toluenesulfonic acid.
Scheme 75.

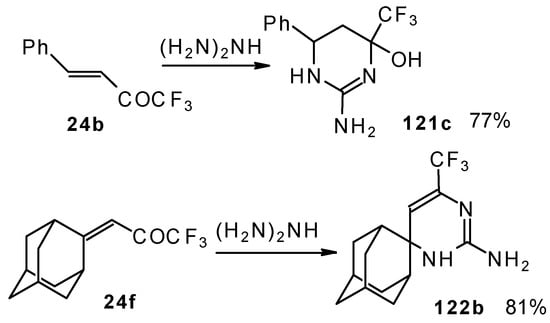

Reactions with guanidine proceed analogously to give the corresponding CF3-containing aminopyrimidines (Scheme 76).
Scheme 76.

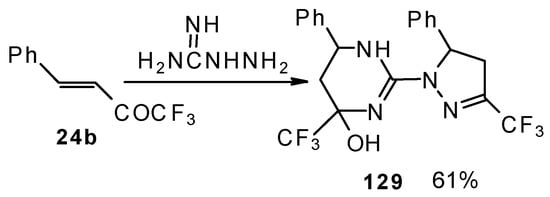

The reaction of 1,1,1-trifluoro-4-phenyl-3-buten-2-one 24b with aminoguanidine proceeds unusually, to give the product having two heterocyclic fragments: tetrahydropyrimidine and pyrazoline (Scheme 77). Tetrahydropyrimidines with a CF3 group are more stable to elimination of water than the corresponding CF3-containing pyrazolidines and this tendency is also realized in the case of this compound.
Scheme 77.

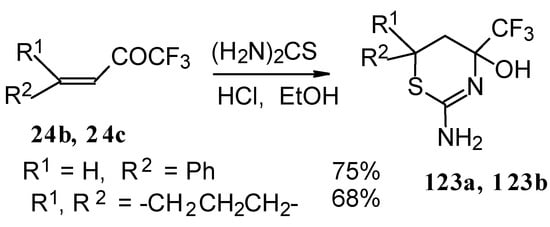

The formation of CF3-containing dihydrothiazines [108] by reaction of these ketones with thiourea under acidic conditions was also investigated(Scheme 78). The reaction proceeds regiospecifically to give only one possible isomer of thiazine, the product of addition of sulphur to the double bond and nitrogen to the carbonyl group. We believe that this reactivity is according to the hard and soft acid and base principles [109].
Scheme 78.

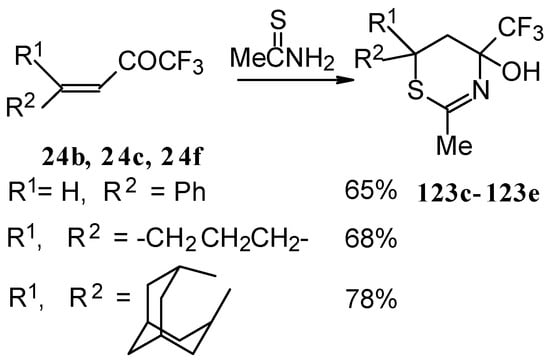

The reaction of ethylenic CF3 ketones with thioacetamide proceeds in the similar way. All CF3 substituted thiazines have stable aminoalcohol fragments and do not eliminate water under acidic conditions (Scheme 79).
Scheme 79.

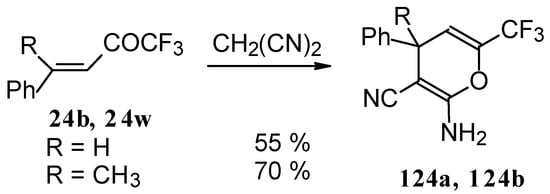

The reaction of CF3-containing ketones with malononitrile under a variety of conditions was investigated (Scheme 80, Scheme 81, Scheme 82, Scheme 83 and Scheme 84) [110]. The reaction path is very sensitive to the conditions of the reaction and the structure of the starting ketone. 1,1,1-Trifluoro-4-phenyl-3-buten-2-one 24b reacts with malononitrile and a catalytic amount of pyrrolidine or triethylamine to form the corresponding pyran 124a (Scheme 80). The reaction of 1,1,1-trifluoro-4-methyl-4-phenyl-3-buten-2-one 24w with malononitrile under the same conditions proceeds analogously.
Scheme 80.
Scheme 81.

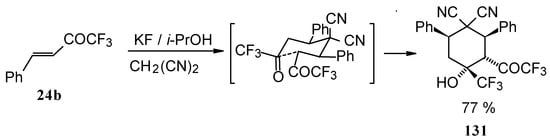

Scheme 82.

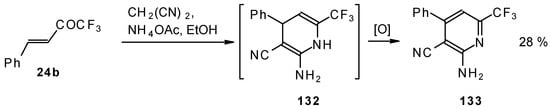

Scheme 83.

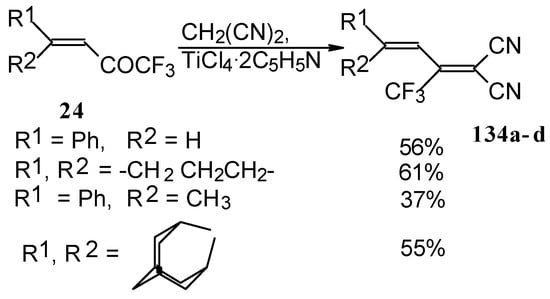

Scheme 84.

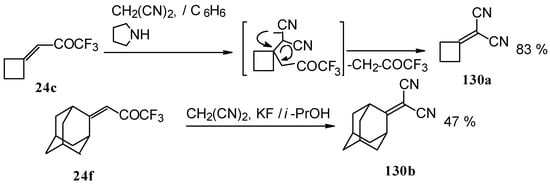

Ketones having an exocyclic double bond react very differently. Only the corresponding alkylidene dinitriles were obtained under the same conditions (Scheme 81).
When the reaction of 1,1,1-trifluoro-4-phenyl-3-buten-2-one 24b with malononitrile was carried out with potassium fluoride as a base the corresponding cyclohexanol - the product of Michael addition of malononitrile to the double bond of two molecules of this ketone with subsequent aldol condensation was obtained (Scheme 82). The reaction proceeds stereospecifically to give only one isomer out of a possible eight.
In the case of the reaction of malononitrile in the presence of ammonium acetate only in the case of 1,1,1-trifluoro-4-phenyl-3-buten-2-one 24b was the corresponding pyridine isolated (Scheme 83).
The reaction with malononitrile as a Knoevenagel condensation was also investigated (Scheme 84). In the case of the use of the TiCl4/2Py complex in dichloromethane the corresponding 1,1-dicyano-2-trifluoromethyl-1,3-butadienes were prepared in 37-61% yield [110].

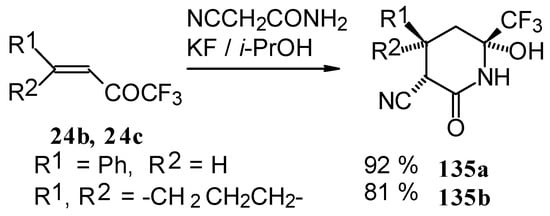

In the case of the reaction with cyanoacetamide with a catalytic amount of KF the corresponding tetrahydropyridines were isolated. This reaction proceeds stereospecifically (Scheme 85).
Scheme 85.

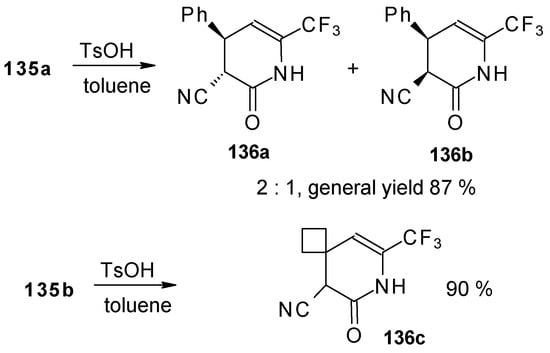

Reflux of a toluene solution of these piperidines with a catalytic amount of p-toluenesulfonic acid results in elimination of water to give the corresponding dihydropyridines (Scheme 86). In the case of the derivative of 1,1,1-trifluoro-4-phenyl-3-buten-2-one 24b a mixture of two diastereoisomers is formed [110].
Scheme 86.
The reaction of CF3 bearing enones with NH4SH takes place under very mild conditions [111]. The reaction of 1,1,1-trifluoro-4-phenyl-3-buten-2-one 24b proceeds stereospecifically, giving only one diastereoisomer out of eight possible. The configuration of the obtained tetrahydrothiopyran was established by 2D 1H-1H NOESY experiments. This compound has Ph, Ph, CF3 and COCF3 groups equatorially arranged, and an axial OH group (Scheme 87).

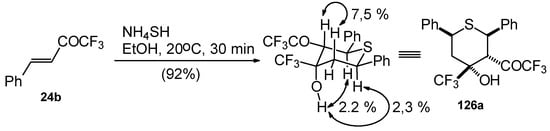

Scheme 87.

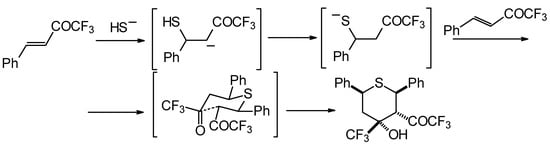

Formally the course of this reaction is the Michael addition of hydrosulphide anion to the double bonds of two molecules of 1,1,1-trifluoro-4-phenyl-3-buten-2-one 24b with subsequent aldol condensation. It was supposed that the transition state of cyclization has a chair conformation with all bulky groups (Ph, Ph, COCF3, CF3) equatorial (Scheme 88).
Scheme 88.

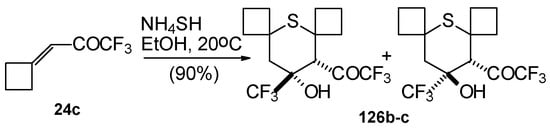

Reaction of NH4SH with ketone derivative of methylenecyclobutane 24c leads to a 1/1 mixture of cis- and trans-diastereoisomers of the corresponding thiopyran (Scheme 89). Formation of two diastereoisomers in the case of this ketone, as compared to one diastereoisomer with the reaction of ketone 24b, is explainable by steric differences in the substituents in these ketones (H and Ph) compared with 24c (cyclobutane ring).
Scheme 89.
A very unusual result was obtained in the reaction of ammonium hydrosulphide with a ketone containing an adamantane fragment 24f. The only product was the corresponding 4-membered trifluoromethyl-containing heterocyclic ring 127 (Scheme 90). 2-Thietanols have not been described previously, apparently because the semithioacetal fragment is unstable in the 4-membered rings. We assume that this compound is stable due to both the trifluoromethyl group stabilizing the geminal HO-C-S fragments [112] and the adamantane structure, which stabilizes spiro attached small rings [113]. Formation of the corresponding tetrahydrothiopyrans as in the cases of other CF3 ketones does not take place for this ketone, apparently due to steric reasons. An attempt to make the analogous thietanols from other CF3 ketones at low temperature with a 20-fold excess of ammonium hydrosulphide was unsuccessful and only the corresponding tetrahydrothiopyrans were isolated.

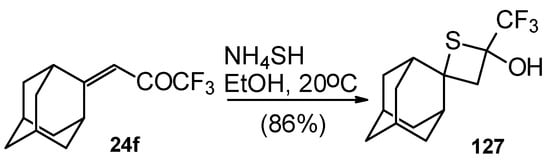

Scheme 90.

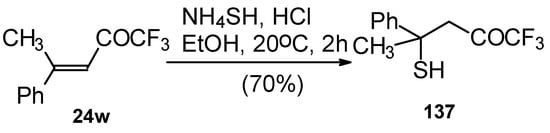

The reaction 1,1,1-trifluoro-4-methyl-4-phenyl-3-buten-2-one 24w with ammonium hydrosulphide under similar conditions results in the corresponding mercaptan 137 (Scheme 91). In spite of having a similar structure to 1,1,1-trifluoro-4-phenyl-3-buten-2-one 24b, this enone is much less reactive. It seems likely that the formation of the corresponding tetrahydrothiopyran does not take place due to 1,3-diaxial repulsions of the methyl groups. Apparently one of the reasons for cyclization in the case of adamantane containing ketones, is due to stabilization of thietanol by adamantane. In the case of ketone β-trifluoroacetyl methylstyrene this type of reaction does not occur [111].
Scheme 91.
The oxidation of obtained thiopyrans and thietane by hydrogen peroxide in acetic acid was also investigated. The corresponding sulfones were obtained in good yield (Scheme 92).

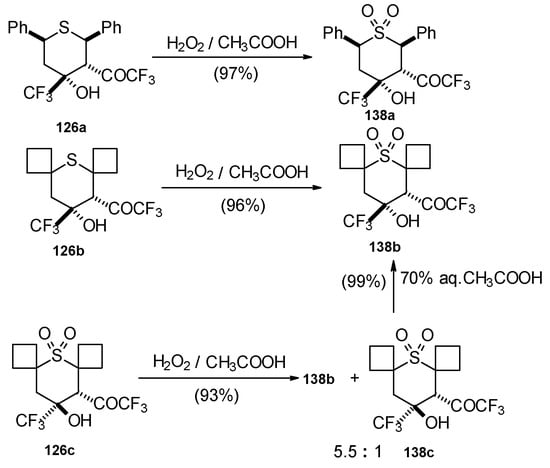

Scheme 92.

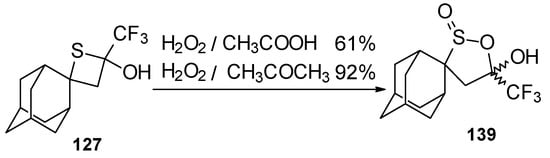

Oxidation of 2-thietanol proceeds unusually. The corresponding sultine 139 as a mixture of diastereoisomers (2.7/1) is formed (Scheme 93). This is probably due to the labile semi-thioacetal fragment in sultine which facilitates the cleavage of the thietane ring. The structure of the trans-diastereoisomer of sultine was confirmed by X-ray crystallography.
Scheme 93.

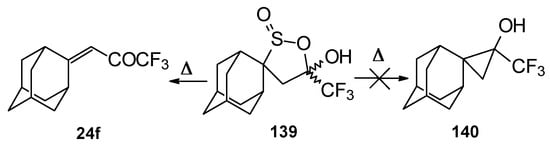

An attempt to thermally extrude sulphur dioxide from this sultine to make the corresponding cyclopropane was unsuccessful, only the starting ketone was obtained (Scheme 94) [111].
Scheme 94.

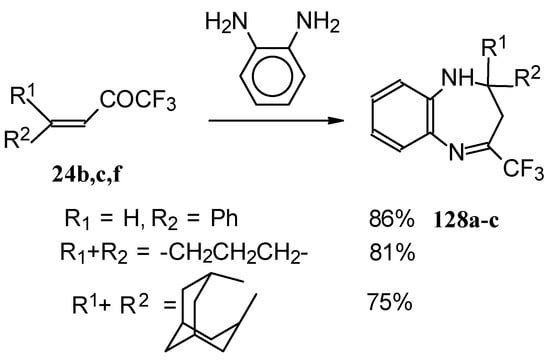

The reaction of CF3 ethylenic ketones with o-phenylenediamine was also investigated [114]. As a result the corresponding 2,3-dihydro-1,5-benzodiazepines 128 were obtained (Scheme 95). In this case elimination of water proceeds spontaneously to give conjugation of the aromatic ring and the CN double bond.
Scheme 95.
In the case of β-alkoxy substituted CF3 ethylenic ketones the reaction with o-phenylendiamines in refluxing xylene led to complex mixture of products. However, this reaction proceeds readily using microwave irradiation to give a 4-CF3 and 2- CF3 substituted (1H,5)aryldiazepines in 73-93% yield (Scheme 96) [115].

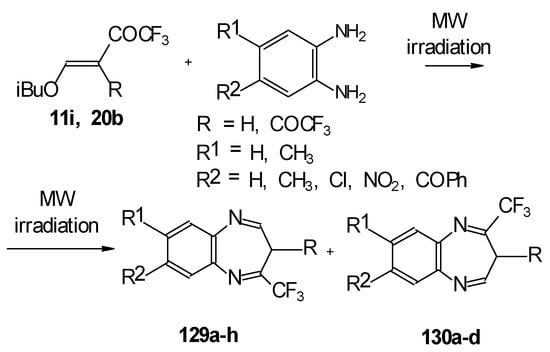

Scheme 96.
The reaction of ketones 11i and 20b with ethylendiamine proceeds analogiously (Scheme 97) [115].

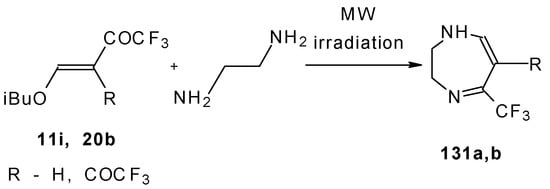

Scheme 97.

Conclusion

This study of the literature data shows that unsaturated ketones bearing CF3 groups are valuable synthons for many synthetic purposes. The particular features of these ketones include very high reactivity both of the double bond and the carbonyl group, the formation of stable fragments CF3C(OH)N- or CF3C(OH)O-, and the stereoselectivity of addition of some of the nucleophiles. Many reactions of these ketones are uncharacteristic of non-fluorinated unsaturated ketones.
There are a lot of synthetic approaches to the synthesis of unsaturated ketones bearing a CF3 group. Some ketones of this type are already readily available, however others particularly ethylenic ones without a heteroatom substituent at the β-position are less accessible and existing procedures for their synthesis are limited. Therefore, the elaboration of new approaches for the preparation of these ketones and their use in organic synthesis are very important.

Acnowledgement

We thank Russian Fundamental Investigation Foundation (Grants N97-03-33006a and N97-03-32959a) for financial support.

References and Notes

  1. Hudlicky, M. Chemistry of Organic Fluorine Compounds; Ellis Horwood Ltd.: Chichester, 1992. [Google Scholar]
  2. Filler, A.; Kobayashi, Y. Biomedical Aspects of Fluorine Chemistry; Kodansha Ltd.: Tokyo, 1981. [Google Scholar]
  3. Welch, J.T. Tetrahedron 1987, 43, 3123–3197.
  4. McClinton, M.A.; McClinton, D.A. Tetrahedron 1992, 48, 6555–6666.
  5. Mertes, M.P.; Saheb, S.E. J. Heterocyclic. Chem. 1965, 2, 491–495.
  6. Kobayashi, Y.; Yamamoto, K.; Asai, T.; Nakano, M.; Kumadaki, I. J. Chem. Soc., Perkin Trans. I. 1980, 2755–2761.
  7. Leroy, J.; Rubinstein, M.; Wakselman, C. J. Fluorine Chem. 1985, 27, 291–298.
  8. Kobayashi, Y.; Kumadaki, I.; Ohsawa, A.; Murakami, S.-I.; Nakano, T. Chem. Pharm. Bull. 1978, 26, 1247–1251.
  9. Girard, Y.; Atkinson, J.G.; Belanger, P.C.; Fuentes, J.J.; Rokach, J.; Rooney, C.S.; Remy, D.C.; Hunt, C.A. J. Org. Chem. 1983, 48, 3220–3234.
  10. Pashkevich, K.I.; Saloutin, V.I.; Postovskii, I.Ya. Uspekhi Khimii 1981, 50, 325–354.
  11. Pashkevich, K.I.; Saloutin, V.I. Uspekhi Khimii 1985, 54, 1997–2026.
  12. Bonnet-Delpon, D.; Bégué, J.-P.; Lequeux, T.; Ourévitch, M. Tetrahedron 1996, 52, 59–70.
  13. Tanaka, K.; Masuda, H.; Mitsuhashi, K. Bull. Chem. Soc. Jpn. 1984, 57, 2184–2187.
  14. Boivin, J.; El Kaim, L.; Zard, S.Z. Tetrahedron 1995, 51, 2585–2592.
  15. Bégué, J.-P.; Bonnet-Delpon, D. Tetrahedron 1991, 47, 3207–3258.
  16. Hojo, M.; Masuda, R.; Kamitori, Y. Tetrahedron Lett. 1976, 13, 1009–1012.
  17. Hojo, M.; Masuda, R.; Kokuryo, Y.; Shioda, H.; Matsuo, S. Chem. Lett. 1976, 3, 499–502.
  18. Colla, A.; Martins, M.A.P.; Clar, G.; Krimmer, S.; Fisher, P. Synthesis 1991, 483–486.
  19. Hojo, M.; Masuda, R.; Sakaguchi, S.; Takagawa, M. Synthesis 1986, 1016–1017.
  20. Verboom, W.; Reinhoudt, D.N. J. Org. Chem. 1982, 47, 3339–3342.
  21. Trabelsi, H.; Cambon, A. Tetrahedron Lett. 1995, 36, 3145–3148.
  22. Hojo, M.; Masuda, R.; Okada, E. Tetrahedron Lett. 1986, 27, 353–356.
  23. Moriguchi, T.; Endo, T.; Takata, T. J. Org. Chem. 1995, 60, 3523–3528.
  24. Hojo, M.; Masuda, R.; Kamitori, Y.; Okada, E. J. Org. Chem. 1991, 56, 1975–1976.
  25. Hojo, M.; Masuda, R. J. Org. Chem. 1975, 40, 963–965.
  26. Hojo, M.; Masuda, R.; Okada, E. Synthesis 1986, 1013–1014.
  27. Hojo, M.; Masuda, R.; Okada, E. Synthesis 1990, 347–350.
  28. Gambaryan, N.P.; Simonyan, L.A.; Petrovskij, P.V. Izv. Acad. Nauk SSSR, Ser. Khim. 1967, 918–921.
  29. Avetisyan, E.A.; Simonyan, L.A.; Gambaryan, N.P. Izv. Acad. Nauk SSSR, Ser. Khim. 1972, 2742–2744.
  30. Gambaryan, N.P.; Rokhlina, E.M.; Zeifman, Yu.V. Izv. Acad. Nauk SSSR, Ser. Khim. 1965, 1466–1469.
  31. Henne, A.L.; Hinkamp, P.E. J. Am. Chem. Soc. 1954, 70, 5147–5148.
  32. Sheppard, W.A. J. Am. Chem. Soc. 1965, 87, 2410–2418.
  33. Moskalev, N.V.; Sirotkina, E.E. Khim. Geterocycl. Soed. 1987, 1492–1495.
  34. Gluhovcev, V.G.; Ilyin, Yu.V.; Ignatenko, A.V.; Brezhnev, A.Yu. Izv. Acad. Nauk SSSR, Ser. Khim. 1987, 12, 2834–2837.
  35. Olah, G.A.; German, A.; Lin, H.C. J. Am. Chem. Soc. 1975, 97, 5481–5488.
  36. Olah, G.A.; Heliger, L.; Prakash, S. J. Am. Chem. Soc. 1989, 111, 8020–8021.
  37. Nenajdenko, V.G.; Balenkova, E.S. Zh. Org. Khim. 1992, 28, 600–602.
  38. Nenajdenko, V.G.; Balenkova, E.S. Zh. Org. Khim. 1993, 29, 687–688.
  39. Nenajdenko, V.G.; Sanin, A.V.; Balenkova, E.S. Zh. Org. Khim. 1994, 30, 531–534.
  40. Nenajdenko, V.G.; Leshcheva, I.F.; Balenkova, E.S. Tetrahedron 1994, 50, 775–782.
  41. Nenajdenko, V.G.; Gridnev, I.D.; Balenkova, E.S. Tetrahedron 1994, 50, 11023–11038.
  42. Nenajdenko, V.G.; Balenkova, E.S. Tetrahedron 1994, 50, 12407–12414.
  43. Kiselyov, A.S.; Harwey, R.G. Tetrahedron Lett. 1995, 36, 4005–4008.
  44. Neunhoeffer, O.; Alsdorf, G.; Ulrich, H. Chem. Ber. 1959, 92, 252–255.
  45. Shaub, B. Eur. Pat. Appl. EP 298478, 1988. C. A., 111, 39005.
  46. Linderman, R.J.; Lohikar, M.S. Tetrahedron Lett. 1987, 28, 5271–5274.
  47. Linderman, R.J.; Lohikar, M.S. J. Org. Chem. 1988, 53, 6013–6022.
  48. Linderman, R.J.; Lohikar, M.S. Tetrahedron Lett. 1987, 28, 5271–5274.
  49. Margaretha, P.; Schroder, C.; Wolff, S.; Agosta, W.C. J. Org. Chem. 1983, 48, 1925–1926.
  50. Linderman, R.J.; Jamois, E.A.; Tennyson, S.D. J. Org. Chem. 1994, 59, 957–962.
  51. Mo, X.-S.; Huang, Y.-Z. Synlett 1995, 180–182.
  52. Mo, X.-S.; Huang, Y.-Z.; Zhao, Y.R. J. Chem. Soc., Chem. Commun. 1994, 2769–2770.
  53. Mead, D.; Loh, R.; Asato, A.E.; Liu, R.S.H. Tetrahedron Lett. 1985, 26, 2873–2876.
  54. Mead, D.; Asato, A.E.; Denny, M.; Liu, R.S.H.; Hanzawa, Y.; Taguchi, T.; Yamada, A.; Kobayashi, N.; Hosoda, A.; Kobayashi, Y. Tetrahedron Lett. 1987, 28, 259–262.
  55. Gazit, A.; Rappoport, Z. J. Chem. Soc., Perkin Trans. I. 1984, 2863–2870.
  56. Katsuyama, I.; Funabiki, K.; Matsui, N.; Muramatsu, H.; Shibata, K. Chem. Lett. 1996, 179.
  57. Ishihara, T.; Maekawa, T.; Ando, T. Tetrahedron Lett. 1983, 24, 4229–4232.
  58. Huang, W.S.; Yuan, C.Y. J. Chem. Soc., Perkin Trans. I. 1995, 741–742.
  59. Ishikava, N.; Koh, M.G.; Kitazume, T.; Choi, S.T. J. Fluorine Chem. 1984, 24, 419–430.
  60. Kitazume, T; Ishikava, N. J. Am. Chem. Soc. 1985, 107, 5186–5191.
  61. Kitazume, T.; Ishikawa, N. Chem. Lett. 1981, 1679–1680.
  62. O’Reilly, N.J.; Maruta, M.; Ishikava, N. Chem. Lett. 1984, 517–520.
  63. Dess, D.B.; Martin, J.C. J. Org. Chem. 1983, 48, 4155–4156.
  64. Linderman, R.J.; Graves, D.M. J. Org. Chem. 1989, 54, 661–668.
  65. Ratner, V.G.; Pashkevic, K.I. Izv. Acad. Nauk SSSR, Ser. Khim. 1996, 3, 680–686.
  66. Hanzawa, Y.; Yamada, A.; Kobayashi, Y. Tetrahedron Lett. 1985, 24, 2881–2884.
  67. Linderman, R.J.; Graves, D.M. Tetrahedron Lett. 1987, 28, 4259–4262.
  68. Hanzava, Y.; Kamagoe, K.; Kobayashi, N. Tetrahedron Lett. 1985, 26, 2877–2880.
  69. Kitazume, T; Ishikava, N. Chem. Lett. 1984, 587–590.
  70. Uno, H.; Matsushima, Y.; Tasaka, T.; Suzuki, H. Bull. Chem. Soc. Jpn. 1990, 63, 293–295.
  71. 4-Ethoxy-1,1,1-trifluoro-3-buten-2-one, 1,1,1-trifluoro-4-(3-indolyl)-3-buten-2-one and 1,1,1-trifluoro-4-phenyl-3-buten-2-one are commercially available from Aldrich since 1996.
  72. Gorbunova, M.G.; Gerus, I.I.; Kukhar, V.P. J. Fluorine Chem. 1993, 65, 25–28.
  73. Platoshkin, A.M.; Cheburkov, Yu.A.; Knunyants, I.L. Izv. Akad. Nauk USSR., Ser. Khim. 1969, 112–119.
  74. Schreiber, S.L. Tetrahedron Lett. 1980, 21, 1027–1030.
  75. Gerus, I.I.; Gorbunova, M.G.; Vdovenko, S.I.; Yagupol’skii, Yu.L.; Kukhar, V.P. Zh. Org. Chim. 1990, 26, 1877–1883.
  76. Hojo, M.; Masuda, R.; Okada, E. Tetrahedron Lett. 1989, 30, 6173–6176.
  77. Gorbunova, M.G.; Gerus, I.I.; Galushko, S.V.; Kukhar, V.P. Synthesis 1991, 207–209.
  78. Pashkevich, K.I.; Filyakova, V.I. Izv. Akad. Nauk USSR., Ser. Khim. 1986, 620–624.
  79. Ratner, V.G.; Pashkevich, K.I. Zh. Org. Khim. 1990, 26, 1212–1215.
  80. Vdovenko, S.I.; Gerus, I.I.; Gorbunova, M.G. J. Chem. Soc., Perkin Trans II 1993, 559–562.
  81. Proskurnina, M.V.; Kazmin, A.G.; Zenova, A.Y.; Lermontov, C.A.; Borisenko, A.A.; Zefirov, N.S. Zh. Org. Chim. 1996, 146–148.
  82. Hara, S.; Kato, N.; Takada, E.; Suzuki, A. Synlett 1994, 961–962.
  83. Takada, E.; Hara, S.; Suzuki, A. Heteroatom Chem. 1992, 3, 483–486.
  84. Takada, E.; Hara, S.; Suzuki, A. Tetrahedron Lett. 1993, 34, 7067–7070.
  85. Tordeux, M.; Wakselman, C. J. Fluorine Chem. 1982, 20, 301–306.
  86. Linderman, R.J.; Kirollos, K.S. Tetrahedron Lett. 1989, 30, 2049–2052.
  87. Linderman, R.J.; Kirollos, K.S. Tetrahedron Lett. 1990, 31, 2689–2692.
  88. Gerus, I.I.; Kropachev, L.V.; Gorbunova, M.G.; Ilchenko, A.Ya.; Kukhar, V.P. Ukr. Khim. Zh. (Russ. Ed.) 1993, 59, 408–411. See also a review of the authors: Gerus, I.I.; Gorbunova, M.G.; Kukhar, V.P. J. Fluorine Chem. 1994, 69, 195–198.
  89. Keller, H.; Schlosser, M. Tetrahedron 1996, 52, 4637–4644.
  90. Pasenok, S.B.; Gerus, I.I.; Chajka, E.A.; Yagupol’skii, L.M. Zh. Org. Khim. 1989, 2, 379–384.
  91. Martins, M.A.P.; Flores, A.F.C.; Freitag, R.; Zanatta, N. J. Heterocycl. Chem. 1995, 32, 731–733.
  92. Braibante, M.E.F.; Clar, G.; Martins, M.A.P. J. Heterocycl. Chem. 1993, 30, 1159–1160.
  93. Gerus, I.I.; Vdovenko, S.I.; Gorbunova, M.G.; Kukhar, V.P. Khim. Geterocycl. Soedin. 1991, 502–511.
  94. Madruda, C.; Clerici, E.; Martins, M.; Zanatta, N. J. Heterocycl. Chem. 1995, 32, 735–738.
  95. Kamitori, Y.; Hojo, M.; Masuda, R. J. Heterocycl. Chem. 1993, 30, 389–391.
  96. Avetisyan, E.A.; Gambaryan, N.P. Izv. Akad. Nauk USSR., Ser. Khim. 1973, 2559–2562.
  97. Simonyan, L.A.; Avetisyan, E.A.; Safronova, Z.V.; Gambaryan, N.P. Izv. Akad. Nauk USSR., Ser. Khim. 1976, 2061–2065.
  98. Abduganiev, E.G.; Avetisyan, E.A.; Rohlin, E.M.; Knunyants, I.L. Izv. Akad. Nauk USSR., Ser. Khim. 1974, 392–397.
  99. Hojo, M.; Masuda, R.; Okada, E. Synthesis 1989, 215–217.
  100. Hojo, M.; Masuda, R.; Okada, E. Synthesis 1990, 425–427.
  101. Okada, E.; Masuda, R.; Hojo, M.; Inoue, R. Synthesis 1992, 533–535.
  102. Okada, E.; Masuda, R.; Hojo, M.; Yoshida, R. Heterocycles 1992, 7, 1435–1441.
  103. Cocco, M.T.; Congiu, C.; Onnis, V. J. Heterocycl. Chem. 1995, 32, 543–545.
  104. Bravo, P.; Bruche, L.; Farina, A.; Gerus, I.I.; Kolytcheva, M. T.; Kukhar, V.P.; Meille, S.V.; Viani, F. J. Chem. Soc., Perkin Trans. I 1995, 1667–1671.
  105. Nenajdenko, V.G.; Sanin, A.V.; Balenkova, E.S. Zh. Org. Khim. 1995, 31, 786–791.
  106. Nenajdenko, V.G.; Sanin, A.V.; Kuz’min, V.S.; Balenkova, E.S. Zh. Org. Khim. 1996, 32, 1579–1588.
  107. Schlosser, M.; Michel, D. Tetrahedron 1996, 52, 99–108.
  108. Nenajdenko, V.G.; Sanin, A.V.; Lebedev, M.V.; Balenkova, E.S. Zh. Org. Khim. 1995, 31, 783–785.
  109. Ho, T.L. Chem. Rev. 1975, 75, 1–20.
  110. Sanin, A.V.; Nenajdenko, V.G.; Krasovskii, A.L.; Churakov, A.V.; Howard, J.A.K.; Balenkova, E.S. Zh. Org. Khim. 1997, 33, 236–244.
  111. Sanin, A.V.; Nenajdenko, V.G.; Kuz’min, V.S.; Balenkova, E.S. J. Org. Chem. 1996, 61, 1986–1989.
  112. Sheppard, W.A.; Sharts, C.M. Organic Fluorine Chemistry; Benjamin: New-York, 1969. [Google Scholar]
  113. Lerman, B.M. Russ. Chem. Rev. (Engl. Transl.) 1995, 64, 3–27.
  114. Nenajdenko, V.G.; Sanin, A.V.; Balenkova, E.S. Khim. Geterotsikl. Soedin. 1994, 10, 1429–1431.
  115. Reddy, A.C.S.; Rao, P.S.; Vekataratnam, R.V. Tetrahedron Lett. 1996, 37, 2845–2848.
  • Samples Availability: All the compounds published by the present authors in the cited literature [38, 39, 40, 41, 42, 105, 106, 108, 110, 111, 114] are available from MDPI.

Article Metrics

Citations

Article Access Statistics

Journal Statistics
Multiple requests from the same IP address are counted as one view.
Download PDF
Synthesis and Neurotropic Activity of Novel Quinoline Derivatives
Previous
Variation of Ursolic Acid Content in Eight Ocimum Species from Northeastern Brazil
Next
