Article

Synthesis of Azanucleosides through Regioselective Ring-Opening of Epoxides Catalyzed by Sulphated Zirconia under Microwave and Solvent-Free Conditions

by
Celia Xochitl Hernández-Reyes
1,
Deyanira Angeles-Beltrán
1,
Leticia Lomas-Romero
2,
Eduardo González-Zamora
2,
Rubén Gaviño
3,
Jorge Cárdenas
3,
José Antonio Morales-Serna
3 and
Guillermo E. Negrón-Silva
1,*
1
Departamento de Ciencias Básicas, Universidad Autónoma Metropolitana, Av. San Pablo No. 180, México D.F., C.P. 02200, Mexico
2
Departamento de Química, Universidad Autónoma Metropolitana, Av. San Rafael Atlixco No. 186, México D.F., C.P. 09340, Mexico
3
Instituto de Química, Universidad Nacional Autónoma de México, Circuito Exterior, Ciudad Universitaria, México D.F. 04510, Mexico
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(3), 3359-3369; https://doi.org/10.3390/molecules17033359
Submission received: 10 February 2012 / Revised: 7 March 2012 / Accepted: 9 March 2012 / Published: 15 March 2012
(This article belongs to the Section Organic Chemistry)
Browse Figures
Versions Notes

Abstract

:
New azanucleosides were obtained using sulphated zirconia (ZS) as catalyst in the nucleophilic oxirane ring opening reaction of 1-allyl-3-(oxiran-2-ylmethyl)pyrimidine-2,4(1H,3H)-dione and 1-allyl-5-methyl-3-(oxiran-2-ylmethyl)-pyrimidine-2,4(1H,3H)-dione, with (S)-prolinol. The new templates were obtained with good yields following a route which exploits the reactivity of epoxides in the presence of sulphated zirconia as catalyst. The key step was carried out using microwave and solvent-free conditions and proceeds with high selectivity.

1. Introduction

The use of solid materials as reusable catalysts in chemical synthesis contributes significantly to simplify diverse processes like separation, purification and isolation of the reaction products, to optimize the conversion and performance, as well as to decrease pollutants generation. In addition, as the reaction can be carried out in solvent-less conditions, the process turns out to be even cleaner and simpler [1]. The catalytic activity of the sulphated zirconia relates to a combination of acid Brønsted and Lewis sites, although also to other factors such as: (a) surface defects; (b) presence of paramagnetic species like Zr+3; and (c) suitable crystallization and phase concentration periods activate the tetragonal phase [2]. Sulphated zirconia is a catalyst, that can be easily recovered and reused; therefore, it is not surprising that a large variety of organic reactions can be catalyzed by sulphated zirconia [3,4].
In this context and as part of our ongoing research program, we have been interested since eight years ago in the preparation of sulphated zirconia and its use in organic reactions. We have proved that sulphated zirconia is an excellent catalyst in such reactions as: cyclization of 1,4-dicarbonyl compounds and substituted anilines to tetrahydroindolones [5], chemoselective synthesis of acylals from aromatic aldehydes and their deprotections [6,7], synthesis of 3,4-dihydropyrimidin-2(1H)-ones using multicomponent reactions [8], synthesis of amino alcohols by ring-opening of epoxides [9,10] and nucleophilic addition to carbonyl compounds [11]. Presently, we desire to extend this scope to the synthesis of azanucleosides which are biologically interesting molecules, because of their activity against human tumor cell lines [12,13] and for the treatment of patients with myelodysplactic syndromes [14].
The modification of nucleosides has been recognized as an important research area to improve their antiviral activities [15,16,17,18,19,20,21,22,23,24,25,26]. Each biologically active nucleoside is constituted by the heterocyclic base moiety, a furanose ring and a hydroxymethyl group (Figure 1a), which participate in the recognition process to achieve biological activity via the phosphorylation of hydroxymethyl group [27].
The synthesis of new active nucleoside analogues has been focused in the search of nucleoside derivatives with major antiviral activities that has been demonstrated by commercial antivirals, but with lower toxicity. Among them, azanucleosides are one of the most interesting modifications reported in the literature [28]. Structurally, azanucleosides are analogues of nucleosides with ribofuranosyl moieties, where the oxygen is replaced by a nitrogen atom (Figure 1b), which allows inhibiting the hydrolysis of the glycosidic bond by glycohydrolases [29,30,31,32]. With this background, we considered the possibility to insert a pyrrolidine ring and hydroxymethyl group in the position N-3 of pyrimidinedione aiming to generate a new kind of nucleosides analogues (Figure 1c). Thus, in the present paper we describe a new protocol of the azanucleosides synthesis by nucleophilic opening of epoxides using sulphated zirconia as catalyst.

2. Results and Discussion

2.1. Sulphated Zirconia Characterization.

Sulphated zirconia shows a crystalline structure that is preponderantly tetragonal, as proved through the XRD peaks shown in Figure 2. The nitrogen adsorption-desorption isotherm (Figure 3) corresponds to type IV of the IUPAC classification; the hysteresis loop indicates a uniform pore size distribution. The BET area is 93 m2·g−1, while the average pore size was 50.69 Å and pore volume 0.12 cm3·g−1. Ample discussion about the characterization of this material has been provided in our previous works [5,6,7,8,9,10,11].
Molecules 17 03359 g001 550

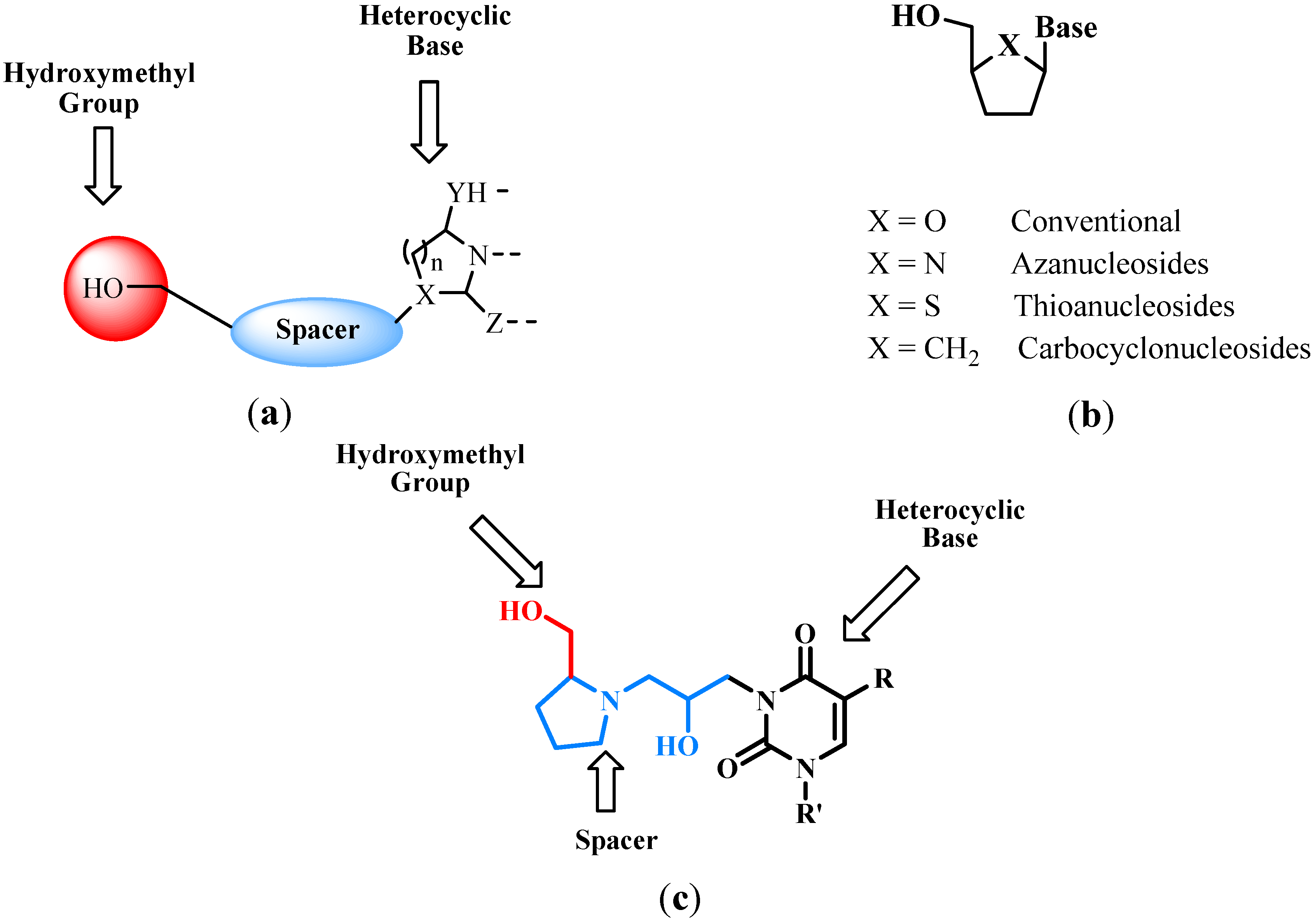

Figure 1. (a) Basic structure of nucleosides; (b) Type of nucleosides; (c) New kind of nucleosides’ analogues.
Figure 1. (a) Basic structure of nucleosides; (b) Type of nucleosides; (c) New kind of nucleosides’ analogues.
Molecules 17 03359 g001
Molecules 17 03359 g002 550

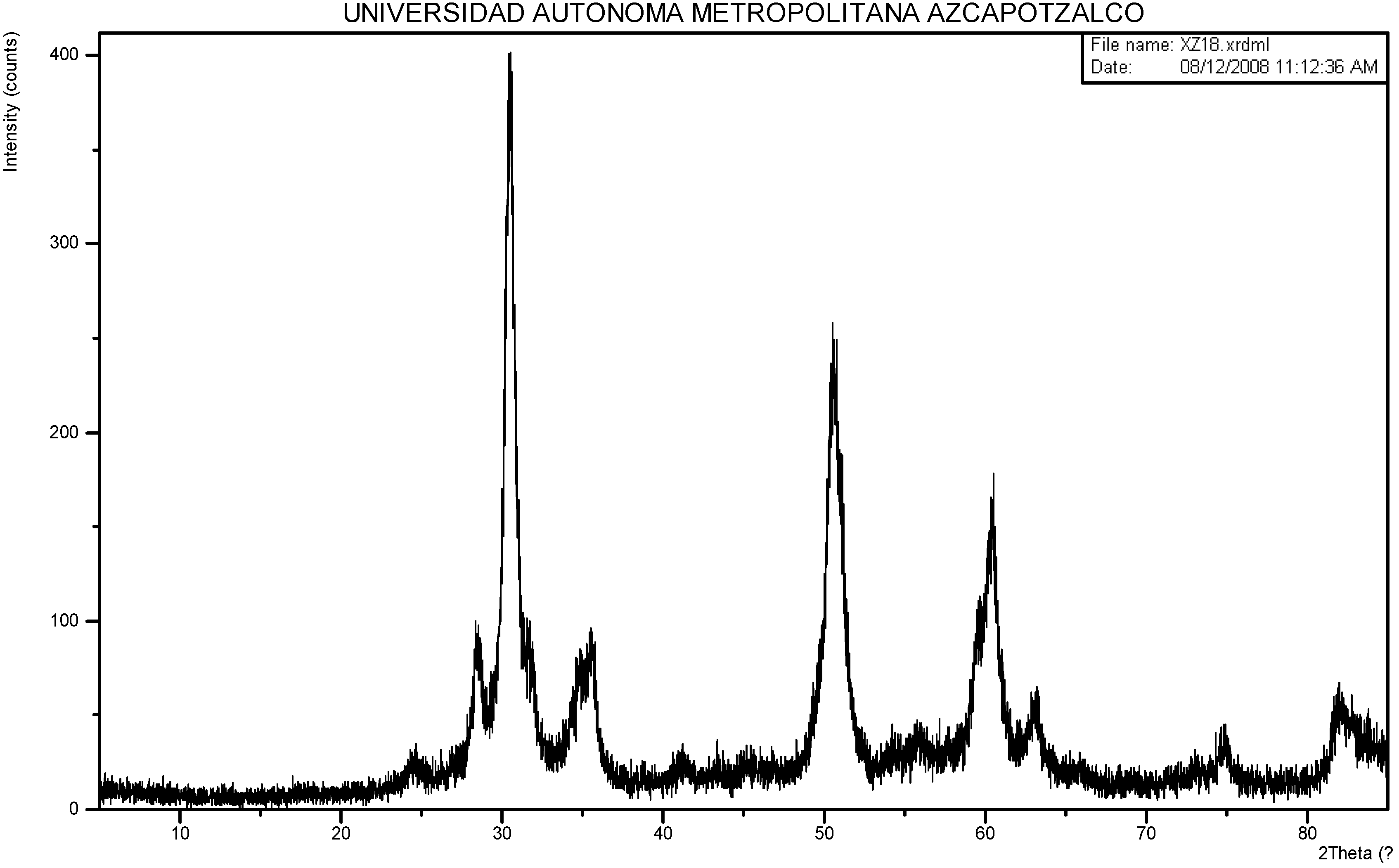

Figure 2. Sulphated zirconia diffractogram.
Figure 2. Sulphated zirconia diffractogram.
Molecules 17 03359 g002
Molecules 17 03359 g003 550
Figure 3. Sulphated zirconia nitrogen adsorption-desorption isotherm.
Figure 3. Sulphated zirconia nitrogen adsorption-desorption isotherm.
Molecules 17 03359 g003

2.2. Azanucleosides Synthesis

The choice of starting material was dictated by the type of reaction that we planned to employ to bond the principal fragments of the nucleoside: heterocyclic base moiety, spacer and hydroxymethyl group. Our strategy for the synthesis of azanucleosides is outlined in Scheme 1.
Molecules 17 03359 g004 550

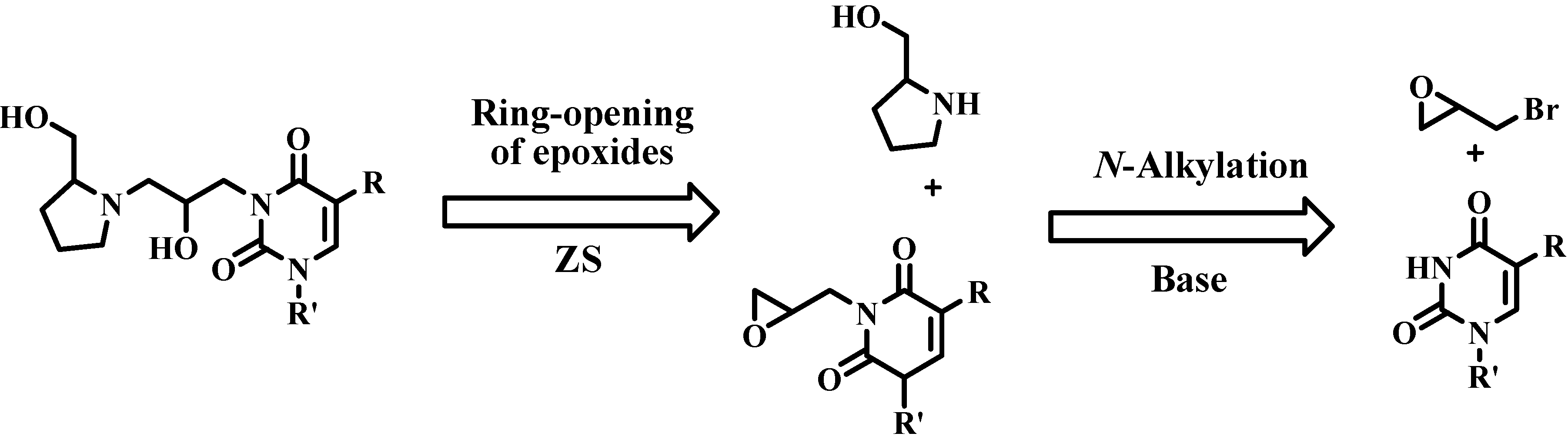

Scheme 1. Corrected linguistically retrosynthetic analysis.
Scheme 1. Corrected linguistically retrosynthetic analysis.
Molecules 17 03359 g004
Based on a previously described methodology [33] and our experience in the alkylation reactions of nucleosides [34], we decided to obtain compounds 4a and 4b via N-alkylation of the base in position N-1. Thus, uracil (1a) and thymine (1b) were transformed into N-1-allyluracil (4a) and N-1-allylthymine (4b) via the sequential addition procedure of N,O-bis(trimethylsilyl) acetamide (BSA) as silylating agent to give the intermediates 2a and 2b, and then the alkylation reaction using allyl bromide (3) in the presence of NaI and thrimethylsilyl chloride (TMSCl) afforded 4a and 4b. The reaction procedure is shown in Scheme 2. The presence of allyl group in the position N-1 can be explained by our interest in the future preparation of nucleoside libraries by modification in that position.
Molecules 17 03359 g005 550

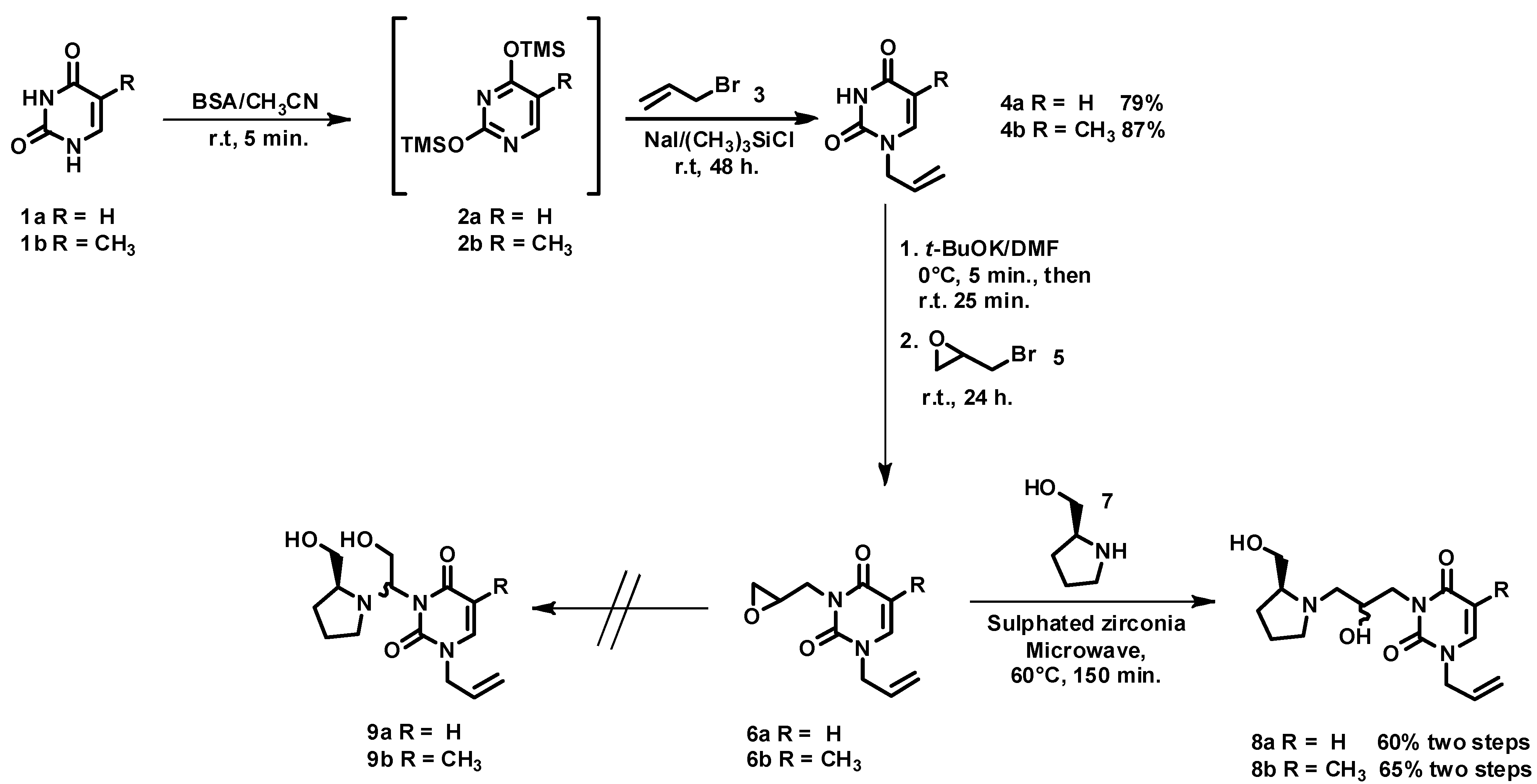

Scheme 2. Synthesis of azanucleosides.
Scheme 2. Synthesis of azanucleosides.
Molecules 17 03359 g005
Next, the desired products 8a and 8b were synthesized by another sequential procedure, where 4a and 4b were alkylated first in position N-3 to give the epoxides 6a and 6b. The high instability of those compounds impeded purification, and they were used crude in the next step. Thus, in a second step, the catalytic activity of the sulphated zirconia was evaluated in the nucleophilic ring-opening of epoxides 6a and 6b with (S)-prolinol (7), under microwave irradiation and solvent-free conditions. To our delight, the azanucleosides 8a and 8b were obtained as diastereoisomeric mixtures in 60 and 65% yield, respectively (Scheme 2). In both cases, the diastereoisomers showed a similar Rf in TLC (EtOAc-MeOH-TEA, 90:9:1), and for this reason it was impossible to separate the mixtures on a chromatographic column using silica gel as stationary phase. The 1H-NMR spectra showed the presence of a multiplet at δ 4.1, which was assigned to the methylene protons contiguous to position N-3. The signal at δ 4.1 integrates for three protons, with the third proton corresponding to the methine proton of the tertiary alcohol. The 1H-1H COSY and HMBC spectra supported that connectivity. However, the identification of each diastereoisomer was not possible, due to the complexity of the spectra. Finally, it is noteworthy that in both cases the formation of other isomers (9a and 9b) was not observed, which confirms the high selectivity of the ring-opening reaction. These results agree with those previously described by our group [10], where the use of microwave and solvent-free conditions led to decreasing reaction times without modification of regioselectivity.
The selectivity observed in the present work is consistent with an SN2-type attack of the prolinol nitrogen at the less hindered carbon of the epoxide (Scheme 3). Similar behavior has been described by Reddy and co-workers in alkyl indoles [35] and Das and co-workers in an imidazole and styrene oxide system [36]. Additionally, we had observed that our catalyst can be easily recovered and reused for at least three cycles without any significant decreases in yield and regioselectivity [7,9].
Molecules 17 03359 g006 550
Scheme 3. Proposed reaction mechanism for the regioselective ring-opening of epoxides.
Scheme 3. Proposed reaction mechanism for the regioselective ring-opening of epoxides.
Molecules 17 03359 g006

3. Experimental

3.1. General

All the chemicals were purchased from Aldrich Chemical Co., and used without further purification, unless stated otherwise. Yields refer to chromatographically and spectroscopically (1H and 13C) homogeneous materials. All glassware utilized was flame-dried before use. Reactions were monitored by TLC carried out on 0.25-mm Macherey Nagel silica gel plates. Developed TLC plates were visualized under a short-wave UV lamp and by heating plates that were dipped in Ce(SO4)3. Flash column chromatography (FCC) was performed using flash silica gel (230–400) and employed solvent of a polarity which correlates with TLC mobility. Microwave reactions were performed in a CEM Labmate® microwave reactor. NMR experiments were conducted on a Bruker-Avance 500 MHz, instrument using CDCl3 (99.9% D) as solvent, with chemical shifts (δ) referenced to internal standards CDCl3 (7.26 ppm 1H, 77.0 ppm 13C) or Me4Si as an internal reference (0.00 ppm). Chemical shifts are in parts per million (ppm).
The X-ray diffraction (XRD) studies were performed in a Philips X’Pert instrument using Cu-Kα radiation (45 kV, 40 mA). The nitrogen adsorption-desorption isotherms were obtained in a Micromeritics ASAP 2020 equipment at −196 °C. The reaction products were analyzed by GC-FID (Agilent Technologies 6890N) equipped with a column HP-5 with the following program; 70–150 °C (25 °C/min) for 1.00 min, then 150–210 °C (10 °C/min) for 2 min and finally to 210–280 °C (10 °C /min) for 3 min, injector to 250 °C, detector to 280 °C. The mass spectra was obtained by GC-MS (Agilent Technologies 6890N, Detector 5973), in the chemical ionization mode using methane as ionization gas.

3.2. Catalyst Synthesis [5]

Zirconium n-propoxide (20 mL, 70% n-propanol) was mixed with 2-propanol (30 mL) and stirred with a magnetic bar. Then, distilled water (3.2 mL) was mixed with sulfuric acid (1 mL, 98%); this solution was added dropwise in order to carry out the hydrolysis and gelation of the zirconium n-propoxide. The solid was dried at 80 °C until complete alcohol evaporation and then calcined in air at 600 °C for 6 h.

3.3. Synthesis of Azanucleosides

N-1-Allyluracil (4a) [33]. Under a nitrogen atmosphere, uracil (1a, 3.2 g, 28.58 mmol) was placed with distilled acetonitrile (43 mL) in a ball flask provided with stopper and magnetic stirrer. The mixture was stirred at room temperature for 5 minutes. Then, N,O-bis(trimethylsilyl) acetamide (BSA, 17.64 mL, 72.14 mmol) was added, the mixture was kept under agitation until it became transparent. Then, allyl bromide (3, 5 mL, 57.77 mmol), sodium iodide (NaI, 4.8 g, 32.02 mmol) and trimethylsilyl chloride (TMSCl, 3.6 mL, 28.46 mmol) were added successively, and the reaction mixture was kept under vigorous agitation at room temperature for 48 h. When the reaction finished, ethyl acetate (20 mL) was added and it was neutralized with a 10% wt solution of sodium bicarbonate (NaHCO3, 70 mL). The crude product was filtered and the liquid phase was extracted using ethyl acetate (80 mL). The organic phase was evaporated under reduced pressure. The crude was purified by chromatography in a silica column using 40:60 ether/ethyl acetate as eluent. N-1-allyluracil (4a) was obtained as a white solid in 79% yield. m.p.: 105–106 °C (lit. [37] m.p.: 103–105 °C); GC-MS for C7H8N2O2 (m.w.: 152.09 g/mol): [M+1]+ = 153, [M+29]+ = 181, and [M+41]+ = 193; IR (cm−1): 3,114, 3,009, 2,926, 2,813, 1,667, 1,641, 1,463, 1,408, 1,338, 1,242, 1,200, 920, 833, 632; 1H-NMR (CDCl3): δ 10.07 (1H, brs), 7.19 (1H, d, J = 7.9 Hz), 5.88 (1H, ddt, J = 17.1, 10.3, 5.9 Hz), 5.75 (1H, d, J = 7.9 Hz), 5.33–5.25 (2H, m), 4.37 (2H, dt, J = 5.9, 1.5 Hz). 13C-NMR (CDCl3): δ 164.0, 150.9, 143.7, 131.4, 119.3, 102.4, 49.9 [38].
N-1-Allylthymine (4b) [33]. Under a nitrogen atmosphere, thymine (2b, 3.60 g, 28.58 mmol) was placed with distilled acetonitrile (43 mL) in a ball flask provided with stopper and magnetic stirrer. The mixture was stirred at room temperature during 5 minutes. Then, BSA (17.64 mL, 72.14 mmol) was added, and the mixture was kept under agitation until it became transparent. Then, allyl bromide (3, 5 mL, 57.77 mmol), NaI (4.8 g, 32.02 mmol) and TMSCl (3.6 mL, 28.46 mmol) were added successively, and the reaction mixture was kept under vigorous agitation at room temperature for 48 h. When the reaction finished, ethyl acetate (20 mL) was added and the reaction mixture was neutralized with a 10% wt solution of NaHCO3 (55 mL). The crude product was filtered and the liquid phase was extracted using ethyl acetate (80 mL). The organic phase was evaporated under reduced pressure. The crude was purified by chromatography in a silica column using 40:60 ether/ethyl acetate as eluent. N-1 allylthymine (4b) was obtained as a white solid in 87% yield. m.p.: 108–110 °C, (lit. [38] m.p.: 112 °C); GC-MS for C8H10N2O2 (m.w.: 166.20 g/mol): [M+1]+ = 167, [M+29]+ = 195 and [M+41]+ = 207; IR (cm−1): 3,147, 3,029, 2,829, 1,683, 1,459, 1,424, 1,344, 1,217, 1,141, 908, 893, 869, 714, 610; 1H-NMR (CDCl3): δ 9.60 (1H, brs), 6.98 (1H, q, J = 1.2 Hz), 5.87 (1H, ddt, J = 17.1, 10.3, 5.8 Hz), 5.32–5.24 (2H, m), 4.34 (2H, dt, J = 5.8, 1.5 Hz), 1.93 (3H, d, J = 1.3 Hz); 13C-NMR (CDCl3): δ 164.3, 150.9, 139.6, 131.7, 119.1, 110.9, 49.7, 12.2 [38].
1-Allyl-3-(2-hydroxy-3-((S)-2-(hydroxymethyl)pyrrolidin-1-yl)propyl)pyrimidine-2,4(1H,3H)-dione) (8a). N-1-Allyluracil (4a, 0.304 g, 2 mmol) in DMF (5 mL) were placed in a round-bottom flask. Then, potassium tert-butoxide (t-BuOK, 0.494 g, 4.4 mmol) was added at 0 °C under a nitrogen atmosphere over 5 min. Then, the mixture was stirred for 25 min at room temperature. Finally, epibromohydrin (5, 0.36 mL, 4.4 mmol) was added and the reaction mixture was stirred for 24 h at room temperature. After this time, the mixture was diluted with methylene chloride (5 mL) and the product was recovered by extractions with methylene chloride (5 × 15 mL) and water (5 mL) and the organic extract was dried over Na2SO4 and concentrated under vacuum to give 6a. The crude product was used directly in the next step. In a closed reaction system there were placed 6a (0.398 g, as crude product) and (S)-prolinol (7, 0.18 mL, 1.81 mmol) with sulphated zirconia (100 mg). The reaction mixture was irradiated in a microwave reactor (CEM Labmate®) under vigorous agitation at 60 °C for 150 min (initial power 50 W). After the reaction time methanol (10 mL) was added, the catalyst was recovered by filtration and washed with acetone (20 mL). The organic product was dried under reduced pressure. The residue was purified by flash column chromatography on silica gel (EtOAc/MeOH, 95:5) to give 8a as a colorless oil. 1H-NMR (CDCl3): δ 7.26 (1H, d, J = 7.8 Hz), 5.89 (1H, ddt, J = 17.0, 10.1, 5.7 Hz), 5.79 (1H, d, J = 7.8 Hz), 5.30 (2H, m), 4.39 (2H, d, J = 5.7 Hz), 4.10 (3H, m), 3.62 (1H, dd, J = 11.4, 3.6 Hz), 3.42 (1H, dd, J = 11.4, 7.2 Hz), 3.24 (1H, m), 2.85 (1H, dd, J = 12.6, 9.3 Hz), 2.76 (1H, m), 2.53 (1H, dd, J = 13.12, 2.7 Hz), 2.38 (1H, q, J = 8.4 Hz), 1.8 (4H, m); 13C-NMR (CDCl3): δ 164.1, 152.0, 142.7, 131.4, 119.4, 101.7, 68.1, 67.5, 66.2, 63.1, 62.8, 59.8, 59.5, 56.0, 54.9, 51.3, 45.3, 27.1, 23.5; HRMS (FAB) calc. for C15H23N3O4 309.1689, found 309.1654.
1-Allyl-3-(2-hydroxy-3-((S)-2-(hydroxymethyl)pyrrolidin-1-yl)propyl)-5-methylpyrimidine-2,4(1H,3H)-dione (8b). N-1 Allylthymine (4b, 0.332 g, 2 mmol) in DMF (5 mL) was placed in a round-bottom flask. Then, t-BuOK (0.494 g, 4.4 mmol) was added at 0 °C under a nitrogen atmosphere over 5 min. Then, the mixture was stirred for 25 min at room temperature. Finally, epibromohydrin (5, 0.36 mL, 4.4 mmol) was added and the reaction mixture was stirred for 24 h at room temperature. After this reaction time, the mixture was diluted with methylene chloride (5 mL) and the product was recovered by extractions with methylene chloride (5 × 15 mL) and water (5 mL) and the organic extract was dried over Na2SO4 and concentrated under vacuum to give 6a. The crude product was used directly in the next step. In a closed reaction system were placed 6b (0.454 g as crude product) and (S)-prolinol (7, 0.19 mL, 1.94 mmol) with sulphated zirconia (100 mg). The reaction mixture was irradiated in a microwave reactor (CEM Labmate®) under vigorous agitation at 60 °C during 150 min (initial power 50 W). Next methanol (10 mL) was added, the catalyst was recovered by filtration and washed with acetone (20 mL). The organic product was dried under reduced pressure. The residue was purified by flash column chromatography on silica gel (EtOAc/MeOH, 95:5) to give 8b as a colorless oil. 1H-NMR (CDCl3): δ 7.02 (1H, brs), 5.79 (1H, ddt, J = 17.0, 10.1, 5.7 Hz), 5.25 (2H, m), 4.29 (2H, d, J = 5.7 Hz), 4.10 (3H, m), 3.61 (1H, dd, J = 11.4, 3.6 Hz), 3.52 (1H, dd, J = 11.4, 7.2 Hz), 3.27 (1H, m), 2.93 (1H, m), 2.61 (1H, dd, J = 12.9, 2.1 Hz), 2.70 (1H, m), 2.53 (1H, q, J = 8.4 Hz), 1.80 (4H, m), 1.85 (3H, brs); 13C-NMR (CDCl3): δ 164.8, 152.0, 138.98, 131.8, 119.2, 110.2, 67.4, 66.9, 62.2, 59.9, 55.0, 51.2, 45.4, 26.9, 24.4, 12.9; HRMS (FAB) calc. for C16H25N3O4 323.1845, found 323.1839.

4. Conclusions

We have demonstrated that sulphated zirconia is an efficient catalyst in the regioselective nucleophilic opening of the oxiranes 1-allyl-3-(oxiran-2ylmethyl) pyrimidine-2,4-(1H,3H)-dione (6a) and 1-allyl-5-methyl-3-(oxiran-2-ylmethyl) pyrimidine-2,4-(1H,3H)-dione (6b) with (S)-prolinol to give the azanucleosides 8a and 8b with good yield. The advantage of our approach is that the epoxide ring-opening was carried out under solvent-free conditions and with short reaction time using microwave irradiation. We believe that our protocol will find use in the efficient synthesis of a new kind of nucleosides analogues and facilitate the synthesis of novel bioactive molecules.

Acknowledgments

The authors would like to thank Consejo Nacional de Ciencia y Tecnología, CONACyT (project 59417) for financial support. CXHR is indebted to CONACyT, for the Postgraduate Studentship No. 169933 granted. LLR, and GENS wish to acknowledge the SNI for the distinction of their membership and the stipend received.
  • Sample Availability: Samples of the compounds 3a, 3b, 6a and 6b are available from the authors.

References and Notes

  1. Zane, F.; Melada, S.; Signorretto, M.; Pinna, F. Active and recyclable sulphated zirconia catalysts for the acylation of aromatic compounds. Appl. Catal. AGen. 2006, 299, 137–144. [Google Scholar] [CrossRef]
  2. Pérez-Luna, M.; Cosultchi, A.; Toledo-Antonio, J.A.; Cortés-Jácome, M.A. n-Pentane isomerization over Pt- and Ni-Pt-promoted sulfated zirconia catalysts supported on alumina. Catal. Lett. 2009, 131, 285–293. [Google Scholar] [CrossRef]
  3. Reddy, B.M.; Patil, M.K. Organic syntheses and transformations catalyzed by sulfated zirconia. Chem. Rev. 2009, 109, 2185–2208. [Google Scholar] [CrossRef]
  4. Arata, K. Organic syntheses catalyzed by superacidic metal oxides: Sulfated zirconia and related compounds. Green Chem. 2009, 11, 1719–1728. [Google Scholar] [CrossRef]
  5. Negrón, G.; Angeles, D.; Lomas, L.; Martínez, Á.; Ramírez, M.; Martínez, R. An efficient synthesis of 6,6-dimethyl-2-(4-nitrophenyl)-1-(R-penyl)-4,5,6,7-tetrahydro-1H-4-indolones using a solid sulphated zirconia as catalyst. Heterocycles 2004, 63, 367–372. [Google Scholar]
  6. Negrón, G.; Palacios, L.; Angeles, D.; Lomas, L.; Gaviño, R. A mild and efficient method for the chemoselective synthesis of acylals from aromatic aldehydes and their deprotections catalyzed by sulfated zirconia. J. Braz. Chem. Soc. 2005, 16, 490–494. [Google Scholar] [CrossRef]
  7. Palacios-Grijalva, L.N.; Cruz-González, D.Y.; Lomas-Romero, L.; González-Zamora, E.; Ulibarri, G.; Negrón-Silva, G.E. Sulphated zirconia as an eco-friendly catalyst in acylal preparation under solvent-free conditions, acylal deprotection assisted by microwaves, and the synthesis of anhydro-dimers of o-hydroxybenzaldehyde. Molecules 2009, 14, 4065–4078. [Google Scholar] [CrossRef]
  8. Angeles-Beltrán, D.; Lomas-Romero, L.; Lara-Corona, V.H.; González-Zamora, E.; Negrón-Silva, G. Sulfated zirconia-catalyzed synthesis of 3,4-dihydropyrimidin-2(1H)-ones (DHPMs) under solventless conditions: Competitive multicomponent Biginelli vs. Hantzsch reactions. Molecules 2006, 11, 731–738. [Google Scholar] [CrossRef]
  9. Negrón-Silva, G.; Hernández-Reyes, C.X.; Angeles-Beltrán, D.; Lomas-Romero, L.; González-Zamora, E.; Méndez-Vivar, J. Comparative study of regioselective synthesis of β-aminoalcohols under solventless conditions catalyzed by sulfated zirconia and SZ/MCM-41. Molecules 2007, 12, 2515–2532. [Google Scholar] [CrossRef]
  10. Negrón-Silva, G.; Hernández-Reyes, C.X.; Angeles-Beltrán, D.; Lomas-Romero, L.; González-Zamora, E. Microwave-enhanced sulphated zirconia and SZ/MCM-41 catalyzed regioselective synthesis of β-amino alcohols under solvent-free conditions. Molecules 2008, 13, 977–985. [Google Scholar] [CrossRef]
  11. Guerra-Navarro, N.A.; Palacios-Grijalva, L.N.; Angeles-Beltrán, D.; Negrón-Silva, G.E.; Lomas-Romero, L.; González-Zamora, E.; Gaviño-Ramírez, R.; Navarrete-Bolaños, J. Synthesis of new pentacyclo[5.4.0.02,6.03,10.05,9]undecane-8,11-dione (PCU) cyanosilylated derivatives using sulphated zirconia and hydrotalcite as catalysts in microwave-assisted reactions under solvent free conditions. Molecules 2011, 16, 6561–6576. [Google Scholar]
  12. Peterson, M.L.; Vince, R. Synthesis and biological evaluation of 4-purinylpyrrolidine nucleosides. J. Med. Chem. 1991, 34, 2787–2797. [Google Scholar] [CrossRef]
  13. Ng, K.E.; Orgel, L.E. Replacement of the 3'-CH group by nitrogen in the carbocyclic analogue of thymidine. J. Med. Chem. 1989, 32, 1754–1757. [Google Scholar] [CrossRef]
  14. Quintás-Cardama, A.; Santos, F.P.S.; Garcia-Manero, G. Therapy with azanucleosides for myelodysplastic syndromes. Nat. Rev. Clin. Oncol. 2010, 7, 433–444. [Google Scholar] [CrossRef]
  15. Crimmins, M.T. New developments in the enantioselective synthesis of cyclopentyl carbocyclic nucleosides. Tetrahedron 1998, 54, 9229–9272. [Google Scholar] [CrossRef]
  16. Zhu, X.F. The latest progress in the synthesis of carbocyclic nucleosides. Nucleosides Nucleotides Nucleic Acids 2000, 19, 651–690. [Google Scholar] [CrossRef]
  17. Piperno, A.; Chiacchio, M.A.; Iannazzo, D.; Romeo, R. Synthesis and biological activity of phosphonated nucleosides: Part 1. Furanose, carbocyclic and heterocyclic analogues. Curr. Med. Chem. 2006, 13, 3675–3695. [Google Scholar]
  18. Piperno, A.; Giofrè, S.V.; Iannazzo, D.; Romeo, R.; Romeo, G.; Chiacchio, U.; Rescifina, A.; Piotrowska, D.G. Synthesis of C 40 truncated phosphonated carbocyclic 20-Oxa-30-azanucleosides as antiviral agents. J. Org. Chem. 2010, 75, 2798–2805. [Google Scholar] [CrossRef]
  19. Merino, P. Heterocyclic nucleosides. Chemical synthesis and biological properties. Curr. Med. Chem. Anti Infective Agents 2002, 1, 389–411. [Google Scholar] [CrossRef]
  20. Wu, Q.; Simons, C. Synthetic methodologies for C-nucleosides. Synthesis 2004, 10, 1533–1553. [Google Scholar]
  21. Amblard, F.; Nolan, S.P.; Agrofoglio, L.A. Metathesis strategy in nucleoside chemistry. Tetrahedron 2005, 61, 7067–7080. [Google Scholar] [CrossRef]
  22. de Clercq, E.; Holy, A. Acyclic nucleoside phosphonates: A key class of antiviral drugs. Nat. Rev. Drug Discov. 2005, 4, 928–940. [Google Scholar] [CrossRef]
  23. Simons, C.; Wu, Q.; Htar, T.T. Recent advances in antiviral nucleoside and nucleotide therapeutics. Curr. Top. Med. Chem. 2005, 5, 1191–1203. [Google Scholar] [CrossRef]
  24. Zhou, X.X.; Lettler, E. Nucleoside analogs as anti-HBV agents. Curr. Top. Med. Chem. 2006, 6, 851–865. [Google Scholar] [CrossRef]
  25. Len, C.; Postel, D. Synthesis of 2',3'-didehydro-2',3'-dideoxynucleosides via nucleoside route. Curr. Org. Synth. 2006, 3, 261–281. [Google Scholar] [CrossRef]
  26. Merino, P. Heterocyclic nucleosides: Chemical synthesis and biological properties. Curr. Med. Chem. 2006, 13, 539–545. [Google Scholar] [CrossRef]
  27. Romeo, G.; Chiacchio, U.; Corsaro, A.; Merino, P. Chemical synthesis of heterocyclic-sugar nucleoside analogues. Chem. Rev. 2010, 110, 3337–3370. [Google Scholar] [CrossRef]
  28. Yokoyama, M.; Momotake, A. Synthesis and biological activity of azanucleosides. Synthesis 1999, 9, 1541–1554. [Google Scholar] [CrossRef]
  29. Chiacchio, U.; Borrello, L.; Crispino, L.; Rescifina, A.; Merino, P.; Macchi, B.; Balestrieri, E.; Mastino, A.; Piperno, A.; Romeo, G. Stereoselective synthesis and biological evaluations of novel 3'-deoxy-4'-azaribonucleosides as inhibitors of hepatitis C virus RNA replication. J. Med. Chem. 2009, 52, 4054–4057. [Google Scholar] [CrossRef] [Green Version]
  30. Ganem, B.; Papandreou, G.J. Mimicking the glucosidase transition state: Shape/charge considerations. J. Am. Chem. Soc. 1991, 113, 8984–8985. [Google Scholar] [CrossRef]
  31. Yokoyama, M.; Toyoshima, H.; Shimizu, M.; Togo, H. Stereoselective coupling of riboses with metallic salts of aromatic heterocycles. J. Chem. Soc. Perkin Trans. 1997, 1, 29–34. [Google Scholar]
  32. Schramm, V.L. Enzymatic transition states and transition state analogue design. Annu. Rev. Biochem. 1998, 67, 693–720. [Google Scholar] [CrossRef]
  33. Ubasawa, M.; Takashima, H.; Sekiya, K. A convenient one-pot synthesis of acycleonucleosides. Chem. Pharm. Bull. 1995, 43, 142–143. [Google Scholar] [CrossRef]
  34. Negrón, G.; Quiclet-Sire, B.; Diaz, Y.; Gaviño, R.; Cruz, R. A new synthesis of 2',3'-didehydro-3'-deoxy-3-alkylthymidine. Nucleosides Nucleotides 1995, 14, 1539–1543. [Google Scholar] [CrossRef]
  35. Reddy, B.M.; Patil, M.K.; Reddy, B.T.; Park, S.-E. Effcient synthesis of β-amino alcohols by regioselective ring-opening of epoxides with anilines catalyzed by sulfated zirconia under solvent-free conditions. Catal. Commun. 2008, 9, 950–954. [Google Scholar] [CrossRef]
  36. Das, B.; Thirupathi, P.; Kumar, R.A.; Reddy, K.R. Effcient synthesis of 3-alkyl indoles through regioselective ring opening of epoxides catalyzed by sulfated zirconia. Catal. Commun. 2008, 9, 635–638. [Google Scholar] [CrossRef]
  37. Paryzek, Z.; Tabaczka, B. The preparation of 1-allyluracil. N(1)-Alkylation of N(3)-protected uracil derivatives. Org. Prep. Proc. Int. 2001, 33, 400–405. [Google Scholar]
  38. Thibon, J.; Latxague, L.; Déléris, G. Synthesis of silicon analogues of acyclonucleotides incorporable in oligonucleotide solid-phase synthesis. J. Org. Chem. 1997, 62, 4635–4642. [Google Scholar] [CrossRef]
