Article

Evolution of the Yields and Composition of Essential Oil from Portuguese Myrtle (Myrtus comunis L.) through the Vegetative Cycle

1
Centre for Biological and Chemical Engineering, IBB; DEQB, IST, Av. Rovisco Pais, 1049-001 Lisboa, Portugal
2
Faculdade de Engenharias e Ciências Naturais, ULHT, Av. Campo Grande, 376, 1749-024 Lisboa, Portugal
*
Author to whom correspondence should be addressed.
Molecules 2009, 14(8), 3094-3105; https://doi.org/10.3390/molecules14083094
Received: 28 July 2009 / Revised: 13 August 2009 / Accepted: 18 August 2009 / Published: 20 August 2009

Abstract

The chemical composition of the essential oil of Portuguese myrtle was determined at different developmental stages of the plant: pre-flowering, flowering, unripe and ripe berries. The oil was extracted separately by Clevenger distillation from leaves, branches and berries. The yields vary from 0.33% to 0.74% for leaves, 0.02% to 0.19% for branches, and 0.11% to 0.23% for berries. The highest yields were obtained for the leaves in October, and for the berries in September; branches show similar values in the months of June, July and September, and the samples collected in May and October produced very little amount of oil. Altogether, September seems to be the month with the best yields for the three parts of the plant. The essential oils were analyzed by GC and GC/MS, and a total of thirty five components were identified. The major components were limonene+1,8-cineole [25.9% (berries)–39.5% (leaves)], myrtenyl acetate [6.6% (berries)–24.8% (leaves)], α-pinene [9.7% (berries)–21.5% (leaves)], and linalool [6.2% (leaves)–36.5% (berries)]. Portuguese myrtle belongs to the group of myrtles which are characterized by the presence of myrtenyl acetate as one of the major components.
Keywords: myrtle; Myrtus communis L.; essential oil; limonene; 1; 8-cineole; myrtenyl acetate myrtle; Myrtus communis L.; essential oil; limonene; 1; 8-cineole; myrtenyl acetate

1. Introduction

Myrtle (Myrtus communis L.) is an evergreen shrub, belonging to the family of Myrtaceae, typical of the Mediterranean flora. In Portugal, myrtle grows wild mainly in the central and southern parts of the country. Its leaves are very fragrant, which is the reason for the extensive use of the plant in the perfumery and cosmetic industries. It is traditionally used as antiseptic, disinfectant, and hypoglycemic agent [1]. Different parts of the plant find various uses in the food industry, such as flavoring for meat and sauces [2]. In Corsica (France), several different products are made from myrtle like liqueur, wine, vinegar, jam, etc. [3]. The chemical composition of myrtle essential oil has been extensively studied in the Mediterranean region, such as in Spain [4], Corsica (France) [3], Albania [5], Turkey [6], Greece [7,8], Croatia [9], Morocco [10], Tunisia [11,12,13], and Sardinia (Italy) [14,15]. This, however, has not happened in relation to Portuguese myrtle, so there is a scarcity of data relating to its composition.
Myrtle oils can be separated into two groups, depending on the content in myrtenyl acetate [3]. Chalchat et al. [2], who analyzed myrtle leaf essential oil from seven Mediterranean regions, refers the strong variability on chemical composition of the oil, reporting the presence of myrtenyl acetate in some samples and the lack of it in some others.
The aim of our research was to address the lack of data concerning Portuguese myrtle essential oil composition, and to acquire valuable information about the best harvesting period according to the concentration of the claimed component. In the present work we studied the composition of the essential oil from three different plant materials: leaves, berries and branches over a period of time that covers the principal stages of the plant’s vegetative cycle, namely pre-flowering, flowering, unripe fruit and ripe fruit. Thus, the months covered by this study were May (pre-flower), June (flower buds), July (flower blossom), September (unripe fruit) and October (ripe fruit). The essential oil was obtained by hydrodistillation using a Clevenger type apparatus.

2. Results and Discussion

The essential oil yields obtained in this work are presented in Table 1. The values ranged from 0.33% to 0.74% for leaves, from 0.02% to 0.19% for branches, and from 0.11% to 0.23% for berries. The highest yields were obtained for the leaves in October and for the berries in September. The branches show similar values in the months of June, July and September. The samples collected in May and October produced very little oil.
Altogether, September seems to be the month with the best yields for the three parts of the plant. These results disagree with the ones obtained by Jamoussi et al. [12], who report maximum yields at the flowering stage for Tunisian myrtle oils, while for us it was near the ripening of the fruit stage. On the other hand, Bradesi et al. [3] recommend the period from June to November as the best harvest time for commercial production of the essential oil.
Table 1. Essential oil yields for the harvested months.
Table 1. Essential oil yields for the harvested months.
MonthStageYield(g/100 g dried leaves)
LeavesBranchesBerries
MayPre-flower0.33±0.030.02±0.01-
JuneFlower buds0.60±0.040.19±0.01-
JulyFlower blossom0.48±0.010.17±0.03-
SeptemberUnripe fruit0.56±0.050.18±0.010.23±0.04
OctoberRipe fruit0.74±0.090.07±0.010.11±0.06
The results obtained for the composition of the essential oil extracted from leaves, branches and berries are shown in Table 2, Table 3 and Table 4, respectively. Thirty five components were identified, representing 93.5–95.4% of the total composition for leaves, 80.3–88.1% for branches, and 91.3–93.8% for berries. All three parts of the plant show a high content in monoterpenes and esters. The leaves exhibit a particularly high content in monoterpenes with a peak at the flowering stage (July) and a minimum in May, while the esters, the second major group, reaches a peak in May and is at a minimum in July. As for the berries, the highest content in monoterpenes happens when they are ripe, while the unripe berries show a higher content in esters. The essential oil yields obtained for the branches were very low, especially in May.
Table 2. Composition of the leaves essential oil of Portuguese myrtle.
Table 2. Composition of the leaves essential oil of Portuguese myrtle.
Components aLRI bID Method cComposition (w/w%) ± SD e
MayJuneJulySeptemberOctober
Tricyclened908MS, LRI0.08±0.000.12±0.000.08±0.000.14±0.000.19±0.00
α -Thujened917MS, LRI0.05±0.000.08±0.000.10±0.000.06±0.000.05±0.00
α-Pinene922MS, LRI, std10.38±0.0716.45±0.0121.50±0.1013.12±0.2215.25±0.01
Camphened934MS, LRI0.03±0.000.03±0.000.04±0.000.03±0.000.03±0.01
β-Pinene963MS, LRI, std0.12±0.000.16±0.000.26±0.000.16±0.010.19±0.00
Myrcene985MS, LRI, std0.11±0.000.09±0.000.14±0.000.08±0.010.08±0.00
δ-3-Carened998MS, LRI0.02±0.000.12±0.000.05±0.000.18±0.000.02±0.00
α-Terpinene1001MS, LRI, std0.17±0.010.12±0.000.11±0.010.13±0.000.19±0.01
p-Cymene1014MS, LRI, std0.04±0.000.03±0.000.03±0.000.04±0.000.04±0.00
Limonene+1,8-Cineole1024MS, LRI, std20.03±0.1131.33±0.1339.45±0.1032.13±0.2236.78±0.09
o-Cymened1037MS, LRI0.01±0.000.01±0.000.02±0.000.06±0.000.06±0.00
γ-Terpinene1045MS, LRI, std0.21±0.000.11±0.000.11±0.000.18±0.000.15±0.00
Linalool oxide1059MS, LRI, std0.04±0.000.20±0.000.30±0.000.05±0.000.05±0.00
α-Terpinolened1080MS, LRI0.10±0.000.20±0.000.25±0.010.09±0.000.07±0.00
Linalool1096MS, LRI, std7.58±0.067.01±0.026.19±0.039.27±0.037.91±0.01
Fenchol1100MS, LRI, std1.10±0.010.57±0.010.52±0.020.75±0.010.73±0.03
Trans-inocarveold1129MS, LRI0.15±0.000.04±0.000.04±0.000.10±0.000.15±0.00
Borneol1160MS, LRI, std0.06±0.000.08±0.000.14±0.000.08±0.000.08±0.01
Terpinen-4-ol1169MS, LRI, std0.19±0.000.22±0.000.29±0.000.25±0.000.25±0.00
α-Terpineol1183MS, LRI, std2.69±0.033.63±0.015.15±0.023.34±0.013.46±0.00
Myrtenol1188MS, LRI, std2.86±0.070.79±0.000.32±0.001.94±0.011.85±0.00
Geraniol1252MS, LRI, std0.89±0.000.84±0.010.89±0.000.80±0.010.94±0.00
Borneol acetate1278MS, LRI, std0.02±0.010.012±0.000.02±0.000.01±0.000.02±0.00
Trans pinocarvyl acetated1292MS, LRI0.64±0.000.39±0.010.16±0.010.46±0.050.39±0.00
Myrtenyl acetate1323MS, LRI, std37.62±0.1322.19±0.097.40±0.0224.83±0.2120.75±0.02
α-Terpenyl acetated1336MS, LRI0.33±0.000.30±0.000.22±0.000.19±0.000.23±0.00
Eugenold1343MS, LRI0.33±0.010.84±0.001.54±0.010.49±0.000.09±0.00
Neryl acetate1363MS, LRI, std0.06±0.000.09±0.000.12±0.020.05±0.000.04±0.00
Geranyl acetate1376MS, LRI, std0.38±0.000.24±0.000.11±0.000.21±0.000.14±0.00
Methyl eugenold1381MS, LRI2.13±0.013.52±0.014.26±0.022.18±0.031.71±0.00
β-Caryophyllene1402MS, LRI, std2.57±0.012.87±0.012.18±0.011.73±0.011.83±0.00
α-Humulene1442MS, LRI, std0.88±0.000.51±0.010.84±0.010.26±0.010.17±0.00
Geranyl isobutyrated1513MS, LRI0.92±0.051.10±0.030.98±0.010.83±0.030.75±0.01
Caryophyllene oxide1571MS, LRI, std0.33±0.010.18±0.000.27±0.020.36±0.010.39±0.00
Humulene oxided1597MS, LRI0.38±0.050.29±0.000.31±0.010,41±0.010.40±0.01
Monoterpenes 31.348.862.146.353.1
Alcohols 15.814.015.117.015.5
Esters 39.924.39.026.622.3
Ethers 2.1 4.32.21.7
Sesquiterpenes 3.83.63.32.42.4
Oxides 0.70.70.90.80.8
Identified compounds 93.494.794.494.995.4
a Compounds are listed in order of their elution on a HP-5 column; b Linear retention indices as determined on a DB-5MS column using a homologous series of n-alkanes; c Methods of identification: MS, by comparison of the mass spectrum with those of the computer mass libraries; LRI, by comparison of LRI with those from the literature; std, by injection of the authentic sample; d Tentatively identified according of the mass spectrum (MS) and by comparison of LRI with the linear retention time; e Standard deviation.
Table 3. Composition of the branches essential oil of Portuguese myrtle.
Table 3. Composition of the branches essential oil of Portuguese myrtle.
ComponentsaLRIbID MethodcComposition (%)±SDe
MayJuneJulySeptemberOctober
Tricyclened908MS, LRI 0.01±0.000.01±0.000.02±0.00
α-Thujened917MS, LRI 0.05±0.000.03±0.000.12±0.00
α-Pinene921MS, LRI, std 6.55±0.014.22±0.228.81±0.612.78±0.77
Camphened937MS, LRI 0.01±0.000.01±0.000.05±0.00
β-Pinene963MS, LRI, std 0.11±0.000.08±0.000.34±0.01
Myrcene986MS, LRI, std 0.08±0.000.08±0.020.46±0.02
δ-3-Carened998MS, LRI 0.05±0.000.04±0.010.16±0.00
α-Terpinene1003MS, LRI, std 0.09±0.000.08±0.010.25±0.00
p-Cymene1015MS, LRI, std 0.07±0.000.03±0.000.82±0.05
Limonene+1,8-Cineole1022MS, LRI, std 11.85±0.0012.04±0.3120.40±2.5410.58±0.77
o-Cymened1036MS, LRI 0.01±0.000.03±0.000.03±0.00
γ-Terpinene1043MS, LRI, std 0.25±0.000.09±0.001.19±0.07
Linalool oxide1051MS, LRI, std 0.14±0.000.08±0.010.26±0.00
α-Terpinolened1081MS, LRI 0.22±0.000.12±0.000.20±0.01
Linalool1097MS, LRI, std 4.59±0.0110.47±0.184.24±0.143.42±0.52
Fenchol1100MS, LRI, std 0.71±0.030.48±0.070.72±0.10
Trans-pinocarveold1129MS, LRI 0.09±0.020.10±0.000.18±0.00
Borneol1160MS, LRI, std 0.21±0.000.19±0.000.27±0.01
Terpinen-4-ol1169MS, LRI, std 0.28±0.020.32±0.010.70±0.03
α-Terpineol1184MS, LRI, std 3.38±0.015.76±0.082.70±0.202.33±0.41
Myrtenol1189MS, LRI, std44.03±7.003.05±0.008.38±0.216.78±0.7712.41±2.02
Geraniol1255MS, LRI, std 1.16±0.002.83±0.061.85±0.073.17±0.08
Borneol acetate1282MS, LRI, std 0.02±0.000.04±0.000.09±0.030.76±0.02
Trans pinocarvyl acetated1292MS, LRI 0.71±0.030.56±0.000.55±0.030.76±0.02
Myrtenyl acetate1322MS, LRI, std23.97±6.8933.55±0.0824.62±0.2121.97±0.6426.25±4.03
α-Terpenyl acetated1337MS, LRI 1.47±0.011.53±0.000.95±0.080.62±0.38
Eugenold1343MS, LRI, std 1.66±0.001.49±0.011.23±0.75
Neryl acetate1364MS, LRI, std 0.21±0.010.05±0.000.24±0.01
Geranyl acetate1377MS, LRI, std 0.43±0.000.23±0.010.18±0.00
Methyl eugenold1383MS, LRI, std 5.16±0.013.66±0.014.93±0.246.53±0.24
β-Caryophyllene1404MS, LRI, std 5.34±0.024.48±0.092.85±0.092.56±088
α-Humulene1442MS, LRI, std19.12±5.021.57±0.000.66±0.001.48±0.080.88±0.31
Geranyl isobutyrated1513MS, LRI 0.85±0.030.88±0.010.10±0.01
Caryophyllene oxide1573MS, LRI, std 0.66±0.000.88±0.031.67±0.166.04±0.22
Humulene oxided1599MS, LRI, std 0.84±0.070.92±0.091.29±0.132.00±0.81
Monoterpenes 19.316.832.813.4
Alcohols 4415.130.118.720.9
Esters 2437.227.9124.127.4
Ethers 5.23.74.97.0
Sesquiterpenes 197.66.06.09.5
Oxides 1.61.93.28.0
Identified compounds 8785.483.488.180.2
a Compounds are listed in order of their elution on a HP-5 column; b Linear retention indices as determined on a DB-5MS column using a homologous series of n-alkanes; c Methods of identification: MS, by comparison of the mass spectrum with those of the computer mass libraries; LRI, by comparison of LRI with those from the literature; std, by injection of the authentic sample; d Tentatively identified according of the mass spectrum (MS) and by comparison of LRI with the linear retention time; e Standard deviation.
Table 4. Composition of the berries essential oil of Portuguese myrtle.
Table 4. Composition of the berries essential oil of Portuguese myrtle.
ComponentsaLRIbID MethodcComposition (%)±SDe
SeptemberOctober
Tricyclened911MS, LRI0.02±0.000.05±0.00
α- Thujened919MS, LRI0.023±0.000.04±0.00
α-pinene923MS, LRI, std4.08±0.369.65±0.02
Camphened943MS, LRI0.01±0.000.01±0.00
β-Pinene965MS, LRI, std0.09±0.010.17±0.00
Myrcene992MS, LRI, std0.04±0.020.07±0.01
δ-3-Carened1003MS, LRI0.14±0.010.02±0.01
α-Terpinene1010MS, LRI, std0.01±0.010.13±0.01
p-cymene1020MS, LRI, std0.11±0.010.11±0.00
Limonene+1,8-cineole1025MS, LRI, std21.02±0.8825.28±0.09
o-Cymened1040MS, LRI0.01±0.00
γ-Terpinene1053MS, LRI, std0.21±0.010.16±0.01
Linalool oxide1071MS, LRI, std0.02±0.000.02±0.00
α-Terpinolened1083MS, LRI,0.14±0.010.07±0.01
Linalool1098MS, LRI, std7.50±0.336.56±0.07
Fenchol1102MS, LRI, std0.57±0.040.65±0.03
Trans pinocarveold1130MS, LRI0.13±0.030.17±0.04
Borneol1162MS, LRI, std0.13±0.010.10±0.01
Terpinen-4-ol1171MS, LRI, std0.38±0.020.26±0.00
α-Terpineol1186MS, LRI, std4.81±0.224.01±0.01
Myrtenol1191MS, LRI, std3.11±0.153.24±0.02
Geraniol1255MS, LRI, std1.02±0.060.93±0.00
Borneol acetate1280MS, LRI, std0.02±0.000.06±0.07
Trans pinocarvyl acetated1294MS, LRI0.46±0.390.64±0.00
Myrtenyl acetate1327MS, LRI, std36.48±1.4832.86±0.21
α-Terpenyl acetated1338MS, LRI0.81±0.030.54±0.00
Eugenold1346MS, LRI1.19±0.040.26±0.00
Neryl acetate1369MS, LRI, std0.07±0.010.07±0.00
Geranyl acetated1379MS, LRI, std0.24±0.010.19±0.00
Methyl eugenol1384MS, LRI4.22±0.153.50±0.03
β-Caryophyllene1404MS, LRI, std1.79±0.051.79±0.04
α-Humulene1445MS, LRI, std0.56±0.030.34±0.00
β-Selinened1478MS, LRI0.17±0.010.13±0.00
α-Selinened1487MS, LRI0.18±0.010.12±0.01
Geranyl isobutyrated1513MS, LRI0.35±0.010.319±0.004
Caryophyllene oxide1574MS, LRI, std0.58±0.030.669±0.007
Humulene oxided1601MS, LRI, std0.61±0.030.61±0.03
Monoterpenes 25.935.8
Alcohols 18.816.2
Esters 38.434.7
Ethers 4.23.5
Sesquiterpenes 3.33.0
Oxides 1.21.3
Identified compounds 91.393.9
a Compounds are listed in order of their elution on a HP-5 column; b Linear retention indices as determined on a DB-5MS column using a homologous series of n-alkanes; c Methods of identification: MS, by comparison of the mass spectrum with those of the computer mass libraries; LRI, by comparison of LRI with those from the literature; std, by injection of the authentic sample; d Tentatively identified according of the mass spectrum (MS) and by comparison of LRI with the linear retention time; e Standard deviation.
From Table 2, Table 3, Table 4, and Figure 1, Figure 2, Figure 3 one may conclude that Portuguese myrtle essential oil is characterized by a high content in myrtenyl acetate and limonene + 1.8-cineole as major components. Linalool and α-pinene were also detected in appreciable quantities. All three parts of the plant show the same components, in varying proportions. These results demonstrate that Portuguese myrtle belongs to the first group [12], characterized by the presence of myrtenyl acetate as a major component. Figure 1 shows the variation of the composition of the leaves with the vegetative cycle. Two patterns stand out: a group of major components (α-pinene, limonene+1,8-cineole, α-terpineol, eugenol and methyl eugenol) shows a peak in their values in July (flowering stage), that decreases until October when it peaks again (although not as much as in July). Another group of major components, namely, myrtenyl acetate, myrtenol, linalool and fenchol, reach their peaks in May, and then their quantities started to come down until they reach a minimum in July and go up again in September. This pattern is followed, on the whole, by the branches and fruit compositions (Figure 2 and Figure 3).
Figure 1. Composition of main compounds of leaves essential oil of Portuguese myrtle.
Figure 1. Composition of main compounds of leaves essential oil of Portuguese myrtle.
Molecules 14 03094 g001
The statistical analysis revealed that, for leaves and branches, the compositions are significantly different (p<0.001), when all the results were analyzed by two-factor ANOVA. However, the ANOVA single-factor applied to major components, and for each two months, showed that the results were not significant different at 95% level (p>0.05). Myrtenyl acetate is one of the major components that distinguishes between myrtles of different origin (Table 5). Its presence has been reported in the essential oils from Turkey [6], Croatia [9], Albania [5], Morocco [10], Spain [4], and Portugal (this work). The absence of myrtenyl acetate has been reported in countries or regions such as Tunisia [11,12], Greece [7], Sardinia (Italy) [14], and Corsica (France) [3]. Wannes et al. [15] found a small quantity of this component in the essential oil of myrtle berries collect in Tunisia. A more detailed comparison is difficult to perform since the stage of plant varies among the different studies reported, with only a few [9,12] presenting a study for different development stages of the plant. The plant material in these studies also varies: most works report results in dried plant material, but there is a few that reports the results obtained for fresh plant material [7,9,10,11].

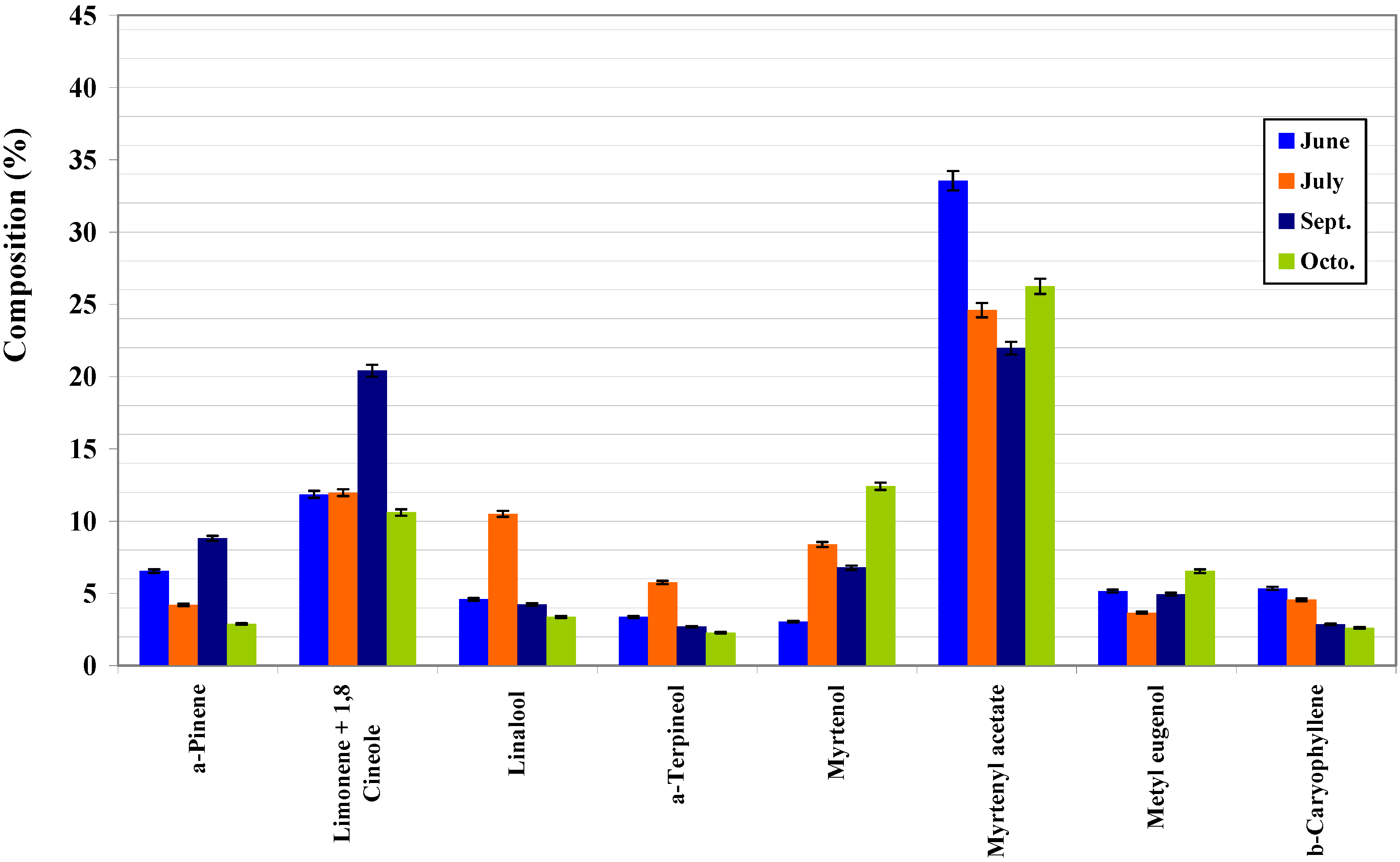

Figure 2. Composition of main compounds of branches essential oil of Portuguese myrtle.
Figure 2. Composition of main compounds of branches essential oil of Portuguese myrtle.
Molecules 14 03094 g002

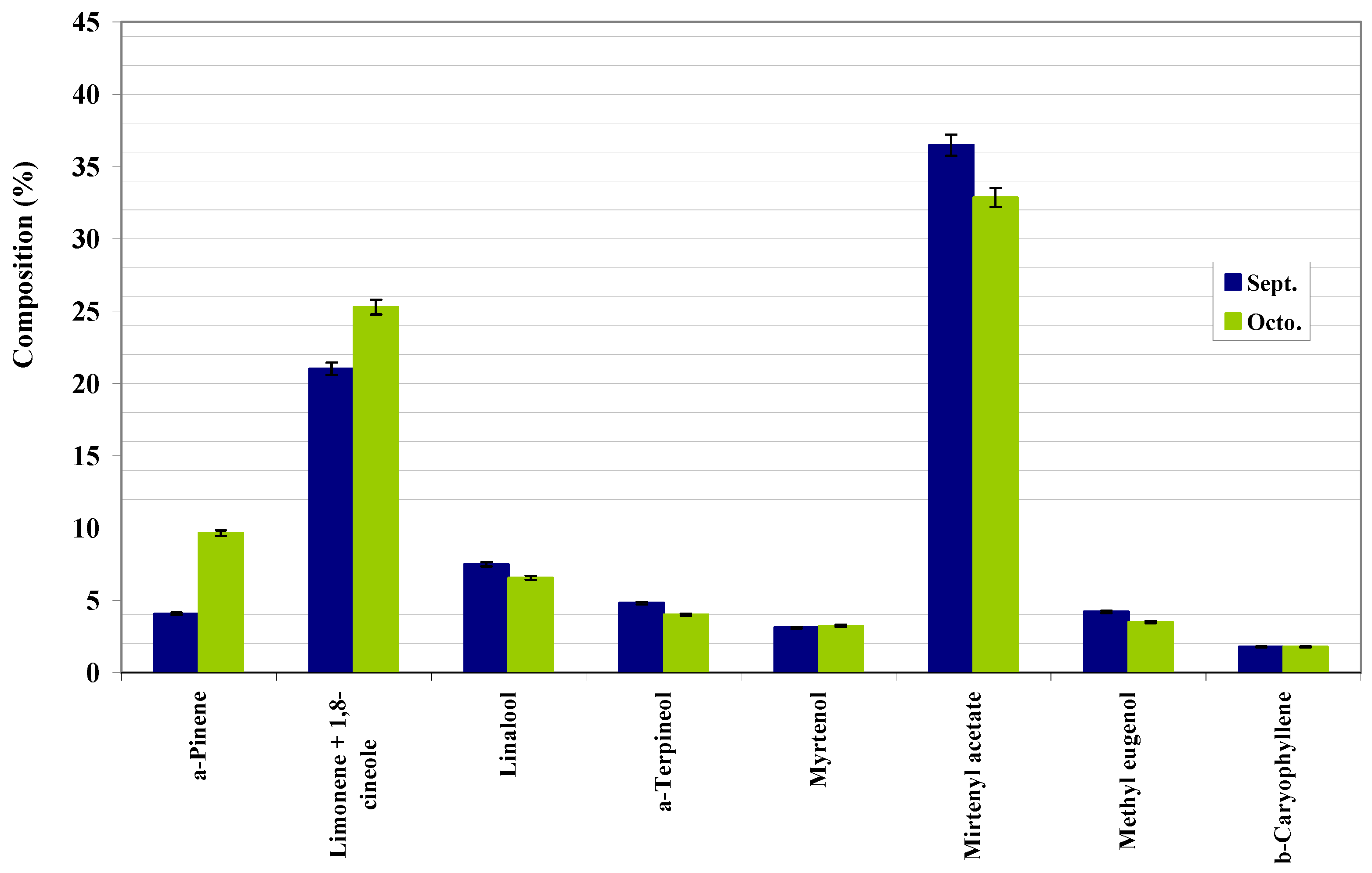

Figure 3. Composition of main compounds of berries essential oil of Portuguese myrtle.
Figure 3. Composition of main compounds of berries essential oil of Portuguese myrtle.
Molecules 14 03094 g003
It should also be noted that, while most of the published works report the extraction of the essential oil from plant materials collected for the purposes of the studies, the Albanian study [5] was carried out on a commercial myrtle oil. In spite of the fact that it is difficult to perform a straightforward comparison between the myrtles of different origins, due to the mentioned use of different experimental conditions, one aspect seems to be noticeable: the presence of myrtenyl acetate seems to be linked with a lower content in α-pinene. Myrtles which lack myrtenyl acetate seem to be richer in α-pinene. It is also interesting to notice that the work reported by Boelens et al. [4], shows that the fruit, unlike the leaf, no longer has myrtenyl acetate in its composition. In this work, myrtenyl acetate was present in all parts of the plant, with the highest content being found in the fruit.
Table 5. Comparison of essential oil composition of Myrtle from different countries/regions.
Table 5. Comparison of essential oil composition of Myrtle from different countries/regions.
MayJuneJulySeptemberSeptemberOctoberOctober
leaves leaves leavesleavesberriesleavesberries
α-pinene1,8-cineole+limoneneMyrtenyl acetateLinaloolα-pinene1,8-cineole+limoneneMyrtenyl acetatelinaloolα-pinene1,8-cineole+limoneneMyrtenyl acetatelinaloolα-pinene1,8-cineole+limoneneMyrtenyl acetatelinaloolα-pinene1,8-cineole+limoneneMyrtenyl acetatelinaloolα-pinene1,8-cineole+limoneneMyrtenyl acetatelinaloolα-pinene1,8-cineole+limoneneMyrtenyl acetatelinalool
Moroccan [10] 10b43.5b25b0.3b
Italy (Sardinia) [14] 50.0d37.0d-0.2d26.4d26.8d-2.0d
Tunisia [12] 45.932.1
Croatia [9]12.217.530.711.66.612.624.910.8818.820.714.716.429.820.818.37.418.4 5.513.215.926.612.612.710.9 4.7
Greece [7]18b21.8bc 1.1b
Turkey [6]6.4b21.6b14.5b16.3b
Albania (Div) [5] 19.432.711.48.79
Albania(Elba) [5] 20.32912.313.4
France (Corsica) [3]57.2a26.4a 1.6a53a23a 2.3a51.3a26.8a 2.5a56.9a22.8a 2.1a 47a26.6a 2.4a
Spain [4] 8.1837.535.90.05
Tunisia[13] 7.241.01.4318.9 7.518.40.263.2
Portugal
(this work)
10.42037.67.616.531.322.27.021.539.57.46.213.132.124.89.34.127.536.515.336.820.87.99.725.96.632.9
a Whole plant; b Fresh leaves; c Only limonene; d November.

3. Experimental

3.1. Plant material

Samples of myrtle were collected from the area of Sintra (central west coast of Portugal ─ latitude: 38° 58’ N; longitude: 9° 21’ W; altitude: 75 m; mean annual temperature: 15 °C; mean annual rainfall: 500 mm). The plant material was collected in May, June, July, September and October 2007, and was identified and deposited in the Herbarium of the Agronomy Superior Institute of the Technical University of Lisbon (code: LISI). The sample number one (May) was composed of leaves and branches; sample number two and three (June and July) were composed of leaves and the flower and branches were ground together; samples four and five (September and October) were composed of leaves, branches and fruits. Twelve individual plants were assessed. Adult and young leaves of all sizes were considered. Plant material was dried during two months out of the sun light, sealed into black bags, and kept at -4 °C.

3.2. Chemicals

α-Pinene, β-pinene, myrcene, α-terpinene, p-cymene, limonene, 1,8-cineole, γ-terpinene, linalool oxide, linalool, fenchol, borneol, terpinen-4-ol, α-terpineol, myrtenol, geraniol, borneol acetate, myrtenyl acetate, neryl acetate, geranyl acetate, β-caryophyllene, α-humulene, caryophyllene oxide, alkane standard solutions (C8-C20) and (C21-C40) were from Aldrich (Germany, UK), Fluka (Switerland) or Extrasynthese (France).

3.3. Oil isolation

The essential oil was obtained from the hydrodistillation of ground dried plant material (100 g) using the well known Clevenger type apparatus [16]. Hydro-distillation was done during different times. In two hours, about 95% was obtained. So, after two hours of Clevenger distillation, the oil was recovered and was stored at -20 °C until analyzed.

3.4. GC-FID analysis

Samples were analyzed in three replicates. The analyses were carried out on a Hewlett-Packard 5890 Series II gas chromatograph equipped with a FID detector (supplied with air and hydrogen of high purity). The capillary column (5% diphenyl, 95% dimethylpolysiloxane) was a HP-5 cross-linked 5% (50 m x 0.32 mm i.d., 0.17 μm film thickness). The injector and detector were operated at 200°C and 250 °C respectively. Split mode was used at a ratio 1:20. The oven temperature was programmed as follows: 60 °C for 10 min, increased to 180 °C at 2 °C/min and held isothermally for 10 min. Nitrogen was used as the carrier gas (P=3 bar). Samples (0.1 μL) were injected with a 1 μL Hamilton micro-syringe. The essential oil samples were injected without dilution.
The components were identified by comparison with the linear retention times of standard components, and by comparison with LRI published in the literature [5,9,12,14,17,18]. The linear retention indices were determined using a homologous series of n-alkanes (C9 to C25). The results were confirmed by GC-MS.

3.5. GC-MS analysis

The analyses were carried out on a trace GC ultra and Trace DSQ – Thermo. The capillary column was a DB-5 (30 m, 0.5 mm i.d.; 0.5 μm film thickness). The injector and the interface were operated at 200 °C and 250 °C respectively. Helium was the carrier gas with a flow rate of 1 mL/min. Split mode was used at a ratio 1:30. MS conditions were as follows: ionization voltage, 70 eV; full rate; mass range 50-420 amu; ion source temperature 260 °C. The oven temperature program was as follows: 60 °C for 10 min, increased at 2 °C/min to 180 °C, increased at 10 °C/min to 200 °C, held isothermally for 30 min and increased at 10 °C/min to 240 °C. The compounds were identified through library search using the Wiley GC/MS Library, Mistdemo and MainLib.

3.6. Statistical analysis

For each sample, data are reported as mean ± standard deviation (n=3). One-way analysis of Variance (ANOVA) was performed on these values to determine whether they differed significantly at a 95% level. All statistical analyses were carried out by using the SPSS, version 14.0 for Windows.

4. Conclusions

Portuguese myrtle essential oils from different parts of the plant were obtained using Clevenger hydrodistillation over the vegetative cycle. Yields vary from 0.33–0.74% for the leaves, 0.02–0.19% for the branches, and 0.11–0.23% for the berries. Portuguese myrtle essential oils are characterized by high content of limonene+1,8-cineole (25.9 (berries)–39.5 (leaves)%), and myrtenyl acetate (6.6% (berries)–24.8% (leaves)) as the major components. α-pinene (9.7% (berries)–21.5% (leaves), and linalool (6.2% (leaves)–36.5% (berries) are also present at high content. All three parts of the plant show the same components, varying in proportions. These results indicate that Portuguese myrtle belongs to the group of myrtles which are characterized by the presence of myrtenyl acetate as one of the major components.

Acknowledgements

Authors thank Laboratório de Análises do Instituto Superior Técnico for the contribution on the GC-MS analyses.

References

  1. Elfellah, M.S.; Akhter, M.H.; Khan, M.T. Antihyperglycaemic effect of an extract of Myrtus communis in Streptozotocin-induced diabetes in mice. J. Ethnopharmacol. 1984, 11, 275–281. [Google Scholar] [CrossRef]
  2. Chalchat, J.; Garry, R.; Michet, A. Essential Oils of Myrtle of the Mediterrenean Litoral. J. Essent. Oil Res. 1998, 10, 613–617. [Google Scholar] [CrossRef]
  3. Bradesi, P.; Tomi, F.; Casanova, J.; Costa, J.; Bernardini, A. Chemical Composition of Myrtle Leaf Essential Oil from Corsica (France). J. Essent. Oil Res. 1997, 9, 283–288. [Google Scholar] [CrossRef]
  4. Boelens, M.; Jimenez, R. The chemical composition of Spanish Myrtle Oils. Part II. J. Essent. Oil Res. 2002, 4, 349–353. [Google Scholar] [CrossRef]
  5. Asllani, U. Chemical Composition of Albanian Myrtle Oil. J. Essent. Oil Res. 2000, 12, 140–142. [Google Scholar] [CrossRef]
  6. Ozek, T.; Demirci, B.; Baser, K. Chemical Composition of Tukish Myrtle Oil. J. Essent. Oil Res. 2000, 12, 541–544. [Google Scholar] [CrossRef]
  7. Koukos, P.K.; Papadopoulou, K.I.; Papagiannopoulos, A.D.; Patiaka, D.T. Chemicals from Greek forestry Biomass: Constituents of the leaf Oil of Myrtus communis L. Grown in Greece. J. Essent. Oil Res. 2001, 13, 245–256. [Google Scholar] [CrossRef]
  8. Gardeli, C.; Papageorgiou, V.; Mallouchos, A.; Theodosis, K.; Komaitis, M. Essential oil composition of Pistacia lentiscus L. and Myrtus communis L.: Evaluation of antioxidant capacity of methanolic extracts. Food Chem. 2008, 107, 1120–1130. [Google Scholar] [CrossRef]
  9. Jerkovic, I.; Radonic, A.; Borcic, I. Comparative Study of Leaf, Fruit and Flower Essential Oil of Croatian Myrtus communis During a One Year Vegetative Cycle. J. Essent. Oil Res. 2002, 14, 266–270. [Google Scholar] [CrossRef]
  10. Farah, A.; Afifi, A.; Fechtal, M.; Chhen, A.; Satrani, B.; Talbi, M.; Chaouch, A. Fractional distillation effect on the chemical composition of Moroccan myrtle essential oils. Flav. Frag. J. 2006, 21, 351–354. [Google Scholar] [CrossRef]
  11. Messaoud, C.; Zaouali, Y.; Salah, A.; Khoudja, M.; Boussaid, M. Myrtus communis in Tunisia: variability of the essential oil composition in natural populations. Flav. Frag. J. 2005, 20, 577–582. [Google Scholar] [CrossRef]
  12. Jamoussi, B.; Romdhane, M.; Abderraba, A.; Hassine, B.; Gadri, A. Effect of harvest time on the yield and composition of Tunisian myrtle oils. Flav. Frag. J. 2005, 20, 274–277. [Google Scholar] [CrossRef]
  13. Wannes, W.A.; Mhamdi, B.; Marzouk, B. Variations in essential oil and fatty acid composition during Myrtus communis var. italica fruit maturation. Food Chem. 2009, 112, 621–626. [Google Scholar] [CrossRef]
  14. Tuberoso, C.; Barra, A.; Angioni, A.; Sarritzu, E.; Pirisi, F. Chemical composition of volatiles in Sardinian Myrtle (Myrtus communis L.) alcoholic extracts and essential oils. J. Agric. Food Chem. 2006, 54, 1420–1426. [Google Scholar] [CrossRef]
  15. Tuberoso, C.I.G.; Melis, M.; Angioni, A.; Pala, M.; Cabras, P. Myrtle hydroalcoholic extracts obtained from different selections of Myrtus communis L. Food Chem. 2007, 101, 806–811. [Google Scholar] [CrossRef]
  16. Rao, B.R.R.; Kaul, P.N.; Syamasundar, K.V.; Ramesh, S. Chemical profiles of primary and secondary essential oils of palmarosa (Cymbopogon martini (Roxb.) Wats var motia Burk). Ind. Crop Prod. 2005, 21, 121–127. [Google Scholar] [CrossRef]
  17. Zellner, B.; Bicchi, C.; Dugo, P.; Rubiolo, P.; Dugo, G.; Mondello, L. Linear retention in gas chromatographic analysis: a review. Flav. Frag. J. 2008, 23, 297–314. [Google Scholar] [CrossRef]
  18. Babushok, V.; Zenkevich, I. Retention Indices for most frequently reported essential Oil Compounds in GC. Chomatographia 2009, 69, 257–269. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are available from the authors.
Back to TopTop
