Hydrometallurgical Treatment of Converter Dust from Secondary Copper Production: A Study of the Lead Cementation from Acetate Solution

Abstract

The subject of interest in this study was lead cementation with zinc from solution after conventional agitate acidic leaching of converter dust from secondary copper production. The kinetics of lead cementation from an acid solution of lead acetate using zinc powder was studied. The optimal cementation conditions for removing lead from the solution were determined to have a stirring intensity of 300 rpm, a zinc particle size distribution <0.125–0.4> mm and an ambient temperature. Under these conditions, an almost 90% efficiency in removing lead from solution was achieved. The cementation precipitate contains Pb, and a certain amount of Cu. Lead is present in the cementation precipitate in the PbO, Pb₅O₈ and Pb(Cu₂O₂) phases. The solution after cementation was also refined from copper. The solution can be used for further processing in order to obtain a marketable Zn-based product. The resulting cementation precipitate can be further processed and modified to obtain a lead-based product. A kinetic study of the process of lead cementation from solution was also carried out. Based on experimental measurements, the value of apparent activation energy (Ea) which was found to be ~18.66 kJ·mol⁻¹, indicates that this process is diffusion controlled in the temperature range 293–333 K.

1. Introduction

After iron and aluminium, copper is the third most-used industrial metal [1]. Due to its excellent properties such as ductility, malleability, conductivity of electricity or heat and corrosion resistance, copper is currently irreplaceable in the field of electronics. Moreover, in recent years there has been worldwide growth in sales of electric cars, which entails increased consumption of copper in this branch as well. In 2020 the production of refined copper reached 20.1 million tons [2,3,4].

Primary copper derived from mining activity is produced mainly (around 84% of total copper production) via the pyrometallurgical route. Alternatively, via the hydrometallurgical route copper is extracted through leaching (solvent extraction) and electrowinning (SX-EW process).

Two of the largest copper producers in 2020 were: Corporación Nacional del Cobre (Codelco), Chile (1,727,000 t Cu) and Glencore, Switzerland (1,258,000 t Cu) [5]. The sole producer of technical grade copper in Slovakia is Kovohuty in Krompachy [6].

Primary copper production consumes much more energy and generates a lot more emissions than the secondary copper recovery processes. Secondary raw materials used for producing copper contain heavy metals such as zinc, tin and lead, which are released from melts in smelting furnaces and converters in the form of dust. The waste from secondary copper production consists of various types of dust: shaft furnace dust, converter dust and anode furnace dust, which are extracted by ventilators and captured in filtering units before they can escape up a chimney. Direct return of these dusts into the copper production process is precluded by their high content of metals such as Zn, Pb, Cd, Sb and Sn. These metals would cause considerable technical problems if the dusts were used in direct processing. They intrude into the production cycle in any case, mostly through the processing of copper scrap from e-waste (discarded electrical and electronic devices) or copper alloys (brasses and bronzes) [7,8,9]. In 2019 the amount of dust generated in secondary copper production in Slovakia totalled 2370.27 t [10]. Copper smelting flue dusts are defined as “hazardous materials” according to the current European Waste Catalogue and Hazardous Waste List (10 06 03 flue-gas dust & 10 06 06 solid wastes from gas treatment). This classification of the dusts is mainly due to their high content of compounds with the presence of arsenic and lead [11,12,13].

The potential for dust recycling lies in its hydrometallurgical processing with the aim of recovering commercial products based on Zn, Pb and Sn [14,15]. From the physical point of view, converter dust from secondary copper production consists of a grey-coloured powder particles with principal components of ZnO, Pb₂OCl₂, PbO and some other metal oxides. The lead contained in converter dust from secondary copper production needs to be removed before any further processing of the dust [16].

The authors of individual articles cited here have dealt with hydrometallurgical processing of various types of metal-bearing waste containing lead, for instance dusts [15,17,18,19], lead paste from batteries [20,21], waste from zinc production [22,23,24] and residual lead in slags [25,26]. In some cases, mechanical preparation of material was required prior to hydrometallurgical processing. Authors used in mechanical treatment of sample the Falcon gravity concentrator and Knelson gravity concentrator [17]. Mechanical pretreatment was also used on the slag where was ground to less than 1 mm and the samples of the copper smelting dust were dried, ground and sieved, which ensured them to have a size of grains less than 200-mesh [27,28]. The samples were air-dried for 30 days, lightly pulverized with agate mortar and pestle, and dry-sieved to obtain sample with particles passing 106 μm fraction and also the sample was dried and pulverized to—100 mesh (150 μm) [24,29]. The basis for each hydrometallurgical process is leaching. It has been established that the degree of porosity in solid particles influences the rate of diffusion, which in turn affects the efficiency of leaching of prepared material [17]. Hydrometallurgical processing of the types of waste in the above-mentioned studies involved the use either of alkali leaching or acid leaching. The leaching of copper dust was provided in solution of 1–4 M NaOH at temperature of 20–80 °C and the solid to liquid ratio 20. The results obtained were confirmed to exclude Pb in the solution; with the highest extraction 60% Pb at 2 M NaOH after 15 min at 80 °C. Zn extraction 58% was achieved at 4 M NaOH in 15 min at 80 °C [19]. Dust was leached with an alkaline solution ((NH₄)₂CO₃ and NH₄OH) to solubilize ZnO and Zn metal where copper, lead, tin and most of the zinc were dissolved in the leach step. Copper, lead and tin were recovered in the cement product [30]. Lead was recovered by cementation from industrial lead sludge solutions of urea acetate using different types of metallic iron [21] and the influence of temperature, sulphuric acid concentration and weight of sample were investigated to recovery zinc and copper from shaft furnace dust [31].

Leaching of lead and zinc from copper shaft furnace dust in NaOH solution is described by following Equations (1)–(3) [19].

$$\mathrm{PbO}+ \mathrm{NaOH}={\mathrm{Na}}^{+}+{\mathrm{HPbO}}_2^{-}$$

(1)

$${\mathrm{PbSO}}_4+2{\mathrm{Na}}^{+}+3{\mathrm{OH}}^{-}={\mathrm{HPbO}}_2^{-}+{\mathrm{Na}}_2{\mathrm{SO}}_4+{ \mathrm{H}}_2\mathrm{O}$$

(2)

$$\mathrm{ZnO}+2\mathrm{NaOH}={\mathrm{ZnO}}_2^{2-}+2{\mathrm{Na}}^{+}+{\mathrm{H}}_2\mathrm{O}$$

(3)

Following Equations (4) and (5) occur simultaneously and describes leaching reaction of oxidised copper and lead from slag produced from flash smelting copper concentrates in citric acid solution [27].

$$\mathrm{CuO}+{ \mathrm{C}}_6{\mathrm{H}}_8{\mathrm{O}}_7={\mathrm{Cu}}^{2+}+{\mathrm{C}}_6{\mathrm{H}}_6{\mathrm{O}}_7^{2-}+{ \mathrm{H}}_2\mathrm{O}$$

(4)

$$\mathrm{PbO}+{\mathrm{C}}_6{\mathrm{H}}_8{\mathrm{O}}_7={\mathrm{Cu}}^{2+}+{\mathrm{C}}_6{\mathrm{H}}_6{\mathrm{O}}_7^{2-}+{\mathrm{H}}_2\mathrm{O}$$

(5)

Leaching efficiency may be increased through the application of intensification methods during the leaching process, such as using oxidizing agents (hydrogen peroxide H₂O₂ [28], ozone O₃ [32]) or microwave radiation [33,34]. The highest efficiency achieved in leaching lead out of dusts in a citric acid medium was 84.67% [27] and in alkali leaching the highest lead extraction (92.84%) was reached after 30 min using microwave energy for leaching EAF dust in NaOH solution [34]. Leaching is followed by extraction processes involving various methods including electrolysis, cementation, removal of compounds with low solubility (precipitation with chemical agents), salts crystallization, ion exchange, liquids extraction or adsorption [7]. One of the extraction methods with very high efficiency of recovering lead from solution is cementation. Cementation is the process of extracting the metals from solution based on the electrochemical reaction between the cementing metal (zinc, iron) and the ion of the precipitated metal (lead). The electrode potential of the displacing metal must be more negative than that of the displaced one. Cementation is a simple and easy method that has been used for centuries in hydrometallurgy. The method is used for purification of leaching solutions and for recovery of valuable metals as well [20,21,22,24,25,35,36,37,38,39,40]. Various factors have been observed influencing the process and efficiency of cementation. In order to achieve high levels of recovery it is necessary to use from two to four times the stoichiometric amount of cementing metal, high temperature (up to 105 °C) or ambient temperature, intensive stirring (110 up to 6000 rpm) or shaking (e.g., 4 cm amplitude, 120 shakes/min frequency). Process thermodynamics are influenced by pH value and redox potential. Modification of pH before cementation can be performed for instance by adding NaOH [41] or H₂SO₄ [37,39,42]. The metals used for cementing in hydrometallurgical processing of waste materials are typically aluminium [22,23,24,25,29,41], zinc [37,39,40,43] and iron [35,36], but in one study the researchers used a copper alloy, namely brass [42]. Cementing with iron presents several advantages: removal of heavy metals, simplicity and high speed of the process, the recovery of metals in the form of pure metal.

The general equation of lead cementation with aluminium is described by the Equation (6) [22].

$$3{\mathrm{Pb}}^{2+}+2\mathrm{Al}=2{\mathrm{Al}}^{3+}+3\mathrm{Pb}$$

(6)

The cementation of lead with aluminium from a chloride medium is described by the Equation (7) [25].

$$3{\mathrm{PbCl}}_2+2\mathrm{Al}=2{\mathrm{AlCl}}_3+3\mathrm{Pb}$$

(7)

The cementation of cadmium and lead by zinc in a sulphate medium is described by Equations (8) and (9) [40].

$${\mathrm{CdSO}}_4+\mathrm{Zn}={\mathrm{ZnSO}}_4+\mathrm{Cd}$$

(8)

$${\mathrm{PbSO}}_4+\mathrm{Zn}={\mathrm{ZnSO}}_4+\mathrm{Pb}$$

(9)

The cementation of copper in the form of CuSO₄ by iron is described by the Equation (10) [36].

$${\mathrm{CuSO}}_4+\mathrm{Fe}={\mathrm{FeSO}}_4+\mathrm{Cu}$$

(10)

The most negative standard potential of those three metals has aluminium, but its impact on process kinetics has been observed [22]. Many studies have focused on the application of various metals in copper cementation, and the consensus seems to be that zinc is a more efficient cementer than aluminium or iron. Although aluminium has lower redox potential than zinc, the protective oxidation layer which forms on the surface of aluminium during cementation slows the process down, thus reducing the amount of target metal recovered [37,39,44]. On the other hand, this passivation layer may be removed by controlling the acidity of the surrounding solution [41]. The selection of cementer metal also depends on the processed material, and if the waste does not contain the given metal, then cementation would lead to contamination and reduced quality of the prepared material. For example, aluminium, zinc or iron can be used for cementation of silver or lead from salt solution, but it has been established that the cementation process runs more slowly with zinc and iron, whereas with aluminium it proceeds faster. Thus, aluminium has been found to be an efficient as well as accessible cementer, and, moreover, less of it is consumed in the process compared with the other two metals [25,29]. The influence of amount and surface morphology of the cementer metal has been observed with regard to the process and result of lead extraction, and the optimal form was found to be powder with micropores [21]. Cementation efficiency is also affected by the presence of specific ions in the solution. For example, cementation of copper using iron proceeded faster in sulphate electrolyte, whereas in iodate solutions the process did not function at all [35]. Regarding results of cementation, almost 100% extraction has been achieved with lead [20,22,29,39,40], copper [36,37,39,42] and iron [37]. Studies of process kinetics have found that in the cementation of copper using zinc [37], lead using aluminium [22] and lead using iron [38], diffusion-controlled phases occurred within certain temperature intervals (22 to 50 °C [37], 50 to 70 °C [22] and 25 to 80 °C [38]). Cementation of lead using aluminium is highly sensitive to temperature change between 40–50 °C, and in this case the process is controlled by the speed of chemical reaction itself [22]. Generally speaking, lead is cemented not only in the form Pb⁰, but also PbO [23,24]. In lead cementation moreover, several metals may pass into the precipitate together; for example, in cementing lead using aluminium the precipitate was found to contain aluminium, iron and zinc as well [22]. After processing waste material from zinc production using two-stage leaching in NaOH followed by cementation using powdered zinc, the resulting product contained more than 99% Pb, but silver was also found concentrated within it [23]. The kinetics of cementation processes is generally described as a reaction of the first order, and the step determining the speed of the process is the diffusion-controlled cathode reaction [38,43]. Cementation of copper using zinc is a first-order reaction, and it proceeds with subsequent surface reaction and diffusion-controlled phases [44]. Cementation of copper using aluminium is a first-order reaction as well, and the step determining its speed is the diffusion phase [41].

The insights presented in this theoretical section were applied in the following experimental investigations. The leaching medium used for leaching converter dusts was an acetic acid solution, it was found more effective for metal recovery from the dust. The extraction method selected for extracting lead was cementation, and zinc in metal powder form was used as the cementer. Zinc was chosen as the optimal cementer, since it is contained in the solution after the acid leaching of dusts. The following parameters were monitored for their impact on the speed of the lead cementation process: temperature of the medium, stirring rate and cementer particle size. The aim was to establish the optimal conditions for lead cementation in order to achieve the highest efficiency. The lead was cemented out in the precipitate, and a purified solution was acquired containing zinc for further processing.

2. Materials and Methods

In these experiments we used a representative sample of converter dust from secondary copper production. The chemical composition of the dust (see

Table 1. Chemical analysis of converter dust.

Element	Pb	Zn	Fe	Cu	Ca	Si
Content (wt.%)	9.33	29.90	0.52	7.05	0.23	<LoD 1

¹ Note: LoD, limit of detection.

) was determined using the atomic absorption spectrometry (AAS) method and a Varian Spectrophotometer AA20+ device (Varian, Belrose, Australia). The contents of zinc 29.9 wt.% and lead 9.33 wt.% made them the principal representatives among the metals in the dust.

Figure 1 presents the distribution of particle sizes in the converter dust. The graphic shows that the particle distribution was bimodal. The predominant portion of the dust occupied the particle size range below 10 μm. Small particle size is in fact advantageous in hydrometallurgical processing. The average unit weight of converter dust is 3.4165 g·cm⁻³ with a standard deviation of 0.0071 g·cm⁻³ [8].

The morphology of the particles under 100× magnifications using a Dino-Lite ProAM4113T optical stereo microscope (AnMo Electronics Corporation, Hsinch, Taiwan) is presented in Figure 2a. The sample was composed of two fractions: coarse and fine spherical grains, and the larger-size grains were covered in the smaller ones. X-ray diffraction phase analysis (XRD) (PANanalytical, Malvern, UK) produced results shown in Figure 2b, and it was found that zinc was present in the dust in the form of zincite (ZnO). Lead was found in the dust in the mainly form of oxides. Results of leachability testing indicated that this converter dust should be stored only in a hazardous waste dump [8]. Figure 2c,d document the results of SEM and EDX analyses of particles in the dust sample. The EDX analysis shows that the elements predominately represented were Zn, O, Pb, Cu and Cl.

Our thermodynamic calculations applying Van’t Hoff’s reaction isobar indicated that chemical reactions (11) and (12) had the highest probability of successful course. Figure 3a,b shows the potential–pH diagrams (Pourbaix diagrams) for the systems Pb-C-H₂O and Zn-C-H₂O at 298 K, and it can be seen that lead appears in ion form (Pb²⁺) in the zone of water stability around 298 K at pH 0 to 2 and 0.0 V to 1.3 V, and in a narrower zone at pH 0 to 4.8 and 0.0 V to 0.2 V. Zinc also appears in ion form (Zn²⁺) in the water stability zone at temperature 298 K, pH value 0 to 3.4 and 0 V to 1.2V, and in a narrower zone at pH 3.4 to 5.6 and 0 to 0.2 V. PbO dissolves chemically in acetic acid according to Equation (11).

$$2{\mathrm{CH}}_3{\mathrm{COOH}}_{\left(\mathrm{a}\right)}+\mathrm{PbO}=\mathrm{Pb}{{\left({\mathrm{CH}}_3\mathrm{COO}\right)}_2}_{\left(\mathrm{a}\right)}+{\mathrm{H}}_2{\mathrm{O}\mathsf{\Delta }\mathrm{G}}_{293\mathrm{K}}^0=-19 \mathrm{kJ}·{\mathrm{mol}}^{-1}$$

(11)

$$2{\mathrm{CH}}_3{\mathrm{COOH}}_{\left(\mathrm{a}\right)}+\mathrm{ZnO}=\mathrm{Zn}{{\left({\mathrm{CH}}_3\mathrm{COO}\right)}_2}_{\left(\mathrm{a}\right)}+{\mathrm{H}}_2{\mathrm{O}\mathsf{\Delta }\mathrm{G}}_{293\mathrm{K}}^0=-17.5 \mathrm{kJ}·{\mathrm{mol}}^{-1}$$

(12)

For ZnO the dissolution zones in the E-pH diagram apply between 0 and 5.7 pH. The aim of leaching was to transfer lead into the solution under optimal conditions, and from the thermodynamic point of view it may be stated that oxides of Pb and Zn will dissolve chemically at temperature 298 K in an acid medium. It is not necessary to raise the temperature further.

In the first phase of the experiments, we carried out leaching of the converter dust in an acetic acid solution under ambient temperature conditions (293 K). The stirring rate was set on the electric stirrer at 400 rpm. Acidity of the medium was measured during the experiments with a hand-held pH meter. We started by pouring 500 mL 0.4 M solution of acetic acid (C₂H₄O₂) into a glass vessel, and then added a weighed amount of 12.5 g of converter dust, producing a liquid/solid phase ratio of 40:1. At the following time intervals: 5, 10, 15, 30 and 60 min, we drew off 5 mL samples of the solution for chemical analysis to determine the Pb and Zn contents using the atomic absorption spectrometry (AAS) method on a Varian Spectrophotometer AA20+ type device. At the end of the leaching the resulting sediment was recovered by filtering, and subsequently another 10 mL sample of the solution was taken for final chemical analysis to determine Pb, Zn, Cu and Fe contents by means of AAS method. The solid remnant from filtration was rinsed with 200 mL distilled water, and then dried and weighed. The remaining solution obtained from the leaching process was later re-used in the second phase of our experiments for studying lead cementation. The results of our analyses are summarized in Table 3 (a). During cementation on zinc of lead and copper obtained from leaching in acid solution, the following Equations take place (13) and (14):

$${\mathrm{Zn}}_{\left(\mathrm{s}\right)}+\mathrm{Pb}{{\left({\mathrm{CH}}_3{\mathrm{CO}}_2\right)}_2}_{\left(\mathrm{aq}\right)}=\mathrm{Zn}{{\left({\mathrm{CH}}_3\mathrm{COO}\right)}_2}_{\left(\mathrm{aq}\right)}{\mathrm{Pb}}_{\left(\mathrm{s}\right)}{ \mathsf{\Delta }\mathrm{G}}_{293\mathrm{K}}^0=-143.155 \mathrm{kJ}·{\mathrm{mol}}^{-1}$$

(13)

$${\mathrm{Zn}}_{\left(\mathrm{s}\right)}\mathrm{Cu}{{\left({\mathrm{CH}}_3{\mathrm{CO}}_2\right)}_2}_{\left(\mathrm{aq}\right)}=\mathrm{Zn}{{\left({\mathrm{CH}}_3\mathrm{COO}\right)}_2}_{\left(\mathrm{aq}\right)}+{\mathrm{Cu}}_{\left(\mathrm{s}\right)}{ \mathsf{\Delta }\mathrm{G}}_{293\mathrm{K}}^0=-211.878 \mathrm{kJ}·{\mathrm{mol}}^{-1}$$

(14)

The electrode potential of redox vapour Zn²⁺/Zn⁰ is less than that of redox vapours Pb²⁺/Pb⁰ (15) and Cu²⁺/Cu⁰ (16), which is in fact a condition for lead and copper cementation using zinc.

$${\mathrm{E}}_{{\mathrm{Zn}}^{2+}/{\mathrm{Zn}}^0}^0<{\mathrm{E}}_{{\mathrm{Pb}}^{2+}/{\mathrm{Pb}}^0}^0-0.763 \mathrm{V}<-0.126 \mathrm{V}$$

(15)

$${\mathrm{E}}_{{\mathrm{Zn}}^{2+}/{\mathrm{Zn}}^0}^0<{\mathrm{E}}_{{\mathrm{Cu}}^{2+}/{\mathrm{Cu}}^0}^0-0.763 \mathrm{V}<+0.337 \mathrm{V}$$

(16)

The thermodynamic conditions for cementation of lead and copper using powder zinc in the temperature range 293 to 353 K are described in Equations (13) and (14) presented in

Table 2. Thermodynamic conditions for cementing lead and copper using powder zinc.

${\mathrm{Zn}}_{\left(\mathrm{s}\right)}+\mathrm{Pb}{{\left({\mathrm{CH}}_3{\mathrm{CO}}_2\right)}_2}_{\left(\mathrm{aq}\right)}=\mathrm{Zn}{{\left({\mathrm{CH}}_3\mathrm{COO}\right)}_2}_{\left(\mathrm{aq}\right)}+{\mathrm{Pb}}_{\left(\mathrm{s}\right)}$
T (K)	ΔG (kJ)
293	−143.155
313	−142.094
333	−141.950
353	−142.578
${\mathrm{Zn}}_{\left(\mathrm{s}\right)}+\mathrm{Cu}{{\left({\mathrm{CH}}_3{\mathrm{CO}}_2\right)}_2}_{\left(\mathrm{aq}\right)}=\mathrm{Zn}{{\left({\mathrm{CH}}_3\mathrm{COO}\right)}_2}_{\left(\mathrm{aq}\right)}+{\mathrm{Cu}}_{\left(\mathrm{s}\right)}$
T (K)	ΔG (kJ)
293	−211.878
313	−212.397
333	−212.903
353	−213.399

.

In our cementation experiments we focused on investigating the influence of stirring intensity (100, 300 and 400 rpm), solution temperature (293, 313, 333 and 353 K) and cementer particle size on the speed of lead cementation. We used powder zinc as cementer with two particle size distribution: <0.125–0.4> mm and <0.08–0.125> mm. For the purposes of comparing the influence of particulate cementer. We also performed an experiment using a zinc-coated plate with dimensions (20 mm × 35 mm × 1 mm). The cementation procedure was as follows. First, we poured 100 mL of solution resulting from leaching into a glass vessel. Then, we added a stoichiometrically-calculated amount of 0.3 g Zn⁰(s) in powder form, representing the excess of the calculated amount of zinc over the amount of lead determined in the solution after leaching. We drew off 5 mL samples for measuring Pb and Cu contents after 5, 10, 15, 30 and 60 min of cementation, or after 0, 5, 10, 15 30 min, if the cementation procedure lasted only 30 min. Once cementation was completed, the precipitate formed in the solution was recovered by filtering, and then dried, and a representative sample was taken for subsequent analysis. The results were processed using standard mathematical and statistical methods with the aid of generally available computer software: Microsoft Office Excel 2007, (Microsoft Corporation, Redmond, WA, USA), and SigmaPlot 10.0 (Systat Software, Erkrath, Germany). The converter dust and the resulting cementation precipitate were analyzed using combinations of these methods: X-ray diffraction phase analysis (XRD) PANanalytical, Malvern, UK), scanning electron microscopy (SEM) (TESCAN, Brno, Czech Republic) and energy-dispersive X-ray analysis (EDX) (Oxford Instruments, Oxford, UK). A MIRA3 FE-SEM scanning electron microscope (TESCAN, USA) was used for investigating particle morphology. EDX provided semi-quantitative element analysis. For qualitative phase analysis we used an X-PANalytical X’Pert PRO MRD (Co-Kα) diffractometer (PANanalytical, Malvern, UK). Particle morphology was examined under 100 × magnifications with a Dino-Lite ProAM413T optical stereo microscope device (AnMo Electronics Corporation, Hsinch, Taiwan).

3. Results and Discussion

3.1. Influence of Stirring Intensity

Experiments started by studying the influence of this variable, maintaining the temperature of the cementation solution containing powder zinc at 293 K. It has been tried three different stirring rates in separate experiments, namely 100, 300 and 400 revolutions per min (rpm). The solution obtained after converter dust leaching by acetic acid was analyzed using the AAS method. The solution contained 1.570 g·dm⁻³ Pb and 8.756 g·dm⁻³ Zn. The dependence on time of lead concentration in the solution is shown in Figure 4a, while Figure 4b presents a graphical comparison of lead concentrations after 30 min of cementation using powder zinc when the three different stirring rates were applied.

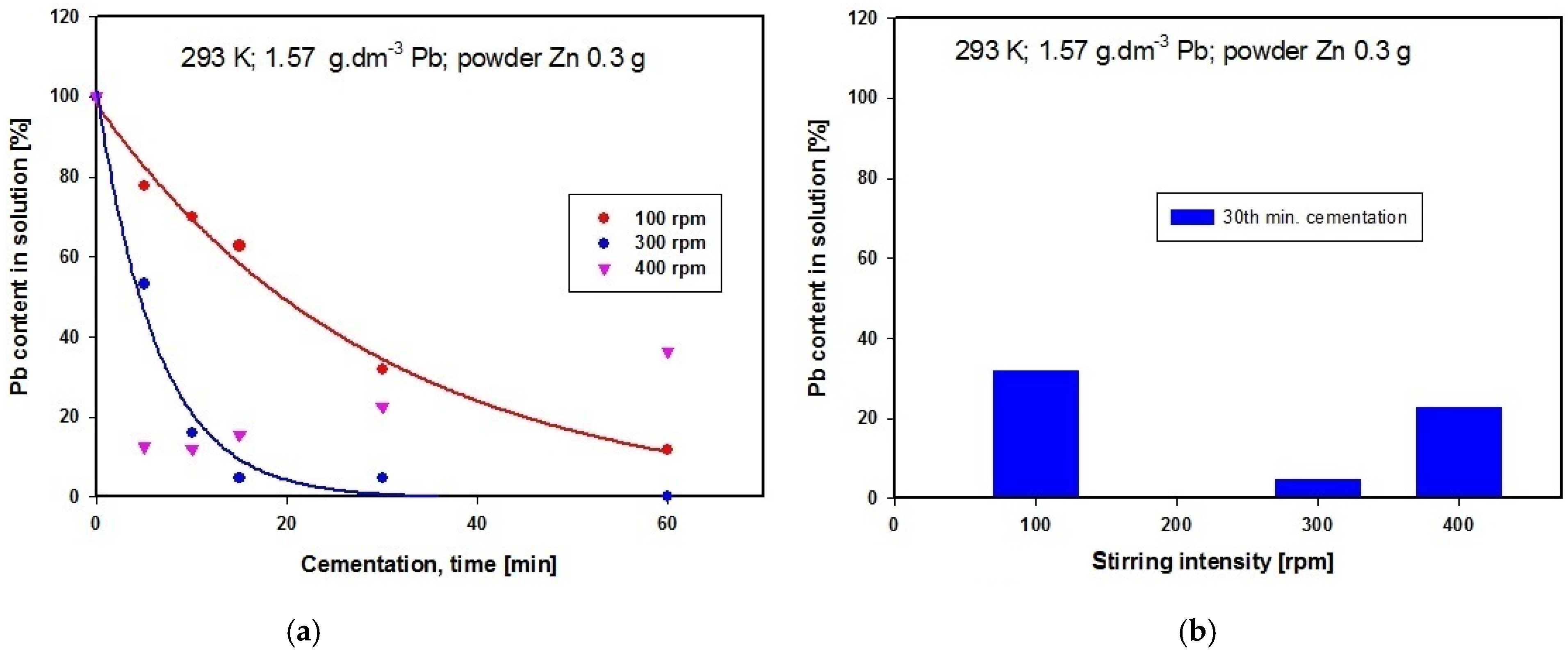

The graph in Figure 4a suggests that the optimal stirring rate for obtaining the lowest lead concentration in the solution is 300 rpm, given a cementation period of 30 min, and this is confirmed by the results of comparison of the three different stirring rates presented in Figure 4b. The zinc content in the solution after cementation using powder zinc remained unchanged. At the higher stirring rate of 400 rpm, retroactive leaching of lead was observed, while lower revolutions produced lower lead concentration in the final medium. Optimal stirring speed ensured removal of layers of metal deposits (Pb and Cu) from the surface of the cementer (Zn), thus enabling constant contact between the solution (Pb(CH₃CO₂)_2(aq); Cu(CH₃COO)_2(aq)) and cementer (Zn_(s)). Our further experiments were therefore carried out using the optimal stirring intensity of 300 rpm.

3.2. Influence of Temperature

The influence of temperature was investigated at a constant stirring rate of 300 rpm stirring rate. The initial solution volume was 100 mL, to which we added 0.3 g of powder zinc. Total duration of each experiment was maintained at 30 min. After the end of cementation, a 10 mL sample of solution was drawn off for determination of Pb, Zn and Cu contents. Individual experiments were performed at temperatures of 293 K, 313 K, 333 K and 353 K. Figure 5a is a graphical representation of the influence of temperature on lead content in the solution expressed in percentages, and Figure 5b shows the results of comparing lead concentration after five minutes of cementation at temperatures 293, 313, 333 and 353 K. The graph in Figure 5c shows the changes in concentrations of Pb, Zn and Cu in the solution during cementation using zinc at 293 K. A graphical comparison of cementation efficiency for lead and copper at 293 K is given in Figure 5d, where the efficiency for Cu is seen to be 100%, while that for Pb is 87.13. The reaction occurring during cementation of Cu using Zn (Equation (14)) has more negative value for Gibbs energy than the reaction during cementation of Pb using Zn (Equation (13)) within the temperature range applied in these experiments 293–353 K. It follows from this that cementation of Cu on Zn is more likely to happen than cementation of Pb on Zn, and this is the reason why the efficiency of Cu cementation is higher than that for Pb (see also Figure 5d below).

The morphology of cementation precipitate particles under 100 × magnification using a Dino-Lite ProAM413T optical stereomicroscope is presented in Figure 6a. The image clearly shows the variety of shapes and sizes of particles ranging from 1 to 1.5 mm. XRD analysis (see image in Figure 6b revealed that lead was contained in the precipitate in phases PbO, Pb₅O₈ and Pb (Cu₂O₂), and copper in the forms Cu, Cu(OH)₂ and Cu₄Zn.

Figure 6c,d presents the results of SEM and EDX examinations of particles in the analysed sample of cementation precipitate. It follows from our EDX analysis that Cu, Pb and Zn were present in the precipitate, predominantly Cu (≈33.8 wt.%) and Pb (≈16.89 wt.%). The precipitate also contained unreacted zinc (≈5.25 wt.%).

Table 3. Chemical analysis of solution (a) before and (b) after cementation.

	Concentration [g/L]	Pb	Zn	Fe	Cu
(a)	Before cementation	1.5706	8.756	0.0104	1.7138
(b)	After cementation	0.0012	10.28	<LoD 1	0.005

¹ Note: <LoD² below limit of detection.

(b) summarizes the results of the chemical analysis of the solution after the cementation process using powder zinc. This analysis demonstrates that the cementation succeeded in removing Cu as well as Pb from the solution. The increased amount of Zn in the solution after cementation was caused by the presence of more than the stoichiometric amount of zinc used as the cementer.

3.3. Influence of Zinc Surface Dimensions

The influence of powder zinc particle size was investigated under ambient temperature conditions (293 K) and stirring rate 300 rpm. For cementation we used weighed amounts of 0.3 g powder zinc with two particle size distribution, namely <0.125–0.4> mm and <0.08–0.125> mm. In both cases the initial and final pH values were the same at 4.2 and 4.4, respectively. We also tried using a zinc-coated plate (20 mm × 35 mm × 1 mm) as cementer under the same experimental conditions as for powder zinc, apart from the stirring rate, which was set at 50 rpm. If more intensive stirring had been applied, excessive swirling would have occurred in the solution, which would not have been conducive to cementation or to the successful technical course of the experiment. The zinc plate was degreased with ethanol and rinsed with distilled water prior to the experiment. A 20 mm length of the plate was submerged in the solution. This form of cementation using a zinc plate proceeded rapidly, and within the first minute a layer of black cementation precipitate started covering the plate. The thickness of the precipitate layer increased with time, and later it began peeling off the plate. After 20 min we observed red particles appearing in the precipitate, which we assumed to be cemented out copper. The graph in Figure 7a shows the influence of powder Zn particle size on the concentration of lead in the solution during cementation at constant temperature 293 K. The most suitable of the particle sizes investigated appeared to be that with distribution <0.125–0.4> mm. After 30 min of cementation using powder zinc with this particle size, the Pb concentration in the solution reached its lowest value compared with the other particle size investigated. The steeper gradient of the curve for cementation using powder zinc with particle size distribution <0.125–0.4> mm compared with the curve produced by using the zinc plate indicates a higher rate of Pb cementation. Figure 7b presents a graphical comparison of the efficiency of Pb cementation after five minutes of cementation using powder zinc with different particle sizes at constant temperature 293 K. The highest efficiency after five minutes of cementation was achieved using powder zinc with particle size <0.08–0.125> mm. At this time point we also measured the lowest Pb concentration in the solution using powder zinc with particle size <0.08–0.125> mm, whereas after 15 min the Pb concentration in the solution was increased. This was probably caused by the zinc particles tending to cluster together (at around 10 min), so that later (at around 15 min) some retro-leaching of the lead started.

3.4. Investigation of Kinetics of Lead Cementation Process in Acid Medium

The average chemical reaction rate (13) and in ion form (15) is expressed through Relation (17),

$${\mathrm{Zn}}_{\left(\mathrm{s}\right)}+\mathrm{Pb}{{\left({\mathrm{CH}}_3{\mathrm{CO}}_2\right)}_2}_{\left(\mathrm{aq}\right)}=\mathrm{Zn}{{\left({\mathrm{CH}}_3\mathrm{COO}\right)}_2}_{\left(\mathrm{aq}\right)}+{\mathrm{Pb}}_{\left(\mathrm{s}\right)}\mathsf{\Delta }\mathrm{G}{293}_{\mathrm{K}}=-143.155 \mathrm{kJ}$$

(17)

$${\mathrm{Zn}}^0+{\mathrm{Pb}}^{2+}={\mathrm{Zn}}^{2+}+{\mathrm{Pb}}^0$$

(18)

$$\mathrm{v}=-\frac{{\mathsf{\Delta }\mathrm{c}}_{{\mathrm{Pb}}^{2+}}}{\mathsf{\Delta }\mathrm{t}}\left[\mathrm{mol}·{\mathrm{dm}}^{-3}·{\mathrm{s}}^{-1}\right]$$

(19)

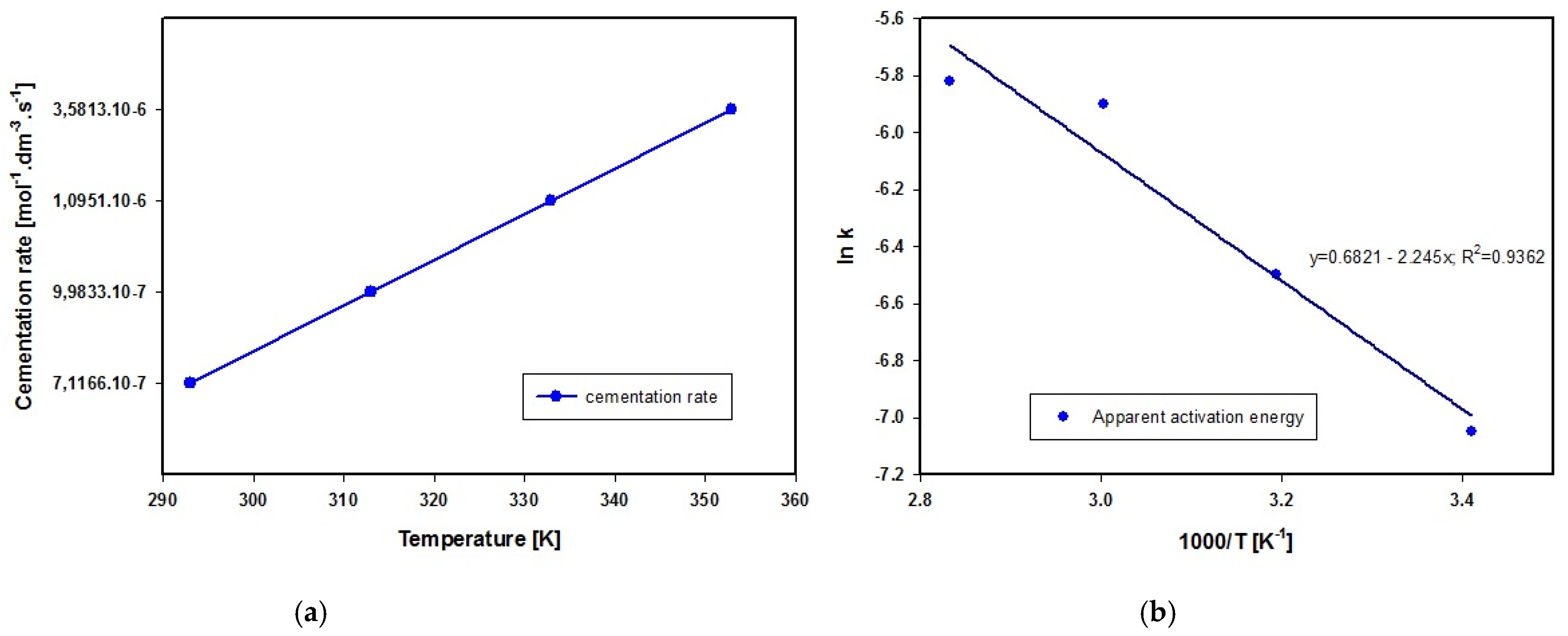

whereby a negative value represents the change in concentration of lead-based ions over time. The calculated values of chemical reaction rate are given in Figure 8a.

Applying Arrhenius’ equation in logarithmic form (17),

$$\mathrm{lnk}=\mathrm{lnA}-\frac{{\mathrm{E}}_{\mathrm{a}}}{\mathrm{RT}}$$

(20)

where k = rate constant, A = frequency factor, T = temperature in Kelvin (K) and R = universal gas constant, we calculated the value of apparent activation energy as E_a = 18.66 kJ·mol⁻¹, which according to Zelikman et al., 1983 [45] indicates that the process of lead cementation in acetic acid solution proceeds in the diffusion zone in the temperature interval from 293 to 333 K. The course of linear dependence lnk on 1000/T presented in Figure 8b suggests similarly that the mechanism of lead cementation does not change within the temperature interval used here. The apparent activation energy E_a determined using the linear regression method and Equation (20) is given in Figure 8b.

4. Conclusions

Secondary copper production using the pyrometallurgical route generates dust. Due to its heavy metals content and the fineness of its particles, this dust may represent a threat to the environment and to human health, so it is categorized as hazardous waste. According to the results of leachability testing in line with European standard EN 12457-1: 2002 [46], such dust may be stored only in hazardous waste dumps. On the other hand, because of its not inconsiderable non-ferrous metals content, such dust can be seen as a valuable secondary raw material. Research into dust processing currently focuses on use of the hydrometallurgical route for metals recovery.

This study focused on the experimental investigation of lead removal from acid solution after leaching of converter dust. The first step involved leaching of the dust in an acetic acid medium under ambient temperature conditions. Subsequently the process of lead cementation using zinc was studied, the aim of cementation being to remove the lead from the solution. The variables investigated for their influence on the efficiency of the cementation process were temperature of the medium, intensity of stirring and particle size of the powder zinc cementer. The kinetics of the process of lead cementation using powder zinc in acid medium was also studied. The main results of this experimental study are as follows:

(1) The highest efficiency of lead removal from the solution was achieved at ambient temperature (293 K) with stirring rate 300 rpm and zinc particle size <0.08–0.125> mm after five minutes. Under these conditions almost 90% efficiency of lead removal from the solution was achieved. The cementation precipitate was found to contain copper as well as lead, which means that copper was also removed from the solution. Lead was represented in the precipitate in the phases PbO, Pb₅O₈ and Pb(Cu₂O₂). Figure 9 presents suggested flowsheet for lead convert dust recycle process.

(2) Experimental measurements revealed the value of apparent activation energy as E_a = 18.66 kJ·mol⁻¹, indicating that the process of lead cementation in acetic acid solution proceeds in the diffusion zone in the temperature interval from 293 to 333 K. The course of linear dependence lnk on 1000/T suggests similarly that the mechanism of lead cementation does not change within the temperature interval used here. We established that stirring rate has greater impact on the chemical reaction rate than solution temperature.
