Ammoides pusilla Essential Oil: A Potent Inhibitor of the Growth of Fusarium avenaceum and Its Enniatin Production

by
Yasmine Chakroun
1,2,
Souheib Oueslati
2,
Vessela Atanasova
1,
Florence Richard-Forget
1,
Manef Abderrabba
2 and
Jean-Michel Savoie
1,*
1
UR1264 Mycology and Food Safety Research Unit (MycSA), INRAE, F-33882 Villenave d’Ornon, France
2
Laboratory Molecules, Material and Applications (LMMA), Preparatory Institute of Scientific and Technical Studies of Tunis (IPEST), University of Carthage, Sidi Bou Said road, La Marsa B.P. 51 2070, Tunisia
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(22), 6906; https://doi.org/10.3390/molecules26226906
Submission received: 18 October 2021 / Revised: 9 November 2021 / Accepted: 11 November 2021 / Published: 16 November 2021
(This article belongs to the Section Food Chemistry)
Browse Figures
Versions Notes

Abstract

:
Enniatins are mycotoxins produced by Fusarium species contaminating cereals and various agricultural commodities. The co-occurrence of these mycotoxins in large quantities with other mycotoxins such as trichothecenes and the possible synergies in toxicity could lead to serious food safety problems. Using the agar dilution method, Ammoides pusilla was selected among eight Tunisian plants for the antifungal potential of its essential oil (EO) on Fusarium avenaceum mycelial growth and its production of enniatins. Two EO batches were produced and analyzed by GC/MS-MS. Their activities were measured using both contact assays and fumigant tests (estimated IC50 were 0.1 µL·mL−1 and 7.6 µL·L−1, respectively). The A. pusilla EOs and their volatiles inhibited the germination of spores and the mycelial growth, showing a fungistatic but not fungicidal activity. The accumulation of enniatins was also significantly reduced (estimated IC50 were 0.05 µL·mL−1 for the contact assays and 4.2 µL·L−1 for the fumigation assays). The most active batch of EO was richer in thymol, the main volatile compound found. Thymol used as fumigant showed a potent fungistatic activity but not a significant antimycotoxigenic activity. Overall, our data demonstrated the bioactivity of A. pusilla EO and its high potential to control F. avenaceum and its enniatins production in agricultural commodities.

1. Introduction

Global food safety and sufficiency are facing increasing threats due to climate changes and the consequences on crop production yield, distribution and exposure to pests and diseases [1], to demography growth (United Nations, s.d.) and biodiversity decreases [2]. One of the major hazards that have been threatening food safety during the last decades is mycotoxins contamination [3]. Indeed, mycotoxins are poisonous secondary metabolites with a low molecular weight (0.3–0.7 kDa) and high bioaccumulation ability [4] produced by several filamentous fungal genera such as Aspergillus, Penicillium, Alternaria and Fusarium [5,6]. The contamination of crops by these fungi causes an important economic loss and the contamination by their mycotoxins is an important hazard on the animal and human health [7]. Zearalenone (ZEA), type B trichothecenes including deoxynivalenol (DON), nivalenol (NIV) and their acetylated derivatives, ochratoxin A and aflatoxins have been proven to have immunosuppressive, carcinogenic, teratogenic, mutagenic impacts on both animals and humans [5,6,7].
Strict measures were implemented to face this hazard worldwide. WHO and FAO have regulated the allowed amount of several of these toxins in multiple food matrixes [8]. Locally, multiple countries have adopted several laws and norms that regulate these occurrences such as EU legislation (EC No 1881/2006) in Europe [9,10]. Furthermore, an increase in the occurrence of “emergent mycotoxins” was recorded worldwide in the last decade. The term includes mycotoxins that are neither routinely monitored nor subjected to regulation [11]. Enniatins (ENNs) are a main group of emergent mycotoxins produced by several Fusarium species such as F. avenaceum, F. tricinctum, F. acuminatum that have been detected in various foodstuffs in large amounts [6,11]. Up to now, no evidence of an acute mycotoxicosis has been reported but the increasing frequency of the occurrence of ENNs detected, their bioaccumulation ability and their possible toxicological synergy with other mycotoxins could lead to serious food security concerns. [6,11].
Different strategies are set in place to reduce the Fusarium spp. and mycotoxins contamination in the corps worldwide going from the application of different chemical synthetized fungicides to soil tilling and to crop rotation [12]. However, several studies have demonstrated the limits of these strategies because of the deterioration of soil quality and the resistance of the pathogens to the traditional treatments [13]. Face to the global ecological context, the consumer’s awareness has increased, and its alimentation habits had become more natural and bio-oriented [13]. Moreover, the negative effects of chemically-synthetized fungicides on the environment had been proven. Thus, the development of more ecofriendly alternatives has become a major priority. One of the important lines of research is the investigation of the fungicidal potential of essential oils. The use of plant essential oils (EOs) for the elaboration of ecofriendly plant preservatives has various advantages: relatively high volatility, ephemeral biodegradable nature, and consumer tolerance [14]. They are extracted from more than 17,000 aromatic plants belonging to angiosperm families: Lamiaceae, Rutaceae, Myrtaceae, Zingiberaceae and Asteraceae [14], and they have multiple antibacterial, antifungal, antiviral, antiparasitical, insecticidal, medicinal and cosmetic applications [15]. At least 16 different publications [16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31] presented data on EOs antifungal activities from 35 plants against F. avenaceum (Table 1). All the authors used either agar diffusion methods (paper discs or wells), or an agar dilution method. Only one recent paper reported a method for testing the effects of the volatile components [16]. In the application of EOs for controlling the phytopathogens, the bioactivity of volatiles should widely contribute to the fungicidal or fungistatic effect and it is worthy to measure it. However, none of the published work reported the consequences of EO treatments on the production of ENNs by F. avenaceum.
Thymol is a component of many essential oils, and it has been shown to be a promising chemosensitizing agent for various pathogenic and opportunistic fungi. It synergistically enhanced the ability of fungicidal formulations intended to inhibit the fungal growth [32] or of citronella and garlic EOs containing monoterpenes and phenols to inhibit Penicillium corylophilum [33].
The aim of the present work was to select new EOs having both antifungal and antimycotoxigenic properties. The effect of eight essential oils extracted from Tunisian aromatic plants was evaluated on F. avenaceum and its enniatins production. Ammoides pusilla EO of thymol chemotype was selected and studied for its composition and activity of its volatiles. Thymol was efficient to limit the growth of F. avenaceum but did not inhibit the production of ENNs. Ammoides pusilla EO proved to have the potential to control F. avenaceum and its production of ENNs.

2. Results

2.1. Effect of Eight EOs on Mycelial Growth and Production of Enniatins by F. avenaceum

EOs were produced by hydrodistillation of aerial parts from eight Tunisian plants. The extraction yields varied according to the plant species from 0.45 to 2.5% (Table 2).
Whatever the considered EO, supplementation of FDM-Agar medium with 0.1 µL·mL−1 led to a significant inhibition of F. avenaceum mycelial growth (Figure 1A) The inhibition percentages ranged between 14.1% and 92.4%. Two EOs, AP2 and TC, were proved as particularly efficient, with inhibition percentages of 68.1% and 92.4% respectively.
The F. avenaceum strain INRA 496 used throughout this study produced enniatin B and B1 but not enniatin A and A1. This production expressed as µg per cm2 of the mycelial colony was inhibited by most of the tested EOs at 0.1 µL·ml−1 (Figure 1B). MS and TC were the less efficient EOs with an inhibition percentage of 60.4% and 55.1% (ENB + ENB1), respectively. An induction of the production of ENB1 was observed with TC.
Based on its extraction yield higher than the mean of the other EOs we produced, its significant antifungal activity and its high inhibition of ENN production, A. pusilla EO was selected for a more in-depth study on its potential to control F. avenaceum and its production of mycotoxins.

2.2. Chemical Composition of A. pusilla EO

Two different batches of A. pusilla were used to produce EOs; the extraction yields for AP1 and AP2 were 1.60% and 1.64% respectively. Their chemical compositions are reported in Table 3. The main identified components were thymol, γ-terpinene, p-cymene and thymol-methyl-ether. They represented 34.70, 27.03, 19.89, 9.18% in AP1 and 53.55, 16.82, 14.59, 8.07% in AP2, respectively. AP2 was more concentrated in oxygenated monoterpenes with thymol accounting for half of the components whereas thymol accounted only for a third in AP1.

2.3. Effect of A. pusilla EOs on Mycelial Growth and Production of Enniatins by F. avenaceum

2.3.1. In Vitro Contact Assays in Agar Media

Linear growth indexes were calculated from mycelial areas measured daily for 7 days with different dilutions of AP1 in FDM-agar medium (Table 4). No growth was observed with concentrations equal or higher than 0.75 µL·mL−1 of AP1 EO, and an index close to 0 at 0.5 µL·mL−1 was determined. The minimum inhibitory concentration (MIC), defined as the lowest concentration of the EO which completely prevented visible fungal growth, was estimated to be nearly 0.5 µL·mL−1. At this concentration, a 99.2% inhibition of fungal growth was observed after 7 days of incubation. Using a linear regression of the data in Table 4, excluding 0.75 and 1 µL·mL−1 (R2 = 0.92), the concentration leading to 50% growth inhibition (IC50) was calculated to be 0.23 µL·mL−1. The accumulation of ENNs per unit of mycelial area was inhibited by 65, 76 and 100% at AP1 concentrations of 0.1, 0.25 and 0.5 µL·mL−1, respectively. Using a linear regression (R2 = 0.91), IC50 of ENNs accumulation was estimated equal to 0.12 µL·mL−1.
When considering AP2, MIC and IC50 calculated for 10-day old cultures were 0.25 µL·mL−1 and 0.10 µL·mL−1 (R2 = 0.99) respectively. A 92% reduction of ENN accumulation was induced by a concentration of 0.15 µL·mL−1 of AP2 while this inhibition percentage was 57% at 0.05 µL·mL−1. Using a linear regression (R2 = 0.99), IC50 for the reduction of ENN accumulation was estimated to be 0.048 µL·mL−1. Altogether, the previous data support the high inhibitory efficiency of A. pusilla EO, AP2 being more than 2-fold more effective than AP1.

2.3.2. Effect of Volatiles Components

Fumigation assays have evidenced significant antifungal effects of the volatiles contained in AP EOs. Increasing quantities of EO led to slow-down of fungal growth kinetics, due to increased lag phases and decreased of linear growth indexes. In control conditions, the maximum area (full invasion of the plates) was reached after 10 days of incubation. With 16.7 µL·L−1 of EO diffusing in a closed jar, an important fungal growth reduction was observed up to 17 days. After 38 days, the mycelium reached the border of the plates (Figure 2).
Linear growth index until 24 days and inhibition percentages calculated at day 10 are presented in Table 5. The IC50 value determined using a linear regression was 7.58 µL·L−1. Volatile compounds were also shown to induce a significant inhibition of ENN accumulation (Table 5). Using a linear regression (R2 = 0.97), IC50 of ENN accumulation was estimated to be 4.2 µL·L−1.
The behavior of the mycelial growth over a long exposure was assessed with a second assay using two concentrations of EO (16.66 and 33.3 µL·L−1) for 28 days (Figure 3A). The inhibition recorded at day 21 with 16.7 µL·L−1 (68%) was not different from the value recorded at day 24 in the previous assay (Figure 2) whereas a non-significant inhibition (10%) was recorded at day 28. Using the highest quantity of EO (33.3 µL·L−1), 98% of mycelial growth was still inhibited at day 28.
After this first 28 day-long exposure time to EO volatile components (16.7 or 33.3 µL EO L−1), either plugs or spores were collected and used for inoculation of new plates placed either under the same conditions as the controls without EO (second culture-control) or in the presence of the volatiles in the same quantity of EO than in the first culture (second culture-EO). The second culture-control recovered their ability to grow, with a low remaining inhibition effect for the exposure to volatiles from 33.3 µL EO L−1, whatever plugs or spore suspensions were used as inoculum (Figure 3D,E). In the case of the second culture-EO, the inhibitory effects were improved (Figure 4B,C). At 28 days, during the second exposure at 16.7 µL EO L−1 for 28 days, the mycelial surface was 83% lesser than in the first exposure.

2.4. Effect of A. pusilla EO on the Sporulation and Spore Germination of F. avenaceum

As shown in Figure 4, the ratio of germinated spores after contact of F. avenaceum for 24 h with 0.05 or 0.075 µL A. pusilla EO L−1 decreased significantly compared to controls. On the opposite side, the exposure to the EO increased spore production (Figure 4).

2.5. Antifungal and Antimycotoxigenic Activity of Thymol on F. avenaceum

As thymol was shown to be the main component of A. pusilla EO, we tested its biological activity against F. avenaceum. When diluted in the agar medium, a significant inhibition (25%) of the mycelial growth was observed at the lowest concentration tested, 7 µg·mL−1. This inhibition did not increase with higher concentrations (Figure 5A). When thymol was used as a fumigant (Figure 5C), a dose-dependent activity was observed. Both with in vitro contact assay and fumigation assay, stimulation of ENNs production was observed in several samples but none of the decreases in concentrations due to treatment was significant (Figure 5B,D).

3. Discussion

In order to find an EO with a high potential for inhibiting both the mycelial growth and ENN production by F. avenaceum, eight different Tunisian aromatic plants were collected and their EOs were produced by hydrodistillation. All EOs were efficient for limiting the mycelial growth with different levels of antifungal activity. EOs of four of the species had been previously tested for their antifungal activity against F. avenaceum: C. carvi, M. spicata, O. vulgare, T. capitatus [16,17,22,25,30]. Due to the different ways in which the antifungal activities were measured and reported in the different previous works (see Table 1), it was difficult to compare the efficiency of the EOs. Carum carvi EO was one of the two most effective among the 6 commercial EOs tested by Paškevičius et al. [17] whereas a low activity was observed here. For O. vulgaris EO, the previous work reported MICs of 0.08 to 0.25 µL·mL−1 [16,25] and 77% inhibition of the mycelial growth at 0.5 mg·mL−1 [22]. In the same study T. capitatus EO inhibited up to 90% of the mycelial growth [22]. In the present study with a lower concentration (0.1 µL·mL−1) the T. capitatus EO had the highest antifungal activity (92% inhibition).
To the best of our knowledge, this article shows for the first time the antifungal activity against F. avenaceum of EOs extracted from A. absintum, M. communis, S. terbentofonius and A. pusilla. In a recent overview of the published studies on the antifungal properties of EOs, these four species were not listed [34]. Ammoides pusilla EO was the second-best EO for inhibiting mycelial growth and is a candidate, along with T. capitatus EO, for the control of F. avenaceum in cereals.
Mycotoxin production was suspected to be part of the adaptive response of fungi to stressful conditions such as an exposure to antifungal compounds [35,36]. It was commonly observed with molecules, such as phenolic acids, active on both fungal growth and mycotoxin production by Fusarium species that the fungal response is strain and concentration-dependent. For instance, ferulic acid can either activate the production of Fusarium mycotoxins at low concentrations or inhibit them at higher concentrations [37,38,39]. No correlation between antifungal and antimycotoxigenic effects was also observed with some EOs. In maize samples inoculated with F. graminearum, treatment with Fennel EO greatly reduced the fungal biomass (81%) as assessed by the amount of ergosterol in the grains, while no more than a 7% decrease in ZEA concentration was found [40]. This suggested an induction of ZEA production in the remaining mycelium in very unsuitable growth conditions. To select effective EOs, the antimycotoxigenic activities or at least the absence of risk of induction of the production of mycotoxins under certain conditions must also be studied. It is interesting to note that all EOs tested in the present work significantly inhibited the production of ENNs by F. avenaceum. These activities had not been reported before. Both EOs from T capitatus and M. spicata were less efficient. Consequently, A. pusilla EO appeared as the best candidate to control F. avenaceum and its ENNs production.
Ammoides pusilla (Brot.) Breistr. is a halophilic annual herbaceous Apiaceae, that is found widely in arid and semi-arid Mediterranean regions and is used as a traditional medicine [41]. The extraction yield of EOs and their composition depended on the plant part used, the extraction method, the plant stage of development, the harvesting season and the geographical origin. Eight plants of A. pusilla from eight Algerian localities showed that flower parts gave higher percentages of extraction by hydrodistillation than leaf parts [42]. Oxygenated monoterpenes were the main components of the A. pusilla EOs, except for the EO extracted from leaves originated from Ain Kihal and the EO extracted from the flower part originated from Fehoul [43]. In a previous study, the same authors found 57% of oxygenated terpenes in aerial part EO [39]. A significant antioxidant activity of A. pusilla EO has been attributed to their high content in phenolic terpenes, especially thymol [41,42].
In the present study A. pusilla plants were collected fresh in Tunisia at the flowering stage and air-dried (AP1) or purchased as dry material on a market (AP2). The yields of EO extraction agreed with a previous work reporting that aerial parts of Tunisian A. pusilla yielded 1.6% EO by hydrodistillation and leaves and flowers were more productive (2.7%) [43]. The composition of the two EOs we obtained differed. Oxygenated terpenes were dominant (66.6%) in AP2 as in [41] whereas monoterpene hydrocarbons dominated (48.8%) in AP1. The composition of AP1 was close to that of the EO studied by Souhaiel et al. [43] in which the main components for the aerial parts were thymol (33.0%), γ-terpinene (28.2%), p-cymene (15.3%) and thymol-methyl-ether (8.9%). The difference in composition between AP1 and AP2 is a new example of variation in composition with the batch of plants used for EO extraction. However, both EOs were of the thymol chemotype, as in most published compositions of A. pusilla EOs, although in rare studies thymol was not the main component [41].
The difference in EOs’ chemical composition may affect their antifungal activity. Using dilutions of EOs in an agar medium, the MIC and the IC50 of AP2 were two times lower than those of AP1. Thymol was the main component of the EOs accounting for 53.6% and 34.7% of volatile components in AP2 and AP1 respectively. This result led us to propose that the higher activity of AP2 was due to its higher concentration in thymol. This phenol is known to have strong antifungal activities on twelve different strains of mycotoxigenic fungi, belonging to different species and involved in several plant diseases [44]. We observed it was active also against F. avenaceum, both in agar dilution assay or as a fumigant. Its hydrophobicity allows it to accumulate in the lipids of the cell membranes reacting with cell proteins and finally drastically affecting the membrane integrity [45]. Thymol functions also as a redox-active compound, inducing generation of reactive oxygen species and lipid peroxidation in fungal cells [46] and inhibiting genes involved in cell membranes synthesis [47]. In this way, it acts as a chemosensitizing agent for various pathogenic and opportunistic fungi [32,33]. Thus, the richness of A. pusilla EO in thymol acting in synergy with other components may be at the origin of its antifungal potential.
No negative effect of A. pusilla EO was observed on the sporulation rate of F. avenaceum, in contrast to the 100% inhibition recorded with a thyme EO of thymol chemotype diluted at 0.04 µL·mL−1 [25] and the significant effect of thymol on F. verticillioides [48]
We measured the antifungal activity of the A. pusilla EO against F. avenaceum after inoculation of an agar medium with spore suspensions placed at the center of the Petri dishes. The inhibitions we measured finally resulted from both negative effects on the germination of spores and decreases in the mycelial growth rates. We measured that Ammoides pusilla EO diluted at 0.05 µL EO mL−1 inhibited 71% of conidia germination. It was previously reported that thymol was effective against Fusarium spp conidia germination. For instance, 0.25 mg ml−1 inhibited 100% of germination of Fusarium oxysporum f. sp. dianthiafter conidia after contact for 24 h [49], and 1 mM inhibited 81% germination of F. verticillioides conidia after contact for 12 h [48]. Furthermore, volatiles of commercial EOs of cinnamon, citronella, clove, lemongrass, oregano, thyme inhibited the sporulation of F. avenaceum at rates ranging from 71 to 100% [16]. Among the tested commercial EOs, an oregano EO of carvacrol chemotype was the least efficient and a thyme of linalool chemotype was the most potent one [16].
Actually, testing the effect of volatile compounds identifies indirect activity of EOs as opposed to direct contact in the agar dilution methods in which non-volatile components may contribute to the overall antifungal effect [15]. Surprisingly, the bioactivity of EO volatiles on F. avenaceum had been tested in only one recent paper (Table 1). In this study, 10 µL of pure EO was added to an inverted Petri dish [16], which resulted in higher concentrations of volatiles than in the present work where 3 to 33 µL EO L−1 air were used. In addition, the colony diameters were measured after 10 days while incubations lasted 24–28 days in our study. Consequently, we did not observe the fungicidal effect reported for all the EOs tested by Parikh et al. [16], but only fungistatic effects. Furthermore, EO concentrations leading to 100% inhibition during the first two weeks did not block but only slowed down the mycelial growth with a longer exposure (38 days). This may be attributed to the decrease in concentrations of active compounds over time due to EO degradation that was responsible for the loss of inhibition activity. EOs are known to be sensitive to conversion and degradation reactions modulated by temperature, light, and oxygen availability [24,50]. These effects on mycelial growth tended to disappear after transfer of both mycelium and spores to fresh agar medium under fresh air without EO vapors, but they were amplified when the transfer was made under conditions where volatiles from a new EO application were provided. There were no residual properties of EO and maintaining exposure to concentrations of EO volatiles having a fungistatic effect would be a prerequisite from the use of A pusilla EO to control F. avenaceum.
Clearly, it is important to ensure that any antifungal compound used to control F. avenaceum provides no significant induction of ENN production when applied at doses below the lowest concentration inhibiting 100% of mycelial growth. Thymol and other redox-active compounds inducing oxidative stress were reported to activate the biosynthesis of trichothecenes production in some Fusarium species [35,51]. However, in other studies treatment of fungal cultures by thymol did not boost DON and ZEA production and did not up-regulate key toxin biosynthetic genes in F. culmorum, at the concentration used [32]. Overall, treatments having both antifungal and antimycotoxigenic effects are expected when searching for a potent EO. This was the case here with A. pusilla EO. In contact assays, the IC50 for ENN accumulation was half the IC50 for mycelial growth. The volatiles compounds from two amounts of EOs inhibiting 22 and 73% of the mycelial growth and decreased the concentration of ENNs by 67 and 80%, respectively. Hydroxycinnamic acids were shown to interfere with both the growth of F. avenaceum and its production of ENNs [52]. However, in certain situations, a significant reduction in ENNs yield and a drastic transcriptional down-regulation of two genes involved in ENNs biosynthesis were observed while F. avenaceum growth was not or weakly affected, corroborating the occurrence of a regulatory mechanism that specifically targeted the production of ENNs [52]. With A. pusilla EO also, the antifungal and antimycotoxigenic activities could be partly the results of independent regulation mechanisms that need to be elucidated. Nothing is known regarding the effect of oxidative stress on the production of ENNs, but as proposed for ferulic acid [52], the capacity of the EO to alleviate oxidative stress [38,39] could explain its inhibiting activity on ENNs production.
This first investigation on the antimycotoxigenic effect of A. pusilla EO had shown that this EO could be used to decrease the accumulation of ENNs by F avenaceum in cereals, ensuring improved food security for this sector.

4. Materials and Methods

4.1. Plant Material and EOs

Ammoides pusilla (AP2), Thymus capitatus (TC), Carum carvi (CC), Origanum vulgare (OVEO), Myrtus communis (MC), Artemisia absintum (AA) were purchased from a local medicinal plant market in Tunisia at a dry state of the plant aerial parts. Mentha spicata aerial part (MS), Schinus terbenthifolius fruits and leaves (ST) and a second lot of Ammoides pusilla, aerial parts at the flowering stage (AP1) were gathered by LMMA laboratory members, air-dried under dark conditions. The samples were stored under dry and dark conditions before extraction of EOs. EOs extracted from these plant batches had previously been tested for their potential bioactivities [43,53].
All the essential oils were extracted through hydrodistillation using a conventional glass Clevenger-type apparatus. Anhydrous sodium sulfate (Na2SO4) was added to the extracted oils to eliminate eventual residual water. The extraction yield was measured as the percentage of oil weight based on the dry plant material weight, following the equation: EY = EOW/DMW × 100 where EY: extraction yield, EOW: essential oil weight, DMW: dry plant material weight. The essential oils were stored at 4 °C until being used.

4.2. Fusarium Strain and Media

The strain of F. avenaceum I496 used throughout this study has been isolated from maize in France, in 2007, and stored in the fungal collection of the French National Research Institute for Agriculture, Food and Environment (INRAE/MycSA collection). A stock culture maintained at 4 °C on potato dextrose agar (PDA) slants under mineral oil was sub-cultivated on PDA medium in 55 mm Petri dishes and kept at 4 °C until being used in the different tests.
When inoculum was required, F. avenaceum was grown on PDA plates for 3–5 days at 25 °C, and conidia suspensions (106 conidia mL−1) were prepared as in Gautier et al. [52].
Assays on growth inhibition and production of mycotoxins were performed on FDM-Agar medium in Petri dishes (diameter 90 mm) supplemented with EOs and inoculated at the center with 10 µL of conidia suspension or alternatively with an agar plug from a previous culture on FDM-Agar. FDM is a synthetic medium promoting the production of ENNs by F. avenaceum [54]. The EOs were diluted in ethanol and added to the FDM-agar culture medium cooled to 55 °C (still liquid) after autoclaving, stirred for 5 min and poured into 9 cm diameter Petri dishes, 10 mL per plate. Controls with diluting solvent were prepared.

4.3. Agar Dilution Assays

4.3.1. Comparison of Eight EOs

The EOs were diluted at 0.1 µL·mL−1 FDM-Agar medium and the plates were inoculated with conidia suspensions. The plates containing the different essential oils and the control were put in different hermetically sealed preservation jars with an internal volume of 1.5 L and incubated at 25 °C for 10 days. Mycelial growth was assessed at day 5 and day 10 after inoculation by measuring the area covered by the mycelial colony on the plates using pictures analyzed with the ImageJ software. The inhibition rates were calculated by comparisons with controls without EO. Three plates were measured at each incubation time for each EO. Immediately after taking the picture, the plates were stored at −20 °C before extraction and qualification of ENNs.

4.3.2. Activity of A. pusilla EO on F. avenaceum in Contact Assay

The MIC (Minimum Inhibitory Concentration) is defined as the minimum concentration that inhibits 100% of the mycelial growth and the IC50 as the concentration that inhibits 50% of the mycelial growth. Two different extractions of A. pusilla EO were used: AP1 and AP2. AP2 was diluted in the FDM-Agar medium at 0 (control), 0.05, 0.1, 0.15, 0.2, 0.25 and 0.5 µL·mL−1 and AP1 dilutions were 0, 0.1, 0.25, 0.5, 0.75, 1, 2 and 5 µL·mL−1. Each treatment was triplicated and each set of triplicates was incubated in different hermetically closed jars at 25 °C for 10 days. Pictures of the plates were taken every 2 days and the areas covered by the mycelial colonies measured. The growth index of F. avenaceum at each concentration was calculated as in Krzyśko-Łupicka et al. [55]: T = A/D + b1/d1 + … + bx/dx, where: T= index of linear growth; A = average measurement value of mycelial surfaces (cm2); D = duration of the experiment; b1 … bx = mycelial surfaces (cm2); d1 … dx = number of days since last measurement. Straight linear regression equations defining the relationship between the decimal logarithms of EO concentrations and the growth index or the mycelial area at the end of the experiment (10 days) were used to calculate the IC50. On day 10, the plates were conserved at −20 °C until their use for ENNs analysis of ENNs.

4.4. Effect of Volatile Compounds of A. pusilla EO on F. avenaceum

The evaluation of the effect of the volatile compounds of A. pusilla EO was performed in fumigation assays by the exposure of F. avenaceum to a set of concentration of the AP2: 0 (control), 3.33, 6.66, 10 and 16.66 µL EO mL−1 of air volume.
Petri dishes (90 mm) were marked with two perpendicular length scales. For each concentration, sets of three dishes were filled with 10 mL of FDM-agar medium and inoculated at the center part with 104 spores of F. avenaceum. The dishes without lids were put into preservation jars (3 dishes in each) of 1.5 L. One cm2 of sterile filter paper was put in the center of open 55-mm Petri dishes. The appropriate amounts of the EO were deposited onto the filter papers, one Petri dish was put into each jar, and the jars were hermetically closed. The jars were incubated at 25 °C for 10 or 24 days. The mycelial growth was evaluated at 6, 10, 17 and 24 d of incubation thanks to the length rules without destruction of the dishes nor disturbing the incubation in jars. The mycotoxins were extracted in the culture medium of 3 dishes from a jar per concentration after incubation for 10 and 24 days.
In order to evaluate the persistence of the effect of a first treatment by the volatile compounds of AP2 EO, two concentrations having high activities were selected: 16.67 and 33.33 µL·L−1 air. Each treatment and control without EO were triplicated. The jars were incubated at 25 °C for 28 days and the mycelial growth was measured every week as above until 28 days of incubation at 25 °C. On day 28, either plugs (diameter 0.5 cm) or spores were collected from the mycelial colonies. Either a mycelial plug or 104 spores were reinoculated on new Petri dishes with FDM-agar culture medium. The Petri dishes with FDM-Agar culture medium inoculated with spores or plugs originating from the first exposure at 16.67 or 33.33 µL·L−1 were incubated at 25 °C for 28 days in presence of 16.67 or 33.33 µL L−1 AP2 EO respectively, and in absence of EO. The Petri dishes with FDM-agar culture medium inoculated with spores or plugs originating from the first control without EO were incubated without EO.

4.5. Effect A. pusilla EO on Production and Germination of Conidia by F. avenaceum

To study the effect of A. pusilla EO on conidia production and their ability to germinate, suspensions of F. avenaceum conidia were prepared as in 4.2 and used to inoculate CMC liquid medium. The cultures were incubated for 3 days at 25 °C, and EO was added at two concentrations, 0.05 µL and 0.075 µL EO mL−1. In the control, 2% of ethanol was added. After incubation for 24 h, the cultures were thoroughly mixed and three aliquots of suspension were filtered and collected. The number of total conidia in 10 µL of suspension was recorded under a microscope. The conidia suspensions were incubated for 24 h at 25 °C in liquid FDM medium and 10 µL were observed under a microscope to record the percentage of germinated conidia.

4.6. Effect of Thymol on F. avenaceum

Pure thymol, 5-methyl-2-isopropylphenol (Sigma-Aldrich, Saint-Quentin-Fallavier, France) was used both in agar dilution assays and in fumigation as for the EO. Conidia suspensions were inoculated, and incubation set for 10 days at 25 °C. In the agar dilutions assays, the concentrations used were 7, 14, 21, 28, 34, 43 µg mL−1. In the fumigation assays, they were 0.84, 1.67, 2.5, 3.34, 4.17, 5 mg L−1.

4.7. Chemical Composition of A. pusilla EO

Gas chromatography-mass spectrometry (GC–MS) analysis of EOs was performed on an Agilent 7890 gas chromatograph, coupled to an Agilent 5975C mass spectrometer with electron impact ionization (70 eV) (Agilent Technologies, Santa Clara, CA, USA), using an HP-5 column (30 m × 0.25 mm, film thickness 0.25 μm). The operating conditions for gas chromatography analysis were as follows: the detector temperature 280 °C; the injector temperature 210 °C; the oven temperature program varied from 180 °C (1 min) to 200 °C (15 min) then from 220 °C (3 min) to 300 °C (10 min). Carrier gas was H2 (0.9 mL min−1); split ratio of 1:100 and a linear velocity of 36.45 cm s−1 was used as carrier gas and mass spectral range was recorded from m/z 50–550 amu. The injected volume was 1 μL of 1% EO solution in hexane (Purity ≥ 97%) (Merck, Darmstadt, Germany). The identities of the EO components were established by comparison of their MS spectra with those reported in literature and by computer matching with the Wiely mass spectra library (Eleventh Edition/NIST 2009).

4.8. Extraction and Quantification of Enniatins

The content of a Petri dish (agar medium plus mycelium) was sliced and placed in 35 mL of ethyl acetate (VWR, Fontenay-Sous-Bois, France) for 15 min at room temperature with agitation at 250 rpm. After filtration on n°4 filter paper, 5 mL were evaporated to dryness at 45 °C under nitrogen flow. The dried samples were dissolved in 200 µL of methanol/water (1:1, v/v) and filtered on 0.2 µm filters before analysis. Quantification of ENNs was performed on a Shimadzu Prominence UPLC chain, equipped with two pumps LC-30 AD, a degasser DGU-20A5R, an auto sampler SIL-30 AC and a DAD detector SPD-M20A (Shimadzu Scientific Instruments, Noisiel, France). Separation of 5 µL of extract was achieved on a Kinetex 2,6U XB-C18—100 Å column (150 × 4.6 mm; 2.6 µm) (Phenomenex, Le Pecq, France) maintained at 45 °C. An elution gradient of acetonitrile in water was used with a constant flow at 1.4 mL min−1: 30% acetonitrile for 2.5 min, 30–99% acetonitrile in 5 min, 99% acetonitrile for 3.5 min, and 2.5 min post-run equilibration with 30% acetonitrile. LC-grade methanol and acetonitrile were purchased from VWR (Fontenay-Sous-Bois, France). Absorbance spectra were recorded from 190 to 450 nm and peak areas were measured at 205 nm. External calibration with standard solutions of A, A1, B and B1 enniatins (Sigma-Aldrich, Saint-Quentin-Fallavier, France), allowed quantifications between 1 and 100 µg·mL−1. The limit of quantification was 1 µg·mL−1.

4.9. Statistical Analyses

Results were given as mean values ± standard deviation of three biological replications. Mycelial growth parameters and ENNs concentrations were subjected to ANOVA and differences between treatments were tested with Duncan’s multiple range test. Student test (comparing the result of each condition with its respective control was used for the sporulation capacity and rate of spore germination. All the statistical analysis was performed using SAS Software (Statistical Analysis System, version 9, Cary, NC, USA). p values < 0.05 were regarded as significant.

5. Conclusions

The present study evidenced for the first time the capacity of essential oils and their volatile parts to efficiently reduce the production of ENNs by a F. avenaceum strain, in addition to fungistatic activities. The data obtained with A. pusilla EO and pure thymol confirmed the contribution of thymol to the efficiency of the EO, but not to the EO capacity to reduce the production of ENNs. This supports the interest of EOs in their complexity for environmentally friendly treatments to control mycotoxigenic and plant pathogen fungi. To provide lasting effects, it would be interesting to develop formulae protecting the EOs from alterations and favoring a progressive release within the environment of the targeted fungi. Confirming the activity of A. pusilla EO on a diversity of F. avenaceum strains and other Fusarium species producing ENNs would be necessary before proposing the practical use of this natural production for controlling ENNs in cereal-derived products.

Author Contributions

Funding acquisition, M.A. and J.-M.S.; Investigation, Y.C.; Methodology, Y.C., V.A. and J.-M.S.; Supervision, S.O., F.R.-F., M.A. and J.-M.S.; Writing—original draft, Y.C. and J.-M.S.; Writing—review & editing, S.O., V.A., F.R.-F. and M.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the PHC-Utique program, project CMCU 18G0913/Campus France 39198RK.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data associated to the data presented in this study are available on request from the corresponding author.

Acknowledgments

We thank Selim Jallouli from the Laboratory of Bioactive Substances, Biotechnology center of Borj Cédria (Tunisia) for helping in the GC/MS analysis of the essential oils.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Fungal strains, samples of plant material and tested EOs are available from authors.

References

  1. Medina, A.; Akbar, A.; Baazeem, A.; Rodriguez, A.; Magan, N. Climate change, food security and mycotoxins: Do we know enough? Fungal Biol. Rev. 2017, 31, 143–154. [Google Scholar] [CrossRef] [Green Version]
  2. Jia, P.; Liang, J.; Yang, S.; Zhang, S.; Liu, J.; Liang, Z.; Li, F.; Zeng, Q.; Fang, Z.; Liao, B.; et al. Plant diversity enhances the reclamation of degraded lands by stimulating plant–soil feedbacks. J. Appl. Ecol. 2020, 57, 1258–1270. [Google Scholar] [CrossRef]
  3. Pitt, J.I.; Taniwaki, M.H.; Cole, M.B. Mycotoxin production in major crops as influenced by growing, harvesting, storage and processing, with emphasis on the achievement of food safety objectives. Food Control 2013, 32, 205–215. [Google Scholar] [CrossRef]
  4. Oueslati, S.; Berrada, H.; Juan-García, A.; Mañes, J.; Juan, C. Multiple mycotoxin determination on Tunisian cereals-based food and evaluation of the population exposure. Food Anal. Methods 2020, 13, 1271–1281. [Google Scholar] [CrossRef]
  5. Bennett, J.W.; Klich, M. Mycotoxins. Clin. Microbiol. Rev. 2003, 16, 497–516. [Google Scholar] [CrossRef] [Green Version]
  6. Jestoi, M. Emerging Fusarium-mycotoxins fusaproliferin, beauvericin, enniatins, and moniliformin—A review. Crit. Rev. Food Sci. Nutr. 2008, 48, 21–49. [Google Scholar] [CrossRef]
  7. Marin, S.; Ramos, A.J.; Cano-Sancho, G.; Sanchis, V. Mycotoxins: Occurrence, toxicology, and exposure assessment. Food Chem. Toxicol. 2013, 60, 218–237. [Google Scholar] [CrossRef] [PubMed]
  8. Codex Alimentarius Commission. General Standard for Contaminants and Toxins in Food and Feed. CXS193-1995 Amended in 2019. Available online: http://www.fao.org/fao-who-codexalimentarius/codex-texts/list-standards/en/ (accessed on 5 August 2021).
  9. European Commission. European Commission Regulation (EC) No 1881/2006 of 19 December 2006. Setting maximum levels for certain contaminants in foodstuffs. Off. J. Eur. Union 2006, 364, 5–24. [Google Scholar]
  10. Cheli, F.; Battaglia, D.; Gallo, R.; Dell’Orto, V. EU legislation on cereal safety: An update with a focus on mycotoxins. Food Control 2014, 37, 315–325. [Google Scholar] [CrossRef]
  11. Gautier, C.; Pinson-Gadais, L.; Richard-Forget, F. Fusarium mycotoxins enniatins. An updated review of their occurrence, the producing fusarium species, and the abiotic determinants of their accumulation in crop harvests. J. Agric. Food Chem. 2020, 68, 4788–4798. [Google Scholar] [CrossRef]
  12. Luo, Y.; Liu, X.; Li, J. Updating techniques on controlling mycotoxins—A review. Food Control. 2018, 89, 123–132. [Google Scholar] [CrossRef]
  13. Schuenzel, K.M.; Harrison, M.A. Microbial antagonists of foodborne pathogens on fresh, minimally processed vegetables. J. Food Prot. 2002, 65, 1909–1915. [Google Scholar] [CrossRef] [PubMed]
  14. Prakash, B.; Kedia, A.; Mishra, P.K.; Dubey, N.K. Plant essential oils as food preservatives to control moulds, mycotoxin contamination and oxidative deterioration of agri-food commodities—Potentials and challenges. Food Control 2015, 47, 381–391. [Google Scholar] [CrossRef]
  15. Bakkali, F.; Averbeck, S.; Averbeck, D.; Idaomar, M. Biological effects of essential oils—A review. Food Chem. Toxicol. 2008, 46, 446–475. [Google Scholar] [CrossRef]
  16. Parikh, L.; Agindotan, B.O.; Burrows, M.E. Antifungal activity of plant-derived essential oils on pathogens of pulse crops. Plant Dis. 2021, 105, 1692–1701. [Google Scholar] [CrossRef]
  17. Paškevičius, A.; Švedienė, J.; Levinskaitė, L.; Repečkienė, J.; Raudonienė, V.; Melvydas, V. The effect of bacteria and essential oils on mycotoxin producers isolated from feed of plant origin. Vet. Med. Zoot. 2014, 65, 52–60. [Google Scholar]
  18. Xiao, Y.; Liu, Z.; Gu, H.; Yang, F.; Zhang, L.; Yang, L. Improved method to obtain essential oil, asarinin and sesamin from Asarum heterotropoides var. mandshuricum using microwave-assisted steam distillation followed by solvent extraction and antifungal activity of essential oil against Fusarium spp. Ind. Crop. Prod. 2021, 162, 113295. [Google Scholar] [CrossRef]
  19. Krzyśko-Łupicka, T.; Sokół, S.; Piekarska-Stachowiak, A. Evaluation of fungistatic activity of eight selected essential oils on four heterogeneous fusarium isolates obtained from cereal grains in southern Poland. Molecules 2020, 25, 292. [Google Scholar] [CrossRef] [Green Version]
  20. Fraternale, D.; Ricci, D.; Epifano, F.; Curini, M. Composition and antifungal activity of two essential oils of hyssop (Hyssopus officinalis L.). J. Essent. Oil Res. 2004, 16, 617–622. [Google Scholar] [CrossRef]
  21. Ajayi-Moses, O.B.; Ogidi, C.O.; Akinyele, B.J. Bioactivity of Citrus essential oils (CEOs) against microorganisms associated with spoilage of some fruits. Chem. Biol. Technol. Agric. 2019, 6, 1–15. [Google Scholar] [CrossRef] [Green Version]
  22. Hanana, M.; Mansour, M.B.; Algabr, M.; Amri, I.; Gargouri, S.; Romane, A.; Jamoussi, B.; Hamrouni, L. Potential use of essential oils from four Tunisian species of Liliaceae: Biological alternative for fungal and weed control. Rec. Nat. Prod. 2017, 11, 258–269. [Google Scholar]
  23. Al-Mughrabi, K.I.; Coleman, W.K.; Vikram, A.; Poirier, R.; Jayasuriya, K.E. Effectiveness of essential oils and their combinations with aluminum starch octenyl succinate on potato storage pathogens. J. Essent. Oil Bear. Plants 2013, 16, 23–31. [Google Scholar] [CrossRef] [Green Version]
  24. Chepkirui, C.; Matasyoh, J.C.; Wagara, I.N.; Nakuvuma, J. Antifungal activity of Monathotaxis littoralis essential oil against mycotoxigenic fungi isolated from maize. Int. J. Microbiol. Res. Rev. 2013, 2, 103–109. [Google Scholar]
  25. Bounar, R.; Krimat, S.; Boureghda, H.; Dob, T. Chemical analyses, antioxidant and antifungal effects of oregano and thyme essential oils alone or in combination against selected Fusarium species. Int. Food Res. J. 2020, 27, 66–77. [Google Scholar]
  26. Hamrouni, L.; Hanana, M.; Amri, I.; Romane, A.E.; Gargouri, S.; Jamoussi, B. Allelopathic effects of essential oils of Pinus halepensis Miller: Chemical composition and study of their antifungal and herbicidal activities. Arch. Phytopath. Plant Protec. 2015, 48, 145–158. [Google Scholar] [CrossRef]
  27. Amri, I.; Gargouri, S.; Hamrouni, L.; Hanana, M.; Fezzani, T.; Jamoussi, B. Chemical composition, phytotoxic and antifungal activities of Pinus pinea essential oil. J. Pest Sci. 2012, 85, 199–207. [Google Scholar] [CrossRef]
  28. Matasyoh, J.C.; Wagara, I.N.; Nakavuma, J.L.; Chepkorir, R. Chemical composition and antifungal activity of Piper capense oil against mycotoxigenic Aspergillus, Fusarium and Penicillium species. Int. J. Biol. Chem. Sci. 2013, 7, 1441–1451. [Google Scholar] [CrossRef] [Green Version]
  29. Ismail, A.; Lamia, H.; Mohsen, H.; Samia, G.; Bassem, J. Chemical composition and antifungal activity of three Anacardiaceae species grown in Tunisia. Sci. Int. 2013, 1, 148–154. [Google Scholar] [CrossRef] [Green Version]
  30. Saoud, I.; Hamrouni, L.; Gargouri, S.; Amri, I.; Hanana, M.; Fezzan, T.; Bouzid, S.; Jamoussi, B. Chemical composition, weed killer and antifungal activities of Tunisian thyme (Thymus capitatus Hoff. et Link.) essential oils. Acta Aliment. 2013, 42, 417–427. [Google Scholar] [CrossRef]
  31. Giamperi, L.; Bucchini, A.E.A.; Ricci, D.; Tirillini, B.; Nicoletti, M.; Rakotosaona, R.; Maggi, F. Vepris macrophylla (Baker) I. Verd essential oil: An antifungal agent against phytopathogenic fungi. Int. J. Mol. Sci. 2020, 21, 2776. [Google Scholar] [CrossRef] [PubMed]
  32. Mutlu-Ingok, A.; Devecioglu, D.; Dikmetas, D.N.; Karbancioglu-Guler, F.; Capanoglu, E. Antibacterial, antifungal, antimycotoxigenic, and antioxidant activities of essential oils: An updated review. Molecules 2020, 25, 4711. [Google Scholar] [CrossRef]
  33. Ponts, N. Mycotoxins are a component of Fusarium graminearum stress-response system. Front. Microbiol. 2015, 6, 1234. [Google Scholar] [CrossRef] [Green Version]
  34. Martins, N.F.; Bresso, E.; Togowa, R.C.; Urban, M.; Antoniw, J.; Maigret, B.; Hammond-Kosack, K. Searching for novel targets to control wheat Head Blight Disease-I-Protein identification, 3D modelling and virtual screening. Adv. Microbiol. 2016, 6, 811–830. [Google Scholar] [CrossRef] [Green Version]
  35. Boutigny, A.L.; Barreau, C.; Atanasova-Penichon, V.; Verdal-Bonnin, M.N.; Pinson-Gadais, L.; Richard-Forget, F. Ferulic acid, an efficient inhibitor of type B trichothecene biosynthesis and Tri gene expression in Fusarium liquid cultures. Mycol. Res. 2009, 113, 746–753. [Google Scholar] [CrossRef] [PubMed]
  36. Ponts, N.; Pinsons-Gadais, L.; Boutigny, A.L.; Barreau, C.; Richard-Forget, F. Cinnamic-derived acids significantly affect Fusarium graminearum growth and in vitro synthesis of type B trichothecenes. Phytopathology 2011, 101, 929–934. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Ferrochio, L.; Cendoya, E.; Farnochi, M.C.; Massad, W.; Ramírez, M.L. Evaluation of ability of ferulic acid to control growth and fumonisin production of Fusarium verticillioides and Fusarium proliferatum on maize based media. Int. J. Food Microbiol. 2013, 167, 215–220. [Google Scholar] [CrossRef] [PubMed]
  38. Perczak, A.; Gwiazdowsk, D.; Gwiazdowsk, R.; Juś, K.; Marchwińska, K.; Waśkiewicz, A. The inhibitory potential of selected essential oils on Fusarium spp. growth and mycotoxins biosynthesis in maize seeds. Pathogens 2020, 9, 23. [Google Scholar] [CrossRef] [Green Version]
  39. Tefiani, C.; Riazi, A.; Youcefi, F.; Aazza, S.; Gago, C.; Faleiro, M.L.; Megías, C.; Cortés-Giraldo, I.; Vioque, J.; Miguel, M.G. Ammoides pusilla (Apiaceae) and Thymus munbyanus (Lamiaceae) from Algeria essential oils: Chemical composition, antimicrobial, antioxidant and antiproliferative activities. J. Essent. Oil Res. 2015, 27, 131–139. [Google Scholar] [CrossRef]
  40. Tefiani, C.; Riazi, A.; Belbachir, B.; Lahmar, H.; Aazza, S.; Figueiredo, A.C.; Miguel, M.G. Ammoides pusilla (Brot.) Breistr. from Algeria: Effect of harvesting place and plant part (leaves and flowers) on the essential oils chemical composition and antioxidant activity. Open Chem. 2016, 14, 343–350. [Google Scholar] [CrossRef]
  41. Souhaiel, N.; Sifaoui, I.; Ben Hassine, D.; Bleton, J.; Bonose, M.; Moussa, F.; Piñero, J.E.; Lorenzo-Morales, J.; Abderrabba, M. Ammoides pusilla (Apiaceae) essential oil: Activity against Acanthamoeba castellanii Neff. Exp. Parasitol. 2016, 183, 99–103. [Google Scholar] [CrossRef]
  42. Morcia, C.; Malnati, M.; Terzi, V. In Vitro antifungal activity of terpinen-4-ol, eugenol, carvone, 1, 8-cineole (eucalyptol) and thymol against mycotoxigenic plant pathogens. Food Add. Contam. Part A 2012, 29, 415–422. [Google Scholar] [CrossRef] [Green Version]
  43. Lambert, R.J.W.; Skandamis, P.N.; Coote, P.J.; Nychas, G.J.E. A study of the minimum inhibitory concentration and mode of action of oregano essential oil, thymol and carvacrol. J. Appl. Microbiol. 2001, 91, 453–462. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Gao, T.; Zhou, H.; Zhou, W.; Hu, L.; Chen, J.; Shi, Z. The fungicidal activity of thymol against Fusarium graminearum via inducing lipid peroxidation and disrupting ergosterol biosynthesis. Molecules 2016, 21, 770. [Google Scholar] [CrossRef] [Green Version]
  45. Zhang, M.; Ge, J.; Yu, X. Transcriptome analysis reveals the mechanism of fungicidal of thymol against Fusarium oxysporum f. sp. niveum. Cur. Microbiol. 2018, 75, 410–419. [Google Scholar] [CrossRef]
  46. Shcherbakova, L.; Mikityuk, O.; Arslanova, L.; Stakheev, A.; Erokhin, D.; Zavrie, S.; Dzhavakhiya, V. Studying the ability of thymol to improve fungicidal effects of tebuconazole and difenoconazole against some plant pathogenic fungi in seed or foliar treatments. Front. Microbiol. 2021, 12, 331. [Google Scholar] [CrossRef] [PubMed]
  47. Ji, H.; Kim, H.; Beuchat, L.R.; Ryu, J.H. Synergistic antimicrobial activities of essential oil vapours against Penicillium corylophilum on a laboratory medium and beef jerky. Int. J. Food Microbiol. 2019, 29, 104–110. [Google Scholar] [CrossRef]
  48. Dambolena, J.S.; López, A.G.; Meriles, J.M.; Rubinstein, H.R.; Zygadlo, J.A. Inhibitory effect of 10 natural phenolic compounds on Fusarium verticillioides. A structure–property–activity relationship study. Food Control. 2012, 28, 163–170. [Google Scholar] [CrossRef]
  49. Oukhouia, M.; Hamdani, H.; Jabeur, I.; Sennouni, C.; Remmal, A. In Vitro study of anti-Fusarium effect of thymol, carvacrol, eugenol and menthol. J. Plant. Pathol. Microbiol. 2017, 8, 1000423. [Google Scholar] [CrossRef]
  50. Turek, C.; Stintzing, F.C. Stability of essential oils: A review. Compr. Rev. Food Sci. Food Saf. 2013, 12, 40–53. [Google Scholar] [CrossRef]
  51. Gardiner, D.M.; Kazan, K.; Praud, S.; Torney, F.J.; Rusu, A.; Manners, J.M. Early activation of wheat polyamine biosynthesis during Fusarium head blight implicates putrescine as an inducer of trichothecene mycotoxin production. BMC Plant. Biol. 2010, 10, 298–302. [Google Scholar] [CrossRef] [Green Version]
  52. Gautier, C.; Pinson-Gadais, L.; Verdal-Bonnin, M.N.; Ducos, C.; Tremblay, J.; Chéreau, S.; Atanasova, V.; Richard-Forget, F. Investigating the efficiency of hydroxycinnamic acids to inhibit the production of enniatins by Fusarium avenaceum and modulate the expression of enniatins biosynthetic genes. Toxins 2020, 12, 735. [Google Scholar] [CrossRef]
  53. Jeribi, C.; Karoui, I.J.; Hassine, D.B.; Abderrabba, M. Comparative study of bioactive compounds and antioxidant activity of Schinus terebinthifolius RADDI fruits and leaves essential oils. Int. J. Sci. Res. 2014, 3, 453–458. [Google Scholar]
  54. Fanelli, F.; Ferracane, R.; Ritieni, A.; Logrieco, A.F.; Mulè, G. Transcriptional regulation of enniatins production by Fusarium avenaceum. J. Appl. Microbiol. 2014, 116, 390–399. [Google Scholar] [CrossRef] [PubMed]
  55. Krzyśko-Łupicka, T.; Walkowiak, W.; Białoń, M. Comparison of the fungistatic activity of selected essential oils relative to Fusarium graminearum isolates. Molecules 2019, 24, 311. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Molecules 26 06906 g001 550

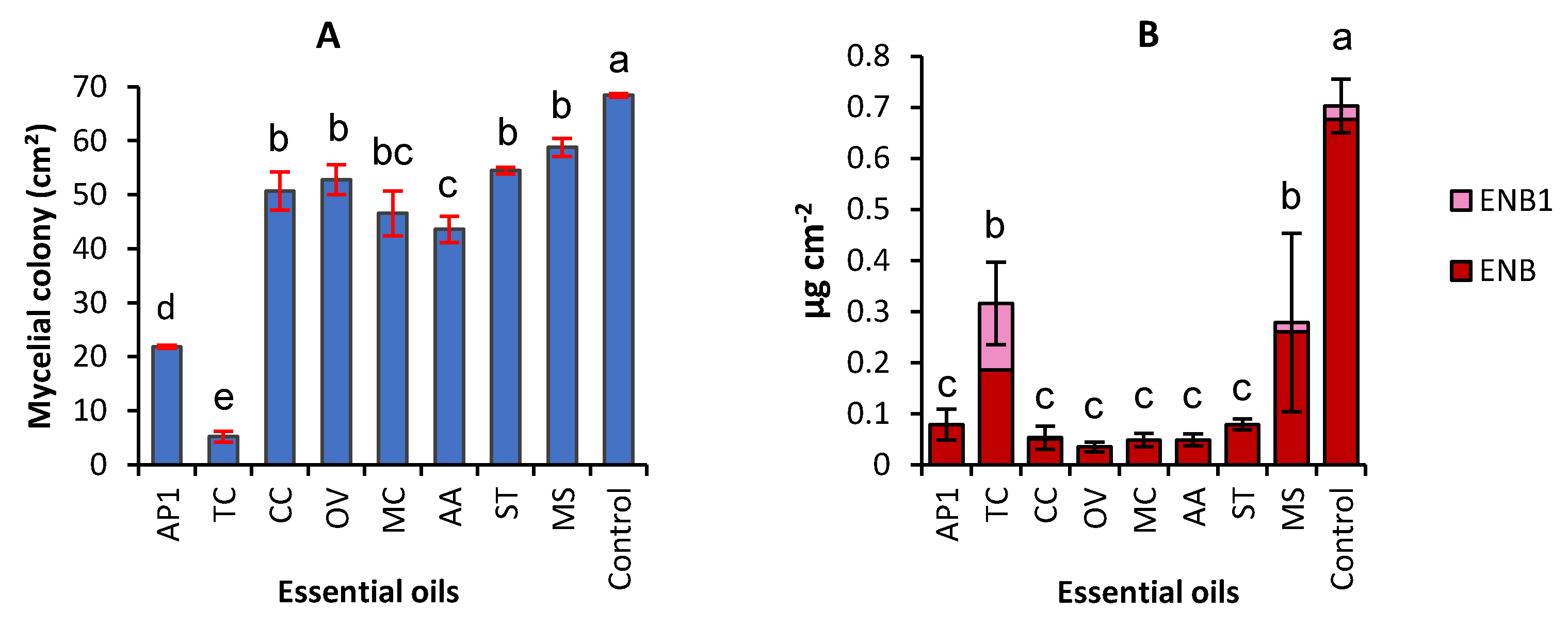

Figure 1. Effect of essential oils extracted from eight Tunisian plants used at 0.1 µL·mL−1 on the mycelial growth (A) and the accumulation of enniatins (ENNs) (B) by F. avenaceum. Values are means of 3 replicates. Error bars are ± standard deviation. Means with the same lowercase letter are not significantly different (p < 0.05). ENB1 = enniatin B1, ENB = enniatin B. AP1 = Ammoides pusilla, TC = Thymus capitatus, CC = Carum carvi, OV = Origanum vulgare, MC = Myrtus communis, AA = Artemisia absintum, ST = Schinus terbentofonius, MS = Mentha spicata.
Figure 1. Effect of essential oils extracted from eight Tunisian plants used at 0.1 µL·mL−1 on the mycelial growth (A) and the accumulation of enniatins (ENNs) (B) by F. avenaceum. Values are means of 3 replicates. Error bars are ± standard deviation. Means with the same lowercase letter are not significantly different (p < 0.05). ENB1 = enniatin B1, ENB = enniatin B. AP1 = Ammoides pusilla, TC = Thymus capitatus, CC = Carum carvi, OV = Origanum vulgare, MC = Myrtus communis, AA = Artemisia absintum, ST = Schinus terbentofonius, MS = Mentha spicata.
Molecules 26 06906 g001
Molecules 26 06906 g002 550
Figure 2. Mycelial growth of F. avenaceum in presence of different quantities of volatile compounds of A. pusilla EO (AP1). The volumes in µL are the quantity of EO per L of air. Means of 3 replicates. Errors bars are ± standard deviations.
Figure 2. Mycelial growth of F. avenaceum in presence of different quantities of volatile compounds of A. pusilla EO (AP1). The volumes in µL are the quantity of EO per L of air. Means of 3 replicates. Errors bars are ± standard deviations.
Molecules 26 06906 g002
Molecules 26 06906 g003 550
Figure 3. Mycelial growth of F. avenaceum in presence of volatile compounds from 16.7 or 33.3 µL EO L−1 in consecutive cultures. (A) First exposure to volatiles. (B,C) second exposure with the same quantity of EO as in the first exposure of fungal material coming from (A) as spore suspension (dark bars) or plugs (light bars) (second culture-EO). (D,E) second culture without EO of fungal material coming from (A) as spore suspension (dark bars) or plugs (light bars); µL are those of the first exposure (second culture-control). (B,D) are measures at 10 days, (C,E) are measures at 28 days. Means of 3 replicates. Error bars are ± standard deviations.
Figure 3. Mycelial growth of F. avenaceum in presence of volatile compounds from 16.7 or 33.3 µL EO L−1 in consecutive cultures. (A) First exposure to volatiles. (B,C) second exposure with the same quantity of EO as in the first exposure of fungal material coming from (A) as spore suspension (dark bars) or plugs (light bars) (second culture-EO). (D,E) second culture without EO of fungal material coming from (A) as spore suspension (dark bars) or plugs (light bars); µL are those of the first exposure (second culture-control). (B,D) are measures at 10 days, (C,E) are measures at 28 days. Means of 3 replicates. Error bars are ± standard deviations.
Molecules 26 06906 g003
Molecules 26 06906 g004 550

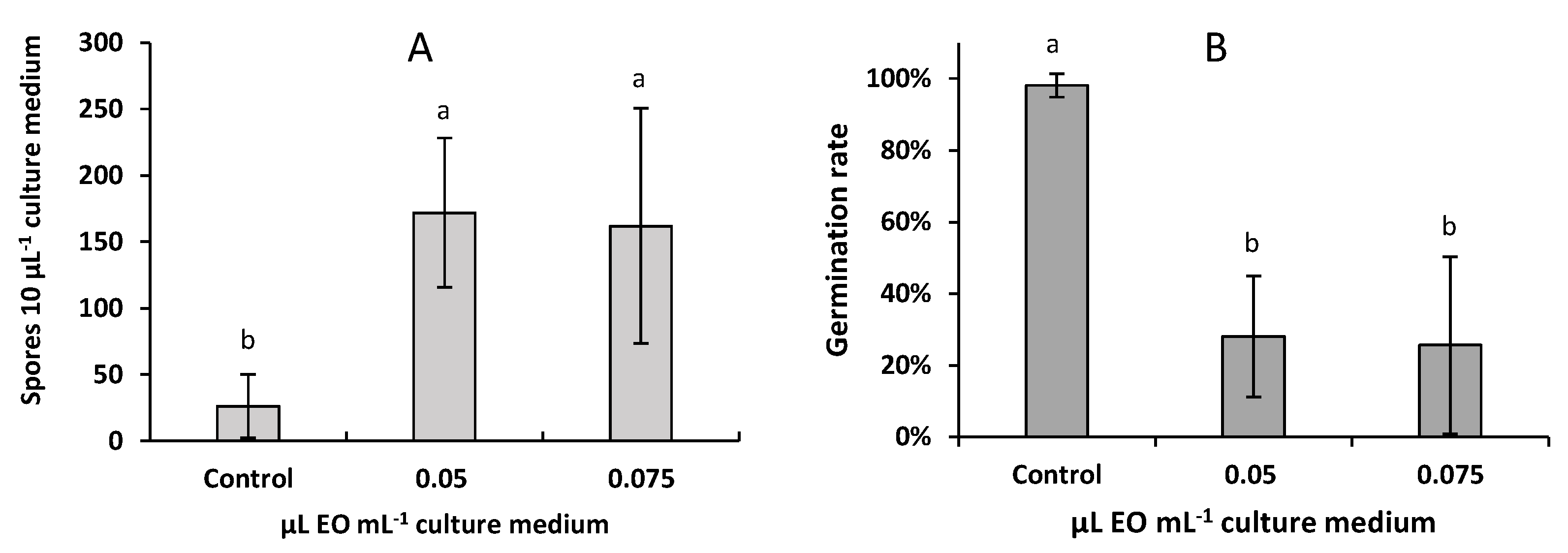

Figure 4. Changes in sporulation capacity (A) and rate of spore germination (B) after treatment with two concentrations of A. pusilla EO for 24 h. Means of 3 replicates. Errors bars are ± standard deviations. Means with the same lowercase letter are not significantly different (p < 0.05).
Figure 4. Changes in sporulation capacity (A) and rate of spore germination (B) after treatment with two concentrations of A. pusilla EO for 24 h. Means of 3 replicates. Errors bars are ± standard deviations. Means with the same lowercase letter are not significantly different (p < 0.05).
Molecules 26 06906 g004
Molecules 26 06906 g005 550

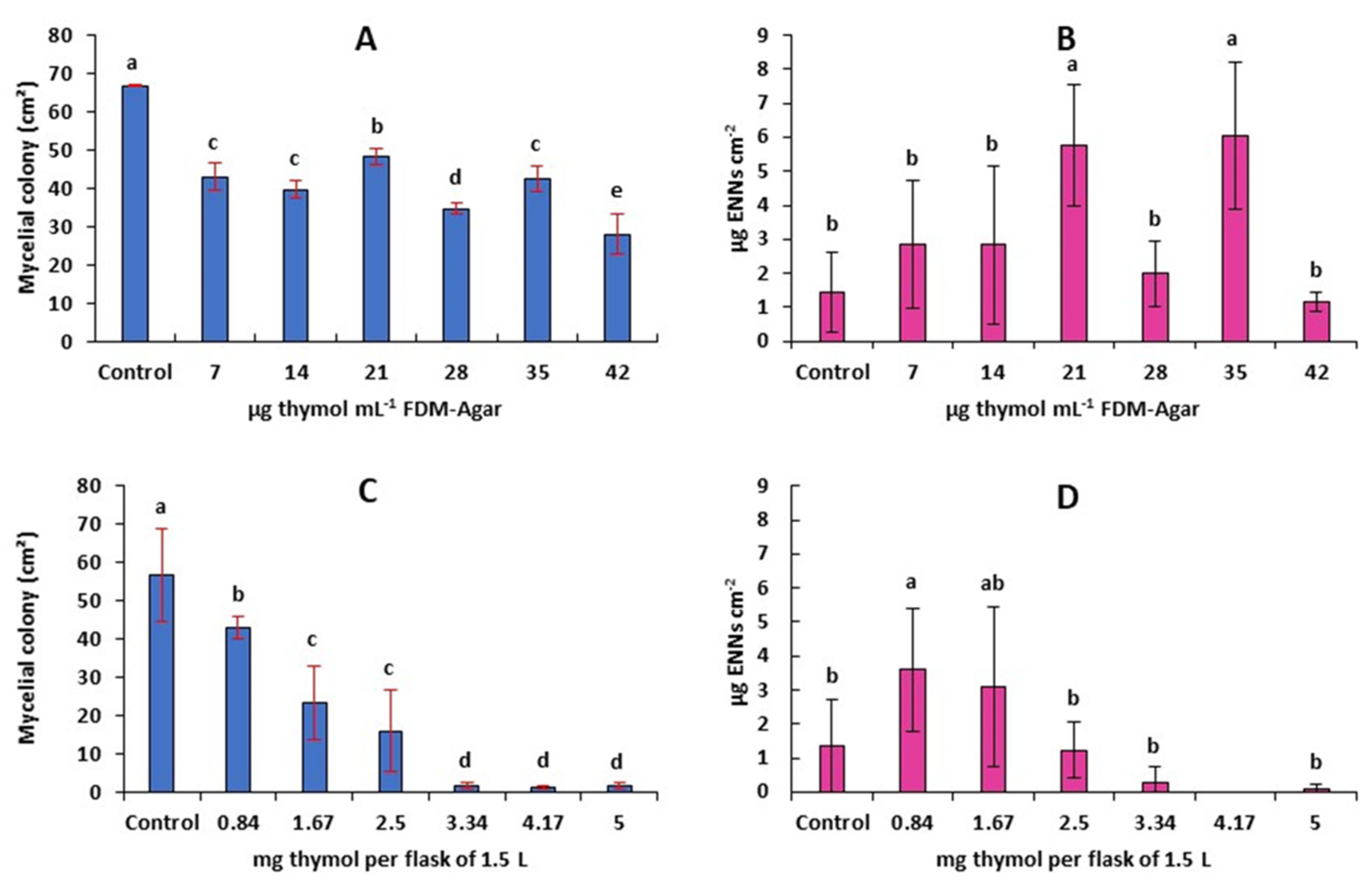

Figure 5. Effect of thymol on the mycelial growth rate (A,C) and production of ENNs (B,D) by F. avenaceum. Thymol was either diluted in the culture medium (A,B) or use as a fumigant (C,D). Values are means of 6 replicates. Error bars are ± standard deviation. Means with the same lowercase letter are not significantly different (p < 0.05).
Figure 5. Effect of thymol on the mycelial growth rate (A,C) and production of ENNs (B,D) by F. avenaceum. Thymol was either diluted in the culture medium (A,B) or use as a fumigant (C,D). Values are means of 6 replicates. Error bars are ± standard deviation. Means with the same lowercase letter are not significantly different (p < 0.05).
Molecules 26 06906 g005
Table
Table 1. Published article with data on the effect of essential oils (EOs) on the mycelial growth of F. avenaceum.
Table 1. Published article with data on the effect of essential oils (EOs) on the mycelial growth of F. avenaceum.
PlantsOriginExtraction YieldMajor Components **Methods ***Inhibition of GrowthReference
Abies sibiricaCom. */Lithuania--APD, 10 µL pure EO, (27 °C, 5 d)11 mm diameter[17]
Asarum heterotropoidesRoots and rhizomes/China1.6%Methyleugenol (38.7–43.8%), Safrol (12.9–15.3%)BD, (26 °C, 72 h)MIC50 = 0.61 mg·mL−1[18]
Carum carviCom./Lithuania--APD, 10 µL pure EO, (26 °C, 72 h)89 mm diameter[17]
CinnanomCom./Pakistan-Eugenol (75.5%)AD, (20 °C, 10 d)MIC = 0.5 µL·mL−1[16]
CinnanomCom./Pakistan-Eugenol (75.5%)Volatiles, 10 µL EO,
Agar medium, (20 °C, 6 d)		84% Inhibition[16]
CitronellaCom./Pakistan-Geraniol (53.6%)AD, (20 °C, 10 d)MIC = 0.5 µL·mL−1[16]
CitronellaCom./Pakistan-Geraniol (53.6%)Volatiles, 10 µL EO,
Agar medium, (20 °C, 6 d)		84% Inhibition[16]
Citrus paradis GrapefruitCom./Germany-Linalyl acetate (1.87%), α-Terpineol (1.83%), Nootkatone (1.37%)AD, 2% EO, (25 °C,
until control covered plates)		12% Inhibition[19]
CloveCom./Pakistan-Eugenol (80.9%)AD, (20 °C, 10 d)MIC = 0.5 µL·mL−1[16]
CloveCom./Pakistan-Eugenol (80.9%)Volatiles, 10 µL EO,
Agar medium, (20 °C, 6 d)		86% Inhibition[16]
Cymbopogon citratus (Lemongrass)Com./Germany-α and β-Citral (68.9%)AD, 2% EO, (25 °C,
until control covered plates)		MIC = 0.12 µL·mL−1[19]
Eucalyptus
globus		Com./Lithuania--APD,
10 µL pure EO, (27 °C, 5 d)		28 mm diameter[17]
Hyssopus
officinalis		Fresh flowering tops/Italy2.3 mL·kg−1Pinocamphone (34%), β-Pinene (10.5%), α-phellandrene (7.4%)AD, (22 °C, 7 d)MIC = 1.5 mg·mL−1[20]
Hyssopus
officinalis		Fresh flowering tops/Italy3.1 mL·kg−1Isopinocamphone (29%),
Pinocamphone (18.5%),
β-Pinene (10.8%)		AD, (22 °C, 7 d)MIC = 1.2 mg·mL−1[20]
Lavandula
hybrida		Com./Lithuania--APD,
10 µL pure EO, (27 °C, 5 d)		12 mm diameter[17]
LemonCitrus rind/Nigeria-α-Terpineol (31.2%), l-Limonene (14.4%), β-Pinene (12.4%)AWD, (25 °C, 48 h)MIC = 100 mg·mL−1[21]
LimeCitrus rind/Nigeria-d-Limonene (27.8%),
β-Pinene (25.2%),		AWD, (25 °C, 48 h)MIC = 100 mg·mL−1[21]
LemongrassCom./Pakistan-Geranial (40.8%)AD, (20 °C, 10 d)MIC = 0.5 µL·mL−1[16]
LemongrassCom./Pakistan-Geranial (40.8%)Volatiles, 10 µL EO,
Agar medium, (20 °C, 6 d)		84% Inhibition[16]
Luppia
javanica		Com./USA-α and β-Citral (36.0%),
α-Terpineol (18.3%)		AD, 2% EO, (25 °C,
until control covered plates)		MIC = 0.12 µL·mL−1[19]
Litsea cubebaCom./Germany-α and β-Citral (68.9%)AD, 2% EO, (25 °C,
until control covered plates)		MIC = 0.12 µL·mL−1[19]
Melaleuca
alternifolia		Com./Germany-α-Terpineol (6.88%),
Cadinene (3.86%),
β-Gurjunene (1.23%)		AD, 2% EO, (25 °C,
until control covered plates)		MIC = 0.5 µL·mL−1[19]
Melaleuca
alternifolia		Com./Lithuania--APD, 10 µL pure EO, (27 °C, 5 d22 mm diameter[17]
Melaleuca
leucadendron		Com./Germany-α-Terpineol (36.57%),
Caryophyllene (2.60%),
α-Caryophyllene (1.70%)		AD, 2% EO, (25 °C,
until control covered plates,)		MIC = 0.1 µL·mL−1[19]
Mentha
pulegium		Fresh aerial parts/Tunisia1.84%Menthol (39.2%),
1,8-Cineole (17.1%),		AD, 0.5 mg EO mL−1,
(24 °C, 7 d)		32.5% Inhibition[22]
Mentha
spicata		Com./USA--AWD, 100 µL
pure EO, (18 °C, 7 d)		100% Inhibition[23]
Monathotaxis
littoralis		Fresh leaves/Uganda1.97%-APD, 10 µL EO,
(25 °C, 7–10 d):		MIC = 103 mg·mL−1[24]
OreganoDried leaves/Algeria-Carvacrol (59.03%)AD, (25 °C, 72 h)MIC = 0.078 µL·mL−1[25]
OreganoCom./Pakistan-Carvacrol (63.8%)AD, (20 °C, 10 d)MIC = 0.125–0.25 µL·mL−1[16]
OreganoCom./Pakistan-Carvacrol (63.8%)Volatiles, 10 µL EO,
Agar medium, (20 °C, 6 d)		100% Inhibition[16]
Origanum vulgareAir-dried leaves,
21 accessions/Lithuania		-Sabinene (0.3–25.1%), β-Caryophyllene (4.7–20.1%), Germacrene D (2.1–20.1%), Caryophyllene
oxide (0.7–24.4%)		AWD, 100 µL 0.5% EO,
(18 °C, 7 d)		3.8–19.5 mm
diameter		[25]
Origanum vulgareAir-dried
inflorescences, 21 accessions/Lithuania		-Sabinene (0.9–18.3%), β-Caryophyllene (5.4–24.5%), Germacrene D (1.5–12.2%), Caryophyllene
oxide (0.7–24.4%)		AWD, 100 µL 0.5% EO,
(18 °C, 7 d)		9.9–22 mm
diameter		[25]
Origanum vulgareFresh aerial parts/Tunisia0.90%Thymol (29.6%), p-Cymene (29.4%)AD, 0.5 mg EO mL−1,
(24 °C, 7 d)		77.4% Inhibition[22]
PalmarosaCom./Pakistan-Geraniol (72.26%)AD, (20 °C, 10 d)MIC = 1.0 µL·mL−1[16]
PalmarosaCom./Pakistan-Geraniol (72.26%)Volatiles, 10 µL EO,
Agar medium (20 °C, 6 d)		87% Inhibition[16]
Pimpinella
anisum		Com./Lithuania--APD,
10 µL pure EO, (27 °C, 5 d)		30 mm diameter[17]
Pinus
halepensis		Fresh needles/Tunisia0.30–0.87%(Z)-Caryophyllene (16–28.9%),
β-Myrcene (8.5–22.9%),
α-Pinene (11.7–13.14%)		AD, 4 µL EO mL−1,
(25 °C, 7 d)		41.9–51.8%
Inhibition		[26]
Pinus pineaFresh needles/Tunisia0.40%Limonene (54.1%),AD, 4 µL EO mL−1,
(25 °C, 7 d)		61.1% Inhibition[27]
Piper capenseFresh whole plant/Kenya0.20%δ-Cadinene (16.82), β-Pinene (7.24%), β-Bisabolene (5.65%),APD, 10 µL EO,
(25 °C, 7–10 d)		MIC = 66.3 mg·mL−1[28]
Pistacia lentiscusFresh leaves/Tunisia0.14%α-Pinene (20.6%), Limonene (15.3%), β-Pinene (9.6%)AD, 4 µL EO mL−1
(25 °C, 7 d)		44.4% Inhibition[29]
Pistacia terebintusFresh leaves/Tunisia0.24%α-Terpinene (41.3%),
α-Pinene (19.2%)		AD, 4 µL EO mL−1,
(25 °C, 7 d)		68.0% Inhibition[29]
Pistacia veraFresh leaves/Tunisia0.27%α-Terpinene (32.4%),
Limonene (25.1%)		AD, 4 µL EO mL−1,
(25 °C, 7 d)		63.2% Inhibition[29]
Rosmarinus
officinalis		Fresh aerial parts/Tunisia0.60%1,8-Cineole (40.9%),α-Pinene (24.2%),AD, 0.5 mg EO mL−1,
(25 °C, 7 d)		21.8% Inhibition[22]
Syzygium
aromaticum		Com./Lithuania--APD,
10 µL pure EO (27 °C, 5 d)		90 mm diameter[17]
ThymeDried leaves/Algeria0.85%Thymol (46.97%),
Linalool (3.94%)		AD, (25 °C, 72 h)MIC = 0.156 µL·mL−1[25]
ThymeCom./Pakistan-Linalool (64.0%)AD, (20 °C, 10 d)MIC = 0.5 µL·mL−1[16]
ThymeCom./Pakistan-Linalool (64.0%)Volatiles, 10 µL EO,
Agar medium (20 °C, 6 d)		100% Inhibition[16]
Thymus
capitatus		Fresh aerial parts/Tunisia2.85%Carvacrol (69.15%)AD, 0.5 mg EO mL−1,
(24 °C, 7 d)		89.9% Inhibition[22]
Thymus
capitatus		Fresh aerial parts/Tunisia1.9 to 3.15%Carvacrol (69.69 to 83.86%)AD, 0.4 µL EO mL−1,
(25 °C, 7 d)		4 to 93% Inhibition[30]
Thymus
pilegioides		Com./Lithuania- APD,
10 µL pure EO, (27 °C, 5 d)		33 mm diameter[17]
Thymus
vulgaris		Com. Austria-Thymol (45.75%),
Limonene (15.15%),		AD, 2% EO, (25 °C, until
control covered plates)		MIC = 0.025 µL·mL−1[19]
Vepris
macrophylla		Leaves/Madagascar-Citral (56.3%)AD, (22 °C, 6 d)MIC = 130.4 µg·mL−1[31]
* Com. = commercial EO. ** Three first abundant components, or sum of components reaching 50%. *** Abbreviations of methods: AD = agar diffusion, APD = agar and impregnated paper disc, AWD = agar well diffusion, BD: broth dilution.
Table
Table 2. Extraction yield of essential oils from eight Tunisian aromatic plants.
Table 2. Extraction yield of essential oils from eight Tunisian aromatic plants.
PlantEO Extraction Yield (%)
Ammoides pusilla (AP2)1.64
Thymus capitatus (TC)2.45
Carum carvi (CC)1.57
Origanum vulgare (OV)0.46
Myrtus communis (MC)0.45
Artemisia absintum (AA)0.96
Schinus terbentofonius (ST)2.50
Mentha spicata (MS)1.10
Table
Table 3. Chemical composition (%) of essential oils of A. pusilla using GC-MS.
Table 3. Chemical composition (%) of essential oils of A. pusilla using GC-MS.
CompoundsRT 1% in AP1% in AP2
Monoterpene hydrocarbons
α-thujene5.690.37%0.24%
α-pinene5.860.21%0.36%
Sabinene6.760.57%----
β-myrcene7.120.48%0.30%
α-terpinene7.80----0.19%
p-Cymene8.0019.89%14.59%
α-thujene5.690.37%0.24%
γ-terpinene8.8927.03%16.82%
o-Allyltoluene9.720.25%----
Oxygenated monoterpenes
Borneol11.860.18%----
Terpinen-4-ol12.170.67%0.58%
Thymol methyl ether13.569.18%8.07%
Benzene, 2-methoxy-4-methyl-1-(1-methylethyl)13.690.73%0.52%
Thymol (isomere)15.081.70%2.88%
Thymol15.2634.70%53.55%
NI15.360.25%0.29%
Carvacrol15.590.41%0.68%
2-(t-butyl)-5,6-dihydro-4H-cyclopenta[b]thiophene17.740.61%0.53%
1-Methoxy-2-tert-butyl-6-methylbenzene18.872.48%0.20%
Identified compounds 97.27%99.51%
Monoterpene hydrocarbons 48.83%32.70%
Oxygenated monoterpenes 47.82%66.58%
Extraction yield 1.6%1.64%
1 RT: Retention time; AP1 = EO of A. pusilla obtained from the batch of plant 1. AP2 = EO of A. pusilla obtained from the batch of plant 2. Calculated percentage (%) of each identified compound is based on the total detected compounds.
Table
Table 4. Linear growth index of F. avenaceum and ENNs accumulation in presence of different concentrations of AP1 EO.
Table 4. Linear growth index of F. avenaceum and ENNs accumulation in presence of different concentrations of AP1 EO.
Concentrations of Essential Oil (mL·L−1)
0 (Control)0.10.250.50.751
Linear growth index 16.2210.653.340.190.000.00
µg enniatins/cm2 mycelium2.060.720.490.000.000.00
Mycelial areas were measured every day for 7 days.
Table
Table 5. Linear growth index of F. avenaceum and ENNs accumulation after 10 days in presence of different quantities of A. pusilla EO (AP1) volatile components.
Table 5. Linear growth index of F. avenaceum and ENNs accumulation after 10 days in presence of different quantities of A. pusilla EO (AP1) volatile components.
µL EO L−1 Air
0 (control)3.36.71016.7
Linear growth index 16.0215.6812.1110.102.97
% growth inhibition at 10 d021.9772.8398.40100
µg ENNs cm−2 mycelium (10 d)1.340.440.26<LOQ *<LOQ
* LOQ = limit of quantification.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chakroun, Y.; Oueslati, S.; Atanasova, V.; Richard-Forget, F.; Abderrabba, M.; Savoie, J.-M. Ammoides pusilla Essential Oil: A Potent Inhibitor of the Growth of Fusarium avenaceum and Its Enniatin Production. Molecules 2021, 26, 6906. https://doi.org/10.3390/molecules26226906

AMA Style

Chakroun Y, Oueslati S, Atanasova V, Richard-Forget F, Abderrabba M, Savoie J-M. Ammoides pusilla Essential Oil: A Potent Inhibitor of the Growth of Fusarium avenaceum and Its Enniatin Production. Molecules. 2021; 26(22):6906. https://doi.org/10.3390/molecules26226906

Chicago/Turabian Style

Chakroun, Yasmine, Souheib Oueslati, Vessela Atanasova, Florence Richard-Forget, Manef Abderrabba, and Jean-Michel Savoie. 2021. "Ammoides pusilla Essential Oil: A Potent Inhibitor of the Growth of Fusarium avenaceum and Its Enniatin Production" Molecules 26, no. 22: 6906. https://doi.org/10.3390/molecules26226906

Article Metrics

Back to TopTop
