Fast Quantum Gates with Electric Field Pulses and Optical Tweezers in Trapped Ions

Abstract

We propose a two-qubit phase gate based on trapped ions that uses fast electric field pulses and spin-dependent local traps generated by optical tweezers. The phases are engineered by spin-dependent coherent evolution, interspersed with momentum kicks. We derive a set of commensurability conditions and expressions for the spin-dependent accumulated phase that, when satisfied, realize the target two-qubit phase gate within tens of microseconds. We study the scalability of our proposal in larger-ion crystals and demonstrate the existence of solutions with up to four ions. Gates in larger crystals should also be possible but will require more commensurability conditions to be fulfilled.

1. Introduction

Trapped ions are one of the leading platforms for quantum computing. Qubits encoded in individual ions can be very precisely manipulated and addressed and feature long coherence times [1,2,3]. However, especially as the algorithm complexity increases, there is a demand for calculations with a higher number of operations. It is then of importance to develop schemes for high-speed and high-fidelity gates, which can outpace decoherence, whilst maintaining robustness. The goal is to obtain short operational times which protect the system against heating and other sources of decoherence. This has led to the development of faster gate schemes [4,5,6,7], which rely on non-adiabatic excitations of motional modes. In this way, gate operations can achieve gate speeds faster than one oscillation period.

Previous fast gates schemes have considered lasers for generating the state-dependent force needed to couple motional states and spin-states [4,8]. Such proposals have been realized in experiments [9,10], as well as generalized to large ion arrays [5,11,12] and microtraps [13]. However, laser-based kicks require exceptional control over the timing and phase coherence of laser pulses with high power. This is challenging to realize in experiments and scales poorly with the ion number. An alternative proposition is the use of Rydberg ions [14], in which the state dependence derives from the difference in the trapping potential experienced due to the large polarizability of the Rydberg states. Another option is to use trapped ions interacting with an optical lattice [15].

In this work, we propose a different mechanism for generating the qubit state-dependent force: optical tweezers that generate a state-dependent potential localized around each ion. This extends our recent work in [16] to the non-perturbative regime, where the tweezer potential modifies not only the mode frequencies but also the normal mode structure [17,18,19,20]. This allows us to realize a faster gate implementation that is more robust to decoherence. An illustration of the gate mechanism applied to a two-qubit crystal is depicted in Figure 1.

Our scheme is an extension of the scheme of Ref. [4]. It uses momentum kicks applied at specific times generated by an electric field, interspersed with tweezer-modified coherent evolution for predetermined durations, such that the phase accumulated by each two-qubit state is the appropriate phase required by the target logic gate [4]. Furthermore, we require that the motional modes follow closed trajectories in phase space such that the initial state is recuperated, effectively decoupling the electronic and motional states by the end of the gate [21]. The set of commensurability conditions which must be satisfied in order to achieve this scales as $2^2{N}_{\mathrm{i}}$, where $N_{\mathrm{i}}$ is the number of ions in the crystal. Clearly, with increasing ion numbers, it becomes increasingly hard to exactly satisfy these conditions, but an optimal solution can be found numerically in large-ion crystals.

2. System Description: Two Ions

Consider $N_{\mathrm{i}}=2$ ions in a one-dimensional harmonic trap with the trapping frequency $\omega$. The motion of the ions is described by

$$\begin{array}{c}\hfill H_0=\hslash \sum _m{\omega }_m(a_m^{†}{a}_m+1/2),\end{array}$$

(1)

where $a_m$ ($a_m^{†}$) are the bosonic annihilation (and creation) operators for the center of mass (com) and stretch modes with the corresponding mode frequencies ${\omega }_c=\omega$ and ${\omega }_r=\sqrt{3}\omega$, respectively.

We consider state-dependent optical tweezers focused at the equilibrium positions of the ions, each with a local trapping frequency ${\omega }_{\mathrm{tw}}\sim {\omega }_m$

$$\begin{array}{c}\hfill {\widehat{H}}_{\mathrm{tw}}={\displaystyle \frac{1}{2}}m{\omega }_{\mathrm{tw}}^2\sum _{i=1,2}{\widehat{z}}_{\mathrm{i}}^2{|\uparrow \rangle \langle \uparrow |}_{\mathrm{i}},\end{array}$$

(2)

where we have used the harmonic approximation for the Gaussian tweezer potential. Here, m is the mass of the ion, and ${\widehat{z}}_i$ is the position of the ith ion with respect to its equilibrium position. Equation (2) is a state-dependent potential that mixes the native com and stretch modes, resulting in new state-dependent modes ${\mathbf{b}}_m^{··}$ with the corresponding frequencies ${\omega }_m^{··}$ and creation (annihilation) operators ${a_m^{··}}^{†}$ ($a_m^{··}$). We use ${·}_1,{·}_2\in \{\uparrow ,\downarrow \}$ to represent the internal state of the first and second ions, respectively. We use this notation throughout to denote that a term is state-dependent.

Finally, we require a force $\mathbf{F}$ generated by an instantaneous, spatially uniform electric field $\mathbf{E}$ that gives a momentum kick to the ions:

$$\begin{array}{c}\hfill {\widehat{H}}_{\mathrm{kick}}\left(\mathbf{F}\right)=\mathbf{F}·\widehat{\mathbf{z}},\end{array}$$

(3)

where $\widehat{\mathbf{z}}=\{{\widehat{z}}_1,{\widehat{z}}_2\}$, such that the elements of $\mathbf{F}$ describe the force on each ion.

The gate sequence we consider consists of two evolution steps applied N times: (i) evolution under ${\widehat{H}}_{\mathrm{free}}={\widehat{H}}_0+{\widehat{H}}_{\mathrm{tw}}$ for a duration ${\tau }_k$, followed by (ii) a kick generated by ${\widehat{H}}_{\mathrm{kick}}$ with the force ${\mathbf{F}}_k$ applied at time $t_k$ for a time $\delta t\to 0$, where k references the kick sequence number. The evolution of the total sequence is therefore given by ${\mathcal{U}}_{\mathrm{total}}={\prod }_{k=1}^N{\mathcal{U}}_{\mathrm{kick}}^{\left(k\right)}{\mathcal{U}}_{\mathrm{free}}^{\left(k\right)}$.

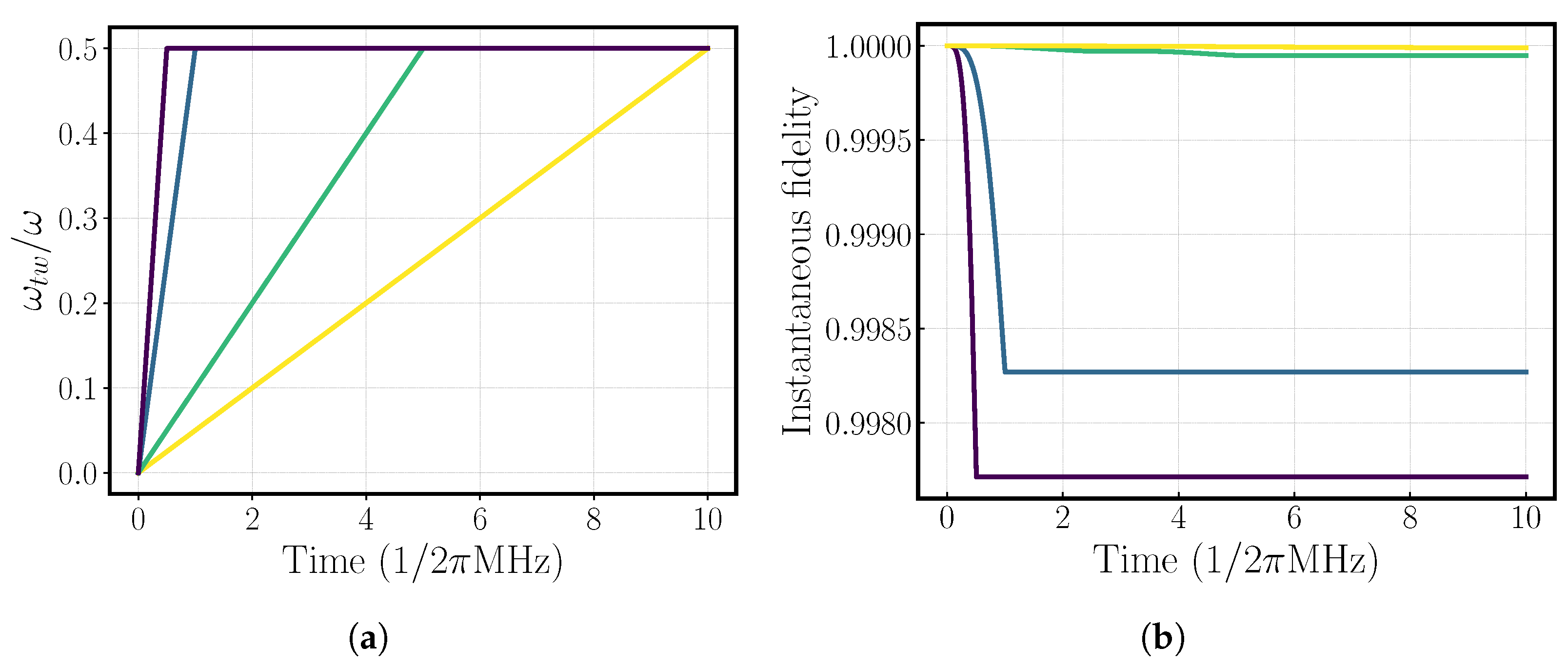

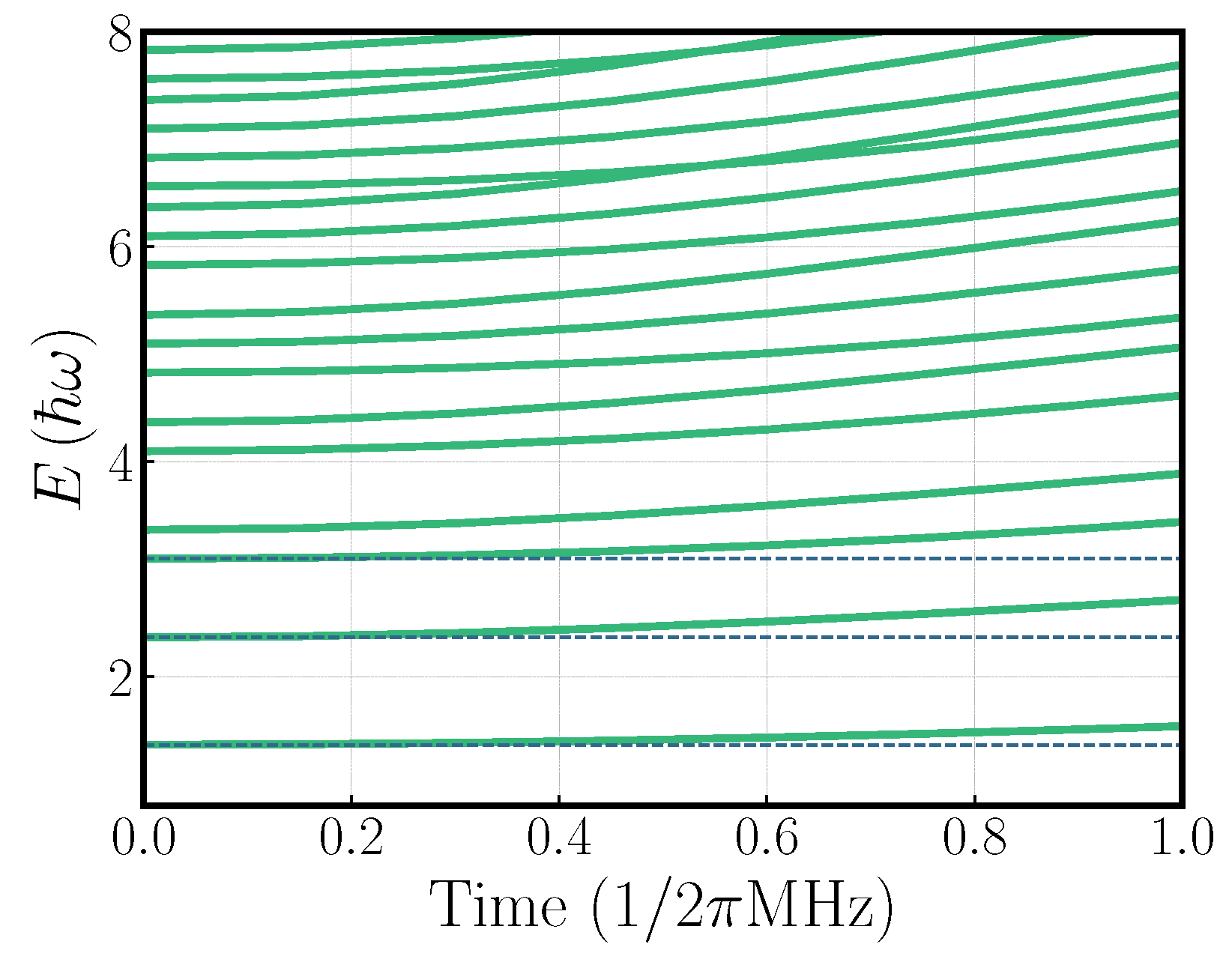

To characterize the protocol, we consider the action of the unitary on coherent states in the presence of the tweezers $|··,{\alpha }_1^{··},{\alpha }_2^{··}\rangle$, where $|{\alpha }_1^{··}\rangle$ ($|{\alpha }_2^{··}\rangle$) is the spin-dependent coherent state of the com (stretch) mode. Such states can be prepared by cooling the motional modes in the absence of tweezers to prepare the ground state $|0\rangle$, before adiabatically ramping the tweezer’s strength for approximately one trap period to prepare $|0^{··}\rangle$. We describe this in more detail in Appendix A.

The action of the free evolution operator is

$$\begin{array}{cc}\hfill {\mathcal{U}}_{\mathrm{free}}^{\left(k\right)}|··,{\alpha }_1^{··},{\alpha }_2^{··}\rangle & =e^{-i{\sum }_m{\omega }_m^{··}({a_m^{··}}^{†}{a}_m^{··}+1/2){\tau }_k}|··,{\alpha }_1^{··},{\alpha }_2^{··}\rangle \rangle \hfill \\ \hfill & =e^{-(i/2)({\omega }_1^{··}+{\omega }_2^{··}){\tau }_k}|··,e^{-i{\omega }_1^{··}{\tau }_k}{\alpha }_1^{··},e^{-i{\omega }_2^{··}{\tau }_k}{\alpha }_2^{··}\rangle .\hfill \end{array}$$

(4)

The electric field kick can be expanded by substituting in the position operator $\widehat{\mathbf{z}}={\sum }_m{l}_m^{··}({a_m^{··}}^{†}+a_m^{··}){\mathbf{b}}_m^{··}$, yielding

$${\mathcal{U}}_{\mathrm{kick}}^{\left(k\right)}=exp(-i\sum _m{l}_m^{··}({\mathbf{b}}_m^{··}·{\mathbf{F}}_k)({a_m^{··}}^{†}+a_m^{··})\delta t/\hslash ),$$

(5)

where $l_m^{··}=\sqrt{\hslash /2M{\omega }_m^{··}}$ is the (spin-dependent) harmonic oscillator length scale. The kick operator is thus simply a displacement operator such that

$$\begin{array}{c}\hfill {\mathcal{U}}_{\mathrm{kick}}^{\left(k\right)}|··,{\alpha }_1^{··},{\alpha }_2^{··}\rangle =exp(-i\sum _m{p}_{m,k}^{··}\mathrm{Re}\left\{{\alpha }_m\right\})|··,{\alpha }_1-i{p}_{1,k}^{··},{\alpha }_2-i{p}_{2,k}^{··}\rangle ,\end{array}$$

(6)

where we have introduced $p_{m,k}^{··}=F_k\delta t{l}_m^{··}({\tilde{\mathbf{b}}}_m^{··}·{\mathbf{1}}_2)/\hslash$, which is in the order of unity, with ${\mathbf{1}}_2$ the two-element vector $(1,1)$.

Finally, the total unitary produces ${\mathcal{U}}_{\mathrm{total}}|··,{\alpha }_1^{··},{\alpha }_2^{··}\rangle =e^{i\xi }|··,{\tilde{\alpha }}_1^{··},{\tilde{\alpha }}_2^{··}\rangle$, with

$$\begin{array}{cc}\hfill & \xi =\sum _m\left({\Theta }_m^{··}-{\displaystyle \frac{{\theta }_N^{··}}{2}}-\sum _{n=2}^N\mathrm{Re}\left[{\alpha }_m^{··}\sum _{k=1}^N{p}_{m,k}^{··}{e}^{-i{\theta }_n^{··}}\right]\right),\hfill \end{array}$$

(7)

and

$$\begin{array}{c}\hfill {\tilde{\alpha }}_m^{··}={\alpha }_m^{··}{e}^{-i{\theta }_N^{··}}-i\sum _{k=1}^N{p}_{m,k}^{··}{e}^{-i({\theta }_k^{··}-{\theta }_N^{··})},\end{array}$$

(8)

where we have defined the phases ${\Theta }_m^{··}=-{\sum }_{n=2}^N{\sum }_{k=1}^{n-1}{p}_{m,n}^{··}{p}_{m,k}^{··}sin\left({\omega }_m^{··}(t_k-t_n)\right)$ and ${\theta }_k^{··}={\omega }_m^{··}{\sum }_{n=1}^k{\tau }_n$.

To perform a closed loop in phase space, we require that ${\tilde{\alpha }}_m^{··}={\alpha }_m^{··}$ for all two-qubit states. From Equation (8), we therefore require that

$$\begin{array}{c}\hfill C_m^{··}\equiv \sum _{k=1}^N{p}_{m,k}^{··}{e}^{-i{\omega }_m^{··}{t}_k}=0,\end{array}$$

(9)

where we have made the substitution ${\sum }_{n=1}^k{\tau }_n=t_k$, as well as either

$$\begin{array}{cc}\hfill {\alpha }_m^{··}& =0,\mathrm{or}\hfill \end{array}$$

(10a)

$$\begin{array}{cc}\hfill e^{i{\theta }_N^{··}}& =1.\hfill \end{array}$$

(10b)

Satisfying Equations (9) and (10a)—we will call this protocol 1—requires preparing the tweezer ground state and means that the accumulated phase depends on the zero-point energy term, so that Equations (7) and (8) can be simplified into

$$\begin{array}{c}\hfill \xi \equiv \sum _m\left({\Theta }_m^{··}-{\displaystyle \frac{{\theta }_N^{··}}{2}}\right),\end{array}$$

(11)

In contrast, satisfying Equations (9) and (10b), which we will call protocol 2, makes the gate independent of the initial motional state amplitude, ${\tilde{\alpha }}_m^{··}={\alpha }_m^{··}$, and removes the zero-point energy term from the accumulated phase, so that the phase now becomes

$$\begin{array}{c}\hfill \xi \equiv \sum _m{\Theta }_m^{··}.\end{array}$$

(12)

Protocol 1 is easier in computational terms; however, it requires the system to be cooled down to the ground state. Protocol 2, conversely, is more powerful as it provides temperature-insensitive solutions, but it is much harder to satisfy, as it requires that the zero-point energy term, Equation (10b), is in phase for all four spin combinations. In this article, we consider the implementation of protocol 1. The commensurability conditions, Equation (9), mean we have, for each of three (four different spin combinations exist, but the eigenvalues of $|\uparrow \downarrow \rangle$ and $|\downarrow \uparrow \rangle$ are identical for a two-ion crystal) possible spin combinations $|··\rangle$, two normal modes m and for each of these N sets of kicks, totaling six equations. If we are to add the requirement for temperature insensitivity, Equation (10b), the fact that this term is spin-dependent means that we will necessarily be adding another six equations to our total. This, in turn, will scale with the number of ions in the gate, as adding one ion means adding one motional mode to the system. In order to perform the logic gate, we must not only satisfy these conditions but must also guarantee that the overall phase accumulated over the system’s evolution realizes the desired phase gate:

$$\begin{array}{c}\hfill \xi =\sum _m-{\theta }_N^{··}/2+{\Theta }_m^{··}+{\Xi }_m^{··}={\displaystyle \frac{\pi }{4}}\left(\begin{array}{cccc}1& & & \\ & -1& & \\ & & -1& \\ & & & 1\end{array}\right).\end{array}$$

(13)

Full expressions for ${\Xi }^{··}$ and ${\Theta }^{··}$ for each of the four different possible qubit states can be found in Appendix E.

3. Results

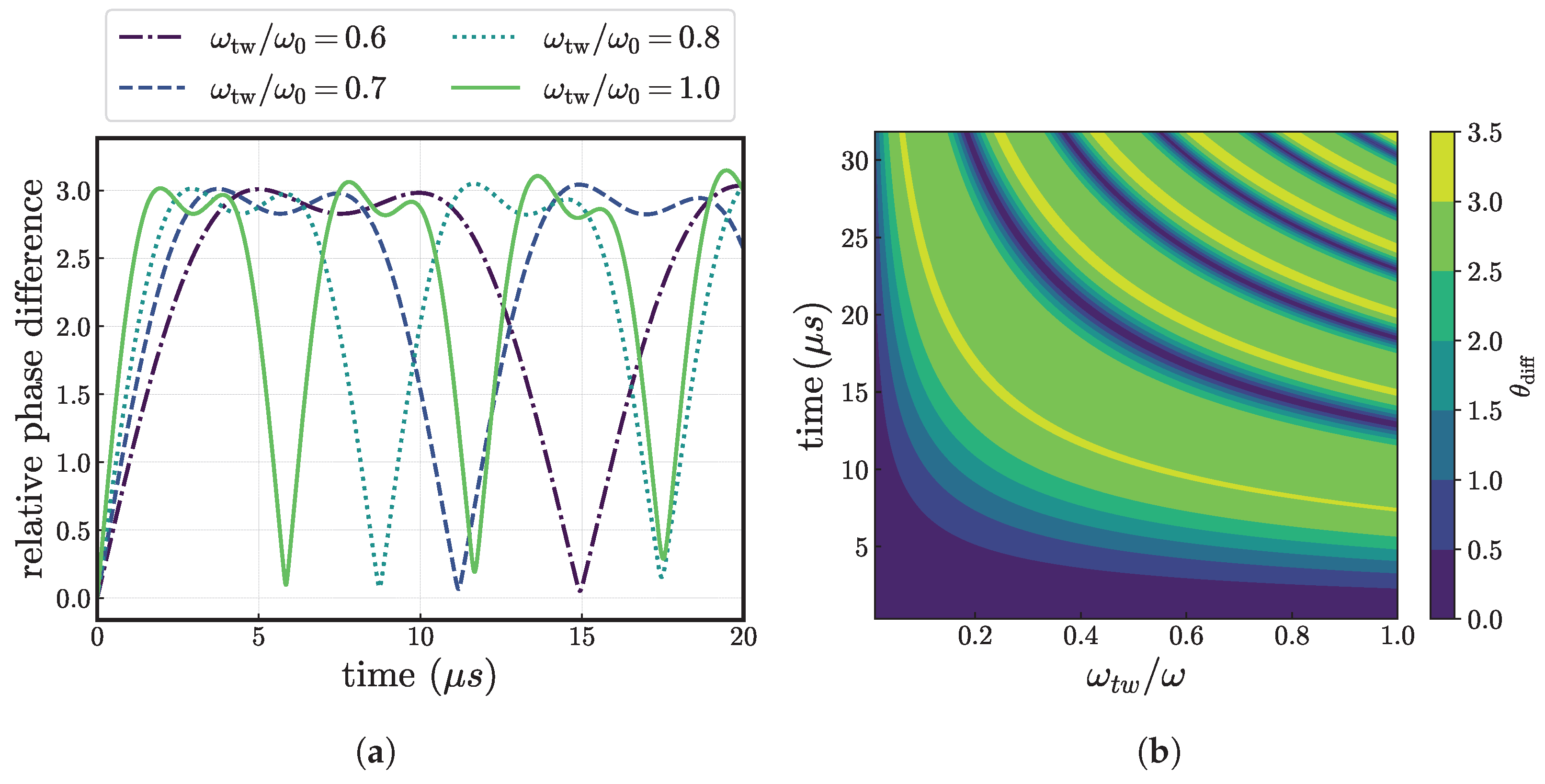

In order to implement the phase gate, we search for solutions of the type $(z_k\equiv F_k\delta t,{\tau }_k)$, with k denoting each sequence step. Besides satisfying the commensurability conditions and the overall phase constraint, we choose the total number of steps, N, and also constrain the momentum amplitude of the kicks $z_k$ in each step or the total gate time $T_{\mathrm{gate}}$. To facilitate this search, spin-echo sequences could potentially be performed at any point in the sequence to eliminate dephasing between states and facilitate the search for an adequate gate sequence.

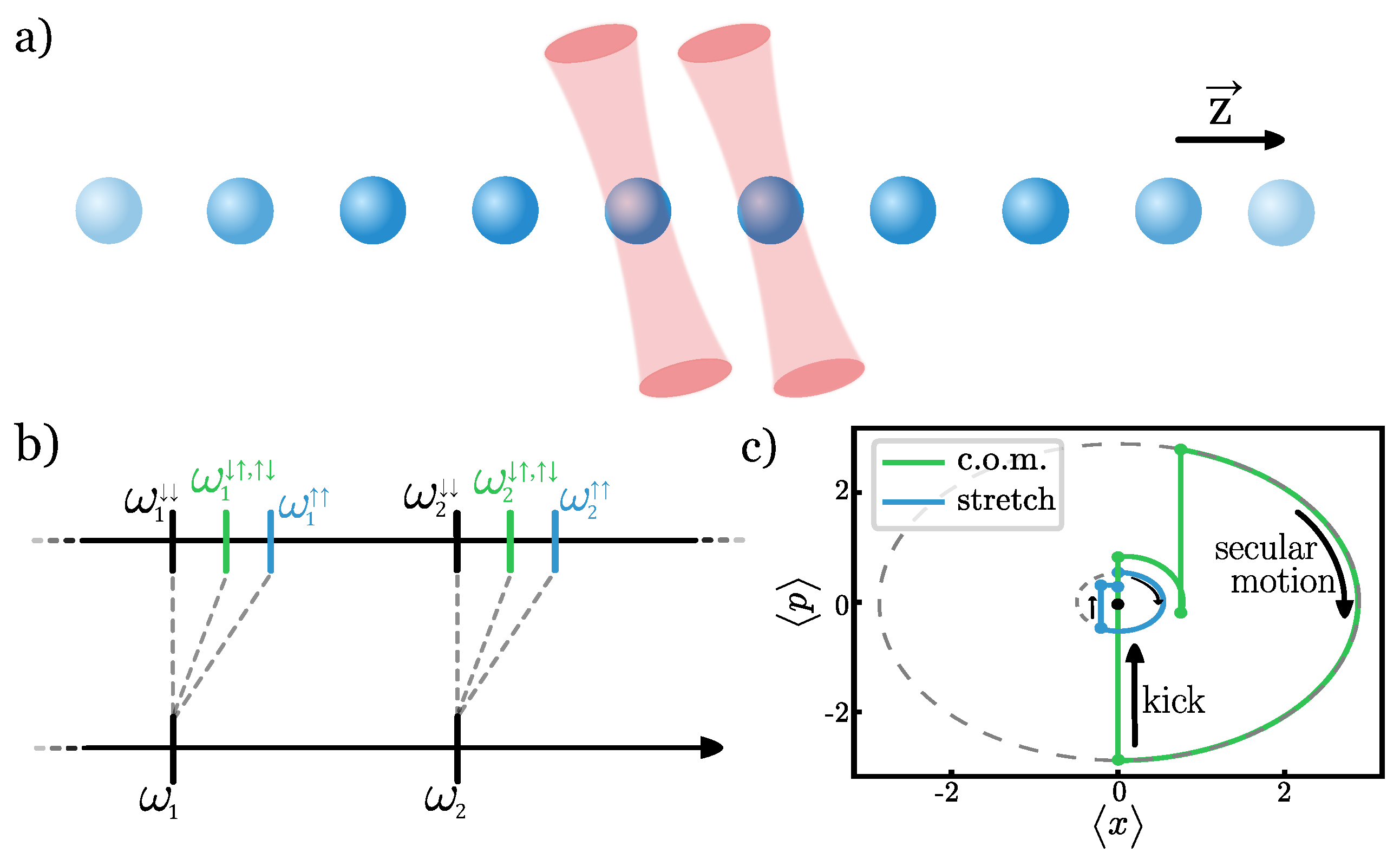

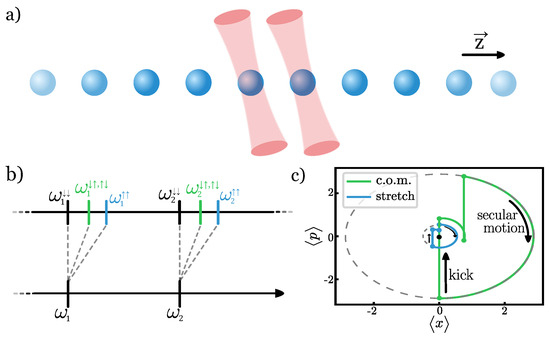

An example sequence can be observed in Figure 1c, which represents a two-ion phase gate for on a two-ion crystal, with the tweezers pinning the two ions in the array. The kicks represent pure displacements in momentum space, and the free evolution periods are secular motion in $\langle x,p\rangle$ space with a constant phase. The initial phase space orbit for each of the normal modes is restored by the end of the pulse sequence, demonstrating that the commensurability conditions are satisfied.

In order to quantify the gate performance, we investigate the average gate fidelity [22]:

$$\begin{array}{c}\hfill \overline{F}(\mathcal{E},\mathcal{U})={\displaystyle \frac{{\sum }_j\mathrm{Tr}\left(\mathcal{U}{\mathcal{U}}_j^{†}{\mathcal{U}}^{†}\mathcal{E}\left({\mathcal{U}}_j\right)\right)+d^2}{d^2(d+1)}},\end{array}$$

(14)

where $\mathcal{U}$ is the target gate operation, $\mathcal{E}$ is our generated unitary, and $\mathcal{E}\left({\mathcal{U}}_j\right)=t{r}_{\mathrm{FS}}[\mathcal{E}(|n\rangle \langle n|\otimes {\mathcal{U}}_j)\mathcal{E}]$ is its projection on the motional modes $|{\alpha }_i\rangle$ and on the $SU\left(2\right)$ generalized Pauli matrices, ${\mathcal{U}}_j$, of dimension d, with $d=4$ for two-ion gates.

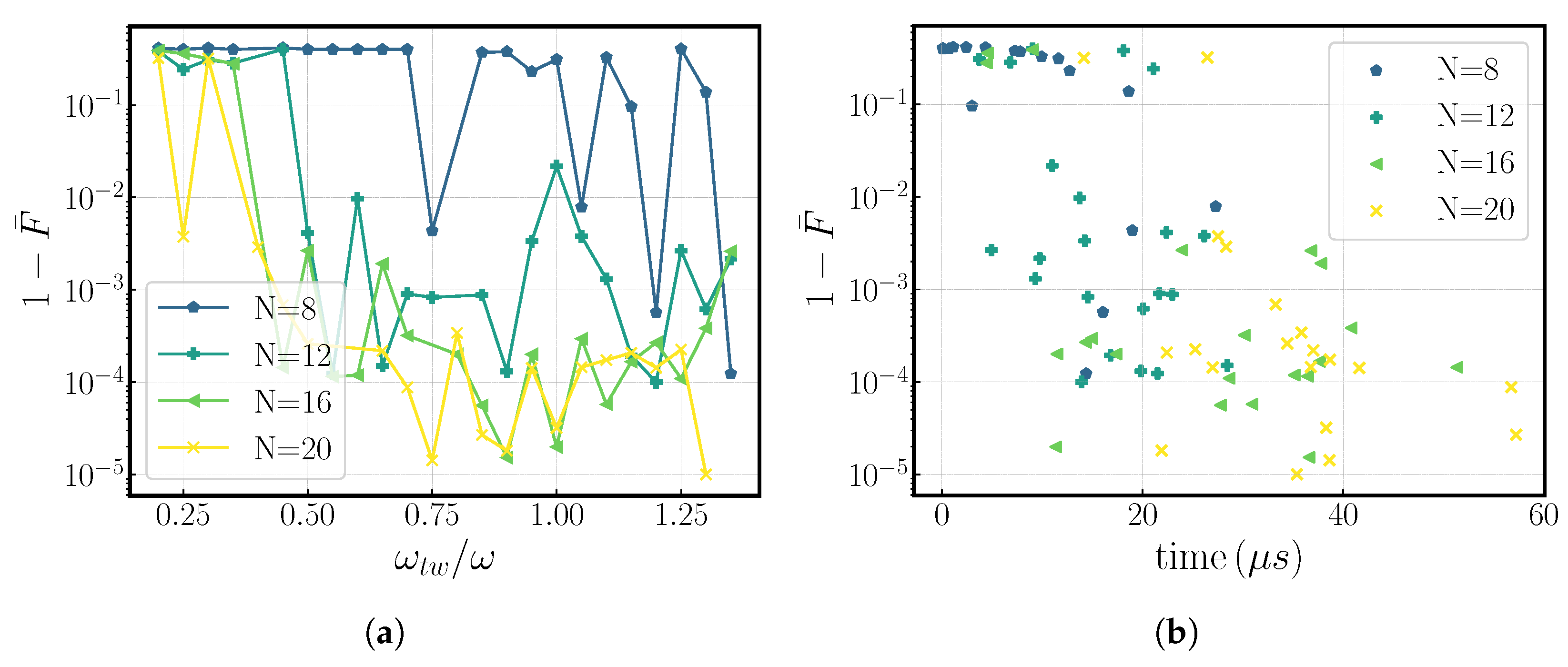

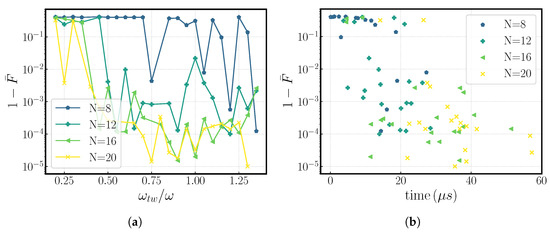

After sweeping over different values for the kick number, N, and tweezer frequency, ${\omega }_{\mathrm{tw}}$, we obtain the results shown in Figure 2 for a gate performed in a two-ion crystal. The infidelities obtained are as good as $1-\overline{F}\sim \left[{10}^{-5}\right]$, so long as we have an adequate number of kicks (generally $N>12$), and the employed tweezer frequency is ${\omega }_{\mathrm{tw}}/\omega \ge 0.5$; see Figure 2a.

Larger numbers of kicks, as in Figure 2a,b, $N_{\mathrm{i}}$, generally translate into lower achievable infidelities regardless of the tweezer frequency but at the expense of the overall gate time $T_{\mathrm{gate}}$. We attribute this trend to the added degrees of freedom which a higher number of kicks introduces into the problem, thus increasing the solution space and the probability of finding converging solutions. In general, we conclude that having higher tweezer frequencies means lower infidelities can be achieved, requiring smaller kick numbers and thus shorter gate times; see Figure 2b.

Gates in a Four-Ion Crystal

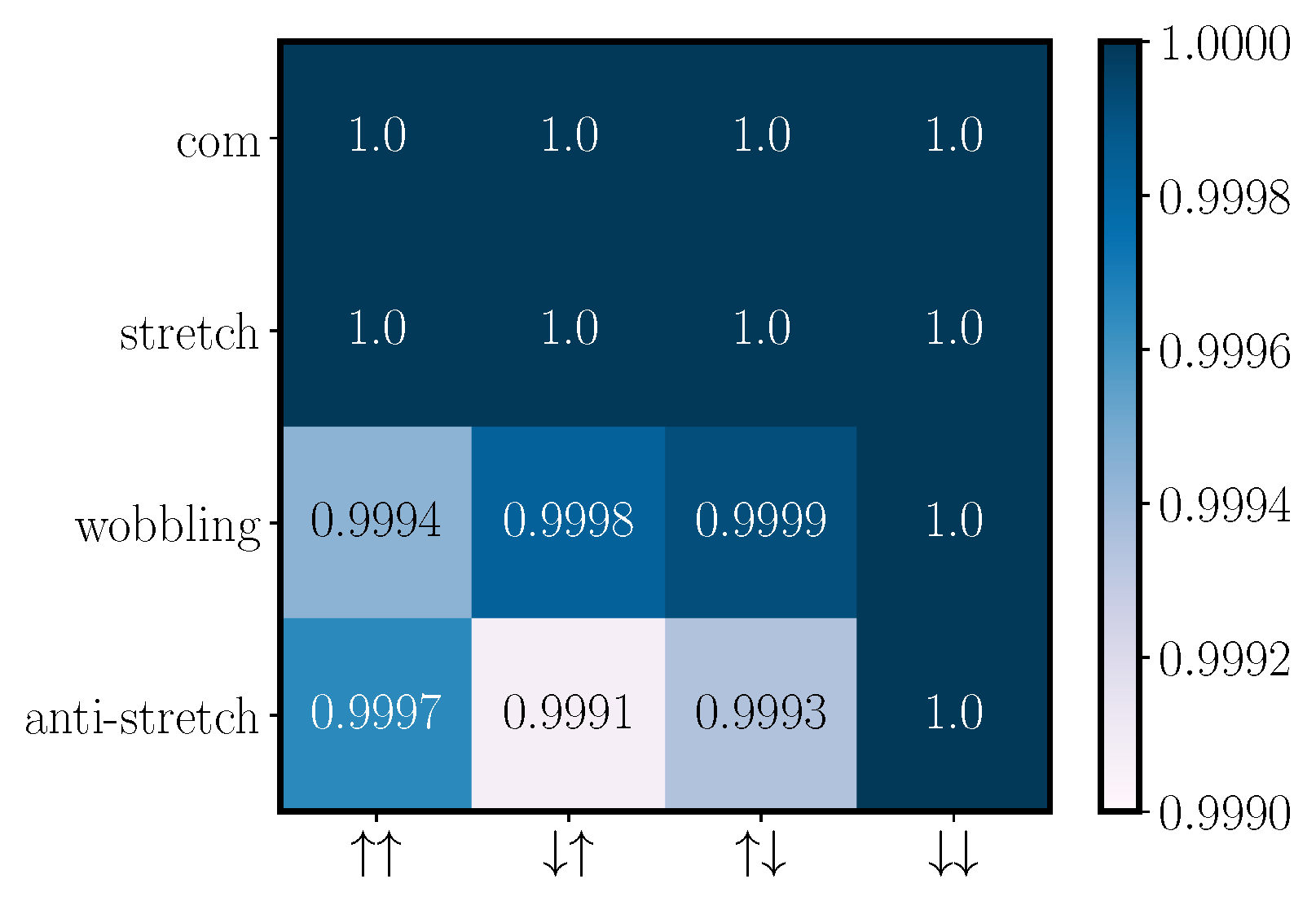

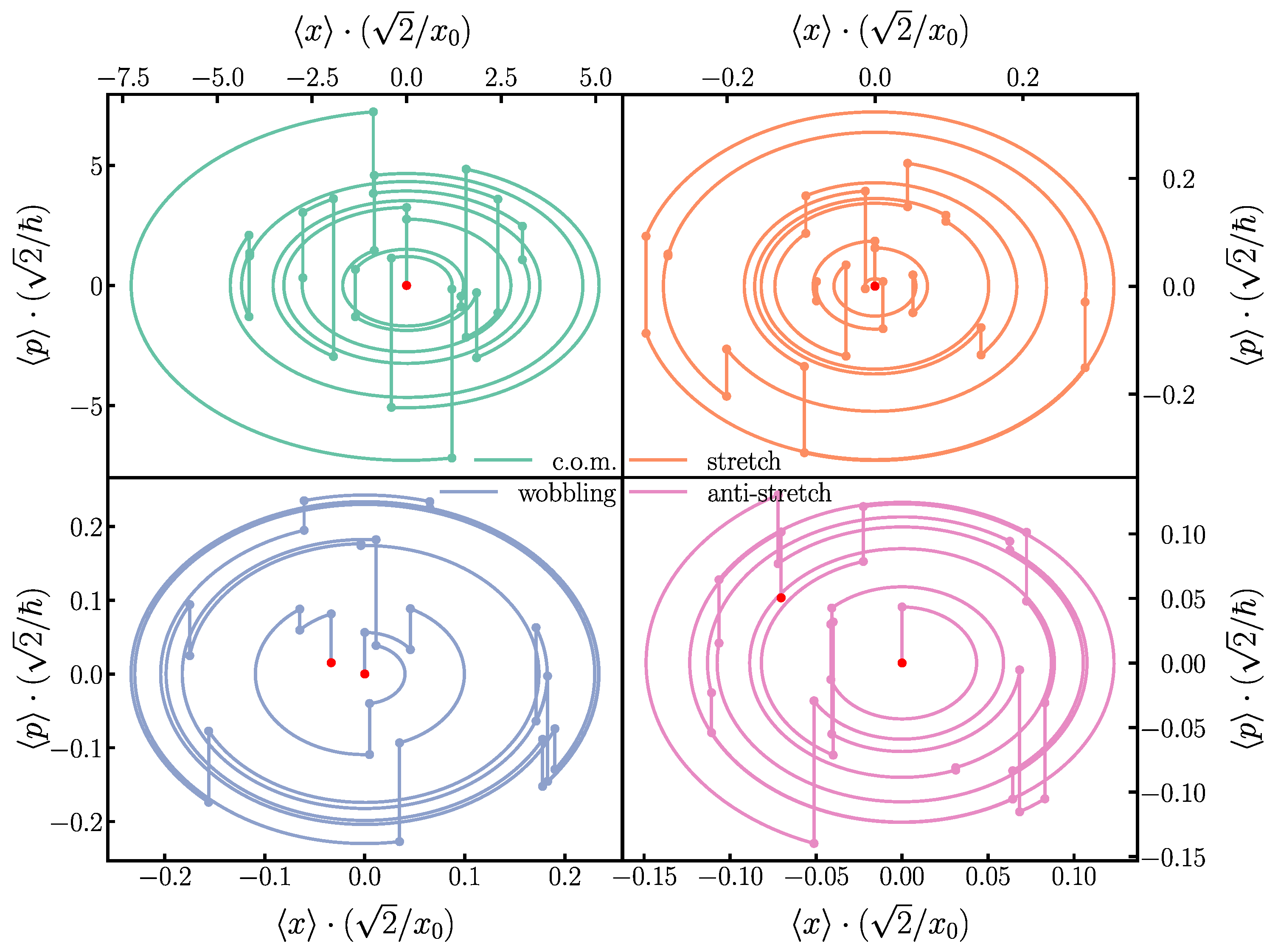

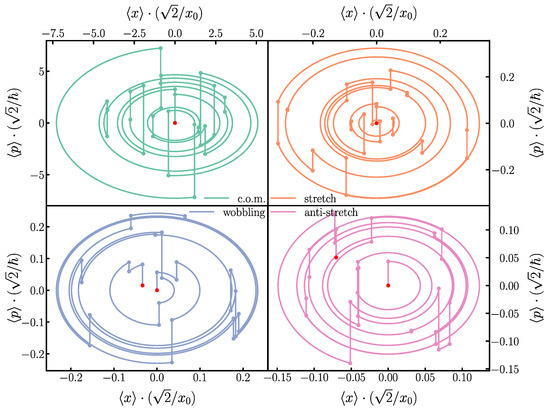

We investigate the scalability of this scheme by increasing the number of ions in the crystal to four. Even though the gate is performed solely between two ions, the electric field kicks must be determined so that the new additional motional modes also recover their initial states. The additional constraints hinder the convergence of our numerical methods such that it is harder to find solutions. The solutions found do not perform as well as in the two-ion case; we observe an overall reduction in fidelity: the produced unitary does not match the desired target phase gate as well as it does in the two-ion case, and for some motional mode/spin-state combinations, the overlap between the initial and final states is not exact; see Figure 3. Another way to visualize the overlap between the initial and final states is to look at the phase space trajectories of the different modes throughout the gate and compare the final phase space position with the initial one; see Figure 4.

Even though we observe a reduction in performance on scaling up the ion crystal size, it is important to note that a beneficial aspect in the scalability of this gate scheme is that the relative extent of the excursions in the phase space is reduced for higher-frequency modes; see Figure 4. This happens because the electric field only couples to the center-of-mass character of the mode, and this favors the low-frequency modes in ions. When adding ions to a crystal, the number of modes increases through ‘adding’ higher-frequency modes, while the modes that were already there remain unchanged. So, while we add error by adding ions, the amount of error that is added per ion reduces. It is therefore conceivable that not all modes have to be taken into account for large-ion crystals, at the expense of a small but unavoidable error in the gate.

To conclude, we can successfully find four-ion crystal solutions with average phase gate infidelities as good as $1-\overline{F}\sim {10}^{-4}$, though more commonly with $1-\overline{F}\sim {10}^{-2}$; see

Table 1. Average phase gate infidelity and gate time for several four-ion solutions. We present solutions with different kick numbers for a tweezer frequency ${\omega }_{\mathrm{tw}}=0.4\omega$ and one sixteen-kick solution for a tweezer frequency ${\omega }_{\mathrm{tw}}=0.8\omega$.

${\mathit{\omega }}_{\mathbf{tw}}/\mathit{\omega }$	N	$1-\overline{\mathit{F}}$	${\mathit{T}}_{\mathbf{gate}}$ ($\mathsf{\mu }$s)
0.4	16	0.0373	22.5717
0.4	20	0.0100	17.2863
0.4	28	0.0402	41.5518
0.4	30	0.0002	16.3239
0.8	16	0.0039	37.0045

.

Together with the results in Figure 2, these results lead us to believe that the choice of tweezer frequency does not condition our scheme in a monotonous way (meaning there is not a clear trend in how it affects the gate performance), but rather it conditions our results in two ways: one, it defines how strongly our states are coupled to motion and how much our eigenfrequencies are modified. So, with a higher tweezer frequency, it is easier to accumulate the desired phases with fewer kicks, whereas lower tweezer frequencies require more kicks; see Figure 2a). Secondly, while studying the four-ion case, we realize that it is easier to perform multiple-ion gates (>two ions) using lower tweezer frequencies, a fact justified due to the tweezer inducing lower state mixing, which reduces the amount of dephasing gathered at each step by the different motional states.

4. Experimental Considerations

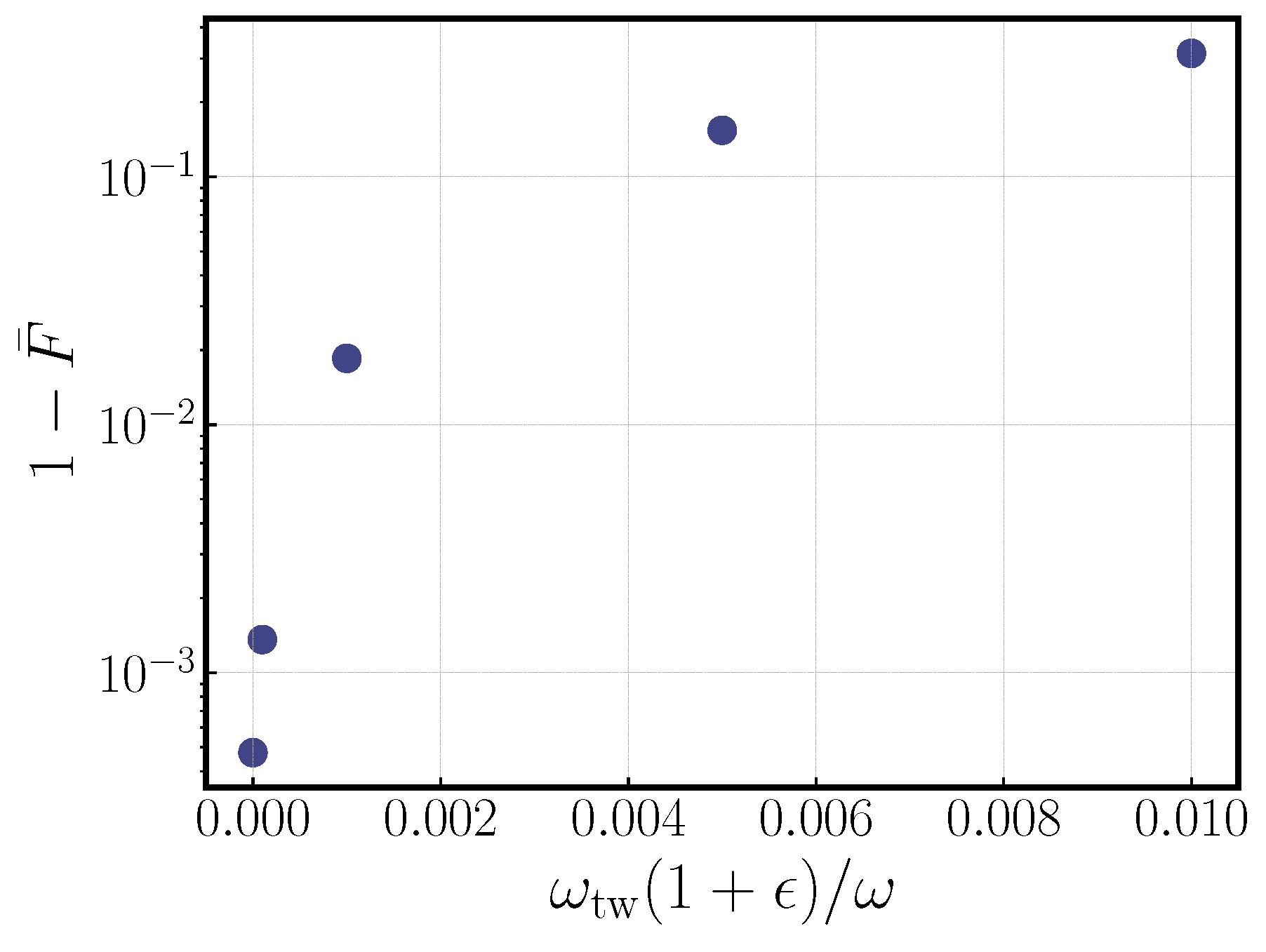

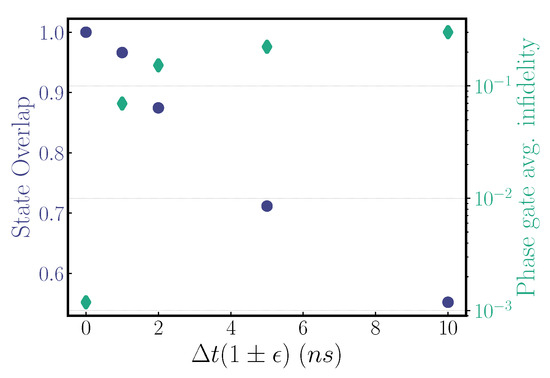

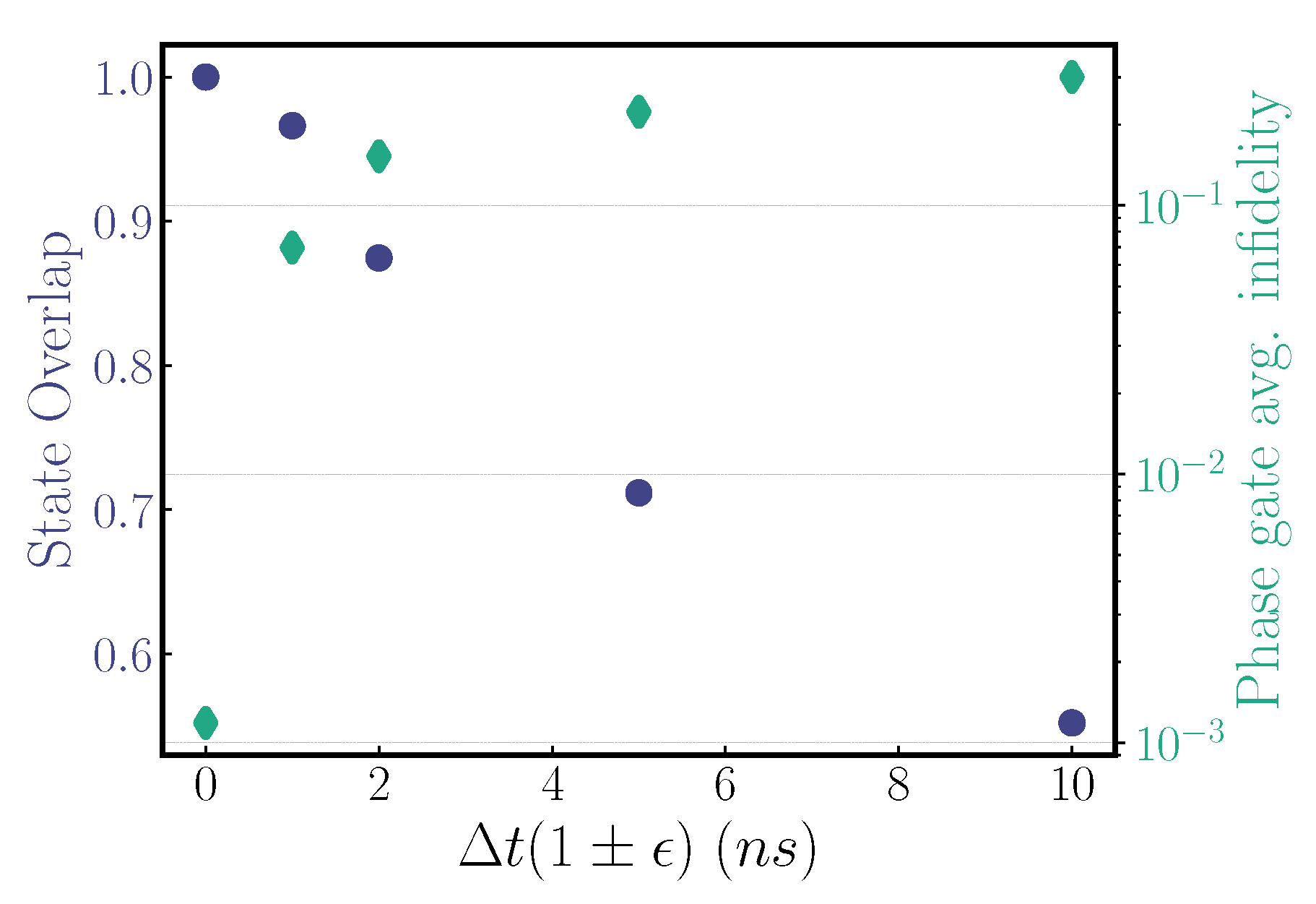

The electric field’s amplitude $E_0$ and pulse duration $\delta t$ represent experimental bottlenecks in terms of gate feasibility. To justify the assumption of instantaneous kicks, the electric field pulses must be much faster than the motion of the ion in the trap. Since typical trap frequencies lie in the MHz range, we must set $\delta t\ll$ $\mu$s. We can estimate the typical electric fields required by setting $l_{m}e{E}_0\delta t/\hslash =1$. For electric field pulse durations in the 10–100 ns range, we calculate $E_0\sim$ 1–10 V/m, with a slight dependence on the ion species. Our results yield electric field requirements in the order of $\sim \{{10}^{-6},{10}^{-7}\}\left[\mathrm{Vs}/\mathrm{m}\right]$, which are thus experimentally feasible.

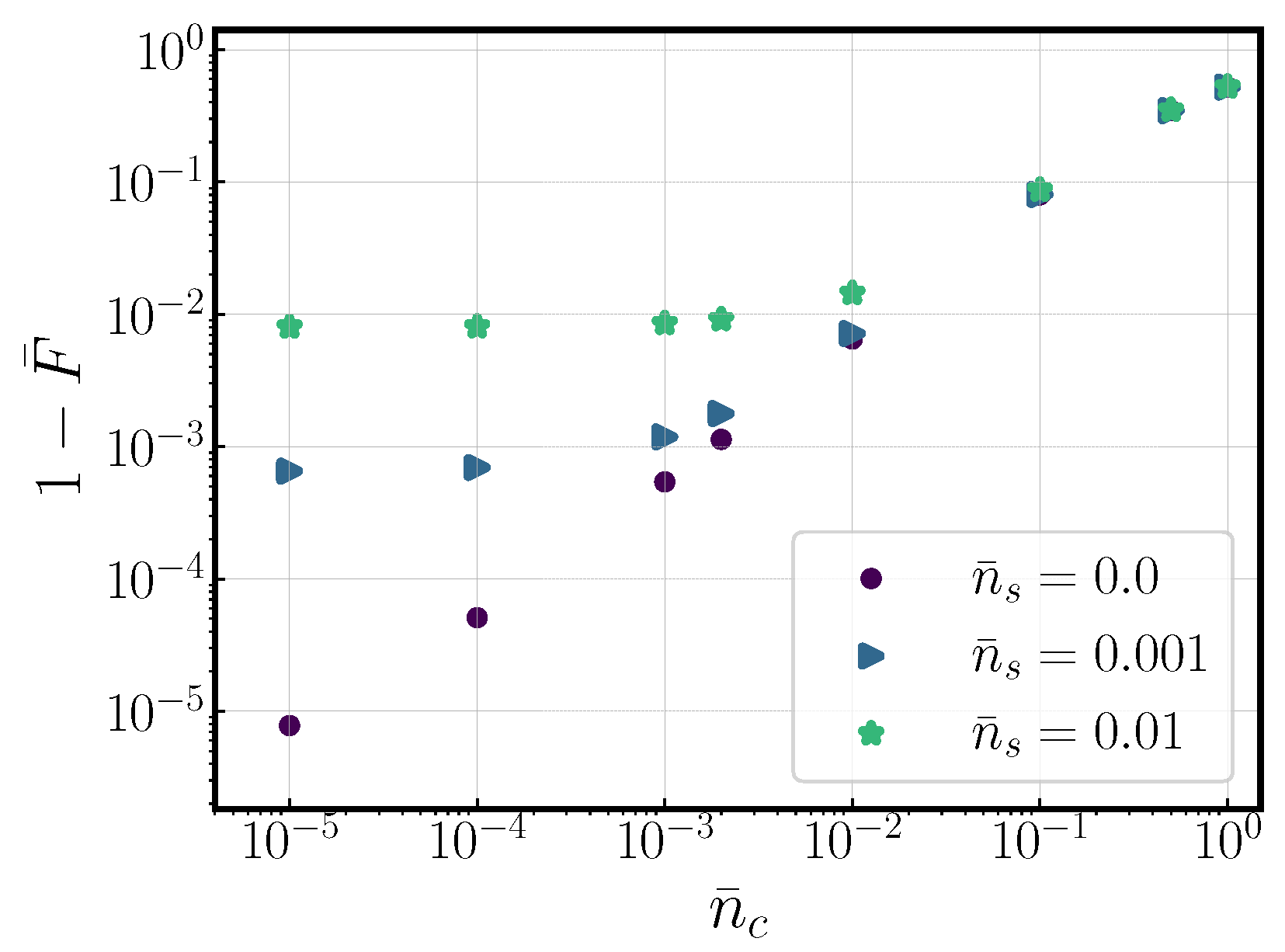

In this article, we have stayed within the confines of protocol 1, which requires ground state cooling and for Equation (10a) to be satisfied. In this way, it is relevant to investigate how the gate performs if this cooling is not perfect and there is some mode occupation beyond the ground state. These results are portrayed in Figure 5, where an originally $1-\overline{F}={10}^{-6}$ solution is exposed to increasing com. mode occupation, ${\overline{n}}_c$, for three different values of occupation of the stretch mode, ${\overline{n}}_s$. We observe how the infidelity decays to ${10}^{-2}$ as the com number occupation rises to the same value, following the same exponential trend. The number occupation of the stretch mode equally limits the minimum achievable infidelity.

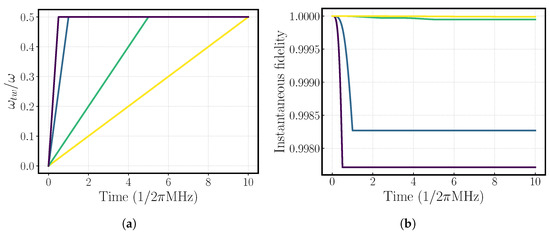

Finally, it can be experimentally challenging to generate a large difference in polarizability between the two qubit states. Here, one approach is to employ optical qubits in which one of the qubit states is encoded in a metastable electronic state. For instance, we can consider the qubit states $|0\rangle =|S_{1/2},m_j=1/2\rangle$ and $|1\rangle =|D_{5/2},m_j=3/2\rangle$ in ${}^{40}\mathrm{Ca}^{+}$ [23]. We can use a tweezer at 532 nm with circular ${\sigma }^{+}$ polarization. Setting the waist to $1$m and using a modest power of $P=$ 1 mW generates a tweezer trap frequency of ${\omega }_{\mathrm{tw}}=2\pi \times$ 49.1 (2.7) kHz for the state $|0\rangle$ ($|1\rangle$). We calculate the photon scattering to be $\gamma \lesssim$ $1$. Note that the photon scattering may be reduced further by employing hollow tweezers, allowing for larger ${\omega }_{\mathrm{tw}}$ values. For these calculations, we took into account the main dipole-allowed transitions and used the energies and transition dipole moments reported in [24].

5. Conclusions and Outlook

We proposed a two-qubit gate scheme on an array of trapped ions which relied on optical tweezers to generate the state dependence. Electric field pulses generate momentum kicks which produce the desired phases and accelerate the phase space trajectories. We calculate that the gate can be performed within accessible experimental conditions, with the caveat being that ground state cooling is required in the studied regime. We obtain gate times that are up to two orders of magnitude faster than those in the case studied in [16] but still fall short of the oscillation period of the ions in their trap [4]. This is due to the fact that this scheme requires dealing with the excitation of all modes, whose excursions in phase space must be undone, an effort which is leveraged against the speed of the fast pulses.

Although the proposed scheme may be easier to implement than either schemes based on pulsed lasers or Rydberg ions, it is limited by the challenge of supplying large state-dependent potentials to the ions without significant photon scattering. We note that the use of hollow tweezers would offer benefits in this regard [16,25,26]. We study how well the scheme performs as we scale up to a four-ion crystal, finding infidelities generally two orders of magnitude below the two-ion crystal solutions. Finally, a different search strategy or problem formulation could yield temperature-independent solutions, making the scheme more accessible under realistic experimental conditions.
