# Prediction of Wall Heat Fluxes in a Rocket Engine with Conjugate Heat Transfer Based on Large-Eddy Simulation

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The JAXA Chamber Configurations

## 3. Computational Setup

#### 3.1. Numerical Approach to Solve the Reactive Flow Field

#### 3.1.1. Numerical Scheme

#### 3.1.2. Liquid Injection Model

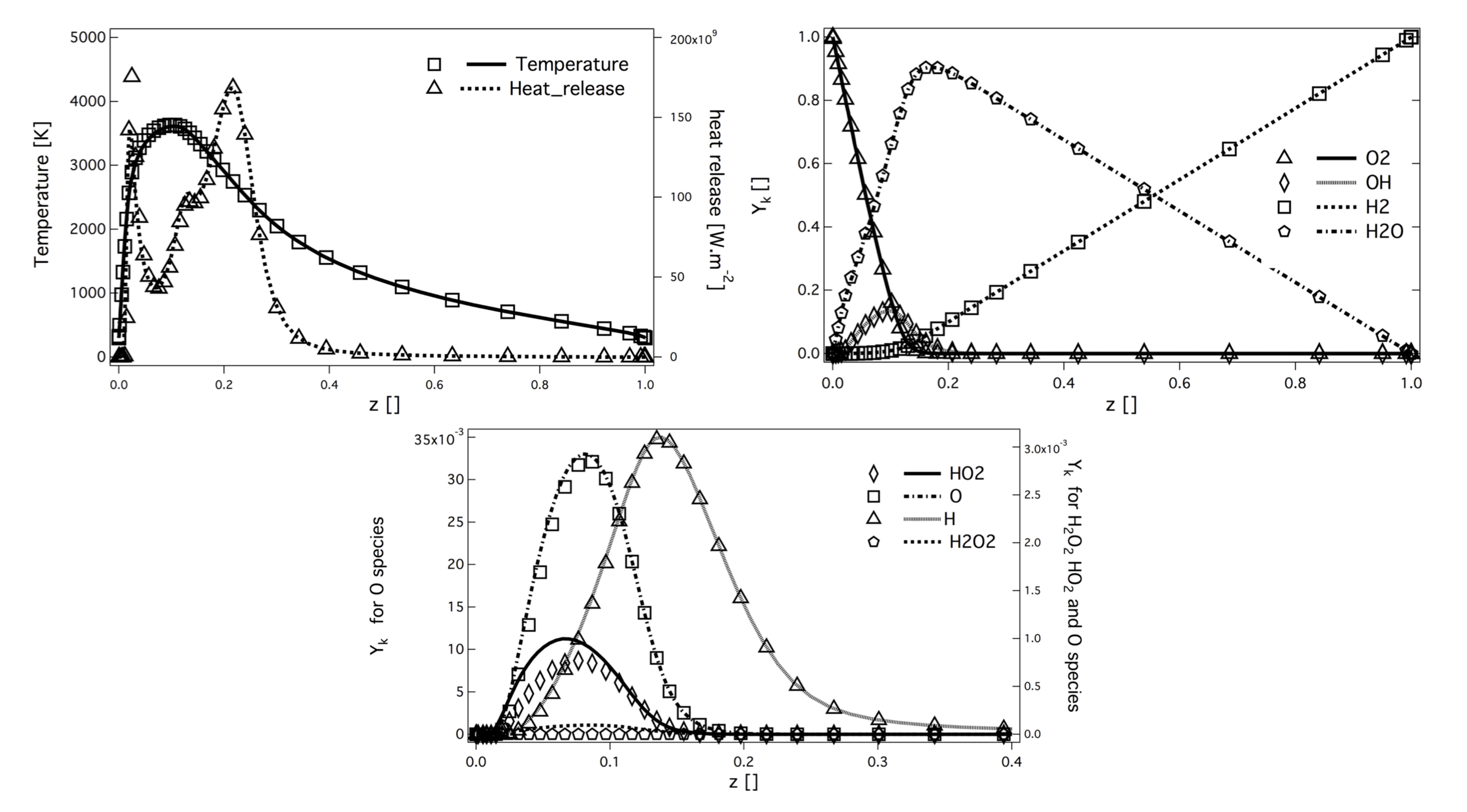

#### 3.1.3. Kinetics for the Combustion Model

#### 3.2. Numerical Approach to Solve the Heat Equation in the Solid

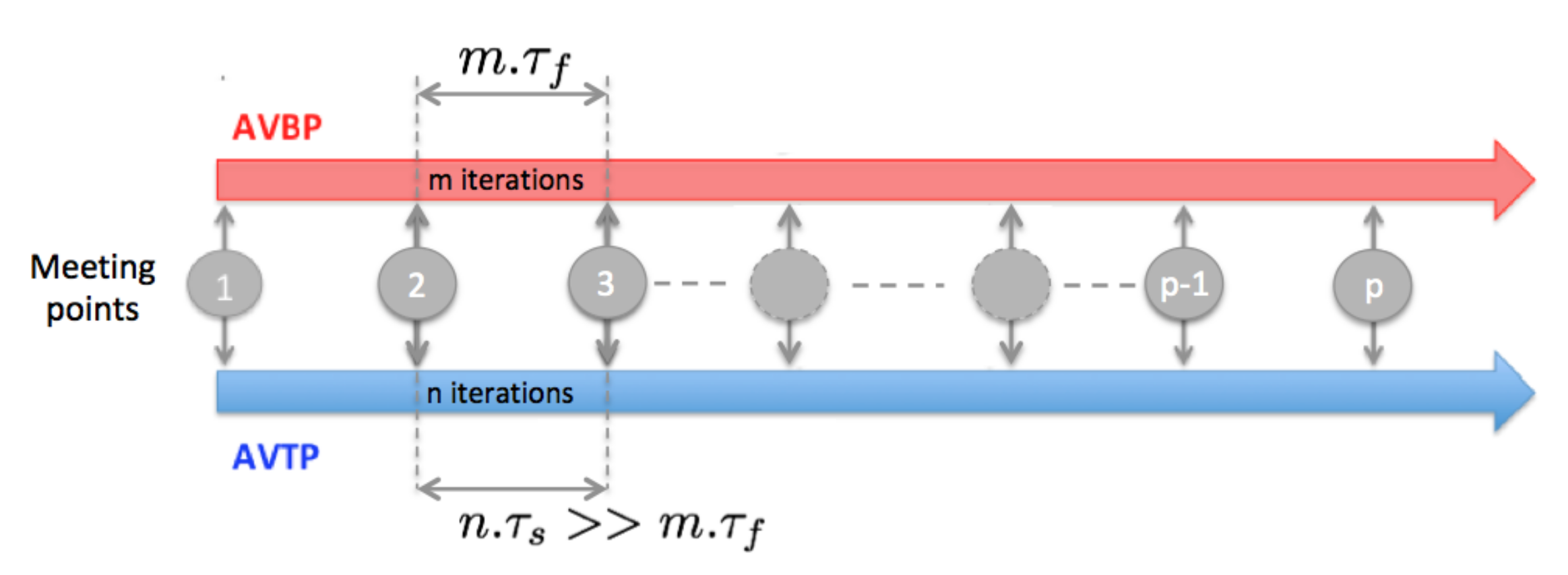

#### 3.3. Conjugate Heat Transfer Coupling Approach

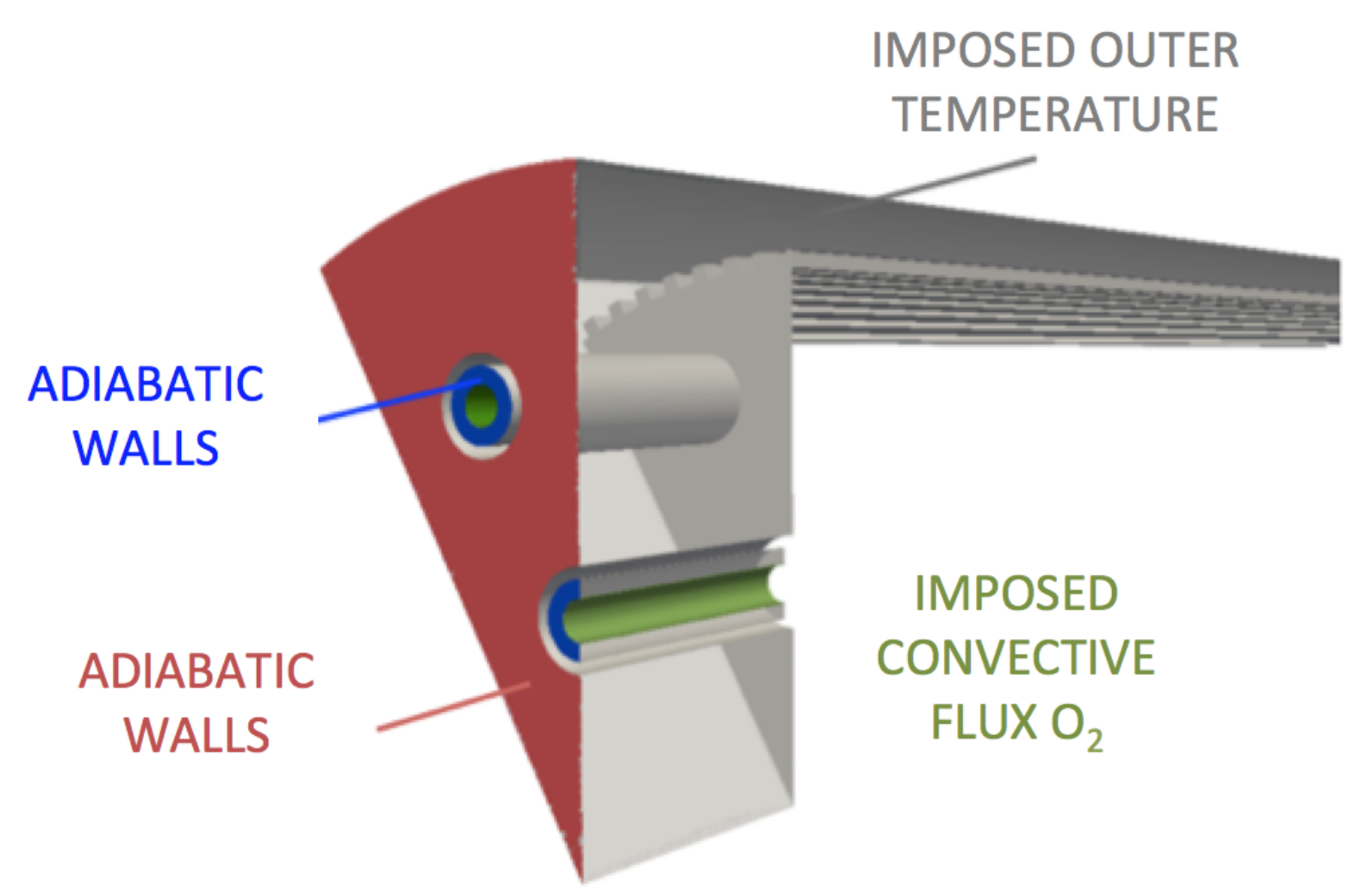

#### 3.4. Meshes and Boundary Conditions

## 4. Results

#### 4.1. Description of the Two-Phase Flow

#### 4.2. Flame Structure

#### 4.3. Comparison between Ribbed and Smooth Chambers

#### 4.3.1. Stratification in the Inter-Rib Region

#### 4.3.2. Heat Transfer

#### 4.4. Heat Transfer: Comparison with Experiment

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Burch, R.L.; Cheung, F.B. Numerical investigation of two- and three-dimensional heat transfer in expander cycle engines. NASA Propul. Eng. Res. Cent.
**1993**, 2, 97–100. [Google Scholar] - Kumar, A.; Venkateswarlu, V.; Satyaprasad, P.; Rao, M.R. Development of film cooled thruster for rocket application. In Proceedings of the ASME 2019 Gas Turbine India Conference, Chennai, India, 5–6 December 2019. [Google Scholar]
- NASA. Orbit Transfer Rocket Engine Technology Program: Enhanced Heat Transfer Combustor Technology: Heat Load Maximization Studies; Technical Report; NASA: Washington, WA, USA, 1991. [Google Scholar]
- Han, J. Recent Studies in Turbine Blade Cooling. Int. J. Rotating Mach.
**2004**, 10, 443–457. [Google Scholar] [CrossRef] - Duchaine, F.; Gicquel, L.; Grosnickel, T.; Koupper, C. Large-Eddy Simulation of the Flow Developing in Static and Rotating Ribbed Channels. J. Turbomach.
**2020**, 142, 041003. [Google Scholar] [CrossRef] - Perrot, A.; Gicquel, L.; Duchaine, F.; Odier, N.; Dombard, J.; Grosnickel, T. Unsteady Analysis of Heat Transfer Coefficient Distribution in a Static Ribbed Channel for An Established Flow. In Proceedings of the ASME Turbo Expo 2020: Turbomachinery Technical Conference and Exposition, Virtual, Online. 21–25 September 2020. [Google Scholar]
- Jordan, S.A. The turbulent character and pressure loss produced by periodic symmetric ribs in a circular duct. Int. J. Heat Fluid Flow
**2003**, 24, 795–806. [Google Scholar] [CrossRef] - Vicente, P.G.; Garc, A.; Viedma, A. Experimental investigation on heat transfer and frictional characteristics of spirally corrugated tubes in turbulent flow at different Prandtl numbers. Int. J. Heat Mass Transf.
**2004**, 47, 671–681. [Google Scholar] [CrossRef] - Campet, R.; Zhu, M.; Riber, E.; Cuenot, B.; Nemri, M. Large Eddy Simulation of a single-started helically ribbed tube with heat transfer. Int. J. Heat Mass Transf.
**2019**, 132, 961–969. [Google Scholar] [CrossRef] - Negishi, H.; Kumakawa, A.; Yamanishi, N.; Kurosu, A. Heat Transfer Simulations in Liquid Rocket Engine Subscale Thrust Chambers. In Proceedings of the 44th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit, Hartford, CT, USA, 21–23 July 2008. [Google Scholar]
- Negishi, H.; Kumakawa, A.; Moriya, S.; Yamanishi, N.; Sunakawa, H. Thrust Chamber with Hot Gas Side Wall Ribs; AIAA: Reston, VA, USA, 2009; pp. 1–14. [Google Scholar]
- Betti, B.; Nasuti, F. Numerical Simulation of Hot-Gas Side Heat Transfer Enhancement in Thrust Chambers by Wall Ribs; AIAA: Reston, VA, USA, 2011; pp. 1–11. [Google Scholar]
- Méry, Y.; Hakim, L.; Scouflaire, P.; Vingert, L.; Ducruix, S.; Candel, S. Experimental investigation of cryogenic flame dynamics under transverse acoustic modulations. C. R. Mec.
**2013**, 341, 100–109. [Google Scholar] [CrossRef] - Schmitt, T.; Méry, Y.; Boileau, M.; Candel, S. Large-Eddy Simulation of oxygen/methane flames under transcritical conditions. Proc. Combust. Inst.
**2011**, 33, 1383–1390. [Google Scholar] [CrossRef] - Ruiz, A. Unsteady Numerical Simulations of Transcritical Turbulent Combustion in Liquid Rocket Engines. Ph.D. Thesis, Institut National Polytechnique de Toulouse, Toulouse, France, November 2012. [Google Scholar]
- Urbano, A.; Selle, L.; Staffelbach, G.; Cuenot, B.; Schmitt, T.; Ducruix, S.; Candel, S. Exploration of combustion instability triggering using Large Eddy Simulation of a multiple injector Liquid Rocket Engine. Combust. Flame
**2016**, 169, 129–140. [Google Scholar] [CrossRef] [Green Version] - Urbano, A.; Douasbin, Q.; Selle, L.; Staffelbach, G.; Cuenot, B.; Schmitt, T.; Ducruix, S.; Candel, S. Study of flame response to transverse acoustic modes from the LES of a 42-injector rocket engine. Proc. Combust. Inst.
**2017**, 36, 2633–2639. [Google Scholar] [CrossRef] [Green Version] - Maestro, D.; Cuenot, B.; Selle, L. Large Eddy Simulation of Combustion and Heat Transfer in a Single Element GCH
_{4}/GOx Rocket Combustor. Flow Turbul. Combust.**2019**, 103, 699–730. [Google Scholar] [CrossRef] - Laurent, C.; Staffelbach, G.; Nicoud, F.; Poinsot, T. Heat-release dynamics in a doubly-transcritical LO2/LCH4 cryogenic coaxial jet flame subjected to fuel inflow acoustic modulation. Proc. Combust. Inst.
**2021**, 38, 6375–6383. [Google Scholar] [CrossRef] - Lacaze, G. Simulation Numerique aux Grandes Echelles de l’allumage de moteurs fusees cryotechniques. Ph.D. Thesis, Institut National Polytechnique de Toulouse, Toulouse, France, May 2009. [Google Scholar]
- Rocchi, J.P. Simulation aux Grandes Echelles de la phase d’allumage dans un moteur fusee cryogenique. Ph.D. Thesis, Institut National Polytechnique de Toulouse, Toulouse, France, September 2014. [Google Scholar]
- Schønfeld, T.; Rudgyard, M. Steady and Unsteady Flows Simulations Using the Hybrid Flow Solver AVBP. AIAA J.
**1999**, 37, 1378–1385. [Google Scholar] [CrossRef] - Mendez, S.; Nicoud, F. Large-eddy simulation of a bi-periodic turbulent flow with effusion. J. Fluid Mech.
**2008**, 598, 27–65. [Google Scholar] [CrossRef] [Green Version] - Selmin, V. Third-Order Finite Element Schemes for the Solution of Hyperbolic Problems; Technical Report RR-0707; INRIA: Valbonne, France, July 1987. [Google Scholar]
- Donea, J.; Huerta, A. Finite Element Methods for Flow Problems; John Wiley & Sons Inc: New York, NY, USA, 2003. [Google Scholar]
- Colin, O.; Rudgyard, M. Development of high-order Taylor-Galerkin schemes for unsteady calculations. J. Comput. Phys.
**2000**, 162, 338–371. [Google Scholar] [CrossRef] - Boileau, M.; Staffelbach, G.; Cuenot, B.; Poinsot, T.; Bérat, C. LES of an ignition sequence in a gas turbine engine. Combust. Flame
**2008**, 154, 2–22. [Google Scholar] [CrossRef] [Green Version] - Staffelbach, G.; Gicquel, L.Y.M.; Boudier, G.; Poinsot, T. Large Eddy Simulation of self-excited azimuthal modes in annular combustors. Proc. Combust. Inst.
**2009**, 32, 2909–2916. [Google Scholar] [CrossRef] [Green Version] - Gicquel, L.Y.M.; Staffelbach, G.; Poinsot, T. Large Eddy Simulations of gaseous flames in gas turbine combustion chambers. Prog. Energy Combust. Sci.
**2012**, 38, 782–817. [Google Scholar] - Pouech, P.; Duchaine, F.; Poinsot, T. Premixed flame ignition in high-speed flows over a backward facing step. Combust. Flame
**2021**, 229, 111398. [Google Scholar] [CrossRef] - Boileau, M.; Duchaine, F.; Jouhaud, J.C.; Sommerer, Y. Large eddy simulation of heat transfer around a square cylinder using unstructured grids. AIAA J.
**2013**, 51, 372–385. [Google Scholar] [CrossRef] [Green Version] - Duchaine, F.; Maheu, N.; Moureau, V.; Balarac, G.; Moreau, S. Large Eddy Simulation and Conjugate Heat Transfer Around a Low-Mach Turbine Blade. J. Turbomach.
**2013**, 136, 051015. [Google Scholar] [CrossRef] - Pope, S.B. Turbulent Flows; Cambridge University Press: Cambridge, UK, 2000. [Google Scholar]
- Nicoud, F.; Baya Toda, H.; Cabrit, O.; Bose, S.; Lee, J. Using singular values to build a subgrid-scale model for large eddy simulations. Phys. Fluids
**2011**, 23, 085106. [Google Scholar] [CrossRef] [Green Version] - Riber, E.; Moureau, V.; García, M.; Poinsot, T.; Simonin, O. Evaluation of numerical strategies for large eddy simulation of particulate two-phase recirculating flows. J. Comput. Phys.
**2009**, 228, 539–564. [Google Scholar] [CrossRef] [Green Version] - Sirignano, W.A. Fluid Dynamics and Transport of Droplets and Sprays; Cambridge University Press: Cambridge, UK, 1999. [Google Scholar]
- Farago, Z.; Chigier, N. Morphological classification of disintegration of round liquid jets in a coaxial air stream. At. Sprays
**1992**, 2, 137–153. [Google Scholar] - Rehab, H.; Villermaux, E.; Hopfinger, E.J. Flow regimes of large-velocity-ratio coaxial jets. J. Fluid Mech.
**1997**, 345, 357–381. [Google Scholar] [CrossRef] - Lasheras, J.C.; Hopfinger, E.J. Liquid jet instability and atomization in a coaxial gas stream. Annu. Rev. Fluid Mech.
**2000**, 32, 275–308. [Google Scholar] [CrossRef] - Marmottant, P.; Villermaux, E. Atomisation primaire dans les jets coaxiaux. Combustion
**2002**, 2, 1–37. [Google Scholar] - Lasheras, J.C.; Villermaux, E.; Hopfinger, E.J. Break-up and atomization of a round water jet by a high-speed annular air jet. J. Fluid Mech.
**1998**, 357, 351–379. [Google Scholar] [CrossRef] [Green Version] - Potier, L.; Saucereau, D.; Pichillou, J.; Cuenot, B. Large eddy simulation of the combustion and heat transfer in a model rocket. In Proceedings of the Space Propulsion Conference, Rome, Italy, 2–6 May 2016. [Google Scholar]
- Potier, L. Large Eddy Simulation of the Combustion and Heat Transfer in Sub-Critical Rocket Engines. Ph.D. Thesis, Institut National Polytechnique de Toulouse, Toulouse, France, October 2018. [Google Scholar]
- Marmottant, P.; Villermaux, E. On spray formation. J. Fluid Mech.
**2004**, 498, 73–111. [Google Scholar] [CrossRef] [Green Version] - Boivin, P.; Jiménez, C.; Sánchez, A.L.; Williams, F.A. An explicit reduced mechanism for H
_{2}-air combustion. Proc. Combust. Inst.**2011**, 33, 517–523. [Google Scholar] [CrossRef] [Green Version] - Petrova, M.V.; Williams, F.A. A small detailed chemical-kinetic mechanism for hydrocarbon combustion. Combust. Flame
**2006**, 144, 526–544. [Google Scholar] [CrossRef] - Cantera: An Object-Oriented Software Toolkit for Chemical Kinetics, Thermo- Dynamics, and Transport Processes, version 2.5.1; Zenodo: Geneve, Switzerland, 2021.
- Duchaine, F.; Jauré, S.; Poitou, D.; Quémerais, E.; Staffelbach, G.; Morel, T.; Gicquel, L. Analysis of High Performance Conjugate Heat Transfer with the OpenPALM Coupler. Int. J. Comput. Sci. Discov.
**2015**, 8, 015003. [Google Scholar] [CrossRef] [Green Version] - Refloch, A.; Courbet, B.; Murrone, A.; Villedieu, P.; Laurent, C.; Gilbank, P.; Troyes, J.; Tessé, L.; Chaineray, G.; Dargaud, J.; et al. CFD Platforms and Coupling—CEDRE Software. Onera J. Aerosp. Lab
**2011**, 2, 1–10. [Google Scholar] - Duchaine, F.; Corpron, a.; Pons, L.; Moureau, V.; Nicoud, F.; Poinsot, T. Development and assessment of a coupled strategy for conjugate heat transfer with Large Eddy Simulation: Application to a cooled turbine blade. Int. J. Heat Fluid Flow
**2009**, 30, 1129–1141. [Google Scholar] [CrossRef] [Green Version] - Duchaine, F. High Performance Code Coupling for Multiphysics and Multicomponent Simulations in Fluid Dynamics. Ph.D. Thesis, Institut National Polytechnique de Toulouse, Toulouse, France, November 2017. [Google Scholar]
- Jauré, S.; Duchaine, F.; Staffelbach, G.; Gicquel, L. Massively parallel conjugate heat transfer solver based on Large Eddy Simulation and application to an aeronautical combustion chamber. Comput. Sci. Disc.
**2013**, 6, 015008. [Google Scholar] [CrossRef] - Berger, S.; Richard, S.; Duchaine, F.; Staffelbach, G.; Gicquel, L. On the sensitivity of a helicopter combustor wall temperature to convective and radiative thermal loads. Appl. Therm. Eng.
**2016**, 103, 1450–1459. [Google Scholar] [CrossRef] - Scholl, S.; Verstraete, T.; Duchaine, F.; Gicquel, L. Conjugate heat transfer of a rib-roughened internal turbine blade cooling channel using large eddy simulation. Int. J. Heat Fluid Flow
**2016**, 61, 650–664. [Google Scholar] [CrossRef] - Miguel-Brebion, M.; Mejia, D.; Xavier, P.; Duchaine, F.; Bedat, B.; Selle, L.; Poinsot, T. Joint experimental and numerical study of the influence of flame holder temperature on the stabilization of a laminar methane flame on a cylinder. Combust. Flame
**2016**, 172, 153–161. [Google Scholar] [CrossRef] [Green Version] - Berger, S.; Gicquel, F.D.L. Bluff-body thermal property and initial state effects on a laminar premixed flame anchoring pattern. Flow Turbul. Combust.
**2017**, 100, 561–591. [Google Scholar] [CrossRef] - Boulet, L.; Bénard, P.; Lartigue, G.; Moureau, V.; Didorally, S.; Chauvet, N.; Duchaine, F. Modeling of Conjugate Heat Transfer in a Kerosene/Air Spray Flame used for Aeronautical Fire Resistance Tests. Flow Turbul. Combust.
**2018**, 101, 579–602. [Google Scholar] [CrossRef] - Bizzari, R.; Lahbib, D.; Dauptain, A.; Duchaine, F.; Richard, S.; Nicoud, F. Low order modeling method for assessing the temperature of multi-perforated plates. Int. J. Heat Mass Transf.
**2018**, 127, 727–742. [Google Scholar] [CrossRef] - Laurent, C.; Esclapez, L.; Maestro, D.; Staffelbach, G.; Cuenot, B.; Selle, L.; Schmitt, T.; Duchaine, F.; Poinsot, T. Flame–wall interaction effects on the flame root stabilization mechanisms of a doubly-transcritical LO2/LCH4 cryogenic flame. Proc. Combust. Inst.
**2019**, 37, 5147–5154. [Google Scholar] [CrossRef] [Green Version] - Cabrit, O.; Nicoud, F. Direct simulations for wall modeling of multicomponent reacting compressible turbulent flows. Phys. Fluids
**2009**, 21, 055108. [Google Scholar] [CrossRef] - Poinsot, T.; Lele, S. Boundary conditions for direct simulations of compressible viscous flows. J. Comput. Phys.
**1992**, 101, 104–129. [Google Scholar] [CrossRef] - Colburn, A.P. A method of correlating forced convection heat-transfer data and a comparison with fluid friction. Int. J. Heat Mass Transf.
**1933**, 7, 1359–1384. [Google Scholar] [CrossRef]

**Figure 5.**Fluid mesh for JAXA calculation. Prism aspect ratio is kept under five. There are only two stacks of prisms to limit cell deformation.

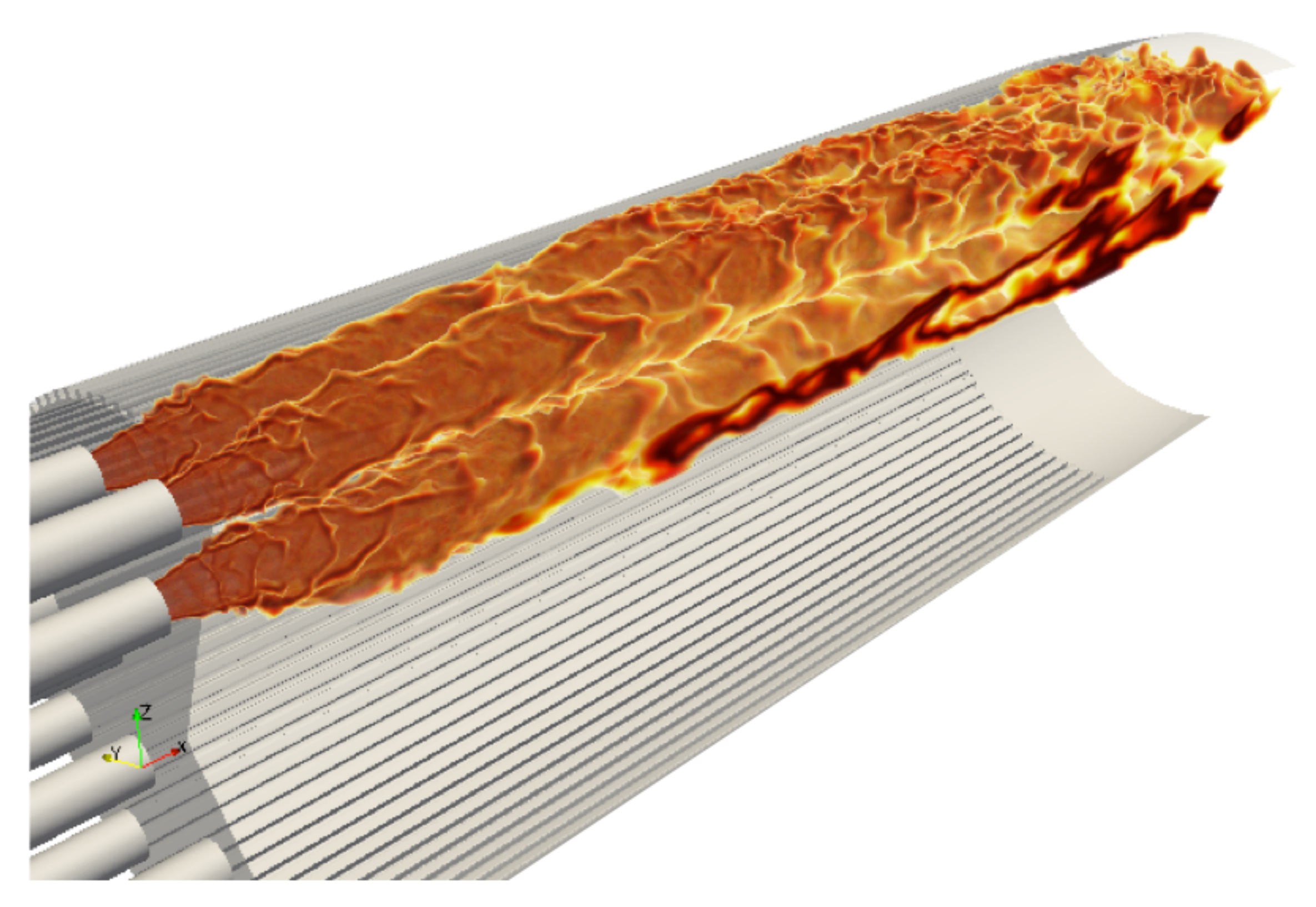

**Figure 7.**Multiple iso-surfaces of temperature (from 3000 to 3600 K); transparency depends on temperature. The ${30}^{\circ}$ sector simulated is duplicated to represent three injectors flames.

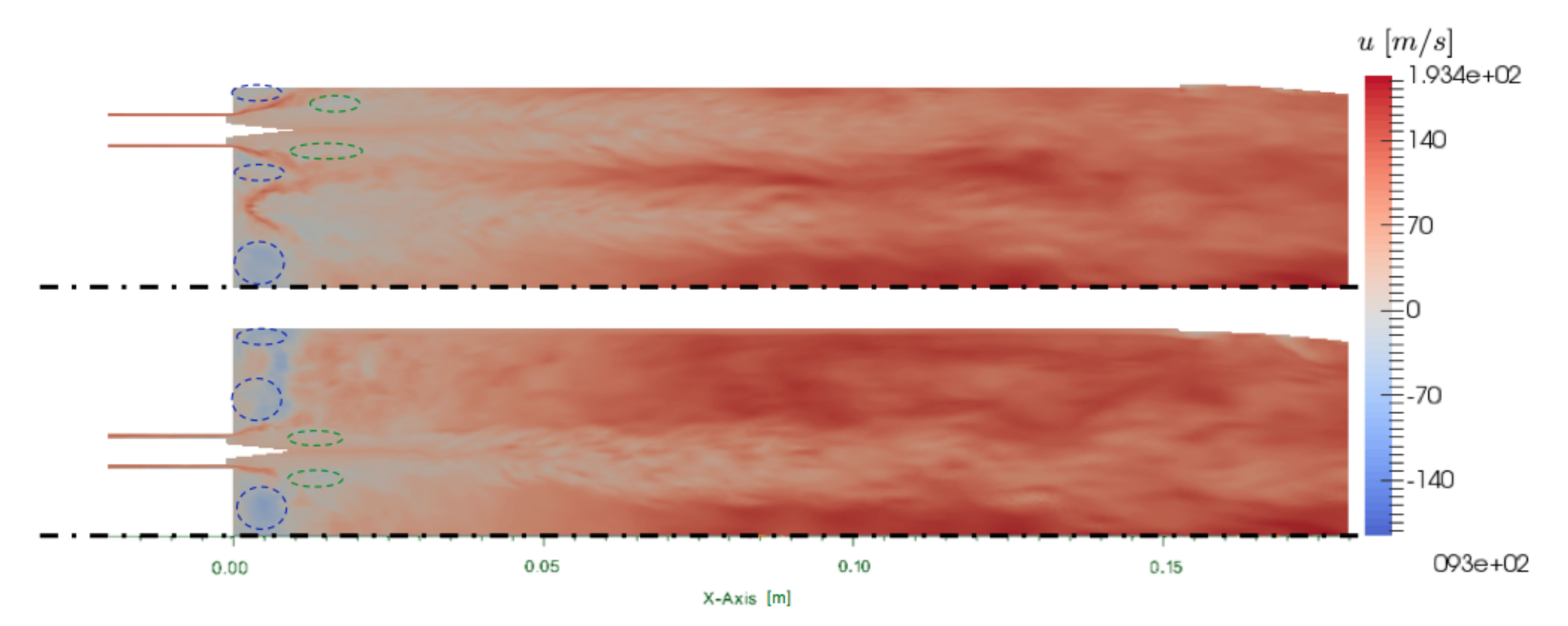

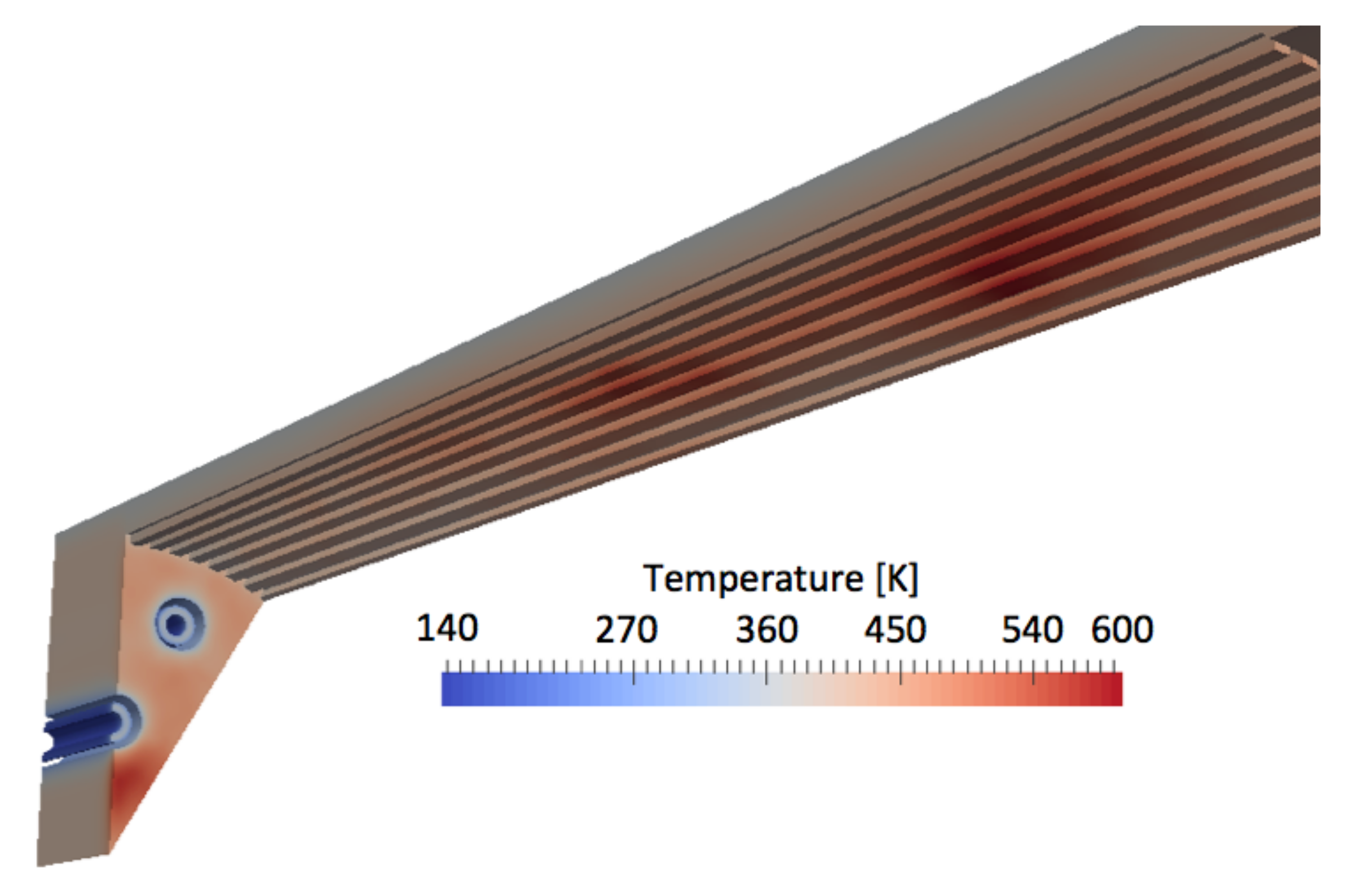

**Figure 9.**Ribbed JAXA chamber: cuts of mean axial velocity u at ${0}^{\circ}$ (

**bottom**) and ${15}^{\circ}$ (

**top**). Recirculation zones are evidenced by the dashed line circles.

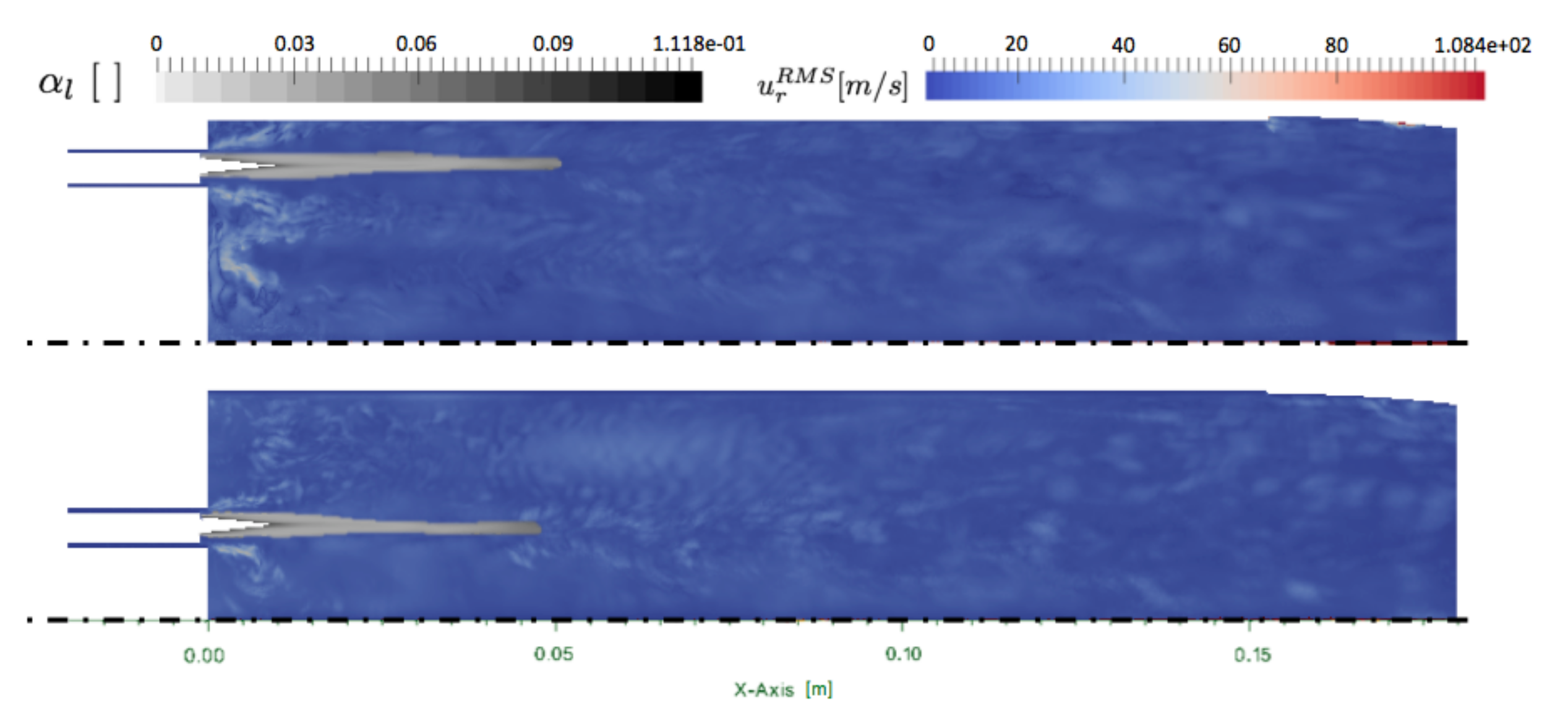

**Figure 10.**Ribbed JAXA chamber: cuts of radial RMS velocity ${u}_{r}^{RMS}$ with superimposed field of liquid volume fraction ${\alpha}_{l}$ at ${0}^{\circ}$ (

**bottom**) and ${15}^{\circ}$ (

**top**).

**Figure 11.**Ribbed chamber: instantaneous cuts of heat release HR with superimposed iso-lines of temperature.

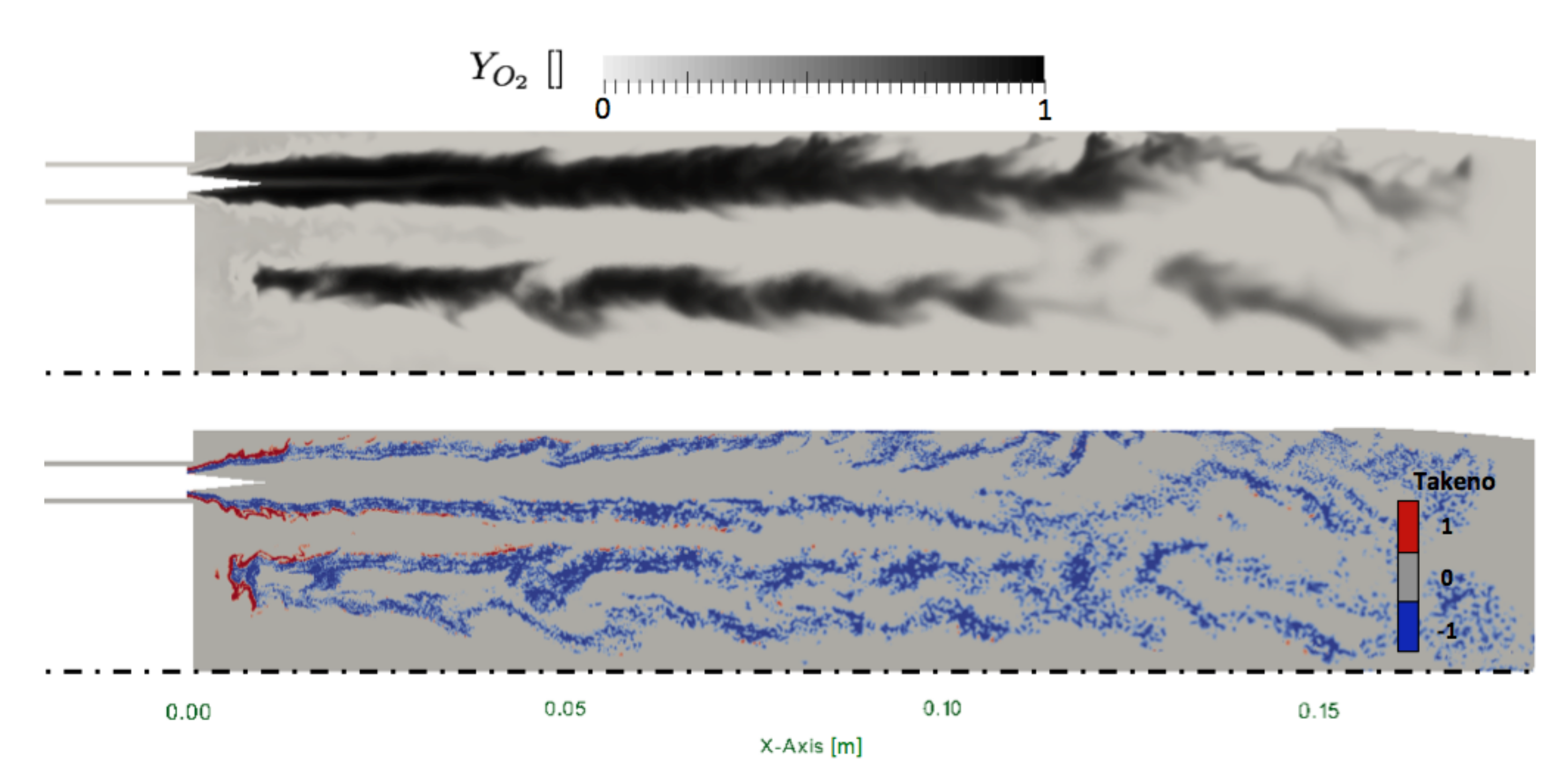

**Figure 12.**Ribbed JAXA chamber instantaneous cut of the outer injector. (

**Top**): oxygen mass fraction ${Y}_{{O}_{2}}$; (

**bottom**): Takeno index, [−1]: non-premixed flame, and [1] premixed flame.

**Figure 13.**Scatter plots of heat release, temperature, and species mass fraction, plotted along the mixture fraction z colored by Takeno index, compared to 1D pure diffusion flame (NP-NP) and mixed Non Premixed-Premixed (NP-P) flame ($a=5000$ s${}^{-1}$).

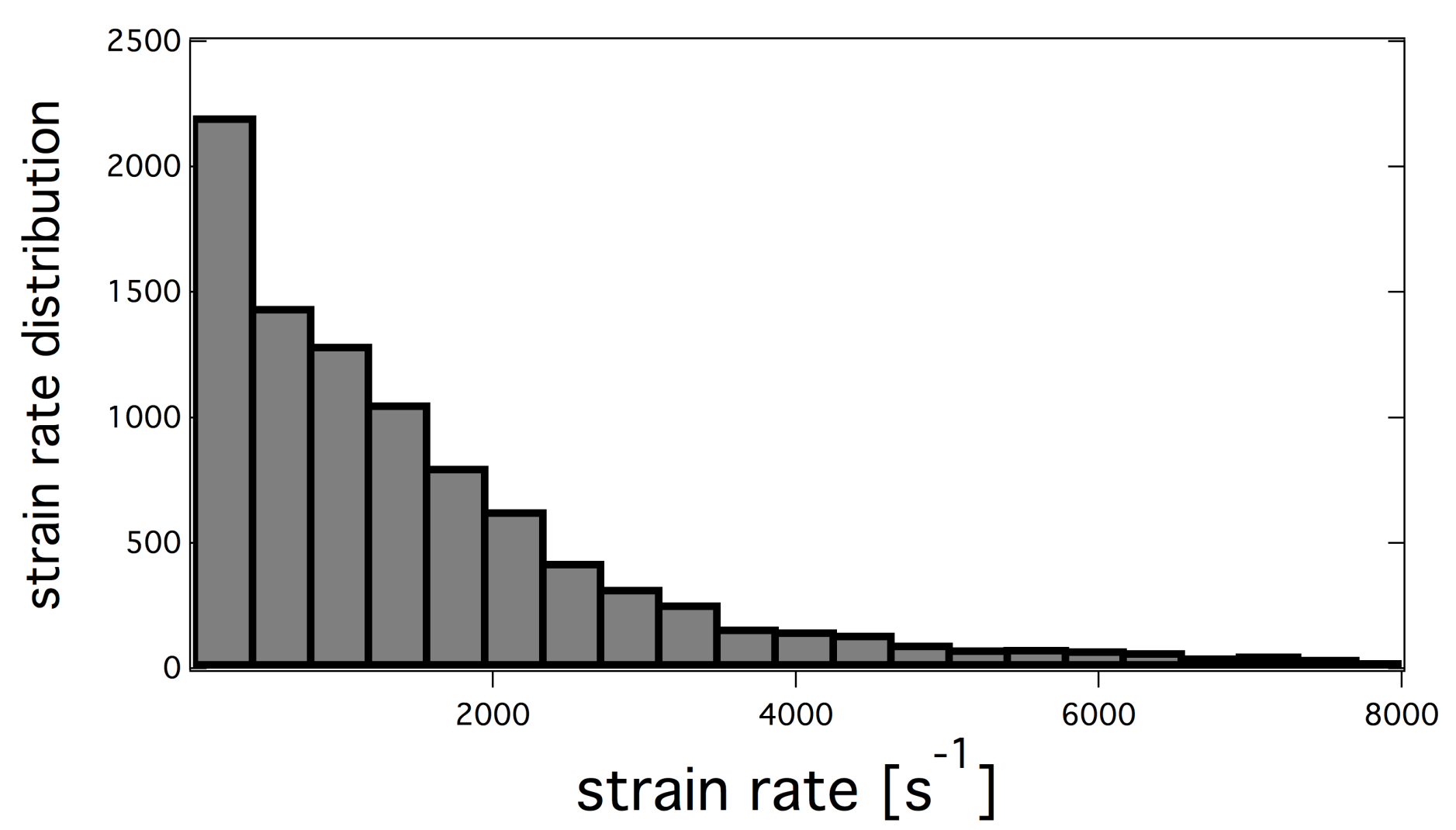

**Figure 14.**Ribbed JAXA chamber strain rate distribution taken along the stoichiometric iso-surface (for $z={z}_{st}$).

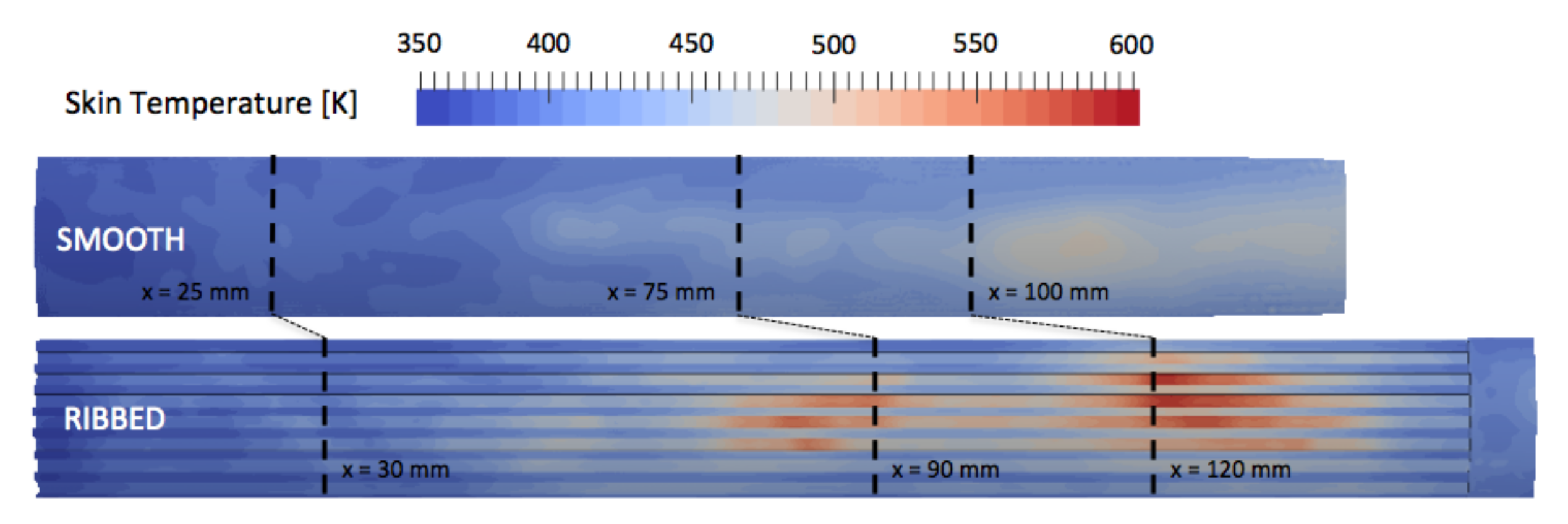

**Figure 15.**Time-average temperature of the inner wall of the solid liner for JAXA smooth (

**top**) and ribbed (

**bottom**) burners extracted from AVTP averaged solutions.

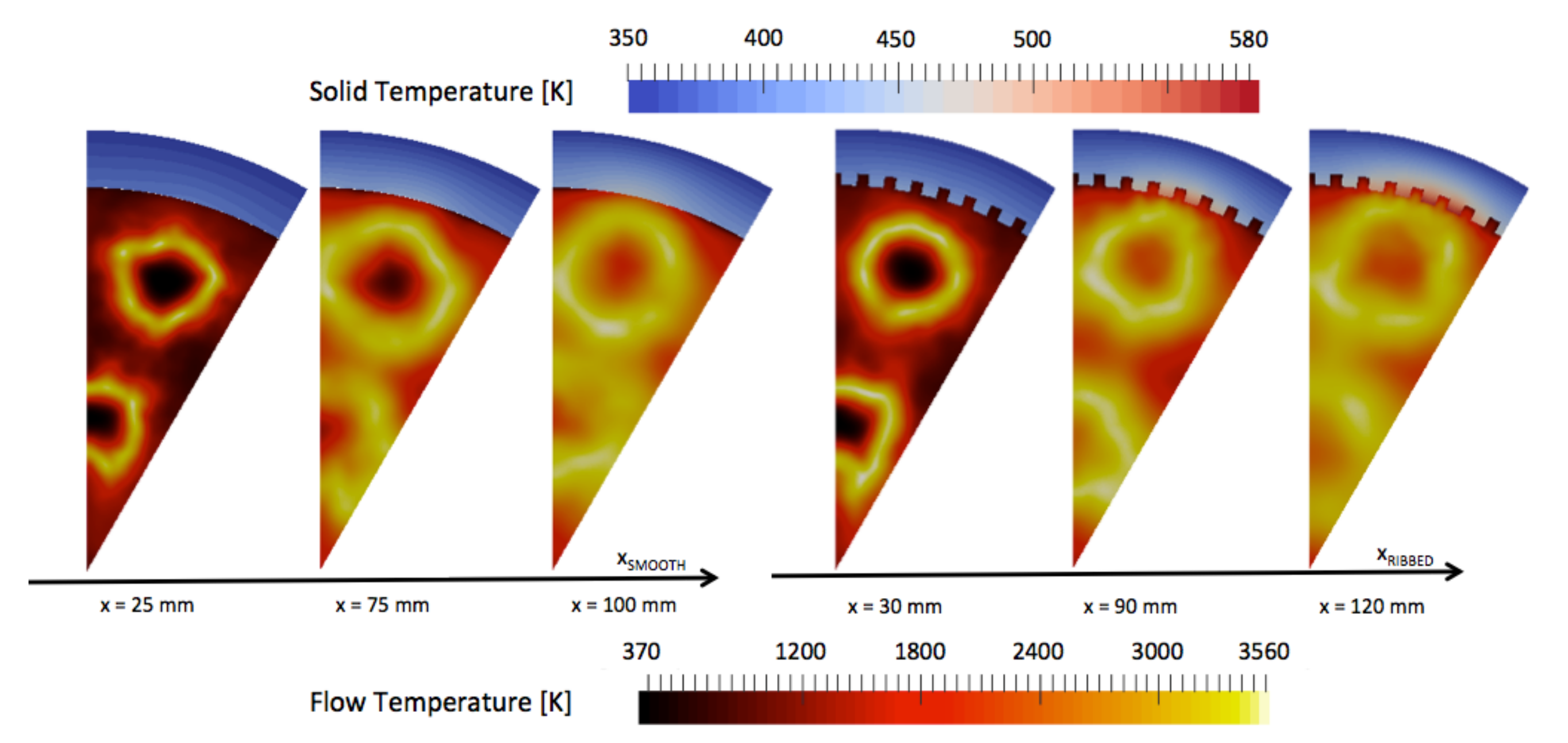

**Figure 16.**Time-averaged temperature on cross-section cuts in fluid and solid domains for the smooth and ribbed configurations.

**Figure 17.**Time-averaged $OH$ mass fraction on cross-section cuts for the smooth and ribbed configurations.

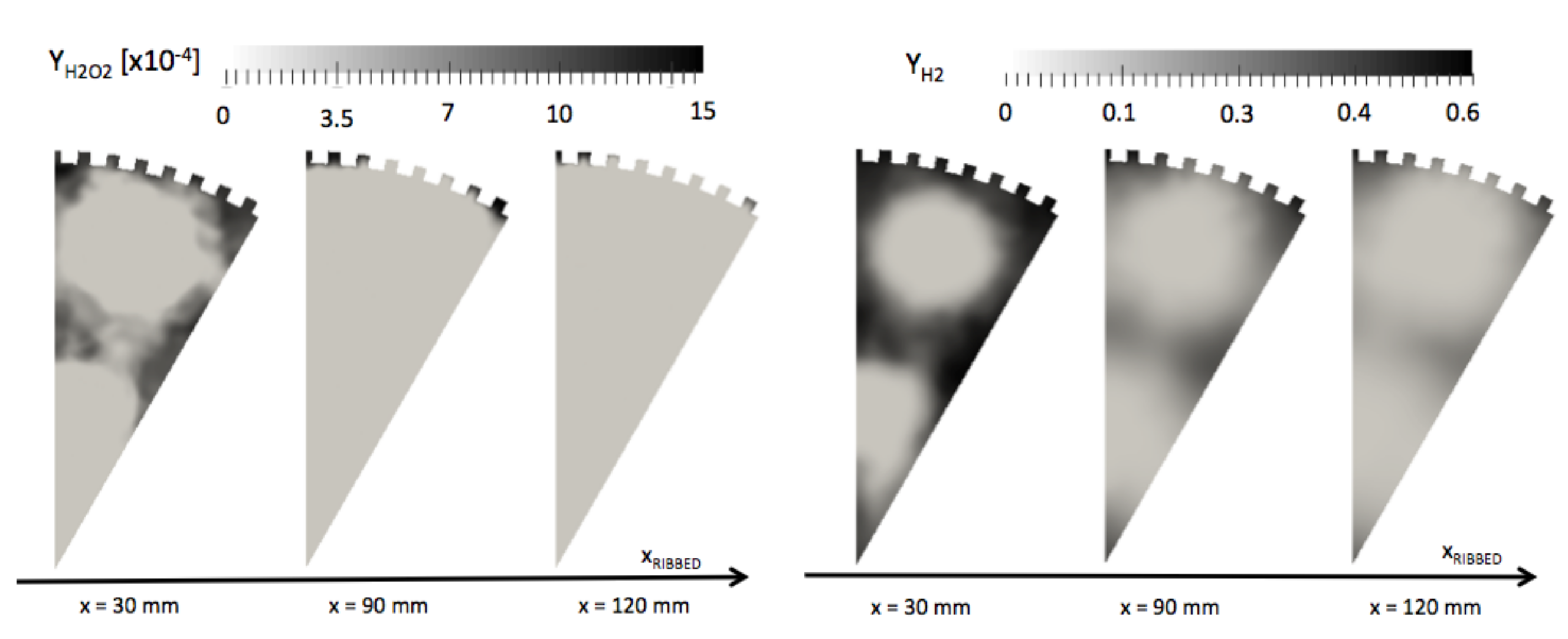

**Figure 18.**Time-averaged ${H}_{2}$ and ${H}_{2}{O}_{2}$ mass fractions on cross-sections cuts for the smooth and ribbed configurations.

**Figure 19.**Time-averaged fields of radial and axial velocity ${u}_{r}$ and ${u}_{x}$ on cross-section cuts on the ribbed combustion chamber.

**Figure 20.**Time-averaged wall heat flux of the ${30}^{\circ}$ sector simulation of smooth (

**top**) and ribbed (

**bottom**) burners.

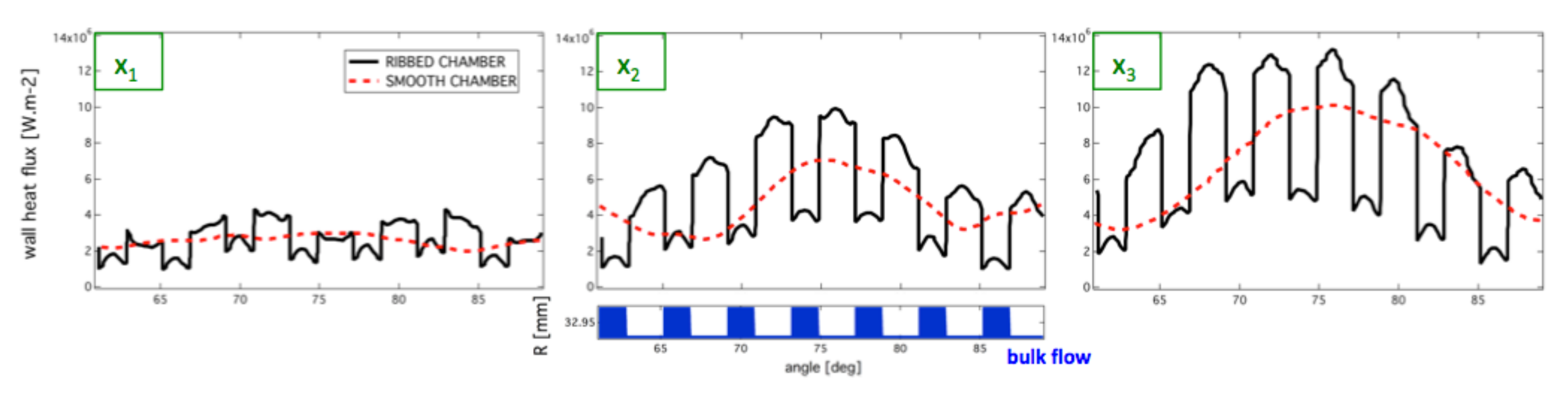

**Figure 21.**Time-averaged of wall heat flux circumferential for the ribbed and smooth configurations at three axial positions. The distance from the axis of the chamber to the wall position R is given to identify ribs and inter-rib regions.

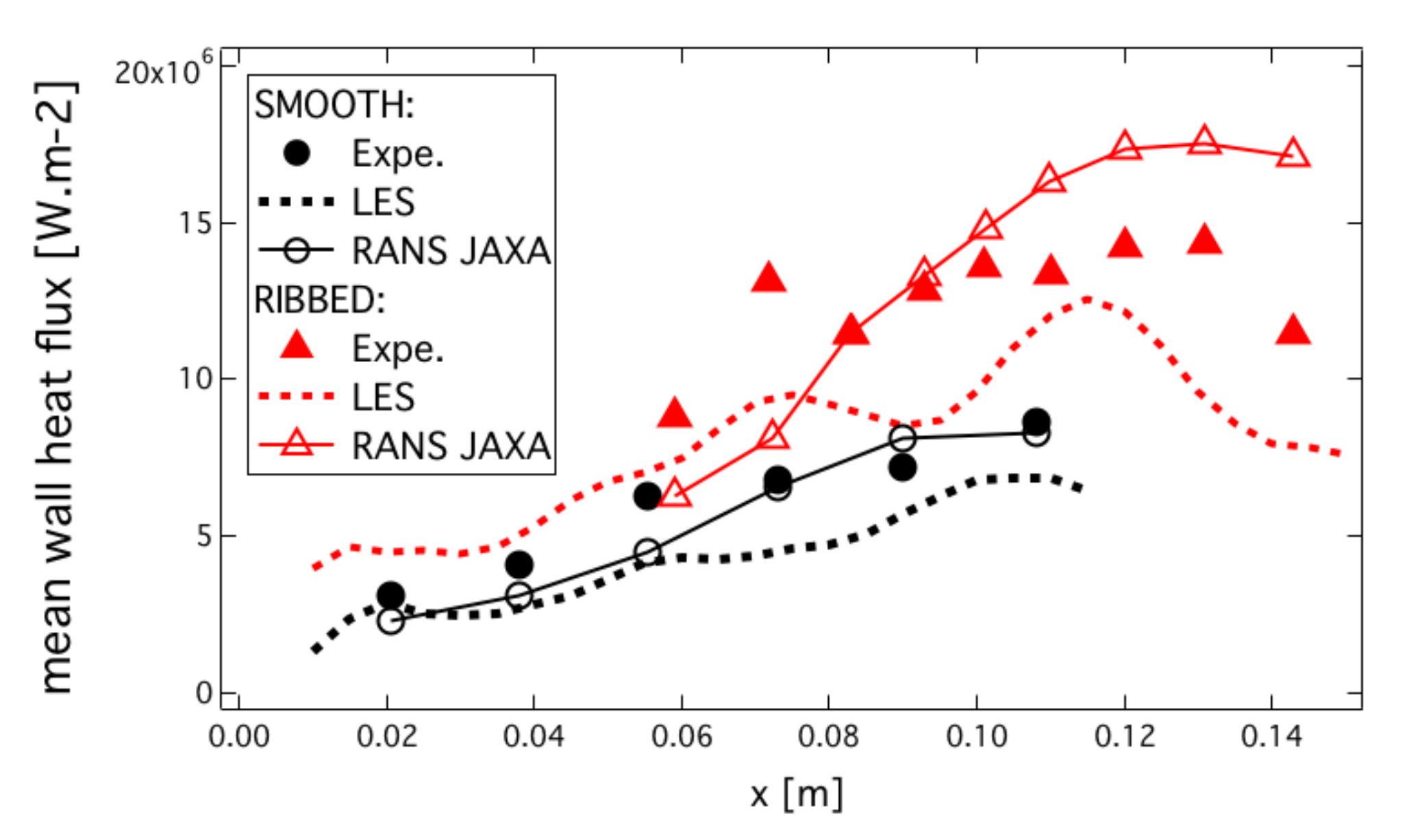

**Figure 22.**Time-averaged wall heat flux of the ribbed and smooth configuration obtained by the present CHT-LES confronted to the experiment. RANS calculation published by JAXA [11] are also represented.

**Table 1.**Geometrical characteristics of the two JAXA calorimeter chambers [11].

Ribbed Case | Smooth Case | |
---|---|---|

chamber length [mm] | 153 | 117 |

chamber diameter [mm] | 65/67 | 66 |

number of injectors | 18 | 18 |

**Table 2.**Operating conditions of the two JAXA calorimeter chambers [11].

Ribbed | Smooth | |
---|---|---|

${O}_{2}/{H}_{2}$ mass ratio | $5.6$ | $5.3$ |

chamber pressure [bar] | 35 | 36 |

total mass flow (${H}_{2}+{O}_{2}$) [kg·m${}^{-3}$] | $0.616$ | $0.626$ |

${O}_{2}$ injection temperature [K] | 95 | 95 |

${H}_{2}$ injection temperature [K] | 275 | 275 |

Ribbed | Smooth | |
---|---|---|

$We$ | 14,485 | 14,500 |

$R{e}_{l}$ | 92,000 | 90,700 |

J | 1.8 | 1.85 |

cone length L [mm] | 10.6 | 10.85 |

injection diameter $\mu $ [m] | 41.2 | 40.7 |

${\theta}_{lip}$ | ${38.62}^{\circ}$ | ${38.54}^{\circ}$ |

${\alpha}_{l}$ | 0.118 | 0.12 |

$St$ | 0.76 | 0.11 |

Copper Alloy | Inconel600 | |
---|---|---|

density ${\rho}_{s}$ | 8814 kg/m${}^{3}$ | 8470 kg/m${}^{3}$ |

heat capacity ${C}_{s}$ at 300 K | 377 J/kg/K | 444 J/kg/K |

conductivity ${\lambda}_{s}$ at 300 K | 322 W/m/K | 14.9 W/m/K |

Ribbed Chamber | Smooth Chamber | |
---|---|---|

Fluid mesh | $30.6\phantom{\rule{3.33333pt}{0ex}}M.\phantom{\rule{3.33333pt}{0ex}}cells$ | $31.5\phantom{\rule{3.33333pt}{0ex}}M.\phantom{\rule{3.33333pt}{0ex}}cells$ |

Solid mesh | $25\phantom{\rule{3.33333pt}{0ex}}M.\phantom{\rule{3.33333pt}{0ex}}cells$ | $8\phantom{\rule{3.33333pt}{0ex}}M.\phantom{\rule{3.33333pt}{0ex}}cells$ |
