# A Method to Present and Analyze Ensembles of Information Sources

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Individual Information Source

#### 2.2. Information Source Ensemble Analysis

#### 2.3. Software

## 3. Results

## 4. Discussion

#### 4.1. Method Generalizability

#### 4.2. Relationship to Neural Systems and Neural Networks

#### 4.3. Limitations and Future Research

## Supplementary Materials

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Cover, T.M.; Thomas, J.A. Elements of Information Theory; Wiley-Interscience: New York, NY, USA, 2006. [Google Scholar]
- Cunningham, J.P.; Yu, B.M. Dimensionality reduction for large-scale neural recordings. Nat. Neurosci.
**2014**, 17, 1500–1509. [Google Scholar] [CrossRef] [PubMed] - Dadarlat, M.; Stryker, M.P. Locomotion Enhances Neural Encoding of Visual Stimuli in Mouse V1. J. Neurosci.
**2017**, 37, 3764–3775. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Fagerholm, E.D.; Scott, G.; Shew, W.L.; Song, C.; Leech, R.; Knöpfel, T.; Sharp, D.J. Cortical Entropy, Mutual Information and Scale-Free Dynamics in Waking Mice. Cereb. Cortex
**2016**, 26, 3945–3952. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ito, S.; Hansen, M.E.; Heiland, R.; Lumsdaine, A.; Litke, A.M.; Beggs, J.M. Extending Transfer Entropy Improves Identification of Effective Connectivity in a Spiking Cortical Network Model. PLoS ONE
**2011**, 6, e27431. [Google Scholar] [CrossRef] [PubMed] - Nigam, S.; Shimono, M.; Ito, S.; Yeh, F.-C.; Timme, N.; Myroshnychenko, M.; Lapish, C.C.; Tosi, Z.; Hottowy, P.; Smith, W.C.; et al. Rich-Club Organization in Effective Connectivity among Cortical Neurons. J. Neurosci.
**2016**, 36, 670–684. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Rolls, E.T.; Treves, A.; Robertson, R.G.; Georges-François, P.; Panzeri, S. Information about spatial view in an ensemble of primate hippocampal cells. J. Neurophysiol.
**1998**, 79, 1797–1813. [Google Scholar] [CrossRef] - Timme, N.; Ito, S.; Myroshnychenko, M.; Yeh, F.-C.; Hiolski, E.; Hottowy, P.; Beggs, J.M. Multiplex Networks of Cortical and Hippocampal Neurons Revealed at Different Timescales. PLoS ONE
**2014**, 9, e115764. [Google Scholar] [CrossRef] - Timme, N.M.; Ito, S.; Myroshnychenko, M.; Nigam, S.; Shimono, M.; Yeh, F.-C.; Hottowy, P.; Litke, A.M.; Beggs, J.M. High-Degree Neurons Feed Cortical Computations. PLoS Comput. Biol.
**2016**, 12, e1004858. [Google Scholar] [CrossRef] [Green Version] - Damoiseaux, J.S.; Greicius, M.D. Greater than the sum of its parts: A review of studies combining structural connectivity and resting-state functional connectivity. Anat. Embryol.
**2009**, 213, 525–533. [Google Scholar] [CrossRef] - Greicius, M.D.; Krasnow, B.; Reiss, A.L.; Menon, V. Functional connectivity in the resting brain: A network analysis of the default mode hypothesis. Proc. Natl. Acad. Sci. USA
**2002**, 100, 253–258. [Google Scholar] [CrossRef] [Green Version] - Bullmore, E.; Sporns, O.; Bullmore, E.T. Complex brain networks: Graph theoretical analysis of structural and functional systems. Nat. Rev. Neurosci.
**2009**, 10, 186–198. [Google Scholar] [CrossRef] [PubMed] - Quiroga, R.Q.; Panzeri, S. Extracting information from neuronal populations: Information theory and decoding approaches. Nat. Rev. Neurosci.
**2009**, 10, 173–185. [Google Scholar] [CrossRef] [PubMed] - Novelli, L.; Wollstadt, P.; Mediano, P.A.; Wibral, M.; Lizier, J.T. Large-scale directed network inference with multivariate transfer entropy and hierarchical statistical testing. Netw. Neurosci.
**2019**, 3, 827–847. [Google Scholar] [CrossRef] [PubMed] - Rubinov, M.; Sporns, O. Complex network measures of brain connectivity: Uses and interpretations. Neurolmage
**2010**, 52, 1059–1069. [Google Scholar] [CrossRef] [PubMed] - Panzeri, S.; Senatore, R.; Montemurro, M.; Petersen, R.S. Correcting for the Sampling Bias Problem in Spike Train Information Measures. J. Neurophysiol.
**2007**, 98, 1064–1072. [Google Scholar] [CrossRef] [Green Version] - Treves, A.; Panzeri, S. The Upward Bias in Measures of Information Derived from Limited Data Samples. Neural Comput.
**1995**, 7, 399–407. [Google Scholar] [CrossRef] - Paninski, L. Estimation of Entropy and Mutual Information. Neural Comput.
**2003**, 15, 1191–1253. [Google Scholar] [CrossRef] [Green Version] - Victor, J.D. Binless strategies for estimation of information from neural data. Phys. Rev. E
**2002**, 66. [Google Scholar] [CrossRef] [Green Version] - Wibral, M.; Lizier, J.T.; Priesemann, V. Bits from Brains for Biologically Inspired Computing. Front. Robot. AI
**2015**, 2, 1–25. [Google Scholar] [CrossRef] [Green Version] - Lindner, M.; Vicente, R.; Priesemann, V.; Wibral, M. Tretnool: A Matlab open source toolbox to analyse information flow in time series data with transfer entropy. BMC Neurosci.
**2011**, 12, 119. [Google Scholar] [CrossRef] [Green Version] - Timme, N.M. GitHub: Information Theory Ensemble Analysis. Available online: https://github.com/nmtimme/Information-Theory-Ensemble-Analysis (accessed on 20 May 2020).
- Timme, N.M. Personal Website. Available online: www.nicholastimme.com (accessed on 20 May 2020).
- Linsenbardt, D.N.; Timme, N.M.; Lapish, C.C. Encoding of the Intent to Drink Alcohol by the Prefrontal Cortex Is Blunted in Rats with a Family History of Excessive Drinking. Eneuro
**2019**, 6. [Google Scholar] [CrossRef] [Green Version] - Shannon, C.E. A mathematical theory of communication. Bell Sys. Tech. J.
**1948**, 27, 379–423. [Google Scholar] - Schreiber, T. Measuring Information Transfer. Phys. Rev. Lett.
**2000**, 85, 461–464. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Williams, P.L.; Beer, R.D. Nonnegative Decomposition of Multivariate Information. arXiv
**2010**, arXiv:1004.2515. [Google Scholar] - Timme, N.M.; Alford, W.; Flecker, B.; Beggs, J.M. Synergy, redundancy, and multivariate information measures: An experimentalist’s perspective. J. Comput. Neurosci.
**2013**, 36, 119–140. [Google Scholar] [CrossRef] - Runge, J.; Heitzig, J.; Petoukhov, V.; Kurths, J. Escaping the Curse of Dimensionality in Estimating Multivariate Transfer Entropy. Phys. Rev. Lett.
**2012**, 108, 258701. [Google Scholar] [CrossRef] - Montalto, A.; Faes, L.; Marinazzo, D. Mute: A Matlab Toolbox to Compare Established and Novel Estimators of the Multivariate Transfer Entropy. PLoS ONE
**2014**, 9, e109462. [Google Scholar] [CrossRef] [Green Version] - Wollstadt, P.; Lizier, J.T.; Vicente, R.; Finn, C.; Martínez-Zarzuela, M.; Mediano, P.A.; Novelli, L.; Wibral, M. IDTxl: The Information Dynamics Toolkit xl: A Python package for the efficient analysis of multivariate information dynamics in networks. J. Open Source Softw.
**2019**, 4. [Google Scholar] [CrossRef]

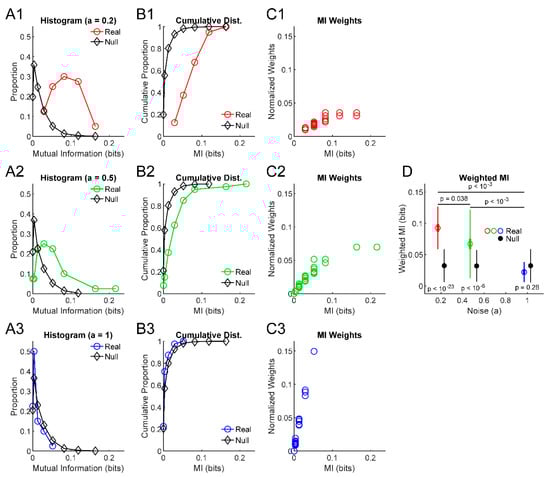

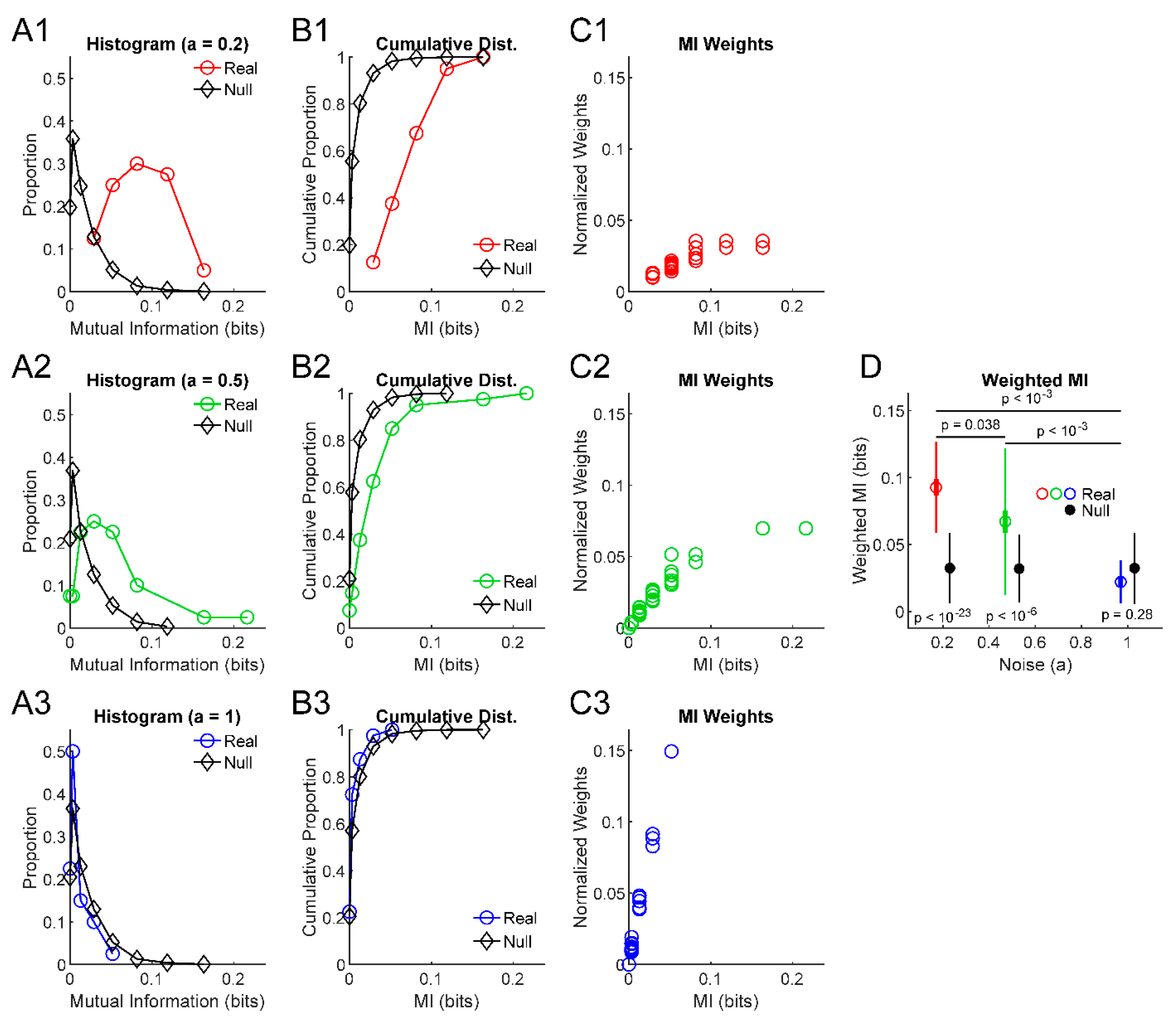

**Figure 1.**Assessing ensemble difference from null and differences between ensembles. (

**A**) Histograms of mutual information results from example ensembles of information sources and the null information results from these sources produced through randomization (${n}_{ens}=40$, ${n}_{obs}=60$, $s=0.4$, ${n}_{MC}=100$). (

**B**) Cumulative distributions of the information values from (

**A**). (

**C**) Scatter plots of normalized weight values (-log

_{10}(p)) for each information result. (

**D**) Weighted mean (dot), weighted standard deviation (thin lines), and standard error of the weighted mean (thick lines) for the example ensembles, along with the same results for the null data produced by randomization. Note that the lower noise examples (1 and 2) produced very low p-values in comparison to null data via KS tests (p-values shown below error bars, see (B) for reference). Still, note that null data produced non-zero weighted mean mutual information values. Comparisons between the weighted means of the example ensembles via randomization produced low p-values between all pairs (p-values shown above error bars), though resolution was limited by the number of Monte Carlo trials (1000) to $p<{10}^{-3}$.

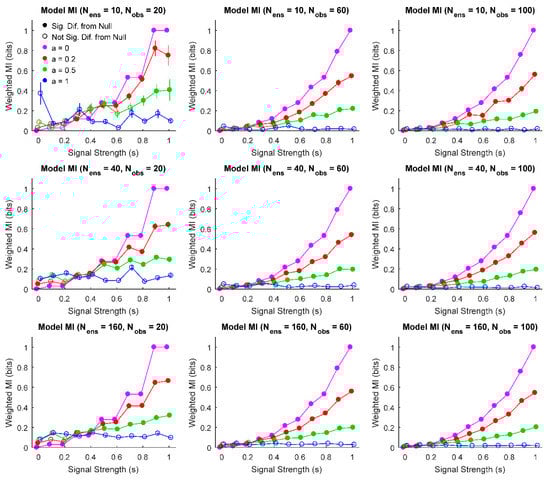

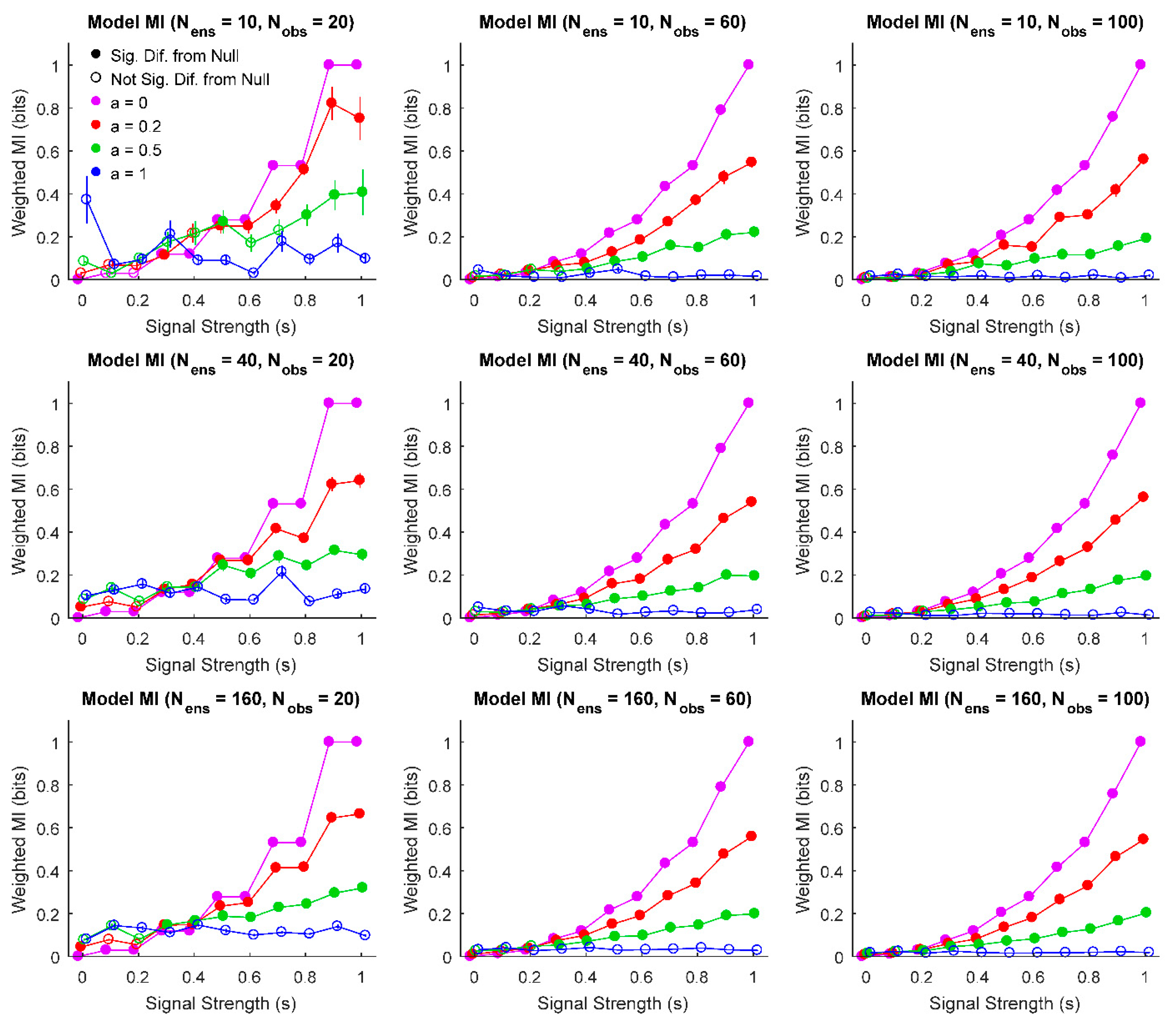

**Figure 2.**Weighted mean, standard error of the weighted mean, and comparison to null behavior for various model parameters. For a wide range of parameter values, information values increase with increased signal strength (as expected). Furthermore, high noise and/or low signal result in a lack of significant difference from null (significance threshold: $p<0.01$). Larger ensemble sizes and numbers of observations also decrease the uncertainty in the weighted mean as measured by standard error of the weighted mean. Due to the discrete nature of the model, increases in the number of observations results in smoother information curves because more observations allow for more possible model probability distributions for individual information sources. (Signal strength values jittered slightly to improve legibility).

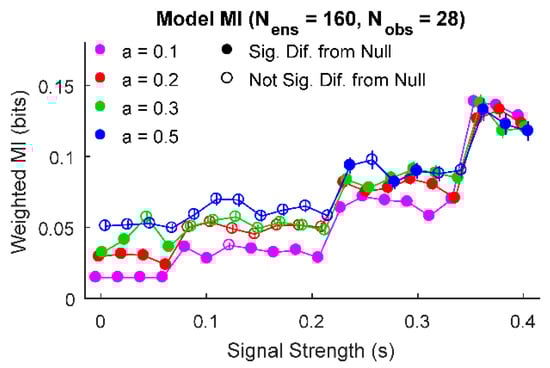

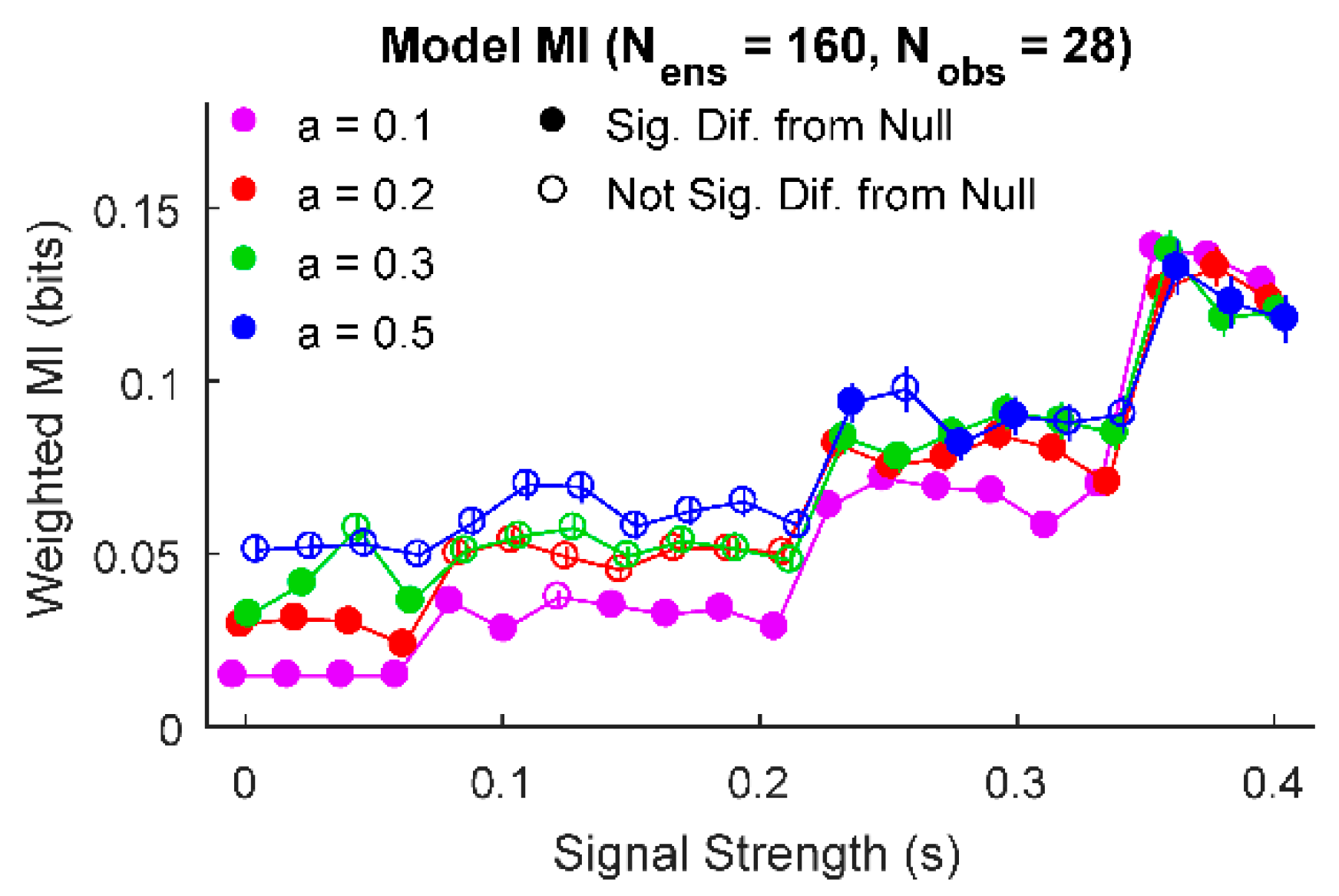

**Figure 3.**Information source ensembles can have significantly low amounts of information. For some parameters (e.g., $a=0.2$ and $a=0.3$), information source ensembles exhibited significant difference from null for low and high signal strengths (e.g., $s<0.08$ and $s>0.2$), but not over a middle range of signal strengths (e.g., $0.08\le s<0.2$). (Signal strength values jittered slightly to improve legibility).

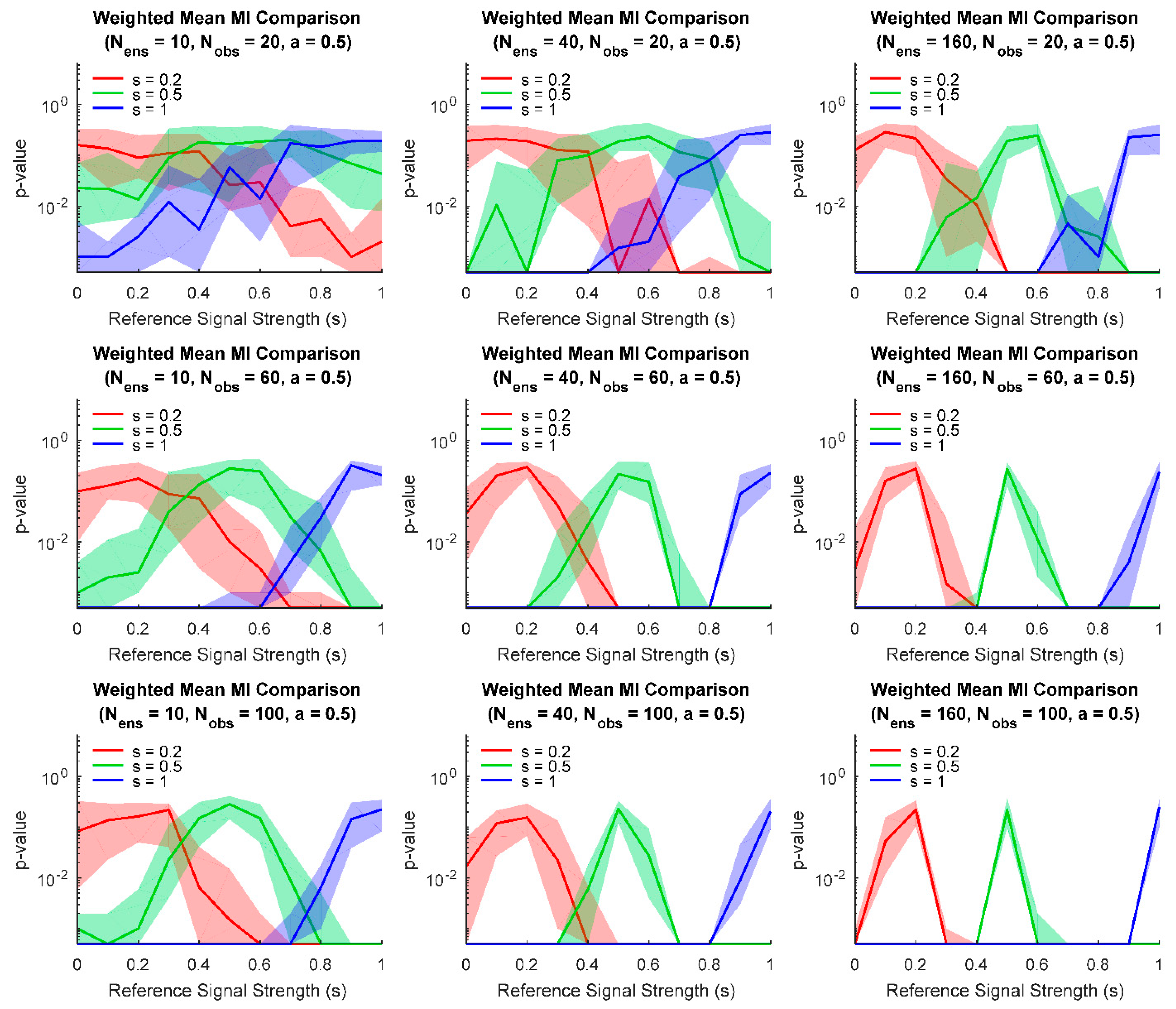

**Figure 4.**Comparisons between ensembles for various model parameters. Numerous models (signal strengths given on the horizontal axis) were compared to other models with three possible signal strengths (red, green, blue). As expected, for small ensembles and/or few trials (upper left), ensembles with similar signal strengths produce high p-values when their weighted mean values were compared using randomization. When larger ensembles and/or more trials are used (lower right), comparisons are able to detect smaller differences in signal strength. (Fifty model pairs generated for each parameter pair, line: median of these pairs, fringe: interquartile range of these pairs. One thousand randomization trials were performed to calculate p-values, resulting in a minimum p-value of 0.0005.).

**Table 1.**The number of joint observations for a single information source system based on the total number of observations and the interaction strength $s$ between the variables $X$ and $Y$. The $Round\left(x\right)$ operation rounds the argument to the nearest integer (numbers with fractional elements equal to 0.5 are rounded to the next largest integer).

$\mathit{x}=0$ | $\mathit{x}=1$ | |
---|---|---|

y = 0 | $\frac{{n}_{obs}}{4}+Round\left(\frac{{n}_{obs}}{4}s\right)$ | $\frac{{n}_{obs}}{4}-Round\left(\frac{{n}_{obs}}{4}s\right)$ |

y = 1 | $\frac{{n}_{obs}}{4}-Round\left(\frac{{n}_{obs}}{4}s\right)$ | $\frac{{n}_{obs}}{4}+Round\left(\frac{{n}_{obs}}{4}s\right)$ |

Meaning | |
---|---|

s | The strength of the interaction (0: no interaction, 1: strongest possible interaction) |

a | The noise level (0: no noise, 1: only noise) |

${n}_{ens}$ | Number of information sources in the ensemble |

${n}_{MC}$ | Number of randomization (Monte Carlo) trials in the null data comparison |
