Study on a Quaternary Working Pair of CaCl₂-LiNO₃-KNO₃/H₂O for an Absorption Refrigeration Cycle

Abstract

When compared with LiBr/H₂O, an absorption refrigeration cycle using CaCl₂/H₂O as the working pair needs a lower driving heat source temperature, that is, CaCl₂/H₂O has a better refrigeration characteristic. However, the crystallization temperature of CaCl₂/H₂O solution is too high and its absorption ability is not high enough to achieve an evaporation temperature of 5 °C or lower. CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O was proposed and its crystallization temperature, saturated vapor pressure, density, viscosity, specific heat capacity, specific entropy, and specific enthalpy were measured to retain the refrigeration characteristic of CaCl₂/H₂O and solve its problems. Under the same conditions, the generation temperature for an absorption refrigeration cycle with CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O was 7.0 °C lower than that with LiBr/H₂O. Moreover, the cycle’s COP and exergy efficiency with CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O were approximately 0.04 and 0.06 higher than those with LiBr/H₂O, respectively. The corrosion rates of carbon steel and copper for the proposed working pair were 14.31 μm∙y⁻¹ and 2.04 μm∙y⁻¹ at 80 °C and pH 9.7, respectively, which were low enough for engineering applications.

1. Introduction

Absorption refrigeration systems can effectively utilize not only industrial waste heat [1,2,3,4], but also low-grade renewable energy, including solar energy and geothermal energy for refrigeration [5,6,7]. As a traditional working pair, LiBr/H₂O has been widely used for refrigeration [8,9,10,11,12]. However, studies on new working pairs are still ongoing, because the required temperature of driving heat source for a refrigeration cycle using LiBr/H₂O even reaches 88.0 °C [13,14,15], which is too high to use for some low-grade heat sources. Lin et al. [16] studied a double-stage air-cooled NH₃/H₂O absorption refrigeration system and found that it could effectively lower the temperature of driving heat source for utilizing solar energy. Malinina et al. [17] analyzed the influences of temperature and humidity on a solar energy refrigeration system with LiBr/H₂O and calculated the minimum heat-collecting temperatures that are based on solar energy in some cities. Mortazavi et al. [18] designed an absorption refrigeration system with a falling-film generator, which could use lower temperature waste heat or solar energy. Bourouis et al. [19] analyzed the performance of LiBr + LiNO₃ + LiCl + LiI + H₂O in a vertical tube and found that the crystallization temperature was 35 °C lower than LiBr solution. Sun et al. [20] studied LiBr-LiNO₃ (mole ratio: 4:1)/H₂O and found the alternative working pair had higher COP and less corrisivity than LiBr/H₂O. Chen et al. [21] studied the performance of an absorption refrigeration system using [emim]Cu₂Cl₅/NH₃ as working pair with the UNIFAC model, and results showed that the [emim]Cu₂Cl₅/NH₃ system possessed several advantages, including non-crystallization and non-corrosion. Bellos et al. [22] compared the exergy efficiency between LiCl/H₂O and LiBr/H₂O, results showed that LiCl/H₂O performed better at different ambient temperature levels. Wang et al. [23] measured the properties of different ammonia/ionic liquid working pairs. Luo et al. [24,25,26,27,28] studied various lithium nitrate-ionic liquid/water working pairs. They both found that the working pairs with ionic liquid had excellent characteristics for heating, whereas they were not suitable for refrigeration because of insufficient absorption ability. Li et al. [29,30,31,32] measured the thermophysical properties of several CaCl₂-based working pairs, and found that the CaCl₂-based working pairs had an excellent refrigeration characteristic. However, their strong corrosivity limited the practical applications.

In this work, to find a new working pair with excellent refrigeration characteristic for absorption refrigeration, various inorganic salts, including NaCl, KCl, LiCl, KNO₃, and LiNO₃, were added in CaCl₂/H₂O, and their crystallization temperature and saturated vapor pressure were measured. Furthermore, some other thermophysical properties and corrisivity of the proposed working pair were measured and the performance of an absorption refrigeration cycle with the proposed working pair was analyzed.

2. Experiments

2.1. Materials

Table 1. Purity of the used regents.

Reagent	Mass Concentration Purity	Provenance
CaCl2	>0.96	Sinopharm Chemical Reagent Beijing
NaCl	>0.995	Sinopharm Chemical Reagent Beijing
KNO3	>0.99	Sinopharm Chemical Reagent Beijing
KCl	>0.995	Sinopharm Chemical Reagent Beijing
LiCl	>0.95	Tianjin Jinke Chemical
LiNO3	>0.995	Tianjin Jinke Chemical
Ultrapure water		Home-made

shows the purities of the reagents used in this work.

Table 2. Chemical compositions of carbon steel and copper.

Component	C	Mn	Si	P	S	Zn	Pb	Sn	Fe	Cu
Carbon steel Q235	0.16	0.53	0.3	0.035	0.04	--	--	--	balance	--
Copper T6	--	--	0.006	--	0.01	0.005	0.05	0.05	0.05	balance

lists the detailed compositions of carbon steel and copper samples used in the corrosion experiments.

2.2. Apparatus and Methods

To analyze the performance of a working pair, its properties, such as crystallization temperature, saturated vapor pressure, density, viscosity, specific heat capacity, dissolution enthalpy, and corrosion rate, need to be measured.

The crystallization temperature was measured by a dynamic method in a precision thermostat (HX-3010, Bilang, Shanghai). The prepared solution was put in the thermostat at a slightly higher initial temperature. The crystallization temperature was measured by reducing the temperature by 1 °C every 12 hours until crystallization appeared in the solution.

The saturated vapor pressure was measured by a static method. The solution was poured into an autoclave that was assembled with a precision digital absolute pressure gauge (AX-110, Aoxin, Xi’an) and a Pt-100 thermocouple. The autoclave was placed in a precision oil bath (DKU-30, Jinghong, Shanghai) after vacuuming. The data of pressure gauge and thermocouple were obtained, respectively, after stabilization.

The density and viscosity were measured in a precision viscometer oil bath (SYP1003-H, Zhongxi, Beijing). Density measurement was carried out by a capillary pycnometer with a capillary diameter of approximately 1 mm. Ubbelohde capillary viscometers with different fine capillaries was used to carry out the viscosity measurement.

The specific heat capacity and dissolution enthalpy were measured by a micro reaction calorimeter (μRC, THT Co., UK). The measurement of specific heat capacity was conducted by making a 1 °C “step-change” in the measurement temperature. The dissolution enthalpy was measured by an isothermal method, with a solid addition accessory.

The corrosion rate of carbon steel and copper in the solution were measured by a weight loss method. The sample was immerged in the solution for 200 hours. The corrosion rate was calculated according to the mass change of the sample.

References [24,25,26,27,28] give the detailed procedures. All the above experiments were carried out at 101.3 kPa and 25 °C. The properties of water and LiBr/H₂O were measured and compared with literature values to validate the above methods. In addition, three parallel experiments were carried out for each measurement to verify the reproducibility.

Table 3. Measuring range and accuracy of main instruments.

Instrument	Parameter	Accuracy
Analytical balance	0–2100 g	±0.1 g
Precision thermostat	−30–150 °C	±0.5 °C
Oil bath	20–300 °C	±1.0 °C
Digital absolute pressure gauge	0–110 kPa	±0.01 kPa
Precision viscometer oil bath	0–230 °C	±0.05 °C
Capillary pycnometer	50 mL	±0.03%
Ubbelohde capillary viscometer	0.36 mm, 0.46 mm, 0.58 mm, 073 mm	±0.02%
Micro reaction calorimeter	0–180 °C	±0.001 °C

lists the accuracy of the instruments.

3. Results and Discussion

3.1. CaCl₂/H₂O

To find a working pair with excellent refrigeration characteristic, the saturated vapor pressures of CaCl₂/H₂O were measured and are shown in Figure 1a. Figure 1b presents the comparison of the refrigeration characteristic between LiBr/H₂O and CaCl₂/H₂O, it shows that, for an identical pressure of 6.290 kPa, which is a typical pressure in the condenser and generator, CaCl₂/H₂O had a lower generation temperature than LiBr/H₂O, meaning that the refrigeration characteristic of CaCl₂/H₂O was better than LiBr/H₂O.

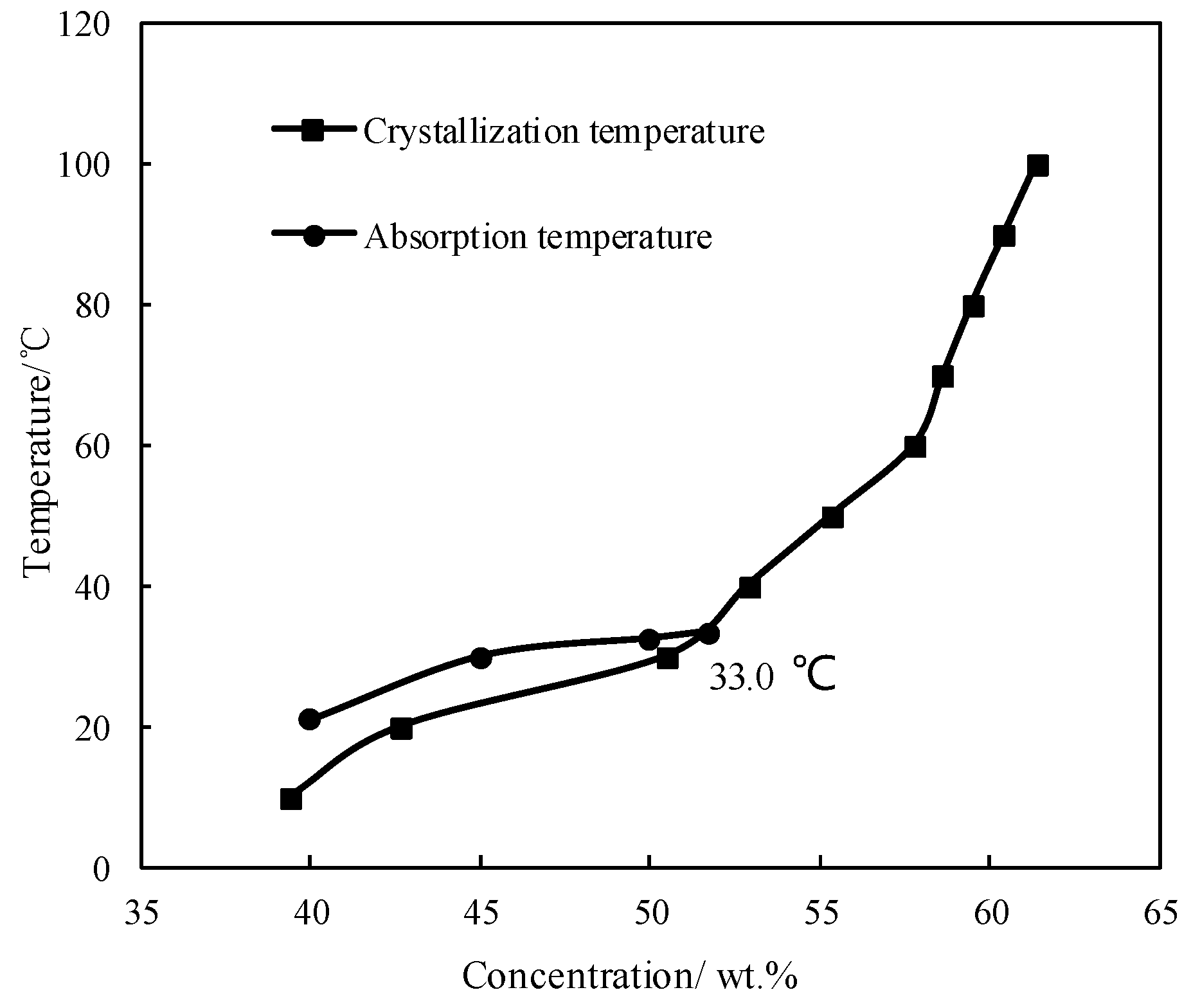

Figure 2 shows the absorption temperature of CaCl₂/H₂O under an absorption pressure of 0.872 kPa, which corresponds to the typical evaporation temperature of 5 °C. The crystallization temperature of CaCl₂/H₂O is also plotted in Figure 2 to illustrate the limitation from the crystallization of absorbent. The absorption temperature increased with increasing the concentration, and meet the crystallization temperature at 33.0 °C, which was the maximum absorption temperature under the given conditions. Generally, the absorption temperature in absorber for a refrigeration cycle is 37.0 °C, so the binary working pair of CaCl₂/H₂O could not be applied for the refrigeration cycle, because of its high crystallization temperature and insufficient absorption ability.

To improve the absorption ability and reduce the crystallization temperature of CaCl₂/H₂O, some salts, including NaCl, KCl, LiCl, KNO₃, and LiNO₃, were combined with CaCl₂/H₂O, and their saturated vapor pressures and crystallization temperatures were measured.

3.2. Measurement of Crystallization Temperature T_C

The T_C of CaCl₂-NaCl/H₂O, CaCl₂-KCl/H₂O, CaCl₂-LiCl/H₂O, CaCl₂-KNO₃/H₂O, CaCl₂-LiNO₃/H₂O, and CaCl₂-LiNO₃-KNO₃/H₂O were measured. Figure 3 gives the comparison of T_C between these CaCl₂-based working pairs and CaCl₂/H₂O. Here, the concentration is the solution’s total solute mass concentration.

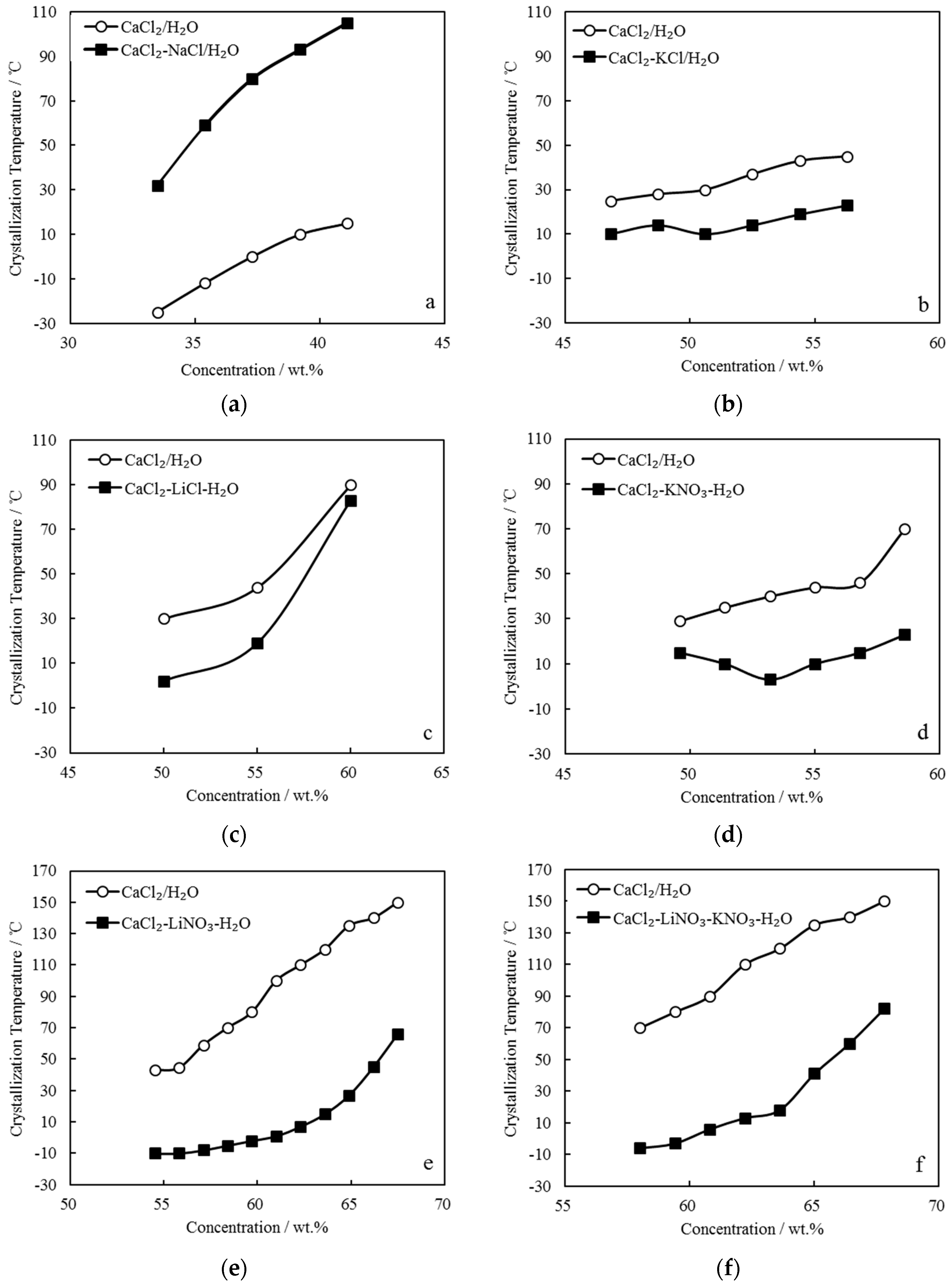

Figure 3a shows CaCl₂-NaCl/H₂O with adding 5.0 g NaCl to CaCl₂/H₂O, in which CaCl₂ were from 42.9 g to 61.3 g and H₂O was 95.0 g. The crystallization temperatures of CaCl₂-NaCl/H₂O were higher than those of CaCl₂/H₂O under the same concentrations.

Figure 3b shows CaCl₂-KCl/H₂O with adding 5.0 g KCl to CaCl₂/H₂O, in which CaCl₂ were from 78.6 g to 117.4 g and H₂O was 95.0 g. The crystallization temperatures of CaCl₂-KCl/H₂O were approximately 20.0 °C lower than those of CaCl₂/H₂O under the same concentrations.

Figure 3c shows CaCl₂-LiCl/H₂O with adding 10.0 g LiCl to CaCl₂/H₂O, in which CaCl₂ were from 66.7 g to 100.0 g and H₂O was 90.0 g. The crystallization temperature of CaCl₂-LiCl/H₂O was reduced greatly when compared with that of CaCl₂/H₂O at 50.0 wt.%, whereas with the concentration increasing, the effect of LiCl addition on the crystallization temperature obviously decreased.

Figure 3d shows CaCl₂-KNO₃/H₂O with adding 10.0 g KNO₃ to CaCl₂/H₂O, in which CaCl₂ were from 78.6 g to 117.4 g and H₂O was 90.0 g. The crystallization temperatures of CaCl₂-KNO₃/H₂O were lower than those of CaCl₂/H₂O under the same concentrations. Moreover, it decreased with increasing concentration in the range of 49.0 wt.% to 53.5 wt.%, whereas it increased with further increasing concentration.

Figure 3e shows CaCl₂-LiNO₃/H₂O with adding 35.0 g LiNO₃ to CaCl₂/H₂O, in which CaCl₂ were from 42.9 g to 100.0 g and H₂O was 65.0 g. The crystallization temperatures of CaCl₂-LiNO₃/H₂O were significantly reduced when compared with those of CaCl₂/H₂O under the same concentrations. Corresponding to the concentrations ranging from 55.0 wt.% to 62.0 wt.%, which is a practical concentration range for an absorption refrigeration cycle, the crystallization temperatures of CaCl₂-LiNO₃/H₂O were from -10.0 °C to 7.0 °C, which are sufficiently low to solve the absorbent crystallization problem in summer. However, the addition amount of 35.0 g LiNO₃ was relatively large, and it is a disadvantage from the aspect of cost due to LiNO₃ being much more expensive than CaCl₂.

To depress the cost increase, a part of LiNO₃ was replaced with KNO₃ for CaCl₂-LiNO₃/H₂O. Figure 3f shows CaCl₂-LiNO₃-KNO₃/H₂O with adding 25.0 g LiNO₃ and 5.0 g KNO₃ to CaCl₂/H₂O, in which CaCl₂ were from 66.7 g to 117.4 g and H₂O was 70.0 g. A reduction of crystallization temperature up to 30.0 °C was achieved from 58.0 wt.% to 65.0 wt.%, which indicated that the crystallization problem would not occur in this concentration range.

3.3. Measurement of Saturated Vapor Pressure p

p of CaCl₂-LiNO₃/H₂O and CaCl₂-LiNO₃-KNO₃/H₂O with different mass ratios were measured and are shown in

Table 4. p of CaCl₂-LiNO₃/H₂O with different mass ratio.

x/g		Saturated Vapor Pressure p (kPa) at Each Temperature T (°C) CaCl2(x)-LiNO3(35.0 g)/H2O(65.0 g)
42.9	T	20.0	25.0	30.5	35.0	40.0	45.3	50.4	55.7	60.2
	p	0.457	0.641	0.934	1.256	1.693	2.369	3.278	4.431	5.707
	T	65.3	70.8	75.0	80.0	85.0	90.0	95.0	100.0
	p	7.376	9.632	11.825	15.204	19.002	23.331	28.101	34.022
47.1	T	20.0	25.0	30.2	35.0	40.1	45.3	50.2	55.5	59.9
	p	0.419	0.585	0.834	1.138	1.535	2.139	2.948	3.998	5.136
	T	65.2	70.3	75.1	80.2	85.2	90.0	95.4	100.3
	p	6.823	8.739	11.035	14.118	17.692	21.770	26.701	32.375
51.5	T	20.0	25.0	29.9	35.0	40.1	45.2	50.0	55.2	59.6
	p	0.372	0.520	0.733	1.010	1.377	1.910	2.617	3.564	4.565
	T	65.1	69.8	75.2	80.4	85.3	90.0	95.8	100.6
	p	6.269	7.846	10.244	13.031	16.382	20.208	25.300	30.728
56.3	T	20.0	25.0	30.3	35.3	40.1	45.1	50.0	55.7	60.1
	p	0.330	0.460	0.674	0.921	1.233	1.688	2.336	3.217	4.188
	T	65.3	70.5	75.0	79.9	85.0	90.4	95.0	101.0
	p	5.523	7.333	9.228	11.688	14.998	18.869	22.500	27.967
61.3	T	20.1	25.0	30.3	35.2	40.2	45.1	50.1	55.3	60.0
	p	0.295	0.419	0.603	0.826	1.124	1.531	2.113	2.844	3.704
	T	65.0	70.2	75.1	80.1	85.1	90.5	95.1	100.5
	p	4.894	6.490	8.349	10.671	13.678	17.233	20.685	25.265
66.7	T	20.2	25.0	30.3	35.1	40.2	45.1	50.1	54.9	59.9
		0.269	0.378	0.552	0.752	1.024	1.375	1.860	2.471	3.220
	T	64.6	69.8	75.2	80.2	85.2	90.5	95.2	100.0
		4.265	5.647	7.470	9.654	12.358	15.597	18.870	22.562
72.4	T	20.1	25.0	30.1	35.0	40.0	44.9	50.0	55.2	60.4
	p	0.247	0.341	0.492	0.671	0.899	1.186	1.657	2.237	3.092
	T	64.6	70.0	75.0	80.4	85.1	90.0	95.5	100.2
	p	3.930	5.268	6.678	8.678	10.960	13.507	17.127	20.709
78.6	T	20.1	25.0	30.0	35.1	40.0	45.1	50.1	55.0	59.9
	p	0.218	0.298	0.430	0.592	0.804	1.106	1.515	2.019	2.722
	T	65.2	70.2	74.9	80.2	85.1	90.0	95.5	100.3
	p	3.709	4.810	6.099	7.805	9.901	12.206	15.709	19.204
85.2	T	30.1	35.0	41.1	45.0	51.1	54.9	60.0	64.9	69.9
	p	0.390	0.529	0.768	0.981	1.420	1.780	2.385	3.205	4.185
	T	75.0	80.2	85.3	90.2	95.4	100.6
	p	5.624	7.135	9.098	10.996	13.756	17.535
92.3	T	45.1	50.1	54.9	60.8	65.4	70.2	75.5	81.1	85.1
	p	0.886	1.188	1.645	2.303	3.048	3.903	5.226	6.777	8.311
	T	90.5	95.8	100.0
	p	10.276	12.820	15.447
100.0	T	65.7	70.4	76.7	80.2	85.1	90.2	95.2	100.1
	p	2.711	3.552	5.050	6.000	7.432	9.260	11.383	13.858

and

Table 5. p of CaCl₂-LiNO₃-KNO₃/H₂O with different mass ratio.

y/g		Saturated Vapor Pressure p (kPa) at Each Temperature T (°C) CaCl2(y)-LiNO3(25.0 g)-KNO3(5.0 g)/H2O(70.0 g)
66.7	T	20.0	25.0	30.1	35.5	40.0	45.3	50.0	54.9	60.0
	p	0.352	0.511	0.741	1.064	1.434	1.987	2.638	3.508	4.660
	T	65.1	70.1	75.2	80.0	87.2	89.9	95.0	100.0
	p	6.119	8.024	10.490	13.001	17.346	19.223	23.450	28.590
72.4	T	20.0	25.0	30.2	34.9	40.6	45.6	50.0	55.2	60.4
	p	0.315	0.455	0.650	0.911	1.353	1.850	2.403	3.250	4.283
	T	65.1	69.9	75.2	80.3	85.0	89.7	94.9	100.0
	p	5.560	7.106	9.469	11.911	14.327	17.200	21.021	26.025
78.6	T	20.0	25.0	29.9	35.1	40.0	45.0	50.0	54.9	60.0
	p	0.259	0.371	0.530	0.762	1.049	1.427	1.940	2.634	3.552
	T	65.1	69.8	75.5	80.1	85.0	89.9	94.9	100.1
	p	4.825	6.306	8.546	10.555	12.913	15.540	18.898	23.535
85.2	T	20.0	25.0	30.0	35.0	40.5	45.0	50.0	55.0	60.2
	p	0.219	0.312	0.445	0.627	0.928	1.239	1.740	2.311	3.200
	T	65.0	69.8	75.1	80.0	85.1	90.0	95.2	100.2
	p	4.205	5.499	7.402	9.378	11.789	17.909	21.505
92.3	T	20.0	25.0	30.0	35.4	39.9	45.0	50.0	55.1	60.1
	p	0.198	0.285	0.399	0.581	0.793	1.136	1.563	2.150	2.925
	T	65.2	70.0	75.3	79.9	85.2	90.0	95.5	100.2
	p	3.875	5.048	6.683	8.448	10.859	13.429	16.906	19.867
100.0	T	41.0	44.9	50.0	55.0	60.2	65.0	70.1	75.1	80.3
	p	0.673	0.889	1.244	1.730	2.454	3.349	4.519	5.911	7.656
	T	85.2	89.9	94.9	99.9
	p	9.761	12.060	14.960	18.163
108.3	T	60.0	65.2	70.0	75.2	80.1	84.8	90.4	95.1	100.1
	p	2.205	3.045	4.051	5.252	6.686	8.464	10.993	13.110	15.587
117.4	T	82.0	85.1	90.0	95.0	100.3
	p	5.921	6.971	9.009	11.303	14.387

.

The measured p was fitted by Equation (1) [33,34,35].

$$\log p={\displaystyle \sum }_{i=0}^4\left[A_i+B_i/(T+273.15-C_i)\right]w^i$$

(1)

where A_i, B_i, and C_i are the regression parameters. Equation (2) obtains the average absolute relative deviation (AARD) between the measured values and the fitted values.

$$\mathrm{AARD}=1/N{\displaystyle \sum _{i=1}^N\left|\left(P_{\exp }-P_{fit}\right)/P_{fit}\right|}$$

(2)

where N is total number of data, P_exp is the measured or obtained value, and P_fit is the fitted value.

The regression parameters and AARD were obtained and are shown in

Table 6. Regression parameters for CaCl₂-LiNO₃/H₂O and average absolute relative deviation (AARD) value.

i	Ai	Bi	Ci	AARD
0	4.896 × 10−1	−1.985 × 100	−3.624 × 100	1.55%
1	−1.172 × 10−1	5.756 × 10−1	−1.189 × 101
2	1.024 × 10−2	−2.990 × 10−1	−3.963 × 101
3	−1.768 × 10−4	3.046 × 10−3	−1.894 × 101
4	9.452 × 10−7	−8.957 × 10−6	−4.335 × 100

and

Table 7. Regression parameters for CaCl₂-LiNO₃-KNO₃/H₂O and AARD value.

i	Ai	Bi	Ci	AARD
0	−2.262 × 10−2	−3.844 × 10−1	5.668 × 10−1	2.34%
1	5.616 × 10−1	1.184 × 100	1.367 × 100
2	−2.523 × 10−2	−1.498 × 10−2	5.033 × 100
3	4.274 × 10−4	−3.524 × 10−3	−3.042 × 101
4	−2.421 × 10−6	2.944 × 10−5	−1.620 × 101

, respectively.

Figure 4 and Figure 5 plot the measured p and fitted value of CaCl₂-LiNO₃/H₂O and CaCl₂-LiNO₃-KNO₃/H₂O, respectively. The fitted value agreed well with the measured p. 60.2 wt.% for CaCl₂(63.2 g)-LiNO₃(35.0 g)/H₂O(65.0 g) and 60.5 wt.% for CaCl₂(77.3 g)-LiNO₃(25.0 g)-KNO₃(5.0 g)/H₂O(70.0 g) were obtained, respectively, by Equation (1) at 37.0 °C and 0.872 kPa, which are the typical absorption temperature and absorption pressure for a refrigeration cycle. Meanwhile, the absorption temperatures of these two working pairs were 70.5 °C and 69.2 °C, respectively, at 6.290 kPa, which is the typical generation pressure. Therefore, CaCl₂(77.3 g)-LiNO₃(25.0 g)-KNO₃(5.0 g)/H₂O(70.0 g), with a solute mass ratio of 15.5:5:1, had been proposed as an alternative working pair for LiBr/H₂O. The proposed working pair is expressed as CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O in this paper.

The p of this working pair was measured in order to analyze the cycle performance with CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O, as shown in

Table 8. p of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O.

w/wt.%		Saturated Vapor Pressure p (kPa) at Each Temperature T (°C)
50.0	T	20.1	25.7	30.2	35.3	40.6	45.0	50.7	55.4	60.0
	p	0.634	0.901	1.225	1.705	2.371	3.064	4.325	5.626	7.206
	T	65.2	70.7	75.0	80.9	85.7	90.0	95.2	100.0
	p	9.336	12.075	14.800	19.100	23.536	27.931	33.519	40.578
55.0	T	21.2	28.0	32.1	35.0	39.9	45.1	52.0	55.6	60.0
	p	0.443	0.712	0.939	1.148	1.569	2.210	3.407	4.249	5.387
	T	65.2	70.2	75.0	80.9	85.0	90.4	95.0	100.0
	p	7.060	9.016	11.301	14.825	17.699	21.912	26.011	31.898
60.0	T	21.0	26.1	30.0	35.0	41.0	45.0	50.0	55.1	60.4
	p	0.280	0.412	0.541	0.769	1.166	1.492	2.071	2.855	4.026
	T	65.5	70.2	75.0	80.0	85.4	90.4	95.2	100.1
	p	5.355	6.901	8.873	11.106	14.063	17.268	21.176	25.912
65.0	T	25.1	30.0	35.0	40.5	45.0	50.0	55.6	60.5	65.6
	p	0.226	0.341	0.490	0.744	0.985	1.339	1.958	2.675	3.665
	T	71.1	75.4	80.1	85.2	90.0	94.6	100.5
	p	4.971	6.282	7.749	9.894	12.395	15.241	19.243

.

The measured p was fitted by Equation (3) and the AARD was obtained to be 1.82% by Equation (2).

$$\begin{array}{l}\log p=1.243-8.293/(T+273.15+3.466\times {10}^3)+\\ (1.698\times {10}^{-1}-3.894\times 10/(T+273.15+1.944\times {10}^2))\times w+\\ (-1.503\times {10}^{-3}+3.797\times {10}^{-1}/(T+273.15+2.836\times {10}^2))\times w^2\end{array}$$

(3)

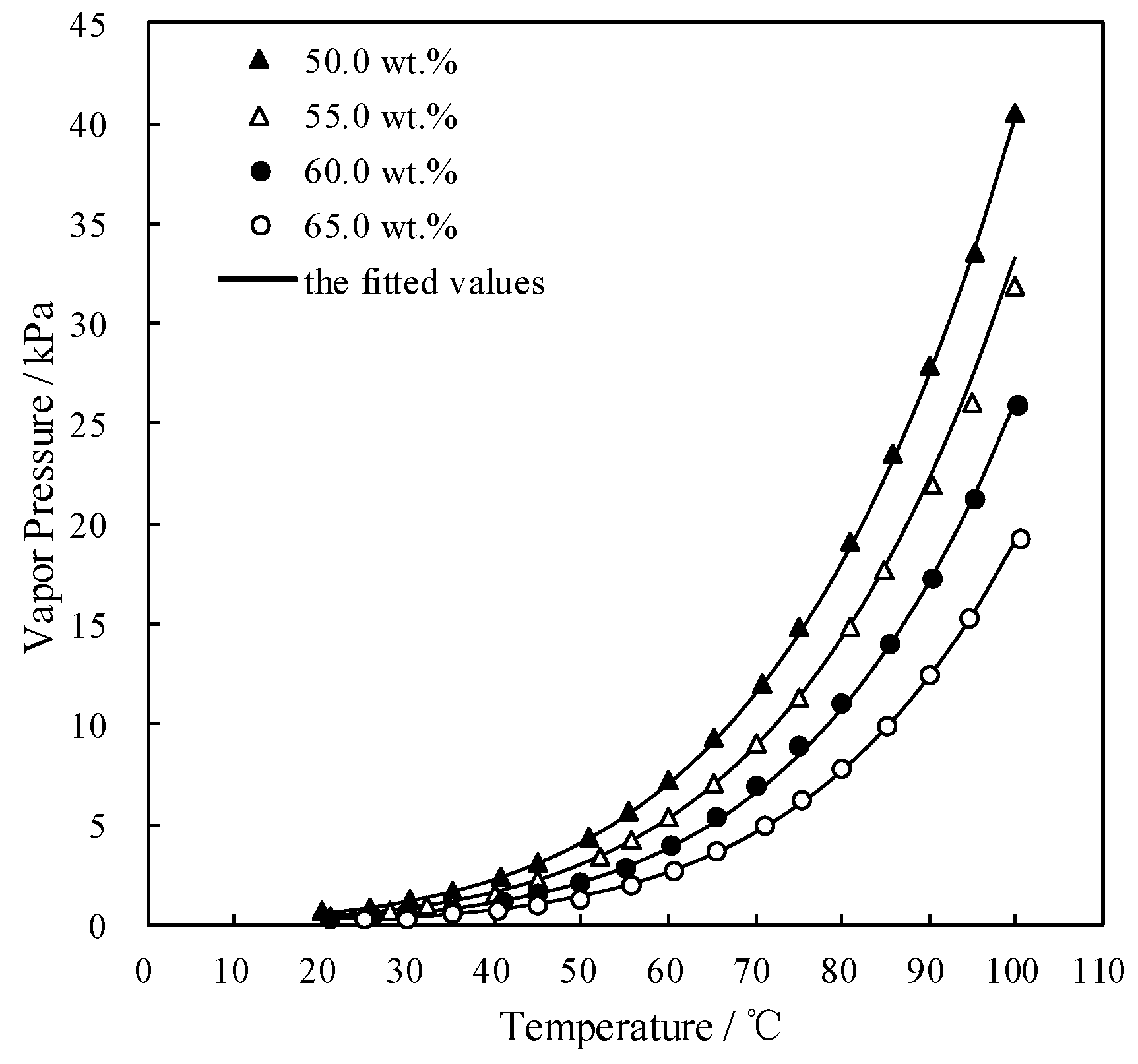

Figure 6 shows the measured p and fitted value. The measured p agreed well with the fitted value, which indicated that the p of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O could be obtained with the given corresponding concentration and temperature.

Figure 7 compares the refrigeration characteristic of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O and LiBr/H₂O. The generation temperature of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O was 74.0 °C, which was 7.0 °C lower than that of LiBr/H₂O. In other words, the temperature that is required for the driving heat source could be reduced by 7.0 °C through using CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O instead of LiBr/H₂O.

3.4. Measurement of Density ρ

ρ of CaCl₂-LiNO₃-KNO₃(15.5:5:1) /H₂O was measured by a capillary pycnometer method.

Table 9. ρ of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O.

w/wt.%		Density ρ (g·cm−3) at Each Temperature T (°C)
50.0	T	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	ρ	1.4614	1.4563	1.4488	1.4412	1.4352	1.4278	1.4215	1.4141	1.4067
55.0	T	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	ρ	1.5181	1.5111	1.5042	1.4977	1.4906	1.4834	1.4761	1.4696	1.4618
60.0	T	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	ρ	1.5784	1.5713	1.5642	1.5547	1.5495	1.5420	1.5351	1.5287	1.5229
65.0	T			40.0	50.0	60.0	70.0	80.0	90.0	100.0
	ρ			1.6245	1.6185	1.6131	1.6058	1.5991	1.5915	1.5820

lists the results.

The measured ρ of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O was fitted by Equation (4) and AARD was obtained to be 0.22% by Equation (2).

$$\begin{array}{l}\rho =1.923\times {10}^2-1.139\times (T+273.15)+1.690\times {10}^{-3}\times {(T+273.15)}^2\\ +(-1.034\times {10}^3+6.162\times (T+273.15)-9.146\times {10}^{-3}\times {(T+273.15)}^2)\times w\\ +(1.859\times {10}^3-1.107\times 10\times (T+273.15)+1.642\times {10}^{-2}\times {(T+273.15)}^2)\times w^2\\ +(-1.108\times {10}^3+6.595\times (T+273.15)-9.781\times {10}^{-3}\times {(T+273.15)}^2)\times w^3\end{array}$$

(4)

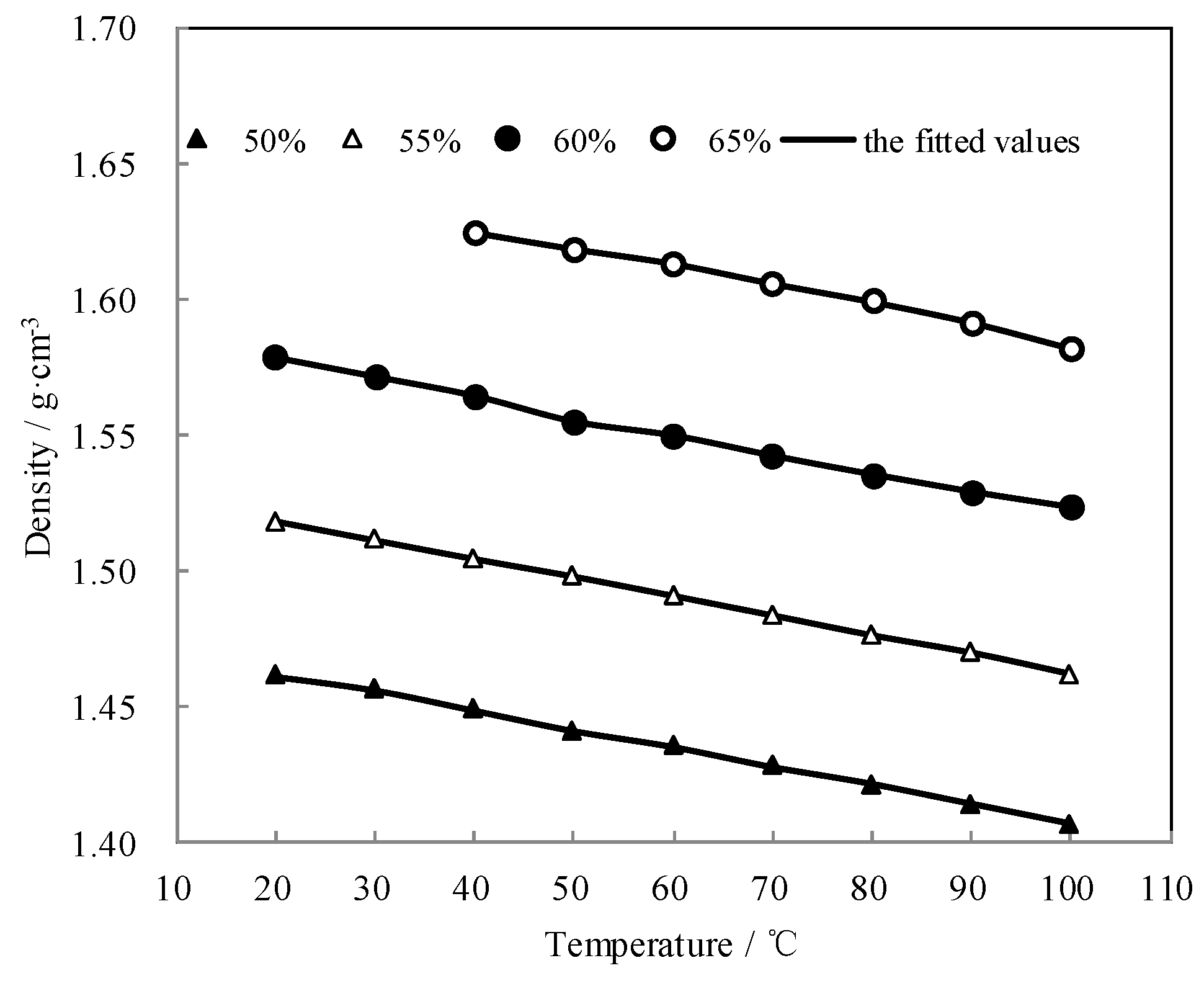

Figure 8 shows the measured ρ and the fitted value. The measured ρ was highly consistent with the fitted value. The density linearly decreased with the temperature increasing, and it increased with the concentration increasing.

3.5. Measurement of Viscosity η

η of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O was measured by the Ubbelohde capillary viscometer method.

Table 10. η of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O.

w/wt.%		Viscosity η (mPa·s) at Each Temperature T (°C)
50.0	T	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	H	20.13	14.51	10.56	8.00	5.98	4.77	4..11	3.47	2.95
55.0	T	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	H	45.51	29.57	21.63	15.40	11.42	7.79	6.19	5.18	4.35
60.0	T	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	H	144.05	81.88	51.66	33.48	24.07	16.91	12.51	9.47	7.71
65.0	T			40.0	50.0	60.0	70.0	80.0	90.0	100.0
	H			144.90	80.97	52.26	37.07	25.91	19.38	14.55

shows the results.

The measured η of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O was fitted by Equation (5) and the AARD was obtained to be 0.82% by Equation (2).

$$\begin{array}{l}\eta =8.099\times 10-4.721\times {10}^4/(T+273.15)+8.480\times {10}^6/{(T+273.15)}^2\\ +(-2.286\times {10}^2+1.169\times {10}^5/(T+273.15)-2.278\times {10}^7/{(T+273.15)}^2)\times w\\ +(2.534\times 10-1.816\times {10}^4/(T+273.15)-4.422\times {10}^5/{(T+273.15)}^2)\times w^2\\ +(2.224\times {10}^2+4.127\times {10}^5/(T+273.15)+2.716\times {10}^7/{(T+273.15)}^2)\times w^3\end{array}$$

(5)

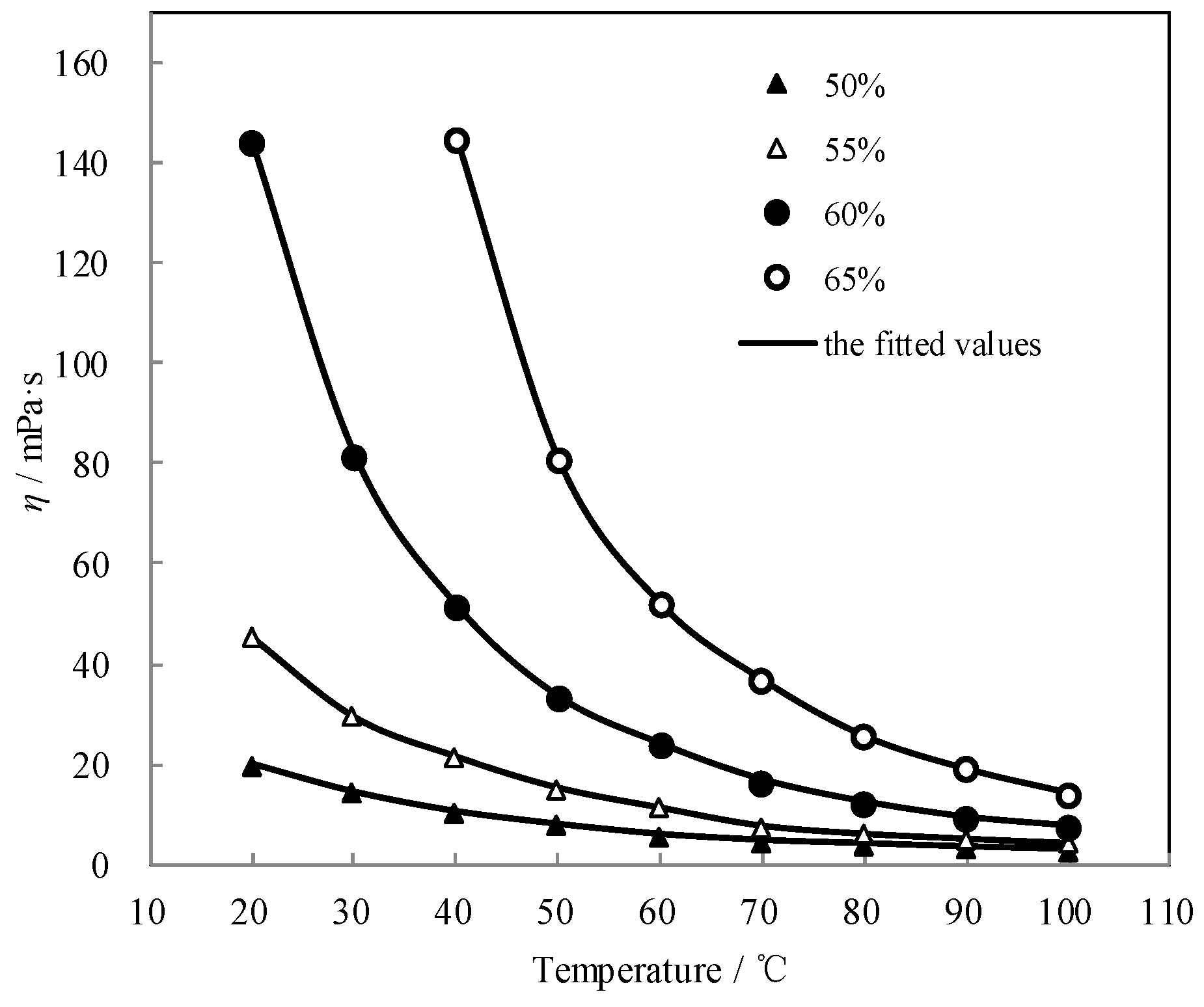

Figure 9 shows the measured η and the fitted value. The measured η agreed well with the fitted value. η exponentially decreased with the temperature increasing, whereas it increased with the concentration increasing.

3.6. Measurement of Specific Heat Capacity C_p

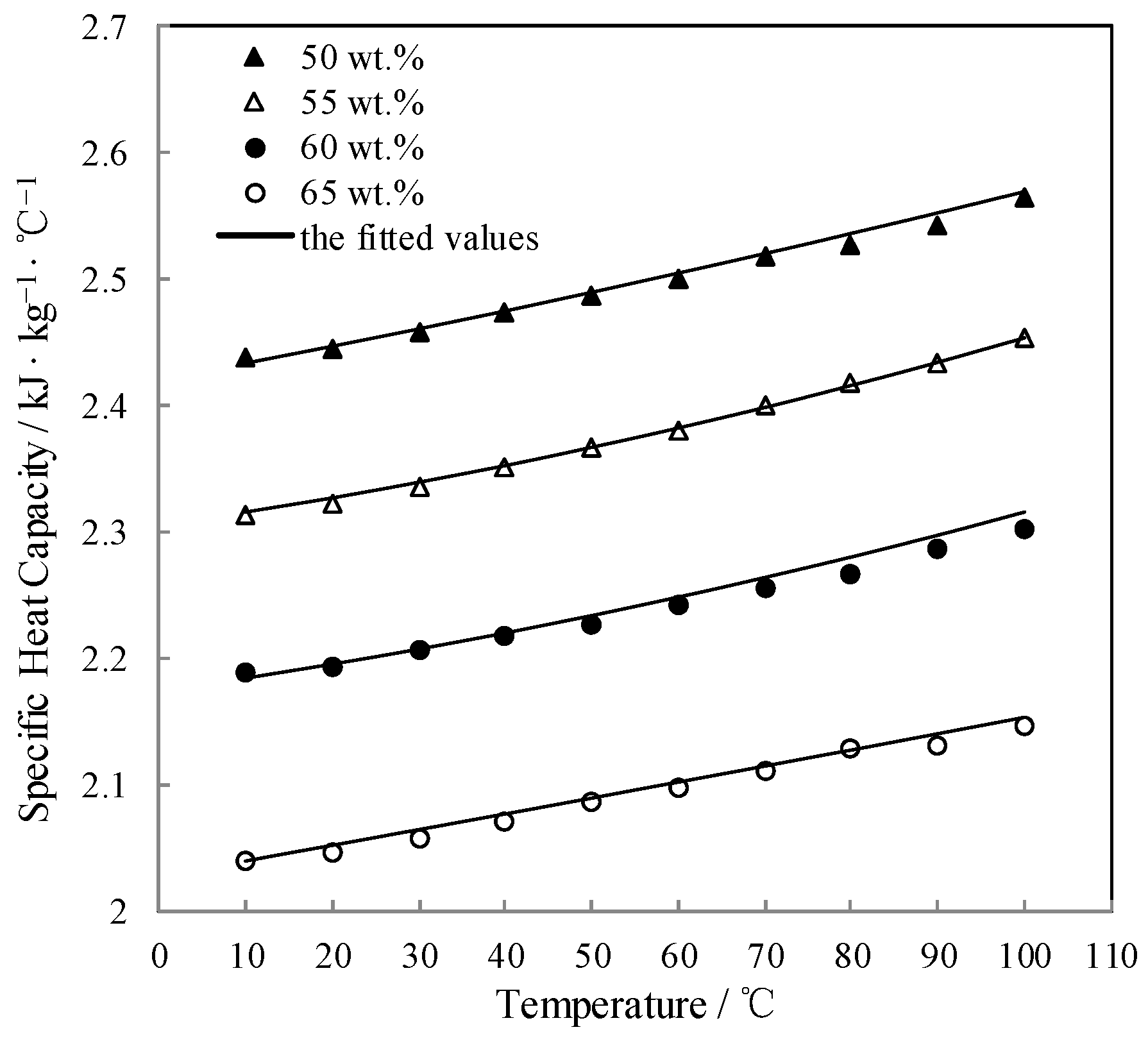

C_p of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O was measured with a micro reaction calorimeter.

Table 11. C_p of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O.

w/wt.%			Specific Heat Capacity Cp (kJ·kg−1·K −1) at Each Temperature T (°C)
50.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	Cp	2.438	2.444	2.458	2.473	2.487	2.501	2.518	2.527	2.542	2.563
55.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	Cp	2.313	2.321	2.335	2.350	2.366	2.380	2.400	2.417	2.432	2.452
60.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	Cp	2.189	2.193	2.206	2.216	2.227	2.241	2.254	2.266	2.286	2.303
65.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	Cp	2.039	2.045	2.057	2.071	2.085	2.098	2.110	2.127	2.130	2.146

lists the results.

The measured C_p was fitted by Equation (6) and AARD was obtained to be 0.21% by Equation (2).

$$\begin{array}{l}{C}_{\mathrm{p}}=2.575+1.951\times {10}^{-2}\times (T+273.15)-2.200\times {10}^{-4}\times {(T+273.15)}^2\\ +\left(1.121\times {10}^{-2}-6.433\times {10}^{-4}\times (T+273.15)+7.593\times {10}^{-6}\times {(T+273.15)}^2\right)w\\ +(-3.259\times {10}^{-4}+5.570\times {10}^{-6}\times (T+273.15)-7.020\times {10}^{-8}\times {(T+273.15)}^2)w^2\end{array}$$

(6)

Figure 10 shows the measured C_p and the fitted value. C_p linearly increased with increasing the temperature.

3.7. Calculation of Specific Enthalpy h

3.7.1. C_p of CaCl₂, LiNO₃, KNO₃ and H₂O

The C_p of solid KNO₃ was measured and is shown in

Table 12. C_p of solid KNO₃ at atmosphere pressure.

Reagent		Specific Heat Capacity Cp (kJ·kg−1·K−1) at Each Temperature T (°C)
KNO3	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	Cp	0.930	0.952	0.968	0.974	0.988	1.040	1.053	1.072	1.090	1.119

, C_p of CaCl₂, LiNO₃, and H₂O are given in Reference Literature [29].

3.7.2. Measurement of Dissolution Enthalpy ΔH_mix

ΔH_mix of KNO₃, LiNO₃, and CaCl₂ with a mass ratio of 15.5:5:1 were measured at 25.0 °C and are shown in

Table 13. ΔH_mix of CaCl₂-LiNO₃-KNO₃(15.5:5:1) /H₂O at 25.0 °C.

w/wt.%	50.0	55.0	60.0	65.0
ΔHmix/kJ·kg−1	149.310	150.501	150.275	151.292

.

3.7.3. Calculation of Specific Enthalpy h

h of CaCl₂-LiNO₃-KNO₃(15.5:5:1) /H₂O can be obtained from the measured C_p and ΔH_mix [25,36,37].

Table 14. h of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O.

w/wt.%		Specific Enthalpy h (kJ·kg−1) at Each Temperature T (°C)
50.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	h	296.787	321.185	345.720	370.395	395.214	420.183	445.305	470.584	496.025	521.632
55.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	h	293.028	316.239	339.568	363.026	386.622	410.368	434.272	458.345	482.598	507.039
60.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	h	290.874	312.767	334.776	356.907	379.172	401.578	424.134	446.849	469.733	492.793
65.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	h	287.666	308.113	328.685	349.382	370.205	391.155	412.233	433.438	454.773	476.237

lists the obtained results.

The obtained h was fitted by Equation (7) and AARD was obtained to be 0.07% by Equation (2).

$$\begin{array}{l}h=3.151\times {10}^2-1.193\times w+6.998\times {10}^{-3}\times w^2\\ +(2.971-2.553\times {10}^{-3}\times w-1.817\times {10}^{-4}\times w^2)(T+273.15)\\ +(-1.775\times {10}^{-3}+1.198\times {10}^{-4}\times w-1.304\times {10}^{-6}\times w^2){(T+273.15)}^2\end{array}$$

(7)

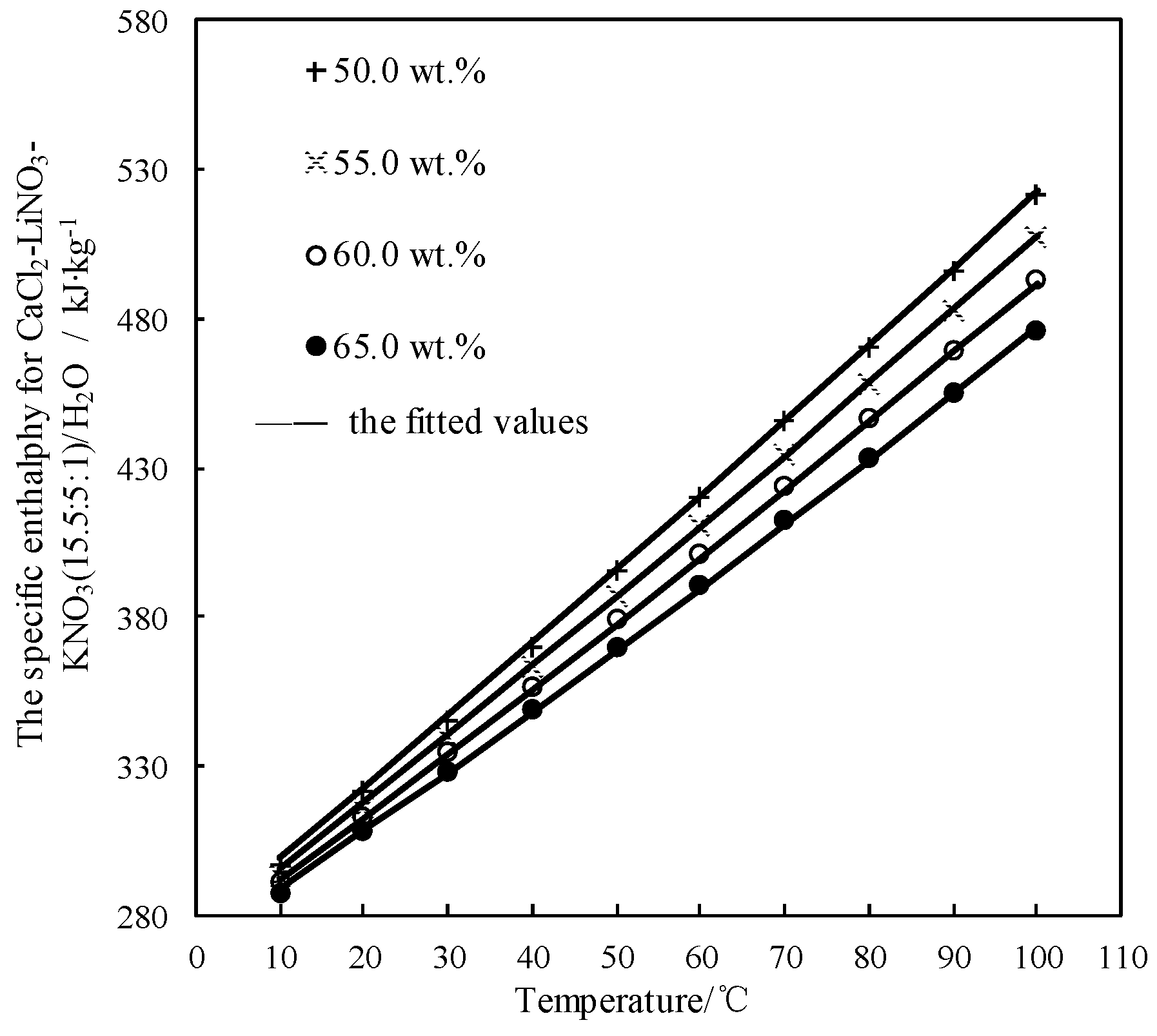

Figure 11 shows the obtained h and the fitted value. h linearly increased with increasing the temperature, and the slope of line slightly increased with reducing the concentration.

3.8. Calculation of Specific Entropy s

s of a solution can be also obtained from the measured C_p and ΔH_mix [38]. s of CaCl₂-LiNO₃-KNO₃(15.5:5:1) /H₂O was obtained and is shown in

Table 15. s of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O.

w/wt.%			Entropy s (kJ·kg−1·K−1) at Each Temperature T (°C)
50.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	s	1.412	1.496	1.578	1.658	1.736	1.813	1.889	1.963	2.036	2.108
55.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	s	1.417	1.498	1.576	1.652	1.727	1.800	1.872	1.943	2.014	2.083
60.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	s	1.422	1.500	1.574	1.645	1.716	1.785	1.852	1.919	1.985	2.050
65.0	T	10.0	20.0	30.0	40.0	50.0	60.0	70.0	80.0	90.0	100.0
	s	1.431	1.502	1.571	1.638	1.704	1.769	1.832	1.895	1.955	2.016

.

The obtained s of CaCl₂-LiNO₃-KNO₃(15.5:5:1) /H₂O was fitted by Equation (8) and the AARD was obtained to be 0.84% by Equation (2).

$$\begin{array}{l}s=-2.662\times 10+1.370\times {10}^2\times w-2.828\times {10}^2\times w^2+1.967\times {10}^2\times w^3\\ +(2.333\times {10}^{-1}+1.315\times w+2.735\times w^2-1.892\times w^3)(T+273.15)+\\ (-6.999\times {10}^{-4}+4.199\times {10}^{-3}\times w-8.788\times {10}^{-3}\times w^2+6.062\times {10}^{-3}\times w^3){(T+273.15)}^2\\ +(7.282\times {10}^{-7}-4.461\times {10}^{-6}\times w+9.373\times {10}^{-6}\times w^2-6.469\times {10}^{-6}\times w^3){(T+273.15)}^3\end{array}$$

(8)

Figure 12 shows the obtained s and the fitted value. s increased with the temperature increasing and decreased with the concentration increasing when the temperature was above 28 °C, whereas it changed little with the concentration when the temperature was below 28 °C.

3.9. Application for an Absorption Refrigeration Cycle

3.9.1. Absorption Refrigeration Cycle Using CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O

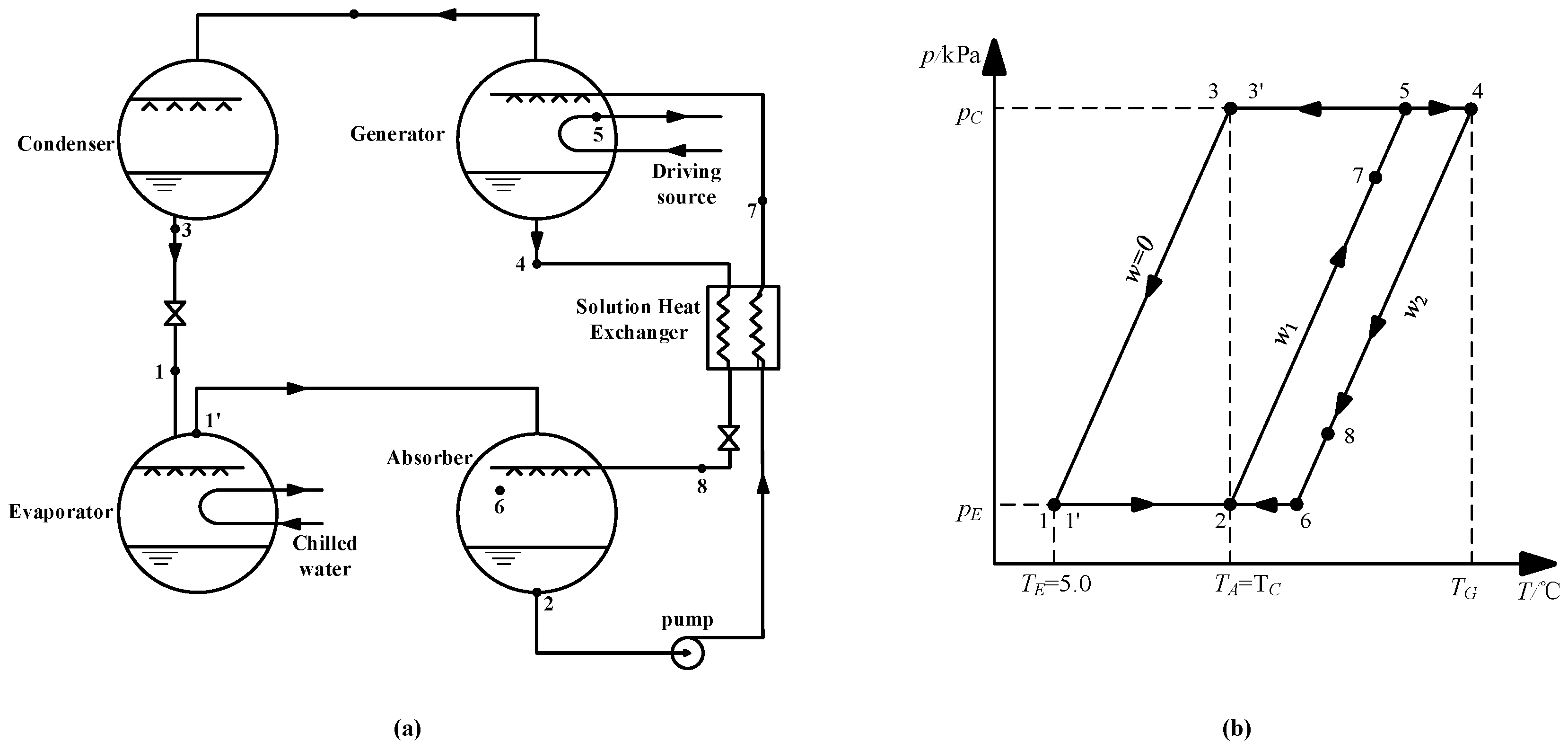

Figure 13a shows the schematic of an absorption refrigeration cycle. Figure 13b is the P-T diagram of the cycle, and the points that are marked in the two diagrams are one-to-one correspondence.

The working conditions are given, as follows: the evaporation temperature was 5.0 °C; the absorption temperature and condensation temperature were 37.0 °C; and, the evaporation and condensation pressures were 0.872 kPa and 6.290 kPa, respectively. The concentration of dilute solution for CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O was figured out to be 60.5 wt.% by Equation (3), and the strong solution was 63.5 wt.%, with a concentration difference of 3.0 wt.%, thus, the generation temperature of the cycle was determined to be 74.0 °C by Equation (3). The same method was applied to calculate the generation temperature while using LiBr/H₂O and other CaCl₂-based working pairs, including CaCl₂-LiBr-LiNO₃-KNO₃(16.2:2:2:1)/H₂O, CaCl₂-LiNO₃-LiBr(8.72:1:1)/H₂O, and CaCl₂-LiBr(1.35:1)/H₂O.

Table 16. Concentration and generation temperature for different working pairs.

Working Pair	CaCl2-LiNO3- KNO3 (15.5:5:1)/H2O	LiBr/ H2O	CaCl2-LiBr-LiNO3- KNO3(16.2:2:2:1) /H2O	CaCl2-LiNO3- LiBr (8.72:1:1)/H2O	CaCl2-LiBr (1.35:1) /H2O
Dilute solution/wt.%	60.5	56.4	58.5	57.3	55.8
Strong solution/wt.%	63.5	59.4	61.5	60.3	58.8
Generation temperature/°C	74.0	81.0	74.8	73.3	74.8

lists the results.

As seen in Table 16, the generation temperature was reduced by 7.0 °C through the use of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O instead of LiBr/H₂O. The generation temperature differences between the four CaCl₂-based working pairs were relatively small.

3.9.2. Analysis of COP and Exergy Efficiency

To analyze the performance of a refrigeration cycle with CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O, the state parameters of typical points in Figure 13 were obtained by Equations (3), (7) and (8).

Table 17. State parameters of streams in the cycle with CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O.

Point	Stream	p/kPa	T/°C	w/wt.%	h/kJ·kg−1	D/kg·s−1	s/kJ·kg−1·K−1
1	Water	0.872	5.0	0	439.6	1.0	0.07621
1ʹ	Vapor	0.872	5.0	0	2927.9	1.0	9.02690
2	Dilute solution	0.872	37.0	60.5	349.2	21.2	0.09149
3	Water	6.290	37.0	0	573.5	1.0	0.53190
4	Strong solution	6.290	74.0	63.5	424.4	20.2	0.33201
4ʹ	Vapor	6.290	74.0	0	3054.2	1.0	8.5368
5	Dilute solution	6.290	69.2	60.5	420.9	21.2	0.31351
6	Strong solution	0.872	41.0	63.5	353.7	20.2	0.11525
7	Dilute solution	--	63.9	60.5	409.9	21.2	0.27782
8	Strong solution	--	44.3	63.5	360.7	20.2	0.13754

lists the results.

The coefficient of performance (COP) for the absorption refrigeration cycle can be defined as:

$$\mathrm{COP}=\frac{Q_{\mathrm{E}}}{Q_{\mathrm{G}}}=\frac{h_{1{}^{\prime }}-h_3}{h_{4{}^{\prime }}-h_4+\alpha \left(h_4-h_7\right)}$$

(9)

where α represents circulating ratio.

COP was obtained to be 0.801 when using CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O as the working pair. The COPs for other working pairs were obtained with the same method, and the results are listed in

Table 18. Coefficient of performance (COP) of the cycle with different working pairs.

Working Pair	CaCl2-LiNO3-KNO3 (15.5:5:1) /H2O	LiBr /H2O	CaCl2-LiBr-LiNO3-KNO3 (16.2:2:2:1) /H2O	CaCl2-LiNO3-LiBr (8.72:1:1) /H2O	CaCl2-LiBr (1.35:1) /H2O
COP	0.801	0.762	0.793	0.805	0.788

.

Table 18 shows that, through using CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O instead of LiBr/H₂O, the COP was improved by 0.04. Moreover, the exergy destruction in each part of the cycle were analyzed to further compare the performance between CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O and LiBr/H₂O. Exergy is defined as the maximum possible reversible work that can be obtained from a stream:

$$E=(h-h_0)-(T_0+273.15)(s-s_0)$$

(10)

where T₀ represents the environment temperature that was taken as 25 °C in this paper.

The exergy destructions for each part of the absorption refrigeration cycle were obtained as follows [39].

Evaporator:

$$\mathrm{\Delta }{E}_E{=D}_3{E}_3-D_{1{}^{\prime }}{E}_{1{}^{\prime }}+Q_E(\frac{T_0}{T_E}-1)$$

(11)

Condenser:

$$\mathrm{\Delta }{E}_C{=D}_{4{}^{\prime }}{E}_{4{}^{\prime }}-D_3{E}_3-Q_C(1-\frac{T_0}{T_C})$$

(12)

Absorber:

$$\mathrm{\Delta }{E}_A{=D}_8{E}_8+D_{1{}^{\prime }}{E}_{1{}^{\prime }}-D_2{E}_2-Q_A(1-\frac{T_0}{T_A})$$

(13)

Generator:

$$\mathrm{\Delta }{E}_G{=D}_7{E}_7-D_4{E}_4-D_{4{}^{\prime }}{E}_{4{}^{\prime }}+Q_G(1-\frac{T_0}{T_G})$$

(14)

Heat exchanger:

$$\mathrm{\Delta }{E}_{HEX}{=D}_2{E}_2+D_4{E}_4-D_7{E}_7-D_8{E}_8$$

(15)

Table 19. The exergy destruction in each part of absorption refrigeration cycle using CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O and LiBr/H₂O.

Part	Exergy Destruction/kW
	CaCl2-LiNO3-KNO3 (15.5:5:1)/H2O	LiBr/H2O
Evaporator	0.5	0.5
Condenser	0.4	0.8
Absorber	52.1	55.3
Generator	282.6	332.7
Heat exchanger	25.5	31.4

compares the exergy destructions of the absorption cycle with CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O and LiBr/H₂O. Except the exergy destruction of the evaporator was equal because of the same evaporation condition, the exergy destructions of other parts for CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O were lower than those for LiBr/H₂O. For the absorption refrigeration cycle, the exergy efficiency (η_E) can be defined as:

$${\eta }_E=\frac{Q_E({\mathrm{T}}_E/T_0-1)}{Q_G(1-{\mathrm{T}}_Q/T_0)}$$

(16)

The η_E of the absorption refrigeration cycle with CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O and LiBr/H₂O were obtained to be 0.327 and 0.272, respectively. When compared with COP, the difference in exergy efficiency between the two working pairs was more distinct, which further showed the advantage of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O as an alternative working pair.

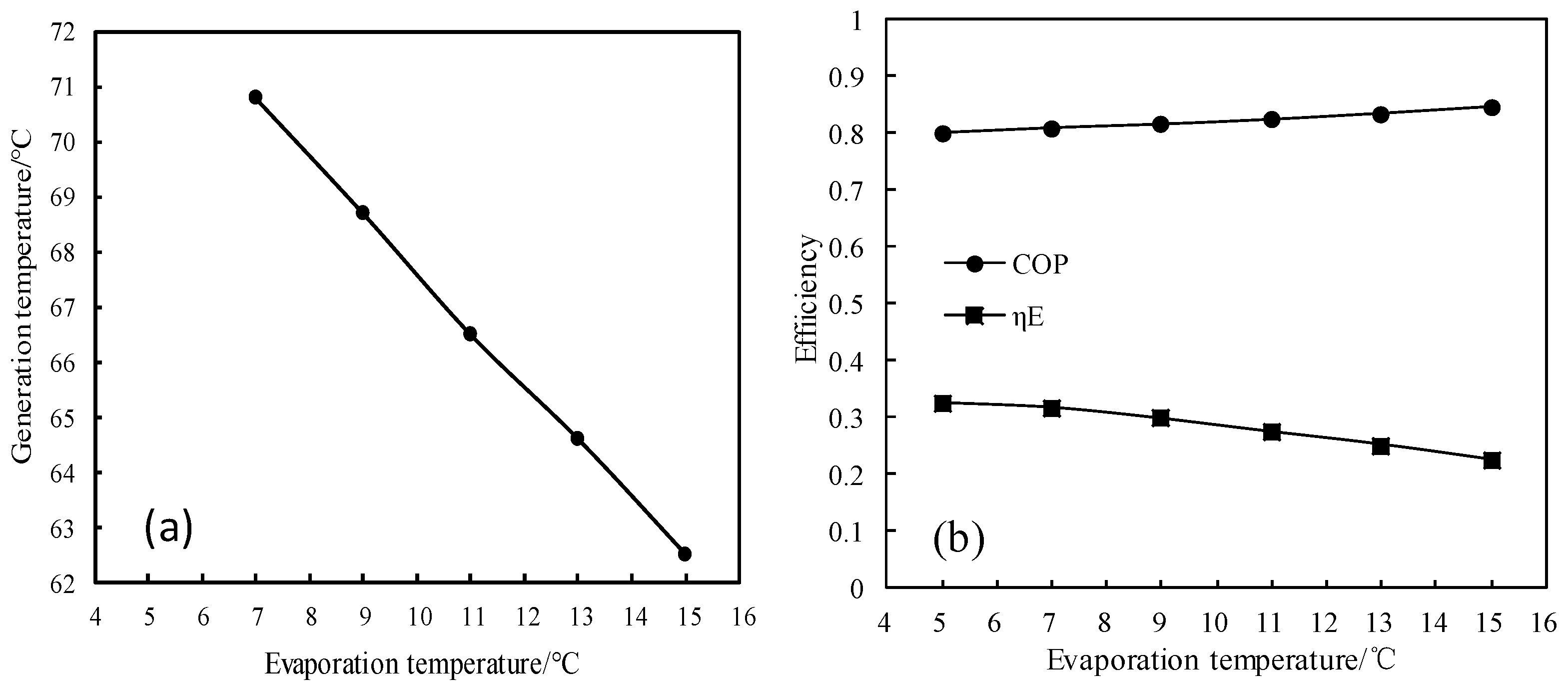

Figure 14 and Figure 15 show the changes of generation temperature and efficiencies (COP and η_E) for CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O, with the evaporation temperature varying from 5 °C to 15 °C. As shown in Figure 14a, the generation temperature decreased almost linearly with increasing the evaporation temperature. As shown in Figure 14b, the COP of the absorption refrigeration cycle increased with the evaporation temperature increasing, whereas the exergy efficiency decreased with the evaporation temperature increasing.

Figure 15 shows the variations of COP and η_E with the solution heat exchanger efficiency. COP and η_E increased almost linearly with the heat exchanger efficiency increasing, and the increasing slope of COP was greater than that of η_E.

3.10. Measurement of Corrosion Rate R_C

Generally, carbon steel is used as the structural material and copper is used as the heat exchange material for absorption heat pump. The R_C of carbon steel and copper in 63.5 wt.% solution of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O were measured at 80.0 °C and pH 9.7. Figure 16 gives the comparison of R_C in 63.5 wt.% solution of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O, 59.4 wt.% solution of LiBr/H₂O, and 60.3 wt.% solution of CaCl₂-LiNO₃-LiBr(8.72:1:1)/H₂O.

Figure 16 shows that the R_c of carbon steel in 63.5 wt.% solution of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O was 14.31 μm∙y⁻¹. Although the corrosivity of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O to carbon steel was stronger than that of LiBr/H₂O, it was still acceptable for practical applications. On the other hand, the corrosivity of CaCl₂-LiNO₃-LiBr(8.72:1:1)/H₂O to carbon steel was too strong to be applied, even though it had the lowest generation temperature among the CaCl₂-based working pairs. The R_c of copper in 63.5 wt.% solution of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O was 2.04 μm∙y⁻¹, which was smaller than that in 59.4 wt.% solution of LiBr/H₂O and it could meet the requirements for engineering applications.

4. Conclusions

• When compared with LiBr/H₂O, for an identical adsorption temperature at 0.872 kPa, which is a typical pressure of absorber, CaCl₂/H₂O had a lower absorption temperature at 6.290 kPa, which is a typical pressure of generator, meaning that CaCl₂/H₂O basically had a better refrigeration characteristic for an absorption refrigeration cycle. However, the absorption ability of CaCl₂/H₂O was not strong enough for achieving an evaporation temperature of 5 °C or lower, because of its high crystallization temperature.
• The crystallization temperature was significantly lowered when combining CaCl₂/H₂O with LiNO₃ or LiNO₃+KNO₃. As a result, the absorption ability of CaCl₂-LiNO₃/H₂O or CaCl₂-LiNO₃-KNO₃/H₂O was essentially improved.
• For an absorption refrigeration cycle using CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O as the working pair, the generation temperature that is required for achieving an evaporation temperature of 5 °C was 74.0 °C, which was 7.0 °C lower than that using LiBr/H₂O.
• When compared with LiBr/H₂O under the same conditions, COP and η_E of the absorption refrigeration cycle with CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O were improved by 0.04 and 0.06, respectively.
• R_C of carbon steel and copper in 63.5 wt.% solution of CaCl₂-LiNO₃-KNO₃(15.5:5:1)/H₂O at 80.0 °C and pH 9.7 were 14.31 and 2.04 μm∙y⁻¹, respectively, which indicated that the corrosivity of the proposed working pair could meet the requirements for practical applications.
