# Entropy and Mixing Entropy for Weakly Nonlinear Mechanical Vibrating Systems

## Abstract

**:**

## 1. Introduction

## 2. Motivation

## 3. Overview of Khinchin’s Entropy

- Calculating the equi-energy volume enclosed by the system’s closed-surface trajectory in phase space, V.
- Determining the structure function, $\Omega $.
- Determining the generating function, $\Phi $.
- Finding the value $s=\sigma $ that satisfies Equation (8).
- Substituting the generating function and $\sigma $ into Equation (7).

#### 3.1. Linear Systems

#### 3.2. Nonlinear Systems

#### 3.3. Mixing Entropy

## 4. Entropy of Duffing Oscillators

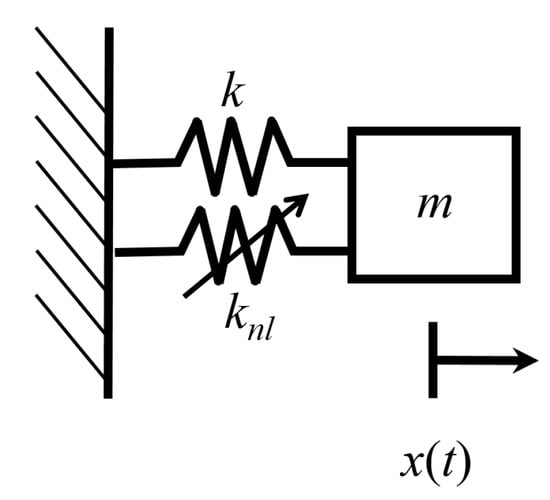

#### 4.1. A Duffing Oscillator

#### 4.1.1. The Phase Volume

#### 4.1.2. Khinchin’s Entropy

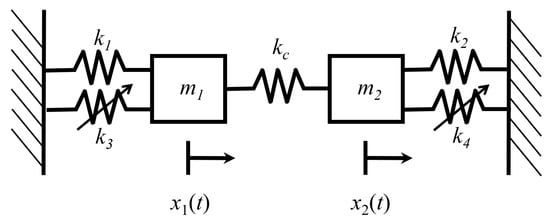

#### 4.2. Coupled Duffing Oscillators

#### 4.2.1. Entropy of the Coupled Duffing System

#### 4.2.2. Mixing Entropy of the Coupled Duffing System

## 5. Entropy of Henon–Heiles Oscillators

#### 5.1. Single Degree of Freedom Oscillator with Third Order Anharmonic Potential

#### 5.1.1. The Phase Volume

#### 5.1.2. Khinchin’s Entropy

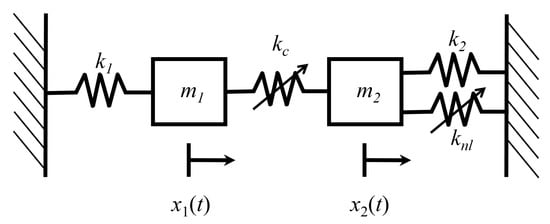

#### 5.2. Henon–Heiles Oscillators

#### 5.2.1. Entropy of the Henon–Heiles Oscillators

#### 5.2.2. Mixing Entropy of the Henon–Heiles Oscillators

## 6. Conclusions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

${(.)}^{\prime}$ | Derivative of $(.)$ with respect to x |

$\dot{(.)}$ | Time-derivative of $(.)$ |

${x}_{i}$ | i-th displacement degree of freedom |

${x}_{M}$ | Maximum displacement over time |

${m}_{i}$ | i-th oscillator mass |

${k}_{i}$ | i-th spring stiffness |

${k}_{nl}$ | Nonlinear spring stiffness |

${k}_{c}$ | Coupling spring stiffness |

q | Generalized coordinate |

p | Generalized velocity |

$\nu $ | Nonlinearity multiplier |

${(.)}^{\left(i\right)}$ | i-th order approximation of $(.)$ with respect to $\nu $ |

${(.)}^{\left[i\right]}$ | i-th term in expansion of $(.)$ with respect to $\nu $ |

E | Energy |

T | Thermodynamic temperature |

$\Sigma $ | System trajectory in phase space |

V | Equi-energy volume in phase space |

$\Omega $ | Structure function |

$\Phi $ | Generating function |

H | Entropy |

${H}^{*}$ | Decoupled entropy |

${H}_{mix}$ | Mixing entropy |

$B,C$ | Scalar constants |

$\sigma $ | Value that minimizes H |

$:=$ | Equal by definition |

$\mathit{q}$ | Generalized coordinate matrix |

## Appendix A

## References

- Lyon, R.H. Theory and Application of Statistical Energy Analysis; MIT Press: Cambridge, MA, USA, 1995. [Google Scholar]
- Crocker, M.; Price, A. Sound transmission using statistical energy analysis. J. Sound Vib.
**1969**, 9, 469–486. [Google Scholar] [CrossRef] - Crandall, S.H.; Lotz, R. On the coupling loss factor in statistical energy analysis. J. Acoust. Soc. Am.
**1971**, 49, 352–356. [Google Scholar] [CrossRef] - Fahy, F.J. Statistical energy analysis: A critical overview. Philos. Trans. R. Soc. Lond. Ser. A Phys. Eng. Sci.
**1994**, 346, 431–447. [Google Scholar] - Burroughs, C.B. An Introduction to Statistical Energy Analysis. J. Acoust. Soc. Am.
**1997**, 101, 1779–1789. [Google Scholar] [CrossRef] - Lafont, T.; Totaro, N.; Le Bot, A. Review of statistical energy analysis hypotheses in vibroacoustics. Proc. R. Soc. A Math. Phys. Eng. Sci.
**2014**, 470, 20130515. [Google Scholar] [CrossRef] - Carcaterra, A. An entropy formulation for the analysis of energy flow between mechanical resonators. Mech. Syst. Signal Process.
**2002**, 16, 905–920. [Google Scholar] [CrossRef] - Newland, D. Power flow between a class of coupled oscillators. J. Acoust. Soc. Am.
**1968**, 43, 553–559. [Google Scholar] [CrossRef] - Woodhouse, J. An introduction to statistical energy analysis of structural vibration. Appl. Acoust.
**1981**, 14, 455–469. [Google Scholar] [CrossRef] - Norton, M.P.; Karczub, D.G. Fundamentals of Noise and Vibration Analysis for Engineers; Cambridge University Press: Cambridge, UK, 2003. [Google Scholar]
- Tufano, D.; Sotoudeh, Z. Overview of coupling loss factors for damped and undamped simple oscillators. J. Sound Vib.
**2016**, 372, 223–238. [Google Scholar] [CrossRef] - Spelman, G.; Langley, R. Statistical energy analysis of nonlinear vibrating systems. Phil. Trans. R. Soc. A
**2015**, 373, 20140403. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Soize, C. Coupling Between an Undamped Linear Acoustic Fluid and a Damped Nonlinear Structure—Statistical Energy Analysis Considerations. J. Acoust. Soc. Am.
**1995**, 98, 373–385. [Google Scholar] [CrossRef] - Le Bot, A.; Carcaterra, A.; Mazuyer, D. Statistical vibroacoustics and entropy concept. Entropy
**2010**, 12, 2418–2435. [Google Scholar] [CrossRef] - Carcaterra, A. Thermodynamic temperature in linear and nonlinear Hamiltonian Systems. Int. J. Eng. Sci.
**2014**, 80, 189–208. [Google Scholar] [CrossRef] - Le Bot, A.; Carbonelli, A.; Liaudet, J.P. On the Usefulness of Entropy in Statistical Energy Analysis. Available online: https://hal.archives-ouvertes.fr/hal-00811020/ (accessed on 25 May 2019).
- Tufano, D.A.; Sotoudeh, Z. Introducing Entropy for the Statistical Energy Analysis of an Artificially Damped Oscillator. In Proceedings of the ASME 2015 International Mechanical Engineering Congress and Exposition, Houston, TE, USA, 13–19 November 2015; p. V013T16A012. [Google Scholar]
- Khinchin, A.I. Mathematical Foundations of Statistical Mechanics; Courier Corporation: North Chelmsford, MA, USA, 1949. [Google Scholar]
- Carcaterra, A. Entropy in vibration: energy sharing among linear and nonlinear freely vibrating systems. In Proceedings of the Tenth International Congress on Sound and Vibration, Stockholm, Sweeden, 7–10 July 2003. [Google Scholar]
- Carcaterra, A. An entropy approach to statistical energy analysis. In Proceedings of the 1998 International Congress on Noise Control Engineering, Christchurch, New Zealand, 16–18 November 1998; pp. 1049–1052. [Google Scholar]
- Berdichevsky, V. Thermodynamics of Chaos and Order; CRC Press: Boca Raton, FL, USA, 1997. [Google Scholar]
- Le Bot, A. Entropy in statistical energy analysis. J. Acoust. Soc. Am.
**2009**, 125, 1473–1478. [Google Scholar] [CrossRef] [PubMed] - Sotoudeh, Z. Exploring Different Definitions of Entropy for Statistical Energy Analysis. In Proceedings of the International Mechanical Engineering Congress & Exposition, Pittsburgh, PA, USA, 9–15 November 2018. [Google Scholar]
- Berdichevsky, V.; Alberti, M. Statistical mechanics of Hénon-Heiles oscillators. Phys. Rev. A
**1991**, 44, 858. [Google Scholar] [CrossRef] [PubMed] - Tufano, D.A.; Sotoudeh, Z. Entropy for Strongly Coupled Oscillators. In Proceedings of the ASME 2016 International Mechanical Engineering Congress and Exposition, Phoenix, AZ, USA, 11–17 November 2016. [Google Scholar]
- Tufano, D.; Sotoudeh, Z. Entropy for Nonconservative Vibrating Systems. In Proceedings of the 58th AIAA/ASCE/AHS/ASC Structures, Structural Dynamics, and Materials Conference, Grapevine, TX, USA, 9–13 January 2017; p. 0409. [Google Scholar]
- Tufano, D.; Sotoudeh, Z. Exploring the Entropy Concept for Coupled Oscillators. J. Int. Eng. Sci.
**2016**. submitted. [Google Scholar] [CrossRef] - Nayfeh, A.H. Introduction to Perturbation Methods; John Wiley & Sons: Hoboken, NJ, USA, 1981. [Google Scholar]
- Nagle, R.K.; Saff, E.B.; Snider, A.D. Fundamentals of Differential Equations; Addison-Wesley: Boston, MA, USA, 2000. [Google Scholar]

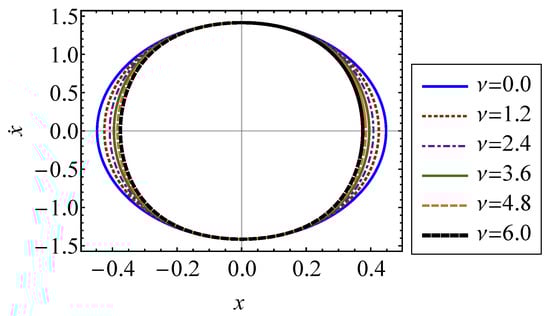

**Figure 2.**Closed-surface trajectory of a Duffing oscillator in phase space for several values of $\nu $ ranging from 0 to 6.

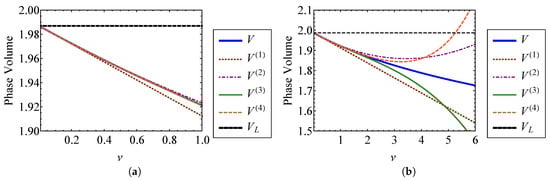

**Figure 3.**Comparison of the first through fourth order approximate volumes, ${V}^{\left(1\right)}$, ${V}^{\left(2\right)}$, ${V}^{\left(3\right)}$, and ${V}^{\left(4\right)}$, with the exact volume, V, for (

**a**) $\nu =0$ through $\nu =1$ and (

**b**) $\nu =0$ through $\nu =6$.

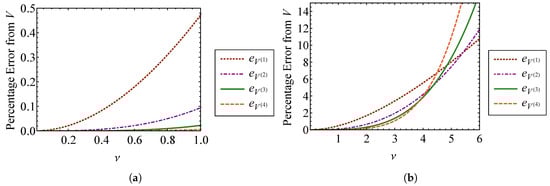

**Figure 4.**Comparison of percent error between the first through fourth order approximate volumes, ${V}^{\left(1\right)}$ through ${V}^{\left(4\right)}$, and the exact volume, V, for (

**a**) $\nu =0$ through $\nu =1$ and (

**b**) $\nu =0$ through $\nu =6$.

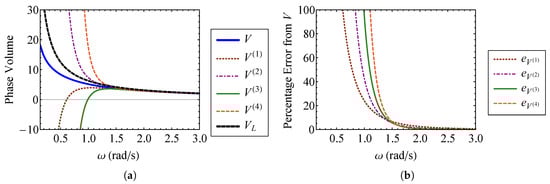

**Figure 5.**Comparison of (

**a**) the first through fourth order approximate volumes, ${V}^{\left(1\right)}$ through ${V}^{\left(4\right)}$, and the exact volume, V, and (

**b**) the error in the first through fourth order approximate volumes, for $\omega \approx 0.09$ through $\omega =3.0$.

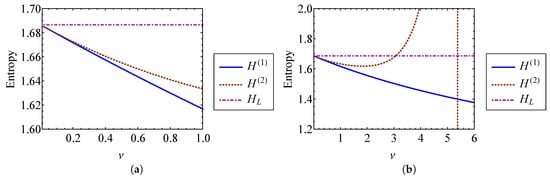

**Figure 6.**Entropies found using the first and second order phase volume approximations, ${H}^{\left(1\right)}$ and ${H}^{\left(2\right)}$, compared to the linear entropy, ${H}_{L}$, for (

**a**) $\nu =0$ through $\nu =1$ and (

**b**) $\nu =0$ through $\nu =6$.

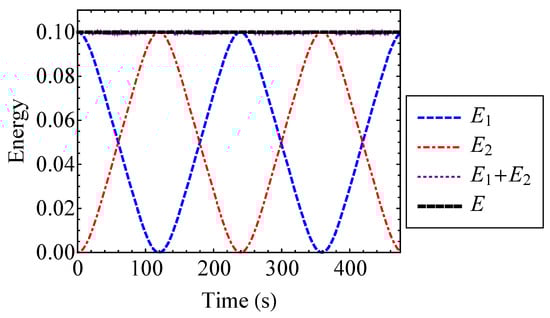

**Figure 8.**Energies ${E}_{1}$ and ${E}_{2}$ of the Duffing oscillators compared to their sum, ${E}_{1}+{E}_{2}$, and the total energy, E, for $\nu =0.2$.

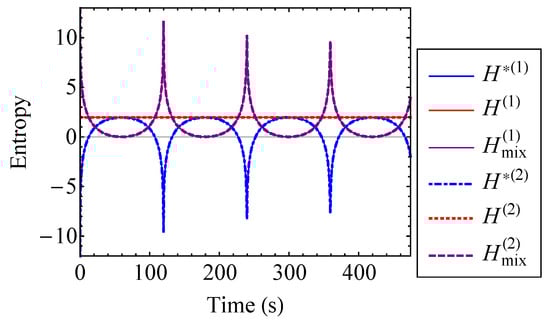

**Figure 9.**Actual entropy, H, total hypothetical decoupled entropy, ${H}^{*}$, and mixing entropy, ${H}_{mix}$, of the coupled Duffing system approximated to the first and second order for $\nu =0.2$.

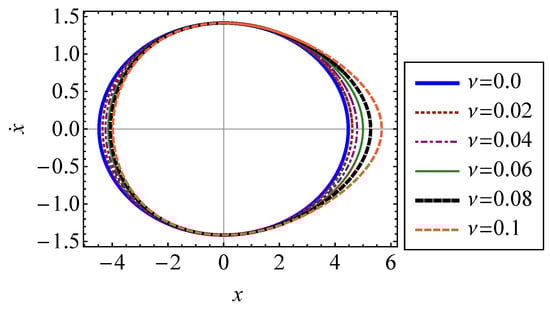

**Figure 10.**Closed-surface trajectory in phase space of an oscillator with velocity given by Equation (68). Trajectories are shown for several values of $\nu $ ranging from 0 to $0.1$. All values of $\nu $ are less than the critical value, ${\nu}_{c}$.

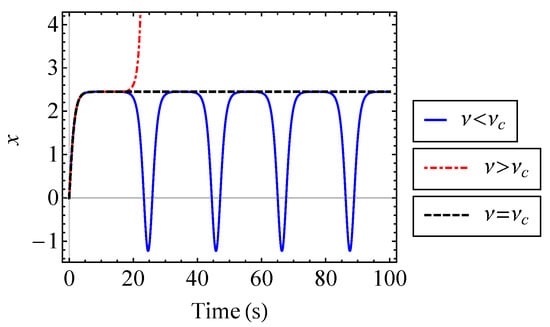

**Figure 11.**Position of the oscillator described by Equation (67), shown for $\nu $ just above, below, and equal to the critical value, ${\nu}_{c}$.

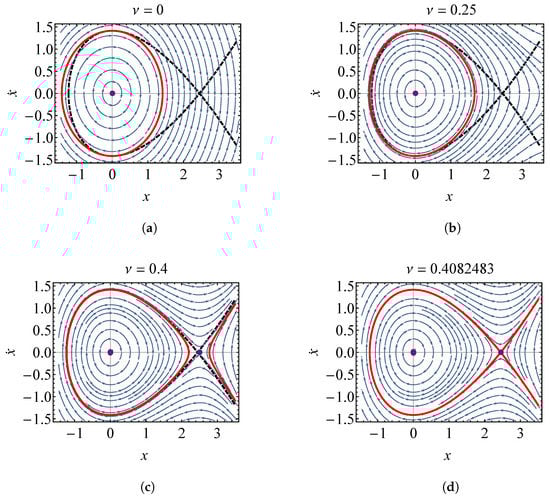

**Figure 12.**Phase portrait of the oscillator with quadratic repulsive force $\nu {k}_{nl}{x}^{2}$ described by Equation (67) for (

**a**) $\nu =0$ (

**b**) $\nu =0.25$ (

**c**) $\nu =0.4$ and (

**d**) $\nu ={\nu}_{c}=1/\sqrt{6}$. The dashed line represents the separatrix when $\nu ={\nu}_{c}$, the solid line is the system trajectory when $E=1$, and the arrows represent trajectories at other energies. Equilibrium points are shown as dots.

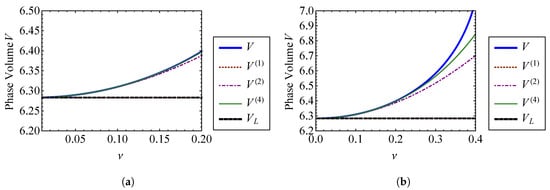

**Figure 13.**Comparison of ${V}^{\left(1\right)},{V}^{\left(2\right)},$ and ${V}^{\left(4\right)}$ for the oscillator described by Equation (67) with the exact volume, V, for (

**a**) $\nu =0$ through $\nu =0.1$ and (

**b**) $\nu =0$ through $\nu =0.4$.

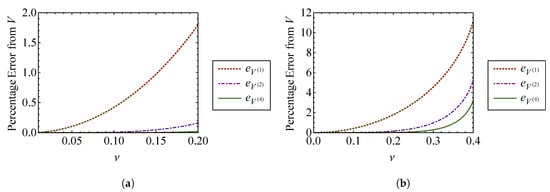

**Figure 14.**Comparison of the percent errors from the exact volume, V, in ${V}^{\left(1\right)},\phantom{\rule{4pt}{0ex}}{V}^{\left(2\right)},$ and ${V}^{\left(4\right)}$ for the oscillator described by Equation (67) for (

**a**) $\nu =0$ through $\nu =0.2$ and (

**b**) $\nu =0$ through $\nu =0.4$.

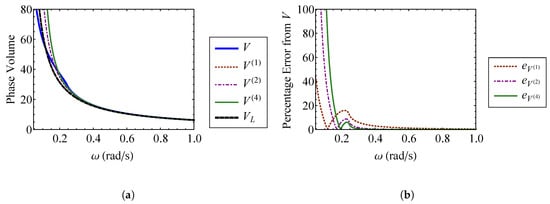

**Figure 15.**Comparison of (

**a**) the first through fourth order approximate volumes, ${V}^{\left(1\right)}$ through ${V}^{\left(4\right)}$, and the exact volume, V, and (

**b**) the error in the first through fourth order approximate volumes for $\omega \approx 0.04$ through $\omega =1.0$

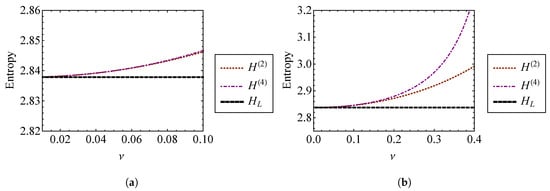

**Figure 16.**Entropies ${H}^{\left(2\right)}$ and ${H}^{\left(4\right)}$ found using second and fourth order phase volume approximations for (

**a**) $\nu =0$ through $\nu =0.1$ and (

**b**) $\nu =0$ through $\nu =0.4$.

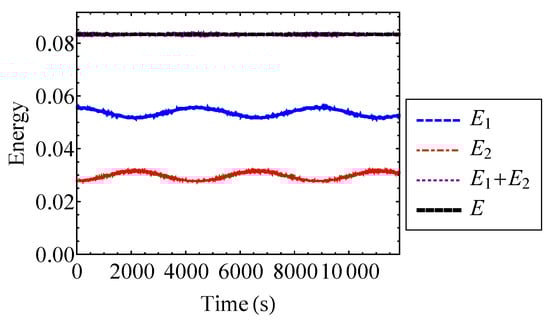

**Figure 18.**Energies ${E}_{1}$ and ${E}_{2}$ of the Henon–Heiles oscillators compared to their sum, ${E}_{1}+{E}_{2}$, and the total energy, E.

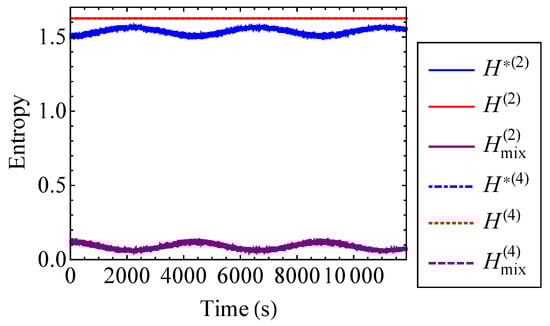

**Figure 19.**Actual entropy, H, total hypothetical decoupled entropy, ${H}^{*}$, and mixing entropy, ${H}_{mix}$, of the Henon–Heiles system approximated to the second and fourth order.
