Detecting Toe-Off Events Utilizing a Vision-Based Method
Abstract

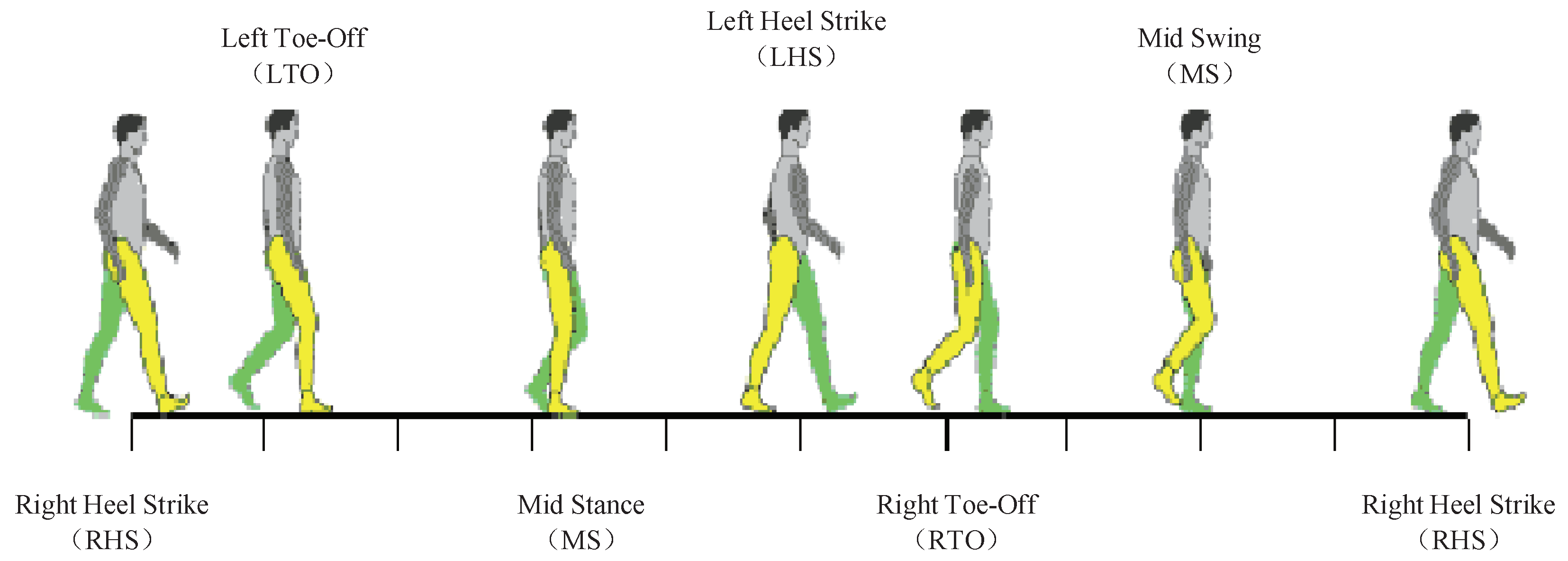

:1. Introduction
2. Related Work
2.1. Wearable Sensors-Based Methods
2.2. Vision-Based Methods

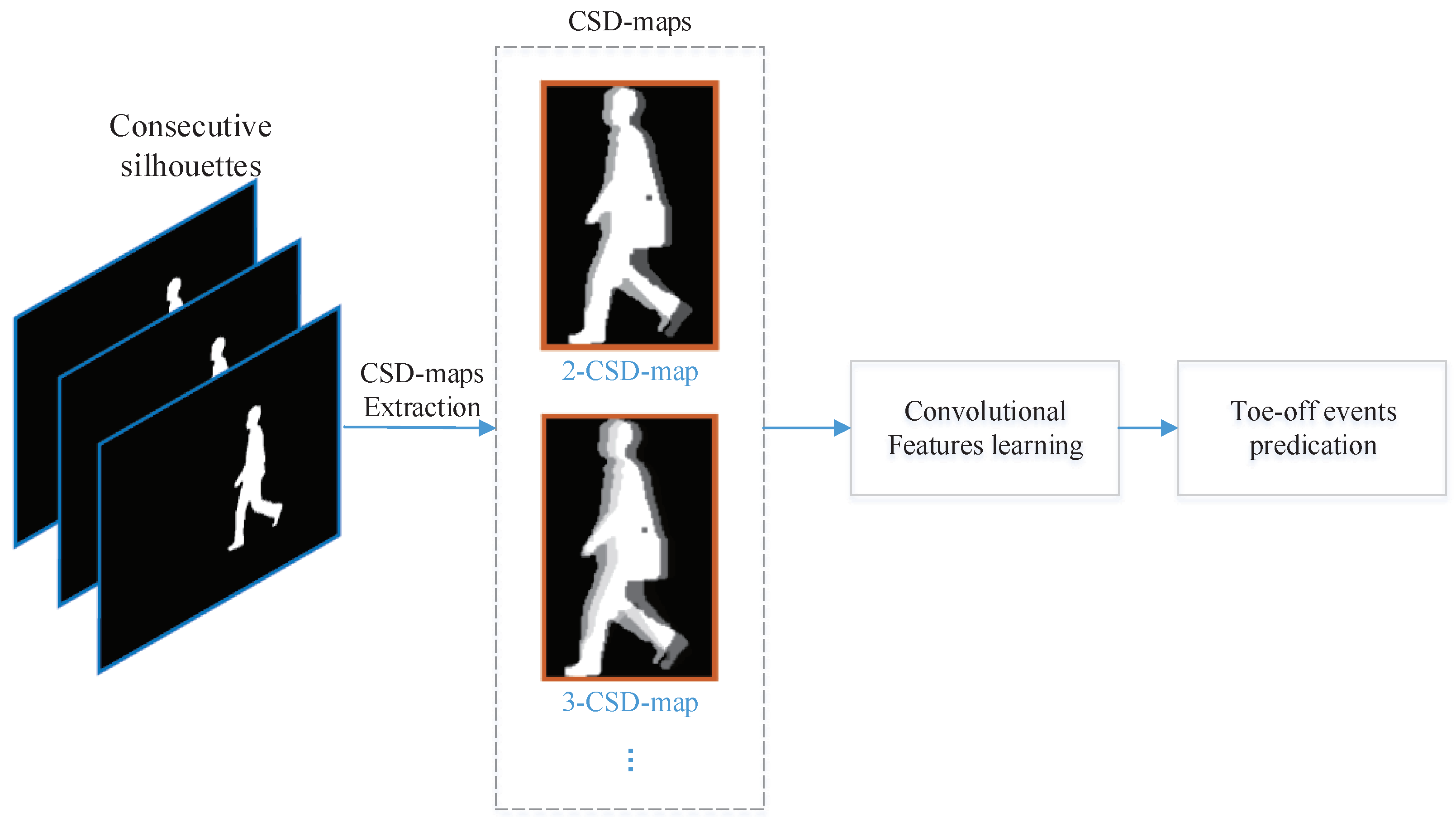

3. Toe-Off Events Detection Based on CSD-Maps
3.1. Consecutive Silhouettes Difference Maps

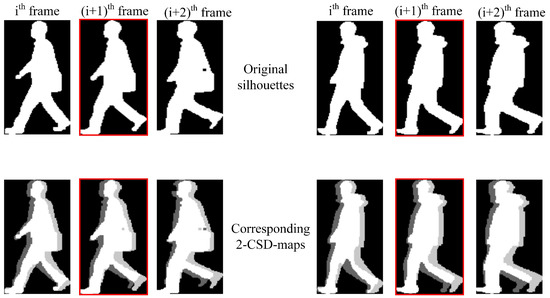

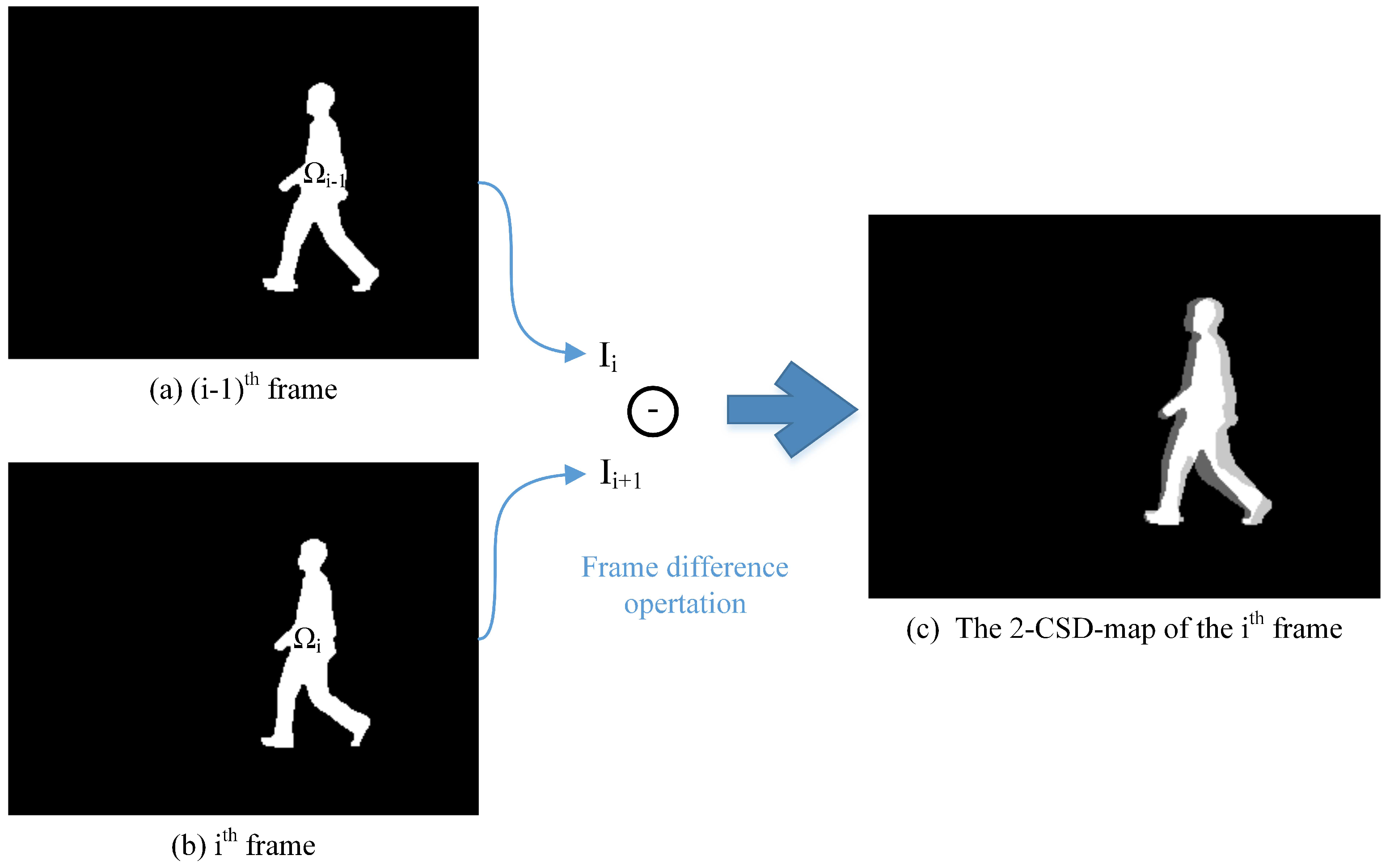

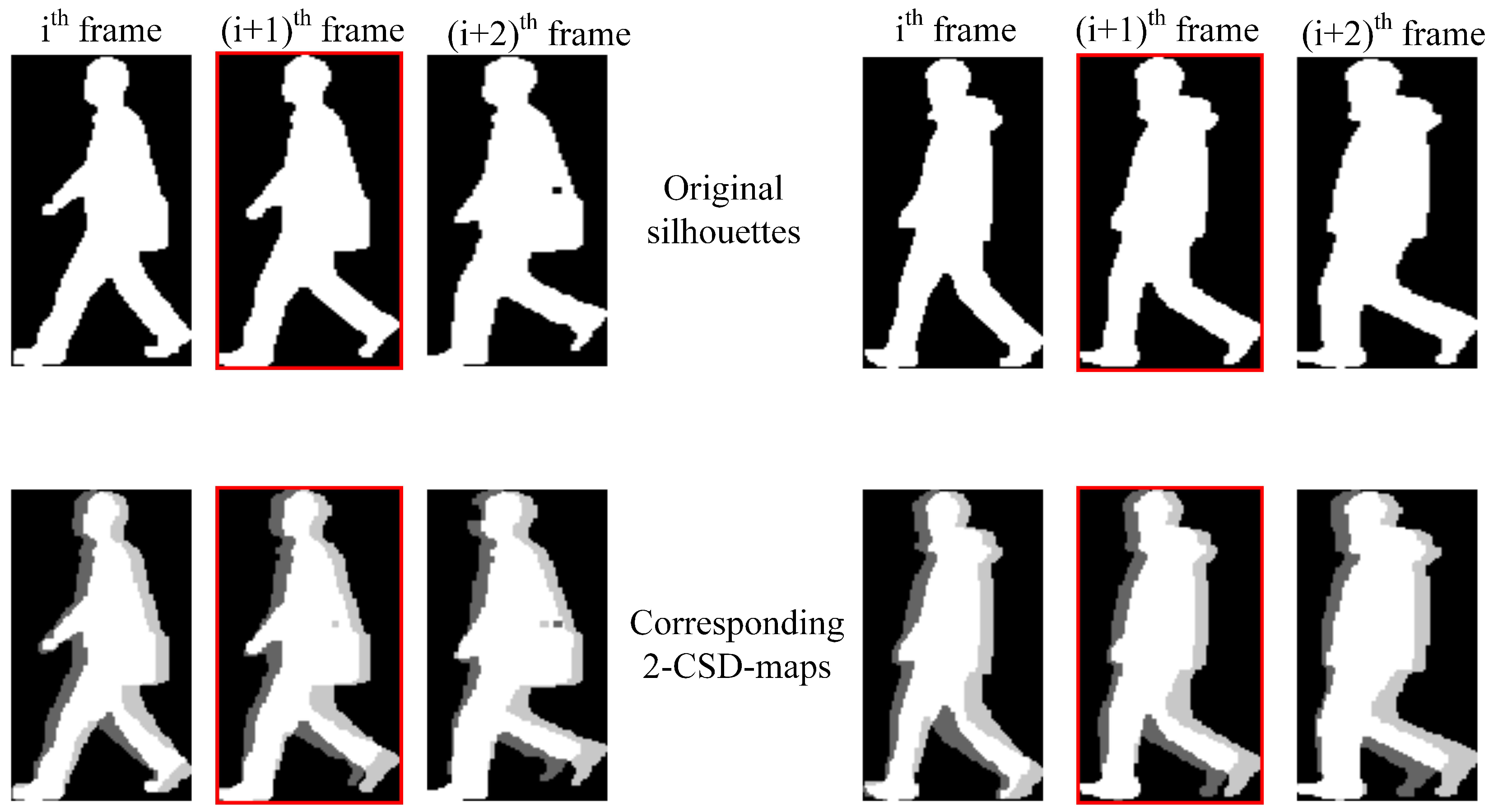

3.1.1. 2-CSD-Maps

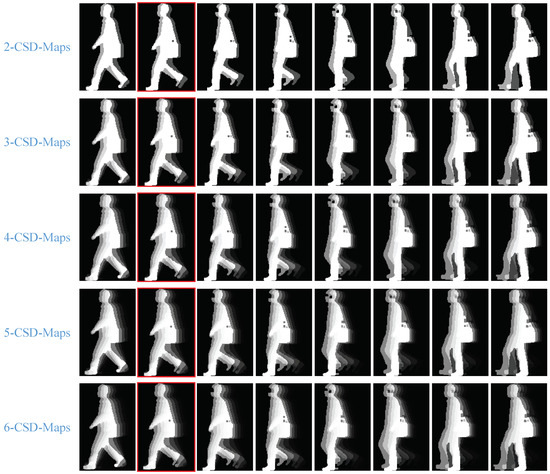

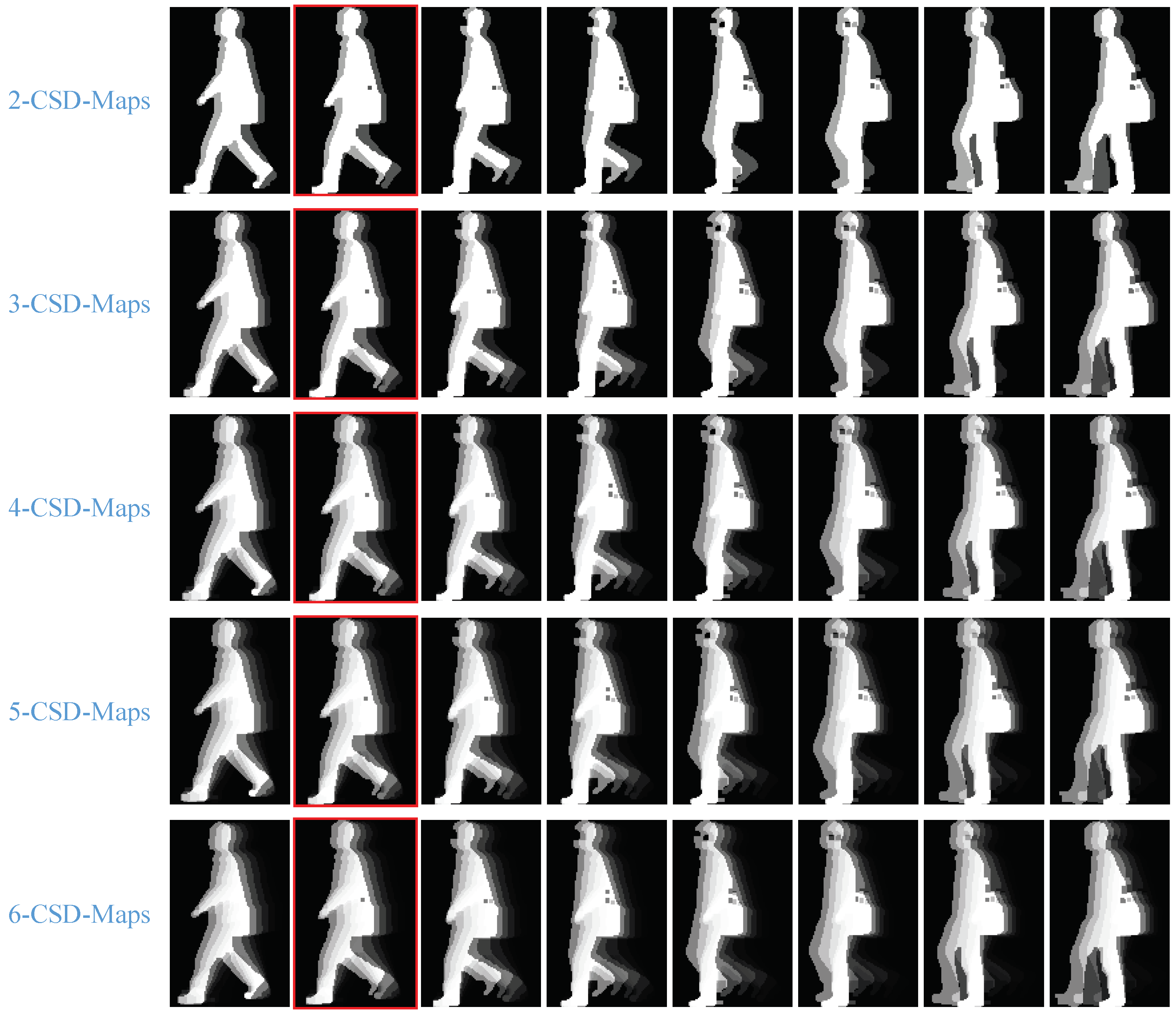

3.1.2. n-CSD-Maps
Algorithm 1 Algorithm for generating n-CSD-maps |
Require: Consecutive silhouette images: . Parameter w and h represent the width and height of the silhouette images respectively. Parameter n represents the number of consecutive silhouette images. Ensure: The CSD-map: 1: for to w do 2: for to h do 3: ; 4: ; 5: for to n do 6: ; 7: end for 8: ; 9: end for 10: end for 11: return ; |
Algorithm 2 Algorithm for normalizing a CSD-map |
Require: The original CSD-map image: The width of the normalized CSD-map:w The height of the normalized CSD-map:h Ensure: The normalized CSD-map: 1: ; 2: ; 3: ; 4: return ; |

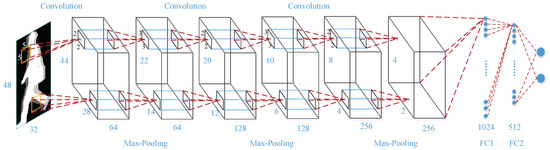

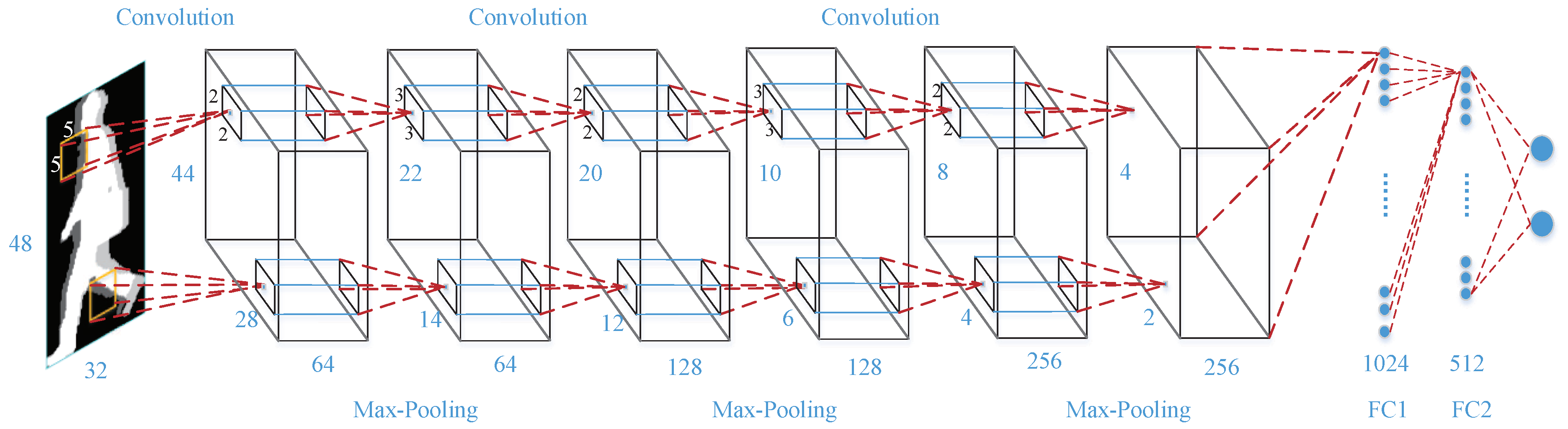

3.2. Convolutional Neural Network
4. Experiments and Results Analysis
4.1. Database

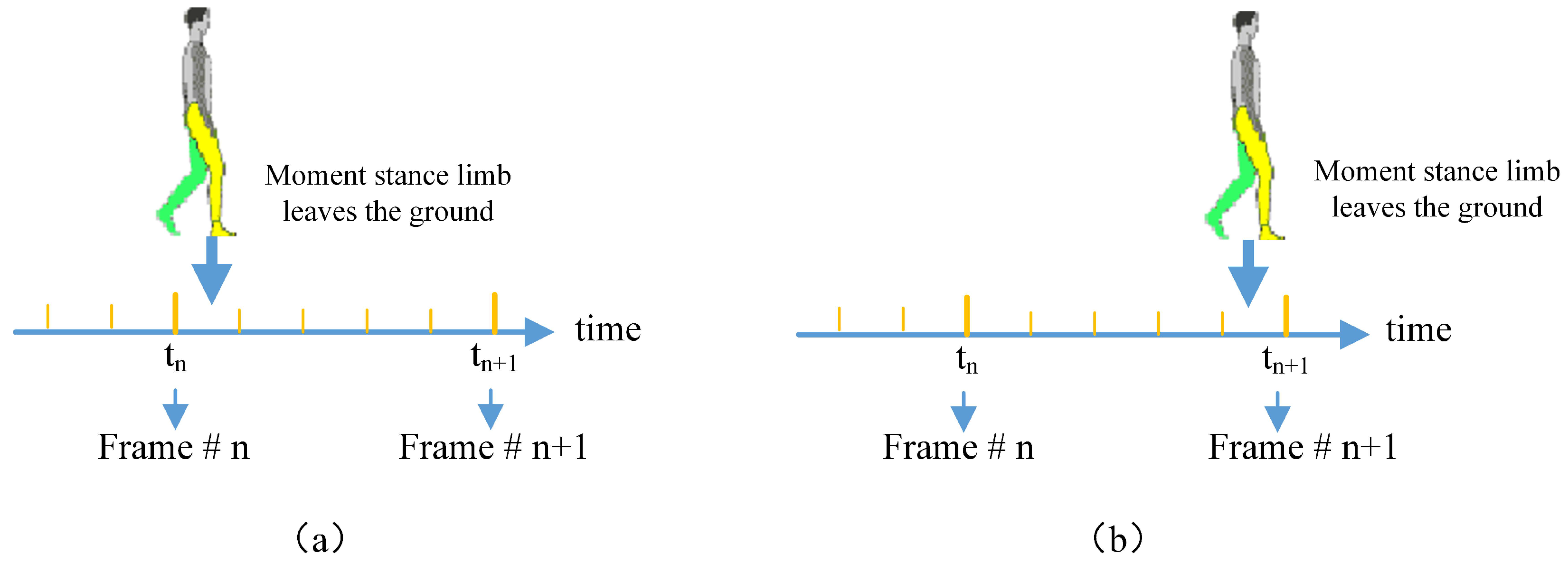

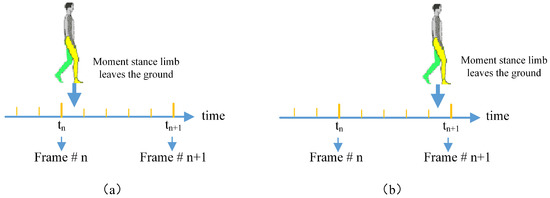

4.2. Toe-Off Frame Definition and Data Preparation
4.3. Experimental Configuration

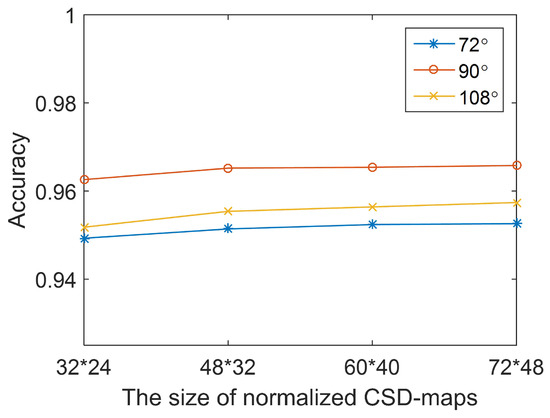

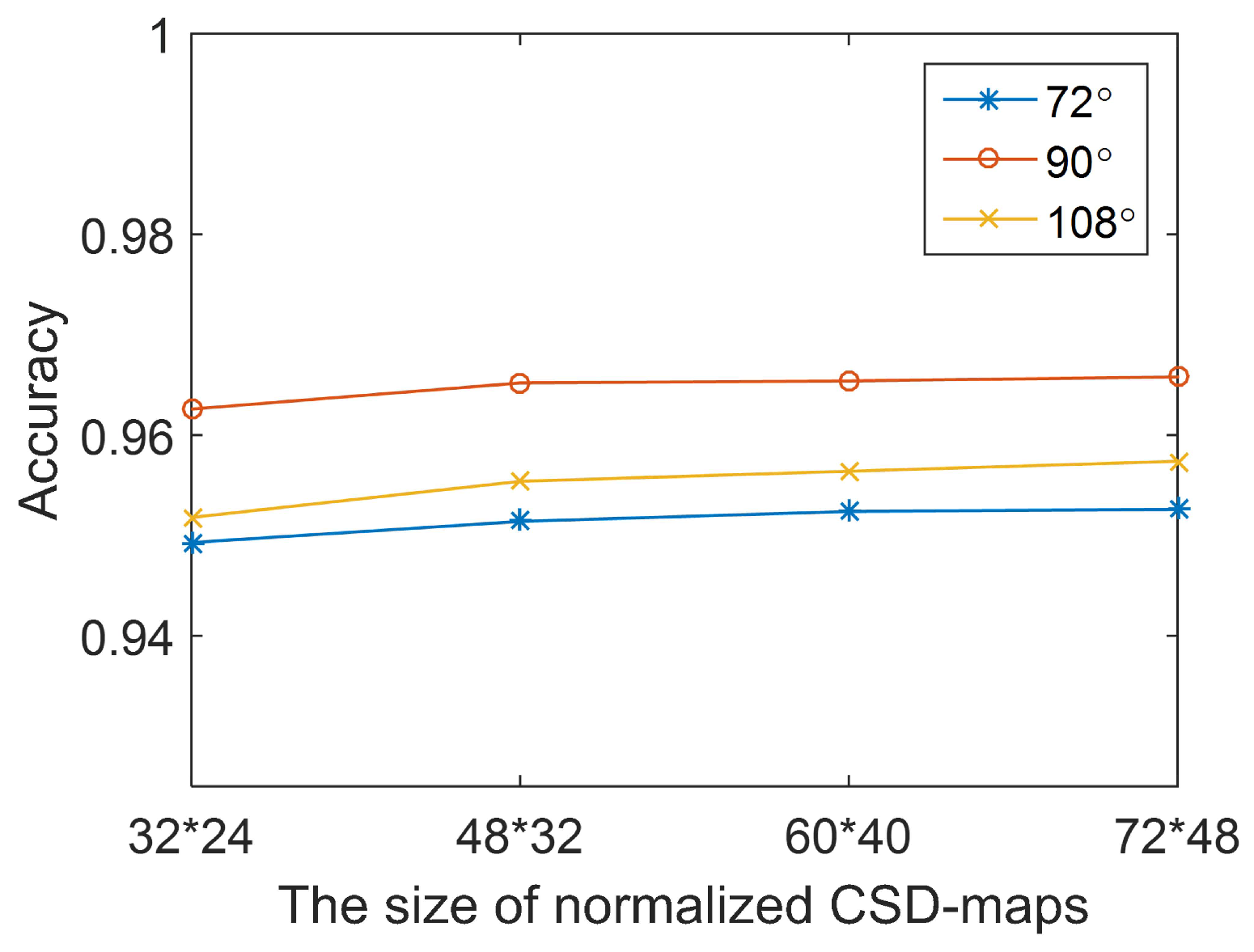

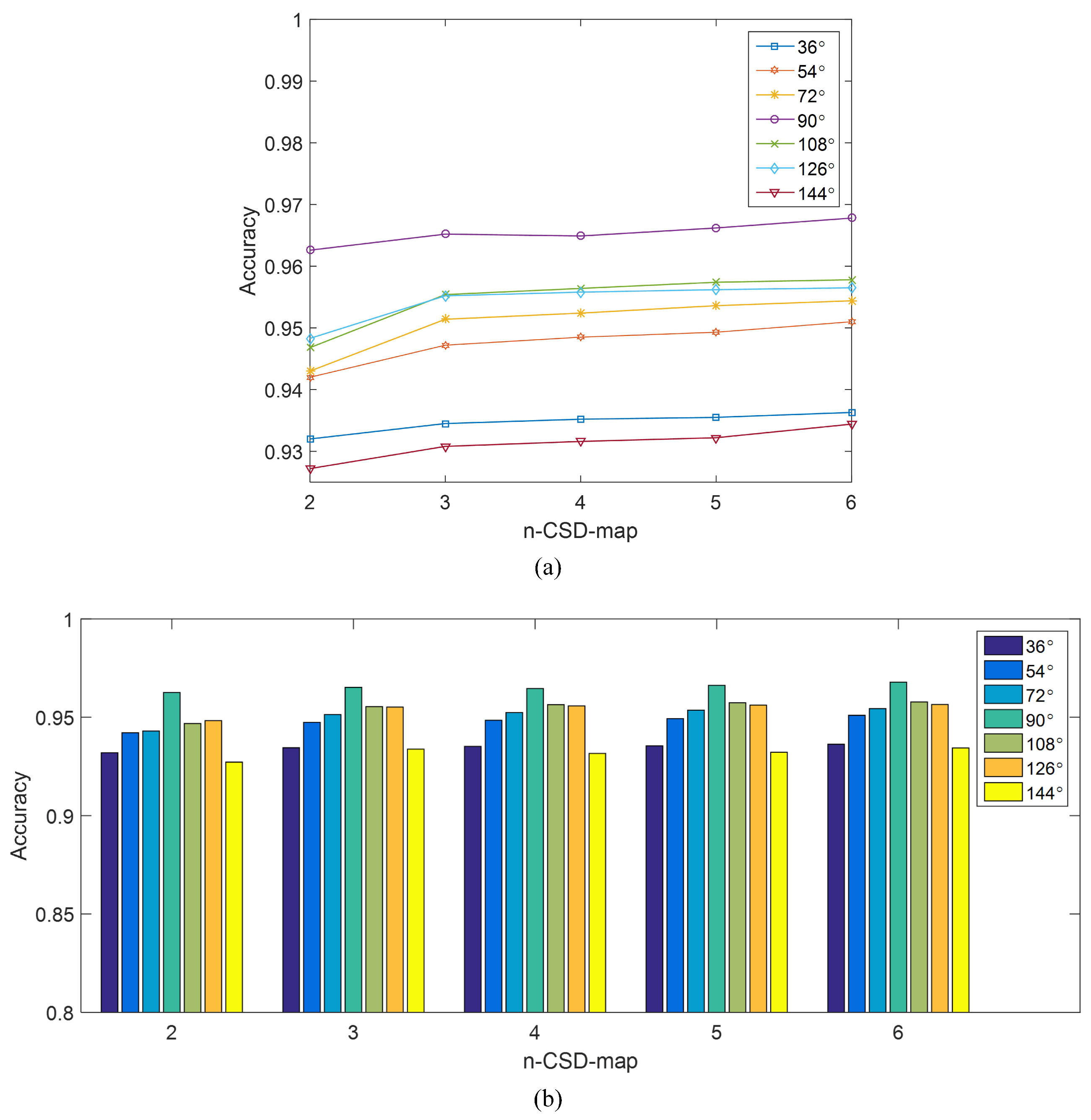

- Configuration of n-CSD-maps. Several pre-tests have been conducted under the viewing angles of 72, 90 and 108 for choosing the size of normalized CSD-maps. As shown in Figure 8, the pre-test results show that different sizes of normalized CSD-maps practically cause almost no change to the detection accuracy. The main reason is that CSD-maps are generated from binary pedestrian silhouettes. The decline of the size of normalized CSD-maps would not result in much change to the detection accuracy of this method. Thus, in the following experiments, the size of normalized CSD-maps is set as 48*32. As to the parameter n of n-CSD-maps, it is set as 2, 3, 4, 5, and 6. This means that 2-CSD-maps, 3-CSD-maps, 4-CSD-maps, 5-CSD-maps and 6-CSD-maps are used in the experiments. The reason is that the increase of parameter n brings little increase of detection accuracy, while costs more time for features extraction, shown as Table 1 and Figure 9.
- Configuration of Training set and test set. The samples from subject #001 to subject #90 of each viewing angle are selected for model training. The rest of samples (from subject #091 to subject #124) is used for testing.
- Configuration of CNN Solver. The initialized learning rate is 0.001, the momentum is 0.9 and the weight decay is 0.0005. The maximum number of iteration in each experiment is 20,000. The weights in the CNN are initialized with a zeromean Gaussian distribution with standard deviation of 0.0001. The bias is set to one.

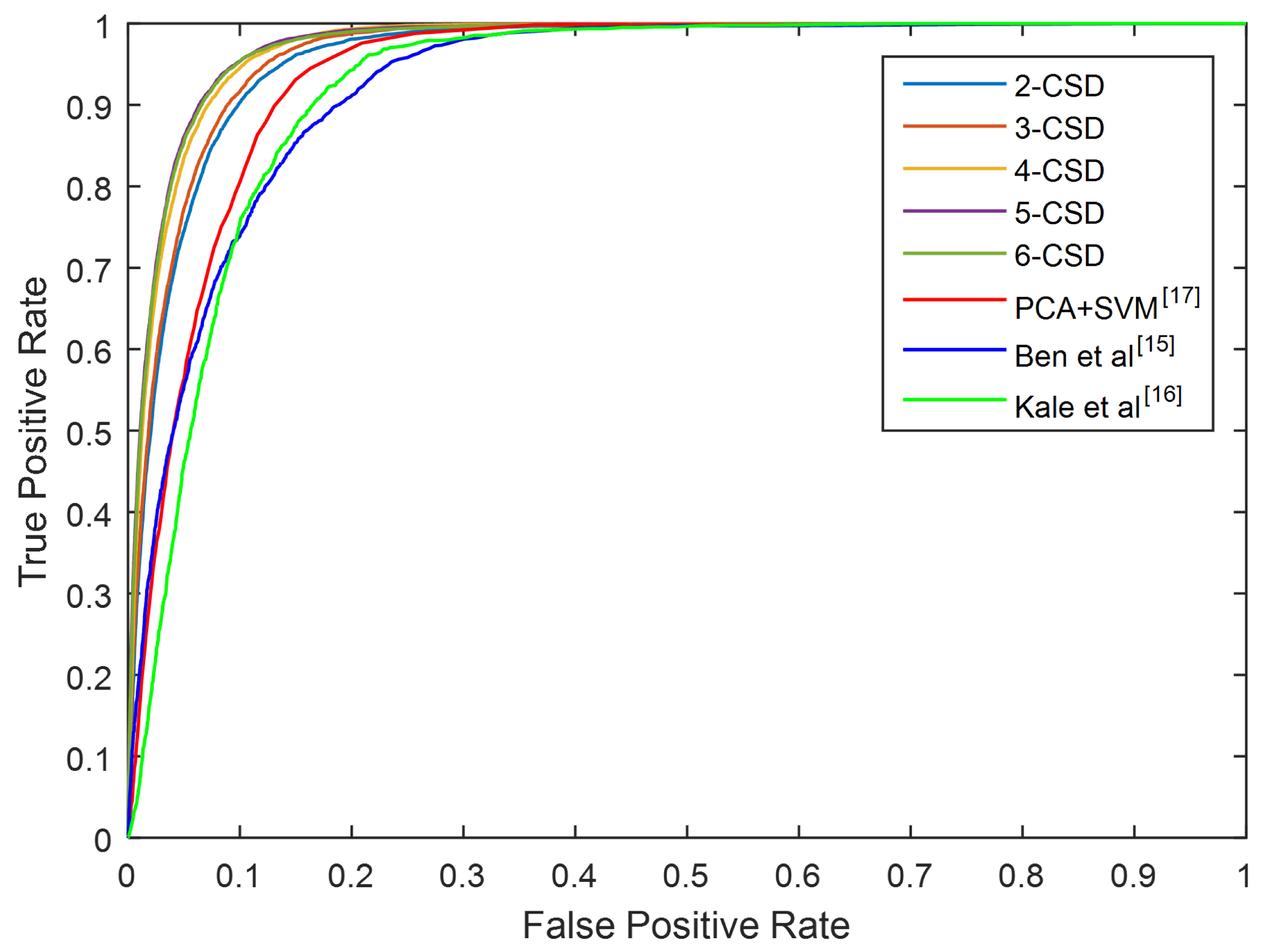

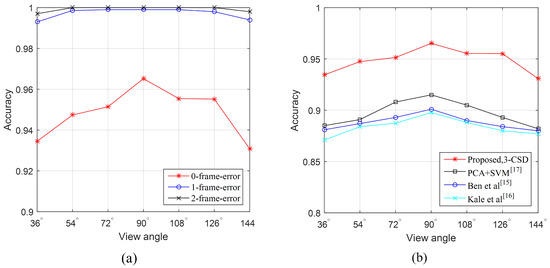

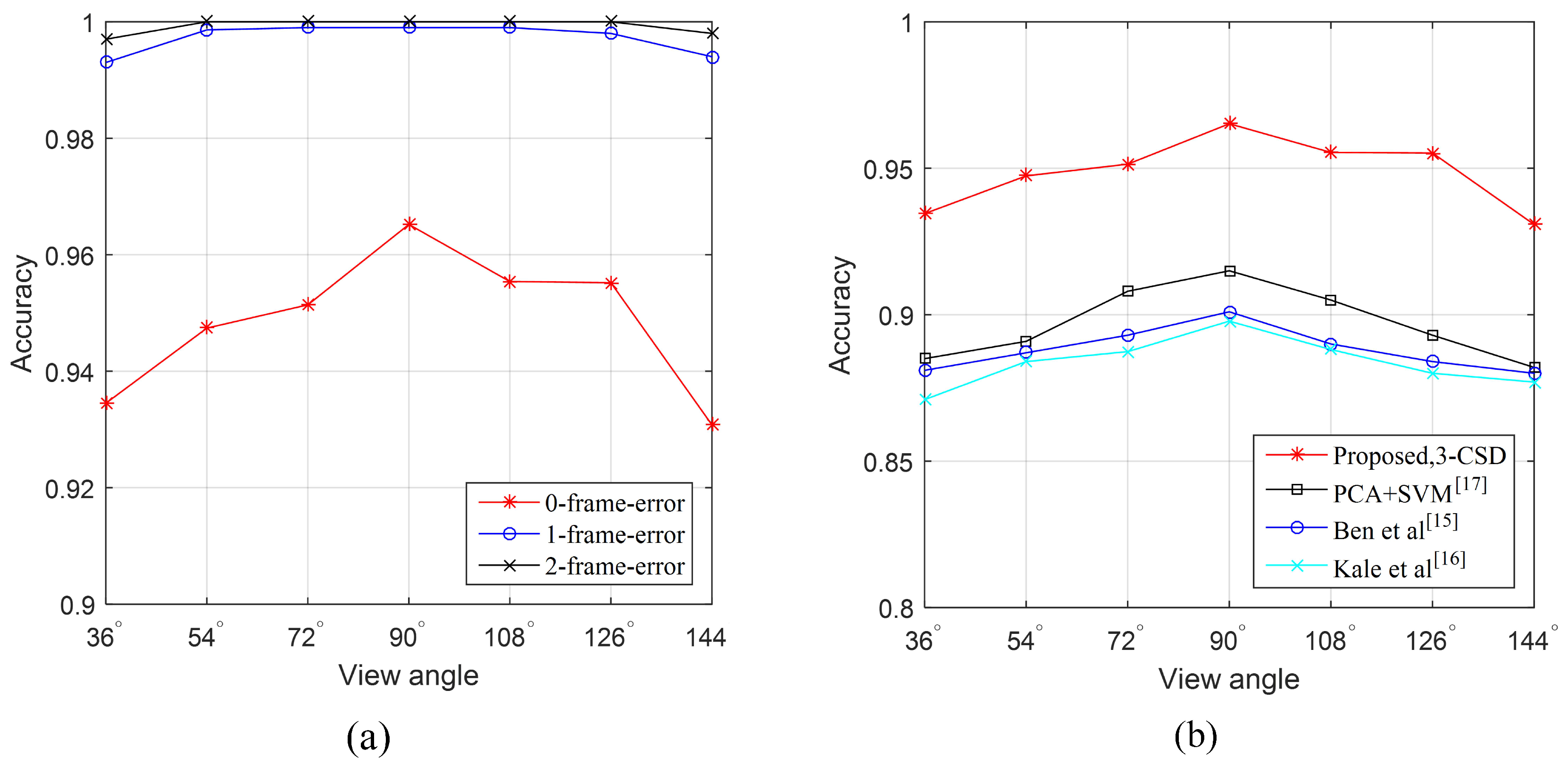

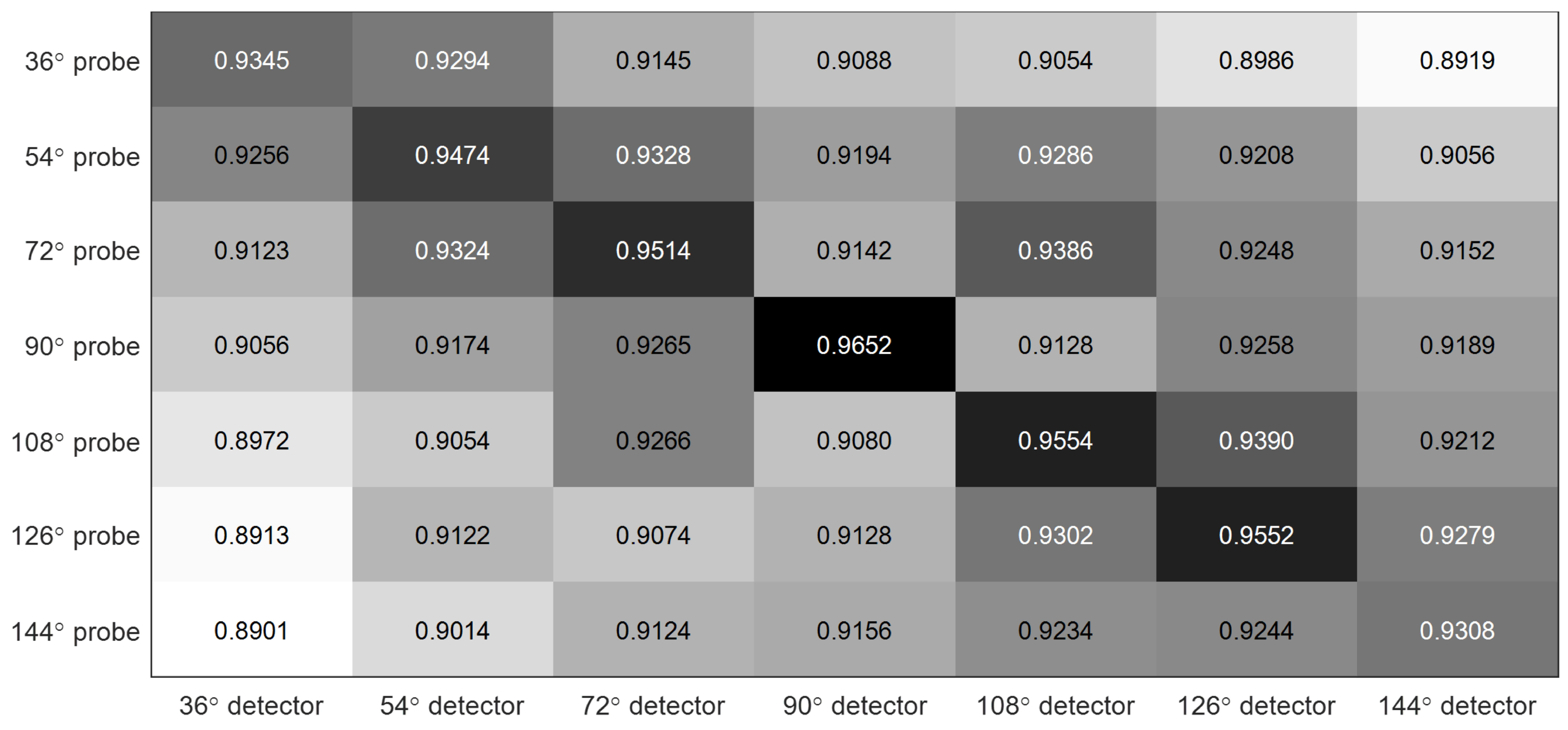

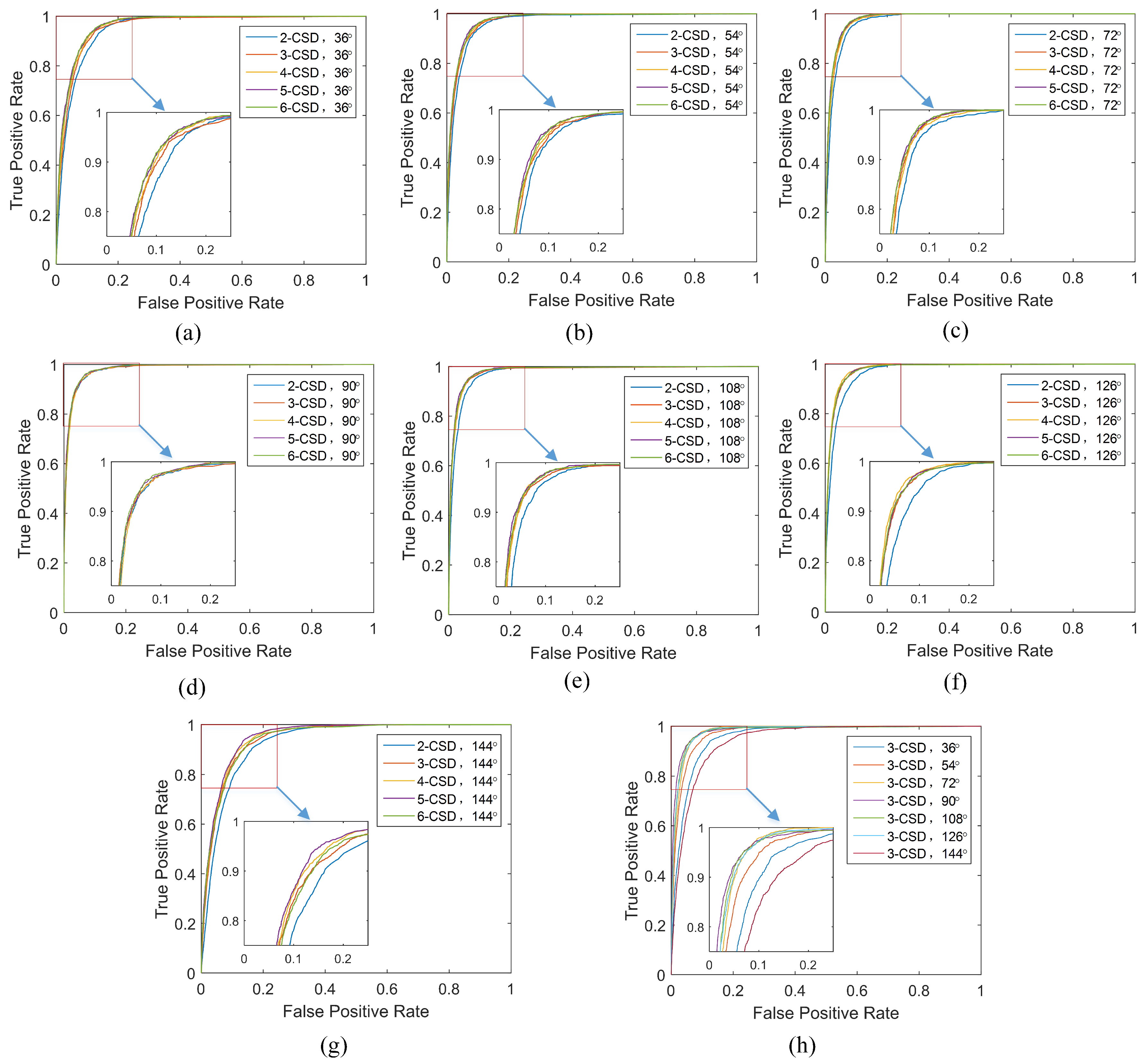

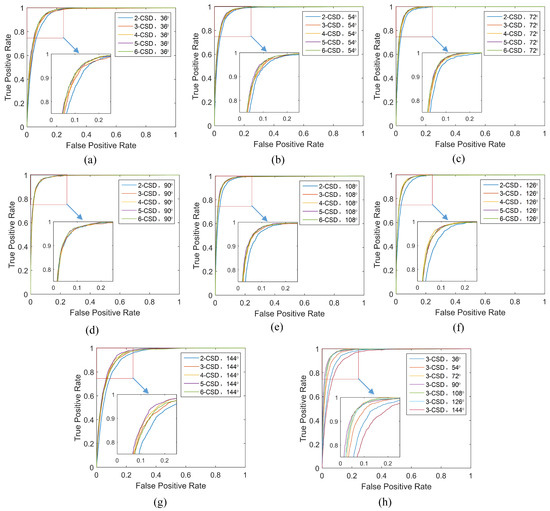

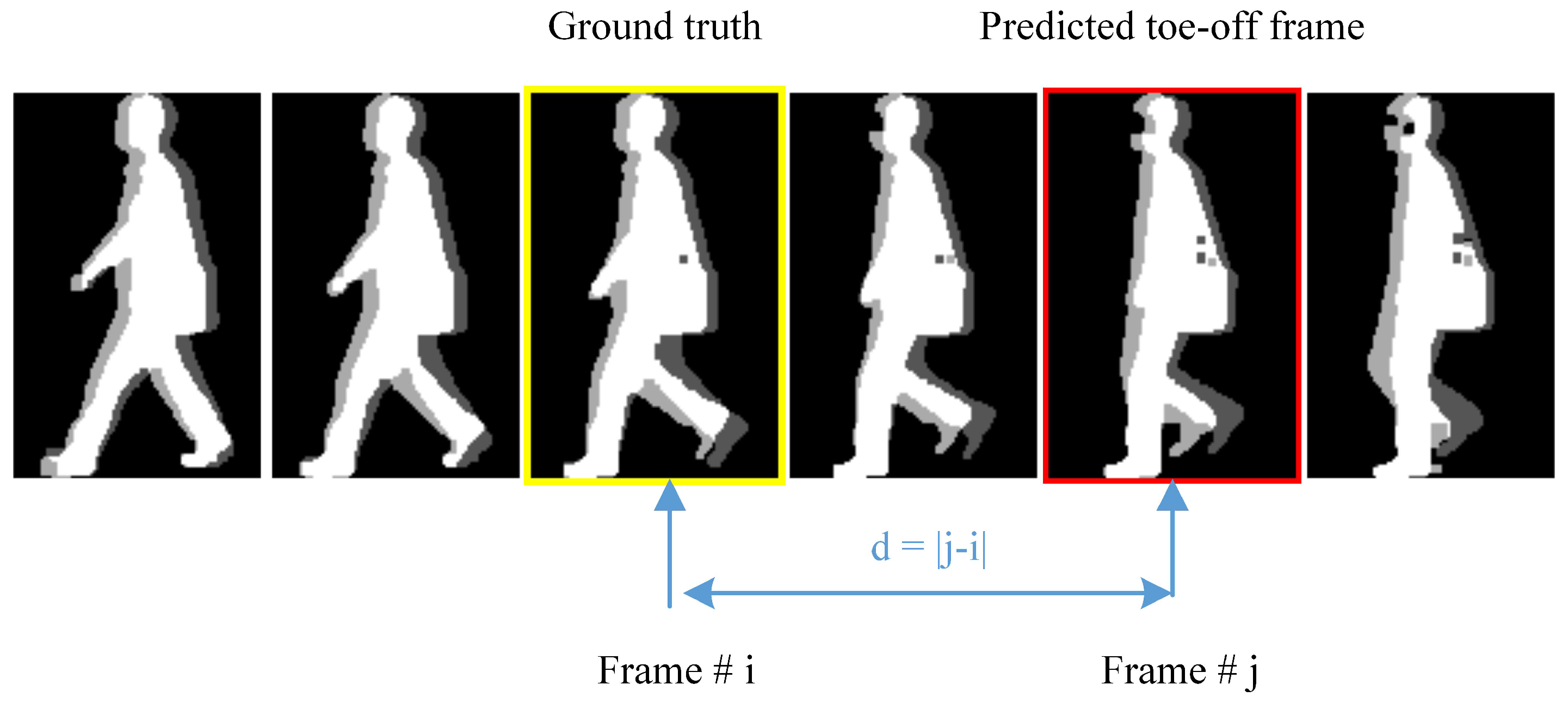

4.4. Experimental Results and Discussion
5. Conclusions and Future Work
- Comparing with wearable sensors-based methods, this method can detect toe-off event from 2D video data without the cooperation of participants. Usually, in the field of medicine, wearable sensors-based methods are the first choice for gait analysis, due to their high accuracy. However, these methods are suffering the disadvantages of high cooperation from users and power consumption restriction. The method proposed by this paper, which also achieves good accuracy for toe-off event detection by using a web camera, can overcome the disadvantages of wearable sensors-based methods for gait analysis.
- Comparing with other vision-based methods, this method provides a better accuracy for toe-off event detection. Gait cycle detection is a basic step of gait recognition. An accurate toe-off event detection algorithm can produce an accurate gait cycle detection algorithm. Thus, the method proposed by this paper would be beneficial to gait recognition.
- A much larger database is needed to test the practical performance of toe-off event detection under different conditions.
- CSD-map provides a good feature representation for detecting toe-off events from video data. It also would be applicable for other gait events detection, such as heel strike, foot flat, mid-stance, heel-off, and mid-swing.
