# Attraction Controls the Entropy of Fluctuations in Isosceles Triangular Networks

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Isosceles Triangular Network Model

## 3. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Pauling, L. The structure and entropy of ice and of other crystals with some randomness of atomic arrangement. J. Am. Chem. Soc.
**1935**, 57, 2680–2684. [Google Scholar] [CrossRef] - Harris, M.J.; Bramwell, S.T.; McMorrow, D.F.; Zeiske, T.; Godfrey, K.W. Geometrical frustration in the ferromagnetic pyrochlore H
_{O2}Ti_{2}O_{7}. Phys. Rev. Lett.**1997**, 79. [Google Scholar] [CrossRef] - Libál, A.; Nisoli, C.; Reichhardt, C.J.O.; Reichhardt, C. Inner Phases of Colloidal Hexagonal Spin Ice. Phys. Rev. Lett.
**2018**, 120, 027204. [Google Scholar] [CrossRef] [PubMed] - Bramwell, S.T.; Gingras, M.J. Spin ice state in frustrated magnetic pyrochlore materials. Science
**2001**, 294, 1495–1501. [Google Scholar] [CrossRef] [PubMed] - Wang, F.; Nisoli, C.; Freitas, R.S.; Li, J.; McConville, W.; Cooley, B.J.; Lund, M.S.; Samarth, N.; Leighton, C.; Crespi, V.H.; et al. Artificial ’spin ice’ in a geometrically frustrated lattice of nanoscale ferromagnetic islands. Nature
**2006**, 439, 303–306. [Google Scholar] [CrossRef] [PubMed] - Anderson, P.W. The resonating valence bond state in La
_{2}CuO_{4}and superconductivity. Science**1987**, 235, 1196–1198. [Google Scholar] [CrossRef] [PubMed] - Kang, S.H.; Shan, S.; Košmrlj, A.; Noorduin, W.L.; Shian, S.; Weaver, J.C.; Clarke, D.R.; Bertoldi, K. Complex ordered patterns in mechanical instability induced geometrically frustrated triangular cellular structures. Phys. Rev. Lett.
**2014**, 112, 098701. [Google Scholar] [CrossRef] [PubMed] - Coulais, C.; Teomy, E.; de Reus, K.; Shokef, Y.; van Hecke, M. Combinatorial design of textured mechanical metamaterials. Nature
**2016**, 535, 529–532. [Google Scholar] [CrossRef] [PubMed] - Han, Y.; Shokef, Y.; Alsayed, A.M.; Yunker, P.; Lubensky, T.C.; Yodh, A.G. Geometric frustration in buckled colloidal monolayers. Nature
**2008**, 456, 898–903. [Google Scholar] [CrossRef] [PubMed] - Libál, A.; Reichhardt, C.; Reichhardt, C.J.O. Realizing colloidal artificial ice on arrays of optical traps. Phys. Rev. Lett.
**2006**, 97, 228302. [Google Scholar] [CrossRef] [PubMed] - Ortiz-Ambriz, A.; Tierno, P. Engineering of frustration in colloidal artificial ices realized on microfeatured grooved lattices. Nat. Commun.
**2016**, 7, 10575. [Google Scholar] [CrossRef] [PubMed] - Tierno, P. Geometric frustration of colloidal dimers on a honeycomb magnetic lattice. Phys. Rev. Lett.
**2016**, 116. [Google Scholar] [CrossRef] [PubMed] - Gokhale, S.; Sood, A.K.; Ganapathy, R. Deconstructing the glass transition through critical experiments on colloids. Adv. Phys.
**2016**, 65, 363–452. [Google Scholar] [CrossRef] - Lu, P.J.; Weitz, D.A. Colloidal particles: Crystals, glasses, and gels. Annu. Rev. Condens. Matter Phys.
**2013**, 4, 217–233. [Google Scholar] - Schmidt, M.; Löwen, H. Freezing between two and three dimensions. Phys. Rev. Lett.
**1996**, 76, 4552–4555. [Google Scholar] [CrossRef] [PubMed] - Schmidt, M.; Löwen, H. Phase diagram of hard spheres confined between parallel hard plates. Phys. Rev. E
**1997**, 55, 7228–7241. [Google Scholar] [CrossRef] - Oğuz, E.C.; Marechal, M.; Ramiro-Manzano, F.; Rodriguez, I.; Messina, R.; Meseguer, F.J.; Löwen, H. Packing confined hard spheres denser with adaptive prism phases. Phys. Rev. Lett.
**2012**, 109, 218301. [Google Scholar] [CrossRef] [PubMed] - Shokef, Y.; Lubensky, T.C. Stripes, zigzags, and slow dynamics in buckled hard spheres. Phys. Rev. Lett.
**2009**, 102, 048303. [Google Scholar] [CrossRef] [PubMed] - Zhou, D.; Wang, F.; Li, B.; Lou, X.; Han, Y. Glassy spin dynamics in geometrically frustrated buckled colloidal crystals. Phys. Rev. X
**2017**, 7, 021030. [Google Scholar] [CrossRef] - Leoni, F.; Shokef, Y. Attraction controls the inversion of order by disorder in buckled colloidal monolayers. Phys. Rev. Lett.
**2017**, 118, 218002. [Google Scholar] [CrossRef] [PubMed] - Wannier, G.H. Antiferromagnetism. The triangular Ising net. Phys. Rev.
**1950**, 79, 357–364. [Google Scholar] [CrossRef] - Harth, K.; Mauney, A.; Stannarius, R. Frustrated packing of spheres in a flat container under symmetry-breaking bias. Phys. Rev. E
**2015**, 91. [Google Scholar] [CrossRef] [PubMed] - Lévay, S.; Fischer, D.; Stannarius, R.; Szabó, B.; Börzsönyic, T.; Törökad, J. Frustrated packing in a granular system under geometrical confinement. Soft Matter
**2018**, 14, 396–404. [Google Scholar] [CrossRef] [PubMed] - Ilyin, V.; Procaccia, I.; Regev, I.; Shokef, Y. Randomness-induced redistribution of vibrational frequencies in amorphous solids. Phys. Rev. B
**2009**, 80, 174201. [Google Scholar] [CrossRef] - Shokef, Y.; Souslov, A.; Lubensky, T.C. Order by disorder in the antiferromagnetic Ising model on an elastic triangular lattice. Proc. Natl. Acad. Sci. USA
**2011**, 108, 11804–11809. [Google Scholar] [CrossRef] [PubMed] - Dublenych, Y.I. Ground states of the Ising model on an anisotropic triangular lattice: Stripes and zigzags. J. Phys. Condens. Matter
**2013**, 25, 406003. [Google Scholar] [CrossRef] [PubMed] - Lorman, V.; Podgornik, R.; Žekš, B. Positional, Reorientational, and Bond Orientational Order in DNA Mesophases. Phys. Rev. Lett.
**2001**, 87, 218101. [Google Scholar] [CrossRef] [PubMed] - Camp, P.J.; Fuertes, A.; Attfield, J.P. Subextensive entropies and open order in Perovskite Oxynitrides. J. Am. Chem. Soc.
**2012**, 134, 6762–6766. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Masanes, L.; Oppenheim, J. A general derivation and quantification of the third law of thermodynamics. Nat. Commun.
**2017**, 8, 14538. [Google Scholar] [CrossRef] [PubMed] - Villain, J.; Bidaux, R.; Carton, J.P.; Conte, R. Order as an effect of disorder. J. Phys.
**1980**, 41, 1263–1272. [Google Scholar] [CrossRef] - Henley, C.L. Ordering by disorder: Ground-state selection in fcc vector antiferromagnets. J. Appl. Phys.
**1987**, 61, 3962–3964. [Google Scholar] [CrossRef] - Henley, C.L. Ordering due to disorder in a frustrated vector antiferromagnet. Phys. Rev. Lett.
**1989**, 62, 2056–2059. [Google Scholar] [CrossRef] [PubMed] - Chubukov, A. Order from disorder in a kagome antiferromagnet. Phys. Rev. Lett.
**1992**, 69, 832–835. [Google Scholar] [CrossRef] [PubMed] - Reimers, J.N.; Berlinsky, A.J. Order by disorder in the classical Heisenberg kagomé antiferromagnet. Phys. Rev. B
**1993**, 48, 9539–9554. [Google Scholar] [CrossRef] - Bergman, D.; Alicea, J.; Gull, E.; Trebst, S.; Balents, L. Order-by-disorder and spiral spin-liquid in frustrated diamond-lattice antiferromagnets. Nat. Phys.
**2007**, 3, 487–491. [Google Scholar] [CrossRef] - Patrykiejew, A.; Staszewski, T. Ordering and order-disorder phase transition in the (1 × 1) monolayer chemisorbed on the (111) face of an fcc crystal. Condens. Matter Phys.
**2016**, 19, 13001. [Google Scholar] [CrossRef] - Guruciaga, P.; Tarzia, M.; Ferreyra, M.; Grigera, L.C.S.; Borzi, R. Field-tuned order by disorder in frustrated Ising magnets with antiferromagnetic interactions. Phys. Rev. Lett.
**2016**, 117, 167203. [Google Scholar] [CrossRef] [PubMed] - Birkhoff, G.D. Proof of the Ergodic Theorem. Proc. Natl. Acad. Sci. USA
**1931**, 17, 656–660. [Google Scholar] [CrossRef] [PubMed] - Mauro, J.C.; Gupta, P.K.; Loucks, R.J. Continuously broken ergodicity. J. Chem. Phys.
**2007**, 126, 184511. [Google Scholar] [CrossRef] [PubMed] - Edwards, S.F.; Oakeshott, R.B.S. Theory of powders. Physica A
**1989**, 157, 1080–1090. [Google Scholar] [CrossRef] - Martiniani, S.; Schrenk, K.J.; Ramola, K.; Chakraborty, B.; Frenkel, D. Numerical test of the Edwards conjecture shows that all packings are equally probable at jamming. Nat. Phys.
**2017**, 13, 848–851. [Google Scholar] [CrossRef]

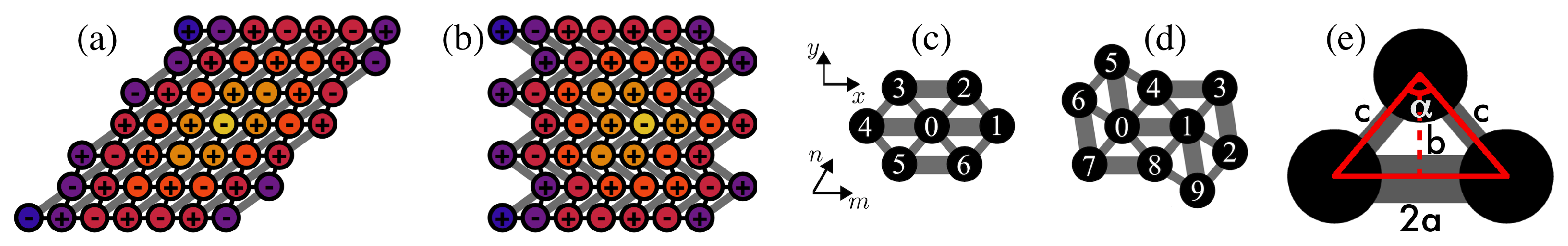

**Figure 1.**(

**a**) Straight and (

**b**) maximally zigzagging or bent configuration. Shells, which order is indicated with ${n}_{s}$, are denoted by increasingly darker colors for increasing ${n}_{s}$. Thicker, gray lines correspond to springs of longer (for $\alpha >\pi /3$) or shorter (for $\alpha <\pi /3$) length at rest; (

**c**,

**d**) are the unit cell for the straight- and bent-stripes confgirations, respectively. Numbers associated to particles correspond to the particle positions in tables in Section 2; (

**e**) Parameters associated to every plaquette: a, b, c and $\alpha $.

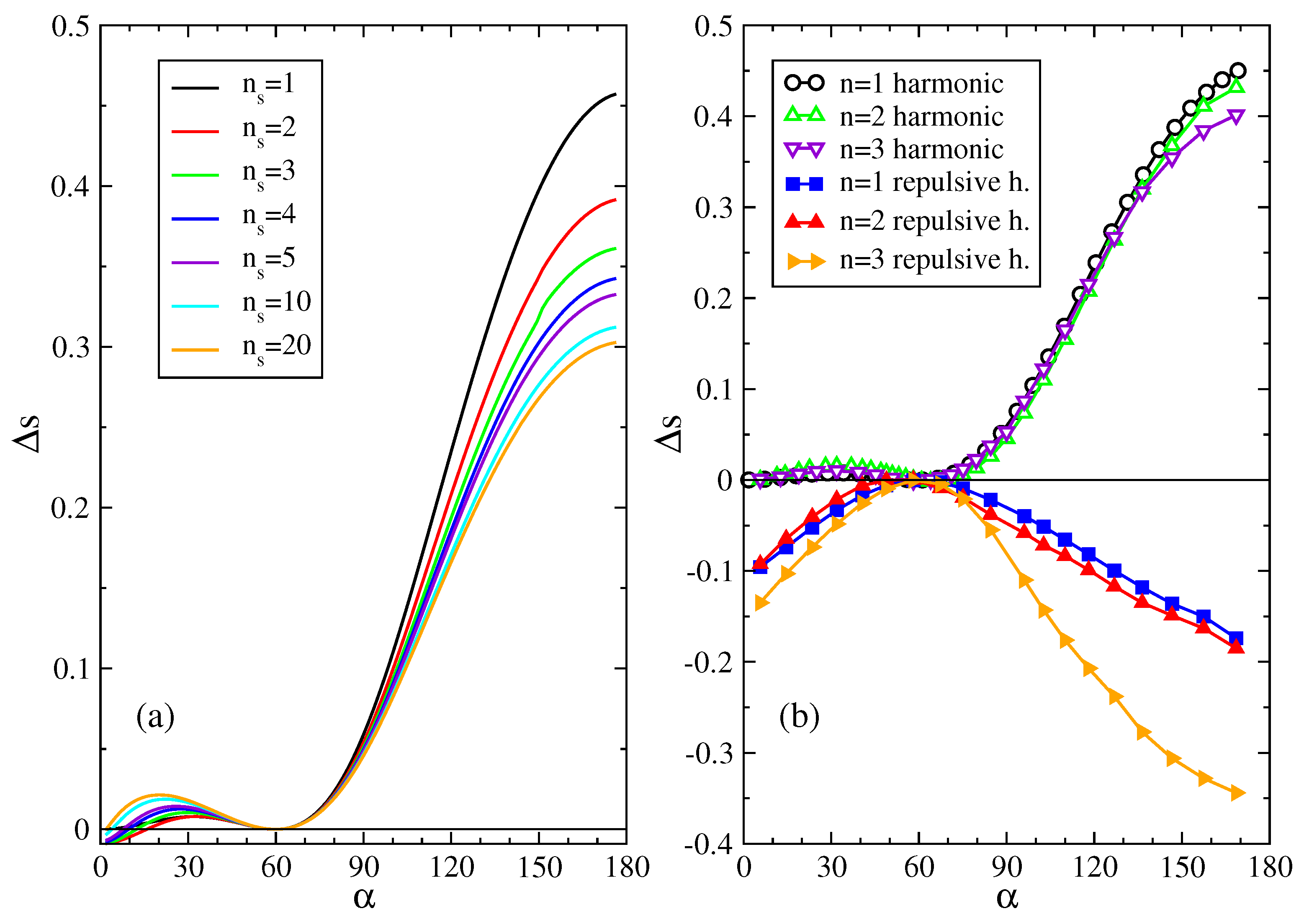

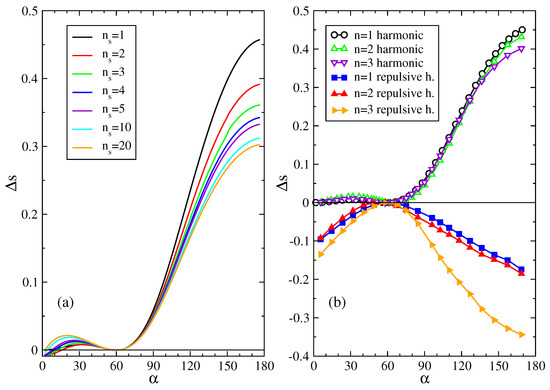

**Figure 2.**(

**a**) Entropy difference per particle $\Delta s$, between straight- and bent-stripe configurations vs. deformation angle $\alpha $ for increasing numbers of shells ${n}_{s}$ of fluctuating particles; (

**b**) $\Delta s$ vs. $\alpha $ for $n=1,2,3$ particles free to move for harmonic (open symbols) and repulsive harmonic (filled symbols) interactions.

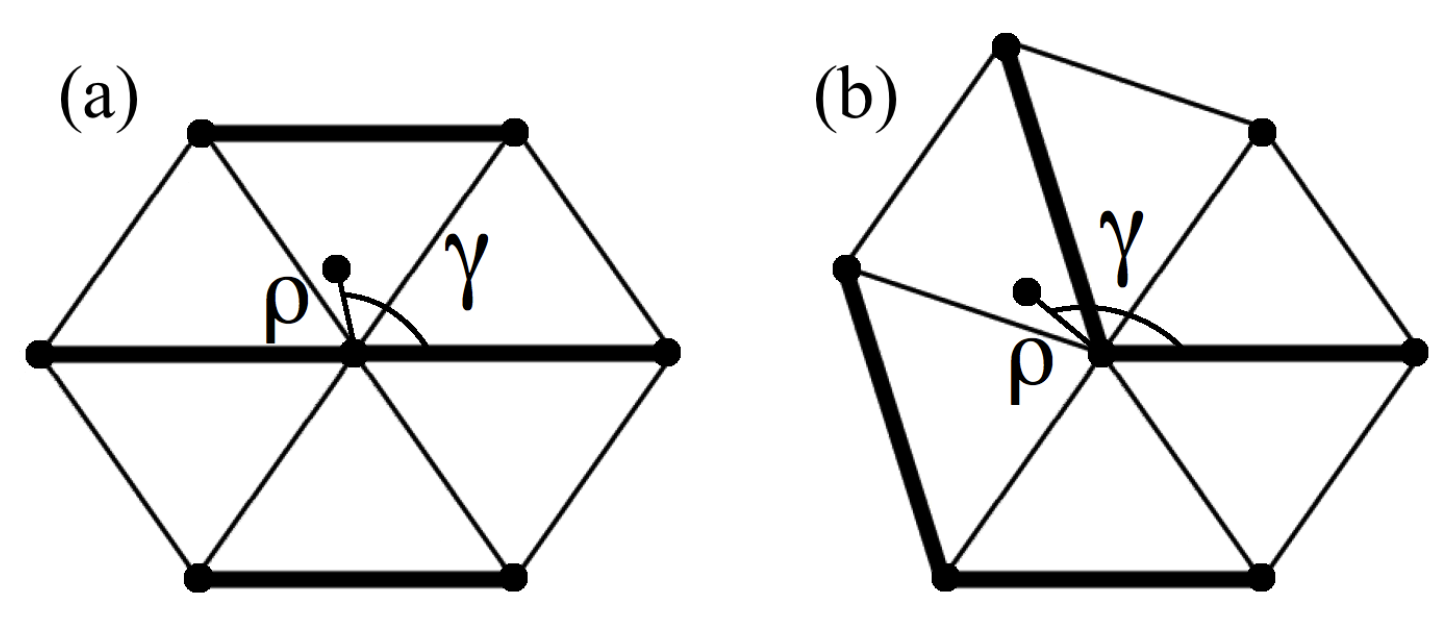

**Figure 3.**Example of straight (

**a**) and bent (

**b**) configuration for $n=1$ particle free to move. The deviation of the central particle from its equilibrium position is described by polar coordinates ($\rho ,\gamma $).

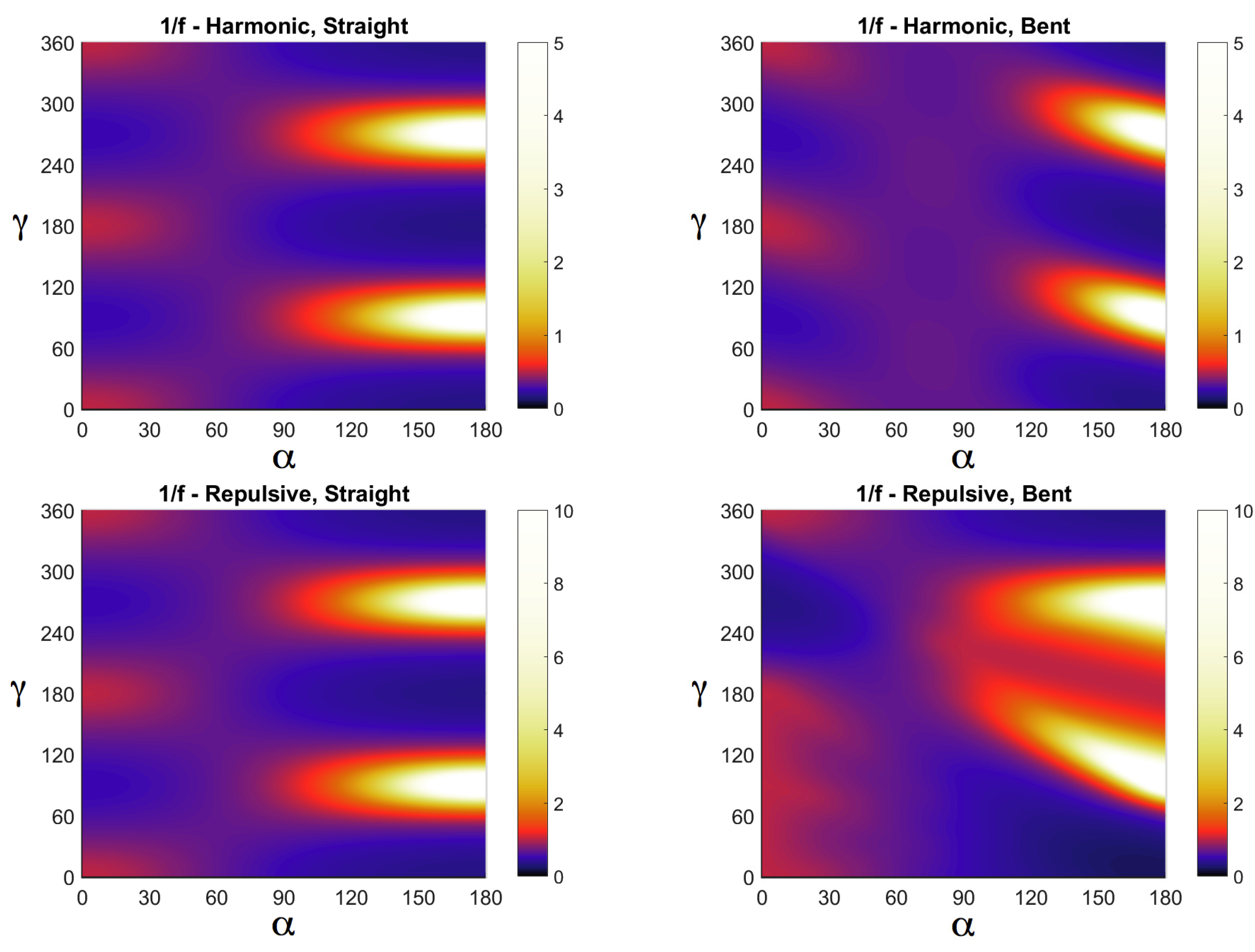

**Figure 4.**Color diagram of $1/f$, as defined in the text, as a function of the angles $\alpha $ and $\gamma $, for harmonic and repulsive harmonic interactions and for straight- and bent-stripes configurations.

**Table 1.**Distances between the neighboring particles and the central particle 0 in the unit cell of the straight-stripe configuration. Particle positions are graphically shown in Figure 1c.

Particles | $\mathit{dx}$ | $\mathit{dy}$ | ${\mathit{dr}}_{\mathbf{0}}$ |
---|---|---|---|

1, 0 | $2a$ | 0 | $2a$ |

2, 0 | a | b | c |

3, 0 | $-a$ | b | c |

4, 0 | $-2a$ | 0 | $2a$ |

5, 0 | $-a$ | $-b$ | c |

6, 0 | a | $-b$ | c |

**Table 2.**Distances between the neighboring particles and 0 and 1 particles in the unit cell of the maximally zigzagging-stripe configuration. Particle positions are graphically shown in Figure 1d.

Particles | $\mathit{dx}$ | $\mathit{dy}$ | ${\mathit{dr}}_{\mathbf{0}}$ |
---|---|---|---|

1, 0 | $2a$ | 0 | $2a$ |

4, 0 | a | b | c |

5, 0 | $2a\left(\right)open="("\; close=")">1-8{\displaystyle \frac{{a}^{2}}{{c}^{2}}}$ | $4b\left(\right)open="("\; close=")">1-{\displaystyle \frac{{b}^{2}}{{c}^{2}}}$ | $2a$ |

6, 0 | $a\left(\right)open="("\; close=")">1-4{\displaystyle \frac{{b}^{2}}{{c}^{2}}}$ | $b\left(\right)open="("\; close=")">3-4{\displaystyle \frac{{b}^{2}}{{c}^{2}}}$ | c |

7, 0 | $-a$ | $-b$ | c |

8, 0 | a | $-b$ | c |

2, 1 | $-a\left(\right)open="("\; close=")">1-4{\displaystyle \frac{{b}^{2}}{{c}^{2}}}$ | $-b\left(\right)open="("\; close=")">3-4{\displaystyle \frac{{b}^{2}}{{c}^{2}}}$ | c |

3, 1 | a | b | c |

4, 1 | $-a$ | b | c |

8, 1 | $-a$ | $-b$ | c |

9, 1 | $-2a\left(\right)open="("\; close=")">1-2{\displaystyle \frac{{b}^{2}}{{c}^{2}}}$ | $-4b\left(\right)open="("\; close=")">1-{\displaystyle \frac{{b}^{2}}{{c}^{2}}}$ | $2a$ |
