# Estimation of Tsunami Bore Forces on a Coastal Bridge Using an Extreme Learning Machine

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

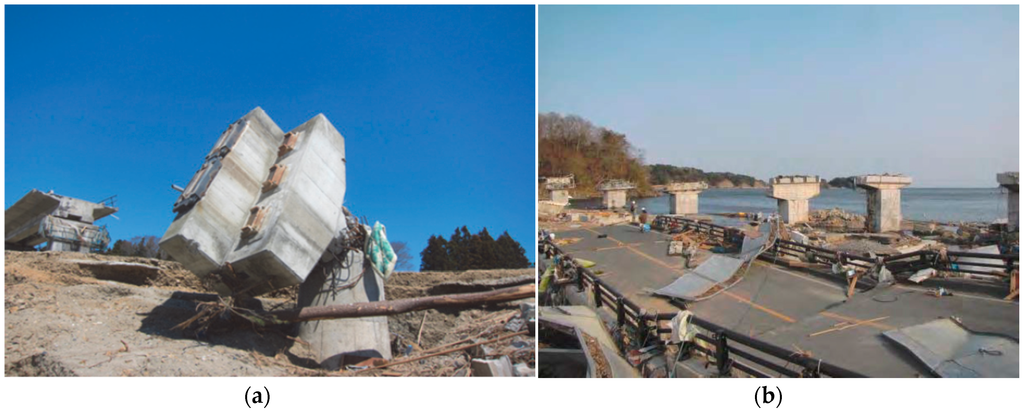

**Figure 1.**(

**a**) Damaged piers of the JR Rail Viaduct at the Tsuya River (photo: S. Dashti); (

**b**) Damages to the deck and piers of Utatsu Bridge (Photo: Kenji Kosa).

**.**Consequently, an algorithm for a single layer feed forward NN, identified as Extreme Learning Machine (ELM), was presented by Huang et al. [17]. This algorithm is capable of solving problems caused by gradient descent-based algorithms like back propagation which are applied to artificial neural networks (ANNs). ELM methods are capable of reducing the essential time required for learning by a Neural Network. Certainly, it has been verified that by using the ELM, the training procedure becomes quick and it produces robust behavior [17]. Consequently, numerous researches have been conducted associated with utilizing ELM algorithm efficiently for determining problems in various engineering fields [18,19,20,21,22,23,24,25,26].

## 2. Methodology

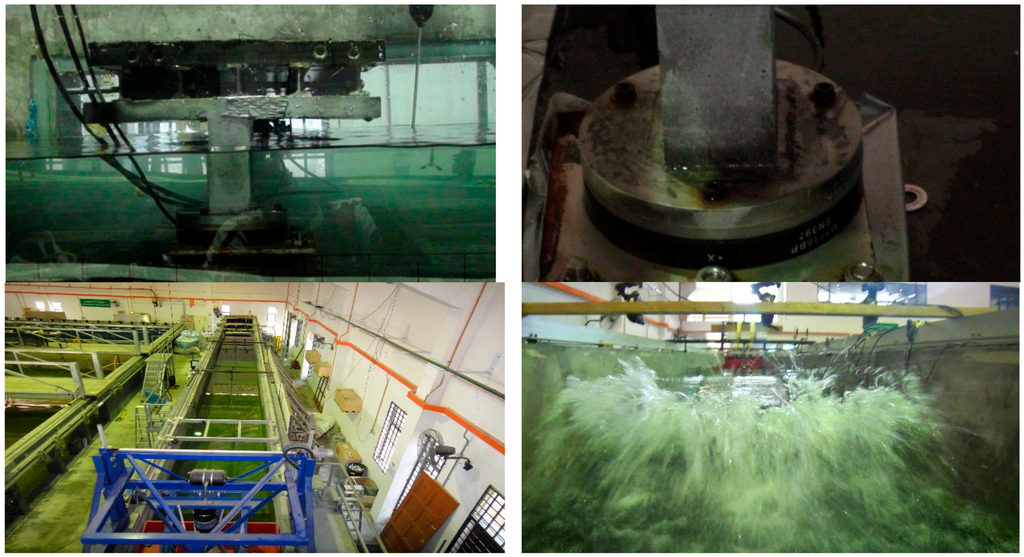

#### 2.1. Experiments

#### 2.2. Model

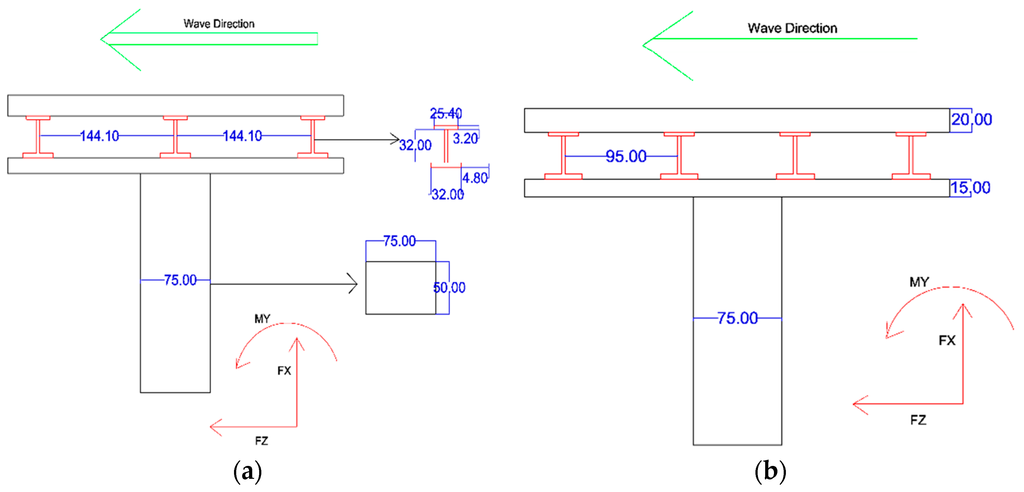

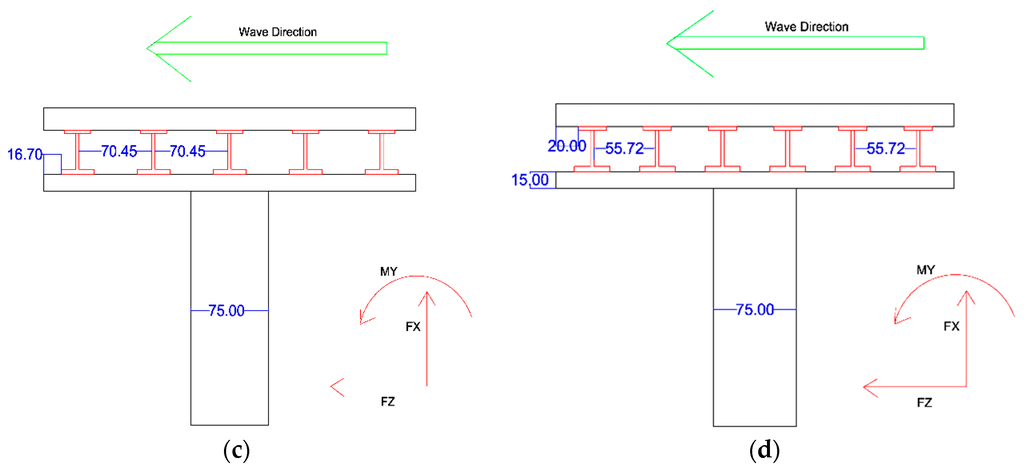

**Figure 3.**Bridge model dimension and the positive direction of drag force, uplift and overturning moment. (

**a**) Model A3; (

**b**) Model A4; (

**c**) Model A5; (

**d**) Model A6.

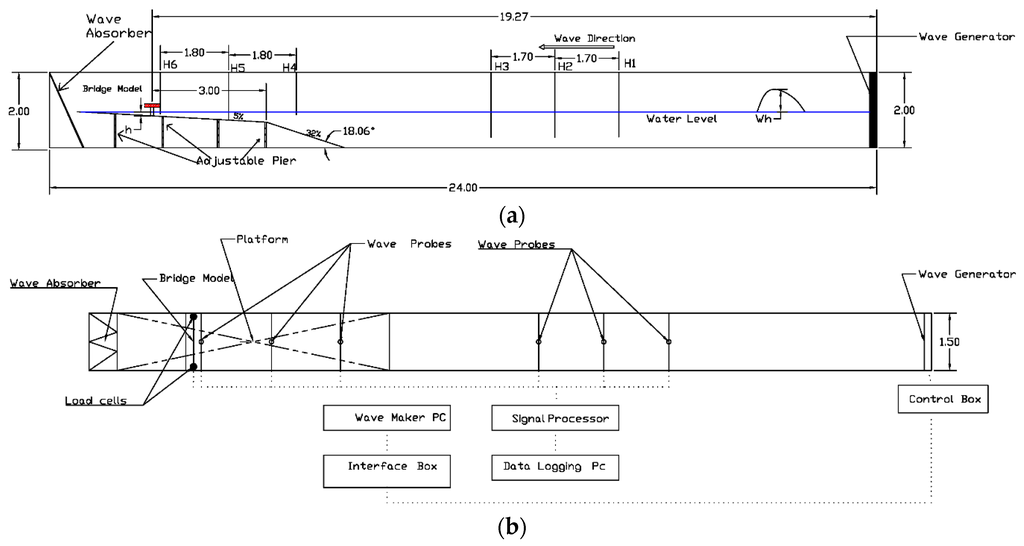

#### 2.3. Setup

_{W}= 1.0 m, 0.95 m, 0.90 m, were applied in the flume. Ten solitary wave heights were utilized in this research to cover a variety of small to large tsunami wave heights, i.e., ${W}_{h}$ = 0.04, 0.8, 0.12, 0.16, 0.20, 0.24, 0.28, 0.32, 0.36, 0.40 m. In order to ensure repeatability and accuracy of the experiment, each hydraulic test was repeated three times and after eliminating the highest and lowest values, the average was recorded and presented in the Results section. The experiments errors were found to be less than 4.5%. The maximum values of vertical, horizontal forces and overturning moment were applied to the results.

#### 2.4. Input and Output Variables

Inputs | Parameter Description | Parameter Characterization |
---|---|---|

Input 1 | W_{h} | Wave height |

Input 2 | T | Velocity |

Output | Parameter Description | Parameter Characterization |
---|---|---|

Outputs | FX | Uplift |

FZ | Drag force | |

MY | Overturning moment |

#### 2.5. Extreme Learning Machine

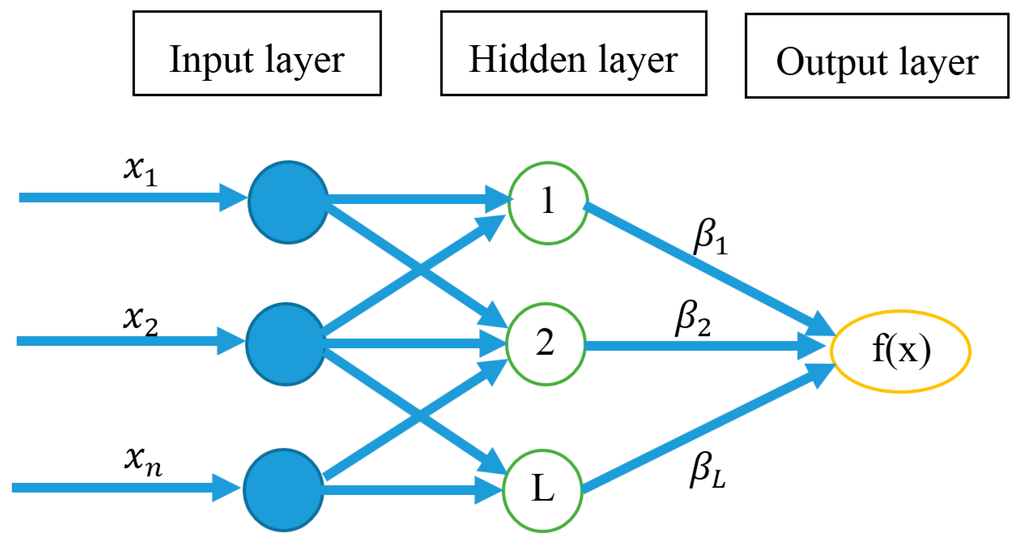

#### 2.5.1. Single Hidden Layer Feed-Forward Neural Network

_{i}and b

_{i}represent the learning parameters of hidden nodes. β

_{i}represents the weight connecting the ith hidden node to the output node. $G\left({a}_{i},{b}_{i},x\right)$ shows the output value of the ith hidden node with respect to the input x. The additive hidden node with the activation function of $g\left(x\right):R\to R$ (e.g., sigmoid and threshold), $G\left({a}_{i},{b}_{i},x\right)$ is as per [27]:

_{i}denotes the weight vector which connects the input layer to the ith hidden node. In addition, b

_{i}represented the bias of the ith hidden node. a

_{i}.x represents the inner product of vector a

_{i}and x in R

^{n}. In addition, $G\left({a}_{i},{b}_{i},x\right)$ might be obtained for RBF hidden node with the activation function $g\left(x\right):R\to R$ (e.g., Gaussian), $G\left({a}_{i},{b}_{i},x\right)$ as per Huang et al. [27]:

_{i}and b

_{i}represent the centre and impact factor of the ith RBF node, respectively.

^{+}indicates the set of all positive real values. In this equation, the RBF network describes a particular case of SLFN with RBF nodes in its hidden layer. For N arbitrary distinct samples $\left({x}_{i},{t}_{i}\right)\in {R}^{n}\times {R}^{m}$, x

_{i}is n × 1 input vector and t

_{i}is m × 1 target vector. In cases where an SLFN with L hidden nodes may estimate the value of N samples with zero error, then it signifies that there exist β

_{i}, a

_{i}and b

_{i}such that [27]:

#### 2.5.2. Concept of ELM

_{i}and b

_{i}which are hidden node parameters of ELM, should not be tuned throughout learning and may conveniently be allocated with random values. Liang et al. [31] presented the same in the following theorems:

**Theorem 1.**

**Theorem 2.**

#### 2.6. Artificial Neural Networks

_{ij}and y

_{j}represent the weight and the threshold between the input layer and the hidden layer, respectively, w

_{jk}and y

_{k}assume the outputs of each neuron in a hidden layer and output layer, respectively, as indicated in Equations (9) and (10):

ANN Parameters | ||||
---|---|---|---|---|

Learning Rate | Momentum | Hidden Node | Number of Iterations | Activation Function |

0.2 | 0.1 | 3, 6, 10 | 1000 | Continuous Log-Sigmoid Function |

#### 2.7. Genetic Programming

Parameter | Value |
---|---|

Population size | 512 |

Function set | $+,-,\ast ,/,\surd ,{x}^{2},\mathrm{ln}\left(x\right),{e}^{x},{a}^{x}$ |

Head size | 5–9 |

Chromosomes | 20–30 |

Linking functions | Addition, subtraction, arithmetic, Trigonometric, Multiplication |

Number of genes | 2–3 |

Mutation rate | 92 |

One-point recombination rate | 0.2 |

Two-point recombination rate | 0.2 |

Homologue crossover rate | 99 |

Crossover rate | 31 |

Fitness function error type | RMSE |

Inversion rate | 109 |

Gene transposition rate | 0.1 |

Gene recombination rate | 0.1 |

## 3. Results and Discussion

#### 3.1. Evaluating Accuracy of Proposed Models

^{2}) and Pearson coefficient (r). These statistics are defined as follows:

^{2}):

_{i}and P

_{i}are known as the experimental and forecast values of tsunami bore forces on a coastal bridge, respectively, and n is the total number of test data. $\overline{{\text{P}}_{\text{i}}}$ and $\overline{{\text{O}}_{\text{i}}}$ represent average values of P

_{i}and O

_{i}.

#### 3.2. Architecture of Soft Computing Models

ELM | ANN | GP | |||
---|---|---|---|---|---|

Number of layers | 3 | Number of layers | 3 | - | - |

Neurons | Input: 2 Hidden: 3, 6, 10 Output: 1 | Neurons | Input: 2 Hidden: 3, 6, 10 Output: 1 | Neurons | - - Output: 1 |

- | - | Number of iteration | 1000 | Population size | 512 |

Activation function | Sigmoid Function | Activation function | Sigmoid Function | Function set | $+,-,\times ,\xf7,\surd ,{x}^{2},\mathrm{ln},{e}^{x},{a}^{x}$ |

Learning rule | ELM for SLFNs | Learning rule | Back propagation | Head size | 5–9 |

- | - | - | - | Chromosomes | 20–30 |

- | - | - | - | Number of genes | 2–3 |

- | - | - | - | Mutation rate | 92 |

- | - | - | - | Crossover rate | 31 |

- | - | - | - | Inversion rate | 109 |

#### 3.3. Performance Evaluation of Proposed ELM Model

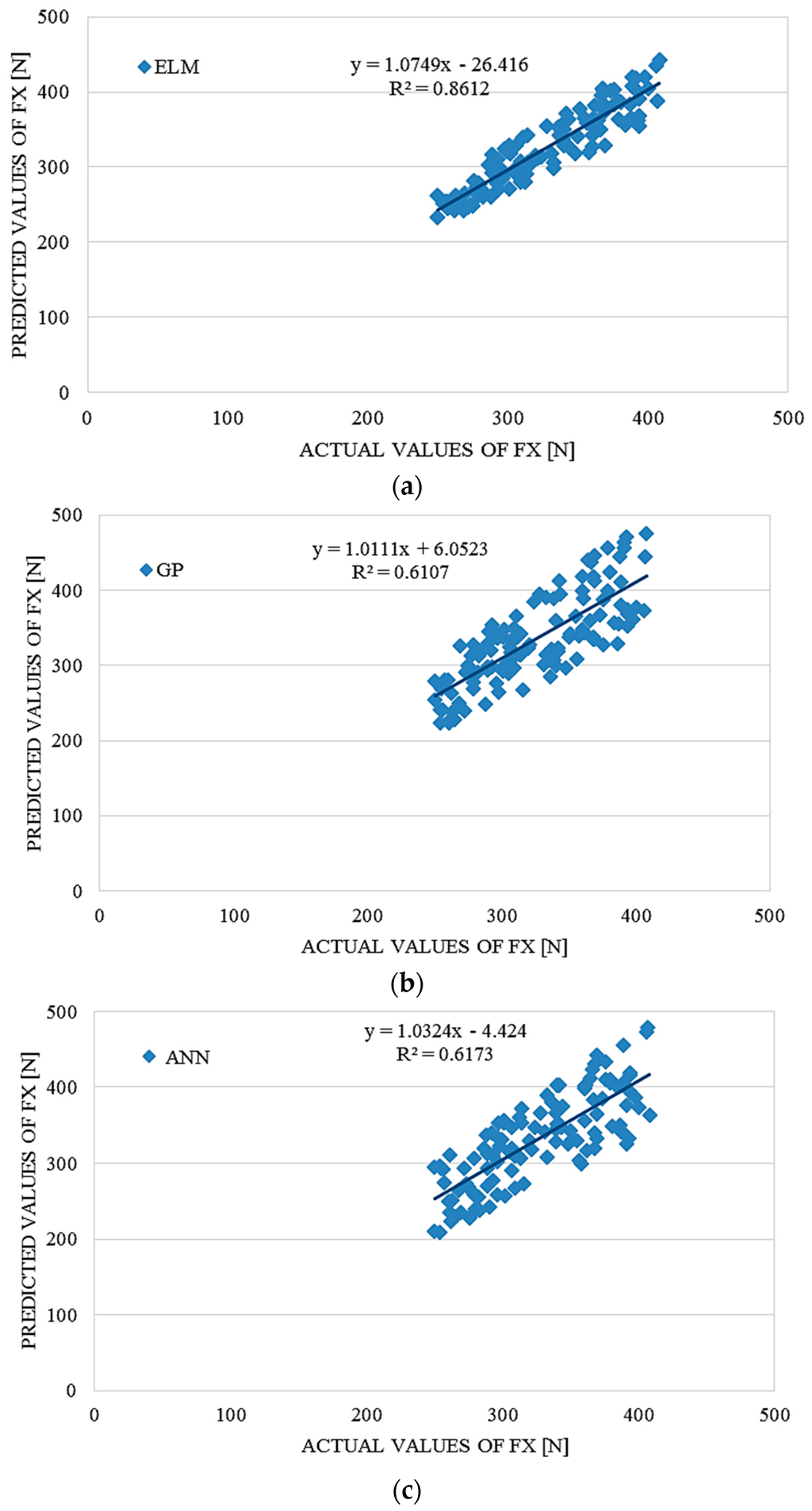

**Figure 6.**Scatter plots of actual and predicted values of tsunami bore force FX on a coastal bridge using (

**a**) ELM, (

**b**) GP and (

**c**) ANN method.

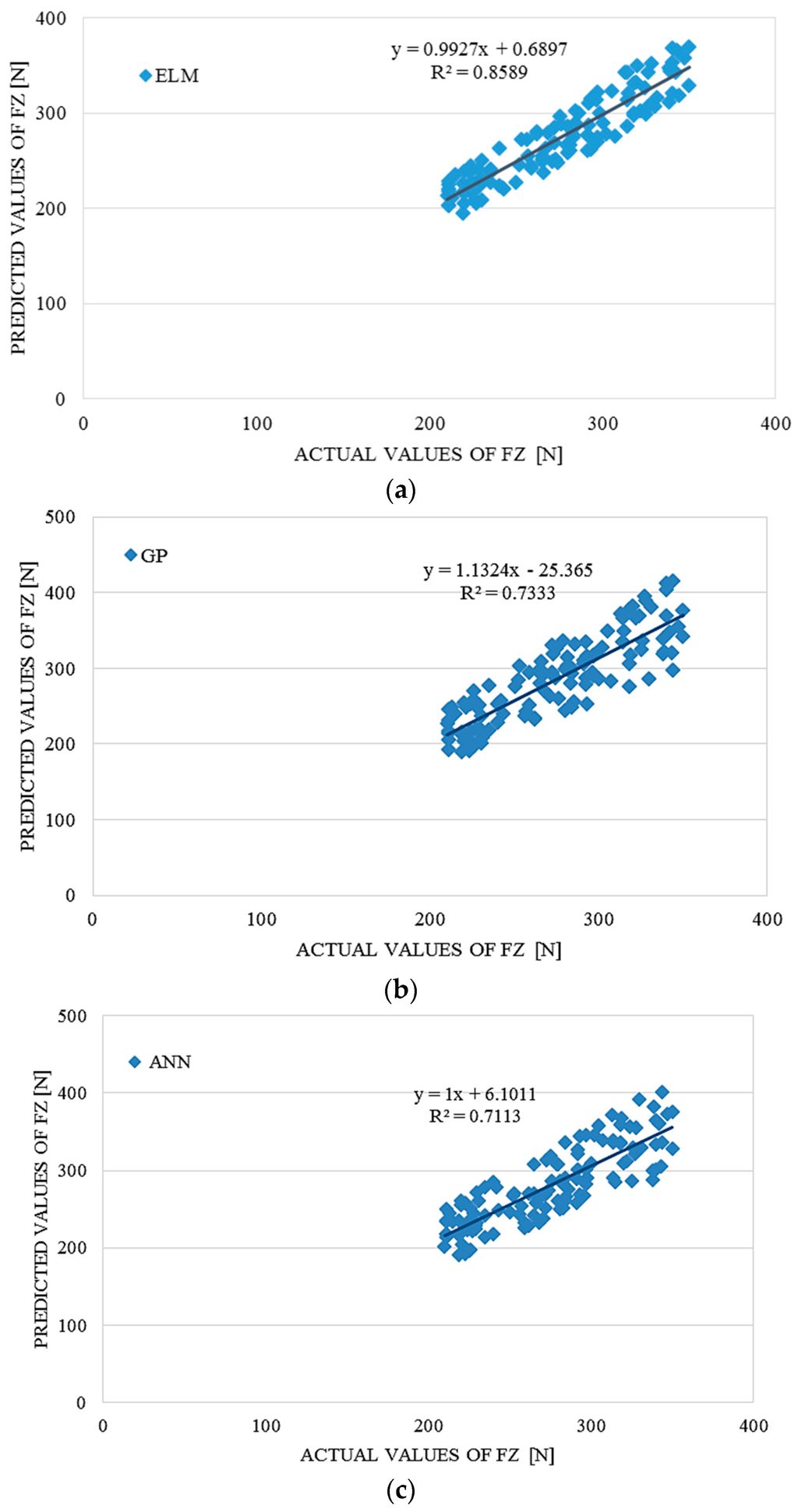

**Figure 7.**Scatter plots of actual and predicted values of tsunami bore force FZ on a coastal bridge using (

**a**) ELM, (

**b**) GP and (

**c**) ANN method.

**Figure 8.**Scatter plots of actual and predicted values of tsunami bore moment MX on a coastal bridge using (

**a**) ELM, (

**b**) GP and (

**c**) ANN method.

## 4. Performance Comparison of ELM, ANN and GP

^{2}and r, were applied. Table 6 and Table 7 summarize the prediction accuracy results for test data sets since training error is not a credible indicator for the prediction potential of the particular model. This results present average results after many repetitions and many iterations in order to fins optimal structures of the models. The average computation time for the ELM modelling was around 310 seconds using a PC with an Intel Core Duo CPU E7600 @3.06 GHz and 2 GB RAM. The average computation time for the ANN and GP modelling using the same PC with the same performances was 424 and 446 s, respectively. For the ELM modelling, MATLAB software was used.

**Table 6.**Comparative performance statistics of the ELM, ANN and GP tsunami bore force FX on a coastal bridge predictive model.

ELM | ANN | GP | ||||||
---|---|---|---|---|---|---|---|---|

RMSE | R^{2} | r | RMSE | R^{2} | r | RMSE | R^{2} | r |

19.32297 | 0.8612 | 0.92799 | 36.39317 | 0.6173 | 0.78570 | 36.13951 | 0.6107 | 0.78150 |

**Table 7.**Comparative performance statistics of the ELM, ANN and GP tsunami bore force FZ on a coastal bridge predictive model.

ELM | ANN | GP | ||||||
---|---|---|---|---|---|---|---|---|

RMSE | R^{2} | r | RMSE | R^{2} | r | RMSE | R^{2} | r |

17.00278 | 0.8589 | 0.92676 | 26.92342 | 0.7113 | 0.84336 | 28.85849 | 0.7333 | 0.85631 |

**Table 8.**Comparative performance statistics of the ELM, ANN and GP tsunami bore moment MY on a coastal bridge predictive model.

ELM | ANN | GP | ||||||
---|---|---|---|---|---|---|---|---|

RMSE | R^{2} | r | RMSE | R^{2} | r | RMSE | R^{2} | r |

2.53381 | 0.9807 | 0.99030 | 7.52946 | 0.8674 | 0.93532 | 6.81423 | 0.8748 | 0.93132 |

## 5. Conclusions

^{2}, indicate that the ELM predictions are superior to those of GP and ANN. Additionally, the results reveal the robustness of the method.
