Wavelet Entropy as a Measure of Ventricular Beat Suppression from the Electrocardiogram in Atrial Fibrillation
Abstract
:1. Introduction
2. Methods
2.1. Ventricular Activity Suppression by Average Beat Subtraction
2.2. Wavelet Analysis for Identifying Residual Ventricular Activity
2.3. Wavelet Entropy Measure of Residual Ventricular Activity
- (i)
- Ventricular scale band wavelet entropy (WEvent) defined as the minimum wavelet entropy at scales corresponding to predominantly ventricular activity. Since the ventricular activity, particularly the QRS complex, contains higher frequency components than the f-wave, the frequency range 12.5 to 50 Hz with corresponding scales for the “Gaus4” wavelet of 20 to 5 respectively was used in this study. Motivation for choosing the minimum entropy in this waveband was the observation that the minimum entropy is highly influenced by the degree of QRS residual.
- (ii)
- Atrial scale band wavelet entropy (WEaf) defined as the average wavelet entropy across scales corresponding to predominantly the f-wave. The f-wave has frequencies typically in the range 3 to 10 Hz and the corresponding scales for the “Gaus4” wavelet are 80 to 25 respectively for the sample rate used in this study.
- (iii)
- Wide scale ventricular and atrial band wavelet entropy (WEva) defined as the average wavelet entropy across scales containing both the above atrial and ventricular scale bands specifically 5 (minimum scale of WEvent) to 80 (maximum scale of WEaf). This serves to define a single index for quantifying the quality of ventricular suppression taking account of both atrial and ventricular scale wavelet entropies.
3. Experimental Studies and Discussion

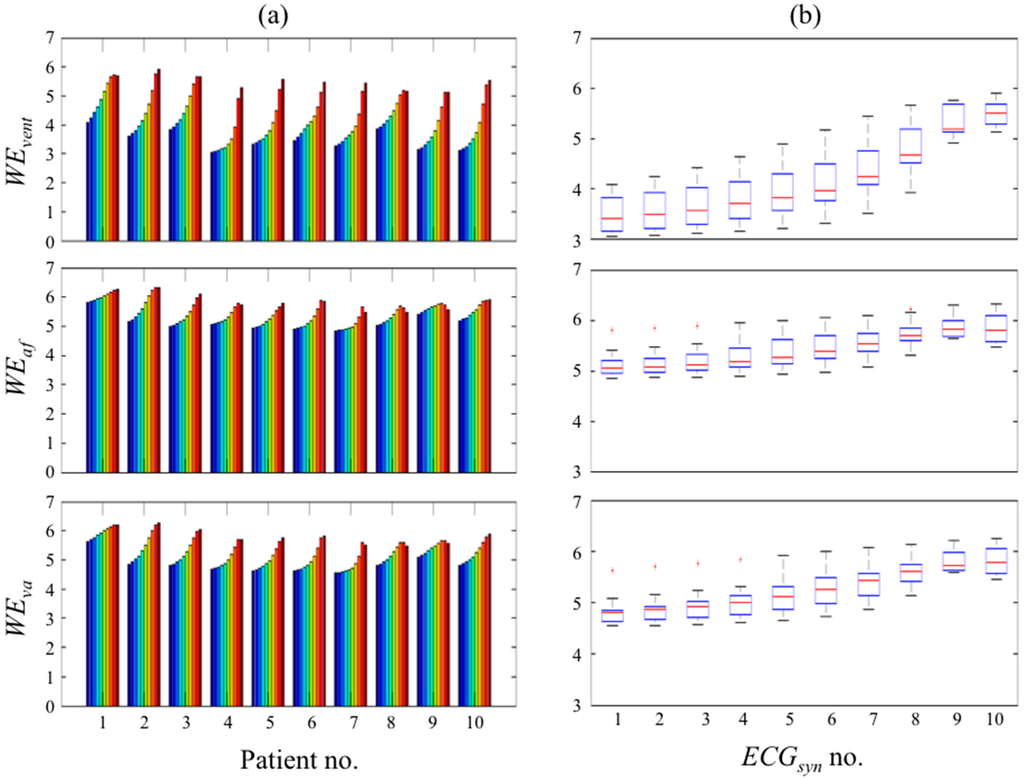

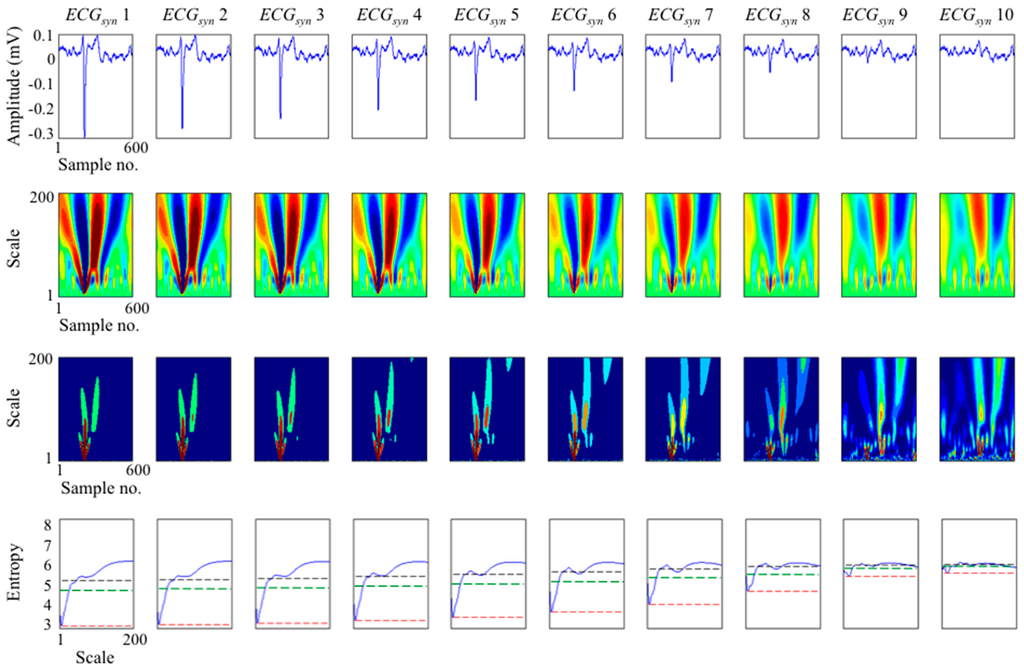

3.1. Study on Synthesised ECGs

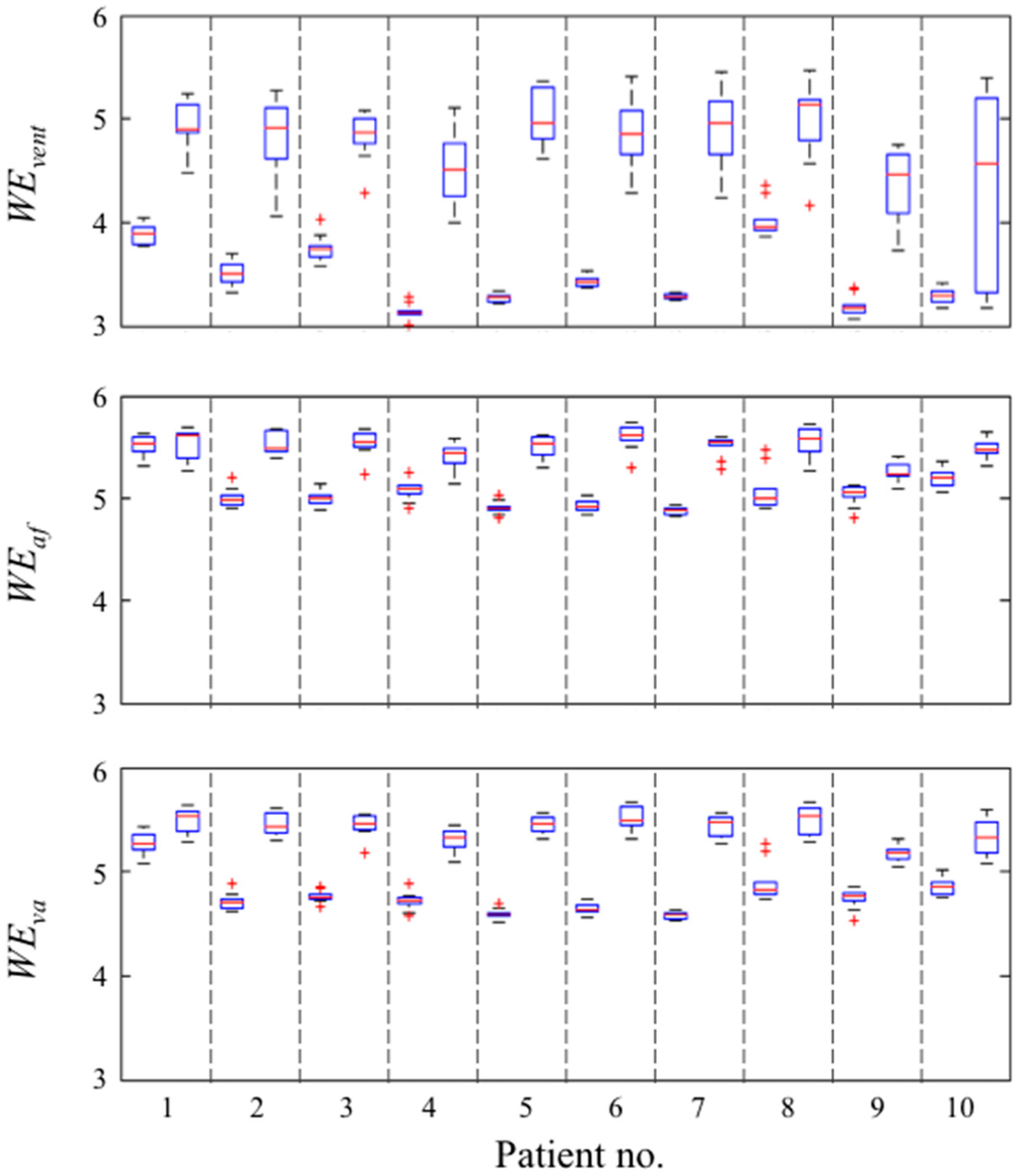

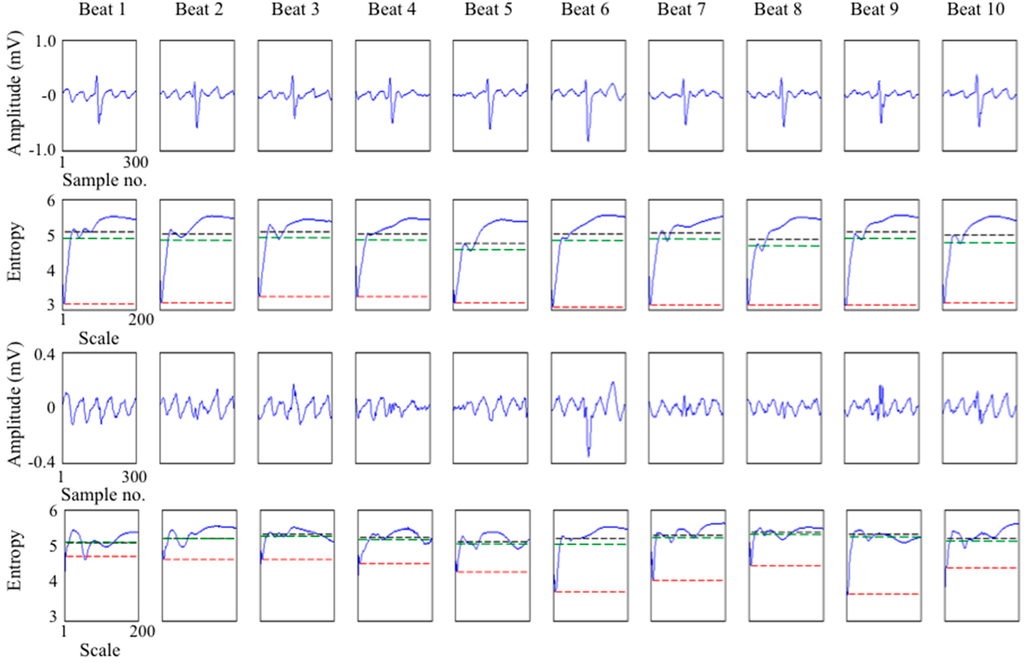

3.2. Study on Real ECGs with ABS Ventricular Suppression

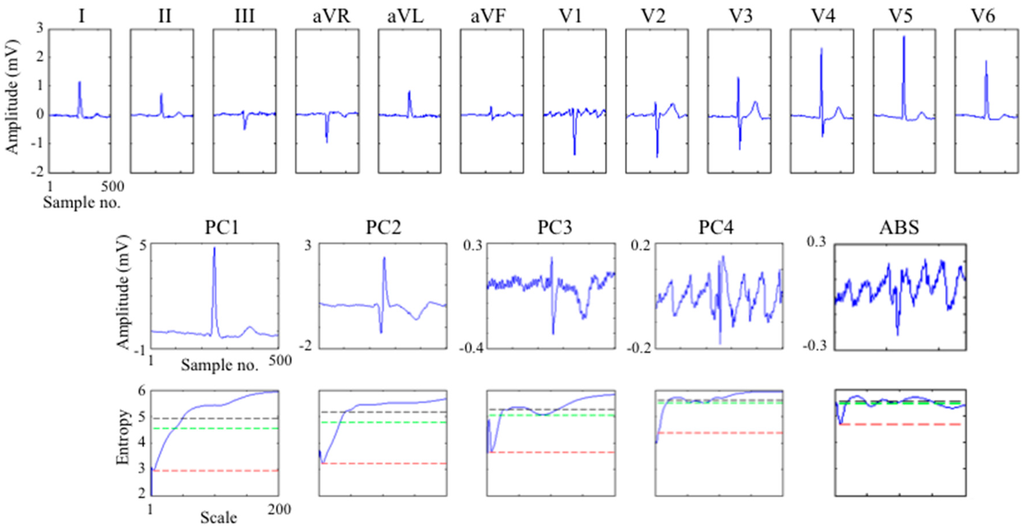

3.3. Application to Multi-Lead ECG

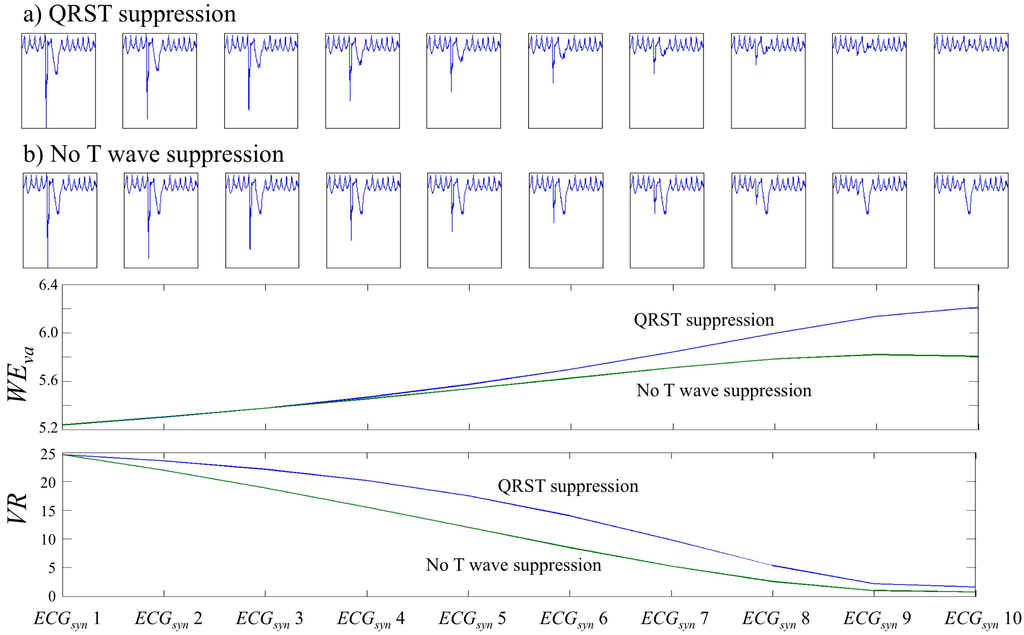

3.4. Comparison to Other Measures of the Effectiveness of Ventricular Beat Suppression
4. Conclusions
Acknowledgments
Conflicts of Interest
References
