# A New Process Monitoring Method Based on Waveform Signal by Using Recurrence Plot

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Recurrence Plot Method

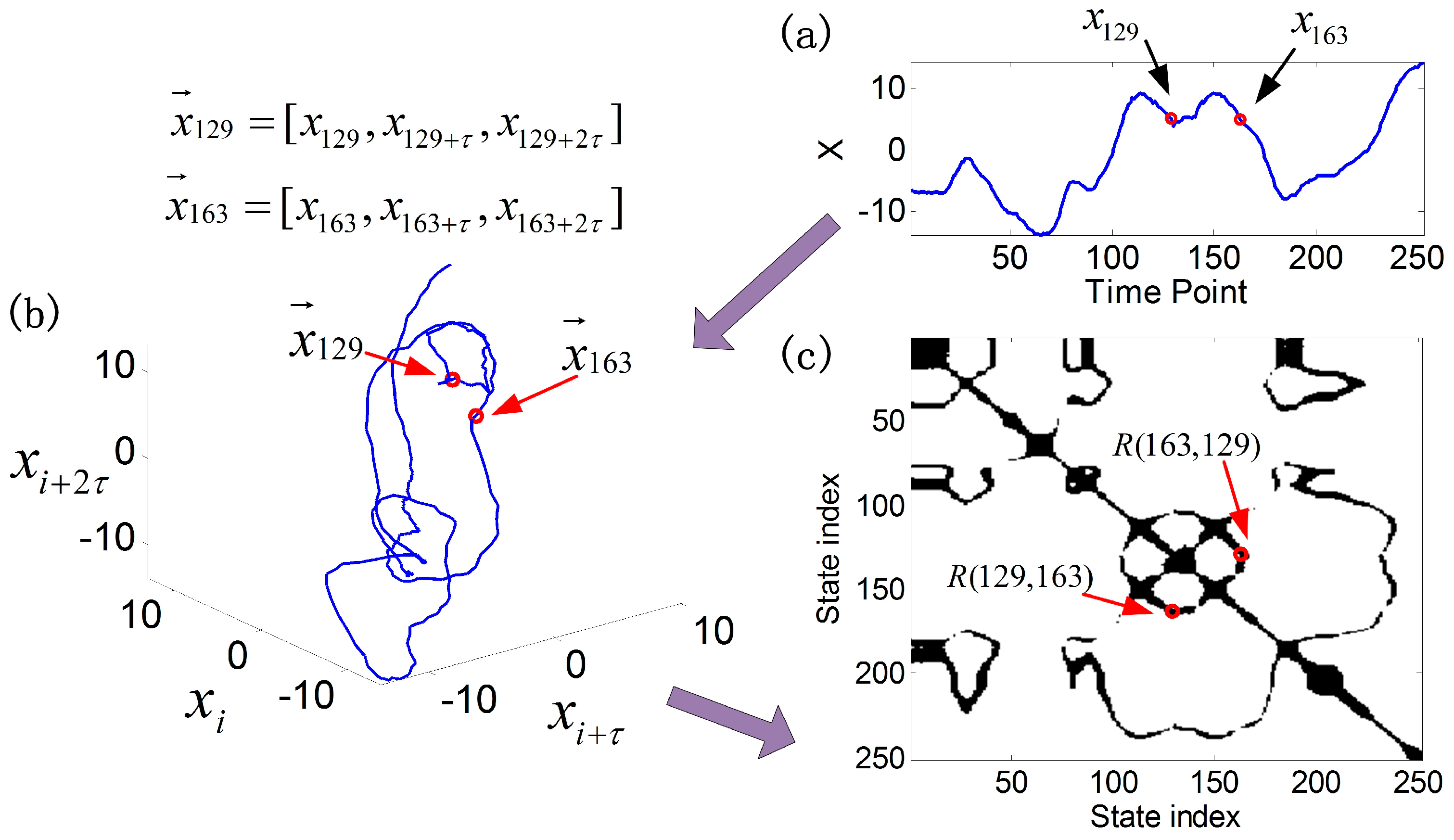

**Figure 1.**An example of the recurrence plot method: (

**a**) a segment of a tonnage signal collected from progressive stamping process, (

**b**) the trajectory of the tonnage signal in a three dimensional space, and (

**c**) the corresponding RP plot of the tonnage signal.

## 3. Process Monitoring Scheme

#### 3.1. Template Recurrence Plot

#### 3.2. Continuous-Scale Recurrence Plot and Monitoring Statistics

- (1)
- More information of process data has been preserved in the template RP and the continuous-scale RP. The values in the template RP and the continuous-scale RP are varying in [0, 1]. These values can be considered as the probabilities that the corresponding elements are equal to 1. More methods can be used to analyze the process data with the new proposed concepts.
- (2)
- The relationship between a new process data and the in-control data can be directly represented in the continuous-scale RP. The values have directly meanings to represent the differences between the new process data and the in-control data. A large value in continuous-scale RP means the largest difference while a small value means little difference.

- (i)
- Hard threshold:$${A}_{New}={{\displaystyle \sum}}_{i=1}^{N}{\displaystyle \sum}_{j=1}^{N}{R}_{diff}{\left(i,j\right)}^{2}*I({R}_{diff}{\left(i,j\right)}^{2}\ge {T}_{constant})$$
- (ii)
- Soft threshold:$${A}_{New}={{\displaystyle \sum}}_{i=1}^{N}{\displaystyle \sum}_{j=1}^{N}{R}_{diff}{\left(i,j\right)}^{2}*I({R}_{diff}{\left(i,j\right)}^{2}\ge {T}_{s}\left(i,j\right))$$

#### 3.3. Parameter Settings

- (1)
- When the information related to the process condition changes is unavailable, the hard threshold approach is preferred to use. We can determine the appropriate value of ${T}_{constant}$ based on the empirical distribution of ${R}_{diff}{\left(i,j\right)}^{2}$, which can be estimated from a set of in-control profile data.
- (2)
- When we have enough in-control and out-of-control profile data, the soft threshold is preferred to use. Here, we should notice that it is difficult to use the soft threshold in practice due to information and data limitation. The prerequisite of using the soft threshold to derive the monitoring statistics is that we should have numerous in-control and out-of-control process data. If we have enough in-control and out-of-control profile data, we can calculate the probability of the element value distribution in ${R}_{diff}$ as:$$P\left({R}_{diff}{\left(i,j\right)}^{2}\ge {T}_{s}\left(i,j\right)\right)\ge {P}_{0}$$

#### 3.4. RP-Based Bootstrap Control Chart

- Obtain $k$ in-control profile data, and calculate the corresponding monitoring statistics $\left\{{A}_{1},{A}_{2},\cdots ,{A}_{k}\right\}$.
- Draw a random sample of size ${n}_{c}$ with replacement from the monitoring statistics $\left\{{A}_{1},{A}_{2},\cdots ,{A}_{k}\right\}$, and obtain a bootstrap sample $\left\{{A}_{1}^{*},{A}_{2}^{*},\cdots ,{A}_{{n}_{c}}^{*}\right\}$, here ${n}_{c}$ should be much smaller than $k$.
- Compute the mean of the bootstrap sample $\overline{{A}^{*}}\left({n}_{c}\right)$.
- Repeat the step 2 and step 3 a large amount of times, say $B$ times (e.g., $B$=1000). Then we can derive $B$ bootstrap sample means as $\overline{{A}_{1}^{*}}\left({n}_{c}\right),\overline{{A}_{2}^{*}}\left({n}_{c}\right),\cdots ,\overline{{A}_{B}^{*}}\left({n}_{c}\right)$.
- Sort the $B$ bootstrap sample means in an increasing order to obtain a new $B$ bootstrap sample means denoted as ${S}_{A}=\left\{\overline{{A}_{\left(1\right)}^{*}}\left({n}_{c}\right),\overline{{A}_{\left(2\right)}^{*}}\left({n}_{c}\right),\cdots ,\overline{{A}_{\left(B\right)}^{*}}\left({n}_{c}\right)\right\}$.
- Define a constant $\alpha $ to represent the false alarm rate of the bootstrap control chart. Then, find the upper control limit (UCL) and the lower control limit (LCL) based on the formulae $P\left({S}_{A}<UCL\right)=1-\alpha /2$ and $P\left({S}_{A}<LCL\right)=\alpha /2$.

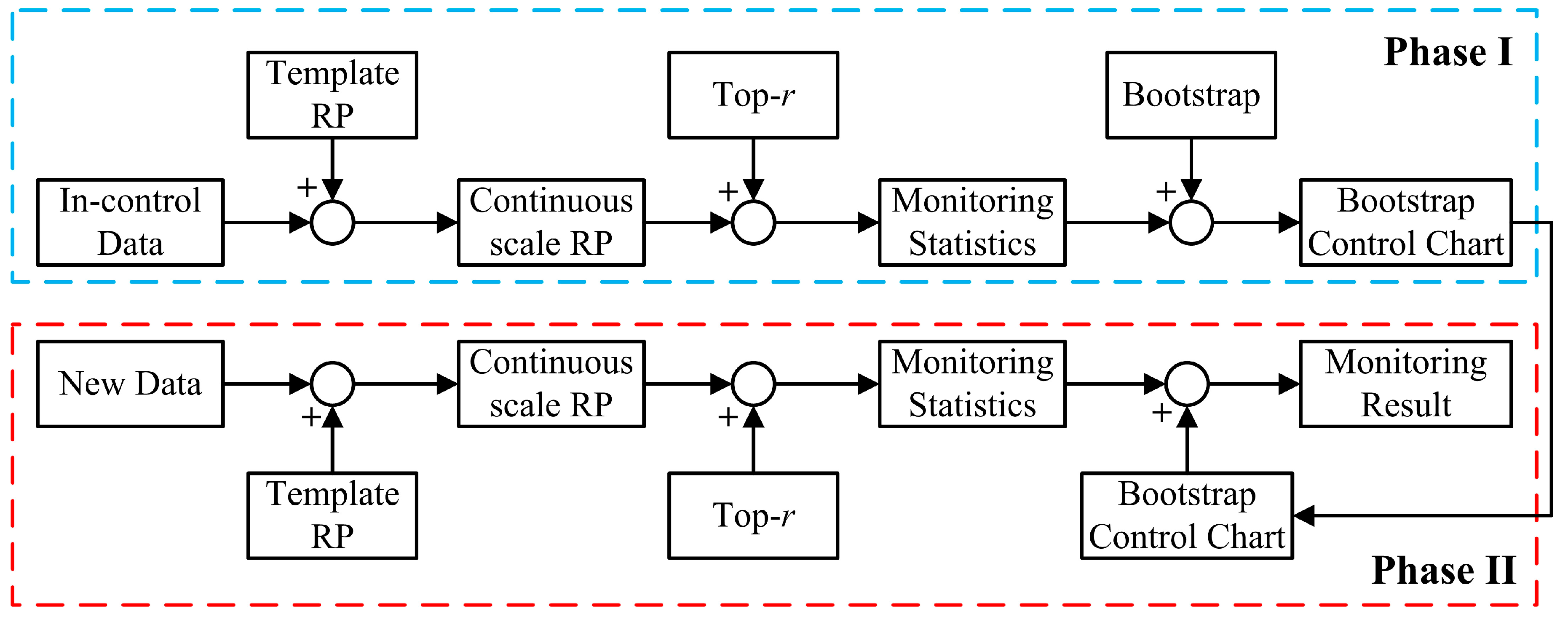

#### 3.5. Monitoring Scheme

- Obtain two groups of in-control profile data. One group data is used to estimate the template RP plot ${\overline{R}}_{n}$ by using Equation (3).
- Calculate the continuous-scale RP plot ${R}_{diff}$ by using Equation (4) based on the other group of in-control data and derive the monitoring statistics by using Equation (6) via the top-r approach.
- Estimate the control limit of the proposed bootstrap control chart following the procedures introduced in Subsection 3.4.
- When a new profile is obtained, calculate the continuous-scale RP plot ${R}_{diff}$ and the monitoring statistic of this profile. Then, test the monitoring statistic by the constructed bootstrap control chart. If this statistic falls outside the control limit estimated from step 3, we can conclude that the process is out-of-control. Otherwise, the process is in-control.

## 4. Performance Comparisons

${T}_{constant}$ | ${\delta}_{F}$ | Our method | Recurrence Rate (RR) | Determinism (DET) | Entropy (ENT) | Laminarity (LAM) | Trapping Time (TT) |
---|---|---|---|---|---|---|---|

0.9 | 0.5 | 66.31 | 165.43 | 183.21 | 178.32 | 185.26 | 183.61 |

1.0 | 1 | 12.27 | 35.57 | 116.21 | 41.23 | 27.13 | |

1.5 | 1 | 1.348 | 4.513 | 11.32 | 4.39 | 2.752 | |

0.8 | 0.5 | 102.35 | 171.83 | 191.23 | 184.85 | 186.93 | 172.97 |

1.0 | 1 | 11.28 | 37.87 | 110.32 | 43.94 | 25.98 | |

1.5 | 1 | 1.043 | 4.832 | 12.12 | 4.231 | 2.793 | |

0.7 | 0.5 | 67.25 | 167.85 | 180.23 | 175.92 | 187.63 | 188.76 |

1.0 | 1 | 12.87 | 34.51 | 115.81 | 41.53 | 32.08 | |

1.5 | 1 | 1.287 | 4.639 | 11.84 | 4.372 | 2.873 | |

0.6 | 0.5 | 68.78 | 163.86 | 197.35 | 177.38 | 193.23 | 185.34 |

1.0 | 1 | 11.65 | 35.82 | 115.73 | 42.85 | 27.62 | |

1.5 | 1 | 1.493 | 4.892 | 11.76 | 2.38 | 2.87 |

${T}_{constant}$ | ${\delta}_{F}$ | Our method | Recurrence Rate (RR) | Determinism (DET) | Entropy (ENT) | Laminarity (LAM) | Trapping Time (TT) |
---|---|---|---|---|---|---|---|

0.9 | 0.5 | 8.763 | 188.92 | 189.32 | 187.32 | 185.43 | 147.87 |

1.0 | 1.342 | 168.83 | 126.28 | 183.98 | 118.23 | 66.25 | |

1.5 | 1 | 153.21 | 62.32 | 173.52 | 67.42 | 28.09 | |

0.8 | 0.5 | 13.87 | 187.76 | 188.21 | 198.12 | 193.87 | 152.54 |

1.0 | 1.212 | 172.12 | 131.23 | 185.91 | 123.32 | 72.89 | |

1.5 | 1 | 163.31 | 69.89 | 180.19 | 69.72 | 34.42 | |

0.7 | 0.5 | 16.87 | 182.2 | 183.24 | 188.53 | 173.19 | 150.32 |

1.0 | 1.19 | 164.83 | 121.92 | 176.59 | 121.73 | 63.13 | |

1.5 | 1 | 157.37 | 58.24 | 163.73 | 59.39 | 30.28 | |

0.6 | 0.5 | 18.73 | 182.82 | 179.31 | 178.73 | 176.48 | 156.36 |

1.0 | 1.142 | 165.76 | 125.65 | 170.12 | 118.86 | 65.62 | |

1.5 | 1 | 154.83 | 53.32 | 161.28 | 57.39 | 30.83 |

## 5. Progressive Stamping Processes Analysis

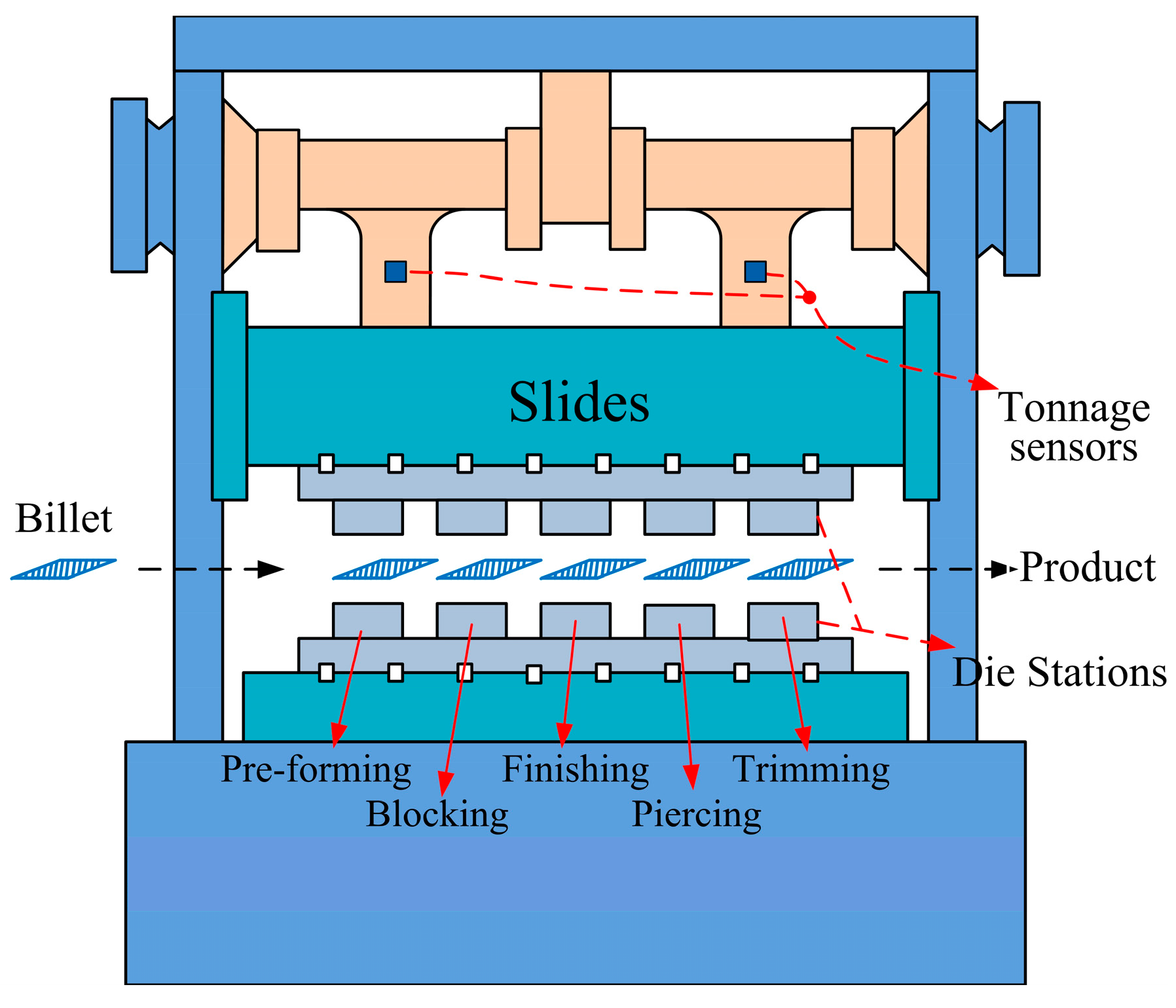

#### 5.1. Introduction of Progressive Stamping Processes

#### 5.2. Template RP Plot

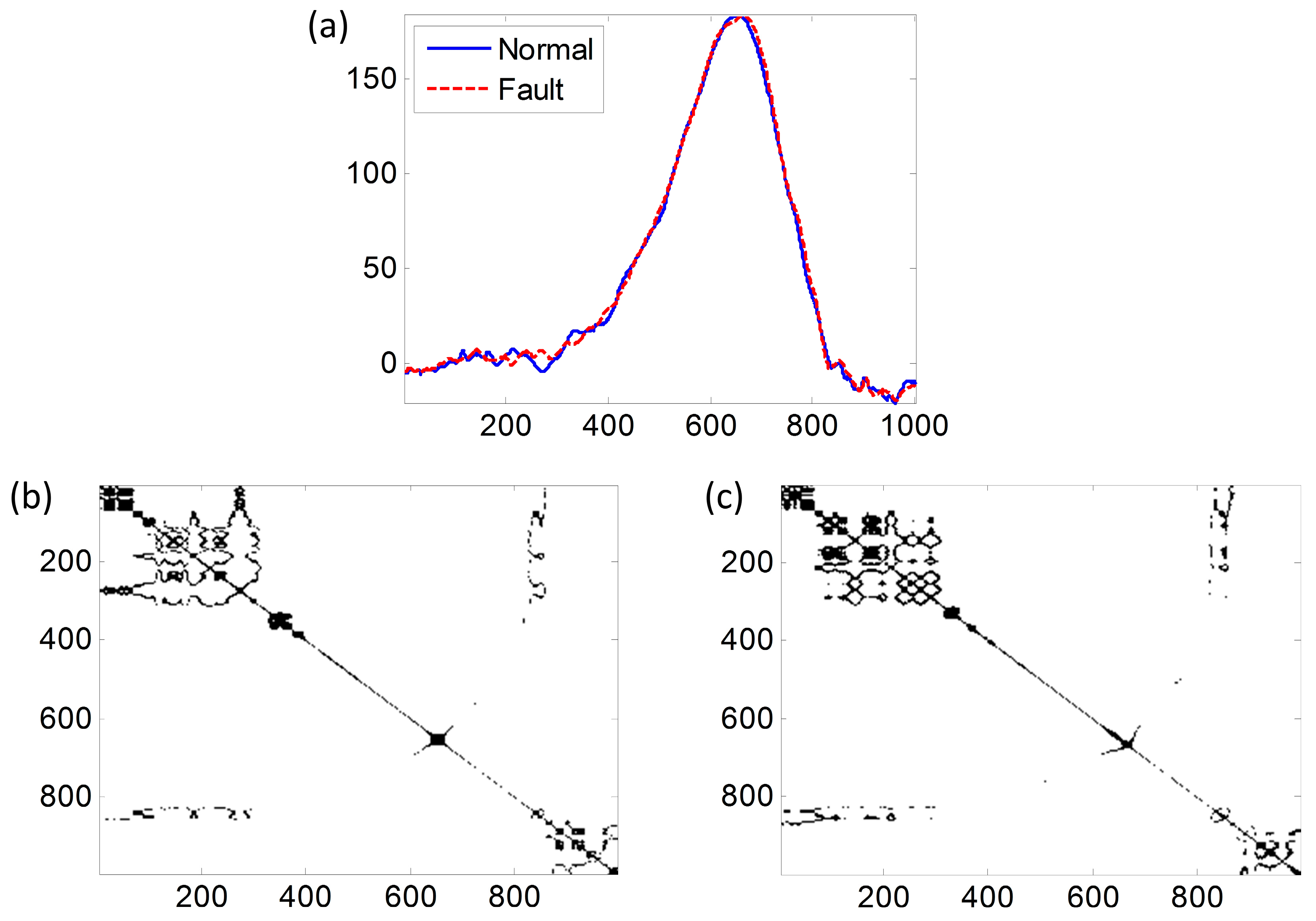

**Figure 4.**Tonnage signals and their recurrence plot (RP) plots under normal and faulty conditions: (

**a**) Normal and faulty tonnage signal. (

**b**) The RP plot of the normal signal. (

**c**) The RP plot of the faulty signal.

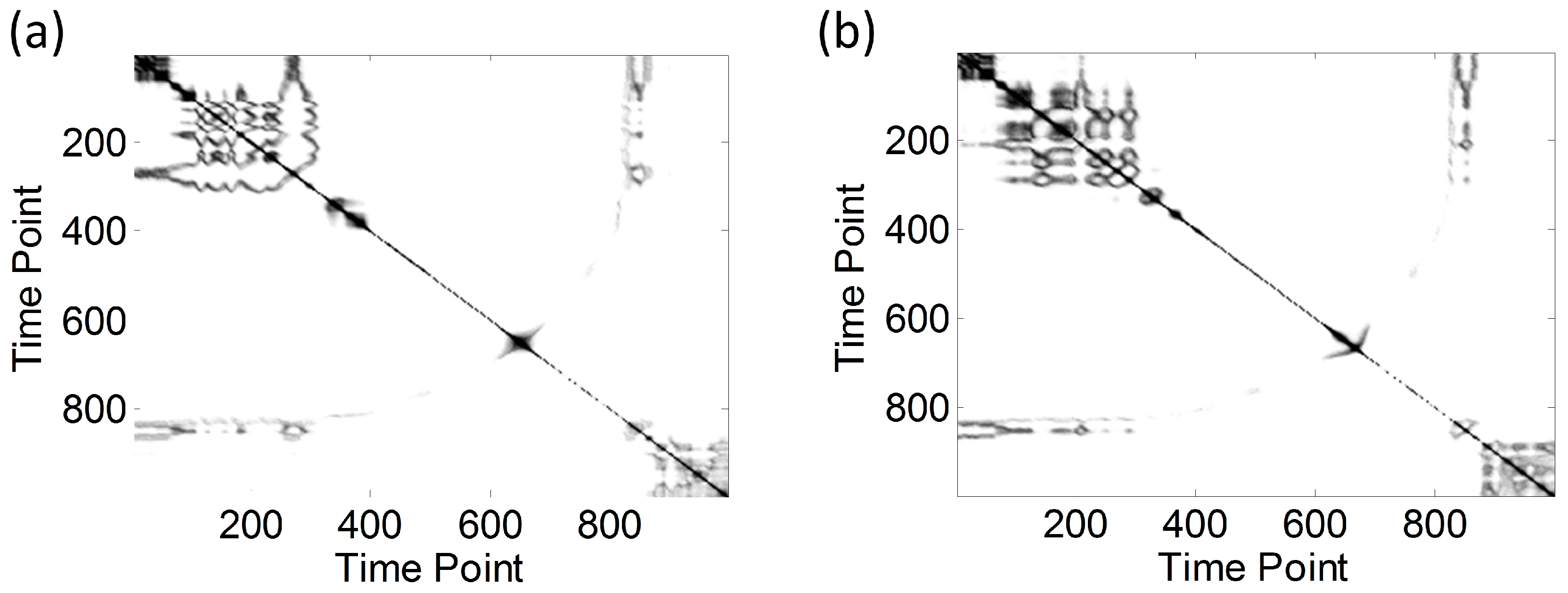

**Figure 5.**(

**a**) The template recurrence plot (RP) plot based on the normal signals; (

**b**) The template RP plot based on the faulty signals.

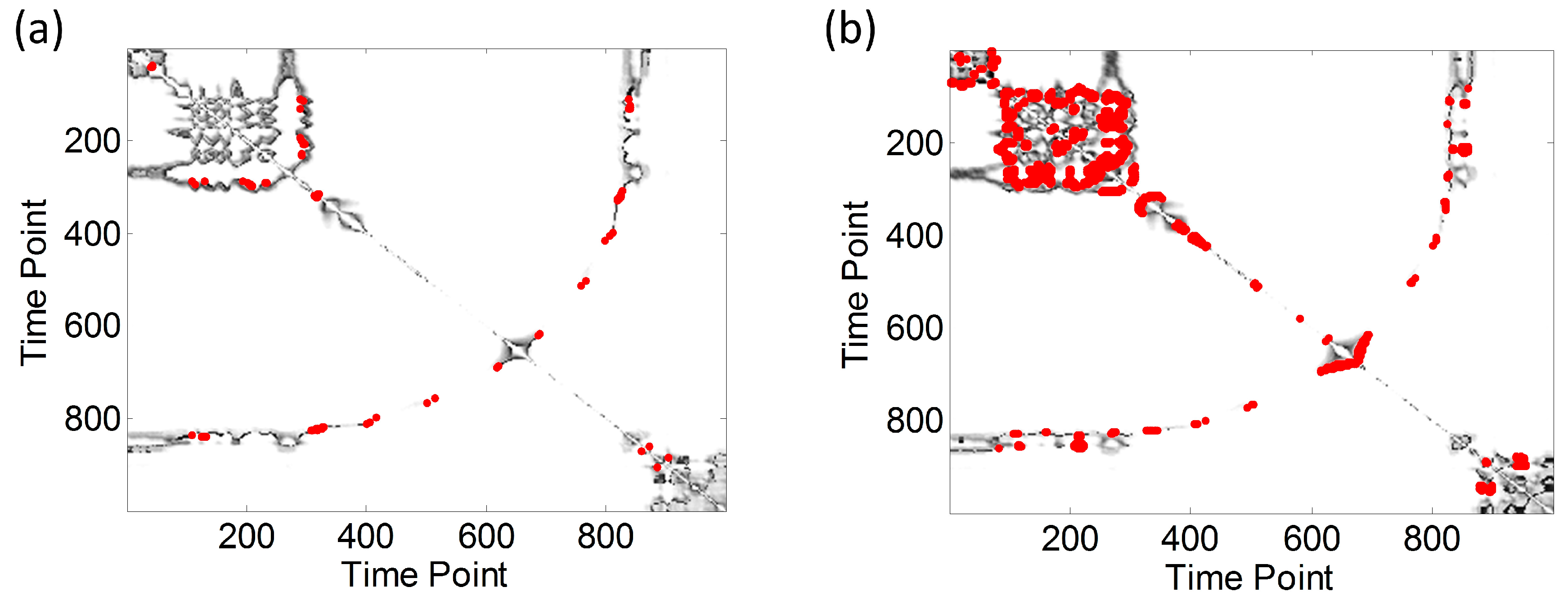

**Figure 6.**Continuous-scale recurrence plot (RP) plots: (

**a**) Continuous-scale RP plot under normal condition. (

**b**) Continuous-scale RP plot under faulty condition.

#### 5.3. Continuous-Scale RP Plot

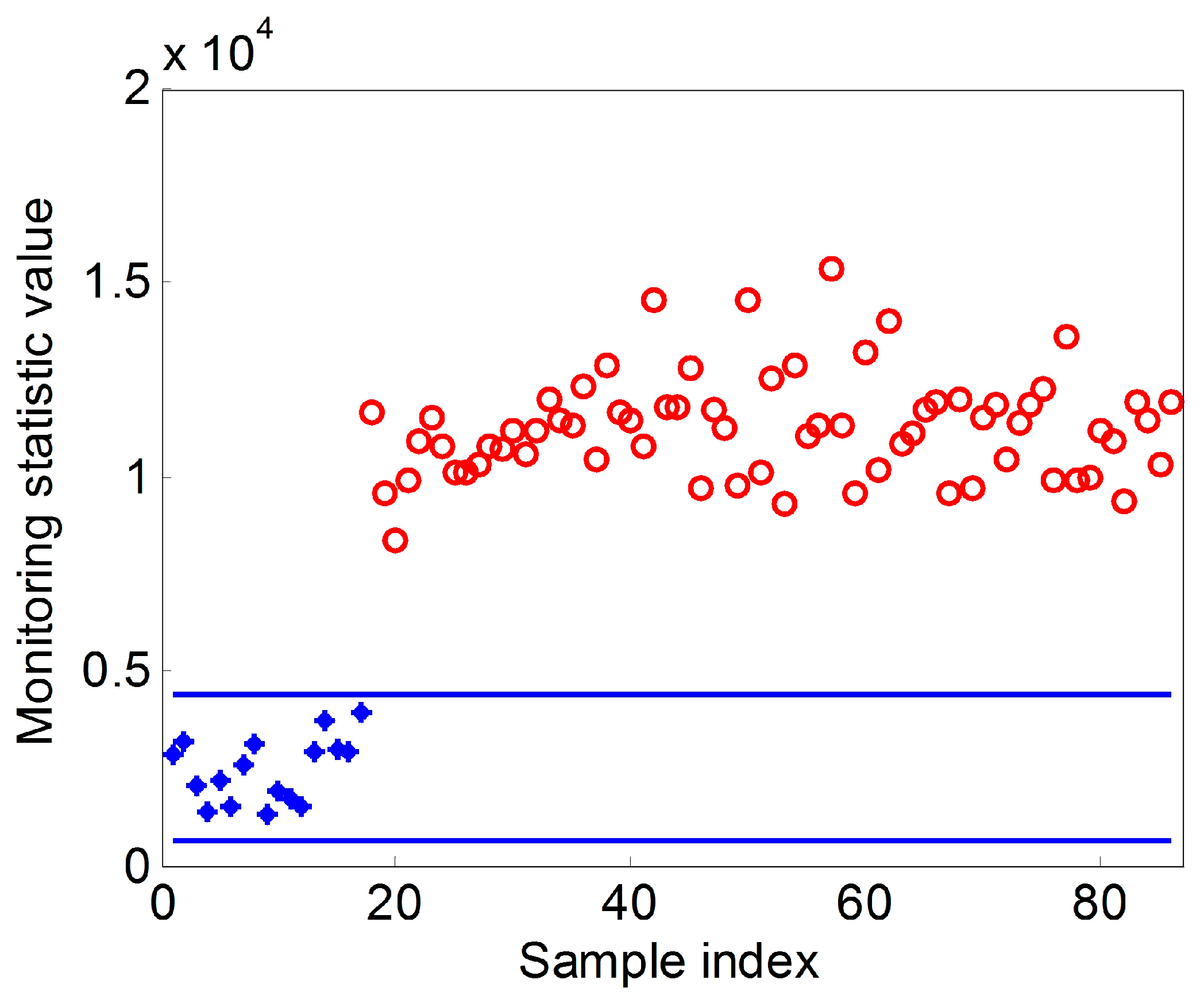

#### 5.4. Process Monitoring Results

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Jin, J.H.; Shi, J.J. Feature-preserving data compression of stamping tonnage information using wavelets. Technometrics
**1999**, 41, 327–339. [Google Scholar] [CrossRef] - Germen, E.; Başaran, M.; Fidan, M. Sound based induction motor fault diagnosis using Kohonen self-organizing map. Mech. Syst. Signal Process.
**2014**, 46, 45–58. [Google Scholar] [CrossRef] - Wu, S.-D.; Wu, C.-W.; Wu, T.-Y.; Wang, C.-C. Multi-scale analysis based ball bearing defect diagnostics using Mahalanobis distance and support vector machine. Entropy
**2013**, 15, 416–433. [Google Scholar] [CrossRef] - Woodall, W.H.; Spitzner, D.J.; Montgomery, D.C.; Gupta, S. Using control charts to monitor process and product quality profiles. J. Qual. Technol.
**2004**, 36, 309–320. [Google Scholar] - Kang, L.; Albin, S.L. On-line monitoring when the process yields a linear. J. Qual. Technol.
**2000**, 32, 418–426. [Google Scholar] - Mahmoud, M.A.; Parker, P.A.; Woodall, W.H.; Hawkins, D.M. A change point method for linear profile data. Qual. Reliab. Eng. Int.
**2007**, 23, 247–268. [Google Scholar] [CrossRef] - Zhu, J.J.; Lin, D.K.J. Monitoring the slopes of linear profiles. Qual. Eng.
**2009**, 22. [Google Scholar] [CrossRef] - Colosimo, B.M.; Semeraro, Q.; Pacella, M. Statistical process control for geometric specifications: On the monitoring of roundness profiles. J. Qual. Technol.
**2008**, 40, 1–18. [Google Scholar] - Williams, J.D.; Woodall, W.H.; Birch, J.B. Statistical monitoring of nonlinear product and process quality profiles. Qual. Reliab. Eng. Int.
**2007**, 23, 925–941. [Google Scholar] [CrossRef] - Kwon, Y.; Jeong, M.K.; Omitaomu, O.A. Adaptive support vector regression analysis of closed-loop inspection accuracy. Int. J. Mach. Tools Manuf.
**2006**, 46, 603–610. [Google Scholar] [CrossRef] - Lim, C.K.R.; Mba, D. Switching Kalman filter for failure prognostic. Mech. Syst. Signal Process.
**2015**, 52–53, 426–435. [Google Scholar] [CrossRef] - Sang, Y.-F.; Wang, D.; Wu, J.-C.; Zhu, Q.-P.; Wang, L. Entropy-based wavelet de-noising method for time series analysis. Entropy
**2009**, 11, 1123–1148. [Google Scholar] [CrossRef] - Lu, C.-J.; Hsu, Y.-T. Vibration analysis of an inhomogeneous string for damage detection by wavelet transform. Int. J. Mech. Sci.
**2002**, 44, 745–754. [Google Scholar] [CrossRef] - Tan, M.H.; Hammond, J.K. A non-parametric approach for linear system identification using principal component analysis. Mech. Syst. Signal Process.
**2007**, 21, 1576–1600. [Google Scholar] [CrossRef] - Marwan, N.; Romano, C.M.; Thiel, M.; Kurths, J. Recurrence plots for the analysis of complex systems. Phys. Rep.
**2007**, 438, 237–329. [Google Scholar] [CrossRef] - Eckmann, J.-P.; Kamphorst, S.O.; Ruelle, D. Recurrence plots of dynamical systems. Europhys. Lett.
**1987**, 4, 973–977. [Google Scholar] [CrossRef] - Zbilut, J.P.; Webber, C.L. Embeddings and delays as derived from quantification of recurrence plots. Phys. Lett. A
**1992**, 171, 199–203. [Google Scholar] [CrossRef] - Syta, A.; Jonak, J.; Jedliński, L.; Litak, G. Failure diagnosis of a gear box by recurrences. J. Vib. Acoust.
**2012**, 134. [Google Scholar] [CrossRef] - Tykierko, M. Automatic Change Detection in Dynamical System With Chaos Based on Model, Fractal Dimension and Recurrence Plot. In Computer Aided Systems Theory–EUROCAST, Proceedings of 11th International Conference on Computer Aided Systems Theory, Las Palmas de Gran Canaria, Spain, 12–16 February 2007; Volume 4739, pp. 113–120.
- Tykierko, M. Using invariants to change detection in dynamical system with chaos. Physica D
**2008**, 237, 6–13. [Google Scholar] [CrossRef] - Zhou, C.; Zhang, W.D. Recurrence plot based damage detection method by integrating control chart. Entropy
**2015**, 17, 2624–2641. [Google Scholar] [CrossRef] - Webber, C.L.; Zbilut, J.P. Dynamical assessment of physiological systems and states using recurrence plot strategies. J. Appl. Physiol.
**1994**, 76, 965–973. [Google Scholar] [PubMed] - Marwan, N.; Wessel, N.; Meyerfeldt, U.; Schirdewan, A.; Kurths, J. Recurrence-plot-based measures of complexity and their application to heart-rate-variability data. Phys. Rev. E
**2002**, 66, 026702. [Google Scholar] [CrossRef] - Kennel, M.B.; Brown, R.; Abarbanel, H.D.I. Determining embedding dimension for phase-space reconstruction using a geometrical construction. Phys. Rev. A
**1992**, 45, 3403–3411. [Google Scholar] [CrossRef] [PubMed] - Fraser, A.M.; Swinney, H.L. Independent coordinates for strange attractors from mutual information. Phys. Rev. A
**1986**, 33, 1134–1140. [Google Scholar] [CrossRef] [PubMed] - Schinkel, S.; Dimigen, O.; Marwan, N. Selection of recurrence threshold for signal detection. Eur. Phys. J. Special Top.
**2008**, 164, 45–53. [Google Scholar] [CrossRef] - Mei, Y.J. Quickest Detection in Censoring Sensor Networks. In Proceedings of 2011 IEEE International Symposium on Information Theory, Saint-Petersburg, Russia, 31 July–5 August 2010; pp. 2148–2152.
- Efron, B. Bootstrap methods: Another look at the jack knife. Ann. Stat.
**1979**, 7. [Google Scholar] [CrossRef] - Jones-Farmer, L.A.; Woodall, W.H. The performance of bootstrap control charts. J. Qual. Technol.
**1998**, 30, 362–375. [Google Scholar] - Bajgier, S.M. The Use of Bootstrapping to Construct Limits on Control Charts. In Proceedings of the Decision Science Institute, San Diego, CA, USA, 22–24 November 1992; pp. 1611–1613.
- Teyarachakul, S.; Chand, S.; Tang, J. Estimating the limits for statistical process control charts: A direct method improving upon the bootstrap. Eur. J. Oper. Res.
**2007**, 178, 472–481. [Google Scholar] [CrossRef] - Shinozuka, M. Simulation of multivariate and multidimensional random processes. J. Acoust. Soc. Am.
**1971**, 49, 357–368. [Google Scholar] [CrossRef] - Lei, Y.; Zhang, Z.S.; Jin, J.H. Automatic tonnage monitoring for missing part detection in multi-operation forging processes. J. Manuf. Sci. Eng.
**2010**, 132. [Google Scholar] [CrossRef]
