Search Results (10)

Aragonite calcium carbonate (CaCO₃), derived from cockle shell waste, was successfully used as a renewable calcium source to synthesize calcium citrate (CCT) using citric acid (C₆H₈O₇). The three CCT products (CCT-2, CCT-3, and CCT-4) were prepared using three different acid concentrations: 2, 3, and 4 M. The physicochemical characteristics of the newly synthesized CCT were investigated. Fourier-transform infrared (FTIR) spectra revealed the vibrational modes of the citrate anionic group (C₆H₅O₇³⁻), which preliminarily confirmed the characteristics of CCT. However, X-ray diffraction (XRD) revealed that the concentration of citric acid altered the structural property and the chemical formula of the synthesized CCT. Employing 2 M citric acid, a pure tetra-hydrated phase (Ca₃(C₆H₅O₇)₂·4H₂O, earlandite mineral) was obtained. However, a mixture of hydrated (Ca₃(C₆H₅O₇)₂·4H₂O) and anhydrous (Ca₃(C₆H₅O₇)₂) phases was precipitated when 3 and 4 M citric acid was used in the preparation process. The lower mass loss observed in the thermogravimetric analysis (TGA) of CCT-3 and CCT-4 compared to that of CCT-2 further confirmed that CCT-3 and CCT-4 were composed of hydrated and anhydrous CCTs. The synthesized CCT decomposed in four major processes: the first dehydration, the second dehydration, CaCO₃ formation, and decarbonization, generating calcium oxide (CaO) as the final product. X-ray fluorescence (XRF) results showed that the CCT mainly consisted of CaO with a quantity of >98%. The scanning electron microscopic (SEM) image revealed the irregular plate-like CCT crystallites. The concentration of citric acid is a key factor that influences the productive parameters of CCT, including production yield, reaction time, and solubility. 2 M citric acid provided the optimal balance between productivity and cost-effectiveness, with the highest yield and soluble fraction and the lowest reaction time. The results suggest that the preparation of CCT from cockle shell waste can potentially replace the use of commercial calcite from mining, which is a limited and non-renewable resource. Full article

The contamination of soil with arsenic (As) and heavy metal is an increasing global environmental concern. The objective of this study was to rehabilitate soil contaminated with As, Pb, and Zn using fishery by-products as stabilizers to achieve both soil restoration and waste resource recycling. Cockle shells (CS) and manila clam shells (MC), selected as fishery by-product stabilizers, were processed into −#10-mesh and −#20-mesh materials. Additionally, a −#10-mesh material was calcined at a high temperature to produce calcined cockle shells (CCS) and calcined manila clam shells (CMC). Contaminated soil was treated with 2–10 wt% of these stabilizers and subjected to wet incubation for 1–4 weeks. Subsequently, the concentrations of As, Pb, and Zn eluted by 0.1 M HCl were evaluated. Additionally, lettuce was grown in stabilized soil to evaluate the reduction in contaminant mobility. The stabilization treatment results indicated that the concentrations of eluted As, Pb, and Zn were significantly reduced when treated with the −#10-mesh and −#20-mesh CS and MC, and they were rarely detected when treated with the calcined materials (CCS and CMC). The Pb concentration in lettuce grown in the contaminated soil pot exceeded the criterion for leafy vegetables (0.3 mg/kg); however, Pb was not detected in lettuce from the stabilized soil pot. An X-ray diffraction (XRD) analysis revealed that CaCO₃, the main component of CS and MC, was converted to CaO after calcination. Scanning electron microscopy with energy-dispersive X-ray spectroscopy (SEM-EDX) and SEM elemental dot map analyses revealed that the immobilization of As was related to Ca–As precipitation and the immobilization of Pb and Zn to the pozzolanic reaction. Thus, recycling and processing CS and MC as stabilizers for contaminated soil can restore the agricultural value of the soil by immobilizing As, Pb, and Zn into safe forms, thus effectively preventing their uptake by crops. Full article

Nowadays, the sustainable development of the construction industry has become a focus of attention. Crushing and grinding waste seashells originating from the fishery industry, such as oyster shells, cockle shells, mussel shells, and scallop shells, into different particle sizes for usage as aggregate and cement in concrete or mortar provides an effective and sustainable solution to environmental problems by reducing natural resource dependence. Numerous studies have attempted to analyze the suitability of waste seashell as a possible alternative to natural aggregates and cement in concrete or mortar. This paper presents an up-to-date review of the characteristics of different types of waste seashell, as well as the physical, mechanical, durability, and other notable functional properties of seashell concrete or mortar. From the outcome of the research, waste seashell could be an inert material, and it is important to conduct a series of proper treatment for a better-quality material. It is also seen from the results that although the mechanical properties of seashell concrete have been reduced, they all meet the required criteria set by various international standards and codes. Therefore, it is recommended that the replacement of seashells as aggregate and cement should not exceed 20% and 5%, respectively. Seashell concrete or mortar would then have sufficient workability and strength for non-structural purposes. However, there is still a lack of investigation concerning the different properties of reinforced concrete members using seashells as the replacement of aggregate or cement. Further innovative research can solidify its utilization towards sustainable development. Full article

Three-dimensional (3D) printed calcium phosphate cement (CPC) scaffolds are increasingly being used for bone tissue repair. Traditional materials used for CPC scaffolds, such as bovine and porcine bone, generally contain low amounts of calcium phosphate compounds, resulting in reduced production rates of CPC scaffolds. On the other hand, cockle shells contain more than 99% CaCO₃ in the form of amorphous aragonite with excellent biocompatibility, which is expected to increase the CPC production rate. In this study, 3D-printed cockle shell powder-based CPC (CSP-CPC) scaffolds were developed by the material extrusion method. Lactic acid and hyaluronic acid were used to promote the printability. The characterization of CSP-CPC scaffolds was performed using Fourier transform infrared spectra, X-ray diffraction patterns, and scanning electron microscopy. The biocompatibility of CSP-CPC scaffolds was evaluated using cell viability, Live/Dead, and alkaline phosphatase assays. In addition, CSP-CPC scaffolds were implanted into the mouse calvarial defect model to confirm bone regeneration. This study provides an opportunity to create high value added in fishing villages by recycling natural products from marine waste. Full article

Soil washing is a well-established remediation technology for treating soil contaminated with heavy metals. It involves the separation of contaminants from the soil using acidic washing agents. Nevertheless, the application of washing agents at high concentrations may lead to soil acidification and the destruction of the clay structure. To avert this problem, recently, a soil washing variant has been presented, which solely employs high-pressure water without any chemical solvents. However, the fine soil generated from soil washing at a high-pressure contains high levels of heavy metals and requires proper treatment. This study examines the use and applicability of natural aquaculture materials as stabilizing agents for treating heavy metals (Cu, Pb, and Zn) in fine soil generated by high-pressure soil washing. Three aquaculture materials were assessed, namely, cockle shells (CKS), scallop shells (SLS), and Asterias amurensis starfish (ASF). Each material was processed to yield three types of stabilizing agents: natural type (-#10 mesh), natural type (-#20 mesh), and calcined(C) type (-#10 mesh). Each stabilizing agent was added to the contaminated soil at a ratio of 0 to 10 wt%, and then, mixed with an appropriate amount of water. After wet curing for 28 days, the stabilization efficiency of Cu, Pb, and Zn was evaluated using 0.1 N HCl solution. The elution of heavy metals showed a decreasing trend with higher dosages of stabilizing agents. The calcined type (-#10) showed the highest stabilization efficiency, followed by the natural type (-#20) and natural type (-#10). In addition, a comparison of the efficiency of the different stabilizing agents showed that calcined ASF (CASF) had the highest stabilization efficiency, followed by calcined SLS (CSLS), calcined CKS (CCKS), natural ASF (NASF), natural SLS (NSLS), and natural CKS. Finally, analysis of samples exhibiting the highest stabilization efficiency by scanning electron microscopy–energy dispersive X-ray spectrometry (SEM–EDX) confirmed that the pozzolanic reaction contributed to the stabilization treatment. The results of this study demonstrate that heavy metal-contaminated fine soil, generated by high-pressure washing, can be remediated by stabilizing Cu, Pb, and Zn using waste aquaculture materials (CKS, SLS, and ASF), which are often illegally dumped into the sea or landfills and cause environmental damage. Full article

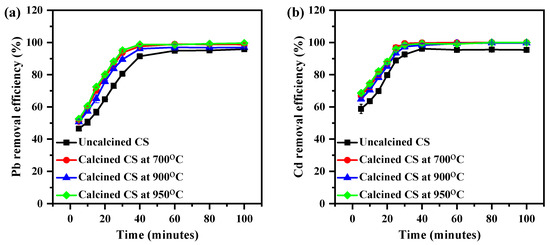

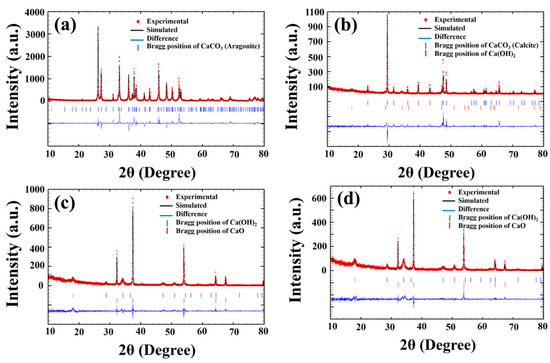

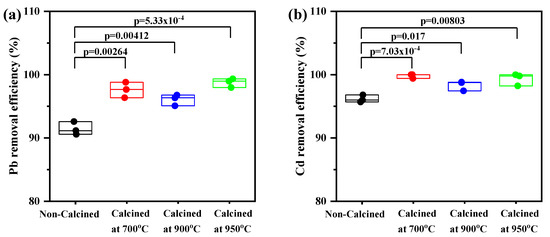

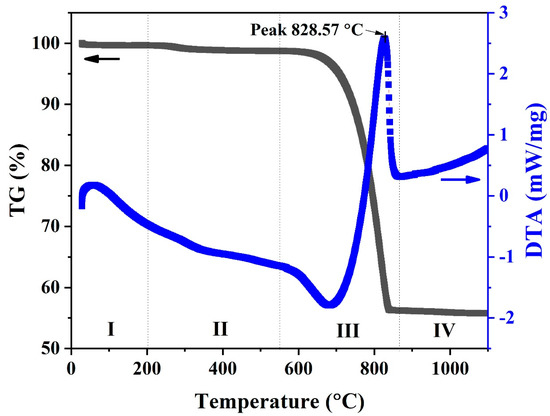

Heavy metals in wastewater represent one of the most serious concerns around the world. They cause significant harm to human health. Cockle shells have been considered a source of calcium carbonate (CaCO₃), but their shells are disposed of as waste that pollutes the coastal environment. CaCO₃ has attracted considerable attention as an adsorbent for heavy metals. To ensure the meaningful use of cockle shell (CS) waste and achieve a zero-waste production system, in this study, CaCO₃ powder was synthesized from CS. It was characterized using XRD, TA/DTA, FESEM, and AAS. The XRD results illustrated that partial phase changes occur from aragonite (natural shell) to calcite (CaCO₃), calcium hydroxide (Ca(OH)₂), and calcium oxide (CaO) during heating. The calcined CS presented excellent adsorption performance for Pb and Cd. The Pb removal efficiency scores were about 97%, 96%, and 99% and the Cd removal efficiency scores were 100%, 98%, and 99% in a shorter time for calcined CS at 700 °C, 900 °C, and 950 °C, respectively. The results of this study show that the calcium carbonate from CS is an effective and low-cost adsorbent for the adsorption of Pb and Cd in aqueous solution. Full article

Lead (Pb) exposure can be harmful to public health, especially through drinking water. One of the promising treatment methods for lead contaminated water is the adsorption-filtration method. To ensure the cost-effectiveness of the process, naturally derived adsorbent shall be utilised. In this study, hydroxyapatite particles, Ca₁₀(PO₄)₆(OH)₂ (HAP) derived from waste cockle shell, were incorporated into the outer layer of polysulfone/HAP (PSf/HAP) dual-layer hollow fibre (DLHF) membrane to enhance the removal of lead from the water source due to its hydrophilic nature and excellent adsorption capacity. The PSf/HAP DLHF membranes at different HAP loadings in the outer layer (0, 10, 20, 30 and 40 wt%) were fabricated via the co-extrusion phase inversion technique. The performance of the DLHF membranes was evaluated in terms of pure water flux, permeability and adsorption capacity towards lead. The results indicated that the HAP was successfully incorporated into the outer layer of the membrane, as visibly confirmed by microscopic analysis. The trend was towards an increase in pure water flux, permeability and lead adsorption capacity as the HAP loading increased to the optimum loading of 30 wt%. The optimized DLHF membrane displayed a reduced water contact angle by 95%, indicating its improved surface hydrophilicity, which positively affects the pure water flux and permeability of the membrane. Furthermore, the DLHF membrane possessed the highest lead adsorption capacity, 141.2 mg/g. The development of a hybrid inorganic–organic DLHF membrane via the incorporation of the naturally derived HAP in the outer layer is a cost-effective approach to treat lead contaminated water. Full article

The search for sustainable resources remains a subject of global interest and the conversion of the abundantly available bivalve shell wastes to advanced materials is an intriguing method. By grinding, calcium carbonate (CaCO₃) powder was obtained from each shell of bivalves (cockle, mussel, and oyster) as revealed by FTIR and XRD results. Each individual shell powder was reacted with H₃PO₄ and H₂O to prepare Ca(H₂PO₄)₂·H₂O giving an anorthic crystal structure. The calcination of the mixture of each shell powder and its produced Ca(H₂PO₄)₂·H₂O, at 900 °C for 3 h, resulted in rhombohedral crystal β-Ca₃(PO₄)₂ powder. The FTIR and XRD data of the CaCO₃, Ca(H₂PO₄)₂·H₂O, and Ca₃(PO₄)₂ prepared from each shell powder are quite similar, showing no impurities. The thermal behaviors of CaCO₃ and Ca(H₂PO₄)₂·H₂O produced from each shell were slightly different. However, particle sizes and morphologies of the same products obtained from different shells were slightly different—but those are significantly different for the kind of the obtained products. Overall, the products (CaCO₃, Ca(H₂PO₄)₂·H₂O, and Ca₃(PO₄)₂) were obtained from the bivalve shell wastes by a rapidly simple, environmentally benign, and low-cost approach, which shows huge potential in many industries providing both economic and ecological benefits. Full article

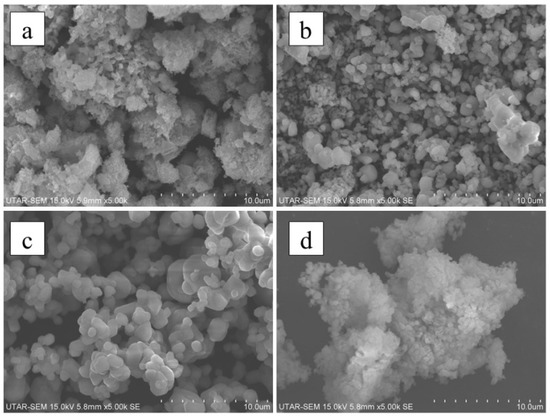

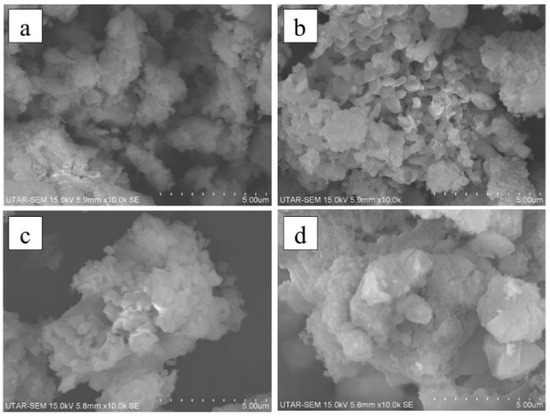

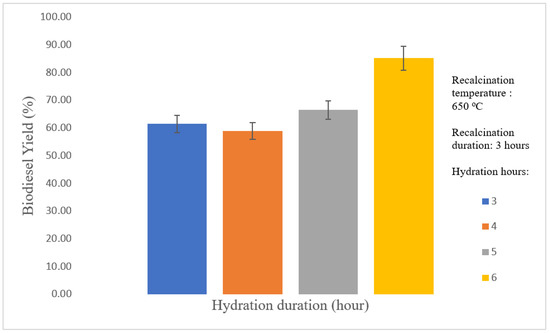

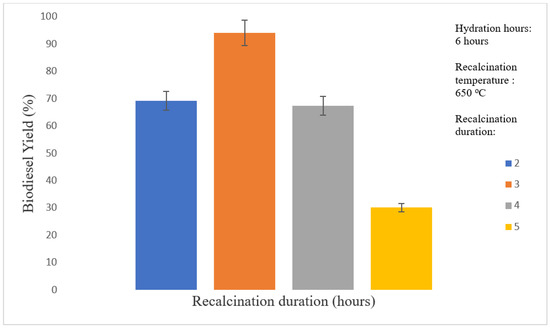

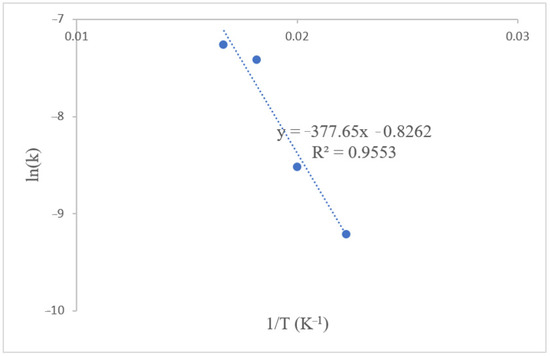

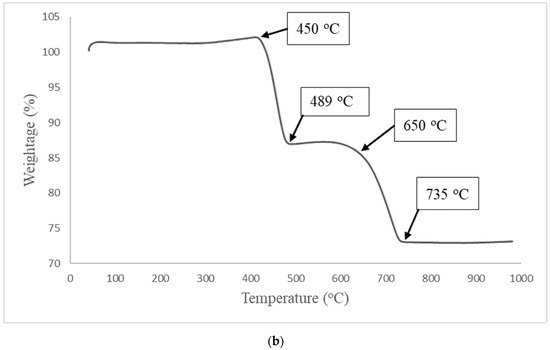

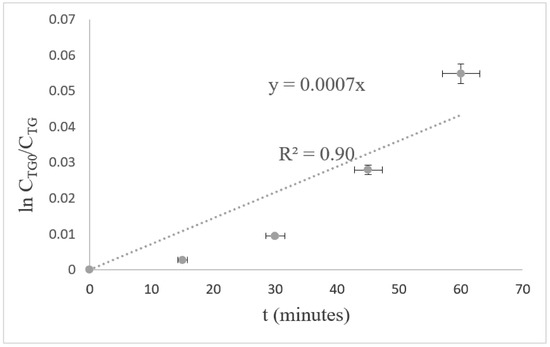

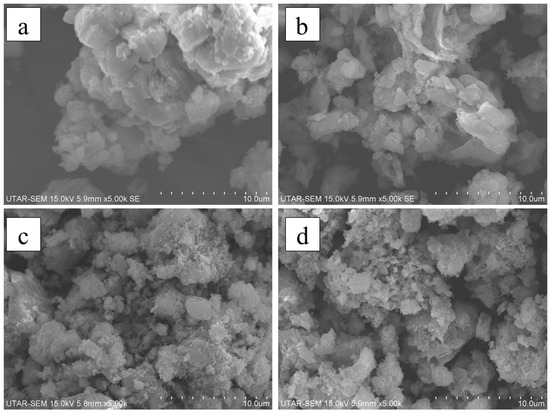

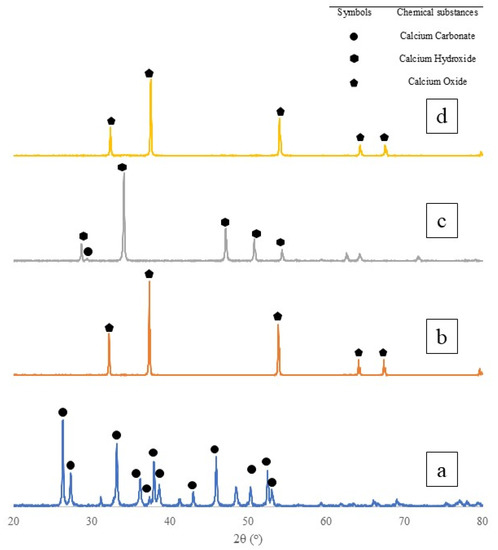

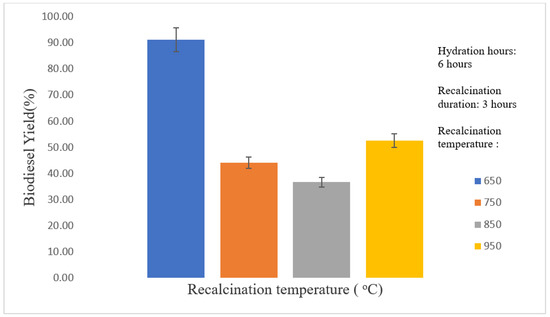

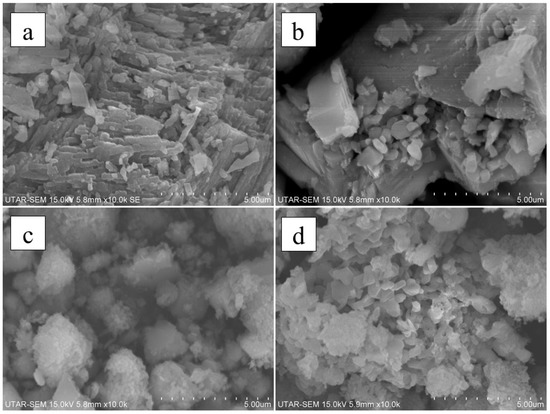

This research focuses on deducing the kinetic mechanism for biodiesel production catalyzed by a CaO nanocatalyst derived from waste cockle shells via thermal hydration–dehydration treatment. In addition, the CaO nanocatalyst preparation method via thermal hydration–dehydration-related parameters (hydration duration, recalcination temperature, and recalcination duration) was studied and optimized. The transesterification reaction catalyzed by the CaO nanocatalyst followed the Langmuir–Hinshelwood kinetic mechanism with surface reaction as the rate-limiting step. The relatively low activation energy (3786.7 J/mol) for a transesterification reaction offered by the CaO nanocatalyst enhanced the reaction rate to 27.3% FAME yield/hr. The optimal conditions for the thermal hydration–dehydration treatment used to develop the nano CaO catalyst were 6 h of hydration duration, 650 °C of recalcination temperature, and 3 h of recalcination duration. Of biodiesel yield, 94.13% was obtained at a moderate temperature of 60 °C and 3 h reaction time during the transesterification of palm oil catalyzed by the nano-CaO. SEM, BET, and TPD results proved that the CaO nanocatalyst had a large surface area (13.9113 m²/g) and high pore volume (0.0318 cm³/g) that were rich in active sites (1046.46 μmol CO₂/g), and the pore diameter (33.17 nm) was accessible to reactants and products. Full article

Every year a million tonnes of calcium rich agro and industrial waste are generated around the whole globe. These calcium rich waste like finger citron, shells of cockle, mussel, oysters etc., and egg shell are biological sources which have various organic compounds. The inorganic calcium rich waste includes gypsum, dolomite, sludge etc., which are produced in surplus amount globally. Most of these by-products are mainly dumped, while few are used for land-filling purposes which leads to the pollution. These agro and industrial by-products could be processed for the recovery of calcium carbonate and calcium oxide particles by physical and chemical method. The recovery of calcium carbonate and calcium oxide particles from such by products make them biocompatible. Moreover, the products are economical due to their synthesis from waste materials. Here, in this current review work we have emphasized on the all the calcium rich agro industries and industrial by products, especially their processing by various approaches. Further, we have also focused on the properties and application of such calcium carbonate and oxide particles for the remediation of organic and inorganic pollutants from the environments. The recovery of such particles from these byproducts is considered not only economical and eco-friendly but it also minimizes the pollution present in the form of solid waste. Full article
