Search Results (8)

The surface of calcined kaolinite particles underwent chemical modification using Vinyltriethoxysilane (VTMS) and 3-mercaptopropionic acid (3-MPA). The grafting ratio of VTMS on the calcined kaolinite surface was adjusted by varying its quantity. FT-IR analysis revealed the initial grafting of VTMS onto the kaolinite surface, resulting in the formation of a C=C reactive site on the surface. Subsequently, an olefin click reaction with 3-MPA occurred, leading to the effective grafting of 3-MPA onto the kaolinite surface and the formation of an efficient coating. Thermal analysis indicated that the optimal grafting level was achieved at a modifier content V:K ratio of 0.5. The estimated grafting ratio of the modifier on the kaolinite surface was approximately 40% when V:K was 0.5. Water contact angle and dispersion experiments demonstrated that the surface properties of kaolinite were effectively controlled by this modification approach. At V:K = 0.3, the modified kaolinite particles exhibited good dispersion in both polar and non-polar solvents. In polar solvents, the average particle size of modified kaolinite was below 1100 nm, while in non-polar solvents, it did not exceed 5000 nm. Considering all aspects, a V:K ratio of 0.3 is recommended. Further investigation into the impact of adding 3-MPA on the surface properties of modified kaolinite particles based on V:K = 0.3 revealed that the hydrophilicity of the modified particles could be enhanced. However, it is advised to keep the maximum M:V ratio (3-MPA to kaolinite) at 1.0. Full article

Composites based on Zr₆₅Cu_17.5Ni₁₀Al_7.5/PTFE (polytetrafluoroethylene) with silane were prepared by ball milling with subsequent thermal pressing. Silanization was performed in the alcoholic solution with metallic glass powder. Different composites, 30/70 and 50/50 with silane, were prepared. During ball milling, Zr₂Cu and Zr₂Ni intermetallic phases were formed. The Zr-based metallic glass had a large supercooled region, and the melting point of the 30/70 and 50/50 composites with silane was near to the melting point of PTFE. The 50/50 composite (silane) had the highest thermal conductivity compared to the 30/70 composite samples. The incorporation of silane in metallic glass/polymer was investigated by Fourier-transform infrared spectroscopy (FTIR) and scanning electron microscope (SEM) analysis. Thermogravimetric analysis (TGA) showed the thermal stability of the composite samples up to 450–460 °C. It was also concluded that the 50/50 composite with silane has better thermal stability than the 30/70 composite with silane. The addition of silane in 30/70 and 50/50 composites increased the thermal conductivity compared to the composites without silane. Full article

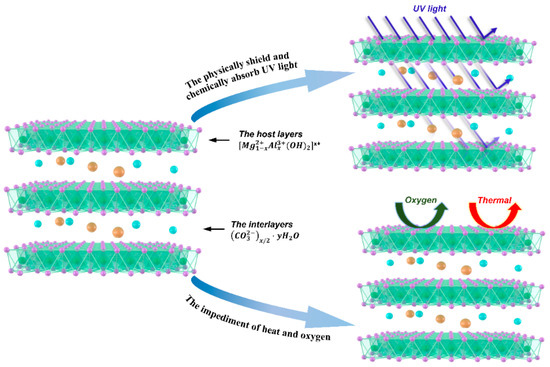

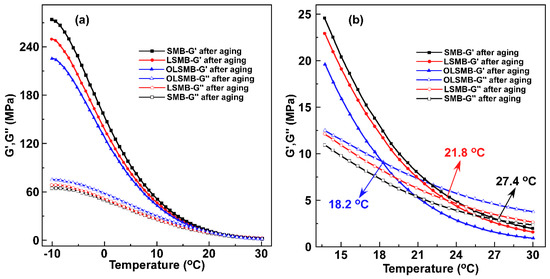

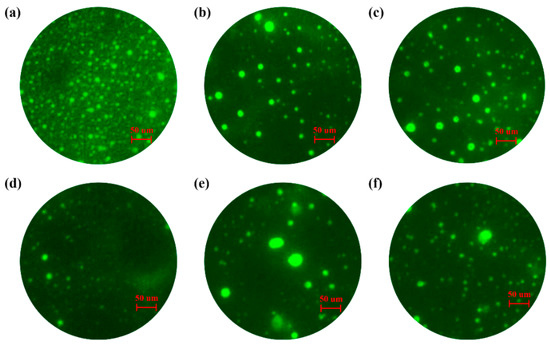

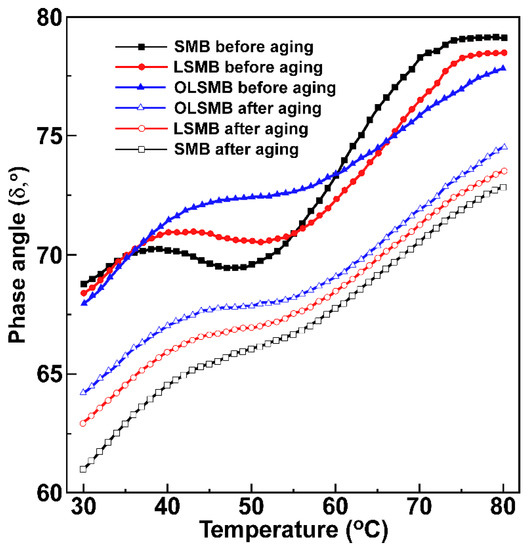

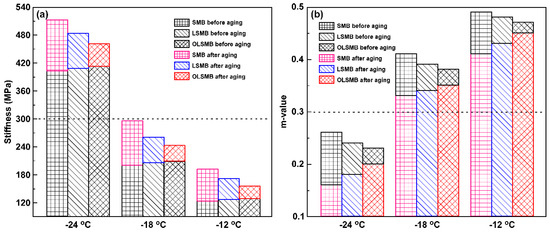

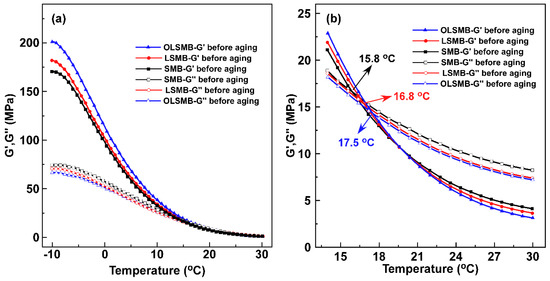

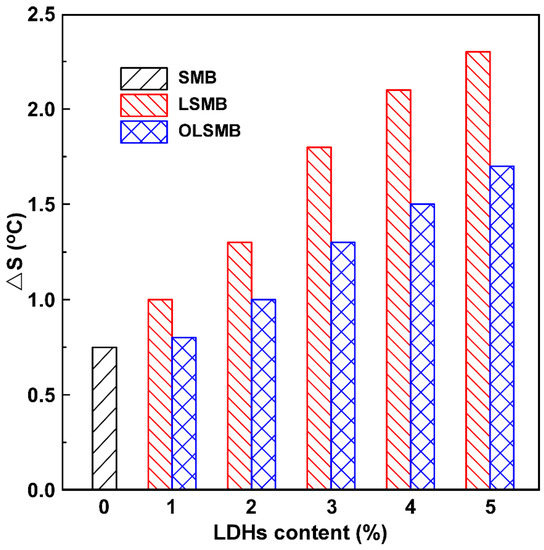

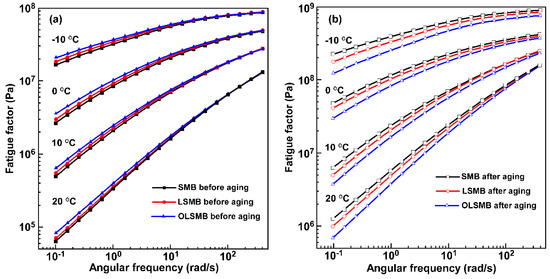

SBS-modified bitumen (SMB) is susceptible to aging, which seriously influences its service performance and life. In order to strengthen the anti-aging ability of SMB, triethoxyvinylsilane was designed to organically modify layered double hydroxides (LDHs) and was applied to modify SMB. The dispersibility and storage stability of LDHs in SMB were markedly enhanced after triethoxyvinylsilane organic modification, and the compatibility and storage stability of SBS in bitumen were simultaneously enhanced. Compared with SMB, the introduction of LDHs and organic LDHs (OLDHs) could ameliorate the high-temperature properties of SMB, and the thermostability of SBS in bitumen at a high temperature was also distinctly improved, especially OLDHs. After aging, due to the oxidation of molecular bitumen and the degradation of molecular SBS, SMB became hardened and brittle, and the rheological properties were significantly deteriorated, which had serious impacts on the performance of SMB. LDHs can mitigate the detriment of aging to bitumen and SBS, and the deterioration of the rheological properties of SMB is obviously alleviated. As a result of the better dispersibility and storage stability, OLDHs exerted superior reinforcement of the anti-aging ability of SMB. Full article

In this work, organic-inorganic materials with spherical shape consisting of divinylbenzene (DVB) and triethoxyvinylsilane (TEVS) were synthesized and investigated by different complementary techniques. The obtained microspheres may be applied as sorbent systems for the purification of organic compounds from water. The hybrid microspheres combine the properties of the constituents depending on the morphologies and interfacial bonding. In this work, the influence of the molar ratio composition of crosslinked monomer (DVB) and silane coupling agent (TEVS) (DVB:TEVS molar ratios: 1:2, 1:1 and 2:1) on the morphology and quality of organic-inorganic materials have been examined. The materials were analysed using small angle X-ray scattering (SAXS) analysis, low-temperature nitrogen sorption, scanning electron microscopy (SEM) and Fourier transform infrared spectroscopy (FTIR) to provide information on their structural and surface properties. Moreover, thermal analysis was performed to characterize the thermal stability of the studied materials and the adsorbent-adsorbate interactions, while adsorption kinetic studies proved the utility of the synthesized adsorbents for water and wastewater treatment. Full article

To improve interfacial adhesion between glass fiber (GF) and poly(ethylene-grafted-styrene)-based cation exchange membranes (CEM), GF was modified by four coupling agents: [3-(Methacryloxy)propyl] trimethoxy silane (3-MPS), 1,6-bis (trimethoxysilyl) hexane (1,6 bis), Poly(propylene-graft-maleic anhydride) (PP-g-MA) and Triethoxyvinylsilane (TES). The results indicated the addition of modified GF increased tensile strength, tensile modulus, storage modulus and interfacial adhesion of GF/CEM composite but degraded the strains. The composite with 3-MPS modified GF obtained superior mechanical properties and interfacial adhesion, whereas the modified effect of TES was inconspicuous. The addition of unmodified GF even had negative effects on GF/CEM mechanical properties. The field emission scanning electron microscopes (FE-SEM) showed that the GF treated by 3-MPS and PP-g-MA have better compatibility with the CEM matrix than 1,6 bis and TES-treated GF. The Fourier-transform infrared spectroscopy (FT-IR) verified that the strengthening effects from modified GF were attributed to the formation of Si-O-Si and Si-O-C bonds. The additions of modified GF in CEM positively influence water uptake ability but negatively influence ion exchange capacity (IEC). This research provided a way of strengthening GF/CEM composite and pointed out which functional groups included in coupling agents could be useful to GF-reinforced composite. Full article

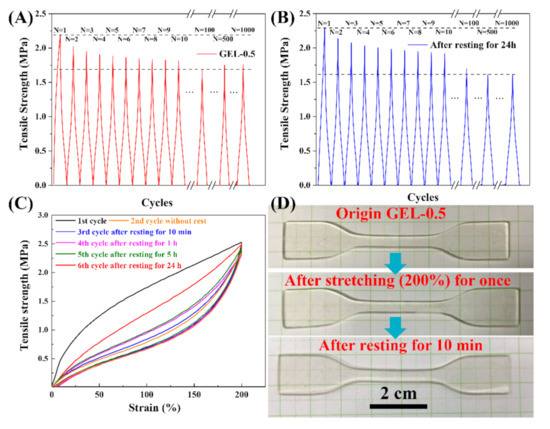

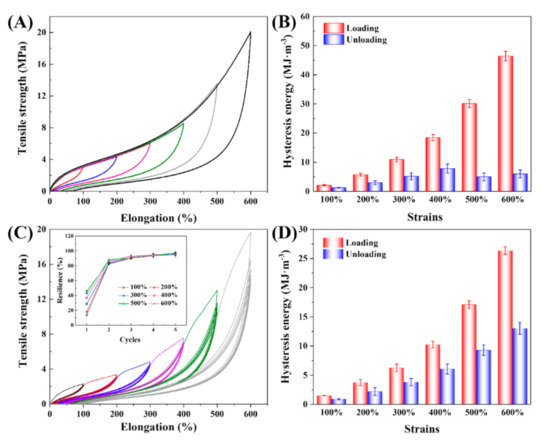

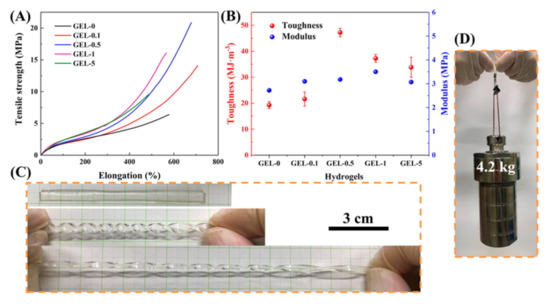

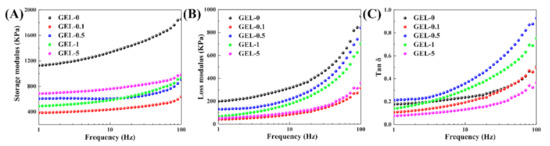

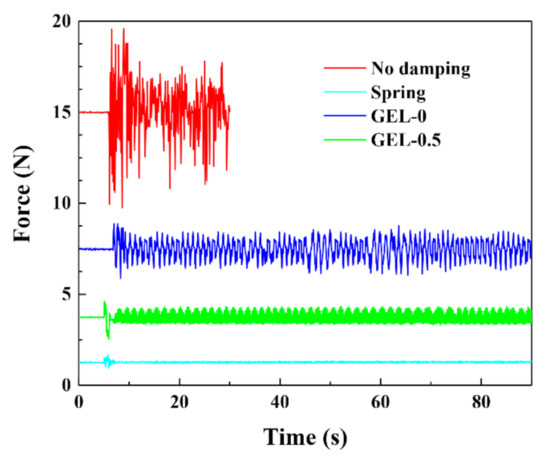

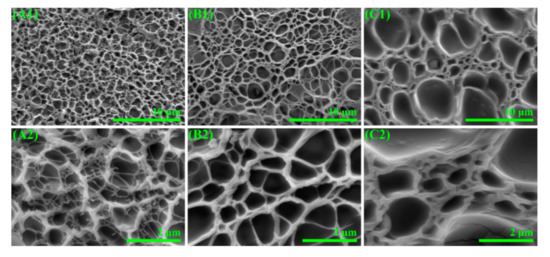

The engineering applications of hydrogels are generally limited by the common problem of their softness and brittlness. In this study, a composite double network ionic hydrogel (CDN-gel) was obtained by the facile visible light triggered polymerization of acrylic acid (AA), polyvinyl alcohol (PVA), and hydrolyzed triethoxyvinylsilane (TEVS) and subsequent salt impregnation. The resulting CDN-gels exhibited high toughness, recovery ability, and notch-insensitivity. The tensile strength, fracture elongation, Young’s modulus, and toughness of the CDN-gels reached up to ~21 MPa, ~700%, ~3.5 MPa, and ~48 M/m³, respectively. The residual strain at a strain of 200% was only ~25% after stretch-release of 1000 cycles. These properties will enable greater application of these hydrogel materials, especially for the fatigue resistance of tough hydrogels, as well as broaden their applications in damping. Full article

Bioactive glass (BG) nanoparticles have wide applications in bone repair due to their bone-bonding and biodegradable nature. In this work, nanometric rod-shaped ternary SiO₂-CaO-P₂O₅ bioactive glass particles were prepared through sol-gel chemistry followed by a base-induced hydrothermal process at 130 °C and 170 °C for various times up to 36 h. This facile, low-temperature and surfactant-free hydrothermal process has shown to be capable of producing uniform nanorods and nanowires. One-dimensional growth of nanorods and the characteristics of siloxane bridging networks were dependent on the hydrothermal temperature and time. Hardened bioactive composites were prepared from BG nanorods and cryo-milled poly(vinylpyrrolidone-co-triethoxyvinylsilane) in the presence of ammonium phosphate as potential bone graft biomaterials. Covalent crosslinking has been observed between the organic and inorganic components within these composites. The ultimate compressive strength and modulus values increased with increasing co-polymer content, reaching 27 MPa and 500 MPa respectively with 30% co-polymer incorporation. The materials degraded in a controlled non-linear manner when incubated in phosphate-buffered saline from 6 h to 14 days. Fibroblast cell attachment and spreading on the composite were not as good as the positive control surfaces and suggested that they may require protein coating in order to promote favorable cell interactions. Full article

A label-free biosensor based on silicon-on-insulator (SOI) photonic bandgap (PBG) structures is performed for specific protein detection. First, the SOI sensing surface is functionalized using triethoxyvinylsilane (TEVS) organosilane. Then, a UV light photocatalyzed immobilization of polyclonal half anti-bovine serum albumin (haBSA) antibodies is performed. Finally, a direct detection of target BSA antigen is carried out. Both the immobilization and the detection steps are monitored by making a continuous tracking of the PBG edge shift. In order to confirm the recognition of the antigen by the immobilized antibody, a fluorophore-labelled secondary antibody was flowed at the end of the experiment in order to perform a confirmation fluorescence test after the photonic detection. Full article
