Search Results (7)

To address the research gap in gas blast resistance of composite precast assembled utility tunnels, this study investigates structural damage evolution and the mechanisms influencing parameters through validated numerical simulations. A three-dimensional numerical model, incorporating the Karagozian & Case (K&C) concrete damage model and tie-break contact algorithm, was developed using LS-DYNA. The first validation against composite precast concrete slab explosion tests confirmed the model’s reliability, with displacement peak errors below 10%. The second validation focuses on the blast resistance test conducted on an underground utility tunnel, revealing an error margin of less than 10%. Results indicate that the utility tunnel exhibits a progressive failure mode of “joint cracking-interface damage-midspan cracking” under explosive loads, with stiffness degradation observed in joint regions at a loading pressure of 700 kPa. Increasing the normal strength of the interface to 5 MPa suppresses 90% of interface delamination, whereas completely neglecting interface strength results in a 9.0% increase in midspan displacement. Concrete strength shows minimal impact (<2.5%) on displacement under high loading conditions (≥0.9 MPa), and increasing the reinforcement ratio from 0.44% to 0.56% reduces displacement of the roof slab by 10.5%. These findings of address the research gap in the gas explosion response of composite precast assembled utility tunnels and could have significant implications for enhancing the disaster resistance of urban underground spaces. Full article

The integrity of delaminated composite structures can be restored by introducing a thermally-based healing effect on continuous fiber-reinforced thermoplastic composites (CFRTPC). The phenomenon of thermoplastics retaining their properties after melting and consolidation has been applied by heating the delaminated composite plates above their glass transition temperature under pressure. In the current investigation, the composite is comprised of Methyl methacrylate (MMA)-based infusible lamination resin combined with benzoyl peroxide initiator, which polymerizes into a Polymethyl methacrylate (PMMA) matrix. For the reinforcement, unidirectional 220 gr/m² glass filament fabric was used. Delamination damage is artificially induced during the fabrication of laminate plates. The distributed delamination region before and after thermally activated healing was determined by using non-destructive testing with active thermography. An experimental approach is employed to characterize the thermal healing effect on mechanical properties. Experimentally determined technological parameters for thermal healing have been successfully applied to repair delamination defects on composite plates. Based on the compression-after-impact (CAI) test methodology, the intact, damaged, and healed composite laminates were loaded cyclically to evaluate the healing effect on stiffness and strength. During the CAI test, the 3D digital image correlation (DIC) technique was used to measure the displacement and deformation fields. Experimental results reveal the difference between the behavior of healed and damaged specimens. Additionally, the numerical models of intact, damaged, and healed composite laminates were developed using the finite element code LS-Dyna. Numerical models with calibrated material properties and tie-break contact constants provide good correlation with experimental results and allow for the prediction of the mechanical behavior of intact, damaged, and healed laminated plates. The comparison analysis based on CAI test results and modal characteristics obtained by the 3D Laser Doppler Vibrometer (Polytec GmbH, Karlsbad, Germany) proved that thermal healing partially restores the mechanical properties of damaged laminate plates. In contrast, active thermography does not necessarily indicate a healing effect. Full article

In recent years, due to the increasingly powerful functions of tablets, more and more people have used tablets. The failure of the screen caused by debonding failure between the screen and the case of the tablet due to drops will affect the normal use of the tablet. However, there have been few studies on the debonding methods of the screen and the case of the tablet, as well as the factors influencing the debonding between the screen and the case of the tablet. Numerical analysis software was used in this paper to simulate the iPad Air (Air) drop process, and the cohesive zone model and tiebreak contact were used to simulate the debonding process between the screen and case of the Air tablet, respectively. When the results are compared to the experiments, the results show that the cohesive zone model is superior. The effects of various rounded corner radii, drop postures in the XY plane, materials of the outer case, and strain rates of PC/ABS on the localized debonding between the outer case and outer glass of the Air during the drop process were investigated. The degree of debonding between the Air model’s outer case and outer glass is defined by t, which is the ratio of the area of the deleted cohesive elements to the total area of the cohesive elements. The results show that the rounded corner radius and the strain rate of PC/ABS have less influence on t; the t of the Air model dropped at 45° in the XY plane is 37.7% of that dropped at 0° and 90°; and the t of the Air model with glass as the outer case material is 48% of that with aluminum alloy as the outer case material. These studies serve as a foundation for tablet design and material selection. Full article

Although carbon fiber-reinforced polymer (CFRP) composites have excellent intrinsic mechanical properties, they are vulnerable to impact loads because of their weak inter-laminar fracture toughness, which results in delamination damage. This study presents a novel hybrid nanofiller combination of multi-walled carbon nanotubes (MWCNT) and alumina nanoparticles (Al₂O₃) to determine improvements in the impact resistance of CFRP laminate. The projectile impact experimental study is carried out on 140 mm × 140 mm × 1.5 mm CFRP laminate with spherical and conical nose shape projectiles. The numerical study of the test plate consisting of six layers is performed, in which each layer is modeled using a shell element and connected through tiebreak contact. Using the Cowper–Symonds equation to determine the dynamic mechanical properties, the numerical validation is established considering the strain rate effect. The results, such as residual velocity, damage area, ballistic limit velocity and delamination obtained from numerical analysis, are compared with the experimental observations. In laminates with hybrid nanofillers, residual velocity decreased by 20% and 9% when spherical and conical projectiles were impacted, respectively. The study indicates that 0.1 wt% MWCNT + 1 wt% Al₂O₃ nanofiller concentration embedded CFRP offers better resistance against spherical and conical projectile impact. Full article

In order to verify the delamination damage occurring in thick-walled composite-overwrapped pressure vessels, firstly, for composite delamination damage, a composite laminate model was established. Model I and model II delamination failure processes of composite structures were simulated and verified based on a tiebreak contact algorithm for different mesh sizes, respectively, and the approximate equivalent results were achieved by correcting the inter-ply strength. Then, for in-plane damage to composite materials, the elastic–plastic process was verified by selecting a progressive damage model, with quasistatic nonlinear tensile shear of sample specimens as an example. Further, under the purpose of generality and simplicity, the location of the first occurrence of delamination failure was simulated and analyzed with the tiebreak contact algorithm and a reasonable mesh size, using quasistatic loading of a thick composite-overwrapped pressure vessel cylindrical section as an example. The results showed that delamination occurred at approximately the center, which is in general agreement with the experimentally observed phenomenon. On this basis, the locations of the first significant delamination phenomena in composite-overwrapped vessels under three different ratios of plus or minus 45-degree layup angles were predicted. Finally, the differences in structural strength between the single laying methods and the combined laying method were compared. The results showed that the ratio of 50% had a higher modulus value than a pure 0° ply, but too large a ratio was detrimental to the improvement of structural properties. Full article

This study describes the numerical simulation results of aluminum/carbon-fiber-reinforced plastic (CFRP) hybrid joint parts using the explicit finite-element solver LS-DYNA, with a focus on capturing the failure behavior of composite laminates as well as the adhesive capacity of the aluminum–composite interface. In this study, two types of adhesive modeling techniques were investigated: a tiebreak contact condition and a cohesive zone model. Adhesive modeling techniques have been adopted as a widely commercialized model of structural adhesives to simulate adhesive failure based on fracture mechanics. CFRP was studied with numerical simulations utilizing LS-DYNA MAT54 to analyze the crash capability of aluminum/CFRP. To evaluate the simulation model, the results were compared with the force–displacement curve from numerical analysis and experimental results. A parametric study was conducted to evaluate the effect of different fracture toughness values used by designers to predict crash capability and adhesive failure of aluminum/CFRP parts. Full article

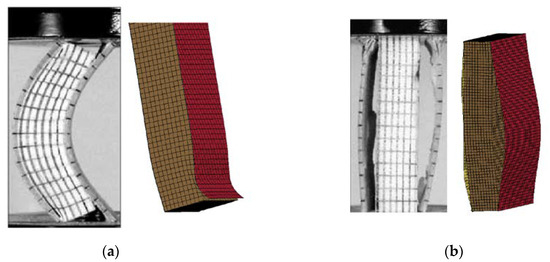

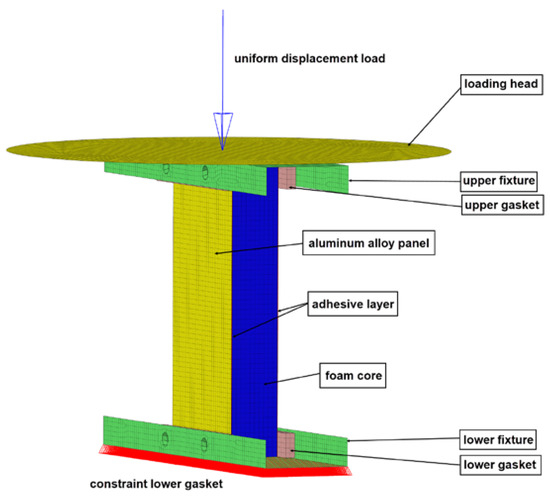

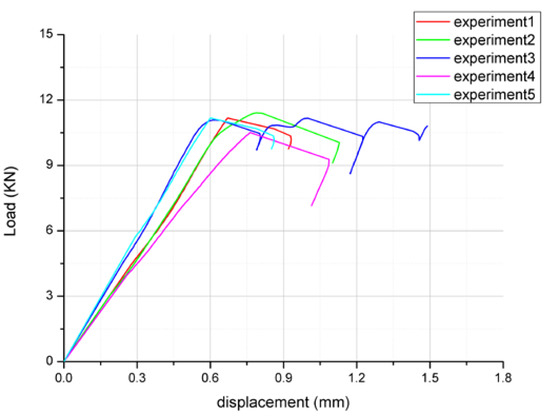

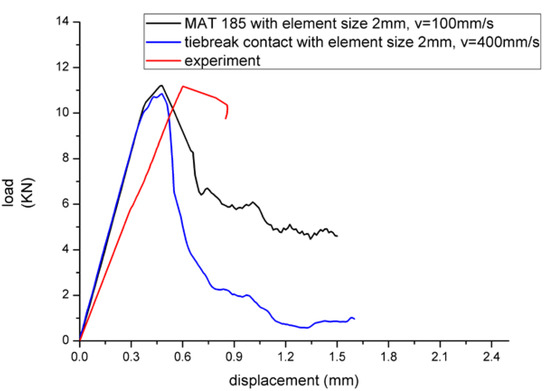

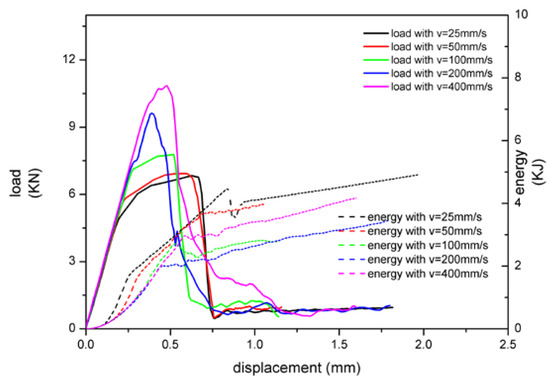

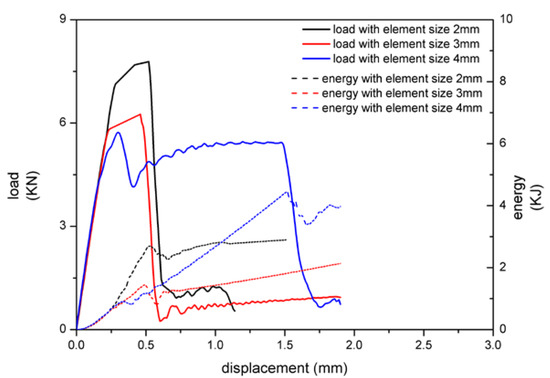

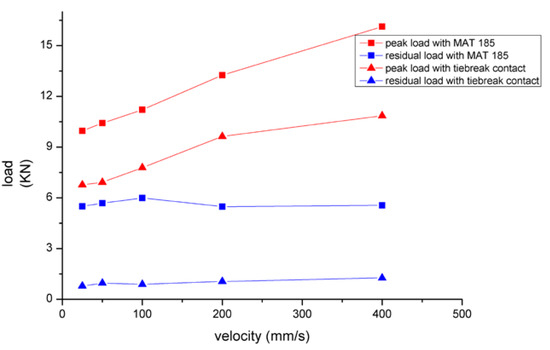

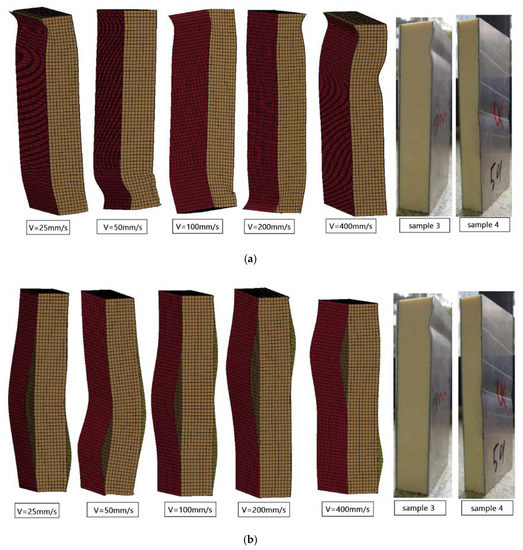

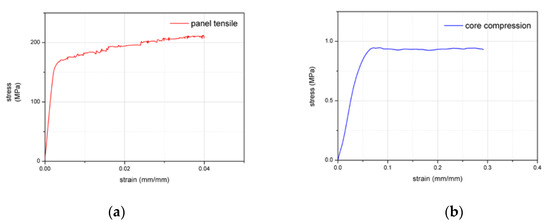

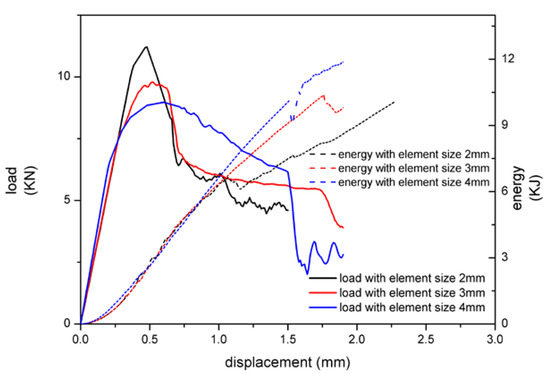

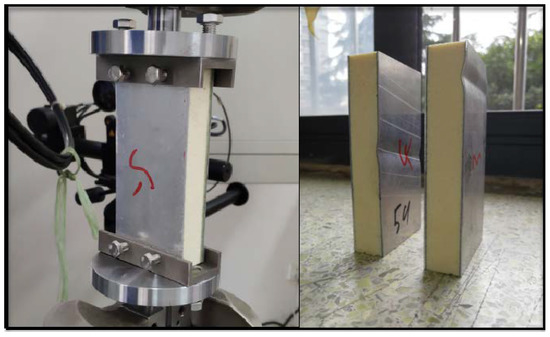

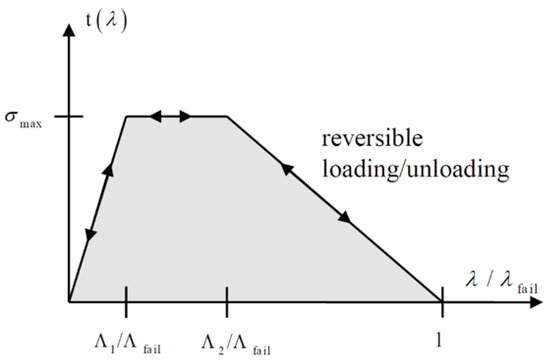

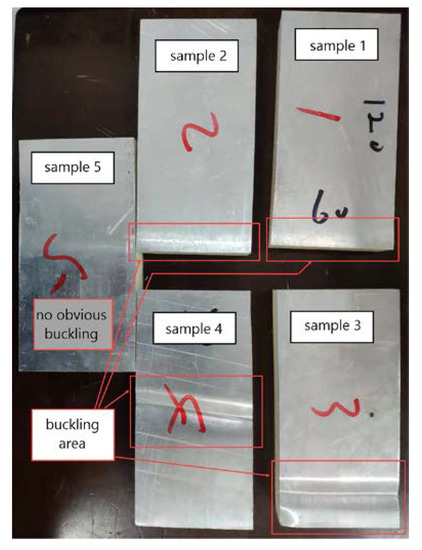

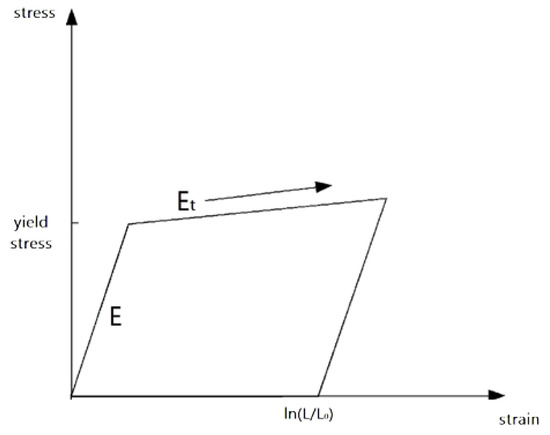

In order to study the interfacial adhesive material simulation method of a sandwich structure with aluminum alloy panels and a low-density foam core under edgewise compression condition, two finite element models were defined using material model no. 185 (MAT 185) adhesive element and tiebreak contact, respectively, by LS-DYNA. Under the conditions of different loading rates, and element sizes, the effects of peak load, energy absorption, failure mode of adhesive layer and the influence degree of the changing condition on the calculated results were compared between the two models, and then compared with the experiment results and theoretical results. The higher the loading rate was, or the smaller the element size was, the higher the peak load was. The simulation results obtained using MAT 185 were closer to the experimental results under the edgewise compression condition. Full article
