Search Results (127)

To accurately assess the effect of different plate thicknesses on the residual stress field of laser shock peened GH3039 superalloy, residual stress measurements were performed on GH3039 alloy plates with thicknesses of 2 mm and 5 mm after laser shock peening (LSP) treatment. Both quasi-static and high strain rate mechanical tests of GH3039 were conducted, and the Johnson-Cook (J-C) constitutive equation for GH3039 alloy at specific strain rates was fitted based on the experimental results. To obtain the parameter C in the J-C constitutive equation of GH3039 alloy under ultra-high strain rates, a modified method was proposed based on LSP experiment and finite element simulation results. Using the modified GH3039 alloy J-C constitutive equation, numerical simulations and comparative analyses of the residual stress field of GH3039 alloy plates of different thicknesses under LSP were carried out using ABAQUS software. The simulated residual stress fields of laser-shocked GH3039 alloy plates of different thicknesses were in good agreement with the experimental measurements, indicating that the modified GH3039 alloy J-C constitutive equation can accurately predict the mechanical behavior of GH3039 alloy under ultra-high strain rates. Based on the modified GH3039 alloy J-C constitutive equation, the effect of different plate thicknesses on the residual stress distribution of laser-shocked GH3039 alloy was studied, along with the underlying mechanisms. The unique distribution characteristics of residual stresses in laser-shocked GH3039 plates with varying thicknesses are primarily attributed to differences in plate bending stiffness and the detrimental coupling effects of reflected tensile waves. Full article

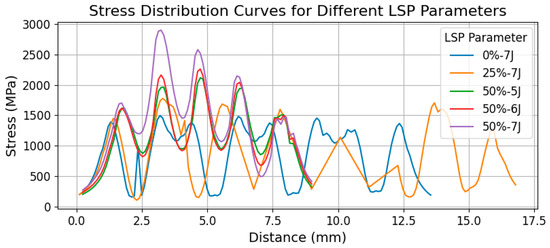

This study investigates the effects of Laser Shock Peening (LSP) on residual stress distribution and surface deformation using a Finite Element Method (FEM) model. LSP is a surface treatment process that generates compressive residual stress by applying high-energy laser pulses over nanosecond timescales. The study aims to analyze the impact of key parameters, specifically laser spot overlap rate and power density, on the induced residual stress and surface deformation. A Design of Experiment (DOE) approach was used to systematically vary these parameters. These simulations were performed using the ANSYS Explicit Dynamics FEM with a Johnson–Cook material model to capture the nonlinear constitutive behavior. The research analyzes the distribution of residual stress and surface deformation caused by LSP. Increasing laser spot overlap and power density leads to higher compressive residual stress and surface deformation, revealing two distinct behavioral outcomes: either deep compressive stress with minimal deformation or a transition from compressive to tensile stress followed by significant surface deformation and a subsequent return to compressive stress. The results demonstrate strong agreement with existing experimental data presented in the literature. This study contributes novel insights into the interaction between LSP parameters and their effects on material properties, with implications for understanding LSP techniques in practical applications. The triangular pulse model and dual-overlap analysis offer a novel simulation strategy for optimizing LSP parameters in stainless steel. Full article

The harsh service environment has increased the demand for hydrophobic surfaces with excellent mechanical properties; however, how to manufacture such surfaces remains a significant challenge. In this study, a method for fabricating hydrophobic surfaces with excellent mechanical properties using femtosecond laser shock peening (fs-LSP) is proposed, without the need for any additional processing steps. Taking CH1900A martensitic steel as an example, a systematic analysis of the microstructure was conducted after fs-LSP, revealing the mechanisms by which fs-LSP affects surface morphology, grain structure, dislocation density, and grain boundary characteristics. The high-density dislocations and grain refinement induced by fs-LSP significantly enhanced the surface hardness and introduced residual compressive stresses. Additionally, the laser-induced periodic micro/nanostructures on the surface ensured excellent hydrophobic properties. The effect of single pulse energy and the number of impacts on fs-LSP has also been discussed in detail. As the pulse energy and number of impacts were increased, the surface microstructure of the material was progressively optimized, evidenced by grain refinement, an increase in geometrically necessary dislocation (GND) density, and a higher proportion of high-angle grain boundaries (HAGBs). Such optimization is not monotonous or unlimited; a pulse energy of 75 μJ and six impacts achieved the optimal effect, with the surface hardness reaching up to 8.2 GPa and a contact angle of 135 degrees. The proposed fs-LSP provides a new strategy for manufacturing hydrophobic surfaces with excellent mechanical properties, and the detailed discussion and analysis also provide theoretical guidance for process optimization. Full article

Laser shock peening (LSP) significantly enhances fatigue and corrosion resistance, especially in additively manufactured components. This effect is stronger when confinement is used; typically, it is water. However, water poses risks to sensitive electronics. As an alternative, this study explored gel-based confinement. A Ni-based alloy was LSP-treated using 532 nm and 1064 nm wavelengths, with three types of gel compared to water as a control. The results showed that gel confinement can induce compressive residual stresses and increase surface microhardness. However, gels were generally less effective than water in terms of residual stress magnitude and depth of hardening. Additionally, gel confinement required the use of a 1064 nm laser, whereas water confinement was more effective with 532 nm. Among the gels tested, one adhesive variant performed best due to improved surface contact and strong adhesion. The observed increase in microhardness and compressive stress was linked to surface grain refinement and twinning. Overall, adhesive gels offer potential benefits for LSP, particularly for additively manufactured parts, which often have high surface roughness and require non-conductive confinement solutions. Full article

Laser shock peening (LSP) is an effective method to improve the fatigue property of metallic materials, and a thorough understanding of its strengthening mechanism is crucial for technology application. In this study, the LSP and fatigue tests of TC4 titanium alloy have been carried out. Combined with the structural characterization and the crystal plasticity finite element (CPFE) simulation, the relationship of stress distribution, microstructure evolution and fatigue performance caused by LSP is revealed. The results indicate that the material’s fatigue life initially increases and subsequently declines with the rising pulse energy. At the optimal pulse energy condition, the laser-shocked specimen demonstrates a 126% increase in fatigue life relative to the untreated specimen, which is accompanied by the higher residual compressive stress along the depth. Meanwhile, the grains become more refined with a uniform size change gradient, and the β phase content drops from 4.1% to 2.2%. Notably, regions with <$\stackrel{-}{1}$2$\stackrel{\mathrm{-}}{1}$0> crystal orientation can be selectively achieved. With the favorable <$\stackrel{\mathrm{-}}{1}$2$\stackrel{\mathrm{-}}{1}$0> slip direction orthogonal to the applied fatigue loading axis, the generation and propagation of dislocations are effectively constrained, thereby significantly enhancing the material’s fatigue performance. The stress distribution and fatigue life in models with different grain sizes and phase contents are further analyzed by the CPFE method, showing good consistency with the experimental results. Theoretically, the excessively high pulse energy causes the transient temperature (1769 °C) to surpass the melting point (1660 °C), which can affect the recrystallization structure and stress distribution. Full article

This research investigated the influences of some key factors in the prestressed laser peen forming (PLPF) process, namely, the plate thickness, the coverage ratio, and the prestress, on the deformation of 2024-T351 rectangular plates through experiments and numerical simulations. In the experiments, laser parameters, such as the laser energy and spot size, were kept unchanged, and prestress was applied through a piece of self-developed, four-point-bending equipment. The curvature radius of the samples was measured through a digital radius gauge. A corresponding finite element analysis (FEA) model of PLPF was also established to simulate the full procedure of the PLPF, including prebending, laser shock peening, and spring back. Based on the PLPF experimental results, an artificial neural network (ANN) was trained to help to design the process parameters, including the coverage ratio and the amount of prebending, according to the plate thickness and the target curvature radius. By adding a penalty term to the loss function, the amount of prebending (AOP) can be reduced as much as possible. The validation of the ANN was confirmed by three other PLPF experiments. Full article

Many countries around the world are in a race against time to decarbonise their energy systems. One of the avenues being explored in detail is Offshore Renewable Energy (ORE), with technologies such as wind, wave, and tidal. All of these technologies are in their infancy within the marine environment and required heavy Research and Development (R&D) to make them commercially viable. With so much demand for these industries, the supply chain is heavily constrained. A solution that has shown great potential to alleviate the pressure on the supply chain is the use of Wire Arc Additive Manufacturing (WAAM) for the use of onsite repair or manufacture for components. This is due to its ability to produce large-scale parts, with low emissions and at a lower cost than other Additive Manufacturing (AM) processes. The opportunity to use this technology could result in shorter downtimes and lead to a reduction in the Levelised Cost of Energy (LCOE). However, knowing that offshore structures are subject to cyclic loading conditions during their operational lifespan, fatigue properties of new materials and manufacturing processes must be well documented and studied to avoid any catastrophic failures. An issue often seen with WAAM is the presence of residual stresses. This study looks at fatigue cracking on Compact Tension C(T) specimens that have undergone laser shock peening and rolling, surface treatment processes that form compressive residual stresses at the surface of the material. In this study, the influence of fatigue overloading on the residual stress distribution in surface-treated WAAM specimens is evaluated and the effectiveness of the post-processing techniques on the subsequent fatigue behaviour is explored. Full article

As advanced structural materials, titanium alloys have found extensive applications in aerospace, medical devices, and precision electronics industries, serving as critical components for achieving lightweight designs in high-end equipment. In aerospace applications, titanium alloy components are frequently subjected to complex thermo-mechanical loading conditions involving varying temperature levels and multiaxial stress states, which may induce progressive fatigue damage accumulation and ultimately lead to premature fracture failures. This study conducts a systematic investigation into the fatigue damage mechanisms of aerospace-grade titanium alloys under service conditions, with particular emphasis on elucidating the synergistic effects of microstructural characteristics, surface integrity parameters, and operational temperature variations on fatigue behavior. Through comprehensive analysis, the research reveals that surface modification techniques, including shot peening (SP), ultrasonic surface polling process (USRP), and laser shock peening (LSP), significantly enhance fatigue performance through two primary mechanisms: (1) the generated residual compressive stress fields effectively inhibit crack initiation and retard propagation rates; (2) improved surface integrity characteristics, such as reduced roughness and work-hardened layers, contribute to enhanced oxidation resistance thereby preserving structural integrity. Full article

Small-scale impact welding may have several advantages over rivets: the strength can be higher, it can be applied right at the edges in lap joints, and it can be lighter and more easily installed if simple systems can be developed. Laser Impact Welding (LIW) is compact and simple, adapting the technologies of laser shock peening. It is limited in terms of the energy that can be delivered to the joint. Augmented Laser Impact Welding (ALIW) complements optical energy with a small volume of an exothermic detonable compound and has been shown to be an effective welding approach. The scope of this study is extended to build upon previous work by investigating varied augmentation chemistries and confinement layers, specifically borosilicate glass, sapphire, and water. The evaluation of these compositions involved the use of two aluminum alloys: Al 2024 and Al 6061. Photonic Doppler Velocimetry (PDV) was utilized to measure the flyer velocity and assess the detonation energy. The findings indicated that adding micro-air bubbles (GPN-3 scenario) to the original GPN-1 enhanced the flyer velocity by improving the sensitivity, which promoted gas release during detonation. Hence, employing 1 mm thick Al 2024 as a flyer with GPN-3 enhances the flyer velocity by 36.4% in comparison to GPN-1, thereby improving the feasibility of using 1 mm thick material as a flyer and ensuring a successful welded joint with the thickest flyer ever welded with laser impact welding. When comparing the confinement layers, sapphire provided slightly lower flyer velocities compared to borosilicate glass. However, due to its higher resistance to damage and fracture, sapphire is likely more suitable for industrial applications from an economic perspective. Furthermore, the lap shear tests and microstructural evaluations confirmed that GPN-3 provided higher detonation energy, as emphasized by the tendency of the interfacial waves to have a higher amplitude than the less pronounced waves of the original GPN-1. Consequently, this approach demonstrates the key characteristics of a practical process, being simple, cost-effective, and efficient. Full article

Fusion-welded austenitic stainless steel (ASS) was predominantly employed to manufacture dry storage canisters (DSCs) for the storage applications of spent nuclear fuel (SNF). However, the ASS weld joints are prone to chloride-induced stress corrosion cracking (CISCC), a critical safety issue in the nuclear industry. DSCs were exposed to a chloride-rich environment during storage, creating CISCC precursors. The CISCC failure leads to nuclear radiation leakage. Therefore, there is a critical need to enhance the CISCC resistance of DSC weld joints using promising repair techniques. This review article encapsulates the current state-of-the-art of peening techniques for mitigating the CISCC in DSCs. More specifically, conventional shot peening (CSP), ultrasonic impact peening (UIP), and laser shock peening (LSP) were elucidated with a focus on CISCC mitigation. The underlying mechanism of CISCC mitigation in each process was summarized. Finally, this review provides recent advances in surface modification techniques, repair techniques, and developments in welding techniques for CISCC mitigation in DSCs. Full article

Laser shock peening (LSP) is an effective method for enhancing the fatigue life and mechanical properties of Ti alloys. However, there is limited research on the effects of LSP on crystal structure and dislocation characteristics. In this study, Ti-6Al-4V alloy was subjected to laser shock peening with varying laser power levels. The influence of laser power on the microstructure of Ti-6Al-4V was investigated, with a focus on the evolution of the cross-sectional structure, crystallographic features, and dislocation behavior. These characteristics were analyzed using scanning electron microscopy (SEM), electron backscatter diffraction (EBSD), and transmission electron microscopy (TEM). Following laser shock peening, the surface grains of Ti-6Al-4V alloy exhibited a distinct preferred orientation and underwent significant refinement, resulting in the formation of nanocrystals. At a laser power of 8 J, the texture strength decreased to 5.19 mud. As laser power increased, a denser dislocation structure and high-density dislocation regions formed at the surface, and the subgrain size further decreased, reaching 66 nm at 8 J. These findings provide valuable insights into grain refinement and property enhancement, contributing to the understanding of process–microstructure–property relationships. Full article

Friction stir welding (FSW) is a solid-state welding process that uses a rotating tool to soften and stir the base metal, thereby joining it. A special type of tool that has attracted the interest of researchers is the so-called bobbin tool (BTFSW), which, unlike conventional tools with one shoulder, features two shoulders that envelop the base metal from both the top and bottom sides. As a result, significant tensile stresses develop on both sides of the weld, caused by the action of both tool shoulders. In this paper, this issue was addressed by applying laser shock peening (LSP), aiming to introduce compressive stresses, which can be useful as a post-processing technique for BTFSW on both weld sides. It was found that this process completely alters residual stresses in the treated area, from tensile to compressive, through shock waves that impart plastic deformation in the surface layer. It was shown that the LSP effect is more pronounced as the accumulated energy is higher. As a consequence, the microhardness values were significantly increased in the surface and subsurface layers, reaching a maximum depth of 480 to 780 µm for the lowest and highest accumulated laser energy, respectively, while surface roughness increased. While increasing compressive stresses and microhardness in the surface layer is beneficial from the point of view of fatigue resistance, increased roughness has a detrimental effect. Accumulated energy was hereby shown to have a higher effect compared to the maximal energy applied to the specimens. Full article

This study examines the impact of laser shock peening (LSP) on the mechanical properties, microstructural features, and elemental distribution of stainless steel 316L (SS316L) produced using wire arc additive manufacturing (WAAM). The investigation focuses on significant changes in mechanical behavior, surface topography, and porosity following LSP treatment, comparing these results to the untreated condition. LSP treatment significantly enhanced the ultimate tensile strength (UTS) and yield strength (YS) of WAAM-fabricated SS316L samples. The UTS of the as-manufactured WAAM specimen was 548 MPa, which progressively increased with higher LSP intensities to 595 MPa for LSP-1, 613 MPa for LSP-2, and 634.5 MPa for LSP-3, representing a maximum improvement of 15.8%. The YS showed a similar trend, increasing from 289 MPa in the as-manufactured specimen to 311 MPa (LSP-1) and 332 MPa (LSP-2), but decreasing to 259 MPa for LSP-3, indicating over-peening effects. Microstructural analysis revealed that LSP induced severe plastic deformation and reduced porosity from 14.02% to 4.18%, contributing to the improved mechanical properties. Energy dispersive spectroscopy (EDS) analysis confirmed the formation of an oxide layer post-LSP, with an increase in carbon (C) and oxygen (O) elements and a decrease in chromium (Cr) and nickel (Ni) elements on the surface, attributed to localized pressure and heat impacts. LSP-treated samples exhibited enhanced mechanical performance, with higher tensile strengths and improved ductility at higher laser intensities. This is due to LSP effectively enhancing the mechanical properties and structural integrity of WAAM-fabricated SS316L, reducing porosity, and refining the microstructure. These improvements make the material suitable for critical applications in the aerospace, automotive, and biomedical fields. Full article

This study investigated the microstructure, microhardness, and residual compressive stress of 14Cr12Ni3Mo2VN martensitic stainless steel treated with high-frequency induction quenching (HFIQ) and laser shock peening (LSP). Using rotating bending corrosion fatigue testing, the corrosion fatigue performance was analyzed. Results show that a microstructural gradient formed after HFIQ and LSP: the surface layer consisted of nanocrystals, the subsurface layer of short lath martensite, and the core of thick lath martensite. A hardness gradient was introduced, with surface hardness reaching 524 Hv_0.1, 163 Hv_0.1 higher than the core hardness. A residual compressive stress field was introduced near the surface, with a maximum residual compressive stress of approximately −575 MPa at a depth of 0.1 mm. Corrosion fatigue results indicate that cycle loading times of samples treated with HFIQ and LSP were 2.88, 2.04, and 1.45 times higher than untreated, HFIQ-only, and LSP-only samples, respectively. Transmission electron microscopy (TEM) characterization showed that HFIQ reduced the lath martensite size, while the ultra-high strain rate induced by LSP likely caused dynamic recrystallization, forming numerous sub-boundaries and refining grains, which increased surface hardness. The plastic strain induced by LSP introduced residual compressive stress, counteracting tensile stress and hindering the initiation and propagation of corrosion fatigue cracks. Full article

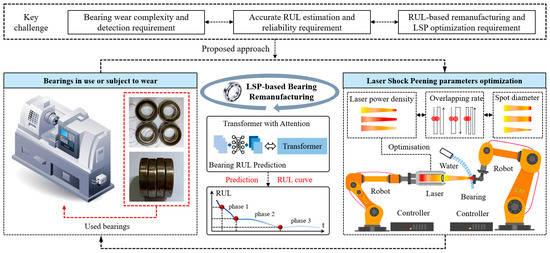

Accurate prediction of the remaining useful life (RUL) of bearings is crucial for maintaining the reliability and efficiency of industrial systems. This study introduces a novel methodology integrating advanced machine learning and optimization techniques to address this challenge. (1) A transformer-attention model was developed to process segmented vibration signals, effectively capturing complex patterns. The model showed better performance than traditional approaches, with an RMSE of 0.989. (2) A Deep Neural Network (DNN) was designed to predict the extended RUL of bearings after laser shock peening (LSP) remanufacturing. The fruit fly optimization (FFO) algorithm was employed to optimize the remanufacturing parameters; a 29.33% improvement was achieved in fitness compared to the baseline. (3) The DNN model predictions were validated against Finite Element Analysis (FEA) simulations, with a low relative error of 2.5% to 5.8%; the model showed good accuracy in capturing the effects of optimized LSP parameters on bearing life extension. Full article
