Search Results (8)

Titanium alloys find extensive applications in aviation, maritime, and chemical engineering applications. Nonetheless, these alloys encounter significant challenges during the conventional forging process, which include high deformation resistance, limited processing temperature ranges, and inhomogeneous microstructure. Isothermal forging, as a near-net-shape forming technique, can alleviate the microstructural inhomogeneity caused by deformation dead zones in conventional forging, thus enabling the direct production of complex shapes. This process enhances the overall performance and utilization of materials while reducing manufacturing costs. This paper comprehensively reviews how isothermal near-net-shape forging process parameters influence the intricate microstructure and essential properties of titanium alloys. The unique properties of isothermal forging applied to high-performance titanium alloys are also discussed in depth, and the intricate interplay between process parameters and the microstructure and properties of recoloration is clarified. That is to say, temperature is a vital element influencing the phases and microstructure of titanium alloys during the forming process. Grain size, microstructural homogeneity, and phase transformation are influenced by the strain rate, thereby affecting the plasticity, fracture toughness, and strength of titanium alloys. The extent of deformation significantly governs the grain size, the thickness of secondary α phase, dynamic recrystallization, and primary α phase. Cooling rate affects the grain size and precipitates, contributing to grain refinement. The frequency of isothermal forging affects the grain refinement and microstructural uniformity of titanium alloys. Finally, this paper summarizes the scientific questions that remain unresolved in this field and outlines future research directions to promote the further development of isothermal near-net-shape forging processes and facilitate the broader industrial applications of high-performance titanium alloys and other difficult-to-form alloys. Full article

Vacuum isothermal forging is an ideal method for preparing high-performance TiAl alloy forgings, as it is carried out under the conditions of a uniform temperature field and oxygen isolation. The mechanical properties of TiAl alloys strongly depend on their microstructure, so it is important to study their microstructure evolution during the forging process to improve their properties. In this study, TiAl alloy forgings with different deformations were produced from the extruded billets by vacuum isothermal superplastic forging under lower temperatures and extremely low strain rate conditions. The results indicate that the streamlined structure in the extruded alloy was destroyed during the forging process. As the deformation increased, the dynamic recrystallization was more fully carried out, leading to a substantial decrease in remnant lamellar colonies and a significant increase in the γ phase, and the microstructure was transformed from nearly lamellar (NL) to near gamma (NG) structure. The proportion of high-angle grain boundaries (HAGB) increased with increasing deformation, while the grain size reduced from 20 μm to 4.6 μm. In addition, the streamlined features and textures exhibited a weakening trend with increasing deformation, leading to a decrease in the ultimate strength from 891 MPa to 722 MPa. To maintain the streamlined characteristics and retain strengthening effects, the forging deformation should not exceed 56.7%. Full article

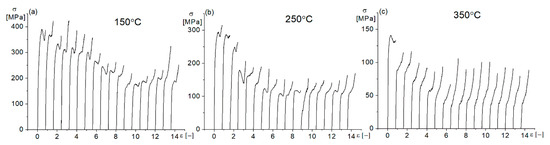

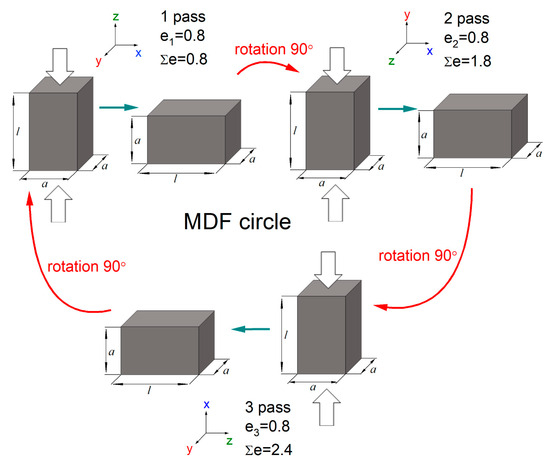

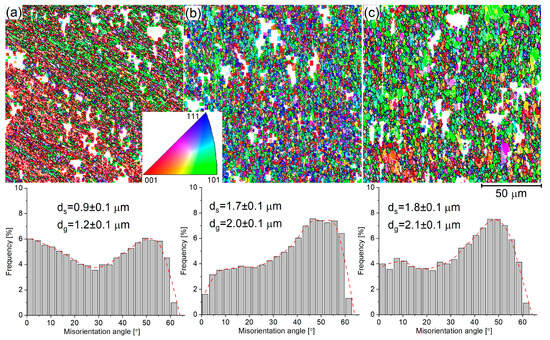

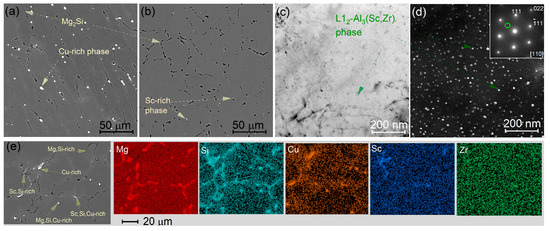

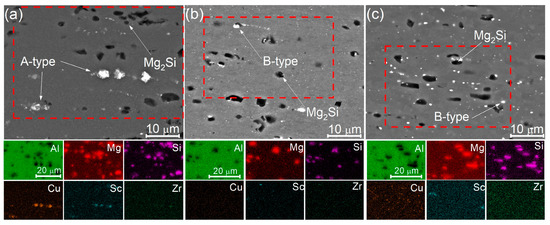

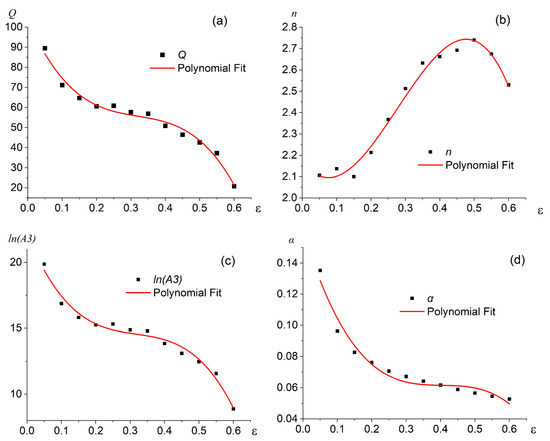

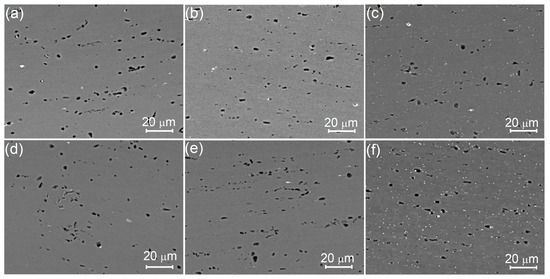

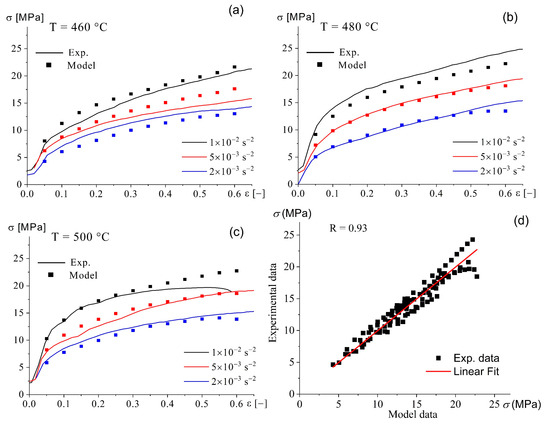

This research is devoted to the microstructure evolution and deformation behavior of the Al-1.2Mg-0.7Si-1.0Cu-0.1Sc-0.2Zr alloy during the isothermal multidirectional forging (MDF) in a large cumulative strain and temperature range. The structure investigation of the studied alloy revealed several phases precipitated during solidification, among which θ(Al₂Cu), Q(Al₅Cu₂Mg₈Si₆), Mg₂Si, Sc-bearing W(AlScCu) and V(AlSi₂Sc₂) phases were observed. The MDF at 150–350 °C and a maximum cumulative strain of 14.4 significantly refined grain structure providing a mean grain size of 1.2–2.1 µm. The L1₂ structured Al₃(Sc,Zr) dispersoids with a mean size of 10 ± 1 nm were formed during two-step homogenization annealing. Due to Zener pinning of the nanoscale dispersoids and fine-grained structure, the alloy exhibited near-superplastic behavior in a temperature range of 460–500 °C and strain rate range of 2 × 10⁻³–1 × 10⁻² s⁻¹ with the maximum elongation to failure of ~300%. After a strengthening heat treatment, the forged alloy exhibited the yield strength of 326 ± 5 MPa, ultimate tensile strength of 366 ± 5 MPa, and elongation of 10 ± 3%. The hot deformation behavior was described using the Arrhenius type model. The developed model demonstrated high predictability accuracy with a maximum average absolute relative error of 6.6%. Full article

TiAl alloy is a high temperature structural material with excellent comprehensive properties in the range of 750–900 °C. However, its engineering application is limited by its poor plasticity and hot working properties at room temperature. Based on the above background, a novel three-phase Ti-40Al-6V-1Cr-0.3Ni (at.%) alloy was designed and fabricated in the present study. The as-cast ingot was subjected to near-isothermal forging, and the thermoplastic deformation behavior, microstructure evolution and mechanical properties were systematically studied. Near-isothermal forging shows excellent forming capability, and the forging disk is flawless without cracking. The core of the forging disk shows the greatest degree of deformation, and the microstructure is composed of fine equiaxed grains and residual (α2/γ) lamellae. The hardness of the B2 phase and the hardness difference between the B2 phase and γ phase are reduced by the Cr and V elements added in the alloy. The wrought alloy exhibits excellent mechanical properties at room temperature and elevated temperature, respectively. The uniform fine microstructure, low nanohardness of the B2 and γ phase and the property matching of each phase can be accounted for the excellent mechanical properties. Full article

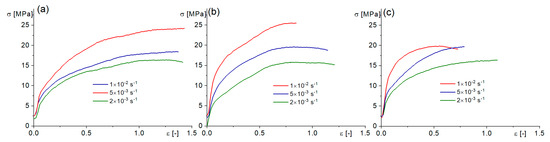

Magnesium alloys are highly strain rate sensitive and exhibit good workability in a narrow forging temperature range. Consequently, parts made of these materials are usually forged with low-speed hydraulic presses, using specially designed tool heating systems in order to ensure near-isothermal conditions. This study investigates whether popular magnesium alloys such as Mg-Al-Zn can be forged in forging machines equipped with high-speed forming tools. Experimental upset forging tests on AZ31B, AZ61A and AZ80A specimens were conducted, using a screw press with a ram speed of 0.5 m/s and a die forging hammer with a ram speed at stroke of about 5 m/s. Test specimens were preheated to 350 °C, 410 °C and 450 °C. After the upset forging process, they were air- or water-cooled and then examined for their workability, hardness and grain size. To validate the results, a forging process for a producing handle was designed and modelled by the finite element method. Distributions of strain, temperature and fracture criterion were analysed, and energy and force parameters of the forging process were calculated. After that, experimental tests were performed on AZ31B and AZ61A specimens in order to determine mechanical properties of forged parts and examine their micro- and macrostructure. Results have demonstrated that AZ80A is not suitable for forging with either the screw press or the die forging hammer, that AZ61A can be press- and hammer-forged but to a limited extent, and that AZ31B can be subjected to forging in both forging machines analysed in the study. Full article

Multidirectional isothermal forging (MDIF) was used on a Ti-44Al-4Nb-1.5Cr-0.5Mo-0.2B (at. %) alloy to obtain a crack-free pancake. The microstructural evolution, such as dynamic recovery and recrystallization behavior, were investigated using electron backscattered diffraction and transmission electron microscopy methods. The MDIF broke down the initial near-lamellar microstructure and produced a refined and homogeneous duplex microstructure. γ grains were effectively refined from 3.6 μm to 1.6 μm after the second step of isothermal forging. The ultimate tensile strength at ambient temperature and the elongation at 800 °C increased significantly after isothermal forging. β/B2→α₂ transition occurred during intermediate annealing, and α₂ + γ→β/B2 transition occurred during the second step of isothermal forging. The refinement mechanism of the first-step isothermal forging process involved the conversion of the lamellar structure and discontinuous dynamic recrystallization (DDRX) of γ grains in the original mixture-phase region. The lamellar conversion included continuous dynamic recrystallization and DDRX of the γ laths and bugling of the γ phase. DDRX behavior of γ grains dominated the refinement mechanism of the second step of isothermal forging. Full article

The effect of isothermal multidirectional forging (IMF) on the microstructure evolution of a conventional Al–Mg-based alloy was studied in the strain range of 1.5 to 6.0, and in the temperature range of 200 to 500 °C. A mean grain size in the near-surface layer decreased with increasing cumulative strain after IMF at 400 °C and 500 °C; the grain structure was inhomogeneous, and consisted of coarse and fine recrystallized grains. There was no evidence of recrystallization when the micro-shear bands were observed after IMF at 200 and 300 °C. Thermomechanical treatment, including IMF followed by 50% cold rolling and annealing at 450 °C for 30 min, produced a homogeneous equiaxed grain structure with a mean grain size of 5 µm. As a result, the fine-grained sheets exhibited a yield strength and an elongation to failure 30% higher than that of the sheets processed with simple thermomechanical treatment. The IMF technique can be successfully used to produce fine-grained materials with improved mechanical properties. Full article

This paper focuses on the fabrication of as-forged Ti46.5Al2Cr1.8Nb-(W, B) alloy via pulse current auxiliary isothermal forging (PCIF). The starting material composed of near gamma (NG) microstructure was fabricated by adopting pre-alloyed powders via hot pressing sintering (HPS) at 1300 °C. Isothermal compression tests were conducted at a strain rate range of 0.001–0.1 s⁻¹ and a temperature range of 1125–1275 °C to establish the constitutive model and processing map. The optimal hot deformation parameters were successfully determined (in a strain rate range of 10⁻³–2.5 × 10⁻³ s⁻¹ and temperature range of 1130–1180 °C) based on the hot processing map and microstructure observation. Accordingly, an as-forged TiAl based alloy without cracks was successfully fabricated by PCIF processing at 1175 °C with a nominal strain rate of 10⁻³ s⁻¹. Microstructure observation indicated that complete dynamic recrystallization (DRX) and phase transformation of γ→α₂ occurred during the PCIF process. The elongation of as-forged alloy was 136%, possessing a good secondary hot workability, while the sintered alloy was only 66% when tested at 900 °C with a strain rate of 2 × 10⁻⁴ s⁻¹. Full article
