Search Results (5)

This study delves into the impact toughness of medium-thick (12 mm thick) titanium alloy joints crafted through a multi-layer, multi-pass welding technique that blends laser-arc (MIG) hybrid welding technology. Microstructural scrutiny, employing optical microscopy, SEM and TEM, unveils a consistent composition across weld passes, with prevailing α/α′ phases interspersed with some β phase, resulting in basket-weave structures primarily dominated by acicular α′ martensite. However, upper regions exhibit Widmanstatten microstructures, potentially undermining joint toughness. Hardness testing indicates higher values in cosmetic layers (~420 HV) compared to backing layers and bending tests manifest superior toughness in lower joint regions, attributed to smaller grain sizes induced by repetitive welding thermal cycles. Impact toughness assessment unveils diminished values in the weld metal (WM) compared to the heat-affected zone (HAZ) and base material (BM), amounting to 91.3% of the base metal’s absorption energy. This decrement is ascribed to heightened porosity in upper regions and variations in grain size and phase composition due to multi-layer, multi-pass welding. Microstructural analysis proximal to failure sites suggests one mechanism wherein crack propagation is impeded by the β phase at acute crack angles. In essence, this study not only underscores the practicality of laser-MIG hybrid welding for medium-thick TC4 alloy plates but also underscores the reliability of joint mechanical properties. Full article

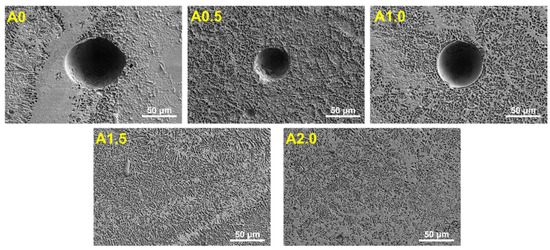

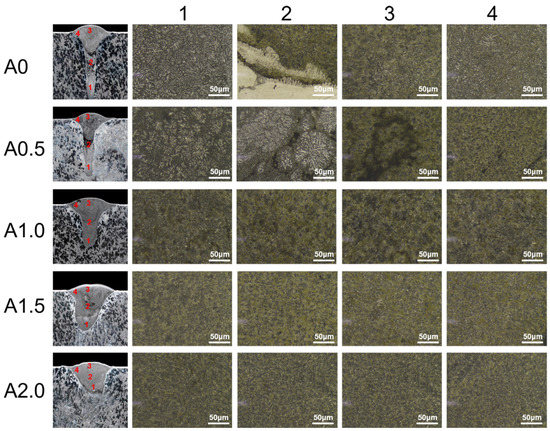

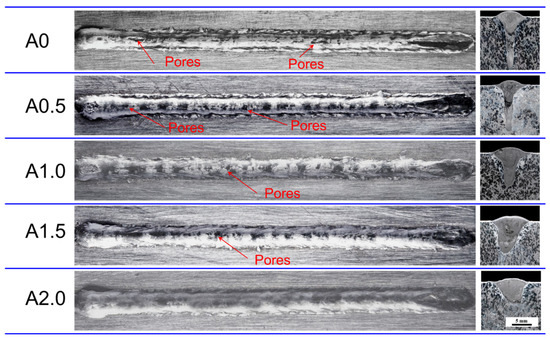

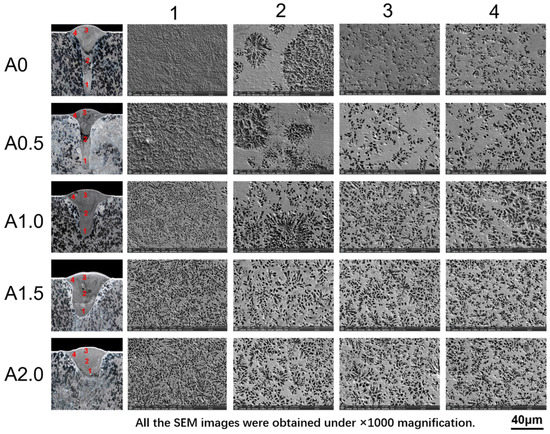

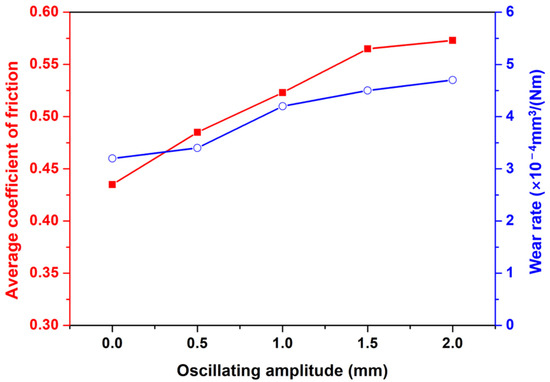

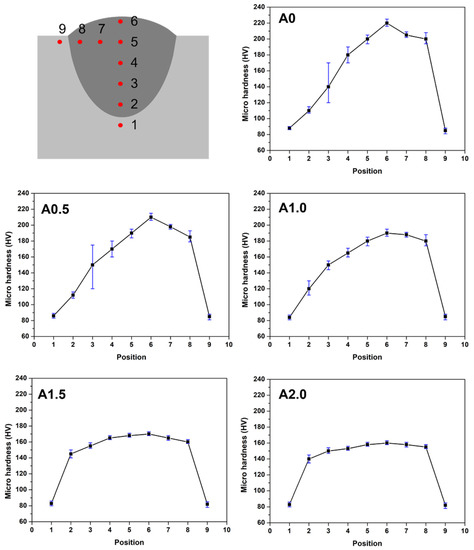

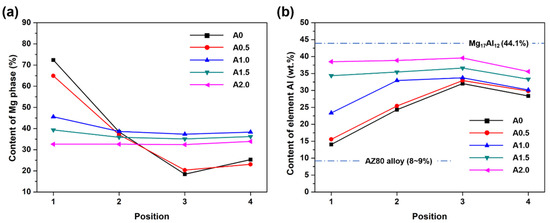

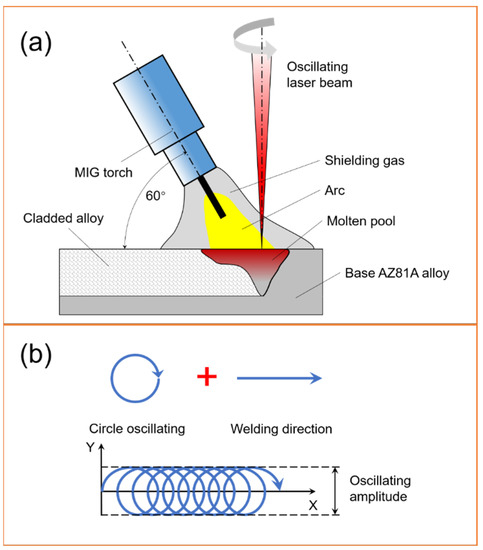

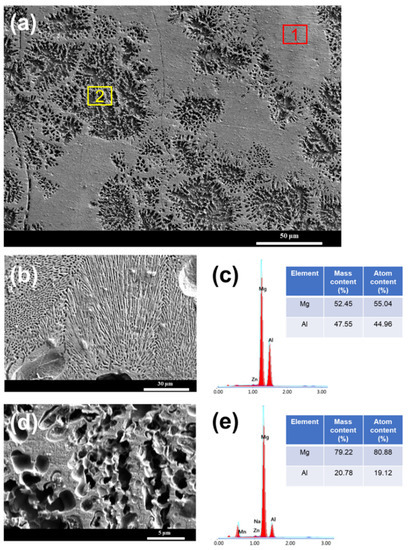

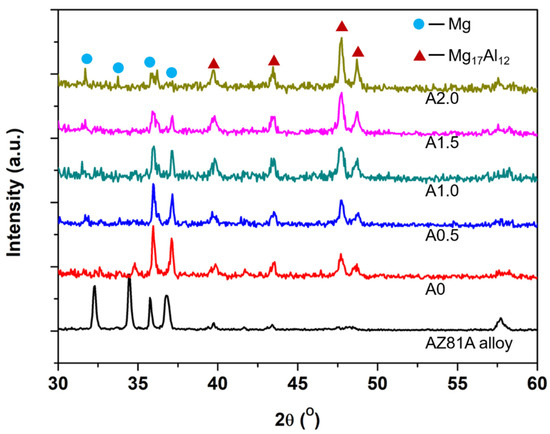

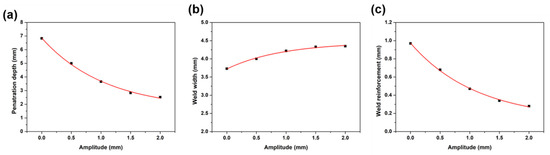

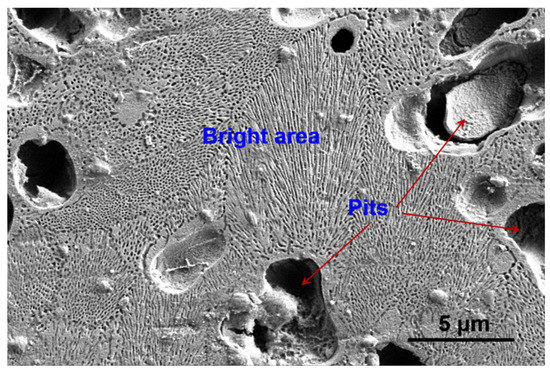

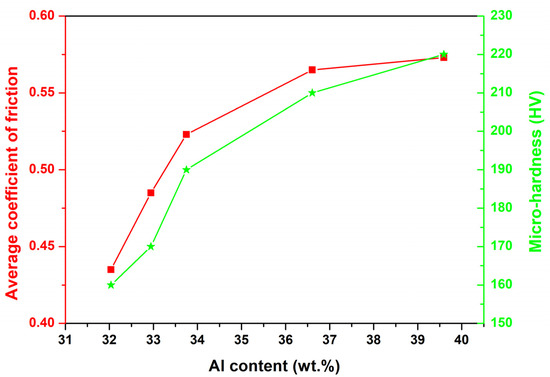

The effect of beam oscillating amplitude on the microstructure and performance of AZ80 Mg alloy cladded with Al-Mg alloy coating by laser–arc hybrid welding was studied. The penetration depth decreases significantly while welds are widened because of the increase in the oscillating area of a laser beam. Alloy segregation and keyhole-induced porosity can be suppressed by the laser beam oscillation. With the increase in the oscillating amplitude, the Al distribution becomes uniform in the weld seam because of the rapid and fierce stirring by the oscillating laser. However, the diluting of the cladded Al alloy restrains the formation of the brittle Mg₁₇Al₁₂ phase, and then causes the weakening of hardness and wear resistance of the cladded layer. Considered comprehensively, the optimized oscillating amplitude was 1 mm, which can produce the weld seam with good appearance, fewer segregation and porosity defects, and acceptable hardness and wear resistance. Full article

Hybrid laser arc welding (HLAW) features advantages such as higher welding speed and gap tolerance as well as smaller welding deformation and heat-affected zone than arc welding. Porosity in hybrid laser arc weld due to keyhole fluctuation tends to be the initial source of crack propagation, which will significantly diminish the weld performance. A high-speed imaging technique was adopted to record and analyze the droplet transfer and keyhole fluctuation behavior during hybrid laser arc welding of aluminum alloys. A heat transfer and fluid flow model of HLAW was established and validated for a perspective of the evolution process of droplet transfer and keyhole fluctuation. The relationship between keyhole fluctuation and weld porosity was also revealed. During the droplet transfer stage, liquid metal on the top surface of the weld pool flows toward the keyhole originated by globular transfer, and the keyhole fluctuates and decreases significantly, which has a higher tendency to form a bubble in the weld pool. The bubble evolves into porosity once trapped in the mush-zone near the trailing edge of the weld pool. Therefore, globular transfer during HLAW is the principal origin of keyhole fluctuation and weld porosity. Welding current has a significant influence on keyhole fluctuation and weld porosity rate. Droplet transfer frequency, keyhole fluctuation, and porosity rate increase with higher welding current under the globular transfer mode. The porosity rate shows a nearly positive correlation with the standard deviation of keyhole fluctuation. Full article

The 6061-T6 aluminum (Al) alloys was joined by the laser induced tungsten inert gas (TIG) hybrid welding technique. It mainly studied the influences of welding parameters, solution, and aging (STA) treatment on the microstructure and tensile properties of Al alloy hybrid welding joints. Microstructures of the joints were also analyzed by optical microscopy and transmission electron microscopy. Results showed that the laser induced arc hybrid welding source changed the microstructure of the fusion zone and heat effect zone. STA treatment effectively improved the mechanical properties of the softening area in the hybrid welding joint, whose values of the tensile strength and elongation were on average 286 MPa and 20.5%. The distribution of the reinforcement phases and dislocations distributed were more uniform, which improved the property of STA treated joint. Full article

A three-dimensional numerical model is used to simulate heat transfer and fluid flow phenomena in fiber laser + gas metal arc welding (GMAW) hybrid welding of an aluminum alloy, which incorporates three-phase coupling and is able to depict the keyhole dynamic behavior and formation process of the keyhole-induced porosity. The temperature profiles and fluid flow fields for different arc powers are calculated and the percent porosities of weld beads were also examined under different conditions by X-ray non-destructive testing (NDT). The results showed that the computed results were in agreement with the experimental data. For hybrid welding, with raising arc power, the keyhole-induced porosity was reduced. Besides the solidification rate of the molten pool, the melt flow was also closely related to weld porosity. A relatively steady anti-clockwise vortex caused by arc forces tended to force the bubble to float upwards at the high temperature region close to the welding heat source, which benefits the escape of the gas bubble from the melt pool. When increasing the arc power, the anti-clockwise region was strengthened and the risk of the gas bubble for capture by the liquid/solid interface underneath the keyhole tip was diminished, which resulted in the lower weld percent porosity. Full article
