Search Results (10)

The surface quality of machine elements may deteriorate over time while operating under different conditions. This deterioration adversely affects the wear behavior in the contact areas, and these materials become unusable over time. In machine elements especially, the heat transfer, wear amount and surface roughness parameters in the contact area are very important in order for the system to work efficiently. In order to understand this change, composite materials were produced by adding spheroidal graphite cast iron (GGG40) with high lubricating properties at different rates to bronze (CuSn10), which is widely used as a self-lubricating bearing material. In this study, four different mixing ratios (B60D40, B70D30, B80D20 and B90D10) and B100, which is completely produced from bronze chips, were used for comparison purposes. In addition, these produced composite materials were compared with pure CuSn10 and pure GGG40 via double-acting isostatic hot pressing, and then the results were examined. The composite materials were made at two different temperatures (400 °C and 450 °C) and three different pressures (480 MPa, 640 MPa and 820 MPa) using recycled waste chips. Composites produced by recycling waste chips both reduce costs and make a positive contribution to the natural environment. Thus, more advantageous self-lubricating bearing materials will be produced, and the efficiency will be increased in these materials. The time-dependent variation in the friction coefficient observed after the wear tests performed under constant load is explained, and the resulting surface structures are presented with SEM images and EDS analyses. After the wear tests, it was observed that the process parameters used in production effectively influenced the wear behavior. In particular, when the production pressure was low (480 MPa), the wear behavior was adversely affected because sufficient bonding between the chips could not be achieved. In addition, as the amount of GGG40 used as a reinforcement material increased, the spheroidal graphite contained in it positively affected the wear behavior. The lubricating effect provided by this spheroidal graphite reduced wear in the contact area and the friction coefficient. Full article

The replacement of the silica glass crucible by oxygen-free crucible materials in silicon Czochralski (Cz) growth technology could be a key factor to obtaining Cz silicon, with extremely low oxygen contamination < 1 × 10¹⁷ at/cm³ required for power electronic applications. So far, isostatic pressed graphite or nitrogen-bonded silicon nitride (NSN) crucible material, in combination with a chemical vapor deposited silicon nitride (CVD-Si₃N₄) surface coating, could be identified as promising materials by first short-term experiments. However, for the evaluation of their potential for industrial scale Cz growth application, the knowledge about the long-term behavior of these crucible setups is mandatory. For that purpose, the different materials were brought in contact with silicon melt up to 60 h to investigate the infiltration and dissolution behavior. The chosen graphite, as well as the pore-sealed NSN material, revealed a subordinated infiltration-depth of ≤1 mm and dissolution of ≤275 µm by the silicon melt, so they basically fulfilled the general safety requirements for Cz application. Further, the highly pure and dense CVD Si₃N₄ crucible coating showed no measurable infiltration as well as minor dissolution of ≤50 µm and may further acts as a nucleation site for nitrogen-based precipitates. Consequently, these novel crucible systems have a high potential to withstand the stresses during industrial Cz growth considering that more research on the process side relating to the particle transport in the silicon melt is needed. Full article

Two forms of fine-grained isotropic graphite, derived from mixed fillers by the isostatic pressing method, NG (filler with 100% natural graphite flake) and 75N25C-G (mixed filler with 75 wt.% natural graphite flake and 25 wt.% calcined coke) were prepared and irradiated with 7 MeV Xe²⁶⁺ to investigate its irradiation behaviors. Grazing incidence X-ray diffraction and Raman spectra show that the initial graphitization degree of 75N25C-G is lower than that of NG, but the crystallite sizes are larger due to calcined coke in the filler particles. After irradiation, the stacking height of crystallite sizes along c-axis directions (L_c) of NG increased, and Lc of 75N25C-G decreased. This can be attributed to irradiation-induced catalytic graphitization of calcined coke, and is also the reason that the dislocation density of 75N25C-G increases slower than that of NG. After irradiation, the crystallite sizes along a-axis directions (L_a) of NG and 75N25C-G reduced, but this trend was more obvious in irradiated 75N25C-G; this was closely related to the change of the surface morphology. The results show that the effect of the content of natural graphite flakes in the filler on the initial graphitization degree determines the difference in microstructure evolution caused by irradiation. Full article

In search of a new way to fabricate graphene-like materials, isostatic graphite targets were ablated using high peak power with a nanosecond-pulsed infrared laser. We conducted dry ablations in an argon atmosphere and liquid-phase ablations in the presence of a liquid medium (water or toluene). After the dry ablation, the SEM images of the target showed carbon in the form of a volcano-like grain structure, which seemed to be the result of liquid carbon ejected from the ablation center. No graphite exfoliation could be achieved using dry ablation. When using liquid phase ablation with water or toluene as a liquid medium, no traces of the formation of liquid carbon were found, but cleaner and deeper craters were observed. In particular, when using toluene as a liquid medium, typical graphite exfoliation was found. We believe that due to the extremely high pressure and high temperature induced by the laser pulses, toluene was able to intercalate into the graphite layers. Between the laser pulses, the intercalated toluene was able to flash evaporate and blow-up the graphite, which resulted in exfoliated graphite. Exfoliated graphite was found on the ablated graphite surface, as well as in the toluene medium. The ablation experiments with toluene undertaken in this study demonstrated an effective method of producing micrometer-sized graphene material. When using water as a liquid medium, no massive graphite exfoliation was observed. This meant that under the used laser conditions, toluene was a better intercalant for graphite exfoliation than water. Full article

The fullerite C₆₀ modified by hot isostatic pressing (HIP) at 0.1 GPa in argon near and beyond its thermal stability region (920–1270 K temperature interval) was studied by X-ray diffractometry, Raman spectroscopy, ultra soft X-ray photoelectron and near edge X-ray absorption fine structure spectroscopy. It was found that the C₆₀ molecules merge into closed nanocapsules with a graphene surface during the thermal treatment. The conducted studies showed that using HIP treatment of the fullerite C₆₀, it is possible to obtain a chemically resistant material with a high hardness and elasticity, as well as a density lower than that of the graphite. This new material, consisting of closed graphene nanocapsules 2–5 nm in size, formed by sp² covalent bonds between carbon atoms is promising for various applications, and as a basis for the synthesis of new composite materials. Full article

Copper–graphite composites are promising functional materials exhibiting application potential in electrical equipment and heat exchangers, due to their lower expansion coefficient and high electrical and thermal conductivities. Here, copper–graphite composites with 10–90 vol. % graphite were prepared by hot isostatic pressing, and their microstructure and coefficient of thermal expansion (CTE) were experimentally examined. The CTE decreased with increasing graphite volume fraction, from 17.8 × 10⁻⁶ K⁻¹ for HIPed pure copper to 4.9 × 10⁻⁶ K⁻¹ for 90 vol. % graphite. In the HIPed pure copper, the presence of cuprous oxide was detected by SEM-EDS. In contrast, Cu–graphite composites contained only a very small amount of oxygen (OHN analysis). There was only one exception, the composite with 90 vol. % graphite contained around 1.8 wt. % water absorbed inside the structure. The internal stresses in the composites were released during the first heating cycle of the CTE measurement. The permanent prolongation and shape of CTE curves were strongly affected by composition. After the release of internal stresses, the CTE curves of composites did not change any further. Finally, the modified Schapery model, including anisotropy and the clustering of graphite, was used to model the dependence of CTE on graphite volume fraction. Modeling suggested that the clustering of graphite via van der Waals bonds (out of hexagonal plane) is the most critical parameter and significantly affects the microstructure and CTE of the Cu–graphite composites when more than 30 vol. % graphite is present. Full article

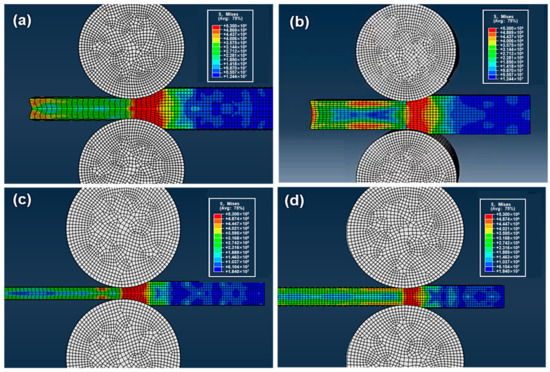

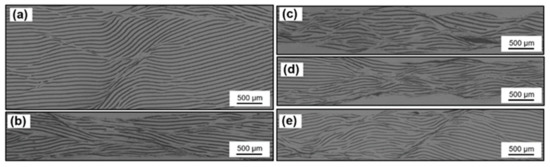

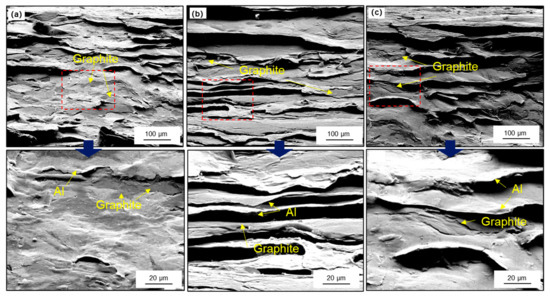

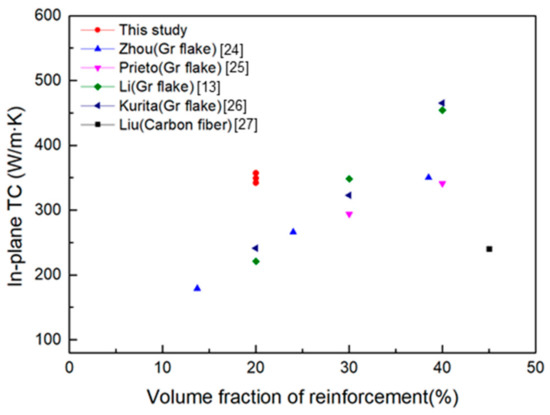

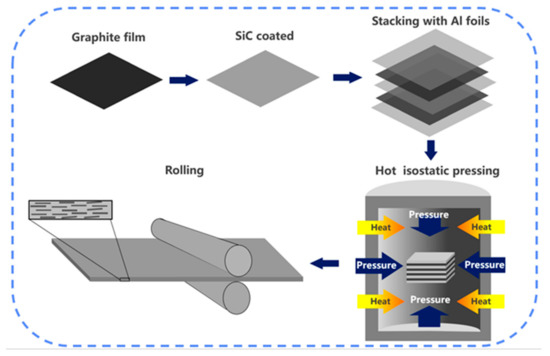

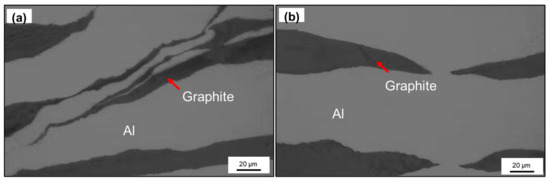

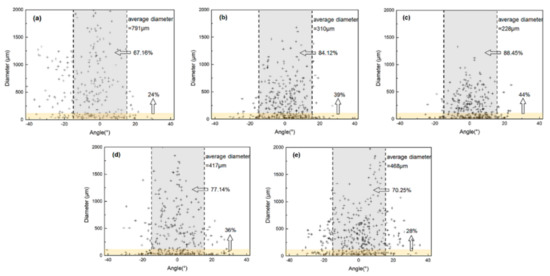

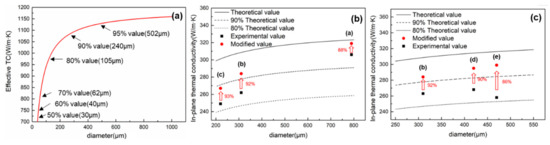

Graphite/Al composites have attracted much attrition due to their excellent thermal properties. However, the improvement of thermal conductivity (TC) is limited by the difficulty in controlling the orientation of graphite and the poor wettability between graphite and aluminum. In this study, a novel process for fabricating the Graphite/Al composites is proposed, which involves fabricating graphite film and aluminum foil into laminate material. Then, taking a rolling method, the fractured and well oriented graphite film can help the composite achieve high TC while maintaining a certain strength. The result reveals that both single and total reduction have a significant influence on the diameter and orientation of the graphite, and by adjusting the process parameters, composites with high TC can be acquired at a relatively low reinforcement volume. This near-net-forming process can directly meet the thickness requirements for electronic packaging and avoids the exposure of graphite to the surface during secondary processing, which is promising to promote the application for high TC Graphite/Al composites in thermal management. Full article

This paper presents the chemical and phase composition, microstructure, and selected properties both at room temperature and at the temperature corresponding to the expected operating conditions of three successive generations of TiAl-based alloys (Ti-47Al-2W-0.5Si, Ti-45Al-8Nb-0.5(B,C), and Ti-45Al-5Nb-2Cr-1Mo-0.5(B,C)-0.2Si) melted in a vacuum induction furnace with high-density isostatic pressed graphite crucibles. The obtained results of mechanical and physical properties of the produced alloys were compared to the properties of reference alloys with similar chemical composition and melted in a cold copper crucible furnace. The effect of increased carbon content in the produced alloys due to the degradation of the graphite crucible during melting is higher strength properties, lower plastic properties, higher coefficient of thermal expansion, and improved creep resistance. It was shown that the proposed technology could be successfully used in the production of different generation TiAl-based intermetallic alloys. Full article

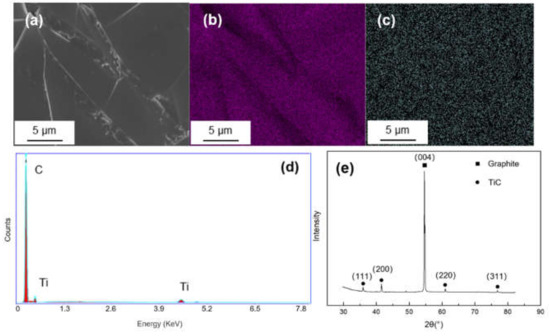

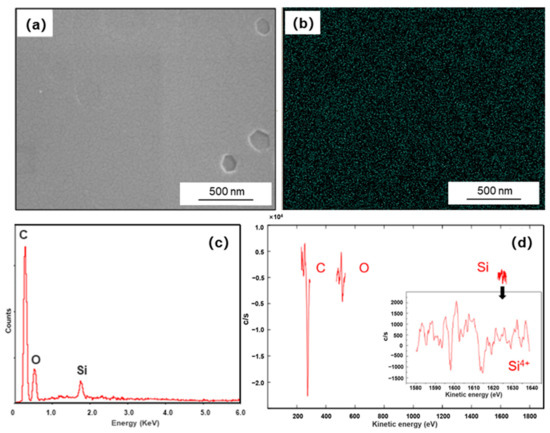

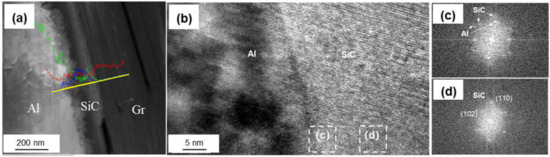

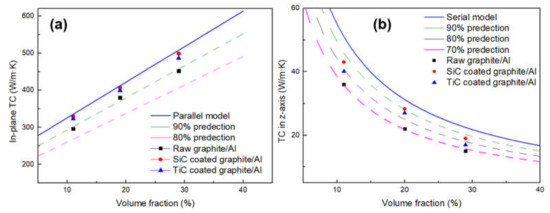

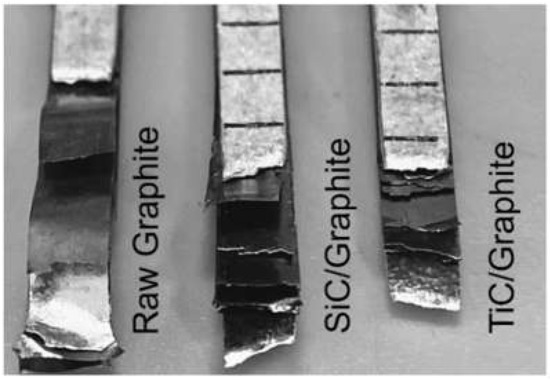

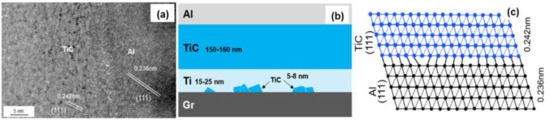

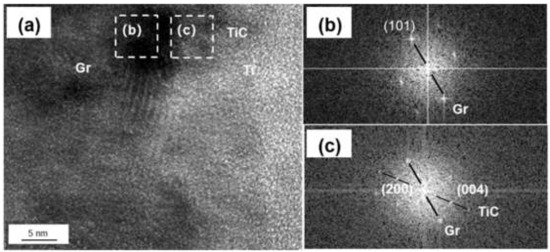

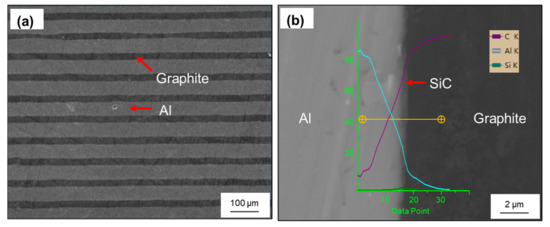

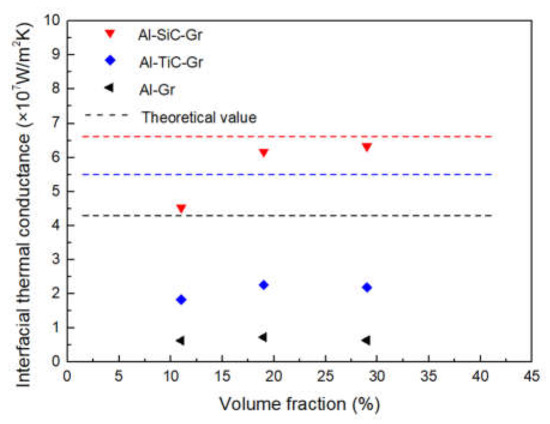

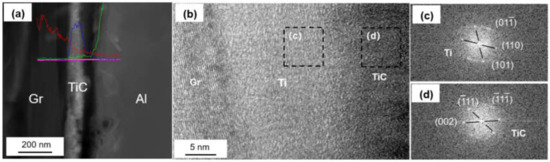

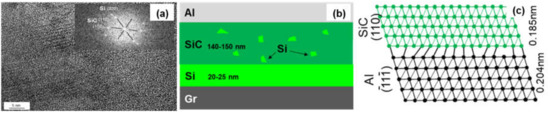

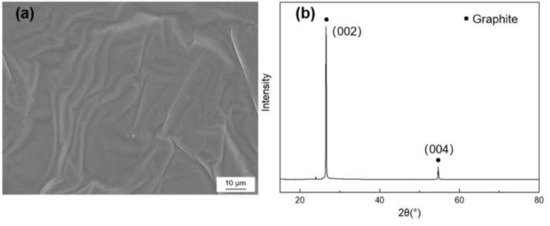

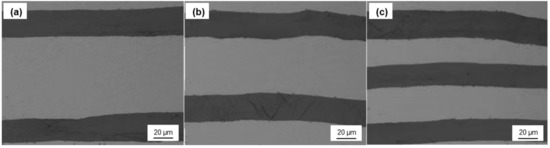

Graphite/Al composites had attracted significant attention for thermal management applications due to their excellent thermal properties. However, the improvement of thermal properties was restricted by the insufficient wettability between graphite and Al. In this study, silicon carbide and titanium carbide coatings have been uniformly coated on the graphite by the reactive sputtering method, and Graphite/Al laminate composites were fabricated by a hot isostatic pressing process to investigate the influence on thermal conductivity and mechanical properties. The results show that carbide coating can effectively improve the interfacial thermal conductance of SiC@Graphite/Al and TiC@Graphite/Al composites by 9.8 times and 3.4 times, respectively. After surface modification, the in-plane thermal conductivity (TC) of the composites with different volume fractions are all exceeding the 90% of the predictions. In comparison, SiC is more conducive to improving the thermal conductivity of composite materials, since the thermal conductivity of the 28.7 vol.% SiC@Graphite/Al reached the highest value of 499 W/m·K, while TiC is favorable for improving the mechanical properties. The finding is beneficial to the understanding of carbide coating engineering in the Graphite/Al composites. Full article

Single-crystal α-Al₂O₃ fibres can be utilized as a novel reinforcement in high-temperature composites owing to their high elastic modulus, chemical and thermal stability. Unlike non-oxide fibres and polycrystalline alumina fibres, high-temperature oxidation and polycrystalline particles boundary growth will not occur for single-crystal α-Al₂O₃ fibres. In this work, single-crystal α-Al₂O₃ whiskers and Al₂O₃ particles synergistic reinforced copper-graphite composites were fabricated by mechanical alloying and hot isostatic pressing techniques. The phase compositions, microstructures, and fracture morphologies of the composites were investigated using X-ray diffraction, a scanning electron microscope equipped with an X-ray energy-dispersive spectrometer (EDS), an electron probe microscopic analysis equipped with wavelength-dispersive spectrometer, and a transmission electron microscope equipped with EDS. The mechanical properties have been measured by a micro-hardness tester and electronic universal testing machine. The results show that the reinforcements were unevenly distributed in the matrix with the increase of their content and there were some micro-cracks located at the interface between the reinforcement and the matrix. With the increase of the Al₂O₃ whisker content, the compressive strength of the composites first increased and then decreased, while the hardness decreased. The fracture and strengthening mechanisms of the composite materials were explored on the basis of the structure and composition of the composites through the formation and function of the interface. The main strengthening mechanism in the composites was fine grain strengthening and solid solution strengthening. The fracture type of the composites was brittle fracture. Full article
