The Formation of Nanoscale Closed Graphene Surfaces during Fullerite C60 Hot Isostatic Pressing

by
Danil V. Sivkov
1,2,*,
Olga V. Petrova
2,*,
Sergey V. Nekipelov
2,
Alexander S. Vinogradov
1,
Roman N. Skandakov
2,
Ksenia A. Bakina
2,
Sergey I. Isaenko
3,
Anatoly M. Ob’edkov
4,
Boris S. Kaverin
4 and
Viktor N. Sivkov
2
1
Faculty of Physics, Federal State Budgetary Educational Institution of Higher Education “Saint-Petersburg State University”, 199034 St. Petersburg, Russia
2
Institute of Physics and Mathematics, Komi Science Centre of the Ural Branch of the Russian Academy of Sciences, 167982 Syktyvkar, Russia
3
Institute of Geology, Komi Science Centre of the Ural Branch of the Russian Academy of Sciences, 167982 Syktyvkar, Russia
4
Hybrid Nanomaterials Laboratory, G.A. Razuvaev Institute of Organometallic Chemistry of the Russian Academy of Sciences, 603950 Nizhny Novgorod, Russia
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2021, 11(24), 11646; https://doi.org/10.3390/app112411646
Submission received: 20 October 2021 / Revised: 29 November 2021 / Accepted: 30 November 2021 / Published: 8 December 2021
(This article belongs to the Special Issue Practical Application of Functionalized Carbon-Based Nanomaterials)
Browse Figures
Versions Notes

Abstract

:
The fullerite C60 modified by hot isostatic pressing (HIP) at 0.1 GPa in argon near and beyond its thermal stability region (920–1270 K temperature interval) was studied by X-ray diffractometry, Raman spectroscopy, ultra soft X-ray photoelectron and near edge X-ray absorption fine structure spectroscopy. It was found that the C60 molecules merge into closed nanocapsules with a graphene surface during the thermal treatment. The conducted studies showed that using HIP treatment of the fullerite C60, it is possible to obtain a chemically resistant material with a high hardness and elasticity, as well as a density lower than that of the graphite. This new material, consisting of closed graphene nanocapsules 2–5 nm in size, formed by sp2 covalent bonds between carbon atoms is promising for various applications, and as a basis for the synthesis of new composite materials.

1. Introduction

In this work, for the first time, comprehensive studies of the fullerite C60 modified by hot isostatic pressing (HIP) were carried out using a complementary set of methods that are informative at the nano and micro levels of the structure of matter. Studies of the behavior of the molecular fullerene C60 and its condensed phase, fullerite, at high pressures and temperatures began in the mid-1990s, when simple methods for producing C60 were proposed and it became available in gram quantities [1,2,3]. Various polymer phases of C60 and their changes at temperatures above the limit of thermal stability of C60 were studied [4,5,6,7,8]. The investigations of the fullerene C60 transformations at high static and dynamic pressures at temperatures above the thermal stability limit of C60 molecular clusters [9,10,11,12,13,14,15,16,17,18,19,20] showed great opportunities for the creation of new carbon materials with a wide variety of physicochemical properties. As a result, sufficiently detailed phase diagrams of the fullerene C60 were obtained, especially at the pressure above 1 GPa [21,22,23].
At the same time, studies on the intercalation of various gases into the fullerite lattice in gasostats (devices allowing to create high gas pressures up to 300 MPa) at high temperatures (more than 1770 K) were conducted. It was shown, for example, that at temperatures of 400–500 K and the limiting pressures Ar, Xe and Kr fill fullerite octahedral voids, while its face-centered cubic (fcc) structure is preserved [24,25]. Studies of the fullerite behavior at pressures of 0.1–1.5 GPa and temperatures above the collapse temperature of the C60 molecule [7,16] showed that the resulting disordered nanocarbon phase has unique properties such as high hardness and elasticity at a density lower than that of graphite. Therefore, finding and describing the structural and electron characteristics of fullerite under different external conditions is an important task. In the available works, as a rule, data obtained by separate methods for certain values of pressures and temperatures are given. At the same time, there are no data on XPS and NEXAFS studies of HIP-treated fullerene C60. This does not allow the objective characterization of the process of the fullerite modification and reliably determines the atomic chemical composition and structure of the final product. It is obvious that further serious progress in the study of solid-phase transformations of C60 is impossible without the use of the modern methods of studying the atomic–electronic properties of such polyatomic systems. The complexity of the nanoscale atomic-electron structure of such materials requires the use of the combination of the complementary research methods. These methods should be highly informative at the nanoscale, non-destructive and highly sensitive to the sample atomic structure and its changes due to physical and chemical influences. The near edge X-ray absorption fine structure (NEXAFS) spectroscopy [26] and X-ray photoelectron spectroscopy (XPS) [27,28] are effective experimental methods that allow us to directly obtain detailed information about the nanoscale atomic-electron structure of the polyatomic system under study. Their combination with traditional Raman spectroscopy and X-ray diffractometry (XRD) provides new reliable knowledge about the atomic and electronic structure of nanostructured carbon materials [29,30]. In this work, the successive modification of fullerite C60, as a result of HIP at a pressure of 0.1 GPa in an argon atmosphere in the temperature range of 920–1270 K, was characterized by XRD, XPS, NEXAFS and Raman spectroscopy. The study showed that changes in X-ray diffraction patterns, C 1s NEXAFS and Raman spectra appear simultaneously due to structural changes in the fullerite C60 with increasing temperature during HIP treatment.

2. Materials and Methods

2.1. Materials

Materials list: a 99.98% pure fullerite C60 powder with a crystallite size of 0.05–0.5 mm (produced by Fullerene-Center, Nizhniy Novgorod, Russia); gaseous argon (produced by LLC SPE “Salyut-gas”, Nizhny Novgorod, Russia, TU 2114-011-106-818-63-2005) with its volume fraction is not less than 99.994%; multi-walled carbon nanotubes (MWCNTs) with average outer diameter of 80 nm, average length of 300 μm, carbon purity of 98 wt.%, Fe-based catalyst residue of (5.5–7.5) wt.% (synthesized in the Hybride Nanomaterials Laboratory of G.A. Razuvaev Institute of Organometallic Chemistry of the Russian Academy of Sciences (RAS)); highly ordered pyrolytic graphite (HOPG) (produced by SPI supplies, West Chester, PA, USA), ZYA grade.

2.2. Experimental Details

2.2.1. HIP Treatment

The fullerite C60 sample preparing process consisted of grinding in a mortar with hexane for 20 min and subsequent pressing into tablets with the 20 mm diameter and 3 mm thickness. Then, the samples were subjected to HIP treatment in the gasostat with a multi-level working table for sample placement and thermocouples for temperature control. The synthesis was performed at a constant 0.1 GPa pressure in an argon medium at temperatures of 920, 1120, 1170 and 1270 K and a 3 h exposure time.

2.2.2. Characterization

The pristine fullerite C60 and its samples after HIP treatment were characterized using a number of chemical and physical analysis methods. XRD were conducted using equipment from the Center of “physics and technology of micro- and nanostructures” at the Institute for Physics of Microstructures of RAS and Raman Spectroscopy—using equipment from the Center of Collective Use at the Institute of Geology of Komi Science Center of the Ural Branch of RAS.
XRD analysis of the pristine C60 powder and HIP-treated materials was performed with CuKα-radiation using a Bruker D8 Discover X-ray diffractometer (Bruker Corp., Billerica, MA, USA) in the θ–2θ symmetrical geometry with a Gobel mirror, an equatorial Soller slit with the angular divergence of 2.5°, and a slit of 1.5 mm on the primary beam. The obtained diffraction patterns were processed using DIFFRAC.EVA V.3.0 software (Bruker Corp., Billerica, MA, USA) with the PDF-2 (2012) powder diffraction database.
Raman studies were conducted at room temperature using an Ar laser with the 1 mW power and 488 nm wavelength. Spectra were recorded using a monochromator with the 600 lines/mm diffraction grating in the 100–4000 cm−1 range. The spatial and spectral resolution was 1 μm and 1 cm−1, respectively. Each spectrum was the result of three accumulations with a 10 s exposure. The spectra fitting was performed by LabSpec V.5.36 software (Horiba, Ltd., Kyoto, Japan).
All NEXAFS spectroscopy data were obtained at the Berliner Elektronenspeicherring für Synchrotronstrahlung (BESSY II), Helmholtz-Zentrum, Berlin, Germany, using synchrotron radiation (SR) of the Russian–German beamline (RGBL) [31,32]. C 1s NEXAFS spectra were measured using total electron yield (TEY) mode with correct consideration of non-monochromatic background and instrumental distortions. For energy calibration of these spectra, the energy positions of the first- and second-order light-excited Au 4f7/2 photoelectron (PE) lines were used. The spectral variation of the photon flux was measured by recording a TEY signal from a clean Au plate. The photon energy resolution in the vicinity of the C 1s (~280 eV) absorption edge was set to 50 meV.
XPS studies were carried out using an ESCAlab 250Xi X-ray photoelectron spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) with AlKα radiation (1486.6 eV) of X-ray tube to excite PE spectra at room temperature equipped with the electron-ion sample charge compensation system (the resource center in the Science Park at St. Petersburg State University, “physical methods for surface research”). The C 1s and O 1s core level and survey PE spectra were obtained with a total energy resolution of about 0.3 eV at the pass energy of 50 eV and 100 eV, respectively. The experimental particularities and the used equipment characteristics are described in more detail elsewhere [29,33]. Samples for XPS and NEXAFS spectroscopy were prepared by pressing fullerene powder into the copper plate surface.
All Raman, NEXAFS, and XPS measurements were performed for a series of samples at different points for each one, and their results had good reproducibility.

3. Results and Discussion

3.1. Pristine Fullerite C60 Study

The results of preliminary tests of the initial powder of pristine fullerene C60 by XRD, Raman, XPS and NEXAFS techniques are shown on Figure 1a–c and Figure 1d, respectively. The XRD patterns (Figure 1a) are in good agreement with those of the studies [34,35,36] and Raman spectrum (Figure 1b) show only the peaks characteristic of pure C60 [21,36,37,38].
Figure 1c shows the overview XPS spectra in the 0–1200 eV binding energy (BE) range for the C60 powder and highly oriented pyrolytic graphite (HOPG) exposed to air for a long time. This spectrum of the C60 powder contains an intense C 1s peak at 284.7 eV (full width at half maximum, FWHM is 1.3 eV) and a broader O 1s line at 532.2 eV (FWHM is 2.6 eV). In turn, the HOPG spectrum is also characterized by an intense C 1s peak at 284.6 eV (FWHM is 1.1 eV) and a broader O 1s line at 532.0 eV (FWHM is 2.4 eV). XPS measurements allow to derive an estimate of the oxygen relative atomic concentration on the C60 powder surface, equal to 4%, and on the HOPG surface, equal to 8%. The availability of the O 1s peak in the overview XPS spectra of C60 and HOPG indicates the presence of oxygen-containing compounds on the surface of the materials under study. Possible reasons for this could be carbon oxides, as well as water and oxygen molecules physically adsorbed from the air. The inset in Figure 1c shows C 1s and O 1s core-level PE spectra of C60 and HOPG. In both of C 1s spectra there is only one asymmetric peak and no signals associated with carbon oxides. The main line of the C 1s core level PE spectrum of HOPG is accompanied by a noticeable tail on the high-energy side, which is caused by π-type shake-up satellite [39,40,41].
Applsci 11 11646 g001 550

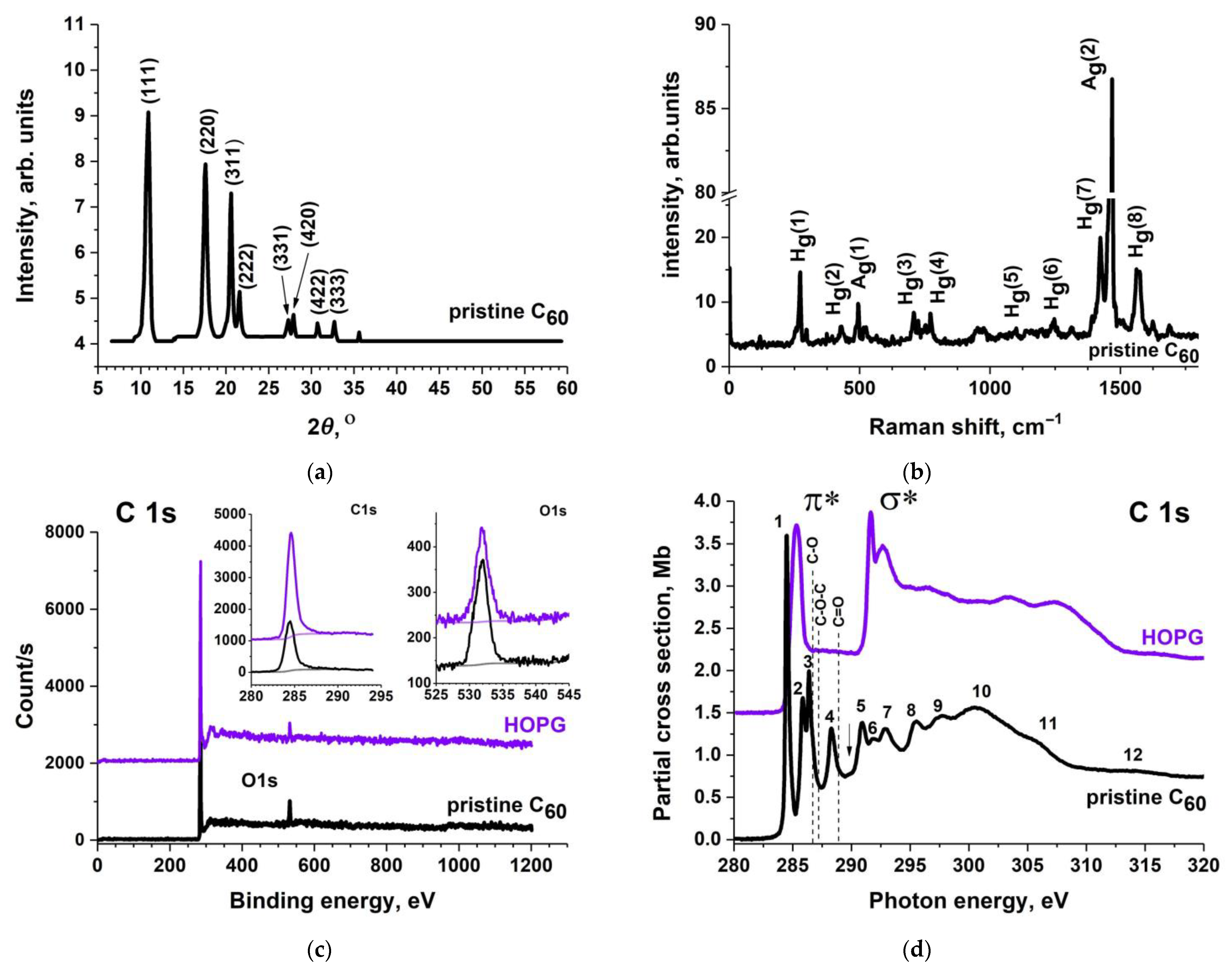

Figure 1. Characterization of the pristine C60 powder and HOPG: (a) C60 XRD pattern; (b) C60 Raman spectra; (c) survey XPS spectra of the C60 and HOPG, the inset shows their C 1s and O 1s XPS spectra; (d) C 1s NEXAFS spectra of the C60 and HOPG (shifted at the vertical scale by 1.5 Mb). The arrow in (d) indicates the position of the fullerite C60 C 1s absorption edge (289.60 eV) [42]. The positions of the absorption bands in the atomic groups C=O (288.9 eV), C–O–C (287.2 eV) and C–O (286.7 eV) [43] are marked with dashed lines.
Figure 1. Characterization of the pristine C60 powder and HOPG: (a) C60 XRD pattern; (b) C60 Raman spectra; (c) survey XPS spectra of the C60 and HOPG, the inset shows their C 1s and O 1s XPS spectra; (d) C 1s NEXAFS spectra of the C60 and HOPG (shifted at the vertical scale by 1.5 Mb). The arrow in (d) indicates the position of the fullerite C60 C 1s absorption edge (289.60 eV) [42]. The positions of the absorption bands in the atomic groups C=O (288.9 eV), C–O–C (287.2 eV) and C–O (286.7 eV) [43] are marked with dashed lines.
Applsci 11 11646 g001
The obtained C 1s NEXAFS spectra of HOPG and C60 in terms of the number of absorption bands and their energy positions are in good agreement with the results of the previous works [42,44,45,46,47,48,49,50,51], respectively. The presence of carbon oxides on the fullerite C60 and HOPG surface can be detected using the C 1s NEXAFS spectra shown in Figure 1d. The energy positions of absorption bands in the C 1s NEXAFS spectrum of the fullerite C60 are given in Table 1.
At room temperatures fullerene C60 condenses into a molecular crystal (fullerite C60) in which the molecules are bound by weak Van der Waals forces and are in quasi-free rotational motion. This crystal has an fcc lattice with a 1.417 nm lattice constant and 1.002 nm intermolecular distance [36]. The C 1s NEXAFS studies of C60 in condensed and gaseous phases [50], as well as C60 molecules isolated in the Xe matrix [51] showed that intermolecular interaction in fullerite C60 does not play a significant role in the formation of its electronic structure and the electron correlation effects are intramolecular. It was also found [51] that the BE of C 1s electron in crystalline fullerite is 0.4 eV less than in the gas-phase C60 molecule. It should also be emphasized that the shape and energy positions of absorption bands in the C 1s NEXAFS spectra of crystalline and molecular C60 coincide. This is evidence for a negligible effect of neighboring molecules on the C 1s NEXAFS spectrum due to the weakness of intermolecular interactions. Therefore, the calculation data for the C60 cluster can be used to interpret the C 1s NEXAFS spectrum of fullerite [34]. The icosahedral-symmetric C60 theoretical study [34] shows the expediency of extending the Hückel molecular orbital method, previously used for planar conjugate systems (where each carbon atom forms three two-electron localized σ-bonds with neighboring atoms, and the fourth electron is located on the π–orbital orthogonal to the three σ–orbitals), to large spheroidal molecules. The C60 molecular structure has the non-planar (pyramidal) atom arrangement. This affects the π-orbital nature and leads to the presence of frame stresses and decreases the fullerene thermodynamic stability compared to graphite [52]. It should be noted that the π- and σ-orbital approximation for the C60 molecule is not strict. However, for large surfaces, the π-like orbitals are oriented close to the normal to the surface, and σ-like—tangential to the surface.
In the literature, there are extensive data on the nature of the C 1s NEXAFS spectrum of the C60 fullerene molecule, theoretically calculated in various approximations [34,52,53,54]. On their basis peaks 1–4 (Figure 1d) can be identified as a result of C 1s electron transitions to the unoccupied molecular orbitals (MO) of t1u, t1g, hg and t2u symmetry, respectively. The structures 5–11 above the C 1s ionization threshold are not unambiguously identified at present. However, the band structure calculations for the fullerite C60 with an fcc lattice within the density functional theory [55] showed that the π-zones are located in the range of BE from −6 eV to +7 eV, and the bonding and antibonding σ-states are located lower and higher on the energy scale, respectively. Thus, sharp peaks 5–8 can be attributed to C 1s electron transitions to the π* MOs, and broad bands 9–11 to those to σ* MOs.
The vertical dashed lines in Figure 1d indicate the positions of the peaks corresponding to C 1s → π* transitions in the atomic groups C=O (288.9 eV), C−O−C (287.2 eV) and C−O (286.7 eV) [43]. The Figure 1d clearly shows the absence of such features in the C 1s NEXAFS spectra of the C60 and HOPG. This indicates that the above O 1s XPS peaks are related to oxygen and water molecules physically adsorbed on the surfaces of C60 and HOPG without the formation of an oxygen-carbon chemical bond. Numerous studies of the adsorption of oxygen compounds on the surfaces of C60 fullerite powder and films [35,56,57,58,59,60] showed that at temperatures below 470 K water molecules from the air are physically adsorbed and remain on the surface even under high vacuum conditions. Since in our experiments, investigation was carried out at room temperature, most likely, there was a physical adsorption of water molecules. It was shown that when the samples are heated in a vacuum, some of the water molecules remain on the sample surface up to a temperature above 570 K, carbon oxides begin to form [35].
The XPS study of fullerite C60 [58,60] showed that the BE of O 1s electrons of water molecules adsorbed on the fullerite surface is in the 532–534 eV energy range and significantly less than that in a free H2O molecule (535.75 eV) [61]. According to works [62,63,64], the BE of O 1s electrons of a water molecule, regardless of whether it is adsorbed on a metal, or metal oxide, lies in the BE range between 533 and 535 eV. The energy position of the O 1s signal of a water molecule adsorbed on the surface of a solid usually shifts down the BE scale as compared to a free molecule. This shift is usually attributed to surface screening effects since an inner shell vacancy in a water molecule is more effectively screened by electrons on the surface than by those of a free water molecule. For a water molecule bound on a metal surface, two O 1s XPS peaks are commonly observed [64]. These peaks are associated with H2O (~532.5 eV) and hydroxyl groups (~531 eV) in the surface water layer, respectively. The presence of bound hydroxyl groups enhances water binding [61] because the H2O–OH H-bonding is stronger that the H2O–H2O H-bonding. For example, two O 1s XPS peaks at BE of 530.8 and 532.4 eV were observed for Cu(110) [61] and can clearly be resolved at 530.8–532.3 eV for Ru(0001) [65]. Moreover, the formation of a water bilayer was observed on the surface of metal [66], graphene [67] and fullerite C60 [60] under ultra-high vacuum conditions. Thus, the comparison of our XPS results with those of other studies confirms the above interpretation that the low-energy component of the O 1s XPS spectrum of C60 (532.2 eV) is associated with hydroxyl groups present in a surface water layer.

3.2. HIP-Treated Fullerite C60 Study

At the first stage, the study of the structural transformation of fullerite C60 during the HIP treatment was carried out by such traditional methods as XRD and Raman spectroscopy. The first method allows one to obtain the bulk structural characteristic of the condensed phase and its distortions in the transformation process as a whole, and the second characterizes the changes in the system states at the level of an individual molecular cluster of C60. However, these methods turn out to be of little information when it is necessary to analyze the C60 molecule transformations and the formation of new stable carbon clusters. Therefore, the photoelectron and absorption X-ray spectroscopy was also used to characterize the structural changes in fullerite. The XPS and NEXAFS techniques make it possible to obtain the data on the nanoscale atomic structure of the sample and analyze the nearest surroundings and the charge state of an atom that absorbed an X-ray quantum. In other words, these methods also provide quantitative information on the local atomic and electronic structure of the sample.

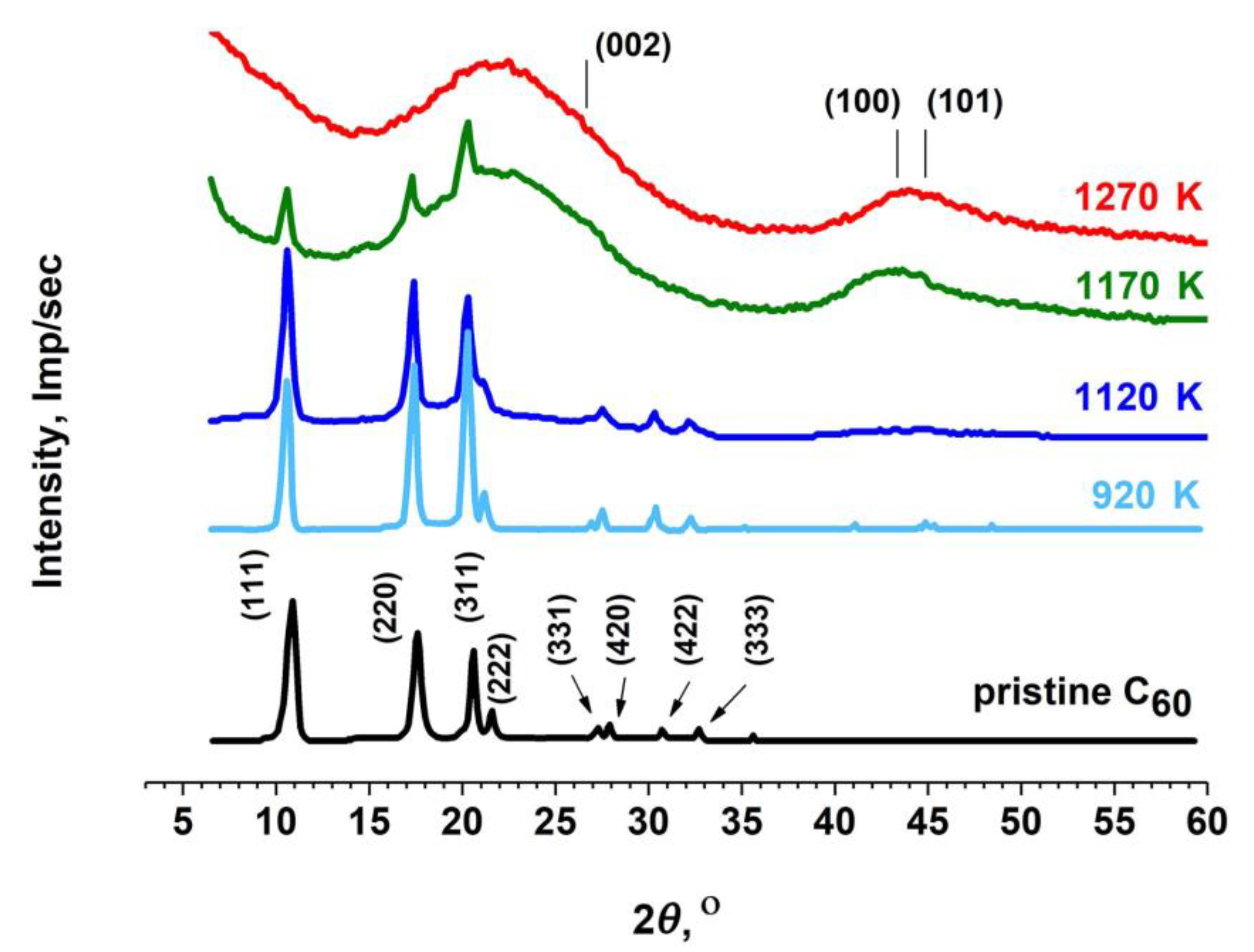

Figure 2 shows the diffraction patterns of the pristine fullerite C60 and four samples of fullerite C60 HIP-treated at a pressure of 0.1 GPa and temperatures of 920, 1120, 1170 and 1270 K for 3 h in an Ar atmosphere. The stable phase of pure fullerite C60 at atmospheric pressure and room temperature is the fcc one with the Fm3m spatial symmetry group. In the pristine C60 XRD pattern, the characteristic features of the fullerite C60 fcc phase the (200) and (400) diffraction peaks are missing due to C60 molecule rapid rotation at atmospheric pressure and room temperature. The characteristic features of the X-ray diffraction pattern of the fullerite C60 fcc phase are the (200) and (400) diffraction peaks missing at atmospheric pressure and room temperature due to C60 molecule rapid rotation. With increasing temperature, strong structural changes in diffractograms due to the transition from the fcc molecular crystal to an amorphous solid-state phase are observed. A series of clear narrow peaks in the region 2θ = 10–24° in the fcc diffraction pattern of the fullerite C60 phase shows that the starting material is a molecular crystal with a high degree of perfection. On the diffractograms at a 920 K temperature there is no shift, broadening and splitting of these diffraction peaks. This suggests that the C60 cluster remains the main structural unit of the system and, at the same time, there is no change in the distances between fullerene molecules. However, a noticeable change in the relative intensities of the diffraction lines and the appearance of weak additional reflexes in the region of large diffraction angles of 40–50° are observed, which indicates a distortion of the structure of the initial crystalline phase structure and the beginning of the process of forming a chemical bond between C60 molecules.
With a further increase in temperature to 1120 K, a slight broadening of the main diffraction peaks is observed, indicating the formation of covalent C−C bonds and a change in the distances between the molecules. The appearance of two wide-diffuse lines located in the 15–30° and 40–50° regions on diffractograms is the beginning of the C60 cluster destruction. When the temperature rises to 1170 K, the destruction increases, and at 1270 K the diffraction lines in the angle range of 10–24°, characteristic of the molecular cluster, disappear and two wide lines at angles of ~22° and ~44° are observed. The obtained data demonstrate that the limit of the cluster C60 thermal stability at a pressure of 0.1 GPa is ~1000 K and corresponds to the thermal stability limit of the C60 fullerene molecule at atmospheric pressure [68]. The diffraction patterns of the fullerite sample at a temperature of 1270 K are qualitatively similar to the ones of the materials formed at the carbonization final stages and graphitization initial stages of various carbon-containing compounds [69,70,71,72,73]. Their diffraction patterns are also characterized by the presence of several wide diffuse lines.
The diffuse band appearance at 41–47°, corresponding to two-dimensional (10) and (11) graphene layer reflexes and (100) and (101) HOPG peaks, indicates the presence of a small amount of graphene layer fragments with various degrees of defectiveness in the system [69,70]. A wide band in the region of 20–30° is characterized by a maximum, the position of which approximately corresponds to that of the (002) diffraction peak of graphite and MWCNTs. This indicates that a significant number of these two-dimensional ordered carbon clusters is a part of crystallites from packages of nanoscale graphene layers [69,70]. However, it should be noted that the absence of three-dimensional (hkl) reflexes on the diffractograms indicates the absence of a three-dimensional ordering of graphene planes characteristic of graphite. The estimation of the average sizes of nanoparticles using the Warren–Scherrer equation [69,74], which relates the average lateral dimensions La and the height (thickness) Lc of the graphene layers packaging with the width of the corresponding (10), (11) and (002) diffraction peaks, showed that the average values of the La and Lc parameters were in the range 2–4 nm.
A similar sequence of changes in the fullerite structure can be traced on the basis of the temperature dependence of the Raman spectra shown in Figure 3. The C60 Raman spectra change slightly with an increase in the temperature up to 1120 K. All the above-mentioned spectra preserve the pristine C60 spectrum main features, even though they show a small broadening and a decrease in peak intensities over the entire spectral range except the 1200–1800 cm−1 region where the wide band formation is observed. However, at temperatures above 1120 K, the Raman spectra change significantly, especially in the 1100–1700 cm−1 region. In particular, the intensities of the all peaks decrease and a wide band in the 2600–3200 cm−1 region appears. Moreover, one can see a very low-intensity peak at 96 cm−1, strong decrease in intensity and red shift of the “pentagonal pinch” mode from 1468 cm−1 to 1462 cm−1. A new peak appearing in the Raman spectrum of C60 at 96 cm−1 and the red shift of the Ag(2) “pentagonal pinch” mode indicate the formation of dimers of the C60 molecule in a fullerite during the HIP treatment. At the same time, according to the XRD data (Figure 2), the pristine fullerite fcc structure was partially preserved. The appearance of a low-energy peak (96 cm−1) is caused by a full-symmetric oscillation of the C60 molecules in the dimer. The frequency of this oscillation is in good agreement with its theoretically predicted value [75], which is also confirmed experimentally [76,77]. Moreover, the Ag(2) “pentagonal pinch” mode (1463 cm−1) is associated with the Ag(2) mode for the C60 dimer [78]. Instead of narrow peaks Hg(6)–Hg(8) two very broad bands at 1350 cm−1 and 1591 cm−1 appear. The intensity of these bands grows with the increasing temperature up to 1270 K. As a result, all the pristine C60 features in the Raman shift spectrum disappear, which indicates the complete destruction of the C60 molecules. The absence of the Ag(2) “pentagonal pinch” mode, as well as the appearance of the "graphitic" G-band and disorder-induced D-band in the Raman spectrum, on the one hand, indicates the complete destruction of pentagonal rings, and on the other hand, the formation of nanoscale structures consisting of hexagonal rings.

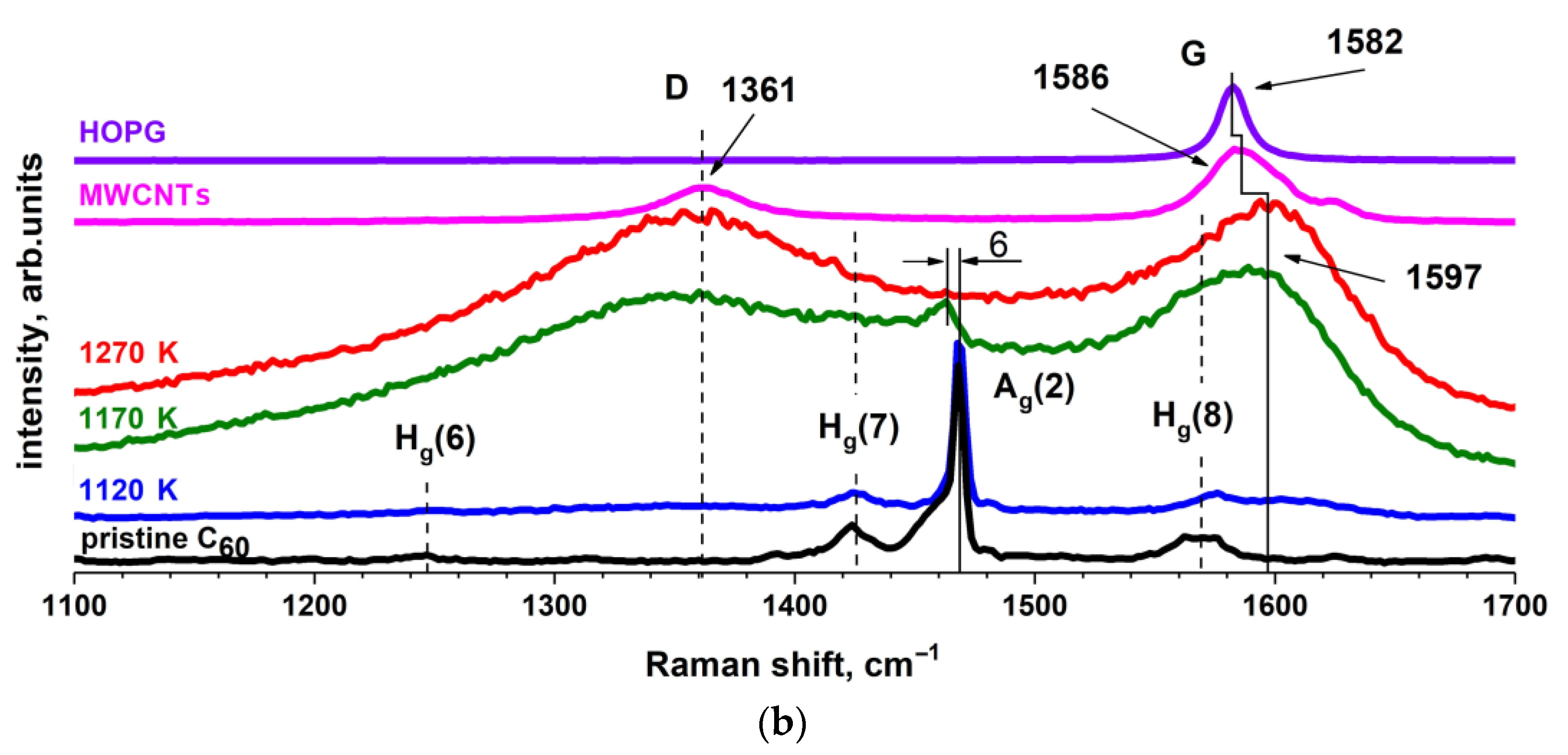

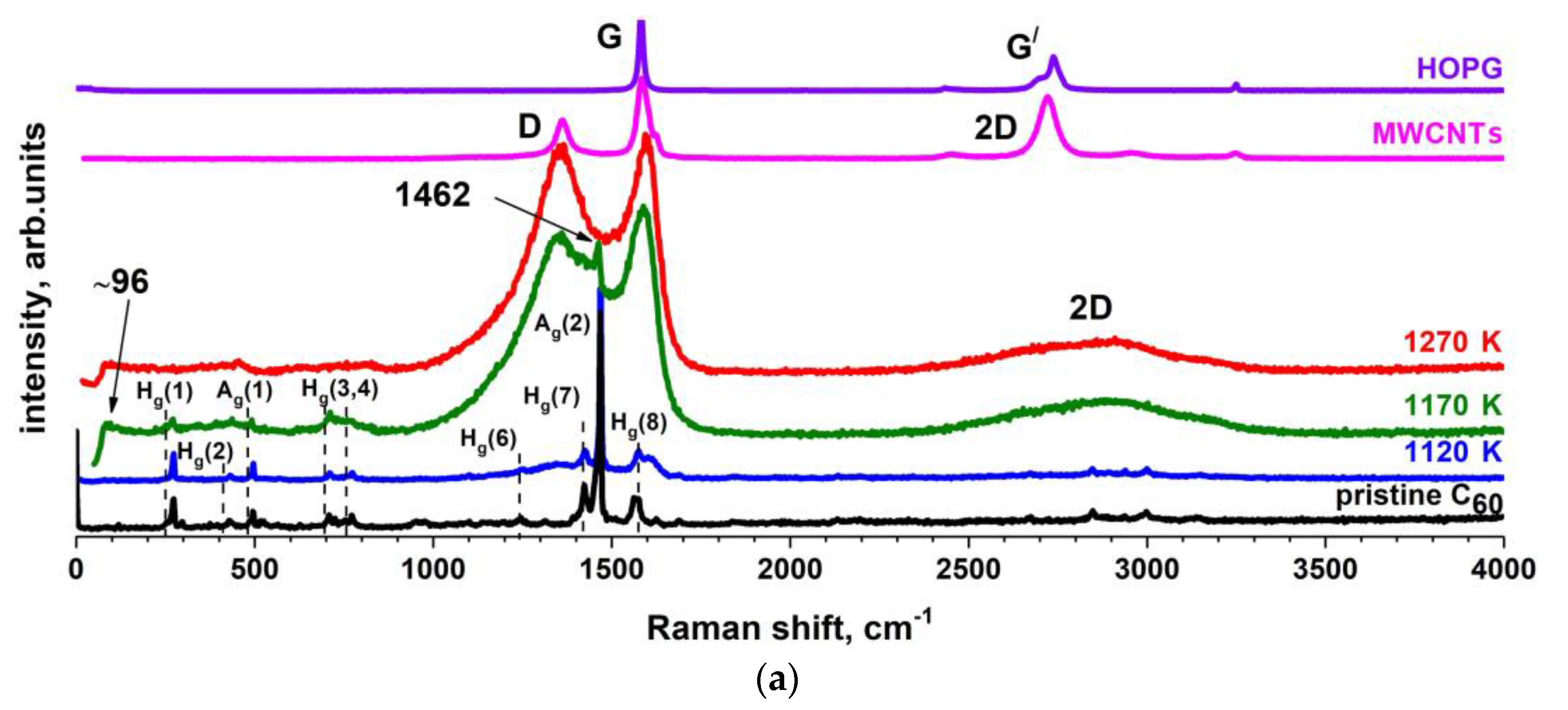

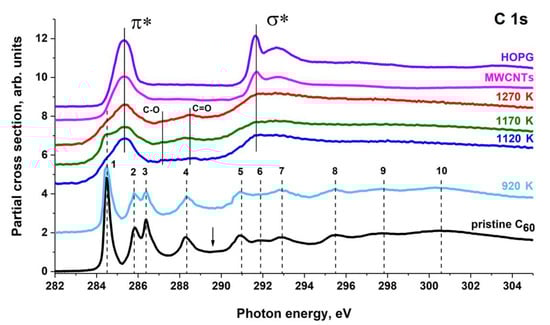

Figure 3 shows that the spectra of the modified fullerite have significantly widened G, D and 2D bands. A comparison of the Raman spectrum of the fullerite C60 with those of HOPG and MWCNTs (Figure 3b) shows that the energy position of the D band of C60 is consistent with its position in the HOPG and MWCNTs spectra, while the position of the G band (1597 cm−1) undergoes a low energy shift of 11 cm−1 for MWCNTs (1586 cm−1) and 15 cm−1 for HOPG (1582 cm−1). An essential point is the absence of narrow 2D peaks in the range of 2300–3200 cm−1 in the spectrum of the HIP-treated C60, and only a weakly modulated very wide band is present. The absence of peaks in the 2300–3200 cm−1 region of Raman spectra in the three-stage model of classification of the graphite disorderliness degree during the transition from graphite to amorphous carbon [49] suggests that fullerite C60 after HIP treatment is an intermediate material between the first (nanocrystalline graphite) and the second (mainly sp2 or low sp3 amorphous carbon) stages.
The dimensions of this material structural elements can be estimated using an empirical relation between the intensity (area) ratios of the G and D bands and the average sizes of crystallites or large molecules La [49,79] as I(D)/I(G) = C(λ)/La, where C(λ) is a constant that depends on the laser radiation wavelength λ and is equal to 4.4 nm for λ = 488 nm. In our case, La ≈ 2.5 nm, which is quite comparable to the fullerene C60 molecule diameter (~1 nm) and is consistent with the X-ray phase analysis data (~2–4 nm). It is known that with a certain orientation of two neighboring C60 molecules, when the double bonds are parallel to each other, polymerization processes of C60 fullerene molecules by the [2+2]-cycloaddition reaction are possible [4,5,80,81]. In the work [81], it was shown that by 23 consecutive turns of bonds, or the so-called generalized Stone–Wales (GSW) transformations, it is possible to describe the fusion of two fullerene C60 molecules into a C120 nanocapsule (a short nanotube 2–3 nm long) with the surface consisting mainly of hexagons.
It should be noted that in the solid state, a fullerene C60 molecule can interact by the [2+2]-cycloaddition reaction with at least four neighboring molecules. Given the size of the fullerene molecule, it is possible that two competing transformation processes occur simultaneously. This can lead to a sharp increase of the GSW transformation activation energy barrier and to the fusion process termination. Studies on modeling the molecular transformation of two fullerene C60 molecules into a C120 nanocapsule were carried out in the work [4]. Authors found that, depending on the initial orientation of the molecules, C120 nanocapsules of different chirality with diameters in the range of 0.68–0.98 nm can be formed.
The fusion of fullerene molecules into a cylindrical structure during heating to temperatures above 1370 K in a vacuum was observed experimentally by transmission electron microscopy [6]. In this study, fullerene molecules located inside single-walled nanotubes were used. In the works [7,82], high-resolution transmission electron microscopy (HRTEM) was used to study HIP-treated fullerite C60 at a pressure of 0.15 GPa and temperature of 1300 K in nitrogen [7], and at 0.22 GPa an 1670 K in argon [82]. In these studies, it was shown that the structure of the fullerite C60 after HIP treatment is a disoriented sequence of curved fragments with a size of ~1–5 nm. In the work [8], a similar picture of HRTEM images of randomly oriented graphite-type clusters with sizes of 1.5–3 nm, synthesized from fullerite C60 at a temperature of 1270 K and a pressure in the range of 1.5–8 GPa were obtained.
In order to clarify the symmetry and composition of the carbon atom’s nearest environment in the HIP-modified fullerite C60 samples, the NEXAFS spectroscopy was used. Figure 4 shows the C 1s NEXAFS spectra of the pristine and HIP-treated fullerite C60, obtained after subtracting the contribution to the absorption of the overlying shells and normalized to the absorption level at the photon energy of 320 eV. The spectrum of C60 HIP-treated at a temperature of 920 K contains all the peaks characteristic of the pristine fullerite. However, there is a significant decrease in the intensity of the first peak and a change in the relative intensities of the first three absorption bands, which correspond to transitions to the unoccupied antibonding π*-orbitals of the C60 molecule. This is in good agreement with the XRD and Raman spectroscopy data and demonstrates that fullerene molecules retain their structure. In the work [83], similar changes in C 1s NEXAFS spectrum of C60 powder after treatment at a pressure of 1.1–1.2 GPa and a temperature of 580–585 K were observed and interpreted as the evidence of the formation of covalent C−C bonds and changes in the distances between C60 molecules.
With an increase in temperature to 1170 K and further to 1270 K, C 1s NEXAFS spectrum is dramatically changed, as in the cases of the XRD patterns and Raman spectra. In particular, all the peaks present in the C 1s NEXAFS spectrum of the pristine C60 disappear, with the exception of the first intense peak, which is transformed into a shoulder on the low-energy side of the new absorption band at photon energy of 285.4 eV. In addition, new absorption structures appeared in the spectrum: a broad band at an energy of 291.7 eV, and two low-intensity bands at 287.2 eV and 288.9 eV, corresponding to C1s → π* transitions in the C−O and C=O groups [43]. At a temperature of 1270 K, the absorption structure characteristic of the C 1s NEXAFS spectrum of the C60 fullerene molecule disappears, thus indicating the complete destruction of the C60 molecule and the formation of a new material. The absorption bands of the C 1s NEXAFS spectrum of this new material correlate well with the ones in the corresponding spectra of HOPG and MWCNTs. This means that the nearest environment of the carbon atom corresponds to a hexagonal graphene network of a high degree of perfection. In the case of nanoparticles with a size of 2–5 nm, the occurrence of such an atomic environment is possible if these particles have closed graphene surfaces. The formation of such structures during HIP treatment is predicted theoretically from C60 dimers and confirmed experimentally [4,5,20,81]. In our case, the C60 dimer formation is confirmed by the Raman spectra analysis.

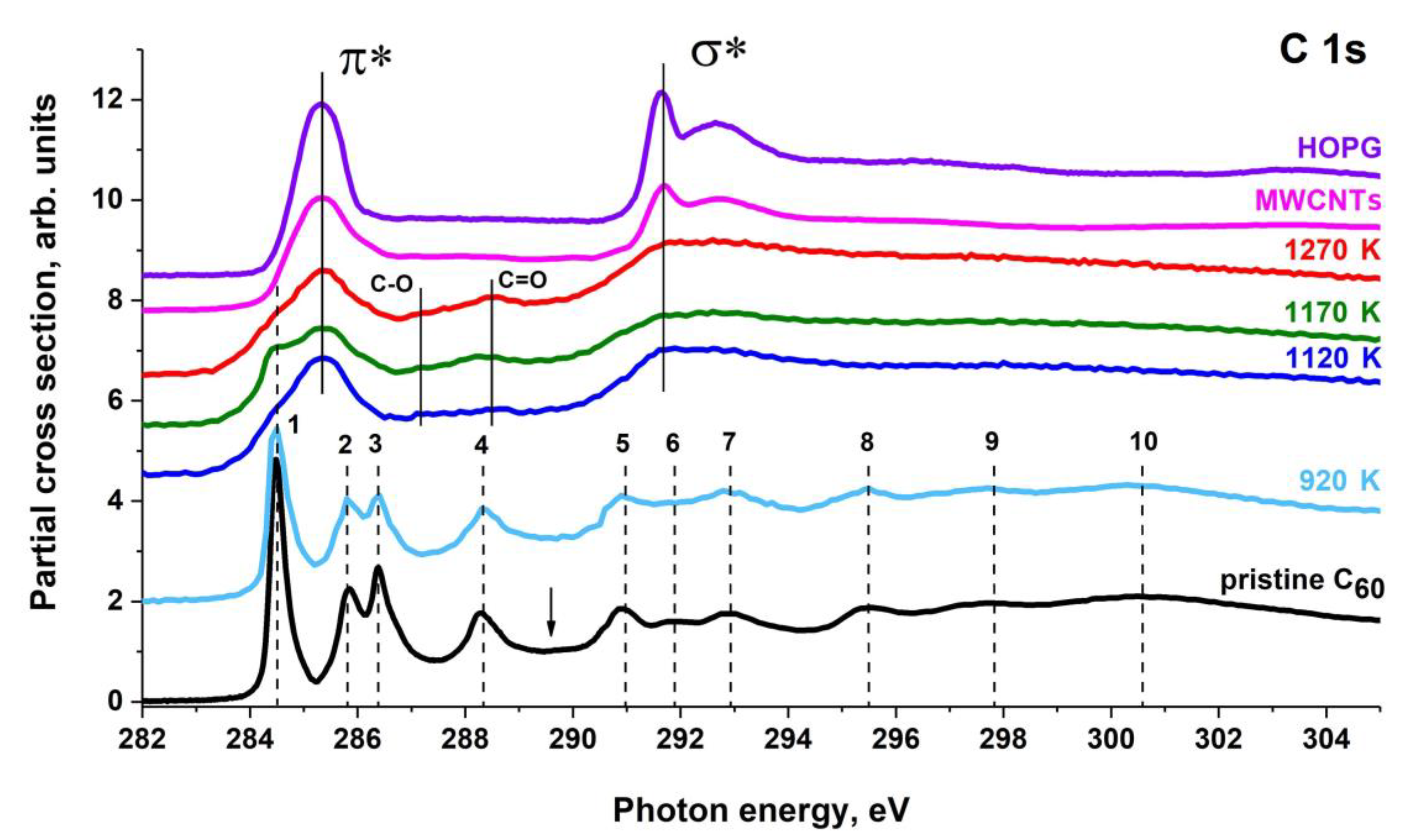

In the NEXAFS spectrum of C60 powder after HIP treatment at 1120 K (Figure 4), there are two bands associated with carbon-oxygen groups, the intensities of which are enhanced with the treatment temperature increasing. The reason for the appearance of these bands is the interaction with molecular water, which was adsorbed on the pristine C60 powder surface. As discussed earlier in Section 3.1, the formation of carbon oxides [35] occurs already at 570 K, but the corresponding peaks in the sample C 1s NEXAFS spectrum of the sample at 920 K are not observed.

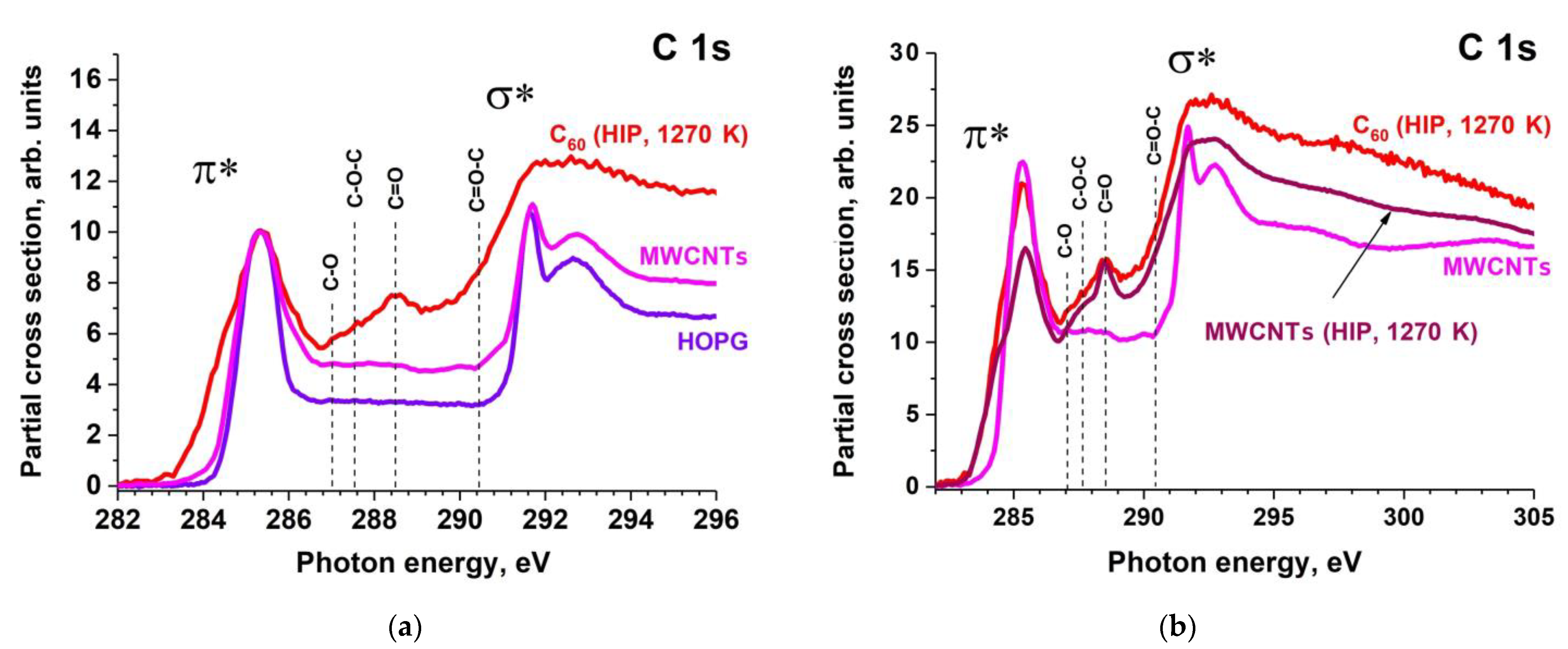

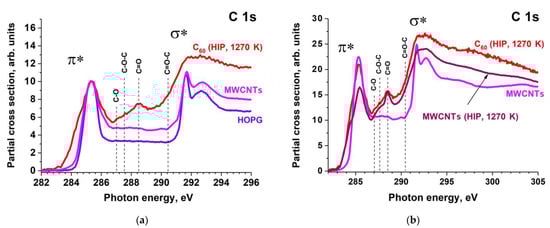

The comparison between the C 1s NEXAFS spectra of pristine HOPG and MWCNTs, and C60 powder HIP treated at a temperature of 1270 K (Figure 5a) clearly demonstrates the sequential broadening of the first π* peak during going from the HOPG spectrum to the MWCNTs one and then to the HIP-treated sample spectrum. The main reason of these spectral changes is an increase in distortions, which is clearly visible from the changes in the width and intensity of the D band in the Raman spectra presented in Figure 3. This band broadening may occur due to the formation of carbon oxides during HIP treatment. To find this out the C 1s NEXAFS spectral studies of MWCNTs after HIP treatment under the same conditions were conducted. In this study the atomic oxygen content in the initial sample was about 4%, the same as one on the surface of the pristine C60 powder.
Figure 5b shows the C 1s NEXAFS spectrum of the pristine MWCNTs, and HIP-treated C60 powder and MWCNTs. The treatment was performed in an argon atmosphere at pressure of 0.1 GPa and temperature of 1270 K for 3 hours. The figure demonstrates the broadening of the π* and σ* absorption bands and the appearance of the peaks characteristic of the C−O, C−O−C, O=C−O and C=O functional groups in the HIP-treated MWCNTs C 1s NEXAFS spectrum. This confirms that the broadening of the absorption bands is caused by the formation of carbon oxides during the C60 HIP treatment. Taking into account the impossibility of the complete removal of adsorbed water even in a high vacuum, it is very likely to expect the appearance of the absorption bands associated with the presence of carbon oxides in the C 1s NEXAFS spectrum of the carbon material subjected to HIP treatment in inert media.
The high sensitivity of the C 1s NEXAFS spectrum of the new carbon material to the presence of the C−O, C−O−C, O=C−O and C=O functional groups is due to the high oscillator strengths of C1s → π* transitions in such linear atomic groups. Therefore, even at small oxide concentrations, their presence is manifested in C 1s NEXAFS spectra. To determine the quantitative atomic concentration of oxygen in the fullerite C60 powder after HIP treatment at 1270 K, its C 1s XPS spectra were measured. The overview XPS spectrum of the C60 powder after HIP treatment at 1270 K (Figure 6) contains a C 1s peak at 284.7 eV (FWHM is 1.4) and a broad O 1s line at 532.7 eV (FWHM is 2.6). The XPS measurements allow the determination of the relative atomic concentration of oxygen on the HIP-treated powder C60 surface equal to 4%. The O 1s peak in the XPS spectra indicates the presence of oxygen-containing compounds on the sample surface (carbon oxides as well as water and oxygen molecules physically adsorbed from the atmosphere).

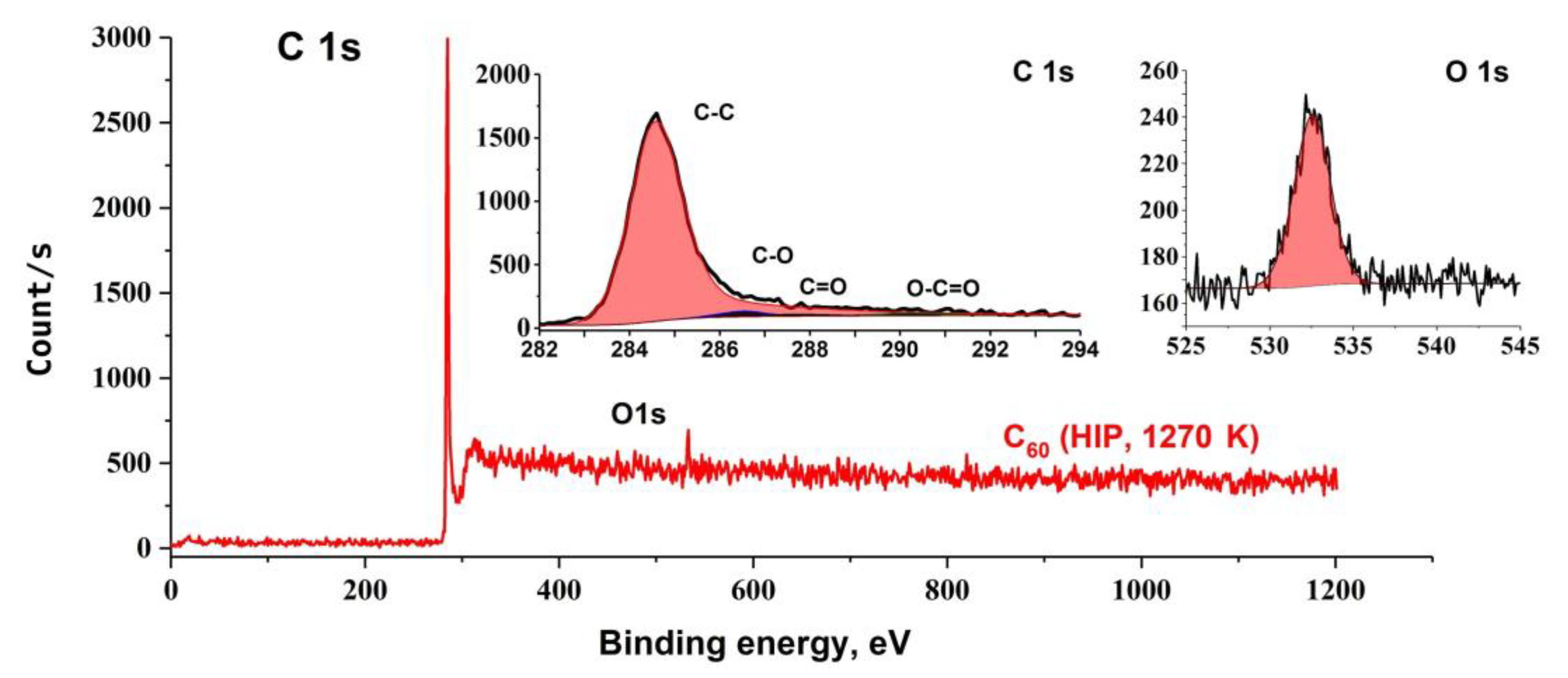

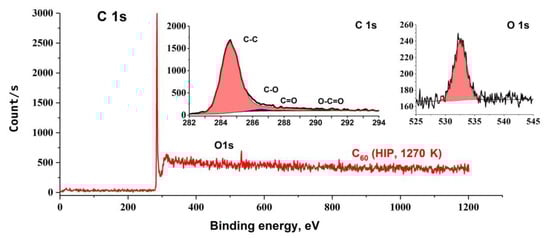

As can be seen from the C 1s core-level PE spectrum (left inset in Figure 6) the main C 1s peak is asymmetric and splits into four components at the BE of 284.7 eV (C–C), 286.5 eV (C–O), 287.6 eV (C=O) and ~290 eV (O=C–O). The O 1s peak (right inset in Figure 6) is symmetric and the separation of O 1s signals associated with different oxygen-containing groups and adsorbed water molecules is not possible. From a comparison of the peak areas of the C 1s and O 1s XPS spectra of the C60 powder treated with HIP, it was found that the ratio of the number of oxygen atoms participating in the formation of oxygen-containing groups and the adsorption of water molecules on the sample surface to the number of carbon atoms, is about of 3%. The presence of a broad band at a BE of ~290 eV in C 1s XPS spectrum explains the appearance of a wide shoulder at the low-energy side of the σ* absorption band in C 1s NEXAFS spectrum of the MWCNTs and HIP-treated fullerite (Figure 6) as the contribution of C1s → π* transitions in the O=C−O group [43].
The analysis of the XPS and NEXAFS spectroscopy data suggests that with an increase in temperature during the HIP treatment, the destruction of the fullerite C60 molecular structure occurs with the formation of C60 dimers at a temperature of 1170 K, as well as the fusion of fullerene molecules into nanocapsules with a graphene surface and the formation of a new material at a temperature of 1270 K. A comparison between the C 1s NEXAFS spectra of this material and MWCNTs allows to assert that the obtained material is not a disoriented graphite phase, but a set of arbitrary oriented closed graphene surfaces connected with covalent bond, in which carbon atoms have the high environment stoichiometry as in graphene.

4. Conclusions

The C60 powder samples subjected to HIP treatment were studied by a complementary set of methods (XRD, XPS, NEXAFS and Raman spectroscopy). The obtained results were analyzed using a literature data on electron microscopy [7,8,82] and various theoretical approaches [4,5,80,81]. The conducted study clearly shows the advantages of combining different complementary theoretical and experimental methods for the most complete characterization of such complex samples. A strong bonding of the water molecules with the C60 powder, MWCNTs and the surface of the HOPG was found. Using the XPS method, the presence of a residual surface layer of water molecules on all samples even under ultrahigh vacuum was detected and the concentration of oxygen atoms was determined as equal to 4–8%. Thus, the presence of adsorbed water on the surface of fullerite and MWCNTs leads to the formation of carbon oxides during HIP treatment, with the concentration of carbon atoms bonded with oxygen atoms equals to ~3%.
The analysis of the data obtained by a complementary set of methods showed the following scenario of the pristine fullerite C60 powder transformation into closed graphene shells of 2–5 nm in size, connected by covalent bonds. At the first stage of HIP treatment, when heated to a temperature of 920 K, fullerite retains its crystalline fcc structure, but the process of forming bonds between molecules and the formation of C60 dimers begins. This is expressed in a decrease and change in the relative intensity of the first four bands in the C 1s NEXAFS spectrum. With an increase in temperature to 1120 K, the process of bond formation becomes more intense, which is evident from the presence of peaks characteristic of C60 dimers in the Raman spectra and the preservation of the fcc structure reflexes on the diffractogram. However, at the same time, the process of merging neighboring molecules begins, which ends at 1270 K with the transformation of fullerene molecules into capsules of 2–5 nm in size. These capsules are completely disoriented, which is clearly seen by the appearance of diffuse bands on diffractograms and Raman spectra, and is confirmed by HRTEM data [7,8,82]. The mechanism of such capsule formation through the fusion of C60 fullerene molecules during HIP treatment is predicted theoretically and described in detail in the work [81], but has no experimental confirmation. To solve this problem, it is necessary to show the formation of a closed graphene surface during fullerite HIP treatment. The proof can be the formation of the carbon atom environment after HIP treatment, similar to one in the case of HOPG or pure MWCNTs.
The best method for solving this problem is NEXAFS spectroscopy. In the modern publications, there is no data on the study of HIP-treated fullerite C60 by spectroscopy methods. In the paper, for the first time, systematic studies of HIP-treated fullerite C60 with a sequential step-by-step increase in temperature were carried out by a complementary set of methods, including XPS and NEXAFS spectroscopy using synchrotron radiation. Successive changes in the C60 powder subjected to HIP treatment at temperatures equal to 920, 1120, 1170 and 1270 K clearly demonstrate the formation of a structure in the form of π* and σ* absorption bands in the C60 powder C 1s NEXAFS spectrum, also presented in the C 1s NEXAFS spectra of HOPG, MWCNTs and MWCNTs HIP-treated at a temperature of 1270 K. Nanoparticles of 2–5 nm in size stacked in several graphene-like layers cannot be characterized by an ideal arrangement of carbon atoms, as in the case of HOPG and MWCNTs, except for the case when they form a closed surface consisting of hexagons.
Thus, the conducted studies have shown that using HIP treatment of fullerite C60 powder at a temperature of 1270 K and a pressure of 0.1 GPa in an argon atmosphere, a chemical resistant material with high hardness and elasticity at a density lower than graphite consisting of closed graphene surfaces with a size of 2–5 nm connected by covalent bonds can be obtained. This material is promising for various applications and as a basis for the synthesis of new composite materials.

Author Contributions

Conceptualization, D.V.S. and O.V.P.; research supervision, D.V.S., O.V.P., S.V.N. and V.N.S.; writing—original draft, D.V.S., O.V.P., S.V.N., A.S.V. and V.N.S.; fullerite C60 HIP treatment, XRD measurement and its data interpretation, A.M.O. and B.S.K.; Raman spectroscopy measurements, S.I.I.; XPS and NEXAFS spectroscopy measurements and their data analysis, D.V.S., O.V.P., S.V.N., A.S.V., R.N.S., K.A.B. and V.N.S. All the authors discussed the results and commented on the manuscript during its preparation. All authors have read and agreed to the published version of the manuscript.

Funding

The reported study was funded by RFBR, project number 19-32-60018, and the Komi Republic within the framework of research project No. 20-42-110002 r-a, the Grant of the President of the Russian Federation (MK-3796.2021.1.2), the bilateral program of the Russian–German laboratory at BESSY II and the state research target for the G.A. Razuvaev Institute of Organometallic Chemistry of RAS (theme No. 45.4). The study was supported by the Ministry of Science and Higher Education of Russia under Agreement N 075-15-2021-1351 in part of research on NEXAFS spectroscopy. The work was carried out using the equipment of the center for collective use “Analytical Center of the IOMC RAS” with the financial support of the grant “Ensuring the development of the material and technical infrastructure of the centers for collective use of scientific equipment” (Unique identifier RF—2296.61321X0017, Agreement Number 075-15-2021-670).

Institutional Review Board Statement

Not applicable.

Acknowledgments

Scientific research were performed at the Center for Studies in Surface Science of Research Park of St. Petersburg State University, and the Center for Collective Use at the Institute of Geology of Komi Science Centre of the Ural Branch of RAS.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Krätschmer, W.; Lamb, L.D.; Fostiropoulos, K.; Huffman, D.R. Solid C60: A new form of carbon. Nature 1990, 347, 354–358. [Google Scholar] [CrossRef]
  2. Howard, J.B.; McKinnon, J.T.; Makarovsky, Y.; Lafleur, A.L.; Johnson, M.E. Fullerenes C60 and C70 in flames. Nature 1991, 352, 139–141. [Google Scholar] [CrossRef] [PubMed]
  3. Lieber, C.M.; Chen, C.C. Preparation of fullerenes and fullerene based materials. In Solid State Physics; Ehrenreich, H., Spaepen, F., Eds.; Academic Press: New York, NY, USA, 1994; Volume 48, pp. 109–148. [Google Scholar]
  4. Kim, Y.-H.; Lee, I.-H.; Chang, K.J.; Lee, S. Dynamics of fullerene coalescence. Phys. Rev. Lett. 2003, 90, 065501. [Google Scholar] [CrossRef] [Green Version]
  5. Stafström, S.; Fagerström, J. Electronic structure and stability of fullerene polymers. Appl. Phys. A Mater. Sci. Process. 1997, 64, 307–314. [Google Scholar] [CrossRef]
  6. Bandow, S.; Takizawa, M.; Hirahara, K.; Yudasaka, M.; Iijima, S. Raman scattering study of double-wall carbon nanotubes derived from the chains of fullerenes in single-wall carbon nanotubes. Chem. Phys. Lett. 2001, 337, 48–54. [Google Scholar] [CrossRef]
  7. Brazhkin, V.V.; Lyapin, A.G.; Solozhenko, V.L.; Bugakov, V.I.; Dub, S.N.; Kurakevych, O.O.; Kondrin, M.V.; Gromnitskaya, E.L. High-temperature transitions of C60 at moderate pressures. Fuller. Nanotub. Carbon Nanostruct. 2008, 16, 475–485. [Google Scholar] [CrossRef]
  8. Tat’yanin, E.V.; Lyapin, A.G.; Mukhamadiarov, V.V.; Brazhkin, V.V.; Vasiliev, A.L. Mechanism of formation of the superhard disordered graphite-like phase from fullerite C60 under pressure. J. Phys. Condens. Matter 2005, 17, 249–256. [Google Scholar] [CrossRef]
  9. Duclos, S.J.; Brister, K.; Haddon, R.C.; Kortan, A.R.; Thiel, F.A. Effects of pressure and stress on C60 fullerite to 20 GPa. Nature 1991, 351, 380–382. [Google Scholar] [CrossRef]
  10. Samara, G.A.; Schirber, J.E.; Morosin, B.; Hansen, L.V.; Loy, D.; Sylwester, A.P. Pressure dependence of the orientational ordering in solid C60. Phys. Rev. Lett. 1991, 67, 3136–3139. [Google Scholar] [CrossRef] [PubMed]
  11. Yoo, C.S.; Nellis, W.J. Phase transformations in carbon fullerenes at high shock pressures. Science 1991, 254, 1489–1491. [Google Scholar] [CrossRef]
  12. Kriza, G.; Ameline, J.-C.; Jérome, D.; Dworkin, A.; Szwarc, H.; Fabre, C.; Schütz, D.; Rassat, A.; Bernier, P.; Zahab, A. Pressure dependence of the structural phase transition in C60. J. Phys. I Fr. 1991, 1, 1361–1364. [Google Scholar] [CrossRef] [Green Version]
  13. Yoo, C.S.; Nellis, W.J. Phase transition from C60 molecules to strongly interacting C60 agglomerates at hydrostatic high pressures. Chem. Phys. Lett. 1992, 198, 379–382. [Google Scholar] [CrossRef]
  14. Moshary, F.; Chen, N.H.; Silvera, I.F.; Brown, C.A.; Dorn, H.C.; de Vries, M.S.; Bethune, D.S. Gap reduction and the collapse of solid C60 to a new phase of carbon under pressure. Phys. Rev. Lett. 1992, 69, 466–469. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Yamawaki, H.; Yoshida, M.; Kakudate, Y.; Usuba, S.; Yokoi, H.; Fujiwara, S.; Aoki, K.; Ruoff, R.; Malhotra, R.; Lorents, D. Infrared study of vibrational property and polymerization of fullerene C60 and C70 under pressure. J. Phys. Chem. 1993, 97, 11161–11163. [Google Scholar] [CrossRef]
  16. Bashkin, I.O.; Rashchupkin, V.I.; Gurov, A.F.; Moravsky, A.P.; Rybchenkot, O.G.; Kobelev, N.P.; Soifer, Y.M.; Ponyatovsky, E.G. A new phase transition in the T-P diagram of C60 fullerite. J. Phys. Condens. Matter 1994, 6, 7491–7498. [Google Scholar] [CrossRef]
  17. Iwasa, Y.; Arima, T.; Fleming, R.M.; Siegrist, T.; Zhou, O.; Haddon, R.C.; Rothberg, L.J.; Lyons, K.B.; Carter, H.L.; Hebard, A.F.; et al. New phases of C60 synthesized at high pressure. Science 1994, 264, 1570–1572. [Google Scholar] [CrossRef]
  18. Núñez-Regueiro, M.; Marques, L.; Hodeau, J.-L.; Béthoux, O.; Perroux, M. Polymerized fullerite structures. Phys. Rev. Lett. 1995, 74, 278–281. [Google Scholar] [CrossRef]
  19. Blank, V.; Popov, M.; Buga, S.; Davydov, V.; Denisov, V.N.; Ivlev, A.N.; Marvin, B.N.; Agafonov, V.; Ceolin, R.; Szwarc, H.; et al. Is C60 fullerite harder than diamond? Phys. Lett. A 1994, 188, 281–286. [Google Scholar] [CrossRef]
  20. Sundqvist, B. Fullerenes under high pressures. Adv. Phys. 1999, 48, 1–134. [Google Scholar] [CrossRef]
  21. Blank, V.D.; Buga, S.G.; Dubitsky, G.A.; Serebryanaya, N.R.; Popov, M.Y.; Sundqvist, B. High-pressure polymerized phases of C60. Carbon 1998, 36, 319–343. [Google Scholar] [CrossRef]
  22. Brazhkin, V.V.; Lyapin, A.G.; Popova, S.V.; Bayliss, S.C.; Varfolomeeva, T.D.; Voloshin, R.N.; Gavrilyuk, A.G.; Kondrin, M.V.; Mukhamad’yarov, V.V.; Troyan, I.A.; et al. Interplay between the structure and properties of new metastable carbon phases obtained under high pressures from fullerite C60 and carbyne. J. Exp. Theor. Phys. Lett. 2002, 76, 681–692. [Google Scholar] [CrossRef]
  23. Wood, R.A.; Lewis, M.H.; West, G.; Bennington, S.M.; Cain, M.G.; Kitamura, N. Transmission electron microscopy, electron diffraction and hardness studies of high-pressure and high-temperature treated C60. J. Phys. Condens. Matter 2000, 12, 10411–10421. [Google Scholar] [CrossRef]
  24. Gadd, G.E.; Moricca, S.; Kennedy, S.J.; Elcombe, M.M.; Evans, P.J.; Blackford, M.; Cassidy, D.; Howard, C.J.; Prasad, P.; Hanna, J.V.; et al. Novel rare gas interstitial fullerenes of C60 with Ar, Kr and Xe. J. Phys. Chem. Solids 1997, 58, 1823–1832. [Google Scholar] [CrossRef]
  25. Shul’ga, Y.M.; Martynenko, V.M.; Polyakov, S.N.; Chelovskaya, N.V.; Open’ko, V.V.; Skokan, E.V.; Blinova, L.N.; Dobrovol’skii, Y.A.; Morozov, Y.G.; Razumov, V.F.; et al. Fullerite intercalated with argon at room temperature: Synthesis and physicochemical properties. Russ. J. Inorg. Chem. 2009, 54, 341–345. [Google Scholar] [CrossRef]
  26. Stöhr, J. NEXAFS Spectroscopy; Springer Series in Surface Sciences; Springer: Berlin/Heidelberg, Germany, 1992; Volume 25, ISBN 978-3-642-08113-2. [Google Scholar]
  27. Hüfner, S. Photoelectron Spectroscopy; Advanced Texts in Physics; Springer: Berlin/Heidelberg, Germany, 2003; ISBN 978-3-642-07520-9. [Google Scholar]
  28. Hofmann, S. Auger- and X-ray Photoelectron Spectroscopy in Materials Science; Springer Series in Surface Sciences; Springer: Berlin/Heidelberg, Germany, 2013; Volume 49, ISBN 978-3-642-27380-3. [Google Scholar]
  29. Sivkov, D.; Petrova, O.; Mingaleva, A.; Ob’edkov, A.; Kaverin, B.; Gusev, S.; Vilkov, I.; Isaenko, S.; Bogachuk, D.; Skandakov, R.; et al. The structure and chemical composition of the Cr and Fe pyrolytic coatings on the MWCNTs’ surface according to NEXAFS and XPS spectroscopy. Nanomaterials 2020, 10, 374. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Sivkov, D.; Nekipelov, S.; Petrova, O.; Vinogradov, A.; Mingaleva, A.; Isaenko, S.; Makarov, P.; Ob’edkov, A.; Kaverin, B.; Gusev, S.; et al. Studies of buried layers and interfaces of tungsten carbide coatings on the MWCNT surface by XPS and NEXAFS spectroscopy. Appl. Sci. 2020, 10, 4736. [Google Scholar] [CrossRef]
  31. Gorovikov, S.A.; Molodtsov, S.L.; Follath, R. Optical design of the high-energy resolution beamline at a dipole magnet of BESSY II. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 1998, 411, 506–512. [Google Scholar] [CrossRef]
  32. Fedoseenko, S.I.; Vyalikh, D.V.; Iossifov, I.E.; Follath, R.; Gorovikov, S.A.; Püttner, R.; Schmidt, J.-S.; Molodtsov, S.L.; Adamchuk, V.K.; Gudat, W.; et al. Commissioning results and performance of the high-resolution Russian–German beamline at BESSY II. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2003, 505, 718–728. [Google Scholar] [CrossRef]
  33. Kummer, K.; Sivkov, V.N.; Vyalikh, D.V.; Maslyuk, V.V.; Blüher, A.; Nekipelov, S.V.; Bredow, T.; Mertig, I.; Mertig, M.; Molodtsov, S.L. Oscillator strength of the peptide bond π* resonances at all relevant X-ray absorption edges. Phys. Rev. B 2009, 80, 155433. [Google Scholar] [CrossRef]
  34. Kroto, H.W.; Allaf, A.W.; Balm, S.P. C60: Buckminsterfullerene. Chem. Rev. 1991, 91, 1213–1235. [Google Scholar] [CrossRef]
  35. Werner, H.; Schedel-Niedrig, T.; Wohlers, M.; Herein, D.; Herzog, B.; Schlögl, R.; Keil, M.; Bradshaw, A.M.; Kirschner, J. Reaction of molecular oxygen with C60: Spectroscopic studies. J. Chem. Soc. Faraday Trans. 1994, 90, 403–409. [Google Scholar] [CrossRef]
  36. Hou, J.G.; Zhao, A.D.; Huang, T.; Lu, S. C60-based materials. In Encyclopedia of Nanoscience and Nanotechnology; Nalwa, H.S., Ed.; American Scinetific Publishers: Stevenson Ranch, CA, USA, 2004; Volume 1, pp. 409–474. [Google Scholar]
  37. Rao, A.M.; Zhou, P.; Wang, K.-A.; Hager, G.T.; Holden, J.M.; Wang, Y.; Lee, W.-T.; Bi, X.-X.; Eklund, P.C.; Cornett, D.S.; et al. Photoinduced polymerization of solid C60 films. Science 1993, 259, 955–957. [Google Scholar] [CrossRef]
  38. Sundqvist, B. Mapping intermolecular bonding in C60. Sci. Rep. 2015, 4, 6171. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Leiro, J.A.; Heinonen, M.H.; Laiho, T.; Batirev, I.G. Core-level XPS spectra of fullerene, highly oriented pyrolitic graphite, and glassy carbon. J. Electron Spectrosc. Relat. Phenom. 2003, 128, 205–213. [Google Scholar] [CrossRef]
  40. Weaver, J.H.; Martins, J.L.; Komeda, T.; Chen, Y.; Ohno, T.R.; Kroll, G.H.; Troullier, N.; Haufler, R.E.; Smalley, R.E. Electronic structure of solid C60: Experiment and theory. Phys. Rev. Lett. 1991, 66, 1741–1744. [Google Scholar] [CrossRef]
  41. Weaver, J.H. Electronic structures of C60, C70 and the fullerides: Photoemission and inverse photoemission studies. J. Phys. Chem. Solids 1992, 53, 1433–1447. [Google Scholar] [CrossRef]
  42. Maxwell, A.J.; Brühwiler, P.A.; Arvanitis, D.; Hasselström, J.; Mårtensson, N. C 1s ionisation potential and energy referencing for solid C60 films on metal surfaces. Chem. Phys. Lett. 1996, 260, 71–77. [Google Scholar] [CrossRef]
  43. Jeong, H.-K.; Noh, H.-J.; Kim, J.-Y.; Jin, M.H.; Park, C.Y.; Lee, Y.H. X-ray absorption spectroscopy of graphite oxide. Europhys. Lett. 2008, 82, 67004. [Google Scholar] [CrossRef] [Green Version]
  44. Batson, P.E. Carbon 1s near-edge-absorption fine structure in graphite. Phys. Rev. B 1993, 48, 2608–2610. [Google Scholar] [CrossRef] [PubMed]
  45. Rosenberg, R.A.; Love, P.J.; Rehn, V. Polarization-dependent C(K) near-edge X-ray-absorption fine structure of graphite. Phys. Rev. B 1986, 33, 4034–4037. [Google Scholar] [CrossRef] [PubMed]
  46. Skytt, P.; Glans, P.; Mancini, D.C.; Guo, J.-H.; Wassdahl, N.; Nordgren, J.; Ma, Y. Angle-resolved soft-X-ray fluorescence and absorption study of graphite. Phys. Rev. B 1994, 50, 10457–10461. [Google Scholar] [CrossRef]
  47. Brühwiler, P.A.; Maxwell, A.J.; Puglia, C.; Nilsson, A.; Andersson, S.; Mårtensson, N. π* and σ* excitons in C 1s absorption of graphite. Phys. Rev. Lett. 1995, 74, 614–617. [Google Scholar] [CrossRef] [PubMed]
  48. Mane, J.M.; Le Normand, F.; Medjo, R.E.; Cojocaru, C.S.; Ersen, O.; Senger, A.; Laffon, C.; Sendja, B.T.; Biouele, C.M.; Ben-Bolie, G.H.; et al. Alignment of vertically grown carbon nanostructures studied by X-ray absorption spectroscopy. Mater. Sci. Appl. 2014, 5, 966–983. [Google Scholar] [CrossRef] [Green Version]
  49. Nyberg, M.; Luo, Y.; Triguero, L.; Pettersson, L.G.M.; Ågren, H. Core-hole effects in X-ray-absorption spectra of fullerenes. Phys. Rev. B 1999, 60, 7956–7960. [Google Scholar] [CrossRef]
  50. Wästberg, B.; Lunell, S.; Enkvist, C.; Brühwiler, P.A.; Maxwell, A.J.; Mårtensson, N. 1s X-ray-absorption spectroscopy of C60: The effects of screening and core-hole relaxation. Phys. Rev. B 1994, 50, 13031–13034. [Google Scholar] [CrossRef] [PubMed]
  51. Krummacher, S.; Biermann, M.; Neeb, M.; Liebsch, A.; Eberhardt, W. Close similarity of the electronic structure and electron correlation in gas-phase and solid C60. Phys. Rev. B 1993, 48, 8424–8429. [Google Scholar] [CrossRef] [PubMed]
  52. Haddon, R.C. Chemistry of the fullerenes: The manifestation of strain in a class of continuous aromatic molecules. Science 1993, 261, 1545–1550. [Google Scholar] [CrossRef]
  53. Haddon, R.C.; Brus, L.E.; Raghavachari, K. Electronic structure and bonding in icosahedral C60. Chem. Phys. Lett. 1986, 125, 459–464. [Google Scholar] [CrossRef]
  54. Fowler, P.W.; Woolrich, J. π-Systems in three dimensions. Chem. Phys. Lett. 1986, 127, 78–83. [Google Scholar] [CrossRef]
  55. Saito, S.; Oshiyama, A. Cohesive mechanism and energy bands of solid C60. Phys. Rev. Lett. 1991, 66, 2637–2640. [Google Scholar] [CrossRef]
  56. Chen, H.S.; Kortan, A.R.; Haddon, R.C.; Fleming, D.A. Thermodynamics of fullerene (C60) in pure oxygen, nitrogen and argon. J. Phys. Chem. 1992, 96, 1016–1018. [Google Scholar] [CrossRef]
  57. Wohlers, M.; Werner, H.; Belz, T.; Rühle, T.; Schlögl, R. C60: A host lattice for the intercalation of oxygen? Mikrochim. Acta 1997, 125, 401–406. [Google Scholar] [CrossRef]
  58. Ohno, T.R.; Chen, Y.; Harvey, S.E.; Kroll, G.H.; Weaver, J.H.; Haufler, R.E.; Smalley, R.E. C60 bonding and energy-level alignment on metal and semiconductor surfaces. Phys. Rev. B 1991, 44, 13747–13755. [Google Scholar] [CrossRef] [PubMed]
  59. Berezkin, V.I.; Viktorovskii, I.V.; Vul’, A.Y.; Golubev, L.V.; Petrova, V.N.; Khoroshko, L.O. Fullerene single crystals as adsorbents of organic compounds. Semiconductors 2003, 37, 775–783. [Google Scholar] [CrossRef]
  60. Erbahar, D.; Susi, T.; Rocquefelte, X.; Bittencourt, C.; Scardamaglia, M.; Blaha, P.; Guttmann, P.; Rotas, G.; Tagmatarchis, N.; Zhu, X.; et al. Spectromicroscopy of C60 and azafullerene C59N: Identifying surface adsorbed water. Sci. Rep. 2016, 6, 35605. [Google Scholar] [CrossRef] [Green Version]
  61. Yamamoto, S.; Bluhm, H.; Andersson, K.; Ketteler, G.; Ogasawara, H.; Salmeron, M.; Nilsson, A. In Situ X-ray photoelectron spectroscopy studies of water on metals and oxides at ambient conditions. J. Phys. Condens. Matter 2008, 20, 184025. [Google Scholar] [CrossRef] [Green Version]
  62. Henderson, M. The interaction of water with solid surfaces: Fundamental aspects revisited. Surf. Sci. Rep. 2002, 46, 1–308. [Google Scholar] [CrossRef]
  63. Hodgson, A.; Haq, S. Water adsorption and the wetting of metal surfaces. Surf. Sci. Rep. 2009, 64, 381–451. [Google Scholar] [CrossRef]
  64. Schiros, T.; Andersson, K.J.; Pettersson, L.G.M.; Nilsson, A.; Ogasawara, H. Chemical bonding of water to metal surfaces studied with core-level spectroscopies. J. Electron Spectrosc. Relat. Phenom. 2010, 177, 85–98. [Google Scholar] [CrossRef]
  65. Weissenrieder, J.; Mikkelsen, A.; Andersen, J.N.; Feibelman, P.J.; Held, G. Experimental evidence for a partially dissociated water bilayer on Ru{0001}. Phys. Rev. Lett. 2004, 93, 196102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Carrasco, J.; Hodgson, A.; Michaelides, A. A molecular perspective of water at metal interfaces. Nat. Mater. 2012, 11, 667–674. [Google Scholar] [CrossRef] [Green Version]
  67. Kimmel, G.A.; Matthiesen, J.; Baer, M.; Mundy, C.J.; Petrik, N.G.; Smith, R.S.; Dohnálek, Z.; Kay, B.D. No confinement needed: Observation of a metastable hydrophobic wetting two-layer ice on graphene. J. Am. Chem. Soc. 2009, 131, 12838–12844. [Google Scholar] [CrossRef]
  68. Sundar, C.S.; Bharathi, A.; Hariharan, Y.; Janaki, J.; Sankara Sastry, V.; Radhakrishnan, T.S. Thermal decomposition of C60. Solid State Commun. 1992, 84, 823–826. [Google Scholar] [CrossRef]
  69. Warren, B.E. X-ray diffraction in random layer lattices. Phys. Rev. 1941, 59, 693–698. [Google Scholar] [CrossRef]
  70. Franklin, R.E. The interpretation of diffuse X-ray diagrams of carbon. Acta Crystallogr. 1950, 3, 107–121. [Google Scholar] [CrossRef]
  71. Franklin, R.E. Crystallite growth in graphitizing and non-graphitizing carbons. Proc. R. Soc. Lond. A 1951, 209, 196–218. [Google Scholar] [CrossRef]
  72. Davydov, V.A.; Rakhmanina, A.V.; Agafonov, V.; Narymbetov, B.; Boudou, J.-P.; Szwarc, H. Conversion of polycyclic aromatic hydrocarbons to graphite and diamond at high pressures. Carbon 2004, 42, 261–269. [Google Scholar] [CrossRef] [Green Version]
  73. Petrenko, I.; Summers, A.P.; Simon, P.; Żółtowska-Aksamitowska, S.; Motylenko, M.; Schimpf, C.; Rafaja, D.; Roth, F.; Kummer, K.; Brendler, E.; et al. Extreme biomimetics: Preservation of molecular detail in centimeter-scale samples of biological meshes laid down by sponges. Sci. Adv. 2019, 5, eaax2805. [Google Scholar] [CrossRef] [Green Version]
  74. Kinoshita, K. Carbon: Electrochemical and Physicochemical Properties; Wiley: New York, NY, USA, 1988; ISBN 978-0-471-84802-8. [Google Scholar]
  75. Porezag, D.; Pederson, M.R.; Frauenheim, T.; Köhler, T. Structure, stability, and vibrational properties of polymerized C60. Phys. Rev. B 1995, 52, 14963–14970. [Google Scholar] [CrossRef] [PubMed]
  76. Moret, R.; Launois, P.; Wågberg, T.; Sundqvist, B.; Agafonov, V.; Davydov, V.A.; Rakhmanina, A.V. Single-crystal structural study of the pressure-temperature-induced dimerization of C60. Eur. Phys. J. B Condens. Matter Complex Syst. 2003, 37, 25–37. [Google Scholar] [CrossRef]
  77. Moret, R.; Launois, P.; Wågberg, T.; Sundqvist, B. High-pressure synthesis, structural and raman studies of a two-dimensional polymer crystal of. Eur. Phys. J. B Condens. Matter Complex Syst. 2000, 15, 253–263. [Google Scholar] [CrossRef]
  78. Davydov, V.A.; Kashevarova, L.S.; Rakhmanina, A.V.; Senyavin, V.M.; Céolin, R.; Szwarc, H.; Allouchi, H.; Agafonov, V. Spectroscopic study of pressure-polymerized phases of C60. Phys. Rev. B 2000, 61, 11936–11945. [Google Scholar] [CrossRef]
  79. Ferrari, A.C. Raman spectroscopy of graphene and graphite: Disorder, electron–phonon coupling, doping and nonadiabatic effects. Solid State Commun. 2007, 143, 47–57. [Google Scholar] [CrossRef]
  80. Sundqvist, B.; Edlund, U.; Jacobsson, P.; Johnels, D.; Jun, J.; Launois, P.; Moret, R.; Persson, P.-A.; Soldatov, A.; Wågberg, T. Structural and physical properties of pressure polymerized C60. Carbon 1998, 36, 657–660. [Google Scholar] [CrossRef]
  81. Han, S.; Yoon, M.; Berber, S.; Park, N.; Osawa, E.; Ihm, J.; Tománek, D. Microscopic mechanism of fullerene fusion. Phys. Rev. B 2004, 70, 113402. [Google Scholar] [CrossRef] [Green Version]
  82. Bagramov, R.; Serebryanaya, N.; Kulnitskiy, B.; Blank, V. C60 and C70 pressure-and-temperature transformations into fullerene-related forms. Fuller. Nanotub. Carbon Nanostruct. 2016, 24, 20–24. [Google Scholar] [CrossRef]
  83. Sing, M.; Soldatov, A.; Pichler, T.; Sundqvist, B.; Knupfer, M.; Golden, M.S.; Fink, J. Electronic structure studies of pressure-polymerized C60. Synth. Met. 1999, 103, 2454–2455. [Google Scholar] [CrossRef]
Applsci 11 11646 g002 550
Figure 2. XRD patterns of the pristine and HIP-treated at different temperatures fullerite C60. The vertical lines at the top indicate the HOPG diffraction peaks (002), (100) and (101).
Figure 2. XRD patterns of the pristine and HIP-treated at different temperatures fullerite C60. The vertical lines at the top indicate the HOPG diffraction peaks (002), (100) and (101).
Applsci 11 11646 g002
Applsci 11 11646 g003a 550Applsci 11 11646 g003b 550

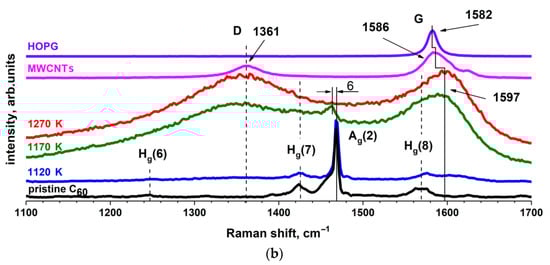

Figure 3. Raman spectra of the HOPG, MWCNTs, pristine and HIP-treated at different temperatures fullerite C60 over a wide spectral range (a) and in the region of 1100–1700 cm−1 (b).
Figure 3. Raman spectra of the HOPG, MWCNTs, pristine and HIP-treated at different temperatures fullerite C60 over a wide spectral range (a) and in the region of 1100–1700 cm−1 (b).
Applsci 11 11646 g003aApplsci 11 11646 g003b
Applsci 11 11646 g004 550
Figure 4. C 1s NEXAFS spectra of the HOPG, MWCNTs, pristine and HIP-treated at different temperatures fullerite C60. The arrow indicates the position of the fullerite C60 C 1s absorption edge (289.60 eV) [42]. The HOPG spectrum was obtained at the 40° grazing incidence angle of a linearly polarized SR beam on the sample surface.
Figure 4. C 1s NEXAFS spectra of the HOPG, MWCNTs, pristine and HIP-treated at different temperatures fullerite C60. The arrow indicates the position of the fullerite C60 C 1s absorption edge (289.60 eV) [42]. The HOPG spectrum was obtained at the 40° grazing incidence angle of a linearly polarized SR beam on the sample surface.
Applsci 11 11646 g004
Applsci 11 11646 g005 550
Figure 5. C 1s NEXAFS spectra of HOPG, MWCNTs and fullerite C60 HIP-treated at 1270 K, (a) normalized the π* peak maximum and (b) normalized to the photoabsorption cross section at the photon energy of 320 eV.
Figure 5. C 1s NEXAFS spectra of HOPG, MWCNTs and fullerite C60 HIP-treated at 1270 K, (a) normalized the π* peak maximum and (b) normalized to the photoabsorption cross section at the photon energy of 320 eV.
Applsci 11 11646 g005
Applsci 11 11646 g006 550
Figure 6. Survey XPS spectra of the fullerite C60 subjected to HIP treatment at 1270 K and subsequently exposed to air for a long time. The insets show C 1s and O 1s core-level XPS spectra.
Figure 6. Survey XPS spectra of the fullerite C60 subjected to HIP treatment at 1270 K and subsequently exposed to air for a long time. The insets show C 1s and O 1s core-level XPS spectra.
Applsci 11 11646 g006
Table
Table 1. Energy positions of absorption bands in C 1s NEXAFS spectrum of C60.
Table 1. Energy positions of absorption bands in C 1s NEXAFS spectrum of C60.
Peak Number1234567891011
Photon energy, eV284.50285.84286.43288.30290.91291.85292.93295.50297.50300.73~305.50
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sivkov, D.V.; Petrova, O.V.; Nekipelov, S.V.; Vinogradov, A.S.; Skandakov, R.N.; Bakina, K.A.; Isaenko, S.I.; Ob’edkov, A.M.; Kaverin, B.S.; Sivkov, V.N. The Formation of Nanoscale Closed Graphene Surfaces during Fullerite C60 Hot Isostatic Pressing. Appl. Sci. 2021, 11, 11646. https://doi.org/10.3390/app112411646

AMA Style

Sivkov DV, Petrova OV, Nekipelov SV, Vinogradov AS, Skandakov RN, Bakina KA, Isaenko SI, Ob’edkov AM, Kaverin BS, Sivkov VN. The Formation of Nanoscale Closed Graphene Surfaces during Fullerite C60 Hot Isostatic Pressing. Applied Sciences. 2021; 11(24):11646. https://doi.org/10.3390/app112411646

Chicago/Turabian Style

Sivkov, Danil V., Olga V. Petrova, Sergey V. Nekipelov, Alexander S. Vinogradov, Roman N. Skandakov, Ksenia A. Bakina, Sergey I. Isaenko, Anatoly M. Ob’edkov, Boris S. Kaverin, and Viktor N. Sivkov. 2021. "The Formation of Nanoscale Closed Graphene Surfaces during Fullerite C60 Hot Isostatic Pressing" Applied Sciences 11, no. 24: 11646. https://doi.org/10.3390/app112411646

APA Style

Sivkov, D. V., Petrova, O. V., Nekipelov, S. V., Vinogradov, A. S., Skandakov, R. N., Bakina, K. A., Isaenko, S. I., Ob’edkov, A. M., Kaverin, B. S., & Sivkov, V. N. (2021). The Formation of Nanoscale Closed Graphene Surfaces during Fullerite C60 Hot Isostatic Pressing. Applied Sciences, 11(24), 11646. https://doi.org/10.3390/app112411646

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
