Search Results (11)

In this study, commercial AZ31B magnesium alloy was used to compare the differences between the microstructure, texture, and mechanical properties of conventional solidification (as homogenized AZ31) and rapid solidification (as RS AZ31). The results demonstrate that a rapidly solidified microstructure leads to better performance after hot extrusion with a medium extrusion rate (6 m/min) and extrusion temperature (250 °C). The average grain size of as-homogenized AZ31 extruded rod is 100 μm after annealing and 4.6 μm after extrusion, respectively, but that of the as-RS AZ31 extruded rod is only about 5 μm and 1.1 μm, correspondingly. The as-RS AZ31 extruded rod attains a high average yield strength of 289.6 MPa, which is superior to the as-homogenized AZ31 extruded rod, and is improved by 81.3% in comparison. The as-RS AZ31 extruded rod shows a more random crystallographic orientation and has an unconventional weak texture component in <$11\overline{2}1$>/<$20\overline{2}1$> direction, which has not been reported yet, while the as-homogenized AZ31 extruded rod has an expected texture with prismatic <$10\overline{1}0$>/<$\overline{1}2\overline{1}0$>//ED. Full article

In this work, we investigate the impact of Bi addition on the heat resistance of as-extruded AZ31 alloy during high-temperature annealing and hot compression. Electron backscattered diffraction (EBSD) technique and quasi in situ scanning electron microscopy (SEM) are used to analyze the evolution of microstructures during high-temperature annealing and hot compression, respectively. The test results show that with a prolonged annealing time, the as-extruded AZB313 alloy exhibited a lower grain growth rate, due to the pinning effect of Mg₃Bi₂ phases distributed at grain boundaries. On the other hand, as the compressive temperature increased, the downtrend of strength is delayed in the as-extruded AZB313 alloy. Thermally stable Mg₃Bi₂ phases dispersed within the grains act as barriers, hindering the motion of dislocations, which not only provides a more effective precipitation strengthening effect, but also increases the resistance to deformation of grains. Moreover, grain boundary sliding can also be restricted by Mg₃Bi₂ phases located at grain boundaries. This work provides a new idea for the development of heat-resistant wrought Mg alloys. Full article

In order to control the grain size in thermomechanical processing, the grain growth behavior of hot extruded Mg–xAl–1Zn (x = 3, 6, 9) alloys and their relationship with second phase particles and solutes were investigated. The growth rate of AZ61 is greater than that of AZ31 and AZ91 at 300 °C, 350 °C, 400 °C, and 450 °C under isothermal annealing. The average grain growth exponents n of Mg–xAl–1Zn (x = 3, 6, 9) alloys were 2.26, 2.33, and 2.53 at 300–400 °C, respectively. The deviation from the theoretical value of 2 was attributed to the hindrance of grain boundary migration of Al-rich second phase particles and solute Al. Microscopic observations show that the grain size of the annealed samples is closely related to the shape, volume fraction, size, and distribution position of the second phase particles. Significantly, the pinning effect is stronger for lamellar and network-like second phase particles. In addition, the pinning effect of Al-rich second phase particles plays a more important role in grain refinement than the dragging of solute Al. The growth of abnormal grains in the microstructure is attributed to the high energy difference between the preferentially oriented $<11\overline{2}0>$ grains and the surrounding grains, which drives the grain boundaries to overcome the same pinning force of the second phase particles. Full article

Building a gradient structure inside the Mg alloy structure can be expected to greatly improve its comprehensive mechanical properties. In this study, AZ31/Mg–Sc laminated composites with gradient grain structure were prepared by hot extrusion. The microstructure and mechanical properties of the Mg–1Sc alloy with different extrusion temperatures and surface AZ31 fine-grain layers were investigated. The alloy has a more obvious gradient microstructure when extruded at 350 °C. The nanoscale hardness value of Mg–1Sc alloy was improved through fine-grain strengthening and solution strengthening of the surface AZ31 fine-grain layer. The strength of Mg–1Sc alloy was improved due to the fine-grain strengthening and dislocation strengthening of the surface AZ31 fine-grain layer, and the elongation of Mg–1Sc alloy was increased by improving the distribution of the microstructure. Full article

Biodegradable magnesium alloys are promising materials for application in medicine. The corrosion rate and type of corrosion are among the most important properties for this kind of materials. The fine-grained biodegradable alloys AZ31 (hot-rolled) and ZK60 (extruded) were studied in the present work with the use of in situ methods including the hydrogen evolution corrosion rate measurement and real-time surface observation as well as ex situ methods such as the weight loss assessment and the post-mortem examination by confocal laser scanning microscopy. The experimental methods included immersion test in SBF (0.9% NaCl aqueous solution) during 120 h with 37 °C with recirculating corrosion media. The hydrogen evolution was measured with a burette with a constant time interval of 1 hour. The real-time surface observation was carried out with a high-resolution camera. The measurement of pH level was done twice a day. Corrosion rate curves, 3D morphology of corroded morphology and video recordings showing evolution of corrosion damage have been obtained. As a result, ZK60 was found to be less corrosion-resistant and addicted to pitting corrosion, whereas AZ31 showed pronounced susceptibility to filiform corrosion. Full article

Graphene, as a rising-star materials, has attracted interest in fabricating lightweight self-lubricating metal matrix composites with superior mechanical and wear properties. In this work, graphene nanoplatelets (GNPs) reinforced AZ31 alloy composites were fabricated by a powder metallurgy technique and then a hot extrusion. The effects of GNPs content (0.5, 1.0, and 2.0 wt.%) on the microstructures, mechanical properties, and wear performance of the extruded GNPs/AZ31 composites were studied. It was found that the addition of GNPs resulted in a weakened basal plane texture and grain refinement of the AZ31 matrix metal. Less than 1.0 wt.% GNPs in GNPs/AZ31 composites resulted in the enhancement in both Vickers hardness and tensile yield strength with acceptable elongation. The Vickers hardness and tensile yield strength of 1.0GNPs/AZ31 composite increased by 4.9% and 9.5% respectively, compared with the unreinforced AZ31. Moreover, the elongation of the composites was about the same as the AZ31 base alloy. Both the friction coefficient and the wear mass loss continuously decreased with the increasing GNPs content, which exhibited a self-lubricating effect. The relationship of the friction coefficient and wear mass loss with the GNPs content could be modeled in terms of the Holliday model and the exponential decay model, respectively. The worn surface morphology revealed that adhesive wear and abrasive wear simultaneously acted in AZ31 alloy. Nevertheless, abrasive wear became the dominant wear mechanism in the GNPs/AZ31 composites. Full article

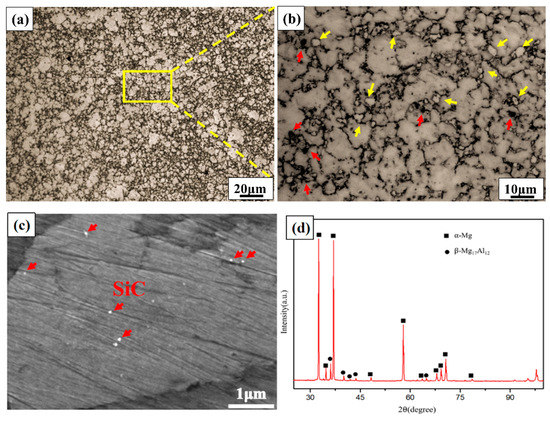

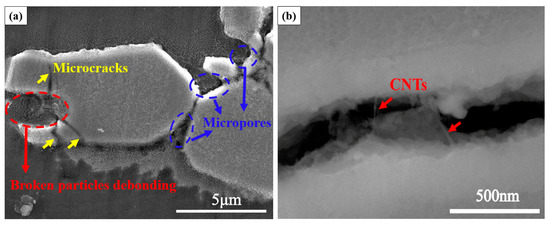

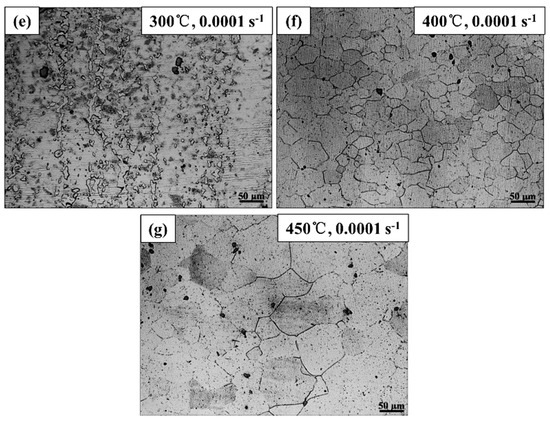

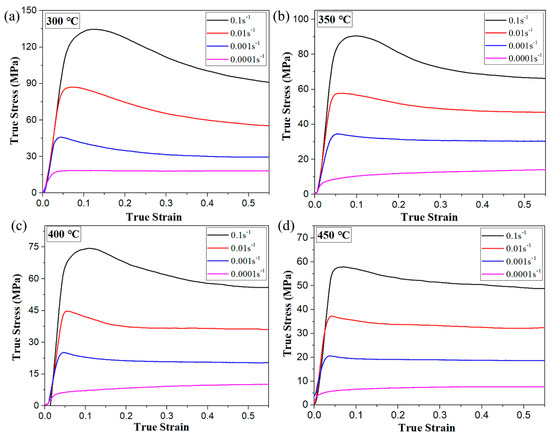

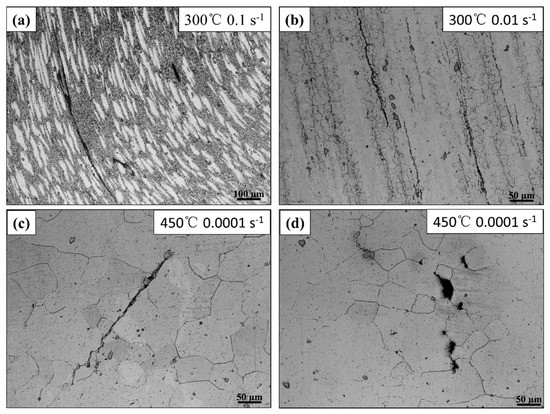

The hot deformation test of the nano silicon carbide (nano-SiC) and carbon nano tubes (CNT) hybrid-reinforced AZ80 matrix composite was performed at compression temperatures of 300–450 °C and strain rates of 0.0001–1 s⁻¹. It could be observed that the flow stress of the nanocomposite rose with the reduction of deformation temperature and the increase of strain rate. The hot deformation behaviors of the composite could be described by the sine-hyperbolic Arrhenius equation, and deformation activation energy (Q) was calculated to be 157.8 kJ/mol. The Q values of the extruded nanohybrid/AZ80 composite in this study and other similar studies on extruded AZ80 alloys were compared in order to analyze the effect of the addition of reinforcement, and the effects of deformation conditions on activation energy were analyzed. Finally, the compression microstructure in an unstable condition was carefully analyzed, and results indicated that the phenomenon of local instability was easy to occur at the compression specimen of the nanohybrid/AZ80 composite under deformation conditions of low temperature with high strain rate (300 °C, 0.1–0.01 s⁻¹), and high temperature with low strain rate (450 °C, 0.0001 s⁻¹). Full article

Microstructure evolution and mechanical properties of AZ80 Mg alloy during annular channel angular extrusion (350 °C) and heat treatment with varying parameters were investigated, respectively. The results showed that dynamic recrystallization of Mg grains was developed and the dendritic eutectic β-Mg₁₇Al₁₂ phases formed during the solidification were broken into small β-phase particles after hot extrusion. Moreover, a weak texture with two dominant peaks formed owing to the significant grain refinement and the enhanced activation of pyramidal <c + a> slip at relative high temperature. The tension tests showed that both the yield strength and ultimate tensile strength of the extruded alloy were dramatically improved owing to the joint strengthening effect of fine grain and β-phase particles as compared with the homogenized sample. The solution treatment achieved the good plasticity of the alloy resulting from the dissolution of β-phases and the development of more equiaxed grains, while the direct-aging process led to poor alloy elongation as a result of residual eutectic β-phases. After solution and aging treatment, simultaneous bonding strength and plasticity of the alloy were achieved, as a consequence of dissolution of coarse eutectic β-phases and heterogeneous precipitation of a large quantity of newly formed β-phases with both the morphologies of continuous and discontinuous precipitates. Full article

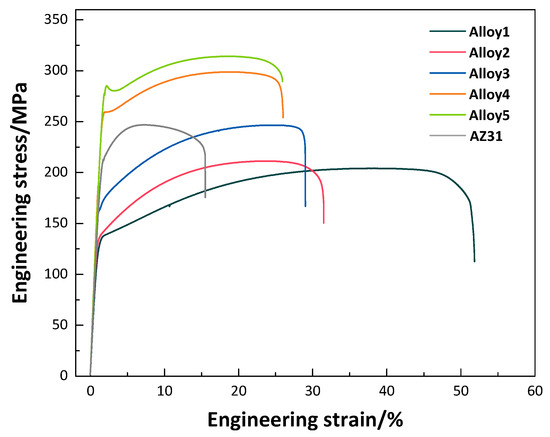

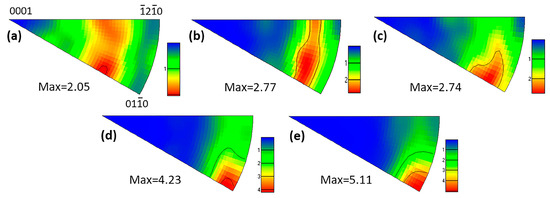

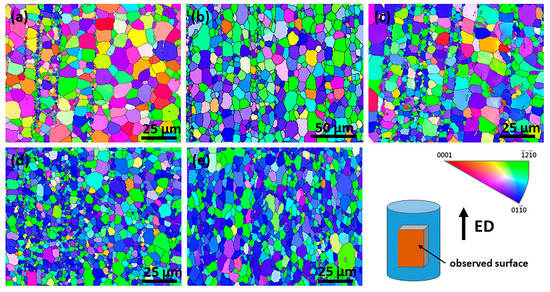

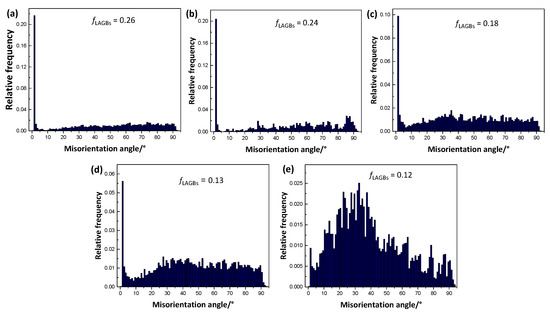

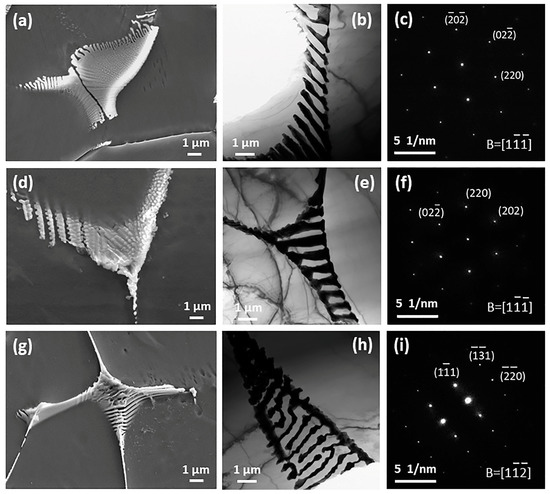

A newly developed Mg-2Gd-0.5Zr-xZn (x = 0.5, 1.0, 2.0, 3.0 wt %) alloy system exhibits significant strengthening by doping with Zn. In order to understand the strengthening mechanism, the microstructure, texture evolution, and mechanical properties of ultrahigh ductility Mg-2Gd-0.5Zr alloys with a Zn addition were systematically investigated. The addition of Zn results in the formation of Mg-Gd-Zn intermetallic compounds along grain boundaries, which encourages grain refinement during hot extrusion via the particle stimulated nucleation (PSN) mechanism. Furthermore, during texture sharpening the pole changes from <20 $\overline{2}$ 1> to <01 $\overline{1}$ 0>, which also occurred in the extruded alloys with Zn addition, which is unfavorable for the basal slip and tensile twinning. Mg-2Gd-0.5Zr-3Zn shows well-balanced strength and ductility with a tensile yield strength (YS) and ultimate tensile strength (UTS) of 285 and 314 MPa, accompanied by a high tensile elongation of 24%. They are superior to those of commercial AZ31. The enhanced strength is attributed to grain refinement, precipitation strengthening, and texture sharpening induced by alloying with Zn. The research result is also of great value to the development of low rare-earth, high strength, and high room temperature ductility magnesium alloy. Full article

Hot extruded (EX) AZ61 magnesium alloy was processed by the twist channel angular pressing (TCAP) method, which combines equal channel angular pressing (ECAP) and twist extrusion (TE) processes and significantly improves the efficiency of the grain refinement process. Both the initial hot extruded AZ61 alloy and the alloy after completion of TCAP processing were examined by using optical microscopy (OM), scanning electron microscopy (SEM), transmission electron microscopy (TEM) and electron backscatter diffraction (EBSD) and their corresponding micro-tensile testing (M-TT) and hardness testing at room temperature. The results showed that the microstructure of hot extruded alloy was refined well by TCAP due to dynamic recrystallization (DRX) caused by TCAP. The tensile properties, investigated by micro-tensile testing (M-TT), of the AZ61 alloy were significantly improved due to refined microstructure. The highest tensile properties including YS of 240.8 MPa, UTS of 343.6 MPa and elongation of 21.4% of the fine-grained alloy with average grain size below 1.5 µm was obtained after the third TCAP pass at 200 °C using the processing route B_c. Full article

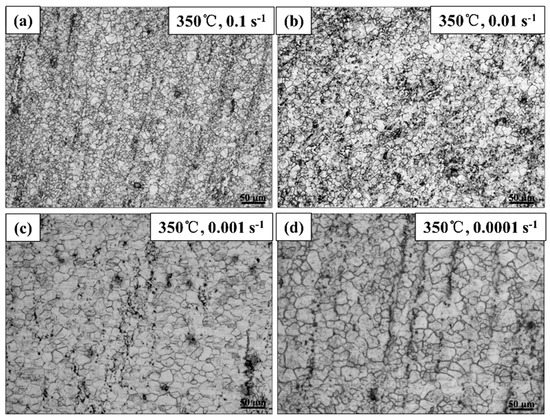

The hot deformation characteristics of AZ31 magnesium alloy rod extruded at temperatures of 300 °C, 350 °C and 450 °C have been studied in compression. The extruded material had a fiber texture with parallel to the extrusion axis. When extruded at 450 °C, the texture was less intense and the direction moved away from the extrusion axis. The processing maps for the material extruded at 300 °C and 350 °C are qualitatively similar to the material with near-random texture (cast-homogenized) and exhibited three dynamic recrystallization (DRX) domains. In domains #1 and #2, prismatic slip is the dominant process and DRX is controlled by lattice self-diffusion and grain boundary self-diffusion, respectively. In domain #3, pyramidal slip occurs extensively and DRX is controlled by cross-slip on pyramidal slip systems. The material extruded at 450 °C exhibited two domains similar to #1 and #2 above, which moved to higher temperatures, but domain #3 is absent. The results are interpreted in terms of the changes in fiber texture with extrusion temperature. Highly intense texture, as in the rod extruded at 350 °C, will enhance the occurrence of prismatic slip in domains #1 and #2 and promotes pyramidal slip at temperatures >450 °C (domain #3). Full article
