Search Results (9)

Four kinds of silicone hydrogel transparent contact lenses (CLs) with different formulations were prepared by the free radical photocuring polymerization. By mixing polyethylene glycol diacrylate (PEGDA) of 1000 Da with ethylene glycol dimethacrylate (EGDMA) and adding other silicone monomers and hydrophilic monomers, the transparency and flexibility of the material were successfully achieved. By optimizing the weight percentage of each component, the best balance of optical performance can be achieved. The photocuring properties of the materials were characterized by electronic universal test, double-beam UV-visible spectrophotometer, Atomic Force Microscope (AFM), Scanning Electron Microscope (SEM) and Fourier Transform Infrared Spectroscopy (FTIR). The results showed that the addition of higher PEGDA content reduces the elastic modulus, improves curing efficiency, improves equilibrium water content (EWC), and enhances light transmission. Hydrogels containing only high PEGDA but no EGDMA showed similar curing rates, water content, and elastic modulus, but had the worst optical transparency, far inferior to the materials mixed with PEGDA and EGDMA. Additionally, imaging performance of the CLs was further evaluated through simulation analysis using Ansys Zemax OpticStudio2024 software. This research provides a new choice of material consideration to improve the performance and wearing comfort of CLs. Full article

Aiming at developing a dermal formulation against melanoma, the synthesized imidazo-pyrazoles 2-phenyl-2,3-dihydro-1H-imidazo[1,2-b]pyrazole-7-carboxylic acid (3-methoxy-4-phenoxy-benzylidene)-hydrazide (4G) and 2-phenyl-2,3-dihydro-1H-imidazo[1,2-b]pyrazole-7-carboxylic acid (4-benzyloxy-3-methoxy-benzylidene)-hydrazide (4I) were screened on patient-isolated melanoma cells (MEOV NT) and on Vemurafenib (PLX4032)-resistant (MEOV PLX-R) ones. Since 4I on MEOV PLX-R cells was 1.4-fold more effective than PLX, a hydrogel formulation containing 4I (R4HG-4I) was prepared in parallel with an empty R4-based hydrogel (R4HG) using a synthesized antibacterial resin (R4) as gelling agent. Thanks to its high hydrophilicity, porosity (85%), and excellent swelling capability (552%), R4 allowed to achieve R4HG and R4HG-4I with high equilibrium degree of swelling (EDS) and equilibrium water content (EWC). Chemometric-assisted ATR-FTIR analyses confirmed the chemical structure of swollen and fully dried (R4HG-D and R4HG-4I-D) hydrogels. The morphology of R4HG-D and R4HG-4I-D was examined by optical microscopy and SEM, while UV–vis analyses were carried out to obtain the drug loading (DL%) and the encapsulation efficiency (EE%) of R4HG-4I. Potentiometric titrations were performed to determine the equivalents of NH₃⁺ in both R4HG and R4HG-4I. The swelling and water release profiles of both materials and related kinetics were assessed by equilibrium swelling rate and water loss studies, respectively, while their biodegradability over time was assessed by in vitro degradation experiments determining their mass loss. Rheological experiments established that both R4HG and R4HG-4I are shear-thinning Bingham pseudoplastic fluids with low yield stress, thus assuring easy spreadability in a future topical application. Release studies evidenced a sustained and quantitative release of 4I governed mainly by diffusion. Upon favorable results from further experiments in a more realistic 3D model of melanoma, R4HG-4I could represent a starting point to develop new topical therapeutic options to adjuvate the treatments of melanoma cells also when resistant to currently available drugs. Full article

This study investigated the performance of novel hydrogels based on poly (N-vinylformamide) (PNVF), copolymers of NVF with N-hydroxyethyl acrylamide (HEA) (P(NVF-co-HEA)), and 2-carboxyethyl acrylate (CEA) (P(NVF-co-CEA)), which were synthesized by photopolymerization using a UVLED light source. The hydrogels were analyzed for important properties such as equilibrium water content (%EWC), contact angle, freezing and non-freezing water, and diffusion-based in vitro release. The results showed that PNVF had an extremely high %EWC of 94.57%, while a decreasing NVF content in the copolymer hydrogels led to a decrease in water content with a linear relationship with HEA or CEA content. Water structuring in the hydrogels showed appreciably more variance, with ratios of free to bound water differing from 16.7:1 (NVF) to 1.3:1 (CEA), corresponding to PNVF having ~67 water molecules per repeat unit. The release studies of different dye molecules followed Higuchi’s model, with the amount of dye released from the hydrogels depending on the amount of free water and the structural interactions between the polymer and the molecule being released. The results suggest that PNVF copolymer hydrogels have potential for controlled drug delivery by altering the polymer composition to govern the amount and ratio of free to bound water contained in the hydrogels. Full article

Water pollution from dyes is harmful to the environment, plants, animals, and humans and is one of the most widespread problems afflicting people throughout the world. Adsorption is a widely used method to remove contaminants derived from the textile industry, food colorants, printing, and cosmetic manufacturing from water. Here, aiming to develop new low-cost and up-scalable adsorbent materials for anionic dye remediation and water decontamination by electrostatic interactions, two cationic resins (R1 and R2) were prepared. In particular, they were obtained by copolymerizing 4-ammonium methyl and ethyl styrene monomers (M1 and M2) with dimethylacrylamide (DMAA), using N-(2-acryloylamino-ethyl)-acrylamide (AAEA) as cross-linker. Once characterized by several analytical techniques, upon their dispersion in an excess of water, R1 and R2 provided the R1- and R2-based hydrogels (namely R1HG and R2HG) with equilibrium degrees of swelling (EDS) of 900% and 1000% and equilibrium water contents (EWC) of 90 and 91%, respectively. By applying Cross’ rheology equation to the data of R1HG and R2HG’s viscosity vs. shear rate, it was established that both hydrogels are shear thinning fluids with pseudoplastic/Bingham plastic behavior depending on share rate. The equivalents of -NH₃⁺ groups, essential for the electrostatic-based absorbent activity, were estimated by the method of Gaur and Gupta on R1 and R2 and by potentiometric titrations on R1HG and R2HG. In absorption experiments in bulk, R1HG and R2HG showed high removal efficiency (97–100%) towards methyl orange (MO) azo dye, fluorescein (F), and their mixture (MOF). Using F or MO solutions (pH = 7.5, room temperature), the maximum absorption was 47.8 mg/g in 90′ (F) and 47.7 mg/g in 120′ (MO) for R1, while that of R2 was 49.0 mg/g in 20′ (F) and 48.5 mg/g in 30′ (MO). Additionally, R1HG and R2HG-based columns, mimicking decontamination systems by filtration, were capable of removing MO, F, and MOF from water with a 100% removal efficiency, in different conditions of use. R1HG and R2HG represent low-cost and up-scalable column packing materials that are promising for application in industrial wastewater treatment. Full article

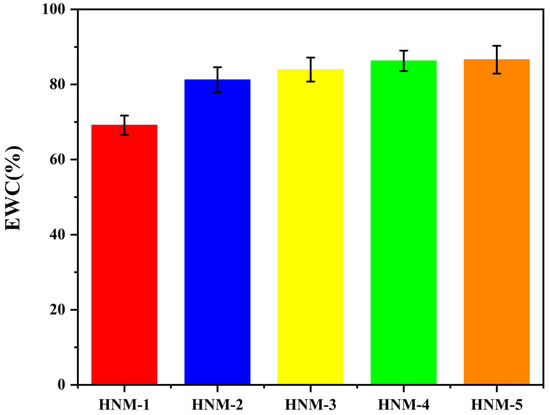

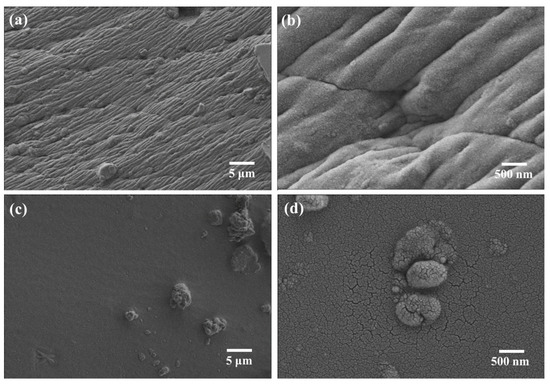

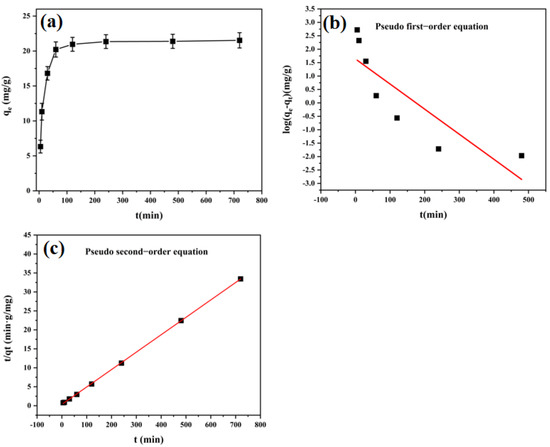

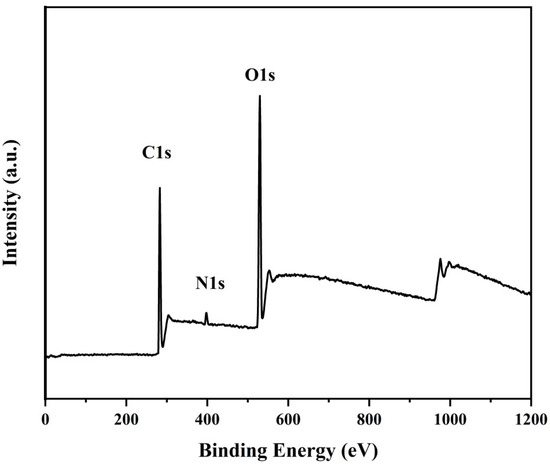

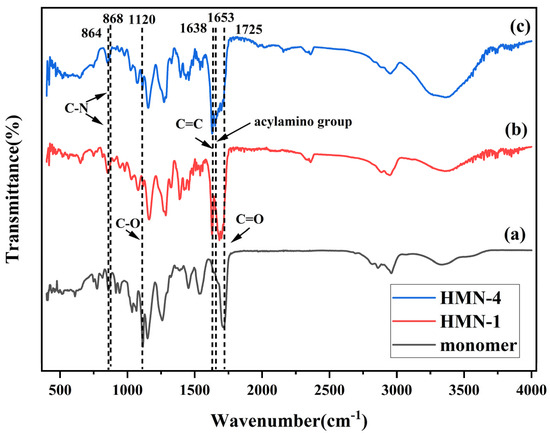

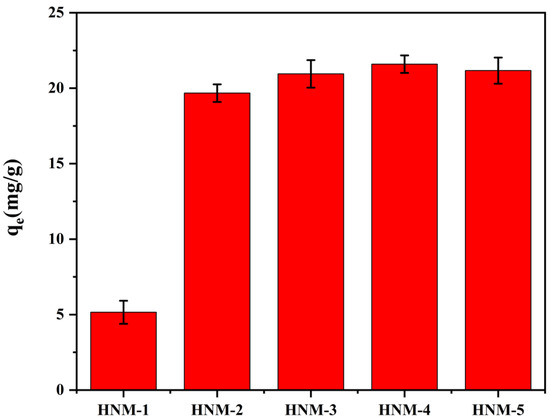

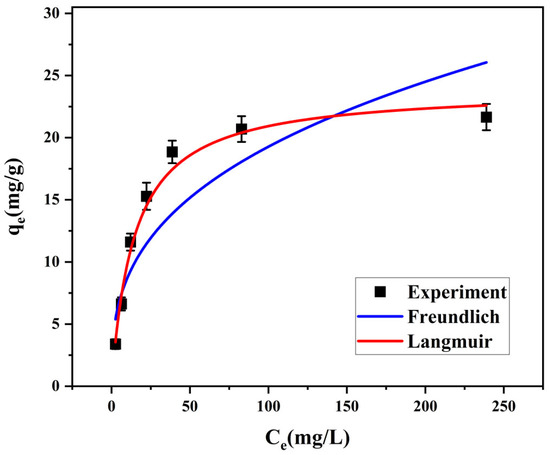

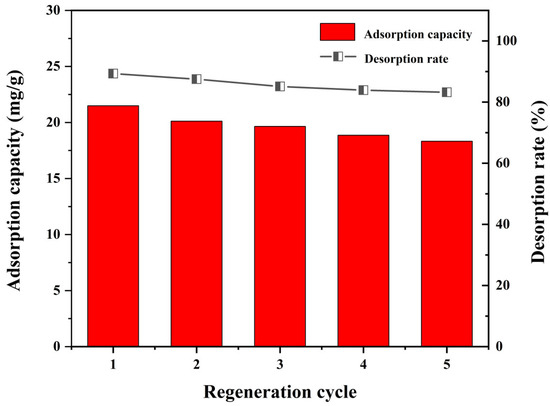

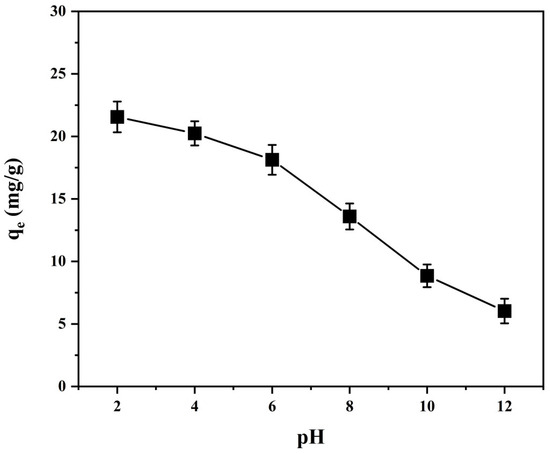

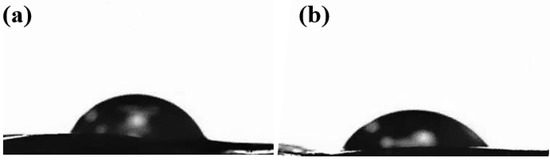

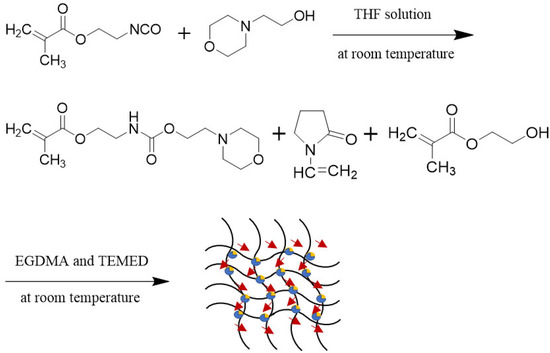

SO₄²⁻-containing compounds are widely present in wastewater generated from various industries and mining industries, such as slag leachate, pulp and paper wastewater, modified starch wastewater, etc. When the concentration of SO₄²⁻ is too high, it will not only be corrosive to metal equipment but also accumulate in the environmental media. Based on this, a novel cationic hydrogel HNM was synthesized in this study by introducing morpholine groups into the conventional hydrogel HEMA–NVP system for the adsorption of SO₄²⁻ in aqueous solutions. Characterizations by Fourier transform infrared (FTIR) spectroscopy and X-ray photoelectron spectroscopy (XPS) indicated that morpholine groups had been introduced into the as-synthesizedhydrogels. The scanning electron microscope (SEM) characterization results show that the introduction of morpholine groups changed the surface of the hydrogel from micron-scale wrinkles to nanoscale gaps, increasing the contact area with the solution. The results of static water contact angle (WCA), equilibrium water content (EWC), and SO₄²⁻ adsorption capacity show that the introduction of morpholine groups not only further improved the equilibrium water content and hydrophilicity of the hydrogel but also greatly improved the SO₄²⁻ adsorption capacity of the hydrogel, with the maximum SO₄²⁻ adsorption amount of 21.59 mg/g, which was much higher than that of the hydrogel without morpholine groups of 5.15 mg/g. Further studies found that the adsorption of SO₄²⁻ on the hydrogel HNM was pH-dependent, and acidic conditions were favorable for the adsorption. Therefore, the introduction of morpholine groups greatly enhanced the ability of conventional HEMA–NVP hydrogels to remove SO₄²⁻ from aqueous solutions. Full article

Here, to develop new topical antibacterial formulations to treat staphylococcal infections, two pyrazoles (3c and 4b) previously reported as antibacterial agents, especially against staphylococci, were formulated as hydrogels (R1-HG-3c and R1HG-4b) using a cationic polystyrene-based resin (R1) and here synthetized and characterized as gelling agents. Thanks to the high hydrophilicity, high-level porosity, and excellent swelling capabilities of R1, R1HG-3c and R1HG-4b were achieved with an equilibrium degree of swelling (EDS) of 765% (R1HG-3c) and 675% (R1HG-4b) and equilibrium water content (EWC) of 88% and 87%, respectively. The chemical structure of soaked and dried gels was investigated by PCA-assisted attenuated total reflectance (ATR) Fourier transform infrared (FTIR) spectroscopy, while their morphology was investigated by optical microscopy. Weight loss studies were carried out with R1HG-3c and R1HG-4b to investigate their water release profiles and the related kinetics, while their stability was evaluated over time both by monitoring their inversion properties to detect possible impairments of the 3D network and by PCA-assisted ATR-FTIR spectroscopy to detect possible structural changes. The flow and dynamic rheological characterization of the gels was assessed by determining their viscosity vs. shear rate, applying the Cross rheological equation to achieve the curves of shear stress vs. shear rate, and carrying out amplitude and frequency sweep experiments. Finally, their content in NH₃⁺ groups was determined by potentiometric titrations. Due to their favorable physicochemical characteristic and the antibacterial effects of 3c and 4b possibly improved by the cationic R1, the pyrazole-enriched gels reported here could represent new weapons to treat severe skin and wound infections sustained by MDR bacteria of staphylococcal species. Full article

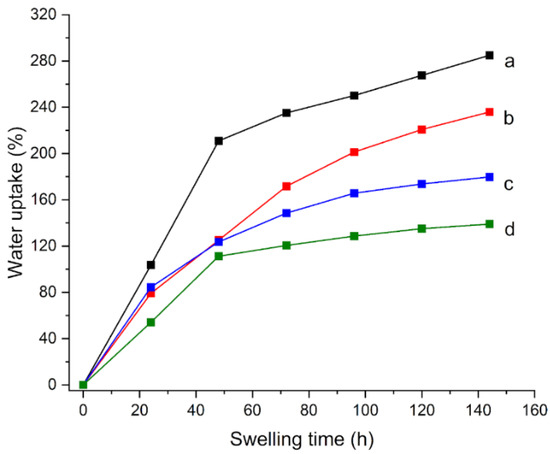

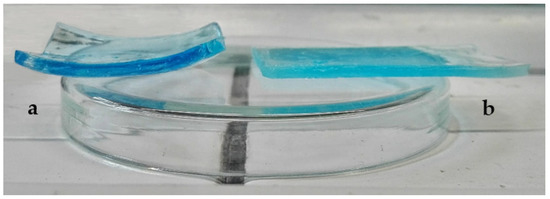

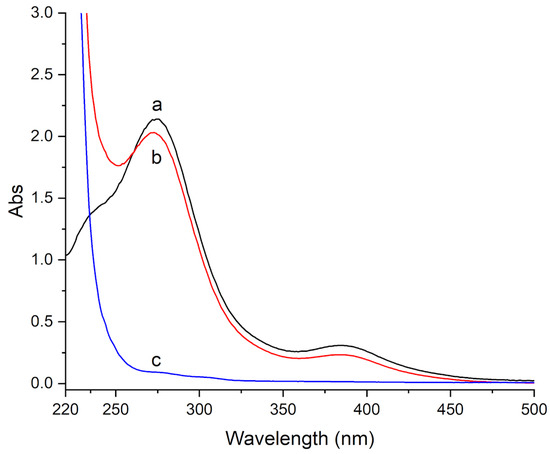

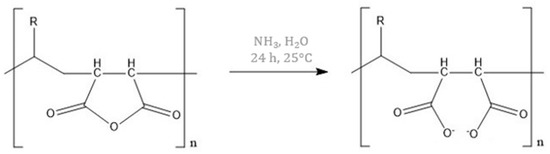

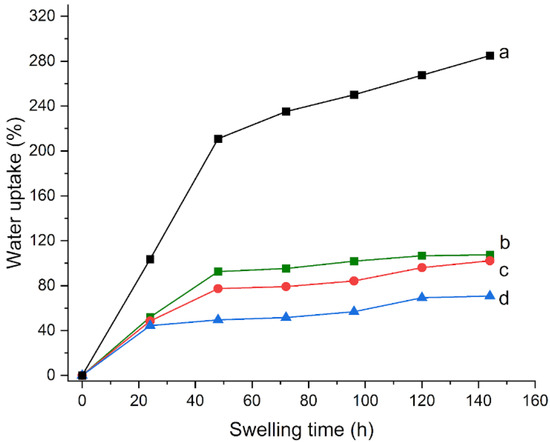

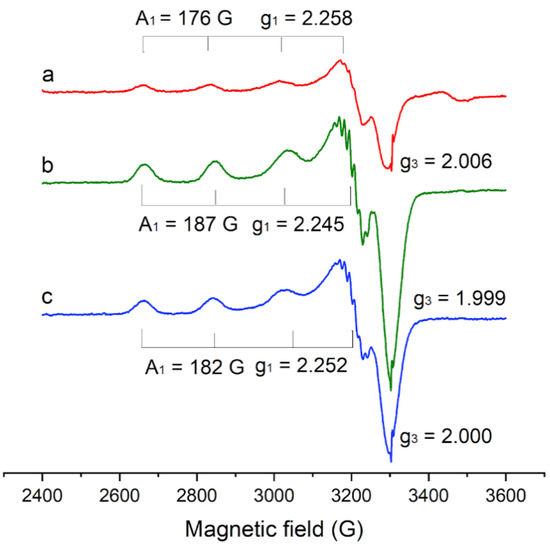

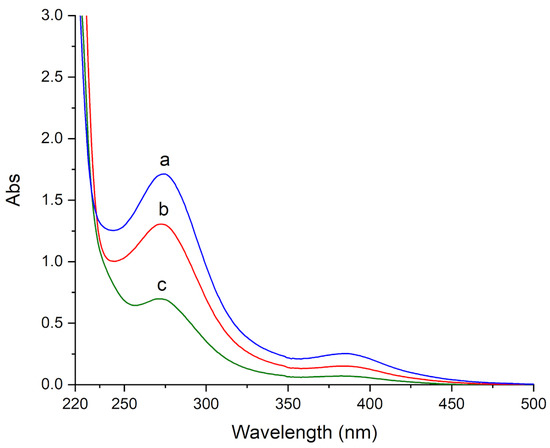

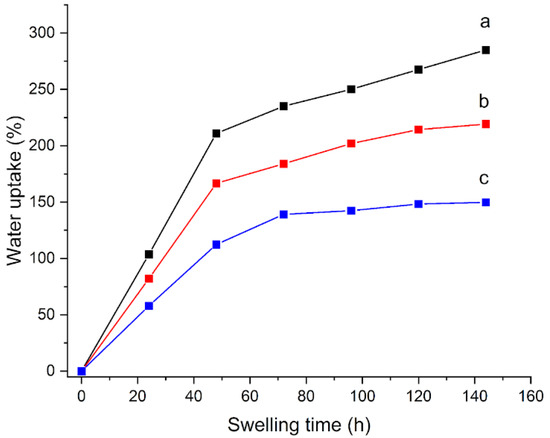

The synthesis of hydrogels that are based on poly-hydroxyethyl methacrylate, p(HEMA), network semi-interpenetrated with linear polyvinylpyrrolidone (PVP) was optimized in order to allow both a fast preparation and a high cleaning effectiveness of artistic surfaces. For this purpose, the synthesis parameters of the gel with PVP having a high molecular weight (1300 kDa) that were reported in the literature, were modified in terms of temperature, time, and crosslinker amount. In addition, the gel composition was modified by using PVP with different molecular weights, by changing the initiator and by adding maleic anhydride. The modified gels were characterized in terms of equilibrium water content (EWC), water uptake, conversion grade, and thermal properties by differential scanning calorimetry (DSC). The cleaning effectiveness of the gels was studied through the removal of copper salts from laboratory-stained specimens. Cleaning materials were characterized by electron paramagnetic resonance (EPR) spectroscopy, ultraviolet-visible (UV-Vis) spectroscopy, and inductively-coupled plasma-mass spectrometry (ICP-MS). Cleaning was assessed on marble specimens by color variation measurements. The gel synthesis is accelerated by using PVP 360 kDa. The addition of maleic anhydride in the p(HEMA)/PVP network allows the most effective removal of copper salt deposits from marble since it acts as a chelator towards copper ions. Full article

Chronic wounds are characterized by both decreased collagen deposition and increased collagen breakdown. It is reasonable to hypothesize that exogenous collagen can potentially promote wound healing by reducing degradation enzymes in the wound environment and disrupting the cycle of chronicity. Therefore, this study aimed to develop an optimal combination of fish collagen (FCOL), sodium alginate (SA), and hyaluronic acid (HA) loaded with bovine serum albumin (BSA) as a model protein fabricated as lyophilized scaffolds. The effects of sodium alginate (SA#) with higher mannuronic acid (M) were compared to sodium alginate (SA*) with higher guluronic acid (G). The SA* with higher G resulted in elegant scaffolds with hardness ranging from 3.74 N–4.29 N that were able to withstand the external force due to the glycosidic bonds in guluronic acid. Furthermore, the high G content also had a significant effect on the pore size, pore shape, and porosity. The water absorption (WA) ranged from 380–1382 (%) and equilibrium water content (EWC) 79–94 (%) after 24 h incubation at 37 °C. The SA* did not affect the water vapor transmission rate (WVTR) but incorporating BSA significantly increased the WVTR making these wound dressing scaffolds capable of absorbing about 50% exudate from a heavily exuding chronic wound. The protein released from the composite systems was best explained by the Korsmeyer–Peppas model with regression R² values ranging from 0.896 to 0.971 and slope or n < 0.5 indicating that the BSA release mechanism was governed by quasi-Fickian diffusion. Cell viability assay showed that the scaffolds did not inhibit the proliferation of human dermal fibroblasts and human epidermal keratinocytes, and are therefore biocompatible. In vitro blood analysis using human whole blood confirmed that the BSA-loaded SA*:FCOL:HA scaffolds reduced the blood clotting index (BCI) by up to 20% compared to a commercially available sponge for chronic wounds. These features confirm that SA*:FCOL:HA scaffolds could be applied as a multifunctional wound dressing. Full article

Novel polyethylene oxide (PEO) hydrogel films were synthesized via UV crosslinking with varying concentrations of pentaerythritol tetra-acrylate (PETRA) as crosslinking agent. The aim was to study the effects of the crosslinking agent on the material properties of hydrogel films intended for dermatological applications. Fabricated film samples were characterized using swelling studies, scanning electron microscopy, tensile testing and rheometry. Films showed rapid swelling and high elasticity. The increase of PETRA concentration resulted in significant increase in the gel fraction and crosslinking density (ρ_c), while causing a significant decrease in the equilibrium water content (EWC), average molecular weight between crosslinks (({overline{M}}_{c})), and mesh size (ζ) of films. From the scanning electron microscopy, cross-linked PEO hydrogel network appeared as cross-linked mesh-like structure with interconnected micropores. Rheological studies showed PEO films required a minimum of 2.5% w/w PETRA to form stable viscoelastic solid gels. Preliminary studies concluded that a minimum of 2.5% w/w PETRA is required to yield films with desirable properties for skin application. Full article
